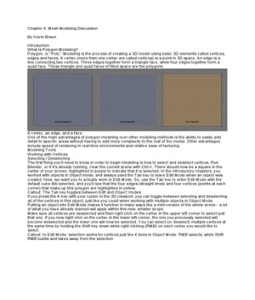

Chapter 4: Mesh Modeling Discussion

By Kevin Braun

Introduction
What is Polygon Modeling?
Polygon, or "Poly," Modeling is the process of creating a 3D model using basic 3D elements called vertices,
edges and faces. A vertex (more than one vertex are called vertices) is a point in 3D space. An edge is a
line connecting two vertices. Three edges together form a triangle face, while four edges together form a
quad face. Those triangle and quad faces of filled space are the polygons.

A vertex, an edge, and a face.

One of the main advantages of polygon modeling over other modeling methods is the ability to easily add
detail to specific areas without having to add more complexity to the rest of the model. Other advantages
include speed of rendering in real-time environments and relative ease of texturing.
Modeling Tools
Working with Vertices
Selecting / Deselecting
The first thing you'll need to know in order to begin modeling is how to select and deselect vertices. Run
Blender, or if it's already running, clear the current scene with Ctrl-X. There should now be a square in the
center of your screen, highlighted in purple to indicate that it is selected. In the introductory chapters, you
worked with objects in Object mode, and always used the Tab key to leave Edit Mode when an object was
created. Now, we want you to actually work in Edit Mode. So, use the Tab key to enter Edit Mode with the
default cube still selected, and you'll see that the four edges (straight lines) and four vertices (points at each
corner) that make up this polygon are highlighted in yellow.
Callout: The Tab key toggles between Edit and Object modes.
If you press the A-key with your cursor in the 3D viewport, you can toggle between selecting and deselecting
all of the vertices in this object, just like you could when working with multiple objects in Object Mode.
Putting an object into Edit Mode makes it function in many ways like a mini-version of the whole scene - a lot
of what you have already learned will apply within this new, smaller scope.
Make sure all vertices are deselected and then right click on the vertex in the upper left corner to select just
that one. If you now right click on the vertex in the lower left corner, the one you previously selected will
become deselected and the lower one will now be selected. You can select (or deselect) multiple vertices at
the same time by holding the Shift key down while right clicking (RMB) on each vertex you would like to
select.
Callout: In Edit Mode, selection works for vertices just like it does in Object Mode: RMB selects, while Shift-
RMB builds and takes away from the selection.
Deleting
The next thing you'll need to know is how to delete a vertex. First you'll want to get a good look at all the
vertices that are in this object. By pressing Numpad-5 you can toggle your view between Perspective and
Orthographic view (see Chapter 2 for more on the difference). Switch over to perspective view and use the
techniques you just learned to select all of the vertices except the one in the upper-most left corner and then
press the Delete key (or the X-key). A menu will appear with a number of different options - this is where
things start to differ from object mode. Choose "Vertices" from the menu to delete the vertices that you have
selected. You may notice that a side effect of deleting the vertices is that the edges and faces are also
deleted. This is because the faces are made up of edges and the edges are made up of the vertices you just
deleted. Removing the vertices necessarily removed the other things they had built. If you had chosen
"Edges" or "Faces" from the Delete menu you could have removed only the edges or faces respectively,
leaving the vertices in place, but unconnected.
Callout: X-key or Delete key brings up the delete menu, allowing you remove vertices, edges or faces.
Ortho: Orthographic view.

Perspective: Perspective view.

Moving
At this point you'll want to move the remaining vertex closer to the middle of the screen so you can begin
working with it. To do this you'll need to select it, then press the G-key to "Grab" it. Once you press the G-
key the vertex will move to follow the movements of your mouse, just like an entire object would in Object
Mode. Move the vertex near the center of the screen and press the LMB to place the vertex and confirm the
translation. Of course, the keyboard constraints that you learned in the Object chapter also apply here:
hitting the X, Y or Z-keys will constrain vertex movement to that axis. Pressing them twice uses the
alternative transformation space as defined on the 3D header.
Callout: Transform keys in Edit Mode carry over from Object Mode: G-key (Grab), S-key (Scale), and R-key
(Rotate), as well as axis constraint shortcuts, transformation manipulators and mouse gestures.
Exact Positioning
Using the G-key is a great way to move things as long as you don't need to be precise. In fact, most of your
modeling will be done using this method. However, there are times when you'll need exact positioning. To
achieve that kind of precision in Blender you'll use the "Transform Properties" panel. To access the
transform properties dialog make sure you have something selected (the remaining vertex in this case) and
press the N-key.

The
Transform Properties panel.
In the Transform Properties panel you'll see that you have a number of different options. Here you can
rename your object by modifying the text in the "OB:" text field (the object in the example is named "Cube"),
or place the object exactly where you want it by modifying the numbers in the various X, Y and Z text fields.
To place the vertex in the exact center of the 3D workspace hold the Shift-key and click the LMB in the
"Vertex X:" spinner control. This makes the field instantly editable. Type the number "0" and press Enter. To
complete the process, repeat these steps for the "Vertex Y:" and "Vertex Z:" fields. For faster access to the
Y and Z controls, you can simply hit the Tab key when you've entered your value in the X control. When
entering values into fields in Blender, the Tab key functions much like it does in other programs you might be
familiar with, taking you to the next text field.
Callout: N-key brings up the transform properties panel for numeric positioning.
The Extrude Tool
A vertex by itself will not show up in a render. So what can we do with vertices? Combine them into edges
(which still don't show up in a render) and then into faces. Faces render. There are several ways to create
edges from a vertex.
The easiest way is to extrude the vertex. Extrusion is simply taking one thing, like a circle, and extending it
into space. Extruding a circle into space creates a cylinder. Extruding a square creates a box. Extruding a
vertex in Blender will create another vertex and an edge that links them. To do this, make sure the vertex is
selected and press the E-key. Now move the mouse around and you'll notice that you are moving another
vertex, and that an edge attaches the two vertices like a string. To place the new vertex where you want,
press the LMB. To add some precision to your placement you can hold the Ctrl-key while moving the vertex
and it will "Snap to" the nearest increment in Blender units. Of course, you could also use the Transform
properties dialog.
Callout: E-key extrudes vertices, edges and faces in space.
If you need to create a whole chain of vertices, there is a simpler workflow than using the E-key for extrude.
With a vertex selected, clicking with Ctrl-LMB in the 3D view creates a new vertex at the location of the click,
selects it and links it with an edge to the original vertex. By holding down the Ctrl key and LMB clicking
repeatedly, you can quickly build a chain of vertices linked by edges. This fast extrusion feature will actually
work with any mesh selection: vertices, edges or faces.
Callout: Ctrl-LMB will automatically extrude the current selection to the point of the mouse click.
Another easy way to create an edge is to duplicate a vertex by selecting a vertex and pressing Shift-D. After
using the LMB to place the duplicated vertex, Shift-RMB selecting the original and pressing the F-key will
create an edge between them.
Removing Extra Vertices
There are many cases where you may end up with vertices that occupy nearly the same space. You may
have imported a mesh model from a CAD program that has portions of the mesh duplicated in the same
spot as the original. You may be trying to join two parts of a mesh into one, scaling vertices toward each
other until they occupy the same point. In any of those cases, you need to remove the extra vertices and join
the edges and faces that they help to define.
To remove extra vertices and join the edges and faces that they build, select the vertices in question and
press the W-key, choosing "Remove Doubles" from the popup menu that appears. Remove Doubles works
with a distance threshold value, adjustable in the Mesh Tools panel of the Edit buttons (F9) with the Limit
spinner, so you can, for example, select all vertices in the entire mesh and use the function without fear that
it will remove all but one of your vertices.
In the illustrations, you see two halves of a cube, separated, then with the vertices scaled together.
Figure PMD.045.1, .2: [no text]
Although the vertices occupy the same space, the edges and faces they build are not connected, and will
render with ugly lines at the gaps. As you can see in the next illustration, the vertices are still independent,
and can be selected and moved apart from each other.
Figure PMD.045.3: [no text]
Once the vertices of the cube have been selected and the Remove Doubles function has been used, the
vertices are merged into one, and the edges and faces they build are now truly connected.
Figure PMD.045.4: With the vertices joined into one, the two halves are now one continuous mesh.
Callout: Remove Doubles, from the W-key specials menu and Mesh Tools buttons, merges vertices that are
very close together.
A common technique is also highlighted in the next example. When trying to get vertices close together for a
merge, it is often easier to use the Scale command (S-key), scaling them down to 0 with the help of the Ctrl
key, than it is to move one (G-key) and trying to line it up with the other on screen.
Working with an Edge
With edges, the same rules and methods that you have learned with vertices apply, plus more. You might be
wondering why working with an edge (or face) is important since you already know how to work with
vertices. By being able to work with all three, you will be able to take full advantage of Blender's tool set and
learn to work as efficiently as possible.
Selecting
Blender has tools made just for selecting edges. To activate Edge select mode, click the icon on the 3D
header that looks like a diagonal line. It's between the Vertex select (four dots) and Face select (triangle)
icons. Once Edge select is activated, you'll be able to RMB click anywhere along the edge to select it. To
select multiple edges, you can hold the Shift key while RMB clicking on other edges.

Blender also has tools for selecting multiple edges. Under the Select menu on the 3D header, you'll see the
Edge ring and Edge loop options. These can be used to easily select complex groups of interrelated edges,
and are especially useful when working with character models.
In the case of this head model, Alt-RMB selects the loop of edges that runs around the mouth, giving the
modeler easy access to this crucial area. Also, Ctrl-Alt-RMB will select the corresponding ring of edges, in
case the modeler would want to cut a new loop of edges through them to add, say, a crease to the face.
Edge loop selected around the mouth.
Edge ring selected around the mouth.
Callout: Alt-RMB selects an Edge Loop; Ctrl-Alt-RMB selects an Edge Ring.
Working with Faces
Creating a Face
Faces are created with a selection and the F-key. To create a face, you need to have either three or four
vertices selected (three will build a triangle face, four will build a quad face), or two edges.
Figure PMD.08: Pressing the F-key to create a triangle face and quad face from vertices, and a quad face
from two edges.
Callout: F-key creates a face from three or four selected vertices or two selected edges.
Selecting
As with anything else in Blender, the quickest way to select faces is to switch over to Face Select mode and
use the RMB. The Face Select mode button is to the right of the Edge Select mode button on the 3D header
and has a triangle as its icon. Another way to change select modes is by pressing the Ctrl-Tab keys. You'll
get a menu that allows you to choose your select mode without having to use the icons.
Adding Detail to a Mesh
If you are constructing a model and you find that you need more detail in a certain area, one way to achieve
this is to "subdivide" the face (or faces) that you are working with. Subdivision cuts a face into four new
faces that take up the same space as the previous single one did. To subdivide a face, make sure you have
one selected, then click the Subdivide button on the Mesh Tools panel in the Edit buttons. Subdivide can
also be found in the Specials menu by pressing the W-key.
A triangle and quad face, before and after subdivision.
You'll see that there are some other subdivision options in the Specials menu. The "Subdivide Multi" option
allows you to perform more than a single slice at once on the selected faces, and is quicker than selecting
"Subdivide" many times in a row. "Subdivide Multi Fractal" does basically the same thing, but moves the
resulting extra vertices around randomly. It's great for creating terrain, or any surface that needs to have a
rough, random mesh. Immediately below that on the menu is "Subdivide Smooth", which will not only
subdivide the selected portions of a mesh, but will simultaneously attempt to smooth out all edges created
by the process.
The W-key Specials menu with Subdivide Multi selected.
Another way to add detail is to use the Knife tool. This tool allows you to cut Edges by drawing with the
mouse. The best way to see how this works is to select all the vertices in a subdivided square and press
Shift-K to bring up the Knife subdivide menu. From the menu, choose "Midpoints" and the cursor will change
to a knife icon. Press and hold the LMB, drawing a line that intersects several of the edges that make up the
square. When you are finished, press the Enter key, and Blender will cut each edge that your line crossed,
placing vertices at their centers and creating some new faces in the process. The "Exact" function of the
Knife tool cuts the edges exactly where the mouse crosses them, as opposed to their centers.
Callout: Shift-K brings up the Knife tool for cutting faces and edges into parts.
Knife cut tool before pressing Enter to activate the cut, and showing the result.
Filling
Up until now you've been looking at fairly regular shapes. Let's examine a random shape and see how
Blender helps to organize it into a group of faces that you can work with by using the Fill and Beauty Fill
tools.
Take a look at the graphic below:
A shape made of edges, but not filled with faces.
You could start to select sets of vertices or edges and use the F-key to build faces for this outline one at a
time. A faster (though messier) way is to simply select all of the vertices with the A-key and press Shift-F to
use Blenders Fill tool. Blender will fill the shape with the appropriate number of faces. This method doesn't
always create the cleanest models, though, so once the shape is filled, Blender's Beauty Fill tool can help to
clean things up.
The shape filled with faces by using the Shift-F fill command.
With all of the vertices in the shape selected, press Alt-F to activate the Beauty Fill function, and Blender will
attempt to clean up the model.
The faces rearranged more pleasingly with Beauty Fill.
If you need to clean things up even further, you can even have Blender attempt to join triangles into quads
with either the "Convert Triangles to Quads" command from the Mesh menu's Edges section, or use the Alt-
J hotkey.
Any triangles that can be converted to quads have been.
Callout: Shift-F attempts to fill an area of selected vertices or edges with faces. Alt-F attempts to make a
nicer arrangement of faces. Alt-J will convert available triangles into quads.
Subsurf
Up to this point you've only worked on models and objects with sharp edges. When rendered, the models
look just like they did in Edit Mode. That would be fine if you only modeled machines or other artificial
objects. However, if you tried to model an organic shape or something like a perfectly smooth circle using
the methods we've gone over so far, it would take a lot of vertices, exacting placement and a lot of time.
That wouldn't be an efficient use of your time and would make your computer work very hard when it came
time to render.
Fortunately, Blender has a tool made just for this type of modeling called the Subsurf modifier. Subsurf is
short for a process called Subdivision Surfacing. In Subdivision Surfacing, a simple low-polygon model (like
the default cube) can be used as a "control cage" for a more complex organic model like a ball.
To add a Subsurf modifier to a mesh object, first make sure the object is selected in the 3D view. From the
Modifiers panel in the Edit buttons, click the "Add Modifier" button, then choose "Subsurf" from the resulting
menu.
The Subsurf modifier panel.
A cube, with progressive levels of subsurfing.
The default setting is 1 level of subsurfing for both editing and rendering. These values can be changed in
the modifier panel, but be careful: subsurfing actually has Blender create extra geometry behind the scenes.
Turning levels up too high, especially on models that are complex to begin with, can quickly have your
computer trying to perform calculations for millions of polygons, and can bring your system to a crawl.
To keep things working better while you model, you can set the subsurfing level for the interface and the
renderer separately. Setting the subsurf Levels control to 2 will probably give you a good balance for most
work. Try rendering your subsurfed model with Render Levels set to 2 as well. If the results are not smooth
enough, increase the value in Render Levels one at a time until they are.
The real value of Blenders Subsurf tools becomes evident when working on a more complex organic model
like a human head. The only difference between these two illustrations is that the second has a Subsurf
modifier applied to it.
A head model before and after the Subsurf modifier.
Adding a Subsurf modifier is such a common practice in Blender that there is a direct hotkey for it: Shift-O.
Shift-O will add Subsurf modifiers to any selected objects that are currently in Object mode. Furthermore,
using Ctrl-1 through Ctrl-4 will set the Subsurf levels for those objects, making it possible to manage your
Subsurfing for an entire Scene without ever touching the Edit buttons' modifier panel.
Callout: The Add Modifier button in the Modifiers panel of the Edit buttons lets you make a standard mesh
into a Subsurfaced subdivision mesh.
Working with Normals
Understanding the Normal
There is one last element of a polygon model in Blender that you'll need to understand before you finish.
That element is called a Surface Normal, or Normal for short. Its function is to tell Blender (and the user)
which direction a Face is pointing, and to help calculate how light behaves when reflected off of your model.
Sometimes when working on a complex model it is possible to end up with adjacent faces whose normals
are pointing in opposite directions. This can cause undesirable results so it's best to make sure they are all
pointing where you want them.
The illustration below shows the default cube with "Draw Normals" activated. The "Draw Normals" button is
found in the "Mesh Tools 1" panel of the edit buttons. (In the default configuration of Blender, this panel is
actually scrolled off the right side of the screen on most monitors. MMB drag to the left in the Edit buttons
area to bring it into view.) You can also change the length of the line that indicates the direction of the
normal by changing the value in the "NSize" field just above the Draw Normals button.
The default cube with its normals showing.
With Draw Normals activated, small teal lines stick out of each face in your model. These lines represent the
direction the Normal is facing. Pressing the W-key and selecting "Flip Normals" from the Specials menu
changes the direction of the normals of any selected faces. If you have a model with "normal problems", i.e.
strange black seams in solid mode and render, you can force Blender to recalculate all normals to face the
outside of the model by selecting everything in Edit Mode, and pressing Ctrl-N. Pressing Ctrl-Shift-N will set
all of the normals to point toward the inside of the model.
Callout: Ctrl-N recalculates the normals of a model.
Tips and Additional Tools
Now you know the basics of how Blender handles the various tasks related to polygon modeling. Let's
conclude this introduction with some tips that will give you a little more power.
Vertex Groups
Vertex Groups allow you to save selections of vertices, so that later you can reselect them easily. This is
useful when creating complex models that may need adjustment later. For example: when working on a
face, if you find that you are constantly selecting the same group of vertices around the nose, it would make
sense to save that selection for easy access. It's important to understand that the selected vertices haven't
actually been "put" into a group, though. Vertex groups just contain lists of vertices. So, there is no reason
that a vertex cannot be listed in several different vertex groups.
Vertex Groups are created in the "Links and Materials" panel of the Edit buttons, in the Vertex Groups
section of buttons. With your selection of vertices made as you like, press the "New" button in the Vertex
Groups panel. Some new controls will appear, including a naming field and popup menu button for choosing
other, already created vertex groups.
The Vertex Group controls.
The default name for the first vertex group created is simply "Group", but can be replaced with something
that will help you to remember its contents better. Once you have entered a name, click the "Assign" button
to assign the selected vertices to the named group. Remember that simply clicking the "New" button only
creates an empty vertex group - your selection will not be saved into it until you click the "Assign" button.
The other controls in that part of the panel do the following:
Delete: Deletes the named vertex group. Note that this does not delete the vertices, it just removes the
saved selection.
Remove: Removes the selected vertices from the currently active vertex group.
Select: Examines the named vertex group and selects its vertices in the 3D view. This is an additive
selection, so anything that was already selected in the 3D view remains selected.
Desel.: The opposite of Select. Any vertices that are selected in the 3D view, but are in the named vertex
group, are deselected.
Mirroring
Another time-saving feature in Blender is the Mirror modifier. It allows you to only model half of a model and
see it duplicated in mirrored form, creating the other half. It is useful for modeling symmetrical things, like
this head as seen in the illustration below.
Adding a mirror modifier in Blender is just like adding a Subsurf modifier: click the "Add Modifier" button on
the Modifiers panel of the Edit buttons and choose "Mirror". The mirrored half will appear as ghosted lines in
Wireframe mode, but will be fully solid in Solid mode.
Enabling the "Do Clipping" button in the Modifiers panel will prevent any vertices you transform from
crossing the center line of the mirror effect.
When you have finished symmetrical modeling, pressing the "Apply" button in the Modifiers panel will make
the mirrored half of the model into actual geometry that can be selected and modified independently.
Loop Cut
In addition to the other subdivision controls that you have learned, the loop subdivide tool allows you to
quickly and uniformly subdivide all the edges that are within the same "loop". In the illustration below, you
can see the cut line looping around the eye, which will allow the modeler to add crease lines. To initiate a
Loop Cut, press Ctrl-R and move the cursor over the model. While moving the cursor, you'll notice that when
Blender detects groups of edges that it can cut, a magenta line will appear to indicate the location of a
possible loop cut. When the magenta line indicates the loop that you would like to cut, press the LMB once
to begin the cut. Then, Blender will allow you to slide the cut back and forth between the outer edges by
moving the mouse. You can even increase or decrease the number of cuts made along the loop by using
the scroll wheel. When you have the cutting line positioned exactly as you like, pressing the LMB will have
Blender make the cuts. Pressing the RMB at any point in the procedure cancels the cut.
A new loop is being cut around the eye on the right side of the image.
Edge Slide
Once you begin using the Loop Cut tool to add detail to your models, you may find that edge loops become
even more useful. For example: what if the cut that was made around the eye in the previous illustration fell
along the center of the edges, but you had really wanted it nearer to the exterior loop? Instead of moving
each edge individually, you can simply Alt-RMB select the edge loop, then choose "Edge Slide" from the
Ctrl-E Edge Specials menu in the 3D view. This allows you to slide the edge back and forth between the two
bounding loops. LMB accepts the slide, while RMB cancels. This tool will actually allow you to slide any
selectable edge loop, regardless of what tools were used to create it.
Edge Loop Delete
One of the elements in the X-key delete menu we have not mentioned is the "Edge Loop" option. With an
edge loop selected, using this option from the X-key delete menu will remove the edges, but join the faces
on either side. The effect is as though an edge loop had never been cut there. This is a great tool for cleanly
reducing the polygon count of your meshes once you have them looking the way you want.
Conclusion
In this introduction, you have seen the basic tools for polygon modeling in Blender and learned a little about
how you can begin to work with them. If you haven't already worked through the tutorial section of this
chapter, it's a good way to see this theory put into practice, and to learn a few more tricks as well.
