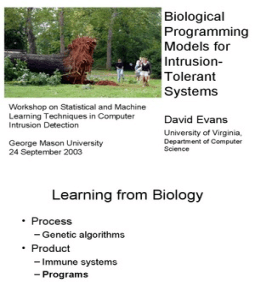

You are on page 1of 54

Biological

Programming
Models for
Intrusion-
Tolerant
Systems
Workshop on Statistical and Machine
Learning Techniques in Computer
Intrusion Detection
David Evans
University of Virginia,
George Mason University Department of Computer
Science
24 September 2003
Learning from Biology
• Process
– Genetic algorithms
• Product
– Immune systems
– Programs

ID03 - 24 Sept 2003 swarm.cs.virginia.edu 2


(Really) Brief History of Computing
1950 1960 1970 1980 1990 2000-

Monolithic Computers Fixed Networks of Billions of small,


in guarded, air- PCs cheap unreliable
conditioned rooms devices

No interactions Data interactions with Computing


other computers, but organized through
most computing done local interactions
locally

Narrow interface to Rich interface to user, Fundamentally


operator (punch cards, limited interface to integrated into
teletype), no interface environment physical
to environment environment
ID03 - 24 Sept 2003 swarm.cs.virginia.edu 3
Challenges and Opportunities
• Embedded in physical environment
– Challenges: unpredictable, energy-limited
– Opportunities: physical laws, continuous
• Scale
– Challenges: billions of independent
components
– Opportunities: redundant to failures
• Demands new programming
approaches and reasoning techniques
ID03 - 24 Sept 2003 swarm.cs.virginia.edu 4
Swarm Computing:
Long-Range Goal

Cement
10 TFlop

ID03 - 24 Sept 2003 swarm.cs.virginia.edu 5


Existing Systems
• Trillions of unreliable, • ~70 Trillion Cells in adult
inexpensive human
components • ~ 3 Billion of your cells
• No significant have died since I started
performance talking
degradation when • Program (3B
billions fail nucleotides) is shorter
• Small programs than Windows XP,
produce complex difference between 2
behavior humans on 1 floppy
ID03 - 24 Sept 2003 swarm.cs.virginia.edu 6
Swarm Programming
Behavior and primitives
Behavioral defined over groups
Device
Description Units
Swarm Device
Programs
Environment
Model Program
Generator Programmed
Device
Device Units
Model

Primitives
Library
ID03 - 24 Sept 2003 swarm.cs.virginia.edu 7
Observations About
Nature’s Programs
• Responsive
– Aware of state of
self and surroundings
• Localized
– Communication through chemical diffusion
• Redundant
– Millions of cells can die without compromising function
• Diverse
– Species survive because of diversity of individuals
• Remarkably Expressive
• Human genome ~250MB

ID03 - 24 Sept 2003 swarm.cs.virginia.edu 8


Foundations Current Research
• Amorphous Computing
[Abelson, Nagpal,
Sussman]
Cellular Automata
• Paintable Computing
von Neumann [1940s]
Conway’s Game of Life [1970]
[Butera]
Wolfram [2002] • Embryonics [Mange,
Sipper]
Reaction-Diffusion
Turing [1952] • Ant Colony
Optimization, Swarm
Intelligence
ID03 - 24 Sept 2003 swarm.cs.virginia.edu 9
Simplified Cell Model
• Awareness of Environment
– Sense chemicals on cell walls
– Sense chemicals in environment
• Cell Actions
– Cell Division (asymmetric)
– State Change
– Communicate: emit (directional, neighboring
walls), diffuse (omnidirectional)
• Simple physical forces
– Two cells cannot overlap in space
ID03 - 24 Sept 2003 swarm.cs.virginia.edu 10
Biological Complexity

Molecular map of colon cancer cell


from http://www.gnsbiotech.com/applications.shtml
ID03 - 24 Sept 2003 swarm.cs.virginia.edu 11
Simple Sphere Program
state center { color 1 0 0
center emits (alive, 1) diffuses (radius, 10)
transitions
alive < 1
alive from dir < 1
-> (center, body) in dir;
}

state body { color 0 0 1


body emits (alive, 1)
transitions
alive < 1 & radius > 0 alive from dir < 1 & radius > 0
-> (body, body) in dir;
}
ID03 - 24 Sept 2003 swarm.cs.virginia.edu 12
state center { color 1 0 0
emits (alive, 1) diffuses (radius, 10)
transitions
alive from dir < 1
-> (center, body) in dir;
}

state body { color 0 0 1


emits (alive, 1)
transitions
alive from dir < 1 & radius > 0
-> (body, body) in dir;
}

ID03 - 24 Sept 2003 swarm.cs.virginia.edu 13


ID03 - 24 Sept 2003 swarm.cs.virginia.edu 14
Robustness of Sphere Program

ID03 - 24 Sept 2003 swarm.cs.virginia.edu 15


Intrusion Tolerance?
• Robust to random failures
– As long as source cell survives, the sphere
will re-generate
– Sphere has > 10000 cells
• Not robust to attacks
– Destroy the center cell, sphere will not
regrow

ID03 - 24 Sept 2003 swarm.cs.virginia.edu 16


state center { color 1 0 0
emits (alive, 1) diffuses (radius, 10)
transitions
Example
(alive from dir < 1) -> (center, core) in dir; }

state core { color 0 1 0


emits (alive, 1)
transitions
(alive from dir < 1) & (radius > 2)
-> (core, body) in dir;
(radius < 2) & (alive from dir < 1)
-> (core, center) in dir; }

state body { color 1 1 0


emits (alive, 1)
transitions
(alive from dir < 1) & (radius > 1)
-> (body, body) in dir; }

ID03 - 24 Sept 2003 swarm.cs.virginia.edu 17


ID03 - 24 Sept 2003 swarm.cs.virginia.edu 18
state corner { color red
emits (length, 8), (alive, 1)
transitions
(alive < 1) from dir
Network Mesh
-> (corner, segment) in dir;
-> (corner); }

state segment { color cyan


emits (alive, 1)
forwards (length - 1)
transitions
(length > 1.5) from dir
& (alive < 0.5) from opposite (dir)
-> (segment, segment)
in opposite (dir);
(length > 0.1) -> (corner);
(length < 0.1) -> die; }
ID03 - 24 Sept 2003 swarm.cs.virginia.edu 19
Composing Primitives
• Cells can follow multiple programs
simultaneously (vector of independent states)
• Cells can combine primitives through shared
chemicals
– Chemicals secreted by one primitive can induce
changes in other primitives
• Goals:
– Predict properties of composition based on properties
of primitives
– Diversity of primitive implementations provides
protection from directed attacks

ID03 - 24 Sept 2003 swarm.cs.virginia.edu 20


Mickey Mouse Program
• 20 states
• 50 transition rules
• Starts from one cell,
combines lines, spheres

Real Mouse Program


• 3B base pairs
• 98% same as human DNA
• Starts from one cell,
combines complex proteins

ID03 - 24 Sept 2003 swarm.cs.virginia.edu 21


Towards Real Systems
• Cells
– Sensor Devices, MEMS, Internet Nodes
• Division
– Processes
– Find new hosts
• Communication
– Point-to-point emissions
– Wireless multicast (can be multi-hop) diffusions
• Example: distributed file system running on
simulated wireless nodes
ID03 - 24 Sept 2003 swarm.cs.virginia.edu 22
Distributed Wireless File Service
File Distribution and Update

Publishe inhibit
r

publish

ID03 - 24 Sept 2003 swarm.cs.virginia.edu 23


Distributed Wireless File Service
File Distribution and Update

replicate
ID03 - 24 Sept 2003 swarm.cs.virginia.edu 24
Robustness to Node Failures

80% of
requests
satisfied
ID03 - 24 Sept 2003 swarm.cs.virginia.edu 25
Summary
• Trillions of creatures have died to evolve the
extremely robust programs that survive today
• Robustness and scalability require:
– Decentralization
– Awareness of surroundings
– Diversity
• Swarm Programming
– Develop high level behaviors from local interactions
– Use communication through environment to coordinate
locally
– Produce complex behaviors by combining primitives
defined over groups
ID03 - 24 Sept 2003 swarm.cs.virginia.edu 26
Acknowledgements
Sponsor:
National Science Foundation

Contributors:
Lance Davidson (UVa Biology)
Selvin George
Salvatore Guarnieri
Steven Marchette
Qi Wang
Brian Zhang

http://swarm.cs.virginia.edu
ID03 - 24 Sept 2003 swarm.cs.virginia.edu 27
