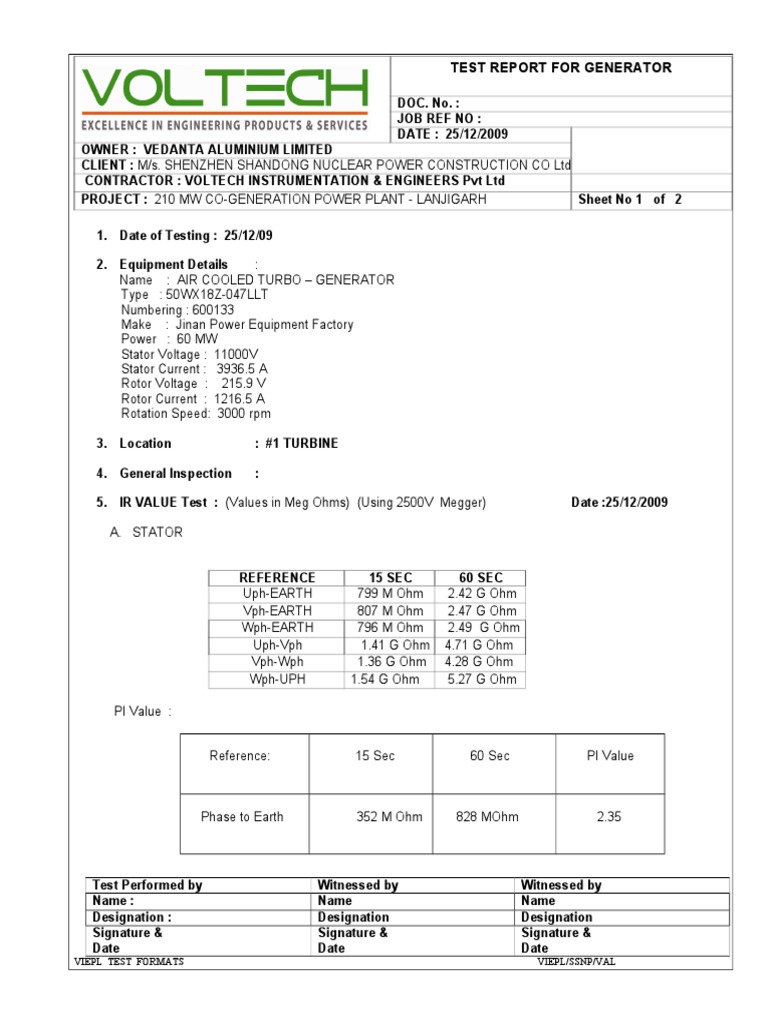

TEST REPORT FOR GENERATOR

DOC. No. : JOB REF NO : DATE : 25/12/2009 OWNER : VEDANTA ALUMINIUM LIMITED CLIENT : M/s. SHENZHEN SHANDONG NUCLEAR POWER CONSTRUCTION CO Ltd CONTRACTOR : VOLTECH INSTRUMENTATION & ENGINEERS Pvt Ltd PROJECT : 210 MW CO-GENERATION POWER PLANT - LANJIGARH Sheet No 1 of 2 1. Date of Testing : 25/12/09 2. Equipment Details : Name : AIR COOLED TURBO GENERATOR Type : 50WX18Z-047LLT Numbering : 600133 Make : Jinan Power Equipment Factory Power : 60 MW Stator Voltage : 11000V Stator Current : 3936.5 A Rotor Voltage : 215.9 V Rotor Current : 1216.5 A Rotation Speed: 3000 rpm 3. Location 4. General Inspection : #1 TURBINE : Date :25/12/2009

5. IR VALUE Test : (Values in Meg Ohms) (Using 2500V Megger) A. STATOR REFERENCE Uph-EARTH Vph-EARTH Wph-EARTH Uph-Vph Vph-Wph Wph-UPH PI Value : Reference: 15 Sec 60 Sec 15 SEC 799 M Ohm 807 M Ohm 796 M Ohm 1.41 G Ohm 1.36 G Ohm 1.54 G Ohm 60 SEC 2.42 G Ohm 2.47 G Ohm 2.49 G Ohm 4.71 G Ohm 4.28 G Ohm 5.27 G Ohm

PI Value

Phase to Earth

352 M Ohm

828 MOhm

2.35

Test Performed by Name : Designation : Signature & Date

VIEPL TEST FORMATS

Witnessed by Name Designation Signature & Date

Witnessed by Name Designation Signature & Date

VIEPL/SSNP/VAL

TEST REPORT FOR GENERATOR

DOC. No. : JOB REF NO : DATE : 25/12/2009 OWNER : VEDANTA ALUMINIUM LIMITED CLIENT : M/s. SHENZHEN SHANDONG NUCLEAR POWER CONSTRUCTION CO Ltd CONTRACTOR : VOLTECH INSTRUMENTATION & ENGINEERS Pvt Ltd PROJECT : 210 MW CO-GENERATION POWER PLANT - LANJIGARH Sheet No 2 of 2

B. ROTOR :

( USING 500V Megger ) : 1 G Ohm

Phase Earth

6. Winding Resistance Test : (Using Equipment Details) A. STATOR : Values in milli Ohms U ph 2.094 V ph 2.078 W ph 2.106

B.

ROTOR : Value in Ohms Phase Earth : 0.132 Ohm

Temp : 16 Deg

7.

AC Impedance Measurement at Different Rotation Speed : RotationSpeed 0 Rpm Voltage 40 V 30 V 20 V 10 V 5V Current 9.1 A 6.9 A 4.6 A 2.3 A 1.1 A

Test Performed by Name : Designation : Signature & Date

VIEPL TEST FORMATS

Witnessed by Name Designation Signature & Date

Witnessed by Name Designation Signature & Date

VIEPL/SSNP/VAL
