CCNA

Collision Domain

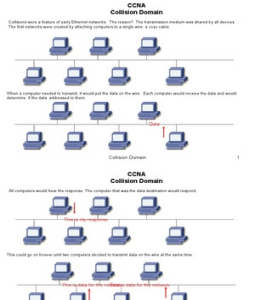

Collisions were a feature of early Ethernet networks. The reason? The transmission medium was shared by all devices. .
The first networks were created by attaching computers to a single wire: a coax cable.

When a computer needed to transmit, it would put the data on the wire. Each computer would receive the data and would
determine if the data addressed to them.

Data

Collision Domain 1
 CCNA
Collision Domain
All computers would hear the response. The computer that was the data destination would respond.

This is my response

This could go on forever until two computers decided to transmit data on the wire at the same time.

This is data for the network

This is data for the network

Collision Domain 2
 CCNA
Collision Domain
The result of two computers attempting to transmit at the same time is a data collision.

This is data for the network

This is data for the network

Who would be affected by the collision? Since no other computer could successfully transmit during the collision, every
computer connected to the coax cable as affected. The computers affected by a collision are called a “collision domain.”

This is data This

forThis
the
is network
data forfor
is data thethe
network
network This
This is data for is
thedata for the network
network

Collision Domain 3
 CCNA
Collision Domain
What happens if the network larger gets larger with more computer? The collision domain grows.

This is data This

forThis
the
is network
data forfor
is data thethe
network
network This
This is data for is
thedata for the network
network

Devices called “repeaters” were created to connect to different segments, or networks, to create one segment. These devices
did not solve the collision problem. They extended the collision domain by transmitting the collision to the other side of the
repeater.

Repeater

This is data This

forThis
the
is network
data forfor
is data thethe
network
network

Collision Domain 4
 CCNA
Collision Domain
To prevent collision, the computers needed a method of telling when a transmission was taking place. So the first part is to
listen for carrier, or data being transmitted. This function is called “Carrier Sensing”. If carrier is present (another computer is
transmitting), other computers will wait until the transmission is complete before transmitting.

Wait Wait Wait

This is data for the network

Wait Wait Wait

When the transmission ends, another computer can transmit.

Wait Wait Wait

This is data for the network

Wait Wait Wait

Collision Domain 5
 CCNA
Collision Domain
Sometimes two computers want to transmit at the same time. No other computer is transmitting, so both computers think it is
safe to transmit. Both transmit at the same time.

Wait Wait Wait

This is data for the network This is data for the network

Wait Wait

When this happens, a collision will still occur.

Wait Wait Wait

This is data for theThis

network
is data for the network

Wait Wait Wait Wait

Collision Domain 6
 CCNA
Collision Domain
Carrier Sensing reduced the number of collisions, but it does not eliminate collisions completely.

Wait Wait Wait

This is data for theThis

network
is data for the network

Wait Wait

Another feature of Ethernet is a method of managing collisions. Since collisions are still going to happen, a process was
needed to reduce the impact of collisions. The process is called Collision Detection. The part of the process that makes
Collision Detection work is that every computer listens to it’s own transmission to see if a collision occurs.

DATA
DATA
DATA

DATA
Wait

Collision Domain 7
 CCNA
Collision Domain
As shown earlier, there are times when two computers think the line is unused, and both try to transmit at the same time. So
what happens when two computers try to transmit at the same time? Naturally, a collision occurs.

DATA DATA

DATA
DATA

DATA
DATA
Both computers are listening to their own transmission, and both hear the collision.

DATA DATA
DATA
DATA

DATA
DATA

Collision Domain 8
 CCNA
Collision Domain
Both computers stop transmitting and transmit a jamming signal.

JAM

JAM
Both computers then start a timer that counts down to “0”. These timers are random, which means they should have different
amounts of time on the clock.

Wait

Collision Domain 9
 CCNA
Collision Domain
The first computer that counts down to “0” transmits first. The second computer hears the transmission, and waits until the
transmission is complete.
DATA

DATA

DATA
DATA
Wait

When the first computer finishes its transmission, the second computer then transmits its data.
DATA
DATA

DATA
DATA
Wait

Collision Domain 10
 CCNA
Collision Domain
Later, coax was replaced by twisted pair wire and hubs. The computers were connected to the hub with twisted pair wiring.
Now, instead of each computer being connected to the coax cable, the computers are connected to the backplane, or bus, of
the hub:

HUB

A
Transmit Receive Receive
T Pair
Transmit
DA
Pair Pair Pair

A computer transmits data to the hub on the transmit pair of its cable. The data is put on the bus of the hub (See next slide)

DATA
T A

Transmit Receive Transmit Receive

DA

Pair Pair Pair Pair

Wait

Collision Domain 11
 CCNA
Collision Domain
When the data is put on the bus of the hub, it is copied on the Receive Pair of all computers, including the computer that
transmitted the data.

DATA

T A DAT

DAT
Pair
DA
Transmit Receive
Pair
Transmit Receive
Pair
Pair

A
This allows all computers on the hub to hear data being transmitted (Carrier Sense). If data is being transmitted by one
computer, all other computers will wait to transmit.

DATA
T A
DA
DAT

DAT
Transmit Receive Transmit Receive
Pair Pair Pair Pair
A

A
Wait

Collision Domain 12
 CCNA
Collision Domain
As with a coax network, two computers might transmit at the same time on a hub network, creating a collision. Computers
connected to a hub follow the same rules for collision detection: send a jam signal, start a timer, and retransmit after a random
time.

DATADATA

A
DAT

DAT
T

T
Transmit Receive Transmit Receive
DA

DA
Pair Pair Pair Pair
A

A
Since all computers on the hub have access to transmit data whenever they think they can, the entire hub becomes a collision
domain.

HUB

Collision Domain 13
 CCNA
Collision Domain
Hubs have two advantages over coax. The first advantage is expense. Twisted pair cabling cost much less than coax, and is
easier to install. The second is that hubs can be connected together without buying a special device or a repeater. The hub is
a multi-port repeater. It regenerates the signal on every port on the hub. If another hub is connected, the signal is regenerated
to the other hubs.

Hubs are connected with either a crossover Ethernet cable or an uplink port, a special port that is used to connect to other
hubs.

HUB HUB HUB

Connecting hubs together made it possible to connect more computers to the network, but it made the collision domain larger.
Every collision is transmitted to every hub, and affects every port in the network.

HUB HUB HUB

Collision Domain 14
 CCNA
Collision Domain
The transmission rules for Ethernet involve both Carrier Sense and Collision Detection. The rules are called CSMA-CD:
CS – Carrier Sense. The computer listens for carrier or data from other computers before it transmits.
MA – Multiple Access. Access is provided for multiple computers (Really? Can you have a network of one computer?)
CD – Collision Detect. The computer listens for collisions while it transmits.

Collisions: What’s the big deal? We don’t file insurance claims. The PCs don’t get hurt. So who cares?

The problem with collisions is that they use bandwidth that is needed for data. Suppose we have 10 million bits per second for
the whole network. Now we have a collision that takes .25 ( ¼ ) of a second. ¼ of our bandwidth is gone for that second, so
we only have 7.5 million bits per second. And that’s the good news. As networks get larger, they have more collisions, much
like the interstate highway that you use. The more cars, the more wrecks.

Large networks can lose about 70% of their bandwidth because of collisions. That’s a lot of bandwidth. Our network
started out with 10 million bits per second, and now has only 3 million bits per second. And everyone is trying to use those 3
million bits.

Reducing the size of the collision domain increases the available bandwidth. Fewer collisions, less waiting, probably not like
your interstate highway. Response time improves, the network is happy.

Collision Domain 15
 CCNA
Collision Domain
Other important things about Ethernet

1. Ethernet is a contention protocol. This means that every computer on the network must contend for, or try to take
control of, the network. The idea is that if my computer transmits on the network (contends), it will control the network
until the transmission is complete. It’s like a big friendly (or unfriendly) family at Thanksgiving dinner. Everyone tries to
talk at the same time. The first one who starts talking owns the conversation, and everyone else (hopefully) waits. The
first guy keeps on talking until he is finished (which might be the entire Thanksgiving dinner).

1. Ethernet was created to be a half duplex protocol. Half duplex means that the computer can either transmit or receive,
but it cannot do both at the same time. Consider a hub.

DATA
Data

Da
ta

Da
Transmit Receive Transmit Receive Transmit Receive

ta
Da

Pair

ta
Pair Pair Pair Pair Pair

ta
PC1 Da
PC2 Wait
PC3 Wait

If a device is both transmitting and receiving at the same time, that means that another computer has to be transmitting at the
same time. Consider if PC2 was receiving data from PC1 and wanted to transmit data to PC3 at the same time. If PC2
transmits data at the same time that it is receiving data from PC1, a collision will occur. So Ethernet was originally intended to
be a half duplex protocol. It could either transmit, or receive, but not both at the same time.

This will become more important in later sections. For now, it is important to remember that originally, Ethernet was half duplex
because of the share media.
Collision Domain 16
 CCNA
Collision Domain
Switches were developed to solve the problem of collisions. Switches look like hubs. Computers are connected to switches by
using twisted pair cabling, and the network is a star configuration.

Switch

The function of a switch, however, is very different from a hub.

Remember that a hub has a common bus, and all data is written to the bus as soon as it arrives at the port. All data is
transmitted to all ports when it arrives. If two computers transmit at the same time, their data is written to the bus at the same
time, which results in a collision.

Switches do not write data to the bus as soon as it arrives. Switches have important features that hubs do not have.

1.Switches can store all of the data on the port before it writes it to the bus, eliminating collisions between ports.
2. Switches learn the addresses connected to each port. Instead of transmitting the data to all ports, it transmits the data only
to the port that has the destination address on it.
3.Usually only one computer is connected to a switch port. Since there is no shared cable or hub, there can be no collision
with data from another computer.
4. Since there is only one computer on a switch port, the computer does not have to “listen” for a collision. Both the switch
and the computer can transmit and receive at the same time. This is “full duplex”. Being able to transmit and receive at the
same time can double the available bandwidth.

Collision Domain 17
 CCNA
Collision Domain
How does a switch avoid collisions

The short answer is that switches eliminate collision. And that answer is almost 100% true. How does a switch eliminate
collisions? Basically, switches store the data received from end devices. This is illustrated in the following diagram:

Data Bus

Data1 Data2 Data3 Data4 Data5 Data6 Data7

PC1 PC2 PC3 PC4 PC5 PC6 PC7

Each switch interface has memory that it uses to store data. Each computer sends it data to its interface on the switch. The
data is stored in the interface memory and the switch then forwards the data to the destination port when it can be transmitted
without a collision. If only one computer is connected to a switch port, there can be no collision on the cable.

Collision Domain 18
 CCNA
Collision Domain
How does a switch avoid collisions

Suppose that PC1 is sending data to PC6. At that time, PC2 sends data to PC7. How does the switch handle the data?

Data Bus

Data1 Data2 Data6 Data7

PC1 PC2 PC3 PC4 PC5 PC6 PC7

Collision Domain 19
 CCNA
Collision Domain
How does a switch avoid collisions

Assume that PC1 sent its data first, but PC2 started at almost the same time. The switch stores the data at the port until it
holds the entire frame. When the transmission is complete, the switch moves Data1 from PC1 to the bus to deliver it to PC6,
while it continues to get data from PC2, Data from PC2 is stored in the memory for its interface. The reason that the data
from PC2 is stored in memory is to prevent a collision on the switch bus.

Data1 Data Bus Data1

Data1 Data2 Data1

Data1 Data2 Data1

PC1 PC2 PC3 PC4 PC5 PC6 PC7

Collision Domain 20
 CCNA
Collision Domain
How does a switch avoid collisions
When Data1 has been delivered and there is no chance for a collision in the switch, the switch will then moves Data2 to PC7,
moving the data to the bus and then to the interface for PC7.

Data2 Data Bus Data2

Data2 Data2

Data2

PC1 PC2 PC3 PC4 PC5 PC6 PC7

This method of forwarding is called “store-and-forward.” The entire frame of data received from the PC is stored in the
interface memory before it is forwarded.

Because switches remove collision, each port can now run full duplex, transmitting on their transmit pair while receiving on
their receive pair. Configuring a port with full duplex disables CSMA-CD.

Collision Domain 21
 CCNA
Collision Domain

Switch

Switches use three methods to forward data:

1. Store-and-forward. In store-and-forward mode, all data is received from the computer and stored in memory in the port
before it is written to the bus (transmitted to the receiving port). Store-and-forward is the most reliable method, but it is the
slowest. This is the default, preferred method for Cisco switches.
2. Fragment Free. Fragment Free stores the first 64 bits before putting the data on the backplane. 64 bits allows the switch
to determine if there are other transmissions starting before it puts data on the bus. If the bus is busy, the switch will
continue to store data until the bus is free.
3. Cut Through. The switch transmits the data as soon as it receives the destination address. It needs the destination
address to know which port to send the data to. Other than that, it acts like a hub. Collisions can still occur. If there are
too many collisions, the switch usually stops using Cut Through and uses Store-and-forward.

Copyright by Hedgehog Technical Institute® 2009

Collision Domain 22
