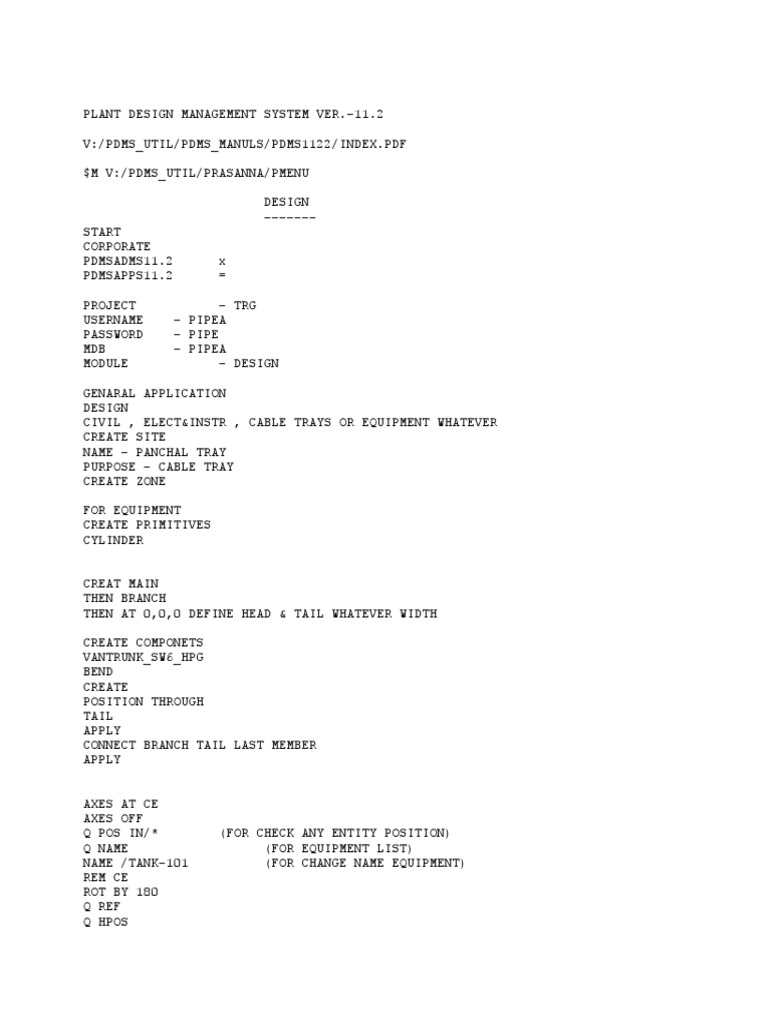

PLANT DESIGN MANAGEMENT SYSTEM VER.-11.

V:/PDMS_UTIL/PDMS_MANULS/PDMS1122/INDEX.PDF

$M V:/PDMS_UTIL/PRASANNA/PMENU

DESIGN
-------
START
CORPORATE
PDMSADMS11.2 x
PDMSAPPS11.2 =

PROJECT - TRG
USERNAME - PIPEA
PASSWORD - PIPE
MDB - PIPEA
MODULE - DESIGN

GENARAL APPLICATION
DESIGN
CIVIL , ELECT&INSTR , CABLE TRAYS OR EQUIPMENT WHATEVER
CREATE SITE
NAME - PANCHAL TRAY
PURPOSE - CABLE TRAY
CREATE ZONE

FOR EQUIPMENT
CREATE PRIMITIVES
CYLINDER

CREAT MAIN
THEN BRANCH
THEN AT 0,0,0 DEFINE HEAD & TAIL WHATEVER WIDTH

CREATE COMPONETS
VANTRUNK_SW6_HPG
BEND
CREATE
POSITION THROUGH
TAIL
APPLY
CONNECT BRANCH TAIL LAST MEMBER
APPLY

AXES AT CE
AXES OFF
Q POS IN/* (FOR CHECK ANY ENTITY POSITION)
Q NAME (FOR EQUIPMENT LIST)
NAME /TANK-101 (FOR CHANGE NAME EQUIPMENT)
REM CE
ROT BY 180
Q REF
Q HPOS
Q TPOS
Q HDIR
Q TDIR
Q HBOR
VAR1NAME
NEW EQUI COPY $V1 BY N 1000 NAME /PT-101
Q NAME
Q ATT
Q ZLEN , Q XLEN, Q YLEN
FOR TEE - Q ARR, Q LEA IF ROTATE TEE -
THEN CHANGE A ARR POINT & LEA POINT
Q POS IDP@ IN /*
$M C:\INST\*.MOD
POS PH AT IDP@

FOR TRAY COPY

VAR1NAME
NEW BRAN COPY $V1 BY U 2000

MOVE PT W THR ID@

MOVE N THR ID@
ADD ALL WITHIN VOL CE 2000
MOVE PT E THR ID@

PIN1 AT CE
PIN1 BY W 300
MOVE PLANE W THR PIN1
NEX
MOVE W THR ID@
=======================================================================
PINI AT IDP@
Q HEI
Q LEN
Q DESD
Q HDIR
Q TDIR

PIPE DIA
Q PARAM
PARAM 600
MOVE PH THR PIN1
MOVE PLANE U THR PIN1

(OLD) EQUI NEW) - EQUI JBA-1001

(OLD) BOX JBA-101 NEW) - BOX - 1
FIRAT CLICK BOX
UNNA COMMAND
CLICK THE EQUI Q RENAME
Q NAME UNNA

FIND AREA - Q USER

Q PURPOSE - PURPOSE INST
=======================================================================
DRAFT
 -------

COPY - NEW TEXP COPY PRE BY X 10, Y 10

LIST - Q ATT
PLOT - UTILITIED-DXF CE-CONFIGURABLE
ROTATE - ADEGREES 90
POSTION - AT @
CHECK EL. - Q POS IN/*
TEXT LEADER LINEON/OFF DRAFT-LIBLICATION, CREAT-GENERAL LABLES POSTION
ATTACHMENT
TAG BLOCK REMOVE - LLEADER FALSE LFRAME FALSE
TAG BLOCK NAME EDIT - Q SORF // SORF NULREF
PIPE DELETED - CLICK VIEW LAYER-MODIFY-DRAWLIST-PIPE DELETED
TAG COPY - SELECT OLD TAG-Q DDNAME-SELECT NEW TAG NEW SLAB COPY PREDD
TAG LEADER LINE DELETE Q ATT-LEADER TRUE-FALSE
NEW TEXT CLICK VIEW LAYER-NEW VNOT-NEW TEXTP-BTEXT`JB'-AT@

JB INSERT CLICK VIEW LAYER-NEW VNOT-NEW SLAB-TMRF/FJB-

CLICK JB.Q NAME-DDNAME/JB------CLICK SLAB

JB SYMBOL CHANGE - Q TMRF-TMRF /FJB TMRF/LCP, TMRF/RIO

TAG BLOCK INSERT - CLICK VIEW LAYER-NEW VNOT-NEW SLAB-Q TMRF-TMRF NULREF-
TMRF
(XCV) /CONVLV1-CLICK OLD TAG Q DDNAME-DDNAME/XCV-8718-SAME
CLICK SLAB CLICK DDNAME/XCV-----ENTER

TAG BLOCK INSERT - CLICK VIEW LAYER-NEW VNOT-NEW SLAB-Q TMRF JBI
(PV,LV) CLICK OLD TAG Q DDNAME-SELECT TAG BLOCK-SAME-SELECT TAG
BLOCK

CHECK TRAY WIDTH - Q ATT , Q HBORE

CHECK TRAY EL. - Q HBORE Q TBORE

ALPHA LOG / file name (TO OPEN FILE)

$R6 (RECORD ACTIVITY)
- - - - RUN MACRO - - - -
$R0 (TO STOP RECORDING)
ALPHA LOG END (TO CLOS FILE)

=======================================================================
PARAGON
-------

PROJECT - TRG
USERNAME - SYSTEM
PASSWORD - XXXXXX
MDB - TRGCAT
MODULE - PARAGON

WORLD
!
CATA
_________________________________
! ! !
SECT. SECT. SECT.
 P-POINT GEOM COMPONENT

P-POINT(CV) GEOM(CV) COMPONENT(CV)

P-POINT(PSV)GEOM(PSV) COMPONENT(PSV)
P-POINT(OV) GEOM(OV) COMPONENT(OV)

$m /c:\*.txt

fflie/c:\vcp.txt
out old /inst
NEW SCOM COPY PRE
/CV/PV-33016,100
DELETE SPECO

CATREF

PIPE OD NOMINAL BORE NOMINAL BORE OUTSIDE BORE

D 1/2" 15 21.3
E 3/4" 20 26.7
F 1" 25 33.4
G 32 42.2
H 1 1/2" 40 48.3
I 2" 50 60.3
J 65 73
K 3" 80 88.9
L 90 101.6
M 4" 100 114.6
N 125 141.3
O 6" 150 168.3
P 8" 200 219.1
Q 10" 250 273.1
R 12" 300 323.9
S 14" 350 355.5
T 16" 400 406.4
U 18" 450 457.2
V 20" 500 508
W 550 558.8
X 600 609.6
Y 650 660.4
Z 700 711.2
0 750 762
1 800 812.2
2 850 863.6
3 900 914
4 950 965.2

I C J B M A F F

I – INST
C – CONTROL VALVE

J
B – JOHN BROWN

M – RATING 150#(FGB), P=300#(FGD), U-600#(FAUB), W-800#, X-900#(FAXB), Z-1500#.

A – FLANGE FINISH , A – RF , C - FF
F – INLET SIZE
F – OUTLET SIZE
