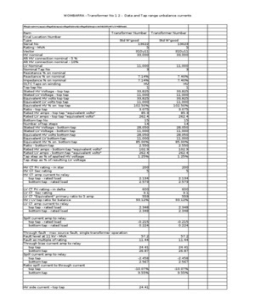

WOMBARRA - Transformer No 1 2 - Data and Tap range unbalance currents

'file:///var/www/apps/collegelist/repos/collegelist/trunk/collegelist/tmp/scratch8/2351407.xls'#$Sheet1

Item Transformer Number Transformer Number

Final Location Number
Type Std W'good Std W'good
Serial No 13622 13623
Rating - MVA 5 5
Vector 31Dy11 31Dy11
HV nominal 33,000 33,000
Alt HV connection nominal - 5 %
Alt HV connection nominal - 10%
LV Nominal 11,000 11,000
Nominal Tap No 3 3
Resistance % on nominal
Reactance % on nominal 7.14% 7.40%
Impedance % on nominal 7.14% 7.40%
OLTC Taps on winding HV HV
Top tap No 1 1
Stated HV Voltage - top tap 33,825 33,825
Stated LV Voltage - top tap 11,000 11,000
Equivalent HV volts top tap 33,825 33,825
Equivalent LV volts top tap 11,000 11,000
Equivalent HV % on top tap 102.50% 102.50%
Ratio - top tap 3.075 3.075
Rated HV amps - top tap "equivalent volts" 85.3 85.3
Rated LV amps - top tap "equivalent volts" 262.4 262.4
Bottom tap No 15 15
Number of tap steps 14 14
Stated HV Voltage - bottom tap 28,050 28,050
Stated LV Voltage - bottom tap 11,000 11,000
Equivalent HV volts bottom tap 28,050 28,050
Equivalent LV bottom tap 11,000 11,000
Equivalent HV % on bottom tap 85.00% 85.00%
Ratio - bottom tap 2.550 2.550
Rated HV amps - bottom tap "equivalent volts" 102.9 102.9
Rated LV amps - bottom tap "equivalent volts" 262.4 262.4
Tap step as % of applied HV voltage 1.25% 1.25%
Tap step as % of resulting LV voltage

HV CT Pri rating - in star 200 200

HV CT Sec rating 5 5
HV CT amp current to relay
top tap - rated load 2.134 2.134
bottom tap - rated load 2.573 2.573

LV CT Pri rating - in delta 600 600

LV CT Sec rating 3.1 3.1
LV CT "Equivalent" primary ratio to 5 amp 559 559
HV / LV tap ratio for balance 93.12% 93.12%
LV CT amp current to relay
top tap - rated load 2.348 2.348
bottom tap - rated load 2.348 2.348

Spill current amp to relay

top tap - rated load -0.215 -0.215
bottom tap - rated load 0.224 0.224

Through fault - max source fault, single transformer operation

Fault level at 11 kV - MVA 57.2 57.2
Fault as multiple of rating 11.44 11.44
Through bias current amp to relay
top tap 24.41 24.41
bottom tap 26.87 26.87
Spill current amp to relay
top tap -2.458 -2.458
bottom tap 2.567 2.567
Ratio spill current to through current
top tap -10.07% -10.07%
bottom tap 9.55% 9.55%

HV side current - top tap 24.41

Printed 03/22/2008
 WOMBARRA - Transformer No 1 2 - Data and Tap range unbalance currents

LV side current - top tap 26.87

spill - top tap 2.46

HV side current - bottom tap 29.43

LV side current - bottom tap 26.87
spill - bottom tap -2.57
