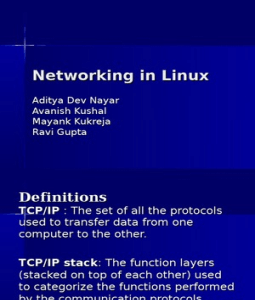

Networking in Linux

Aditya Dev Nayar

Avanish Kushal
Mayank Kukreja
Ravi Gupta
Definitions
TCP/IP : The set of all the protocols
used to transfer data from one
computer to the other.

TCP/IP stack: The function layers

(stacked on top of each other) used
to categorize the functions performed
by the communication protocols.
DOD reference model
TCP/IP Stack

➢ Process of data transfer

➢ Every protocol communicates with
its peer
➢ Headers and trailers
Structure of packet

Note: Data structure for the layers

are compatible for the sake of
efficiency and avoid copying.
Network Access Layer
➢ Transmission of a frame(packet)
➢ Details of underlying physical
network
➢ Adds the suitable header and
trailer
Internetwork layer
➢ Send the data across different
networks
➢ Adds the suitable header and the
trailer
➢ No or minimal checks for errors
and retransmits
 Host to host transport
➢layer
Formation of a connection is
possible
➢ Checks for errors can be done

➢ The delivery of the data packet can

be
ensured
Application Layer
➢ Interacts with the users
➢ Implements the encryption and
decryption techniques for data
OSI model
➢ IPProtocol
protocol
at internetwork layer
➢ Define the datagram, which is the
basic of transmission in the
Internet.
➢ Define the Internet addressing
scheme
➢ Move data between the Network
Access Layer and the Host-to-Host
Transport Layer.
➢ Route datagrams to remote hosts
➢ Fragment and reassemble
TCP and UDP protocols
TCP:
 Reliable and full-duplex
connections
 Reliable service

UDP:
 Stateless transmission

 Minimum protocol overhead

 High speed
SOCKETS
 Definition: A socket is a software construction
representing a single connection between two
networking applications.

 IP information at connection time :

ip_route_connect()

 Adv : No need to do continuous routing table

look-ups
 Socket Structures
There are two main socket structures in Linux: general BSD
sockets and IP specific INET sockets

BSD SOCKETS
•struct sock *sk
•struct proto_ops *ops
INET SOCKETS
•struct sk_buff_head (receive/write)_queue
•__u32 saddr
•struct proto *prot
Establishing
Connections
 Server =
gethostbyname(SERVER_NAME)

 sockfd =
socket(AF_INET,SOCK_STREAM, 0);

 connect(sockfd,
&address,sizeof(address));
 Socket Call Walk-
Through
 Check for errors in call
 Create (allocate memory for) socket object
 Put socket into INODE list
 Establish pointers to protocol functions (INET)
 Store values for socket type and protocol
family
 Set socket state to closed
 Initialize packet queues
Connect Call Walk-
Through
 Check for errors
 Determine route to destination:
 Store pointer to routing entry in socket
 Call protocol specific connection function
(e.g., send a TCP connection packet)
 Set socket state to established
 Close Walk-Through

 Check for errors

 Change the socket state to
disconnecting
 Do any protocol closing actions
 Free memory for socket data
structures (TCP/UDP and INET)
 Remove socket from INODE list
Sending Messages
Receiving Message
Address Resolution
Protocol
 Problem: Given an IP address find the
MAC address

 Solution 1. Table Lookup:

Searching or indexing to get MAC
address.
ARP (contd.)
2. Closed-Form Computation: Using local IEEE 802
– addresses, e.g., Hardware Address = (IP_address & 0xFF) !
40:00:00:00:00:00

3. Message Exchange: ARP

– The host broadcasts a request: “What is the MAC address of
127.123.115.08?”
– The host whose IP address is 127.123.115.08
replies back: “The MAC address for
“127.123.115.08 is 8A-5F-3C-23-45-5616”

All three methods are allowed in TCP/IP networks.

Message format
Caching
 ARP responses are cached.
 Entry replaced when
 Cache table fills up (oldest removed)
 After some time, e.g., 20 minutes
 Sender’s address binding is
stored in the cache of the target
Proxy & Reverse ARP
 Proxy ARP: A router may act as a proxy
for many IP addresses

 Reverse ARP : What is the IP address of

a given hardware address?
Used by diskless systems for their IP
Need RARP server to respond.
Routing

 Routing :The process of choosing a path

over which to send packets.
 Routing occurs at a TCP/IP host when it sends IP
packets, and occurs again at an IP router.

 Router : A device that forwards the

packets from one physical network to
another.
 Routers are commonly referred to as gateways.
A Walk Through
 When a host attempts communication with another host,
IP first determines whether the destination host is local or
on a remote network
 If the destination host is remote, IP then checks the
routing table for a route to the remote host or remote
network.
 If no explicit route is found, IP uses its default gateway
address to deliver the packet to a router
 At the router, the routing table is again consulted for a
path to the remote host or network. If a path is not found,
the packet is sent to the router's default gateway address
The Details

Linux maintains 3 sets of Routing

Data

1. Neighbour Table – Directly

connected computers.
2. FIB Table – All other
networks/computers.
3. Routing Cache – Cache for FIB.
Neighbour Table
• struct neigh_table : Contains common
neighbour information.All computers connected
by same type of connection are in same table.

• struct neighbour : specific info about a

neighbour like device which is connected to the
neighbour, various flags regarding connection .

• struct neigh_parms : contains message

travel time, queue length and other statistical
information.
Forwarding Information Base (FIB)

FIB is a structure containing

routing information for any
valid IP address.

An exhaustive list of known IP

destinations and their best routes.
 Complex Data structure.
 Slow access.
Forwarding Information
Base (FIB)
 Each IP subnet is represented by a
fib_zone data structure

 All of these are pointed at from the

fib_zones hash table. The hash index is
derived from the IP subnet mask.

 Routes to the same subnet described by

pairs of fib_node and fib_info data
Route Cache
 Keeps every route that is currently in use or has been
used recently in a hash table.

 The index into the route table is a hash function

based on the least significant two bytes of the IP
address.

 If route not in cache, FIB looked up and a new entry

made in route cache.

 Routes chained in order of most frequently used first.

Removed when old.
Routing Cache…
conceptual organization
Routing Information
Protocol (RIP)
RIP : Protocol for
routers to track
distance to different
networks and to share
this information among
themselves.
RIP contd..
 At startup, information from all
neighbouring routers is requested.
 A received packet can be a
'response' or a 'request'.
 A response is sent to all neighbours
every 30 sec.
 Listens on UDP socket 520 for
incoming packets.
CSMA/CD Technology
Requirement
 Ethernet network provides shared access
to a group of attached nodes
 Each node has a NIC (Network Interface
Card)
 The shared cable allows any NIC to send
whenever it wishes
 But if two NICs happen to transmit at the
same time, a collision will occur, resulting
in the data being corrupted
1. Source NIC
dispatches frame

2. Frame transmits
in both directions

3. Every NIC
receives the
frame; do MAC
address matching

4. Intended NIC
picks up the
frame; rest drop it
CSMA/CD Algorithm
 Sense for carrier.
 If carrier present, wait until carrier
ends.
– Sending would force a collision and waste
time
 Send packet and sense for collision.
 If no collision detected, consider
packet delivered.
CSMA/CD Algorithm
 Otherwise if collision detected
 Send Jam Signal
 Abort immediately
 Perform “exponential back off” and send
packet again.
– Start to send at a random time picked from an
interval
– Length of the interval increases with every
retransmission
 Collision Detection
A B C
Time
 Collision Detection:
ImplicationsA B C
 All nodes must be able to
detect the collision.
– Any node can be sender
 The implication is that either
we must have a short wires,
or long packets.
– Or a combination of both
 Can calculate length/distance
based on transmission rate
and propagation speed.
– Minimum packet size is 64 bytes
 Cable length ~256 bit times
– Example: maximum coax cable
length is 2.5 km
CSMA/CD: Some
Details
 When a sender detects a collision, it
sends a “jam signal”.
– Make sure that all nodes are aware of the
collision
– Length of the jam signal is 32 bit times
 Exponential backoff operates in
multiples of 512 bit times.
– Longer than a roundtrip time
– Guarantees that nodes that back off longer
will notice the earlier retransmission before
starting to send
 Ethernet Frame
Format
8 6 6 2 4

Preamble Dest Source Type Data Pad CRC

 Preamble marks the beginning of the frame.

– Also provides clock synchronization
 Source and destination are 48 bit IEEE MAC addresses.
– Flat address space
– Hardwired into the network interface
 Type field is a demultiplexing field.
– What network layer (layer 3) should receive this packet?
– Is actually a length field in the 802.3 standard
 CRC for error checking.
Minimum Packet Size
 Why put a minimum packet size?
 Give a host enough time to detect
collisions
 In Ethernet, minimum packet size =
64 bytes (two 6-byte addresses, 2-
byte type, 4-byte CRC, and 46 bytes
of data)
 If host has less than 46 bytes to
send, the adaptor pads (adds) bytes
to make it 46 bytes
Limited cable length
 Limitation: Before the transmitted
packet is completely dispatched
from the sender, all other nodes
on the local network must at least
start receiving it. This assumption
is required for the “jam signal”
protocol to work.
Drawbacks of CSMA/CD
 Ethernet Capture
 A has to send bigger file than B
 A transmits first.
 A and B then both simultaneously try to
transmit. B picks a larger retransmission
interval than A and defers.
 A sends, then sends again.
 Both A and B attempt to resume
transmission
Drawbacks of CSMA/CD
 A and B both back-off, however, since B was
already in back-off (it failed to retransmit), it
chooses from a larger range of back-off
times (using the exponential back-off
algorithm).
 A is therefore more likely to succeed, which
it does in the example. The next pause in
transmission, A and B both attempt to send,
however, since this fails in this case, B
further increases its back-off and is now
unable to fairly compete with A.
Performance of
CSMA/CD
 Only one transmitter
– Near 100% utilisation of network
– Possible to completely use 10Mbps
 Many transmitting NICs
– Some bandwidth wasted in collision
detection
– Typical busy network gives 2-4 Mbps
References
 http://en.wikipedia.org
 http://www.erg.abdn.ac.uk
 http://www.cisco.com
 The linux kernel: David A Rusling
 Linux IP Networking: Glenn Herrin
