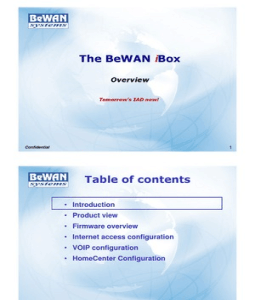

The BeWAN iBox

Overview

Tomorrow’s IAD now!

Confidential 1
Table of contents

• Introduction
• Product view
• Firmware overview
• Internet access configuration
• VOIP configuration
• HomeCenter Configuration

Confidential 2
The BeWAN iBox

The hub of household communications,


now and in the future

Today, the BeWAN iBox brings you:

• all the services you need for your customers


• a host of innovative features to give you the
competitive edge
• everything you'll need to provide the services that will
make the difference in the future

Get ahead of the rest,


with the BeWAN iBox!
Confidential 3
Table of contents

• Introduction
• Product view
• Firmware overview
• Internet access configuration
• VOIP configuration
• HomeCenter Configuration

Confidential 4
BeWAN iBox - Product view

Confidential 5
BeWAN iBox Functionalities -
General View

Confidential This is an example, ports can be changed to fit specific needs 6


BeWAN iBox Functionalities -
ADSL

• ADSL:
– ADSL
– RE-ADSL
– ADSL2
– ADSL2+
– Auto-provisionning-TR069
– Remote update or upgrade

Confidential 7
BeWAN iBox Functionalities -
LAN

• Ethernet Port:

– 1 Ethernet port 10/100 Base Tx MDI/MDI-X

You can use this port to connect an additional


Ethernet switch or hub to extend your Local
Area Network to another computers.

Confidential 8
BeWAN iBox Functionalities
- USB

• USB Client Port:

– 1 USB 1.1 port


You can use this USB port to connect a
computer without Ethernet card or 2nd
computer and offering all associated
services of BeWAN iBox (Internet sharing,
files sharing, etc.).

Confidential 9
BeWAN iBox Functionalities -
USB Sharing

• USB Host:
– 2 USB host 2.0 ports

Ability to connect and share devices on


Local Area Network (webcam, storage,
printers, bluetooth dongle, etc.).

Confidential 10
BeWAN iBox Functionalities -
VoIP Service
• FXS:
– 2 FXS
• SIP support, MGCP
• G.711 - G.729a/b - G.726-32 - G.723.1 AMR – GSM
• Caller ID (caller ID Type I & II, CLIP I & II, CLID I &
CLID II).
• Ability to manage conference call on mixed mode (VoIP
call and analog call).

• FXO:
– 1 FXO
• When electric power is Off, turn on automatically to
analog network (bypass function)
• Usage of analog network when the SIP account is not
activated (SIP Fail over).
Confidential 11
Table of contents

• Introduction
• Product view
• Firmware overview
• Internet access configuration
• VOIP configuration
• HomeCenter Configuration

Confidential 12
BeWAN iBox Firmware
One firmware, several hardware, for a secure procurement

Unique
solution
running on
different
hardware

Confidential 13
Table of contents

• Introduction
• Product view
• Firmware overview
• Internet access configuration
• VOIP configuration
• HomeCenter Configuration

Confidential 14
BeWAN iBox Administration

Open a web browser on your PC and type http://ibox.bewan:8080 or


http://192.168.1.254:8080 .
A pop-up window will open to ask for username and password. Please
type default values (username =bewan and Password=bewan) on the
window for the first time accessing and click OK for next screen.

Remark: User interface is possible to customise

Confidential 15
BeWAN iBox Internet Access

Click to ‘connection’s quick setup’

Confidential 16
BeWAN iBox Internet Access

1. In the Connection method section, select the protocol used


by your ADSL line (if you are unsure, contact your
telecoms operator to confirm your connection type).

2. In the ADSL settings section, enter your ADSL settings. The default
settings are as follows:
Modulation = Multimode, VPI = 8, VCI = 35, Encapsulation = LLC
If you do not know the ADSL settings (protocol, modulation, VPI, VCI and
encapsulation) needed to connect,
contact your telecoms operator.

3. With a PPP (PPPoE or PPPoA) connection, all that remains is to enter your username and password in the PPP
authentification section.
In the Login and Password fields, enter the login username and password given to you by your ISP.
Note: When entering the username and password, you must respect case (capitals/lower case).

Confidential 17
Table of contents

• Introduction
• Product view
• Firmware overview
• Internet access configuration
• VOIP configuration
• HomeCenter Configuration

Confidential 18
BeWAN iBox : VoIP and telephony
services

Internet telephony, caller ID, conference calls, answerphone

Confidential 19
BeWAN iBox: VoIP parameters

Select “New VOIP account” to add a new VOIP account


Confidential 20
VOIP Account- Main Menu

Confidential 21
VOIP Account-1

The protocol to be used. There are two options: SIP, and


MGCP. The default setting is SIP.

Enter your account name and your


password

Set the domain name or IP address of


the SIP Registrar server.

Set the domain name or IP address of


the SIP Proxy server.

Set the domain name or IP address of the


outbound proxy server.

Confidential 22
VOIP Account-2

Name: rule name


Number: the number that will be sent to called
DTMF
DTMF Relay The DTMF Relay function. There are three options to be
supported as below:
Inband
RFC2833
SIP INFO

Enabled on Phone1 or Phone2:


The phones that allowed to use this VOIP account

Confidential 23
VOIP Account-3

Dial plan table:

This feature allow you to define the dial plan table and which
number can be dialed through this SIP account.
Ex:0<1-39>:this rule mean all the number start with “0” will be
allowed to dialed through this SIP account.
Ex:0143346920 or 0046123456778,…..

Confidential 24
SIP Phones users

You can add SIP users internally ex:IP Phone,WIFI phone,ATA


Confidential 25
SIP Phones users-1

Confidential 26
SIP Phones users-2

Extension: the internal number that you will give to SIP phones accounts

Username & password : the account name and your password that you
will give SIP phones users

Confidential 27
Analogue Line configuration

Select the option “Analog line”

Confidential 28
Analogue Line configuration -
Main Menu

Confidential 29
Analogue Line-1

Select the users can receive the incoming call from the regular analogue line

Select the users can dial an outgoing call through the regular analogue line

Confidential 30
Analogue Line-2

This feature allows you to define the dial plan table and which number can be
dialled through this analogue line.
Ex:9<1-39>:this rule mean all the number start with “9” will be allowed to
dialled through this analogue line but before send the number the BeWAN
iBOX will remove the prefix “9” before dial the number through PSTN line.
Ex: the BeWAN iBOX will receive from user 90143346920 and will send to
PSTN line 0143346920.

You can select a numbers that the BeWAN iBOX will dials directly through
PSTN or SIP without prefix.
Ex:the emergency can be set in this menu to be dialled directly through the
PSTN line.(15,17,18,911,...)

Confidential 31
Telephony Service

Country option which allows the user to select the country


for which the BeWAN ibox configuration must work.

Confidential 32
Telephony-1

Remote dial your own phone or password approved access to phone


lines from anywhere on the planet. Remote access to local phone lines
either PSTN or digital VOIP. This is a very cheap solution to
sometimes a difficult issue

Confidential 33
Table of contents

• Introduction
• Product view
• Firmware overview
• Internet access configuration
• VOIP configuration
• HomeCenter Configuration

Confidential 34
Bluetooth

Confidential 35
Bluetooth

Plug your Bluetooth USB dongle to the USB port of the BeWAN BeWAN,
then enable the option on this menu.

Confidential 36
Sharing

Confidential 37
Sharing- Main menu

Confidential 38
Sharing - Description

Your USB printer is connected to USB port can be shared by other users on
your network

Enable the WEB server on the Bewan Home centre and define the option
related by each users

Confidential 39
Home centre user accounts

Confidential 40
Home center user accounts
- main menu

Click at to add a new account and define the option


for each users
Confidential 41
Home center user accounts-1

Create a login and password for home center users

Enabled the service allowed by users home centers

Confidential 42
BeWAN Home Center

Open a web browser on your PC and type http://ibox.bewan

For your friends, they will need an access to your HomeCenter


from the internet network, so if you don’t have an fix public IP
address you can use the Dyndns function.

Confidential 43
BeWAN Home center

Click at to access on your home centre pages

Confidential 44
BeWAN Home center

Enter your login and password account to access your Home Center

Confidential 45
BeWAN Home center - WebBlog

Confidential 46
BeWAN Home center -
Universal photo album

Collect photos and create albums that can be viewed via the Internet

Confidential 47
BeWAN Home center -
Universal photo album

Confidential 48
BeWAN Home center -
Digital Juke Box

Download music tracks then listen to them at home,


on the move or via the Internet

Confidential 49
BeWAN Home center -
Digital Juke Box

Confidential 50
BeWAN Home center -
VoiceMail

Confidential 51
BeWAN Home center -
VoiceMail

Confidential 52
Here are just a few of the
applications possible:

Confidential 53
BeWAN Home center -
Remote home system control
Control household systems and appliances remotely (simulate a human
presence, turn on central heating, etc.)

Confidential 54
BeWAN Home center -
Internet GSM/WiFi calls
Make calls via the Internet with a GSM bluetooth or WiFi phone

Confidential 55
BeWAN Home center -
Video surveillance
Home surveillance via the Internet or from a GSM phone, with intruder alerts

Confidential 56
The BeWAN iBox has been designed with a
high-performance hardware and software
structure, so it can be used to provide a
host of other innovative new services.

Take full advantage of them to impress


your customers, consolidate your existing
customer base and boost your market
share!
