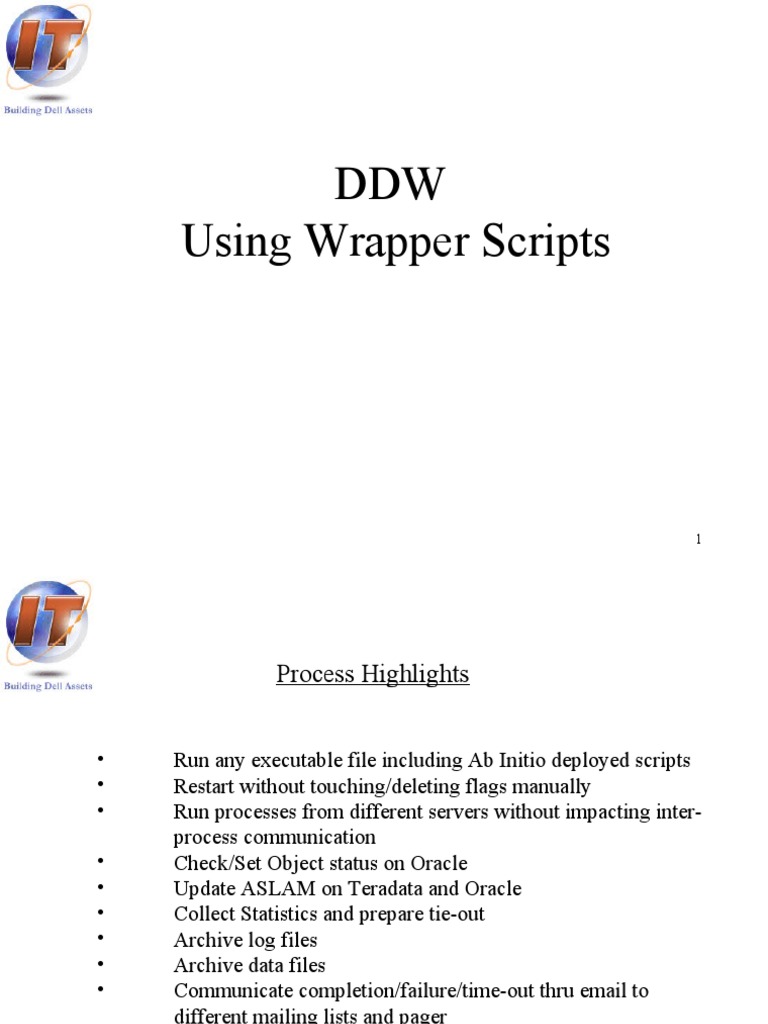

DDW
Using Wrapper Scripts
1
Process Highlights
• Run any executable file including Ab Initio deployed scripts

• Restart without touching/deleting flags manually
• Run processes from different servers without impacting inter-
process communication
• Check/Set Object status on Oracle
• Update ASLAM on Teradata and Oracle
• Collect Statistics and prepare tie-out
• Archive log files
• Archive data files
• Communicate completion/failure/time-out thru email to
different mailing lists and pager
DDW Apollo - Process Automation Using Wrapper Scripts 2

Process Architecture
• Main Process - submitted thru crontab
• Sub-processes - submitted by Main Process
• Executable files - submitted by Sub-process
Main Process
Sub-process Sub-process Sub-process
Run Ab Initio Graph Send Mail Collect Statistics

Main Process
• Submitted thru crontab

• Sets environment for the entire process
• Validates existence/executability of sub-process files
• Submits one or more Sub-Processes
• Waits for Sub-Process completion
• Updates ASLAM on Teradata
• Archives Log Files
• Archives Data Files

Sub-Process
• Submitted by the Main process

• All sub-processes submitted simultaneously and not
sequentially
• Has capability to wait for a variety of dependencies,
including other Sub-Processes
• Can perform various functions depending on
RUN_TYPE definition

Sub Process - Functionality
Can perform any of the functions as determined by RUN_TYPE

P : Process (submit any executable file such as Ab Initio
deployed script)
F : Set Flag on local and remote directory location
O : Set Object Status on Oracle
OA : Set ASLAM on Oracle

Sub Process - Dependencies
Can wait for one or more or all of the dependencies

D : Data file
F : Flag set by another process
O : Object Status on Oracle
S : Another Sub-process

File System - Overview
• Common Files
 Sourced by every process
 Ease of code maintenance
 Extend new features to all processes
 Developers can not alter code – maintains integrity
• Local Files
 Process-specific files
 Defined by Developer
 Source common files
File System – Common Files
• Located in /usr/local/abinitio/common
(DDW_COMMON_DIR ) on every server
• Files include
ddw_main_process.ksh chk_object_status.sql
ddw_sub_process.ksh set_object_status.sql
archive.ksh fill_job_detail_nolsn.sql
get_ora_cnt.ksh fill_job_detail.sql
get_td_cnt.ksh hosts.env
update_aslam.ksh

File System – Local Files
• Main process file

• Sub-Process file(s)
• Ab Initio deployed scripts
• List files
• Mail files
• Pager file

File System – hosts.env
• Required for defining host name of each process

• Located in /usr/local/abinitio/common
• Used for checking/setting flags in inter-process
communication
• Useful for fail-over protection and inter-process
communication
• e.g.
export US_FIN_ITEM_ROLLUP_HOST=harp

File System - Directories
• Home directory (also known as Sandbox) is project specific

e.g. /usr/dell/us_fin/fin/orders/us/load
• Following sub-directories required by the Wrapper
bin main process file
db dbc files
dml dml files
env list files
flags setting/checking flags
logs log files
mail mail-related files
paging pager related files
run sub-process and ab initio deployed files
temp temporary files created by Wrapper and Ab Initio scripts

File System – Main Process file
• Copy /usr/local/abinitio/template/template_main.ksh to bin/

directory ($AI_BIN)
• Rename as desired
• Make sure it’s executable
• Modify just one line of the file (directory path)
. $HOME/<directory path>/ab_project_setup.ksh $HOME/<directory path>
• Sources /usr/local/abinitio/common/ddw_main_process.ksh

File System – Sub-Process file - 1
• Copy /usr/local/abinitio/template/template_sub.run to run/

directory ($AI_RUN)
• Rename as desired
• Make sure it’s executable
• Define RUN_TYPE and related parameters
• Sources /usr/local/abinitio/common/ddw_sub_process.ksh

RUN_TYPE=P
• Runs a process by submitting an executable file such as Ab Initio
deployed graph
• Parameter required is
RUN_JOB: executable shell script that needs to be processed

RUN_TYPE=O
• Sets Object Status on Oracle
• Sources /usr/local/abinitio/common/set_object_status.sql
• Parameters required are
OS_REGION: region code
OS_SUBJECT_AREA: subject area code
OS_OBJECT_NAME: object name
OS_ACTION: START or FINISH
OS_LOAD_SEQ_NUM: $LOAD_SEQ_NUM or 0
OS_COMMENTS: Any non-null value
OS_SID_NAME: Oracle SID where process is running
OS_SCHEMA: Oracle Schema where process is running
• Two run files required – one for START and another for FINISH

RUN_TYPE=F
• Sets flags on local and target directories
FLAG_NAME: flag name
REMOTE_HOST: host server name of downstream process as in hosts.env
REMOTE_USER: useid for logging to REMOTE_HOST
REMOTE_DIR: directory on REMOTE_HOST for setting the flag

RUN_TYPE=OA
• Updates ASLAM on Oracle
OA_JOB_CODE: Job code for ASLAM on Oracle
OA_ACTION: 'START‘ or ‘FINISH’
OA_LOAD_SEQ_NUM: $LOAD_SEQ_NUM
OA_FINISH_PROCESS_NAME: run file name where OA_ACTION is
‘FINISH’
• OA_FINISH_PROCESS_NAME is required only when
OA_ACTION is START
• Two run files required – one for START and another for FINISH

File System – List Files
• Used by Main Process or Sub-processes

• Located in env/ directory ($AI_ENV)
• Can be any of the following types
Job List
Dependency List
Stats List
Archive List

File System – Job List File
• Lists the sub-processes to be submitted by Main Process

• SUB_JOB_LIST parameter defines the file name
• ON/OFF flag determines which process to run
• Order in the job list file does not indicate order of their
run
• Main Process reads this file several times - hence a copy of
this file is stored in $AI_ENV/.ENV and accessed to preserve integrity
from changes to the file till process completion
• e.g. entries
ON extract_svc_tags.run

File System – Dependency List File - 1
• Lists the dependencies for which a sub-processes may

wait
• SUB_DEPEND_LIST parameter defines the file name
• Four types of dependencies
D: Data File
F: Flag set by another process
O: Object Status
S: Another Sub-process
• Dependency checking is always in the alphabetical order
i.e. D  F  O  S
• Main Process reads this file several times - hence a copy of

this file is stored in $AI_ENV/.ENV and accessed to
preserve integrity from changes to the file till process
completion

Dependency Type = D
• Waits for Data files
• Format for entry
<subprocess> D <depedended file> <DEFAULT/directory location>
e.g.
build_svc_tags.run D sthsflat.sql DEFAULT
(where DEFAULT = $COLL_HOME/load_seq_num)

Dependency Type = F
• Waits for a flag set by another process
<subprocess> F <depedended flag> <directory location> <remote
server> <remote userid>
e.g.
build_svc_tags.run F customer_can_${LOAD_SEQ_NUM}.1_moved.flg
$CUST_MOVED_DIR $CAN_FIN_CUST_LOAD_HOST can_svc
• Remote server parameter is as defined in
/usr/local/abinitio/common/hosts.env

Dependency Type = O
• Waits for Object Status on Oracle
<subprocess> O <object_name> <subject name> <region>
e.g.
copy_girp_oh_od_all_us.run O PROD_ORDER_DETAIL
FINANCE AMER

Dependency Type = S
• Waits for another Sub-Process submitted by the same
Main Process
<sub-process> S <depedended file>
e.g.
build_svc_tags.run S extract_svc_tags.run

Dependencies – Important Points
• A Sub-Process can have any kind and number of dependencies

• If a Sub-Process has more than one kind of dependency, waiting is
in the alphabetical order of the kind (D  F  O  S)
• A Sub-process can wait for any number of other Sub-Processes
• Any number of Sub-Processes can wait for a Sub-Process
• Setting OFF of dependent Sub-Process ignores the dependency – if
Sub-Process B waits for Sub-Process A and Sub-Process A is set to
OFF, the dependency is ignored
• Ignoring the Sub-Process dependency does no cascade – if Sub-
Process C waits for Sub-Process B and Sub-Process B in turn waits
for Sub-Process A, setting Sub-Process B to OFF does not make
Sub-Process C wait for Sub-Process A.

File System – Stats List File -
1
• Required for collecting the record count for the tie-out report
• STAT_LIST_FILE parameter defines the file name
• collect_stats.ksh is used to collect record count
• File contents are not read till collect_stats Sub-Process submits
collect_stats.ksh
• Can collect record count of any of the following sources
Data Files used/generated by Ab Initio
Table on Teradata (with/without a where condition)
Table on Oracle (with/without a where condition)

2
• Source Type determines how to get the record count
• Source Types
AF : Anomaly File downloaded from source
AT : Anomaly Table on Teradata along with database name, with optional where condition
BT : Base Table on Teradata along with database name, with optional where condition
DF : Records discarded with D flag - file created by Ab Initio graph
DR : Delete Resent - file created by Ab Initio graph
EF : Extract File
IF : Incremental file
IT : Incremental Table on Teradata along with database name, with optional where condition
MB : Datamart base table on Oracle, with optional where condition
MI : Oracle Incremental Datamart table, with optional where condition
MT : Teradata Incremental Datamart table/view, with optional where condition
OE : Extract from Oracle Tables, with optional where condition
• Custom source types can be added to the list after modifying

collect_stats.ksh accordingly
3
Data Files
• Source Types of AF, DF, DR, EF, IF
• Format for definition
<Table Name> <Source Type> <File Name With Location> <DML File With
Location>
e.g. SVC_TAG AF $SVC_TAG_ANOM_IN_DAT $SVC_TAG_ANOM_DML
• Both multi-file and single-file systems are handled

• DML file required in definition for multi-file system, not for single-
file systems

4
Teradata Tables
• Source Types of AT, BT, IT, MT
<Table Name> <Source Type> <database.tablename> [<"Where Condition">]
e.g. SVC_TAG BT $SVC_TAG "where svc_business_unit_id = 707 and
load_seq_num=${LOAD_SEQ_NUM}.1"
• When no where condition is defined, whole table count is returned

• Sources /usr/local/abinitio/common/get_td_cnt.ksh
• Requires $TD_LOGON parameter defined that points to a dbc file
to login to Teradata

5
Oracle Tables
• Source Types of OE, MI, ME
<Table Name> <Source Type> <Source Name> <Oracle Schema> <Oracle Sid>
[<"Where Condition">]
e.g. ORDER_DETAIL OE RAW_RAW_STAT_ORDER_DETAIL_AMER
am_fl_extract proc
• When no where condition is defined, whole table count is returned

• Sources /usr/local/abinitio/common/get_ora_cnt.ksh
• Gets oracle password using getpasswd function using oracle schema
and oracle sid defined in this file

File System – Archive List File
• Used for archiving data files

• ARCHIVE_FILES_LIST parameter defines the file name
ON <file name with directory path>
e.g.
ON $AI_OUT_DATA/r_svc_tag.dat

File System – Mail files - 1
• Files used for sending mails

• Files located in mail/ ($AI_MAIL)
• Three types of files required
List file
Subject File
Body text File

File System – Mail files - 2
• List file sends mail to the listed email addresses

e.g. Format for entry
mail -s “`cat $1` `date`” ravi_pothukuchy@dell.com < “$2”
• Add additional email addresses delimited by a comma
• Subject file contains text that forms the subject part of a mail
ERROR - <region> <process name> <task> Aborted
• Body text file contains text that forms the body of a mail

File System – Pager files
• File used for sending pager messages

• File located in paging/ ($AI_PAGING)
• File contains the logic and page-id for sending the code
echo $1 $2 | /usr/bin/Mail -s "ravi" pager@pagerhost.us.dell.com
• Enter multiple entries for multiple ids

ASLAM on Teradata
• Each process has a Process_id and makes an entry to ASLAM

tables
• Each Process works on one or more Objects and ASLAM tables
maintain the relation between a Process and the Objects
• A Process can end with any of the four statuses
S : Successful
E : Errored
T : Timed-out
U : Unknown
• A Group of Processes can be defined to group related Processes

Log Files - 1
• Four levels of log files are created in $AI_LOG

Generated by Main Process
Generated by Sub-Process
Generated by the executable submitted by a Sub-Process
Log files defined inside an Ab Intio graph
• Main Process log file defined as parameter LOG_FILE and each
time Main Process is submitted, a separate log file is created
e.g.
Definition: <identifier>_`date +%b%d_%Y:%H:%M:%S`.log
Actual: build_corp_lookup_May24_2002:16:03:01.log

Log Files - 2
• Sub-Process log file is created by suffixing date

(MMMDD_YYYY:HH:MI:SS) to the run file and each time Sub-
Process is submitted, a new log file is created.
e.g.
generate_dml_May22_2002:21:03:02.log
• The log file generated by the executable submitted by the Sub-
Process (such as Ab Initio deployed script) takes it’s name from the script
name appended with YYYYMMMDD and the extension is ‘out’ instead
of ‘log’. Each time the process is submitted, output is appended to
this file (i.e. only one file per day)
e.g.
collect_stats_lookup_download_2002May24.out

Log Files - 3
• Log files defined inside the Ab Initio graphs have constant names
and are always replaced when the graph is re-run.
• Log files older than certain number of days
(LOG_FILE_KEEP_DAYS ) are archived and compressed by the Main
Process and copied to $AI_LOGS/archive directory.
• Archived log files older than certain number of days
(LOG_ARCH_KEEP_DAYS) are removed by the Main process.

Automating a Process - 1
1. Create the directory structure

2. Setup Project environment
3. Create Main Process File
(copy /usr/local/abinitio/template/template_main.ksh to $AI_BIN and modify)
4. Create Sub-process files

(copy /usr/local/abinitio/template/template_sub.run to $AI_RUN and modify)
5. Define Job list file

(refer to /usr/local/abinitio/template/template_job.lst for sample)

1. Define Dependency list file

(refer to /usr/local/abinitio/template/template_dependency.lst for sample)
2. Define Stats list file

(refer to /usr/local/abinitio/template/template_stats.lst for sample)
3. Define Archive list file

(refer to /usr/local/abinitio/template/template_archive.lst for sample)
4. Define Mail files

(refer to mail*.lst and mail*.txt in /usr/local/abinitio/template for sample)
5. Copy /usr/loca/abinitio/template/mail_done_template.ksh to $AI_RUN

and rename to use for submitting by a sub-process.

1. Define Pager file

(Copy /usr/local/abinitio/template/page_oncall to $AI_PAGING and modify as
required)
2. Copy /usr/loca/abinitio/template/collect_stats.ksh to $AI_RUN –

customize if custom source types are defined or tie-out calculation needs
to be modified
3. Define wrapper related Parameters in the project setup and make sure
they are exported
4. Setup ASLAM metadata

Parameters that change runtime behavior - 1
LSN_REQUIRED (Y/N) Whether to check for the file that provides

the Load Sequence Num exists or not
IGNORE_RUNNING_FLAGS (Y/N) Whether to resubmit the running sub-
processes again when the main-process is
restarted
IGNORE_ASLAM (Y/N) Whether to update ASLAM tables or not
PAGE_SUCCESSFUL_RUN (Y/N) Whether to send a pager message when main
process completes successfully
PAGE_SUBPROCESS_FAIL (Y/N) Whether the sub-process to page when it fails
PAGE_SUB_DEPENDENCY (Y/N) Whether the sub-process to page waiting for
another sub-process

ARCHIVE_LOG_FILES (Y/N) Whether to archive log files or not.

LOG_FILE_KEEP_DAYS (3) Log files older than how may days should be
archived
LOG_ARCH_KEEP_DAYS (14) Archived log files older than how many days
old should be deleted
ARCHIVE_FILES (Y/N) Whether to archive data files or not
TIEOUT_FAIL_EXIT (Y/N) Whether the process should terminate if the
tie-out fails
PRINT_BASE_TIEOUT (Y/N) Whether want to print base tie-out in the report
PRINT_MART_TIEOUT (Y/N) Whether want to print mart tie-out in the report

MAIN_SLEEP_TIME Time in seconds the main-process waits for sub-

process completion between each cycle
MAIN_PAGE_CNT No. of cycles after which main-process sends pager
message
MAIN_EXIT_CNT No. of cycles after which main-process time-outs
SUB_SLEEP_TIME Time in seconds sub-process sleeps to check for
completion of a dependency between each cycle
SUB_PAGE_CNT No. of cycles after which sub-process sends a pager
SUB_EXIT_CNT No. of cycles after which sub-process times-out

Flags and Process Control - 1
• Main Process sets $RUNNING_FLAG to prevent another

concurrent session
• Main Process writes Load Sequence Number and time of
completion to $DONE_FLAG, to prevent another run for the same day
• Each Sub-Process sets a flag depending on the status
Running: <sub_process_name>_running.flg
Done: <sub_process_name>_done.flg
Failed: <sub_process_name>_error.flg
• Sub-Process on failure or time-out sets $ABORT_FLAG
• Main Process terminates when it finds $ABORT_FLAG

Flags and Process Control - 2
• To resubmit processes whose running flags exist (occurs when the

process is killed / server has failed), remove flags manually or set
IGNORE_RUNNING_FLAGS to Y and restart
• Flags set by upstream processes are deleted at the end of successful
completion of process
• Flags set for downstream processes are deleted when Main Process
is started afresh (when $ABORT_FLAG does not exist)

Flags and Restartability - 1
• Restarting a process is required under one of these situations

• Main-Process failed or timed-out
• One or more Sub-Processes failed or timed-out
• Main-Process/Sub-Processes killed manually or due to
server failure
• Restarted Main Process ignores Sub-Processes whose done flags or
running flags exist.
• Restarting Main Process cleans up abort flags and error flags –
NEVER EVER DELETE ANY FLAGS WHEN RESTARTING

Flags and Restartability - 2
• Deleting done flags before restart will resubmit the Sub-Processes

those have already completed
• Deleting running flags before restart can lead to concurrent
sessions of the Sub-Processes whose outcome may be unpredictable
• Deleting ABORT_FLAG will remove any flags set for downstream
processes (since absence of ABORT_FLAG is taken as a fresh
process)

Important Considerations
• Main Process time-out does not kill any sub-process it has

submitted – they are still running – so just restart the Main Process
• Sub-Process time-out indicates it has timed-out even before
finished it’s job
• Sub-Process never times-out waiting for the process it has
submitted (such as an Ab Initio deployed script)
• Failure of one Sub-Process in no way influences the outcome of
another Sub-Process (except it may time-out if it has a dependency)
• Deleting running flags before restart can lead to concurrent
sessions of the Sub-Process whose outcome may be unpredictable

The Wrapper Advantage
• Easy to maintain code because it’s centralized

• Easy to extend new features to every process with little
changes in individual process
• Easy to set-up a process which improves productivity
• Easy to support because of uniformity in code/processing across
regions/subject/processes
• Easy to move processes across servers without impacting inter-
process communication

The Wrapper Advantage
Easy to Set-up. Easy to Support.
Easy as Dell.

GDC - Wrapper

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

GDC - Wrapper

Uploaded by

Copyright:

Available Formats

DDW

Using Wrapper Scripts

• Run any executable file including Ab Initio deployed scripts

DDW Apollo - Process Automation Using Wrapper Scripts 2

Sub-process Sub-process Sub-process

Run Ab Initio Graph Send Mail Collect Statistics

DDW Apollo - Process Automation Using Wrapper Scripts 3

• Submitted thru crontab

DDW Apollo - Process Automation Using Wrapper Scripts 4

• Submitted by the Main process

DDW Apollo - Process Automation Using Wrapper Scripts 5

Can perform any of the functions as determined by RUN_TYPE

DDW Apollo - Process Automation Using Wrapper Scripts 6

Can wait for one or more or all of the dependencies

DDW Apollo - Process Automation Using Wrapper Scripts 7

DDW Apollo - Process Automation Using Wrapper Scripts 9

• Main process file

DDW Apollo - Process Automation Using Wrapper Scripts 10

• Required for defining host name of each process

DDW Apollo - Process Automation Using Wrapper Scripts 11

• Home directory (also known as Sandbox) is project specific

DDW Apollo - Process Automation Using Wrapper Scripts 12

• Copy /usr/local/abinitio/template/template_main.ksh to bin/

DDW Apollo - Process Automation Using Wrapper Scripts 13

• Copy /usr/local/abinitio/template/template_sub.run to run/

DDW Apollo - Process Automation Using Wrapper Scripts 14

DDW Apollo - Process Automation Using Wrapper Scripts 15

DDW Apollo - Process Automation Using Wrapper Scripts 16

DDW Apollo - Process Automation Using Wrapper Scripts 17

DDW Apollo - Process Automation Using Wrapper Scripts 18

• Used by Main Process or Sub-processes

DDW Apollo - Process Automation Using Wrapper Scripts 19

• Lists the sub-processes to be submitted by Main Process

DDW Apollo - Process Automation Using Wrapper Scripts 20

• Lists the dependencies for which a sub-processes may

• Main Process reads this file several times - hence a copy of

DDW Apollo - Process Automation Using Wrapper Scripts 22

DDW Apollo - Process Automation Using Wrapper Scripts 23

DDW Apollo - Process Automation Using Wrapper Scripts 24

DDW Apollo - Process Automation Using Wrapper Scripts 25

DDW Apollo - Process Automation Using Wrapper Scripts 26

• A Sub-Process can have any kind and number of dependencies

DDW Apollo - Process Automation Using Wrapper Scripts 27

DDW Apollo - Process Automation Using Wrapper Scripts 28

• Custom source types can be added to the list after modifying

• Both multi-file and single-file systems are handled

DDW Apollo - Process Automation Using Wrapper Scripts 30

• When no where condition is defined, whole table count is returned

DDW Apollo - Process Automation Using Wrapper Scripts 31

• When no where condition is defined, whole table count is returned

DDW Apollo - Process Automation Using Wrapper Scripts 32

• Used for archiving data files

DDW Apollo - Process Automation Using Wrapper Scripts 33

• Files used for sending mails

DDW Apollo - Process Automation Using Wrapper Scripts 34

• List file sends mail to the listed email addresses

DDW Apollo - Process Automation Using Wrapper Scripts 35

• File used for sending pager messages

DDW Apollo - Process Automation Using Wrapper Scripts 36

• Each process has a Process_id and makes an entry to ASLAM

DDW Apollo - Process Automation Using Wrapper Scripts 37

• Four levels of log files are created in $AI_LOG

DDW Apollo - Process Automation Using Wrapper Scripts 38

• Sub-Process log file is created by suffixing date
