10 Watts

Out RG174
Coax
to SO239

C48
100pf C47
Mica 33pf
C46
L10
82pf
0.01uf1206
C45 C44
Board Cutout L8 .1uf1206
DIP Switch D5 L9
Flat side

RD15HFV1
toward
12345678

18 Pin Socket center

for PIC1F628A C41 150pf L5
C43
C42
Q1 C40
L7 FB
33pf
C49
16MHZ Crystal
.001uf 56pf R16
22uf .001uf.1uf C32
MC145170
1206
470pf
Mica
78L05 Flat R17
side (471)
IC3 10K Trimmer
C36 C37 L6
5-30pf 1uh IC6 .1uf
33K 22pf 12pf trimmer

11
.1uf .001uf C51 .1uf C53 MAV11
120 R10
.001uf C50
680 .001uf
.1uf 22uf 1206
IC8
.1uf .1uf
78L05
33K .001uf .001uf
.1uf .
22uf RFchoke
.1uf
POS150

8 Pin Socket 7812 RFchoke L2 L3 IC5

for LF351 RF 360
.047 22uf
L1 choke
33K 22K
470uf L4
4.7uf 1K
.047
390
.001uf.1uf
4.7uf 8.2K
.1uf .001uf RFchoke
15K
22uf .001uf .1uf .0047 (472)
.001uf

Red Wire to Jumper

White Audio
!3.8 volt DC Audio wire to
Wire Ground
Supply Positive Input positive
to Supply White
Red Banana socket Red supply
Gnd - Black banana socket Wire
Wire voltage

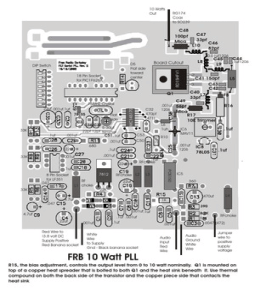

FRB 10 Watt PLL

R15, the bias adjustment, controls the output level from 0 to 10 watt nominally. Q1 is mounted on
top of a copper heat spreader that is bolted to both Q1 and the heat sink beneath it. Use thermal
compound on both the back side of the transistor and the copper piece side that contacts the
heat sink
 Serial 10 Watt PLL Version 1 Parts List
Part number Quantity Description

C1, C5, C8, C10, C12, C20-21, C23, C29, C33, C50 11 .001uf capacitor, marked 102
C2, C6-7, C11, C18, C22, C24, C26, C28, C34 10 .1uf capacitor, marked 104
C25, C30, C38, C43, C45 5 .001uf capacitor, SMT1206
C31, C39, C42, C44 4 .1uf capacitor, SMT1206
C3 1 .0047 capacitor, marked 472
C4, C16, C19, C27, C35 5 22uf electrolytic capacitor
C9, C15 2 4.7uf electrolytic capacitor
C13 1 470uf electrolytic capacitor
C14, C17 2 .047uf capacitor, marked 473
C32 1 470pf capacitor, marked 471
C40 1 33pf capacitor, SMT 1206
C41 1 150pf capacitor, SMT 1206
C36 1 22pf capacitor, marked 22
C37 1 12pf capacitor, marked 12
C46 1 82pf capacitor, SMT 1206
C47 1 33pf capacitor, SMT1206
C48 1 5-30pf green trimmer capacitor
C49 1 100p mica capacitor
C50 1 56pf mica capacitor
D1-D4 4 1N914 diode
D5 1 LED diode
IC1 1 LF351/TL071 op amp
IC2 1 MC145170 serial PLL
IC3, IC8 2 78L05 voltage regulator
IC4 1 PIC16F628, programmed CPU
IC5 1 7812 voltage regulator
IC6 1 MAV11 amplifier
IC7 1 POS150 VCO, Mini-Circuits
L1-L5 5 Wide-band RF choke
L6 1 1uh choke, small brown or green body
L7 1 Coil 3 turns, #18, turns, .25 diameter
L8 1 Coil 2 turns, #18, turns, .25 diameter
L9 1 Coil 6 turns, #18, turns, .25 diameter
L10 1 Coil 3 turns, #18, turns, .25 diameter
Q1 1 RD15HFV1 Transistor
R1 1 Resistor, 15K - brown, green, orange
R2 1 Resistor, 8.2K - gray, red, red
R3 1 Resistor, 390 - orange, white, brown
R4 1 Resistor, 22K - red, red, orange
R5-6, R8-9, R12-13 6 Resistor, 33K - orange, orange, orange
R7 1 Resistor, 360 – orange, blue, brown
R10 1 Resistor, 120 - brown, red, brown
R11 1 Resistor, 680 - blue, gray, brown
R14 1 10K Trimmer
R15 1 Resistor, 220 - red, red, brown
R16 1 680 – blue, gray, brown
R18 1 Resistor, 1K – brown, black, red
X1 1 16 MHz crystal

Other items:
1 - 8 pin IC socket, 1 – 18 pin IC socket, 1 – 8 position dip switch, 1 – ¼” #4 bolt, 5 #4 nuts, 4 – ½” #4 bolts, 4 ¼” spacers, 1 - 10”
length of #24 twisted pair, 1 – 5” length of #24 twisted pair, 1 – 10” length of RG174 coaxial cable, 1 – packet of thermal
compound, 1 – red banana socket, 1 – red banana plug, 1 – black banana socket, 1 – black banana plug, 1 – SO239 socket, D
mount, 1 – 10K potentiometer with washer and nut, 1 – RCA socket
 33pf

L10 82pf .001uf

100pf .1uf
DIP Switch
150pf L8
PIC16F628A L9
Insert here L5
Pin1

.001uf
LED Q1 L7 .1uf
33pf FB
.1uf 16MHz
.1uf 56pf
1uh 680
22uf 12pf .001uf

.001uf 10K
78L05 22pf 5-30pf 470pf MAV11
Trimmer
33K .1uf
.001uf 680
.1uf .001uf .001uf .001uf
22uf 120 .001uf
.1uf .1uf 78L05 .1uf
33K .001uf .001uf .1uf

.1uf 7812
Lf351 22uf L2
L3 POS150
.047uf L1 360
33K 22uf
4.7uf 22K
.001uf 1K .001uf 470uf L4
D1 D2
.047uf D3
4.7uf D4 Audio In 390
+12-14 VDC .1uf .1uf 8.2K
.001uf .1uf 15K
22uf
.001uf .1uf .001uf .0047uf
10uf

.001uf
