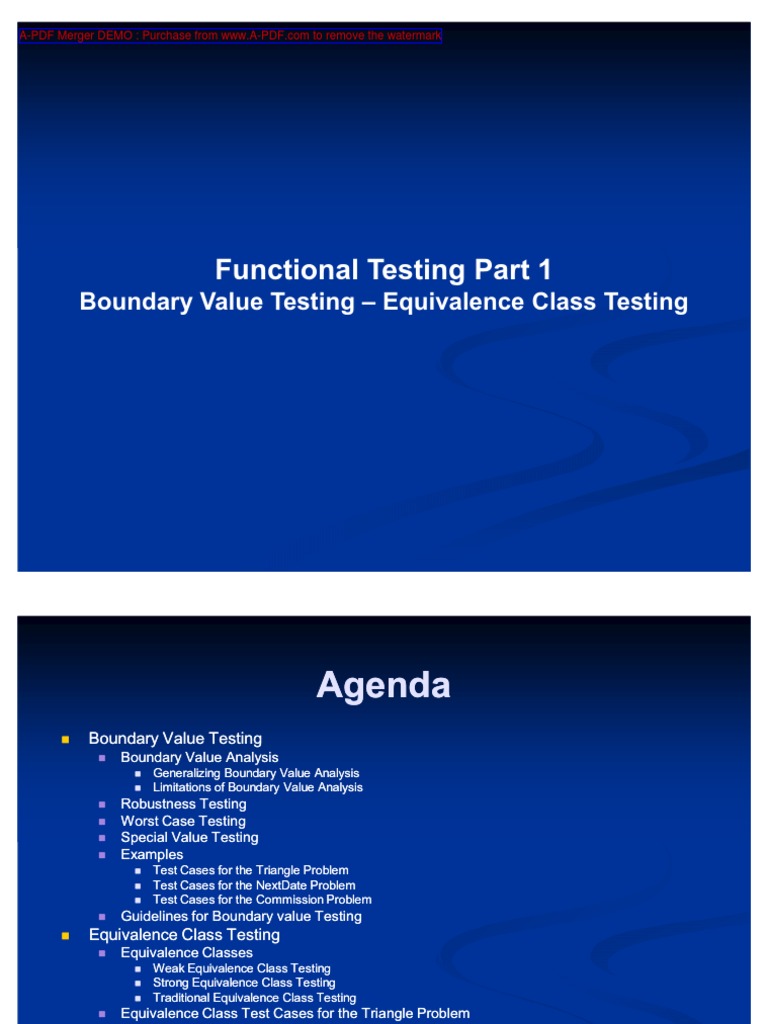

Functional Testing Part 1

Boundary Value Testing Equivalence Class Testing
Agenda

Boundary Value Testing

Boundary Value Analysis

Generalizing Boundary Value Analysis Limitations of Boundary Value Analysis

Robustness Testing Worst Case Testing Special Value Testing Examples

Test Cases for the Triangle Problem Test Cases for the NextDate Problem Test Cases for the Commission Problem
Guidelines for Boundary value Testing Equivalence Classes

Equivalence Class Testing

Weak Equivalence Class Testing Strong Equivalence Class Testing Traditional Equivalence Class Testing

Equivalence Class Test Cases for the Triangle Problem Equivalence Class Test Cases for the NextDate Function Equivalence Class Test Cases for the Commission Problem Guidelines and Observations
Agenda









F(x1, x2), a x1 b, c x2 d Boundary value analysis focuses on the boundary of the input space to identify test cases The rationale behind boundary value testing is that errors tend to occur near the extreme values of an input variable

e.g. loop conditions (< instead of ), counters

4

Basic idea: use input variable values at their minimum (min), just above the minimum (min+), a nominal value (nom), just below their maximum (max(max-), and at their maximum (max) Single fault assumption in reliability theory: failures are only rarely the result of the simultaneous occurrence of two (or more) faults. The boundary value analysis test cases are obtained by holding the values of all but one variable at their nominal values, and letting that variable assume its extreme values
5

F(x1, x2)
Agenda








Generalizing Boundary Value Analysis

By the number of variables

For n variables 4n + 1 test cases
By the kinds of ranges, depends on the type (nature) of the variables

Variables have discrete, bounded values

e.g. NextDate function, commission problem Create artificial bounds e.g. triangle problem Decision tabletable-based testing e.g. PIN and transaction type in SATM System
Variables have no explicit bounds

Boolean variables

Logical variables (bound to a value or another logic variable)

Agenda








Limitations of Boundary Value Analysis

Boundary value analysis works well when the program to be tested is a function of several independent variables that represent bounded physical quantities
e.g. NextDate test cases are inadequate (little stress on February, dependencies among month, day, and year) e.g. variables refer to physical quantities, such as temperature, air speed, load etc.

10
Agenda








11
Robustness Testing

Simple extension of boundary value analysis In addition to the five boundary value analysis values of a variable, see what happens when the extrema are exceeded with a value slightly greater than the maximum (max+) and a value slightly less than the minimum (min(min-) Focuses on the expected outputs

e.g. exceeding load capacity of a public elevator
Forces attention on exception handling

12
Robustness Testing
13
Agenda








14
Worst Case Testing

Worst case analysis: more than one variable has an extreme value Procedure:

For each variable create the set <min, min+, nom, maxmax-, max> Take the Cartesian product of these sets to generate test cases

More thorough than boundary value analysis Represents more effort

For n variables 5n test cases (as opposed to 4n+1 test cases for boundary value analysis)

Follows the generalization pattern Same limitations Robust worst case testing can be applied
15
Worst Case Testing
16
Worst Case Testing

x2 Robust Worst Case Test Cases (function of two variables)
c a b x1
17
Agenda








18
Special Value Testing

The most widely practiced form of functional testing Most intuitive, least uniform, no guidelines The tester uses his/her domain knowledge, experience with similar programs, ad hoc testing It is dependent on the abilities of the tester Even though it is highly subjective, it often results in a set of test cases which is more effective in revealing faults than the test sets generated by the other methods
19
Agenda








20
Test Cases for the Triangle Problem

Boundary Value Analysis Test Cases
Case 1 2 3 4 5 6 7 8 9 10 11 12 13 a 100 100 100 100 100 100 100 100 100 1 2 199 200 b 100 100 100 100 100 1 2 199 200 100 100 100 100 c 1 2 100 199 200 100 100 100 100 100 100 100 100 Expected Output Isosceles Isosceles Equilateral Isosceles Not a Triangle Isosceles Isosceles Isosceles Not a Triangle Isosceles Isosceles Isosceles Not a Triangle
min = 1 min+ = 2 nom = 100 max- = 199 max = 200
21
Test Cases for the Triangle Problem

W rst
s 2 3 4 5 6 7 8 9 c 2 99 2 2 2 2 2 2 2 99 2 2 Is 99 2 99 99 99 99 99 2 2 2 2 2 2 2 2 2 2 2 99 Is 2 2 99 2 2 99 2 Is Is Is
s T st
ct t il t r l t Tri l t Tri l t Tri l t Tri l t Tri l sc l s t Tri l t Tri l t Tri l t Tri l t Tri l sc l s t Tri l t Tri l t Tri l t Tri l t Tri l sc l s t Tri l t Tri l t Tri l t Tri l t Tri l sc l s t Tri l sc l s t Tri l t Tri l t Tri l t
s s (6
s 3 32 33 34 35 36 37 38 39 4 4 42 43 44 45 46 47 48 49 5 5 52 53 54 55 56 57 58 59 6 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
f 25)
c 2 2 2 2 2 2 99 2 2 99 2 99 99 99 99 99 2 2 2 2 2 2 99 2 2 99 2 2 99 2 2 2 2 2 2 2 99 2 Is sc il t t t t t Is sc t t t t t Is sc c l t t t c l Is sc t t Is sc t t t t Is sc t t ct t l s t r l Tri l Tri l Tri l Tri l Tri l l s Tri l Tri l Tri l Tri l Tri l l s Tri Tri Tri l s Tri Tri l s Tri Tri Tri Tri l s Tri Tri l l l t
2 3 4 5 6 7 8 9 2 2 22 23 24 25 26 27 28 29 3
l l l l l l l l
22
Agenda








23
Test Cases for the NextDate Problem

Boundary Value Analysis Test Cases
Case month 1 6 2 6 3 6 4 6 5 6 6 6 7 6 8 6 9 6 10 1 11 2 12 11 13 12 day 15 15 15 15 15 1 2 30 31 15 15 15 15 year 1812 1813 1912 2011 2012 1912 1912 1912 1912 1912 1912 1912 1912 Expected Output June 16, 1812 June 16, 1813 June 16, 1912 June 16, 2011 June 16, 2012 June 2, 1912 June 3, 1912 July 1, 1912 error January 16, 1912 February 16, 1912 November 16, 1912 December 16, 1912
month min = 1 min+ = 2 nom = 6 max- = 11 max = 12
day min = 1 min+ = 2 nom = 15 max- = 30 max = 31
year min = 1812 min+ = 1813 nom = 1912 max- = 2011 max = 2012
24
Test Cases for the NextDate Problem

Worst Case Test Cases (60 of 125)
Case 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 o t 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 a 1 1 1 1 1 2 2 2 2 2 15 15 15 15 15 30 30 30 30 30 31 31 31 31 31 1 1 1 1 1 ear 1812 1813 1912 2011 2012 1812 1813 1912 2011 2012 1812 1813 1912 2011 2012 1812 1813 1912 2011 2012 1812 1813 1912 2011 2012 1812 1813 1912 2011 2012 Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja Ja e e e e e e e e e e ecte t t ar 2, 1812 ar 2, 1813 ar 2, 1912 ar 2, 2011 ar 2, 2012 ar 3, 1812 ar 3, 1813 ar 3, 1912 ar 3, 2011 ar 3, 2012 ar 16, 1812 ar 16, 1813 ar 16, 1912 ar 16, 2011 ar 16, 2012 ar 31, 1812 ar 31, 1813 ar 31, 1912 ar 31, 2011 ar 31, 2012 r ar 1, 1812 r ar 1, 1813 r ar 1, 1912 r ar 1, 2011 r ar 1, 2012 r ar 2, 1812 r ar 2, 1813 r ar 2, 1912 r ar 2, 2011 r ar 2, 2012 Case 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 o t 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 6 6 6 6 6 6 6 6 6 6 a 2 2 2 2 2 15 15 15 15 15 30 30 30 30 30 31 31 31 31 31 1 1 1 1 1 2 2 2 2 2 ear 1812 1813 1912 2011 2012 1812 1813 1912 2011 2012 1812 1813 1912 2011 2012 1812 1813 1912 2011 2012 1812 1813 1912 2011 2012 1812 1813 1912 2011 2012 ecte t t e r ar 3, 1812 e r ar 3, 1813 e r ar 3, 1912 e r ar 3, 2011 e r ar 3, 2012 e r ar 16, 1812 e r ar 16, 1813 e r ar 16, 1912 e r ar 16, 2011 e r ar 16, 2012 error error error error error error error error error error J e 2, 1812 J e 2, 1813 J e 2, 1912 J e 2, 2011 J e 2, 2012 J e 3, 1812 J e 3, 1813 J e 3, 1912 J e 3, 2011 J e 3, 2012
25
Agenda








26
Test Cases for the Commission Problem

13 Boundary Value Analysis Test Cases 125 Worst Case Test Cases Boundary values for the output range, especially near the threshold points of $1000 and $1800 Part of the reason for using the output range to determine test cases is that test cases from the input range are almost all in the 20% zone We want to find input variable combinations that stress the boundary values: $100, $1000, $1800, and $7800
27

Out ut Boundary Value Analysis Test Cases
Cas 2 3 4 5 6 7 8 9 l cks st cks arr ls 2 2 2 5 5 9 9 5 9 sa l s 25 3 45 5 975 97 955 25 3 45 4 8 18 17 18 18 18 19 48 70 70 69 70 4 18 17 18 18 18 19 18 48 80 79 80 80 4 17 18 18 18 19 18 18 48 89 90 90 90 4 1775 177 1755 1800 1825 1830 1845 4800 7775 7770 7755 7800 c issi t 2.5 3 4.5 5 97.5 97 95.5 3.75 4.5 6.75 6 216.25 215.5 213.25 220 225 226 229 820 1415 1414 1411 1420 c t t i i t t i i t t i i t t i i i i t r r i tr r i tr r i tr r i t r r i t r r i t r r i t i i t r r i tr r i tr r i tbor r oi t bor r oi t bor r oi t bor r oi t mi o i t out ut maximum out ut maximum out ut maximum out ut maximum
2 3 4 15 16 17 18 19 20 21 22 23 24 25
28

Test case 9 is the $1000 border point If we tweak the input variables we get values just below and just above the border Form of special value testing based on mathematical insight
Output Special Value Test Cases
Case 1 2 3 locks 10 18 18 stocks 11 17 19 barrels 9 19 17 sales 1005 1795 1805 commission 100.75 219.25 221 comment border point + border point border point +
29
Agenda








30
Equivalence Classes

Motivations

Have a sense of complete testing Avoid redundancy

Equivalence classes form a partition of a set, where partition refers to a collection of mutually disjoint subsets whose union is the entire set (completeness, nonnon-redundancy) The idea is to identify test cases by using one element from each equivalence class treated the same traversing the same execution path The key is the choice of the equivalence relation that determines the classes

second guess the likely implementation , and think about the functional manipulations that must somehow be present in the implementation
31
Equivalence Classes

Program under consideration:

Function of variables a, b, c Input domain consists of sets A, B, and C A = A1 7 A2 7A3 B = B1 7 B2 7 B3 7 B4 C = C1 7 C2 a1 A1, b3 B3, c2 C2

32
Agenda








33
Weak Equivalence Class Testing

Accomplished by using one variable from each equivalence class in a test case
Test Case 1 WE2 WE3 WE4 a a1 a2 a3 a1 b b1 b2 b3 b4 c c1 c2 c1 c2
A = A1 7 A2 7 A3 B = B1 7 B2 7 B3 7 B4 C = C1 7 C2 a1 A1, b3 B3, c2 C2
Number of weak equivalence class test cases = number of classes in the partition with the largest number of subsets
34
Agenda








35
Strong Equivalence Class Testing

Based on the Cartesian Product of the partition subsets A x B x C = 3 x 4 x 2 = 24 elements Equivalence relations can be defined on the output range of the program function being tested
Test Case E1 SE2 SE3 SE4 SE5 SE6 SE7 SE8 SE9 SE10 SE11 S E 12 SE13 SE14 S E 15 S E 16 S E 17 S E 18 S E 19 SE20 SE21 SE22 SE23 SE24
a a1 a1 a1 a1 a1 a1 a1 a1 a2 a2 a2 a2 a2 a2 a2 a2 a3 a3 a3 a3 a3 a3 a3 a3
b b1 b1 b2 b2 b3 b3 b4 b4 b1 b1 b2 b2 b3 b3 b4 b4 b1 b1 b2 b2 b3 b3 b4 b4
c c1 c2 c1 c2 c1 c2 c1 c2 c1 c2 c1 c2 c1 c2 c1 c2 c1 c2 c1 c2 c1 c2 c1 c2
36
Agenda








37
Traditional Equivalence Class Testing

Defines equivalence classes in terms of validity Commission problem

Valid inputs: 1 lock 70, 1 stock 80, 1 barrel 90 Invalid inputs: lock < 1, lock > 70, stock < 1, stock > 80, barrel < 1, barrel > 90

For valid inputs, use one value from each valid class (like weak equivalence testing) For invalid inputs, a test case will have one invalid value and the remaining values will all be valid (single failure)
38
Traditional Equivalence Class Testing

Problems:
Very often, the specification does not define what the expected output for an invalid test case should be a lot of time spent in defining expected outputs Strongly typed languages eliminate the need for the consideration of invalid inputs

39
Agenda








40
Equivalence Class Test Cases for the Triangle Problem

Outputs: Not a Triangle, Scalene, Isosceles, Equilateral Easier to identify output (range) equivalence classes

R1 = {<a, b, c> : the triangle with sides a, b, and c is equilateral} R2 = {<a, b, c> : the triangle with sides a, b, and c is isosceles} R3 = {<a, b, c> : the triangle with sides a, b, and c is scalene} R4 = {<a, b, c> : sides a, b, and c do not form a triangle}
Test Case OE1 OE2 OE3 OE4 a 5 2 3 4 b 5 2 4 1 c 5 3 5 2 Expected Output Equilateral Isosceles Scalene Not a Triangle
41
Equivalence Class Test Cases for the Triangle Problem

Input (domain) equivalence classes

D1 = {<a, b, c> : a = b = c} D2 = {<a, b, c> : a = b, a c} D3 = {<a, b, c> : a = c, a b} D4 = {<a, b, c> : b = c, a b} D5 = {<a, b, c> : a b, a c, b c} // D6 = {<a, b, c> : a b + c} D6 = {<a, b, c> : a = b + c} D6 = {<a, b, c> : a > b + c} // D7 = {<a, b, c> : b a + c} D7 = {<a, b, c> : b = a + c} D7 = {<a, b, c> : b > a + c} // D8 = {<a, b, c> : c a + b} D8 = {<a, b, c> : c = a + b} D8 = {<a, b, c> : c > a + b}
42
Agenda








43
Equivalence Class Test Cases for the NextDate Function

Input variables

1 month 12 1 day 31 1812 year 2012 Valid equivalence classes

Traditional approach

M1 = { month : 1 month 12 } D1 = { day : 1 day 31 } Y1 = { year : 1812 year 2012 } M2 = { month : month < 1 } M3 = { month : month > 12 } D2 = { day : day < 1 } D3 = { day : day >31 } Y2 = { year : year < 1812 } Y3 = {year : year > 2012 }
Invalid equivalence classes

Case ID TE1 TE2 TE3 TE4 TE5 TE6 TE7
Month 6 -1 13 6 6 6 6
Day 15 15 15 -1 32 15 15
Year 1912 1912 1912 1912 1912 1811 2013
Expected Output 6/16/1912 invalid input invalid input invalid input invalid input invalid input invalid input
44

Traditional approach is deficient because it treats the elements of a class at the valid/invalid level Different approach: What must be done to an input date?
M1 = { month: month has 30 days } M2 = { month: month has 31 days } M3 = { month: month is February } D1 = { day: 1 day 28 } D2 = { day: day = 29 } D3 = { day: day = 30 } D4 = { day: day = 31 } Y1 = { year: year = 1900 } Y2 = { year: 1812 year 2012 AND (year 1900) AND (year mod 4 = 0) } Y3 = { year: 1812 year 2012 AND (year mod 4 0) } Not a perfect set of equivalence classes!!!
45

Weak equivalence class test cases
Case ID WE1 WE2 WE3 WE4 Month 6 7 2 6 Day 14 29 30 31 Year 1900 1912 1913 1900 Expected Output 6/15/1900 7/30/1912 invalid input invalid input
Strong equivalence class test cases

Case ID SE1 SE2 SE3 SE4 SE5 SE6 SE7 SE8 SE9 SE10 SE11 SE12 SE13 SE14 SE15 SE16 SE17 SE18 Month 6 6 6 6 6 6 6 6 6 6 6 6 7 7 7 7 7 7 Day 14 14 14 29 29 29 30 30 30 31 31 31 14 14 14 29 29 29 Year 1900 1912 1913 1900 1912 1913 1900 1912 1913 1900 1912 1913 1900 1912 1913 1900 1912 1913 Expected Output 6/15/1900 6/15/1912 6/15/1913 6/30/1900 6/30/1912 6/30/1913 07/01/1900 07/01/1912 07/01/1913 E O E O E O 7/15/1900 7/15/1912 7/15/1913 7/30/1900 7/30/1912 7/30/1913 Case ID SE19 SE20 SE21 SE22 SE23 SE24 SE25 SE26 SE27 SE28 SE29 S E 30 S E 31 S E 32 SE33 SE34 SE35 SE36 Month 7 7 7 7 7 7 2 2 2 2 2 2 2 2 2 2 2 2 Day 30 30 30 31 31 31 14 14 14 29 29 29 30 30 30 31 31 31 Year 1900 1912 1913 1900 1912 1913 1900 1912 1913 1900 1912 1913 1900 1912 1913 1900 1912 1913 Expected Output 7/31/1900 7/31/1912 7/31/1913 08/01/1900 08/01/1912 08/01/1913 2/15/1900 2/15/1912 2/15/1913 E O 03/01/1912 E O E O E O E O E O E O E O
46
Agenda








47
Equivalence Class Test Cases for the Commission Problem

Input Domain Equivalence Classes

Lock

L1 = { lock: 1 lock 70 } L2 = { lock: lock < 1 } L3 = { lock: lock > 70 } S1 = { stock: 1 stock 80 } S2 = { stock: stock < 1 } S3 = { stock: stock > 80 } B1 = { barrel: 1 barrel 90 } B2 = { barrel: barrel < 1 } B3 = { barrel: barrel > 90 }
Stock

Barrel

48

Strong Input Domain Equivalence Class Test Cases
Test Case SE1 SE2 SE3 SE4 SE5 SE6 SE7 SE8 SE9 SE10 SE11 SE12 SE13 SE14 SE15 SE16 SE17 SE18 SE19 SE20 SE21 SE22 SE23 SE24 SE25 SE26 SE27 locks 35 35 35 35 35 35 35 35 35 0 0 0 0 0 0 0 0 0 71 71 71 71 71 71 71 71 71 stocks 40 40 40 0 0 0 81 81 81 40 40 40 0 0 0 81 81 81 40 40 40 0 0 0 81 81 81 barrels 45 0 91 45 0 91 45 0 91 45 0 91 45 0 91 45 0 91 45 0 91 45 0 91 45 0 91 sales 3900 E E E E E E E E E E E E E E E E E E E E E E E E E E commission 640 E E E E E E E E E E E E E E E E E E E E E E E E E E
Weak Input Domain Equivalence Class Test Cases

Test Case W E1 W E2 WE3 locks 35 0 71 stocks 40 0 81 barrels sales 45 3900 0 E 91 E commission 640 E E
49

sales = 45 x locks + 30 x stocks + 25 x barrels L1 = { <lock, stock, barrel> : sales 1000 } L2 = { <lock, stock, barrel> : 1000 < sales 1800 } L3 = { <lock, stock, barrel> : sales > 1800 }
Output Range Equivalence Class Test Cases
Test Case OR1 OR2 OR3
locks 5 15 25
stocks 5 15 25
barrels 5 15 25
sales 500 1500 2500
commission 50 175 360
50
Agenda








51
Guidelines and Observations

1.
2.
3.
4.
The traditional form of equivalence class testing is generally not as thorough as weak equivalence class testing, which in turn, is not as thorough as the strong form of equivalence class testing The only time it makes sense to use the traditional approach is when the implementation language is not strongly typed If error conditions are a high priority, we could extend strong equivalence class testing to include invalid classes (e.g. commission problem) Equivalence class testing is appropriate when input data is defined in terms of ranges and sets of discrete values. This is certainly the case when system malfunctions can occur for outout-of of-limit variable values
52

5.
6.
7.
Equivalence class testing is strengthened by a hybrid approach with boundary value testing. (We can reuse the effort made in defining the equivalence classes) (e.g. NextDate function) Equivalence class testing is indicated when the program function is complex. In such cases, the complexity of the function can help identify useful equivalence classes, as in the NextDate function Strong equivalence class testing makes a presumption that the variables are independent when the Cartesian Product is taken. If there are any dependencies, these will often generate error test cases, as they did in the NextDate function
53

8.
Several tries may be needed before the right equivalence relation is discovered, as we saw in the NextDate example. In other cases, there is an obvious or natural equivalence partition. When in doubt, the best bet is to try to second guess aspects of any reasonable implementation
54
Agenda








55
References

Software Testing A Craftsman's Approach 2nd edition, Paul C. Jorgensen, CRC Press (Chapters 5 and 6)
56
Chapter 6
Software Testing: A Craftsmans Approach, 3rd Edition

F
Domain
Range
Equivalence class testing uses information about the functional mapping itself to identify test cases
Equivalence Relations
Given a relation R defined on some set S, R is an equivalence relation if (and only if), for all, x, y, and z elements of S:
R is reflexive, i.e., xRx R is symmetric, i.e., if xRy, then yRx R is transitive, i.e., if xRy and yRz, then xRz
An equivalence relation, R, induces a partition on the set S, where a partition is a set of subsets of S such that:
The intersection of any two subsets is empty, and The union of all the subsets is the original set S
Note that the intersection property assures no redundancy, and the union property assures no gaps.
Equivalence Partitioning
F Define relation R as follows: for x, y in domain, xRy iff F(x ) = F(y). Facts: Domain Range 1. R is an equivalence relation. 2. An equivalence relation induces a partition on a set. 3. Works best when F is many-to-one 4. (pre-image set) Test cases are formed by selecting one value from each equivalence class. - reduces redundancy - identifying the classes may be hard Range
Domain
Forms of Equivalence Class Testing

Normal: classes of valid values of inputs Robust: classes of valid and invalid values of inputs Weak: (single fault assumption) one from each class Strong: (multiple fault assumption) one from each class in Cartesian Product We compare these for a function of two variables, F(x1, x2) Extension to problems with 3 or more variables is obvious.
Weak Normal Equivalence Class Testing

Identify equivalence classes of valid values. Test cases have all valid values. Detects faults due to calculations with valid values of a single variable. OK for regression testing.
Weak Normal Equivalence Class Test Cases

x2
g f
e a b c d x1
Equivalence classes (of valid values): {a <= x1 < b}, {b <= x1 < c}, {c <= x1 <= d} {e <= x2 < f}, {f <= x2 <= g}
Weak Robust Equivalence Class Testing

Identify equivalence classes of valid and invalid values. Test cases have all valid values except one invalid value. Detects faults due to calculations with valid values of a single variable. Detects faults due to invalid values of a single variable. OK for regression testing.
Weak Robust Equivalence Class Test Cases

x2
g f
e a b c d x1
Equivalence classes (of valid and invalid values): {a <= x1 < b}, {b <= x1 < c}, {c <= x1 <= d}, {e <= x2 < f}, {f <= x2 <= g} Invalid classes: {x1 < a}, {x1 > d}, {x2 < e}, {x2 > g}
Software Testing: A Craftsmans Approach, 3rd Edition Equivalence Class Testing
x 2
Is this preferable to this? Why?

x 2
g f
e a b c d x 1
g f
e a b c d x 1
Strong Normal Equivalence Class Testing

Identify equivalence classes of valid values. Test cases from Cartesian Product of valid values. Detects faults due to interactions with valid values of any number of variables. OK for regression testing, better for progression testing.
Strong Normal Equivalence Class Test Cases

x2
g f
e a b c d x1
Equivalence classes (of valid values): {a <= x1 < b}, {b <= x1 < c}, {c <= x1 <= d} {e <= x2 < f}, {f <= x2 <= g}
Strong Robust Equivalence Class Testing

Identify equivalence classes of valid and invalid values. Test cases from Cartesian Product of all classes. Detects faults due to interactions with any values of any number of variables. OK for regression testing, better for progression testing. (Most rigorous form of Equivalence Class testing, BUT, Jorgensens First Law of Software Engineering applies.) Jorgensens First Law of Software Engineering:
The product of two big numbers is a really big number. (scaling up can be problematic)
Strong Robust Equivalence Class Test Cases

x2
g f
e a b c d x1
Equivalence classes (of valid and invalid values): {a <= x1 < b}, {b <= x1 < c}, {c <= x1 <= d}, {e <= x2 < f}, {f <= x2 <= g} Invalid classes: {x1 < a}, {x1 > d}, {x2 < e}, {x2 > g}
Selecting an Equivalence Relation

There is no such thing as THE equivalence relation. If x and y are days, some possibilities for Nextdate are: x R y x R y x R y x R y x R y x R y iff x and y are mapped onto the same year iff x and y are mapped onto the same month iff x and y are mapped onto the same date iff x(day) and y(day) are treated the same iff x(month) and y(month) are treated the same iff x(year) and y(year) are treated the same
Best practice is to select an equivalence relation that reflects the behavior being tested.
NextDate Equivalence Classes

Month: M1 = { month : month has 30 days} M2 = { month : month has 31 days} M3 = { month : month is February} Day D1 D2 D3 D4 = = = = {day : {day : {day : {day : 1 <= day <= 28} day = 29 } day = 30 } day = 31 }
Year (are these disjoint?) Y1 = {year : year = 2000} Y2 = {year : 1812 <= year <= 2012 AND (year 0 Mod 100) and (year = 0 Mod 4) Y3 = {year : (1812 <= year <= 2012 AND (year 0 Mod 4)
Not Quite Right

A better set of equivalence classes for year is
Y1 = {century years divisible by 400} i.e., century leap years Y2 = {century years not divisible by 400} i.e., century common years Y3 = {non-century years divisible by 4} i.e., ordinary leap years Y4 = {non-century years not divisible by 4} i.e., ordinary common years
All years must be in range: 1812 <= year <= 2012 Note that these equivalence classes are disjoint.
Weak Normal Equivalence Class Test Cases

Select test cases so that one element from each input domain equivalence class is used as a test input value. Test Case WN-1 WN-2 WN-3 WN-4 Input Domain Equiv. Classes M1, D1, Y1 M2, D2, Y2 M3, D3, Y3 M1, D4, Y4 Input Values April 1 2000 Jan. 29 1900 Feb. 30 1812 April 31 1901 Expected Outputs April 2 2000 Jan. 30 1900 impossible impossible
Notice that all forms of equivalence class testing presume that the variables in the input domain are independent; logical dependencies are unrecognized.
Strong Normal Equivalence Class Test Cases

With 4 day classes, 3 month classes, and 4 year classes, the Cartesian Product will have 48 equivalence class test cases. (Jorgensens First Law of Software Engineering strikes again!) Note some judgment is required. Would it be better to have 5 day classes, 4 month classes and only 2 year classes? (40 test cases) Questions such as this can be resolved by considering Risk.
Revised NextDate Domain Equivalence Classes

Month: M1 = { month : month has 30 days} M2 = { month : month has 31 days except December} M3 = { month : month is February} M4 = {month : month is December} Day D1 = {day : 1 <= day <= 27} D2 = {day : day = 28 } D3 = {day : day = 29 } D4 = {day : day = 30 } D5 = {day : day = 31 } Year (are these disjoint?) Y1 = {year : year is a leap year} Y2 = {year : year is a common year} The Cartesian Product of these contains 40 elements.
When to Use Equivalence Class Testing

Variables represent logical (rather than physical) quantities. Variables support useful equivalence classes. Try to define equivalence classes for The Triangle Problem 0 < sideA < 200 0 < sideB < 200 0 < sideC < 200 The Commission Problem (exercise)
Another Equivalence Class Strategy

Work backwards from output classes. For the Triangle Problem, could have
{x, y, z such that they form an Equilateral triangle} {x, y, z such that they form an Isosceles triangle with x = y} {x, y, z such that they form an Isosceles triangle with x = z} {x, y, z such that they form an Isosceles triangle with y = z} {x, y, z such that they form a Scalene triangle}
How many equivalence classes will be needed for x,y,z Not a triangle?
In-Class Exercise
Apply the working backwards approach to develop equivalence classes for the Commission Problem. Hint: use boundaries in the output space.
Assumption Matrix
Valid Values
Boundary Value
Valid and Invalid Values

Robust Boundary Value Weak Robust Equiv. Class Robust Worst Case Boundary Value Strong Robust Equiv. Class
Single fault
Weak Normal Equiv. Class
Multiple fault
Worst Case Boundary Value Strong Normal Equiv. Class
Chapter 7
Decision Table Based Testing

Originally known as Cause and Effect Graphing
Done with a graphical technique that expressed AND-OR-NOT logic. Causes and Effects were graphed like circuit components Inputs to a circuit caused outputs (effects)
Equivalent to forming a decision table in which: inputs are conditions outputs are actions Test every (possible) rule in the decision table. Recommended for logically complex situations.
Decision Tables
Represent complex conditional behavior. Support extensive analysis
Consistency Completeness Redundancy Algebraic simplification
Executable (and compilable) Two forms: Limited and Extended Entry. Don't Care condition entries require special attention. Dependencies usually yield impossible situations
Decision Table Terminology

Stub Conditions c1 c2 c3 True T F Entry True False -False True T F False --
Actions
a1 a2 a3 a4
X X
X X X X X X
Rule
One Decision Table for the Triangle Problem

c1: a, b, c are a triangle? N c2: a = b? c3: a = c? c4: b = c? a1: Not a triangle a2: Scalene a3: Isosceles a4: Equilateral a5: Impossible X X X X X X X ---X X Y Y Y Y Y Y Y N Y Y N Y Y Y N N Y N Y Y Y N Y N Y N N Y Y N N N
Why are rules 3, 4, and 6 impossible?

Software Testing: A Craftsmans Approach, 3rd Edition Decision Table Based Testing
Decision Table with Mutually Exclusive Conditions

Conditions c1: 30-day month c2: 31-day month c3: February Rule 1 Rule 2 T T Rule 3 T
Rule Counting to Check for Completeness

conditions c1: month in M1 c2: month in M2 c3: month in M3 Rule count R1 T --4 R2 -T -4 R3 --T 4
A limited Entry decison table with n conditions has 2n rules A Don't Care entry doubles the count of a rule What are the possibilities when rule count is not 2n ? More precise to use F! (must be false) than -- (don't care)
A Redundant Decision Table

conditions! 1-4! 5! ! c1: !! T! F! ! ! ! ! ! c2: !! c3: !! a1:! ! a2:! ! a3:! ! --! --! X! --! X! T! T! X! X! --! 6! F! T! F! X! X! X! 7! F! F! T! --! X! X! 8! F! F! F! --! --! X! 9 T F F X! -X !
! ! !
Rule 9 is identical to Rule 4 (T, F, F) Since the action entries for rules 4 and 9 are identical, there is no ambiguity, just redundancy.
Decision Table Exercise

(revisit the false negative, false positive question) Suggested conditions
Expected output is correct Observed output is correct Expected and observed outputs agree
Suggested actions
True pass True fail False pass False fail Impossible
An Inconsistent Decision Table

conditions 1-4 5 c1: T F c2: c3: a1: a2: a3: --X -X T T X X -6 F T F X X X 7 F F T -X X 8 F F F --X 9 T F F -X --
Rule 9 is identical to Rule 4 (T, F, F) Since the action entries for rules 4 and 9 are different there is ambiguity. This table is inconsistent, and the inconsistency implies non-determinism.
Nextdate Limited Entry Decision Table

Conditions c1: c2: c3: c4: c5: c6: c7: c8: month in M1? month in M2? month in M3? day in D1? day in D2? day in D3? day in D4? leap year? This decision table will have 256 rules, many of which will be logically impossible.
Actions a1: impossible a2: next date
Decision Table Based Test Cases

1. Decision table testing begins with equivalence classes for conditions as in equivalence class testing. 2. The sparseness due to the assumption of independence is addressed by careful examination of elements in the cross product. 3. For the equivalence classes defined earlier, the cross product contains 36 elements. The corresponding decision table has 36 rules.
<M1, D1, Y1>, <M1, D2, Y1>, <M1, D3, Y1>, <M1, D4, Y1>, <M2, D1, Y1>, <M2, D2, Y1>, <M2, D3, Y1>, <M2, D4, Y1>, <M3, D1, Y1>, <M3, D2, Y1>, <M3, D3, Y1>, <M3, D4, Y1>, <M1, D1, Y2>, <M1, D2, Y2>, <M1, D3, Y2>, <M1, D4, Y2>, <M2, D1, Y2>, <M2, D2, Y2>, <M2, D3, Y2>, <M2, D4, Y2>, <M3, D1, Y2>, <M3, D2, Y2>, <M3, D3, Y2>, <M3, D4, Y2>, <M1, D1, Y3>, <M1, D2, Y3>, <M1, D3, Y3>, <M1, D4, Y3>, <M2, D1, Y3>, <M2, D2, Y3>, <M2, D3, Y3>, <M2, D4, Y3>, <M3, D1, Y3>, <M3, D2, Y3>, <M3, D3, Y3>, <M3, D4, Y3>.
4. Notice that many of these are impossible, e.g., <M1, D4, * >
NextDate Extended Entry Decision Table

Conditions c1: month in M1? M2? M3? c2: day in D1? D2? D3? D4? c3: year in Y1? Y2? Y3? Actions a1: a2: a3: a4: a5: a6: impossible increment day reset day increment month reset month increment year
This decision table will have 36 rules, and corresponds to the cross product. Many of the rules will be logically impossible. Many rules would collapse, except for considerations for December.
Revised NextDate Domain Equivalence Classes

Month: M1 = { month : month has 30 days} M2 = { month : month has 31 days except December} M3 = { month : month is December} M4 = {month : month is February } Day D1 = {day : 1 <= day <= 27} D2 = {day : day = 28 } D3 = {day : day = 29 } D4 = {day : day = 30 } D5 = {day : day = 31 } Year (are these disjoint?) Y1 = {year : year is a leap year} Y2 = {year : year is a common year} The corresponding decision table of these contains 40 elements.

1 c1: month in c2: day in c3: year in a1: impossible a2: increment day a3: reset day a4: increment month a5: reset month a6: increment year X X X X X D 1 D 2 2 3 M1 D 3 D 4 D 5 X X X X X X X X X X X X X X X X X X X X X X X D 1 D 2 4 5 6 7 8 M2 D 3 D 4 D 5 D 1, D 2 9 10 11 12 13 M3 D 3 D 4 D 5 D 1 D 2 Y 1 D 2 Y 2 14 15 16 17 18 19 M4 D 3 Y 1 D 3 Y 2 D 4 D 5 20 21 22
Notice there are 40 rules in this decision table, corresponding to the 40 elements in the cross product of the revised equivalence classes.

Algebraically Condensed to 13 rules (test cases)
rules c1: month in c2: day in c3: year in a1: impossible a2: increment day a3: reset day a4: increment month a5: reset month a6: increment year X D1,D2,D3 1-3 M1 D4 D5 X X X X X 4 5 6-9 M2 D1,D2,D3,D4 D5 10 11-14 M3 D1,D2,D3,D4 D5 D1 D2 Y1 D2 Y2 15 16 17 18 19 M4 D3 Y1 D3 Y2 X D4, D5 X 20 21,22
X X
X X
X X
X X
X X
Procedure for Decision Table Based Testing 1. Determine conditions and actions. (Might need to iterate) 2. Develop a (the!) Decision Table, watching for completeness don't care entries redundant and inconsistent rules 3. Each rule denes a test case.
Procedure for Decision Table Based Testing

Determine conditions and actions. (Might need to iterate) Develop a (the!) Decision Table, watching for Completeness Dont care entries Redundant and/or inconsistent entries Impossible rules Each rule defines a test case.
Chapter 8
Retrospective on Functional Testing

Test case development effort Test case effectiveness Test method selection guidelines Case study
Test Case Development Effort

As with so many things in life, You get out of it what you put into it. Boundary value: almost mechanical Equivalence class: effort to identify classes Decision table: still more effort --Dad
Numbers of Test Cases

Number of Test Cases high
low
Sophistication boundary equivalence value class decision table
Test Case Development Effort

Effort to Identify Test Cases high
low Sophistication boundary value equivalence class decision table
Test Case Effectiveness

True trade-off between development effort and number of test cases. Vulnerabilities
Boundary value testing has gaps and redundancies, and many test cases. Equivalence class testing eliminates the gaps and redundancies, but cannot deal with dependencies among variables. Decision table testing extends equivalence class testing by dealing with dependencies, and supports algebraic reduction of test cases.
Appropriate Choices of Test Methods

c1. variables (P, physical, L, logical) c2. independent variables? c3. single fault assumption? c4. exception handling? a1. boundary value analysis (BVA) a2. robustness BVA a3. worst case BVA a4. robust worst case BVA a5. weak normal equiv. class a6. weak robust equiv. class a7. strong normal equiv. class a8. strong robust equiv. class a9. decision table x x x x x x x x x x x P Y Y Y P Y Y N x P Y N Y P Y N N P N L Y Y Y L Y Y N L Y N Y L Y N N L N
Case Study
A hypothetical Insurance Premium Program computes the semiannual car insurance premium based on two parameters: the policy holder's age and driving record: Premium = BaseRate*ageMultiplier safeDrivingReduction The ageMultiplier is a function of the policy holder's age, and the safe driving reduction is given when the current points (assigned by traffic courts for moving violations) on the policy holder's driver's license are below an age-related cutoff. Policies are written for drivers in the age range of 16 to 100. Once a policy holder has 12 points, his/her driver's license is suspended (hence there is no need for insurance). The BaseRate changes from time to time; for this example, it is $500 for a semi-annual premium.
Insurance Premium Program Data

Age Range 16<= age < 25 25<= age < 35 35<= age < 45 45<= age < 60 60<= age <= 100 Age Multiplier 2.8 1.8 1.0 0.8 1.5 Points Cutoff 1 3 5 7 5 Safe Driving Reduction 50 50 100 150 200
Insurance Premium Program Calculations, Test Method Selection

Premium = BaseRate*ageMultiplier safeDrivingReduction ageMultiplier = F1(age) [from table] safeDrivingReduction = F2(age, points) [from table] age and safeDrivingReduction are physical variables, with a dependency in F2. Boundary values for age: 16, 17, 54, 99, 100 Boundary values for safeDrivingReduction: 0, 1, 6, 11, 12 Robust values for age and safeDrivingReduction are not allowed by business rules. Worst case BVA yields 25 test cases, and many gaps, some redundancy. Need something better.
Graph of Boundary Value Test Cases

15 points
10
0 age 20 40 60 80 100
Severe gaps!
Graph of Boundary Value Test Cases

(refined boundaries)
15 points
10
0 age 20 40 60 80 100
Severe redundancy!
Software Testing: A Craftsmans Approach, 3rd Edition Retrospective on Functional Testing
Insurance Premium Program Test Method Selection

age has ranges that receive similar treatment. equivalence class testing is indicated.
Age ranges per the data table
The points cutoff is also a range, further indication for equivalence class testing.
Points {0, 1} Points {2, 3} Points {4, 5} Points {6, 7} Points {8, 9, 10, 11, 12}
Insurance Premium Program Strong Normal Equivalence Class Test Cases

15 points
10
0 age 20 40 60 80 100
Still a lot of redundancy, try decision tables.
Insurance Premium Program Decision Table Test Cases

c1. age is c2. points a1. age multiplier a2. safeDriving 0 2.8 50 16-25 1-12 2.8 -25-35 0-2 1.8 50 3-13 1.8 -35-45 0-4 1.8 100 5-12 1.8 -45-60 0-6 0.8 150 7-12 0.8 -60-100 0-4 1.5 200 5-12 1.5 --
Insurance Premium Program Decision Table Test Cases

15 points
10
0 age 20 40 60 80 100
What about age range endpoints?

Insurance Premium Program Test Cases

(Decision table with boundary values hybrid)
15 points
10
0 age 20 40 60 80 100
Ahhhh, at last!
Wrap Up
The inherent nature of the program being tested should dictate the test method.
The decision table expert system (slide 7) recommendation is just a start. Applications are seldom chemically pure.
Hybrid combinations of test methods can be very useful. Good judgment, based on insight, is a sign of a craftsperson.
Chapter 9
Path TestingPart 2
Path Testing II
(McCabe) Basis Path Testing

in math, a basis "spans" an entire space, such that everything in the space can be derived from the basis elements. the cyclomatic number of a strongly connected directed graph is the number of linearly independent cycles. given a program graph, we can always add an edge from the sink node to the source node to create a strongly connected graph. (assuming single entry, single exit) computing V(G) = e - n + p from the modified program graph yields the number of independent paths that must be tested. since all other program execution paths are linear combinations of the basis path, it is necessary to test the basis paths. (Some say this is sufficient; but that is problematic.) the next few slides follow McCabe's original example.
Path Testing II
McCabe's Example
McCabe's Original Graph
A 1 B E C F D 3 B 4 C 9 G G 10
Derived, Strongly Connected Graph

A 2 6 E 8 D 7 F
V(G) = 10 - 7 + 2(1) = 5
V(G) = 11 - 7 + 1 = 5
Path Testing II
McCabe's Baseline Method

To determine a set of basis paths, 1. 2. Pick a "baseline" path that corresponds to normal execution. (The baseline should have as many decisions as possible.) To get succeeding basis paths, retrace the baseline until you reach a decision node. "Flip" the decision (take another alternative) and continue as much of the baseline as possible. Repeat this until all decisions have been flipped. When you reach V(G) basis paths, you're done. If there aren't enough decisions in the first baseline path, find a second baseline and repeat steps 2 and 3.
3. 4.
Following this algorithm, we get basis paths for McCabe's example.
Path Testing II
Basis Paths
path \ edges traversed p1: p2: p3: p4: p5: A, B, C, G A, B, C, B, C, G A, B, E, F, G A, D, E, F, G A, D, F, G 1 1 1 1 0 0 1 1
A
2 0 0 0 1 1 0 0
2 6
3 0 1 0 0 0 1 2
4 1 2 0 0 0 1 3
5 0 0 1 0 0 1 0
6 0 0 0 1 0 0 0
7 0 0 0 0 1 0 0
8 0 0 1 1 0 1 0
9 1 1 0 0 0 0 1
10 0 0 1 1 1 1 0
ex1: A, B, C, B, E, F, G ex2: A, B, C, B, C, B, C, G ex1 = p2 + p3 - p1 ex2 = 2p2 - p1

B 3 4 C 9 1 5
D 7 F
8 10
G
Software Testing: A Craftsmans Approach, 3rd Edition Path Testing II
McCabe Basis Paths in the Triangle Program

4 5 6 7 8 9 11 12
V(G) = 23 - 20 + 2(1) = 5 Basis Path Set B1 p1: 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 16, 18, 19, 20, 22, 23 p2: 4, 5, 6, 7, 8, 9, 11, 12, 13, 14, 16, 18, 19, 20, 22, 23 p3: 4, 5, 6, 7, 8, 9, 11, 12, 13, 21, 22, 23 p4: 4, 5, 6, 7, 8, 9, 11, 12, 13, 14, 15, 20, 22, 23 p5: 4, 5, 6, 7, 8, 9, 11, 12, 13, 14, 16, 17, 19, 20, 22, 23
16
10
13 14
21 15
(mainline) (flipped at 9) (flipped at 13) (flipped at 14) (flipped at 16)
17
18
There are 8 topologically possible paths. 4 are feasible, and 4 are infeasible. Exercise: Is every basis path feasible?
19 20 22
23
Path Testing II
Essential Complexity
McCabes notion of Essential Complexity deals with the extent to which a program violates the precepts of Structured Programming. To find Essential Complexity of a program graph,
Identify a group of source statements that corresponds to one of the basic Structured Programming constructs. Condense that group of statements into a separate node (with a new name) Continue until no more Structured Programming constructs can be found. The Essential Complexityof the original program is the cyclomatic complexity of the resulting program graph.
The essential complexity of a Structured Program is 1. Violations of the precepts of Structured Programming increase the essential complexity.
Path Testing II
Essential Complexity of Schachs Program Graph

first A
This original
C
B
4
Reduces to this
V(G) = 8 5 + 2(1) =5 Essential complexity is 5
last
Path Testing II
Condensation with Structured Programming Constructs

rst a A B D E F L H J last rst L e last last d L H G I K e rst a last L C a b F H J E G I K last rst a d b c L H J a b I K c rst rst
Path Testing II
Violations of Structured Programming Precepts

Branching into a loop Branching out of a loop
Branching into a decision
Branching out of a decision
Path Testing II
Cons and Pros

Issues
Linear combinations of execution paths are counterintuitive. What does 2p2 p1 really mean? How does the baseline method guarantee feasible basis paths? Given a set of feasible basis paths, is this a sufficient test?
Advantages
McCabe's approach does address both gaps and redundancies. Essential complexity leads to better programming practices. McCabe proved that violations of the structured programming constructs increase cyclomatic complexity, and violations cannot occur singly.
Path Testing II
Program NextDate Dim tomorrowDay,tomorrowMonth,tomorrowYear As Integer Dim day,month,year As Integer 1. Output ("Enter today's date in the form MM DD YYYY") 2. Input (month,day,year) 3. Case month Of 4. Case 1: month Is 1,3,5,7,8,Or 10: '31 day months (except Dec.) 5. ! If day < 31 6. ! ! Then tomorrowDay = day + 1 7. ! ! Else 8. ! ! ! tomorrowDay = 1 9. ! ! ! tomorrowMonth = month + 1 10. ! EndIf 11. Case 2: month Is 4,6,9,Or 11 '30 day months 12. ! If day < 30 13. ! ! Then tomorrowDay = day + 1 14. ! ! Else 15. ! ! ! tomorrowDay = 1 16. ! ! ! tomorrowMonth = month + 1 17. ! EndIf 18. Case 3: month Is 12: 'December 19. ! If day < 31 20. ! ! Then tomorrowDay = day + 1 21. ! ! Else 22. ! ! ! tomorrowDay = 1 23. ! ! ! tomorrowMonth = 1 24. ! ! ! If year = 2012 25. ! ! ! ! Then Output ("2012 is over") 26. ! ! ! ! Else tomorrow.year = year + 1 27. ! ! ! EndIf 28. ! EndIf
Software Testing: A Craftsmans Approach, 3rd Edition Path Testing II
29. Case 4: month is 2: 'February 30. ! If day < 28 31. ! ! Then tomorrowDay = day + 1 32. ! ! Else! 33. ! ! ! If day = 28 34. ! ! ! ! Then! 35. ! ! ! ! ! If ((year MOD 4)=0)AND((year MOD 400)"0) 36. ! ! ! ! ! ! Then tomorrowDay = 29 'leap year 37. ! ! ! ! ! ! Else! ! 'not a leap year 38. ! ! ! ! ! ! ! tomorrowDay = 1 39. ! ! ! ! ! ! ! tomorrowMonth = 3 40. ! ! ! ! ! EndIf 41. ! ! ! ! Else! If day = 29 42. ! ! ! ! ! ! ! Then tomorrowDay = 1 43. ! ! ! ! ! ! ! ! tomorrowMonth = 3 44. ! ! ! ! ! ! ! Else! Output("Cannot have Feb.", day) 45. ! ! ! ! ! ! EndIf 46. ! ! ! EndIf 47. ! EndIf 48. EndCase 49. Output ("Tomorrow's date is", tomorrowMonth, ! ! ! ! tomorrowDay, tomorrowYear) 50. End NextDate
Path Testing II
1 2 3
4 5 7 6 8 9 10 13
11 12 14 15 16 17 20
18 19 21 22 23 24 25 27 28 26 31 36 34 35
29 30 32 33 41 42 44 37 38 39 40 46 47 43 45
48 49 50
Path Testing II
Commission Program Pseudo-Code

Program Commission Dim lockPrice, stockPrice, barrelPrice As Real Dim locks, stocks, barrels As Integer 15 Dim totalLocks, totalStocks As Integer 16 Dim totalBarrels As Integer 17 Dim lockSales, stockSales As Real 18 Dim barrelSales As Real Dim sales, commission As Real 19 1 lockPrice = 45.0 20 2 stockPrice = 30.0 21 3 barrelPrice = 25.0 22 4 totalLocks = 0 23 5 totalStocks = 0 24 6 totalBarrels = 0 25 7 Input(locks) 26 8 While NOT(locks = -1) 27 9 Input(stocks, barrels) 28 10 totalLocks = totalLocks + locks 29 11 totalStocks = totalStocks + stocks 30 12 totalBarrels = totalBarrels + barrels 31 13 Input(locks) 32 14 EndWhile 33
Output("Locks sold: ", totalLocks) Output("Stocks sold: ", totalStocks) Output("Barrels sold: ", totalBarrels) sales = lockPrice*totalLocks + stockPrice*totalStocks + barrelPrice * totalBarrels Output("Total sales: ", sales) If (sales > 1800.0) Then commission = 0.10 * 1000.0 commission = commission + 0.15 * 800.0 commission = commission + 0.20*(sales-1800.0) Else If (sales > 1000.0) Then commission = 0.10 * 1000.0 commission = commission + 0.15*(sales-1000.0) Else commission = 0.10 * sales EndIf EndIf Output("Commission is $", commission) End Commission
Path Testing II
10
11
12
13
14
15
16
17
18
19
20 25 21 26 22 27 23 28 24 30 31 29
32
33
Path Testing II
Chapter 10
Data Flow Testing Slice Testing
Data Flow Testing
Data Flow Testing

Often confused with "dataflow diagrams. Main concern: places in a program where data values are defined and used. Static (compile time) and dynamic (execution time) versions. Static: Define/Reference Anomalies on a variable that
is defined but never used (referenced) is used but never defined is defined more than once
Starting point is a program, P, with program graph G(P), and the set V of variables in program P. "Interesting" data flows are then tested as mini-functions.
Data Flow Testing
Definitions
Node n G(P) is a defining node of the variable v V, written as DEF(v, n), iff the value of the variable v is defined at the statement fragment corresponding to node n. Node n G(P) is a usage node of the variable v V, written as USE(v, n), iff the value of the variable v is used at the statement fragment corresponding to node n. A usage node USE(v, n) is a predicate use (denoted as P-use) iff the statement n is a predicate statement; otherwise, USE(v, n) is a computation use (denoted C-use).
Data Flow Testing
More Definitions
A definition-use path with respect to a variable v (denoted du-path) is a path in PATHS(P) such that for some v V, there are define and usage nodes DEF(v, m) and USE(v, n) such that m and n are the initial and final nodes of the path. A definition-clear path with respect to a variable v (denoted dc-path) is a definition-use path in PATHS(P) with initial and final nodes DEF (v, m) and USE (v, n) such that no other node in the path is a defining node of v.
Data Flow Testing
Example: first part of the Commission Program

1. Program Commission (INPUT,OUTPUT) 2. Dim locks, stocks, barrels As Integer 3. Dim lockPrice, stockPrice, barrelPrice As Real 4. Dim totalLocks, totalStocks, totalBarrels As Integer 5. Dim lockSales, stockSales, barrelSales As Real 6. Dim sales, commission As Real 7. lockPrice = 45.0 8. stockPrice = 30.0 9. barrelPrice = 25.0 10. totalLocks = 0 11. totalStocks = 0 12. totalBarrels = 0 13. Input(locks) 14. While NOT(locks = -1) 15. Input(stocks, barrels) 16. totalLocks = totalLocks + locks 17. totalStocks = totalStocks + stocks 18. totalBarrels = totalBarrels + barrels 19. Input(locks) 20. EndWhile 21. Output(Locks sold: , totalLocks) 22. Output(Stocks sold: , totalStocks) 23. Output(Barrels sold: , totalBarrels)
Data Flow Testing
Rest of Commission Problem

23. Output(Barrels sold: , totalBarrels) 24. lockSales = lockPrice * totalLocks 25. stockSales = stockPrice * totalStocks 26. barrelSales = barrelPrice * totalBarrels 27. sales = lockSales + stockSales + barrelSales 28. Output(Total sales: , sales) 29. If (sales > 1800.0) 30. Then 31. commission = 0.10 * 1000.0 32. commission = commission + 0.15 * 800.0 33. commission = commission + 0.20 *(sales-1800.0) 34. Else If (sales > 1000.0) 35. Then 36. commission = 0.10 * 1000.0 37. commission = commission + 0.15 *(sales-1000.0) 38. Else 39. commission = 0.10 * sales 40. EndIf 41. EndIf 42. Output(Commission is $, commission) 43. End Commission
Data Flow Testing
Program Graph of Commission Problem

7 8 9 10 11 12 13 14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
34
31
35
32
36
38
33
37
39
40
41
42
43
Data Flow Testing
Define/Use Test Cases

Technique: for a particular variable,
find all its definition and usage nodes, then find the du-paths and dc-paths among these. for each path, devise a "suitable" (functional?) set of test cases.
Note: du-paths and dc-paths have both static and dynamic

interpretations Static: just as seen in the source code Dynamic: must consider execution-time flow (particularly for loops)
Definition clear paths are easier to test

No need to check each definition node, as is necessary for du-paths
Data Flow Testing
Define and Use Nodes

Variable locks stocks barrels totalLocks totalStocks totalBarrels Defined at Node 13, 19 15 15 10, 16 11, 17 12, 18 Used at Node 14, 16 17 18 16, 21, 24 17, 22, 25 18, 23, 26
Data Flow Testing
Example (continued)
13. Input(locks) 14. While NOT(locks = -1) 15. Input(stocks, barrels) 16. totalLocks = totalLocks + locks 17. totalStocks = totalStocks + stocks 18. totalBarrels = totalBarrels + barrels 19. Input(locks) 20. EndWhile We have DEF (locks, 13), DEF (locks, 19) USE (locks, 14), a predicate use USE (locks, 16). A computation use du-paths for locks are the node sequences <13, 14> (a dc-path), <13, 14, 15, 16>, <19, 20, 14 >, < 19, 20, 14 , 15, 16> Is <13, 14, 15, 16> definition clear? Is < 19, 20, 14, 15, 16> definition clear? What about repetitions?
Data Flow Testing
Coverage Metrics Based on du-paths

In the following definitions, T is a set of paths in the program graph G(P) of a program P, with the set V of variables. The set T satisfies the All-Defs criterion for the program P iff for every variable v V, T contains definition-clear paths from every defining node of v to a use of v. The set T satisfies the All-Uses criterion for the program P iff for every variable v V, T contains definition-clear paths from every defining node of v to every use of v, and to the successor node of each USE(v, n).
Data Flow Testing

(continued) The set T satisfies the All-P-Uses/Some C-Uses criterion for the program P iff for every variable v V, T contains definition-clear paths from every defining node of v to every predicate use of v; if a definition of v has no P-uses, a definition-clear path leads to at least one computation use.
Data Flow Testing

(continued) The set T satisfies the All-C-Uses/Some P-Uses criterion for the program P iff for every variable v V, T contains definition-clear paths from every defining node of v to every computation use of v; if a definition of v has no C-uses, a definition-clear path leads to at least one predicate use.
Data Flow Testing

(concluded) The set T satisfies the All-du-paths criterion for the program P iff for every variable v V, T contains definition-clear paths from every defining node of v to every use of v and to the successor node of each USE(v, n), and that these paths are either single-loop traversals or cycle-free.
Data Flow Testing
Rapps-Weyuker Coverage Subsumption

All Paths All DU Paths All Uses All C Uses Some P Uses All Defs All P Uses Some C Uses All P Uses All Edges All Nodes
S. Rapps and E. J. Weyuker "Selecting Software Test Data Using Data Flow Information" IEEE Transactions of Software Engineering , vol 11 no 4 IEEE Computer Society Press, Washington, D. C. , April 1985, pp 367 - 375.
Data Flow Testing
Exercise: Where does the All definition-clear paths coverage metric fit in the Rapps-Weyuker lattice?
Data Flow Testing
Data Flow Testing Strategies

Data flow testing is indicated in
Computation-intensive applications long programs Programs with many variables
A definition-clear du-path represents a small function that can be tested by itself. If a du-path is not definition-clear, it should be tested for each defining node.
Data Flow Testing
Slice Testing
Often confused with "module execution paths" Main concern: portions of a program that "contribute" to the value of a variable at some point in the program. Nice analogy with history -- a way to separate a complex system into "disjoint" components that interact:
European history North American history Orient history
A dynamic construct.
Data Flow Testing
Slice Testing Definitions

Starting point is a program, P, with program graph G(P), and the set V of variables in program P. Nodes in the program graph are numbered and correspond to statement fragments. Definition: The slice on the variable set V at statement fragment n, written S(V, n), is the set of node numbers of all statement fragments in P prior to n that contribute to the values of variables in V at statement fragment n. This is actually a backward slice. Exercise: define a forward slice.
Data Flow Testing
Fine Points
"prior to" is the dynamic part of the definition. "contribute" is best understood by extending the Define and Use concepts:
P-use: used in a predicate (decision) C-use: used in computation O-use: used for output L-use: used for location (pointers, subscripts) I-use: iteration (internal counters, loop indices) I-def: defined by input A-def: defined by assignment
usually, the set V of variables consists of just one element. can choose to define a slice as a compilable set of statement fragments -- this extends the meaning of "contribute" because slices are sets, we can develop a lattice based on the subset relationship.
Software Testing: A Craftsmans Approach, 3rd Edition Data Flow Testing
In the program fragment

13. Input(locks) 14. While NOT(locks = -1) 15. Input(stocks, barrels) 16. totalLocks = totalLocks + locks 17. totalStocks = totalStocks + stocks 18. totalBarrels = totalBarrels + barrels 19. Input(locks) 20.EndWhile
There are these slices on locks (notice that statements 15, 17, and 18 do not appear): S1: S(locks, 13) = {13} S2: S(locks, 14) = {13, 14, 19, 20} S3: S(locks, 16) = {13, 14, 19, 20} S4: S(locks, 19) = {19}
Data Flow Testing
Lattice of Slices
Because a slice is a set of statement fragment numbers, we can find slices that are subsets of other slices. This allows us to work backwards from points in a program, presumably where a fault is suspected. The statements leading to the value of commission when it is output are an excellent example of this pattern. Some researchers propose that this is the way good programmers think when they debug code.
Data Flow Testing
Example Lattice of Slices

S34
S35
S37
S36
S38
S39
S34: S(commission, 41) = {41} S35: S(commission, 42) = {41, 42}
S40
S36: S(commission, 43) = {3, 4, 5, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 36, 41, 42, 43} S37: S(commission, 47) = {47} S38: S(commission, 48) = {3, 4, 5, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 36, 47, 48} S39: S(commission, 50) = {3, 4, 5, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 36, 50} S40: S(commission, 51) = {3, 4, 5, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 36, 41, 42, 43, 47, 48, 50}
Software Testing: A Craftsmans Approach, 3rd Edition Data Flow Testing
Diagnostic Testing with Slices

Relative complements of slices yield a "diagnostic" capability. The relative complement of a set B with respect to another set A is the set of all elements of A that are not elements of B. It is denoted as A - B. Consider the relative complement set S(commission, 48) S(sales, 35):
S(commission, 48) = {3, 4, 5,36,18,19, 20, 23, 24, 25, 26, 27, 34, 38, 39, 40, 44,45,47} S(sales, 35) = {3, 4, 5, 36, 18, 19, 20, 23, 24, 25, 26, 27} S(commission, 48) - S(sales, 35) = {34, 38, 39, 40, 44,45,47}
If there is a problem with commission at line 48, we can divide the program into two parts, the computation of sales at line 34, and the computation of commission between lines 35 and 48. If sales is OK at line 34, the problem must lie in the relative complement; if not, the problem may be in either portion.
Data Flow Testing
Programming with Slices

One researcher suggests the possibility of slice splicing:
Code a slice, compile and test it. Code another slide, compile and test it, then splice the two slices. Continue until the whole program is complete.
Exercise: in what ways is slice splicing distinct from agile (bottom up) programming?
Data Flow Testing
Exercise/Discussion: When should testing stop?

when you run out of time? when continued testing causes no new failures? when continued testing reveals no new faults? when you can't think of any new test cases? when you reach a point of diminishing returns? when mandated coverage has been attained? when all faults have been removed?
Data Flow Testing
Chapter 11
Retrospective on Structural Testing
Structural Testing Comparison

How much testing is enough? Effort and size trendlines Metrics for test method comparison
Exercise/Discussion: When should testing stop?

when you run out of time? when continued testing causes no new failures? when continued testing reveals no new faults? when you can't think of any new test cases? when you reach a point of diminishing returns? when mandated coverage has been attained? when all faults have been removed?
Number of Test Coverage Items
high
low Sophistication DDPath Basis Path DUPath Slice
Effort to Identify Test Coverage Items
high
low Sophistication DDPath Basis DU-Path Path Slice
Number of Coverage Items in the Commission Problem

40 36 32 28 24 20 16 12 8 4 0 DD-Path Basis DU-Path Slices
Metrics for Test Method Comparison

Assume that a functional testing technique M generates m test cases, and that these test cases are tracked with respect to a structural metric S that identifies s elements in the unit under test. When the m test cases are executed, they traverse n of the s structural elements. This framework supports the definition of metrics for testing effectiveness.
Metrics for Testing Effectiveness

The coverage of a methodology M with respect to a metric S is ratio of n to s. We denote it as C(M,S). The redundancy of a methodology M with respect to a metric S is ratio of m to s. We denote it as R(M,S). The net redundancy of a methodology M with respect to a metric S is ratio of m to n. We denote it as NR(M,S).
Sample Comparisons
Method Triangle Program BVA Worst Case BVA Commission Program Output BVA Decision Table DD-Path DU-Path Slices 25 3 25 25 25 11 11 11 33 40 11 11 11 33 40 1.00 1.00 1.00 1.00 1.00 2.27 0.27 2.27 0.76 0.63 2.27 0.27 2.27 0.76 0.63 15 125 7 11 11 11 0.64 1.00 1.36 11.36 2.14 11.36 m n s C(M,S) R(M,S) NR(M,S)
Chapter 12
Levels of Testing
Levels of Testing
Levels and Life Cycle Models

Levels of testing depend primarily on the software life cycle used. BUT, most forms of testing levels are derived from the V-Model version of the good, old Waterfall Model. Iterative models introduce the need for regression testing. System testing is greatly enhanced when an executable specification is used.
Levels of Testing
Software Development Life Cycle Models

Waterfall (presumes perfect foresight) Incremental (delayed prototypes) Rapid Prototyping (elicit user feedback) Operational Specification (executable) Transformational Implementation (lab only) Agile Methods
Increasingly Operational views

Ref. Agresti, New Paradigms of Software Development IEEE Tutorial
Software Testing: A Craftsmans Approach, 3rd Edition Levels of Testing
Requirements Specication Preliminary Design
The Waterfall Model
Detailed Design
Coding
Output of a phase is the input to the next phase
Unit Testing Integration Testing System Testing
Levels of Testing
The Waterfall Model (continued)

Requirements Specification what
how
Preliminary Design
what
how
Detailed Design
what
how
Coding
Unit Testing Integration Testing System Testing
Feedback Cycles
Levels of Testing
The Waterfall Model (aka the V-Model)

Levels of Abstraction and Testing
Requirements Specification Preliminary Design Detailed Design Unit Testing Coding Integration Testing
System Testing
Levels of Testing
The Waterfall Model: Advantages

Framework fits well with levels of abstraction levels of management programming language packaging Phases have clearly defined end products Convenient for project management Works well with Functional Decomposition Massive parallel development
Levels of Testing
The Waterfall Model: Disadvantages

Long customer feedback cycle resolving faults found during
system testing is extremely expensive
"Exists for the convenience of management" (-- M. Jackson) stifles creativity and unnecessarily constraints
designer's thought processes
Stresses analysis to the exclusion of synthesis High peak in manpower loading profile "Requires perfect foresight" -- William Agresti
any errors, omissions in early phases will propagate
Levels of Testing
Incremental Software Development

Requirements Specification Detailed Design Preliminary Design Series of Builds Unit Testing Integration Testing Regression Testing Progression Testing
Coding
Levels of Testing
Rapid Prototyping Software Development

Series of Prototypes Preliminary Design Detailed Design Customer Feedback Define Prototype Objectives Build Prototype
Coding Unit Testing Integration Testing System Testing

Levels of Testing
Rapid Prototyping
Why prototype? 1. To determine feasibility 2. To obtain early customer feedback Keep or dispose? To be rapid, many compromises are made. If a prototype is kept, it will be extremely difficult to modify and maintain. Best practice: dispose once purpose has been served.
Levels of Testing
Software Development with an Executable Specification

Requirements Specification Preliminary Design Detailed Design Customer Feedback Develop executable specification execute spec
Coding Unit Testing Integration Testing System Testing
Levels of Testing
Executable Specifications
Why use an executable specification? 1. To determine behavior 2. To obtain early customer feedback Other uses? 1. Automatic generation of system test cases. 2. Develop order of test case execution 3. Training 4. Early analysis
Levels of Testing
Transformational Implementation
Formal Requirements Specification Series of Transformations Working System Customer Testing
Requirements Specification
System Testing
Levels of Testing
Transformational Specification Pros and Cons

Advantages: Intermediate Waterfall phases (design, code, test) are eliminated. Customer tests delivered system All maintenance is done on specification Disadvantages: Specification must be very formal (predicate calculus) Series of transformations is not well understood; tends to be specific to application domains Very limited success so far. Doesn't scale up well. Knowing what to change in the formal specification is difficult
Levels of Testing
Agile Methods
Many flavors
eXtreme Programming (XP) SCRUM Test-Driven Development
Customer-Driven Goals
Respond to customer Reduce unnecessary effort Always have something that works
Levels of Testing
Length of Feedback Cycle (Customer/Developer)

Where would you put the other life cycle models?
Waterfall
Levels of Testing
Agile
Hybrid Models
Because they replace the Requirements specification phase, rapid prototyping and executable specifications can be merged with the iterative models. The Agile Models are highly iterative, but they typically are not used in combination with rapid prototyping or executable specifications.
Levels of Testing
Integra(on tes(ng
by Kris(an Sandahl IDA TDDD04 spring 2012
Levels of tes(ng
Maintenance Validate Requirements, Verify Specification Acceptance Test
(Release testing)
Requirements
System Design
(Architecture, High-level Design)
Verify System Design
System Testing
(Integration testing of modules)
Module Design
(Program Design, Detailed Design)
Verify Module Design Verify Implementation
Module Testing
(Integration testing of units)
Implementation
of Units (classes, procedures, functions)
Unit testing
Project Management, Software Quality Assurance (SQA), Supporting Tools, Education

2
Outline
Informal example Theory:
Decomposi(on-based integra(on Call-graph based integra(on Path-based integra(on
Example: Local bus card reader

Sell (ckets Chose (cket and User buNons Display Read RFID Func(on group, aka Capability, aka Anatom Show balance Registrer travel
Check balance
Deduct money Check validity Communicate with server Dependency Power supply
Example: Organic integra(on plan

Sell (ckets Chose (cket Services User buNons Display User interface Read RFID Show balance Registrer travel
Check balance
Deduct money Check validity Communicate with server Power supply
Server func(ons
Communica(on Hardware and supply
Big Bang integra(on tes(ng

Sell (ckets Chose (cket Show balance
Registrer travel User buNons Display Bring everything together Switch on the current Try to buy a (cket !
Power supply
Read RFID Check balance Deduct money
Check validity Communicate with server
Is Big Bang smart?

Perhaps for small systems Well-dened components and interfaces No extra soWware needed Problems: It is very dicult to isolate the defects found, as it is very dicult to tell whether defect is in component or interface. Defects present at the interfaces of components are iden(ed at very late stage. There is high probability of missing some cri(cal defects which might surfaced in produc(on. It is very dicult to make sure that all the cases for integra(on tes(ng are covered. (www.Tes(ngGeek.com)
BoNom-up integra(on 1
Environment crea(on Install components Draw cables Measure compare with calcula(on
Power supply
Hardware and supply
BoNom-up integra(on 2
Communica(on possible?
Drivers
Environment Rudimental client Rudimental server Communicate with server Power supply
Communica(on Hardware and supply
Driver
A pretend module that requires a sub-system and passes a test case to it
setup driver SUT(x) verica(on driver
SUT
SUT
black-box view
SUT System Under Test
Is boNom-up smart?
If the basic func(ons are complicated, error-prone or has development risks If boNom-up development strategy is used If there are strict performance or real-(me requirements Problems: Lower level func(ons are oWen o-the shelf or trivial Complicated User Interface tes(ng is postponed End-user feed-back postponed Eort to write drivers.
Top-down integra(on 1
Sell (ckets Chose (cket Services Envrionment: Modules for the services Driving a prototype interface Show balance Registrer travel
Test end-users
Is it possible to perform services in a good way?
Top-down integra(on 2
Sell (ckets Chose (cket Services User buNons Display User interface Read RFID Show balance Registrer travel
Func(on 1
Func(on 2
Func(on 2
Rudimentary Server func(ons
Stubs
Are all our test scenarios fullled?
Stub
A program or a method that simulates the input-output func6onality of a missing sub- system by answering to the decomposi(on sequence of the calling sub-system and returning back simulated or canned data.
SUT Service(x) SUT
Check x Stub Return y; end
Stub
Is top-down smart?
Test cases are dened for func(onal requirements of the system Defects in general design can be found early Works well with many incremental development methods No need for drivers Problems: Technical details postponed, poten(al show-stoppers Many stubs are required Stubs with many condi(ons are hard to write
Decomposi(on-based integra(on
The func(onal decomposi(on tree: hierarchical order of processes return edges excluded reects the lexical inclusion of units, in terms of the order in which they need to be compiled
Jorgensen, Paul C "Chapter 13 - Integra(on Tes(ng". SoWware Tes(ng: A CraWsman's Approach, Third Edi(on. Auerbach Publica(ons. 2008. Books24x7. Go to: hNp://guide.bibl.liu.se/datavetenskap Click: Books24x7, Login Search: ISBN:9780849374753
Func6onal Decomposi6on of the SATM System
Example: SATM from Jorgensen

1 A 10 B C D E 11 12 13 14 15 16 17 F 22
18
19
20
21
23
24
25
26
27
Unit Level Unit Nam Unit Level Unit Name B 1.3 Terminal Sense & Control 1 1 SATM System 14 1.3.1 Screen Driver A 1.1 Device Sense & Control 15 1.3.2 Key Sensor D 1.1.1 Door Sense & Control C 1.4 Manage Session 2 1.1.1.1 Get Door Status 16 1.4.1 Validate Card 3 1.1.1.2 Control Door 17 1.4.2 Validate PIN 4 1.1.1.3 Dispense Cash 18 1.4.2.1 GetPIN E 1.1.2 Slot Sense & Control F 1.4.3 Close Session 5 1.1.2.1 WatchCardSlot 19 1.4.3.1 New Transac6on Request 6 1.1.2.2 Get Deposit Slot Status 20 1.4.3.2 Print Receipt 7 1.1.2.3 Control Card Roller 21 1.4.3.3 Post Transac6on Local 8 1.1.2.3 Control Envelope Roller 22 1.4.4 Manage Transac6on 9 1.1.2.5 Read Card Strip 23 1.4.4.1 Get Transac6on Type 10 1.2 Central Bank Comm. 24 1.4.4.2 Get Account Type 11 1.2.1 Get PIN for PAN 25 1.4.4.3 Report Balance 12 1.2.2 Get Account Status 26 1.4.4.4 Process Deposit 13 1.2.3 Post Daily Transac6ons 27 1.4.4.5 Process Withdrawal 17 Table 1: SATM Units and Abbreviated Names
Three level func(onal decomposi(on tree

A Level 1
Level 2
Level 3
Big-Bang tes(ng
A B E F Unit test A Unit test B Unit test H System-wide test C G D H Level 1 Level 2 Level 3 Environment: A, B, C, D, E, F, G, H
BoNom-up tes(ng
A B E F C G D H Level 1 Level 2 Level 3 Environments: Session 1: E, driver(B) S2: F, driver(B) S3: E, F, driver(B) S4: G, driver(D) S5: H, driver(D) S6: G, H, driver(D) S7: E, F, B, driver(A) S8: C, driver(A) S9: G, H, D, driver(A) S10: E, F, B, C, G, H, D, A
General formula: Number of drivers: (nodes-leaves) Number of drivers: 3 Number of sessions: (nodes-leaves)+edges Number of sessions: 10 SATM: 10 drivers, 42 sessions
Top-down tes(ng
A B E F C G D H Level 1 Level 2 Level 3 Environments: Session 1: A, stub(B), stub(C), stub(D) S2: A, B, stub(C), stub(D) S3: A, stub(B), C, stub(D) S4: A, stub(B), stub(C), D S5: A, B, stub(E), stub(F), C, D, stub(G), stub(H) S6: A, B, E, stub(F), C, D, stub(G), stub(H) S7: A, B, stub(E), F, C, D, stub(G), stub(H) S8: A, B, stub(E), stub(F), C, D, G, stub(H) S9: A, B, stub(E), stub(F), C, D, stub(G), H S10: A, B, E, F, C, D, G, H
General formula: Number of stubs: (nodes 1) Number of stubs: 7 Number of sessions: (nodes-leaves)+edges Number of sessions: 10 SATM: 32 stubs, 42 sessions
Sandwich tes(ng
Taget level A B E F C G D H Level 1 Level 2 Level 3 Environments: Session 1: A, stub(B), stub(C), stub(D) S2: A, B, stub(C), stub(D) S3: A, stub(B), C, stub(D) S4: A, stub(B), stub(C), D S5: E, driver(B) S6: F, driver(B) S7: E, F, driver(B) S8: G, driver(D) S9: H, driver(D) S10: G, H, driver(D) S11: A, B, E, F, C, D, G, H
Fewer stubs and drivers Risk driven Small-bang at target level More complicated
Number of stubs: 3 Number of drivers: 2 Number of sessions: 11
Poten(al problems
Ar(cial: Assumes correct units and interfaces Test correct structure only Investment in stubs and drivers Retes(ng
Call-graph integra(on tes(ng

Use the call-graph instead of the decomposi(on tree The call graph is directed Two types of tests:
Pair-wise integra(on tes(ng Neighborhood integra(on tes(ng
Matches well with development and builds Tests behaviour
5 7 20 21 9 10 12 11
Pairwise integra(on of SATM

1 22 16 4 13 17 18 19 23 24 26 27 25
One session per edge Real code 40 sessions, but no extra code
14
15
Neighborhood integra(on of SATM

1 22 16 4 13 17 18 19 23 24 26 27 25
7 20 21 9 10 12 11
Integra(ng direct neighbors of nodes Number of sessions: nodes sinknodes (a sink node has no outgoing calls) SATM: 11 sessions
14
15
Poten(al problems
Small-bang problems Especially fault isola(on in large neighborhoods Restes(ng needed if a node is changed Assumes correct units
Path-based integra(on
Base tes(ng on system level threads Mo(vated by overall system behaviour, not the structure Smooth prepara(on for System level tes(ng
Example: An MM-Path module A calls module B, which in turn calls module C

A B 1 2 2 3 4 3 5 4 6 5 4 2 3 C 1
Extensions to Deni6ons
Deni(ons
Deni6on: A source node in a program is a statement fragment at which program execu(on begins or resumes. Deni6on: A sink node in a program is a statement fragment at which program execu6on halts or terminates. Deni6on: A module execu6on path (MEP) is a sequence of statements that begins with a source node and ends with a sink node, with no intervening sink nodes. Deni6on: A message is a programming language mechanism by which one unit transfers control to another unit.
Deni6ons for Integra6on Tes6ng
More deni(ons
Den(on: An MM-Path is an interleaved sequence of module execu(on paths (MEP) and messages. Deni(on: Given a set of units, their MM-Path graph is the directed graph in which nodes are module execu6on paths and edges correspond to messages and returns from one unit to another.
Example (cont.): source nodes and sink nodes Example (cont.): source nodes and sink nodes A
Source nodes
1 2
Sink nodes 3
4 5
Example (cont.): source nodes and sink nodes

Source nodes
B
1
Sink nodes 2

Source nodes
C
1
Sink nodes 2 4 3

Source nodes A 1 2 2 3 4 3 5 4 6 5 4 2 3 B 1 Sink nodes C 1

Module A:
Source nodes: Nodes 1 and 5 Sink nodes: Nodes 4 and 6 Source nodes: Nodes 1 and 3 Sink nodes: Nodes 2 and 4

Module B: Module C:
Source nodes: Node 1 Sink nodes: Node 5
Example (cont.) module execu(on path (MEP)

MEP (A, I) = < 1, 2, 3, 6 > MEP (A, II) = < 1, 2, 4 > MEP (A, III) = < 5, 6 > MEP (B, I) = < 1, 2 > MEP (B, II) = < 3, 4 > MEP (C, I) = < 1, 2, 4, 5 > MEP (C, II) = < 1, 3, 4, 5 >
Example (cont.) module execu6on path (MEP)
Crea(ng a MM-path graph

1 2 B 1 MEP(B,I) MEP(A,II) 4 3 5 MEP(A,III) 4 2 2 MEP(C,I) MEP(B,II) 4 C 1 MEP(C,II) 3
3 MEP(A,I)
Example (cont.): MM-Path graph
MM-path graph example

Messages!
MEP (A, II) MEP (B, I) MEP (A, I) MEP (C, I)
Returns!
MEP (B, II)
MEP (A, III)
MEP (C, II)
Test cases are selected to cover these paths
Problems

more eort is needed to iden6fy the MM-Paths. This eort is probably oset by the elimina(on of stub and driver development.
Chapter 14
System Testing
System Testing
System Testing
Threads ( = a system level test cases) Basis concepts of requirements specification Identifying threads Metrics for system testing
System Testing
Various Views of Threads

a scenario of normal usage a Use Case a system level test case a stimulus/response pair behavior that results from a sequence of system level inputs an interleaved sequence of port input and output events a sequence of transitions in a state machine description of the system an interleaved sequence of object messages and method executions a sequence of machine instructions a sequence of source instructions a sequence of atomic system functions
System Testing
Some Observations
Threads are dynamic Threads occur at execution time Threads can be identified in (or even better: derived from) many models
Finite state machines Decision tables Statecharts Petri nets Use Cases (sufficiently detailed)
System Testing
Candidate Threads in the Simple ATM System

Entry of a digit Entry of a Personal Identification Number (PIN) A simple transaction: ATM Card Entry, PIN entry, select transaction type (deposit, withdraw), present account details (checking or savings, amount), conduct the operation, and report the results. An ATM session, containing two or more simple transactions.
System Testing
Levels of Threads
A unit level thread is a path in the program graph of a unit. An integration level thread is an MM-Path. There are two levels of system level threads: A single thread A set of interacting threads If necessary, we can deal with threads in systems of systems
System Testing
System Level Threads

An atomic system function (ASF) is an action that is observable at the system level in terms of port input and output events. Given a system defined in terms of atomic system functions, the ASF Graph of the system is the directed graph in which nodes are atomic system functions and edges represent sequential flow. A source ASF is an atomic system function that appears as a source node in the ASF graph of a system; similarly, a sink ASF is an atomic system function that appears as a sink node in the ASF graph. A system thread is a path from a source ASF to a sink ASF in the ASF graph of a system.
System Testing
ASFs and MM-Paths

MM-Paths end at a point of message quiescence. In an event-driven system, ASFs frequently occur between points of event quiescence. There is no nice connection between ASFs and MM-Paths. An ASF corresponds to a stimulus/response pair.
stimulus/response cluster is more accurate. depending on its context, an input event may result in several distinct output events.
System Testing
Classifying the Candidate Threads

an MM-Path: an ASF: a thread: Entry of a digit Entry of a Personal Identification Number (PIN) A simple transaction: ATM Card Entry, PIN entry, select transaction type (deposit, withdraw), present account details (checking or savings, amount), conduct the operation, and report the results. An ATM session, containing two or more simple transactions.
a sequence of threads:
System Testing
Closer Look at the PIN Entry ASF

a sequence of system level inputs and outputs:
A screen requesting PIN digits An interleaved sequence of digit keystrokes and screen responses The possibility of cancellation by the customer before the full PIN is entered A system disposition (depending on the validity of the PIN
Observe:
several stimulus/response pairs this is the cross-over point between integration and system testing
System Testing
E/R Model of Basis Concepts
Data
1..n 1..n
input 1..n Action output 1..n 1..n sequenceOf 1..n Thread
Event 1..n occur 1..n
Device
Mainline requirements specification techniques populate some (or all ) portions of this database.
System Testing
Modeling with the Basis Concepts

Data Structural Model Event Action Context Model Thread Device Behavior Model Condition
System Testing
Bad card 0.05 1. Card Entry Legitimate card 0.95 2.1 First PIN Try
Incorrect PIN 0.10 Incorrect PIN 0.10
2.2 Second PIN Try Correct PIN 0.90 Correct PIN 0.90
Incorrect PIN 0.10
2.3 Third PIN Try
Correct PIN 0.90 3. Await Transaction Choice Button B 1 0.05 Button B 2 0.10 Deposit Low cash 0.10 1.00 1.00 Normal 0.85 Low balance 0.05 Print Receipt Button B 3 0.85
Balance
Withdrawal
System Testing
Decomposition of Await PIN State

(PIN Entry FSM)
/ Display Screen S1 Idle Legitimate Card Display Screen S2 Awaiting First PIN Try Incorrect PIN Display Screen S4 Wrong Card Display Screen S1, Eject Card Incorrect PIN Display Screen S3 Awaiting Second PIN Try Incorrect PIN Display Screen S3 Awaiting Third PIN Try
Correct PIN Display Screen S5
Await Transaction Choice
System Testing
2.x.1 0 Digits Received digit / echo 'X---' x1 2.x.2 1 Digit Received digit / echo 'XX--' x2
PIN Try finite state machine x7 (PIN Try x)

cancel cancel x8
Port Input Events ! digit! ! cancel! Port Output Events ! echo 'X---' ! echo 'XX--' ! echo 'XXX-' ! echo 'XXXX' Logical Output Events ! Correct PIN ! Incorrect PIN ! Canceled
2.x.3 2 Digits Received digit / echo 'XXX-' x3
cancel x9
2.x.6 Cancel Hit
2.x.4 3 Digits Received digit / echo 'XXXX' x4
cancel x10 x11
2.x.5 Cancelled 4 Digits Received Correct Pin Incorrect Pin x5 x6
System Testing
Deriving An ASF Test Case

Description:! Correct PIN on First Try Port Event Sequence in PIN Try FSM Port Input Event!! ! ! ! 1 pressed! ! ! ! 2 pressed! ! ! ! 3 pressed! ! ! ! 4 pressed! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! Port Output Event Screen 2 displayed with '----' Screen 2 displayed with 'X---' Screen 2 displayed with 'XX--' Screen 2 displayed with 'XXX-' Screen 2 displayed with 'XXXX' Screen 5 displayed
(Correct PIN)!
System Testing
Deriving An ASF Test Case (cont'd)

Description:! Correct PIN on First Try Test operator instructions Initial Conditions: screen 2 being displayed with no digit echoes Perform the following sequence of steps: 1.! Verify:! ! Screen 2 displayed with '----' 2.! Cause:! ! 1 pressed! 3.! Verify:! ! Screen 2 displayed with 'X---' 4.! Cause:! ! 2 pressed! 5.! Verify:! ! Screen 2 displayed with 'XX--' 6.! Cause:! ! 3 pressed! 7.! Verify:! ! Screen 2 displayed with 'XXX-' 8.! Cause:! ! 4 pressed! 9.! Verify:! ! Screen 2 displayed with 'XXXX' Post Condition:! Screen 5 displayed Test Result:!___ Pass ! ! ! ___ Fail
System Testing
Slight Digression: Architecture of an Automated Test Executor
Cause Digit Keypress ATE Processor
Digit Keypress Port Boundary
Harness
Verify screen text
screen text
System Testing
Metrics for System Testing In the PIN Entry ASF, for a given PIN, there are 156 distinct paths from the First PIN Try state to the Await Transaction Choice or Card Entry states in the PIN Entry FSM. Of these, 31 correspond to eventually correct PIN entries (1 on the first try, 5 on the second try, and 25 on the third try); the other 125 paths correspond to those with incorrect digits or with cancel keystrokes. To control this explosion, we have two possibilities: ! pseudo-structural coverage metrics ! "true" structural coverage metrics
System Testing
Pseudo-structural Coverage Metrics Behavioral models provide "natural" metrics: Decision Table Metrics:! ! every condition ! ! ! ! ! ! ! ! ! every action ! ! ! ! ! ! ! ! ! every rule FSM Metrics:! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! every state ! every transition ! ! ! ! every place every port event every transition every marking
Petri Net Metrics:! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! !
These are pseudo-structural because they are just models of the eventual system.
Software Testing: A Craftsmans Approach, 3rd Edition System Testing
Pseudo-structural Coverage Metrics for PIN Try

Input Event! ! Sequence! ! 1,2,3,4! ! ! 1,2,3,5! ! ! C! ! ! ! 1,C! ! ! ! 1,2,C! ! ! 1,2,3,C! ! ! State Sequence 2.x.1, 2.x.2, 2.x.3, 2.x.4, 2.x.5 2.x.1, 2.x.2, 2.x.3, 2.x.4, 2.x.5 2.x.1, 2.x.6 2.x.1, 2.x.2, 2.x.6 2.x.1, 2.x.2, 2.x.3, 2.x.6 2.x.1, 2.x.2, 2.x.3, 2.x.4, 2.x.6
Two test cases yield state coverage Input Event! ! Sequence! ! 1,2,3,4! 1,2,3,5! C! ! 1,C! ! 1,2,C! 1,2,3,C! ! ! ! ! ! ! ! ! ! ! ! ! Path of Transitions x1, x2, x3, x4, x5 x1, x2, x3, x4, x6 x7, x11 x1, x8, x11 x1, x2, x9, x11 x1, x2, x3, x10, x11
All six are needed for transition coverage

Pseudo-structural Coverage Metrics for PIN Entry FSM

Input Event! ! Sequence! ! 1,2,3,4! ! ! ! ! State Sequence
1,2,3,5,1,2,3,4! 1,2,3,5,C,1,2,3,4
C,C,C! ! ! ! ! ! ! How many test cases yield state coverage? Input Event! ! Path of Sequence! ! Transitions 1,2,3,4! ! ! ! !
1,2,3,5,1,2,3,4! 1,2,3,5,C,1,2,3,4 C,C,C! !
How many are needed for transition coverage?

Consequences of Pseudo-structural Coverage Metrics
1.! Combinatoric explosion is controlled ! Selecting test cases from the FSM decomposition reduced
! 156 threads to 10 test cases
2.! Fault isolation is improved ! When a "verify" operation fails, use the FSMs to determine:
! ! ! ! ! ! what went wrong where it went wrong when it went wrong
3.! Base information for testing management
System Testing
SATM System Threads

1.! Insertion of an invalid card. (this is probably the "shortest" system thread) 2.! Insertion of a valid card, followed by three failed PIN entry attempts. 3.! Insertion of a valid card, a correct PIN entry attempt, followed by a balance inquiry. 4.! Insertion of a valid card, a correct PIN entry attempt, followed by a deposit. 5.! Insertion of a valid card, a correct PIN entry attempt, followed by a withdrawal. 6.! Insertion of a valid card, a correct PIN entry attempt, followed by an attempt to withdraw more cash than the account balance.
System Testing
SATM System Thread Testing

SATM Test Data ATM ! Card! 1! ! 2! ! 3! ! 4! ! PAN! Expected! ! ! PIN!! ! 100!! 1234! ! 200!! 4567! ! 300!! 6789! ! (invalid) ! ! Checking! Balance!! $1000.00! $100.00! ! $25.00! ! ! ! ! ! ! ! ! Savings Balance $800.00 $90.00 $20.00
Port Input Events! ! ! ! ! ! !
Port Output Events ! ! ! ! ! ! Display Screen(n,text) Open Door(dep, withdraw) Close Door(dep, withdraw) Dispense Notes (n) Print Receipt (text) Eject ATM Card
Insert ATM Card (n)! ! Key Press Digit (n)! ! Key Press Cancel! ! Key Press Button B(n)! Insert Deposit Envelope! ! ! ! ! ! !
System Testing
Thread 1 Test Procedure
Description:
invalid card
Test operator instructions Initial Conditions: screen 1 being displayed Perform the following sequence of steps: 1. 2. 3. Cause: Verify: Verify: Insert ATM Card 4 Eject ATM Card Display Screen(1, null)
Post Condition: Screen 1 displayed Test Result: ___ Pass ___ Fail
System Testing

Description: valid card, 3 failed PIN attempts Initial Conditions: screen 1 being displayed Perform the following sequence of steps: 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 1. 2. 3. 3. Cause: Verify: Cause: Verify: Cause: Verify: Cause: Verify: Cause: Verify: Cause: Verify: Cause: Verify: Cause: Verify: Cause: Verify: Cause: Verify: Verify: Verify: Insert ATM Card 1 Display Screen(2, '----') Key Press Digit (1) Display Screen(2,'X---') Key Press Cancel Display Screen(2,'----') Key Press Digit (1) Display Screen(2,'X---') Key Press Digit (2) Display Screen(2,'XX--') Key PressCancel Display Screen(2,'----') Key Press Digit (1) Display Screen(2,'X---') Key Press Digit (2) Display Screen(2,'XX--' Key Press Digit (3) Display Screen(2,'XXX-') Key Press Digit (5) Display Screen(2,'XXXX') Display Screen(4, null) Display Screen(1, null) Test Result: ___ Pass ___ Fail
System Testing
Post Condition: Screen 1 displayed

Description: valid card, a correct PIN entry attempt, followed by a balance inquiry of the checking account. Initial Conditions: screen 1 being displayed Perform the following sequence of steps: 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. Cause: Verify: Cause: Verify: Cause: Verify: Cause: Verify: Cause: Verify: Verify: Cause: Verify: Cause: Verify: Cause: Verify: Verify: Verify: Verify: Insert ATM Card 1 Display Screen(2, '----') Key Press Digit (1) Display Screen(2,'X---') Key Press Digit (2) Display Screen(2,'XX--' Key Press Digit (3) Display Screen(2,'XXX-') Key Press Digit (4) Display Screen(2,'XXXX') Display Screen(5, null) Key Press Button B(1) Display Screen(6, null) Key Press Button B(1) Display Screen(14,null) Key Press Button B(2) Print Receipt ('$1000.00') Display Screen(15, null) Eject ATM Card Display Screen(1, null) Test Result: ___ Pass ___ Fail
System Testing
Post Condition: Screen 1 displayed

Description: valid card, a correct PIN entry attempt, followed by a $25.00 deposit to the checking account 1. Cause: Insert ATM Card 1 2. Verify: Display Screen(2, '----') 3,5,7,9. Cause: Key Press Digit (1,2,3,4) 4,6,8,10. Verify: Display Screen(2,'XXXX') 11. Verify: Display Screen(5, null) 12. Cause: Key Press Button B(2) 13. Verify: Display Screen(6, null) 14. Cause: Key Press Button B(1) 15. Verify: Display Screen(7, '$----.--') 16. Cause: Key Press Digit (2) 17. Verify: Display Screen(7, '$----.-2') 18. Cause: Key Press Digit (5) 19. Verify: Display Screen(7, '$----.25') 20. Cause: Key Press Digit (0) 21. Verify: Display Screen(7, '$---2.50') 22. Cause: Key Press Digit (0) 23. Verify: Display Screen(7, '$--25.00' 24. Verify: Display Screen(13, null) 25. Verify: Open Door(deposit) 26. Cause: Insert Deposit Envelope 27. Verify: Close Door(deposit) 28. Verify: Display Screen(14, null) 29. Cause: Key Press Button B(2) 30. Verify: Print Receipt ('$1025.00') 31. Verify: Display Screen(15, null) 32. Verify: Eject ATM Card 33. Verify: Display Screen(1, null) Post Condition: Screen 1 displayed Test Result: ___ Pass ___ Fail

Description: valid card, a correct PIN entry attempt, followed by an attempt to withdraw more cash than the savings account balance. 1. Cause: Insert ATM Card 2 2. Verify: Display Screen(2, '----') 3,5,7,9. Cause: Key Press Digit (4,5,6,7) 4,6,8,10. Verify: Display Screen(2,'XXXX') 11. Verify: Display Screen(5, null) 12. Cause: Key Press Button B(3) 13. Verify: Display Screen(6, null) 14. Cause: Key Press Button B(2) 15. Verify: Display Screen(7, '$----.--') 16,18,20,22,24 Cause: Key Press Digit (1,1,0,0,0) 17,19,21,23,25 Verify: Display Screen(7, '$-110.00') 24. Verify: Display Screen(8, '----.--') 26. Cause: Key Press Cancel 28. Verify: Display Screen(14, null) 29. Cause: Key Press Button B(2) 30. Verify: Print Receipt ('$90.00') 31. Verify: Eject ATM Card 32. Verify: Display Screen(1, null) Post Condition: Screen 1 displayed Test Result: ___ Pass ___ Fail
System Testing
Operational Profiles Zipf's Law: 80% of the activities occur in 20% of the space ! ! ! ! ! productions of a language syntax natural language vocabulary menu options of a commercial software package area of an office desktop floating point divide on the Pentium chip
For Threads: a small fraction of all possible threads represents the majority of system execution time. Therefore: find the occurrence probabilities of threads and use these to order thread testing.
Operational Profiles of SATM

Bad card 0.05 1. Card Entry Legitimate card 0.95 2.1 First PIN Try Incorrect PIN 0.10 Incorrect PIN 0.10
2.2 Second PIN Try Correct PIN 0.90 Correct PIN 0.90
Incorrect PIN 0.10
Common Thread Legitimate Card PIN ok 1st try Withdraw Normal
Probabilities 0.95 0.90 0.85 0.85 0.6177375 Probabilities 0.95 0.10 0.10 0.90 0.85 0.01 0.00072675
2.3 Third PIN Try
Correct PIN 0.90 3. Await Transaction Choice Button B 1 0.05 Button B 2 0.10 Deposit Low cash 0.10 1.00 1.00 Normal 0.85 Low balance 0.05 Print Receipt Button B 3 0.85
Rare Thread Legitimate Card Bad PIN 1st try Bad PIN 2nd try PIN ok 3rd try Withdraw Low Cash
Withdrawal
Balance
System Testing
SATM Atomic System Functions

ASF1: Examine ATM Card Inputs: PAN from card, List of acceptable cards Outputs: Legitimate Card, Wrong Card ASF2: Control PIN Entry Inputs: Expected PIN, Offered PIN Outputs: PIN OK, Wrong PIN ASF3: Get Transaction Type Inputs: Button1, Button2, or Button3 depressed Outputs: call Get Account Type (not externally visible) ASF4: Get Account Type Inputs: Button1 or Button2 depressed Outputs: call one of Process Withdrawal, Process Deposit, or Display Balance (not externally visible) ASF5: Process Withdrawal Inputs: Amount Requested, Cash Available, Local Balance Outputs: Process Request (call Dispense Cash) Reject Request (insuficient funds or insuficient balance)
System Testing
SATM Atomic System Functions

ASF6: Process Deposit Inputs: Deposit Amount , Deposit Envelope, Deposit Door Status, Local Balance Outputs: Process Request (call Credit Local Balance) Reject Request ASF7: Display Balance Inputs: Local Balance Outputs: (call Screen Handler) ASF8: Manage Session Inputs: New Transaction Requested, Done Outputs: (call Get Transaction Type or call Print Receipt) ASF9: Print Receipt Inputs: Account Number, transaction type and amount, new local balance, time, date Outputs: formatted text for receipt, (call Eject Card) ASF10: Eject Card Inputs: (invoked) Outputs: (control rollers)
System Testing
"Hidden" Atomic System Functions

ASF11: Dispense $10 Note ASF12: Screen Handler ASF13: Button Sensor ASF14: Digit Keypad Sensor ASF15: Cancel Sensor ASF16: Card Roller Controller ASF17: Control Deposit Door ASF18: Control Deposit Rollers ASF19: Control Cash Door ASF20: Count Cash on Hand ASF21: Timer
System Testing
SATM Threads
Thread 1: Wrong Card State Sequence: Idle, Idle Event Sequence: Display Screen 1, Wrong Card ASF Sequence:!
Thread 2: Wrong PIN State Sequence:
Idle, Await 1st PIN Try, Await 2nd PIN Try, Await 3rd PIN Try, Idle Event Sequence: Display Screen 1, Legitimate Card, Wrong PIN, Wrong PIN, Wrong PIN, Display Screen 4, Display Screen 1 ASF Sequence:!
Thread 3: Balance Inquiry State Sequence:
Idle, Await 1st PIN Try, Acquire Transaction Data, Display Balance, Display Balance, Close Session, Idle Event Sequence: Display Screen 1, Legitimate Card, Wrong PIN, Wrong PIN, Wrong PIN, Display Screen 4, Display Screen 1 ASF Sequence:!
System Testing
SATM Threads
Thread 4: Balance then Deposit then Withdraw State Sequence: Idle, Await 1st PIN Try, Acquire Transaction Data, Display Balance, Close Session, Acquire Transaction Data, Process Deposit, Close Session, Acquire Transaction Data, Process Withdrawal, Close Session, Idle Event Sequence: Display Screen 1, Legitimate Card, Wrong PIN, Wrong PIN, Wrong PIN, Display Screen 4, Display Screen 1 ASF Sequence:!
Thread 5: 3 PIN Tries then Balance then Deposit then Withdraw State Sequence: Idle, Await 1st PIN Try, Await 2nd PIN Try, Await 3rd PIN Try, Acquire Transaction Data, Display Balance, Close Session, Acquire Transaction Data, Process Deposit, Close Session, Acquire Transaction Data, Process Withdrawal, Close Session, Idle Event Sequence: Display Screen 1, Legitimate Card, Wrong PIN, Wrong PIN, Wrong PIN, Display Screen 4, Display Screen 1 ASF Sequence:!
System Testing
ATM States and Transitions

t5 t1 t2 t16 S2 t6 S5 t9 t10 S7 t12 t13 S9 t14 t11 S8 t15 t3 t7 S3 t8 t4 S4
S1
S6
System Testing
Chapter 15
Interaction Testing
Interaction Testing
Interaction: the hot topic of the 1990s

"Elements of Interaction"Communications of the ACM, (Jan. 93) Robin Milner (1993 Turing Award Lecture) "An Investigation of the Therac-25 Accident, IEEE Computer, (July 93) Nancy G. Leveson and Clark S. Turner. "Feature Interactions and Formal Specifications in Telecommunications" IEEE Computer, (Aug. 93) Pamela Zave The underlying issue: Non-Determinism Our Approach: A Taxonomy of Interactions An executable specification Analysis from graph theory
Interaction System Testing Testing
Definitions of Interaction
1. "System behavior as a whole does not satisfy the separate specifications of all its [parts]." (Pamela Zave) 2. Relationship between the whole and its parts. 3. Totality of connections among components. 4. Consequences of connections among components. 5. The result of composition. (Robin Milner)
Interaction Testing
Feature Interaction
Feature: a service provided by a system (activated by a subscriber paying for the service) Telephony Examples (from P. Zave): Notation: d1, d2, d3, and d4 are directory numbers
POTS (Plain Old Telephone Service)
Call Forwarding: calls to d1 are terminated on d2 iff call forwarding is enabled on d1 and activated by defining d2 as the current destination Calling Party Identification: when active on d2, d2 receives the directory number of all incoming calls Call Rejection: allows a subscriber to define a list of directory numbers from which calls will not be completed. Busy Treatment: several possibilities; call override, call rejection, call forward, call forward on busy, do not disturb, automatic re-call
Interaction Testing
(Zaves) Sample Interactions

1. Calling Party Identication and Call Rejection calling party identication offers a directory number (data) which is used as an input in the call rejection process. Call Forwarding and Call Rejection d2 rejects calls from d1, d1 forwards calls to d2, d3 calls d1. Call Forward Loop d1 forwards calls to d2 d2 forwards calls to d3 d3 forwards calls to d1 d4 calls d1 Voice Mail and Credit Card Calling In credit card calling, # terminates a call so that a new call can be dialed without re-entering the credit card digits. In many Voice Mail systems, # is a command (e.g., to hear your recorded message) d1 makes a credit card call to d2 and gets d2's voice mail. What happens when d1 enters # ?
Interaction Testing
2.
3.
4.
First Clues
Feature interaction is a consequence of adaptive maintenance (i.e., adding new capabilities to an existing system) Interactions involve connections, and the essence of every modeling technique is to nd/establish connections (see Wurmann, Information Anxiety ) Composition creates connections. What can be connected? First Approximation: interaction Should be Is Is not intended missing Should not be unintended null
Interaction Testing
Definitions of Determinism
Let C be some calculation, C (input) = output . Definition 1:! If the result of C can always be predicted, C is deterministic ! ! ! (or pre-determined), otherwise C is non-deterministic. Definition 2:! If the result of C is always the same, C is deterministic ! ! ! (or pre-determined), otherwise C is non-deterministic. Example: ComputeSalesTax(price, taxrate) If the tax rate is 4%, sales tax on a $100 item will be $4.00. If the legislature changes the tax rate to 6%, we have interaction. If we understand all the points of interaction, the function still is deterministic. "Concurrency inflicts non-determinism." Robin Milner
Interaction Testing
Toward a Taxonomy of Interactions

What elements can interact? In what ways can these elements interact? "Basis" system elements (the reality of any system): Data Action Event
Device
Thread
Interaction Testing
Basis Concepts for Requirements Specification

1! Data
When a system is described in terms of its data, the focus is on the information used and created by the system. Data refers to information that is either initialized, stored, updated, or (possibly) destroyed.
2!
Actions
Actions have inputs and outputs, and these can be either data or port events. Some methodologyspecific synonyms for actions: transform, data transform, control transform, process, activity, task, method, and service. Actions can be decomposed into lower level actions.
3!
Devices
Every system has devices; these are the sources and destinations of system level inputs and outputs (events that occur at the port boundary). Physical actions (e.g., keystrokes, light emissions from a screen) occur on port devices, and these are translated from physical to logical (or logical to physical) appearances by actions that execute on other devices (e.g., a CPU executing software).
4!
Events
A system level input (or output) that occurs on a port device. Like data, events can be inputs to or outputs of actions. Events can be discrete (such as keystrokes) or they can be continuous (such as temperature, altitude, or pressure). There are situations where the context of present data values changes the logical meaning of physical events. We refer to such situations as "context sensitive port events".
5!
Threads
A thread an instance of execution-time behavior of a system. Two synonyms: a scenario, a use-case. A thread is a sequence of actions, and these in turn have data and events as their inputs and outputs.
Interaction Testing
Connections (interactions) Among Basis Concepts
Data Data Action Device Event Thread

context sensitivity points of n-connection Square of Opposition I/O, usage
Action Device
I/O, usage timing, race conditions execution I/O, usage execution resource contention incidence
Event
context sensitivity I/O, usage incidence timing, concurrency points of n-connection
Thread
points of n-connection
points of n-connection n-connectivity
Interaction Testing
Toward a Taxonomy of Interactions

! Each element needs another "dimension"; we'll call it Location, where location refers to time and position. ! ! Each of these elements can interact with itself. Interactions among pairs of elements are more interesting. Data Action Event
Device
Thread
Interaction Testing
Some Ground Rules

Views of location: a point in space-time something that happens in a processor (position) 1. For now, a processor is something that executes threads, or a device where events occur. 2. 3. 4. Since threads execute, they have a strictly positive time duration. In a single processor, two threads cannot execute simultaneously. Events have a strictly positive time duration.
5. Two (or more) input events can occur simultaneously, but an event cannot occur simultaneously in two (or more) processors. 6. In a single processor, two output events cannot begin simultaneously.
Interaction Testing
Taxonomy of Interactions
Static interaction: independent of time Dynamic interaction: time dependent Each of the ve "basis elements" can interact in each quadrant: static dynamic
single processor multiple processor
We will consider static interactions of data with data, and dynamic interactions of threads with threads.
Software Testing: A Craftsmans Approach, 3rd Edition Interaction Testing
Static Interactions (Known to Aristotle)

contraries All S is P No S is P
contradictories subalternation Some S is P sub-contraries subalternation Some S is not P
Interactions in the Square of Opposition. 1. Contradictories: exactly one is true 2. Contraries: cannot both be true 3. Sub-contraries: cannot both be false 4. Subalternation: Truth of superaltern guarantees truth of its subaltern Examples 1. When the pre-condition for a thread is a conjunction of data propositions, contrary or contradictory data values will prevent thread execution. 2. Context sensitive port input events usually involve contradictory data. 3. Case statement clauses are contradictories. 4. Rules in a decision table are contradictories.
Software Testing: A Craftsmans Approach, 3rd Edition Interaction Testing
Static Interactions in Multiple Processors

The "Call Forwarding Loop" in telephony. Background: when a subscriber defines a call forwarding destination, this becomes call roting data local to the subscribers telephone office. Suppose Subscriber A (in Grand Rapids) forwards calls to Subscriber B in Northbrook, and Subscriber B (in Northbrook) forwards calls to Subscriber C in Phoenix, and Subscriber C (in Phoenix) forwards calls to Subscriber A inGrand Rapids. What happens when someone outside this loop calls one of A, B, or C? Observations: 1.! The call forwarding data is locally correct, but globally, it is contrary. 2.! The global contrary condition is afault, not a failure. 3.! The fault only becomes a failure when a thread creates a dynamic interaction. 4.! (Most telephone systems avoid this by refusing to forward a forwarded call.)
Interaction Testing
n-Connectedness
Linear Graph Theory sheds some light on interaction. i i j i 0-connected 1-connected i i j j
j 2-connected Two kinds of faults:
j 3-connected
Missing n-connectedness occurs when a pair lacks an essential connection, and Inappropriate n-connctedness, when a pair has an undesired connection.
Interaction Testing
Interpretations of n-Connectedness
0-Connected: true independence 1-Connected: (by an ancestor) resource conflict, context sensitivity (by a descendant) ambiguous cause 2-Connected: define-reference, enable, disable, precedence, prohibit prerequisite 3-Connected: mutual influence, repetition, deadlock Examples: Failures under the "single failure" assumption of Reliability Theory Context Sensitive Port Events Falkland Island submarine incident Email loop
Interaction Testing
Interactions Based on n-Connectedness

Data with Data 0-Connected! 1-Connected! 2-Connected! ! ! ! ! 3-Connected! ! ! ! ! data that are independent data that are inputs to the same action data that are sub-alternates, data that are used in a computation data that are contraries, contradictories, or sub-contraries, "deeply" related data, as in iteration or semaphores
Threads with Threads ! ! ! Threads can be n-connected with each other in two ways: via events and/or via data. To explore this, we need a sufficiently expressive notation.
My candidate: Event Driven Petri Nets
Interaction Testing
Elements of the Interaction Taxonomy

1.! Basis concept interactions ! ! ! ! ! ! 2.! ! 3.! data-data! ! ! port-port data-action! ! ! port-event data-event! ! ! event-event data-thread! ! ! event-thread action-action! ! thread-thread action-event Refined by appropriate relationship (e.g., n-connectivity, square of opposition) Further refined by Is/Should modality
Placement of Zave's examples 1.! ! 2.! ! 3.! ! 4.! ! Calling Party Identification and Call Rejection Intended thread-thread 2-connectivity Call Forwarding and Call Rejection Unintended data-data contraries Call Forward Loop Unintended thread-thread 3-connectivity Voice Mail and Credit Card Calling Unintended data-event context sensitivity
Interaction Testing
A Petri Net Model for Interactions

An Event-Driven Petri Net is a tripartite directed graph (P, D, S, In, Out) composed of three sets of nodes, P, D, and S, and two mappings, In and Out, where P is a set of port events D is a set of data places S is a set of transitions In is a set of ordered pairs from (P D) S Out is a set of ordered pairs from S (P D) Event-Driven Petri Nets express four of our ve basic system constructs; only devices are missing. In an Event-Driven Petri Net , the external inputs are the places with indegree = 0, and the external outputs are the places with outdegree = 0. Graphical conventions for Event-Driven Petri Nets port event transition data place
Interaction Testing
Composing Event-driven Petri Nets

Given two (or more) EDPNs, their composition (unique!) is obtained as follows: 1. If any places or port events have synonymous names, collapse these into unique names. (For example, collapse Lamp ON and Light ON into Lamp ON) 2. Consider all data places and port events to be global (if a place appears in two individual nets, it need only appear once in their composition.) 3. Consider actions to be local. (This preserves the execution sequence of the individual threads.) 4. Adjust all input and output relations (arrows) to preserve the original input and output relations. 5. It may be necessary to add transitions and input/output edges to represent interactions that were not captured in the prior components. 6. Trace through some mainline threads to convince yourself that the composition (especially interactions) is accurate.
Interaction Testing
Thread Interaction and Composition

When two threads interact (via an event or data), we can always compose their respective EDPNs. Thread 1
p1 d1
Thread 2
p1 d2 d1
Composition
p1 d2
s1
s3
s1
s3
d3
p3
d4
d3
d4
s2
s2
p3
d4
p3
Interaction Testing
Producer/Consumers Composition
Consumer 1
t3 p4 p3 p3
Consumer 2
t5 p6 p1 t2 t6 p2 t1
p5 t4 t1
p7
p3 p1 t2 p5 t4 p3 p7 t6 p2 t3 p4 t5 p6
Producer
Interaction Testing
Saturn Windshield Wiper Controller

The windshield wiper on the Saturn automobile (at least on the 1992 models) is controlled by a lever with a dial. The lever has four positions, OFF, INT (for intermittent), LOW, and HIGH, and the dial has three positions, numbered simply 1, 2, and 3. The dial positions indicate three intermittent speeds, and the dial position is relevant only when the lever is at the INT position. The decision table below shows the windshield wiper speeds (in wipes per minute) for the lever and dial positions.
Lever! Dial!!
! !
OFF! n/a! ! 0! !
INT! INT! INT! LOW! 1! 2! 3! n/a! ! 4! 6! 12! 30! !
HIGH n/a 60
Description ! 0 w.p.m. ! 4 w.p.m. ! 6 w.p.m. ! 12 w.p.m. ! 30 w.p.m. ! 60 w.p.m.
Wiper! !
Input Event! ! ie1! ! ! ie2! ! ! ie3! ! ! ie4! ! ! ie5! ! ! ie6! ! ! ie7! ! ! ie8! ! ! ie9! ! ! ie10! !
Description lever from OFF to INT lever from INT to LOW lever from LOW to HIGH lever from HIGH to LOW lever from LOW to INT lever from INT to OFF dial from 1 to 2 dial from 2 to 3 dial from 3 to 2 dial from 2 to 1
Output Event! ! oe1! ! ! oe2! ! ! oe3! ! ! oe4! ! ! oe5! ! ! oe6! !
Interaction Testing
Saturn Windshield Wiper FSMs

Lever OFF ie1 ? INT ie2 oe5 LOW ie3 oe6 HIGH ie4 oe5 ie5 ? ie8 ? 3 ie6 oe1 ie7 ? 2 ie9 ? Dial 1 ie10 ?
Input Event! Description ! ie1! ! lever from OFF to INT ! ie2! ! lever from INT to LOW ! ie3! ! lever from LOW to HIGH ! ie4! ! lever from HIGH to LOW ! ie5! ! lever from LOW to INT ! ie6! ! lever from INT to OFF ! ie7! ! dial from 1 to 2 ! ie8! ! dial from 2 to 3 ! ie9! ! dial from 3 to 2 ! ie10! dial from 2 to 1 Output Event! ! oe1!! ! ! oe2!! ! ! oe3!! ! ! oe4!! ! ! oe5!! ! ! oe6!! ! Description 0 w.p.m. 4 w.p.m. 6 w.p.m. 12 w.p.m. 30 w.p.m. 60 w.p.m.
Note that several transition actions are indeterminate because of composition.
Interaction Testing
Deriving an EDPN from a State Machine

Lever OFF ie1 ? INT ie2 oe5 LOW ie3 oe6 HIGH ie4 oe5 ie5 ? ie6 oe1 Input Event p1 ie1 p2 ie2 p3 ie3 p4 ie4 p5 ie5 p6 ie6 p7 ie7 p8 ie8 p9 ie9 p10 ie10 Output Event p11 oe1 p12 oe2 p13 oe3 p14 oe4 p15 oe5 p16 oe6 Data Place d1 d2 d3 d4 d5 d6 d7 Description lever from OFF to INT lever from INT to LOW lever from LOW to HIGH lever from HIGH to LOW lever from LOW to INT lever from INT to OFF dial from 1 to 2 dial from 2 to 3 dial from 3 to 2 dial from 2 to 1 Description 0 w.p.m. 4 w.p.m. 6 w.p.m. 12 w.p.m. 30 w.p.m. 60 w.p.m. Description Lever at OFF position Lever at INT position Lever at LOW position Lever at HIGH position Dial at position 1 Dial at position 2 Dial at position 3 p1 d1 p6
s1
s6
p11 p2 d2 p5
s2
s5
p15 p3 d3 p4
s3
s4
p16
d4
p15
Interaction Testing
n-Connected Thread Interaction

Let T1 and T2 be two EDPN threads in which synonym places have been resolved, and with external input and output sets EI1, EI2, EO1, and EO2. Furthermore, let T be the EI2 and EO = EO1 EO2 are the composition of threads T1 and T2, where EI = EI1 external input and output sets of the composed thread T. The threads T1 and T2 are: 0-connected if EI1 EI2 = , EO1 EO2 = , EI1 EO2 = , and EO1 EI2 = or EO , 1-connected if either EI 2-connected if either EI1 EO2 or EI2 EO1 , 3-connected if both EI1 EO2 and EI2 EO1 p1
d1
d2
s1
s3
d3
d4 p3
Interaction Testing
s2
p1
d1
p6
Full EDPN for the Saturn Windshield Wiper

s6 s11 p7 d5 p10
s1
p11 d2 p2 p12 s12
s7
s10
s2
s5
p13 s13 p8
d6 p9
p15 p3 d3
p5 p4
p14 s4
s8
s9
s3
p16
d4
p5
d7
Interaction Testing
Composition in a Database
(all relations are 0..n at each end)
Data
DataInput
DataOutput EventOutput
Action
SequenceOf
Thread
Event
OccursOn
EventInput
Device
Interaction Testing
DataInput Table for d3

DataID DataName ActionID ActionName
d3 d3
Low Low
s3 s5
LowtoHigh LowToInt
Interaction Testing
DataInput Table for d2
DataID d2 d2 d2 d2 d2
DataName Intermittent Intermittent Intermittent Intermittent Intermittent
ActionID
ActionName
Interaction Testing
What Connections Can you Identify Between an EDPN Data Model and Graph Theory?
Indegree of a place Outdegree of a place Indegree of a transition Outdegree of a transition Indegree of an event Outdegree of an event
Interaction Testing
Chapters 16 - 20
Testing Object-Oriented Software
Object-Oriented Testing
1. Traditional vs. Object-Oriented Testing 2. Saturn Windshield Wiper Example 3. Testing with O-O Notations
Traditional vs. Object-Oriented Testing
Data
input Action output
Data encapsulate
Object Action
Event
Device
Device
Thread
Event Thread
Object-orientation repackages the basis concepts (all relations are 0..n)
Issues in Object-Oriented Testing 1. Implications of message-based communication

With an procedural language, program graphs are "natural". O-O testing must deal with event and message quiescence.
2. Decomposition to composition.
Functional decomposition tree as a basis of integration testing is lost. Composition implies unknowable contexts. We can never know all the possible objects with which a given object may be composed.
3. O-O language packaging requires redefinition of testing levels.

What is a unit? Can we continue with integration level constructs (MM-Path, ASF)? What do O-O threads look like?
Levels of Object-Oriented Testing

Level Unit Integration Item Method of an object? Class? MM-Path Atomic System Function System Thread Thread Interaction Boundary Program graph Message quiescence Event quiescence Source to sink ASF (none)
Notice the cascading levels of interaction: unit testing covers statement interaction, MM-Path testing covers method interaction, ASF testing covers MM-Path interaction, thread testing covers object interaction, and all of this culminates in thread interaction.
Re-usable Testing Techniques
Level Unit
Item Method of an object Class
Technique Traditional functional and/or structural StateChart-based New definition? New definition? New definition? (StateCharts) (as before)
Integration
MM-Path Atomic System Function
System
Thread Thread Interaction
Saturn Windshield Wiper Controller

The windshield wiper on the Saturn automobiles is controlled by a lever with a dial. The lever has four positions, OFF, INT (for intermittent), LOW, and HIGH, and the dial has three positions, numbered simply 1, 2, and 3. The dial positions indicate three intermittent speeds, and the dial position is relevant only when the lever is at the INT position. The decision table below shows the windshield wiper speeds (in wipes per minute) for the lever and dial positions.
Lever Dial Wiper
OFF n/a 0
INT INT INT LOW 1 2 3 n/a 4 6 12 30

Output Event oe1 oe2 oe3 oe4 oe5 oe6
HIGH n/a 60
Description 0 w.p.m. 4 w.p.m. 6 w.p.m. 12 w.p.m. 30 w.p.m. 60 w.p.m.
Input Event Description ie1 lever from OFF to INT ie2 lever from INT to LOW ie3 lever from LOW to HIGH ie4 lever from HIGH to LOW ie5 lever from LOW to INT ie6 lever from INT to OFF ie7 dial from 1 to 2 ie8 dial from 2 to 3 ie9 dial from 3 to 2 ie10 dial from 2 to 1
Saturn Windshield Wiper Objects

Wiper Speed Lever Position Dial Position Compute Speed
Lever position Sense Up Sense Down
Dial position Sense Left Sense Right
Saturn Windshield Wiper Object FSMs

Lever OFF ie1 ? INT ie2 oe5 LOW ie3 oe6 ie4 oe5 ie5 ? ie8 ? 3 ie6 oe1 ie7 ? 2 ie9 ? Dial 1 ie10 ?
Input Event ie1 ie2 ie3 ie4 ie5 ie6 ie7 ie8 ie9 ie10
Description lever from OFF to INT lever from INT to LOW lever from LOW to HIGH lever from HIGH to LOW lever from LOW to INT lever from INT to OFF dial from 1 to 2 dial from 2 to 3 dial from 3 to 2 dial from 2 to 1
Output Event Description oe1 0 w.p.m. oe2 4 w.p.m. HIGH oe3 6 w.p.m. oe4 12 w.p.m. oe5 30 w.p.m. oe6 60 w.p.m. Note that several transition actions are indeterminate because of composition.
Resolving the Indeterminacy with Messages

Lever OFF ie1 m1 INT ie2 m2 LOW ie3 m3 HIGH ie4 m4 ie5 m5 ie8 m8 3 ie6 m6 ie7 m7 2 ie9 m9 Dial 1 ie10 m10 4 wpm m1 m6 m7 Wiper 0 wpm m1 m6 m1 m6 m8 m9 m2 m5
6 wpm m5
12 wpm
m10 m2 m2 m5
30 wpm m3 m6 60 wpm
Messages m1 to m6 inform the Wiper object of the state of the Lever object. Messages m7 to m10 inform the Wiper object of the state of the Dial object.
Windshield Wiper StateChart

power off power on 0 Off leverUp instate(Int) leverDown Int leverUp Instate(1) leverDown Low leverUp leverDown High Instate(2) Instate(2) Instate(3) Instate(3) 1 dialUp dialDown 2 dialUp dialDown 3 instate(Low) 30 instate(High) 60 12 Instate(1) 6 Instate(2) 4 instate(Off)
instate(Int) instate(Low)
Testing Object-Oriented Software definition in UML two kinds of o-o software: - data-driven - event-driven how are these described (for a tester)? what is an o-o unit: - a class? - a method? what is the basis for integration testing?
First Example (data-driven) The o-oCalendar program is an object-oriented implementation of the NextDate function. (NextDate(Mar., 5, 2002)) = Mar., 6, 2002. When this is implemented in procedural code, it is approximately 50 lines long, with a cyclomatic complexity less than 15. (can be 11.) A "pure" (i.e., good practice) object-oriented implementation contains one abstract class and five classes. The next few slides show the UML description of o-oCalendar.
Classes
testIt CalendarUnit 'abstract class Date Day d Month m Year y Date( pDay, pMonth,, pYear) increment() printDate()
currentPos As Integer CalendarUnit( pCurrentPos) setCurrentPos( pCurrentPos) increment() 'boolean Month private Year y private sizeIndex = <31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31> Month(pcur, Year pYear) setCurrentPos(pCurrentPos) setMonth(pcur, Year pYear) getMonth() getMonthSize() increment()
Day Month m Day( pDay, Month pMonth) setCurrentPos( pCurrentPos) setDay( pDay, Month pMonth) getDay() increment()
Year Year(int pYear) setCurrentPos( pCurrentPos) getYear() increment() isleap() 'boolean
Inheritance and Aggregation

CalendarUnit
Day
Month
Year
Date
Day
Month
Year
Program Graphs of Date Methods

testIt
1 2 3
Date.constructor Date.increment
4 5 6 7 12 13 14 17 18 8 9 10 11 15 16
Date.printDate
19 20
Program Graphs of Day Methods

Day.constructor
21
Day.setCurrentPos
a
Day.setDay
23
Day.getDay
26
Day.increment
28
22
24
27
29
23
25
30
31
32
33
Program Graphs of Month Methods

Month.constructor Month.setCurrentPos
39 a
Month.setMonth
36
40
37
39
38
Month.getMonth
39
Month.increment
47
Month.getMonthSize
41
40
48 43
42 44 45
49 50 52 51
46
Program Graphs of Year Methods

Year.constructor Year.setCurrentPos Year.getYear Year.increment
53 a 55 57
Year.isLeap
60
54
56
58
61
62 59 64
63
Collaboration Diagram
1: create 2: increment 3: getYear 1: create 2: increment 3:setMonth 4: getMonth Date 1: create 2: increment 3: setDay 4: getDay
Year 1:isLeap
testIt
1: create 2: increment 3: printDate
Month 1:getMonthSize
Day
All Message Flows

testit Main m6 m7
Day Day() setCurrentPos() increment() setDay getDay m11 m13 m17 m15 m16
Date m1 m2 m3 Date() increment() printDate
Month m5 m8 Month() setCurrentPos() increment() setMonth getMonth getMonthSize m19 m18
m10
m4 Year m9 Year() setCurrentPos() increment() m14 getYear isLeap m20 m21
Message Sequence Diagram (for an easy test case)

testIt Date:testdate Day:d Month:m Year:y
1: printDate() 2:getMonth()
3:getDay()
4:getYear()
time
Message Flow for Easy Case

testit Main m6
Day Day() setCurrentPos() increment() setDay getDay m15 m16
Date m1 Date() increment() printDate
Month m5 Month() setCurrentPos() increment() setMonth getMonth getMonthSize m19 m18
m4 Year Year() setCurrentPos() increment() getYear isLeap
m21
Second Example (event-driven)

Currency Converter U. S. Dollar amount Equivalent in Brazil Canada European Community Japan Clear Quit Compute
Procedural Implementation of Compute Button

procedure Compute ( USDollarAmount, EquivCurrencyAmount) dim brazilRate, canadaRate, euroRate, japanRate, USDollarAmount As Single If (optionBrazil) Then EquivCurrencyAmount = brazilRate * USDollarAmount Else If (optionCanada) Then EquivCurrencyAmount = canadaRate * USDollarAmount Else If (optionEuropeanUnion) Then EquivCurrencyAmount = euroRate * USDollarAmount Else If (optionJapan) Then EquivCurrencyAmount = japanRate * USDollarAmount Else Output ("No country selected") EndIF EndIF EndIF EndIF
Software Testing: A Craftsmans Approach, 3rd Edition Object-Oriented Testing
object optionBrazil () Constant USdollarToBrazilReal= 2.067 private procedure senseClick commandCompute(USdollarToBrazilReal) End senseClick object optionCanada() Constant USdollarToCanadianDollar = 1.16 private procedure senseClick commandCompute(USdollarToCanadianDollar) End senseClick object optionEuropeanUnion () Constant USdollarToEuro= 0.752 private procedure senseClick commandCompute(USdollarToEuro) End senseClick object optionJapan () Constant USdollarToJapanYen = 117.82 private procedure senseClick commandCompute(USdollarToJapanYen) End senseClick procedure comandCompute ( exchangeRate) dim exchangeRate, USDollarAmount As Single USDollarAmount = Val(txtUSDollarAmount.text) EquivCurrencyAmount = exchangeRate * USDollarAmount End procedure Compute
ObjectOriented Implementation of Compute Button
Visual Basic Style Implementation

Public exchangeRate As Single Private Sub optBrazil_Click() exchangeRate = 2.067 End Sub Private Sub optCanada_Click() exchangeRate = 1.16 End Sub Private Sub optEuropeanUnion_Click() exchangeRate = 0.752 End Sub Private Sub optJapan_Click() exchangeRate = 117.82 End Sub Private Sub commandCompute () EquivCurrencyAmount = exchangeRate * Val(txtUSDollarAmount.text) End Sub
Input Events for the Currency Converter
Input Events ip1 ip2 ip2.1 ip2.2 ip2.3 Enter US Dollar amount Click on a country button Click on Brazil Click on Canada Click on European Community ip2.4 ip3 ip4 ip5 ip6
Input Events Click on Japan Click on Compute button Click on Clear button Click on Quit button Click on OK in error message
Output Events for the Currency Converter

Output Events op1 op2 op2.1 op2.2 op2.3 op2.4 op2.5 op3 op3.1 op3.2 op3.3 op3.4 Display US Dollar Amount Display currency name Display Brazilian Reals Display Canadian Dollars Display European Community Euros Display Japanese Yen Display ellipsis Indicate selected country Indicate Brazil Indicate Canada Indicate European Community Indicate Japan op4 op4.1 op4.2 op4.3 op4.4 op5 op6 op7 op8 op9 op10 Output Events Reset selected country Reset Brazil Reset Canada Reset European Community Reset Japan Display foreign currency value Error Msg: Must select a country Error Msg: Must enter US Dollar amount Error Msg: Must select a country and enter US Dollar amount Reset US Dollar Amount Reset equivalent currency amount
ASFs and Data Places for the Currency Converter

Atomic System Functions s1 s2 s3 s4 Store US Dollar amount Sense Click on Brazil Sense Click on Canada Sense Click on E. U. s5 s6 s7 s8 Atomic System Functions Sense Click on Japan Sense Click on Compute button Sense Click on Clear button Sense Click on Quit button
Data Places d1 US Dollar Amount entered d2
Data Places Country selected
High Level Finite State Machine

ip4 or ip5 ip2/op2, op3 ip4 or ip5 op2.5, op4 op9, and op10 ip2/op2, op3 ip6 ip1/op1 Both Inputs Done ip3/op5 Equiv Amount Displayed ip6 ip3/op6 Idle ip3/op8 ip6 Missing Country and Dollar ip1/op1 Message US Dollar Amount Entered
Country Selected ip3/op7
Missing US Dollar Message
Missing Country Message
Details of Option Button FSM

ip2.1 op2.1 op3.1 ip2.2 op2.2 op3.2 Brazil ip2.1 op2.1 op3.1 op4.3 ip2.2 op2.2 op3.2 op4.1 ip2.1 op2.1 op3.1 op4.2 ip2.4 op2.4 op3.4 op4.2 Canada ip2.2 op2.2 op3.2 op4.4 Japan ip2.3 op2.3 op3.3 op4.4 ip2.4 op2.4 op3.4 op4.3 Idle ip2.3 op2.3 op3.3 ip2.4 op2.4 op3.4 Euro Comm
ip2.3 op2.3 op3.3 op4.1
StateChart for the Currency Converter

ip 5 Quit
In Storage
End Application
Executing Ip 4 ___________________ op 2 , op 4, op 9 , op 10
Ip 4
Idle
Ip 3 /op 8
GUI action Ip 2/ op 2 ,op 3

Country Selected
Ip 1/ op 1
U .S . Dollar Amount Selected
Ip 6
Missing Country and Dollar Message
Ip 1 /op 1 Ip 2/ op 2 ,op 3 Ip 3 /op 7 Ip 6

Both Inputs Done
Ip 6
Ip 3/ op 7
Missing U
.S . Dollar Message
Ip 3/ op 5 Ip 1 /op 1
Equiv . Amount Displayed
Missing Country Message
Ip 2 /op 2 ,op 3
Observations and Conclusions

Classes/objects are MUCH more complicated than procedures - need to consider inheritance, polymorphism - (the encapsulation part is easy) - o-o design proceeds by composition, not decomposition Complexity is moved from methods to messaging among objects - hence unit level testing becomes integration level testing - it's like that bump in the rug, you can push down on it, but it pops up somewhere else. Models to describe integration level testing are inadequate (you can't test what you don't model)
Extended Definitions
An MM-Path in object-oriented software is a sequence of method executions linked by messages.
An MM-Path starts with a method and ends when it reaches a method which does not issue any messages of its own ( message quiescence) Since MM-Paths are composed of linked method-message pairs in an object network, they interleave and branch off from other MM-Paths.
An atomic system function (ASF ) is a sequence of statements that begins with an input port event and ends with an output port event.
An ASF begins with a port input event This system level input triggers the method-message sequence of an MM-Path which may trigger other MM-Paths The sequence of MM-Paths ends with a port output event (event quiescence)
Constructs for Event- and Message-Driven Petri Nets

Port Input Event
Port Output Event
Data Place Method Execution Path
Message Send/Return
Message from object A to object B
object A
object B
d1
(Second Edition Cover Story)
mep1 d2
d3 mep3
d5 mep5 msg2
msg1
d6
d4
mep6
mep2
mep4
ASFs for the Currency Converter

p1 s2 s1 d1 p2 s3 p3 s4 p4
p10 p15 p19
d2
p11 p16 p20
d2
p12 p17 p21
d2
p5 s5
p6 s6
d1
d2 s7
d1
d2
p7
p8
s8 p13 p18 p22 d2 p27 p24 p25 p14
p26
p23
EDPN Composition of four ASFs

p1 p4
s1
s4
p12 p17 p21 d1 d2
p6 s6 s7
p7
p26
p23 p24 p25 p14
Directed Graph of Intended ASF Sequences

s1
s2
s3
s4
s5
s6
s7
s8
Forced Navigation Adjacency Matrix s1 s2 s3 s4 s5 s6 s7 s8 s1 1 0 0 0 0 1 1 0 s2 1 0 1 1 1 1 1 0 s3 1 1 0 1 1 1 1 0 s4 1 1 1 0 1 1 1 0 s5 1 1 1 1 0 1 1 0 s6 0 1 1 1 1 0 0 0 s7 0 0 0 0 0 1 0 0 s8 0 0 0 0 0 1 1 0

Software Testing A Craftmans Approach

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Software Testing A Craftmans Approach

Uploaded by

Copyright:

Available Formats

A-PDF Merger DEMO : Purchase from www.A-PDF.

com to remove the watermark

Functional Testing Part 1

Boundary Value Testing

Boundary Value Analysis

Generalizing Boundary Value Analysis Limitations of Boundary Value Analysis

Robustness Testing Worst Case Testing Special Value Testing Examples

Guidelines for Boundary value Testing Equivalence Classes

Equivalence Class Testing

Boundary Value Testing

Boundary Value Analysis

Generalizing Boundary Value Analysis Limitations of Boundary Value Analysis

Robustness Testing Worst Case Testing Special Value Testing Examples

Guidelines for Boundary value Testing Equivalence Classes

Equivalence Class Testing

Boundary Value Analysis

e.g. loop conditions (< instead of ), counters

Boundary Value Analysis

Boundary Value Analysis

Boundary Value Testing

Boundary Value Analysis

Generalizing Boundary Value Analysis Limitations of Boundary Value Analysis

Robustness Testing Worst Case Testing Special Value Testing Examples

Guidelines for Boundary value Testing Equivalence Classes

Equivalence Class Testing

Generalizing Boundary Value Analysis

By the number of variables

For n variables 4n + 1 test cases

By the kinds of ranges, depends on the type (nature) of the variables

Variables have discrete, bounded values

Variables have no explicit bounds

Logical variables (bound to a value or another logic variable)

Boundary Value Testing

Boundary Value Analysis

Generalizing Boundary Value Analysis Limitations of Boundary Value Analysis

Robustness Testing Worst Case Testing Special Value Testing Examples

Guidelines for Boundary value Testing Equivalence Classes

Equivalence Class Testing

Limitations of Boundary Value Analysis

Boundary Value Testing

Boundary Value Analysis

Generalizing Boundary Value Analysis Limitations of Boundary Value Analysis

Robustness Testing Worst Case Testing Special Value Testing Examples

Guidelines for Boundary value Testing Equivalence Classes

Equivalence Class Testing

e.g. exceeding load capacity of a public elevator

Forces attention on exception handling

Boundary Value Testing

Boundary Value Analysis

Generalizing Boundary Value Analysis Limitations of Boundary Value Analysis

Robustness Testing Worst Case Testing Special Value Testing Examples

Guidelines for Boundary value Testing Equivalence Classes

Equivalence Class Testing

Worst Case Testing

More thorough than boundary value analysis Represents more effort

Worst Case Testing

Worst Case Testing

Boundary Value Testing

Boundary Value Analysis

Generalizing Boundary Value Analysis Limitations of Boundary Value Analysis

Robustness Testing Worst Case Testing Special Value Testing Examples

Guidelines for Boundary value Testing Equivalence Classes
