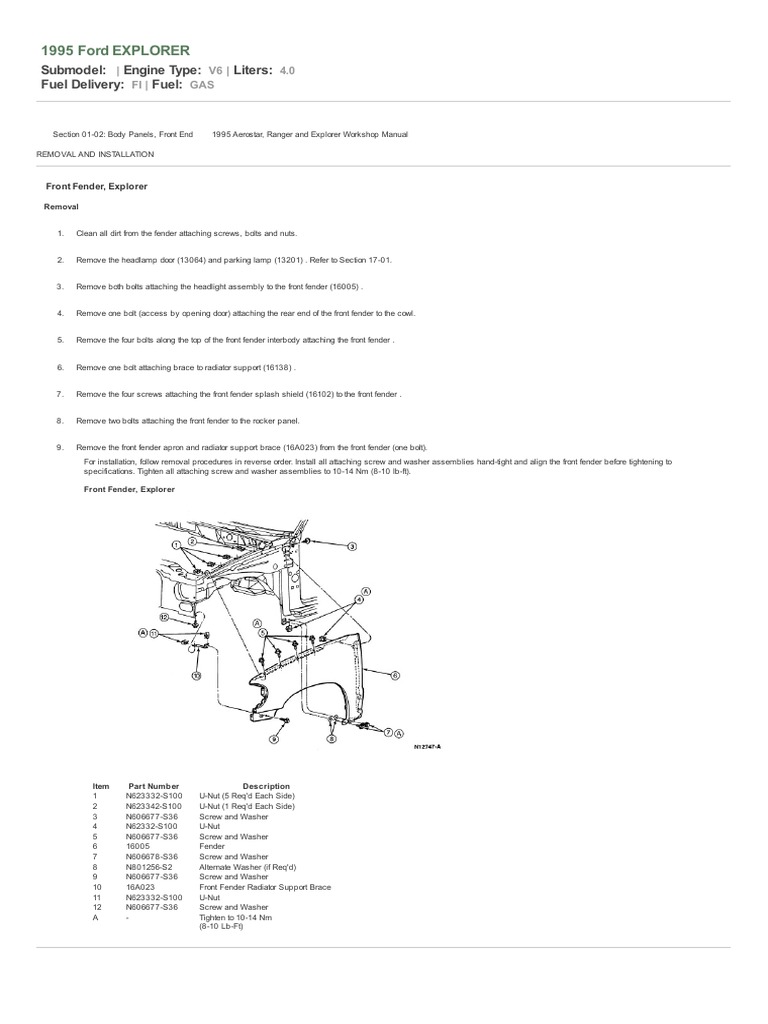

Clean all dirt from the fender attaching screws, bolts and nuts.
2.
Remove the headlamp door (13064) and parking lamp (13201) . Refer to Section 17-01.
3.
Remove both bolts attaching the headlight assembly to the front fender (16005) .
4.
Remove one bolt (access by opening door) attaching the rear end of the front fender to the cowl.
5.
Remove the four bolts along the top of the front fender interbody attaching the front fender .
6.
7.
Remove the four screws attaching the front fender splash shield (16102) to the front fender .
8.
Remove two bolts attaching the front fender to the rocker panel.
9.
Remove the front fender apron and radiator support brace (16A023) from the front fender (one bolt).
For installation, follow removal procedures in reverse order. Install all attaching screw and washer assemblies hand-tight and align the front fender before tightening to
specifications. Tighten all attaching screw and washer assemblies to 10-14 Nm (8-10 lb-ft).
Front Fender, Explorer
Item
1
2
3
4
5
6
7
8
9
10
11
12
A
Part Number
N623332-S100
N623342-S100
N606677-S36
N62332-S100
N606677-S36
16005
N606678-S36
N801256-S2
N606677-S36
16A023
N623332-S100
N606677-S36
-
Description
U-Nut (5 Req'd Each Side)
U-Nut (1 Req'd Each Side)
Screw and Washer
U-Nut
Screw and Washer
Fender
Screw and Washer
Alternate Washer (if Req'd)
Screw and Washer
Front Fender Radiator Support Brace
U-Nut
Screw and Washer
Tighten to 10-14 Nm
(8-10 Lb-Ft)
