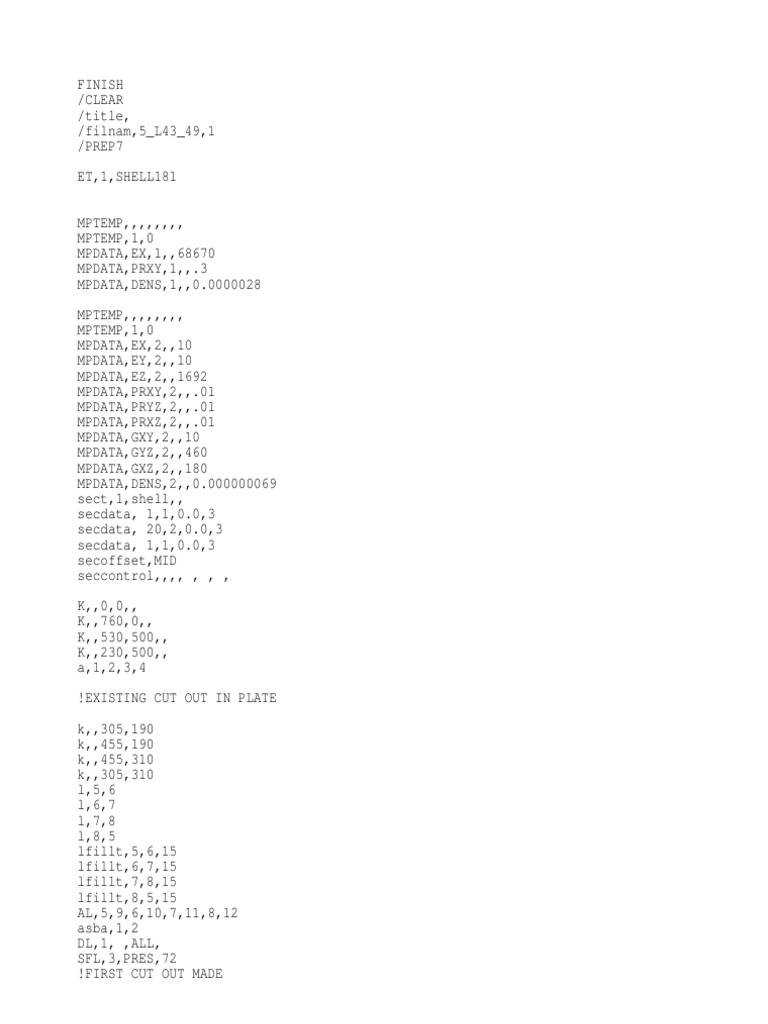

FINISH

/CLEAR
/title,
/filnam,5_L43_49,1
/PREP7
ET,1,SHELL181

MPTEMP,,,,,,,,
MPTEMP,1,0
MPDATA,EX,1,,68670
MPDATA,PRXY,1,,.3
MPDATA,DENS,1,,0.0000028
MPTEMP,,,,,,,,
MPTEMP,1,0
MPDATA,EX,2,,10
MPDATA,EY,2,,10
MPDATA,EZ,2,,1692
MPDATA,PRXY,2,,.01
MPDATA,PRYZ,2,,.01
MPDATA,PRXZ,2,,.01
MPDATA,GXY,2,,10
MPDATA,GYZ,2,,460
MPDATA,GXZ,2,,180
MPDATA,DENS,2,,0.000000069
sect,1,shell,,
secdata, 1,1,0.0,3
secdata, 20,2,0.0,3
secdata, 1,1,0.0,3
secoffset,MID
seccontrol,,,, , , ,
K,,0,0,,
K,,760,0,,
K,,530,500,,
K,,230,500,,
a,1,2,3,4
!EXISTING CUT OUT IN PLATE
k,,305,190
k,,455,190
k,,455,310
k,,305,310
l,5,6
l,6,7
l,7,8
l,8,5
lfillt,5,6,15
lfillt,6,7,15
lfillt,7,8,15
lfillt,8,5,15
AL,5,9,6,10,7,11,8,12
asba,1,2
DL,1, ,ALL,
SFL,3,PRES,72
!FIRST CUT OUT MADE
WPOFFS,200,245
CSYS,4
K,,-32.5,0
K,,0,-60
K,,32.5,0
K,,0,60
L,17,18
L,18,19
L,19,20
L,20,17
LFILLT,13,14,8
LFILLT,14,15,8
LFILLT,15,16,8
LFILLT,16,13,8
AL,13,17,14,18,15,19,16,20
ASBA,3,1
!SECOND CUT OUT MADE
WPOFFS,-200,-245
WPOFFS,566,245
CSYS,4
K,,-32.5,0
K,,0,-60
K,,32.5,0
K,,0,60
L,29,30
L,30,31
L,31,32
L,32,29
LFILLT,21,22,8
LFILLT,22,23,8
LFILLT,23,24,8
LFILLT,24,21,8
AL,21,25,22,26,23,27,24,28
ASBA,2,1
!THIRD CUT OUT MADE
WPOFFS,-566,-245
WPOFFS,140,105
CSYS,4
K,,-40,0
K,,0,-72.5
K,,40,0
K,,0,72.5
L,41,42
L,42,43
L,43,44
L,44,41
LFILLT,29,30,8
LFILLT,30,31,8
LFILLT,31,32,8
LFILLT,32,29,8
AL,29,30,31,32,33,34,35,36
ASBA,3,1
!FOURTH CUT OUT MADE
WPOFFS,-140,-105
WPOFFS,257,130
CSYS,4
K,,-30,0
K,,0,-65
K,,30,0
K,,0,65
L,53,54
L,54,55
L,55,56
L,56,53
LFILLT,37,38,10
LFILLT,38,39,10
LFILLT,39,40,10
LFILLT,40,37,10
AL,37,38,39,40,41,42,43,44
ASBA,2,1
!FIFTH CUT OUT MADE
WPOFFS,-257,-130
WPOFFS,508,130
CSYS,4
K,,-30,0
K,,0,-65
K,,30,0
K,,0,65
L,65,66
L,66,67
L,67,68
L,68,65
LFILLT,45,46,10
LFILLT,46,47,10
LFILLT,47,48,10
LFILLT,48,45,10
AL,45,46,47,48,49,50,51,52
ASBA,3,1
!SIXTH CUT OUT MADE
WPOFFS,-508,-130
WPOFFS,626,105
CSYS,4
K,,-40,0
K,,0,-72.5
K,,40,0
K,,0,72.5
L,77,78
L,78,79
L,79,80
L,80,77
LFILLT,53,54,8
LFILLT,54,55,8
LFILLT,55,56,8
LFILLT,56,53,8
AL,53,54,55,56,57,58,59,60
ASBA,2,1
WPCSYS,-1,0
!TRIANGLE1
WPOFFS,0,0
K,,323,340
K,,443,340
K,,383,460
L,89,90
L,90,91
L,91,89
LFILLET,61,62,10
LFILLET,62,63,10
LFILLET,63,61,10
AL,61,62,63,64,65,66
ASBA,3,1
!TRIANGLE 2
K,,323,160
K,,443,160
K,,383,25
L,98,99
L,99,100
L,100,98
LFILLET,67,68,10
LFILLET,68,69,10
LFILLET,69,67,10
AL,67,68,69,70,71,72
ASBA,2,1
esize,5
amesh,all
/PLOPTS,DATE,0
/SOLU
SOLVE
/POST1
PLNSOL,S,EQV,2
/DEV,PSFN,NINC
/ui,copy,save,png,graph,color,reverse,portrait,no,100
