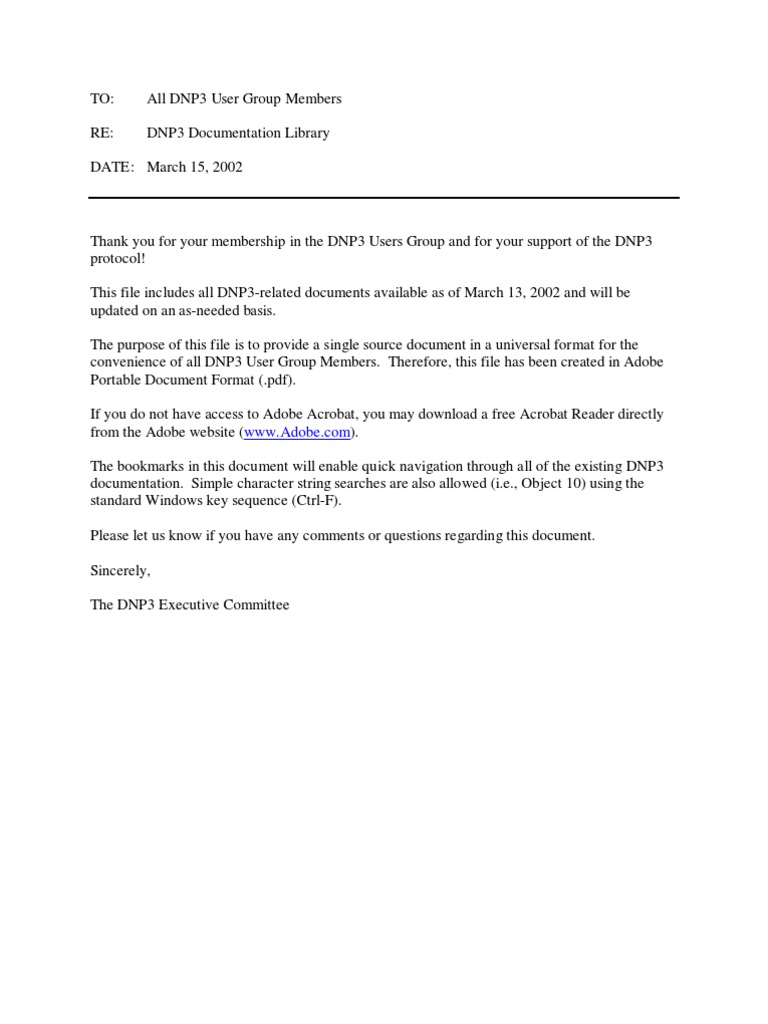

TO: RE:

All DNP3 User Group Members DNP3 Documentation Library

DATE: March 15, 2002

Thank you for your membership in the DNP3 Users Group and for your support of the DNP3 protocol! This file includes all DNP3-related documents available as of March 13, 2002 and will be updated on an as-needed basis. The purpose of this file is to provide a single source document in a universal format for the convenience of all DNP3 User Group Members. Therefore, this file has been created in Adobe Portable Document Format (.pdf). If you do not have access to Adobe Acrobat, you may download a free Acrobat Reader directly from the Adobe website (www.Adobe.com). The bookmarks in this document will enable quick navigation through all of the existing DNP3 documentation. Simple character string searches are also allowed (i.e., Object 10) using the standard Windows key sequence (Ctrl-F). Please let us know if you have any comments or questions regarding this document. Sincerely, The DNP3 Executive Committee

A DNP3 Protocol Primer


This is a primer for people who want a quick understanding of DNP3 without having to comb through the tedious details of a complex specification. So let us start with what it is. Protocols define the rules by which devices talk with each other, and DNP3 is a protocol for transmission of data from point A to point B using serial communications. It has been used primarily by utilities like the electric companies, but it operates suitably in other areas. A typical electric company may have a centralized operations center that monitors the state of all the equipment in each of its substations. In the operations center, a powerful computer stores all of the incoming data and displays the system for the human operators. Substations have many devices that need monitoring (are circuit breakers opened or closed?), current sensors (how much current is flowing?) and voltage transducers (what is the line potential?). That only scratches the surface; a utility is interested in monitoring many parameters, too numerous to discuss here. The operations personnel often need to switch sections of the power grid into or out of service. One or more computers are situated in the substation to collect the data for transmission to the master station in the operations center. The substation computers are also called upon to energize or de-energize the breakers and voltage regulators. DNP3 provides the rules for substation computers and master station computers to communicate data and control commands. DNP3 is a non-proprietary protocol that is available to anyone. Only a nominal fee is charged for documentation, but otherwise it is available worldwide with no restrictions. This means a utility can purchase master station and substation computing equipment from any manufacturer and be assured that they will reliably talk to each other. Vendors compete based upon their computer equipments features, costs and quality factors instead of who has the best protocol. Utilities are not stuck with one manufacturer after the initial sale. What do the computers talk about? The substation computer gathers data for transmission to the master as 1. 2. 3. 4. Binary input data that is useful to monitor two-state devices. For example a circuit breaker is closed or tripped or a pipeline pressure alarm shows normal or excessive. Analog input data that conveys voltages, currents, power, reservoir water levels and temperatures. Count input data that reports kilowatt hours of energy. Files that contain configuration data.

The master station issues control commands that take the form of 1. 2. Close or trip a circuit breaker, raise or lower a gate, and open or close a valve. Analog output values to set a regulated pressure or set a desired voltage level.

Other things the computers talk to each other about are synchronizing the time and date, sending historical or logged data, waveform data, and on and on. DNP3 was designed to optimize the transmission of data acquisition information and control commands from one computer to another. It is not a general purpose protocol for transmitting hypertext, multimedia or huge files. The terms server and client are applicable to DNP3 systems. For our purposes, the definition of a server is a device or software process that has data or information that someone else wants. Substation computers are servers. A client is a device or software process that requests data from a server. A master station is a client.

1 June 2000

Copyright, DNP Users Group, 2000

Binary Input 8 7 6 5 4 3 2 1 0

Master (Client) Control Output Analog Input Counter Input 4 3 3 2 2 1 1 0 0 6 5 4 3 2 1 0 Analog Output 4 3 2 1 0

Binary Input 8 7 6 5 4 3 2 1 0

Slave (Server) Control Output Analog Input Counter Input 4 3 3 2 2 1 1 0 0 6 5 4 3 2 1 0 Analog Output 4 3 2 1 0

DNP3 User's Code

DNP3 User's Code

DNP3 Software

DNP3 Software

Physical Media User Requests User Responses

Figure 1
Figure 1 shows the client-server relationship and gives a simplistic view of the databases and software processes involved. The master or client is on the left side of figure 1, and the slave or server is on the right side. A series of square blocks at the top of the server depicts its databases and output devices. The various data types are conceptually organized as arrays. An array of binary input values represents states of physical or logical boolean devices. Values in the analog input array represent input quantities that the server measured or computed. An array of counters represents count values, such as kilowatt hours, that are ever increasing (until they reach a maximum and then roll over to zero and start counting again.) Control outputs are organized into an array representing physical or logical on-off, raise-lower and trip-close points. Lastly, the array of analog outputs represents physical or logical analog quantities such as those used for setpoints. The elements of the arrays are labeled 0 through N - 1 where N is the number of blocks shown for the respective data type. In DNP3 terminology, the element numbers are called the point indexes. Indexes are zero-based in DNP3, that is, the lowest element is always identified as zero. Some protocols use 1-based indexing. Notice that the DNP3 client, or master, also has a similar database for the input data types (binary, analog and counter.) The master, or client, uses values in its database for the specific purposes of displaying system states, closed-loop control, alarm notification, billing, and much, much more. An objective of the client is to keep its database updated. It accomplishes this by sending requests to the server (slave) asking it to return the values in the servers database. This is termed polling. The server responds to the clients request by transmitting the contents of its database. Arrows are drawn at the bottom of figure 1 showing the direction of the requests (toward the server) and the direction of the responses (toward the client.) Later we will discuss systems whereby the slaves transmit responses without being asked.

1 June 2000

Copyright, DNP Users Group, 2000

The client and the server shown in figure 1 each have two software layers. The top layer is the DNP3 user layer. In the client, it is the software that interacts between the database and initiates the requests for the servers data. In the server, it is the software that fetches the requested data from the servers database for responding to client requests. It is interesting to note, that if no physical separation of the client and server existed, eliminating the DNP3 might be possible by connecting these two upper layers together. However, since physical, or possibly logical separation of the client and server exists, DNP3 software is placed at a lower level. The DNP3 users code uses the DNP3 software for transmission of requests or responses to the matching DNP3 users code at the other end. More will be said about data types and software layers later, but first we want to examine a few typical system architectures where DNP3 is used.

DNP3 Client (Master)

DNP3 Server (Slave)

One-on-One

DNP3 Client (Master)

DNP3 Server (Slave)

DNP3 Server (Slave)

DNP3 Server (Slave)

Multidrop

DNP3 Client (Master)

DNP3 Server Client (Slave) (Master)

DNP3 Server (Slave)

Hierarchical

DNP3 Client (Master)

DNP3 Server (Slave)

XYZ Client (Master)

XYZ Server (Slave)

XYZ Server (Slave)

Data Concentrator

XYZ Client (Master)

XYZ Server (Slave)

DNP3 Client (Master)

DNP3 Server (Slave)

DNP3 Server (Slave)

Data Concentrator

Figure 2
Figure 2 shows common system architectures in use today. At the top is a simple one-on-one system having one master station and one slave. The physical connection between the two is typically a dedicated or dial-up telephone line. The second type of system is known as a multidrop design. One master station communicates with multiple slave devices. Conversations are typically between the client and one server at a time. The master requests data from the first slave, then moves onto the next slave for its data, and continually interrogates each slave in a round robin order. The communication media is a multi-dropped telephone line, fiber optic cable, or radio. Each slave can hear messages from the master and is only permitted to respond to messages addressed to itself. Slaves may or may not be able to hear each other. In some multidrop forms, communications are peer-to-peer. A station may operate as a client for gathering information or sending commands to the server in another station. And then, it may change roles to become a server to another station.

1 June 2000

Copyright, DNP Users Group, 2000

The middle row in figure 2 shows a hierarchical type system where the device in the middle is a server to the client at the left and is a client with respect to the server on the right. The middle device is often termed a sub-master. Both lines at the bottom of figure 2 show data concentrator applications and protocol converters. A device may gather data from multiple servers on the right side of the figure and store this data in its database where it is retrievable by a master station client on the left side of the figure. This design is often seen in substations where the data concentrator collects information from local intelligent devices for transmission to the master station. In recent years, several vendors have used TCP/IP to transport DNP3 messages in lieu of the media discussed above. Link layer frames, which we have not talked about yet, are embedded into TCP/IP packets. This approach has enabled DNP3 to take advantage of Internet technology and permitted economical data collection and control between widely separated devices. Many communication circuits between the devices are imperfect. They are susceptible to noise and signal distortion. The DNP3 software is layered to provide reliable data transmission and to effect an organized approach to the transmission of data and commands. Figure 3 shows the layering that was not shown in figure 1.

Binary Input 8 7 6 5 4 3 2 1 0

Master (Client)

Binary Input 8 7 6 5 4 3 2 1 0

Slave (Server) Control Output Analog Counter 4 3 2 1 0 3 2 1 0 6 5 4 3 2 1 0 Analog Output 4 3 2 1 0

Analog Counter 4 3 2 1 0 3 2 1 0

DNP3 User's Code

DNP3 User's Code

DNP3 Application Layer Pseudo Transport Layer DNP3 Link Layer

DNP3 Application Layer Pseudo Transport Layer DNP3 Link Layer

Physical Media User Requests User Responses

Figure 3

The link layer has the responsibility of making the physical link reliable. It does this by providing error detection and duplicate frame detection. The link layer sends and receives packets, which in DNP3 terminology, are called frames.

1 June 2000

Copyright, DNP Users Group, 2000

Sometimes transmission of more than one frame is necessary to transport all of the information from one device to another. A DNP3 frame consists of a header and data section. The header specifies the frame size, which DNP3 station should receive the frame, which DNP3 device sent the frame and data link control information. The data section is commonly called the payload and contains the data passed down from the layers above. DNP3 Frame Header Data

Header Sync Length Link Control Destination Address Source Address CRC

Every frame begins with two sync bytes that help the receivers determine where the frame begins. The length specifies the number of octets in the remainder of the frame, not including CRC check octets. The link control octet is used between sending and receiving link layers to coordinate their activities. A destination address specifies which DNP3 device should process the data, and the source address identifies which DNP3 device sent the message. Having both destination and source addresses satisfies at least one requirement for peer-to-peer communications because the receiver knows where to direct its responses. 65520 individual addresses are available. Every DNP3 device must have a unique address within the collection of devices sending and receiving messages to and from each other. Three destination addresses are reserved by DNP3 to denote an all-call message; that is, the frame should be processed by all DNP3 devices. Thirteen addresses are reserved for special needs in the future. The data payload in the link frame contains a pair of CRC octets for every 16 data octets. This provides a high degree of assurance that communication errors can be detected. The maximum number of octets in the data payload is 250, not including CRC octets. (The longest link layer frame is 292 octets if all the CRC and header octets are counted.) One often hears the term link layer confirmation when DNP3 is discussed. A feature of DNP3's link layer is the ability for the transmitter of the frame to request the receiver to confirm that the frame arrived. Using this feature is optional, and it is often not employed. It provides an extra degree of assurance of reliable communications. If a confirmation is not received, the link layer may retry the transmission. Some disadvantages are the extra time required for confirmation messages and waiting for multiple timeouts when retries are configured. It is the responsibility of the transport layer to break long messages into smaller frames sized for the link layer to transmit, or when receiving, to reassemble frames into the longer messages. In DNP3 the transport layer is incorporated into the application layer. The transport layer requires only a single octet within the message to do its work. Therefore, since the link layer can handle only 250 data octets, and one of those is used for the transport function, then each link layer frame can hold as many as 249 application layer octets. Application layer messages are broken into fragments. Fragment size is determined by the size of the receiving devices buffer. It normally falls between 2048 and 4096 bytes. A message that is larger than a one fragment requires multiple fragments. Fragmenting messages is the responsibility of the application layer. Note that an application layer fragment of size 2048 must be broken into 9 frames by the transport layer, and a fragment size of 4096 needs 17 frames. Interestingly, it has been learned by experience that communications are sometimes more successful for systems operating in high noise environments if the fragment size is significantly reduced.

1 June 2000

Copyright, DNP Users Group, 2000

The application layer works together with the transport and link layers to enable reliable communications. It provides standardized functions and data formatting with which the user layer above can interact. Before functions, data objects and variations can be discussed, the terms static, events and classes need to be covered. In DNP3, the term static is used with data and refers to the current value. Thus static binary input data refers to the present on or off state of a bi-state device. Static analog input data contains the value of an analog at the instant it is transmitted. One possibility DNP3 allows is requesting some or all of the static data in a slave device.

DNP3 events are associated with something significant happening. Examples are state changes, values exceeding some threshold, snapshots of varying data, transient data and newly available information. An event occurs when a binary input changes from an on to an off state or when an analog value changes by more than its configured deadband limit. DNP3 provides the ability to report events with and without time stamps so that the client can generate a time sequence report. The user layer can direct DNP3 to request events. Usually, a client is updated more rapidly if it mostly polls for events from the server and only occasionally asks for static data as an integrity measure. The reason updates are faster is because the number of events generated between server interrogations is small and, therefore, less data must be returned to the client. DNP3 goes a step further by classifying events into three classes. When DNP3 was conceived, class 1 events were considered as having higher priority than class 2 events, and class 2 were higher than class 3 events. While that scheme can be still be configured, some DNP3 users have developed other strategies more favorable to their operation for assigning events into the classes. The user layer can request the application layer to poll for class 1, 2 or 3 events or any combination of them. DNP3 has provisions for representing data in different formats. Examination of analog data formats is helpful to understand the flexibility of DNP3. Static, current value, analog data can be represented by variation numbers as follows: 1. 2. 3. 4. 5. 6. A 32-bit integer value with flag, A 16-bit integer value with flag, A 32-bit integer value, A 16-bit integer value, A 32-bit floating point value with flag and A 64-bit floating point value with flag. The flag referred to is a single octet with bit fields indicating whether the source is on-line, value contains a restart value, communications are lost with the source, the data is forced and the value is over range. Not all DNP3 devices can transmit or interpret all six variations. Later, DNP3 levels are discussed, but for now, suffice it to say that DNP3 devices must be able to transmit the simplest variations so that any receiver can interpret the contents. Event analog data can be represented by these variations: 1. 2. 3. 4. 5. 6. 7. 8. A 32-bit integer value with flag, A 16-bit integer value with flag, A 32-bit integer value with flag and event time, A 16-bit integer value with flag and event time, A 32-bit floating point value with flag, A 64-bit floating point value with flag, A 32-bit floating point value with flag and event time and A 32-bit floating point value with flag and event time. The flag has the same bit fields as for the static variations.

1 June 2000

Copyright, DNP Users Group, 2000

It looks like a variation one or two analog event cannot be differentiated from a variation one or two static analog value. DNP3 solves this predicament by assigning object numbers. Static analog values are assigned as object 30, and event analog values are assigned as object 32. Static analog values, object 30, can be formatted in one of 6 variations, and event analog values, object 32, can be formatted in one of 8 variations. When a DNP3 server transmits a message containing response data, the message identifies the object number and variation of every value within the message. Object and variation numbers are also assigned for counters, binary inputs, controls and analog outputs. In fact, all valid data types and formats in DNP3 are identified by object and variation numbers. Defining the allowable objects and variations helps DNP3 assure interoperability between devices. DNP3's basic documentation contains a library of valid objects and their variations. The clients user layer formulates its request for data from the server by telling the application layer what function to perform, like reading, and specifying which objects it wants from the server. The request can specify how many objects it wants or it can specify specific objects or a range of objects from index number X through index number Y. The application layer then passes the request down through the transport layer to the link layer that, in turn, sends the message to the server. The link layer at the server checks the frames for errors and passes them up to the transport layer where the complete message is assembled in the servers application layer. The application layer then tells the user layer which objects and variations were requested. Responses work similarly, in that, the servers user layer fetches the desired data and presents it to the application layer that formats the data into objects and variations. Data is then passed downward, across the communication channel and upward to the clients application layer. Here the data objects are presented to the user layer in a form that is native to the clients database. Reading data was mentioned in the above two paragraphs, but DNP3 software is designed to handle other functions. For one the client can set the time in the server. The client can transmit freeze accumulator requests, and it can transmit requests for control operations and setting of analog output values using select-before-operate or directoperate sequences. One area that has not been covered yet is transmission of unsolicited messages. This is a mode of operating where the server spontaneously transmits a response, possibly containing data, without having received a specific request for the data. Not all servers have this capability, but those that do must be configured to operate in this mode. This mode is useful when the system has many slaves and the master requires notification as soon as possible after a change occurs. Rather than waiting for a master station polling cycle to get around to it, the slave simply transmits the change. To configure a system for unsolicited messages, a few basics need to be considered. First, spontaneous transmissions should generally occur infrequently, otherwise, too much contention can occur, and controlling media access via master station polling would be better. The second basic issue is that the server should have some way of knowing whether it can transmit without stepping on someone elses message in progress. DNP3 leaves specification of algorithms to the system implementor. One last area of discussion involves implementation levels. The DNP3 organization recognizes that supporting every feature of DNP3 is not necessary for every device. Some devices are limited in memory and speed and do not need specific features, while other devices must have the more advanced features to accomplish their task. DNP3 organizes complexity into three levels. At the lowest level, level 1, only very basic functions must be provided and all others are optional. Level 2 handles more functions, objects and variations, and level 3 is even more sophisticated. Within each level only certain combinations of request formats and response formats are required. This was done to limit software code in clients and servers while still assuring interoperability. It should be apparent by now that DNP3 is a protocol that fits well into the data acquisition world. It transports data as generic values, it has a rich set of functions, and it was designed to work in a wide area communications network. The standardized approach of objects and variations, and link, transport and application layers, plus public availability makes DNP3 a protocol to be regarded.

1 June 2000

Copyright, DNP Users Group, 2000

Author: Ken Curtis from Woodland Engineering wrote this paper to help the many people who are just getting into or considering DNP3 for their operation. Ken is a consulting engineer that has been contracted to write software for DAQ Electronics who also sponsors his participation in the DNP Technical Committee. Valuable editing assistance was provided by Mike Thesing of Advanced Control Systems.

DNP Users Group: Mail Address: DNP Users Group PO Box 43075, DVPO Calgary, AB T2J 7A7 Canada 403-271-1319 dnp@home.com www.dnp.org

Fax: Email: Website:

1 June 2000

Copyright, DNP Users Group, 2000

DOCUMENT REVISION HISTORY


Name of Document: DNP V3.00 Data Link Layer Protocol Description Network File Name: P009-0PD.DL Original Author: Malcolm Smith/Jim McFadyen Date and Version of Preliminary Release: September 1991 Version 0.00 Associated Software Release(s): DNP V3.00 Revisions Since Preliminary Release Date Version By Whom: N. Male Pages Affected: All Reason for Changes: Renamed and relocated from O:\DOCUMENT\OTHER\DOC0361.wp to N:\APPL\P009 0FS.DL Reformatted to WINC standards. Corrected errors Minor corrections Reversed MSB and LSB in Figure 2-15 and accompanying text, as per J. McFadyen. Changed to meet IEC conventions Re-added time-sync functionality to Data Link and fixed a problem with data frame duplication. Added time-sync accuracy to TIME OF DAY messages Adopted fully-balanced transmission procedures in order to become more IEC compliant. Removed timesynchronization functions. Removed Transport Functions section. Reformatted to WI standards. Added marketing comments Removed IEC conformance section from Chapter 2 and created new Chapter 2. Renamed old chapter 2 to Chapter 3. Changed 'polling' to 'polled' in last paragraph Channel failover section changed 'was intended to communicate' to 'communicates'

Sept. 30/91 0.00A

Nov. 11/91 Nov. 18/91 Jul. 24/92 Aug. 17/92 Oct. 22/92 Oct. 27/92 Nov. 8/92

0.00B 0.00C 0.00D 0.01A 0.01B 0.01C 0.01D

J.McFadyen J. McFadyen MCH MS MS MS MS

2-11 All

All

Nov. 24/92 Jan. 22/93 July. 20/93

0.02 0.02 0.02

LA MS MS

All vi,1-1,2-2 i,ii

1-1 2-1

Date

Version

By Whom:

Pages Affected: 2-2

Reason for Changes: Paragraph 1 removed 'Chapter 2' of line 2 to clarify sentence. Removed paragraph 2 as it is confusing. Paragraph 3, changed 'spontaneous' to 'unsolicited' and removed 'sub-master station' references to make it easier to follow. Paragraph, changed wording to suggest 'compatible' schemes. Paragraph 3, explained better. USER DATA section explained that there are 16 octets per block except the last block (previously it was unclear) FCB, removed 'properly' from last paragraph as it is meaningless. FCV changed 'frame count bit valid bit' to 'frame count valid bit' Simplified greatly Simplified greatly Defined CRC algorithm Corrected error in diagram Corrected spelling error Removed misplaced graphic from page and corrected error Removed 'or will not' from line 4 as it is misleading Removed all references to "configurable" parameters as this is implementation specific. End of 3-2, removed last sentence as it is implementation specific. Added 'DNP Data Link to Physical Layer Implementation Issues document' as a section of the Physical Layer section in order to explain some of the physical layer issues and usage of the physical layer in the DNP data link layer. Removed some unneeded and incorrect definitions Checked for Grammar, Spelling, Structure and Formatting Revisions as per C. Heune. Converted to MSWord 6.0.

2-3 2-5

2-7

2-9,2-10 2-11,2-12 2-14 2-15 2-20 2-21 2-23 3-1,3-2

4-4

G-1,G-2 Aug.30/93 0.02 J.Bhat AV S. Tessari All All All

Sept. 01/93 0.02 May 30/97 0.02

DNP Users Group


DNP PRODUCT DOCUMENTATION

DNP V3.00 DATA LINK LAYER

Document Version: 0.02 Internal File: P009-0PD.DL Associated Software Release: DNP V3.00

NOTICE OF RIGHTS - DNP USERS GROUP


The contents of this manual are the property of the DNP Users Group. Revisions or additions to the definition and functionality of the Distributed Network Protocol cannot be made without express written agreement from the DNP Users Group or its duly authorized party. In addition, no part of this document may be altered or revised or added to in any form or by any means, except as permitted by written agreement with the DNP Users Group or a Party duly authorized by the DNP Users Group. As a Party, duly authorized by the DNP Users Group, Harris Corporation has made every reasonable attempt to ensure the completeness and accuracy of this document, however, the information contained in this manual is subject to change without notice, and does not represent a commitment on the part of Harris Corporation or the DNP Users Group. An update program for DNP documents is provided upon request by Harris Corporation on behalf of the DNP Users Group.

TRADEMARK NOTICES
Brand and product names mentioned in this document are trademarks or registered trademarks of their respective companies.

TABLE OF CONTENTS
ABOUT THIS DOCUMENT PURPOSE OF THIS SPECIFICATION WHO SHOULD USE THIS SPECIFICATION HELP AND ADDITIONAL DOCUMENTATION HOW THIS SPECIFICATION IS ORGANIZED CONVENTIONS USED IN THIS SPECIFICATION 1. OVERVIEW 2. IEC CONFORMANCE 2.1 CHANNEL FAILOVER 2.2 FRAME FORMAT AND PROCEDURES 2.3 LENGTH, CONTROL AND ADDRESS FIELDS 3. DNP DATA LINK DESCRIPTION 3.1 PURPOSE OF THE DATA LINK LAYER 3.2 FT3 FRAME FORMAT 3.3 DATA LINK HEADER FRAME FIELDS 3.4 USER DATA 3.5 CRC FIELDS 3.6 DATA LINK FUNCTION CODES 3.7 TRANSMISSION PROCEDURES 4. DATA LINK SERVICES AND RESPONSIBILITIES 4.1 DATA LINK FUNCTIONS 4.2 INTERFACE DESCRIPTION 5. PHYSICAL LAYER INTERFACE 5.1 PHYSICAL LAYER DESCRIPTION 6. PHYSICAL LAYER CHARACTERISTICS 6.1 LINE CONFIGURATIONS 6.2 MODES OF TRANSMISSION 6.3 LOCAL LOOP
DNP V3.00 Data Link Layer (Version 0.02)

v v v v vi vi 1-1 2-1 2-1 2-1 2-2 3-1 3-1 3-1 3-2 3-6 3-6 3-7 3-10 4-1 4-1 4-2 5-1 5-1 6-1 6-1 6-1 6-2 i

7. PHYSICAL LAYER PROCEDURES 7.1 GENERAL CONSIDERATIONS 7.2 HALF-DUPLEX PROCEDURES 7.3 FULL-DUPLEX PROCEDURES LIST OF ABBREVIATIONS AND ACRONYMS

7-1 7-1 7-1 7-2

ii

DNP Users Group

TABLE OF FIGURES
FIGURE 3-1 FT3 FRAME FORMAT 3-2 FIGURE 3-2 CONTROL OCTET BIT DEFINITIONS 3-3 FIGURE 3-3 TABLE OF PRIMARY AND SECONDARY FUNCTION CODES 3-5 FIGURE 3-4 DESTINATION ADDRESS FORMAT 3-5 FIGURE 3-5 SOURCE ADDRESS FORMAT 3-5 FIGURE 3-6 CRC ORDERING 3-7 FIGURE 3-7 RESET OF SECONDARY LINK 3-10 FIGURE 3-8 RESET OF USER PROCESS 3-11 FIGURE 3-9 SEND FROM STATION A/CONFIRM FROM STATION B 3-11 FIGURE 3-10 SEND FROM STATION B/CONFIRM FROM STATION A 3-11 FIGURE 3-11 SEND MULTIPLE FRAMES FROM STATION A/CONFIRM FROM STATION B 3-12 FIGURE 3-12 FRAME COUNT BIT OPERATION 3-12 FIGURE 3-13 FRAME COUNT BIT OPERATION 3-13 FIGURE 3-14 SEND-NO-REPLY EXPECTED FROM STATION A 3-13 FIGURE 3-15 SEND FROM STATION B/NACK FROM STATION A 3-14 FIGURE 3-16 REQUEST/RESPOND FRAME AND DFC BIT USAGE 3-15

DNP V3.00 Data Link Layer (Version 0.02)

iii

iv

DNP Users Group

ABOUT THIS DOCUMENT


PURPOSE OF THIS SPECIFICATION
This document specifies the Distributed Network Protocol (DNP) Data Link layer services, transmission procedures and Link Protocol Data Unit.

WHO SHOULD USE THIS SPECIFICATION


This specification is intended for communication engineers and programmers interested in knowing the function and message format of the DNP data link layer. This includes programmers implementing and designing DNP data link layer software/hardware and quality assurance personnel testing and verifying implementations of the DNP data link layer. Application programmers may find this specification useful in determining how to interface with and make use of the DNP data link layer. Familiarity with the ISO-OSI 7layer model, IEC 3-layer EPA and IEC TC-57 standards is helpful.

HELP AND ADDITIONAL DOCUMENTATION


The following documentation may be helpful. IEC 870-5-1 and IEC 870-5-2 standards (or drafts), Technical Committee No. 57 for data transmission in telecontrol systems DNP V3.00 Data Object Library (P009-0BL) DNP V3.00 Application Layer (P009-0PD.APP) DNP V3.00 Transport Functions (P009-0PD.TF).

DNP V3.00 Data Link Layer (Version 0.02)

HOW THIS SPECIFICATION IS ORGANIZED


1. OVERVIEW A general overview of the data link layer. 2. IEC CONFORMANCE Details the differences between DNP and the IEC TC-57 standards. 3. DNP DATA LINK DESCRIPTION Describes the DNP data link frame format, function codes and procedures. 4. DATA LINK SERVICES AND RESPONSIBILITIES Describes the services that the data link provides to higher layers. 5. PHYSICAL LAYER INTERFACE Describes the service interface provided by the physical layer to the data link. 6. PHYSICAL LAYER CHARACTERISTICS Describes the physical layer used with the DNP data link. 7. PHYSICAL LAYER PROCEDURES Describes how the DNP data link uses the physical layer. LIST OF ABBREVIATIONS AND ACRONYMS

CONVENTIONS USED IN THIS SPECIFICATION


In this document, the octet is a term used to refer to an eight bit data object and is synonymous with the term byte. The low order bit of an octet is referred to as bit 0 and the high order bit as bit 7. Irregular capitalization is used in referencing technical terms which have an associated verb or noun. For example, data link indications commonly referred to as IND, can also be described using the word INDication.

vi

DNP Users Group

1. OVERVIEW
This document defines the Distributed Network Protocol (DNP) V3.00 Data Link layer, Link Protocol Data Unit (LPDU), as well as data link layer services and transmission procedures. Master stations, submaster stations, outstations and intelligent electronic devices (IEDs) can use this data link to pass messages between primary (originating) stations and secondary (receiving) stations. In this protocol, master stations, submaster stations, outstations and IEDs are both originators (primary stations) and receivers (secondary stations). The IEC 870-5-1 and IEC 870-5-2 standards set out by the International Electrotechnical Commission (IEC), Technical Committee No. 57 for data transmission in telecontrol systems were used as a basis for developing the DNP V3.00 Data Link layer. The DNP V3.00 Data Link layer supports polled and quiescent telecontrol systems and is designed to operate with connection and connection-less orientated, asynchronous or synchronous bit-serial physical layers such as RS-232C, RS-485 and fibre transceivers. Fully-balanced transmission procedures were adopted to support spontaneous transmissions from outstations, IEDs or submaster stations not designated as master stations. The ISO OSI based model supported by this protocol specifies physical, data link and application layers only. This is termed the Enhanced Performance Architecture (EPA). However, to support advanced RTU functions and messages larger than the maximum frame length as defined by the IEC document 870-5-1, the DNP Version 3 Data Link is intended to be used with a pseudo-transport layer which implements as a minimum message assembly and disassembly. This pseudo-transport layer is described in the document, DNP V3.00 Transport Functions (P009-0PD.TF). It is stressed, however, that these transport functions are not a part of the data link but are needed to support advanced RTU functions.

DNP V3.00 Data Link Layer (Version 0.02)

1-1

2. IEC CONFORMANCE
This chapter describes the difference between the DNP protocol and the IEC TC-57 (8705) telecontrol data link layer protocol specification.

2.1 CHANNEL FAILOVER


The DNP link layer communicates with only one physical layer (or channel). In the OSI model, the Session layer is responsible for maintaining channel connections. In DNP, the layer above the data link is responsible for providing channel failover based on communications failure at the Data Link. This layer could be a Network/Transport Layer or the Application Layer. Thus, the IEC requirement, 870-5-1, item 13, for channel failover is met at the Application Layer.

2.2 FRAME FORMAT AND PROCEDURES


The data link layer uses a standard variable length frame format as defined in the IEC 870-5-1 Transmission Frame Formats document. The FT3 frame format class is well suited for data transmission between stations that require medium information transfer rates and low residual error probability. The basic frame format is used and transmission rules R1, R2, R3 and R4 are followed. Rules R5 and R6 are followed in principle, although the exact time values suggested are not used but are configurable in each implementation. The frame definitions outlined in IEC 870-5-2 are followed with the note that the Address field is 2 octets in length and specifies the destination station address and the Link User Data field is used as a 2 octet source station address. Fully-balanced transmission procedures as specified by IEC 870-5-2 were adopted to handle unsolicited transmissions from stations not designated as masters in a half-duplex or full-duplex system. Fully-balanced means that each station can act as a primary station (sending) and a secondary station (receiving) at the same time. This configuration requires a full-duplex channel to operate properly. In a half-duplex environment, the same procedures will be used except that a station cannot be both a primary and secondary station at the same time. That is, an entire data link layer transaction between the master station and outstation will have to be completed at both stations before any further transactions can be started from either station. In both half-duplex and full-duplex configurations, it is the responsibility of each device to implement a compatible collision avoidance scheme.

DNP V3.00 Data Link Layer (Version 0.02)

2-1

2.3 LENGTH, CONTROL AND ADDRESS FIELDS


The DNP data link uses the same LENGTH field as defined in IEC 870-5-1 clause 6.2.4. (Refer to Section 3 for more information on this field). The CONTROL field used is the IEC CONTROL field used for balanced transmission as defined in IEC 870-5-2 clause 6.1.2. All the function codes specified in IEC 870-5-3 clause 6.1.2 Table III are supported. The ADDRESS field is a 16-bit (2 octet) field. The DNP data link frame header has two IEC ADDRESS fields. The first field is the A (Address) field where it is used to represent the destination station address and the second is in the Link User Data field where it is used to represent the source station address. (Refer to Section 3 for more information on these fields).

2-2

DNP Users Group

3. DNP DATA LINK DESCRIPTION


The Data Link Layer is the second layer in the Open System Interconnection (OSI) model. The data link layer accepts, performs and controls transmission service functions required by the higher layers.

3.1 PURPOSE OF THE DATA LINK LAYER


The main purpose of the DNP data link layer is twofold. First, the data link layer must provide transfer of information or Link Service Data Unit (LSDU) across the physical link as described by the ISO-OSI standard. This means that user data supplied by higher layers (LSDU) must be converted into one frame (or LPDU as described in Section 2) and sent to the physical layer for transmission. Conversely, individual LPDUs received by the data link layer must be assembled into one LSDU and passed to higher layers. The layer provides for frame synchronization and link control. Secondly, in DNP V3.00, the data link provides indications of other events such as link status. The OSI reference model enforces either a connection-less or a connection oriented system. However, the EPA model implies neither a connection-less system nor a connection oriented system. The DNP Version 3 implementation of the IEC data link handles both connection-less and connection oriented systems (that is, physical networks that require dialing or logging in before data can be transmitted to the destination device) but has no need to provide connection services. The actual physical network is transparent to the application using the data link because the data link layer is responsible for connecting and disconnecting from any physical network without higher level interaction (i.e. application layer). That is, the data link (given the station destination address) will connect to the right physical circuit without control supplied from higher layers. In this way, the physical medium is totally transparent to the link layer service user.

3.2 FT3 FRAME FORMAT


This section describes the LPDU format. An FT3 frame is defined as a fixed length header block followed by optional data blocks. Each block has a 16-bit CRC appended to it. The IEC specifies that the header fields consist of 2 start octets, 1 octet length, 1 octet control, a destination address and an optional fixed length user data field. In this implementation the fixed length user data field is defined as a source address.
DNP V3.00 Data Link Layer (Version 0.02)

3-1

< Block 0 ><- Block 1 -> START START LENGTH CONTROL DESTINATION SOURCE CRC USER CRC ... 0x05 0x64 DATA < Fixed Length Header >< Body 10 octets

|<- Block n ->| ------------| USER | CRC | | DATA | | ------------------------->|

START LENGTH

CONTROL DESTINATION SOURCE CRC USER DATA

2 starting octets of the header (0x0564). 1 octet count of USER DATA in the header and body. This count includes the CONTROL, DESTINATION and SOURCE fields in the header. The CRC fields are not included in the count. The minimum value for LENGTH is 5 indicating only the header is present and the maximum value is 255. Frame control octet. 2 octet destination address. The first octet is the LSB and the second octet is the MSB. 2 octet source address. The first octet is the LSB and the second octet is the MSB. 2 octet Cyclic Redundancy Check. Each block following the header has 16 octets of User defined data except the last block of a frame which contains 1 to 16 octets of User defined data as needed.

Figure 3-1 FT3 Frame Format

3.3 DATA LINK HEADER FRAME FIELDS


This section describes block 0 (or header) of a data link frame. 3.3.1 Start The Start field is 2 octets in length. The first octet is a 05 hexadecimal and the second octet is a 64 hexadecimal. 3.3.2 Length The length field is 1 octet in length and specifies the count of user octets in the frame. The CONTROL, DESTINATION and SOURCE field sizes are included in this count. The minimum value for this field is 5 and the maximum value is 255. 3.3.3 Control The control field contains the direction of the frame, type of frame and flow control information. Figure 3-2 defines the fields of the control octet. Station A is defined as the designated master station. Station B is not a master station. The primary station is the originator of the message, the source of the message. The secondary station is the destination station. 3-2 DNP Users Group

1 FCB FCV Primary to Secondary DIR PRM FUNCTION CODE 0 RES DFC Secondary to Primary Bit 7 6 5 4 3 2 1 0

DIR

Physical transmission direction 1 = station A to station B 0 = station B to station A

PRM Primary Message 1 = frame from primary (initiating station) 0 = frame from secondary (responding station) FCB FCV Frame count bit Frame count bit valid 1 = Frame count bit is valid 0 = ignore frame count bit Data flow control bit Reserved = 0 Defines the frame type, how the data link will handle the frame

DFC RES

FUNCTION CODE

Figure 3-2 Control Octet Bit Definitions DIR The direction bit indicates the physical direction of the frame with relation to the designated master station. Station A is the master. DIR = 1 indicates a frame from A to B DIR = 0 indicates a frame from B to A

PRM The primary message bit indicates the direction of the frame in relation to the initiating station. PRM =1 indicates a frame from the initiating station PRM =0 indicates a frame from the responding station. FCB The frame count bit is used for suppressing losses and duplication of frames to the same secondary station. This bit toggles for each successful SEND-CONFIRM service that is initiated by the same primary station and directed to the same secondary station. Initially before communications with a secondary station or after communication failure, the primary station (in both the master station and outstation) must reset the data link for each secondary station data link it wishes to communicate with. This can be done once at data link start-up for all secondary stations or as needed. 3-3

DNP V3.00 Data Link Layer (Version 0.02)

Each secondary station, after data link start-up or transaction failure, must not accept any primary SEND-CONFIRM messages with FCV set until a RESET command has been received and a CONFIRM message sent. FCV The frame count valid bit enables the functioning of the FCB bit. FCV =0 indicates the state of the FCB bit is ignored FCV =1 indicates to a secondary station that the state of the FCB bit must be checked against the state of the FCB bit of the last frame sent with the FCV bit set. The data flow control bit is used to prevent the overflowing of buffers in a secondary station. The secondary station returns this bit set to a 1 if further SEND of user data to this secondary station will cause data link buffers to over flow. The primary station must interrogate the secondary station using REQUESTRESPOND Request Link Status until the DFC is returned with a value of 0. At this point the primary station can continue with the sending of user data. Figure 316 illustrates the DFC bit usage. The function code identifies the type of frame. The definition of the values placed in this field are different between primary and secondary stations. The following tables define the implemented codes and associated FCV states.

DFC

FUNCTION CODE

Function Code Field Values of the Control Octet Sent from the Primary Station (PRM = 1)
Function Frame Type Service Function FCV Code Bit 0 SEND - CONFIRM expected RESET of remote link 0 1 SEND - CONFIRM expected Reset of user process 0 2 SEND - CONFIRM expected TEST function for link 1 3 SEND - CONFIRM expected User Data 1 4 SEND - NO REPLY expected Unconfirmed User Data 0 5 Not Used - 6 Not used - 7 Not Used - 8 Not Used - 9 REQUEST - RESPOND expected REQUEST LINK STATUS 0 10 Not Used - 11 Not Used - 12 Not Used - 13 Not Used - 14 Not Used - 15 Not Used -

3-4

DNP Users Group

Function Code Field Values of the Control Octet Sent from the Secondary Station (PRM = 0)
Function Frame Type Service Function Code 0 CONFIRM ACK - positive acknowledgement 1 CONFIRM NACK - Message not accepted, Link busy 2 Not Used 3 Not Used 4 Not Used 5 Not Used 6 Not Used 7 Not Used 8 Not Used 9 Not Used 10 Not Used 11 RESPOND Status of Link (DFC = 0 or DFC = 1) 12 Not Used 13 Not Used 14 Link service not functioning 15 Link service not used or implemented

Figure 3-3 Table of Primary and Secondary Function Codes 3.3.4 Destination Address The Destination address field is 2 octets in size and specifies the address of the station that the frame is directed to. The first octet of the address is the low order octet and the second octet is the high order. The address 0xffff is defined as an all stations address. All stations will accept frames with the destination address set to this value.
LOW ORDER OCTET (LSB) HIGH ORDER OCTET (MSB)

Figure 3-4 Destination Address Format 3.3.5 Source Address The source address field is 2 octets in size and specifies the address of the station that the frame originated from. The first octet of the address is the low order octet and the second octet is the high order. Note that this field is not included as USER DATA but must be passed as a return value to the higher layers by the data link service primitives.
LOW ORDER OCTET (LSB) HIGH ORDER OCTET (MSB)

Figure 3-5 Source Address Format


DNP V3.00 Data Link Layer (Version 0.02)

3-5

3.4 USER DATA


The blocks following the header may contain from 1 to 16 octets of user data. If more than 16 user data octets follow the header (block 0), each block must contain 16 octets of data except for the last block. The last block will contain the leftover. Each data block has a CRC appended to it. The data link layer passes all of the user data and the source address from the header to the higher layers when a SEND user data frame is received. The data link service primitives provide a place to put the source address.

3.5 CRC FIELDS


A two octet cyclic redundancy check is appended to each block in a frame. The START, LENGTH, CONTROL, DESTINATION and SOURCE fields are all included when calculating the CRC for the header. The 2 octet CRC check is generated from the following polynomial and then inverted before being placed in the block for transmission: X16 + X13 + X12 + X11 + X10 + X8 + X6 + X5 + X2 + 1 The CRC algorithm used will now be described. In the following discussion, modulo-2 arithmetic (addition and division) is assumed. A message block (M) of k-bits is to be transmitted (along with other blocks) (k is 64 for the header, 128 for all user data blocks but the last block where k is 8 to 128). A 16-bit CRC check word (F) is bit-wise inverted (F') and appended to M. Together M and F' are appended together so that T' = 216M + F' and T' will be transmitted (additionally we define T = 216M + F). The CRC check sequence is a pattern (P) of 17 bits as defined above in polynomial form. The CRC algorithm requires that when T is divided by P at the receiver the remainder is 0. If the remainder is not 0 then the block is in error. In addition, the remainder (R) of 216M/P is used as F in the block so that 216M/P = Q + R/P (Equation. 1) (Q is the quotient). This can be proven to provide a remainder of 0 as follows. If we assume that T=216M + R then, T/P = (216M + R)/P. If we substitute equation 1 then T/P = Q + (R + R)/P = Q since R added to itself modulo-2 results in zero. The transmission and reception procedure is described below: To transmit a block: (1)Take the user data block M with k data bits. (2)Multiply M by 216 to obtain 216M. (3)Divide this number (module-2) by P (17-bits) to get R (16-bits). (4)Invert R bit-wise to get R'. (5)Append R' to 216M and transmit as a block (T').

3-6

DNP Users Group

To receive a block: (1)Receive a block (T') (k+16 bits). (2)Invert R'(16-bits) in T'(k+16 bits) to get T (k+16 bits). (3)Divide T (module-2) by P (17-bits) to get the remainder. (4)If the remainder is not 0 then there is an error in the block else the block is good. Using the FT3 frame format class and CRC, the frame has a Hamming distance of 6. The diagram below shows the ordering of the 16-bit CRC check word with respect to any blocks (user data or header).
LSB MSB Block Octets CRC

Figure 3-6 CRC Ordering

3.6 DATA LINK FUNCTION CODES


3.6.1 Reset This function code is used to synchronize a primary and secondary station for further SEND-CONFIRM transactions. Upon reception and reply to a RESET command, the secondary station will begin accepting Primary messages from that Primary station with the FCV bit set. The RESET command only enables communications in one direction, from the primary to the secondary station. This is because a successful transaction only guarantees that the primary station transmitter and the secondary station receiver are communicating. The primary station must send this function code when it wishes to first communicate with the secondary station or after a communications failure has been recognized by the primary station. When a secondary station has re-started or when a communications failure has been recognized by the secondary, the secondary station will be considered un-reset. In this state, the secondary station will not accept messages from the primary station until it has received and replied to a RESET command from that primary station. The RESET command also synchronizes the FCB bit between primary and secondary stations. The secondary station after completing the RESET transaction will expect the FCB bit in the next message (with FCV valid) to be 1 from that primary station. The primary station after completing the RESET transaction will set the FCB bit to 1 in the next message (with FCV valid) to that secondary station. 3.6.1.1 Primary Transaction Do number of configurable tries: (i.e. retries + 1) Send RESET frame with FCV=0, FCB=x, PRM=1, DIR=x Wait the pre-determined time-out period for an ACK frame from the secondary station.
DNP V3.00 Data Link Layer (Version 0.02)

3-7

If ACK frame is received, set FCB status to 1 (i.e. next frame sent to secondary with FCV valid should have FCB=1) and exit loop. If frame is not received then go to top of loop and re-try End do loop If ACK was received then the transaction is considered successful and the secondary station can be considered on-line. A positive INDication can be returned to the data link user. Otherwise, the secondary station should be considered off-line and a negative INDication should be sent to the data link user. 3.6.1.2 Secondary Transaction After start-up or after transaction failure do: Wait for reception of RESET command with FCV=0, FCB=x, PRM=1, DIR=x. Respond with an ACK confirm frame (DFC=x, PRM=0, DIR=x). The FCB status (expected value of FCB in next received frame with FCV valid) should be set to 1. A positive INDication can be sent to the data link user. During normal operation, if a RESET command with FCV=0, FCB=x, PRM=1 and DIR=x is received, then the current transaction (if any) can be aborted (possibly with negative INDication sent to data link user). In such case, respond with an ACK confirm frame (DFC=x, PRM=0, DIR=x). The FCB status (expected value of FCB in next received frame with FCV valid) should be set to 1. A positive INDication can be sent to the data link user. 3.6.2 Reset of User Process This function code is used to reset the data link user process. Upon reception by a secondary station, an INDication should be sent to the data link user. The data link user can use this indication to reset its internal state. If accepted by the data link user, an ACK confirm frame is sent in reply otherwise a NACK confirm frame is sent in reply. 3.6.3 Test The TEST command is used to test the state of the secondary data link. Upon reception by a secondary station, it checks the value of the FCB bit in the primary message and compares it against the FCB status (expected FCB) for that primary station. If the FCBs do not match, then the secondary station should send the last secondary confirm frame. Otherwise, an ACK confirm frame should be sent in reply and the expected FCB status should be toggled. The secondary station also sets the DFC bit accordingly in the response. 3.6.4 User Data 3-8

DNP Users Group

The User Data function is used to send confirmed data to a secondary station. Before communications can begin, the secondary station must have been RESET according to the rules above (see RESET). The frame sent contains the user data from the primary data link user that is to be passed to the data link user of the secondary station. The transmission procedures are described below: 3.6.4.1 Primary Transaction Do number of configurable tries: (i.e. retries + 1) Send User Data frame with FCV=1, PRM=1, DIR=x and FCB set to FCB status for the secondary station (next expected FCB status). Wait the pre-determined time-out period for a ACK or NACK frame from the secondary station. If frame is NACK then wait a pre-determined amount of time until secondary link is NOT busy or use REQUEST LINK STATUS (below) and go to top of loop to retry. If correct ACK frame is received, toggle FCB status (i.e. next frame sent to secondary with FCV valid should have opposite FCB) and exit loop. If correct frame is not received then go to top of loop and re-try. If ACK was received then the transaction is considered successful and the secondary station can be considered on-line. A positive INDication can be returned to the data link user. Otherwise, a negative INDication should be sent to the data link user and the secondary station can be considered off-line or on-line depending on the data link user's interpretation of the failure. 3.6.4.2 Secondary Transaction Upon reception of a User Data frame with FCV=1, PRM=1, DIR=x and FCB set to FCB status (expected FCB state) do the following: If the data link user is ready to accept user data then respond with an ACK confirm frame (DFC=x, PRM=0, DIR=x) else respond with a NACK frame (same bit settings as ACK) and exit this loop. 3.6.5 Unconfirmed User Data This function is used to send user data to the secondary station without needing confirmation. In this way, the bandwidth of the system can be more fully utilized if the user data is low priority. The frame sent contains the user data from the primary data link user that is to be passed to the data link user of the secondary station. The transmission procedures are described below: 3.6.5.1 Primary Transaction
DNP V3.00 Data Link Layer (Version 0.02)

3-9

Send Unconfirmed User Data frame with PRM=1, DIR=x, FCV=0, FCB=x. Announce positive INDication to data link user. 3.6.5.2 Secondary Transaction Receive Unconfirmed User Data frame as above and send positive INDications with the data to the data link user. 3.6.6 Request Link Status This command is used to request the status of the secondary data link. A secondary station will respond to this request with a LINK STATUS confirm frame with the DFC bit set to 1 if the data link is busy or the data link user cannot accept any more user data and 0 indicating that the data link is not busy and the data link user can accept more user data. The transmission procedures are similar to TEST except that the primary station will typically only use this command when a NACK frame is received during a User Data transaction.

3.7 TRANSMISSION PROCEDURES


This section illustrates the usage of the defined frame types. 3.7.1 Reset of Secondary Link In Figure 3-7, a primary station sends a SEND-CONFIRM RESET frame to a secondary station. The secondary station receives the message and responds with an ACK confirm frame.
Reset (REQ) SEND FCB=0 > Expected FCB=x CONFIRM < (IND) Reset Expected FCB=1

(IND) Positive Next FCB=1

Figure 3-7 Reset of Secondary Link 3.7.2 Reset of User Process In Figure 3-8, a primary station sends a SEND-CONFIRM Reset User Process frame to a secondary station. The secondary station receives the message and responds with an ACK confirm frame.

3-10

DNP Users Group

Reset User (REQ)

(IND) Positive

SEND > CONFIRM < (IND) Reset User

Figure 3-8 Reset of User Process 3.7.3 Send/Confirm User Data In Figure 3-9, the designated master station acting as a primary station sends a SENDCONFIRM frame to a non-master station acting as a secondary station. This is the first frame with FCV valid after the secondary link was reset (above) so FCB = 1 in the SEND frame. The secondary station expects FCB to be 1 since this is the first frame (with FCV valid) after the link was reset (above) and sends a CONFIRM frame. The master station upon receiving the CONFIRM assumes the message was correctly received and INDicates success to the master station data link user.
STATION A (REQ) STATION B Expected FCB=1

SEND FCB=1 > CONFIRM <

(IND) Positive

(IND) Data

Figure 3-9 SEND From Station A/CONFIRM From Station B In Figure 3-10, a non-master station acting as a primary station sends a SEND-CONFIRM frame to a designated master station acting as a secondary station. Since this is the second frame after the secondary link has been reset the FCB = 0 in the SEND frame. The secondary expects FCB to be 0 since this is the second frame received after the link was reset. A CONFIRM frame is sent in response. The non-master station upon receiving the CONFIRM INDicates success to the non-master station data link user.
SEND (REQ) Expected FCB=0 FCB=0 < CONFIRM > (IND) Positive (IND) User Data

Figure 3-10 SEND From Station B/CONFIRM From Station A

DNP V3.00 Data Link Layer (Version 0.02)

3-11

In Figure 3-11, a designated master station sends 3 consecutive frames to the same nonmaster station.
(REQ 1) SEND FCB=1 > CONFIRM (IND) Positive < (REQ 2) SEND FCB=0 > CONFIRM (IND) Positive < (REQ 3) SEND FCB=1 > CONFIRM (IND) Positive <

Expected FCB=1 (IND) User Data Expected FCB=0

(IND) User Data Expected FCB=1

(IND) User Data

Figure 3-11 SEND Multiple Frames From Station A/CONFIRM From Station B In Figure 3-12, the designated master acting as primary sends a one frame message to the secondary non-master. This example illustrates what happens when the CONFIRM from the secondary station is lost.
SEND FCB=1 t DAB > t DBA CONFIRM garbled or not received retry delay > t DAB + t DBA + t CONFIRM duration (same data) SEND FCB=1 > CONFIRM < (IND) Positive (REQ)

Expected FCB=1

(IND) User Data + t SEND message processing time at station B

Expected FCB = 0 send data is ignored, unexpected FCB but another confirm is sent

Figure 3-12 Frame Count Bit Operation In Figure 3-13, the designated master acting as primary sends a two frame message to the secondary non-master. This example illustrates what happens when the SEND frame from the primary station is lost.

3-12

DNP Users Group

SEND Expected FCB = 0 FCB=0 > CONFIRM tBA (IND) Positive< (IND) User Data SEND FCB=1 tAB > (lost or garbled) (REQ) retry delay > tBA + tAB + CONFIRM time + CONFIRM processing time at Station B SEND FCB=1 Expected FCB=1 > CONFIRM (IND) Positive < (IND) User Data

Figure 3-13 Frame Count Bit Operation NOTE: Both a master station and non-master station acting as primary stations can re-try SEND frames.

3.7.4 Send/No Reply Expected In Figure 3-14, the master or non-master primary station sends 3 frames to the secondary master or non-master. Upon successfully transmitting the SEND frame, the primary station INDicates success to the data link user. The secondary station, upon reception of a valid frame INDicates data availability to the data link user.
(REQ) SEND NO REPLY > (IND) Positive with user data

delay before next frame = t SEND message processing at station B (REQ 2) SEND NO REPLY > (IND) Positive with user data delay (REQ 3) SEND NO REPLY > (IND) Positive with user data

Figure 3-14 SEND-NO-REPLY Expected From Station A 3.7.5 Send/NACK In Figure 3-15, a non-master primary station sends a frame to the master secondary. Upon reception of the first CONFIRM, the primary INDicates success to the data link user. The
DNP V3.00 Data Link Layer (Version 0.02)

3-13

primary sends a second frame to the secondary. The secondary master decides that it cannot accept any frames at this time and sends a NACK frame back. The primary, after receiving this NACK, will fail the transaction and send a negative INDication to the data link user.
SEND FCB=1 < CONFIRM (IND) Positive > SEND FCB=0 NACK > (IND) Negative Expected FCB=1 (REQ 1)

(IND) Positive (REQ 2)

(IND) Negative

Figure 3-15 SEND From Station B/NACK From Station A 3.7.6 Request/Respond In Figure 3-16, a primary station SENDs consecutive frames to a secondary station. When the secondary station cannot receive any more frames, the CONFIRM message contains the DFC bit set. The primary station will, upon reception of the CONFIRM, stop SENDing data frames to the secondary station but will instead periodically REQUEST the status of the secondary by sending a REQUEST-RESPOND frame. The secondary will RESPOND to the REQUEST frame with the current state of the DFC. If the secondary is ready to receive more data, the DFC returned will be 0 otherwise the DFC returned will be 1. When the primary station recognizes DFC = 0 in the RESPOND frame, the transmission of SEND frames will continue.

3-14

DNP Users Group

(REQ 1)

(IND) Positive Receipt of CONFIRM frame with DFC = 0 is the condition for transmission of the next SEND user data frame. (IND) Positive

(REQ 3) Receipt of CONFIRM frame with DFC = 0 is the condition for transmission of the next SEND user data frame.

SEND FCB=0 > CONFIRM DFC=0 < SEND FCB=1 > CONFIRM DFC=1 < REQUEST RESPOND > CONFIRM DFC=1 < REQUEST RESPOND > CONFIRM DFC=0 SEND FCB=0 > CONFIRM DFC=0 <

(IND) User Data

(IND) User Data but buffers full now

(IND)

(IND) User Data

Figure 3-16 REQUEST/RESPOND Frame and DFC Bit Usage

DNP V3.00 Data Link Layer (Version 0.02)

3-15

4. DATA LINK SERVICES AND RESPONSIBILITIES


4.1 DATA LINK FUNCTIONS
This section describes the services offered by the data link and its functions. The communication requirements of the network layer and the pseudo-transport layer are satisfied by the data link layer service primitives. The data link is responsible for performing the following functions: Performing message retries Synchronizing and handling of the FCB bit in the control word Setting and clearing the DFC bit based on buffer availability Automatically establishing a connection based on the destination parameter in a dial up environment when a directed service is requested by the user Disconnection in a dial-up environment Packing user data into the defined frame format and transmitting the data to the physical layer Unpacking the frames that are received from the physical layer into user data Controlling all aspects of the physical layer Performing collision avoidance/detection procedures to ensure the reliable transfer of data across the physical link Responding to all valid frames (function codes) received from the physical layer. The data link is responsible for providing the following services: Exchange of SDUs between peer DNP data links Error notification to data link user Sequencing of SDUs Prioritized SDU delivery Quality SDU delivery. SDUs will only be exchanged between peer DNP data links. Priority delivery can be EXPEDITED or NORMAL to indicate a high or low priority request. 4-1

DNP V3.00 Data Link Layer (Version 0.02)

Quality delivery can be SEND-NO-REPLY or SEND-CONFIRM to indicate whether or not message acknowledgment is required. Error notification will be given to the data link user when a response to a request has not been received.

4.2 INTERFACE DESCRIPTION


The data link service primitives are illustrated in pseudo code to illustrate the requirements and behavior in a real implementation and are not intended as an exact interface definition. Data link request (REQ) services can be used at any time after the data link has been initialized and configured by the system. confirm = request_data_link_service( SERVICE, TIME_SERVICE, destination, source, send_data_buffer, send_count, retry_flag, time_of_transmission ) Input: SERVICE Service to perform TIME_SERVICE Guaranteed time service to perform source Source address to use in sent message destination Destination address to use in sent message send_data_buffer Data to send in message send_count Number of octets in message retry_flag Instructs data link layer to retry unacknowledged frames or not time_of_transmission Time that first bit of first octet of message is to be sent Output: time_of_transmission Time that first bit of first octet of message was sent

4-2

DNP Users Group

Confirm =

0 1 2 3 4

Requested service was successful Requested service has failed Requested SEND data service was terminated by the current primary station. (reception of a NACK frame from the secondary station) Service code is not implemented Requested service cannot proceed at this time because the data link is busy either with a previous requested transaction, current unrequested transaction or waiting for physical layer availability Send a message specified in parameters using SEND-CONFIRM frames. Fails if the data link is busy Send a message specified in parameters using SEND-NO- REPLY frames. Fails if the data link is busy Expedited send a message specified in parameters using SENDCONFIRM frames. May necessitate cancelling the current secondary transaction if a half-duplex system is used (i.e. forces the data link to send a NACK frame instead of a CONFIRM frame in the next secondary transaction). This action only takes place if the primary station is using SEND-CONFIRM frames. Expedited send a message specified in parameters using SENDNO-REPLY expected frames. In a half-duplex system, this may mean cancelling the current secondary transaction (as above). Return link status. Return successful if the data link is not busy. Send message at time specified in time_of_transmission. This service should have the highest priority. Send message at any time with priority specified.

Service =

0 1 2

3 4 Time_service 0 1

Data link indications (IND) can be requested at any time by the service user but should be checked as often as possible in order to obtain received data. indications = request_data_link_indications( source_address, destination_address, received_data_buffer, received_data_count, time_of_reception) Output: source_address destination_address received_data_buffer received_data_count time_of_reception Source address of received message Destination address of received address Received message Number of octets in message Time at which first bit of first octet of message was received 4-3

DNP V3.00 Data Link Layer (Version 0.02)

Indications = 0 1

No indications to report Data link has received a valid message that has been placed in received_data_buffer and the number of octets received has been placed in received_data_count. The source address of the received message has been placed in source_address. If the data link is configured as a master station then the time that the first bit of the first octet of the message was received has been placed in time_of_reception. If the data link is configured as an outstation then the time_of_reception will still be returned but the service user has to be aware of the possibility of inaccurate times received before the outstation has been time-synchronized. Data link has detected a transaction failure.

4-4

DNP Users Group

5. PHYSICAL LAYER INTERFACE


This section describes the DNP Version 3 Data Link to physical layer interface. The interface describes the necessary services that ANY physical layer must provide in order to accommodate the DNP V3.00 Data Link.

5.1 PHYSICAL LAYER DESCRIPTION


The physical layer that is recommended for the data link is a bit-serial oriented asynchronous physical layer supporting 8 bit data, 1 start bit, 1 stop bit, no parity and RS232C voltage levels and control signals. The CCITT V.24 standard describes the DTE (Data Terminal Equipment) which is used for communication with a DCE (Data Communication Equipment) and is usually a frequency-switched modem (FSK). This type of circuit connection to a PSN (Public Switching Network) or to private leased lines can be used. In each case, the appropriate modem must be used and must conform (minimally) to the V.24 standard DCE definition. The physical layer must provide 5 basic services: Send, Receive, Connect, Disconnect, and Status. The Send service converts data octets into bit-serial data for transmission between the DTE and DCE. It must provide the proper signal control in order to communicate with the given DCE. The Receive service must be able to accept data from the DCE and therefore provide the correct signaling to the DCE in order to receive data and not noise. The Connect and Disconnect services provide connection and disconnection from the PSN (if applicable). The Status service must be able to return the state of the physical medium. As a minimum, the service must indicate whether or not the medium is busy. The physical link service primitives are illustrated in pseudo code to illustrate the requirements and behavior in a real implementation and are not intended as an exact interface definition. Physical layer requests can be sent at any time after the physical layer has been started and configured with all relevant parameters. confirm = request ( SERVICE, data_buffer, data_count, modem_string, time_of_transmission)
DNP V3.00 Data Link Layer (Version 0.02)

5-1

Input: data_buffer Data to send data_count Number of octets to send modem_string Command string for DCE Output: time_of_transmission Time that first bit of first octet of message was transmitted Confirm = 0 1 2 3 Requested service was successful Requested service has failed Service code is not implemented Requested service cannot proceed at this time because the physical link is busy either with a previous requested transaction, current unrequested transaction or waiting for DCE availability Send a message specified in data_buffer of size specified in data_count Initialize DCE using string specified in modem_string Connect to PSN using string specified in modem_string Disconnect from PSN Request physical link status, returns 0 if busy and 1 if not busy

Service =

0 1 2 3 4

Physical layer indications (IND) can be requested at any time by the service user but should be checked as often as possible in order to obtain received data. indications = indicate(received_data_buffer, received_data_count, time_of_reception) Output: received_data_buffer Received message received_data_count Number of octets in message time_of_reception Time at which first bit of first octet of message was received Indications = 0 1 2 3 4 No indications to report. Physical layer has received a message that has been placed in received_data_buffer and the number of octets received has been placed in received_data_count. DCE has connected to PSN (incoming call). DCE has disconnected from PSN (hang up). Physical layer has detected problems with the link or DCE that makes communication inadvisable or impossible until some later time. Re-initialization of the DCE may be required.

5-2

DNP Users Group

6. PHYSICAL LAYER CHARACTERISTICS


6.1 LINE CONFIGURATIONS
Regardless of the physical layer used, there are two physical topologies used to construct a SCADA communications network. These are direct and serial bus topologies. The direct topology has two physical nodes with each physical node connected directly to the other. This is often referred to as point-to-point and can be a direct physical cable from point-to-point, a two node radio or modem network or a dial-up connection through a PSN (Public Switched Network). The serial bus topology has more than two physical nodes with each node connected to the same channel or communication line as every other node in the serial bus network. This is often referred to as a multi-drop configuration and is commonly made up of many Bell 202 modems with their outputs/input tied together. In this configuration, there is one node which is deemed to be in control of the physical network. This is often the SCADA master. This node transmits to multiple-nodes and receives from multiple nodes. All other nodes in the bus receive from the master node and transmit to the master node. The DNP data link supports multiple-master, multiple-slave and peer-to-peer communications. In peer-to-peer communications, all devices act as slave data links and collision avoidance should be turned on as no one device has a higher priority and all can transmit spontaneously. In a multiple-master configuration, the master devices are higher priority than the slave devices. However, priority has to be assigned amongst the masters.

6.2 MODES OF TRANSMISSION


The physical layer supported by DNP must transmit/receive data in serial mode. Generally, the data unit transferred will be 8 bits in length. The transmission can be asynchronous, synchronous or isochronous allowing for higher throughput with a
DNP V3.00 Data Link Layer (Version 0.02)

6-1

synchronous modem. The actual mechanism used has no affect on the operation of the data link.

6.3 LOCAL LOOP


The termination of the data communications circuit at the communication node (i.e. NOT at the modem) can be accomplished using a two-wire or four-wire circuit (i.e. TX/RX pair or independent TX and RX pairs). The DNP data link can use half-duplex procedures with a 2-wire circuit and full-duplex or half-duplex procedures with a 4-wire circuit. The DNP data link can support both full-duplex and half-duplex procedures at the local loop. Both cases, however will be handled quite differently.

6-2

DNP Users Group

7. PHYSICAL LAYER PROCEDURES


7.1 GENERAL CONSIDERATIONS
The purpose of the data link to physical layer interface is to allow the data link to send or receive a message to or from another data link. To accomplish this, the data link must be able to control when the transmission of data takes place, detect the presence of data on the physical communication circuit and use control line signaling for control of the physical circuit. In addition, the master station (or highest priority device) needs to be able to take control of the communication circuit and block other stations from transmitting. In a direct connection type topology, the primary station (initiating station) can only communicate with one station. If this circuit is four-wire then full-duplex procedures will be used and there will be no chance of message collisions on the circuit. However, if the circuit is two-wire then half-duplex procedures will be used. In this case, a collision can occur if both stations attempt to transmit data at the same time. A direct connect to a dialup PSN is typically 2-wire but the circuit from the station to the modem is a 4-wire fullduplex circuit and should be used in a full-duplex fashion. The dial-up modem must use CTS to hold off the transmitter after RTS is asserted. In a multi-drop topology, the designated master station can act as a primary station to many secondary stations. In this case there is a chance of collision in a two-wire or four wire circuit. In a two-wire circuit, the designated master station messages can collide with any other stations message and the slave station messages can collide with each other at any time. In a four wire circuit, the master station messages cannot collide with the slave station messages but the slave station messages can collide with each other.

7.2 HALF-DUPLEX PROCEDURES


When half duplex procedures are used in a two-wire system, there are several ways to avoid or recover from a collision on the communication circuit. Regardless of the physical layer used, all physical layers should be able to return a data carrier detection indication (DCD) which indicates if there is traffic on the circuit. In a two-wire system, the indication appears when the master or slave is transmitting on the circuit. When this
DNP V3.00 Data Link Layer (Version 0.02)

7-1

indication is present, a station is transmitting on the circuit. During this time, no other station should attempt to transmit on the circuit. When the indication disappears, the circuit is free for someone to use. The question now is, which station is allowed to transmit on the circuit. In the point-to-point configuration, either the master or slave station could transmit. In the multi-drop configuration, either the master or any of many slave stations could transmit. The DNP data link protocol does not assign priority to either the master or slave message but it is generally accepted in SCADA that the master should have control of the communication circuit and therefore should transmit the message (if one is to be sent). Any slave station, if allowed to transmit at this point, could possibly cause a collision so the slave station must wait some time after detecting the loss of a data carrier before attempting to send. Before sending, the indication is checked again and if the circuit is still idle then the transmission can take place. If the circuit is busy then the station must wait again until the indication disappears and perform the procedure again. The insertion of the time delay after the loss of data carrier allows the master to take control of the circuit (if needed at that time) and shuts out the other station (because the carrier indication is caused by the masters transmission). 7.2.1 Point-to-Point In a point-to-point configuration this time delay only needs to be as long as the time needed for the master to detect the loss of data carrier and begin the transmission of the message (plus any propagation delays in the system) (Master_min time). 7.2.2 Multi-Point In a multi-drop configuration, this time delay needs to be different for each slave station. One possibility is to configure each slave station to wait a steadily increasing amount of time (no duplicate times and all greater than Master_Min time) hence assigning priorities to the stations. In this way, stations which are important in the system can be given higher priority and collisions will rarely happen (only if device timing is bad or the system is poorly configured). However, if the high priority slave stations have nothing to transmit, then there is a lot of time (and hence bandwidth) wasted. Another scheme is to configure each slave station to wait a random time between Master_Min and Max. This Max is a function of the number of slave stations in the system. In this way, each station can be configured in the same way and the average time wasted is about (Max - Master_Min) / 2. However, a collision is still possible if two stations decide to wait for the same amount of time. The smaller the Max value the greater the chance of this happening.

7.3 FULL-DUPLEX PROCEDURES


When full-duplex procedures are used in a four-wire direct connection circuit, there is no chance of collision because there exists two independent channels for both the reception 7-2
DNP Users Group

and transmission of messages. In this case, both the master and slave stations can transmit data at any time when needed. The master still has control of the circuit because there is only one station to talk to, hence no need to block out other stations. When full-duplex procedures are used in a four-wire multi-drop system the problem of collision avoidance increases in complexity. The reason for this lies in the fact that a physical communication circuit that has two independent channels usually can only detect traffic in the receive direction. In a two-wire system, any traffic in the receive or transmit direction can be detected because they are both on the same circuit but in a four-wire system the transmitted and received messages travel on different circuits. 7.3.1 Point-to-Point In a point-to-point, full-duplex system both master and slave can transmit at the same time without collision so there is no need for collision detection/avoidance or access mechanisms in this case. 7.3.2 Multi-Point In a full-duplex, multi-drop system, the master station can transmit messages at any time without collision but may not receive the data link confirmation immediately because another station (acting as a primary station) may have taken control of the master's receive circuit before the secondary station or a collision occurred. The slave station's messages will collide at random because there is no way for the station to know if another station has control of the master's receive circuit. The solution is to make use of a control circuit (RTS in the case of RS-232) to signal the slave stations when another slave station has taken control of the master's receive circuit. This signal must be an input to the slave stations which indicates a request to take control of the master's receive circuit. One simple solution is to allow slave messages to collide. In this way, the master can still send out high priority messages but there may be a collision which will cause a secondary station to time-out. 7.3.3 Dial-Up Modem A dial-up modem uses a four-wire full-duplex circuit that typically requires several control signals (other than DCD) in order to operate. The dial-up circuit is a point-topoint circuit. However, the meaning of the data carrier signal is quite different than with a direct circuit. The data carrier (DCD) indicates that the modem is electrically connected to another modem across the PSN. It does not necessarily mean that data is being transmitted on the circuit. The CTS (Clear To Send) line indicates to the data link when it is safe to transmit. The DNP data link will assert the RTS (Request To Send) line before transmitting each frame and wait for the CTS line to go high before transmitting the data. The RTS line will then be de-asserted. If the DCD line goes low, the data link will assume that a connection has been lost and attempt to re-dial if needed. 7-3 DNP V3.00 Data Link Layer (Version 0.02)

7-4

DNP Users Group

LIST OF ABBREVIATIONS AND ACRONYMS


CRC DFC DIR DNP EPA FCB FCV IEC IED ISO LPDU LSDU octet OSI PRM cyclic redundancy check data flow control direction of physical transmission Distributed Network Protocol enhanced protocol architecture frame control bit frame count valid International Electrotechnical Commission intelligent electronic device International Organization for Standardization link protocol data unit link service data unit 8-bit data object (byte) Open System Interconnection primary

DNP V3.00 Data Link Layer (Version 0.02)

DOCUMENT REVISION HISTORY


Name of Document: DNP V3:00 Transport Functions Network File Name: P009-0PD.TF Original Author: Malcolm Smith Date and Version of Preliminary Release: November 8, 1992 Version 0.00A Associated Software Release(s): DNP V3.00 Revisions Since Preliminary Release Date Nov. 08/92 Aug. 20/93 Sep 01/93 May 30/97 Version 0.00A 0.01 0.01 0.01 By Whom M. Smith J. Bhat AV S. Tessari Pages Affected All All All All Reason for Changes Created Revised after review Corrections as per C. Huene Converted to MSWord 6.0

DNP Users Group


DNP PRODUCT DOCUMENTATION

DNP V3.00 TRANSPORT FUNCTIONS

Document Version: 0.01 Internal File: P009-0PD.TF Associated Software Release: DNP V3.00

NOTICE OF RIGHTS - DNP USERS GROUP


The contents of this manual are the property of the DNP Users Group. Revisions or additions to the definition and functionality of the Distributed Network Protocol cannot be made without express written agreement from the DNP Users Group or its duly authorized party. In addition, no part of this document may be altered or revised or added to in any form or by any means, except as permitted by written agreement with the DNP Users Group or a Party duly authorized by the DNP Users Group. As a Party, duly authorized by the DNP Users Group, Harris Corporation has made every reasonable attempt to ensure the completeness and accuracy of this document, however, the information contained in this manual is subject to change without notice, and does not represent a commitment on the part of Harris Corporation or the DNP Users Group. An update program for DNP documents is provided upon request by Harris Corporation on behalf of the DNP Users Group.

TRADEMARK NOTICES
Brand and product names mentioned in this document are trademarks or registered trademarks of their respective companies.

TABLE OF CONTENTS
ABOUT THIS DOCUMENT PURPOSE OF THIS SPECIFICATION WHO SHOULD USE THIS SPECIFICATION HELP AND ADDITIONAL DOCUMENTATION HOW THIS SPECIFICATION IS ORGANIZED CONVENTIONS USED IN THIS SPECIFICATION 1. OVERVIEW 2. TRANSPORT FUNCTIONS 2.1 TRANSPORT HEADER 2.2 TRANSPORT HEADER FIELD DEFINITIONS 2.3 FRAME ASSEMBLING 2.4 TRANSMISSION OF MESSAGES 3. TRANSPORT SERVICES AND RESPONSIBILITIES 3.1 TRANSPORT FUNCTIONS 3.2 INTERFACE DESCRIPTION LIST OF ABBREVIATIONS AND ACRONYMS iii iii iii iii iv iv 1-1 2-1 2-1 2-2 2-3 2-4 3-1 3-1 3-2

DNP V3.00 Transport Functions (Version 0.01)

TABLE OF FIGURES
FIGURE 2-1 FIGURE 2-2 FIGURE 2-3 FIGURE 2-4 FIGURE 2-5 TRANSPORT LAYER MESSAGE LAYOUT TH BIT DEFINITIONS ASSEMBLING OF DATA FROM THREE DATA FRAMES TRANSMISSION OF A SINGLE FRAME MESSAGE FRAGMENTING OF A MULTI-FRAME APPLICATION MESSAGE 2-2 2-2 2-3 2-4 2-4

ii

DNP Users Group

ABOUT THIS DOCUMENT


PURPOSE OF THIS SPECIFICATION
This document specifies the Distributed Network Protocol (DNP) V3.00 Transport Functions, transmission procedures and Transport Protocol Data Unit.

WHO SHOULD USE THIS SPECIFICATION


This specification is intended for communication engineers and programmers interested in knowing the function and message format of the DNP V3.00 Transport Functions. This includes programmers implementing and designing DNP V3.00 Transport Functions software/hardware and quality assurance personnel testing and verifying implementations of the DNP V3.00 Transport Functions. Application programmers may find this specification useful in determining how to interface with and make use of the DNP V3.00 Transport Functions. Familiarity with the ISO-OSI 7-layer model, IEC 3-layer EPA and IEC TC-57 standards is helpful.

HELP AND ADDITIONAL DOCUMENTATION


The following documentation may be helpful. IEC 870-5-1 and IEC 870-5-2 standards (or drafts), Technical Committee No. 57 for data transmission in telecontrol systems DNP V3.00 Data Object Library (P009-0BL) DNP V3.00 Application Layer (P009-0PD.APP) DNP V3.00 Data Link Layer (P009-0PD.DL).

DNP V3.00 Transport Functions (Version 0.01)

iii

HOW THIS SPECIFICATION IS ORGANIZED


1. OVERVIEW A general overview of the transport functions. 2. TRANSPORT FUNCTIONS A detailed description of the packet formats and transmission procedures. 3. TRANSPORT SERVICES AND RESPONSIBILITIES Services provided by an interface to the transport functions. LIST OF ABBREVIATIONS AND ACRONYMS

CONVENTIONS USED IN THIS SPECIFICATION


In this document, the octet is a term used to refer to an eight bit-data object and is synonymous with the term byte. The low order bit of an octet is referred to as bit 0 and the high order bit as bit 7. Irregular capitalization is used in referencing technical terms which have an associated verb or noun. For example, data link indications commonly referred to as IND, can also be described using the word INDication.

iv

DNP Users Group

1. OVERVIEW
This document defines the Distributed Network Protocol (DNP) V3.00 Transport Functions, Transport Protocol Data Unit (TPDU), as well as transport services and transmission procedures. Master stations, submaster stations and outstations or intelligent electronic devices (IEDs) can use these transport functions to pass messages between primary (originating) stations and secondary (receiving) stations. In this protocol, master stations, submaster stations and outstations are both originators (primary stations) and receivers (secondary stations). The ISO (International Organization for Standardization) OSI (Open System Interconnection) model supported by this protocol specifies physical, data link and application layers only. This is termed the Enhanced Protocol Architecture (EPA). However, to support advanced RTU functions and messages larger than the maximum frame length as defined by the IEC (International Electrotechnical Committee) document 870-5-1, the DNP V3.00 Data Link is intended to be used with this pseudo-transport layer which implements message assembly and disassembly. This pseudo-transport layer is actually a super-data link transport protocol which is normally found as part of some OSI data links. However, because the IEC data link (DNP V3.00 Data Link Layer) does not support these functions in the data link, it is necessary to move them out of the data link in order to maintain compliance.

DNP V3.00 Transport Functions (Version 0.01)

1-1

2. TRANSPORT FUNCTIONS
This section describes the Transport layer functions which act as a pseudo-transport layer to the DNP data link layer. The pseudo-transport layer function is specific only for those messages that are larger than one Link Protocol Data Unit (LPDU) between primary and secondary stations. This pseudo-transport layer acts as the DNP data link user in a protocol stack consisting of only the DNP Data Link and DNP Application Layer. This functionality allows the pseudo-transport layer to disassemble one Transport Service Data Unit (TSDU) into multiple (more than one) Transport Protocol Data Units (TPDUs), or frames, and assemble multiple (more than one) TPDUs into one TSDU. This process works as follows: The pseudo-transport layer takes one TSDU (user data) and breaks it into several sequenced TPDUs (each with Transport Protocol Control Information (TPCI)). Each TPDU is sent to the data link layer as Link Service Data Unit (LSDU) for transmission. It also works in the reverse fashion. The pseudo-transport layer receives multiple TPDUs from the data link layer and assembles them into one TSDU. LSDUs are user data fragments which are small enough to fit into the defined FT3 frame format. When a primary station transmits a message to a secondary station, the transport functions break the message into LSDUs. These functions add a Transport layer Header (TH) octet at the beginning of the user data fragments that contain the information for the secondary station to reconstruct the complete message. All pseudo-transport layer messages have a TH. The secondary station checks the TH octet on reception of each LSDU for the correct sequence and builds a TSDU message for higher layers. The TH contains information that can identify the first frame, last frame and give every frame a six-bit sequence number. This information is required to reconstruct a message and also to guard against higher layers from receiving misdirected or incomplete messages.

2.1 TRANSPORT HEADER


After the data link receives a complete frame, the data is presented to the transport functions in a format illustrated below. The TH field is stripped out before the frame is combined with other frames belonging to the same message. Figure 2-1 shows the structure of a TPDU.
DNP V3.00 Transport Functions (Version 0.01)

2-1

----------------| | | | TH | USER DATA | | | | -----------------

Figure 2-1 Transport Layer Message Layout TH Transport control octet. One octet in length. USER DATA 1 to 249 octets in length. When an application requests the transmission of a long message, the message is broken into fragments small enough to fit in a single DNP V3.00 Data Link frame. The maximum size of a fragment is 249 octets of user data. The TH is added to the head of the fragment and the maximum number of octets to be framed becomes 250 octets. Maximum data link data count Data link header data count Transport header Application user data + 255 -5 -1 = 249 octets octets octet octets

2.2 TRANSPORT HEADER FIELD DEFINITIONS


----------------------------------------------| | | | | | | | | | FIN | FIR | | | SEQUENCE | | | | | | | | | | | | ----------------------------------------------7 6 5 4 3 2 1 0

BIT

Figure 2-2 TH Bit Definitions FIN The final bit indicates that this frame of user data is the last frame of a sequence which compromises a complete user message. FIN = 0 More frames follow. 1 Final frame of a sequence. The first bit indicates that the frame is the first in a sequence of frame(s) which comprise a complete message. When a secondary station receives a frame with the FIR bit set, all previously received unterminated frame sequences are discarded. The first frame of a sequence may have any sequence from 0 to 63. If a frame is received without the FIR bit set and no message sequence is currently in progress, then the frame is ignored. If a complete user message is only one frame in length, both the FIR and FIN bits are set. FIR = 1 First frame of a sequence. 0 Not the first frame of a sequence.

FIR

2-2

DNP Users Group

SEQUENCE The sequence number of the frame is used to check that each frame is being received in sequence. It guards against missing or duplicated frames. All user messages start off with a sequence specified in the first frame which has the FIR bit set (each message may start with any sequence number between 0 and 63). After sequence number 63 the next sequence number will be 0. The sequence number increments for each frame sent to or received from the same address belonging to the same message and resets at the beginning of a new message. The sequence number does not have to increment across message boundaries, i.e. any sequence number is valid when the FIR bit is set.

2.3 FRAME ASSEMBLING


Figure 2-3 illustrates the assembling of a three-frame message. The first frame of the message identified by having the FIR bit set in the TH field. The last frame is identified by having the FIN bit set in the TH field.
USER DATA FRAMES TRANSPORT DATA BUFFER

-------------| SOURCE = n | --------------------------| FIR = 1 | | FIN = 0 | | SEQUENCE = 3| Note sequence starts with the value in the frame that has the FIR bit = 1 | USER DATA 0 | -------------- -----------> ------------| USER DATA 0 | -------------------------| SOURCE = n | --------------------------| FIR = 0 | | FIN = 0 | | SEQUENCE = 4| | USER DATA 1 | -------------- -----------> ------------| USER DATA 1 | ------------| USER DATA 0 | -------------------------| SOURCE = n |-----------------------------------> -------------SOURCE ADDRESS passed to application -------------| FIR = 0 | | FIN = 1 | FIN indicates last frame | SEQUENCE = 5| | USER DATA 2 | -------------- -----------> ------------| USER DATA 2 | FIN indicated this is the last frame of message ------------| USER DATA 1 | ------------| USER DATA 0 | complete message passed to application ------------- ----------->

Figure 2-3 Assembling of Data From Three Data Frames

DNP V3.00 Transport Functions (Version 0.01)

2-3

2.4 TRANSMISSION OF MESSAGES


Figure 2-4 illustrates the transmission of a single frame message using the SEND CONFIRM frame service. Figure 2-5 illustrates the transmission of a multi-frame message using the SEND - CONFIRM frame service.
FRAMES SENT FROM DATA LINK CONFIRM FRAMES RECEIVED COMPLETE MESSAGE FROM APPLICATION | --------------DESTINATION | parameter from application ----------------------------USER DATA | | 30 octets | ---------------

| | |

-------------| DESTINATION | parameter to data link --------------------------| FIR = 1 | | FIN = 1 | 1 TH octet | SEQUENCE = 1 | | USER DATA 0 | send 30 user octets plus 1 TH = 31 octets SEND <----- -------------CONFIRM -------> --------------------> SUCCESS to application layer

Figure 2-4 Transmission of a Single Frame Message


-------------DESTINATION | parameter from application --------------------------USER DATA | | 598 octets | --------------

| | |

-------------| DESTINATION | parameter to data link --------------------------| FIR = 1 | | FIN = 0 | 1 TH octet | SEQUENCE = 2 | | USER DATA 0 | send 249 octets (1 to 249 is the valid range for this count) SEND <------- -------------CONFIRM --------> -------------| DESTINATION | parameter to data link --------------------------| FIR = 0 | | FIN = 0 | | SEQUENCE = 3 | | USER DATA 1 | send 249 octets SEND <------- -------------CONFIRM --------> -------------| DESTINATION | parameter to data link --------------------------| FIR = 0 | | FIN = 1 | | SEQUENCE = 4 | | USER DATA 2 | send last 100 octets (249 + 249 + 100 = 598) SEND <------- -------------CONFIRM --------> --------------------> SUCCESS to application layer

Figure 2-5 Fragmenting of a Multi-Frame Application Message

2-4

DNP Users Group

3. TRANSPORT SERVICES AND RESPONSIBILITIES


3.1 TRANSPORT FUNCTIONS
This section describes the services offered by the pseudo-transport layer and its function. The communication requirements of the network layer and the application layer are satisfied by the pseudo-transport layer service primitives. The pseudo-transport layer is responsible for performing the following functions: Packing user data into multiple frames (more than one) of the defined DNP V3.00 Data Link frame format and using the services of the DNP V3.00 Data Link for transmitting the data Unpacking multiple frames that are received from the data link into user data Controlling all aspects of the data link excluding data link configuration. The pseudo-transport layer is responsible for providing the following services: Exchange of SDUs between peer DNP V3.00 pseudo-transport layers Error notification to transport user Sequencing of SDUs Prioritized SDU delivery Quality SDU delivery. SDUs will only be exchanged between peer DNP V3.00 pseudo-transport layers. Error notification is given to the transport user when a response to a request has not been received. Priority delivery can be set to EXPEDITED or NORMAL to indicate a high or low priority request. Quality delivery can be set to SEND-NO-REPLY or SEND-CONFIRM to indicate whether or not message acknowledgment is required.

DNP V3.00 Transport Functions (Version 0.01)

3-1

3.2 INTERFACE DESCRIPTION


The pseudo-transport layer service primitives are illustrated in pseudo code to illustrate the requirements and behavior in a real implementation and are not intended as an exact interface definition. Transport request (REQ) services can be used at any time after the transport functions have been initialized and configured by the system. confirm = request_transport_service( SERVICE, TIME_SERVICE, destination, source, send_data_buffer, send_count, retry_flag, time_of_transmission) Service to perform. Guaranteed time service to perform. Source address to use in sent message. Destination address to use in sent message. Data to send in message. Number of octets in message. Instructs data link layer to retry unacknowledged frames or not. Time that first bit of first octet of message is to be sent.

Input: SERVICE TIME_SERVICE source destination send_data_buffer send_count retry_flag time_of_transmission

Output: time_of_transmission Time that first bit of first octet of message was sent confirm = 0 1 2 3 4 Requested service is successful. Requested service has failed. Requested SEND data service is terminated by the current primary station. (reception of a NACK frame from the secondary station). Service code is not implemented. Requested service cannot proceed at this time because the data link is busy either with a previous requested transaction, current unrequested transaction or waiting for physical layer availability.

3-2

DNP Users Group

service =

0 1 2

3 4 time_service =0 1

Send a message specified in parameters using SEND-CONFIRM frames. Fails if the data link is busy. Send a message specified in parameters using SEND-NO- REPLY frames. Fails if the data link is busy. Expedited send a message specified in parameters using SENDCONFIRM frames. May necessitate canceling the current secondary transaction if a half-duplex system is used.(i.e. forces the data link to send a NACK frame instead of a CONFIRM frame in the next secondary transaction). This action only takes place if the primary station is using SEND-CONFIRM frames. Expedited send a message specified in parameters using SENDNO-REPLY expected frames. In a half-duplex system, this may mean canceling the current secondary transaction. (as above). Return link status. Return successful if the data link is not busy. Send message at time specified in time_of_transmission. This service should have the highest priority. Send message at any time with priority specified.

Data link indications (IND) can be requested at any time by the service user but should be checked as often as possible in order to obtain received data. indications = request_data_link_indications( source_address, destination_address, received_data_buffer, received_data_count, time_of_reception) Output: source_address destination_address received_data_buffer received_data_count time_of_reception Source address of received message. Destination address of received address. Received message. Number of octets in message. Time at which first bit of first octet of message was received.

DNP V3.00 Transport Functions (Version 0.01)

3-3

Indications = 0 1

No indications to report. Data link has received a valid message that has been placed in received_data_buffer and the number of octets received has been placed in received_data_count. The source address of the received message has been placed in source_address. If the data link is configured as a master station then the time that the first bit of the first octet of the message was received has been placed in time_of_reception. If the data link is configured as an outstation then the time_of_reception will still be returned but the service user has to be aware of the possibility of inaccurate times received before the outstation has been time-synchronized. Pseudo-transport layer has detected a transaction failure.

3-4

DNP Users Group

LIST OF ABBREVIATIONS AND ACRONYMS


CRC DNP EPA IEC ISO octet OSI RTU cyclic redundancy check Distributed Network Protocol enhanced protocol architecture International Electrotechnical Commission International Organization for Standardization 8-bit data object (byte) Open System Interconnection remote terminal unit

DNP V3.00 Transport Functions (Version 0.01)

DOCUMENT REVISION HISTORY


Name of Document: DNP V3.00 Application Layer Protocol Description Network File Name: P009-0PD.APP Original Author: Malcolm Smith/Jim McFadyen Date and Version of Preliminary Release: August 7, 1991 Version 0.00 Associated Software Release(s): DNP V3.00 Revisions Since Preliminary Release Date Version By Whom: NFM Pages Affected: All Reason for Changes: Document renamed and relocated from O:\Document\Other\DOC0362.wp to P009-0FS.APP Reformatted to WI standards Corrections Minor corrections Addition of Application Control fields Minor fixes per J. McFadyen. Reversed MSB and LSB in Figure 3-7 as per J. McFadyen. Re-design of qualifier, clarification of function code usage, added support of multi-fragment objects, changed terminology to match IEC definitions. Removed all references to TIMESYNCHRONIZATION in the Application Layer as this is a Data Link function. Re-defined Application Control (AC) octet to handle sequencing of fragments and added diagrams to illustrate this. Changed name of document. Re-added TIME-SYNC and made some technical corrections. Reformatted to WI standards. Reformatted, added chapters. Removed Section 9, Reformatted. Re-edited and reformatted. Re-edited and reformatted. Format check, glossary, footers.

Sept. 30/91 0.00A

Nov. 11/91 Nov. 18/91 Jan. 13/92 Apr. 30/92 Jul. 24/92 Sep. 8/92

0.00B 0.00C 0.01A 0.01B 0.01C 0.02A

J. McFadyen J. McFadyen J. McFadyen NFM MCH M. Smith

Section 3 All 3-11 ALL

Oct. 22/92

0.02B

M.Smith

Timesync Section 3

Oct. 27/92

0.02C

M.Smith

Nov.8/92 Nov.25/92 July 7/93 Jul.21/93 Aug.20/93 Aug.30/93 Sept.01/93

0.02D 0.03 0.03 0.03 0.03 0.03 0.03

MS LA P. Morton J. Bhat J. Bhat J. Bhat AV

Sections 3, 4 All All All All All All

Date May 28/97

Version 0.03

By Whom: S. Tessari

Pages Affected: All

Reason for Changes: Converted to MS Word 6.0

DNP Users Group


DNP PRODUCT DOCUMENTATION

DNP V3.00 APPLICATION LAYER

Document Version: 0.03 Internal File: P009-0PD.APP Associated Software Release: DNP V3.00

NOTICE OF RIGHTS - DNP USERS GROUP


The contents of this manual are the property of the DNP Users Group. Revisions or additions to the definition and functionality of the Distributed Network Protocol cannot be made without express written agreement from the DNP Users Group or its duly authorized party. In addition, no part of this document may be altered or revised or added to in any form or by any means, except as permitted by written agreement with the DNP Users Group or a Party duly authorized by the DNP Users Group. As a Party, duly authorized by the DNP Users Group, Harris Corporation has made every reasonable attempt to ensure the completeness and accuracy of this document, however, the information contained in this manual is subject to change without notice, and does not represent a commitment on the part of Harris Corporation or the DNP Users Group. An update program for DNP documents is provided upon request by Harris Corporation on behalf of the DNP Users Group.

TRADEMARK NOTICES
Brand and product names mentioned in this document are trademarks or registered trademarks of their respective companies.

TABLE OF CONTENTS
ABOUT THIS DOCUMENT PURPOSE OF THIS SPECIFICATION WHO SHOULD USE THIS SPECIFICATION HELP AND ADDITIONAL DOCUMENTATION HOW THIS SPECIFICATION IS ORGANIZED CONVENTIONS USED IN THIS SPECIFICATION 1. OVERVIEW 1.1 DESCRIPTION AND IEC RELATIONSHIP 2. MESSAGE FORMATS 2.1 APPLICATION REQUEST FORMAT 2.2 APPLICATION RESPONSE FORMAT 3. DEFINITION OF DNP MESSAGE FIELDS 3.1 APPLICATION HEADERS 3.2 COMMUNICATION FLOW CONTROL 3.3 MASTER REQUEST & UNSOLICITED RESPONSE COLLISIONS 3.4 ERROR RECOVERY 3.5 FUNCTION CODES 3.6 INTERNAL INDICATIONS 3.7 OBJECT HEADER ix ix ix ix x x 1-1 1-2 2-1 2-2 2-2 3-1 3-1 3-3 3-8 3-11 3-12 3-14 3-16

4. DETAILED FUNCTION CODE DESCRIPTIONS 4-1 4.1 CONFIRM (FUNCTION CODE 0) 4-1 4.2 READ (FUNCTION CODE 1) 4-2 4.3 WRITE (FUNCTION CODE 2) 4-14 4.4 SELECT (FUNCTION CODE 3) 4-16 4.5 OPERATE (FUNCTION CODE 4) 4-18 4.6 DIRECT OPERATE (FUNCTION CODE 5) 4-19 4.7 DIRECT OPERATE - NO ACKNOWLEDGEMENT (FUNCTION CODE 6) 4-19 4.8 IMMEDIATE FREEZE (FUNCTION CODE 7) 4-20 4.9 IMMEDIATE FREEZE - NO ACKNOWLEDGEMENT (FUNCTION CODE 8)4-20 4.10 FREEZE AND CLEAR (FUNCTION CODE 9) 4-20 4.11 FREEZE AND CLEAR - NO ACKNOWLEDGEMENT (FUNCTION CODE 10)4-21
DNP V3.00 Application Layer (Version 0.03)

4.12 FREEZE WITH TIME (FUNCTION CODE 11) 4-21 4.13 FREEZE WITH TIME - NO ACKNOWLEDGEMENT (FUNCTION CODE 12)4-22 4.14 COLD RESTART (FUNCTION CODE 13) 4-22 4.15 WARM RESTART (FUNCTION CODE 14) 4-23 4.16 INITIALIZE DATA (FUNCTION CODE 15) 4-23 4.17 INITIALIZE APPLICATION (FUNCTION CODE 16) 4-24 4.18 START APPLICATION (FUNCTION CODE 17) 4-25 4.19 STOP APPLICATION (FUNCTION CODE 18) 4-25 4.20 SAVE CONFIGURATION (FUNCTION CODE 19) 4-26 4.21 ENABLE SPONTANEOUS MESSAGES (FUNCTION CODE 20) 4-26 4.22 DISABLE SPONTANEOUS MESSAGES (FUNCTION CODE 21) 4-27 4.23 ASSIGN CLASSES (FUNCTION CODE 22) 4-27 4.24 DELAY MEASUREMENT (FUNCTION CODE 23) 4-28 5. CLASSES 6. TIME SYNCHRONIZATION 7. BINARY INPUT WITH TIME EVENTS 8. FILE TRANSFER 8.1 FILE IDENTIFIER OBJECTS PERFORMING WRITE FUNCTIONS 8.2 FILE IDENTIFIER OBJECT PERFORMING READ FUNCTIONS LIST OF ABBREVIATIONS AND ACRONYMS 5-1 6-1 7-1 8-1 8-1 8-5

vi

DNP Users Group

TABLE OF FIGURES
FIGURE 1-1 CONTEXT OF EPA 1-2 FIGURE 2-1 MESSAGE SEQUENCE 2-1 FIGURE 2-2 APPLICATION REQUEST FORMAT 2-2 FIGURE 2-3 APPLICATION RESPONSE FORMAT 2-3 FIGURE 3-1 REQUEST HEADER 3-1 FIGURE 3-2 RESPONSE HEADER 3-1 FIGURE 3-3 APPLICATION CONTROL FIELD 3-2 FIGURE 3-4 TYPICAL MESSAGE TRANSACTION FLOW 3-4 FIGURE 3-5 MULTI-FRAGMENT RESPONSE & RTU CONFIRMATION TIMEOUT 3-5 FIGURE 3-6 MESSAGE TRANSACTIONS WITH RESPONSE TIMEOUTS 3-6 FIGURE 3-7 MESSAGE FLOW WHEN RESPONSE DELAYED ON A NETWORK 3-7 FIGURE 3-8 RESENDING UNSOLICITED RESPONSES DUE TO NETWORK DELAYS 3-7 FIGURE 3-9 SIMULTANEOUS TRANSMISSIONS, IMMEDIATE_PROCESS MODE 3-9 FIGURE 3-10 SIMULTANEOUS TRANSMISSIONS, IMMEDIATE_PROCESS MODE 3-10 FIGURE 3-11 SIMULTANEOUS TRANSMISSIONS, PROCESS_AFTER_CONFIRM MODE 3-11 FIGURE 3-12 OBJECT HEADER 3-16 FIGURE 3-13 OBJECT FIELD 3-17 FIGURE 3-14 QUALIFIER FIELD 3-18 FIGURE 3-15 MESSAGES WITHOUT DATA OBJECTS 3-23 FIGURE 3-16 MESSAGES WITH DATA OBJECTS 3-26 FIGURE 4-1 CONFIRMATION MESSAGE 4-1 FIGURE 4-2 SINGLE OBJECT REQUEST 4-3 FIGURE 4-3 MULTIPLE OBJECTS OR RANGES 4-3 FIGURE 4-4 SINGLE OBJECT RANGE WRITE 4-15 FIGURE 4-5 MULTIPLE OBJECT OR MULTIPLE RANGES 4-15 FIGURE 4-6 MASTER SELECTION OF TWO CONTROL OR ANALOG OUTPUTS 4-17 FIGURE 4-7 OUTSTATION RESPONSE 4-17 FIGURE 4-8 MASTER SELECTION OF A PATTERN OUTPUT 4-17 FIGURE 4-9 OUTSTATION RESPONSE TO THE PATTERN SELECT MESSAGE 4-18
DNP V3.00 Application Layer (Version 0.03)

vii

FIGURE 4-10 MASTER SELECTION OF TWO OUTPUTS OR SETPOINTS 4-18 FIGURE 4-11 OUTSTATION RESPONSE 4-18 FIGURE 4-12 MASTER SELECTION OF TWO OUTPUTS OR SETPOINTS 4-19 FIGURE 4-13 OUTSTATION RESPONSE 4-19 FIGURE 4-14 MASTER SELECTION OF TWO OUTPUTS OR SETPOINTS 4-19 FIGURE 4-15 MASTER IMMEDIATE FREEZE CONTROL MESSAGE 4-20 FIGURE 4-16 OUTSTATION RESPONSE TO IMMEDIATE FREEZE 4-20 FIGURE 4-17 MASTER IMMEDIATE FREEZE NO-ACK CONTROL MESSAGE 4-20 FIGURE 4-18 MASTER FREEZE AND CLEAR CONTROL MESSAGE 4-21 FIGURE 4-19 OUTSTATION RESPONSE TO FREEZE AND CLEAR REQUEST 4-21 FIGURE 4-20 MASTER FREEZE AND CLEAR NO-ACK CONTROL MESSAGE 4-21 FIGURE 4-21 MASTER FREEZE WITH TIME MESSAGE 4-22 FIGURE 4-22 OUTSTATION RESPONSE TO FREEZE WITH TIME 4-22 FIGURE 4-23 MASTER FREEZE WITH TIME NO-ACK MESSAGE 4-22 FIGURE 4-24 MASTER COLD RESTART CONTROL MESSAGE 4-23 FIGURE 4-25 OUTSTATION RESPONSE TO COLD RESTART REQUEST 4-23 FIGURE 4-26 MASTER WARM RESTART CONTROL MESSAGE 4-23 FIGURE 4-27 OUTSTATION RESPONSE TO WARM RESTART REQUEST 4-23 FIGURE 4-28 MASTER INITIALIZE DATA CONTROL MESSAGE 4-24 FIGURE 4-29 OUTSTATION RESPONSE TO INITIALIZE DATA REQUEST 4-24 FIGURE 4-30 MASTER INITIALIZE APPLICATION CONTROL MESSAGE 4-24 FIGURE 4-31 OUTSTATION RESPONSE AFTER INITIALIZING APPLICATION(S) 4-24 FIGURE 4-32 MASTER START APPLICATION CONTROL MESSAGE 4-25 FIGURE 4-33 OUTSTATION RESPONSE AFTER STARTING APPLICATION(S) 4-25 FIGURE 4-34 MASTER STOP APPLICATION CONTROL MESSAGE 4-25 FIGURE 4-35 OUTSTATION RESPONSE AFTER STOPPING APPLICATION(S) 4-26 FIGURE 4-36 MASTER SAVE CONFIGURATION CONTROL MESSAGE 4-26 FIGURE 4-37 OUTSTATION RESPONSE AFTER SAVING CONFIGURATION(S) 4-26 FIGURE 4-38 MASTER REQUEST TO ENABLE SPONTANEOUS MESSAGES 4-27 FIGURE 4-39 OUTSTATION RESPONSE 4-27 FIGURE 4-40 MASTER REQUEST TO DISABLE SPONTANEOUS MESSAGES 4-27 FIGURE 4-41 OUTSTATION RESPONSE TO DISABLE SPONTANEOUS MESSAGE 4-27 FIGURE 4-42 MASTER REQUEST TO ASSIGN CLASSES TO DATA 4-28 FIGURE 4-43 OUTSTATION RESPONSE TO ASSIGN CLASSES 4-28 FIGURE 4-44 MASTER REQUEST TO INITIATE DELAY MEASUREMENT 4-28 FIGURE 4-45 OUTSTATION REPONSE TO DELAY MEASUREMENT REQUEST 4-29 FIGURE 8-1 PASSING A FILE IDENTIFIER OBJECT VIA DATA CONCENTRATORS 8-4

viii

DNP Users Group

ABOUT THIS DOCUMENT


PURPOSE OF THIS SPECIFICATION
This document specifies the Distributed Network Protocol (DNP) application layer services and message format. This document specifies the Application Protocol Data Unit (APDU), application data flow control and any specific information pertaining to DNP application layer services.

WHO SHOULD USE THIS SPECIFICATION


This specification is for people who need to know the structure and meaning of the fields that make up the application layer message. This includes programmers implementing and designing an application and Quality Assurance personnel testing and verifying implementations of the application layer.

HELP AND ADDITIONAL DOCUMENTATION


The following documentation may be helpful. DNP V3.00 Data Object Library (P009-0BL).

DNP V3.00 Application Layer (Version 0.03)

ix

HOW THIS SPECIFICATION IS ORGANIZED


1. OVERVIEW A general overview of the application layer. 2. MESSAGE FORMATS A definition of the request and response formats. 3. DEFINITION OF THE DNP MESSAGE FIELDS A detailed explanation of the message field. 4. DETAILED FUNCTION CODE DESCRIPTION A description of the function codes. 5. CLASSES A description of the classes. 6. TIME SYNCHRONIZATION A description of time synchronizing. 7. BINARY INPUT WITH TIME EVENTS A description of binary input with time events. 8. FILE TRANSFER A description of file transfer. LIST OF ABBREVIATIONS AND ACRONYMS

CONVENTIONS USED IN THIS SPECIFICATION


The term octet used in this document refers to an eight-bit data object and is synonymous with the term byte. The low order bit of an octet is numbered as bit zero (0) and the high order is bit seven (7). Data octets illustrated in this document are received and transmitted from left to right.

DNP Users Group

1. OVERVIEW
This document defines the Harris Distributed Network Protocol (DNP) application layer APDU format and services. The ISO OSI (International Standards Organization Open System Interconnection) model specifies seven layers. The International Electrotechnical Commission (IEC) specifies a simplified model consisting of the physical, data link and application layers only. This is termed the Enhanced Performance Architecture (EPA). This document defines the third layer of this EPA or the Application Layer. The data link layer is defined in: Distributed Network Protocol Version 3.00: Data Link Layer (P009-0PD.DL). Harris Canada Inc. has developed the DNP for application in both SCADA and distributed automation (DA) systems. Primary focus has been on the current and future needs of these areas. The DNP is suitable for use in highly secure, moderate speed and moderate throughput applications. The protocol is highly flexible and open-ended without any target hardware specific constructs. Figure 1-1 on the following page shows the EPA structure and how it fits into the entire communication system. As shown, the User Layer interfaces to the Application Layer in one place only implying that the user has no need to know of the other elements of the communication system except the Application Layer interface. The User Layer makes use of the Application Layer to send/receive complete SCADA/DA messages to/from a master station or outstation.

DNP V3.00 Application Layer (Version 0.03)

1-1

User Layer Application Layer Data Link Layer Physical Layer Communication Medium

Figure 1-1 Context of EPA

1.1 DESCRIPTION AND IEC RELATIONSHIP


The DNP Application Layer APDU is based in principle on the IEC 870-5-3 and 870-5-4 draft documents as prepared by TC-57 WG 03. Structurally, the Application Layer PDU (Protocol data Unit) fits the IEC description of an APDU. The user sends Application User Data to the Application Layer where it is converted to ASDU (Application Service Data Unit). In DNP, the Application User Data is converted into multiple ASDUs. Each ASDU is then prefixed by APCI (Application Protocol Control Information) which is then packaged as an APDU. In DNP, each APDU that is part of the larger multi-APDU is referred to as a fragment and there is a restriction that each fragment contains complete data objects only and that the function code portion of the APCI (Application Protocol Control Information) is identical in each fragment of the same message or multi-APDU. That is, there will be no fragmentation of information objects between APDUs and the same operation must be requested of each object in the message. This is to ensure that each fragment on its own can be processed and also implies that each ASDU contains only complete data objects. In reverse, the Application Layer receives multiple APDU (one at a time) where it removes the APCI to obtain the ASDU and assembles the ASDUs into Application User Data.

1-2

DNP Users Group

2. MESSAGE FORMATS
This section defines the formats of the application layer messages (APDU). The terms APDU and fragment are interchangeable. In this specification the master station is defined as the station sending a request message and the Outstation is the slave device, Remote Terminal Unit (RTU) or Intelligent End Device (IED) to which the requested messages is destined. In DNP, only designated master stations can send Application Layer request messages and only Outstations can send Application Layer Response messages. Figure 2-1 below shows the sequence of Application Layer messages between one master and one Outstation.
Master Send Request Accept response --------------------> <-------------------<----------------Outstation Accept request and process Optional confirmation Send Response

Optional confirmation

---------------------------------> Important change detected

Accept response

<-----------------

Send Unsolicited Response

Optional confirmation

--------------------------------->

Figure 2-1 Message Sequence As shown above, the master station sends an Application Layer Request to the outstation which returns an Application Layer Response. The outstation can decide to spontaneously transmit data using an Application Layer Unsolicited Response message. For a master, a request/response transaction with a particular outstation must be completed before another requests can be sent to that outstation. A master station may accept unsolicited responses while the request transaction is in progress. For an outstation, a request/response transaction must be completed before any other requests are accepted or unsolicited responses are sent. Unsolicited responses can be sent before or after the request/response transaction but not during. If an outstation is presently in the middle of an unsolicited transaction (i.e. waiting for a confirmation), it may conditionally accept one request command from the master. (For detailed information, see Section 3.3 Master Request and Unsolicited Response Collisions). In addition, each response or request can consist of 1 or more individual fragments. Each fragment however should be digestible (parsable) and therefore executable (because
DNP V3.00 Application Layer (Version 0.03)

2-1

the function code is part of every fragment). It is advised that devices with limited message storage capabilities should only be sent single fragment message requests when the expected response (from all fragments sent) is larger than one fragment. This is to ensure that devices can process a request and build and more importantly send a response before the next request is received. Otherwise, multi-fragment messages may require multi-fragment responses which may require more message storage than the device has available.

2.1 APPLICATION REQUEST FORMAT


The application request message format (APDU) is illustrated in Figure 2-2. The APDU is made up of an APCI block which contains message control information and an ASDU which contains information to be processed by the receiving station. The APCI is often called a request header in an application request message. In DNP, the ASDU is optional and is used when the message meaning is not conveyed completely in the request header. The request header contains information on how to assemble a multi-fragment message and on the purpose of the message. The request header is present in all application layer request APDUs. If the request header implies all the needed information required to carry out the request, the ASDU is not present. Each ASDU consists of one or more Data Unit Identifiers (DUI) or object headers and optional associated Information Objects (IO) or data fields. The object header can specify 0 or more en that returned by the receiving station or that follow the header in the message.
DUI IO .. IO DUI IO .... Request Header Object Header data Object Header data ..... APCI ASDU

Figure 2-2 Application Request Format Request Header Object Header Data The request header identifies the purpose of the message and consists of APCI (Application Protocol Control Information). This header identifies the data objects that follow. Data object(s) of the type specified in the object header.

2.2 APPLICATION RESPONSE FORMAT


The response from an Outstation to an application layer request APDU or the unsolicited response from an outstation have the format illustrated in Figure 2-3. The format is identical in form to the request. The APCI is often called a response header in an application response message. The response header contains the same information as the request header plus an additional field containing internal indications of the outstation. The response header is always part of the application response. The response ASDU has 2-2
DNP Users Group

the same format of the request message with one notable exception (explained in Section 3).
DUI IO .. IO DUI IO .... Response Header Object Header data Object Header data .... APCI ASDU

Figure 2-3 Application Response Format Response Header Object Header Data The response header identifies the purpose of the message and consists of APCI (Application Protocol Control Information). This header identifies the data objects that follow. Data object(s) of the type specified in the object header.

DNP V3.00 Application Layer (Version 0.03)

2-3

2-4

DNP Users Group

3. DEFINITION OF DNP MESSAGE FIELDS


This section describes the request and response headers (APCIs) which control the sequence and flow of application messages between a master station and an Outstation, and the ASDU which include DUI or data object headers. The headers are used to assemble multi-fragment (multi-APDU) messages into Application User Data. The object headers are used to identify uniquely the information object(s) that optionally follow the header.

3.1 APPLICATION HEADERS


3.1.1 Request Header The request header or APCI has two fields. Each field is one octet in length and is illustrated below.
Application Control Function Code AC FC

Figure 3-1 Request Header 3.1.2 Response Header The response header has three fields as illustrated below.
Application Control Function Code Internal Indications AC FC IIN

Figure 3-2 Response Header 3.1.3 Application Control The application control field has a size of one octet. It provides information needed to construct multi-fragment application messages.
DNP V3.00 Application Layer (Version 0.03)

3-1

Application messages may be packaged into fragments, with each fragment small enough to fit into the application's message buffer. The recommended size of the fragment buffer is 2048 bytes in order to maintain compatibility with current DNP devices. Each fragment has an application header and appropriate object headers so that each fragment can be processed as individual messages which can then be discarded making room for the next fragment.
7 6 5 4 3 2 1 0 bit FIR FIN CON SEQUENCE

Figure 3-3 Application Control Field FIR FIN If set to one (1), this bit indicates the message fragment is the first fragment of a complete application message. If set to one (1), this bit indicates the message fragment is the final fragment of a complete application message.

CON If set to one (1) in a received message, indicates the sending application is expecting a confirmation from the receiving application of the reception of the fragment. An application function code zero (0) is used in the confirmation message. SEQUENCE Indicates the fragment number. Fragment numbers 0 to 15 are reserved for master station requests and all Outstation responses (NOT Unsolicited Responses). Fragment numbers 16 to 31 are reserved for unsolicited responses from Outstations. For unsolicited responses, each consecutive fragment from an Outstation must have an increasing sequence number (the number overflows from 31 to 16). For requests to an Outstation and the Outstation responses (not unsolicited responses), each consecutive fragment received from or transmitted to the same Outstation must have an increasing sequence number (the number overflows from 15 to 0). NOTE: An Unsolicited Response is a message generated by an Outstation, usually containing event data, which is sent automatically to the master. The master does not need to poll the Outstation for this data. It is recommended that any changed data that is reported from an Outstation be sent with a confirmation requested in the response.

NOTE:

3-2

DNP Users Group

3.2 COMMUNICATION FLOW CONTROL


The flow of requests and responses between the master and the Outstation is controlled by fields in the response and request headers as well as application timers and parameters. The fields, timers and parameters controlling message flow are: 1) 2) 3) 4) CON bit field. Setting/clearing this bit enables/disables message CONFIRMation responses. A CONFIRMation response is an application acknowledgments of the previous request or response message. FIR and FIN bit fields. Sequence Number field. This number is used to assemble multi-fragment messages and identify which responses match particular requests. Master station and Outstation application response time-outs. These specify how long an application must wait for a response or CONFIRMation response before re-transmitting or aborting the transaction. The application may or may not support re-transmission of transactions at the application layer. Master station and Outstation application retry count. Applications may or may not support application level retries. Retry counters specify how many times a request is repeated if a response fails, or how often responses are re-transmitted if a CONFIRMation response is not received.

5)

An Outstation must completely process a request and respond to it before beginning to process a second request. It cannot simultaneously process multiple requests. The Sequence Number for all requests from the master station to the Outstation is in the range 0 to 15 inclusive. The sequence number for all Unsolicited Responses from the Outstation is in the range 16 to 31 inclusive. The following rules dictate how sequence numbers work: The sequence number rolls over from 15 to 0 or from 31 to 16. Each successive request fragment from the DNP master station has an incremented sequence number. The exception is for retries on requests. For single fragment request retries, the sequence number is NOT incremented. For multi fragment request retries, the sequence number of the first fragment of the request retry equals the sequence number of the last fragment of the request which has just failed. A single fragment response to a single fragment request has the same sequence number as the request. The CONFIRMation response to a request or response has the same sequence number as the request or response. The first fragment of a multi-fragment response to a single fragment request has the same sequence number as the request. For successive fragment of the multi-fragment response, the sequence number is incremented. The first fragment of a multi-fragment response to a multi-fragment request has the same sequence number as the last fragment of the multi-fragment request.

DNP V3.00 Application Layer (Version 0.03)

3-3

The use of this sequence number scheme ensures the Outstation and master station can cope with all occurrences of messages being lost or delayed on a communication network. The following rules are obeyed by both the Outstation and master station: If the system uses application level retries, when a response is not received before time-out, the request will be re-transmitted with the same sequence number. If two messages are received with the same sequence number, it usually means that the response to the message was not received by the other station. In this case, retransmit the response (re-processing the message is unnecessary). If two CONFIRMation responses are received with the same sequence number, ignore the second response. The following figures illustrate some cases of message transactions and how the Sequence Numbers prevent problems. In the examples, SEQ is the Sequence Number and CON is the Confirmation Requested bit in the message. Time progresses from left to right in the diagrams. The vertical arrows represent the flow of messages between the Outstation and the master station. Case One illustrates typical message transactions. The master sends a request, the Outstation responds and the master CONFIRMs the response. Later on, the Outstation sends an Unsolicited Response to the master station. When the Outstation transmits the response, it starts a CONFIRMation response timer. If this timer had expired before the CONFIRMation was received, the Outstation would have re-transmitted the response. Case Two shows a similar situation to Case One except the master request requires a CONFIRMation response as well as a normal response.
CASE 1 Time Master Request. Response CONFIRM CONFIRM expected. (SEQ=7) (SEQ=24) (CON=0) (SEQ=7) M M M -------------------------------------------------------------------Outstation L L Response Unsol. to master Response (CON=1) (CON=1) (SEQ=7) (SEQ=24) CASE 2 Time Master Request. Response CONFIRM expected. (SEQ=2) (CON=0) (SEQ=2) M M -------------------------------------------------------------------Outstation L L CONFIRM Response (SEQ=2) to master request (CON=1) (SEQ=2)

Figure 3-4 Typical Message Transaction Flow 3-4


DNP Users Group

NOTE:

In Figure 3-4 and some of the following figures, the CON bit is set in the Outstation responses. The CON bit may be clear in some transaction (e.g. when the response does not contain event data). In this case, data loss due to communication loss is often not critical. The Outstation assumes that the response was successful.

Case Three illustrates a multi-fragment response from the Outstation. The sequence number in successive fragments is incremented. Note that the next request from the master station used sequence number equals 4. In Case Four, the response from the Outstation is not received by the master station. The Outstation waits for a CONFIRMation, and when its CONFIRMation time-out expires it re-transmits the response.
CASE 3 Time Master Request. Request. Response CONFIRM CONFIRM (SEQ=4) expected. (SEQ=2) (SEQ=24) (CON=0) (SEQ=2) M M M M -------------------------------------------------------------------Outstation L L Response Response Frag. 1 Frag. 2 (CON=1) (CON=1) (SEQ=2) (SEQ=3) CASE 4 Time Master Request. Response Response CONFIRM expected. not (SEQ=3) (CON=0) received. (SEQ=3) M M -------------------------------------------------------------------Outstation L L Response CONFIRM not Response (CON=1) received. RTU (CON=1) (SEQ=3) time-out. Resend (SEQ=3) response.

Figure 3-5 Multi-Fragment Response & RTU Confirmation Time-out From the Outstation side, Case Five is identical to Case Four. In Case Five unlike Case Four, the master does CONFIRM the first Outstation response. This CONFIRMation is not received by the Outstation. When the Outstation resends the response, the master will repeat the CONFIRMation. The master will not re-process the second response. Case Six illustrates the case where the master request is not received by the Outstation. The master repeats the request after a response time-out occurs.

DNP V3.00 Application Layer (Version 0.03)

3-5

CASE 5 Time Master Request. Response CONFIRM CONFIRM expected. (SEQ=10) (SEQ=10) (CON=0) (SEQ=10) M M M -------------------------------------------------------------------Outstation L L Response CONFIRM not Response (CON=1) received. RTU (CON=1) (SEQ=10) time-out. Resend (SEQ=10) response. CASE 6 Time Master Request. Time-out on Request. Response response. Response CONFIRM expected. Resend expected. (SEQ=5) (CON=0) Request. (CON=0) (SEQ=5 ) (SEQ=5) M M M -------------------------------------------------------------------Outstation L Request not Response received. (CON=1) (SEQ=5)

Figure 3-6 Message Transactions With Response Time-outs Case Seven is similar to Case Four. In both cases, the Outstation response to the master request is not received. In Case Four the Outstation timed out waiting for the CONFIRMation and repeated the response. In Case Seven however, the master times out first and repeats the request. The Outstation automatically stops waiting for the CONFIRMation and repeats its previous response. Case Seven also illustrates another possible condition. The original response that the master did not receive is delayed in the communication network. The master re-sends the request, the Outstation replies and the master finishes the transaction sequence with a CONFIRMation. The original response from the Outstation then arrives at the master station. The master station assumes that the first CONFIRMation was not received by the Outstation. It therefore re-transmits the CONFIRMation. The Outstation receives and discards this second CONFIRMation. Case Eight is similar to Case Seven. In this case, the first CONFIRMation from the Outstation is delayed in the communication network. When this CONFIRMation eventually arrives at the master station, it is ignored.

3-6

DNP Users Group

CASE 7 Time Master Request. Response Request. Response not received. Response CONFIRM CONFIRM expected. Resend expected. (SEQ=8) (SEQ=8) (CON=0) request. (CON=0) (SEQ=8) (SEQ=8) M M M M -------------------------------------------------------------------Outstation L L Response Response RTU ignores (CON=1) (CON=1) second (SEQ=8) (SEQ=8) CONFIRM CASE 8 Time Master Request. CONFIRM delayed Request. Master receives No response in network. No response first delayed expected. Time-out. Master expected. CONFIRM and (CON=0) resends request. (CON=1) ignores it. (SEQ=5 ) (SEQ=12) M M -------------------------------------------------------------------Outstation L L CONFIRM CONFIRM (SEQ=12) (SEQ=12)

Figure 3-7 Message Flow When Response Delayed on a Network In Case Nine, the Unsolicited Response is re-transmitted by the Outstation when a timeout on the CONFIRMation occurs. The master eventually receives it twice. It does not process it the second time, but does respond to it in the same way as the first time. The Outstation discards the second CONFIRMation. This illustrates a situation where network delays, and not message losses, cause time-outs to occur.
CASE 9 Time Master Unsol. response Master delayed in CONFIRM receives the CONFIRM network. (SEQ=30) delayed unsol. (SEQ=30) Not received. response. Resend CONFIRM. M M -------------------------------------------------------------------Outstation L L Unsol. Time-out on Unsol. RTU discards response. CONFIRM Response. second (CON=1) Resend. (CON=1) CONFIRM. (SEQ=30) (SEQ=30)

Figure 3-8 Resending Unsolicited Responses Due to Network Delays

DNP V3.00 Application Layer (Version 0.03)

3-7

3.3 MASTER REQUEST & UNSOLICITED RESPONSE COLLISIONS


When Unsolicited Responses are generated by an Outstation there exists the possibility that the master station sends a request at the same time that the Outstation sends an Unsolicited Response. The Outstation may receive the request when it expects to receive a CONFIRMation of its Unsolicited Response. The master receives the Unsolicited Response when it expects to receive a response to its request. The processing of the above and similar situation depends on the type of request issued by the master station. The master station will always process an Unsolicited Response immediately, ever if it arrives when the master station is expecting a response to a previously issued request. A CONFIRMation of the Unsolicited Response is issued immediately if requested by the Outstation (i.e. if CON bit is set). The Outstation will generally process a request immediately, even if it is waiting for CONFIRMation of a previous Unsolicited Response. All requests except READ requests for system data (e.g. Binary input data, counter event data etc.) are processed in this way. This mode of operation is referred to as IMMEDIATE_PROCESS mode. The Outstation will NOT process a master station READ request if it is waiting for CONFIRMation of a previous Unsolicited Response. It will wait for the CONFIRMation before processing the request. The reason for the different functionality is to prevent the loss or duplication of data events. This mode of operation is referred to PROCESS_AFTER_CONFIRM mode. 3.3.1 IMMEDIATE_PROCESS Mode Figures 3-9 and 3-10 illustrate the normal functionality when a master station request and an Outstation Unsolicited Response are transmitted simultaneously and the Outstation is in the IMMEDIATE_PROCESS mode (i.e. request is not a READ request). In Case Ten, the master immediately responds to the Unsolicited Response. The Outstation immediately processes and responds to the master station request. Note that the two CONFIRMation responses could be sent from the master in the opposite order to the order shown in Case Ten. This would not confuse the Outstation. Case Eleven illustrates a basic message flow where the Unsolicited Response does not require a CONFIRMation.

3-8

DNP Users Group

CASE 10 Time Master Request. Response CONFIRM CONFIRM expected. (SEQ=7) (SEQ=24) (CON=0) (SEQ=7) M M M -------------------------------------------------------------------Outstation L L Unsol. Response Response to master (CON=1) request (SEQ=24) (CON=1) (SEQ=7) CASE11 Time Master Request. Store and Response process the CONFIRM expected. unsol. response. (SEQ=2) (CON=1) (SEQ=2) M M -------------------------------------------------------------------Outstation L L L Unsol. CONFIRM Response response (SEQ=2) to master (CON=0) request (SEQ=22) (CON=1) (SEQ=2)

Figure 3-9 Simultaneous Transmissions, IMMEDIATE_PROCESS Mode In Case Twelve, the Unsolicited Response is CONFIRMed in between CONFIRMations to two fragments of a multi-fragment response to the master request. Case Thirteen illustrates the situation where the Unsolicited Response is not received by the master station. The Outstation responds to the master request, then after the CONFIRMation time-out for the Unsolicited Response, the Outstation re-transmits the Unsolicited Response. The master then CONFIRMs the Unsolicited Response. Note that it is possible that the first Unsolicited Response later arrives at the master station (it was delayed in the network). The master would not re-process the response, but would reply to it again. The Outstation would discard the reply.

DNP V3.00 Application Layer (Version 0.03)

3-9

CASE 12 Time Master Request. Response CONFIRM CONFIRM CONFIRM expected. (SEQ=2) (SEQ=18) (SEQ=3) (CON=0) (SEQ=2) M M M M -------------------------------------------------------------------Outstation L L L Unsol. Response Response Response Frag. 1 Frag. 2 (CON=1) (CON=1) (CON=1) (SEQ=18) (SEQ=2) (SEQ=3) CASE 13 Time Master Request. Master does Response not receive CONFIRM CONFIRM to expected. unsol. response. (SEQ=3) unsol. (CON=0) response (SEQ=3) (SEQ=28) M M M -------------------------------------------------------------------Outstation L L L Unsol. Response RTU time-out for Unsol. response (CON=1) CONFIRM to unsol. response (CON=1) (SEQ=3) response. Resend (CON=1) (SEQ=28) request.

Figure 3-10 Simultaneous Transmissions, IMMEDIATE_PROCESS Mode 3.3.2 PROCESS_AFTER_CONFIRM Mode When a READ request for system data is received by the Outstation and a previous Unsolicited Response has not yet been CONFIRMed, the Outstation will not process the READ request until it receives the CONFIRMation to the Unsolicited Response. If the Outstation was to respond to the READ request immediately, there is a risk of data being lost or duplicated. This is due to the possibility that the READ request requests data objects which are already in the unCONFIRMed Unsolicited Response. Case Fourteen illustrates the situation where the READ request is received while the Outstation is waiting for a CONFIRMation. The Outstation will not process the READ request until the CONFIRMation is received. Case Fifteen is similar to Case Fourteen except the Unsolicited Response is not CONFIRMed. The Outstation must re-transmit the Unsolicited Response until it is CONFIRMed or its configured re-transmission limit is reached. If this limit is ever reached, the Outstation will internally re-buffer the data in the Unsolicited Response, respond to any outstanding master station requests then try to send the Unsolicited Response again.

3-10

DNP Users Group

CASE 14 Time Master Request. Response CONFIRM CONFIRM expected. to unsol. (SEQ=2) (CON=0) response (SEQ=2) (SEQ=18) M M M -------------------------------------------------------------------Outstation L RTU waits RTU now L Unsol. for confirm processes Response Response Do not process master (CON=1) (CON=1) request. request. (SEQ=2) (SEQ=18) CASE 15 Time Master Request. Master does Response not receive CONFIRM to CONFIRM expected. unsol. response. unsol. (SEQ=3) (CON=0) response (SEQ=3) (SEQ=28) M M M -------------------------------------------------------------------Outstation L L L Unsol. RTU time-out for Unsol. Response response CONFIRM to unsol. response (CON=1) (CON=1) response. Resend (CON=1) (SEQ=3) (SEQ=28) unsol. response. (SEQ=28)

Figure 3-11 Simultaneous Transmissions, PROCESS_AFTER_CONFIRM Mode

3.4 ERROR RECOVERY


The DNP application layer relies on the data link layer for all message transmission, reception and error checking. The application layer is NOT responsible for recovering from communication problems. When and if a transaction failure is reported by the data link layer, the application layer should fail the application layer transaction and report the error to the user. In addition, the master application layer should indicate the value of the Internal Indications in all Outstation responses. The user layer is responsible for initiating any kind of error recovery procedure. In particular, the user layer should make use of the IIN or Internal Indications that are returned in any Outstation response.

DNP V3.00 Application Layer (Version 0.03)

3-11

3.5 FUNCTION CODES


The function code identifies the purpose of the message. The size of this field is one octet. There are two groups of function codes; one for requests and the other for responses.
CODE FUNCTION DESCRIPTION

Transfer Function Codes 0 Confirm Message fragment confirmation used in both requests and responses. No response to this message is required. Request specified objects from Outstation; respond with objects requested that are available. Store specified objects in Outstation; respond with status of the operation

Read

Write

Control Function Codes 3 Select Select or arm output points but do not set or produce any output action (controls, setpoints, analog outputs) ; respond with the status of the control points selected. The Operate function code is required to activate these outputs. Set or produce the output actions on the points previously selected with the Select function; respond with the status of the control points. Select and set or operate the specified outputs; respond with the status of the control points. Select and set or operate the specified outputs but do not send a response to the request.

Operate

Direct Operate

Direct Operate - No Acknowledgment

Freeze Function Codes 7 Immediate Freeze Copy the specified objects to a freeze buffer and respond with status of the operation. Copy the specified objects to a freeze buffer; do not respond with a message.

Immediate Freeze -No Acknowledgment

Transfer Function Codes 9 Freeze and Clear Copy the specified objects to a freeze buffer, then clear the objects; respond with the status of the operation. DNP Users Group

3-12

CODE 10

FUNCTION Freeze and Clear -No Acknowledgment Freeze with Time

DESCRIPTION Copy the specified objects to a freeze buffer, then clear the objects; do not respond with a message. Copy the specified objects to a freeze buffer at the specified time and intervals; respond with the status of the operation. Copy the specified objects to a freeze buffer at the specified time and intervals; do not respond with a message.

11

12

Freeze with Time -No Acknowledgment

Application Control Function Codes 13 Cold Restart Perform the desired reset sequence; respond with a time object indicating time till Outstation availability. Perform the desired partial reset sequence; respond with a time object indicating time till Outstation availability. Initialize the specified data to power up initial values; respond with status of the operation. Ready the specified application(s) to run; respond with status of the operation. Start running the specified application(s); respond with status of the operation. Stop the specified application(s); respond with status of the operation.

14

Warm Restart

15

Initialize Data to Defaults Initialize Application Start Application Stop Application

16 17 18

Configuration Function Codes 19 Save Configuration Save the specified configuration to nonvolatile memory; respond with a time object indicating time till Outstation availability. Enable spontaneous reporting of the specified data object(s); respond with status of the operation Disable spontaneous reporting of the specified data object(s); respond with status of the operation Assigned specified data object(s) to a particular class

20

Enable Unsolicited Messages Disable Unsolicited Messages Assign Class

21

22

Time Synchronization Function Codes 23 Delay Measurement Allows the application to calculate the path delay (or propagation delay) for a particular Outstation. The value calculated from this function code should be used to adjust the time of day when setting the Outstation time.

DNP V3.00 Application Layer (Version 0.03)

3-13

CODE Reserved 24 - 120 121 - 128

FUNCTION

DESCRIPTION

Reserved for future use Reserved for testing only

Response Function Codes 0 Confirm Message fragment confirmation used in both requests and responses. No response to this message is required. Response to a request message Unsolicited response that was not prompted by a request.

129 130

Response Unsolicited Message

Table 3-1 Function Codes

3.6 INTERNAL INDICATIONS


The Internal Indications (IIN) field is a two-octet field that follows the function code in all responses. When a request cannot be processed due to formatting errors or the requested data is not available, the IIN is always returned with the appropriate bits set.
First Octet Second Octet | First Octet 7 6 5 4 3 2 1 0 Bit number

A one (1) in the bit position indicates the described state. Bit 0 Bit 1 Bit 2 3-14 All stations message received Set when a request is received with the destination address of the all stations address (ffff hexadecimal). Cleared after next response (even if response to global request is required) Used to let the master station know that a Broadcasted message was received by this station.

Class 1 data available Set when data that has been configured as Class 1 data is ready to be sent to the master Master station should request this class data from the Outstation when this bit is set in a response Class 2 data available
DNP Users Group

Bit 3 Bit 4 -

Set when data that has been configured as Class 2 data is ready to be sent to the master Master station should request this class data from the Outstation when this bit is set in a response Class 3 data available Set when data that has been configured as Class 3 data is ready to be sent to the master Master station should request this class data from the Outstation when this bit is set in a response Time-synchronization required from the master. The master synchronizes the time by writing the Time and Date object to the Outstation. Cleared when the time is set by the master. This bit is also cleared when the master explicitly writes a 0 into this bit of the Internal Indication object of the Outstation. Set when some or all of the Outstation's digital output points are in the Local state. That is, the Outstation's control outputs are NOT accessible through the DNP protocol. Clear when the Outstation is in the Remote state. That is, the Outstation's control outputs are accessible through the DNP protocol. Device trouble Set when an abnormal condition exists at the Outstation. The device profile for a given device states the conditions that effect this bit. This should only be used when the state can not be described by a combination of one or more of the other IIN bits. Device restart Set when the user application at the Outstation restarts. Cleared when the master explicitly Writes a 0 into this bit of the Internal Indications object in the Outstation.

Bit 5

Bit 6

Bit 7: -

Second Octet 7 6 5 4 3 2 1 0 Bit number

Bit 0 Bit 1

Function code not implemented Requested object(s) unknown. The Outstation does not have the specified objects or there are no objects assigned to the requested class. This indication should be used for debugging purposes and usually indicates a mismatch in device profiles or configuration problems.

DNP V3.00 Application Layer (Version 0.03)

3-15

Bit 2

Parameters in the qualifier, range or data fields are not valid or out of range. This is a catch-all for application request formatting errors. This indication should be used for debugging purposes and usually indicates configuration problems. Event buffer(s), or other application buffers have overflowed. For example, COS/SOE buffers have overflowed. The master should attempt to recover as much data as possible and indicate to the user that their may be lost data. The appropriate error recovery procedures should be initiated by the user. Request understood but requested operation is already executing. Set to indicate that the current configuration in the Outstation is corrupt and that the master application layer should inform the user of this exception. The master may download another configuration to the Outstation. Note that sometimes a corrupt configuration will disable an Outstation, making it impossible to communicate this condition to a master station. Reserved for use by agreement, currently always returned as zero (0). Reserved for use by agreement, currently always returned as zero (0).

Bit 3

Bit 4 Bit 5

Bit 6 Bit 7

3.7 OBJECT HEADER


The object header of a message specifies the data objects (or IOs) that are either contained in the message or are to be used to respond to this message. The format of the object header is identical for a request and a response but the interpretation of the header is dependent on whether it is a request or a response and which function code accompanies the header.
Object Qualifier Range

Figure 3-12 Object Header Object Specifies the object group and variation of the objects that follow the header as described in section 3. OBJECT. This is a two-octet field. The object field uniquely identifies the type or class of object which gives the structure (and hence size) of the data object. Specifies the meaning of the range field as described in section 3. QUALIFIER. This is a one-octet field. The qualifier specifies how the range field is to be interpreted.

Qualifier

3-16

DNP Users Group

Range

Indicates the quantity of objects, starting and ending index or identifiers for the objects in question as described in section 3. This field uniquely identifies the objects in question. The range field may not be present if the qualifier specifies that there is no range field. The size of this field ranges from zero (0) octets to eight octets.

NOTE:

3.7.1 Object Field The Object field specifies an object group and the variation of the object within the group. The combined object group plus variation specifies uniquely the object to which the message refers. The currently defined object structures are described in DNP-V3.00 Data Object Library (P009-0BL). Objects may be assigned to one of four classes. When the Object field specifies a data class instead of a specific object type, the object field refers indirectly to all the data objects assigned to that class of data and not to any specific object type. See Section 5: CLASSES for more detail. The object field is two octets in length. The first octet specifies the general type of data (e.g. analog inputs) and the second octet specifies the variation of the data type (e.g. 16bit analog inputs or 32-bit analog inputs). In the request direction, if the object variation is specified as 0, this indicates all object variations belonging to the same group (i.e. all or any analog inputs types). In the response direction however, variation 0 cannot be used to specify the objects. The specific variation has to be specified. Consider the example where the request message specifies counter objects in the first octet and the variation is 0. Given that the Outstation supports only 16 bit counters, it will respond with an object header with the variation field set to indicate that the counter objects are 16 bit counters. With the same request message directed to another station, the returned object header may indicate a 32 bit count field in the counter objects it returns. By requesting data with the variation set to 0, it is not necessary for the master to know what variations the Outstation supports. The master must however be able to interpret the object headers and have some knowledge of the structure of each variation.
first octet second octet 0 or Object variation Object Group Object variation

Application request direction Application response direction

Figure 3-13 Object Field

DNP V3.00 Application Layer (Version 0.03)

3-17

3.7.2 Qualifier Field The qualifier field specifies the meaning of the range field.
7 6 5 4 3 2 1 0 bit R Index Size 4 bit Qualifier Code

Figure 3-14 Qualifier Field R Reserved bit always set to 0

The Range Field is used to index data or as an identifier. The structure and use of the Range Field is dependent on the value in the Index Size field and the Qualifier Code field. When the Range Field is used to index data, it often consists of a Start Range value and an Stop Range value. Together they define a range of objects in the data following the Object Header. Each of the Start Range and Stop Range sub-fields is termed as index. Index Size (3-bits) In a Request Object Header when Qualifier Code equals 11 The Index Size bits are valid only when the qualifier code is 11. These bits indicate the size, in octets, of each entry in the Range Field. The Range Field follows the Qualifier Field. The Range Field consists of indices (to specify a range of objects) or object identifier lists (see qualifier code 11). 0= 1= 2= 3= 4= 5= 6= 7= not valid with qualifier code 11 1 octet identifier size 2 octet identifier size 4 octet identifier size reserved reserved reserved reserved

In a Response or Request Object Header that is part of a message containing data objects. The 3 bit Index Size field specifies the size of the indices or object size prefixing each object. 0= 1= 2= 3= 4= 3-18 objects are packed with no index prefixing them objects are prefixed with a 1 octet index objects are prefixed with a 2 octet index objects are prefixed with a 4 octet index objects are prefixed with a 1 octet object size
DNP Users Group

5= 6= 7=

objects are prefixed with a 2 octet object size objects are prefixed with a 4 octet object size reserved

Qualifier Code (4-bits) The Qualifier Code is used to specify the meaning of the Range field. Start and Stop Sub-Fields in the Range Field The Range field following the Qualifier field often contains sub-fields (Start Range and Stop Range) that designate a range of integer values starting numerically from Start Range (including the number Start Range) to Stop Range (including the number Stop Range). For Qualifier Codes 0, 1 and 2, Start Range and Stop Range are interpreted as indices of data For Qualifier Codes 3, 4 and 5, Start Range and Stop Range are interpreted as virtual memory addresses. The Qualifier Code can be used both in the request and response messages as it can uniquely identify data objects whether they do or do not exist in the message. The Index Size field should be 0 in a data-less message to indicate no further indexing. The Index Size field can be 4, 5 or 6 in a message with data objects to indicate that each data object (with indices specified by the Range Field) has an object size prefix (with this size determines by the Index size). A message with data can also use Index size of 0 to indicate no more indexing. For Qualifier Codes specifying Start ad Stop Indices in the Range, Index Size values of 1, 2 and 3 cannot be used. Some Qualifier Code definitions are: 0= 1= 2= 3= 4= 5= 8 bit start and stop indices in the Range Field 16 bit start and stop indices in the Range Field 32 bit start and stop indices in the Range Field 8 bit absolute address identifiers in the Range 16 bit absolute address identifiers in the Range 32 bit absolute address identifiers in the Range

All objects of the given object type When the Qualifier Field equals 6, the length of the range field is 0 (i.e. no range field) because all the data objects of the specified type are being referred to. This qualifier can be used in messages with object headers only because it cannot
DNP V3.00 Application Layer (Version 0.03)

3-19

uniquely identify data objects if they are present in the message. The Index size should be set to 0 when this Qualifier code is used. Qualifier Code 6 = no range field (implies all the specified objects) Single field quantity Qualifier Codes 7, 8 and 9 are used to indicate that the Range Field consists of a single count indicating the number of data objects in question. The Range Field that follows designates the number of objects referenced. If the Index Size field equals zero, the Range Field specifies the number of objects referenced starting numerically from 0 (including 0) to the value in the Range Field minus 1. If the Index Size is 1, 2 or 3 then the Range Field specifies the number of indices and objects following the Range Field. Qualifier Codes 7, 8 and 9 can be used in the request and response messages. In a message with or without data objects, the value in the Range Field specifies the number of data objects to be referred to. The Index Size field should be set to the size of the indices that either pre-fix each data object (for messages with data objects) or that form a sequential list of identifiers. The Index Size field should not indicate an object size identifier as this would not uniquely specify the data objects in question and should be set to 0 if no identifiers or indices are following. The order of identifiers (and optional data objects) is arbitrary but should not consist of duplicate indices. Some Qualifier Code definitions are: 7= 8= 9= 8 bit single field quantity 16 bit single field quantity 32 bit single field quantity

Free-format Qualifier (Qualifier Code 11) This Qualifier Code is used to specify objects when other Qualifier Codes are inadequate or do not provide enough identifying information. Qualifier 11 is used only when the Range Field (index) cannot uniquely specify the data objects in question. In this case, the Qualifier Code defines a variable length array of octets (string) that contains the object identifier. This identifier has a free-format and will not be interpreted in any way by the application layer at this time. 3-20
DNP Users Group

The Range Field is always a 1 octet value (Count) which specifies the number of object identifiers. Following the Range Field are Count object size field/object identifier pairs. The size of the identifier (in octets) is determined by the object size field which prefixes each identifier. The size of the object size field is determined by the Index size. Index sizes 4,5, and 6 should be used to specify the size of the object size field in octets. Reserved Qualifier Codes The following Qualifier Code values are reserved and should not be used: 10 = 12 = 13 = 14 = 15 = 3.7.3 Range The meaning of the Range Field is specified by the Qualifier Field. For Qualifier Codes 0 to 5 the Range field has 2 sub-fields specifying a start and stop index or address. The values in these fields are inclusive. The Range field is not present for qualifier code 6. The range field is a single field specifying a quantity for qualifier codes 7, 8, 9 and 11. In the following, the term 'Q-code' refers to the 4 bit Qualifier Code field and 'I-size' refers to the Index Size field. The following figure defines all the valid qualifier/range/index combinations for a request or response which do NOT contain any IO or data objects and simply specifies the objects in question. The bytes described appear after the qualifier octet of the object header and before the next object header or end of message. Request for known points specified with a Range of indices.
Use Q-code 0-5 for describing points related in sequence: Start Stop 8 bit 8 bit I1 I2 Q-code 0 and 3; I-size MUST be 0 Definition of Range Field. Points are I1 to I2 inclusive

reserved reserved reserved reserved reserved

LSB MSB LSB MSB 16 bit Start 16 bit Stop I1 I2

Q-code 1 and 4; I-size MUST be 0 Points are I1 to I2 inclusive

DNP V3.00 Application Layer (Version 0.03)

3-21

LSB MSB LSB MSB 32 bit Start 32 bit Stop I1 I2 Q-code 2 and 5; I-size MUST be 0 Points are I1 to I2 inclusive Use Q-code 6 for describing ALL points of the given data type: (There is no range field or indices with this qualifier Use Q-code 7-9 for describing a number of unrelated points: Quantity 8 bit Q Q-code 7; I-size MUST be 0 Points are 0 .. Q-1 inclusive

Quantity Index Index 8 bit I1 Q LSB

....... IQ LSB

Q-code 7; I-size MUST be 1 Points are I1, I2 .. IQ inclusive

Quantity Index 8 bit I1 Q LSB MSB

Index Q-code 7; I-size MUST be 2 Points are I1, I2 .. IQ inclusive ....... IQ LSB MSB Index IQ LSB MSB Q-code 7; I-size MUST be 3 Points are I1, I2 .. IQ inclusive

Quantity Index 8 bit I1 Q LSB MSB LSB MSB 16 bit Quantity Q

.......

Q-code 8; I-size MUST be 0 Points are 0 to Q-1 inclusive

LSB MSB 16 bit Quantity Index | LSB ...... Q I1

Index LSB IQ

Q-code 8; I-size MUST be 1 Points are I1,I2 .. IQ inclusive

LSB MSB 16 bit Quantity Index Index LSB MSB...... LSB MSB Q I1 IQ

Q-code 8; I-size MUST be 2 Points are I1,I2 .. IQ inclusive

LSB MSB 16 bit Quantity Index Index LSB MSB...... LSB MSB Q I1 IQ

Q-code 8; I-size MUST be 3 Points are I1,I2 .. IQ inclusive

3-22

DNP Users Group

LSB MSB 32 bit Quantity | IQ

Q-code 9; I-size MUST be 0 Points are 0 .. IQ-1

LSB MSB 32 bit Quantity Index Index | | | LSB .... LSB Q I1 IQ

Q-code 9; I-size MUST be 1 Points are I1, I2 .. IQ

LSB MSB 32 bit Quantity Index Index | | | LSB | MSB .... LSB | MSB Q I1 IQ

Q-code 9; I-size MUST be 2 Points are I1, I2 .. IQ

LSB MSB 32 bit Quantity Index Index | | | LSB | | | MSB .... LSB | | | MSB Q I1 IQ

Q-code 9; I-size MUST be 3 Points are I1, I2 .. IQ

Use qualifier 11 when describing points that need to be uniquely identified by an object identifier such as a File Object Identifier or Configuration Header. The type of identifier is implied by the object type: 8-bit 8-bit 8-bit O11 O12 .... O1N... OQ1... OQN Q Size N1 Size NQ Q-code 11; Index size MUST be 1 Octets Oi1 .. OiN form the object identifier for Object i where 0<=i<Q (quantity) 16-bit 16-bit LSB | MSB LSB | MSB O1 O2 .... ON Q Size N

Q-code 11; I-size MUST be 2 Octets 1 to N are the object identifier

As for the previous case, there could be many identifiers each one following the other. 32-bit 32-bit LSB | | | MSB LSB | | | MSB O1 O2 .... ON Q Size N

Q-code 11; I-size MUST be 3 Octets 1 to N are the object identifier

As for the previous case, there could be many identifiers each one following the other.

Figure 3-15 Messages Without Data Objects

DNP V3.00 Application Layer (Version 0.03)

3-23

The following figure defines all the valid qualifier/range/index combinations for a request or response which contain IO or data objects and specifies that the objects in question either follow the qualifier/range fields (for qualifier without pre-fixing indices) or follow each individual identifying index. The bytes described appear after the qualifier octet of the object header and before the next object header or end of message.
Request/response with known points specified with a Range of indices. Use Q-code 0-5 for describing points related in sequence: Start Stop DO DO DO 8 bit 8 bit I1 I1+1 I1+2 .... I1 I2 DO I2 Q-code 0 and 3; I-size MUST be 0 Points/Objects are I1 .. I2 inclusive

LSB MSB LSB MSB 16 bit Start 16 bit Stop DO DO Q-code 1 and 4; I-size MUST be 0 | | Points/Objects are I1 .. I2 inclusive I1 .... I2 I1 I2 LSB MSB LSB MSB 32 bit Start 32 bit Stop DO DO | | | | | | I1 .... I2 I1 I2 Q-code 2 and 5; I-size MUST be 0 Points/Objects are I1 .. I2 inclusive Start Stop Object DO-I1 8 bit 8 bit Size with 8-bit size ..... I1 I2 S1 S1 Object DO-I2 Q-code 0 and 3; I-size MUST be 4 Size with Points/Objects are I1 .. I2 inclusive 8-bit size S2 S2

Note: 16 and 32-bit object sizes can also be used by using I-size 5 and 6 LSB MSB LSB MSB 16 bit Start 16 bit Stop Object DO-I1 Object DO-I2 | | Size with Size with 16-bit size .16-bit size I1 I2 S1 S1 .... S2 S2 LSB | MSB LSB | MSB Q-code 1 and 4; I-size MUST be 5 Points/Objects are I1 .. I2 inclusive Note: 8 and 32-bit object sizes can also be used by using I-size 4 and 6 LSB MSB LSB MSB 32 bit Start 32 bit Stop Object DO-I1 Object DO-I2 | | | | | | Size with Size with 32-bit size 32-bit size I1 I2 S1 S1 ... S2 S2 LSB | | | MSB LSB | | | MSB Q-code 2 and 5; I-size MUST be 6 Points/Objects are I1 .. I2 inclusive Note: 8 and 16-bit object sizes can also be used by using I-size 4 and 5 Important Note !!! Do NOT use Q-code 6 for describing a message which contains data objects as the exact number of points are not known and therefore the contents of the message cannot be determined.

3-24

DNP Users Group

Use Q-code 7-9 for describing a number of unrelated points: Quantity DO 8 bit I0 .... Q DO Q-code 7; I-size MUST be 0 Points/Objects are 0 .. Q-1 inclusive I(Q-1) Q-code 7; I-size MUST be 1 Points/Objects are I1, I2 .. IQ inclusive

Quantity Index DO Index DO 8 bit I1 I1 .. IQ IQ Q LSB LSB

Quantity Index DO Index DO 8 bit inclusive I1 I1 .... IQ IQ Q LSB | MSB LSB | MSB

Q-code 7; I-size MUST be 2 Points/Objects are I1, I2 .. IQ

Quantity Index DO Index DO 3 8 bit I1 I1 ..... IQ I1 Q LSB | | | MSB LSB | | | MSB LSB MSB 16 bit Quantity DO Q ... | I0 DO I(Q-1)

Q-code 7; I-size MUST be Points/Objects are I1, I2 .. IQ inclusive

Q-code 8; I-size MUST be 0 Points/Objects are 0 .. Q-1 inclusive

LSB MSB 16 bit Quantity Index DO | LSB I1 Q I1

Index DO LSB IQ IQ

Q-code 8; I-size MUST be 1 Points/Objects are I1,I2 .. IQ inclusive

LSB MSB 16 bit Quantity Index DO Index DO | LSB | MSB ...... LSB | MSB inclusive | I1 IQ Q I1 IQ

Q-code 8; I-size MUST be 2 Points/Objects are I1,I2 .. IQ

LSB MSB 16 bit Quantity Index DO Index DO 3 | LSB | | | MSB ..... LSB | | | MSB .. IQ I1 IQ Q I1 IQ LSB MSB 32 bit Quantity DO | | | .... IQ I1

Q-code 8; I-size MUST be Points/Objects are I1,I2 inclusive

DO IQ

Q-code 9; I-size MUST be 0 Points are I1, I2 .. IQ inclusive

LSB MSB 32 bit Quantity Index DO Index DO 1 | | | LSB .... LSB Q I1 I1 I2 I2

Q-code 9; I-size MUST be Points are I1, I2 .. IQ

DNP V3.00 Application Layer (Version 0.03)

3-25

LSB MSB 32 bit Quantity Index DO Index 2 | | | LSB | MSB ... LSB | MSB Q I1 I1 I2

Q-code 9; I-size MUST be Points are I1, I2 .. IQ

LSB MSB 32 bit Quantity Index Index MUST be 3 | | | LSB | | | MSB .... LSB | | | MSB .. IQ Q I1 I2

Q-code 9; I-size Points are I1, I2

Use qualifier 11 when describing points that need to be uniquely identified by an object identifier such as a File Object Identifier or Configuration Header. The type of identifier is implied by the object type: 8-bit 8-bit DO 8-bit DO O11 O11 .... O1N ... OQ1... OQN Q Size N1 ID1 Size NQ IDQ Q-code 11; Index size MUST be 1 Octets Oi1 .. OiN form the object identifier for Object i where 0<=i<Q (quantity) which is followed by the object identified. The size of the object is contained in the Object Identifier so the Application Layer must be able to interpret some fields of the Object Identifier in order to process a message.

16-bit 16-bit DO LSB | MSB LSB | MSB O1 O2 .... ON Q Size N ID1

Q-code 11; I-size MUST be 2 Octets 1 to N are the object identifier

As for the previous case, there could be many identifiers each one following the other. 32-bit 32-bit DO LSB | | | MSB LSB | | | MSB O1 O2 .... ON Q Size N ID1

Q-code 11; I-size MUST be 3 Octets 1 to N are the object identifier

As for the previous case, there could be many identifiers each one following the other.

Figure 3-16 Messages With Data Objects

3-26

DNP Users Group

4. DETAILED FUNCTION CODE DESCRIPTIONS


This section describes the application layer function codes with examples. The application headers containing the application control, function code and internal indication have been omitted from most of the examples but are always present in reality. The requests and responses are assumed to consist of one fragment each. An example of a multiple fragment message is illustrated in the description of function code 0.

4.1 CONFIRM (FUNCTION CODE 0)


The confirm function is used to confirm the reception of a message fragment when the application control field (AC) in the received fragment has the CON bit set. Note the CON bit in the confirmation message may be set to 0 or 1. This allows the option of having the confirmation message confirmed. However, any station receiving a message fragment with the CON bit set MUST respond with a CONFIRMation message BEFORE sending any other application layer message. In addition, any station that sends a message fragment with the CON bit set must wait until the CONFIRMation message arrives before continuing with message fragment transmission or another transaction. The confirmation response for a single fragment message is illustrated in Figure 4-1.
Application Control Function FIR = 1, FIN = 1, CON = ? Code = 0

Figure 4-1 Confirmation Message


Request Header Read request that will result in FIR = 1, FIN = 1, a multiple fragment response CON = 0

Read request, CON = 0 indicates no application confirmation expected for request.

DNP V3.00 Application Layer (Version 0.03)

4-1

Response Header ASDU of first fragment of the response FIR = 1, FIN = 0 CON = 1

First fragment of response. CON = 1 indicates the Outstation is expecting an application confirmation of the reception of this fragment.
Request Header Function FIR = 1, FIN = 1, CON = 0 Code = 0

Confirmation sent by the requesting station


Response Header ASDU of second fragment FIR = 0, FIN = 0 of response CON = 1

The second fragment of the response


Request Header Function FIR = 1, FIN = 1, CON = 0 Code = 0

Confirmation of the second fragment


Response Header ASDU of last fragment of the response FIR = 0, FIN = 1 CON = 1

The last fragment of the response


Request Header Function FIR = 1, FIN = 1, CON = 0 Code = 0

Confirmation of the last fragment of the response

4.2 READ (FUNCTION CODE 1)


The read function is the basic code used for requesting data objects from a Outstation. The object, qualifier and range field are coded in such a way that their size can be calculated allowing requests for multiple objects or ranges to be sent in a single message. 4-2
DNP Users Group

The number of multiple requests allowed in a single message is defined in the device profile of each device DNP is implemented on. The read request for a single range of objects is illustrated in Figure 4-2. Figure 4-3 illustrates the request for 2 object types or possibly 2 ranges of the same object type.
Request Header Object Qualifier Range AC FC = 1

Figure 4-2 Single Object Request


first Read request second Read request Request Header Object Qualifier Range Object Qualifier Range AC | FC = 1

Figure 4-3 Multiple Objects or Ranges 4.2.1 Read Requests The following examples illustrate some legal qualifier and range combinations for the read function code.
octet 1 2 3 4 5 Object gv Qualifier AC FC = 1 g = n v = 0 0000 0110 | 0 6

Read object group n. The qualifier code specifies all the defined objects of the group defined at the Outstation. This qualifier code also indicates the range field is not present. The index size has no meaning and is set to 0. The Outstation may respond with any or all objects of the defined group. This method is useful for requesting event data because the requesting station does not know in advance which points have generated events.
octet 1 2 3 4 5 6 7 Object gv Qualifier Range AC FC = 1 g = n v = x 0000 | 0000 Start Stop | 0 0 7 | 9

Read object group n variation x. The qualifier code specifies a range field with a 1 octet start and stop sub-field. The range field specifies 3 objects starting at index 7 to index 9 inclusive. The index size has no meaning and is set to 0. 4-3

DNP V3.00 Application Layer (Version 0.03)

The Outstation may respond within the range specified. This method is useful for requesting specific data that is known to be valid at the time of the request.
octet 1 2 3 4 5 6 7 8 9 object gv Qualifier Range AC FC = 1 g = n v = x 0000 0001 Start Stop | 0 1 700 702

Read object group n, variation x. The qualifier code specifies a range field with a 2 octet start and stop sub-field. The range field specifies 3 objects starting at index 700 to index 702 inclusive. The index size has no meaning and is set to 0. The Outstation may respond within the range specified. This method is useful for requesting specific data that is known to be valid at the time of the request.

octet 1 2 3 4 5 6 7 8 9 10 11 12 13 Object gv Qualifier | | | Range | | | AC FC = 1 g = n v = x 0000 0010 Start Stop | 0 2 70000 70002

Read object group n, variation x. The qualifier code specifies a range field with a 4 octet start and stop sub-field. The range field specifies 3 objects starting at index 70000 to index 70002 inclusive. The Index Size field has no meaning and is set to 0. The Outstation may respond within the range specified. This method is useful for requesting specific data that is known to be valid at the time of the request.

octet 1 2 3 4 5 6 7 Object gv Qualifier Range AC FC = 1 g = n v = x 0000 0011 Start Stop | 0 3 7 9

Read object group n, variation x. In this case n and x would specify a generic octet object The qualifier code specifies a range field with a 1 octet start and stop sub-field. The range field specifies a starting virtual address of 7 and a virtual ending address of 9. The Index Size field has no meaning and is set to 0. The Outstation may respond within the range specified. This method is useful for requesting specific bytes from the memory of some remote application. NOTE: Virtual addressing is normally used only for diagnostic or manufacturing tests as intimate knowledge of the Outstation is needed to interpret the response.
DNP Users Group

4-4

octet 1 2 3 4 5 6 7 8 9 Object gv Qualifier | Range | AC FC = 1 g = n v = x 0000 0100 Start Stop | 0 4 700 702

Read object group n, variation x. In this case n and x would specify a generic octet object. The qualifier code specifies a range field with a 2 octet start and stop sub-field. The range field specifies a starting virtual address of 700 and a virtual ending address of 702. The Index Size field has no meaning and is set to 0. The Outstation may respond within the range specified. This method is useful for requesting specific bytes from the memory of some remote application. NOTE: Virtual addressing is normally used only for diagnostic or manufacturing tests as intimate knowledge of the Outstation is needed to interpret the response.

octet 1 2 3 4 5 6 7 8 9 10 11 12 13 Object gv Qualifier | | | Range | | | AC FC = 1 g = n v = x 0000 0101 Start Stop | 0 5 70000 70002

Read object group n, variation x. In this case n and x would specify a generic octet object. The qualifier code specifies a range field with a 4 octet start and stop sub-field. The range field specifies a starting virtual address of 70000 and a virtual ending address of 70002. The index size has no meaning and is set to 0. The Outstation may respond within the range specified. This method is useful for requesting specific bytes from the memory of some remote application. NOTE: Virtual addressing is normally used only for diagnostic or manufacturing tests as intimate knowledge of the Outstation is needed to interpret the response.

octet 1 2 3 4 5 6 Object gv Qualifier Range AC FC = 1 g = n v = p 0000 0111 Quantity | 0 7 3

Read object group n variation p. The qualifier code specifies a 1 octet quantity. The range field specifies 3 objects. The index size has no meaning and is set to 0. 4-5

DNP V3.00 Application Layer (Version 0.03)

This method is useful for requesting a limited amount of data of a particular variation (e.g. analog change events) as the receiving station may not be able to handle the entire data base of the Outstation.
octet 1 2 3 4 5 6 7 Object gv Qualifier Range AC FC = 1 g = n v = p 0000 1000 Quantity | 0 8 400

Read object group n variation p. The qualifier code specifies a 2 octet quantity. The range field specifies 400 objects. The index size has no meaning and is set to 0. This method is useful for requesting a limited amount of data of a particular variation (e.g. binary input with time objects) as the receiving station may not be able to handle the entire data base (i.e. analog) of the Outstation.

octet 1 2 3 4 5 6 7 8 9 Object gv Qualifier Range AC FC = 1 g = n v = p 0000 1001 Quantity | 0 9 | 70000 |

Read object group n variation p. The qualifier code specifies a 4 octet quantity. The range field specifies 70000 objects. The index size has no meaning and is set to 0. This method is useful for requesting a limited amount of data of a particular variation as the receiving station may not be able to handle the entire data base (i.e. analog) of the Outstation.

octet 1 2 3 4 5 6 7 8 9 Object gv Qualifier Range Indices AC FC = 1 g = n v = x 0001 0111 Quantity 11 22 108 1 7 3

Read object group n, variation x. The qualifier code specifies a list of objects in the index field. The range field specifies that the list contains 3 entries. The index size specifies each entry in the list is a 1 octet index. This method is useful for requesting some specific points from the remote device. For example, some critical status points may be requested for analysis or reporting purposes.

4-6

DNP Users Group

NOTE:

The range field is always the same size as an entry in the index list. This format would normally be used when the indices have values between 0 and 255.

octet 1 2 3 4 5 6 7 8 9 10 11 12 13 Object gv Qualifier Range Indices AC FC = 1 g = n v = x 0010 0111 Quantity 311 422 108 | 2 7 3 | | |

Read object group n, variation x. The qualifier code specifies a list of objects in the index field. The range field specifies the list contains 3 entries. The index size specifies each entry in the list is a 2 octet index. This method is useful for requesting some specific points from the remote device. For example, some critical status points may be requested for analysis or reporting purposes. The range field is always the same size as an entry in the index list. This format would normally be used when some or all of the indices have values greater than what will fit in 1 octet.

NOTE:

octet 1 2 3 4 5 6 7 8 9 18 19 20 21 Object gv Qualifier Range Indices AC FC = 1 g = n v = x 0011 0111 Quantity | 3 7 3 70000 76000 90000

Read object group n, variation x. The qualifier code specifies a list of objects in the index field. The range field specifies the list contains 3 entries. The index size specifies each entry in the list is a 4 octet index. This method is useful for requesting some specific points from the remote device. For example, some critical status points may be requested for analysis or reporting purposes. The range field is always the same size as an entry in the index list.

NOTE:

octet 1 2 3 4 5 6 7 ..... Object gv Qualifier Range Identifier AC FC = 1 g = n v = v 0001 1011 Quantity | 1 11 1 Size | Object Identifier Size octets

Read object group n variation v (in this case the group and variation identify the object identifier).

DNP V3.00 Application Layer (Version 0.03)

4-7

The qualifier code specifies a list of object identifiers in the identifier field and the range field is an 8 bit quantity. The size field is also an 8-bit quantity specifying that the object identifier is 'size' octets in length. The range field specifies the list contains 1 entry. The index size specifies that the quantity field and Size field are 8-bit in length. This method is useful for reading configurations from a remote device (if the File Object Identifier is used). This method is however the only way in which to request a data object that is larger than one fragment in size. 4.2.2 Read Responses This section defines some of the legal forms of an object header prefixing the objects in a response to a read request.
octet 1 2 3 4 5 Object gv Qualifier Range group = n 0000 0000 Start Stop variation = v 0 0 7 9 ....

.....

Objects following this header are group n, variation v. The qualifier code specifies a range field with a 1 octet start and stop sub-fields. The range field specifies 3 objects starting at index 7 to index 9 inclusive follow this header The index size has no meaning and is set to 0 as the start and stop field identify the index of each object.
octet 1 2 3 4 5 6 7 .... Object gv Qualifier Range group = n 0000 0001 Start Stop variation = v 0 1 300 302 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with 2 octet start and stop sub-fields. The range field specifies 3 objects starting at index 300 to index 302 inclusive follow this header. The index size has no meaning and is set to 0 as the start and stop field identify the index of each object.
octet 1 2 3 4 5 6 7 8 9 10 11 .... Object gv Qualifier Range group = n 0000 0010 Start Stop variation = v 0 2 70000 70002 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with 4 octet start and stop sub-fields. 4-8

DNP Users Group

The range field specifies 3 objects starting at index 70000 to index 70002 inclusive follow this header. The index size has no meaning and is set to 0 as the start and stop field identify the index of each object.
octet 1 2 3 4 5 ..... Object gv Qualifier Range group = n 0000 0011 Start Stop variation = v 0 3 7 9 .....

Objects following this header are group n, variation v. The qualifier code specifies a range field with a 1 octet start and stop sub-fields. The range field specifies the contents of virtual addresses 7 to 9 inclusive following this header. The index size has no meaning and is set to 0 as the start and stop field identify the index of each object.
octet 1 2 3 4 5 6 7 .... Object gv Qualifier Range group = n 0000 0100 Start Stop variation = v 0 4 300 302 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with 2 octet start and stop sub-fields. The range field specifies the contents of virtual addresses 300 to 302 inclusive following this header. The index size has no meaning and is set to 0 as the start and stop field identify the index of each object.
octet 1 2 3 4 5 6 7 8 9 10 11 .... Object gv Qualifier Range group = n 0000 0101 Start Stop variation = v 0 5 70000 70002 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with 4 octet start and stop sub-fields. The range field specifies the contents of virtual addresses 70000 to 70002 inclusive following this header. The index size has no meaning and is set to 0 as the start and stop field identify the index of each object.

DNP V3.00 Application Layer (Version 0.03)

4-9

octet 1 2 3 4 .... Object gv Qualifier Range group = n 0000 0111 3 variation = v 0 7 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with a 1 octet quantity. The range field specifies 3 objects. The index size specifies the objects are packed with no indices prefixing them. This implies the first object in the message has an index of 0 and the last object in this example will have an index of 2.

octet 1 2 3 4 .... Object gv Qualifier Range group = n 0001 0111 3 variation = v 1 7 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with a 1 octet quantity. The range field specifies 3 objects. The index size specifies the objects are prefixed with 1 octet index identifiers.

octet 1 2 3 4 .... Object gv Qualifier Range group = n 0010 0111 3 variation = v 2 7 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with a 1 octet quantity. The range field specifies 3 objects. The index size specifies the objects are prefixed with 2 octet index identifiers.

octet 1 2 3 4 .... Object gv Qualifier Range group = n 0011 0111 3 variation = v 3 7 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with a 1 octet quantity. The range field specifies 3 objects. The index size specifies the objects are prefixed with 4 octet index identifiers.

4-10

DNP Users Group

octet 1 2 3 4 .... Object gv Qualifier Range group = n 0100 0111 Quantity variation = v 4 7 1 ....

Objects following this header are group n, variation v. The qualifier code specifies the range field is an 8 bit quantity. The range field specifies the number of the objects in the data field. The index size specifies the objects are prefixed with 1 octet object sizes. Note that since the object indices are not specified (and the response and request do not have to match), the data object itself must contain some unique identification (such as a time-stamp).

octet 1 2 3 4 5 .... Object gv Qualifier Range group = n 0000 1000 3 variation = v 0 8 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with a 2 octet quantity. The range field specifies 3 objects. The index size specifies the objects are packed with no indices prefixing them. This implies the first object in the message has an index of 0 and the last object in this example will have an index of 2. Note that since the object indices are not specified (and the response and request do not have to match), the data object itself must contain some unique identification (such as a time-stamp).
octet 1 2 3 4 5 .... Object gv Qualifier Range group = n 0001 1000 3 variation = v 1 8 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with a 2 octet quantity. The range field specifies 3 objects. The index size specifies the objects are prefixed with a 1 octet index identifier.

octet 1 2 3 4 5 .... Object gv Qualifier Range group = n 0010 1000 300 variation = v 2 8 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with a 2 octet quantity. The range field specifies 300 objects.
DNP V3.00 Application Layer (Version 0.03)

4-11

The index size specifies the objects are prefixed with a 2 octet index identifier.
octet 1 2 3 4 5 .... Object gv Qualifier Range group = n 0011 1000 300 variation = v 3 8 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with a 2 octet quantity. The range field specifies 300 objects. The index size specifies the objects are prefixed with a 4 octet index identifier.

octet 1 2 3 4 5 .... Object gv Qualifier Range group = n 0101 1000 Quantity variation = v 5 8 ....

Objects following this header are group n, variation v. The qualifier code specifies the range field is a 16 bit quantity. The range field specifies the number of objects in the data field. The index size specifies the objects are prefixed with 2 octet object sizes. Note that since the object indices are not specified (and the response and request do not have to match), the data object itself must contain some unique identification (such as a time-stamp).

octet 1 2 3 4 5 6 7 .... Object gv Qualifier Range group = n 0000 1001 3 variation = v 0 9 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with a 4 octet quantity. The range field specifies 3 objects. The index size specifies the objects are packed with no indices prefixing them. This implies the first object in the message has an index of 0 and the last object in this example will have an index of 2.

octet 1 2 3 4 5 6 7 .... Object gv Qualifier Range group = n 0001 1001 3 variation = v 1 9 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with a 4 octet quantity. The range field specifies 3 objects. 4-12
DNP Users Group

The index size specifies the objects are prefixed with a 1 octet index identifier.
octet 1 2 3 4 5 6 7 .... Object gv Qualifier Range group = n 0010 1001 3 variation = v 2 9 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with a 4 octet quantity. The range field specifies 3 objects. The index size specifies the objects are prefixed with 2 octet index identifiers.

octet 1 2 3 4 5 6 7 .... Object gv Qualifier Range group = n 0010 1001 3 variation = v 3 9 ....

Objects following this header are group n, variation v. The qualifier code specifies a range field with a 4 octet quantity. The range field specifies 3 objects. The index size specifies the objects are prefixed with 4 octet index identifiers.

octet 1 2 3 4 5 6 7 .... Object gv Qualifier Range group = n 0100 1001 Quantity variation = v 4 9 ....

Objects following this header are group n, variation v. The qualifier code specifies the range field is a 32 bit quantity. The range field specifies the number of the objects in the data field. The index size specifies the objects are prefixed with 1 octet object sizes. Note that since the object indices are not specified (and the response and request do not have to match), the data object itself must contain some unique identification (such as a time-stamp).

DNP V3.00 Application Layer (Version 0.03)

4-13

The read response can also consist of a multi-fragment message with each object identifier specifying different portions (pages) of the entire object:
Fragment #1: FC=129, CON=? FIR=1 FIN=0 octet 1 2 3 4 5 6 7 ..... Object gv Qualifier Range Identifier Data g = n v = v 0001 1011 Quantity for | 1 11 1 Size Object Identifier for piece 1 piece 1 Size octets Fragment #2: FC=129, CON=? FIR=0 FIN=0 octet 1 2 3 4 5 6 7 ..... Object gv Qualifier Range Identifier Data g = n v = v 0001 1011 Quantity for | 1 11 1 Size Object Identifier for piece 2 piece 2 Size octets Fragment #3: FC=129, CON=? FIR=0 FIN=1 octet 1 2 3 4 5 6 7 ..... Object gv Qualifier Range Identifier Data g = n v = v 0001 1011 Quantity for | 1 11 1 Size Object Identifier for piece 3 piece 3 Size octets

Read object group n variation v (in this case the group and variation identify the object identifier). The qualifier code specifies a list of object identifiers in the identifier field and the range field is an 8 bit quantity. The size field is also an 8-bit quantity specifying that the object identifier plus data following the identifier is 'size' octets in length. The range field specifies the list contains 1 entry. The index size specifies that the quantity field and Size field are 8-bit in length. This method is useful for reading configurations from a remote device (if the File Identifier Object is used). This method is however the only way in which to request a data object that is larger than one fragment in size. Note that each fragment is digestible by the requesting station because each object identifier specifies a unique portion of the object.

4.3 WRITE (FUNCTION CODE 2)


The write function code is used for moving objects from a master station to an Outstation. Figure 4-4 illustrates the general format of a message writing single object type or range. Figure 4-5 illustrates the writing of multiple objects or ranges. The object header is defined the same as in a read request. Figure 4-6 is an example of the writing of a configuration to an Outstation. The response from the Outstation is always a function code followed by the IIN. Typical uses of the Write function are to download configuration or files to an Outstation and to set the time in the Outstation.

4-14

DNP Users Group

........... Object Header AC FC = 2 Object(s) and prefixing indices or identifiers ...........

Figure 4-4 Single Object Range Write


........... ........ Object Header Object Header AC FC = 2 Object(s) Objects(s) ......... .........

Figure 4-5 Multiple Object or Multiple Ranges 4.3.1 Write Requests The Write request transfers a multi-fragment object to a remote device. The Write Request is typically used for writing objects such as the Internal Indication Object, File Identifier Objects and the Time and Date Object. Each fragment contains identifying information for each portion of the entire object.
octet 1 2 3 4 5 6 7 ..... AC Object gv Qualifier Range Identifier Data FIN=0 FC = 2 g = n v = v 0001 1011 Quantity for FIR=1 | 1 11 1 Size Object Identifier for piece 1 piece 1 Size octets octet 1 2 3 4 5 6 7 ..... AC Object gv Qualifier Range Identifier Data FIN=0 FC = 2 g = n v = v 0001 1011 Quantity for FIR=0 | 1 11 1 Size Object Identifier for piece 2 piece 2 Size octets octet 1 2 3 4 5 6 7 ..... AC Object gv Qualifier Range Identifier Data FIN=1 FC = 2 g = n v = v 0001 1011 Quantity for FIR=0 | 1 11 1 Size Object Identifier for piece 3 piece 3 Size octets

Write object group n variation v (in this case the group and variation identify the object identifier). The qualifier code specifies a list of object identifiers in the identifier field and the range field is an 8 bit quantity. The size field is also an 8-bit quantity specifying that the object identifier plus data is 'size' octets in length The range field specifies the list contains 1 entry. The Data field contains the data (of size specified in the identifier) belonging to the identified object. This method is useful for downloading configurations to a remote device (if the File Object Identifier is used) as the contents of the Data filed is not interpreted by the
DNP V3.00 Application Layer (Version 0.03)

4-15

application layer. This method is however the only way in which to send a data object that is larger than one fragment in size. The Write request below sets the time of day in the Outstation.
octet 1 2 3 4 5 6 7 ..... AC Object gv Qualifier Range Time Object FIN=1 FC = 2 g = n v = v 0000 0000 Quantity FIR=1 | 0 00 1

The qualifier specifies a 1 octet quantity; the quantity field specifies 1 object and the Object field identifies the object as a Time and Date Object. 4.3.2 Write Responses The response to a Write request can only consist of the IIN (Internal Indications) that indicates the success of the Write operation and so there is no ASDU portion of a Write response. The response always uses the Response function code.

4.4 SELECT (FUNCTION CODE 3)


The select function code is used to select one or more control points at an Outstation. These may be control relay outputs, analog outputs or pattern control blocks. This function does not output or activate the new state or value but makes them ready (arms them) and reports their status. An additional operate message must be sent to the Outstation to actually activate the request. The operate message control objects must match the control objects in the preceding select message before the activation takes place. The select message causes the Outstation to starts a timer. The operate message must be received correctly before the timer expires in order for the activation to take place. There are two forms to the control messages. The first form is for control blocks with a fixed size and the second form is for a control block of variable size. The variable sized control block is for pattern outputs. Figure 4-6 illustrates a select message (fixed size control blocks) sent from a master station to an Outstation. The Outstation responds to a select message by arming the specified points (specified by the index preceding the control blocks) and returning the request in the response as illustrated in Figure 4-7 (fixed size control blocks). The response is identical to the request except that it includes the IIN and modified status bytes (part of the control block objects). The status bytes state the success or failure of the Select request.

4-16

DNP Users Group

Object gv Qualifier Range control control AC FC = 3 group = n 0001 0111 Quantity index block index block variation = v 1 7 2 object 1 object 2

Figure 4-6 Master Selection of Two Control or Analog Outputs Object following this header is group n (must be a control block object relating to outputs or setpoints), variation v. The qualifier code specifies a range field with a 1 octet quantity of control blocks. The index size specifies 1 octet indices prefixing each control block.
Object gv Qualifier Range control control AC FC IIN group = n 0001 0111 Quantity index block index block variation = v 1 7 object 1 object 2

Figure 4-7 Outstation Response The Outstation response control objects must match the control objects (byte for byte) in the request or the operate message will not be sent. 4.4.1 Pattern Control Figure 4-8 illustrates a master station select message for a pattern and Figure 4-9 an Outstation response.
Object gv Qualifier Quantity pattern AC FC = 3 group = a 0000 0111 control variation = b 0 7 1 block ... (continued) Object gv Qualifier Range pattern pattern pattern pattern group = c 0000 0000 Start | Stop mask mask mask mask variation = d 0 0 5 8 object 5object 6object 7object 8

Figure 4-8 Master Selection of a Pattern Output The first object, Object a, Variation b, specified is a Pattern Control Block which describes all the parameters that are common to the control points specified in the Pattern Mask Objects. Following this object are a number of Pattern Mask objects, Object c, Variation d, which describe whether or not the point should be activated. The first qualifier code specifies a 8-bit range (quantity) field which specifies one (1) Pattern Control Block. The second qualifier code specifies a range field with a 1 octet start and stop sub-field. This range specifies the Pattern Mask Objects which are to be considered for the pattern control.

DNP V3.00 Application Layer (Version 0.03)

4-17

The above message constitutes one pattern control request. Multiple requests (Pattern Control Block followed by multiple Pattern Mask Objects) can be sent in one message as long as the total size of the requests can fit into one application layer fragment.
Object gv Qualifier Quantity pattern AC FC=128 group = a 0000 0111 control variation = b 0 7 1 block ... (continued) Object gv Qualifier Range pattern pattern pattern pattern group = c 0000 0000 Start | Stop mask mask mask mask variation = d 0 0 5 8 object 5object 6object 7object 8

Figure 4-9 Outstation Response to the Pattern Select Message Notice that the format of the response is identical to the request message (except the application response header). The objects returned will be used by the master to verify the success of the select operation.

4.5 OPERATE (FUNCTION CODE 4)


The operate function code is used to activate one or more control or analog outputs at an Outstation. A matching message using the select function code must previously have been received, and the arm timer must still be active before the activation will take place. The format of this message is the same as a select message except the function code is 4.
Object gv Qualifier Range control control AC FC = 4 group = n 0000 0111 Quantity block 1 block 2 variation = v 0 7 2

Figure 4-10 Master Selection of Two Outputs or Setpoints Object following this header is group n (must be a control block object relating to outputs or setpoints), variation v. The qualifier code specifies a range field with a 1 octet quantity of control blocks.
Object gv Qualifier Range control control AC FC IIN group = n 0000 0111 Quantity block 1 block 2 variation = v 0 7 2

Figure 4-11 Outstation Response Object following this header is group n (must be a control block object relating to outputs or setpoints), variation v. The qualifier code specifies a range field with a 1 octet quantity of control blocks. Indication of the success or failure of the operations is returned in the Output Status bytes, one of which is built into each of the control block objects. In the case of a 4-18
DNP Users Group

Pattern Mask object, the status is part of the Pattern Control Block object preceding the mask.

4.6 DIRECT OPERATE (FUNCTION CODE 5)


The direct operate function code is used to activate one or more outputs or setpoints at an Outstation. A preceding select message is not required. The format of this message is the same as a select or operate message except the function code is 5.
Object gv Qualifier Range control control AC FC = 5 group = n 0000 0111 Quantity block 1 block 2 variation = v 0 7 2

Figure 4-12 Master Selection of Two Outputs or Setpoints Object following this header is group n (must be a control block object relating to outputs or setpoints), variation v. The qualifier code specifies a range field with a 1 octet quantity of control blocks.
Object gv Qualifier Range control control AC FC IIN group = n 0000 0111 Quantity block 1 block 2 variation = v 0 7 2

Figure 4-13 Outstation Response Object following this header is group n (must be a control block object relating to outputs or setpoints), variation v. The qualifier code specifies a range field with a 1 octet quantity of control blocks.

4.7 DIRECT OPERATE - NO ACKNOWLEDGEMENT (FUNCTION CODE 6)


The direct operate No Acknowledgement function code is used to activate one or more outputs or setpoints at a Outstation. A preceding select message is not required. The format of this message is the same as a select or operate message except the function code is 6 and the Outstation does not respond with a message to the master station.
Object gv Qualifier Range control control AC FC = 6 group = n 0000 0111 Quantity block 1 block 2 variation = v 0 7 2

Figure 4-14 Master Selection of Two Outputs or Setpoints Object following this header is group n (must be a control block object relating to outputs or setpoints), variation v. The qualifier code specifies a range field with a 1 octet quantity of control blocks.
DNP V3.00 Application Layer (Version 0.03)

4-19

4.8 IMMEDIATE FREEZE (FUNCTION CODE 7)


This function code is used to copy the specified data objects to a freeze buffer. Upon reception of the message, the Outstation should copy the current values of the specified data objects to their appropriate freeze buffers. The objects which were frozen can be requested (in another request) by asking for frozen objects.
Object Header Object Header AC FC = 7 ...

Figure 4-15 Master Immediate Freeze Control Message The request can contain multiple object headers which specify many objects to freeze. Typically, however, only counter objects are frozen.
AC FC IIN

Figure 4-16 Outstation Response to Immediate Freeze The Outstation response can indicate (in the IIN) that the objects in the request are not known.

4.9 IMMEDIATE FREEZE - NO ACKNOWLEDGEMENT (FUNCTION CODE 8)


This function code works identically to the previous function code (Immediate Freeze) except that no Outstation response is needed. Typically, this function code is used to perform a global freeze on all Outstations belonging to the master. In this case, the SEND-NO REPLY services of the Data Link Layer may have to be used in certain environments.
Object Header Object Header AC FC = 8 ...

Figure 4-17 Master Immediate Freeze No-Ack Control Message

4.10 FREEZE AND CLEAR (FUNCTION CODE 9)


This function code is used to copy the specified data to a freeze buffer like the freeze immediate function code but then the Outstation clears ( to 0 ) the specified data objects. 4-20
DNP Users Group

Typically, this function code is used to freeze counters or accumulators and then reset them to 0.
Object Header Object Header AC FC = 9 ...

Figure 4-18 Master Freeze and Clear Control Message


AC FC IIN

Figure 4-19 Outstation Response to Freeze and Clear Request

4.11 FREEZE AND CLEAR - NO ACKNOWLEDGEMENT (FUNCTION CODE 10)


This function code works identically to the previous function code (Freeze and Clear) except that no Outstation response is needed. Typically, this function code is used to perform a global freeze and clear on all Outstations belonging to the master.
Object Header Object Header AC FC= 10 ...

Figure 4-20 Master Freeze and Clear No-Ack Control Message

4.12 FREEZE WITH TIME (FUNCTION CODE 11)


This function code initiates the periodic freezing of the specified data objects. The Time and Date with Interval object sent preceding the objects to freeze is described in the table below. As shown, the object has two components: a time field (absolute) and an interval time field. The value of these fields determines the behaviour of the Outstation freezing.
TIME non zero zero zero INTERVAL zero zero non zero DESCRIPTION Freeze once at specified time. Freeze Immediately. Freezing is synchronized to the beginning of the current hour. The first freeze will occur at the smallest multiple greater than or equal to the current time. Subsequent freezes will occur at each interval increment. Start freezing at the specified time and repeat at each interval increment thereafter

non zero

non zero

DNP V3.00 Application Layer (Version 0.03)

4-21

Object Header Time Object Object Header(s) AC FC = 11 for time object Time and Date Interval for data objects to freeze

Figure 4-21 Master Freeze With Time Message


AC FC IIN

Figure 4-22 Outstation Response to Freeze With Time The time object must contain the time and interval. These objects are defined in the DNP Data Object Library (P009-0BL). Example: A time object specifies the time of day as 2:32 pm and an interval of 10 minutes. The first freeze will occur at 2:32 pm and subsequent freezes every 10 minutes starting from 2:42 pm.

4.13 FREEZE WITH TIME - NO ACKNOWLEDGEMENT (FUNCTION CODE 12)


This function code works identically to the previous function code (Freeze With Time) except that no Outstation response is needed. Typically, this function code is used to perform a global freeze with time on all Outstations belonging to the master. In this case, the SEND-NO REPLY services of the Data Link Layer may have to be used in certain environments.
Object Header Time Object Object Header(s) AC FC = 12 for time object Time and Date Interval for data objects to freeze

Figure 4-23 Master Freeze With Time No-Ack Message

4.14 COLD RESTART (FUNCTION CODE 13)The cold restart function code makes the Outstation perform a complete restart of the user application , as if it has been newly powered up.
AC FC = 13

4-22

DNP Users Group

Figure 4-24 Master Cold Restart Control Message


Object Time Delay AC FC IIN Header Object for time

Figure 4-25 Outstation Response to Cold Restart Request The Outstation, upon receiving the Cold Restart request will response with a Time Delay Object (Time Delay Fine or Time Delay Course) which specifies a time interval until the Outstation will be ready for further communications. The master should not attempt to communicate with the Outstation until the interval has elapsed. The interval allows the Outstation to perform a restart sequence and enable DNP communications again. After the response is sent (and transaction was successful) the Outstation should perform the restart procedure. The Time Delay Fine object is defined in the DNP Data Object Library (P009-0BL).

4.15 WARM RESTART (FUNCTION CODE 14)


This code restart function code specifies that the Outstation perform a restart, but it is not necessary to run through the entire reset sequence (only certain applications need be restarted). The DNP application may reset itself without resetting other subsystems or processes. Typically this function makes an Outstation application initialize its configuration and clear events stored in its local buffers.
AC FC = 14

Figure 4-26 Master Warm Restart Control Message


Object Time Delay AC FC IIN Header Object for time

Figure 4-27 Outstation Response to Warm Restart Request The Outstation response is identical to the response to the Cold Restart function code and should be interpreted in the same way. The Time Delay Object is actually a Time Delay Fine or Time Delay Course object.

4.16 INITIALIZE DATA (FUNCTION CODE 15)

DNP V3.00 Application Layer (Version 0.03)

4-23

This function code specifies that configurable data is to be set to the initial or default settings. For example, this function could be used to clear counters. Note that the initial settings are NOT contained in the request.
Object Header AC FC = 15 for data objects to initialize

Figure 4-28 Master Initialize Data Control Message


AC FC IIN

Figure 4-29 Outstation Response to Initialize Data Request The response only indicates the success or failure of the requested operation.

4.17 INITIALIZE APPLICATION (FUNCTION CODE 16)


This function code initializes the specified applications at the Outstation in preparation for execution.
octet 1 2 3 4 5 6 7... Object gv Qualifier Range Application Application AC FC = 16 Group = n 0001 1011 Quantity Identifier Object Variation = v 1 11 1 Size Identifier

Figure 4-30 Master Initialize Application Control Message The object group and variation must specify an application identifier object. The qualifier indicates the range field is an 8 bit quantity specifying the number of object identifiers that follow. The application identifier size field indicates the size of the Application Object Identifier that follows.
AC FC IIN

Figure 4-31 Outstation Response After Initializing Application(s) The Outstation, upon receiving the request, should initialize the specified application(s) and then respond with either the success or failure of the transaction.

4-24

DNP Users Group

4.18 START APPLICATION (FUNCTION CODE 17)


This function code is used to start the specified application(s) at the Outstation.
octet 1 2 3 4 5 6 7... Object gv Qualifier Range Application Application AC FC = 17 Group = n 0001 1011 Quantity Identifier Object Variation = v 1 11 1 Size Identifier

Figure 4-32 Master Start Application Control Message The object group and variation must specify an application identifier object. The qualifier indicates the range field is an 8 bit quantity specifying the number of object identifiers that follow. The application identifier size field indicates the size of the Application Object Identifier that follows.
Object Time Delay AC FC IIN Header Object for time

Figure 4-33 Outstation Response After Starting Application(s) The Outstation, upon receiving the request, should start the specified application(s) and then respond with either the success or failure of the transaction.

4.19 STOP APPLICATION (FUNCTION CODE 18)


This function code informs the Outstation to stop the execution of the specified application.
octet 1 2 3 4 5 6 7... Object gv Qualifier Range Application Application AC FC = 18 Group = n 0001 1011 Quantity Identifier Object Variation = v 1 11 1 Size Identifier

Figure 4-34 Master Stop Application Control Message The object group and variation must specify an application identifier object. The qualifier indicates the range field is an 8 bit quantity specifying the number of object identifiers that follow. The application identifier size field indicates the size of the Application Object Identifier that follows.

DNP V3.00 Application Layer (Version 0.03)

4-25

AC FC IIN

Figure 4-35 Outstation Response After Stopping Application(s) The Outstation, upon receiving the request, should stop the specified application(s) and then respond with either the success or failure of the transaction.

4.20 SAVE CONFIGURATION (FUNCTION CODE 19)


This function initiates the saving of the specified configuration(s) to nonvolatile storage at the Outstation station.
octet 1 2 3 4 5 6 7... Object gv Qualifier Range File File AC FC = 19 Group = n 0001 1011 Quantity Identifier Identifier Variation = v 1 11 1 Object Size Object

Figure 4-36 Master Save Configuration Control Message The object group and variation must specify a configuration or file identifier object. The qualifier indicates the range field is an 8 bit quantity specifying the number of object identifiers that follow. The configuration identifier size field indicates the size of the configuration Object Identifier that follows.
Object Time AC FC IIN Header Object

Figure 4-37 Outstation Response After Saving Configuration(s) The Outstation, upon receiving the request, should save the specified configuration(s) and then respond with either the success or failure of the transaction and a time object (Time Delay Fine or Time Delay Course) which indicates the time at which the Outstation will be available again for communication. The master should not attempt to communicate with the Outstation until the time specified.

4.21 ENABLE SPONTANEOUS MESSAGES (FUNCTION CODE 20)


This function code informs the Outstation to enable spontaneous reporting of the objects specified in the object header. 4-26

DNP Users Group

Object Header(s) AC FC= 20

Figure 4-38 Master Request to Enable Spontaneous Messages


AC FC IIN

Figure 4-39 Outstation Response The Outstation will enable spontaneous messages for all object (types or points) specified in the object header. The master could also send an object header specifying class data. This means that any objects which are configured for the specified class will be enabled for spontaneous messages.

4.22 DISABLE SPONTANEOUS MESSAGES (FUNCTION CODE 21)


This function code informs the Outstation to disable spontaneous reporting of the objects specified in the object header.
Object Header AC FC = 21

Figure 4-40 Master Request to Disable Spontaneous Messages


AC FC IIN

Figure 4-41 Outstation Response to Disable Spontaneous Message The Outstation will disable spontaneous messages for all object (types or points) specified in the object header. The master could also send an object header specifying class data. This means that any objects which are configured for the specified class will be disabled for spontaneous messages.

4.23 ASSIGN CLASSES (FUNCTION CODE 22)


This function is used to assign data objects to classes. 4-27

DNP V3.00 Application Layer (Version 0.03)

.. Class Object Data Object Data Object AC FC = 22 Header Header 1 Header n ..

Figure 4-42 Master Request to Assign Classes to Data The class object header must specify the class object group and a variation between 1 and 3 indicating the class assignment to all the data object (specified by the headers) that follow. The data object header(s) identifies the group, variation and range of the objects to be assigned to the class specified in the class object header preceding the data object header. Multiple sets of Class Object headers followed by one or more Data Object headers can be sent in one message. Each set must not span multiple fragments, however. Static data objects are assigned to Class 0 and cannot be assigned to other classes. Event data objects are assigned to classes 1, 2 and/or 3 and cannot be assigned to Class 0.
AC FC IIN

Figure 4-43 Outstation Response to Assign Classes The Outstation response indicates the success or response of the operation (success or failure determined by the state of the IIN bits).

4.24 DELAY MEASUREMENT (FUNCTION CODE 23)


This function is used to calculate the communication delay for a particular Outstation. It is generally used in the time synchronization process for the Outstations (see section 6. Time Synchronization for a detailed description of the process).
AC FC = 23

Figure 4-44 Master Request to Initiate Delay Measurement Only one time object can be sent in any one separate request.

4-28

DNP Users Group

Time Delay Time Delay AC FC IIN Fine Header Fine object

Figure 4-45 Outstation Reponse to Delay Measurement Request The Outstation responds with the Time Delay Fine object. This object states the number of milliseconds elapsed between the Outstation receiving the first bit of the first byte of the request and the time of transmission of the first bit of the first byte of the response.

DNP V3.00 Application Layer (Version 0.03)

4-29

4-30

DNP Users Group

5. CLASSES
Objects may be assigned to a class. There are four Classes of data. Class 0 is reserved for static data objects (static data reflects the current value of data in the Outstation). Classes 1, 2 and 3 are reserved for event data objects (objects created as the result of data changes in the Outstation or some other stimulant). Each event object can be assigned to Class 1, 2 or 3. Objects may be grouped in Classes by priority (the priority is determined by the user) and the data classes polled at varying rates. The ability to assign data to Classes and the degree of configurability is described in the Outstation's device profile. It is not required that an Outstation have data assigned to Classes 1, 2 or 3. Class data is used by a master station to request pre-assigned data objects on a demand or availability basis from an Outstation. Therefore, a class data object header can be used only in a request (with no associate data object) to indicate to the Outstation which data objects to return. The Outstation will return (in the response) object headers for the ACTUAL data objects and NOT the class object header.

DNP V3.00 Application Layer (Version 0.03)

5-1

5-2

DNP Users Group

6. TIME SYNCHRONIZATION
Time synchronization is handled by the application layer BUT has to make use of special services of the data link layer. The application must initiate the time synchronization sequence by sending the appropriate request or response. To synchronize Master station and Outstation time, the following procedure is used. 1. The Master station sends a Delay Measurement request to the Outstation. The master records the time of transmission of the first bit of the first byte of the request (MasterSendTime). 2. The Outstation receives the first bit of the first byte of the Delay Measurement request at time RtuReceiveTime (this is a local time in the Outstation). 3. The Outstation transmits the first bit of the first byte of the response to the Delay Measurement request at time RtuSendTime. The response contains the Time Delay object (Time Delay Fine or Time Delay Course), with the time in this object equal to RtuTurnAround, where
RtuTurnAround = RtuSendTime - RtuReceiveTime

4. The Master station receives the first bit of the first byte of the Outstation's response at time MasterReceiveTime. 5. The master station can now calculate the one way propagation delay as
Delay = MasterSendTime - MasterReceiveTime - RtuTurnAround ---------------------------------------------------2

6. The master now transmits the first bit of the first byte of a Write request at time MasterSend. The Write request contains the Time and Date object, with the time in the object representing a time equal to (MasterSend + Delay). This is the time that the Master station wants the Outstation to be set to. 7. The Outstation receives the first bit of the first byte of the Write request at time RtuReceive.

DNP V3.00 Application Layer (Version 0.03)

6-1

8. The Outstation will process the Write request, setting the Outstation clock to time NewRtuTime. The following algorithm is used:
Adjustment = CurrentRtuTime - RtuReceive NewRtuTime = (time in the Time and Date object) + Adjustment

9. The Master and Outstation time are now synchronized. NOTE: The Time Synchronization scheme assumes that the Outstation to master propagation delay and the master to Outstation propagation delay are equal.

If desired, the master station may send a global request (using the reserved destination address of FFFF hexadecimal) to simultaneously synchronize all Outstations, only if all path delays are equal.

6-2

DNP Users Group

7. BINARY INPUT WITH TIME EVENTS


An Outstation will often transmit Binary Input with Time or Binary Input with Relative Time objects when digital input points changes state. Binary input event objects are transmitted in different formats depending on different conditions. 1) Outstation Time Synchronized, one event object to send. The data is transmitted in the Binary Input with Time object format. 2) Outstation Time Synchronized, several event object to send. The Time and Date Common Time of Occurrence object is transmitted followed by several Binary Input with Relative Time objects. The time in the Time and Date Common Time of Occurrence object is the time of the oldest object. The relative times start at 0 (for the oldest object) and range upwards relative to the Date and Time object. 3) Outstation Time NOT Synchronized, one or more event object to send. The Unsynchronized Common Time and Date object is transmitted followed by one or more Binary Input with Relative Time objects. The time in the Time and Date Common Time of Occurrence object is the time of the oldest object. The relative times start at 0 (for the oldest object) and range upwards relative to the Time and Date object.

DNP V3.00 Application Layer (Version 0.03)

7-1

7-2

DNP Users Group

8. FILE TRANSFER
The File Identifier Object (FIO) may be used to transfer data files between Outstations and master stations. This is commonly used to write configurations from a master to an Outstation or read configurations from an Outstation to a master. The functionality of the File Identifier Object allows configuration information to be routed to Outstations via intermediate Data Concentrators. A data concentrator is located between a master station and an Outstation - it is effectively an Outstation to the master station and a master station to the Outstation. Note that a Data Concentrator is not just a communication node - it does not directly route messages between a master station and an Outstation. The File Identifier Object is always passed to an Outstation in a request using the WRITE function code. The action to be done (reading, writing or otherwise) is specified by the File_Function field within the object. The response always uses the RESPONSE function code. However, an outstation can send an unsolicited message containing a FIO. The File Identifier Object contains routing information in its File_Name field. This field describes how the object is to be routed from the master station, through any number of intermediate Data Concentrators, to the Outstation. The interpretation of the File_Name field is dependent on the Data Concentrator through which the object is being routed.

8.1 FILE IDENTIFIER OBJECTS PERFORMING WRITE FUNCTIONS


This section describes how a File Identifier Object is passed from a master station through a Data Concentrator to an Outstation. The Outstation may be another Data Concentrator. Note that the request message is using the WRITE function code. The File_Function field in the object will be WRITE, APPEND, INSERT, DELETE or ERASE. The object may or may not contain data (no data for DELETE or ERASE).

DNP V3.00 Application Layer (Version 0.03)

8-1

The following Nomenclature is used: Outstation Application - This is the software application in the Data Concentrator that communicates to the master station. It is an Outstation with respect to the master station. Master Application - This is the software application in the Data Concentrator that communicates to the Outstation. It is a master with respect to the Outstation. The master station send the request (WRITE function code) with the File Identifier Object to the Outstation Application. For the request, the following conditions must be satisfied; DNP WRITE Function Code is used in the request. File_Function field in the object is set to WRITE, APPEND, INSERT, DELETE or ERASE. File_Name field contains an ASCII character string. The length and contents of the string is dependant on the Data Concentrator. The Harris implementation uses a string, the first 9 character of which are "/DNPDCAxx", where xx (2 ASCII characters) contains the Master Application number to which this File Identifier Object must be routed. This information routes the object from the Outstation Application to the Master Application within the Data Concentrator, which will send it on to the Outstation. If the above conditions are met, the following sequence occurs: Outstation Application sends a CONFIRMation response to the master 1) station (if the CON bit in the Request Header is set). Outstation Application removes the first 9 characters (for HARRIS 2) implementation) from the FILE_NAME field, modifying other File Identifier Object fields if necessary. Outstation Application sends the File Identifier Object to the Master 3) Application. Master Application sends a request (WRITE function code) containing the 4) File Identifier Object to the appropriate Outstation. 5) If a CONFIRMation Response is required, the Master Application waits for this response. Master Application now waits for the response containing the File 6) Identifier Object. The object in the response contains the status of the command specified in the File_Function field. When this object is received, the Master Application sends it to the Outstation Application. If the Master Application does not receive the object, a negative acknowledgement is sent to the Outstation Application. 7) Upon receipt of a response File Identifier Object or negative acknowledgement (from the Master Application), the Outstation Application sends a response to the master. The transaction is complete. 8-2
DNP Users Group

The response to the request uses the RESPONSE Function Code. It contains the File Identifier Object, which contains the status of the operation requested in the File_Function field, with no data records. If the Outstation Application receives a response from the Master Application, this response contains a File Identifier Object. The Outstation Application does not need to change this response. If the Outstation Application receives a negative acknowledgement from the Master Application, it will modify and set the following fields in the response File Identifier Object: START_RECORD = END_RECORD = 0 FILE_SIZE = 0 FILE_FUNCTION = RESPONSE PERMISSION = 0 Master Application was unable to pass the File Identifier STATUS = 2 Object to the Master Application. 4 Operation unsuccessful because the device addressed by FILE_ID is offline. 4 Operation unsuccessful because a negative acknowledgement received from the Master Application. The File_Name field is designed so that File Identifier Objects containing configurations can be downloaded to an Outstation via any number of intermediate data concentrators. Figure 8-1 is a simplistic example illustrating how the File Identifier Object is passed through the system from a master station to an Outstation via two data concentrators.

DNP V3.00 Application Layer (Version 0.03)

8-3

FILE_NAME = /DNPDCA03/DNPDCA10/config1 Outstation application removes 1st 9 chars of FILE_NAME -------------------------------- sends object to internal First Data Concentrator device number 03 Outstation Application -------------------------------- has Address DST=1 Master applic. configuration maps device 03 to DST=22 Master applic. addresses the object to DST=22 FILE_NAME = /DNPDCA10/config1 Outstation application removes 1st 9 chars of FILE_NAME -------------------------------- sends object to internal Second Data Concentrator device number 10 Outstation Application -------------------------------- has Address DST=22 Master applic. configuration maps device 10 to DST=8 Master applic. addresses the object to DST=8 FILE_NAME = /config1 End Device Address 8

Figure 8-1 Passing a File Identifier Object Via Data Concentrators In Figure 8-1: 1) 2) 3) 4) 5) 6) The master station WRITEs the File Identifier Object to the first data concentrator (DC). The File_Name field specifies that the object is to be sent to device number 3 in the first DC. The Outstation Application in the first DC removes the first nine characters of the File_Name. It then routes the object to the Master Application specified as device number 3. The Master Application configuration specifies device number 3 has DNP destination address 22. The Master Application in the first DC WRITEs the File Identifier Object to the second DC. The second DC receives the WRITE request. The File_Name field specifies that the object is to be sent to device number 10 in the second DC. The Outstation Application in the second DC removes the first nine characters of the File_Name. It then routes the object to the Master Application specified as device number 10. The Master Application configuration specifies device number 10 has DNP destination address 8. The Master Application in the second DC WRITEs the File Identifier Object to the Outstation.
DNP Users Group

8-4

7)

8) 9) 10) 11)

The Outstation receives the WRITE request. It responds with a RESPONSE containing the modified File Identifier Object. This object contains the status of the operation. It is transmitted to the Master Application in the second DC. The Master Application in the second DC transfers the response File Identifier Object to the Outstation Application. The Outstation Application sends a RESPONSE containing the File Identifier Object to the first DC. The Master Application in the first DC transfers the response File Identifier Object to the Outstation Application. The Outstation Application in the first DC sends a RESPONSE containing the File Identifier Object to the DNP master station.

NOTES: This functionality requires the DNP master station to have a larger response timeout than the Outstation Application in the first DC, which in turn has a larger response timeout than the Outstation Application in the second DC. The DNP master station must have detailed configuration and routing information in order to construct the File_Name field. AN Outstation Application will not receive while it waits for a response from a down stream device. It is "locked out" to master requests.

8.2 FILE IDENTIFIER OBJECT PERFORMING READ FUNCTIONS


This section describes how a File Identifier Object is used to perform read functions. Note that the object is passed to applications via a request using the WRITE function code. The File_Function field is set to READ. The master station can read the File Identifier Object when the following conditions are met: The DNP WRITE Function Code is used in the request. The File_Function field in the File Identifier Object received in the request is set to READ. The File_Name field contains an ASCII character string. The length and contents of the string is dependant on the DC. The HARRIS implementation uses a string, the first 9 character of which are "/DNPDCAxx", where xx (2 ASCII characters) contains the Master Application number of the destination for this File Identifier Object. This information routes the object through the DC to the Master Application which will send it on from the DC to the Outstation. If the above conditions are met, the following sequence occurs; 1) The Outstation Application sends a CONFIRMation response to the DNP master station (if required). 8-5 DNP V3.00 Application Layer (Version 0.03)

2) 3) 5) 6) 7)

8)

The Outstation Application removes the first 9 characters from the File_Name field( for HARRIS implementation), modifying the File Identifier Object as required. The Outstation Application sends a READ command with the File Identifier Object to the Master Application. The Master Application sends a READ command with the File Identifier Object to the appropriate Outstation. If a CONFIRMation Response is required, the Master Application waits for this response. The Master Application now waits for the response containing the requested File Identifier Object. When this object is received, the Master Application sends the response to the Outstation Application. If the Master Application does not receive the object, a negative acknowledgement is sent to the Outstation Application. Upon receipt of an response File Identifier Object or negative acknowledgement, the Outstation Application sends a response to the master. The transaction is complete.

Some error conditions can occur in the above sequence. In the cases where the Outstation Application cannot pass the request to the Master Application or a negative acknowledgement is received from the Master Application, the Outstation Application returns the File Identifier Object received as part of the request to the master station. The Outstation Application will modify and set the following fields in the response File Identifier Object; START_RECORD = END_RECORD = 0 FILE_SIZE = 0 FILE_FUNCTION = RESPONSE PERMISSION = 0 Outstation Application was unable to pass the File STATUS = 2 Identifier Object to the Master Application. 4 Operation unsuccessful because the device addressed by FILE_ID is offline. 4 Operation unsuccessful because a negative acknowledgement received from the Master Application.

8-6

DNP Users Group

LIST OF ABBREVIATIONS AND ACRONYMS


AC APCI APDU ASDU COS DA DC DNP DUI EPA IEC IIN IO ISO OSI PDU RTU SCADA SEQ application control application protocol control information application protocol data unit application service data unit change of state distribution automation data concentrator distributed network protocol data unit identifiers enhanced protocol architecture International Electrotechnical Commission internal indications information objects International Standards Organization Open System Interconnection protocol data unit remote terminal unit supervisory control and data acquisition sequence number

DNP V3.00 Application Layer (Version 0.03)

DOCUMENT REVISION HISTORY


Name of Document: DNP V3:00 Data Object Library Network File Name: P009-OBL Original Author: Malcolm Smith/Michael Copps Date and Version of Preliminary Release: October 8, 1992 Version 0.00A Associated Software Release(s): DNP V3.00 Revisions Since Preliminary Release Date Oct. 08/92 Nov. 09/92 Nov. 23/92 Jun. 27/93 Jul. 01/93 Aug. 20/93 Sep. 01/93 Sep. 01/93 July. 08/97 Version 0.00A 0.00B 0.01 0.02 0.02 0.02 0.02 0.02 0.02 By Whom MS MS LA MS JB JB JB MCH S. Tessari Pages Affected All All All All All All All All All Reason for Changes Created using P020-0BL Revised after review and editorials. Reformatted to WI standards. Re-structure, addition of objects. Update and edit as per the review. Update and addition of new objects. Update and reformat. Check and revise format. Converted to MSWord 6.0

DNP Users Group


DNP PRODUCT DOCUMENTATION

DNP V3.00 DATA OBJECT LIBRARY

Document Version: 0.02 Internal File: P009-OBL Associated Software Release: DNP V3.00

NOTICE OF RIGHTS - DNP USERS GROUP


The contents of this manual are the property of the DNP Users Group. Revisions or additions to the definition and functionality of the Distributed Network Protocol cannot be made without express written agreement from the DNP Users Group or its duly authorized party. In addition, no part of this document may be altered or revised or added to in any form or by any means, except as permitted by written agreement with the DNP Users Group or a Party duly authorized by the DNP Users Group. As a Party, duly authorized by the DNP Users Group, Harris Corporation has made every reasonable attempt to ensure the completeness and accuracy of this document, however, the information contained in this manual is subject to change without notice, and does not represent a commitment on the part of Harris Corporation or the DNP Users Group. An update program for DNP documents is provided upon request by Harris Corporation on behalf of the DNP Users Group.

TRADEMARK NOTICES
Brand and product names mentioned in this document are trademarks or registered trademarks of their respective companies.

TABLE OF CONTENTS
ABOUT THIS DOCUMENT PURPOSE OF THIS SPECIFICATION WHO SHOULD USE THIS SPECIFICATION HELP AND ADDITIONAL DOCUMENTATION HOW THIS SPECIFICATION IS ORGANIZED CONVENTIONS USED IN THIS SPECIFICATION 1. OVERVIEW 2. DECLARATION RULES FOR INFORMATION ELEMENTS 2.1 GENERAL 3. GENERAL RULES 3.1 LIBRARY STRUCTURE 3.2 POINT NUMBERING 4. BINARY INPUT OBJECT DEFINITIONS 4.1 SINGLE-BIT BINARY INPUT 4.2 BINARY INPUT WITH STATUS 4.3 BINARY INPUT CHANGE WITHOUT TIME 4.4 BINARY INPUT CHANGE WITH TIME 4.5 BINARY INPUT CHANGE WITH RELATIVE TIME 5. BINARY OUTPUT OBJECT DEFINITIONS 5.1 BINARY OUTPUT 5.2 BINARY OUTPUT STATUS 5.3 CONTROL RELAY OUTPUT BLOCK 5.4 PATTERN CONTROL BLOCK 5.5 PATTERN MASK 6. COUNTER OBJECT DEFINITIONS 6.1 32-BIT BINARY COUNTER 6.2 16-BIT BINARY COUNTER 6.3 32-BIT DELTA COUNTER
DNP V3.00 Data Object Library (Version 0.02)

vi vi vi vi vii vii 1-1 2-1 2-1 3-1 3-1 3-4 4-1 4-1 4-3 4-4 4-6 4-8 5-1 5-1 5-2 5-3 5-7 5-8 6-1 6-1 6-3 6-5 i

6.4 16-BIT DELTA COUNTER 6.5 32-BIT COUNTER WITHOUT FLAG 6.6 16-BIT COUNTER WITHOUT FLAG 6.7 32-BIT DELTA COUNTER WITHOUT FLAG 6.8 16-BIT DELTA COUNTER WITHOUT FLAG 6.9 32-BIT FROZEN COUNTER 6.10 16-BIT FROZEN COUNTER 6.11 32-BIT FROZEN DELTA COUNTER 6.12 16-BIT FROZEN DELTA COUNTER 6.13 32-BIT FROZEN COUNTER WITH TIME OF FREEZE 6.14 16-BIT FROZEN COUNTER WITH TIME OF FREEZE 6.15 32-BIT FROZEN DELTA COUNTER WITH TIME OF FREEZE 6.16 16-BIT FROZEN DELTA COUNTER WITH TIME OF FREEZE 6.17 32-BIT FROZEN COUNTER WITHOUT FLAG 6.18 16-BIT FROZEN COUNTER WITHOUT FLAG 6.19 32-BIT FROZEN DELTA COUNTER WITHOUT FLAG 6.20 16-BIT FROZEN DELTA COUNTER WITHOUT FLAG 6.21 32-BIT COUNTER CHANGE EVENT WITHOUT TIME 6.22 16-BIT COUNTER CHANGE EVENT WITHOUT TIME 6.23 32-BIT DELTA COUNTER CHANGE EVENT WITHOUT TIME 6.24 16-BIT DELTA COUNTER CHANGE EVENT WITHOUT TIME 6.25 32-BIT COUNTER CHANGE EVENT WITH TIME 6.26 16-BIT COUNTER CHANGE EVENT WITH TIME 6.27 32-BIT DELTA COUNTER CHANGE EVENT WITH TIME 6.28 16-BIT DELTA COUNTER CHANGE EVENT WITH TIME 6.29 32-BIT COUNTER CHANGE EVENT WITHOUT TIME 6.30 16-BIT FROZEN COUNTER EVENT WITHOUT TIME 6.31 32-BIT FROZEN DELTA COUNTER EVENT WITHOUT TIME 6.32 16-BIT FROZEN DELTA COUNTER WITHOUT TIME 6.33 32-BIT FROZEN COUNTER EVENT WITH TIME 6.34 16-BIT FROZEN COUNTER EVENT WITH TIME 6.35 32-BIT FROZEN DELTA COUNTER EVENT WITH TIME 6.36 16-BIT FROZEN DELTA COUNTER EVENT WITH TIME 7. ANALOG INPUT OBJECT DEFINITIONS 7.1 32-BIT ANALOG INPUT 7.2 16-BIT ANALOG INPUT 7.3 32-BIT ANALOG INPUT WITHOUT FLAG 7.4 16-BIT ANALOG INPUT WITHOUT FLAG 7.5 32-BIT FROZEN ANALOG INPUT 7.6 16-BIT FROZEN ANALOG INPUT 7.7 32-BIT FROZEN ANALOG INPUT WITH TIME OF FREEZE 7.8 16-BIT FROZEN ANALOG INPUT WITH TIME OF FREEZE 7.9 32-BIT FROZEN ANALOG INPUT WITHOUT FLAG 7.10 16-BIT FROZEN ANALOG INPUT WITHOUT FLAG 7.11 32-BIT ANALOG CHANGE EVENT WITHOUT TIME ii

6-6 6-7 6-8 6-9 6-10 6-11 6-12 6-13 6-14 6-15 6-17 6-19 6-21 6-23 6-24 6-25 6-26 6-27 6-28 6-29 6-30 6-31 6-33 6-35 6-37 6-39 6-40 6-41 6-42 6-43 6-45 6-47 6-49 7-1 7-1 7-3 7-5 7-6 7-7 7-8 7-9 7-11 7-13 7-14 7-15

DNP Users Group

7.12 16-BIT CHANGE EVENT WITHOUT TIME 7.13 32-BIT ANALOG CHANGE EVENT WITH TIME 7.14 16-BIT ANALOG CHANGE EVENT WITH TIME 7.15 32-BIT FROZEN ANALOG EVENT WITHOUT TIME 7.16 16-BIT FROZEN ANALOG EVENT WITHOUT TIME 7.17 32-BIT FROZEN ANALOG EVENT WITH TIME 7.18 16-BIT FROZEN ANALOG EVENT WITH TIME 8. ANALOG OUTPUT OBJECT DEFINITIONS 8.1 32-BIT ANALOG OUTPUT STATUS 8.2 16-BIT ANALOG OUTPUT STATUS 8.3 32-BIT ANALOG OUTPUT BLOCK 8.4 16-BIT ANALOG OUTPUT BLOCK 9. TIME OBJECT DEFINITIONS 9.1 TIME AND DATE 9.2 TIME AND DATE WITH INTERVAL 9.3 TIME AND DATE CTO 9.4 UN-SYNCHRONIZED TIME AND DATE CTO 9.5 TIME DELAY COARSE 9.6 TIME DELAY FINE 10. CLASS OBJECT DEFINITIONS 10.1 CLASS 0 DATA 10.2 CLASS 1 DATA 10.3 CLASS 2 DATA 10.4 CLASS 3 DATA 11. FILE OBJECT DEFINITIONS 11.1 FILE IDENTIFIER 12. DEVICE OBJECT DEFINITIONS 12.1 INTERNAL INDICATIONS 12.2 STORAGE OBJECT 12.3 DEVICE PROFILE 12.4 PRIVATE REGISTRATION OBJECT 12.5 PRIVATE REGISTRATION OBJECT DESCRIPTOR 13. APPLICATION OBJECT DEFINITIONS 13.1 APPLICATION IDENTIFIER 14. ALTERNATE NUMERIC OBJECT DEFINITIONS 14.1 SHORT FLOATING POINT 14.2 LONG FLOATING POINT 14.3 EXTENDED FLOATING POINT
DNP V3.00 Data Object Library (Version 0.02)

7-17 7-19 7-21 7-23 7-25 7-27 7-29 8-1 8-1 8-3 8-4 8-5 9-1 9-1 9-2 9-4 9-5 9-6 9-7 10-1 10-1 10-2 10-3 10-4 11-1 11-1 12-1 12-1 12-2 12-4 12-7 12-8 13-1 13-1 14-1 14-1 14-4 14-6 iii

14.4 SMALL-PACKED BINARY CODED DECIMAL 14.5 MEDIUM-PACKED BINARY CODED DECIMAL 14.6 LARGE-PACKED BINARY CODED DECIMAL LIST OF ABBREVIATIONS AND ACRONYMS

14-8 14-9 14-10

iv

DNP Users Group

LIST OF TABLES
TABLE 2-1 DATA TYPES TABLE 2-2 BIT POSITIONS 2-1 2-2

DNP V3.00 Data Object Library (Version 0.02)

ABOUT THIS DOCUMENT


PURPOSE OF THIS SPECIFICATION
This document defines coding specifications of Distributed Network Protocol (DNP) information elements or data objects used in the DNP Application Layer. The object syntax is specified as well as the semantics of each object. In the case of compound objects, the semantics of each component is described.

WHO SHOULD USE THIS SPECIFICATION


All programmers, implementers or engineers interested in the structure of application information objects used in the DNP Application Layer.

HELP AND ADDITIONAL DOCUMENTATION


The following documentation may be helpful. DNP V3.00 Data Link Layer (P009-0PD.DL). DNP V3.00 Application Layer (P009-0PD.APP) DNP V3.00 Transport Functions (P009-0PD.TF)

vi

DNP Users Group

HOW THIS SPECIFICATION IS ORGANIZED


This document is organized into 13 sections as outlined below. 1. OVERVIEW 2. DECLARATION RULES FOR INFORMATION ELEMENTS Covers the rules for construction and interpretation of the data objects. 3. GENERAL RULES Describes the rules governing each of the currently defined objects. The rest of the sections provide detailed definitions of each type of object. 4. BINARY INPUT OBJECT DEFINITIONS 5. BINARY OUTPUT OBJECT DEFINITIONS 6. COUNTER OBJECT DEFINITIONS 7. ANALOG INPUT OBJECT DEFINITIONS 8. ANALOG OUTPUT OBJECT DEFINITIONS 9. TIME OBJECT DEFINITIONS 10. CLASS OBJECT DEFINITIONS 11. FILE OBJECT DEFINITIONS 12. DEVICE OBJECT DEFINITIONS 13. APPLICATION OBJECT DEFINITIONS 14. ALTERNATE NUMERIC OBJECT DEFINITIONS LIST OF ABBREVIATIONS AND ACRONYMS

CONVENTIONS USED IN THIS SPECIFICATION


This document deviates from the IEC conventions for bit position numbering. Bit positions are numbered from 0 through n, with 0 to the top right and n to the bottom left.

DNP V3.00 Data Object Library (Version 0.02)

vii

viii

DNP Users Group

1. OVERVIEW
The intelligent devices which use the DNP Application Layer protocol are capable of monitoring, controlling and/or producing a large number of different pieces of data both at the hardware and software levels. These pieces of data, called information elements (IEC 870-5-3: General Structure of Application Data), are processed and stored as information objects and these can be packaged for transmission as application data units. All devices provide stored information elements as information objects in the same format. These formats are described within this document. This document will be revised and new information elements or objects will be added as necessary, and as authorized by the DNP User's Group.

DNP V3.00 Data Object Library (Version 0.02)

1-1

1-2

DNP Users Group

2. DECLARATION RULES FOR INFORMATION ELEMENTS


2.1 GENERAL
This section describes the basic rules for the declaration of information elements. These rules have been derived from the IEC TC57 870 series of standards or drafts. These rules provide an unambiguous means of describing and representing data irrespective of its origin. Device profile documents are used to indicate the exact origin and meaning of the data object for each telecontrol device. 2.1.1 Data Types All data can be described in its most elemental form as a data type. Data types are recognized as standard constructs used in most language compilers. DNP information elements use constructs, as supported by the IEC 870-5-4, as the basis of its descriptions. Table 2-1 lists the available data types and their meaning.
Data Type 1. UNSIGNED INTEGER 2. INTEGER 3. UNSIGNED FIXED POINT 4. FIXED POINT 5. REAL 6. BITSTRING 7. OCTETSTRING Symbol UI I UF F R BS OS Meaning Positive whole number Positive or negative whole number Positive fixed point number Positive or negative fixed point number Positive or negative floating-point number Assembly of independent bits Assembly of octets
1

Table 2-1 Data Types

BOOLEAN is a BITSTRING of size 1.

DNP V3.00 Data Object Library (Version 0.02)

2-1

2.1.2 Data Size Each information element is composed of a data type and a size. Data size i, is noted after the data type symbol notation, and is a cardinal number that specifies the length of the data field in bits or octets as appropriate. An example is: BS12 specifies a BITSTRING of 12 bits. 2.1.3 Bit Position In defining information objects, which are a combination of information elements, the position of individual bits can be significant. The bit position of a specified field of data size i is denoted in square brackets [p1..pn], where p1 and pn denote the first and the last bits of the field. The order of bits is shown in Table 2-2, below.
BITS OCTETS 1 2 . . j 7 15 . . 8j-1 6 14 . . 8j-2 5 13 . . 8j-3 7 6 5 4 3 2 1 0

Data Size i 4 12 . . 8j-4 3 11 . . 8j-5 2 10 . . 8j-6 1 9 . . 8j-7 0 8 . . 8j-8

Table 2-2 Bit Positions 2.1.4 Element Value If applicable, a selected range and a selected code of values of the declared data field is denoted within angle brackets: <v1..vn code>. In general this is declared by the range of admitted values and by a term that identifies the used code. Terms that identify codes are: binary code (BIN), binary coded decimal (BCD), ASCII (ASCII), etc. The default code declaration is binary if no term is used. 2.1.5 Compound Elements Compound data fields are information elements composed of different data fields with successive bit allocations. Compound data fields are declared by listing individual data fields separated by commas or listed in a column, within curly brackets. A following list declares the data types, the sizes, the bit allocations and the functional purpose of the individual data fields. The first declared data field begins with bit position 0, the other fields use successive bit allocations: 2-2

DNP Users Group

'Information Element = CPi {data field 1, data field 2,...} or = function 1 {data field 1 = data type 1 size i1[0..i-1] data field 2 = data type 2 size i2[i1..i1+i2-1] = function 2 etc.} 2.1.6 Sequence Elements Sequence data fields are information elements composed of different data fields. Sequences of data fields are declared as compound data fields, however each field begins bit allocation 0: 'Information Element = SQi {data field 1, data field 2, ...} or = function 1 {data field 1 size i1[1..i1] data field 2 size i2[1..i2] = function 2 etc.}

DNP V3.00 Data Object Library (Version 0.02)

2-3

2-4

DNP Users Group

3. GENERAL RULES
This section will describe the general rules that apply to the DNP data objects. These rules apply to all the current objects (except where noted) and all future objects.

3.1 LIBRARY STRUCTURE


The DNP application layer has an 8-bit object and an 8-bit variation field used to denote the data object. The 8-bit object denotes a general type of data such as static binary data. The variation of this object gives a different representation of the same data point, such as the size of the object or whether or not the object has flag information. There are generally four different categories of data within each data type, as outlined below: Static Objects: The objects which reflect the current value of the field point or software point. Event Objects: The objects which are generated as a result of data changing or some other stimulant. These are historical objects reflecting the value of data at some time in the past. Frozen Static Objects: The objects which reflect the current frozen value of the field point or software point. Data is frozen as a result of the data freeze requests. (Refer to the DNP V3.00 Application Layer, P009-0PD.APP.) Frozen Event Objects: The objects which are generated as a result of frozen data changing or some other stimulant. These are historical objects reflecting the value of changed data at some time in the past.

Each category should be represented with a different object. All the classes of a different data type should also be organized in the same range of object numbers. So far, the following groupings have been created for all traditional SCADA/DA data types and several non-traditional data types. These are as follows: 3.1.1 Binary Input The binary input grouping contains all objects that represent binary (status or Boolean) input information. The objects 1 - 9 are reserved for these objects.

DNP V3.00 Data Object Library (Version 0.02)

3-1

3.1.2 Binary Output The binary output grouping contains all objects that represent binary output or relay control information. The objects 10 - 19 are reserved for these objects. 3.1.3 Counters The counter grouping contains all objects that represent counters. The objects 20 - 29 are reserved for these objects. 3.1.4 Analog Input The analog input grouping contains all objects that represent analog input information. The objects 30 - 39 are reserved for these objects. 3.1.5 Analog Output The analog output grouping contains all objects that represent analog output information. The objects 40 - 49 are reserved for these objects. 3.1.6 Time The time grouping contains all objects that represent time in absolute or relative form in any resolution. The objects 50 - 59 are reserved for these objects. 3.1.7 Class The class grouping contains all objects that represent data classes or data priority. The objects 60 - 69 are reserved for these objects. 3.1.8 Files The files grouping contains all objects that represent files or a file system. The objects 70 - 79 are reserved for these objects. 3.1.9 Devices The devices grouping contains all objects that represent device (rather than point) information. The objects 80 - 89 are reserved for these objects. 3.1.10 Applications The applications grouping contains all objects that represent software applications or operating system processes. The objects 90 - 99 are reserved for these objects.

3-2

DNP Users Group

3.1.11 Alternate Numeric The alternate numeric grouping contains all objects that represent alternate or custom numeric representations. The objects 100 - 109 are reserved for these objects. 3.1.12 Future Expansion The future expansion grouping is reserved for future or custom expansion of the DNP protocol. The objects 110 - 254 are reserved for these objects. 3.1.13 Reserved The objects 0 and 255 are permanently reserved and should not be used to denote any DNP object. Applications which use these object numbers may not be compatible with future versions of DNP.

DNP V3.00 Data Object Library (Version 0.02)

3-3

3.2 POINT NUMBERING


The following rules apply to the interpretation of the object point number (DNP Application Layer range field) in conjunction with objects and variations. Rule 1: Point i of object x, variation y represents the same physical point as point i, object x, variation z, where y and z are variations of object x. For example: A device has 16 running counters (object 20) numbered 0 to 15. Point 5 can be asked for in four different ways: Obj 20, var 1, range 5 returns the running value of counter 5 in 32-bit format. Obj 20, var 2, range 5 reports the same information, only in 16-bit format. Obj 20, var 3, range 5 returns the number of counts accumulated in counter 5 since the last time it was reported, again in 32-bit format. Obj 20, var 4, range 5 reports the same information, only in 16-bit format. RULE 2: Point i of object x can be reported in one of many variations (i.e. it can be a 16-bit or 32bit counter). When reported as an event, point i can be returned in either one of the variations for that object. The exact variation to return is an application specific decision, however an application should report only ONE event object in any one variation for each event. When responding to a request for Class data or variation 0 of object x, there should be only one variation of the object returned. RULE 3: Point i within different objects of the same grouping are not necessarily unique, however, within each of the binary input, binary output, analog input, analog output and counter groupings the following rules apply. (a) (b) Point i in the static object is the same physical point as point i in the event object. Point i in the frozen object is the same physical point as point i in the frozen event object.

For example: For binary inputs, point i in obj 1 var 1 and 2 is the same point as point i in obj 2 var 1, 2 and 3 (static and event correlation). For counters, point i in obj 20 var 1, 2, 3, and 4 is the same point as point i in obj 22 var 1, 2, 3, 4, 5, 6, 7, and 8 (static and event correlation). In addition, point i in obj 21 var 1, 2, 3, 4, 5, 6, 7, and 8 is the same point as point i in obj 23 var 1, 2, 3, 4, 5, 6, 7, and 8 (frozen and frozen static correlation). NOTE: Point i in obj 20 and point i in obj 21 are NOT necessarily the same point. There is no direct correlation between frozen and non-frozen objects.
DNP Users Group

3-4

Rule 4: Object groupings which can by definition or due to device limitation have only one point per object or where the point number is not needed should use the range number 0 or quantity equals to 1, when using a message format that requires a point number.

DNP V3.00 Data Object Library (Version 0.02)

3-5

3-6

DNP Users Group

4. BINARY INPUT OBJECT DEFINITIONS


This section defines the binary input data objects using the rules established in section 2. DECLARATION RULES FOR INFORMATION ELEMENTS.

4.1 SINGLE-BIT BINARY INPUT


Data Object 01 - Variation: 01 Type: Static

Description: The single-bit binary input object is used to represent the state of a digital input point (hardware or software). Object Coding:
0

BS1 [0..0] State = BS1 [0] <0,1 BIN> Narrative: This single-bit binary input representation is used to transmit binary input states in a packed format. Transmission of the data object is always performed in complete octets with unoccupied bit positions set to zero. The following example illustrates the packing of n of these data objects.
7 15 6 14 5 13 4 12 3 11 2 10 1 9 0 8

n-1

n-2

n-3

n-4

DNP V3.00 Data Object Library (Version 0.02)

4-1

NOTE:

This variation contains no point status information. For example, on-line, restart, etc. bits which are part of the binary input with status variation, are not part of this variation. The use of the single-bit binary input variation implies that the point is on-line and all other status bits are clear. (i.e. restart, communication lost, etc. bits are cleared).

4-2

DNP Users Group

4.2 BINARY INPUT WITH STATUS


Data Object 01 - Variation: 02 Type: Static

Description: The binary input with status object is used to represent the state of a digital input point (hardware or software), and also indicates the status of the point as follows: The on-line bit indicates that the binary input point has been read successfully. If this field is set to off-line, the state of the digital point may not be correct. The restart bit indicates that the field device that originated the data object is currently restarting. This device may be the device reporting this data object. The communication lost bit indicates that the device reporting this data object has lost communication with the originator of the data object. The remote forced data bit indicates that the state of the binary input has been forced to its current state at a device other than the end device. The local forced data bit indicates that the state of the binary input has been forced to its current state at the end device. The chatter filter bit indicates that the binary input point has been filtered in order to remove unneeded transitions in the state of the point. The state bit indicates the current state of the binary input point. Object Coding:
7 6 5 4 3 2 1 0

BS8 [0..7] On-line Restart Communication lost Remote forced data Local forced data Chatter filter Reserved State

= = = = = = = =

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, filter on> BS1 [6] <0> BS1 [7] <0, 1 BIN>

DNP V3.00 Data Object Library (Version 0.02)

4-3

4.3 BINARY INPUT CHANGE WITHOUT TIME


Data Object 02 - Variation: 01 Type: Event

Description: The binary input change without time object is used to represent the changed state of a digital input point (hardware or software) and also indicates the status of the point as follows: The on-line bit indicates that the binary input point has been read successfully. If this field is set to off-line, the state of the digital point may not be correct. The restart bit indicates that the field device that originated the data object has been re-started. This device may be the device reporting this data object. The communication lost bit indicates that the device reporting this data object has lost communication with the originator of the data object. The remote forced data bit indicates that the state of the binary input has been forced to its current state at the originating device. The local forced data bit indicates that the state of the binary input has been forced to its current state at the device reporting this data object. The chatter filter bit indicates that the binary input point has been filtered in order to remove unneeded transitions in the state of the point. The state bit indicates the current changed state of the binary input point.

4-4

DNP Users Group

Object Coding:
7 6 5 4 3 2 1 0

BS8 [0..7] On-line Restart Communication lost Remote forced data Local forced data Chatter filter Reserved State

= = = = = = = =

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, filter on> BS1 [6] <0> BS1 [7] <0,1 BIN>

Narrative: This object is only reported when the current value is different than the last recorded or measured value. If the chatter filter is on, this object may only be reported when the new state has remained constant for a certain period of time.

DNP V3.00 Data Object Library (Version 0.02)

4-5

4.4 BINARY INPUT CHANGE WITH TIME


Data Object 02 - Variation: 02 Type: Event

Description: The binary input change with time object is used to represent the changed state of a digital input point (hardware or software) and the time at which the state changed. It also indicates the status of the point as follows: The on-line bit indicates that the binary input point has been read successfully. If this field is set to off-line, the state of the digital point may not be correct. The restart bit indicates that the field device that originated the data object has been re-started. This device may be the device reporting this data object. The communication lost bit indicates that the device reporting this data object has lost communication with the originator of the data object. The remote forced data bit indicates that the state of the binary input has been forced to its current state at the originating device. The local forced data bit indicates that the state of the binary input has been forced to its current state at the device reporting this data object. The chatter filter bit indicates that the binary input point has been filtered in order to remove unneeded transitions in the state of the point. The state bit indicates the current changed state of the binary input point. The Time of Occurrence indicates the absolute time at which the telecontrol device detected the change of state. The accuracy of this time will depend on the accuracy of the individual device.

4-6

DNP Users Group

Object Coding:
FLAG 7 6 5 4 3 2 1 0

TIME OF OCCURRENCE 7 15 23 31 39 47 6 14 22 30 38 46 5 13 21 29 37 45 4 12 20 28 36 44 3 11 19 27 35 43 2 10 18 26 34 42 1 9 17 25 33 41 0 8 16 24 32 40

SQ2

{FLAG = Time of Occurrence = } FLAG On-line Restart Communication lost Remote forced data Local forced data Chatter filter Reserved State } ={ = = = = = = = =

BS8 [0..7] UI48 [0..47] <248 -1 ms> BS8 [0..7] BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, filter on> BS1 [6] <0> BS1 [7] <0,1 BIN>

Narrative: Time of occurrence is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, seconds, and milliseconds.

DNP V3.00 Data Object Library (Version 0.02)

4-7

4.5 BINARY INPUT CHANGE WITH RELATIVE TIME


Data Object 02 - Variation: 03 Type: Event

Description: The binary input change with relative time object is used to represent the changed state of a digital input point (hardware or software), and the relative time at which the state changed. It also indicates the status of the point as follows: The on-line bit indicates that the binary input point has been read successfully. If this field is set to off-line, the state of the digital point may not be correct. The restart bit indicates that the field device that originated the data object has been re-started. This device may be the device reporting this data object. The communication lost bit indicates that the device reporting this data object has lost communication with the originator of the data object. The remote forced data bit indicates that the state of the binary input has been forced to its current state at the originating device. The local forced data bit indicates that the state of the binary input has been forced to its current state at the device reporting this data object. The chatter filter bit indicates that the binary input point has been filtered in order to remove unneeded transitions in the state of the point. The state bit indicates the current changed state of the binary input point. The MSEC field indicates the relative time at which the telecontrol device detected the change of state. The accuracy of this time will depend on the accuracy of the individual device.

4-8

DNP Users Group

Object Coding:
FLAG 7 6 5 4 3 2 1 0

MSEC 7 15 6 14 5 13 4 12 3 11 2 10 1 9 0 8

SQ2

{FLAG MSEC } FLAG On-line Restart Communication lost Remote forced data Local forced data Chatter filter Reserved State }

= = ={ = = = = = = = =

BS8 [0..7] UI16 [0..15] <0..216-1> BS8 [0..7] BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, filter on> BS1 [6] <0> BS1 [7] <0,1 BIN>

Narrative: This object MUST be preceded by an absolute time object (common time object or CTO) or an unsynchronized CTO in the DNP Application Layer message. The CTO is used as an absolute time base for all following binary input change with relative time objects. The relative time in each binary input object is added to the CTO absolute time to give the absolute time at which the binary input change was detected by the device.

DNP V3.00 Data Object Library (Version 0.02)

4-9

4-10

DNP Users Group

5. BINARY OUTPUT OBJECT DEFINITIONS


This section defines the binary output data objects using the rules established in section 2. DECLARATION RULES FOR INFORMATION ELEMENTS.

5.1 BINARY OUTPUT


Data Object 10 - Variation: 01 Type: Static

Description: The binary output object is used to control a digital output point (hardware or software). The state bit indicates the desired logic state of the digital output point. Object Coding:
0

BS1 [0..0] State = BS1 [0] <0,1 BIN> Narrative: Transmission of the data object is always pre-formed in complete octets, with unoccupied bit positions set to zero. The following example illustrates the packing of n of these data objects:
7 15 6 14 5 13 4 12 3 11 2 10 1 9 0 8

n-1

n-2

n-3

n-4

DNP V3.00 Data Object Library (Version 0.02)

5-1

5.2 BINARY OUTPUT STATUS


Data Object 10 - Variation: 02 Type: Static

Description: The binary output status object is used to indicate the current state of a controlled digital point and the status of that point as follows: The on-line bit indicates that the device controlling the binary output point is operating correctly. A binary output command to this point should work correctly. If this field is set to off-line, a binary output command to this point would be unsuccessful. The restart bit indicates that the field device that originated the data object has been re-started. This device may be the device reporting this data object. The communication lost bit indicates that the digital output point could not be controlled because communications have been lost with the controlled device. The remote forced data bit indicates that the digital output point has been controlled at the originating device and the current state is in the state bit. The local forced data bit indicates that the digital output point has been controlled at this device and the current state is in the state bit. The state bit indicates the current state of the binary output point. Object Coding:
7 6 5 4 3 2 1 0

BS8 [0..7] On-line Restart Communication lost Remote forced data Local forced data Reserved Reserved State

= = = = = = = =

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0> BS1 [6] <0> BS1 [7] <0,1 BIN>

5-2

DNP Users Group

5.3 CONTROL RELAY OUTPUT BLOCK


Data Object 12 - Variation: 01 Type: Static

Description: The control relay output Block information object contains digital output control parameters. These parameters define the type and duration of the digital output. The control code field indicates the control function to perform. The applicability of this code will depend on the type of hardware used in the end device. The count field indicates the number of times that the control operation should be performed in succession. The on-time field specifies the amount of time the digital output is to be turned on (may not apply to all control types). The off-time field specifies the amount of time the digital output is to be turned off (may not apply to all control types).

DNP V3.00 Data Object Library (Version 0.02)

5-3

Object Coding:
Control Code 7 6 5 4 3 2 1 0

Count 7 6 5 4 3 2 1 0

On Time 31 Off Time 31 Status 7 6 5 4 3 2 1 0 0 0

SQ4

{Control code Count On-time Off-time Status Reserved } Control code Code Queue Clear Trip/Close } ={ = = = =

= = = = = =

BS8 [0..7] UI8 [0..7] <0..255> UI32 [0..31] <0..232-1, ms> UI32 [0..31] <0..232-1, ms> UI7 [0..6] <0..127> [0..0] <0..1>

BS4 [0..3] <0..15> BS1 [4] <0, normal; 1, requeued> BS1 [5] <0, normal; 1, clear> BS2 [6..7] <00, NUL; 01, Close; 10, Trip>

Narrative: Trip/Close:

This field determines which control relay to activate in a system where a trip and close relay pair is used to energize and de-energize the field points. The NUL value in this field can be used to activate the field point select relay only without activating the trip or close relays. In a system without field point select relays, the NUL value would not perform any control operation. In a system without trip/close relays, this field should always be NUL to indicate a normal digital control operation where the exact control point is inherently known. This field does not support having both the trip and close attributes simultaneously, as this is an illegal operation for the system.

5-4

DNP Users Group

Count:

The Count field determines how many times the control is executed. If the count is 0, do not execute the control. When the count reaches 0, the control is complete. The control block can be used with devices which support control queuing on a point per point basis or devices which have other control mechanisms. In the former, any control command should be queued for the particular point in question. In the latter, each control is performed until completion before the next control is accepted for that point. If the control code is NUL then no control operation is queued, and the queue is cleared of all controls including the presently running control if the clear attribute is set. When the control function is executed and completed, it is removed from the queue. If the control block for that operation had the queue attribute set, the control operation is re-queued (to the back of the queue) for that point.

Code:

Queue:

Clear:

If the control operation has the clear attribute set, all control operations are removed from the queue including the presently running control and this control operation is performed.

The meaning of the code field and the operation to perform is determined by the following: 0: 1: 2: 3: 4: 5 - 15: Queue: Clear: NUL operation. No operation specified. Only the R attribute is processed. Pulse On - The point(s) is turned on for the specified on-time, turned off for the specified off-time and left in the off state. Pulse Off - The point(s) is turned off for the specified off-time, then turned on for the specified on-time and left in the on state. Latch On - This latches the point(s) on. Latch Off - This latches the point(s) off. Undefined. Place operation at the back of the control queue when complete. Cancel currently running operation and remove queued operations on affected points immediately before activating this new operation (if not NUL).

DNP V3.00 Data Object Library (Version 0.02)

5-5

The reserved bit of the control point after the operation can be determined if the control output is on. The success or failure of the requested control operation is returned in the status field. The meaning of this field is determined as follows: 0: 1: Request accepted, initiated, or queued. Request not accepted as the operate message was received after the arm timer timed out. The arm timer was started when the select operation for the same point was received. No previous matching select message (i.e. an operate message was sent to activate a control point that was not previously armed with the select message. Request not accepted as there were formatting errors in the control request (either select, operate, or direct operate). Control operation not supported for this point. Request not accepted, as the control queue is full or the point is already active. Request not accepted because of control hardware problems.

2:

3: 4: 5: 6:

7 - 127:Undefined.

5-6

DNP Users Group

5.4 PATTERN CONTROL BLOCK


Data Object 12 - Variation: 02 Type: Static

Description: The pattern control block (PCB) object contains digital output control parameters for pattern type controls. These parameters define the type and duration of the digital output for each of the affected points. The PCB object defines all the parameters for the subsequent pattern mask objects which follow this object in the message. These parameters contained in the PCB influence all the pattern mask object(s) that immediately follow the PCB object, until the next PCB in the message. The combination of this object and the pattern mask objects that follow will specify a number (0 or more) of control operations to perform (i.e. the same operation on different points). All these controls must be performed in parallel. The meaning of all fields, attributes, and parameters are identical to the control relay output block except that the queuing attributes are not valid. This is, the pattern control is not meant to be re-queued. Object Coding:
Control Code 7 6 5 4 Count 7 6 5 4 3 2 1 0 3 2 1 0

On Time 31 Off Time 31 Status 7 6 5 4 3 2 1 0 0 0

DNP V3.00 Data Object Library (Version 0.02)

5-7

5.5 PATTERN MASK


Data Object 12 - Variation: 03 Type: Static

Description: The pattern mask object is used to select from a range of possible control points that have to be executed in parallel. This object is used in conjunction with the PCB object to specify both the control points to operate and the parameters that determine the control operation. If the mask bit is set to active, then the parameters specified in the preceding PCB are applied to a specified point for each pattern mask object and a control operation is generated for the point. Object Coding:
M

BS1 [0..0] Mask = BS1 [0] <0, inactive; 1, active> Narrative: This single-bit pattern mask is typically sent in groups. Transmission of the data object is always performed in complete octets with unoccupied bit positions set to zero. The following example illustrates the packing of n of these data objects.
7 15 6 14 5 13 4 12 3 11 2 10 1 9 0 8

n-1

n-2

n-3

n-4

5-8

DNP Users Group

6. COUNTER OBJECT DEFINITIONS


This section defines the counter data objects using the rules established in section 2.. DECLARATION RULES FOR INFORMATION ELEMENTS.

6.1 32-BIT BINARY COUNTER


Data Object 20 - Variation: 01 Type: Static

Description: The 32-bit binary counter represents an accumulated value. This can be accumulated pulses or transitions from a hardware or software point. The value field shows the current value of the counter at the time of reporting or last reported value from the originating device. This value increments indefinitely until a counter clear operation is performed in which case the value is reset to 0. The flag field has the same meaning as in previous objects, with the following inclusion: When set, the roll-over bit indicates that the accumulated value has exceeded the last reported recordable value (232-1). The counter value has been reset to 0 upon the rollover and counting has resumed as normal. This bit is cleared when the counter value (plus the roll-over state) is reported.

DNP V3.00 Data Object Library (Version 0.02)

6-1

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Value 31 0

SQ2

{FLAG Value } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..31] <0..232-1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

6-2

DNP Users Group

6.2 16-BIT BINARY COUNTER


Data Object 20 - Variation: 02 Type: Static

Description: The 16-bit binary counter represents an accumulated value. This can be accumulated pulses or transitions from a hardware or software point. The value field shows the current value of the counter at the time of reporting or last reported value from the originating device. This value increments indefinitely until a counter clear operation is performed in which case the value is reset to 0. The flag field has the same meaning as in previous objects, with the following inclusion: When set, the roll-over bit indicates that the accumulated value has exceeded the maximum possible recordable value (216-1). The counter value has been reset to 0 upon roll-over, and counting has resumed as normal. This bit is cleared when the counter value (plus the roll-over state) is reported.

DNP V3.00 Data Object Library (Version 0.02)

6-3

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Value 15 0

SQ2

{FLAG Value } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI16 [0..15] <0..216-1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

6-4

DNP Users Group

6.3 32-BIT DELTA COUNTER


Data Object 20 - Variation: 03 Type: Static

Description: The 32-bit delta counter represents a value that has accumulated since the last value was reported. This can be accumulated pulses or transitions from a hardware or software point. The value field shows the current value of the counter at the time of reporting or last reported value from the originating device. This value increments until it is reported at which point it is reset to 0. The flag field has the same meaning as in previous objects, with the following inclusion: When set, the roll-over bit indicates that the accumulated value has exceeded the maximum possible recordable value (232-1). The counter value has been reset to 0 upon roll-over, and counting has resumed as normal. This bit is cleared when the counter value (plus the roll-over state) is reported. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Value 31 0

SQ2

{FLAG Value } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..31] <0..232-1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

DNP V3.00 Data Object Library (Version 0.02)

6-5

6.4 16-BIT DELTA COUNTER


Data Object 20 - Variation: 04 Type: Static

Description: The 16-bit delta counter represents a value that has accumulated since the last value was reported. This can be accumulated pulses or transitions from a hardware or software point. The value field shows the current value of the counter at the time of reporting or last reported value from the originating device. This value increments until it is reported at which point it is reset to 0. The flag field has the same meaning as in previous objects, with the following inclusion: When set, the roll-over bit indicates that the accumulated value has exceeded the maximum possible recordable value (216-1). The counter value has been reset to 0 upon the roll-over and counting has resumed as normal. This bit is cleared when the counter value (plus the roll-over state) is reported. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Value 15 0

SQ2

{FLAG Value } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI16 [0..15] <0..216-1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

6-6

DNP Users Group

6.5 32-BIT COUNTER WITHOUT FLAG


Data Object 20 - Variation: 05 Type: Static

Description: The 32-bit binary counter represents an accumulated value. This can be accumulated pulses or transitions from a hardware or software point. The value field shows the current value of the counter at the time of reporting or last reported value from the originating device. This value increments indefinitely until a counter clear operation is performed in which case the value is reset to 0. Object Coding:
Value 31 0

SQ2

{Value = }

UI32 [0..31] <0..232-1>

NOTE:

The use of this variation implies that the input point is on-line and that all other flag bits are normal (i.e. this variation implies that flag = 1).

DNP V3.00 Data Object Library (Version 0.02)

6-7

6.6 16-BIT COUNTER WITHOUT FLAG


Data Object 20 - Variation: 06 Type: Static

Description: The 16-bit binary counter represents an accumulated value. This can be accumulated pulses or transitions from a hardware or software point. The value field shows the current value of the counter at the time of reporting or last reported value from the originating device. This value increments indefinitely until a counter clear operation is performed in which case the value is reset to 0. Object Coding:
Value 15 0

SQ2

{Value = }

UI16 [0..15] <0..216-1>

NOTE:

The use of this variation implies that the input point is on-line and that all other flag bits are normal (i.e. this variation implies that flag = 1).

6-8

DNP Users Group

6.7 32-BIT DELTA COUNTER WITHOUT FLAG


Data Object 20 - Variation: 07 Type: Static

Description: The 32-bit delta counter represents a value that has accumulated since the last value was reported. This can be accumulated pulses or transitions from a hardware or software point. The value field shows the current value of the counter at the time of reporting or last reported value from the originating device. This value increments until it is reported at which point it is reset to 0. Object Coding:
Value 31 0

SQ2

{Value = }

UI32 [0..31] <0..232-1>

NOTE:

The use of this variation implies that the input point is on-line and that all other flag bits are normal (i.e. this variation implies that flag = 1).

DNP V3.00 Data Object Library (Version 0.02)

6-9

6.8 16-BIT DELTA COUNTER WITHOUT FLAG


Data Object 20 - Variation: 08 Type: Static

Description: The 16-bit delta counter represents a value that has accumulated since the last value was reported. This can be accumulated pulses or transitions from a hardware or software point. The value field shows the current value of the counter at the time of reporting or last reported value from the originating device. This value increments until it is reported at which point it is reset to 0. Object Coding:
Value 15 0

SQ2

{Value = }

UI16 [0..15] <0..216-1>

NOTE:

The use of this variation implies that the input point is on-line and that all other flag bits are normal (i.e. this variation implies that flag = 1).

6-10

DNP Users Group

6.9 32-BIT FROZEN COUNTER


Data Object 21 - Variation: 01 Type: Frozen Static

Description: The 32-bit frozen counter is a compound information object which contains information about a counter which was previously frozen. The frozen value shows the value of the counter when the last counter freeze was performed at the originating device. The flag field has the same meaning as in previous objects. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen Value 31 0

SQ2

{FLAG Frozen Value FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..31] <0..232-1> BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

DNP V3.00 Data Object Library (Version 0.02)

6-11

6.10 16-BIT FROZEN COUNTER


Data Object 21 - Variation: 02 Type: Frozen Static

Description: The 16-bit frozen counter is a compound information object that contains information about a counter that was previously frozen. The counter accumulates pulses or transitions from a hardware or software point. The frozen value shows the value of the counter when the last counter freeze was performed at the originating device. The flag field has the same meaning as in previous objects. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen Value 15 0

SQ2

{FLAG Frozen Value } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI16 [0..15] <0..216-1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

6-12

DNP Users Group

6.11 32-BIT FROZEN DELTA COUNTER


Data Object 21 - Variation: 03 Type: Frozen Static

Description: The 32-bit frozen delta counter represents a frozen value that has accumulated since the last value was reported. This can be accumulated pulses or transitions from a hardware or software point. The frozen value shows the value of the counter when the last counter freeze was performed at the originating device. The flag field has the same meaning as in previous objects. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen Value 31 0

SQ2

{FLAG Frozen Value FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..31] <0..232-1> BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

DNP V3.00 Data Object Library (Version 0.02)

6-13

6.12 16-BIT FROZEN DELTA COUNTER


Data Object 21 - Variation: 04 Description: The 16-bit frozen delta counter represents a frozen value that has accumulated since the last value was reported. This can be accumulated pulses or transitions from a hardware or software point. The frozen value shows the value of the counter when the last counter freeze was performed at the originating device. The flag field has the same meaning as in previous objects. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Type: Frozen Static

Frozen Value 15 0

SQ2

{FLAG Frozen Value } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI16 [0..15] <0..216-1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

6-14

DNP Users Group

6.13 32-BIT FROZEN COUNTER WITH TIME OF FREEZE


Data Object 21 - Variation: 05 Type: Frozen Static

Description: The 32-bit frozen counter with time of freeze is a compound information object which contains information about a counter which was previously frozen. The counter accumulates pulses or transitions from a hardware or software point. The frozen value shows the value of the counter when the time was time of freeze. The time of freeze field contains a time that this object was frozen. This time corresponds to the frozen value so that the current value of this object at time of freeze is frozen value. The flag field has the same meaning as in previous objects.

DNP V3.00 Data Object Library (Version 0.02)

6-15

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen Value 31 Time of Freeze 47 0 0

SQ4

{FLAG Frozen value Time of Freeze } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..31] <0..232-1> UI48 [0..47] <248 -1 ms>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1[4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

Narrative: Time of freeze is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, seconds, and milliseconds.

6-16

DNP Users Group

6.14 16-BIT FROZEN COUNTER WITH TIME OF FREEZE


Data Object 21 - Variation: 06 Type: Frozen Static

Description: The 16-bit frozen counter with time of freeze is a compound information object which contains information about a counter which was previously frozen. The counter accumulates pulses or transitions from a hardware or software point. The frozen value shows the value of the counter when the time was time of freeze. The time of freeze field contains a time that this object was frozen. This time corresponds to the frozen value so that the current value of this object at time of freeze is frozen value. The flag field has the same meaning as in previous objects.

DNP V3.00 Data Object Library (Version 0.02)

6-17

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen Value 15 Time of Freeze 47 0 0

SQ4

{FLAG Frozen value Time of Freeze } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = = ={ = = = = = = = = =

BS8 [0..7] UI16 [0..15] <0..216-1> UI48 [0..47] <248 -1 ms>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1[4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

Narrative: Time of freeze is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, seconds, and milliseconds.

6-18

DNP Users Group

6.15 32-BIT FROZEN DELTA COUNTER WITH TIME OF FREEZE


Data Object 21 - Variation: 07 Type: Frozen Static

Description: The 32-bit frozen delta counter with time of freeze represents a frozen value that has accumulated since the last value was reported. This can be accumulated pulses or transitions from a hardware or software point. The frozen value shows the value of the counter when the time was time of freeze. The time of freeze field contains a time that this object was frozen. This time corresponds to the frozen value so that the current value of this object at time of freeze is frozen value. The flag field has the same meaning as in previous objects.

DNP V3.00 Data Object Library (Version 0.02)

6-19

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen value 31 Time of Freeze 47 0 0

SQ4

{FLAG Frozen value Time of Freeze } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..31] <0..232-1> UI48 [0..47] <248 -1 ms>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

Narrative: Time of freeze is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, seconds, and milliseconds.

6-20

DNP Users Group

6.16 16-BIT FROZEN DELTA COUNTER WITH TIME OF FREEZE


Data Object 21 - Variation: 08 Type: Frozen Static

Description: The 16-bit frozen delta counter with time of freeze represents a frozen value that has accumulated since the last value was reported. This can be accumulated pulses or transitions from a hardware or software point. The frozen value shows the value of the counter when the time was time of freeze. The time of freeze field contains a time that this object was frozen. This time corresponds to the frozen value so that the current value of this object at time of freeze is frozen value. The flag field has the same meaning as in previous objects.

DNP V3.00 Data Object Library (Version 0.02)

6-21

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen value 15 Time of Freeze 47 0 0

SQ4

{FLAG Frozen value Time of Freeze } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = = ={ = = = = = = = = =

BS8 [0..7] UI16 [0..15] <0..216-1> UI48 [0..47] <248 -1 ms>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

Narrative: Time of freeze is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, seconds, and milliseconds.

6-22

DNP Users Group

6.17 32-BIT FROZEN COUNTER WITHOUT FLAG


Data Object 21 - Variation: 09 Type: Frozen Static

Description: The 32-bit frozen counter is a compound information object which contains information about a counter which was previously frozen. The frozen value shows the value of the counter when the last counter freeze was performed at the originating device. Object Coding:
Frozen Value 31 0

SQ2

{Frozen Value = }

UI32 [0..31] <0..232-1>

NOTE:

The use of this variation implies that the input point is on-line and that all other flag bits are normal (i.e. this variation implies that flag = 1).

DNP V3.00 Data Object Library (Version 0.02)

6-23

6.18 16-BIT FROZEN COUNTER WITHOUT FLAG


Data Object 21 - Variation: 10 Type: Frozen Static

Description: The 16-bit frozen counter is a compound information object which contains information about a counter which was previously frozen. The counter accumulates pulses or transitions from a hardware or software point. The frozen value shows the value of the counter when the last counter freeze was performed at the originating device. Object Coding:
Frozen Value 15 0

SQ2

{Frozen Value }

UI16 [0..15] <0..216-1>

NOTE:

The use of this variation implies that the input point is on-line and that all other flag bits are normal (i.e. this variation implies that flag = 1).

6-24

DNP Users Group

6.19 32-BIT FROZEN DELTA COUNTER WITHOUT FLAG


Data Object 21 - Variation: 11 Type: Frozen Static

Description: The 32-bit frozen delta counter represents a frozen value that has accumulated since the last value was reported. This can be accumulated pulses or transitions from a hardware or software point. The frozen value shows the value of the counter when the last counter freeze was performed at the originating device. Object Coding:
Frozen Value 31 0

SQ2

{Frozen Value = }

UI32 [0..31] <0..232-1>

NOTE:

The use of this variation implies that the input point is on-line and that all other flag bits are normal (i.e. this variation implies that flag = 1).

DNP V3.00 Data Object Library (Version 0.02)

6-25

6.20 16-BIT FROZEN DELTA COUNTER WITHOUT FLAG


Data Object 21 - Variation: 12 Type: Frozen Static

Description: The 16-bit frozen delta counter represents a frozen value that has accumulated since the last value was reported. This can be accumulated pulses or transitions from a hardware or software point. The frozen value shows the value of the counter when the last counter freeze was performed at the originating device. Object Coding:
Frozen Value 15 0

SQ2

{Frozen Value = }

UI16 [0..15] <0..216-1>

NOTE:

The use of this variation implies that the input point is on-line and that all other flag bits are normal (i.e. this variation implies that flag = 1).

6-26

DNP Users Group

6.21 32-BIT COUNTER CHANGE EVENT WITHOUT TIME


Data Object 22 - Variation: 01 Type: Event

Description: The 32-bit counter change event without time represents a counter value that, since last reported, has exceeded a configured count. This can be accumulated pulses or transitions from a hardware or software point. The current value field shows the value of the counter which generated the event. The flag field has the same meaning as in previous objects. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Current value 31 0

SQ4

{FLAG Current value } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..31] <0..232-1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

DNP V3.00 Data Object Library (Version 0.02)

6-27

6.22 16-BIT COUNTER CHANGE EVENT WITHOUT TIME


Data Object 22 - Variation: 02 Type: Event

Description: The 16-bit counter change event without time represents a counter value that has exceeded a configured deadband. This can be accumulated pulses or transitions from a hardware or software point. The current value field shows the value of the counter which generated the event. The flag field has the same meaning as in previous objects. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Current value 15 0

SQ4

{FLAG Current value } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI16 [0..15] <0..216-1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

6-28

DNP Users Group

6.23 32-BIT DELTA COUNTER CHANGE EVENT WITHOUT TIME


Data Object 22 - Variation: 03 Type: Event

Description: The 32-bit delta counter change event without time represents a delta counter value that has exceeded a configured deadband. This can be accumulated pulses or transitions from a hardware or software point. The delta value field shows the change of the counter which generated the event. The flag field has the same meaning as in previous objects. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Delta value 31 0

SQ4

{FLAG Current value } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..31] <0..232-1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

DNP V3.00 Data Object Library (Version 0.02)

6-29

6.24 16-BIT DELTA COUNTER CHANGE EVENT WITHOUT TIME


Data Object 22 - Variation: 04 Type: Event

Description: The 16-bit delta counter change event without time represents a delta counter value that has exceeded a configured deadband. This can be accumulated pulses or transitions from a hardware or software point. The delta value field shows the change of the counter which generated the event. The flag field has the same meaning as in previous objects. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Delta value 15 0

SQ4

{FLAG Current value FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..16] <0..216-1>} BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

6-30

DNP Users Group

6.25 32-BIT COUNTER CHANGE EVENT WITH TIME


Data Object 22 - Variation: 05 Type: Event

Description: The 32-bit counter change event with time represents a counter value that has exceeded a configured deadband. This can be accumulated pulses or transitions from a hardware or software point. The value field shows the value of the counter which generated the event. The Time field contains the time that processing generated the event. The flag field has the same meaning as in previous objects.

DNP V3.00 Data Object Library (Version 0.02)

6-31

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Value 31 Time 47 0 0

SQ4

{FLAG Value Time } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..31] <0..232-1> UI48 [0..47] <248 -1 ms>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

Narrative: Time is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, seconds, and milliseconds.

6-32

DNP Users Group

6.26 16-BIT COUNTER CHANGE EVENT WITH TIME


Data Object 22 - Variation: 06 Type: Event

Description: The 16-bit counter change event with time represents a counter value that has exceeded a configured deadband. This can be accumulated pulses or transitions from a hardware or software point. The value field shows the value of the counter which generated the event. The time field contains the time that processing generated the event. The flag field has the same meaning as in previous objects.

DNP V3.00 Data Object Library (Version 0.02)

6-33

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Value 15 Time 47 0 0

SQ4

{FLAG Value Time } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = = ={ = = = = = = = = =

BS8 [0..7] UI16 [0..15] <0..216-1> UI48 [0..47] <248 -1 ms>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

Narrative: Time is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, seconds, and milliseconds.

6-34

DNP Users Group

6.27 32-BIT DELTA COUNTER CHANGE EVENT WITH TIME


Data Object 22 - Variation: 07 Type: Event

Description: The 32-bit delta counter change event with time represents a delta counter value that has exceeded a configured deadband. This can be accumulated pulses or transitions from a hardware or software point. The value field shows the value of the change which generated the event. The time contains the time that processing generated the event. The flag field has the same meaning as in previous objects.

DNP V3.00 Data Object Library (Version 0.02)

6-35

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Value 31 Time 47 0 0

SQ4

{FLAG Value Time } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..31] <0..232-1> UI48 [0..47] <248 -1 ms>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

Narrative: Time is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, seconds, and milliseconds.

6-36

DNP Users Group

6.28 16-BIT DELTA COUNTER CHANGE EVENT WITH TIME


Data Object 22 - Variation: 08 Type: Event

Description: The 16-bit delta counter change event with time represents a delta counter value that has exceeded a configured deadband. This can be accumulated pulses or transitions from a hardware or software point. The value field shows the value of the change which generated the event. The time field contains the time that processing generated the event. The flag field has the same meaning as in previous objects.

DNP V3.00 Data Object Library (Version 0.02)

6-37

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Value 15 Time 47 0 0

SQ4

{FLAG Value Time } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = = ={ = = = = = = = = =

BS8 [0..7] UI16 [0..15] <0..216-1> UI48 [0..47] <248 -1 ms>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

Narrative: Time is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, seconds, and milliseconds.

6-38

DNP Users Group

6.29 32-BIT COUNTER CHANGE EVENT WITHOUT TIME


Data Object 23 - Variation: 01 Type: Frozen Event

Description: The 32-bit frozen counter event without time object represents a frozen counter value that is reported as an event. This can be accumulated pulses or transitions from a hardware or software point. The frozen value field shows the value at the time of freezing. The flag field has the same meaning as in previous objects. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen value 31 0

SQ4

{FLAG Frozen value } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..31] <0..232-1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

DNP V3.00 Data Object Library (Version 0.02)

6-39

6.30 16-BIT FROZEN COUNTER EVENT WITHOUT TIME


Data Object 23 - Variation: 02 Type: Frozen Event

Description: The 16-bit frozen counter event without time represents a frozen counter value that is reported as an event. This can be accumulated pulses or transitions from a hardware or software point. The frozen value field shows the value at the time of freezing. The flag field has the same meaning as in previous objects. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen value 15 0

SQ4

{FLAG Frozen value } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI16 [0..15] <0..216-1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

6-40

DNP Users Group

6.31 32-BIT FROZEN DELTA COUNTER EVENT WITHOUT TIME


Data Object 23 - Variation: 03 Type: Frozen Event

Description: The 32-bit frozen delta counter event without time represents a frozen delta counter value that is reported as an event. This can be accumulated pulses or transitions from a hardware or software point. The frozen delta value field shows the change in counter value at the time of freezing. The flag field has the same meaning as in previous objects. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen delta value 31 0

SQ4

{FLAG Frozen delta value } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..31] <0..232-1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

DNP V3.00 Data Object Library (Version 0.02)

6-41

6.32 16-BIT FROZEN DELTA COUNTER WITHOUT TIME


Data Object 23 - Variation: 04 Type: Frozen Event

Description: The 16-bit frozen delta counter event without time represents a frozen delta counter value that is reported as an event. This can be accumulated pulses or transitions from a hardware or software point. The frozen delta value field shows the change in counter value at the time of freezing. The flag field has the same meaning as in previous objects. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen delta value 15 0

SQ4

{FLAG Frozen delta value } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = ={ = = = = = = = = =

BS8 [0..7] UI16 [0..15] <0..216-1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

6-42

DNP Users Group

6.33 32-BIT FROZEN COUNTER EVENT WITH TIME


Data Object 23 - Variation: 05 Type: Frozen Event

Description: The 32-bit frozen counter event with time represents a frozen counter value that is reported as an event. This can be accumulated pulses or transitions from a hardware or software point. The frozen value shows the value of the counter at time of freeze. The time of freeze contains the time that the object was frozen. The flag field has the same meaning as in previous objects.

DNP V3.00 Data Object Library (Version 0.02)

6-43

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen Value 31 Time of Freeze 47 0 0

SQ4

{FLAG Frozen Value Time of Freeze } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..31] <0..232-1> UI48 [0..47] <248 -1 ms>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

Narrative: Time is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, seconds, and milliseconds.

6-44

DNP Users Group

6.34 16-BIT FROZEN COUNTER EVENT WITH TIME


Data Object 23 - Variation: 06 Type: Frozen Event

Description: The 16-bit frozen counter event with time represents a frozen counter value that is reported as an event. This can be accumulated pulses or transitions from a hardware or software point. The frozen value shows the value of the counter at time of freeze. The time of freeze contains the time that the object was frozen. The flag field has the same meaning as in previous objects.

DNP V3.00 Data Object Library (Version 0.02)

6-45

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen Value 15 Time of Freeze 47 0 0

SQ4

{FLAG Frozen Value Time of Freeze } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = = ={ = = = = = = = = =

BS8 [0..7] UI16 [0..15] <0..216-1> UI48 [0..47] <248 -1 ms>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

Narrative: Time is recorded as milliseconds since midnight, January 1st, 1970 at zero hours, zero minutes, seconds and milliseconds.

6-46

DNP Users Group

6.35 32-BIT FROZEN DELTA COUNTER EVENT WITH TIME


Data Object 23 - Variation: 07 Type: Frozen Event

Description: The 32-bit frozen delta counter event with time represents a frozen delta counter value that is reported as an event. This can be accumulated pulses or transitions from a hardware or software point. The frozen value shows the change in the counter at time of freeze. The time of freeze contains the time that the object was frozen. The flag field has the same meaning as in previous objects.

DNP V3.00 Data Object Library (Version 0.02)

6-47

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen Value 31 Time of Freeze 47 0 0

SQ4

{FLAG Frozen Value Time of Freeze } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = = ={ = = = = = = = = =

BS8 [0..7] UI32 [0..31] <0..232-1> UI48 [0..47] <248 -1 ms>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

Narrative: Time is recorded as milliseconds since midnight, January 1st, 1970 at zero hours, zero minutes, seconds and milliseconds.

6-48

DNP Users Group

6.36 16-BIT FROZEN DELTA COUNTER EVENT WITH TIME


Data Object 23 - Variation: 08 Type: Frozen Event

Description: The 16-bit frozen delta counter event with time represents a frozen delta counter value that is reported as an event. This can be accumulated pulses or transitions from a hardware or software point. The frozen value shows the change in the counter at time of freeze. The time of freeze contains the time that the object was frozen. The flag field has the same meaning as in previous objects.

DNP V3.00 Data Object Library (Version 0.02)

6-49

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Frozen Value 15 Time of Freeze 47 0 0

SQ4

{FLAG Frozen Value Time of Freeze } FLAG On-line Restart Communication lost Remote forced data Local forced data Roll-over Roll-over Reserved Reserved }

= = = ={ = = = = = = = = =

BS8 [0..7] UI16 [0..15] <0..216-1> UI48 [0..47] <248 -1 ms>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [4] <0, normal; 1, roll-over> BS1 [5] <0, normal; 1, roll-over> BS1 [6] <0> BS1 [7] <0>

Narrative: Time is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, seconds, and milliseconds.

6-50

DNP Users Group

7. ANALOG INPUT OBJECT DEFINITIONS


This section defines the analog input data objects using the rules established in section 2. DECLARATION RULES FOR INFORMATION ELEMENTS.

7.1 32-BIT ANALOG INPUT


Data Object 30 - Variation: 01 Type: Static

Description: The 32-bit Analog Input is an information object used to represent a hardware or software analog point. The 32-bit signed value could represent a digitized signal or calculated value. The Value field shows the current value of the analog input at the time of reporting or the last reported value from the originating device. The flag field has the same meaning as previous objects, with these additions: The out of range field indicates that the digitized signal or calculation has exceeded +231 -1 positively, or -231 negatively. The actual value will be +231 -1 or -231 if it is overrange or under-range. The reference check field indicates that the reference signal used to digitize the analog input is not stable and the resulting digitized value may not be correct.

DNP V3.00 Data Object Library (Version 0.02)

7-1

Object Coding:
FLAG 7 Current value 31 0 0

SQ2

{FLAG Current value } FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

= = ={ = = = = = = = =

BS8 [0..7] I32 [0..31] <231-1..-231>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

7-2

DNP Users Group

7.2 16-BIT ANALOG INPUT


Data Object 30 - Variation: 02 Type: Static

Description: The 16-bit analog input is an information object used to represent a hardware or software analog point. The 16-bit signed value could represent a digitized signal or calculated value. The value field shows the current value of the analog input at the time of reporting, or the last reported value from the originating device. The flag field has the same meaning as previous objects, with these additions: The over-range field indicates that the digitized signal or calculation has exceeded +215 1 positively, or -215 negatively. The actual value field can be ignored as its value is not defined. The reference check field indicates that the reference signal used to digitize the analog input is not stable and the resulting digitized value may not be correct.

DNP V3.00 Data Object Library (Version 0.02)

7-3

Object Coding:
FLAG 7 Current value 15 0 0

SQ2

{FLAG Current value } FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

= = ={ = = = = = = = =

BS8 [0..7] I16 [0..15] <215-1..-215>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

7-4

DNP Users Group

7.3 32-BIT ANALOG INPUT WITHOUT FLAG


Data Object 30 - Variation: 03 Type: Static

Description: The 32-bit analog input is an information object used to represent a hardware or software analog point. The 32-bit signed value could represent a digitized signal or calculated value. The value field shows the current value of the analog input at the time of reporting, or the last reported value from the originating device. Object Coding:
Current value 31 0

SQ2

{Current value = }

I32 [0..31] <231-1..-231>

NOTE:

The use of this variation implies that the input point is on-line and that all other flag bits are normal (i.e. this variation implies that flag = 1).

DNP V3.00 Data Object Library (Version 0.02)

7-5

7.4 16-BIT ANALOG INPUT WITHOUT FLAG


Data Object 30 - Variation: 04 Type: Static

Description: The 16-bit analog input is an information object used to represent a hardware or software analog point. The 16-bit signed value could represent a digitized signal or calculated value. The current value field shows the current value of the analog input at the time of reporting, or the last reported value from the originating device. Object Coding:
Current value 15 0

SQ2

{Current value = }

I16 [0..15] <215-1..-215>

NOTE:

The use of this variation implies that the input point is on-line and that all other flag bits are normal (i.e. this variation implies that flag = 1).

7-6

DNP Users Group

7.5 32-BIT FROZEN ANALOG INPUT


Data Object 31 - Variation: 01 Type: Frozen Static

Description: The 32-bit frozen analog input is an information object used to represent a frozen hardware or software analog point. The 32-bit signed value could represent a digitized signal or calculated value. The frozen value shows the value of the analog input at the time the last freeze command was performed on this point. The flag field has the same meaning as previous objects, with these additions: The over-range field indicates that the digitized signal or calculation has exceeded +231 1 positively, or -231 negatively. The actual value field can be ignored as its value is not defined. The reference check field indicates that the reference signal used to digitize the analog input is not stable, and the resulting digitized value may not be correct. Object Coding:
FLAG 7 Frozen value 31 0 0

SQ2

{FLAG Current value } FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

= = ={ = = = = = = = =

BS8 [0..7] I32 [0..31] <231-1..-231>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

DNP V3.00 Data Object Library (Version 0.02)

7-7

7.6 16-BIT FROZEN ANALOG INPUT


Data Object 31 - Variation: 02 Type: Frozen Static

Description: The 16-bit frozen analog input is an information object used to represent a frozen hardware or software analog point. The 16-bit signed value could represent a digitized signal or calculated value. The frozen value shows the value of the analog input at the time the last freeze command was performed on this point. The flag field has the same meaning as previous objects, with these additions: The over-range field indicates that the digitized signal or calculation has exceeded +215 1 positively, or -215 negatively. The actual value field can be ignored as its value is not defined. The reference check field indicates that the reference signal used to digitize the analog input is not stable, and the resulting digitized value may not be correct. Object Coding:
FLAG 7 Frozen value 15 0 0

SQ2

{FLAG Current value } FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

= = ={ = = = = = = = =

BS8 [0..7] I16 [0..15] <215-1..-215>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

7-8

DNP Users Group

7.7 32-BIT FROZEN ANALOG INPUT WITH TIME OF FREEZE


Data Object 31 - Variation: 03 Type: Frozen Static

Description: The 32-bit frozen analog input with time of freeze is an information object used to represent a frozen hardware or software analog point. The 32-bit signed value could represent a digitized signal or calculated value. The frozen value shows the value of the analog input at the time specified in time of freeze. The time of freeze field shows the time at which the frozen value was equal to the current value of the analog input. These values are equated on reception of a freeze analog command. The flag field has the same meaning as previous objects, with these additions: The over-range field indicates that the digitized signal or calculation has exceeded +231 1 positively, or -231 negatively. The actual value field can be ignored as its value is not defined. The reference check field indicates that the reference signal used to digitize the analog input is not stable and the resulting digitized value may not be correct.

DNP V3.00 Data Object Library (Version 0.02)

7-9

Object Coding:
FLAG 7 Frozen value 31 0 0

Time of Freeze 47 0

SQ2

{FLAG Current value Time of Freeze } FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

= = = ={ = = = = = = = =

BS8 [0..7] I32 [0..31] <231-1..-231> UI48[0..47] <0 .. 2 48 >

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

7-10

DNP Users Group

7.8 16-BIT FROZEN ANALOG INPUT WITH TIME OF FREEZE


Data Object 31 - Variation: 04 Type: Frozen Static

Description: The 16-bit frozen analog input with time of freeze is an information object used to represent a frozen hardware or software analog point. The 16-bit signed value could represent a digitized signal or calculated value. The frozen value shows the value of the analog input at the time specified in time of freeze. The time of freeze field shows the time at which the frozen value was equal to the current value of the analog input. These values are equated on reception of a freeze analog command. The flag field has the same meaning as previous objects, with these additions: The over-range field indicates that the digitized signal or calculation has exceeded +215 -1 positively, or -215 negatively. The actual value field can be ignored as its value is not defined. The reference check field indicates that the reference signal used to digitize the analog input is not stable, and the resulting digitized value may not be correct.

DNP V3.00 Data Object Library (Version 0.02)

7-11

Object Coding:
FLAG 7 Frozen value 15 0 0

Time of Freeze 47 0

SQ2

{FLAG Time of freeze Current value } FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

= = = ={ = = = = = = = =

BS8 [0..7] UI48[0..47] <0 .. 2 48 -1> I16 [0..15] <215-1..-215>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

7-12

DNP Users Group

7.9 32-BIT FROZEN ANALOG INPUT WITHOUT FLAG


Data Object 31 - Variation: 05 Type: Frozen Static

Description: The 32-bit frozen analog input is an information object used to represent a frozen hardware or software analog point. The 32-bit signed value could represent a digitized signal or calculated value. The frozen value shows the value of the analog input at the time the last freeze command was performed on this point. Object Coding:
Frozen value 31 0

SQ2

{Current value= }

I32 [0..31] <231-1..-231>

NOTE:

The use of this variation implies that the input point is on-line and that all other flag bits are normal (i.e. this variation implies that flag = 1).

DNP V3.00 Data Object Library (Version 0.02)

7-13

7.10 16-BIT FROZEN ANALOG INPUT WITHOUT FLAG


Data Object 31 - Variation: 06 Type: Frozen Static

Description: The 16-bit frozen analog input is an information object used to represent a frozen hardware or software analog point. The 16-bit signed value could represent a digitized signal or calculated value. The frozen value shows the value of the analog input at the time the last freeze command was performed on this point. Object Coding:
Frozen value 15 0

SQ2

{Current value= }

I16 [0..15] <215-1..-215>

7-14

DNP Users Group

7.11 32-BIT ANALOG CHANGE EVENT WITHOUT TIME


Data Object 32 - Variation: 01 Type: Event

Description: The 32-bit analog change event without time is an information object used to represent a changed hardware or software analog point. The 32-bit signed value could represent a digitized signal or calculated value. The current value field shows the current value of the analog input at the time of reporting, or the last reported value from the originating device. This object will only be reported if the current value and the last reported value differ by a configurable deadband value. This filtering is commonly known as deadbanding. The flag field has the same meaning as previous objects, with these additions: The over-range field indicates that the digitized signal or calculation has exceeded +231 -1 positively, or -231 negatively. The actual value field can be ignored as its value is not defined. The reference check field indicates that the reference signal used to digitize the analog input is not stable, and the resulting digitized value may not be correct.

DNP V3.00 Data Object Library (Version 0.02)

7-15

Object Coding:
FLAG 7 Current value 31 0 0

SQ2

{FLAG Current value } FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

= = ={ = = = = = = = =

BS8 [0..7] I32 [0..31] <231-1..-231>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

7-16

DNP Users Group

7.12 16-BIT CHANGE EVENT WITHOUT TIME


Data Object 32 - Variation: 02 Type: Event

Description: The 16-bit analog change event without time is an information object used to represent a changed hardware or software analog point. The 16-bit signed value could represent a digitized signal or calculated value. The current value field shows the current value of the analog input at the time of reporting, or the last reported value from the originating device. This object will only be reported if the current value and the last reported value differ by a configurable deadband value. This filtering is commonly known as deadbanding. The flag field has the same meaning as previous objects, with these additions: The over-range field indicates that the digitized signal or calculation has exceeded +215 -1 positively, or -215 negatively. The actual value field can be ignored as its value is not defined. The reference check field indicates that the reference signal used to digitize the analog input is not stable, and the resulting digitized value may not be correct.

DNP V3.00 Data Object Library (Version 0.02)

7-17

Object Coding:
FLAG 7 Current value 15 0 0

SQ2

{FLAG Current value } FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

= = ={ = = = = = = = =

BS8 [0..7] I16 [0..15] <215-1..-215>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

7-18

DNP Users Group

7.13 32-BIT ANALOG CHANGE EVENT WITH TIME


Data Object 32 - Variation: 03 Type: Event

Description: The 32-bit analog change event with time is an information object used to represent a changed hardware or software analog point. The 32-bit signed value could represent a digitized signal or calculated value. The current value shows the value of the analog input at the time specified in time. The time field shows the time at which the processing caused the event. The flag field has the same meaning as previous objects, with these additions: The over-range field indicates that the digitized signal or calculation has exceeded +231 -1 positively, or -231 negatively. The actual value field can be ignored as its value is not defined. The reference check field indicates that the reference signal used to digitize the analog input is not stable, and the resulting digitized value may not be correct.

DNP V3.00 Data Object Library (Version 0.02)

7-19

Object Coding:
FLAG 7 Value 31 Time 47 0 0 0

SQ2

{FLAG Time Value } FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

= = = ={ = = = = = = = =

BS8 [0..7] UI48[0..47] <0 .. 2 48 -1> I32[0..31] <231-1..-231>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

7-20

DNP Users Group

7.14 16-BIT ANALOG CHANGE EVENT WITH TIME


Data Object 32 - Variation: 04 Type: Event

Description: The 16-bit analog change event with time is an information object used to represent a changed hardware or software analog point. The 16-bit signed value could represent a digitized signal or calculated value. The current value shows the value of the analog input at the time specified in time. The time field shows the time at which the processing caused the event. The flag field has the same meaning as previous objects, with these additions: The over-range field indicates that the digitized signal or calculation has exceeded +215 -1 positively, or -215 negatively. The actual value field can be ignored as its value is not defined. The reference check field indicates that the reference signal used to digitize the analog input is not stable, and the resulting digitized value may not be correct.

DNP V3.00 Data Object Library (Version 0.02)

7-21

Object Coding:
FLAG 7 Value 15 Time 47 0 0 0

SQ2

{FLAG Time Value } FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

= = = ={ = = = = = = = =

BS8 [0..7] UI48 [0..47] <0 .. 2 48 -1> I16 [0..15] <215-1..-215>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

7-22

DNP Users Group

7.15 32-BIT FROZEN ANALOG EVENT WITHOUT TIME


Data Object 33 - Variation: 01 Type: Frozen Event

Description: The 32-bit frozen analog event without time is an information object used to represent a frozen hardware or software analog point that is reported as an event. The 32-bit signed value could represent a digitized signal or calculated value. The frozen value field shows the value of the analog input at the time of freeze. The flag field has the same meaning as previous objects, with these additions: The over-range field indicates that the digitized signal or calculation has exceeded +231 -1 positively, or -231 negatively. The actual value field can be ignored as its value is not defined. The reference check field indicates that the reference signal used to digitize the analog input is not stable, and the resulting digitized value may not be correct.

DNP V3.00 Data Object Library (Version 0.02)

7-23

Object Coding:
FLAG 7 Frozen value 31 0 0

SQ2

{FLAG Frozen value } FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

= = ={ = = = = = = = =

BS8 [0..7] I32 [0..31] <231-1..-231>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

7-24

DNP Users Group

7.16 16-BIT FROZEN ANALOG EVENT WITHOUT TIME


Data Object 33 - Variation: 02 Type: Frozen Event

Description: The 16-bit frozen analog event without time is an information object used to represent a frozen hardware or software analog point that is reported as an event. The 16-bit signed value could represent a digitized signal or calculated value. The frozen value field shows the value of the analog input at the time of freeze. The flag field has the same meaning as previous objects, with these additions: The over-range field indicates that the digitized signal or calculation has exceeded +215 -1 positively, or -215 negatively. The actual value field can be ignored as its value is not defined. The reference check field indicates that the reference signal used to digitize the analog input is not stable, and the resulting digitized value may not be correct.

DNP V3.00 Data Object Library (Version 0.02)

7-25

Object Coding:
FLAG 7 Frozen value 15 0 0

SQ2

{FLAG Frozen value } FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

= = ={ = = = = = = = =

BS8 [0..7] I16 [0..15] <215-1..-215>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

7-26

DNP Users Group

7.17 32-BIT FROZEN ANALOG EVENT WITH TIME


Data Object 33 - Variation: 03 Type: Frozen Event

Description: The 32-bit frozen analog event with time is an information object used to represent a frozen hardware or software analog point that is reported as an event. The 32-bit signed value could represent a digitized signal or calculated value. The frozen value field shows the value of the analog input at the time of a freeze. The flag field has the same meaning as previous objects, with these additions: The over-range field indicates that the digitized signal or calculation has exceeded +231 -1 positively, or -231 negatively. The actual value field can be ignored as its value is not defined. The reference check field indicates that the reference signal used to digitize the analog input is not stable, and the resulting digitized value may not be correct. The time of freeze field shows the time at which the frozen value was equal to the current value of the analog input. These values are equated on reception of a freeze analog command.

DNP V3.00 Data Object Library (Version 0.02)

7-27

Object Coding:
FLAG 7 Frozen value 31 0 0

Time of Freeze 47 0

SQ2

{FLAG Frozen value Time of Freeze } FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

= = = ={ = = = = = = = =

BS8 [0..7] I32 [0..31] <231-1..-231> UI48[0..47] <0 .. 2 48 -1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

7-28

DNP Users Group

7.18 16-BIT FROZEN ANALOG EVENT WITH TIME


Data Object 33 - Variation: 04 Type: Frozen Event

Description: The 16-bit frozen analog event with time is an information object used to represent a frozen hardware or software analog point that is reported as an event. The 16-bit signed value could represent a digitized signal or calculated value. The frozen value field shows the value of the analog input at the time of a freeze. The Flag field has the same meaning as previous objects with these additions: The over-range field indicates that the digitized signal or calculation has exceeded +215 -1 positively, or -215 negatively. The actual value field can be ignored as its value is not defined. The reference check field indicates that the reference signal used to digitize the analog input is not stable, and the resulting digitized value may not be correct. The time of freeze field shows the time at which the frozen value was equal to the current value of the analog input. These values are equated on reception of a freeze analog command.

DNP V3.00 Data Object Library (Version 0.02)

7-29

Object Coding:
FLAG 7 Frozen value 15 0 0

Time of Freeze 47 0

SQ2

{FLAG Frozen value Time of Freeze } FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

= = = ={ = = = = = = = =

BS8 [0..7] I16 [0..15] <215-1..-215> UI48[0..47] <0 .. 2 48 -1>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0, normal; 1, forced> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

7-30

DNP Users Group

8. ANALOG OUTPUT OBJECT DEFINITIONS


This section defines the analog output data objects using the rules established in section 2. DECLARATION RULES FOR INFORMATION ELEMENTS.

8.1 32-BIT ANALOG OUTPUT STATUS


Data Object 40 - Variation: 01 Type: Static

Description: The 32-bit analog output status information object represents the actual value of an analog output or software point and associated status. The actual value field contains the current value of the analog output. The flag field has the same meaning as previous objects.

DNP V3.00 Data Object Library (Version 0.02)

8-1

Object Coding:
FLAG 7 6 5 4 3 2 1 0

Current value 31 0

SQ3

{FLAG Current value } FLAG On-line Restart Communication lost Remote forced data Reserved Reserved Reserved Reserved }

= = ={ = = = = = = = =

BS8 [0..7] I32 [0..31] <231-1..-231>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, unlock; 1, forced> BS1 [4] <0> BS1 [5] <0> BS1 [6] <0> BS1 [7] <0>

Narrative: This object can be returned after an analog output operation is performed in order to determine the success of the operation.

8-2

DNP Users Group

8.2 16-BIT ANALOG OUTPUT STATUS


Data Object 40 - Variation: 02 Type: Static

Description: The 16-bit analog output status information object represents the actual value of a hardware DAC analog output or software point and associated status. The actual value field contains the current value of the analog output. The flag field has the same meaning as previous objects. Object Coding:
FLAG 7 6 5 4 3 2 1 0

Current value 15 0

SQ3

{FLAG Current value } FLAG On-line Restart Communication lost Remote forced data Reserved Reserved Reserved Reserved }

= = ={ = = = = = = = =

BS8 [0..7] I16 [0..15] <215-1..-215>

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, unlock; 1, forced> BS1 [4] <0> BS1 [5] <0> BS1 [6] <0> BS1 [7] <0>

Narrative: This object can be returned after an analog output operation is performed in order to determine the success of the operation.

DNP V3.00 Data Object Library (Version 0.02)

8-3

8.3 32-BIT ANALOG OUTPUT BLOCK


Data Object 41 - Variation: 01 Type: Static

Description: The 32-bit analog output information object represents the desired value of a hardware DAC analog output or software point. The value represented is merely logical, as the value may be scaled and/or manipulated before any output level is set. The requested value field contains the desired value of the analog output. The actual value of the analog output is returned in the analog output status object. The control status field indicates the status of the analog control operation, in the same way that the control delay output block does. The definition of this field is the same as the control relay output block. Object Coding:
Requested value 31 Control Status 7 0 0

I32 [0..31] <231-1..-231> Requested value = Status = I8 [0..7] <0..255> This is used in a control request/response.

8-4

DNP Users Group

8.4 16-BIT ANALOG OUTPUT BLOCK


Data Object 41 - Variation: 02 Type: Static

Description: The 16-bit analog output block information object represents the desired value of a hardware DAC analog output or software point. The value represented is merely logical, as the value may be scaled and/or manipulated before any output level is set. The requested value field contains the desired value of the analog output. The actual value of the analog output is returned in the analog output status object. The control status field indicates the status of the analog control operation in the same way as the control relay output block. The definition of this field is the same as the control relay output block. Object Coding:
Requested value 15 Control Status 7 0 0

I16 I8

Requested value Status

= =

I16 [0..15] <215-1..-215> I8 [0..7] <0..255>

DNP V3.00 Data Object Library (Version 0.02)

8-5

8-6

DNP Users Group

9. TIME OBJECT DEFINITIONS


This section defines the time data objects using the rules established in section 2. DECLARATION RULES FOR INFORMATION ELEMENTS.

9.1 TIME AND DATE


Data Object 50 - Variation: 01 Description: The time and date object is an information object that represents the absolute time of day and date. This object should be used for time-synchronization. Object Coding:
Absolute Time 7 15 23 31 39 47 6 14 22 30 38 46 5 13 21 29 37 45 4 12 20 28 36 44 3 11 19 27 35 43 2 10 18 26 34 42 1 9 17 25 33 41 0 8 16 24 32 40

Absolute Time=

UI48 [0..47] <0..248-1, msec>

Narrative: Absolute Time is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, zero seconds, and milliseconds.

DNP V3.00 Data Object Library (Version 0.02)

9-1

9.2 TIME AND DATE WITH INTERVAL


Data Object 50 - Variation: 02 Description: The time and date with interval represents both an absolute time and an interval time. The absolute time represents a starting time (or base time), and the interval time is a positive offset from the base time. The interval could be applied several times to the base time in order to specify a sequence of periodic times. For example, this can be used to specify a sequence of times for periodic freezing of objects. The absolute time field specifies the base time. This time is the real time-of-day. The interval field specifies the periodic interval or offset from the base time.

9-2

DNP Users Group

Object Coding:
Absolute time 7 15 23 31 39 47 6 14 22 30 38 46 5 13 21 29 37 45 4 12 20 28 36 44 3 11 19 27 35 43 2 10 18 26 34 42 1 9 17 25 33 41 0 8 16 24 32 40

Interval 7 15 23 31 6 14 22 30 5 13 21 29 4 12 20 28 3 11 19 27 2 10 18 26 1 9 17 25 0 8 16 24

SQ2

{Absolute time Interval }

= =

UI48 [0..47] <0..248 -1, msec> UI32 [0..31] <0..232-1, msec>

Narrative: Absolute time is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, zero seconds, and milliseconds.

DNP V3.00 Data Object Library (Version 0.02)

9-3

9.3 TIME AND DATE CTO


Data Object 51 - Variation: 01 Description: The time and date CTO (common time of occurrence) object is an information object that represents the absolute time of day. This object should be used in conjunction with other objects that contain time references. This object is a base time to which a relative (incremental) time can be added, or from which it can be subtracted, in order to obtain another absolute time reference. Object Coding:
Absolute Time 7 15 23 31 39 47 6 14 22 30 38 46 5 13 21 29 37 45 4 12 20 28 36 44 3 11 19 27 35 43 2 10 18 26 34 42 1 9 17 25 33 41 0 8 16 24 32 40

Absolute time =

UI48 [0..47] <0..248-1, msec>

Narrative: Absolute time is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, zero seconds, and milliseconds.

9-4

DNP Users Group

9.4 UN-SYNCHRONIZED TIME AND DATE CTO


Data Object 51 - Variation: 02 Description: The un-synchronized time and date CTO object is an information object that represents the relative-absolute time of day. This object should be used in conjunction with other objects that contain time references. This object is a relative base time to which a relative (incremental) time can be added, or from which it can be subtracted, in order to obtain another relative-absolute time reference. The real absolute time can be calculated by the message receiver, based on the reception time of the message containing this object. Any objects that follow this object, and come before the next common-time object that contains relative time, must be corrected using this relative-absolute time value. Relative-absolute time is the un-synchronized time-of-day at the station sending this object (i.e. the responding station). Object Coding:
Relative Absolute Time 7 15 23 31 39 47 6 14 22 30 38 46 5 13 21 29 37 45 4 12 20 28 36 44 3 11 19 27 35 43 2 10 18 26 34 42 1 9 17 25 33 41 0 8 16 24 32 40

Relative-absolute time

UI48 [0..47] <0..248-1, msec>

Narrative: Relative-absolute time is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, zero seconds, and milliseconds.

DNP V3.00 Data Object Library (Version 0.02)

9-5

9.5 TIME DELAY COARSE


Data Object 52 - Variation: 01 Description: The time delay coarse information object represents a relative time that indicates a time period starting from the time of message reception. Object Coding: Seconds 7 15 6 14 5 13 4 12 3 11 2 10 1 9 0 8

Seconds =

UI16 [0..15] <0..65,535, seconds>

9-6

DNP Users Group

9.6 TIME DELAY FINE


Data Object 52 - Variation: 02 Description: The time delay fine information object represents a relative time that indicates a time period starting from the time of message reception. This object can be used in timesynchronization to perform path delay measurement calculations or other functions that require time-based calibration. Object Coding:
Milliseconds 7 15 6 14 5 13 4 12 3 11 2 10 1 9 0 8

Milliseconds =

UI16 [0..15] <0..65,535, milliseconds>

DNP V3.00 Data Object Library (Version 0.02)

9-7

9-8

DNP Users Group

10. CLASS OBJECT DEFINITIONS


This section defines the class data objects using the rules established in section 2. DECLARATION RULES FOR INFORMATION ELEMENTS.

10.1 CLASS 0 DATA


Data Object 60 - Variation: 01 Description: The class 0 data object is an object place-holder that specifies a class of zero or more information elements. These elements can be entire object types, a specific variation, certain points of the variation, or any combination of these. The data specified by this object type is configurable within the responding station. Class 0 data is potentially any information object not assigned to class 1, 2, or 3. That is, class 0 data is non-priority data. Object Coding: None. Narrative: The class 0 data object does not carry any information in itself, and therefore does not have an object coding. Class 0 is a null class to which all data objects not assigned to other classes can belong by default.

DNP V3.00 Data Object Library (Version 0.02)

10-1

10.2 CLASS 1 DATA


Data Object 60 - Variation: 02 Description: The class 1 data object is an object place-holder that specifies a class of zero or more information elements. These elements can be entire object types, a specific variation, certain points of the variation, or any combination of these. The data specified by this object type is configurable within the responding station. The responding station does not send the class 1 data object, as it does not contain any actual information, but is simply an identifier for other objects. Object Coding: None. Narrative: The class 1 data object is used to request a configured group, usually changes, of information objects from a responding station. This data object does not carry any information in itself, and therefore does not have an object coding. Typically, class 1 data has higher priority than class 2, class 3, and class 0 data.

10-2

DNP Users Group

10.3 CLASS 2 DATA


Data Object 60 - Variation: 03 Description: The class 2 data object is an object place-holder that specifies a class of zero or more information elements. These elements can be entire object types, a specific variation, certain points of the variation, or any combination of these. The data specified by this object type is configurable within the responding station. The responding station does not send the class 2 data object, as it does not contain any actual information, but is simply an identifier for other objects. Object Coding: None. Narrative: The class 2 data object is used to request a configured group, usually changes, of information objects from a responding station. This data object does not carry any information in itself, and therefore does not have an object coding.

DNP V3.00 Data Object Library (Version 0.02)

10-3

10.4 CLASS 3 DATA


Data Object 60 - Variation: 04 Description: The class 3 data object is an object place-holder that specifies a class of zero or more information elements. These elements can be entire object types, a specific variation, certain points of the variation, or any combination of these. The data specified by this object type is configurable within the responding station. The responding station does not send the class 3 data object, as it does not contain any actual information, but is simply an identifier for other objects. Object Coding: None. Narrative: The class 3 data object is used to request a configured group, usually an event, of information objects from a responding station. The data object does not carry any information in itself, and therefore does not have an object coding.

10-4

DNP Users Group

11. FILE OBJECT DEFINITIONS


This section defines the file data objects using the rules established in section 2. DECLARATION RULES FOR INFORMATION ELEMENTS.

11.1 FILE IDENTIFIER


Data Object 70 - Variation: 01 Description: The file identifier object is an information object that represents information about a file in a network file system. This object is intended to be used for transferring large blocks of data that do not follow the format of an existing data object. In particular, this object is suitable for uploading and downloading configuration files to remote devices or data concentrators. File operations are defined for this object to allow copying, deleting, etc. of a file. The contents of the file object and the exact procedure to perform on the file will not be interpreted by the Application Layer, and so must be performed by the user of the Application Layer. Networking Capability: The File_Name field defines a logical name of a file or device. The receiving application should interpret this name as a network file name. The root (or /) represents the root of the host file system or receiving node. Sub-directories off of the root are interpreted as branches off of the root. A branch can be a new directory, or more importantly, the directory can be a remote file system which resides in a remote device that is accessible from the current node. When an application receives a file that specifies a directory or file that does not reside in the current file system, the application must do whatever is necessary to obtain the file from the specified device. If the remote device is a DNP 3 device, then the following rules apply: On reception of a non-local file request, the application shall forward the request (in its entirety) to the appropriate DNP 3 device.

DNP V3.00 Data Object Library (Version 0.02)

11-1

The File_Name field will be modified so that the root of the remote device is specified by the File_Name field. This means stripping off any paths that were used to actually derive the name of the remote device. For example, an IED configuration is sent from a host through two data concentrators DC1 and DC2. The name from the Host to DC1 is: \DC2\IED\config1 The name from the DC1 to DC2 is: \IED\config1 The name from the DC2 to IED is: \config1 In this case DC2 and IED were logical directories which specified remote devices and config1 was the name of a physical file. Object Coding: This is not a fixed format object, but it is a variable format/sized object. This part of the object is sent in a request.
31 Attributes End_Record File_Size Time_Of_Creation Permission File_ID Owner_ID Group_ID Status X File_Name File_Function 0 24 23 16 15 File_Type 87 Name_Size Start_Record 0

11-2

DNP Users Group

The File_Name field consists of 0 .. x bits where x = Name_Size * 8 and Name_Size = 0 .. 65535. The file identifier object is sent in a DNP application request message to a remote device using the Application Layer WRITE request function code. A device responds to a request (or spontaneously reports) the file identifier object with an Application Layer RESPONSE or UNSOLICITED RESPONSE function code (where appropriate). File_Name: Name of file to perform operation on. Consists of 1 or more of the characters A .. Z, a..z, 0 .. 9, ".", "_", "\" and "-" ONLY, where " is a delimiter, and where the hyphen cannot be used as the first character of the file name. The size of this field is determined by the Name_Size field below. The name can contain all path information starting from the root (i.e. "\" of the file system. The name can contain spaces ONLY to separate the file path/name from program arguments. Number of characters in File_Name above. Function to perform on specified records of file or on file system at user layer. Includes the following: APPEND, DELETE, INSERT, WRITE, ERASE, INFO, CWD, PWD, EXECUTE and READ. The following values are defined: Add data records specified at END of file. The Start_Record field indicates the number of records to append to the file and also the number of data records following the file identifier header in the message. The data records that follow the header are described in the WRITE function code (below). The device should respond with the file identifier object with all available fields filled in, the File_Function field set to RESPONSE, and the status field set to the status of the requested operation. Remove the specified records from the file (i.e. file shrinks). The Start_Record indicates the first record to delete and the End_Record indicates the last record to delete. There are no data records with this request. The device should respond with the file identifier object with all available fields filled in, the File_Function field set to RESPONSE, and the status field set to the status of the requested operation.

Name_Size: File_Function:

0 = APPEND:

1 = DELETE:

DNP V3.00 Data Object Library (Version 0.02)

11-3

2 = INSERT:

Insert these records at the place specified by the Start_Record field and continuing to End_Record field (i.e. the file grows in size). The number of data records following the file identifier header in the message is End_Record - Start_Record + 1. The data records that follow the header are described in the WRITE function code (below). The device should respond with the file identifier object with all available fields filled in, the File_Function field set to RESPONSE, and the status field set to the status of the requested operation. Place these records at the place specified by Start_Record field and continuing to End_Record field (i.e. the file can potentially grow, and previous data is replaced by these records). The number of data records following the file identifier header in the message is End_Record Start_Record + 1. The data records that follow the header are described below. The device should respond with the file identifier object with all available fields filled in, the File_Function field set to RESPONSE, and the status field set to the status of the requested operation.
Record_Size

3 = WRITE:

Data x 0 15

Where: 4 = ERASE:

x = Record_Size * 8 Record_Size = 0 .. 65535

Clear (to NUL) or ERASE all records specified in Start and End record fields (i.e. the file stays same size, BUT data is cleared). There are no data records in this message. The device should respond with the file identifier object with all available fields filled in, the File_Function field set to RESPONSE, and the status field set to the status of the requested operation.

11-4

DNP Users Group

5 = INFO:

This request is used to obtain INFORMATION on the specified file. The device should respond with the file identifier object header with all fields filled in, the File_Function set to RESPONSE and the status field set to the status of the requested operation. The File_Name field can be set to the special name "/" which indicates ALL files. The device should respond with file identifier object headers for each file in the device's file system. If the device has only one file (and no directories) then this one file's file identifier object header should be returned. Change working directory (CWD) to path specified in File_Name. The device should respond with the file identifier object with all available fields filled in, the File_Function field set to RESPONSE, the File_Name field set to the new working directory, and the status field set to the status of the requested operation. Return the present working directory (PWD) in File_Name. The device should respond with the file identifier object with all available fields filled in, the File_Function field set to RESPONSE, the File_Name field set to the current working directory, and the status field set to the status of the requested operation. Start or EXECUTE the application specified by File_Name and pass it parameters that follow the file name portion of File_Name (separated by spaces). The device should respond with the file identifier object with all available fields filled in, the File_Function field set to RESPONSE and the status field set to the status of the requested operation.

6 = CWD:

7 = PWD:

8 = EXEC:

DNP V3.00 Data Object Library (Version 0.02)

11-5

9 = READ:

Read the specified records of file. The Start_Record specifies the first record to READ, and the End_Record specifies the last record to READ. If the Start_Record field is 0, and the End_Record field is 65535, then the device should respond with all available records. The File_Size field in the response should indicate the total size of the file. The device should respond with the file identifier object with all available fields filled in, and all requested data records (if possible), the File_Function field set to RESPONSE, the Start_Record and End_Record should be set to the beginning and end data records returned in the response, and the status field set to the status of the requested operation. The number of data records following the file identifier header in the message is End_Record Start_Record + 1. The data records that follow the header are described above under the WRITE function code. This function code is used to indicate a response to a request. The contents of this message are defined by the function code in the request message. The permission field specifies the READ, WRITE, and EXECUTE privileges for the file owner, the file owner's group and the world (all others). The READ privilege gives the user the right to read the file (READ, PWD, CWD, INFO request). The WRITE privilege gives the user the right to change the file (APPEND, DELETE, INSERT, WRITE, ERASE). The EXECUTE privilege gives the user the right to run the specified application (EXEC request). Indicates to a receiving application how to interpret the contents of the file object. Valid types are: 8-bit binary, 8-bit ASCII, 7-bit ASCII, EBCDIC, BCD, Baudot, International Baudot. The following values are associated:

255 = RESP:

Permission:

File_Type:

0 = 8-bit binary (un-coded octets of binary) 1 = 8-bit ASCII (extended ASCII characters) 2 = 7-bit ASCII (ASCII characters) 3 = EBCDIC (extended binary coded decimal) 4 = BCD (binary coded decimal) 5 = Baudot (5-bit Baudot) 6 = International Baudot (6-bit Baudot)

11-6

DNP Users Group

Attributes: 0: 1: 2: 3: Status:

File attributes consisting of: regular, temporary, directory, or FIFO. The following values are associated: Regular file is a real PERMANENT file. Temporary file is TEMPORARY and MUST be saved if changes are to be kept. Directory is a file of files (cannot be read). FIFO is a first-in-first-out queue and can be used for inter-process communication (analogous to a socket or pipe). The status of the requested operation, consisting of: OK, Doesn't_exist, Out_of_Space, No_Permission and File_Busy. The following values are associated:

0: 1: 2: 3: 4: File_Size: Start_Record:

OK indicates that the requested operation was successful. Doesn't_exist indicates that the file name is not contained in the file system. Out_of_Space indicates that the file operation caused the file to exceed its maximum size as determined by the User ID, Group ID, and Permission. No_Permission indicates that the file owner does not have enough privileges for the operation requested. File_Busy indicates that the file could not be delivered to the destination. Number of total bytes in file specified by File_Name. The start record number of file. A start record of 0 indicates the start of the file, and a start record of 65535 indicates the last record. The end record number of file, similar to the Start_record. An end record of 65535 combined with a start record of 0 in a READ request indicates the entire file. Size in bytes of each individual data record excluding Record_Size field. Time that the file was created or last modified. This field has the same format as Object 50 Variation 1. 11-7

End_Record:

Record_Size: Time_of_Creation:

DNP V3.00 Data Object Library (Version 0.02)

Owner_ID: Group_ID: File_ID:

Unique identifier for the owner of the file. Unique identifier for the owner's group. Unique integer identifier for the file. This field can also be used to hold the error check (typically 16-bit CRC) for the file. In this case, the File_ID is only unique when concatenated with the File_Name and the Time_Of_Creation. Actual data bytes that make up the file record. These 8-bit objects are interpreted according to the File_Type field. The contents of the Data field will not be interpreted by the DNP Application Layer.

Data:

11-8

DNP Users Group

12. DEVICE OBJECT DEFINITIONS


This section defines the device data objects using the rules established in section 2. DECLARATION RULES FOR INFORMATION ELEMENTS.

12.1 INTERNAL INDICATIONS


Data Object 80 - Variation: 01 Description: The internal indications is an information element used to convey internal states and diagnostic results of a responding station. This information can be used by a receiving station to perform error recovery or other functions. The number of internal indications objects sent in a message is device-dependent. Object Coding:
0

BS1 [0..0] State = BS1 [0] <0,1> Narrative: Transmission of the data object is always performed in complete octets, with unoccupied bit positions set to zero. The following example illustrates the packing of n of these data objects.
7 15 6 14 5 13 4 12 3 11 2 10 1 9 0 8

n-1

n-2

n-3

n-4

DNP V3.00 Data Object Library (Version 0.02)

12-1

12.2 STORAGE OBJECT


Data Object 81 - Variation: 01 Description: The storage object is an information element used to convey the status of internal buffers and storage areas for specific data types. The group field indicates the group (or data type) that the status field corresponds to. The variation field indicates the variation of the object that the status field corresponds to. The group and variation fields together specify the exact data type. The status field shows what percentage of the buffer space allocated for this data type is currently used up. The overflow bit indicates that the buffer space for the specified data type has been over-utilized, and data objects have been lost.

12-2

DNP Users Group

Object Coding:
STATUS 7 6 5 4 3 2 1 0

GROUP 7 VARIATION 7 0 0

Storage Object

={ Status Group Variation } ={ Percent Overflow }

= = =

BS8 [0..7] UI8 [0..7] <0..255> UI8 [0..7] <0..255>

Status

= =

BS7 [0..6] <0..100> BS1 [7] <0, 1; Overflow>

Narrative: The storage object is used to indicate the status of buffer, queues, or other storage areas within the sending device. The object is generated by the device as configured in the device and described in the particular device profile.

DNP V3.00 Data Object Library (Version 0.02)

12-3

12.3 DEVICE PROFILE


Data Object 82 - Variation: 01 Description: The device profile object provides for inter-operability between different DNP devices which use only a sub-set of the DNP Application Layer function codes and data objects. This object describes the station acting as a DNP master, and the valid function codes and objects that the slave device supports. In addition, the range of indices for each object/variation is also given so that configuration can be done on a dynamic basis. Principle of operation: The device profile object is intended to be sent by a slave device ONLY when the request sent by the master is not recognizable, un-parsable, or objects referenced in the request are not supported. Coincident with this message would be internal indications indicating a problem with parsing. Alternately, if the slave is configured in a quiescent environment, the slave could report (spontaneously) the device profile object upon start-up. The master, upon reception of this object, can change its polling scheme, poll request message, limit or expand the assumed functionality of the slave, or re-configure the master database with objects specified in this object. If the master station is less sophisticated, the slave station can be marked off-line, and manual re-configuration would be necessary to obtain proper communications again. The device profile object consists of two sections. The first section, functions, specifies the supported DNP Application Layer function codes. The second section, objects, specifies the range of indices valid for each object/variation combination. Essentially, the objects section is a sample master poll object header for each object/variation. It is implied by the type of object what type of operation (function) can be performed on it so there is no need to map each function code to a set of objects. The functions field is an array of bits indicating support or non-support for each function code. The bit positions 0 .. 63 correspond to DNP Application Layer function codes 0 to 63. For request function codes beyond 63, another functions field can follow the ObjectHeaders. The NumObjects field specifies how many sample object headers follow. The ObjectHeader fields have the same form as a DNP Application Layer object header. As a minimum, the header consists of the object, variation, qualifier, and 8-bit quantity. This means that to describe most object variations, only four bytes are needed. 12-4

DNP Users Group

Object Coding:
Functions 63 NumObjects (n) 15 ObjectHeader 1 Quantity 7 0 7 Qualifier 0 7 Variation 0 7 Object 0 0 0

ObjectHeader 2 Quantity 7 0 7 Qualifier 0 7 Variation 0 7 Object 0

ObjectHeader n Quantity 7 0 7 Qualifier 0 7 Variation 0 7 Object 0

SQ2

{Functions = NumObjects = }

BS64 [0..63] UI16 [0.15] <0..65535>

Each object header that follows has a variable format determined by the rules for constructing Application Layer object headers. Some sample headers are: Object Header = SQ4 { Object Variation Qualifier Quantity }

= = = =

UI8 [0..7] <0..255> UI8 [0..7] <0..255> UI8 [0..7] <0..255> UI8 [0..7] <0..255>

DNP V3.00 Data Object Library (Version 0.02)

12-5

Object Header = SQ5 { Object Variation Qualifier Start Stop } Object Header = SQ5 { Object Variation Qualifier Start Stop }

= = = = =

UI8 [0..7] <0..255> UI8 [0..7] <0..255> UI8 [0..7] <0..255> UI8 [0..7] <0..255> UI8 [0..7] <0..255>

= = = = =

UI8 [0..7] <0..255> UI8 [0..7] <0..255> UI8 [0..7] <0..255> UI16 [0..15] <0..65535> UI16 [0..15] <0..65535>

12-6

DNP Users Group

12.4 PRIVATE REGISTRATION OBJECT


Data Object 83 - Variation: 01 Type: Static\Event\Frozen Static\Frozen Event

Description: This private registration object (PRO) object type is reserved for vendor-specific definition. The object consists of a fixed header to provide for transparent data transfer, and a unique registration number of the following object. The description of the contents is entirely at the discretion of the vendor. The Vendor field is a four-byte ASCII vendor name. The Private Registration Number (PRN) field is a vendor designated object I.D. The Len field contains the length of the Data Objects field in octets. The Data Objects field contains the vendor's data (variable size and format) as described by the PROD object. Object Coding:
VENDOR 31 PRN 15 LEN 15 DATA OBJECTS 0 0 0 0

SQx

{Vendor PRN LEN SQn }

= = = =

U132 [0..232-1] U116[0..216-1] U116 [0..216-1] Length of objects in <octets> sequence of n basic DNP objects

DNP V3.00 Data Object Library (Version 0.02)

12-7

12.5 PRIVATE REGISTRATION OBJECT DESCRIPTOR


Data Object 83 - Variation: 02 Type: Static

Description: This object type is reserved for vendor private registration object description. The object is matched one-to-one with its PRO object. The object consists of a fixed header to provide for transparent data transfer, and a unique registration number of the following object. The description of the contents is entirely at the discretion of the vendor. The private registration object description (PROD) object maintains a one-to-one relationship with the PRO object, and can be used to parse the PRO into basic DNP Objects for processing. The PROD consists of one element for each corresponding element of the PRO. Each element consists in turn of a set of DNP object and variation numbers. The Vendor field is a four-byte ASCII vendor name. The Private Registration Number (PRN) field is a vendor designated object I.D. The Count field specifies the number of object definitions that follow this field. Each object definition consists of the three fields: quantity, object and variation. The Quantity field specifies the number of objects, specified by the object and variation fields, which will be found in the PRO object.

12-8

DNP Users Group

Object Coding:
VENDOR 31 PRN 15 COUNT 15 QUANTITY 15 OBJECT 7 VARIATION 7 QUANTITY 15 OBJECT 7 VARIATION 7 QUANTITY 15 OBJECT 7 VARIATION 7 0 0 0 0 0 0 0 0 0 0 0 0

SQx

{Vendor PRN COUNT SQn

= = = = { }

UI32 [0..232-1] UI16 [0..216-1] UI16 [0..216-1] Sequence of n basic DNP object definitions U18 [0..28-1] Object = U18 [0..28-1] Variation = U18 [0..216-1] Quantity =

DNP V3.00 Data Object Library (Version 0.02)

12-9

The following illustrations serve as examples for more clarification: PROD:


(blank) B B 0 0 A 16 3 2 1 2 2 21 2 5 30 1

In the above example: B, B, and A, represent the vendor name. PRN is private object #16 for vendor A B B. Count specifies that three definitions follow, with each definition consisting of quantity, object, and variation.

12-10

DNP Users Group

The corresponding PRO object is:


(blank) B B 0 0 A 16 33 binary input 1 binary input 2 Counter 1 Counter 2 Analog 1 Analog 2 Analog 3 Analog 4 Analog 5

DNP V3.00 Data Object Library (Version 0.02)

12-11

12-12

DNP Users Group

13. APPLICATION OBJECT DEFINITIONS


This section defines the application data objects using the rules established in section 2. DECLARATION RULES FOR INFORMATION ELEMENTS.

13.1 APPLICATION IDENTIFIER


Data Object 90 - Variation: 01 Description: The application identifier object is an information object used to represent an application or operating system process within a device. This object is used in conjunction with the application functions of the application layer to control software applications. This object has no defined format and is simply used as a place holder. The free-format qualifier of the application layer should be used to identify the application in question, or if the application is unknown, the ALL qualifier should be used to specify all relevant applications.

DNP V3.00 Data Object Library (Version 0.02)

13-1

13-2

DNP Users Group

14. ALTERNATE NUMERIC OBJECT DEFINITIONS


This section defines the alternate or custom numeric representation data objects using the rules established in section 2. DECLARATION RULES FOR INFORMATION ELEMENTS.

14.1 SHORT FLOATING POINT


Data Object 100 - Variation: 01 Description: The short floating point information object represents a calculated or measured scientific value. The format of this object complies with the IEEE-754 standard for floating-point number representation. The value field holds the actual floating point number and follows the format for a short real as specified by the IEEE-754 standard. The flag field holds information about the point and has the same meaning as previous objects. The units field determines the units of the value field. This is the scientific or engineering units associated with the measured or calculated quantity.

DNP V3.00 Data Object Library (Version 0.02)

14-1

Object Coding:
Units 7 0 Value Sign 0 0 7 Exponent 0 Significant 22 0 7 Flag 0

FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

={ = = = = = = = =

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

Narrative: The absolute value can be derived from the value field as follows: Absolute_Value where: Sign: Exponent: Significant: si = = 1.s0 s1 s2 s3 s4 .. s22 x 2 (Exp -127) Significant[i..i] and Exp= Exponent[0..7]

0 if number is positive, and 1 if the number is negative. Power of 2 applied to 1. Significant. Significant binary digits in value.

14-2

DNP Users Group

The units field has the following defined values: 0: Volts p-p (peak-to-peak voltage) 1: Amperes p-p (peak-to-peak current) 2: Volts RMS 3: Amperes RMS 4: KW or kilowatts (real power or volt-amps resistive) 5: KVA or kilo volt-amps (volt-amps total) 6: KVAR or kilovars (imaginary power or volt-amps reactive) 7: KwH (kilowatt hours) 8: KVARH (kiloVAR hours) 9: PF (power factor) 10: Hz (frequency in cycles per second) 11: w (frequency in radians) 12: C (degrees Celsius) 13: F (degrees Fahrenheit) 14: K (degrees Kelvin) 15: N (force in Newtons) 16: kg (mass in kilograms) 17: m/s2 (acceleration) 18: N/m2 (pressure in Newtons per square meter) 19: N*m (torque in Newton-meters)

DNP V3.00 Data Object Library (Version 0.02)

14-3

14.2 LONG FLOATING POINT


Data Object 100 - Variation: 02 Description: The long floating point information object represents a calculated or measured scientific value. The format of this object complies with the IEEE-754 standard for floating-point number representation. The value field holds the actual floating point number and follows the format for a long real as specified by the IEEE-754 standard. The flag field holds information about the point and has the same meaning as previous objects. The units field determines the units of the value field. This is the scientific or engineering units associated with the measured or calculated quantity. Object Coding:
Units 7 0 Value Sign 0 0 Exponent 10 0 Significant 51 0 7 Flag 0

FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

={ = = = = = = = =

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

14-4

DNP Users Group

Narrative: The absolute value can be derived from the value field as follows: Absolute_Value where: Sign: Exponent: Significant: si = = 1.s0 s1 s2 s3 s4 .. s51 x 2 (Exp -1023) Significant[i..i] and Exp= Exponent[0..7]

0 if number is positive, and 1 if the number is negative. Power of 2 applied to 1. Significant. Significant binary digits in value.

The units field has the following defined values: 0: Volts p-p (peak-to-peak voltage) 1: Amperes p-p (peak-to-peak current) 2: Volts RMS 3: Amperes RMS 4: KW or kilowatts (real power or volt-amps resistive) 5: KVA or kilo volt-amps (volt-amps total) 6: KVAR or kilovars (imaginary power or volt-amps reactive) 7: KwH (kilowatt hours) 8: KVARH (kiloVAR hours) 9: PF (power factor) 10: Hz (frequency in cycles per second) 11: w (frequency in radians) 12: C (degrees Celsius) 13: F (degrees Fahrenheit) 14: K (degrees Kelvin) 15: N (force in Newtons) 16: kg (mass in kilograms) 17: m/s2 (acceleration) 18: N/m2 (pressure in Newtons per square meter) 19: N*m (torque in Newton-meters)

DNP V3.00 Data Object Library (Version 0.02)

14-5

14.3 EXTENDED FLOATING POINT


Data Object 100 - Variation: 03 Description: The extended floating point information object represents a calculated or measured scientific value. The format of this object complies with the IEEE-754 standard for floating-point number representation. The value field holds the actual floating point number and follows the format for a temp real as specified by the IEEE-754 standard. The flag field holds information about the point and has the same meaning as previous objects. The units field determines the units of the value field. This is the scientific or engineering units associated with the measured or calculated quantity. Object Coding:
Units 7 0 Value Sign 0 0 Exponent 14 0 Significant 63 0 7 Flag 0

FLAG On-line Restart Communication lost Remote forced data Local forced data Over-range Reference check Reserved }

={ = = = = = = = =

BS1 [0] <0, off-line; 1, on-line> BS1 [1] <0, normal; 1, restart> BS1 [2] <0, normal; 1, lost> BS1 [3] <0, normal; 1, forced> BS1 [4] <0> BS1 [5] <0, normal; 1, over-range> BS1 [6] <0, normal; 1, error> BS1 [7] <0>

14-6

DNP Users Group

Narrative: The absolute value can be derived from the value field as follows: Absolute_Value where: Sign: Exponent: Significant: si = = 1.s0 s1 s2 s3 s4 .. s51 x 2 (Exp -1023) Significant[i..i] and Exp= Exponent[0..7]

0 if number is positive, and 1 if the number is negative. Power of 2 applied to 1. Significant. Significant binary digits in value.

The units field has the following defined values: 0: Volts p-p (peak-to-peak voltage) 1: Amperes p-p (peak-to-peak current) 2: Volts RMS 3: Amperes RMS 4: KW or kilowatts (real power or volt-amps resistive) 5: KVA or kilo volt-amps (volt-amps total) 6: KVAR or kilovars (imaginary power or volt-amps reactive) 7: KwH (kilowatt hours) 8: KVARH (kiloVAR hours) 9: PF (power factor) 10: Hz (frequency in cycles per second) 11: w (frequency in radians) 12: C (degrees Celsius) 13: F (degrees Fahrenheit) 14: K (degrees Kelvin) 15: N (force in Newtons) 16: kg (mass in kilograms) 17: m/s2 (acceleration) 18: N/m2 (pressure in Newtons per square meter) 19: N*m (torque in Newton-meters)

DNP V3.00 Data Object Library (Version 0.02)

14-7

14.4 SMALL-PACKED BINARY CODED DECIMAL


Data Object 101 - Variation: 01 Description: The small-packed binary coded decimal information object represents a sequence of BCD digits. Each BCD digit can represent a variety of information from control outputs to analog inputs. Object Coding:
Digit 4 3 0 3 Digit 3 0 3 Digit 2 0 3 Digit 1 0

SPBCD

= SQ4 { Digit1 Digit2 Digit3 Digit4 }

= = = =

UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10>

14-8

DNP Users Group

14.5 MEDIUM-PACKED BINARY CODED DECIMAL


Data Object 101 - Variation: 02 Description: The medium-packed binary coded decimal information object represents a sequence of BCD digits. Each BCD digit can represent a variety of information from control outputs to analog inputs. Object Coding:
Digit 4 3 0 3 Digit 3 0 3 Digit 2 0 3 Digit 1 0

Digit 8 3 0 3

Digit 7 0 3

Digit 6 0 3

Digit 5 0

MPBCD =

SQ8 { Digit1 Digit2 Digit3 Digit4 Digit5 Digit6 Digit7 Digit8 }

= = = = = = = =

UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10>

DNP V3.00 Data Object Library (Version 0.02)

14-9

14.6 LARGE-PACKED BINARY CODED DECIMAL


Data Object 101 - Variation: 03 Description: The large-packed binary coded decimal information object represents a sequence of BCD digits. Each BCD digit can represent a variety of information from control outputs to analog inputs. Object Coding:
Digit 4 3 0 3 Digit 3 0 3 Digit 2 0 3 Digit 1 0

Digit 8 3 0 3

Digit 7 0 3

Digit 6 0 3

Digit 5 0

Digit 12 3 0 3

Digit 11 0 3

Digit 10 0 3

Digit 9 0

Digit 16 3 0 3

Digit 15 0 3

Digit 14 0 3

Digit 13 0

LPBCD

SQ16 { Digit1= Digit2= Digit3= Digit4= Digit5= Digit6= Digit7= Digit8= Digit9= Digit10= Digit11= Digit12= Digit13= Digit14= Digit15= }

UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10> UI4 [0..3] <0..10>

14-10

DNP Users Group

LIST OF ABBREVIATIONS AND ACRONYMS


ASCII BCD BIN BS CRC CTO CTO CWD DA DAC DNP EBCDIC EXEC F FIFO I ID IEC IEEE LEN LPBCD MPBCD MSEC OS American Standard Code for Information Interchange binary coded decimal bit string cyclic redundancy check common time object common time of occurrence change working directory distributed automation data acquisition and control Distributed Network Protocol extended binary coded decimal execute fixed point first-in-first-out integer identification International Electrotechnical Commission Institute of Electrical and Electronics Engineers length large-packed binary coded decimal medium-packed binary coded decimal millisecond octet string

DNP V3.00 Data Object Library (Version 0.02)

PCB PRN PRO PROD PWD R RESP RMS SCADA SPBCD UF UI

pattern control block private registration number private registration object private registration object description (return to) present working directory real response root mean squared supervisory control and data acquisition small-packed binary coded decimal unsigned fixed point unsigned integer

DNP Users Group

DNP V3.00
SUBSET DEFINITIONS
Document Number: P009-0IG.SUB

Version: 2.00 Date: November, 1995

NOTICE OF RIGHTS - DNP USERS GROUP


The contents of this manual are the property of the DNP Users Group. Revisions or additions to the definition and functionality of the DNP Protocol cannot be made without express written agreement from the DNP Users Group or its duly authorized party. In addition, no part of this document may be altered or revised or added to in any form or by any means, except as permitted by written agreement with the DNP Users Group or a Party duly authorized by the DNP Users Group. The DNP Users Group has made every reasonable attempt to ensure the completeness and accuracy of this document. However, the information contained in this manual is subject to change without notice, and does not represent a commitment on the part of the DNP Users Group. An update program for DNP documents is provided upon request by the DNP Users Group.

TRADEMARK NOTICES
DNP is a trademark of the DNP Users Group. Any brand and product names mentioned in this document are trademarks or registered trademarks of their respective companies.

MODIFICATION RECORD

VERSION 0.01 0.02 1.00 2.00

DATE 94.09.20 95.06.08 95.07.12 95.11.29

INITIALS GG/PM GG GG ST

COMMENT Changes from Aug 19 review. Changes from Jan 1995 DNP Users Group meeting and May 30 review. Changes due to comments from the DNP Users Group Technical Committee. Changes to delete Harris references.

ii

DNP Users Group P009-0IG.SUB, Version 2.00

TABLE OF CONTENTS
ABOUT THIS GUIDE ...........................................................................vi PURPOSE OF THIS GUIDE .............................................................vi WHO SHOULD USE THIS GUIDE.................................................vi ADDITIONAL DOCUMENTATION...............................................vi HOW THIS GUIDE IS ORGANIZED ............................................ vii CONVENTIONS USED IN THIS GUIDE .................................... viii OVERVIEW ........................................................................................... ix TERMINOLOGY ............................................................................... ix READING THE SUBSET TABLES ....................................................x GOALS AND ASSUMPTIONS........................................................ xii Chapter 1: LEVEL 1 DNP V3.00 IMPLEMENTATION (DNP - L1)..... 1 1.1 INTENDED USE ........................................................................ 1 1.2 GENERAL DESCRIPTION ....................................................... 1 1.3 IMPLEMENTATION TABLE .................................................... 2 Chapter 2: LEVEL 2 DNP V3.00 IMPLEMENTATION (DNP-L2)....... 1 2.1 INTENDED USE ........................................................................ 1 2.2 GENERAL DESCRIPTION ....................................................... 1 2.3 IMPLEMENTATION TABLE .................................................... 1 Chapter 3: LEVEL 3 DNP V3.00 IMPLEMENTATION (DNP - L3)..... 1 3.1 INTENDED USE ........................................................................ 1 3.2 GENERAL DESCRIPTION ....................................................... 1 3.3 IMPLEMENTATION TABLE .................................................... 2 Chapter 4: IMPLEMENTATION RULES AND RECOMMENDATIONS .................................................................................................................. 1 4.1 ERROR RESPONSES................................................................. 1 4.1.1 Rules ..................................................................................... 1 4.2 DATA CLASSES AND EVENTS ............................................... 2 4.2.1 Rules ..................................................................................... 2 4.2.2 Recommendations................................................................ 4 4.3 SLAVE DEVICE START-UP...................................................... 5 4.3.1 Rules ..................................................................................... 5 4.3.2 Recommendations................................................................ 6 4.4 UNSOLICITED RESPONSES ................................................... 6 4.4.1 Rules ..................................................................................... 6 4.5 OPERATING BINARY OUTPUTS........................................... 7 4.5.1 Rules ..................................................................................... 7 4.5.2 Recommendations................................................................ 7

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

iii

4.6 FRAGMENTS AND FRAMES ................................................... 8 4.6.1 Rules ..................................................................................... 8 4.6.2 Recommendations ................................................................ 8 4.7 MULTIPLE OBJECTS IN A SINGLE REQUEST..................... 9 4.7.1 Rules ..................................................................................... 9 4.8 MULTIPLE OBJECTS IN A SINGLE RESPONSE ................... 9 4.8.1 Rules ..................................................................................... 9 4.9 CONFIRMATION AND RETRIES ........................................... 9 4.9.1 Rules ..................................................................................... 9 4.9.2 Recommendations .............................................................. 10 4.10 WITH-FLAG AND WITHOUT-FLAG VARIATIONS......... 11 4.10.1 Rules ................................................................................. 11 4.11 16-BIT AND 32-BIT VARIATIONS ....................................... 12 4.11.1 Rules ................................................................................. 12 4.11.2 Rules for Analog Inputs and the OVER-RANGE Flag .... 12 4.11.3 Rules for Counter Objects and the ROLL-OVER Flag.... 14 4.11.4 Recommendations Regarding the ROLL-OVER Flag...... 14 4.12 TIME TAGGED BINARY INPUT EVENTS ......................... 15 4.12.1 Rules ................................................................................. 15 4.12.2 Recommendations ............................................................ 15 4.13 FREEZE OPERATIONS ......................................................... 15 4.13.1 Rules ................................................................................. 16 4.14.1 Rules ................................................................................. 16 Chapter 5: CONFORMANCE................................................................ 1 5.1 SLAVE DEVICES........................................................................ 1 5.2 MASTER DEVICES.................................................................... 2 Appendix A: DEVICE PROFILE DOCUMENT FORMAT.................. 1 GLOSSARY OF TERMS ......................................................................... 8 LIST OF ACRONYMS AND ABBREVIATIONS ............................... 10

iv

DNP Users Group P009-0IG.SUB, Version 2.00

LIST OF TABLES

Table 1 Qualifiers Used in the Subset Definitions ............................ xiii Table 1.3-1 Level 1 Implementation (DNP-L1) ...................................3 Table 2.3-1 Level 2 Implementation (DNP-L2) ...................................2 Table 3.3-1 Level 3 Implementation (DNP-L3) ...................................2 Table 4.1-1 Valid Error Responses ......................................................2 Table 4.11-1 Examples of Over-Range Conditions and Values........... 13

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

ABOUT THIS GUIDE


PURPOSE OF THIS GUIDE
This document defines the implementation subsets, or levels, defined for the Distributed Network Protocol (DNP) V3.00 Application Layer. It is intended to be used as a reference for determining compatibility between implementations of the DNP V3.00 Application Layer. It also briefly discusses some compatibility issues with respect to the DNP V3.00 Data Link Layer and Transport Function. This document describes several subsets of the protocol, for the purpose of giving vendors and customers a common set of terms for describing what they have implemented and what they require, respectively.

WHO SHOULD USE THIS GUIDE


This guide is intended to be used by the following people, although its audience is not necessarily limited to those listed here: Designers responsible for determining what portion of the protocol to implement. Systems engineers responsible for determining compatibility between components of a network. Purchasing agents or certification agencies responsible for determining whether a vendor's product meets customers' standards.

ADDITIONAL DOCUMENTATION
If you require more detail than this document provides, several supporting texts are available. These include: Distributed Network Protocol 3.0 Basic 4-Document Set including: DNP V3.00 Data Link Layer (P009-0PD.DL) Version 0.02 DNP V3.00 Transport Functions (P009-0PD.TF) Version 0.01

vi

DNP Users Group P009-0IG.SUB, Version 2.00

DNP V3.00 Application Layer (P009-0PD.APP) Version 0.03 DNP V3.00 Data Object Library (P000-0BL) Version 0.02

HOW THIS GUIDE IS ORGANIZED


The organization of this guide is described below. Each chapter of the guide describes one subset of the DNP V3.00 Application Layer protocol. OVERVIEW describes basic concepts concerning DNP subsets: basic terminology, how to interpret the implementation tables, and the duties of devices implementing the subsets. It briefly discusses the goals used to develop the subsets. Chapter 1: LEVEL 1 DNP V3.00 IMPLEMENTATION (DNP-L1) describes the minimum subset of the protocol that can be implemented, typically between a master station and an Intelligent Electronic Device (IED). LEVEL 2 DNP V3.00 IMPLEMENTATION (DNP-L2) describes a subset of the protocol, slightly larger than Level 1. It is typically implemented between a master station and a large IED or small Remote Terminal Unit (RTU). LEVEL 3 DNP V3.00 IMPLEMENTATION (DNP-L3) describes a subset of the protocol, larger than Level 2, that can be implemented between a master station and a more advanced RTU. IMPLEMENTATION RULES AND RECOMMENDATIONS describes rules and recommendations applying to all levels of DNP V3.00 implementation. CONFORMANCE describes the conditions under which a device is said to conform to a given DNP subset.

Chapter 2:

Chapter 3:

Chapter 4:

Chapter 5:

Appendix A: DEVICE PROFILE DOCUMENT FORMAT describes the information a device vendor must include in a document describing a device's implementation of DNP V3.00

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

vii

CONVENTIONS USED IN THIS GUIDE


There are a few formatting conventions used in this guide to make it easier to read and understand. They are listed below. New or special terms are highlighted in bold text. Chapter references are highlighted in bold text, with the chapter title in CAPITAL LETTERS (for example, Chapter 2: SPECIAL REQUIREMENTS). Table names are also bold (e.g. AXXX_CFG). References to main section titles are highlighted using italics, as are book and document titles, and words used with special emphasis. Lists of procedural instructions are numbered in the order they are to be performed. Other lists of information are bulleted, like this list. Specific function and field names are in CAPITAL LETTERS, but not bold (e.g. TRIP function, GROUP ADDRESS field).

viii

DNP Users Group P009-0IG.SUB, Version 2.00

OVERVIEW

This section describes various concepts concerning DNP V3.00 protocol subsets in general.

TERMINOLOGY
This section defines some of the terms used throughout this document. When a Master or Slave satisfies all the requirements of a particular DNP V3.00 subset, it is said to implement a particular level of the protocol. The term "Level" is chosen so as to not conflict with DNP data classes or the Open Systems Interconnect (OSI) concept of layers. The abbreviation for a DNP subset implementation consists of "DNP", a dash, and "L" followed by the level number. For example, a vendor may be able to say, "This device implements the DNP V3.00 Application Layer protocol Level 1", or just "This device implements DNP - L1".

NOTE: This document specifies only the minimum requirements for a particular implementation level. A device may implement extra features in addition to these requirements and still conform. Refer to CHAPTER 5: CONFORMANCE for more details.

The following terms are used throughout this document: configure To initialize a device so it operates in a particular way. For instance, a customer may configure a device so the device never requests data link confirmations. A vendor or customer may configure a device using a variety of mechanisms (e.g. parameters in NVRAM, parameters in ROM, dip switches or hardware jumpers).

Master A device that initiates requests to gather data or perform controls using DNP.
DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

ix

Slave

A device that gathers data or performs control operations in response to DNP requests from the Master, and sends response messages in return. A Slave device may also generate DNP Unsolicited Responses. To resolve a request or response into component parts. In the context of DNP V3.00 messages, to parse a message means a device can break the message into pieces, each of which consists of a header and sometimes some corresponding data. If a device is able to parse a message, it can recognize each piece of a message. It does not necessarily make use of the data found in that message. However, it must make any confirmation responses or other responses that the message requires. To actually send to a Master device a particular object variation. Used only in connection with Slave devices. A Slave device may parse requests for a larger subset of objects than it actually reports. To be able to send or parse a particular set of DNP objects, variations, function codes and/or qualifiers.

parse

report

support

READING THE SUBSET TABLES


The subsets of the DNP V3.00 protocol discussed in this document are described in a common format. Each chapter of this document describing an implementation level contains a table having the following fields: OBJECT These fields describe a DNP application layer object: Obj Var Description The object group The object variation The text name of the object

DNP Users Group P009-0IG.SUB, Version 2.00

REQUEST

These fields describe the set of DNP V3.00 objects, function codes, and qualifiers a Slave device must be able to parse as a part of an incoming request in order to have implemented the subset. Func Codes Qual Codes A list of the request function codes that the Slave must accept as operators on this object. A list of the qualifier codes the Slave must parse in association with this object.

If these fields are blank, it means the Slave need not be able to parse the specified object in order to implement the subset. RESPONSE These fields describe the set of DNP V3.00 objects, function codes, and qualifiers a Master device must be able to parse from an incoming response or unsolicited response in order to have implemented the subset. These fields also define the minimum subset of responses a Slave device may make. Func Codes A list of the response function codes the Master must accept as operators on this object. A list of the qualifier codes the Master must parse in association with this object.

Qual Codes

If these fields are blank, it means the Master need not be able to parse the specified object in order to implement the subset. There are three levels of implementation of DNP V3.00 defined within this document. Each level builds upon the level preceding it. The additions to a level from the preceding level are highlighted by shading in the table.

NOTE: The subset describes the minimum set of objects, function codes, and qualifiers the devices must parse in order to implement the subset. If an object is supported, it must be used with the function and qualifier codes in order to implement the subset. It does not specify that a Slave device must actually report inputs, outputs and data for all of the objects in the subset.

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

xi

For example, suppose a subset table contains the following line:

OBJECT

REQUEST (slave must parse)

RESPONSE (master must parse) Func Codes 129, 130 Qual Codes (hex) 01

Obj

Va r 4

Description

Func Codes 1

Qual Codes (hex) 00, 01, 06

30

16-Bit Analog Input without Flag

......

This entry indicates the following: A Slave device must accept and respond to any READ request (Function Code 1) of 16-Bit Analog Input Without Flag objects. The READ request may use either 8-bit start and stop indices (Qualifier Code 0x00), 16-bit start and stop indices (Qualifier Code 0x01), or no range field (Qualifier Code 0x06). The Slave device need not parse READ requests for 16-Bit Analog Input Without Flag objects using any other Qualifier Codes. The Master device cannot include a 16-Bit Analog Input Without Flag object in any request containing a function code other than READ. The Slave need not actually report any analog inputs. It may set an Internal Indication bit in its response, or return a null response, as discussed in section 4.1 Error Responses. A Master device must be able to parse either RESPONSEs (Function Code 129) or UNSOLICITED RESPONSEs (Function Code 130) from the Slave containing 16-Bit Analog Input Without Flag objects. The response must use Qualifier Code 0x01. The Master device need not parse responses or unsolicited responses containing 16-Bit Analog Input Without Flag objects using any other Qualifier Codes. The Master need not use the data supplied by the Slave for any purpose, but can discard it after sending any necessary confirmation.

GOALS AND ASSUMPTIONS


These subset definitions were prepared with the following goals:

xii

DNP Users Group P009-0IG.SUB, Version 2.00

Minimize the complexity of implementation. Where complexity must be added, it was added at the Master rather than the Slave. Minimize the bandwidth used. Allow all data provided by a Slave to be retrieved at any Level. Allow flexibility for a variety of different, but interoperable implementations.

It was assumed that the simpler the Slave device, the fewer points it would provide. Therefore, there would be less need for the more complex point range specifications available in DNP. As a result of these goals and assumptions, the lower level subset definitions are based around polls of Class Data Objects. In a typical minimum implementation, it is expected that a Master device will poll frequently for Class 1, 2 or 3 Data, interspersed with infrequent Class 0 Data polls. More advanced implementations may take advantage of Unsolicited Responses and the more complex polling features available in DNP. See 4.2 Data Classes and Events for more discussion regarding the use of data classes. Qualifiers are a complex part of DNP, so the number of qualifiers required to be supported by either a Master or a Slave devices was limited. Table 1 illustrates the subset of qualifiers chosen and the intended use of each qualifier. There may be a few exceptions to these rules.
Qualifier (hex) 00, 01 06 07, 08 Use in a Request A range of static points, or a single point with a point number All points A limited quantity of events A single point with no number (e.g. Time and Date) 17, 28 Controls (usually one or more unrelated points) Use in a Response Static objects Not valid A single point with no number (e.g. Time and Date)

Event objects (usually one or more unrelated points)

Table 1 Qualifiers Used in the Subset Definitions

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

xiii

Chapter 1: LEVEL 1 DNP V3.00 IMPLEMENTATION (DNP - L1)


This chapter describes the minimum subset of the DNP V3.00 Application Layer that can be supported and still be said to implement the protocol. This implementation level is called Level 1 (L1).

1.1 INTENDED USE


This level of implementation is intended to represent the simplest implementation of DNP V3.00 for communicating between a Master and a typical Intelligent Electronic Device (IED). It would typically be used between a master station or data concentrator and a small end device (eg. meter, relay, auto-recloser or capacitor bank controller). It is intended for use with Slave devices whose input and output points are local to the device.

1.2 GENERAL DESCRIPTION


The Level 1 subset is based around Class Data polling, as described in the Goals and Assumptions section of the OVERVIEW. A Level 1 Slave must accept requests for: READs of Class Data Objects READs of Binary Output and Analog Output objects, if such outputs exist on the Slave.

NOTE: If such objects do not exist, the Slave is allowed to respond OBJECT UNKNOWN (see 4.1 Error Responses).

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

Control operations to Binary Output or Analog Outputs, if they exist on the Slave. If such objects do not exist, the Slave is allowed to respond OBJECT UNKNOWN. WRITEs to the RESTART Internal Indication COLD RESTARTs DELAY MEASUREMENTs and WRITEs to Time and Date, if the Slave sets the TIME SYNCHRONIZATION REQUIRED Internal Indication (See 4.13 Time Synchronization)

A Level 1 Master must accept a subset of object variations that is about one-third of the total number defined in DNP, but includes most basic data types: Binary Inputs and Events Counters and Counter Events Analog Inputs and Events Binary and Analog Output Status Frozen objects Time-stamped objects, with the exception of Binary Inputs, because Sequence of Events (SOE) information is a common industry requirement

The following are specifically NOT included:

NOTE: Although a Level 1 Master must be able to parse many objects, a Level 1 Slave is not required to generate them. For example, a Slave need not provide Binary Output Status or Analog Output Status objects if it does not control any of these outputs. The Slave may also choose to report Binary Input Without Time objects instead of Binary Input Change With Relative Time objects. A Level 1 Slave may send Unsolicited Responses of some objects, but this capability must be configurable. See 4.4 Unsolicited Responses.

1.3 IMPLEMENTATION TABLE


Table 1.3-1 describes the objects, function codes, and qualifiers used in a Level 1 DNP V3.00 implementation.

DNP Users Group P009-0IG.SUB, Version 2.00

Table 1.3-1 Level 1 Implementation (DNP-L1)


OBJECT Obj Var Description REQUEST (slave must parse) Func Codes (dec) Qual Codes (hex) RESPONSE (master must parse) Func Codes (dec) Qual Codes (hex)

1 1 1 2 2 2 2 10 10 10 12 12 12 12 20 20 20 20 20 20 20 20 20 21

0 1 2 0 1 2 3 0 1 2 0 1 2 3 0 1 2 3 4 5 6 7 8 0

Binary Input - All Variations Binary Input Binary Input with Status Binary Input Change - All Variations Binary Input Change without Time Binary Input Change with Time Binary Input Change with Relative Time Binary Output - All Variations Binary Output Binary Output Status Control Block - All Variations Control Relay Output Block Pattern Control Block Pattern Mask Binary Counter - All Variations 32-Bit Binary Counter 16-Bit Binary Counter 32-Bit Delta Counter 16-Bit Delta Counter 32-Bit Binary Counter without Flag 16-Bit Binary Counter without Flag 32-Bit Delta Counter without Flag 16-Bit Delta Counter without Flag 129 129 129 129 129 129 129 129 00, 01 00, 01 00, 01 00, 01 00, 01 00, 01 00 ,01 00, 01 3, 4, 5, 6 17, 28 129 echo of request 129 00, 01 1 06 129, 130 129, 130 129, 130 17, 28 17, 28 17, 28 129 129 00, 01 00, 01

Frozen Counter - All Variations 21 21 21 21 21 21 21 1 2 3 4 5 6 7 32-Bit Frozen Counter 16-Bit Frozen Counter 32-Bit Frozen Delta Counter 16-Bit Frozen Delta Counter 32-Bit Frozen Counter with Time of Freeze 16-Bit Frozen Counter with Time of Freeze 32-Bit Frozen Delta Counter with Time of Freeze

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

OBJECT Obj Var Description

REQUEST (slave must parse) Func Codes (dec) Qual Codes (hex)

RESPONSE (master must parse) Func Codes (dec) Qual Codes (hex)

21 21 21 21 21 22 22 22 22 22 22 22 22 22 23 23 23 23 23 23 23 23 23 30 30 30 30 30 31 31 31 31 31

8 9 10 11 12 0 1 2 3 4 5 6 7 8 0 1 2 3 4 5 6 7 8 0 1 2 3 4 0 1 2 3 4

16-Bit Frozen Delta Counter with Time of Freeze 32-Bit Frozen Counter without Flag 16-Bit Frozen Counter without Flag 32-Bit Frozen Delta Counter without Flag 16-Bit Frozen Delta Counter without Flag Counter Change Event - All Variations 32-Bit Counter Change Event without Time 16-Bit Counter Change Event without Time 32-Bit Delta Counter Change Event without Time 16-Bit Delta Counter Change Event without Time 32-Bit Counter Change Event with Time 16-Bit Counter Change Event with Time 32-Bit Delta Counter Change Event with Time 16-Bit Delta Counter Change Event with Time Frozen Counter Event - All Variations 32-Bit Frozen Counter Event without Time 16-Bit Frozen Counter Event without Time 32-Bit Frozen Delta Counter Event without Time 16-Bit Frozen Delta Counter Event without Time 32-Bit Frozen Counter Event with Time 16-Bit Frozen Counter Event with Time 32-Bit Frozen Delta Counter Event with Time 16-Bit Frozen Delta Counter Event with Time Analog Input - All Variations 32-Bit Analog Input 16-Bit Analog Input 32-Bit Analog Input without Flag 16-Bit Analog Input without Flag Frozen Analog Input - All Variations 32-Bit Frozen Analog Input 16-Bit Frozen Analog Input 32-Bit Frozen Analog Input with Time of Freeze 16-Bit Frozen Analog Input with Time of Freeze 129 129 129 129 00, 01 00, 01 00, 01 00, 01 129, 130 129, 130 129, 130 129, 130 17, 28 17, 28 17, 28 17, 28

DNP Users Group P009-0IG.SUB, Version 2.00

OBJECT Obj Var Description

REQUEST (slave must parse) Func Codes (dec) Qual Codes (hex)

RESPONSE (master must parse) Func Codes (dec) Qual Codes (hex)

31 31 32 32 32 32 32 33 33 33 33 33 40 40 40 41 41 41 50 50 50 51 51 51 52 52 52 60 60 60

5 6 0 1 2 3 4 0 1 2 3 4 0 1 2 0 1 2 0 1 2 0 1 2 0 1 2 0 1 2

32-Bit Frozen Analog Input without Flag 16-Bit Frozen Analog Input without Flag Analog Change Event - All Variations 32-Bit Analog Change Event without Time 16-Bit Analog Change Event without Time 32-Bit Analog Change Event with Time 16-Bit Analog Change Event with Time Frozen Analog Event - All Variations 32-Bit Frozen Analog Event without Time 16-Bit Frozen Analog Event without Time 32-Bit Frozen Analog Event with Time 16-Bit Frozen Analog Event with Time Analog Output Status - All Variations 32-Bit Analog Output Status 16-Bit Analog Output Status Analog Output Block - All Variations 32-Bit Analog Output Block 16-Bit Analog Output Block Time and Date - All Variations Time and Date Time and Date with Interval Time and Date CTO - All Variations Time and Date CTO Unsynchronized Time and Date CTO Time Delay - All Variations Time Delay Coarse Time Delay Fine 129 129 07,
quantity=1

129, 130 129, 130

17,28 17,28

06

129

00, 01

3, 4, 5, 6

17, 28

129

echo of request

2 (see 4.14)

07,
quantity=1

129, 130 129, 130

07,
quantity=1

07,
quantity=1

07,
quantity=1

Class 0 Data Class 1 Data

1 1

06 06,07,08

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

OBJECT Obj Var Description

REQUEST (slave must parse) Func Codes (dec) 1 1 Qual Codes (hex) 06,07,08 06,07,08

RESPONSE (master must parse) Func Codes (dec) Qual Codes (hex)

60 60 70 80 81 82 83 83 90 100 100 100 101 101 101

3 4 1 1 1 1 1 2 1 1 2 3 1 2 3

Class 2 Data Class 3 Data File Identifier Internal Indications Storage Object Device Profile Private Registration Object Private Registration Object Descriptor Application Identifier Short Floating Point Long Floating Point Extended Floating Point Small Packed Binary-Coded Decimal Medium Packed Binary-Coded Decimal Large Packed Binary-Coded Decimal No object No object

00,
index=7

13 23 (see 4.14)

DNP Users Group P009-0IG.SUB, Version 2.00

Chapter 2: LEVEL 2 DNP V3.00 IMPLEMENTATION (DNP-L2)


This chapter describes the second smallest subset of the DNP V3.00 Application Layer. This implementation level is called Level 2 (L2).

2.1 INTENDED USE


This level contains a few more features than the Level 1 implementation. It is intended for communications between a master station or data concentrator and a device that could be called either a large Intelligent Electronic Device (IED) or a small Remote Terminal Unit (RTU). Typically, the input and output points of such a device would be local to the device.

2.2 GENERAL DESCRIPTION


A Level 2 Slave implementation is the same as a Level 1 Slave implementation with the following additions: A Level 2 Slave accepts FREEZE requests on Binary Counter objects (not Analog Input objects or Frozen Counters). See 4.13 Freeze Operations. A Level 2 Slave parses READ requests for variation 0 of specific objects. A Level 2 Slave parses READ requests for variations 1, 2 and 3 of Binary Input Change objects. A Level 2 Slave parses READ requests for Frozen Counter objects and may report Frozen Counter objects (but not Frozen Delta Counters) A Level 2 Slave may send unsolicited responses containing static data, within the constraints described in CHAPTER 4: IMPLEMENTATION RULES AND RECOMMENDATIONS.

2.3 IMPLEMENTATION TABLE

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

Table 2.3-1 Describes the objects, function codes, and qualifiers used in a Level 2 DNP V3.00 implementation. Note that additions and modifications from implementation Level 1 are shaded. Table 2.3-1 Level 2 Implementation (DNP-L2)
OBJECT Obj Var Description REQUEST (slave must parse) Func Codes (dec) 1 Qual Codes (hex) 06 129, 130 00, 01 RESPONSE (master must parse) Func Codes Qual Codes (hex)

1 1

0 1

Binary Input - All Variations Binary Input

Binary Input with Status

129, 130

00, 01

2 2 2 2 10 10 10 12 12 12 12 20 20 20 20 20 20 20 20 20 21 21 21

0 1 2 3 0 1 2 0 1 2 3 0 1 2 3 4 5 6 7 8 0 1 2

Binary Input Change - All Variations Binary Input Change without Time Binary Input Change with Time Binary Input Change with Relative Time Binary Output - All Variations Binary Output Binary Output Status Control Block - All Variations Control Relay Output Block Pattern Control Block Pattern Mask Binary Counter - All Variations 32-Bit Binary Counter 16-Bit Binary Counter 32-Bit Delta Counter 16-Bit Binary Counter 32-Bit Binary Counter without Flag 16-Bit Binary Counter without Flag 32-Bit Delta Counter without Flag 16-Bit Delta Counter without Flag Frozen Counter - All Variations 32-Bit Frozen Counter 16-Bit Frozen Counter

1 1 1 1 1

06,07,08 06,07,08 06,07,08 06,07,08 06 129, 130 129, 130 129, 130 17, 28 17, 28 17, 28

129, 130

00, 01

3, 4, 5, 6

17, 28

129

echo of request

1, 7, 8, 9, 10

06 129, 130 129, 130 129, 130 129, 130 129, 130 129, 130 129, 130 129, 130 00, 01 00, 01 00, 01 00, 01 00, 01 00, 01 00 ,01 00 ,01

06 129, 130 129, 130 00, 01 00, 01

DNP Users Group P009-0IG.SUB, Version 2.00

OBJECT Obj Var Description

REQUEST (slave must parse) Func Codes (dec) Qual Codes (hex)

RESPONSE (master must parse) Func Codes Qual Codes (hex)

21 21 21 21 21 21 21 21 21 21 22 22 22 22 22 22 22 22 22 23 23 23 23 23 23 23 23 23 30 30 30 30 30

3 4 5 6 7 8 9 10 11 12 0 1 2 3 4 5 6 7 8 0 1 2 3 4 5 6 7 8 0 1 2 3 4

32-Bit Frozen Delta Counter 16-Bit Frozen Delta Counter 32-Bit Frozen Counter with Time of Freeze 16-Bit Frozen Counter with Time of Freeze 32-Bit Frozen Delta Counter with Time of Freeze 16-Bit Frozen Delta Counter with Time of Freeze 32-Bit Frozen Counter without Flag 16-Bit Frozen Counter without Flag 32-Bit Frozen Delta Counter without Flag 16-Bit Frozen Delta Counter without Flag Counter Change Event - All Variations 32-Bit Counter Change Event without Time 16-Bit Counter Change Event without Time 32-Bit Delta Counter Change Event without Time 16-Bit Delta Counter Change Event without Time 32-Bit Counter Change Event with Time 16-Bit Counter Change Event with Time 32-Bit Delta Counter Change Event with Time 16-Bit Delta Counter Change Event with Time Frozen Counter Event - All Variations 32-Bit Frozen Counter Event without Time 16-Bit Frozen Counter Event without Time 32-Bit Frozen Delta Counter Event without Time 16-Bit Frozen Delta Counter Event without Time 32-Bit Frozen Counter Event with Time 16-Bit Frozen Counter Event with Time 32-Bit Frozen Delta Counter Event with Time 16-Bit Frozen Delta Counter Event with Time Analog Input - All Variations 32-Bit Analog Input 16-Bit Analog Input 32-Bit Analog Input without Flag 16-Bit Analog Input without Flag 1 06 129, 130 129, 130 129, 130 129, 130 00, 01 00, 01 00, 01 00, 01 1 06,07,08 129, 130 129, 130 17, 28 17, 28 129, 130 129, 130 00, 01 00, 01

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

OBJECT Obj Var Description

REQUEST (slave must parse) Func Codes (dec) Qual Codes (hex)

RESPONSE (master must parse) Func Codes Qual Codes (hex)

31 31 31 31 31 31 31 32 32 32 32 32 33 33 33 33 33 40 40 40 41 41 41 50 50 50 51 51 51 52 52

0 1 2 3 4 5 6 0 1 2 3 4 0 1 2 3 4 0 1 2 0 1 2 0 1 2 0 1 2 0 1

Frozen Analog Input - All Variations 32-Bit Frozen Analog Input 16-Bit Frozen Analog Input 32-Bit Frozen Analog Input with Time of Freeze 16-Bit Frozen Analog Input with Time of Freeze 32-Bit Frozen Analog Input without Flag 16-Bit Frozen Analog Input without Flag Analog Change Event - All Variations 32-Bit Analog Change Event without Time 16-Bit Analog Change Event without Time 32-Bit Analog Change Event with Time 16-Bit Analog Change Event with Time Frozen Analog Event - All Variations 32-Bit Frozen Analog Event without Time 16-Bit Frozen Analog Event without Time 32-Bit Frozen Analog Event with Time 16-Bit Frozen Analog Event with Time Analog Output Status - All Variations 32-Bit Analog Output Status 16-Bit Analog Output Status Analog Output Block - All Variations 32-Bit Analog Output Block 16-Bit Analog Output Block Time and Date - All Variations Time and Date Time and Date with Interval Time and Date CTO - All Variations Time and Date CTO Unsynchronized Time and Date CTO Time Delay - All Variations Time Delay Coarse 129 07,
quantity=1

06,07,08 129, 130 129, 130 17,28 17,28

06

129, 130

00, 01

3, 4, 5, 6

17, 28

129

echo of request

2 (see 4.14)

07,
quantity=1

129, 130 129, 130

07,
quantity=1

07,
quantity=1

DNP Users Group P009-0IG.SUB, Version 2.00

OBJECT Obj Var Description

REQUEST (slave must parse) Func Codes (dec) Qual Codes (hex)

RESPONSE (master must parse) Func Codes 129 Qual Codes (hex) 07,
quantity=1

52 60 60 60 60 60 70 80 81 82 83 83 90 100 100 100 101 101 101

2 0 1 2 3 4 1 1 1 1 1 2 1 1 2 3 1 2 3

Time Delay Fine

Class 0 Data Class 1 Data Class 2 Data Class 3 Data File Identifier Internal Indications Storage Object Device Profile Private Registration Object Private Registration Object Descriptor Application Identifier Short Floating Point Long Floating Point Extended Floating Point Small Packed Binary-Coded Decimal Medium Packed Binary-Coded Decimal Large Packed Binary-Coded Decimal No Object

1 1 1 1

06 06,07,08 06,07,08 06,07,08

00,
index=7

13

No Object

23 (see 4.14)

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

Chapter 3: LEVEL 3 DNP V3.00 IMPLEMENTATION (DNP - L3)


This chapter describes a subset of the DNP V3.00 Application Layer which contains more functionality than the Level 2 subset.

3.1 INTENDED USE


This level of implementation of DNP V3.00 is for communicating between a Master and a medium size slave device (e.g. RTU, Data Concentrator).

3.2 GENERAL DESCRIPTION


A Level 3 implementation uses a larger range of objects, variations, function and qualifier codes than a Level 2 implementation. A Level 3 Slave implementation is the same as a Level 2 implementation with the following additions: a Level 3 Slave will process read requests for many specific objects and variations. a Level 3 Slave will process a larger range of requests with a larger range of function codes. A Level 3 implementation supports enabling and disabling unsolicited responses on a Class-by-Class basis. A Master can enable or disable unsolicited responses for Class 1, Class 2, and Class 3 objects only. The request fragment may contain one or more of the following object headers only (refer to Section 4.2 Data Classes and Events and Section 4.4 Unsolicited Responses ): Class 1 (Obj. 60, VAR. 2, Qual. 06) Class 2 (Obj. 60, VAR. 3, Qual. 06) Class 3 (Obj. 60, VAR. 4, Qual. 06)

A Level 3 implementation supports the assigning and re-assigning of data objects to classes dynamically (i.e. during run-time). An ASSIGN

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

CLASSES (Function Code 22) request will contain a Class 1, 2 or 3 object header followed by one or more static data object headers. Several sets of Class and data object headers may be contained in a single request fragment (refer to Section 4.2 Data Classes and Events).

3.3 IMPLEMENTATION TABLE


Table 3.3-1 Describes the objects, function codes, and qualifiers used in a Level 3 DNP V3.00 implementation. Note that additions and modifications from implementation Level 2 are shaded. Table 3.3-1 Level 3 Implementation (DNP-L3)
OBJECT Obj Var Description REQUEST (slave must parse) Func Codes (dec) 1, 22 1 1 1 1 1 1 1 Qual Codes (hex) 00, 01, 06 00, 01, 06 00, 01 06 06,07,08 06,07,08 06,07,08 06,07,08 00, 01, 06 129, 130 129, 130 129, 130 17, 28 17, 28 17, 28 129, 130 129, 130 00, 01 00, 01 RESPONSE (master must parse) Func Codes Qual Codes (hex)

1 1 1 2 2 2 2 10 10 10 12 12 12 12 20

0 1 2 0 1 2 3 0 1 2 0 1 2 3 0

Binary Input - All Variations Binary Input Binary Input with Status Binary Input Change - All Variations Binary Input Change without Time Binary Input Change with Time Binary Input Change with Relative Time Binary Output - All Variations Binary Output Binary Output Status Control Block - All Variations Control Relay Output Block Pattern Control Block Pattern Mask Binary Counter - All Variations

00, 01, 06

129, 130

00, 01

3, 4, 5, 6 5, 6 5, 6 1, 7, 8, 9, 10, 22 1 1 1 1

17, 28 17, 28 00, 01 00, 01, 06

129 129 129

echo of request echo of request echo of request

20 20 20 20

1 2 3 4

32-Bit Binary Counter 16-Bit Binary Counter 32-Bit Delta Counter 16-Bit Delta Counter

00, 01, 06 00, 01, 06 00, 01, 06 00, 01, 06

129, 130 129, 130 129, 130 129, 130

00, 01 00, 01 00, 01 00, 01

DNP Users Group P009-0IG.SUB, Version 2.00

OBJECT Obj Var Description

REQUEST (slave must parse) Func Codes (dec) 1 1 1 1 1, 22 1 1 1 1 Qual Codes (hex) 00, 01, 06 00, 01, 06 00, 01, 06 00, 01, 06 00, 01, 06 00, 01, 06 00, 01, 06 00, 01, 06 00, 01, 06

RESPONSE (master must parse) Func Codes 129, 130 129, 130 129, 130 129, 130 Qual Codes (hex) 00, 01 00, 01 00, 01 00, 01

20 20 20 20 21 21 21 21 21 21 21 21 21 21 21 21 21 22 22 22 22 22 22 22 22 22 23 23 23 23 23 23 23

5 6 7 8 0 1 2 3 4 5 6 7 8 9 10 11 12 0 1 2 3 4 5 6 7 8 0 1 2 3 4 5 6

32-Bit Binary Counter without Flag 16-Bit Binary Counter without Flag 32-Bit Delta Counter without Flag 16-Bit Delta Counter without Flag Frozen Counters - All Variations 32-Bit Frozen Counter 16-Bit Frozen Counter 32-Bit Frozen Delta Counter 16-Bit Frozen Delta Counter 32-Bit Frozen Counter with Time of Freeze 16-Bit Frozen Counter with Time of Freeze 32-Bit Frozen Delta Counter with Time of Freeze 16-Bit Frozen Delta Counter with Time of Freeze 32-Bit Frozen Counter without Flag 16-Bit Frozen Counter without Flag 32-Bit Frozen Delta Counter without Flag 16-Bit Frozen Delta Counter without Flag Counter Change Event - All Variations 32-Bit Counter Change Event without Time 16-Bit Counter Change Event without Time 32-Bit Delta Counter Change Event without Time 16-Bit Delta Counter Change Event without Time 32-Bit Counter Change Event with Time 16-Bit Counter Change Event with Time 32-Bit Delta Counter Change Event with Time 16-Bit Delta Counter Change Event with Time Frozen Counter Events - All Variations 32-Bit Frozen Counter Event without Time 16-Bit Frozen Counter Event without Time 32-Bit Frozen Delta Counter Event without Time 16-Bit Frozen Delta Counter Event without Time 32-Bit Frozen Counter Event with Time 16-Bit Frozen Counter Event with Time

129, 130 129, 130 129, 130 129, 130

00, 01 00, 01 00, 01 00, 01

1 1

00, 01, 06 00, 01, 06

129, 130 129, 130

00, 01 00, 01

1 1 1 1 1

06,07,08 06,07,08 06,07,08 06,07,08 06,07,08 129, 130 129, 130 129, 130 129, 130 17, 28 17, 28 17, 28 17, 28

1 1 1 1 1

06,07,08 06,07,08 06,07,08 06,07,08 06,07,08 129, 130 129, 130 129, 130 129, 130 17, 28 17,28 17, 28 17, 28

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

OBJECT Obj Var Description

REQUEST (slave must parse) Func Codes (dec) Qual Codes (hex)

RESPONSE (master must parse) Func Codes Qual Codes (hex)

23 23 30 30 30 30 30 31 31 31 31 31 31 31 32 32 32 32 32 33 33 33 33 33 40 40 40 41 41 50 50

7 8 0 1 2 3 4 0 1 2 3 4 5 6 0 1 2 3 4 0 1 2 3 4 0 1 2 1 2 0 1

32-Bit Frozen Delta Counter Event with Time 16-Bit Frozen Delta Counter Event with Time Analog Input - All Variations 32-Bit Analog Input 16-Bit Analog Input 32-Bit Analog Input without flag 16-Bit Analog Input without flag Frozen Analog Input - All Variations 32-Bit Frozen Analog Input 16-Bit Frozen Analog Input 32-Bit Frozen Analog Input with Time of Freeze 16-Bit Frozen Analog Input with Time of Freeze 32-Bit Frozen Analog Input without Flag 16-Bit Frozen Analog Input without Flag Analog Change Event - All Variations 32-Bit Analog Change Event without Time 16-Bit Analog Change Event without Time 32-Bit Analog Change Event with Time 16-Bit Analog Change Event with Time Frozen Analog Event - All Variations 32-Bit Frozen Analog Event without Time 16-Bit Frozen Analog Event without Time 32-Bit Frozen Analog Event with Time 16-Bit Frozen Analog Event with Time Analog Output Status - All Variations 32-Bit Analog Output Status 16-Bit Analog Output Status 32-Bit Analog Output Block 16-Bit Analog Output Block Time and Date - All Variations Time and Date 2 (see 4.14) 1 07,
quantity = 1

1, 22 1 1 1 1

00, 01, 06 00, 01, 06 00, 01, 06 00, 01, 06 00, 01, 06 129, 130 129, 130 129, 130 129, 130 00, 01 00, 01 00, 01 00, 01

1 1 1

06,07,08 06,07,08 06,07,08 129, 130 129, 130 17, 28 17, 28

1 1 1 3, 4, 5, 6 3, 4, 5, 6

00, 01, 06 00, 01, 06 00, 01, 06 17, 28 17, 28 129, 130 129, 130 129 129 00, 01 00, 01 echo of request echo of request

07,
tit 1

129

07,
tit 1

DNP Users Group P009-0IG.SUB, Version 2.00

OBJECT Obj Var Description

REQUEST (slave must parse) Func Codes (dec) Qual Codes (hex)
quantity = 1

RESPONSE (master must parse) Func Codes Qual Codes (hex)


quantity=1

50 51 51 51 52 52 52 60 60 60

2 0 1 2 0 1 2 0 1 2

Time and Date with Interval Time and Date CTO - All Variations Time and Date CTO Unsynchronized Time and Date CTO Time Delay - All Variations Time Delay Coarse Time Delay Fine Not Defined Class 0 Data Class 1 Data 1 1 20, 21, 22 06 06,07,08 06 06,07,08 06 06,07,08 06 129 129 07,
quantity=1

129, 130 129, 130

07,
quantity=1

07,
quantity=1

07,
quantity=1

60

Class 2 Data

1 20, 21 22

60

Class 3 Data

1 20, 21 22

70 80

1 1

File Identifier Internal Indications 1 2 00, 01 00,


index=7

81 82 83 83 90 100 100 100 101 101

1 1 1 2 1 1 2 3 1 2

Storage Object Device Profile Private Registration Object Private Registration Object Descriptor Application Identifier Short Floating Point Long Floating Point Extended Floating Point Small Packed Binary-Coded Decimal Medium Packed Binary-Coded Decimal

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

OBJECT Obj Var Description

REQUEST (slave must parse) Func Codes (dec) Qual Codes (hex)

RESPONSE (master must parse) Func Codes Qual Codes (hex)

101

Large Packed Binary-Coded Decimal No Object No Object 13 23 (see 4.14)

DNP Users Group P009-0IG.SUB, Version 2.00

Chapter 4: IMPLEMENTATION RULES AND RECOMMENDATIONS


This chapter describes several constraints on the implementation of DNP V3.00 in addition to those described in the DNP V3.00 Basic 4 Document Set. It defines rules regarding those parts of the protocol that devices must satisfy in order to conform to any DNP implementation level. It also makes some recommendations regarding further behaviour that a device may choose to implement. The purpose of these additional rules and recommendations is to limit the possible variations of implementation and encourage standardization.

4.1 ERROR RESPONSES


As a result of the definition of implementation levels, it is necessary to define the valid responses to a request that either: Is not a valid request for the given level, or Is valid for the given level, but is not applicable to the particular device.

This section discusses those responses.

4.1.1 Rules
A Slave device may respond to Master requests as described in Table 4.11 if there is an error in the request. The Internal Indication bit numbers listed are in the second octet.

Response FUNCTION UNKNOWN OBJECT UNKNOWN

IIN bit 0

Meaning means My implementation level does not support this function on objects of this group and variation. means either My implementation level does not support this group and variation of object, or for static objects, I have no

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

Response

IIN bit

Meaning objects with this group and variation. Cannot be used as a response for event objects if the request is defined for the level. In that case, the Slave must send a Null Response (see below).

PARAMETER ERROR

means I have objects of this group and variation, but not within the range of points specified. This IIN bit must be set even if some of the points specified are available. In such a case, the Slave may choose to include in the response those objects that are available, but this behaviour is not mandatory. Not permitted if no range was specified. means No point range was specified, and I have no objects of this type. Primarily used in response to event data polls. Can be used instead of OBJECT UNKNOWN for static objects if no range was specified.

Null Response (no IIN bits set, but no objects of the specified type returned)

n/a

Table 4.1-1 Valid Error Responses Event objects are treated differently than static objects because they are not tied to physical hardware. They may not exist on a device at any given moment, even though the device is able to report them.

4.2 DATA CLASSES AND EVENTS


Many static data points (eg. binary input, analog input) within a Slave device can generate DNP event objects (eg. Binary Input Change With Time, Analog Input Change Event). This section describes the interaction between data points, event objects and DNP data classes.

4.2.1 Rules
If a Slave device reports event objects, it must designate each of its data points as generating either Class 1, Class 2 or Class 3 event objects by default. (This designation may be configurable). The Class of event data is therefore an attribute of the data point and the event objects the data point reports. Every event object reported by the Slave device therefore belongs to Class 1, Class 2 or Class 3. Every static object reported by the Slave device belongs to Class 0. 2

DNP Users Group P009-0IG.SUB, Version 2.00

Level 3 Slave devices must permit a Master to enable or disable the reporting of event objects by making ASSIGN CLASS (function code 22) requests. To enable the reporting of event objects for a particular data point, the Master specifies in its ASSIGN CLASS request a Class 1, 2 or 3 object header and the header of a static object for the appropriate data point. For example, to enable the generation of Class 2 events from DNP analog input point 4, the Master device sends an ASSIGN CLASS request containing the following object headers: Class 2 (Obj. 60 , Var. 3) Analog Input (Obj. 30, Var. 0, Index 4)

Such a request does not mean the static object now belongs to Class 2; static objects belong to Class 0 by definition. Instead, the static object represents the data point itself, and the request means all event objects generated by the data point will belong to the specified Class. A Master device tells a Slave device to stop reporting event objects for a particular data point by assigning event objects from the data point to Class 0. Since Class 0 is the class of static data and event objects cannot be Class 0, the Slave will not produce any further event objects for the data point. The actual event object the Slave device reports after the Master device enables event object reporting will vary depending on the request of the Master. The Master may request event objects by sending: a READ request for specific objects (eg. a READ request for Binary Input Change With Time objects, or a READ request for 16-Bit Analog Input Change Event Without Time objects). a READ request for a class of objects (eg. a READ request for Class 2 data). The Slave device returns all event objects assigned to the Class. a READ request for a quantity of Class objects (eg. a READ request of Class 2 data, specifying a quantity of 20 objects. The Slave returns the first 20 event objects it collected that were assigned to Class 2). a READ request for several Classes of data (eg. a READ request containing both Class 1 and Class 2 object headers).

A particular implementation level may support only certain methods of reading data. Refer to the appropriate chapters to determine whether a particular method is valid for a given implementation level. If a Master does not specify a particular variation of object (i.e. when requesting a Class of data or requesting variation 0 of any object), the Slave 3

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

reports the default variation of object for the data point. This default variation may be configured. If a Master READs several Classes of data in the same request, the Slave must not group the event objects by Data Class in its response. In particular, the Slave must report Binary Change events within a response in the order the events occurred. For example, consider a Slave device that detects the following events, in the order listed: Binary Input Change Without Time point 3 - Class 3 Binary Input Change Without Time point 1 - Class 3 Binary Input Change Without Time point 6 - Class 1 Binary Input Change Without Time point 2 - Class 3

If the Master device sends a single READ request asking for Class 3, Class 2 and Class 1 data, the Slave must return the events in the order listed above. The Slave must NOT send all the Class 3 events together before sending the Class 1 event.

4.2.2 Recommendations
It is highly recommended that all Slave devices report event data and that all Masters provide a report-by-exception mode of operation. This is only a recommendation because although DNP-L1 specifies Masters must be able to parse certain event objects, it does not specify that the Master necessarily uses them or that the Slave necessarily reports them. A particular combination of Master and Slave implementations will be interoperable even if event data are not supported. However, the combination may not be efficient or useful, as discussed below. DNP is a relatively high-overhead set of protocols compared to its predecessors; however, the bandwidth available to most utility companies is still quite limited. Therefore, efficient bandwidth usage is vital to market acceptance of a particular DNP implementation. DNP provides several different means of retrieving data. They are listed here from most to least efficient: 1. Quiescent Operation, in which the Master never polls any Slave, and all communication is unsolicited report-by-exception. The Master still sends application layer confirmations to the Slave. 2. Unsolicited Report-by-Exception Operation, in which most communication is unsolicited, but the Master occasionally sends integrity polls for Class 0 Data to verify its database is up to date. 3. Polled Report-by-Exception Operation, in which the Master polls frequently for event data and occasionally for Class 0 Data. Most often the Slaves response to the event polls will contain few objects, so polling can be very quick. The response size can be further limited if the Master requests a maximum number of events (qualifiers 0x07, 0x08). 4
DNP Users Group P009-0IG.SUB, Version 2.00

4. Polled Static Operation, in which the Master polls only for Class 0 data or the specific data it requires. This method is the simplest to implement, but can be very inefficient if the number of points that need to be retrieved is high and changes are infrequent. Some systems may also choose to mix Polled and Unsolicited Report-byException operation. Given that unsolicited responses are not always possible using some physical layers, the recommended minimum implementation for a Slave is Polled Report-by-Exception Operation. The Subset Definitions have been written with this in mind. They have also been written with the goal that all data from a Slave be accessible using the least bandwidth and the least parsing required by the Slave. Therefore frequent polls of Class 1, 2, and or 3 Data, interspersed with occasional integrity polls of Class 0 Data, is the recommended minimum implementation.

4.3 SLAVE DEVICE START-UP


4.3.1 Rules
Upon start-up of a Slave device, the Slave device must set true(1) the DEVICE RESTART Internal Indication bit within the Internal Indication field of each subsequent response and unsolicited response. This bit must remain set until a Master device clears it with a WRITE request. If the Slave device is configured to send unsolicited responses, it must immediately send an unsolicited response upon start-up. This initial unsolicited response must contain either: the response header only, containing the Access Control, Function Code and IIN fields. the response header plus the current state of ALL of its static data points (eg. binary inputs, analog inputs).

The initial unsolicited response may also contain any events objects the Slave device had generated while running previously, but had not yet reported to the Master. If such objects exist, the Slave must report them before the static data. This rule allows the Master to report data changes in chronological order by simply parsing the message from beginning to end (i.e. the most recent value of any point will be the last one reported in the message). The vendor of the device must specify in a Device Profile Document whether the device sends unsolicited responses, and if so, whether it

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

includes static data in the initial unsolicited response. Refer to APPENDIX A: DEVICE PROFILE DOCUMENT FORMAT for more details regarding the Device Profile Document. Upon receiving this initial unsolicited response, the Master device must send a WRITE request to clear the DEVICE RESTARTED Internal Indication object reported by the Slave.

4.3.2 Recommendations
If a Slave device does not automatically report all of its static data in an initial unsolicited response, the Master device should immediately poll for all of the device's event data and static data (ie. send a READ request for Class 1, Class 2, Class 3 and Class 0 data).

4.4 UNSOLICITED RESPONSES


4.4.1 Rules
A Slave device may optionally send unsolicited responses to a Master device. The vendor of a Slave device must specify in a Device Profile Document whether the device can send unsolicited responses. This document must also specify which objects, variations, qualifiers and function codes the Slave device may include in those unsolicited responses. Refer to APPENDIX A: DEVICE PROFILE DOCUMENT FORMAT for more details regarding the Device Profile Document. All Slave devices must provide a mode of operation in which the Slave never sends unsolicited responses. This mode of operation must be configurable. The ability to configure unsolicited responses for the entire device is separate from the ability of the Master to disable unsolicited responses using requests. The following rules apply: 1. If a Slave device is configured to send unsolicited responses, a Master device may disable unsolicited responses by sending a DISABLE UNSOLICITED request (function code 22). 2. If a Slave device is configured to send unsolicited responses, it must send an initial unsolicited response upon start-up regardless of whether the Master sent any DISABLE UNSOLICITED requests (See Section 4.3: Slave Device Start-up for details). This rule ensures the Master device is notified immediately if the device restarts. The rule applies even if the Master has disabled unsolicited responses from all points on the Slave device.

DNP Users Group P009-0IG.SUB, Version 2.00

Slave devices implementing Level 2 or greater may report static data objects in unsolicited responses. They may do so only under the following conditions: upon start up of the Slave device. when the status flags of points (within the flag octet) change state. For example, if a range of analog inputs go off-line, then 16-Bit Analog Input objects may be reported in an unsolicited response.

All other events or exceptions must be reported using event data objects. The destination address of the Master device to which the unsolicited responses are sent must be configurable in the Slave device. All levels of Master devices must support unsolicited responses.

4.5 OPERATING BINARY OUTPUTS


4.5.1 Rules
All Slave devices must be able to parse operations on Control Relay Output Block objects (Obj.12, Var.1) for operating binary outputs. If a Slave device does not actually have any binary output points, it may respond with the PARAMETER ERROR or OBJECT UNKNOWN Internal Indications set. The FUNCTION UNKNOWN Internal Indication is not a valid response in this case. Similarly, a Slave device must parse all output function codes (e.g. SELECT/OPERATE) and control types (e.g. PULSE ON). If the Slave does not choose to implement a particular function code or control type, it must not respond with FUNCTION UNKNOWN. It must respond with the value operation not supported in the STATUS field of the Control Relay Output Block. The control operations supported by a Slave device must be described in the Device Profile Document for the device. Refer to APPENDIX A: DEVICE PROFILE DOCUMENT FORMAT for more details.

4.5.2 Recommendations
The use of WRITEs to Binary Output objects (Obj. 10, VAR. 1) as a means of operating binary outputs is not recommended because the response to a WRITE request cannot give an indication of whether the operation was successful. If a Slave device implements WRITEs to Binary Outputs in addition to operations on Control Relay Output Blocks, it is recommended that the device loop back the state of each output to a Binary Input object. This will provide some feedback to the Master.

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

NOTE: Control Relay Output Block object index x and Binary Output object index x both refer to the same physical binary output point.

It is recommended that whenever possible, Slave devices behave in a dont care manner regarding which output operations they support. In other words, if security is not a major issue and the devices hardware does not require specific instructions, the Slave device should accept as many control types (LATCH, PULSE, TRIP/CLOSE etc.) as possible. It is recommended that if possible, all output points on a particular Slave device support the same output function codes, to reduce the complexity of configuration for Masters.

4.6 FRAGMENTS AND FRAMES


4.6.1 Rules
Devices must not transmit application layer fragments larger than 2048 bytes, unless the fragment size is configurable and can be limited to 2048 bytes. All devices must accept application layer fragments of 249 bytes or fewer. All devices must accept maximum size data link layer frames (292 bytes). A Master device must not send multi-fragment requests. A Master device must accept multi-fragment responses. A Slave device must be able to return all of its data (static and event) within a single response. In other words, a response to a READ request for Class 1, Class 2, Class 3 and Class 0 data must fit into a single response. A single response may consist of one or more fragments. The maximum frame size transmitted, the maximum fragment size transmitted, and whether or not a Slave device sends multi-fragment responses must be documented in the Device Profile Document for the Slave device. Refer to APPENDIX A: DEVICE PROFILE DOCUMENT FORMAT for more information regarding Device Profile Documents.

4.6.2 Recommendations
It is recommended that the maximum size of a fragment be configurable in both Slave devices and Master devices.

DNP Users Group P009-0IG.SUB, Version 2.00

It is recommended that Master devices choose the qualifiers and objects in their requests so as to minimize the amount of bandwidth required.

4.7 MULTIPLE OBJECTS IN A SINGLE REQUEST


4.7.1 Rules
All Slave devices of all levels must be able to parse a single Master request containing any subset of all of the objects the Slave device supports. For example, a Level 2 Slave implementation must be able to parse a single READ request containing one or more of the following objects: Class 0 data Class 1 data Binary Counter - All Variations Binary Input Change With Time, quantity 20

4.8 MULTIPLE OBJECTS IN A SINGLE RESPONSE


4.8.1 Rules
All Master devices must be able to parse a single Slave response or unsolicited response containing any subset of the objects the Master device supports. For example, it must be able to parse a single response containing Binary Input, Analog Input, Counter Input and Binary Output Status objects.

4.9 CONFIRMATION AND RETRIES


4.9.1 Rules
All levels of Slave and Master devices may choose when they request confirmation of outgoing data link frames. Whether a device always, never or sometimes (e.g. only when configured, only for certain messages) requests data link CONFIRM frames must be documented in the Device Profile Document for the device. Refer to APPENDIX A: DEVICE PROFILE DOCUMENT FORMAT for more information regarding Device Profile Documents. A Slave or Master device must transmit a data link CONFIRM frame if it is requested to do so by a SEND/CONFIRM EXPECTED function code an incoming frame. A Slave or Master device must transmit an Application Layer Confirmation Response if it is requested by the CONFIRM bit in an incoming fragment. If a Slave is waiting for an application layer confirmation to a Response (function code 129) and receives a new request instead, it must:

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

1. Assume the confirmation will not be forthcoming and therefore retain any event data for the next request. 2. If the new request asks for some of the unconfirmed event data, include this data in the response. 3. Process and respond to the new request. This rule ensures controls and other vital operations will receive priority over any operation pending at the Slave, such as a response to a READ request. It also ensures the Master retains control over any polling sequence. This rule is implied in the DNP V3.00 Application Layer specification, but not explicitly stated. As described in section 3.3 of the DNP V3.00 Application Layer, this rule also applies to Unsolicited Responses (function code 130), with one exception. For READ requests, PROCESS_AFTER_CONFIRM mode applies: the Slave does not respond to the READ until it has received confirmation for its Unsolicited Response. This rule remains unchanged from the DNP V3.00 Application Layer, because it prevents the same event data from being sent to the master twice, once in the Unsolicited Response, once in the READ Response. If a Slave device supports application layer retries, the number of retries performed must be configurable and be disabled by default. This provision allows Master devices to choose application response timeouts as needed by the overall network, without needing to account for retries by any particular Slave.

4.9.2 Recommendations
It is recommended that enabling or disabling Data Link Confirms be configurable in both Slave devices and Master devices. This practice is recommended because the use of data link CONFIRM frames, across a highly reliable point to point physical media, can effectively halve communication throughput. It is recommended that a Slave device only requests Application Layer Confirmation Responses: on outgoing fragments that contain event data. This allows the Slave device to be sure the Master has received the event objects, and the Slave can therefore remove them from its internal buffers if it chooses. on large outgoing multi-fragment messages, in particular File Identifier Objects. This permits the Master to perform application-layer flow control, since the Master may take a significant amount of time to process large messages.

10

DNP Users Group P009-0IG.SUB, Version 2.00

when a particular IIN or status flag must be acted upon by the Master, e.g. Roll-Over or Buffer Overflow.

It is recommended that if a Slave device implements application layer retries, it only does so for unsolicited responses. Application layer retries are not especially useful for ensuring reliability in solicited responses because: The data link layer may already have performed several retries. Data link layer retries are more efficient because they only re-transmit part of the application layer message. If the Master does not receive the data, it can retry the request. If the Slave performs application layer retries, the Master must account for this in its application response timeout, which may affect system performance.

However, using application retries for unsolicited responses is more useful because: The Master was not expecting the data, so it will not need to account for the retry in any timeout. Because the Master was not expecting the data, it cannot cause the Slave to resend the data as with solicited responses.

Conformance or otherwise to these recommendations must be documented in the Device Profile Document for the Slave device. It is recommended that a Master device does not request Application Layer Confirms on outgoing fragments. Application Layer Confirmation Responses are not usually needed for requests because most requests require a response from the Slave device. The Application Layer Confirmation Response is redundant. Conformance or otherwise to this recommendation must be documented in a Device Profile Document for the Master device.

4.10 WITH-FLAG AND WITHOUT-FLAG VARIATIONS


4.10.1 Rules
A Slave device may choose to return an object containing a flag (e.g. 16-Bit Analog Input) when the Master has requested a without flag object variation (e.g.. 16-Bit Analog Input Without Flag). Similarly, a Slave may choose to return an object variation without a flag when the Master has requested an object variation with a flag. Whether or not the Slave device responds with an object containing a flag is the Slave's decision. The lack of a flag in an object implicitly implies that the flag = 1 (i.e. the point is on-line and no other exceptions are occurring).

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

11

A Master device must be able to process responses containing object variations both with flags and without flags.

4.11 16-BIT AND 32-BIT VARIATIONS


4.11.1 Rules
A Slave device chooses a default object variation to report in response to a READ request for a Class of data, or for variation 0 of a particular object. For example, a Slave may choose to report a counter input as either a 16-bit or 32-bit variation, depending on an internal default or on the Slave device's configuration. If, however, a Master device explicitly requests a particular variation, the Slave device must respond with a particular variation.

NOTE: There is one exception to this rule. The choice of whether or not to use a with flag or without flag variation is nonetheless up to the Slave device. See Section 4.9.2: WithFlag and Without-Flag Variations. However, the chosen variation must be the size the Master requested.

4.11.2 Rules for Analog Inputs and the OVER-RANGE Flag


Some analog input data gathered by a Slave device may be inherently a certain size (e.g. if the Slave's A/D convertors provide only 12 bits of resolution). However, a Master device may request this data in any size, either 16-bit or 32-bit. The following rules govern how to report this type of data: 1. If a Master requests a particular object variation (e.g. 16-bit Analog Input), and the measured value of the data point within the Slave device is within the range for the DNP variation (e.g. within 32767 to -32767), then the Slave reports the value without modification within the requested variation.

NOTE: For a data value stored within the device as (for example) a 12-bit two's complement number, this procedure will simply involve sign extending the value to its 16-bit or 32-bit two's complement representation. Since DNP analog values are signed, sign extension is not considered a modification of the value.

2. If a Master requests a 16-bit variation and the value of the data point is outside of the range 32767 (7FFF hex) to -32768 (8000 hex), then the Slave reports the value as either 32767 or -32768. The Slave device sets the Over-Range bit within the flag field of the object.

12

DNP Users Group P009-0IG.SUB, Version 2.00

3. If a Master requests a 32-bit variation and the value of the data point is outside of the range 2147483647 (7FFF FFFF hex) to -2147483648 (8000 0000 hex), then the Slave device reports the value as either 2147483647 or -2147483648. The Slave device sets the Over-Range bit within the flag field of an object. 4. If an input exceeds the range measurable by the hardware on the Slave device, the Slave device sets the Over-Range bit within the flag field of the object. It does not alter the value reported by its hardware. For example, a Slave device with a 12-bit A/D converter must set the OverRange bit when the measured value exceeds 2047. The Slave device must still report the value as 2047 in the analog input object. Table 4.11-1 illustrates these rules. The Slave sets the Over-Range flag in each case described in the table, except the example of 33000 requested as a 32-Bit Analog Input. This is a case of Rule #2 applying, but not Rule #3.
Size Stored Internally by the Device (size of A/D convertor) 8 bits Measured Value Response to a Request for 16-bit Analog Inputs 007F FF80 07FF F800 7FFF 8000 7FFF 7FFF 8000 Response to a Request for 32-bit Analog Inputs 0000007F FFFFFF80 000007FF FFFFF800 00007FFF FFFF8000 7FFFFFFF 00080E8 * 80000000

> +127 < -128

12 bits

> +2047 < -2048

16 bits

> +32767 < -32768

32 bits

> +2147483647 33000 (example) < -2147483648

* Over-Range flag is not set in this case. Over-Range is set in all other cases.

Table 4.11-1 Examples of Over-Range Conditions and Values NOTE: The DNP V3.00 Object Library makes certain statements that may appear to contradict these rules. There is no contradiction, as explained below.

When a Slave returns a 16-bit Analog Input object and the Over-Range bit is set, the DNP V3.00 Data Object Library states, "The actual value field can be ignored [by the Master device] as its value is not defined." This rule holds; therefore, the "rules" listed in this section for 16-bit Analog Inputs are actually recommendations, since a Master may ignore the value of the object.

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

13

When a Slave returns a 32-bit Analog Input object, the DNP V3.00 Data Object Library states, "The actual value will be +231-1 or -231 if it is over-range or under-range." This rule also holds, but only describes the cases in which the Slave represents the object in 32 bits internally.

4.11.3 Rules for Counter Objects and the ROLL-OVER Flag


The Roll-Over flag in counter objects is not a useful flag because of DNPs flexibility in reporting object variations. A Master device has no way of determining whether the counter rolled over at 16-bits, 32-bits, or some internal value. Unlike the case of the Over-Range flag for Analog Inputs, a Binary Counter object cannot be reported at its maximum value to indicate the devices internal maximum range. The counter must continue incrementing after being set to zero, or information will be lost. Therefore the following rules apply: 1. 2. Slave devices may choose not to set the Roll-Over flag. The Device Profile Document for a Slave device must identify the point at which the Slave devices counters roll over. Refer to APPENDIX A: DEVICE PROFILE DOCUMENT FORMAT for more information regarding Device Profile Documents. The Device Profile Document for a Slave device must identify the default size of counter the Slave reports when asked for Class Data or Variation 0. This default size does not change unless the Slave device is re-configured. If a Slave responds to both 16-bit and 32-bit requests, the Slave must respond with the lower 16 bits of a 32-bit counter when asked for 16 bits. If a polled mode of data reporting is used, it is the responsibility of the Master to poll often enough to capture any roll-over condition that occurs.

3.

4.

5.

4.11.4 Recommendations Regarding the ROLL-OVER Flag


It is highly recommended that Slave devices do not set the Roll-Over flag, for the reasons discussed in the previous section. It is highly recommended that Master devices ignore the Roll-Over flag.

14

DNP Users Group P009-0IG.SUB, Version 2.00

4.12 TIME TAGGED BINARY INPUT EVENTS


4.12.1 Rules
Slave devices must preserve the sequence of occurrence of binary input event objects within responses. For instance, Binary Input Without Time objects (Obj. 2, VAR. 2) must be returned in the sequence in which they occur. If a Master device does not specify a particular variation of binary input event object in a READ request, a Slave may choose what variation to report. If a Master requests a particular Class of data, or a request for Binary Input Change Events with variation 0, a Slave may choose to report, for a given event: only a time-tagged event object, i.e. either Binary Input Change With Time or Binary Input Change With Relative Time. only a Binary Input Change Without Time event object. both a Binary Input Change Without Time object and one of the timetagged binary event objects from the same event. If the Slave device implements this option, it must be configurable so the user can disable the reporting of one variation or the other.

The manner in which a Slave device reports binary input event objects must be described in the Device Profile Document for the Slave device. The manner in which a Master device expects binary input event objects to be reported must be described in its Device Profile Document. Refer to APPENDIX A: DEVICE PROFILE DOCUMENT FORMAT for details. If a Master device requests a specific variation of binary input event object, the device must report that variation. For instance, if the Slave receives a READ request for Binary Input Change With Relative Time (Obj.2, VAR. 3), it must respond with data in the requested variation.

4.12.2 Recommendations
Whenever a Slave responds with Binary Input Change With Relative Time objects (Obj.2, VAR.3), the objects are preceded by either a Time and Date CTO (Obj.51, VAR.1) or an Unsynchronized Time and Date CTO (Obj.51, VAR.2) object. It is recommended that the Unsynchronized Time and Date CTO object be used if the Slave's Time and Date have not been set.

4.13 FREEZE OPERATIONS


This section clarifies the use of the various FREEZE function codes. Upon receiving a FREEZE request, a Slave device must copy the appropriate Binary Counter values ("running" counters) into a "freeze" buffer. The 15

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

Master may read these frozen values as Frozen Counter Input objects (Obj. 21). If a FREEZE AND CLEAR request is being processed, the Slave must clear the running values immediately after performing the FREEZE. A READ request of Binary Counter Input objects (Obj. 20) always return the values of the "running" counters.

4.13.1 Rules
A Master device must perform FREEZE operations on Binary Counter objects (Obj. 20) only, NOT on Frozen Counter objects (Obj. 21). If a Level 2 or Level 3 Slave device supports Binary Counter objects, it must support FREEZE operations (it cannot return an error response). However, it need not support READs of Frozen Counter objects if it chooses not to. This is allowed because the DNP V3.00 Data Object Library states Point i in obj 20 and point i in obj 21 are NOT necessarily the same point. Therefore, not all Binary Counters must have corresponding Frozen Counters.

4.14 TIME SYNCHRONIZATION


4.14.1 Rules
A Slave device need not support WRITE operations on Time and Date objects or support DELAY MEASUREMENT requests if it never sets the TIME SYNCHRONIZATION REQUIRED Internal Indication bit in its responses or unsolicited responses.

16

DNP Users Group P009-0IG.SUB, Version 2.00

Chapter 5: CONFORMANCE
This Chapter specifies the functions a Master or Slave device must support in order to conform to a defined implementation level. The subset definitions deal primarily with the application layer of the DNP V3.00 protocol. It is nevertheless a requirement that in order for a device to conform to an implementation level, it must have implemented on it services of the Data Link Layer and Transport Functions (as defined in the DNP V3.00 Basic 4 Document Set) sufficient to support the implementation level. For instance, all subsets require a Slave device support Class 0 Data polls; if the response to such a poll would exceed 249 octets, segmentation by the Transport Function must be supported.

5.1 SLAVE DEVICES


In order for a Slave device to implement a particular Level X of DNP V3.00, the device must conform to the following: The Slave device must be able to parse all Master requests defined for Level X. The Slave device must be configurable to not transmit anything other than Level X responses to Level X requests. The Slave device must obey all of the implementation rules defined in Chapter 4. The vendor must describe the device's DNP implementation in a Device Profile Document and make this document available to users of the device.

The Device Profile Document consists of a form, an implementation table similar to those found in this document, and some optional accompanying text. See APPENDIX A : DEVICE PROFILE DOCUMENT FORMAT for details. A Slave device may accept and respond to additional requests not defined in Level X and still conform to that level. It may respond to such requests with data not defined in Level X. Any additional functions the Slave provides must not prevent a Master device from communicating with a Slave device on the defined level. For instance, a DNP-L1 Slave may choose to accept WRITE requests of File 1

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

Identifier Objects. However, it must not require a Master to send such a request in order to operate.

5.2 MASTER DEVICES


In order for a Master device to implement a particular level X of DNP V3.00, the device must conform to the following: The Master device must be able to parse all Slave responses defined for Level X. The Master device must be configurable to limit the requests it sends to Slave devices with implementation levels lower than X. For instance, a Level 3 Master must be configurable so it does not send any requests to either a Level 1 Slave or a Level 2 Slave that they could not parse. This does not prevent the Master from sending Level 3 requests to a Level 3 Slave. The Master device must obey all of the implementation rules defined in Chapter 4. The vendor of the Master device must describe the device's DNP implementation in a Device Profile Document and make this document available to users of the device.

The Device Profile Document consists of a form, an implementation table similar to those found in this document, and some optional accompanying text. See APPENDIX A : DEVICE PROFILE DOCUMENT FORMAT for details.

DNP Users Group P009-0IG.SUB, Version 2.00

Appendix A: DEVICE PROFILE DOCUMENT FORMAT

Vendors must produce a Device Profile Document for each device they manufacture implementing DNP V3.00. The Device Profile Document clearly identifies any deviations from the implementation subsets described in this document and any other issues that may arise when determining the device's compatibility with another device. The Device Profile Document addresses Application Layer and Data Link Layer issues only; the Physical Layer is not addressed because of the multitude of different layers and configurations possible.

! NOTE:

Do not confuse the Device Profile Document with the Device Profile Object defined in the DNP V3.00 documentation. The Device Profile Object does not at present contain sufficient information to establish compatibility between two devices. It must be modified in the future to include some of the information found in the Device Profile Document.

This appendix describes the minimum information that a vendor must include in the Device Profile Document. Implementation Table A table similar to those found in this document, identifying which object variations, function codes and qualifiers the device supports in both requests and responses, e.g.
OBJECT Obj Var Description REQUEST Func Codes Qual Codes (hex) 00, 01, 06 RESPONSE Func Codes Qual Codes (hex) 01

30

16-Bit Analog Input without Flag

129, 130

......

The Request columns identify all requests sent by a Master device, or all requests parsed by a Slave device. The Response columns

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

identify all responses parsed by a Master device, or all responses sent by a Slave device. If the device does not actually use all the requests or responses that it can parse, attach notes (or add columns) to the Implementation Table identifying which are not used. Point List This is an optional part of the Device Profile Document. Some vendors of Slave devices may wish to include a list of the data points provided by the device. The format of this list is optional, but the following is suggested:
Index Default Static Variation Obj Var Desc Default Event Variation O b j 2 3 2 Var Class Desc Point Name

Description

Binary Input Analog Input

7 3

1 30

1 1

No Status 32-bit

1 3

2 1

Without Time 32-Bit Without Time

Breaker 'A' Tripped Phase 1 VARs

Vendor Name Device Name Highest DNP Level Supported Device Function

The name of the organization producing the device. The model and name of the device, sufficient to distinguish it from any other device from the same organization. The highest-numbered DNP implementation subset to which the device completely conforms. Either Master or Slave. Masters send DNP requests, while Slaves send DNP responses. If a single physical device can perform both functions, supply a separate Device Profile Document for each function. A brief description intended to quickly identify for the reader the most obvious features the device supports in addition to the Highest DNP Level. The complete list of features is described in the Implementation Table. The largest size of Data Link Frame the device transmits, in octets. The largest size of Application Layer fragment the device transmits, in octets. The number of times the device will re-transmit a confirmed data

Notable Additions

Maximum Data Link Frame Size Maximum Fragment Size Maximum Data Link

DNP Users Group P009-0IG.SUB, Version 2.00

Re-tries Maximum Application Re-tries Requires Data Link Confirmation

link frame before aborting the transaction. The number of times the device will re-transmit a confirmed application request or response before aborting the transaction. Whether the device ever transmits SEND/CONFIRM EXPECTED - USER DATA frames.

Requires Application Whether the device ever sends application layer messages with the Confirmation CONFIRM bit set in the APPLICATION CONTROL field. Timeouts Control Operations The time conditions under which the device will discard an incoming frame, fragment, request or response. The control operations permitted by the device. A device may support an Analog Output or Control Relay Output Block, but not necessarily support all operations on that object.

Reports Binary Input A description of what variation of objects a Slave device reports Change Events when asked for Binary Input Change events with variation 0 or when asked for Class data. Refer to subset document section 4.12 Time-Tagged Binary Input Events. Sends Unsolicited Responses Sends Static Data Unsolicited Default Counter Object/Variation Counters Rollover At Sends MultiFragment Responses A list of the conditions under which a Slave device sends unsolicited responses. A list of the conditions under which a Slave device sends static data (Class 0) as unsolicited responses. The object and variation a Slave Device uses to report counter objects when asked for Variation 0 or for Class data. See subset document section 4.11.3. The value at which a Slave devices counters roll over. See subset document section 4.11.3. Yes or No; whether a slave device sends multi-fragment responses (Master devices do not send multi-fragment requests)

A blank device profile form follows. The form must be accompanied by an Implementation Table and may optionally be accompanied by a Point List. A vendor may check multiple boxes within a section. Vendors of Master devices may optionally include text explaining under what conditions the Master device sends each type of request, e.g.: polling rates and methods, etc. This information is optional but may aid vendors of Slave devices in being compatible with the Master device. In general, if a vendor checks a box marked "Configurable", the vendor must

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

attach an explanation of how an item can be configured. The format of such an explanation is optional, but might answer some of the following questions: " " " " At the factory, or in the field? Using what equipment? Over what range is the item configurable? Under what conditions?

Similarly, if the vendor checks a box marked "Variable" or "Sometimes", the vendor must attach more details explaining under what conditions the specified item will occur.

DNP Users Group P009-0IG.SUB, Version 2.00

DNP V3.00
DEVICE PROFILE DOCUMENT
This document must be accompanied by a table having the following headings: Object Group Request Function Codes Response Function Codes Object Variation Request Qualifiers Response Qualifiers Object Name (optional) Vendor Name: Device Name: Highest DNP Level Supported: For Requests For Responses Notable objects, functions, and/or qualifiers supported in addition to the Highest DNP Levels Supported (the complete list is described in the attached table): Device Function: # Master # Slave

Maximum Data Link Frame Size (octets): Transmitted __________________ Received (must be 292)

Maximum Application Fragment Size (octets): Transmitted ________ (if >2048, must be configurable) Received ________ (must be > 249)

Maximum Data Link Re-tries: # None # Fixed at _______________________

Maximum Application Layer Re-tries: # None # Configurable, range ____ to _______

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

# Configurable, range ____ to _______ Requires Data Link Layer Confirmation: # Never # Always # Sometimes

(Fixed is not permitted)

If 'Sometimes', when? __________________________________________

# Configurable If 'Configurable', how? ______________________________________________ Requires Application Layer Confirmation: # Never # Always (not recommended) # When reporting Event Data (Slave devices only) # When sending multi-fragment responses (Slave devices only) # Sometimes If 'Sometimes', when? ___________________________________________

# Configurable If 'Configurable', how? ______________________________________________ Timeouts while waiting for: Data Link Confirm Complete Appl. Fragment Application Confirm Complete Appl. Response # None # None # None # None # Fixed at _________ # Fixed at _________ # Fixed at _________ # Fixed at _________ # Variable # Variable # Variable # Variable # Configurable # Configurable # Configurable # Configurable

Others __________________________________________________________________________ Attach explanation if 'Variable' or 'Configurable' was checked for any timeout Sends/Executes Control Operations: WRITE Binary Outputs # Never # Always # Sometimes # Configurable SELECT/OPERATE # Never # Always # Sometimes # Configurable DIRECT OPERATE # Never # Always # Sometimes # Configurable DIRECT OPERATE - NO ACK # Never # Always # Sometimes # Configurable Count > 1 Pulse On Pulse Off Latch On Latch Off Queue Clear Queue # Never # Never # Never # Never # Never # Never # Never # Always # Always # Always # Always # Always # Always # Always # Sometimes # Sometimes # Sometimes # Sometimes # Sometimes # Sometimes # Sometimes # Configurable # Configurable # Configurable # Configurable # Configurable # Configurable # Configurable

Attach explanation if 'Sometimes' or 'Configurable' was checked for any operation.

DNP Users Group P009-0IG.SUB, Version 2.00

FILL OUT THE FOLLOWING ITEM FOR MASTER DEVICES ONLY: Expects Binary Input Change Events: # Either time-tagged or non-time-tagged for a single event # Both time-tagged and non-time-tagged for a single event # Configurable (attach explanation) FILL OUT THE FOLLOWING ITEMS FOR SLAVE DEVICES ONLY: Reports Binary Input Change Events when no specific variation requested: # Never # Only time-tagged # Only non-time-tagged # Configurable to send both, one or the other (attach explanation) Sends Unsolicited Responses: # Never # Configurable (attach explanation) # Only certain objects # Sometimes (attach explanation) # ENABLE/DISABLE UNSOLICITED Function codes supported Default Counter Object/Variation: # No Counters Reported # Configurable (attach explanation) # Default Object ______________ Default Variation ______________ # Point-by-point list attached Counters Roll Over at: # No Counters Reported # Configurable (attach explanation) # 16 Bits # 32 Bits # Other Value _____________ # Point-by-point list attached Reports time-tagged Binary Input Change Events when no specific variation requested: # Never # Binary Input Change With Time # Binary Input Change With Relative Time # Configurable (attach explanation)

Sends Static Data in Unsolicited Responses: # Never # When Device Restarts # When Status Flags Change No other options are permitted.

Sends Multi-Fragment Responses: # Yes # No

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

GLOSSARY OF TERMS

application

A piece of software (a program) consisting of one or more processes and supporting functions. A number system having only two symbols (1 and 0), and where values are expressed in the base two number system. Abbreviation of binary digit. The smallest unit of information in a binary system. Has a value of either one (1) or zero (0). The client or host station or computer, with which the RTU equipment communicates. Also referred to as a host or host computer. A semi-permanent type of data storage (memory) that is backed up by batteries to maintain stored data even if system power is lost. Can be both read and changed by the system. Abbreviated as NVRAM. A type of temporary data storage (memory) that can be read and changed while the computer is in use. Data stored in random-access memory is lost if the system loses power. Abbreviated as RAM. A piece of equipment located at a distance from a master station to monitor and control the status of outlying equipment, and to communicate the information back to the master station or host. Abbreviated as RTU.

Binary

Bit

Master

Non-volatile random-access memory

Random-access memory

Remote terminal unit

DNP Users Group P009-0IG.SUB, Version 2.00

Sequence of events

A time-tagged change of state, logged as part of a chronological record of significant changes in the condition of a particular point or points being monitored. Abbreviated as SOE.

DNP V3.00 Subset Definitions P009-0IG.SUB, Version 2.00

LIST OF ACRONYMS AND ABBREVIATIONS

DNP IED NVRAM OSI RAM RTU SOE

distributed network protocol intelligent electronic device non-volatile random-access memory open systems interconnect random-access memory remote terminal unit sequence of events

10

DNP Users Group P009-0IG.SUB, Version 2.00

Distributed Network Protocol (DNP) V3.00

Transporting DNP V3.00 over Local and Wide Area Networks

Version 1.0

December 15, 1998

Prepared by: Michael Thesing Advanced Control Systems, Inc. Norcross, GA USA

Acknowledgements: The author wishes to thank Parker McCauley and Ken Murphy for their advice, expertise, and review of this document. Other contributors: John Phillips Foxboro Australia Pty Limited Grant Gilchrist GE/Harris Energy Control Systems

DNP is a trademark of the DNP Users Group.

Transporting DNP over LAN/WAN December 15, 1998

Copyright 1998 DNP Users Group. All rights reserved.

ii

Transporting DNP over LAN/WAN December 15, 1998

Contents
1 Overview...............................................................................................................................................................1 1.1 Purpose ..........................................................................................................................................................1 1.2 Notes..............................................................................................................................................................1 1.3 Protocol Stack................................................................................................................................................1 1.4 Conclusions ...................................................................................................................................................2 Physical, Link, and Network layers ...................................................................................................................3 2.1 Physical and Link layers................................................................................................................................3 2.2 Network layer ................................................................................................................................................3 Transport layer ....................................................................................................................................................3 3.1 Protocol characteristics..................................................................................................................................3 3.1.1 UDP .......................................................................................................................................................3 3.1.2 TCP........................................................................................................................................................3 3.2 Network Topologies ......................................................................................................................................3 3.2.1 Network A .............................................................................................................................................4 3.2.2 Network B..............................................................................................................................................6 3.2.3 Network C..............................................................................................................................................8 3.3 Summary........................................................................................................................................................9 DNP Layers ........................................................................................................................................................10 4.1 Confirmations ..............................................................................................................................................10 4.2 Keep-alive timer ..........................................................................................................................................10 4.3 Multiple frames in UDP...............................................................................................................................11 4.4 Broadcast Address .......................................................................................................................................11 Security...............................................................................................................................................................11 Time Sync ...........................................................................................................................................................11 6.1 Desired Behavior .........................................................................................................................................12 6.2 Procedure.....................................................................................................................................................12 6.3 Driver requirement ......................................................................................................................................13 Socket requirements ..........................................................................................................................................13 7.1 Background..................................................................................................................................................13 7.2 TCP/UDP Port Number for DNP ................................................................................................................14 7.3 Making TCP connections ............................................................................................................................14 7.4 Broken connections .....................................................................................................................................16 7.5 Typical architecture .....................................................................................................................................16 References ..........................................................................................................................................................18

2 3

5 6

ANNEX A (informative) TCP vs. UDP in a Wide Area Network .........................................................................19 ANNEX B (normative) Additions to Existing documents......................................................................................21 New Function Code (24) .........................................................................................................................................21 B.1.1 Changes to Table 3-1 in the Application Layer document.........................................................................21 B.1.2 Addition to Chapter 4 in the Application Layer document........................................................................21 New Object (Obj 50, Var 03) ..................................................................................................................................21 B.2.1 Addition to Data Object Library document ...............................................................................................21

iii

Transporting DNP over LAN/WAN December 15, 1998

1 Overview
1.1 Purpose
DNP V3.00 (hereafter referred to simply as DNP) was designed for serial point-to-point communication (e.g. RS232) with limited support for half duplex serial networks (e.g. RS-485). In order for devices to exchange DNP messages in a local (LAN) and/or wide area network (WAN), one must either augment the protocol to support a network environment or use an existing network transport mechanism. This document takes the latter approach; specifically, to define how to transport DNP traffic on the internet protocol suite.

1.2 Notes
The internet protocol suite is sometimes referred to as the TCP/IP protocol. For this document, the internet protocol suite is defined to include both transport layers, TCP and UDP, as well as the IP network layer. The individual layers are summarized in sections 2 and 3. Throughout this document the term device as it applies to a DNP device may be interpreted to be either a physical unit (i.e. a standalone product, RTU, IED, etc.) or a logical entity within a physical unit (i.e. logical RTU, virtual IED, etc.).

1.3 Protocol Stack


The most attractive reasons for choosing the internet protocol suite as a transport mechanism for DNP are: Seamless integration of the substation LAN to the corporate WAN of the utility Leverage existing equipment and standards The internet protocol suite is designed to be platform independent and is supported on virtually every computer system in the world. It is highly scalable (LAN to WAN) and many quality implementations exist for both embedded and workstation operating systems. The recent growth of the Internet has fueled the large availability of equipment and has proved that the internet protocol suite is capable of transporting tremendous quantities and types of data. The internet protocol suite and DNP use the OSI layering paradigm; each piece of the protocol stack in one station logically communicates with the corresponding piece in the other station(s). It is therefore easy to build DNP "on top of" the internet protocol suite since the internet layers appear transparent to the DNP layers (see Figure 1-1).

Transporting DNP over LAN/WAN December 15, 1998


Logical Communications

Station 1
APDU

Station 2
APDU

DNP Application

DNP Transport

TPDU

TPDU

DNP Protocol

DNP Link Protocol

LPDU

LPDU

TCP,UDP

Transport

Transport

IP

Network

Network

TCP/IP Protocol Suite

device driver/link

Link

Link

Figure 1-1 Protocol Stack.

1.4 Conclusions
All DNP devices, be they physical or logical, that are to communicate in the DNP V3.00 Protocol over a LAN/WAN shall be subject to the following basic requirements: DNP shall use the internet protocol suite to transport messages over the LAN/WAN. The recommended physical/link layer is Ethernet, but the internet protocol suite has been implemented over a wide variety of networks. All devices shall support connection-oriented (TCP) and connection-less sockets (UDP). TCP is required for wide-area networks and is strongly recommended for local-area networks. UDP is appropriate for non-critical messages such as data monitoring or configuration. UDP may be used on high-reliability single-segment LANs and must be used if broadcast delivery is required. The DNP Enhanced Protocol Architecture (EPA) of DNP shall be retained so that the protocol requirements contained in each layer do not need to be reinvented. Link Layer confirmations shall be disabled. Application Layer confirmations shall be used per the subset definitions and technical bulletin [Ref. 13]. A mechanism for verifying the on-line status of an Outstation must be implemented. A periodic keep-alive message is recommended. All devices should be configured with the IP address of the communicating host. This address must be set in a secure manner and verified at the server-end before a connection is made. The method for time synchronization on a LAN is defined; the WAN case is not addressed in this document. General recommendations for making socket connections between devices are outlined. Data providers such as IEDs, Meters, and devices that are "downstream" in the SCADA system shall be the server-end of the connection. Data users such as RTUs, Master Stations, and devices that require access to the data shall be the client-end of the connection.

Transporting DNP over LAN/WAN December 15, 1998

2 Physical, Link, and Network layers


2.1 Physical and Link layers
Although there is nothing in the internet protocol suite that precludes operation on other types of networks; e.g. ARCnet, Token-Ring, AppleTalk, etc., Ethernet/IEEE 802.3 is clearly the dominant computer network technology. This document recommends using Ethernet for the Link and Physical layers because of this ubiquity, but also because Ethernet provides the necessary bandwidth and physical media for substation and control center LANs. 10 and 100 Mbit/second is supported for twisted-pair copper, coaxial cable, and fiber optic cable with existing work to standardize 1000 Mbit/second networks ongoing. The installation of Ethernet wiring and equipment is well understood and standardized.

2.2 Network layer


Internet Protocol (IP) forms the basis for the internet Protocol suite and therefore is the recommended Network layer protocol. IP provides a connectionless, best effort datagram delivery service to the transport layer protocols. Connectionless means that IP does not maintain any state information about the link so each datagram is routed independently of all others. Best effort delivery means that the protocol has mechanisms for routing the datagram and simple error reporting, but that delivery is not guaranteed. Reliability is left up to the transport layer protocol.

3 Transport layer
The Transport layer of the internet protocol suite consists of two distinct services, User Datagram Protocol (UDP) and Transmission Control Protocol (TCP). TCP shall be the primary transport service for DNP messages because of its reliably; UDP can be used on a high-reliability single-segment LAN and in specific cases where small pieces of non-critical data need to be sent or when broadcasting is required. UDP can also be used in specific cases as listed in table 3-1. Annex A describes why UDP cannot be used if the DNP messages must be routed over the utility enterprise or wide area network.

3.1 Protocol characteristics


3.1.1 UDP

UDP provides a connectionless service for sending datagrams between hosts. Sending one UDP datagram causes exactly one IP datagram to be sent. All that it adds beyond IP is the ability to exchange datagrams between multiple processes on a host and rudimentary error detection. UDP supports all the addressing modes of IP unicast, multicast, and broadcast. 3.1.2 TCP

TCP provides a connection-oriented service for sending a stream of bytes between hosts. The protocol determines how to break the stream into IP datagrams based on the characteristics of the network. TCP insures that the same stream of bytes sent to the transmitting side of the connection will be available on the receive side. It accomplishes this using acknowledgements, sequencing of the data, and dynamic timer mechanisms. Lost or corrupted packets are retransmitted transparently to the higher layers. The only addressing mode supported by TCP is unicast. Multicast and broadcast are not applicable in a connection-oriented protocol.

3.2 Network Topologies


Following are the 3 possible network topologies in terms of IP routability from the perspective of a substation or remote LAN. Each topology diagram uses typical equipment on the various networks to illustrate basic

Transporting DNP over LAN/WAN December 15, 1998 functionality. Clearly, many other types of devices can exist on enterprise wide area networks as well as on the substation LANs. 3.2.1 Network A

Control Center LAN

Master station

Master station

Server

Serial Link: Dedicated Radio Dial-up etc.

Substation LAN

RTU/Data Concentrator
Ethernet

Relays

Meters

Other IEDs

Figure 3-1 Network Topology A This is the most basic implementation of a substation LAN in that it doesn't provide for the ability to access substation components outside of the LAN. It does provide for IED-to-IED communication in addition to the normal RTU-to-IED communication. Figure 3-2 shows a typical data transfer path from an IED.

Transporting DNP over LAN/WAN December 15, 1998

Control Center LAN

Master station Master station

Master station

Server Server

Serial Link: Dedicated Radio Dial-up etc.

RTU/Data Concentrator

Substation LAN

Ethernet

Relays

Meters

Other IEDs

Figure 3-2 Network A IED Communication DNP traffic could be transported in a couple of ways in this topology. The first method is to use TCP to establish a connection between the RTU/Data Concentrator (RTU/DC) and each IED. IEDs may also establish connections to share data. TCP provides a reliable connection between all devices. The second method is to use UDP to transport all DNP frames since the messages do not need to be routed and, assuming a fairly high reliability LAN construction, the packet loss would be very low. DNP link layer confirmations shall be disabled. Application layer confirmations shall be used as recommended in the technical bulletin [Ref. 13]. If broadcast messages are required, UDP must be used since TCP is strictly a point-to-point protocol. Unsolicited responses are recommended for both TCP and UDP to improve efficiency. An alternate method, mentioned here because of its simplistic client implementation, would be to use UDP to broadcast all DNP Link Layer frames to the network and let each device determine its messages based on the DNP destination address. This method is equivalent in functionality to a RS-485 network with the addition of defined media access and higher baud rate. The advantage of this method is that it is very easy to implement in code and has the lowest possible RAM requirements. The disadvantages are: An IED designed exclusively for this network cannot be used in networks requiring that the IP datagrams be routed. Since all the frames would have the destination address set to the subnet broadcast address, all hosts would have to process all messages up through the transport layer and all DNP hosts would have to process the message through the DNP Link layer. This is a tremendously inefficient use of the network bandwidth and processing on all network hosts. For these reasons, this method must not be used.

Transporting DNP over LAN/WAN December 15, 1998 3.2.2 Network B


To other parts of enterprise network

Enterprise WAN
PCs/Workstations Gateways

Control Center LAN

Master stations

Router

Servers
PPP

Fiber PPP Digital etc.

Remote workstation

Substation LAN

Router

RTU/Data Concentrator
Ethernet

Relays

Meters

Other IEDs

Figure 3-3 Network Topology B This implementation of a substation LAN provides access to substation components through the utility enterprise. Figure 3-3 represents a typical example given by most substation LAN standards currently under development. IEDto-IED, RTU-to-IED, and enterprise-to-IED communications are supported. Figure 3-4 shows a typical data transfer path from an IED.

Transporting DNP over LAN/WAN December 15, 1998


To other parts of enterprise network

Enterprise WAN
PCs/Workstations Gateways

Control Center LAN

Master stations

Router

Servers
PPP

Fiber PPP Digital etc.

Remote workstation

Substation LAN

Router

RTU/Data Concentrator
Ethernet

Relays

Meters

Other IEDs

Figure 3-4 Network B IED Communication All devices on the substation LAN must support TCP connections since the IP datagrams are routed (see Annex A). UDP can be used for non-critical data such as Virtual Terminal objects or device monitoring outside of the normal SCADA command and control loops. As in topology A, UDP provides the ability to broadcast frames so that a device can share data with other LAN devices efficiently.

Transporting DNP over LAN/WAN December 15, 1998 3.2.3 Network C


To other parts of enterprise network

Enterprise WAN
PCs/Workstations Gateways

Control Center LAN

Master stations

Router

Servers
PPP

Data Acquisition Unit

Remote workstation

Router
Serial Link: Dedicated Radio Dial-up etc.

Router

Remote LAN

Ethernet

Relays

Meters

Other IEDs

Figure 3-5 Network Topology C This implementation of a remote LAN provides access to devices only through a routed communication link. For example, imagine a remote station requiring periodic monitoring but not full RTU functionality. The Data Acquisition Unit (DAU) could potentially handle multiple remote stations. The Master Stations would then access the remote data via the DAU. Figure 3-6 shows a typical data transfer path from an IED.

Transporting DNP over LAN/WAN December 15, 1998


To other parts of enterprise network

Enterprise WAN
PCs/Workstations Gateways

Control Center LAN

Master stations

Router

Servers
PPP

Data Acquisition Unit

Remote workstation

Router
Serial Link: Dedicated Radio Dial-up etc.

Router

Remote LAN

Ethernet

Relays

Meters

Other IEDs

Figure 3-6 Network C IED Communication All devices in this topology must support TCP. UDP cannot be used between an IED and the Data Acquisition Unit and only makes sense if an IED wishes to communicate with another IED on the remote LAN.

3.3 Summary
All devices shall support both TCP because of its reliable delivery characteristic over all network topologies and UDP because of the potential uses of broadcasting, its efficiency when small pieces of non-critical data need to be transported, and when operating over a high reliability, single segment LAN. For example, UDP would be appropriate when many computational nodes require a common IED value but the stability of the system is not compromised if a few values are lost. Table 3-1 shows which transport layer to use in the various cases.

Transporting DNP over LAN/WAN December 15, 1998 Protocol Use in the case TCP Most situations requiring point to point communications Mesh topology WAN UDP Broadcast on a LAN Equivalent to TCP on high-reliability single-segment LAN More economical for pay-per-byte, nonmesh WAN, e.g. Cellular Digital Packet Data (CDPD). Low priority data, e.g. data monitor or configuration

Table 3-1 Appropriate use of transport layer

4 DNP Layers
The three protocol layers of DNP are integrated together to form what the Basic 4 documents call the Enhanced Performance Architecture (EPA). Essentially, the functionality called out in the OSI 7-Layer model is either not needed in DNP or has been combined to simplify the design of DNP compatible devices. The three layers of DNP work together and cannot be separated without adding capabilities to a layer that are already contained within another layer. For example, one might consider extracting the DNP Application layer and transporting it directly over the internet protocol suite. But, the Application layer doesn't have any addressing mechanism; this is contained in the Link Frame. Using only the IP addresses precludes having more than one DNP entity (i.e. virtual RTUs) per IP address. TCP doesn't have error detection that is adequate for the critical nature of SCADA data; this is also in the Link Frame. The Application Layer has no means for determining the start of a new message in the serial stream; the start characters and length field in the Link Frame provides this. Therefore, since the protocol requirements of DNP are present in all three layers, there is no need to break them apart. This architecture provides an additional benefit for vendors in that they can share most of the DNP code with existing serial channel implementations. The only difference comes in the interface to the internet protocol suite which is very similar to a serial port in that TCP also provides a stream of data with no packet or frame demarcations.

4.1 Confirmations
Link layer confirmation shall be explicitly disabled when communicating via the internet protocols. TCP has its own very robust mechanisms for insuring data delivery. UDP does not have such a mechanism, but its uses are limited to cases where the reliability of the communications medium is very high or the transported data is not critical. Application layer confirmations may still be used in accordance with subset and technical bulletin recommendations [Ref. 13].

4.2 Keep-alive timer


If the server-side of a TCP connection goes down and comes back up, the client-side has no way of knowing until it sends a message to the server and receives the RST flag in the TCP header. If an outstation is operating in an unsolicited mode, this could be minutes depending on the scheduling of integrity polls. Therefore, it is necessary to add some type of keep-alive timer to allow clients to periodically determine the on-line status of servers or peers. Note: If the client-side of a TCP connection goes down, it will presumably try to reconnect when it comes back up. The server will process this request, close the existing connection, and reconnect.

10

Transporting DNP over LAN/WAN December 15, 1998 TCP offers such a timer, but a typical implementation is 2 hours, which is not sufficient for the critical nature of the data carried by DNP. Note: some internet protocol implementations allow this timeout to be changed, but this capability is not universal. The recommended message to use for such a timer is the Link Layer Request Status message (0xC9). It is very low overhead for the devices and is already supported at all subset levels. A suitable time would be once every 10 seconds (although it should be configurable) after there has been no other activity from that device. To facilitate interoperability, the keep-alive timer shall be supported by all devices. However, it must be possible to disable via configuration for cases where the normal application layer traffic (e.g. polling) provides on-line status detection.

4.3 Multiple frames in UDP


If UDP is used in one of the cases specified in section 3.3, a receiver must be capable of parsing multiple DNP Link Layer frames from a UDP fragment.

4.4 Broadcast Address


If UDP is used to broadcast a datagram to multiple devices on a LAN, the DNP address must be set to 0xFFFF and all logical DNP devices at all IP addresses within the domain of the broadcast must receive the encapsulated DNP frame.

5 Security
In a point-to-point serial channel, DNP devices are protected from inadvertent or hostile access by the physical nature of the connection. If DNP is going to be transported over an enterprise wide network, a method for controlling access needs to be defined by the vendor of each device. Each device needs to be configured such that only the intended connections are made. This requires setting the IP address of the server host at the client side and setting the IP address of the client host (or list of clients) at the server side. Servers then must use the IP address to validate client requests and make the appropriate logical port connections. This feature shall be supported by all devices, however it must be possible to disable via configuration. A server may wish to enable only one connected client at a time or provide for a failover capability, e.g. if a client fails then another client can connect with the server and continue the service that was provided by the failed client. [Ref. 12] The valid host IP addresses can only be set in a secure manner. Some possibilities for doing this include, but are not limited to: A local interface using a proprietary program. A simple HTTP server with password accesses to the configuration information. Using HTTP in this manner avoids having to invent new DNP objects to carry both the configuration info and the security info. A terminal-like interface using Virtual Terminal objects over UDP (see Technical Bulletin 9804-004). Each equipment vendor will have to determine an appropriate method.

6 Time Sync
All time synchronization shall be done at the local network only. It is not practical to do time sync over IP routers as their delays are typically not consistent and vary based on network loads. The Network Time Protocol (NTP) is too large and requires too many resources to be appropriate for DNP. The source of the time at the local network shall be chosen as required by the system.

11

Transporting DNP over LAN/WAN December 15, 1998 The time synchronization method defined in Chapter 6 of the Application Layer document is not appropriate for a high-speed (relative to RS-232) LAN because: The propagation delay measurement is negligible [Ref. 2]. The internet protocol stack causes a variable delay between DNP and the network. Recording the time at the first bit of the first byte does not account for network collisions. In the following procedure, the Master station is defined as the host on the LAN with the accurate time source. See Annex B for a complete description of the new function code and object.

6.1 Desired Behavior


Since the propagation delay on an Ethernet LAN is very small, the offset time between the Master Station and the Outstation can be measured directly. The following procedure outlines a method for both hosts to record their time at the same instant, namely, when the last character of a message is transmitted from Master Station and received at the Outstation. The difference in these times represents the offset between the two hosts and can be used as a correction factor in the Outstations.

6.2 Procedure
1. 2. 3. The Master station sends a Record Current Time (FC 24) request to the outstation. The Master records the time of transmission of the last octet sent to the network (denote this as MS_Time). The Outstation receives the message and records the time of reception of the last octet (denote this as OS_Time). It returns a Null Response. The Master Station issues a Write request with a Time And Date at Last Recorded Time object (obj 50, var 3) containing the value MS_Time. The Outstation calculates the offset (MS_Time OS_Time). The Outstation can set its clock accordingly or apply the offset when event times are reported.

This procedure can also use broadcast messages to synchronize multiple Outstations simultaneously since the Record Current Time request is received at all hosts on the LAN at the same instant. The Master would utilize UDP to send the broadcast datagram, and all Outstations that need synchronization must be capable of accepting this datagram.

12

Transporting DNP over LAN/WAN December 15, 1998

Master Station

LAN Media

Outstation Time

MS_Time_DNP MS_Time
Ethernet driver and hardware Record Current Time (FC 24)

OS_Time
Ethernet driver and hardware

OS_Time_DNP
internet stack

internet stack

DNP

Null Response

Time & Date at Last Recorded Time (Obj 50, Var 03)

Calculate offset offset = value in Time & Date Obj minus time when Record Current Time Obj received Desired case offset = MS_Time - OS_Time

Figure 6-1 Time line for synchronization

6.3 Driver requirement


As in the serial channel time synchronization, the procedure is handled with application layer messages. However, this procedure requires that the Ethernet driver provide the ability to record the last octet time on transmission and receive. The time sync process is greatly influenced (and varied) by processor speed, interrupt latencies, internet protocol stack design, etc. Time resolution to the millisecond level cannot be accomplished without this capability. If a device (Master or Outstation) cannot record time at the Ethernet driver, it should do so as close as possible to the internet stack interface (shown in Figure 6-1 as MS_Time_DNP and OS_Time_DNP). As noted, this introduces an error factor in the synchronization process. A device may wish to minimize this error by adding (at the Master end) or subtracting (at the Outstation end) a predetermined value that reflects an average delay through the internet stack and Ethernet driver. This "fudge factor" does not take into account the delay caused by Ethernet collisions and retransmission. However, it may reduce the average error to a level that can be tolerated in the system.

7 Socket requirements
The following discussion assumes the use of some variation of the sockets API, either Berkeley or Winsock derived, in order to implement DNP over the internet protocol suite. For information on the sockets API, see [Ref. 5].

7.1 Background
TCP client The side of the link that calls the connect() function to initiate the connection on a socket. TCP server The side of the link that calls the listen() function to wait for a connection request on a socket.

13

DNP

Transporting DNP over LAN/WAN December 15, 1998 For a TCP connection to take place, one side must be the server and one side must be the client. The client requests a connection by specifying the IP address and port number of the server. Once the connection is made, data is transferred without either side having to specify the IP address and port number. For UDP (connection-less) communications, each side includes the address and port number with each transmission. Each host that receives a UDP datagram is then provided with the sending host address.

7.2 TCP/UDP Port Number for DNP


All devices shall support TCP and UDP communications on port number 20000. This number has been registered with the IANA (Internet Assigned Numbers Authority) for use with DNP. All connection requests and all UDP data are sent to this common port number.

7.3 Making TCP connections


Making a TCP connection between two devices can be viewed conceptually as replacing the traditional serial port communication link with a sockets interface over the network. For example, figure 7-1 shows the typical communication links between two Master Stations and an IED.

RTU/IED Logical RTU(s) Master Station A Logical RTU(s)

DNP Communication Object Serial Port Driver

DNP Communication Object Serial Port Driver

DNP Communication Object Serial Port Driver

RS232

Dedicated line Radio Dial-up etc.

RS232

RS232

Master Station B

DNP Communication Object Serial Port Driver

RS232

Dedicated line Radio Dial-up etc.

Figure 7-1 Serial port communications Now, replace the serial communication with an Ethernet network, internet protocol stack, and sockets interface.

14

Transporting DNP over LAN/WAN December 15, 1998


RTU/IED Logical RTU(s) Logical RTU(s)

Master Station A

DNP Communication Object Socket A

DNP Communication Object Socket B

DNP Communication Object Socket A IP/Ethernet driver IP/Ethernet driver

Ethernet

Ethernet

Master Station B Hub

DNP Communication Object Socket B IP/Ethernet driver

Ethernet

Figure 7-2 Network communications All of the DNP components stay the same; the only part that changes is the lowest level communications drivers. In fact, since TCP accepts a stream of data just like a serial port, the interface between the DNP Communication Object and the lower level driver can also remain virtually the same. For a network in which all devices are continually present and available, it is recommended that: If the device is a data provider (e.g. IED, meter, RTU, etc.), it should be the server end of the connectionoriented (TCP) socket. It may be capable of supporting multiple logical ports on a device. Each data user (e.g. Master Station, RTU/Data Concentrator, peer IED, etc.) should initiate the connection as the client end of the connection-oriented (TCP) socket. For a network in which some devices need to establish a communication link before joining the network (e.g. SLIP/PPP dial-up): The data provider may initiate the connection as the client and the data user will have the listening socket. Requirements Data providers shall, at minimum, support the server end of a TCP connection (i.e. be capable of accepting connection requests on a listening socket). If a data provider has the capability to join a network but not be continuously accessible (e.g. dial-up), it shall support the client end of a TCP connection (i.e. be capable of initiating connection requests). Data users shall be configurable to support both ends (client and server) of the socket connection to insure universal support for all data providers and all system architectures. All devices shall be capable of simultaneously accepting messages via the connectionless (UDP) port and the connection oriented

15

Transporting DNP over LAN/WAN December 15, 1998 (TCP) port. If there are multiple DNP logical entities within the device, the messages must be routed to the correct entity (e.g. virtual device, logical RTU, etc.).

7.4 Broken connections


If a DNP/TCP connection is made and one of the devices losses power or inadvertently resets, there must be mechanisms to inform the other device so that the connection can be reestablished. If the server-side goes down: When the next message is sent (see section 4.2 regarding DNP keep-alive messages), the server will send a TCP packet with the RST flag set. This will cause subsequent calls to recv() or select() to return an error if the socket is non-blocking or the send() call will fail if the socket is blocking. The client must close the current connection and reconnect. If the client-side goes down: When the client-side restarts and attempts a new connection, the server will process this request, close the existing connection, and reconnect.

7.5 Typical architecture


Figure 7-3 illustrates the architecture of a device that supports TCP client, TCP server, and UDP connections. Two TCP server connections are shown to illustrate how connection requests are controlled by the TCP Manager object. It is recommended that each DNP Port be configured with the peer IP address. This allows for each connection request to be validated in a secure manner (by the TCP Manager in this example) and each UDP datagram to be routed to the correct DNP Port. If a device supports multiple logical entities (i.e. logical RTUs), it must be able to configure these entities to use a single DNP Port.

16

Transporting DNP over LAN/WAN December 15, 1998


sockets API
Connection requests TCP Manager - TCP Listening socket - validate connections

Ethernet

TCP Data

Server-side socket driver

DNP communication object

Logical RTU(s)

TCP Data Internet Protocol Physical and Link Layers

Server-side socket driver

DNP communication object

Logical RTU(s)

Connection request TCP Data Client-side socket driver DNP communication object Logical RTU(s)

UDP Only driver

DNP communication object

Logical RTU(s)

UDP Datagrams

UDP Router - to all ports

Figure 7-3 Example sockets architecture

17

Transporting DNP over LAN/WAN December 15, 1998

8 References
[1] DNP V3.00, Basic 4 Document Set [2] Gilchrist, Grant. "Proposal for Use of Distributed Network Protocol in Substation LANs." Harris Distributed Automation Products, version 0.2. Dec. 11, 1996. [3] Falk, Herbert. "Comments on 'Proposal for Use of Distributed Network Protocol in Substation LANs'." SISCO. Jan. 14, 1997. [4] Stevens, W. Richard. TCP/IP Illustrated, Volume 1: The Protocols. Addison Wesley Longman, Reading, MA. 1994. [5] Stevens, W. Richard. UNIX Network Programming, Volume 1, 2nd Edition. Prentice Hall, Upper Saddle River, NJ. 1998. [6] Miklovic, Daniel T. Real-time Control Networks. Instrumentation Society of America, Research Triangle Park, NC. 1993. [7] Postel, J., Ed. "Internet Protocol." SRI International, Menlo Park, CA, Sept. 1981. RFC-791. [8] Postel, J., Ed. "Transmission Control Protocol Specification." SRI International, Menlo Park, CA, Sept. 1981. RFC-793. [9] Postel, J., Ed. "User Datagram Protocol." USC/Information Sciences Institute, September 1981. RFC-768. [10] Mogul, J. and Deering, S., "Path MTU Discovery." Nov. 1990. RFC-1191. [11] Kent, C.A., and Mogul, J.C., "Fragmentation Considered Harmful." Computer Communications Review, vol. 17, No. 5, pp.390-401. Aug. 1987. [12] Phillips, John. "Transporting DNP 3.0 over Local and Wide Area Networks." Foxboro Australia Pty Limited, version 0.1, September 23, 1998. [13] DNP V3.00 Technical Bulletin 9804-002. DNP Confirmation and Retry Guidelines.

18

Transporting DNP over LAN/WAN December 15, 1998

ANNEX A (informative) TCP vs. UDP in a Wide Area Network


It has been proposed that User Datagram Protocol (UDP) be used for transporting DNP in a network. The only features that UDP adds to the underlying IP protocol is port addressing and a 16-bit checksum. All of the other requirements for transporting the sensitive, time critical SCADA information would have to be handled by DNP. DNP includes a number of transport layer capabilities. But since DNP was designed for RS-232 and RS-485 type serial communications, it does not contain all of the necessary mechanisms for an enterprise wide internet. For example: Reordering of packets received out of order and detecting duplicate packets the DNP transport layer only has a 6-bit sequence number. In a large internet, packets can arrive out of order since each packet is routed independently and may traverse totally different paths (different speeds). 64 sequence numbers is not enough if, for example, an internet contains a combination of slow serial links (PPP or SLIP connections) and LFNs (Long Fat Networks = networks with high bandwidth-delay products). [Ref. 3]. Timeout and retransmission Clearly, the requirements for a local serial network versus an internet are different. In a local network, the route and round-trip time (RTT) for IP packets remains relatively constant. On an internet, the RTT can change from packet to packet due to such factors as increased congestion on individual routes, equipment failures, etc. Timeouts must be adaptive to account for these cases. Fragmentation IP has no timeout or retransmit capabilities as well as no capabilities for transmitting individual fragments. So, if the datagram is fragmented in IP and one of the fragments is lost, the entire datagram (1 or more DNP Link Layer frames) must be retransmitted. DNP can handle this by either confirming all Link Layer packets or by throwing away the entire Application Layer fragment and letting the sending station timeout and retransmit. Both cases have real performance issues [Ref. 2]. The maximum size of a datagram using the DNP Link Layer on UDP/IP is 320 octets (maximum DNP link frame size (292 octets) + 28 octets for the UDP/IP headers). For most networks, the minimum datagram size is 576 octets with two notable exceptions. First, the IP specification states that the minimum datagram size that a module must handle is 68 octets (RFC-791 IP). Modules that have this limitation are rare. Second, if the Pointto-Point Protocol (PPP) is employed in the network, the MTU (Maximum Transmission Unit)decreases to 296 octets for a low delay link (RFC-1191). Clearly, the frame "packing" proposed in [Ref. 2] will exasperate the problem. See Ref. 11 for further arguments as to why fragmentation should be avoided. Transmission Control Protocol (TCP) is a much better choice for transporting DNP data over a WAN. TCP insures that the same stream of bytes sent to the transmitting side of the connection will be available on the receive side. It accomplishes this using acknowledgements, sequencing of the data, and dynamic timer mechanisms. Lost or corrupted packets are retransmitted transparently to the higher layers. TCP addresses the above internet deficiencies of DNP in the following manner: TCP uses a 32-bit sequence number and a 32-bit acknowledge number to insure that data is received in order. TCP manages 4 timers for each connection a retransmission timer for expected acknowledgements, a persist timer to keep window size information flowing, a keepalive timer for detecting if one end of the connection goes down without warning, and a maximum segment lifetime timer for completing a disconnection operation. TCP adapts its retransmission timer to the conditions of the connection. TCP tries to avoid fragmentation by allowing both sides of a connection to optionally specify the maximum segment size (MSS). If the destination IP address is "nonlocal", the MSS normally defaults to 536.[Ref. 4 p. 237] Furthermore, RFC1191 outlines a way for hosts to determine the path MTU for paths that may include lower MTU connections. Since fragmentation is handled by TCP, DNP Link Layer confirms are not needed and performance is only limited by the characteristics of the connection, not by DNP.

19

Transporting DNP over LAN/WAN December 15, 1998 In addition, TCP includes such features as packet reduction using the Nagle algorithm, sliding data windows to allow multiple packets before acknowledgements, congestion avoidance for links with slow segments, and repacketization to increase performance. Obviously, all of these features come at a price, albeit a fairly reasonable one. For one popular embedded implementation, the ROM requirement for the full internet protocol stack is 115K; RAM is 25K + 4K/socket. Considering that most devices on a DNP network will have to maintain only 1 connection to a data concentrator of some sort, this is very small. At 4K/socket, this is reasonable and scalable. If devices wish to establish IED-to-IED communications (i.e. to share data points), the number of sockets is still low since this would typically be required in only a few devices on the network.

20

Transporting DNP over LAN/WAN December 15, 1998

ANNEX B (normative) Additions to Existing documents


New Function Code (24)
B.1.1 Changes to Table 3-1 in the Application Layer document Time Synchronization Function Codes 23 24 Delay Measurement Record Current Time Used in a network application to allow the Master Station and the Outstation to record their time at the same instant.

Reserved 25-120 Reserved for future use

B.1.2 Addition to Chapter 4 in the Application Layer document 4.25 RECORD CURRENT TIME (FUNCTION CODE 24) This function is used to in a network application to allow the Master Station and the Outstation to record their time at the same instant. It is the first step in the network time synchronization process. Time is recorded by the Master Station when the last character of a message is transmitted. Time is recorded at the Outstation when the last character of the message is received. The difference in these times represents the offset between the two hosts and can be used as a correction factor in the Outstation. AC FC = 24

Figure 4-45 Master Request to Record Current Time The Outstation responds with a Null Response

New Object (Obj 50, Var 03)


B.2.1 Addition to Data Object Library document TIME AND DATE AT LAST RECORDED TIME Data Object 50 - Variation: 03 Description: The time and date at last recorded time object is an information object that represents the absolute time of day and date when the last Record Current Time function code was send. This object should be used for timesynchronization in networked applications.

21

Transporting DNP over LAN/WAN December 15, 1998 Object Coding: Absolute Time 7 15 23 31 39 47 6 14 22 30 38 46 5 13 21 29 37 45 4 12 20 28 36 44 3 11 19 27 35 43 2 10 18 26 34 42 1 9 17 25 33 41 0 8 16 24 32 40

Absolute Time

UI48 [0..47] <0..248-1, msec>

Narrative: Absolute Time is recorded as milliseconds since midnight, January 1st, 1970, at zero hours, zero minutes, zero seconds, and milliseconds.

22

DNP3 TRANSPORT FUNCTIONS


Version 0.02 01-August-2000

DISCLAIMER STATEMENT
DNP User Group documents and publications are not consensus documents. Information contained in this and other works has been obtained from sources believed to be reliable, and reviewed by credible members of the DNP User Group and/or the DNP User Group Technical Committee. Neither the DNP Users Group nor any authors/developers of DNP documentation guarantee, and each such person expressly disclaims responsibility for ensuring, the accuracy or completeness of any information published herein, and neither the DNP Users Group nor its authors/developers shall be responsible for any errors, omissions, or damages arising out of use of this document. Likewise, while the author/developer and publisher believe that the information and guidance given in this work serves as an enhancement to users, all parties must rely upon their own skill and judgment when making use of it. Neither the author nor the publisher assumes any liability to anyone for any loss or damage caused by any error or omission in the work, whether such error or omission is the result of negligence or any other cause. Any and all such liability is disclaimed. This statement was developed by the DNP User Group Technical Committee and represents the considered judgment of a group of software developers with expertise in the subject field. The DNP User Group is a global forum for users and implementers of the protocol and promotes implementers and developer information and interaction exchange. This work is published with the understanding that the DNP User Group and its authors/developers are supplying information through this publication, not attempting to render engineering or other professional services. If such services are required, the assistance of an appropriate professional should be sought. The DNP User Group is not responsible for any statements and/or opinions advanced in this publication.

NOTICE OF RIGHTS - DNP USERS GROUP


The contents of this manual are the property of the DNP Users Group. Revisions or additions to the definition and functionality of the DNP Protocol cannot be made without express written agreement from the DNP Users Group or its duly authorised party. In addition, no part of this document may be altered or revised or added to in any form or by any means, except as permitted by written agreement with the DNP Users Group or a Party duly authorised by the DNP Users Group. The DNP Users Group has made every reasonable attempt to ensure the completeness and accuracy of this document. However, the information contained in this manual is subject to change without notice, and does not represent a commitment on the part of the DNP Users Group. An update program for DNP documents is provided upon request by the DNP Users Group.

TRADEMARK NOTICES
DNP is a trademark of the DNP Users Group. Any brand and product names mentioned in this document are trademarks or registered trademarks of their respective companies. Copyright 2000 DNP Users Group. All rights reserved.

REVISION HISTORY
Version 0.00A 0.01 0.01 0.01 0.02 Date 8-Nov-1992 20-Aug-1993 01-Sep-1993 30-May-1997 10-July-2000 Revision Description Preliminary release by Malcom Smith. Revised after review by J. Bhat. Corrections by C. Huene. Converted to MS Word 6.0 Rewritten with additional clarification. References to Harris Corporation removed. Removed transport services and responsibilities because transport is function not layer. Removed glossary of terms and abbreviation sections.

DNP3 Transport Functions - Version 0.02

Page i

CONTENTS
1 2 2.1 OVERVIEW .......................................................................................................................................... 1 TRANSPORT FUNCTION DESCRIPTION......................................................................................... 1 Transport Header .............................................................................................................................. 1 2.1.1 2.1.2 2.1.3 2.1.4 2.2 2.3 2.4 2.5 2.2.1 FIN field................................................................................................................................ 1 FIR field ................................................................................................................................ 1 SEQUENCE field.................................................................................................................. 2 Rules ..................................................................................................................................... 2 Rules ..................................................................................................................................... 2

Application Layer Data .................................................................................................................... 2 Reception State Table....................................................................................................................... 3 Reception State Diagram .................................................................................................................. 4 Segmenting Example........................................................................................................................ 5

DNP3 Transport Functions - Version 0.02

Page ii

1 OVERVIEW
The size of a DNP3 application layer message fragment may be larger than the number of octets permitted in a single data link layer frame. The transport function disassembles application layer fragments into data link layer-sized data units for transmission and reassembles these pieces into the original application fragment on reception. At the transmission site, an application layer fragment is broken into smaller pieces, and a header is added containing sequencing information for each piece. The header and application data form a transport layer segment that is passed to the link layer. Segments are always passed one-at-a-time, in sequence, from the first to the last. The link layer throttles or paces the acceptance of segments by returning an indication of success or failure to send each segment. Transport segment Header 1 octet Application Layer Data from 1 to 249 octets

At the receiving site, segments passed from the link layer are checked for sequencing by examining the header. Any segments that are received out of order are discarded. Only when a complete application fragment is assembled does the transport function notify the application layer that it is available.

2 TRANSPORT FUNCTION DESCRIPTION


2.1 Transport Header
The transport header consists of a single octet. The header is the first octet in a segment. A header is prepended to each piece of application layer data before submission to the link layer for transmission, and upon receipt of a segment from the link layer, the header is stripped away before assembly of an application fragment. The transport header is composed of three fields as follows: Header Bit Definitions Bit # Fields 7 FIN 6 FIR 5 4 3 2 1 0

SEQUENCE

2.1.1

FIN field
FIN = 0 indicates more segments follow. FIN = 1 indicates the final segment in a series of segments.

The FIN field is a single bit, which when set, indicates that this is the final or last segment in the fragment.

2.1.2

FIR field
FIR = 0 indicates this is not the first segment in a series of segments. FIR = 1 indicates this is the first segment in a series of segments.

The FIR field is a single bit, which when set, indicates that this is the first segment in the fragment.

DNP3 Transport Functions - Version 0.02

Page 1

2.1.3 SEQUENCE field


The SEQUENCE field is 6 bits wide. It is used to verify that segments are received in the correct order and guards against duplicated or missing segments. It has a range of 0 to 63. Sequence numbers increment by one count, modulo 64, for each segment in a series of segments that hold an application layer fragment. After sequence number 63, the next value is 0. Definition: The term segment-series is used to describe a series of transport segments where each segment after the first has a sequence number incremented by one from the preceding segment.

2.1.4
1. 2. 3. 4. 5.

Rules

A segment-series may only begin with a segment having the FIR bit set. A segment-series ends with a segment having the FIN bit set. When a segment is received with the FIR bit set, any previously received, unterminated segment-series shall be discarded and a new segment-series shall be started with the newly received segment as its first member. When no segment-series is in progress, any segment received without the FIR bit set shall be discarded. A segment with the FIR bit set may have any sequence number from 0 to 63 without regard to prior history. Nevertheless, it is recommended that a transmitter increment the sequence number by one count (modulo 64), for segments with the FIR bit set, above the sequence number it placed in the previously transmitted segment. After a segment-series has been started: Each subsequent segment received must have a sequence number which is incremented by one (modulo 64) from the preceding segment. A segment received that meets this requirement becomes the next member of the segment-series. A segment received having the FIN bit cleared and the identical sequence number as the preceeding segment shall be ignored. A segment received having the FIN bit set and the identical sequence number as the preceeding segment, or a segment received containing any sequence number other than the expected incremental number, shall be discarded and shall also cause the entire in-progress, segment-series to be terminated and discarded. A segment-series may consist of a single segment having both FIR and FIN bits set. When a complete segment-series is assembled, only then may its application data be passed to the application layer.

6.

7. 8.

2.2
2.2.1
1.

Application Layer Data


Rules

Each segment contains between 1 and 249 octets of application layer data.

Customarily, every segment, except the last in a segment-series contains exactly 249 octets of application layer data. The last segment only needs to be large enough to hold the remainder of the application data. However, this is not a requirement. Any segment may contain between 1 and 249 octets. The transport function in a receiving station must accept any sized segment and be able to properly reassemble the application layer data. The application layer presents a buffer containing an application layer fragment to the transport function for segmenting. The octets in the fragment buffer are numbered starting from 0 as illustrated in section 2.5. The application data piece having octet number 0 is transported by the first segment, that is the segment with its headers FIR bit set and sequence number N. The next application data piece, if there is one, is then placed into a segment having sequence number (N + 1) modulo 64. This pattern, where application data pieces with lower octet numbers are placed into transport segments before pieces with higher octet numbers, continues until the last piece is sent. At the receiving end, application layer fragments are reassembled in the same order.

2.

DNP3 Transport Functions - Version 0.02

Page 2

3.

Each segment transports a unique set of octets from an application layer fragment. The application data is positioned within the segment immediately after the transport header. The application data octet with the lowest octet number appears first, adjacent to the header, and is followed by the remainder of the application data piece in octet order.

2.3

Reception State Table

Assume the transport function software has a fragment buffer where application data from the received segments are stored before presenting the fragment to the application layer. The software requires two states for proper operation. 1. 2. Idle state: The software is idle waiting for a segment to arrive with the FIR bit set. Assembly state: The fragment buffer holds application data from at least one segment. While in this state, the software is awaiting additional segments to complete a fragment. X means dont care. SAME means the sequence number is identical to the sequence number in the segment immediately preceeding this segment. +1 means the sequence number is incremented by one count, modulo 64, from the sequence number in the segment immediately preceeding this segment. +M, 1 < M < 64 means the sequence number is incremented by more than one count and less than 64 counts from the sequence number in the segment immediately preceeding this segment. And the transport header in the receive segment is FIR FIN SEQ 0 X X 1 1 0 0 0 0 Assembly 0 1 1 1 0 0 1 0 1 X 0 1 X X SAME SAME +1 +1 +M 1 < M < 64 X X

Keys for understanding the table:

If the software state is

then perform this action Discard segment. Dump contents of fragment buffer, add segments data to fragment buffer and pass fragment buffer to application layer. Dump contents of fragment buffer and add segments data to fragment buffer. Ignore segment. Discard segment. Append segments data to contents of fragment buffer. Append segments data to contents of fragment buffer and pass fragment buffer to application layer. Discard segment. Dump contents of fragment buffer and add segments data to fragment buffer. Dump contents of fragment buffer, add segments data to fragment buffer and pass fragment buffer to application layer.

and go to this state Idle Idle Assembly Assembly Idle Assembly Idle Idle Assembly Idle

Idle

DNP3 Transport Functions - Version 0.02

Page 3

2.4

Reception State Diagram


FIR=0, FIN=X, SEQ=X

See text at beginning of section 2.3. The same applies to this diagram.

Discard segment

Idle State

FIR=1, FIN=1, SEQ=X FIR=1, FIN=0, SEQ=X

Pass fragment buffer to application layer Discard segment Append segment to fragment buffer FIR=0, FIN=1, SEQ=SAME FIR=0, FIN=1, SEQ=+1 FIR=0, FIN=X, SEQ=+M,1<M<64

Dump contents of fragment buffer Dump contents of fragment buffer Add segment to fragment buffer Add segment to fragment buffer Pass fragment buffer to application layer

FIR=1, FIN=0, SEQ=X

FIR=1, FIN=1, SEQ=X

Assembly State

Ignore segment

FIR=0, FIN=0, SEQ=SAME

FIR=0, FIN=0, SEQ=+1

Append segment to fragment buffer

DNP3 Transport Functions - Version 0.02

Page 4

2.5

Segmenting Example

The following example illustrates the transport function. Application layer octet numbers are shown inside the elements. The letters TH stand for Transport Header. Octets are transmitted in left-to-right order. Example Application layer fragment: 600 octets transported in 3 pieces 0 1 247 248 249 250 496 497 498 499 598 599 1st piece 2nd piece 3rd piece

First transport segment: 0 TH


st

247 248

1 application data piece

Transport header: FIR = 1, FIN = 0, SEQUENCE = n (any number 063, e.g.: 25). Second transport segment: 249 250
nd

496 497

TH 2 application data piece Transport header: FIR = 0, FIN = 0, SEQUENCE = (n+1) modulo 64 (e.g.: 26). Last transport segment: 498 499
rd

598 599

TH 3 application data piece Transport header: FIR = 0, FIN = 1, SEQUENCE = (n+2) modulo 64 (e.g.: 27).

DNP3 Transport Functions - Version 0.02

Page 5

DNP 3 Counter Objects Proposed Change for Delta Counter Variations May 31, 2001 Issue
The DNP Technical Committee has determined that Delta Counter variations for Counter Objects Are not well defined, Create a potential for unrecoverable loss of data, and Provide no functionality not available through other Counter Object variations

Therefore, the Technical Committee is proposing to remove Delta Counter variations from DNP3 protocol.

Discussion
The DNP Technical Committee has received several inquiries regarding operations and definitions related to Binary and Frozen Counters, objects 20, 21, 22, and 23. These have led to an internal review of counter objects with the goal of producing a technical bulletin clarifying the issues presented. DNP allows Counters to be reported as either Current or Delta values. The Current value of a Binary Counter or Binary Counter Event point is the value of an underlying Counter at the time a read request is processed. The Current value of a Frozen Counter or Frozen Counter Event point is the value of an underlying Counter at the time that the most recent freeze request was processed. The Delta value of a Counter point is the difference between the Current value at the time of read, and the Current value when the Counter was last successfully reported to the master. The Technical Committee has uncovered serious concerns regarding the use of Delta Counters. These concerns are based on the following two facts: 1. A RTU cannot always determine that a master has received its most recently transmitted message. In such a case, a retransmission is required to insure delivery. 2. A master cannot always determine if a message containing counter information has been previously received. The above example case occurs when RTU data is sent with application confirm services. The master receives the message and transmits a confirm, but the confirm is not received at the RTU. Data contained in the initial message is not identified by the RTU as having been delivered, and will eventually be retransmitted. In systems that use Delta Counter variations, the master will receive two reports with the same Delta value and incorrectly calculate the associated accumulation. An error of this type cannot occur when Current value variations are used.

Summary and Resolution


The DNP Technical Committee would appreciate comments from any DNP User Group Member regarding the proposal to remove Delta Counter variations from all Counter Objects. They are especially interested in comments from companies, if any, that are using Delta Counters in an active system. If accepted, this change has the potential of making existing implementations non-compliant with DNP-2002. Members should send their comments via Email to dnptech@acsatl.com. Please respond no later than June 30, 2001. Barring significant objections, a technical bulletin as proposed will be issued.

DNP Technical Bulletin TB2001-001 Multiple Control Objects and Status Codes
1

Issues:

The DNP3 protocol permits a master to transmit a request containing multiple control objects, of type object 12 and variation 1, in the same message to a slave. Likewise, provision exists for sending messages with multiple analog output objects, of type object 41 and any variation, in the same request. Many DNP3 slaves are able to queue or simultaneously output these objects. However, other devices can only output to a limited number of pointspossibly just a single pointand may not be able to process a request containing a greater number of objects. DNP3s Basic 4 documentation does not clearly explain how a device should behave or respond to a request containing more output objects than the device permits. The DNP3 Level 3 Implementation table, paragraph 3.3, specifies an incorrect qualifier code for object 12, variation 2. Qualifier codes 17 and 28 should be replaced with code 07. When a DNP3 outstation detects an error in a control or analog output request, it must return a non-zero status code. The existing status codes, 1 through 6, do not adequately describe all the error conditions, and additional codes are needed.

2 Resolution:
2.1 Response Status Codes
New status codes 7, 8, 9 and 127 are defined and all status codes now have short identifier names. The complete list of codes appears in the following table. Code Number 0 1 2 3 4 5 6 7 8 9 10 to 126 127 Identifier Name SUCCESS TIMEOUT NO_SELECT FORMAT_ERROR NOT_SUPPORTED ALREADY_ACTIVE HARDWARE_ERROR LOCAL TOO_MANY_OPS NOT_AUTHORIZED RESERVED UNDEFINED Description Request accepted, initiated, or queued. Request not accepted because the operate message was received after the arm timer timed out. The arm timer was started when the select operation for the same point was received. Request not accepted because no previous matching select request exists. (An operate message was sent to activate an output that was not previously armed with a matching select message.) Request not accepted because there were formatting errors in the control request (either select, operate, or direct operate). Request not accepted because a control operation is not supported for this point. Request not accepted, because the control queue is full or the point is already active. Request not accepted because of control hardware problems. Request not accepted because Local/Remote Switch is in Local position. Request not accepted because too many operations requested. Request not accepted because of insufficient authorization. Reserved for future use. Request not accepted because of some other undefined reason.

2.2
2.2.1

Master Requirements
Select-Operate

If a master receives a response to a select request, function code 3, and DNP Technical Bulletin TB2001-001 Multiple Control Objects and Status Codes Page 1 of 1 15-December-2000

any of the objects contains a non-zero status, any of the objects are missing from the response or any of the IIN bits 2-0, 2-1, 2-2 or 2-4 are set,

then it shall not issue the subsequent operate command, function code 4. The slaves behavior is not guaranteed when a master violates this rule. 2.2.2 Configurable

If a master has the capability to send multiple objects (binary or analog) in a single control output request, it must be configurable to send only one object per message. 2.2.3 Pattern Mask

If the master desires simultaneous execution of controls, it shall use a pattern control block and a pattern mask, object 12 variations 2 and 3, respectively. There is no guarantee that multiple controls will execute simultaneously unless a pattern control block and mask are usedandthe slave supports this type of operation.

2.3
2.3.1

Slave Requirements
Responses

The slave has the option to stop parsing the remainder of a request upon detection of the first error or continuing to the end of the request. When a slave receives a control or analog output requestselect, operate or direct operateand one or more of the objects are unsuccessful, its response shall include one of these No objects if the request contains an unsupported function code or object variation. All of the objects. All of the objects up to and including the first unsuccessful object. This is a truncated response.

Each object returned in the response shall contain the appropriate status code indication. The IIN bits 2-0, 2-1, 2-2 and 2-4 shall be set or cleared as applicable. Note that the IIN bits only need to reflect the state of the first error detected. Examples are presented in section 3. 2.3.2 Illegal Master Requests

If the master violates the rule in section 2.2.1 and issues an illegal operate command, the slave may take one of the following actions: 2.3.3 Ignore the request and not operate any of the points. Execute those objects for which it returned a zero status code. Pattern Mask

Slave devices are not required to implement Pattern Control Blocks (object 12, variation 2) or Pattern Masks (object 12, variation 3); nevertheless, level 3 slave devices must be able to parse messages containing these.

2.4

Pattern Control Block

The correct qualifier code in the DNP3 Level 3 Implementation table, paragraph 3.3, for object 12, variation 2 is 07.

2.5

Device Profile

The Device Profile Document of each slave device shall contain a statement specifying the maximum number of objects supported in a single request for objects 12 and 41. It shall also include a statement indicating whether it supports pattern control block - pattern control mask operations, and if so, what restrictions exist. DNP Technical Bulletin TB2001-001 Multiple Control Objects and Status Codes Page 2 of 2 15-December-2000

3 Examples
The following table shows example responses from control or analog output requests containing four objects. These objects are identified as A, B, C and D. The responses are identical regardless of whether the requests are select, function code 3; operate, function code 4 or direct operate, function code 5. Key: NR means Not Reported. Response Conditions in slave when Request is received No errors are detected, all objects successful. The function code is not supported regardless of which indexes the objects have. The slave does not support the specific variation code in the request. Indexes for objects C and D are beyond the maximum number of points installed in the slave. Object B is already executing when this request arrives. The slave can only control one object at a time. Object C is tagged or blocked to prevent its control. The Remote/Local Switch is in the Local position. A control output is requested and the Control Relay Output Block in Object Ds request contains an illegal control code. An analog output is requested and the value in Object Ds request exceeds the permitted level. Obj A 0 NR NR 0 0 0 0 0 0 0 0 7 7 0 0 Status Codes Obj Obj B C 0 0 NR NR 0 0 5 5 8 8 0 0 0 NR 0 0 NR NR 4 4 0 NR 8 NR 9 9 7 NR 0 0 Obj D 0 NR NR 4 NR 0 NR 8 NR 0 NR 7 NR 3 3 1. 5 0 0 0 0 0 0 0 1 0 0 IIN Bits 2. 2. 2. 0 1 2 0 0 0 1 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 2. 4 0 0 0 0 1 0 0 0 0 0

4 Affected Documentation:
Basic 4 Object Library, Object 12, Variation 1: Add sections 2.3 and 2.2 from above to the Narrative. Replace the listing of error codes with the table in section 2.1. Basic 4 Object Library, Object 41, all variations: Add sections 2.3 and 2.2 from above to the Description. Basic 4 Subset Definitions, Appendix A, Device Profile Document: In the section that begins with Sends/Executes Control Operations: Add three lines beneath DIRECT OPERATE ACK as follows: Maximum number of CROB (object 12, variation 1) objects supported in a single message ________. Maximum number of analog output (object 41, any variation) objects supported in a single message ________. Pattern Control Block and Pattern Mask (object 12, variations 2 and 3, respectively) supported. If so, describe any restrictions. CROB (object 12) and analog output (object 41) permitted together in a single message.

Basic 4 Subsets Definitions, Level 3 Implementation: The qualifier codes are replaced by a single code of 07 in the implementation table, paragraph 3.3, for object 12, variation 2.

5 Changes to the Subset Level 1 and 2 Certification Procedures:


5.1 Paragraph 8.2.1.1 Desired Behavior in both certification procedures
Change third bullet under device supports control operations to read, The DUT responds to selecting an uninstalled control point by returning an error response with IIN2-2 set and a status code of 4. DNP Technical Bulletin TB2001-001 Multiple Control Objects and Status Codes Page 3 of 3 15-December-2000

5.2

Paragraph 8.2.1.2.3, step 2 Test Procedure in both certification procedures

Change to read, Verify that the DUT responds by returning an error response with IIN2-2 set and a status code of 4.

5.3

Paragraph 8.2.2.1 Desired Behavior in both certification procedures

Change first bullet under device supports control operations to read, The DUT responds to a direct operate to an uninstalled control point by returning an error response with IIN2-2 set and a status code of 4.

5.4

Paragraph 8.2.2.2.2, step 2 Test Procedure in both certification procedures

Change to read, Verify that the DUT responds by returning an error response with IIN2-2 set and a status code of 4.

5.5

Paragraph 8.2.4.1 Desired Behavior in both certification procedures

After the second bullet, add a statement that says, The following behavior assumes that the device supports control operations: Add a bullet below the new statement that says, The DUT responds to requests having more points than are supported in a single message with a status code of 8 for at least the first point that is beyond the point count limit. Add a second bullet below the new statement that says, The DUT responds to a select to an uninstalled control point by returning an error response with IIN2-2 set and a status code of 4.

5.6
1. 2.

Paragraph 8.2.4.2 Test Procedure in both certification procedures


Review the devices profile document to understand how many control points are supported in a single request. If this number is one, skip to step 7. Determine the number of installed points that can be successfully controlled in a single request. This number shall be the smaller of The number of controls supported in a single request The number of installed control points Sixteen

Replace items 1 through 6 as follows:

In a single request, issue a select to the above number of points using Object 12, Variation 1 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and an appropriate on time/off time. 3. 4. 5. 6. 7. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set and that each object returns a status code of 0. Immediately issue a matching execute. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set and that each object returns a status code of 0. Verify that each of the selected controls operated. Note that controls may execute simultaneously or sequentially one after the other. If the number of control objects supported in a single request is greater than or equal to either 8. The number of control objects that fit into a single frame or The number of installed control points,

skip to step 13. In a single request, issue a select to at least one more point than is supported in a single request, each point having a different index but otherwise able to be controlled, using Object 12, Variation 1 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and an appropriate on time/off time. Page 4 of 4 15-December-2000

DNP Technical Bulletin TB2001-001 Multiple Control Objects and Status Codes

9.

Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set, that each object except the last returns a status code of 0, and the last object returns a status code of 8.

10. If the DUT does not support direct operate, skip to step 13. 11. In a single request, issue a direct operate command to at least one more point than is supported in a single request, each point having a different index but otherwise able to be controlled, using Object 12, Variation 1 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and an appropriate on time/off time. 12. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set, that each object except the last returns a status code of 0 and the last object returns a status code of 8. Verify that all except the last control point operated. 13. In a single request, issue a select to one installed control point and to one point that is not installed using Object 12, Variation 1 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and an appropriate on time/off time. The installed point should be the first object in the request. 14. Verify that the DUT response has IIN2-2 bit set, that the status code returned for the installed point is 0 and the status code returned for the non-installed point is 4.

5.7

Paragraph 8.4.1.1 - Desired Behavior in both certification procedures

Change third bullet under device supports analog output operations to read, The DUT responds to selecting an uninstalled analog output point by returning an error response with IIN2-2 set and a status code of 4.

5.8

Paragraph 8.4.1.2.3, step 2 Test Procedure in both certification procedures

Change to read, Verify that the DUT responds by returning an error response with IIN2-2 set and a status code of 4.

5.9

Paragraph 8.4.2.1 Desired Behavior in both certification procedures

Change second bullet under device supports analog output operations to read, The DUT responds to a direct operate to an uninstalled analog output point by returning an error response with IIN2-2 set and a status code of 4.

5.10

Paragraph 8.4.2.2.2, step 2 Test Procedure in both certification procedures

Change to read, Verify that the DUT responds by returning an error response with IIN2-2 set and a status code of 4.

5.11

Paragraph 8.4.4.1 Desired Behavior in both certification procedures

After the second bullet, add a statement that says, The following behavior assumes that the device supports analog output operations: Add a bullet below the new statement that says, The DUT responds to requests having more points than are supported in a single message with a status code of 8 for at least the first point that is beyond the point count limit. Add a second bullet below the new statement that says, The DUT responds to a select to an uninstalled analog output point by returning an error response with IIN2-2 set and a status code of 4.

5.12
1. 2.

Paragraph 8.4.4.2 Test Procedure in both certification procedures


Review the devices profile document to understand how many analog output points are supported in a single request. If this number is one, skip to step 7. Determine the number of installed points that can be successfully controlled in a single request. This number shall be the smaller of The number of controls supported in a single request The number of installed control points Page 5 of 5 15-December-2000

Replace items 1 through 5 as follows:

DNP Technical Bulletin TB2001-001 Multiple Control Objects and Status Codes

Sixteen

In a single request, issue a select to the above number of points using Object 41, Variation 2 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and a value supported by the device 3. 4. 5. 6. 7. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set and that each object returns a status code of 0. Immediately issue a matching execute. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set and that each object returns a status code of 0. Verify that each of the selected analog outputs occurred. . Note outputs may occur simultaneously or sequentially one after the other. If the number of control objects supported in a single request is greater than or equal to either 8. The number of control objects that fit into a single frame or The number of installed control points,

skip to step 13. In a single request, issue a select to at least one more point than is supported in a single request, each point having a different index but otherwise able to be outputted, using Object 41, Variation 2 and 16-bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set, that each object except the last returns a status code of 0, and the last object returns a status code of 8.

9.

10. If the DUT does not support direct operate, skip to step 13. 11. In a single request, issue a direct operate command to at least one more point than is supported in a single request, each point having a different index but otherwise able to be outputted, using Object 41, Variation 2 and 16-bit indexing (qualifier 0x28) and an appropriate value. 12. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set, that each object except the last returns a status code of 0 and the last object returns a status code of 8. Verify that all except the last analog output point outputted the new value(s). 13. In a single request, issue a select to one installed analog output point and to one point that is not installed using Object 41, Variation 2 and 16-bit indexing (qualifier 0x28) and an appropriate value. The installed point should be the first object in the request. 14. Verify that the DUT response has IIN2-2 bit set, that the status code returned for the installed point is 0 and the status code returned for the non-installed point is 4.

6 Status:
Approval Technical Committee (Feb-2001).

DNP Technical Bulletin TB2001-001 Multiple Control Objects and Status Codes

Page 6 of 6 15-December-2000

DNP Technical Bulletin 2000-001 Sequential File Transfer Objects


1 Introduction

The following document provides a replacement implementation for DNP File Transfer as described in the Basic 4 document set. This bulletin is intended to address sequential file transfer only, not random file access. The following functionality is provided: Simple reliable transfer of bulk data either up or down the communications chain. Straightforward implementation. Graduated features/complexity (by implementing additional objects). Bandwidth management by limiting block sizes and allowing requested objects to be treated as events that can appear an arbitrary period after they were originally requested.

Legacy implementations of Object 70 Variation 1 cannot be relied upon to provide consistent implementation or interoperable file transfer capability. This bulletin describes replacement objects and methods that should be used instead of the existing Object 70 Variation 1. FIFO and other types of dynamic files may be transferred using the sequential file transfer mechanisms described in this bulletin. However, a dynamic file must be treated as a static file during the time between opening the file and the corresponding file Close or Abort. After the file is closed, the dynamic file may be modified as the device so chooses. While this bulletin addresses sequential file transfer only, random access file support, and other file access techniques, will be supported in the future through the specification of additional objects.

Notes
All String offsets are relative to the start of the object; i.e. the first octet following the object header. All data shown in examples is expressed in Decimal unless preceded by 0x indicating Hexadecimal. All Status objects defined herein are treated as events when sent from an outstation in a response, and may be returned an arbitrary period after requested. As is the case when any DNP event is sent from an outstation, it is a requirement that an application confirm be requested by the outstation when sending file status events. Some of the following descriptions refer to timeout mechanisms used when handling file operations. It should be noted that file handling timeouts and the generation of file status events is independent of communication handling timeouts. As is the case for generation of any DNP event, the communication processing that is responsible for the delivery of the events (eg. through polling or unsolicited reporting) and collection of confirms is independent of the generation of the event.

The following notes apply to all sections of the document

Sequential File Transfer Objects 26 January 2000

DNP Technical Bulletin 2000-001 Page 1

Application Layer Function Codes

Additional application layer function codes are added to support authentication and file specific operations. They are defined as follows. Function Code 25 26 27 28 29 30 Table 1 Description Open a File Close a File Delete a File Get File Info Authenticate Abort

Authentication

Devices that do not support authentication must not support this object. Before proceeding with secure transactions the application must obtain an Authentication Key from the end device. An Authentication Key is required to perform an Open or Delete command as described in the next section. It expires as soon as it is used. A new object is defined to support the process as follows. Table 2 Object Header Object 70 Variation 2 Qualifier 0x5B Range Field (=1) Number of Octets in object

b7 b7 b7 b7 b15

b0 b0 b0 b0 b0

b15 b15 b15 b15 b31 bn bn

Authentication Object Format User Name Offset User Name Size Password Offset Password Size Authentication Key User Name Octets Password Octets

b0 b0 b0 b0 b0 b0 b0

The User Name Offset field is a 16 bit parameter which specifies the zero-based start of the name octets relative to the start of the object excluding the header. The User Name Size field is a 16 bit parameter which specifies the number of name octets. The Password Offset field is a 16 bit parameter which specifies the zero-based start of the password octets relative to the start of the object excluding the header. Sequential File Transfer Objects 26 January 2000 DNP Technical Bulletin 2000-001 Page 2

The Password Size field is a 16 bit parameter which specifies the number of Password octets. Using the Offset and Size technique effectively provides a jump-table to the strings included in the object definition. The Authentication Key field is a 32 bit number that is maintained by the outstation and uniquely specifies the permissions granted by the authentication process. User Name Octets are the octets of the user name. Password Octets are the octets of the password. Issuing an authentication request to the Authentication Object (obj 70 var 2) generates an Authentication Key. A user name and password are passed to the outstation in the request. The outstation responds with a pseudo random Authentication Key. The application can then use this key for exactly one secure transaction. The outstation maintains the relationship between the key and the permitted transactions. It is possible for there to be a set of user names and passwords that have different permissions. A unique Authentication Key may be obtained for each username via a separate authentication request. If authentication fails, the response will contain a zero value for the Authentication Key, which implies world (or guest) permissions. An application can issue secure transaction requests using a zero value Authentication Key. It is up to the end device to interpret how to handle this. For example, if the end device provides user authentication it could permit reading of some files but exclude writing and deleting files. This technique also allows a mechanism for using secure dialogs without performing the authentication step. This is acceptable if and only if the end device is permissive and allows it. To retrieve an Authentication Key the host issues an authentication request to the authentication object as follows 0xC0 29 70 02 0x5B 01 nn nn (object data) The object data includes the user name and password to be authenticated. The Authentication Key field is not used in the request and must be zero. The outstation responds with 0xC0 129 IINs 70 02 0x5B 01 nn nn (object data) The response contains the newly generated Authentication Key in the Authentication Key field and for security purposes the user name and password fields are null.

Open, Close, Delete and Abort.

Open and Delete are secure transactions. A valid Authentication Key is required to successfully perform these transactions and expires as soon as it is used. A zero value for the Authentication Key implies world (or guest) permissions. To support the Open, Close, Delete and Abort functionality two objects are defined: The File Command Object (obj 70 var 3), and the File Command Status Object (obj 70 var 4). The File Command Object is used to initiate Open or Delete operations.

Sequential File Transfer Objects 26 January 2000

DNP Technical Bulletin 2000-001 Page 3

The File Command Status Object is used to indicate the success of Open, Close, Delete and Abort commands and to return a file handle during opens. It is also used to initiate a file close or abort using a previously acquired file handle. The details of these objects are described in subsequent sections.

5.1

File Command Object

The File Command Object (obj 70 var 3) is used to facilitate file opens and deletes. It is defined as follows. Table 3 Object Header Object 70 Variation 3 Qualifier 0x5B Range Field (=1) Number of Octets in object

b7 b7 B7 b7 b15

b0 b0 b0 b0 b0

b15 b15 b47 b15 b31 b31 b15 b15 b15 bn

File Command Object Format File Name Offset File Name Size Time of Creation Permissions Authentication Key File Size Operational Mode Maximum Block Size Request ID File Name Octets

b0 b0 b0 b0 b0 b0 b0 b0 b0 b0

The File Name Offset field is a 16 bit parameter which specifies the zero-based start of the file name octets relative to the start of the object excluding the header. The File Name Size field is a 16 bit parameter which specifies the number of file name octets. The file name offset and file name size fields form a jump-table allowing direct access to the file name string at the end of the object. Offset is relative to the beginning of the object (zero based) excluding the header. The Time of Creation field is a 48 bit parameter that represents the DNP time of creation of the file represented as the number of milliseconds since midnight January 1, 1970. A value of zero in this field indicates that the time of creation of the file is unknown. The Permissions field is a 16 bit parameter whose value is defined in Table 4. Table 4

Permission
Sequential File Transfer Objects 26 January 2000

Bit Fields
DNP Technical Bulletin 2000-001 Page 4

Owner Read Allowed: Owner Write Allowed: Owner Execute Allowed: Group Read Allowed: Group Write Allowed: Group Execute Allowed: World Read Allowed: World Write Allowed: World Execute Allowed:

0x0100 0x0080 0x0040 0x0020 0x0010 0x0008 0x0004 0x0002 0x0001

The Permissions field contains a UNIX-style file access permission bit field. The use of this field is optional. Devices may update any of these fields in response to Read or Info requests if they can provide correct values for these fields. The relevant action is permitted if the bit is set, and inhibited if the bit is clear (e.g.: set Permission to 0x1FF to indicate no restrictions). If the file is opened for writing, the Time of Creation and Permissions fields of the File Command Object (obj 70 var 3) shall be used as attributes for the new file. Otherwise the Time of Creation and Permissions fields must be zero when using this object. The Authentication Key field is a 32 bit parameter that facilitates secure transaction authentication. The key is obtained by issuing an Authentication Request (Function code 29) to the Authentication Object (obj 70 var 2) (see section 4). A value of 0 in this field indicates a permissive access level analogous to anonymous, guest or world permissions in various file systems. Devices that do not support authentication must ignore this field. The File Size field is a 32 bit parameter representing the number of octets contained in the file. This is particularly important when opening a file so that both ends have the opportunity to allocate adequate buffers. During an open for write the outstation may prepare its buffers appropriately. During an open for read the file size must be zero and is ignored by the outstation. If end of file is indicated to a device receiving a file, before the expected File Size is satisfied (by receiving the Last Flag in the File Transport Object see Section 6.2), the receiving device shall treat the file as completely received and shall not consider this to be an error condition. However, if the received file exceeds the expected File Size, the receiving device may treat this an error and reject the transfer. A file size of 0xffffffff is allowed and indicates that the actual file size is unknown. Its use is allowable only when the value is truly not known. Devices are not required to accept an unknown file size. Devices may reject any request that exceeds the devices resource limits. In such a case the two devices will not inter-operate. The Operational Mode field is a 16 bit parameter denoting the mode a file should be opened in. It is not used with the delete function, nor with function codes not requiring a file open (and must be zero in those cases). Values for this field are defined as shown in the following table. Mode Value 0x00 0x01 0x02 0x03 Table 5 Description Null Read Write Append (Not required to be supported in a minimum implementation) DNP Technical Bulletin 2000-001 Page 5

Sequential File Transfer Objects 26 January 2000

The Maximum Block Size field is a 16 bit parameter. For Read Operations it specifies the maximum number of octets an outstation is allowed to return in a file block, in response to a read request. For Write Operations it specifies the maximum number of octets that will be sent in a write request block. The Request ID field is a 16-bit parameter whose value is arbitrarily assigned by the host and sent in a request. The outstation device must remember this value and copy it into the Request ID field of the corresponding response. This permits the host to correlate responses with their requests when multiple files are simultaneously opened in the same device. File Name Octets are the octets of the file name. They fully reference the file (including path within the device).

5.2

File Command Status Object

The File Command Status Object (obj 70 var 4) is used as a response to Open, Close, Delete and Abort commands, to facilitate closing a previously opened file, and to abort a file transfer in progress. It can also be used as an Error response for a Get File Info command. When files are opened they are assigned a unique file handle that is used to reference the file during future operations. To Close a previously opened file, issue a Close command (function code 26) using the File Command Status Object (obj 70 var 4) with the appropriate file handle. Table 6 Object Header Object 70 Variation 4 Qualifier 0x5B Range Field (=1) Number of Octets in object

b7 b7 b7 b7 b15

b0 b0 b0 b0 b0

b31 b31 b15 b15 b7 bx

File Command Status Object Format File Handle File Size Maximum Block Size Request ID Status Optional ASCII Characters

b0 b0 b0 b0 b0 b0

The File Handle field is a 32 bit parameter that provides a numeric identifier of the file opened. Its value is arbitrary and provided by the end device but must be unique to the outstation DNP address. It can be reused after a corresponding close is issued. Other operations will reference this identifier. The File Size field is a 32 bit parameter that is used to return the file size when a file has been opened for read, i.e. when Operational Mode 0x01 is used in the File Command Object (obj 70 var 3). The value of this field is undefined in all other cases and must be zero.

Sequential File Transfer Objects 26 January 2000

DNP Technical Bulletin 2000-001 Page 6

The Maximum Block Size field is a 16 bit parameter that is used to return the maximum block size that the outstation will return. This value should be less than or equal to the value set in the Maximum Block Size field of the File Command Object. For Read Operations it specifies the maximum number of octets that the outstation will return in a file block, in response to a read request. For Write Operations it specifies the maximum number of octets that will be accepted by the outstation in a write request block. The Request ID field is a 16 bit parameter. It must be returned in each File Command Status Object as the value of the Request ID field specified in the File Command Object or File Descriptor Object for the corresponding file request. The Status field is a 8 bit parameter that is used to return the status of the operation and must be set to zero by the initiating station. The responding station reports any error conditions in this field. The values for this field are defined in Table 7. Optional ASCII Characters may be appended to the object after the status code, and are a printable ASCII string that may be used to provide additional error information for any error condition. Table 7 Value of Status Field 0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0F 0xFF Name Operation Completed Successfully Permission Denied Invalid Mode File not found File locked by another user Open File Count Exceeded File Handle Invalid Requested block size not supported for writes Lost Communications Cant Abort Reserved Other Usage Requested operation successful Authenticated user not allowed to access file Unsupported or unknown Operational Mode Requested file does not exist Requested file already in use Too many files open Attempting to close a file that is not open Outstation cannot write blocks of requested size Intermediate device lost communications with end device File transaction Abort was not successful. File is closed and unusable. Any error not listed above (optional ASCII string may provide additional information)

Note: A minimal implementation may restrict the number of open files to one. Note: The File Command Status Object (obj 70 var 4) is treated as an event when it is generated after an Open, Close, Abort or Delete command, so that it can be either polled for specifically or assigned to class 1, 2, or 3. It is also acceptable to return it in the response to a request if the results are immediately known.

5.3

Opening a File

To open a file issue an Open command (function code 25) to the File Command Object (obj 70 var 3) passing the correct file name, size, block size, permissions and Authentication Key as follows 0xC0 25 70 03 0x5B 01 nn nn (object data) Sequential File Transfer Objects 26 January 2000 DNP Technical Bulletin 2000-001 Page 7

To open the file for read, set the Operation Mode to read (0x01), and File Size to zero. To open the file for write, set the Operation Mode to write (0x02). If the file is opened for writing it shall be truncated to zero length and the Time of Creation and Permissions fields of the File Command Object shall be used as attributes for the new file. Otherwise the Time of Creation and Permissions fields must be zero. Note: the file must be fully described as in

Path\FileName
The outstation responds with a File Command Status Object (obj 70 var 4) with the assigned file handle and status code as follows 0xE0 129 IINs 70 04 0x5B 01 nn nn (object data) A status code of zero indicates that the file was successfully opened. The application should use the returned file handle in future references to the file until it is closed. A non zero status code indicates that the file was not successfully opened, and the file handle value is invalid. If the file was opened for read, the File Size field indicates the size of the file. If the file was opened for write the File Size field reports zero. The outstation has requested the host Confirm the response containing an event, so the host responds as follows 0xC0 00

5.4

Closing a File

To Close a file, issue a Close command (function code 26) to the File Command Status Object (obj 70 var 4) as follows 0xC0 26 70 04 0x5B 01 nn nn (object data) The File handle field should be set to the value assigned in the previous open. Status must be set to zero. The outstation responds with 0xE0 129 IINs 70 04 0x5B 01 nn nn (object data) The object data shall be an echo of the request with the status field set to the appropriate value (e.g. file does not exist, permission denied, etc.) A status code of zero indicates that the file was successfully closed. The outstation has requested the host Confirm the response containing an event, so the host responds as follows 0xC0 00 Note: If there is no activity referencing a file handle for a configurable length of time the outstation must do an automatic close on the file. The timeout value must be configurable up to 1 hour. When this condition occurs the outstation will send a File Transport Status Object (obj 70 var 6) using a status code value of file handle expired (0x02). The final state of the file closed under this condition is undefined. Note: The final state of a file that is closed after receiving a File Transport Status Object (obj 70 var 6) with a non-zero status code value is also undefined. Sequential File Transfer Objects DNP Technical Bulletin 2000-001 26 January 2000 Page 8

Note: If the host chooses to end the operation for any reason including a timeout it must send a close to the outstation to release the file for further use.

5.5

Deleting a File

To delete a file, issue a Delete command (function code 0x1B) to the File Command Object (obj 70 var 3) as follows 0xC0 27 70 03 0x5B 01 nn nn (object data) Operation mode in the File Command Object must be set to zero. The outstation shall respond with a File Command Status Object (obj 70 var 4) with the file handle value of zero and the status code set to the appropriate status value (e.g. file does not exist, permission denied, etc.) as follows 0xE0 129 IINs 70 04 0x5B 01 nn nn (object data) A status code of zero indicates that the file was successfully deleted. For more information on status codes see Table 7. The outstation has requested the host Confirm the response containing an event, so the host responds as follows 0xC0 00 Note: If a file is open while issuing a delete command a File Command Status Object (obj 70 var 4) shall be returned with a status code of File locked by another user (0x04).

5.6

Aborting a File Transfer

To Abort a file transfer, issue an Abort command (function code 30) to the File Command Status Object (obj 70 var 4) as follows 0xC0 30 70 04 0x5B 01 nn nn (object data) The File handle field should be set to the value assigned in the previous open. Status must be set to zero. The outstation responds with 0xE0 129 IINs 70 04 0x5B 01 nn nn (object data) The object data shall be an echo of the request with the status field set to the appropriate value (e.g. file does not exist, cant abort, etc.) A status code of zero indicates that the file transfer was successfully aborted. The outstation has requested the host Confirm the response containing an event, so the host responds as follows 0xC0 00 Note: If Abort is supported by a device, then upon receiving an Abort command the device must terminate the file transfer indicated by the File Command Status Object and close the file. If a device does not support Abort, the device must return a Cant Abort status code in a File Command Status Object (obj 70 var 4). Note: To completely recover a file after an Abort, in all circumstances, it may be necessary for the device to double-buffer the file during file transfer operations. If a file transfer Abort results in Sequential File Transfer Objects 26 January 2000 DNP Technical Bulletin 2000-001 Page 9

an unusable file the device must return a Cant Abort status code in a File Command Status Object (obj 70 var 4).

Data Transfer

Two objects are defined to support data transfer. The first is a File Transport Object (obj 70 var 5). The second is the File Transport Status Object (obj 70 var 6).

6.1

File Transport Object


Table 8 Object Header Object 70 Variation 5 Qualifier 0x5B Range Field (=1) Number of Octets in object File Transport Object Format File Handle
b30

The File Transport Object (obj 70 var 5) is defined as follows.

b7 b7 b7 b7 b15

b0 b0 b0 b0 b0

b31 b31
LAST

b0 b0 b0

Block Number Data Octets

Bn

The File Handle field is a 32 bit parameter that provides a numeric identifier of the file opened. It is obtained by opening the file using the File Command Object (obj 70 var 3) (see sections 4-5). The Block Number field is a 31 bit parameter plus a 1 bit Last Flag. The block number starts at zero and increments by one for each block read or written. The size of the data portion is not relevant and need not be the same from block to block. It is limited by the maximum block size field passed in the File Command Object (obj 70 var 3) during the open process. The Last Flag is set to denote the indicated block number is the last block, and cleared to denote the indicated block number is not the last block. The Data Octets represent the information to be transferred. Note: Using file handle qualification and block number allows multiple read/write operations to different files on the same device, concurrently. Note: The File Transport Object (Obj 70 var 5) is treated as an event for file read responses so that it can be polled for specifically, assigned to class 1, 2, or 3, or sent in an unsolicited response. It is also acceptable to return it in the response to a request if the results are immediately known.

Sequential File Transfer Objects 26 January 2000

DNP Technical Bulletin 2000-001 Page 10

6.2

File Transport Status Object


Table 9 Object Header Object 70 Variation 6 Qualifier 0x5B Range Field (=1) Number of Octets in object File Transport Status Format File Handle
b30

The File Transport Status Object (obj 70 var 6) is defined as follows.

b7 b7 b7 b7 b15

b0 b0 b0 b0 b0

b31 b31
LAST

b0 b0 b0 b0

Block Number Status Code Optional ASCII Characters

b7 Bx

The File Handle field is a 32 bit parameter that provides a numeric identifier of the file opened. It is the value originally obtained by opening the file using the File Command Object (obj 70 var 3) (see sections 4-5). The Block Number field is a 31 bit parameter plus 1 bit Last Flag, corresponding to the Block Number and Last Flag in a File Transport Object for which this object is reporting status. The block number sent by the initiating station starts at zero and increments by one for each block read or written. The Last Flag is set to denote the indicated block number is the last block, and cleared to denote the indicated block number is not the last block. The Status field is an 8 bit parameter that is used to return the status of a corresponding File Transport Object operation. The responding station reports any error conditions in this field. The values for this field are defined as follows: Table 10 Value of Name Usage Status Field 0x00 Operation Completed Successfully File Transport Object successfully written 0x08 Lost Communications Intermediate device lost communications with end device 0x10 No Previous Matching Open File handle does not reference an open file 0x11 Handle has Expired. File previously closed due to inactivity timeout 0x12 Buffer Overrun. Too much file data received to process 0x13 Fatal Error, File Unusable File system error 0x14 Block Number Out Of Sequence Already received data with this block number Missing (skipped) block number in sequence 0x15 0x1F Reserved 0xFF Other Any error not listed above (optional ASCII string may provide additional information) Note: The File Transport Status Object (obj 70 var 6) is treated as an event and can be polled for directly or assigned to class 1,2, or 3. Alternatively it can be reported via unsolicited response or in response to the request if the results are immediately known. Sequential File Transfer Objects 26 January 2000 DNP Technical Bulletin 2000-001 Page 11

Note: Any optional data appended to the object after the status code is a printable ASCII string that is used to provide additional error information. When any file status changes it is reported using a File Transport Status Object (obj 70 var 6) as an event. For example, when a file inactivity timer expires, the outstation shall generate an event using the File Transport Status Object with status code 0x11 Handle has Expired. This event will then be returned on the next poll or may be sent as an unsolicited response. After the event is generated, the outstation is no longer required to retain information about the file being opened. Any subsequent access to the file results in a File Transport Status Object with status code 0x10 No Previous Open. The File Transport Status Object provides flow control and bandwidth management when performing file write operations because It is required/guaranteed that the end device sends it. Normal polling continues while waiting for it. A configurable timeout limits how long to wait.

6.3

Writing Data
To write a file: Open the file in Write mode, providing authentication information (see section 4). Perform write to the File Transport Object (obj 70 var 5). Wait for a File Transport Status Object (obj 70 var 6) Event with the matching file handle and block number. Assuming the operation was successful increment the block number and write the next block. When writing the last block set the Last Flag. Close the file using the File Operation Status Object (obj 70 var 4) and file handle returned in the open command.

A typical sequence is: Table 11


Operation Sequence Open Open Response Confirm Write (Block 0x00000000) Null Response N Polls Get Status Event (Block (0x00000000) Confirm Application Layer Octets 0xC0 25 70 03 0x5B.(object data) 0xE0 129 IINs 70 04 0x5B.(object data) 0xC0 00 0xC1 02 70 05 0x5B.(object data) 0xC1 129 IINs 0xC2 01 Class poll 0xE2 129 IINs (data) Object 70 var 06 0xC2 00

Sequential File Transfer Objects 26 January 2000

DNP Technical Bulletin 2000-001 Page 12

Write (Block 0x00000001) Null Response N Polls Get Status Event (Block 0x00000001) Confirm Write (Last Block 0x80000002) Null Response N Polls Get Status Event (Last Block 0x80000002) Confirm Close Returns Status In Status Object Confirm

0xC3 02 70 05 0x5B.(object data) 0xC3 129 IINs 0xC4 01 Class poll 0xE4 129 IINs (data) Object 70 var 06 0xC4 00 0xC5 02 70 05 0x5B.(object data) 0xC5 129 IINs 0xC6 01 Class poll 0xE6 129 IINs (data) Object 70 var 06 0xC6 00 0xC7 26 70 04 0x5B.(object data) 0xE7 129 IINs 70 04 0x5B.(object data) 0xC7 00

Note: If there is an error during the above operations including a file operation timeout, the device shall return the appropriate status object with status code. . Under error conditions the file must be implicitly closed by the outstation and the file contents must be considered indeterminate. Upon receiving a File Transport Status Object (obj 70 var 6) with a non-zero status code, the referenced file handle becomes invalid.

6.4

Reading Data

To Read a file Open the file in Read mode, providing authentication information, as described in section 4. Perform a read to the File Transport Object (obj 70 var 5). Wait for the response. Assuming the operation was successful increment the block number and read the next block. When the Last Flag is set in the response, close the file using the File Operation Status Object (obj 70 var 4) and file handle returned in the open command. A typical sequence is:

Sequential File Transfer Objects 26 January 2000

DNP Technical Bulletin 2000-001 Page 13

Table 12
Operation Sequence Open Open Response Confirm Read (Block 0x00000000) Null Response N Polls N+1 Poll Poll response (File Data returned as event) Confirm Read (Block 0x00000001) Null Response N Polls N+1 Poll Poll response (File Data returned as event) Confirm Read (Block 0x00000002) Null Response N Polls N+1 Poll Poll response:File Data returned as event with Last Flag set Confirm Close Returns Status In Status Object Confirm Application Layer Octets 0xC0 25 70 03 0x5B.(object data) 0xE0 129 IINs 70 04 0x5B.(object data) 0xC0 00 0xC1 01 70 05 0x5B.(object data) 0xC1 129 IINs 0xC2 01 Class poll 0xC3 01 Class poll 0xE3 129 70 05 0x5B.(object data) 0xC3 00 0xC4 01 70 05 0x5B.(object data) 0xC4 129 IINs 0xC5 01 Class poll 0xC6 01 Class poll 0xE6 129 70 05 0x5B.(object data) 0xC6 00 0xC7 01 70 05 0x5B.(object data) 0xC7 129 IINs 0xC8 01 Class poll 0xC9 01 Class poll 0xE9 129 70 05 0x5B.(object data) 0xC9 00 0xCA 26 70 04 0x5B.(object data) 0xEA 129 IINs 70 04 0x5B....(object data) 0xCA 00

Sequential File Transfer Objects 26 January 2000

DNP Technical Bulletin 2000-001 Page 14

Note:

in read requests there are no data octets included in the File Transport Object (obj 70 var 5).

Note: If there is an error during the above operations, including a file operation timeout, the device shall return the appropriate status object with status code. Note that a File Transport Status Object (obj 70 var 6) should be returned on error, instead of a File Transport Object (obj 70 var 5). Under error conditions, the file must be implicitly closed by the outstation and the host, and file contents at the host must be considered indeterminate. Upon receiving a File Transport Status Object (obj 70 var 6) with a non-zero status code the referenced file handle becomes invalid.

Retrieving File Information

The File Descriptor Object (obj 70 var 7) is used to get information about a file. It is defined as follows: Table 13 Object Header b7 b0 Object 70 b7 b0 Variation 7
B7 b7 b15

Qualifier 0x5B Range Field (=1) Number of Octets in object

b0 b0 b0

b15 b15 b15 b31 b47 b16 b15 bn

File Descriptor Object Format File Name Offset File Name Size File Type File Size Time of Creation Permissions Request ID File Name Octets

b0 b0 b0 b0 b0 b0 b0 b0

The File Name Offset field is a 16 bit parameter which specifies the zero-based start of the file name octets relative to the start of the object excluding the header. The File Name Size field is a 16 bit parameter which specifies the number of file name octets. The file name offset and file name size fields form a jump-table allowing direct access to the file name string at the end of the object. Offset is relative to the beginning of the object (zero based) excluding the header. The File Type field is a 16 bit parameter used to differentiate between simple files and directories. A zero value indicates a directory. A value of 1 indicates a simple file. The File Size field is a 32 bit parameter. For a simple file type it represents the number of octets contained in the file. For a directory file type it indicates the number of entries in the sub-directory, excluding any links to itself or its parent directory. Sequential File Transfer Objects 26 January 2000 DNP Technical Bulletin 2000-001 Page 15

The Time of Creation field is a 48 bit parameter that represents the DNP time of creation of the file represented as the number of milliseconds since midnight January 1, 1970. The Permissions field is a 16 bit parameter whose values are defined in Table 4 (see section 5.1) The Request ID field is a 16-bit parameter whose value is arbitrarily assigned by the host. The outstation device must remember this value and copy it into the Request ID field of the corresponding response. This permits the host to correlate responses with their requests when information on multiple files is requested in the same device. File Name Octets are the octets of the file name. They fully reference the file (including path within the device). Note: The File Descriptor Object (obj 70 var 7) is treated as an event when it is generated after a Get File Info command, so that it can be either polled for specifically or assigned to class 1, 2, or 3. It is also acceptable to return it in the response to a request if the results are immediately known.

7.1

Retrieving Individual File Information

To get information on a single file, issue a Get File Info Command (function code 28) to the File Descriptor Object (obj 70 var 7) specifying a Request ID and the full path file name in the File Name field as follows 0xC0 28 70 07 0x5B 01 nn nn (ObjectRequestIDPath\FileNameData) The File Type, File Size, Time of Creation and Permissions fields of the File Descriptor Object in a request must be ignored by the outstation and must be set to zero by the initiating station. The device responds with a File Descriptor Object (obj 70 var 7) consisting of the requested information as follows
0xE0 129 IINs 70 07 0x5B 01 nn nn (ObjectRequestIDPath\FileName Data)

The outstation has requested the host Confirm the response containing an event, so the host responds as follows 0xC0 00 The end application could display this information in a browser or another appropriate application. Note: the file shall be fully described, as in:

Path\FileName
If the file referenced does not exist then the outstation should return a File Command Status Object (obj 70 var 4) with the status field set to File Not Found (0x02). If the file referenced is a directory file, the File Type field shall be zero to indicate a directory file and the File Size field shall indicate the number of entries in the sub-directory. To retrieve file information on all files in a directory, issue a file read on the directory file, as described in section 7.2.

Sequential File Transfer Objects 26 January 2000

DNP Technical Bulletin 2000-001 Page 16

7.2

Retrieving Directory Information

Information can be retrieved for all the files in a directory or sub-directory of a device by performing a file transfer of the directory file. The directory file shall be read in the manner described in section 6.4 for sequential file reads. ie. Authenticate (if necessary), Open, Read blocks up until the end of file, and Close the file. The outstation responds in the same manner as for any other file read. The format of the directory file transferred from the outstation consists of one or more data objects, one for each file in the directory, in same format as the File Descriptor Object (obj 70 var 7) i.e. the details supplied for each file in the directory are: File Name Offset, File Name Size, File Type, File Size, Time Of Creation, Permissions, Request ID, File Name The end application may display this information in a browser or another appropriate application. The file descriptor object data transferred in the directory file read does not include object header information. The path to the directory is not contained in each of the individual File Descriptor Objects File Name fields. Only the name of the file is included. (The path was specified in the File Command object used to Open the directory file for read). The directory file can only be opened for Read. Retrieving directory information retrieves data for one directory level only. Sub-directories below the read directory are indicated as files with File Type zero (Directory file), and with the File Size field indicating the number of entries in the sub-directory. A host wishing to retrieve file information for all files in a device may perform additional directory file transfers for each subdirectory file. If the directory referenced does not exist then the outstation should return a File Command Status Object (obj 70 var 4) with the status field set to File Not Found (0x02). If the directory exists but contains no files, then the outstation should return a file of zero length i.e. File Transport Object (obj 70 var 5) is returned with no Data Octets.

7.2.1 Example
Assume that an outstation has the following directory structure \file0 \dir1 \file1 \file2 \dir2 \file3 \dir3 \file4 If the host reads the root directory file (\), it would receive a file with information as follows:
Filename offset Filename size File type File size Time of creation Permissions Request Id File name octets

0x14 00

05 00

01 00

nn nn nn nn

nn nn nn nn nn nn

00 00

nn nn

file0

Sequential File Transfer Objects 26 January 2000

DNP Technical Bulletin 2000-001 Page 17

0x14 00 0x14 00

04 00 04 00

00 00 00 00

03 00 00 00 01 00 00 00

nn nn nn nn nn nn nn nn nn nn nn nn

00 00 00 00

nn nn nn nn

dir1 dir3

If the host reads the directory file \dir1, it would receive a file with information as follows:
Filename offset Filename size File type File size Time of creation Permissions Request Id File name octets

0x14 00 0x14 00 0x14 00

05 00 05 00 04 00

01 00 01 00 00 00

nn nn nn nn nn nn nn nn 01 00 00 00

nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

00 00 00 00 00 00

nn nn nn nn nn nn

file1 file2 dir2

Minimum Implementation

When a device supports Sequential File Transfer, the following implementation is required as a minimum. Authentication and Unsolicited Responses are considered optional features of Sequential File Transfer. Table 14

Object Variation and Qualifier Codes Required


OBJECT REQUEST (slave must parse) Obj Var Description Func Codes (dec) 70 70 70 70 70 70 2 3 4 5 6 7 Authentication Object File Command Object File Command Status Object File Transport Object File Transport Status Object File Descriptor Object 25,27 26,30 1,2 28 Qual Codes (hex) 0x5B 0x5B 0x5B 0x5B RESPONSE (master must parse) Func Codes (dec) Qual Codes (hex)

129,130 129,130 129,130 129,130

0x5B 0x5B 0x5B 0x5B

Affected Documentation:
DNP V3.00 Data Object Library Chapter 10 File Object Definitions

Changes to the Subset Level 1 and 2 Certification Procedures:


None

Last Updated:
January 26, 2000

Status:
Pending General Membership Approval (Feb 2000)

Sequential File Transfer Objects 26 January 2000

DNP Technical Bulletin 2000-001 Page 18

DNP Technical Bulletin 2000-002 Control Retries

Issue:
This bulletin describes a method of operating controls reliably in the presence of a poor quality communications network, and adds a new restriction on devices when performing select before operate controls. This bulletin supercedes Technical Bulletin 9804-001 dated 4/22/98 Item 7 which states "A Host must never perform application layer retries of output operations, i.e. never send two output messages with the same sequence number for SELECT, OPERATE, or DIRECT OPERATE function codes." The requirement as stated above was intended to insure that duplicate controls would not be issued. As stated the requirement can be misinterpreted to mean that control operations should never be reissued without operator intervention. It is possible for the Host to safely issue more than one control attempt without risking duplicate operation. This is desirable in high noise environments to allow the system to make a Best Effort Attempt to operate the control Exactly Once without operator intervention. It is the purpose of this document to describe how more than one control attempt may be performed safely without risking duplicate control operation while making a Best Effort Attempt to operate the control Exactly Once without operator intervention. This is technically not a retry from the protocols perspective, however, it appears as a retry from the operators perspective. Therefore, the remainder of this document will refer to the Host making more than one control attempt to be a Control Retry.

Background:
In a SCADA communications environment all transmissions and receptions are received through the communications medium, which is often represented as a cloud as shown in Figure 1.

WAN

Host

Outstation

Figure 1

It is possible for messages to get lost in the communications medium as shown in Figure 2

DNP 3 Technical Bulletin 2000-002 Control Retries

Page 1 of 12 January 24, 2000

WAN

Host

Outstation

Figure 2 In this case the Host transmitted a message, the Outstation received it and responded, but the message is lost in the communications medium. The Host must assume that the Outstation never received the message, and act accordingly. Technical Bulletin 9804-001 addresses how a Host and Outstation should handle the various failure scenarios. Technical Bulletin 2000-002 addresses the processing of analog and binary operations in the various failure scenarios.

Notes:
The following notes apply to the text that follows: The term control is used generically to refer to analog and binary outputs. When the type of output is important, the proper name is used. When sequence number is included in the following text it refers to the application sequence number unless otherwise noted. When the term Retry appears in the following text it refers to application layer retries unless otherwise noted. When application sequence numbers are incremented they are always incremented modulo 16.

Rules:
1) Technical Bulletin 9804-001 fully applies with the exception of Item 7. 2) The Host may issue multiple retries on the select portion of the control dialog. 3) Incrementing the sequence number between retries of the select is at the discretion of the Host. a) If the Host increments the sequence number between retries, the Outstation will respond to the select and re-arm the designated point. This also causes the Outstation to re-arm its select-tooperate timers. b) If the Host retries without incrementing the sequence number, the Outstation will respond to the select. The original selection will remain unchanged intact., and the Outstations select-to-operate timers will continue running without being reset. 4) The Host must increment the sequence number by exactly one (modulo 16) between the select and operate command. 5) The Outstation must reject any operate that does not a) contain a sequence number that is exactly one greater (modulo 16) than the previously accepted select. b) match the object portion of the select message byte for byte, excluding the application header. 6) The Host may only issue an operate after successful reception of a select echo from the Outstation. 7) The Host may issue multiple retries on the operate portion of control dialog as long as the sequence number does not change between retries. 8) At no time should the Host retry the select operate sequence in its entirety. Once the select portion has been satisfied, if the operate portion fails the Host may not retry the select. This can result in duplicate controls. 9) The Host must never retry direct operate controls. This can result in duplicate controls.

DNP 3 Technical Bulletin 2000-002 Control Retries

Page 2 of 12 January 24, 2000

Scenarios:
The following section presents several scenarios that illustrate the rules stated above.

Scenario 1:
Figure 3 shows a timeline representation of a successful select before operate sequence.

Host Time To
Host Issues Select SEQ N

Outstation

Oustation Receives Select Oustation Echoes Select

Host Receives Echo Host Sends Operate

SEQ N

SEQ N+1 Outstation Receives Operate Oustation Operates Control Oustation Echos Operate SEQ N+1 Host Receives Echo Control Dialog Complete

Time Tn
Figure 3

DNP 3 Technical Bulletin 2000-002 Control Retries

Page 3 of 12 January 24, 2000

Scenario 2:
Figure 4 shows a timeline representation of a successful select before operate sequence, where the echo of the first select is lost and the Host increments the sequence number and retries the select.

Host Time To
Host Issues Select N SEQ N

Outstation

Oustation Receives Select N SEQ N Oustation Echoes Select

Host Misses Echo N Host increments sequence number and retries Select

SEQ N+1

Oustation Receives Select N+1 and resets its operate timer Oustation Echoes Select N+1

SEQ N+1 Host Receives Echo N+1

Host Sends Operate N+2 SEQ N+2 Outstation Receives Operate N+2 Oustation Operates Control Oustation Echos Operate N+2 SEQ N+2 Host Receives Echo N+2 Control Dialog Complete

Time Tn

Figure 4

DNP 3 Technical Bulletin 2000-002 Control Retries

Page 4 of 12 January 24, 2000

Scenario 3:
Figure 5 shows a timeline representation of a successful select before operate sequence where the echo of the first several selects are lost. The Host does not increment the sequence number when retrying the select. Note: This can cause the operate to be rejected if the select-to-operate timer of the Outstation is configured to be less than the time it takes to retry the selects.

Host Time To
Host Issues Select SEQ N

Outstation

Oustation Receives Select SEQ N Oustation Echoes Select

Host Misses Echo N Host Retries Select N SEQ N

Host Misses Echo N Host Retries Select N SEQ N

SEQ N

Oustation Detects Duplicate Sequence Number That Matches Byte for Byte last message. It Echoes previous select without processing. Timer is not reset.

Host Misses Echo N Host Retries Select N SEQ N

SEQ N

Oustation Detects Duplicate Sequence Number That Matches Byte for Byte last message. It Echoes previous select without processing. Timer is not reset.

Host Receives Echo N Host Sends Operate N+1

SEQ N

Oustation Detects Duplicate Sequence Number That Matches Byte for Byte last message. It Echoes previous select without processing. Timer is not reset.

SEQ N+1 Outstation Receives Operate Oustation Operates Control Oustation Echos Operate SEQ N+1 Host Receives Echo N+1 Control Dialog Complete

Time Tn

Figure 5

DNP 3 Technical Bulletin 2000-002 Control Retries

Page 5 of 12 January 24, 2000

Scenario 4:
Figure 6 shows a timeline representation of a successful select before operate sequence where the echo of the operate is lost. The Host does not increment the sequence number when retrying the operate.

Host Time To
Host Issues Select N SEQ N

Outstation

Oustation Receives Select Oustation Echoes Select

Host Receives Echo N

SEQ N

Host Sends Operate N+1 SEQ N+1 Outstation Receives Operate Oustation Operates Control Oustation Echos Operate

Host Misses Echo N+1 Host Retries Operate N+1 SEQ N+1

SEQ N+1

Host Receives Echo N+1 Control Dialog Complete

SEQ N+1

Oustation Detects Duplicate Sequence Number That Matches Byte for Byte last message. It Echoes previous operate without processing.

Time Tn
Figure 6

DNP 3 Technical Bulletin 2000-002 Control Retries

Page 6 of 12 January 24, 2000

Scenario 5:
Figure 7 shows a timeline representation of an invalid select before operate sequence. The echo of the operate is lost. The Host increments the sequence number when retrying the operate. This results in a false error.

Host Time To
Host Issues Select N SEQ N

Outstation

Oustation Receives Select Oustation Echoes Select

Host Receives Echo N

SEQ N

Host Sends Operate N+1 SEQ N+1 Outstation Receives Operate Oustation Operates Control Oustation Echos Operate

Host Misses Echo N+1 Host Retries Operate N+1 SEQ N+2

SEQ N+1

Host Receives Echo N+2 and believes the control did not operate when in fact it did. Control Dialog Error

SEQ N+2

Outstation Detects Operate. Since the sequence number is not the same as the previous operate it processes the operate. There was no select with sequence number N+1 so it echoes the operate, setting the status field to NO MATCHING SELECT(status = 2).

Time Tn

Figure 7

DNP 3 Technical Bulletin 2000-002 Control Retries

Page 7 of 12 January 24, 2000

Scenario 6:
Figure 8 shows a timeline representation that illustrates why direct operate controls cannot be retried. In this example the echo of the direct operate is lost. The Outstation restarts after sending it. The Host retries the direct operate and the control is eventually operated twice. This cannot occur using select before operate controls.

Host Time To
Host Issues Direct Operate N SEQ N

Outstation

Host Misses Echo N Host Retries Direct Operate N

SEQ N

Outstation Receives Operate Oustation Operates Control Oustation Echos Operate Outstation Restarts

SEQ N Outstation is Restarting SEQ N

Host Misses Echo N Host Retries Direct Operate N SEQ N Outstation is Restarting Host Misses Echo N Host Retries Direct Operate N SEQ N Outstation becomes operational SEQ N Outstation Receives Operate Oustation Operates Control a second time Oustation Echos Operate Host Receives Echo N with the restart bit set. The control has already operated a second time at this point. This result is unacceptable. SEQ N

Time Tn

Figure 8

DNP 3 Technical Bulletin 2000-002 Control Retries

Page 8 of 12 January 24, 2000

Affected Documentation:
This document supersedes Technical Bulletin 9804-001 Item 7.

Changes to the Subset Level 1 and 2 Certification Procedures: Insert additional procedures in binary output section: Desired Behavior
The Outstation must accept retries on the select portion of the control dialog that increment the application sequence number between retries. In this case the select-to-operate timer must be restarted after reception of each select. The Outstation must accept retries on the select portion of the control dialog that do not increment the application sequence number between retries. In this case the select-to-operate timer must remain unaltered by the reception of each additional select. The Outstation must reject any operate that does not contain a application layer sequence number that is exactly one greater (modulo 16) than the previously accepted select. match the object portion of the select message byte for byte, excluding the application header. The Outstation must accept retries on the operate portion of the control dialog that does not increment the application sequence number between retries. The Outstation must echo the operate command but must not operate the control more than once.

(Section # TBD) Same Sequence Number Binary Output Select Retries


1. 2. 3. 4. 5. 6. 7. 8. If the DUT does not have installed binary output points skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue the select again using the same application layer sequence number. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the binary output.

(Section # TBD) Incrementing Sequence Number Binary Output Select Retries


1. 2. 3. 4. 5. 6. 7. 8. If the DUT does not have installed binary output points skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue the select again incrementing the application layer sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the binary output.

(Section # TBD) Same Sequence Number Binary Output Operate Retries


1. 2. 3. 4. 5. 6. 7. 8. If the DUT does not have installed binary output points skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the binary output. Issue the operate again using the same application layer sequence number. Verify that the DUT echoes the object portion of the operate byte for byte. Page 9 of 12 January 24, 2000

DNP 3 Technical Bulletin 2000-002 Control Retries

9.

Verify that the DUT does not operate the binary output.

(Section # TBD) Incrementing Sequence Number Binary Output Operate Retries


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed binary output points skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the binary output. Issue the operate again, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the binary output.

(Section # TBD) Select/Operate Binary Output Sequence number checking


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed binary output points skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by anything but 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the binary output. Issue a valid operate, incrementing the select sequence number by 1 modulo 16 to make sure the mismatched operate cleared the previous select. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the binary output.

Insert additional procedures in analog output section: Desired Behavior


The Outstation must accept retries on the select portion of the control dialog that increment the application sequence number between retries. In this case the select-to-operate timer must be restarted after reception of each select. The Outstation must accept retries on the select portion of the control dialog that do not increment the application sequence number between retries. In this case the select-to-operate timer must remain unaltered by the reception of each additional select. The Outstation must reject any operate that does not contain a application layer sequence number that is exactly one greater (modulo 16) than the previously accepted select. match the object portion of the select message byte for byte, excluding the application header. The Outstation must accept retries on the operate portion of the control dialog that does not increment the application sequence number between retries. The Outstation must echo the operate command but must not operate the control more than once.

(Section # TBD) Same Sequence Number Analog Output Select Retries


1. 2. 3. 4. 5. 6. 7. If the DUT does not have installed analog output points skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue the select again using the same application layer sequence number. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Page 10 of 12 January 24, 2000

DNP 3 Technical Bulletin 2000-002 Control Retries

8.

Verify that the DUT operates the analog output.

(Section # TBD) Incrementing Sequence Number Analog Output Select Retries


1. 2. 3. 4. 5. 6. 7. 8. If the DUT does not have installed analog output points skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue the select again incrementing the application layer sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the analog output.

(Section # TBD) Same Sequence Number Analog Output Operate Retries


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed analog output points skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the analog output. Issue the operate again using the same application layer sequence number. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT does not operate the analog output.

(Section # TBD) Incrementing Sequence Number Analog Output Operate Retries


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed analog output points skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the analog output. Issue the operate again, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the analog output.

(Section # TBD) Select/Operate Analog Output Sequence number checking


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed analog output points skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by anything but 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the analog output. Issue a valid operate, incrementing the select sequence number by 1 modulo 16 to make sure the mismatched operate cleared the previous select. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the analog output.

DNP 3 Technical Bulletin 2000-002 Control Retries

Page 11 of 12 January 24, 2000

Last Updated:
January 24, 2000

Status:
Pending General Membership Approval (Feb-2000).

DNP 3 Technical Bulletin 2000-002 Control Retries

Page 12 of 12 January 24, 2000

DNP Technical Bulletin 2000-003 Change Management


Issue:
The use of DNP3 in a wide variety of application areas and communication technologies has led to a need for periodic revisions and improvements. In an effort to satisfy the desire for stability yet recognize the need for change, this document outlines the mechanism that will be employed to manage changes, as they become necessary.

Background:
The DNP Protocol is defined by an extensive documentation set. However, there are areas in the original documentation, and in subsequent documentation and Technical Bulletins that have failed to address areas of inter-operability provided ambiguous specifications provided conflicting requirements provided no guidance not provided suitable functions, objects or methods for desired commands and data transferal.

It is the responsibility of the technical committee as maintainers of the protocol to address these issues in a timely manner while providing customers and implementers sufficient time to incorporate changes into their products and specifications.

Resolution:
When needed the technical committee will issue Technical Bulletins that resolve identified problems and specify new features. Bulletins fall into four categories 1. 2. 3. 4. Enhancements or additions to the protocol that no one has implemented before. Recommendations that are not required for inter-operability and will not be tested for in the certification procedures. Rules that are required for inter-operability and will be tested for in the certification procedures. Procedural and Organizational rules and requirements (e.g. charter, membership requirements, certification, etc).

Category 1 and 2 issues do not directly effect existing implementations and may be issued by the technical committee without requiring General Membership Approval. Category 3 and 4 issues can potentially affect existing implementations. The Technical Committee will issue these bulletins with a status indicating Pending General Membership Approval (Month and Year of Next Meeting). Each bulletin that specifies desired behavior must also include a certification test section to be included in the certification test procedures. Each version of the certification procedures will be denoted by the year the contents were approved by the General Membership. As an example, the original certification procedures were approved by the General Membership in February 1999. Devices that passed the tests in those procedures are said to be DNP3-1999 compliant. DNP 3 Technical Bulletin 2000-003 Change Management Page 1 of 22 January 26, 2000

Technical Bulletins may be published at any time between General Membership Meetings, however those that require approval of the General Membership must be published for review not later than thirty days prior to the General Membership Meeting in which the General Membership will be asked to approve them. Certification test procedures included in the Technical Bulletins that are approved in a General Membership Meeting will be incorporated into the certification procedures six months following the meeting. Technical Bulletins that are rejected in a General Membership Meeting may be revisited or edited and resubmitted at the next General Membership meeting. Six months after the General Membership meeting all previously certified devices must be tested against, and pass the revised certification procedures in order to be DNP3-xxxx compliant, where xxxx is the year in which the Technical Bulletins were approved by the general membership. For example, the certification procedures included in the Technical Bulletins approved in February 2000 would be called DNP3- 2000. Devices tested during the 6 month grace period between General Membership Approval and the Effective Date can choose which version of the procedures they wish to be tested against. In the example given above, devices certified between Feb 2000 and July 2000 could choose to be certified against either the DNP3-1999 procedures or the DNP3-2000 procedures. Devices certified after July 2000 would be required to use the DNP3-2000 procedures. It is recommended that DNP3 users specify which level of compliance they require by specifying which version of the procedures a device must pass to be purchased. The Technical Committee will maintain a document on the web site that summarizes the inter-operability issues and enhanced features added for each version of the certification procedures. While every attempt is made to insure that two devices that pass the certification procedures inter-operate, there may be instances in which a behavior has not been specified. In these cases the vendors involved in the dispute can request arbitration from the technical committee. The Technical Committee will review the details of the issue and publish a technical bulletin that specifies the correct behavior. This bulletin will by definition be a category 3 bulletin, and when approved, will be incorporated into the certification procedures in normal course. Implementers can use the technical bulletin as an advanced notification of additional requirements that resulted from the arbitration. A fee may be assessed for the arbitration process at the discretion of the Steering Committee. Master devices are expected to reliably communicate and inter-operate with certified slave stations. When they do not, and a compromise solution cannot be reached between the master and slave vendors, the issue may be submitted to the DNP Technical Committee for arbitration.

Affected Documentation:
None

Changes to the Subset Level 1 and 2 Certification Procedures:


None.

Last Updated:
January 26, 2000 Status: Pending General Membership Approval (Feb 2000).

DNP 3 Technical Bulletin 2000-003 Change Management

Page 2 of 22 January 26, 2000

DNP Technical Bulletin Application Layer Confirmation Messages


August 30, 2000

1 Issue
DNP3 protocol defines an application layer message-confirmation service. When used, the receiving application is required to confirm reception of an application message from the sending application. Confirmation is accomplished by transmission of a message with the application layer Confirm function code, code 0. The Basic IV is unclear whether or not IIN octets are to be included in application confirm messages sent by the slave. Section 3.6 of the Application Layer document states that the IIN follows the function code in all responses. Section 4 contradicts this by explicitly diagramming a Confirmation Response without the IIN. DNP3 Certification Procedures for Subset Level 1 and Level 2 do not contain any tests for application confirm messages sent by a slave device in response to a master request. The DNP Technical Committee has been asked to clarify application confirm requests transmitted by the master and corresponding application confirm responses transmitted by the slave.

2 Resolution
Since: A slave device may pass certification without supporting master application confirm requests, and The Basic IV does not clearly define the application confirmation message structure when transmitted by the slave, It has been determined that any definition of the structure of a slave application confirm message may result in noncompliance and non-interoperability by some currently certified devices. Furthermore, since there are no meaningful uses of the application confirmation service when requested by the master, it has been resolved that: The master must not transmit any message that requests an application layer confirmation by the slave, and The slave response to any such request by a non-compliant master is undefined.

3 Last Updated:
30 August 2000

4 Status:
Pending Technical Committee Approval

DNP Technical Bulletin 2000-nnn Multiple Control Objects

Page 1 of 1 17-August-2000

Last Updated
31 May 2001

Status
Awaiting User Group Comments

14-March-2001

TD-Counters-JV-1.doc

DNP Technical Bulletin 2000-005 Reset of User Process Function Code


Issue:
The "Reset of User Process" service function (FC = 1) in the link layer control octet is not defined in the Basic 4 completely enough to guarantee interoperability. The Data Link Layer document does not define what action the secondary station should take when it receives the command. Furthermore, the document does not define what the "user process" of the link layer is or what should be involved in resetting it.

Discussion:
It is undesirable to have the link layer independently "reset" other layers. If the primary station transport function wants the secondary station transport function to throw away the current fragment it is building and start a new one, it can simply send a frame having the FIR bit set. Any "restart" or "abort" type functionality that affects the application layer should be handled by the application layer. This function code was adopted from the IEC870-5-2 standard, but has not been found to map appropriately to the DNP3 environment.

Resolution:
DNP3 does not define any action associated with the Data Link Layer Reset User Process request function code. Support of this function is not required. Function code 1 is now obsolete. This function shall not be used because there is no definition of the action to be performed by devices that receive this request and interoperability of devices that use it cannot be guaranteed.

Affected Documentation:
DNP V3.00 Data Link Layer, sections 3.3.3, 3.6.2, 3.7.2 Note: At the time of this bulletin, the Data Link Layer document is undergoing significant revision. The above resolution will be incorporated into the new version. DNP3-1999 IED Certification Procedure, Subset Level 1, sections 6, 6.6.2.5 DNP3-1999 IED Certification Procedure, Subset Level 2, sections 6, 6.6.2.5

Changes to the Subset Level 1 and 2 Certification Procedures (v1.00 and v1.01): 6 Link Layer
Replace (i.e. function codes 0, 1, 4, 9) with (i.e. function codes 0, 4, 9).

6.6.2.5 Invalid FCV


Remove 3rd row of table (Code = D1). Note: These changes have been incorporated into the DNP3-2000 IED Certification Procedures, Version 2.00.

Last Updated:
November 13, 2000

DNP3 Technical Bulletin 2000-005 Reset of User Process Function Code

Page 1 of 2 November 13, 2000

Status:
Pending General Membership Approval (Feb-2001).

DNP3 Technical Bulletin 2000-005 Reset of User Process Function Code

Page 2 of 2 November 13, 2000

DNP3 Technical Bulletin TB2000-006 Control Relay Output Block (CROB) Control Codes
Issue:
The Control Relay Output Block object provides a great variety of options for performing a control output. The Technical Bulletin 9701-002 limited the permissible set of functions, but many interoperability problems continue to arise. While 9701-002 attempted to provide guidance on this issue, it left too much room for misinterpretation. Without making 9701-002 obsolete, this bulletin clarifies which control codes a device may support on a given DNP3 index (point), and provides rules that both the master and slave can follow that will guarantee that their use of the CROB object will interoperate.

Discussion:
The CROB in its current form exposes the details of device hardware to the protocol stack. This is unnecessary and creates interoperability issues: not all devices support all control codes, and various vendors have chosen incompatible subsets of control codes to support. Many master vendors have attempted to achieve interoperability by configuring the control code on a point-by-point basis. While this works in most cases, some IED vendors have implemented pseudo-points that do different things based on the control code that is sent. This perverts the original intent of the CROB and makes it impossible for masters that statically configure control codes to be interoperable with such devices. This type of implementation is also not transportable across legacy protocol boundaries. Finally, it makes little sense to support all of the possible combinations of control codes in any case, as most devices can only support one of two types of control operations on any give DNP3 index: 1. Complementary function (trip/close) 2. Single function (activate)

Resolution:
CROB Index Types: Each DNP3 Control Relay Output Block index may only support either: A complementary control function. Examples of complementary control functions are: Trip and Close Raise and Lower On and Off A single control function. Examples of single-function controls are: Trip Raise Run Battery Test Activate NOTE: Two single-function indices may provide complementary functions. For instance, one index provides the Trip function while the other provides the Close function. Some indices, such as Battery Test may have no complementary function. A device may provide some indices that support complementary control functions as well as others that support only single control functions. An index cannot support both methods of operation. Control Codes to be Used: Complementary control function indices may permit one of the complementary control code pairs: 0x03 (Latch On/NUL) and 0x04 (Latch Off/NUL) 0x41(Pulse On/Close) and 0x81 (Pulse On/Trip) 20-June-2001 1 TB2000-006

Complementary control function indices may permit either or both of these pairs. If an index permits both pairs of codes, then: 0x03 (Latch On/NUL) and 0x41 (Pulse On/Close) must perform the same function 0x04 (Latch Off/NUL) and 0x81 (Pulse On/Trip) must perform the same function Single-function indices may permit one of the following control codes: 0x01 (Pulse On/NUL) 0x03 (Latch On/NUL) 0x04 (Latch Off/NUL) 0x41 (Pulse On/Close) 0x81 (Pulse On/Trip)

More than one of these codes may be accepted on a given index. However, each of the permitted codes must perform the same function on that index. Vendors of slave devices are responsible for assigning control codes that are appropriate to their device. For example, a manufacturer might assign 0x41 to a breaker and 0x03 to a pseudo point. In DNP3 there is no significance to these codes providing the above restrictions are met. A Master device must be configurable to choose, for each index: Either one of the complementary control code pairs, or Any one of the single control codes. A vendor must document the control codes its Slave devices support as follows: If all indices support the same control codes, the Device Profile Document shall note them. If a fixed configuration of differing control codes is used for some or all of the indices, the vendor shall supply a points list with the Device Profile Document enumerating the codes. If the device is configurable per index to support a set of control codes, the Device Profile Document shall note what the set is.

Affected Documentation:
Basic 4 - Additional Rule Subset definitions - Additional Rule Conformance Procedures - Additional Tests

Changes to the Subset Level 1 and 2 Conformance Procedures: Insert additional procedures in binary output section: Desired Behavior
For complementary function indices, the Outstation must accept at least one of the following control code pairs 0x03 (Latch On/NUL) and 0x04 (Latch Off/NUL) 0x41 (Pulse On/Close) and 0x81 (Pulse On/Trip). The outstation may optionally accept both forms of complementary control code pairs. If it does: control codes 0x03 (Latch On/NUL) and 0x41 (Pulse On/Close) must perform the same function control codes 0x04 (Latch Off/NUL) and 0x81 (Pulse On/Trip) must perform the same function For single function indices, the outstation must accept at least one of the following control codes 0x01 (Pulse On/NUL) 0x03 (Latch On/NUL) 0x04 (Latch Off/NUL) 0x41 (Pulse On/Close) 0x81 (Pulse On/Trip) 2 TB2000-006

20-June-2001

If the outstation accepts more than one control code for a single function index, it must perform the same function for each control code it accepts.

Complementary Function Support


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. If the DUT does not have installed binary output points skip this section. If the DUT does not have installed complementary function binary output points skip this section. If the DUT does not support the 0x03 (Latch On/NUL) and 0x04 (Latch Off/NUL) pair skip to step 8 Issue a valid control sequence to the first installed complementary function binary output point using control code 0x03 (Latch On/NUL). Verify the control operation completes successfully. Issue a valid control sequence to an installed complementary function binary output point using control code 0x04 (Latch Off/NUL). Verify the complementary control operation completes successfully. If the DUT does not support the 0x41(Pulse On/Close) and 0x81 (Pulse On/Trip) pair skip to step 13 Issue a valid control sequence to an installed complementary function binary output point using control code 0x41(Pulse On/Close). Verify the control operation completes successfully. Issue a valid control sequence to an installed complementary function binary output point using control code 0x81 (Pulse On/Trip). Verify the complementary control operation completes successfully. If the DUT does not support both the 0x03 (Latch On/NUL) and 0x04 (Latch Off/NUL) control code pair and the 0x41(Pulse On/Close) and 0x81 (Pulse On/Trip) control code pair skip to step the next section. Issue a valid control sequence to an installed complementary function binary output point using control code 0x03 (Latch On/NUL). Verify the control operation completes successfully. Issue a valid control sequence to the same installed complementary function binary output point using control 0x81 (Pulse On/Trip). Verify that the complementary control operation completes successfully. Issue a valid control sequence to the same installed complementary function binary output point using control code 0x41(Pulse On/Close). Verify the complementary control operation completes successfully. Issue a valid control sequence to the same installed complementary function binary output point using control 0x04 (Latch Off/NUL). Verify the complementary control operation completes successfully.

Single Function Support


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. If the DUT does not have installed binary output points skip this section. If the DUT does not have installed single function binary output points skip this section. For any point that is tested below, determine what action should happen when the control executes. If the DUT does not support the 0x01 (Pulse On/NUL) control code for single function binary output points at this index skip to step 7. Issue a valid control sequence to the first installed single function binary output point using control code 0x01 (Pulse On/NUL). Verify the control operation in step 3 completes successfully. If the DUT does not support the 0x03 (Latch On/NUL) control code for single function binary output points at this index skip to step 10. Issue a valid control sequence to the first installed single function binary output point using control code 0x03 (Latch On/NUL). Verify the control operation in step 3 completes successfully. If the DUT does not support the 0x04 (Latch Off/NUL) control code for single function binary output points at this index skip to step 13. Issue a valid control sequence to the first installed single function binary output point using control code 0x04 (Latch Off/NUL). Verify the control operation in step 3 completes successfully. If the DUT does not support the 0x41 (Pulse On/Close) control code for single function binary output points at this index skip to step 16. 3 TB2000-006

20-June-2001

14. Issue a valid control sequence to the first installed single function binary output point using control code 0x41 (Pulse On/Close). 15. Verify the control operation in step 3 completes successfully. 16. If the DUT does not support the 0x81 (Pulse On/Trip) control code for single function binary output points at this index skip to the next section. 17. Issue a valid control sequence to the first installed single function binary output point using control code 0x81 (Pulse On/Trip). 18. Verify the control operation in step 3 completes successfully.

Last Updated:
20-June-2001

Status:
Approved February 5, 2001 by General Membership

20-June-2001

TB2000-006

DNP Technical Bulletin 9905-001 Qualifier Code 11 (0x0B)


Issue:
The Basic 4 Application Layer document includes contradictory interpretations of fields associated with Qualifier Code 11. The use of Qualifier Code 11 must be clarified to permit consistent implementation of this feature. It is expected that the use of this qualifier will become more widespread with objects such as the File Identifier Object (Object 70). It is also desirable to be able to determine that Qualifier 11 usage correctly follows the interpretation indicated by this bulletin.

Resolution:
1. Range Field The Range Field shall always be one octet when using Qualifier Code 11. The content of this octet specifies the number of objects that follow. 2. Object Size For each object (as indicated by the count value in the Range Field), the Object Size shall indicate the number of octets in the following Object Identifier and any following associated Object Data. By skipping forward this many octets, another Object Size field (as indicated by the count value in the Range Field), another Object Header or the end of fragment will be reached. This allows messages containing objects specified by Qualifier Code 11 to be parsed and the unrecognized objects ignored if the device does not support these objects. 3. Index Size Codes Qualifier Code 11 shall use the same definitions of Index Size code as used by all other Qualifier Codes. Index Size code 5 shall be used to specify the size of the object size prefix for each object that follows an Object Header using Qualifier Code 11. The obsolete Index Size codes (those defined for requests using Qualifier Code 11 that contain no data) shall be removed, leaving a single table of Index Size codes that are applicable in all situations. The use of Index Size code 5 with Qualifier Code 11 shall indicate that the Range Field and Object Size field are to be interpreted as defined by this bulletin.

May 31, 1999

Page 1 of 6 plus Replacement Section 3.7.2

9905-001

Discussion:
This section explains the basis for the analysis and resolution of Qualifier Code 11 issues. 1. Range Field The size of the Range Field (holding the Count of following objects) is described in separate places as being: Always one octet Sized according to the value of the Index Size field Only one of these interpretations is permissible. The following sections of the Basic 4 Application Layer document define the use and structure of object headers that include Qualifier Code 11. Section 3.7.2 describes the Qualifier Codes. In the description of the Free Format Qualifier (Qualifier Code 11) this section states: The Range Field is always a 1 octet value (Count) which specifies the number of object identifiers. Section 3.7.3, figures 3-16 and 3-17 show examples for Qualifier Code 11 where the Range Field (Count of objects) is the same size as the object size field (i.e.: the Range Field is 1, 2 or 4 octets, for Index Size codes 1, 2 and 3 respectively). Sections 4.2.1, 4.2.2 and 4.3.1 show examples with Qualifier Code 11, Index Size 1 (Index/Qualifier octet value 0x1B). No examples are shown using Index Size codes 2 or 3 (specifying 2- or 4-octet Object Size fields). The associated text could be interpreted as suggesting either that the Object Count size is always one octet or that the Index Size sets both Object Count and Object Size to 1 octet.

Currently, for all Qualifier Codes (other than 11), the selection of Qualifier Code value (alone) determines the form and size of the Range Field (i.e.: the Index Size code does not affect the form or size of the Range Field). To maintain consistency for all defined Qualifier Codes (0-9 and 11), the statement in Section 3.7.2 that the Range Field is always one octet must be observed. Therefore, figures 3-16 and 3-17 are rendered incorrect by this Technical Bulletin. For all Qualifier Codes (other than 11), the selection of the Qualifier Code value explicitly determines the form of the Range Field. If the statement in Section 3.7.2 (Range Field is always one octet) is observed, then the Qualifier Code alone will determine the size of the Range Field for all defined Qualifier Codes (0-9 and 11). In this case, the Index Size code only affects the size of each objects index or object size fields, and never affects the size of the Range Field. This is a more consistent interpretation than to assume that figures 3-16 and 3-17 are correct and that the Index Size code also affects the size of the Range Field.

May 31, 1999

Page 2 of 6 plus Replacement Section 3.7.2

9905-001

2. Object Size The Object Size field (holding the size in octets of the following object) is described in separate places as being the size of: The object identifier but not the object data The object identifier and the object data Only one of these interpretations is permissible. The following sections of the Basic 4 Application Layer document the use of the Object Size field specified in association with Qualifier Code 11. Section 3.7.2 describes the Object Size field as being the size of the object identifier. It does not make explicit mention of object data: the description only mentions each object entry as consisting of a size and object identifier pairing. Section 3.7.3, figure 3-16 shows examples for Qualifier Code 11 with the Object Size being the number of octets in the object identifier. This figure does not include object data. Section 3.7.3, figure 3-17 shows examples for Qualifier Code 11 where the objects include data. Here the description explicitly states that the Object Size field is the count of octets in the object identifier only, and does not include the object data. Section 4.2.1 shows an example for Qualifier Code 11 with the Object Size being the number of octets in the object identifier. This example does not include object data. Section 4.2.2 shows an example for Qualifier Code 11 where the objects include data. Here the description explicitly states that the Object Size field is the count of octets in the object identifier and the object data. Section 4.3.1 shows an example for Qualifier Code 11 where the objects include data. Here the description explicitly states that the Object Size field is the count of octets in the object identifier and the object data.

The format of objects specified when using Qualifier Code 11 is a number of consecutive objects, each of which is preceded by a Size field indicating the size of that object. The size of each object may be variable, and the inclusion of the size permits each object to be parsed to its end. Thus a device parsing the object need not provide explicit support for the object in order to be able to parse to the end of the object(s) and process the remainder of the message. If the Object Size field includes the size of the object identifier and any following object data, it would not be necessary to interpret any part of the object identifier in order to be able to skip to the next field. It appears that this is the logical purpose for this construct. Therefore the Size field should include the number of octets in both the object identifier and the object data. 3. Index Size Codes The interpretation of Index Size codes for Qualifier Code 11 differ from the interpretation of Index Size codes for other Qualifier Code values, and the definition of these codes is
May 31, 1999 Page 3 of 6 plus Replacement Section 3.7.2 9905-001

not consistently applied in various sections of the documents. A consistent interpretation of Index Size values for Qualifier Code 11 is required. The following sections of the Basic 4 Application Layer document the use of the Index Size codes (specifically with relation to Qualifier Code 11). Section 3.7.2 defines the Index Size codes. This contains a description specifying a table of Index Size code values to be used in a Request (with no object data) using Qualifier Code 11 (codes 1, 2 and 3 only), and a table of values to use in all other cases. Section 3.7.2 defines Qualifier Code 11. Here it states that Qualifier Code 11 should be used with Index Size codes 4, 5 or 6 to define the object size. Section 3.7.3, figure 3-16 shows examples of requests or responses without data for Qualifier Code 11. These examples use Index Size codes 1, 2, and 3. Section 3.7.3, figure 3-17 shows examples of requests or responses with data for Qualifier Code 11. These examples use Index Size codes 1, 2, and 3. Section 4.2.1 shows an example of a request without data for Qualifier Code 11. This example uses Index Size code 1. Section 4.2.2 shows an example of a response with data for Qualifier Code 11. This example uses Index Size Code 1. Section 4.3.1 shows an example of a request with data for Qualifier Code 11. This example uses Index Size Code 1.

All examples (sections 3.7.3 to 4.3.1) use Index Size codes 1, 2 or 3. This is only consistent with the Index Size code definition in Section 3.7.2 when used for requests without data. The definition of Qualifier Code 11 in Section 3.7.2 suggests the use of Index Size codes 4, 5 and 6 to specify the object size, and does not suggest codes 1, 2 or 3. This is consistent for use of Qualifier Code 11 in responses or in requests that contain data. The purpose of Index Size codes 4, 5 and 6 is to specify an object size. This is the same purpose achieved by Index Size codes 1, 2 and 3 for requests without data using Qualifier Code 11. Thus the special cases of Index Size codes for requests without data using Qualifier Code 11 are degenerate forms of codes 4, 5 and 6. The special cases may be eliminated completely by using Index Size codes 4, 5 and 6 for all cases to specify Object Sizes. It is likely that existing implementations using Qualifier Code 11 will have followed the examples from Sections 3.7.3 to 4.3.1, using Index Size codes 1, 2 or 3, and may have made either interpretation for size of the Range Field and the content of the Object Size field. Enforcing the adoption of Index Size codes 4, 5 and 6 in line with their usage for all other Qualifier Codes will differentiate conformant implementations from nonconformant (or possibly non-conformant) implementations. Note: To further simplify processing, only Index Size code 5 (specifying a 2-octet size field) shall be permitted with Qualifier Code 11.
Page 4 of 6 plus Replacement Section 3.7.2 9905-001

May 31, 1999

Affected Documentation:
Application Layer Section 3.7.3. Figures 3-16 and 3-17: Alter the diagrams for Qualifier Code 11: Remove 2nd and 3rd examples Change Size N1 and Size NQ fields to be 16-bit Change Index Size MUST be 1 to Index Size code MUST be 5

Figure 3-17: Replace the description after Q-code 11; Index size MUST be 5 with: Octets Oi1 .. OiN form the object identifier for object i where 0<=i<Q (quantity) which is followed by the object identified (IDi). The size field Ni contains a count of the octets in the object identifier (Oi1 .. OiN) and the object identified (IDi). Note that the Size N+1 field is located Size N octets after the Size N field. Note also that it is not necessary to be able to interpret the object identifiers or data in order to be able to process the remainder of the message. Application Layer Sections 4.2.1, 4.2.2 and 4.3.1: In all diagrams showing Qualifier Code 11: Replacing Index Size code 1 with code 5. In the descriptions that follow diagrams showing Qualifier Code 11: Replace: The qualifier code specifies a list of object identifiers in the identifier field and the range field is an 8 bit quantity. The size field is also an 8 bit quantity specifying that the object identifier plus data is size octets in length. The range field specifies the list contains 1 entry. The index size specifies that the quantity field and Size field are 8-bit in length. With: The qualifier code 11 specifies a list of object identifiers in the identifier field. The index size code of 5 specifies that a 16-bit object size field precedes each object. The range field is an 8-bit quantity specifying the number of object identifiers that follow.

May 31, 1999

Page 5 of 6 plus Replacement Section 3.7.2

9905-001

Application Layer Sections 4.17, 4.18 and 4.19: Figures 4-30, 4-32 and 4-34: In the Qualifier field, replace Index Size code 1 with code 5. Replace: The qualifier indicates the range field is an 8 bit quantity specifying the number of object identifiers that follow With: The qualifier indicates that the application identifier size field is a 16-bit quantity. The range field is an 8-bit quantity specifying the number of object identifiers that follow. Application Layer Section 4.20: Figure 4-36: In the Qualifier field, replace Index Size code 1 with code 5. Replace: The qualifier indicates the range field is an 8 bit quantity specifying the number of object identifiers that follow With: The qualifier indicates that the configuration identifier size field is a 16-bit quantity. The range field is an 8-bit quantity specifying the number of object identifiers that follow. Application Layer Section 3.7.2: Replace this section in its entirety with the reworded section appended below:

May 31, 1999

Page 6 of 6 plus Replacement Section 3.7.2

9905-001

3.7.2

Qualifier Field

The qualifier field specifies the meaning of the following Range Field.
bit: 7 R 6 5 Index Size 4 3 2 1 0

4-bit Qualifier Code

Figure 3-15 Qualifier Field R Reserved bit always set to 0

The Range Field is used to index data or as an identifier. The structure and use of the Range Field is dependent on the value in the Qualifier Code field. When the Range Field is used to index data, it often consists of a Start Range value and a Stop Range value. Together they define a range of objects in the data following the Object Header. Each of the Start Range and Stop Range sub-fields is termed as index. The Range Field may also be a single value, or may be absent if so specified by the Qualifier Code. A single value may be a count of the objects following the Object Header, or may specify the index range zero to (range field value 1). Table 3-1 lists the commonly-used combinations of Qualifier Code and Index Size Code (Qualifier Field values), showing the size of the Range Field (in octets). DNP permits combinations of Qualifier Code and Index Size Code that are not shown in Table 3-1. These combinations are explained in Figures 3-16 and 3-17. Note that combinations that do not appear in Table 3-1 are rarely used in DNP implementations, and only where special conditions warrant their inclusion. It is recommended that only combinations appearing in Table 3-1 should be used. Explanations of the purpose of each Qualifier Code and Index Size Code appear following the tables. Description Range Field contains 8 bit start and stop indices Range Field contains 16 bit start and stop indices Range Field is omitted, entire range is specified Range Field contains an 8 bit object count Range Field contains a 16 bit object count Free Format Qualifier Qualifier Field (hexadecimal) 00 01 06 07, 17 08, 28 5B Range Size (octets) 2 4 0 1 2 1

Table 3-1 Commonly-Used Qualifier & Index Codes

3-24

May 31, 1999

9905-001 DNP User Group

Index Size (3-bits) The 3 bit Index Size field specifies the size of the indices or object size prefixing each object. 0 1 2 3 4 5 6 7 = = = = = = = = objects are packed with no index prefixing them objects are prefixed with a 1 octet index objects are prefixed with a 2 octet index objects are prefixed with a 4 octet index objects are prefixed with a 1 octet object size objects are prefixed with a 2 octet object size objects are prefixed with a 4 octet object size Reserved

Qualifier Code (4-bits) The Qualifier Code is used to specify the meaning of the Range Field. Qualifier Code values are: 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 = = = = = = = = = = = = = = = = 8 bit start and stop indices in the Range Field 16 bit start and stop indices in the Range Field 32 bit start and stop indices in the Range Field 8 bit absolute address identifiers in the Range 16 bit absolute address identifiers in the Range 32 bit absolute address identifiers in the Range no Range Field (implies all the specified objects) 8 bit single field quantity 16 bit single field quantity 32 bit single field quantity Reserved free format qualifier Reserved Reserved Reserved Reserved

Start and Stop Sub-Fields in the Range Field (Qualifier Codes 05) The Range Field following the Qualifier field often contains sub-fields (Start Range and Stop Range) that designate a range of integer values starting numerically from Start Range (including the number Start Range) to Stop Range (including the number Stop Range). For Qualifier Codes 0, 1 and 2, Start Range and Stop Range are interpreted as indices of data. For Qualifier Codes 3, 4 and 5, Start Range and Stop Range are interpreted as virtual memory addresses. 3-25
May 31, 1999 9905-001 DNP User Group

The Qualifier Code can be used both in the request and response messages as it can uniquely identify data objects whether they do or do not exist in the message. The Index Size field should be 0 in a data-less message to indicate no further indexing. The Index Size field can be 4, 5 or 6 in a message with data objects to indicate that each data object (with indices specified by the Range Field) has an object size prefix (with this size determined by the Index Size). A message with data can also use Index Size of 0 to indicate no more indexing. For Qualifier Codes specifying Start and Stop Indices in the Range, Index Size values of 1, 2 and 3 cannot be used. All objects of the given object type (Qualifier Code 6) When the Qualifier Field equals 6, the length of the Range Field is 0 (i.e. no Range Field) because all the data objects of the specified type are being referred to. This qualifier can be used in messages with object headers only because it cannot uniquely identify data objects if they are present in the message. The Index Size should be set to 0 when this Qualifier Code is used. Qualifier Code 6 = no Range Field (implies all the specified objects) Single field quantity (Qualifier Codes 7, 8 and 9) Qualifier Codes 7, 8 and 9 are used to indicate that the Range Field consists of a single count indicating the number of data objects in question. The Range Field that follows designates the number of objects referenced. If the Index Size field equals zero, the Range Field specifies the number of objects referenced starting numerically from 0 (including 0) to the value in the Range Field minus 1. If the Index Size field is 1, 2 or 3 then the Range Field specifies the number of indices and objects following the Range Field. Qualifier Codes 7, 8 and 9 can be used in the request and response messages. In a message with or without data objects, the value in the Range Field specifies the number of data objects to be referred to. The Index Size field should be set to the size of the indices that either pre-fix each data object (for messages with data objects) or that form a sequential list of identifiers. The Index Size field should not indicate an object size identifier as this would not uniquely specify the data objects in question and should be set to 0 if no identifiers or indices are following. The order of identifiers (and optional data objects) is arbitrary but should not consist of duplicate indices unless specifying distinct data instances for the same object (e.g.: multiple binary events for a single binary input). Free-format Qualifier (Qualifier Code 11) 3-26
May 31, 1999 9905-001 DNP User Group

This Qualifier Code is used to specify objects when other Qualifier Codes are inadequate or do not provide enough identifying information. Qualifier 11 is used only when the Range Field (index) cannot uniquely specify the data objects in question. In this case, the Qualifier Code defines a variable length array of octets (string) that contains the object. This object has a free-format and need not be interpreted in any way by the application layer. The Range Field is always a 1-octet value (Count) which specifies the number of objects. Following the Range Field are Count object size field/object pairs. The object size field that prefixes each object determines the size of the object (in octets). The size of the object size field is determined by the Index Size code. To simplify processing, only Index Size code 5 is permitted, specifying the size of the object size field to be 16-bits. Reserved Qualifier Codes (Qualifier Codes 10, 1215) Qualifier Codes 10 and 1215 are reserved and should not be used.

3-27

May 31, 1999

9905-001 DNP User Group

This page intentionally blank

3-28

May 31, 1999

9905-001 DNP User Group

DNP Technical Bulletin 9912-002 Unsolicited Event Reporting: Retry Configuration


Note: This Bulletin identifies a protocol revision approved by the DNP Technical Committee on December 8, 1999, subject to ratification by the DNP Users Group.

Issue: Although DNP provides a method for reporting events through unsolicited reporting by exception (URBE), successful system deployment requires tuning of the reporting parameters on a system-by-system basis. This is due to variations in the performance of communication systems that cannot be universally predicted during design of a reporting device. For this reason, the Subset Level 2 Certification Procedure requires that a configurable timeout be included in devices supporting URBE. Due to the variations in communication system reliability, varying numbers of retries may be necessary before the URBE is successfully confirmed. In addition, experience has shown that in systems dictating a very low frequency of integrity polls, it can take an excessive amount of time to resume normal operation after a communication interruption. Thus, it is essential to also be able to configure the retry count such that retries continue on an indefinite basis until communication of the exception report is successful. Resolution: This Bulletin further extends the requirements for configuration of URBE in slave devices. Devices must support the ability of the end user or system integrator to choose the maximum number of URBE retry attempts during configuration. One of the choices must provide for an indefinite (and potentially infinite) number of retries. Affected Documentation:
Level 1 and 2 Subset Definitions and Certification Procedures Modifications to Certification Procedure

Insert additional Procedure:

December 8, 1999

1 of 2

9912-002.doc

(Section # TBD) Retries unsolicited responses configurable number of times 1. Configure DUT for a predefined number of retries. 2. Issue a request to enable unsolicited responses for all classes of data by using function code 0x14 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. 3. Verify that the DUT responds with a null response indicating the request was processed without error. 4. Disconnect the communication cable so that confirmations cannot be received in the slave. 5. Generate class 1, 2, or 3 event data. 6. Verify that an unsolicited response is transmitted. This may involve waiting for an amount of time, dictated by the DUT and specified by the DUTs Device Profile Document, within which the DUT may wait for a minimum number of events to be collected before transmission of an unsolicited message. 7. Verify that the unsolicited response requests an application layer confirmation. 8. Verify that DUT retries reporting until number of retries exceeds predefined number set in (1) above. 9. Repeat procedure, reconnecting communication cable after at least one retry. Verify that retries are terminated when confirmation is received. 10. Repeat procedure with indefinite retry count configured in DUT. 11. Verify that retries continue for an extended period of time.

December 8, 1999

2 of 2

9912-002.doc

DNP Technical Bulletin 9912-003 Broadcast Message Confirmation and Address Reservation
Note: This Bulletin identifies a protocol revision approved by the DNP Technical Committee on December 8, 1999, subject to ratification by the DNP Users Group.
Issue: Broadcast messages serve diverse needs for application functionality as well as for communication bandwidth optimization. However, these diverse requirements dictate different processing in response to the broadcast request. For example, in systems requiring simultaneous freezing of accumulated values (meter reading, load monitoring, etc.), writing the accumulator freeze application request to the broadcast address allows this function to be performed in parallel to multiple devices over communications. Because the delivery of messages to the broadcast address is not guaranteed, in this application it is essential for the master to reliably interrogate the IIN1-0 bit (All Stations Message Received) to know which slaves received the freeze request. The only way to do this is for the slave to inhibit clearing of IIN1-0 until it knows that the master has received the message. This is accomplished in DNP by having the slaves next response include a confirmation request, and to suppress clearing of the IIN bit until the confirmation has been received. In contrast to the first example, consider the case where the message being broadcast is Disable Unsolicited Messages being sent to reduce communication traffic caused by a major system event. It may not be desirable to generate the additional communication traffic for subsequent requests particularly when the receipt of the original broadcast message was intended to reduce bandwidth usage. Both of the applications above may coexist in a single network. Thus it is desired that the confirmation of the receipt of the broadcast message be dynamically controlled by the master depending upon its requirements. The DNP specification does not explicitly require or preclude the use of application layer confirmations to confirm receipt of broadcast messages. Thus there is a need to further refine the specification to enhance interoperability. Resolution: Additional broadcast addresses will be assigned for the purpose of signaling the slave to request or suppress confirmation of receipt of the broadcast message. The
December 8, 1999 1 of 3 9912-003.doc

following device addresses are now reserved (Note: All addresses are in hexadecimal): FFFF Presently assigned broadcast address. When a message is received on this address, the slave must set IIN1-0 in the next message it transmits to the master that sent the broadcast message. The use of this address signifies that the slave implementation may determine whether or not to request confirmation of messages sent with IIN1-0 set (that would not otherwise require confirmation), and whether or not to require the receipt of that confirmation before clearing IIN1-0 in subsequent messages. This provides compatibility with existing implementations, and will provide the same behavior as either one or other of the addresses FFFD and FFFE. FFFE Messages sent to this address require that the IIN1-0 bit must be returned with the application layer request for confirmation bit (Application Control, bit 5) set. IIN1-0 may not be cleared in the slave until the confirmation is received. Note: If unsolicited event reporting is enabled, since IIN1-0 may be reported in conjunction with an unsolicited event report, this response (which requires confirmation) will serve as the notification that the All Stations message was received. FFFD Messages sent to this address request the IIN1-0 bit to be returned with the application layer request for confirmation bit (Application Control, bit 5) suppressed. IIN1-0 will be cleared in the slave upon transmitting the first response from the slave. Note: IIN1-0 may be reported in conjunction with responses to requests that otherwise require confirmation, or with an unsolicited event report, and since these requests/responses otherwise require confirmation, the confirmation will not be suppressed even though the message is sent with IIN1-0 set. Thus the use of the FFFD broadcast address implies that confirmation requests in responses sent with the IIN10 set should be suppressed, but that the confirmation may be requested if required by the details of the response being issued. FFF0C These addresses are now reserved for future use. Affected Documentation: Basic Four Document Set, Level 1 and Level 2 Certification Procedures Changes to the Subset Level 1 and 2 Certification Procedures Insert additional Procedure:

(Section # TBD) Broadcast Address Specifying Confirmed Response Options


1. Cycle the power to the DUT. 2. Issue a request for Object 60 Variation 2.
December 8, 1999 2 of 3 9912-003.doc

3. Verify that the device responds with IIN1-7 set indicating the device has been restarted. 4. Issue a Write to Object 80 Variation 1 using the qualifier 0x00. Use a start index of 7 and a stop index of 7, followed by the value 0. Specify broadcast address FFFE. Request a data link layer confirmation. 5. Wait a reasonable application layer timeout, for example, 2 seconds. 6. Verify that the device does not respond, with either a data link layer confirmation or a response to the Write operation. 7. Issue a request for Object 60 Variation 2. 8. Verify the DUT responds with a Null Response with IIN1-7 (restart) cleared and IIN1-0 (all stations message received) set, and an application layer confirmation requested. 9. Before sending the requested confirmation, repeat the request for Object 60 Variation 2, and verify that IIN1-0 is still set in the response. 10. Send the application layer confirmation. 11. Issue a request for Object 60 Variation 2. 12. Verify the DUT responds with a Null Response with both IIN1-7 and IIN1-1 cleared. 13. Repeat steps 1-12 using address FFFD as the broadcast address. In step 8, verify that an application layer confirmation is NOT requested. In step 9, verify that IIN1-0 is not set in the response. Note: Step 10 will not be necessary.

December 8, 1999

3 of 3

9912-003.doc

DNP V3.00 Technical Bulletin 9804-001 Rules for Synchronizing Application Sequence Numbers
Issue:
The DNP V3.00 Application Layer specification discusses how to use and increment application layer sequence numbers to detect duplicate messages. However, it does not specify how these sequence numbers should be initialized or synchronized between two devices. Because of this, it is possible for a device to erroneously believe it has received a duplicate message if it or its peer device has recently restarted. Furthermore, the specification does not discuss how a device receiving a broadcast message should interpret the sequence number. This is a problem because each device on a broadcast link may be expecting a different sequence number.

Resolution:
1. The receiver (master or slave) of a broadcast message does not check the sequence number. Multi-fragment broadcast messages are not permitted. 2. The receiver (master or slave) of a non-broadcast fragment always checks the sequence number against that of the previous fragment received, except as noted in (5) and (6) below. 3. If the sequence number matches the previous fragment, the receiver compares the incoming fragment and the previous fragment byte-by-byte. This comparison was not specified in the original DNP Application Layer description. 4. If both messages match byte-for-byte, then the receiver responds with the same data it sent as its previous response but does not perform any further action. 5. If a Master is receiving an unsolicited response and the RESTART IIN bit is set, the master accepts and executes the message regardless of sequence number, then clears the devices RESTART IIN. (This need not be a special case, since the RESTART bit will necessarily make the unsolicited response at least one bit different that the previous one.) It continues checking sequence numbers thereafter. 6. A device that has just restarted always accepts and executes the first message it receives, regardless of sequence number. It begins checking sequence numbers thereafter. 7. A Master must never perform application layer retries of output operations, i.e. never send two output messages with the same sequence number for SELECT, OPERATE, or DIRECT OPERATE function codes.

Affected Documentation:
DNP V3.00 Application Layer Chapter 3: Definition of DNP Message Fields Section 3.2: Communication Flow Control Section 3.3: Master Request & Unsolicited Response Collisions

April 22, 1998

1 of 1

9804-001.doc

DNP Technical Committee

Technical Bulletin 9804-002


DNP Confirmation and Retry Guidelines

DNP V3.00 Technical Bulletin 9804-002 DNP Confirmation and Retry Guidelines 1. Introduction

There has been significant confusion about the usage of Link layer confirmations vs. Application layer confirmations and when neither, one or both should be used. The general users group membership has requested that the Technical Committee provide a guideline on this subject. It is the purpose of this document to review what we are trying to accomplish by the confirmation mechanisms and present a general guideline for how to use these services effectively. This guideline supersedes the recommendations presented in the Subset Definitions Revision 2.00 Dated November 1995.

2.
2.1

Background
Why are confirmations necessary

Certain operations a SCADA (Supervisory Control and Data Acquisition) Remote Electronic Device must perform require a mechanism to verify that the recipient of a transmission received that transmission correctly. A classic example is the processing of Status (or Binary Data) changes that have been queued in the remote device. This data is sometimes referred to as Sequence of Events (SOE) data. The remote station must insure that the data transmitted to the host remains in order so that a recreation of the real world scenario of status changes can be accomplished by the end user. It must also guarantee that no data is lost in the transmission process. In the above example a remote device may have 100 binary changes queued to report to its host. The host may, however, request that only 20 changes be returned in the current request. The remote device must have a mechanism for determining when and if the host received the 20 changes so that it can 1. Remove those changes from its change queue 2. Know what to return in the next request

2.2

What are Application Layer Fragments

Each DNP message can consist of one or more application layer fragments. Each fragment contains a whole number of DNP objects, qualifiers, and point indices and is Parsable without any additional assembling of partial messages (otherwise referred to as fragments or packets). In other words, a DNP application layer is a Understandable and Fully Digestible piece of SCADA information.

2.3

What are Application Layer confirmations

A remote device can request that the receiving station (host) send an application layer message in response to its transmission indicating that it received and understood the fragment. Furthermore, the host only responds to the confirmation request if it can process the message (e.g. it has room in its database for the information).

April 22, 1998

1 of 6

9804-002.doc

DNP Technical Committee

Technical Bulletin 9804-002


DNP Confirmation and Retry Guidelines

2.4

How the Application Layer Confirmation mechanism works

When a remote station transmits vital information (usually event data) that must not be lost and can not be reproduced (e.g. static data is easily reproduced so it is usually not confirmed) It requests that the host station send a confirmation message. This confirmation message indicates that the message was received, understood, and processed (or will be processed) by the host. The remote device has therefore transferred responsibility for transmission of this data to any subsequent destinations to the host. It can confidently delete these items from its change buffers.

2.5

What are Link Layer Frames

Each application layer fragment is made up of one or more link layer frames. For small messages there will be one link layer frame for each application fragment. For large messages there will be several link layer frames for each application layer fragment. Link frames are not necessarily parsable by themselves. For example, it may take 5 link layer frames combined together to form a large DNP object that can be parsed by the application Layer.

2.6

What are Link Layer confirmations

When a remote device transmits a link layer frame it can request a link layer confirmation from the host station. When requested, the host station will transmit a link layer confirm frame to the remote station indicating that it received that frame and that it was properly formatted.

2.7

How the Link Layer Confirmation mechanism works

In theory a remote station can guarantee delivery of each frame sent to the host station by requesting a link layer confirmation for each frame. If it receives a confirmation for each and every frame in a transmission it can be assured that the host accepted the formatting of the frames and that they arrived without any CRC errors. It cannot, however, determine whether the frames were assembled correctly, or whether the host understood the objects contained within the assembled application fragment. Only the application layer confirmation can guarantee this.

2.8

Retransmissions

When the remote device requests either an application layer or a link layer confirmation it waits a specified period of time before proceeding on to its next task. If the confirmation is not received within this period of time the request is deemed to have timed out and the remote device can either give up for this transmission or try again, retransmitting the exact same message again. The number of times a device will try again is set to a relatively low number (usually 3). Retransmissions can cause synchronization errors in the dialog between the remote device and the host if one party retransmits and the other was not expecting it. In particular, this can cause collisions in a Frequently Polled environment. Retries can be used in some cases, but require careful consideration In half-duplex systems, it is possible to configure polling intervals and timeouts large enough to allow for all possible retries from a device. However this practice sometimes makes polling intervals larger than desired. The use of collision avoidance in the data link and/or physical layers makes retries possible. Retries are recommended in the case of unsolicited responses, since collision avoidance is required as a matter of course. If retries were not employed the master will not be expecting the unsolicited

April 22, 1998

2 of 6

9804-002.doc

DNP Technical Committee

Technical Bulletin 9804-002


DNP Confirmation and Retry Guidelines

data and therefore will not know that it is missing. It should also be noted that the successful application of retries using collision avoidance techniques depends on several factors. Among the most important factors include the robustness of the collision avoidance mechanism employed and the load on the communications channel. If the mechanism is unable to avoid a collision, retries may aggravate the situation and further reduce effective bandwidth of the communications channel. As with any communications system, careful attention must be paid to bandwidth allocation and management for a successful system design. In particular, overloading communications circuits will have undesirable effects on system performance. In a frequently polled configuration overloaded circuits will elongate polling cycles (e.g. scans per second). In an unsolicited response configuration overloaded circuits will render response times non-deterministic during periods of peak activity.

3.

Summary
It is recommended that Application layer confirmation be used for binary event data and data link confirmations be disabled for all data for the following reasons. 1) For most messages Link Layer confirmations are redundant. 2) Link layer confirmations do not insure that the host understands the data sent therefore a) Application confirms are required for event data anyway. 1) It only costs 5 bytes of additional overhead to use a more robust confirmation mechanism. 2) There is less ambiguity associated with the sequencing of fragments. It is recommended that Application Fragment size be reduced as necessary in extremely noisy environments which will provide similar performance to link layer confirms. This parameter should be selectable. NOTE: Due to the requirement that each application fragment be independently parsable, DNP developers should consider that the application layer fragment cannot be reduced to smaller than the largest object to be transferred, plus headers and overhead. It is recommended that retries be disabled in frequently polled environments. Retries are recommended in unsolicited response configurations, but careful consideration must be given to communications circuit loading. These recommendations do not eliminate the requirement for devices to respond correctly to frames requiring data link confirmation. Devices must respond with CONFIRM - ACK or CONFIRM NACK frames (as specified in the protocol documentation) to any SEND/CONFIRM frames they receive.

4.
4.1

Discussion
Why Application Layer Confirms are preferred

4.1.1 Link Layer Confirms are Redundant


For most remote station responses that amount of data returned will fit in one link layer frame. This results in there being one link layer frame for each application layer message. Since we can not determine from a link layer confirmation whether the host understood our message we need to request an application layer confirmation for critical data anyway. This makes the link layer confirmation redundant.

April 22, 1998

3 of 6

9804-002.doc

DNP Technical Committee

Technical Bulletin 9804-002


DNP Confirmation and Retry Guidelines

It should be noted that almost every Level 1 device (IEDs) returns its entire static data set in one application fragment using only one link layer frame. In fact, at 9600 baud a full link layer message takes approximately 1/3 of a second to transmit. In a typical Multi-dropped environment where the host will poll each device for data in a round robin fashion, IEDs returning one full link frame per response would limit the channel to 6 IEDs per port to maintain the typical 2 second update requirement of most SCADA systems. This estimate does not include the time required by the host to transmit the request or the latency in the turn around time of the remote device or the key-on time of the communications circuit. In the Real World a 2 second update can be guaranteed for 3-4 IEDs that return full link layer frames assuming normal latencies. If you add a link layer confirm to every packet you add at least 10 mS to each exchange between the host and the remote device, not including device latency or communications latency. Devices capable of report-by-exception greatly alleviate this problem by transmitting only the data that has changed since the last request. In the steady state most responses indicate nothing has changed since the last poll and consume only 17 mS per response. A host can manage (or limit) how much event data the remote device returns by specifying a maximum number of events to return in the request, thereby guaranteeing worst case turn around time.

4.1.3 Assures understanding not just reception


Application layer confirmations guarantee that the data transmitted by the remote was assembled and understood. Link layer confirmations guarantee that the frame arrived with no bit errors. For critical data, arrival without bit error is not sufficient cause to delete the information from the remotes change buffers. Confirmation of proper assembly and understanding of the message are required before a remote can transfer responsibility of data deliver to the host. Application layer confirmations alone can provide this information.

4.1.4 Marginal performance penalty


A link layer confirmation requires 10 bytes to transmit. An application layer confirmation requires 17 bytes to transmit. That is approximately 7 mS at 9600 Baud. It can argued that the latency of device (time required to begin transmitting) is less for link layer confirms than for application layer confirms. While this is highly implementation specific and may in some cases be true, the actual latency is often dwarfed by the turn on time of the transmitter (e.g. radio). In any case, we have shown previously, that for critical data a link layer confirmation is redundant because an application layer confirmation is required anyway.

4.1.5 Application sequencing is more robust


Link layer frames are much more susceptible to synchronization errors that are Application layer fragments. Link layer services provide a single bit that toggles for detecting packet ordering. Application layer services provide an incrementing sequence number for detecting packet ordering. Sequence numbers are significantly more robust, and less susceptible to synchronization errors.

4.2

Noisy Environments

4.2.1 Smaller packet sizes at higher bit error rates


In high bit error rate (noisy) environments, the probability of an error being introduced into a transmitted packet increases with the length of the packet. Therefore, the smaller the packet the lower the probability there will be an error in that packet. When large application layer messages are made up of several link frames it was intended that each link frame be confirmed individually to minimize the risk of having to resend the entire application layer fragment because one link layer frame was corrupted. Since the

April 22, 1998

4 of 6

9804-002.doc

DNP Technical Committee

Technical Bulletin 9804-002


DNP Confirmation and Retry Guidelines

performance penalty for application layer confirms is not significant the same thing can be accomplished by reducing the application layer fragment size. This has the added benefit of intelligently requesting confirms as well.

4.2.2 Only Application layer fragment size sets reliability


Typically link layer frame size is not selectable while application layer fragment size is. Since the link layer frame size is fixed, the probability of error cannot be reduced below Plinkerror where: Plinkerror = (1 Pnbitscorrect) Plinkerror = (1 (Ponebitcorrect )n ) Plinkerror = (1 - (1 - BER)n ) BER = Bit Error Rate n = 296 Reducing application layer fragments sizewill correspondingly reduce the transmitted link layer frame size (e.g. reducing n) and realize a reduction of error probability beyond that provided by link services (e.g. Perror = (1 - (1 - BER)n )). It should be noted that by reducing application size below link layer size: the probability that any one piece of data will make it successfully in high noise environments is increased. the number of turn arounds necessary for large amounts of critical (event) data is increased. a practical minimum is no smaller than the largest application object that must be transmitted plus overhead.

And

4.3

Retries and Polling

4.3.1 Stepping on your neighbors toes


Application or Link layer retries are not recommended for use in frequently polling environments. If a remote device requests a confirmation from the host and it does not receive it, the remote device should wait for the next request to send the information again. If the remote device were to retry it is highly likely that the host has moved on the next remote device in the polling loop. According to Murphy, that device will be transmitting its response to the host request when the first device retries and causes a collision. Even in cases when there is only one device on a line, the device may retry while the host is sending the next request and cause a collision.

4.3.2 No real benefit


In a polling environment each request can be viewed as an invitation for the remote device to place data on the share communications circuit. The host acts to manage the bandwidth on the link so the collisions DO NOT occur, and that the response is predictable under all situations. If any on response is lost, the host will ask again allowing the remote device to re-send its data. This is effectively a managed retry anyway, but has eliminated the possibility of collisions.

4.4

Retries and Unsolicited Responses

In a system using unsolicited responses, the physical layers and data link layers of the devices together manage the bandwidth on the link and avoid collisions. Retries are therefore not a liability in this situation,

April 22, 1998

5 of 6

9804-002.doc

DNP Technical Committee

Technical Bulletin 9804-002


DNP Confirmation and Retry Guidelines

because (e.g.collisions) rarely occur. In fact, retries are a requirement when unsolicited responses are used. Unsolicited data is by definition not expected by the master, and therefore it does not know to request the data it is missing. The burden is therefore on the remote device to ensure it gets through.

4.5

Unconfirmed User Data Only

Since we are not recommending the use of link layer confirmations, the Frame Control Bit (FCB) and its associated logic and problems become unnecessary. If you plan never to request a link layer confirm then there is not need to reset the link, or incorporate the added complexity in the device implementation. Note however, that all devices must nevertheless respond to RESET LINK and confirmed user data frames with the appropriate ACK or NACK frames. This is required for interoperability.

5.

Conclusion.

It is the recommendation of the technical committee that link layer confirmation services not be used, but that unconfirmed user data services be used at the link layer, and that application layer confirmation services be used exclusively. It is further recommended that in high bit error rate environments (noisy) that the application fragment size be reduced accordingly. Finally, Application layer or link layer retries should never be used by a slave device in a frequently polled environment but are acceptable in a unsolicited response environment assuming adequate collision recovery techniques are used. Note: Despite the above recommendations certain devices may not be able to receive unconfirmed data link frames back to back. If a device is capable of generating multiple link layer frames in a single response it is recommended that it also be able to enable, via configuration, data link confirm requests for flow control.

April 22, 1998

6 of 6

9804-002.doc

DNP V3.00 Technical Bulletin 9804-003 Recommended Layer Terminology


Issue: Some Users Group members have had difficulty discussing protocol issues because the DNP documentation does not distinguish well between the sections of DNP messages defined at the Data Link Layer, Transport Function, and Application Layer. Resolution: This bulletin formally distiguishes between an Application Layer fragment, a Transport Function segment, and a Data Link Layer frame, and clarifies how these terms relate to the Open Systems Interconnect (OSI) terminology used in much of the Basic 4 documentation. OSI terminology refers to a Service Data Unit (SDU) and a Protocol Data Unit (PDU). The SDU is the data presented to the service (upper) interface of a protocol layer by the layer above. The PDU is the data actually formatted by the layer and passed to the layer below. In the DNP 3-layer model, PDU or SDU may be preceded by Application, Transport or Link. Therefore, an APDU is the data transferred from the application layer to the transport function, and may also be called a TSDU. The following table defines fragment, segment, and frame and their corresponding OSI terms. Function Application Layer Common DNP Name Fragment Consists of... Application Header, Object Headers, Object Data OSI Term APDU, TSDU Function and Use A response to a request may consist of multiple fragments. Each fragment must be separately parseable. Fragmentation at the application layer permits the setting of an upper limit on the parsing buffer required by the receiving side. The recommended maximum fragment size is 2K, per the DNP V3.00 Subset Definitions. Segmentation breaks up a fragment into pieces that will fit in a Data Link Layer frame. A segment need not be parseable. Each segment contains a Transport Header, but only the first segment of any fragment contains an application header. A segment consists of up to 250 octets, 249 of which are application layer data. The data link layer uses a small frame size relative to the application data to ensure excellent error detection and recovery. A frame may be up to 292 octets including all headers and CRCs.

Transport Function

Segment

Transport Header + part of an APDU

TPDU, LSDU

Data Link Layer

Frame

Data Link Header + CRCs + complete TPDU

LPDU

Affected Documentation:

DNP V3.00 Transport Functions Chapter 2

April 22, 1998

1 of 1

9804-003.doc

DNP V3.00 Technical Bulletin 9804-004 Virtual Terminal Objects 112 and 113
Issue
DNP 3.0 does not define a protocol suitable for arbitrary, unstructured data flow between Master and Slave sides of a link. Many IEDs (Intelligent Electronic Devices) have a separate serial interface used for configuration and diagnostic purposes and directly interfaces with either dumb terminals or portable computers. The intent of this Virtual Terminal (VT) Protocol is to allow data transfers which previously required a separate physical connection to a non-DNP port to proceed over the existing DNP port. Support for VT is optional at the discretion of the IED vendor.

Resolution
The VT protocol is defined to be the emulation of one or more independent communication links between the Master and Slave devices which can exchange data. Each Slave communication channel is assigned a Virtual Port number. These communication links transport proprietary protocols and are typically used during initial testing and commissioning of a complete system. The VT proposal is modeled after the TELNET portion of the Internet Protocol Suite. This Technical Bulletin defines the VT protocol which can be used with DNP 3.0 devices. Two new DNP objects are defined, along with the procedures for accessing these objects. Both polled and report-by-exception (RBE) environments are supported. A number of observations are made regarding this protocol along with recommendations to vendors and integrators concerning tradeoffs. Finally, rules are defined for VT devices. Two new objects are defined. Object 112 is named the Virtual Terminal Output Block which is a static object structured identically to object 110 (Octet String Object). This object is used only with the Function code WRITE (FC=2) to send data from the Master side to the Slave side of the link. Object 113 is named the Virtual Terminal Event Data which is an event structured identically to object 111 (Octet String Event Object). This object is used to send data from the Slave side to the Master side of the link. Master devices may use only Function codes READ (FC=1) or ENABLE UNSOLICITED MESSAGE (FC=20) or DISABLE UNSOLICIED MESSAGES (FC=21) or ASSIGN CLASS (FC=22) with this object whereas Slave use only Function codes RESPONSE (FC=129) or UNSOLICITED MESSAGE (FC=130). These objects obey the usual DNP rules for static and event objects except that object 112 is NEVER returned in a Class 0 poll. In particular, object 113 can be assigned to Classes 1-3, optionally support the assign class function code, and optionally be sent in an unsolicited response. The procedure for accessing these objects is as follows. Master devices transmit data to slave devices by WRITEing one or more of object 112 to a Slave using the Virtual Port number as the DNP point number. Slaves send information to the Master using the Virtual Port number either by responding to a Master READ (FC=1) request of object 113 or using an Unsolicited Response message (FC=130). Messages can flow in either direction at any time. There are no explicit procedures for the initiation or conclusion of a VT session (i.e. implicit connections exist by the mere presence of a VT compatible Slave IED).

April 22, 1998

1 of 3

9804-004.doc

In the following (hypothetical) example of a VT session, xx/yy is the object number and variation and all message use point 0: 1. Master: 2. Slave: 3. Master: 4. Slave: Master) 5. Master: 6. Slave: 7. Master: 8. Master: 9. Master: 10.Slave: Write 112/1, data=13 decimal= <CR> (our wakeup command) respond only IIN (FC=129, two IIN bytes) Read 113/0 respond with IIN only (Slave has no data to send to Read 113/0 respond with Write 112/6, Write 112/7, Read 113/0 respond with 113/3, data= "OK"<CR> data= "CLEAR"<CR> (clear slave command) data= "LOGOFF"<CR> (end the IED session) 113/7, data = "OK"<CR>"BYE"<CR>

(at this point, the Master somehow knows that the Slave will not send additional messages and therefore it can cease polling the Slave VT port 0) The above example illustrates a few important points: Line 4 shows how Slaves respond when no data is available for transmission to the Master Line 7 and 8 show how a Master could send any number of messages without polling for responses Line 10 shows that Slaves MAY accumulate responses (they could also respond with two separate Messages). Not shown is that Masters could poll for Slave responses without sending data. Responsibility for VT maintenance is split between the Master and Slave. The Master is responsible for maintaining an environment that allows Slaves responses to be sent in a timely manner. In a polled system, the Master must periodically poll for Slave responses whenever a response is possible. In an unsolicited response environment, the Master must ensure that the background data traffic is at a low enough level to ensure that Slave responses can be sent without impacting more important event data. Slaves are responsible for generation of VT messages either in response data sent by the Master or spontaneously.

Observations
The VT definition allows users to interactively log onto an IED without requiring another serial communication channel beyond the required DNP port. No structure has been defined for the data passing in either direction. There are two implications of this: any octet oriented protocol (including both binary and ASCII) can be sent over VT there is no pre-defined "end-of-transmission" indicator. The lack of an "end-of-transmission" indicator implies that Masters must continuously poll every possible Slave VT port unless responses will never be generated. Three conditions allow Master to cease polling: Slave device is not VT capable the system is pre-configured for only unsolicited responses (somehow) the Master knows that responses cannot be sent from a VT-capable Slave Since DNP requires point numbers to begin at zero, every VT-capable Slave must support Virtual Port 0 VT traffic will use some DNP bandwidth. There is an implicit assumption made that excess DNP bandwidth is to be traded for access to other communication channels within the IED.

April 22, 1998

2 of 3

9804-004.doc

If there is no excess bandwidth, using VT to support high-priority IED communications is pointless.

Recommendations
Masters should have some method to attempt retries of data transfer. If a human issues commands, then this may be as simple as asking the human to repeat the command. Masters should have some means to determine the "end-of-transmission". Again, if a human issues commands, this could be as simple as forcing the user to "disconnect" from the IED when finished. If a Slave device has multiple communication ports with different capabilities, Virtual Ports should also be provided. This allows a one-to-one mapping of physical ports to virtual ports. Note that additional virtual ports could provide flexibility which does not exist at the physical connection level. IEDs with large amounts of data transportable over VT should make provisions for limiting the usage of the DNP link by VT. Possibilities include the ability to disable unsolicited reporting and allowing configuration of object 113 to Class 1 or Class 2 or Class 3 polls. Limiting the length of the message strings both ensures maximum compatibility with memory-limited devices and allows other higher priority messages to be interspersed with VT messages. Note that a single data link fame accommodates up to a 240 octets VT message.

Rules
Object 112 is used only with the WRITE function code from the Master. Reads are not allowed. The point number(s) to be used for VT must appear in the Device Profile Document. Slaves which support VT must support the Response function code (FC=129). They may optionally support Unsolicited Response and Assign Class functions.

Affected Documents
DNP 3.0 Data Object Library Chapter 14: New chapter name to be determined.

April 22, 1998

3 of 3

9804-004.doc

DNP Technical Bulletin 9804-005 8-Bit Unsigned Integer Object 102


Issue:
Some devices require the capability to read and write single-byte values, for which the existing analog input and output values are insufficient.

Resolution:
A new object, Object 102, is defined as an 8-bit Unsigned Integer Object Reading and Writing of 8 bit memory locations could be implemented using this object together with absolute addressing qualifiers. Please refer to the following Object Definition for Details.

Affected Documentation:
DNP V3.00 Object Library Chapter 13: Alternate Numeric Object Definitions

April 22, 1998

1 of 2

9804-005.doc

8-Bit Unsigned Integer Object


Data Object 102 Variation 1 Description: The 8-Bit Unsigned Integer Object represents a value from 0 to 255. This object is not included in Class 0 poll response. For this object only read, write and response function codes are permitted. Object Coding: Current Value [0] 7 0 Type: Static

UI1 = SQ1 { Current Value = UI [0..7] <0..255>}

April 22, 1998

2 of 2

9804-005.doc

DNP Technical Bulletin 9804-006 Analog Object Floating Point Variations


Issue:
The DNP Users Group required a definition for a standard implementation of Floating Point Objects and Floating Point Event Objects. These are required for representation of analog quantities in floating point format.

Resolution:
Floating Point Object reporting is defined as follows: The existing object group 100 is not designated Static. To read a group 100 value, it is necessary to specifically request that group. It is recommended that existing group 100 objects not be used in the future. Short and Long Floating point variations have been added to object groups 30, 31, 32, 33, 40 and 41. Note that this includes floating point outputs as well as static, frozen and event floating point inputs. Events can be reported with or without timestamps. Attached Object Definitions specify details. These variations shall not be part of any current subset definition. If a device supports these floating point variations, it must provide a configuration mechanism that will force these points to be reported as integers when polled for Class Data or variation zero (0). It is appropriate for the device to set the over-range flag if necessary due to conversion problems. When not configured to force reporting as integer, a remote device may default to responding to a request for Class Data or variation zero (0) by reporting some data as integer and some data as floating point. The extended format used in Object 100 Variation 3 has not included. The floating point variations of objects 30, 31, 32, 33, 40 and 41 do not include the Units field used in Object 100. An alternate mechanism for providing this information may be provided in the future.

Note:

Affected Documentation:
DNP V3.00 Data Object Library Chapter 6 Analog Input Object Definitions Chapter 7 Analog Output Object Definitions Chapter 13 Alternate Numeric Object Definitions

April 22, 1998

1 of 199

9804-006.doc

SHORT FLOATING POINT ANALOG INPUT


Data Object 30 - Variation: 05 Description: The Short Floating Point Analog Input information object represents a hardware or software analog point. The format of this object complies with the IEEE-754 standard for floating-point number representation. The value field holds the current floating point value of the analog input at the time of reporting or the last reported value from the originating device, and follows the format for a short real as specified by the IEEE-754 standard. The flag field holds information about the point and has the same meaning as previous objects with the following additions: The over-range field indicates that the analog signal is out of range for the A to D converter to process. The reference check field indicates that the reference signal used to digitize the analog input is not stable and the resulting digitized value may not be correct. Object Coding: Flag 7 0 Value S Exponent 0 7 0
*S = Sign

Type: Static

Mantissa 22 0

SQ2 { Flag Value

= =

BS8 [0..7] R32 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..7] <0..255> Mantissa = UI23 [0..22] <0..223-1> }

April 22, 1998

2 of 199

9804-006.doc

Narrative: The absolute value can be derived from the value field as follows: Absolute_Value where: and Sign: Exponent: Mantissa: si Exp = = = 1.s22 s21 s20 s19 s18 .. s0 x 2 (Exp -127) Mantissa[0..22] Exponent[0..7]

0 if number is positive, and 1 if the number is negative. Power of 2 applied to (1.Mantissa). Binary digits in value following the binary point.

April 22, 1998

3 of 199

9804-006.doc

LONG FLOATING POINT ANALOG INPUT


Data Object 30 - Variation: 06 Description: The Long Floating Point Analog Input information object represents a hardware or software analog point. The format of this object complies with the IEEE-754 standard for floating-point number representation. The value field holds the current floating point value of the analog input at the time of reporting or the last reported value from the originating device, and follows the format for a long real as specified by the IEEE-754 standard. The flag field has the same meaning as the flag field of Object 30 Variation 5. Object Coding: Flag 7 0 Value S Exponent 0 10 0
*S = Sign

Type: Static

Mantissa 51 0

SQ2 { Flag Value

= =

BS8 [0..7] R64 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..10] <0..2047> Mantissa = UI23 [0..51] <0..252-1> }

April 22, 1998

4 of 199

9804-006.doc

Narrative: The absolute value can be derived from the value field as follows: Absolute_Value where: Sign: Exponent: Mantissa: si Exp = = = 1.s51 s50 s49 s48 s47 .. s0 x 2 (Exp -1023) Mantissa[0..51] and Exponent[0..10]

0 if number is positive, and 1 if the number is negative. Power of 2 applied to (1.Mantissa). Binary digits in value following the binary point.

April 22, 1998

5 of 199

9804-006.doc

SHORT FLOATING POINT FROZEN ANALOG INPUT


Data Object 31 - Variation: 07 Description: The Short Floating Point Frozen Analog Input information object represents a frozen hardware or software analog point. The format of this object complies with the IEEE-754 standard for floating-point number representation. The frozen value field holds the floating point value of the analog input at the time of the last Freeze command was completed on this point, and follows the format for a short real as specified by the IEEE-754 standard. This field is as described for the value field of Object 30 Variation 5. The flag field has the same meaning as the flag field of Object 30 Variation 5. Object Coding: Flag 7 0 Frozen Value Mantissa 22 Type: Frozen Static

S Exponent 0 7 0
*S = Sign

SQ2 { Flag Value

= =

BS8 [0..7] R32 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..7] <0..255> Mantissa = UI23 [0..22] <0..223-1> }

April 22, 1998

6 of 199

9804-006.doc

LONG FLOATING POINT FROZEN ANALOG INPUT


Data Object 31 - Variation: 08 Description: The Long Floating Point Frozen Analog Input information object represents a frozen hardware or software analog point. The format of this object complies with the IEEE-754 standard for floating-point number representation. The frozen value field holds the floating point value of the analog input at the time of the last Freeze command was completed on this point, and follows the format for a long real as specified by the IEEE-754 standard. This field is as described for the value field of Object 30 Variation 6. The flag field has the same meaning as the flag field of Object 30 Variation 5. Object Coding: Flag 7 0 Frozen Value Mantissa 51 Type: Frozen Static

S Exponent 0 10 0
*S = Sign

SQ2 { Flag Value

= =

BS8 [0..7] R64 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..10] <0..2047> Mantissa = UI23 [0..51] <0..252-1> }

April 22, 1998

7 of 199

9804-006.doc

SHORT FLOATING POINT ANALOG CHANGE EVENT


Data Object 32 - Variation: 05 Description: The Short Floating Point Analog Change Event information object represents a changed hardware or software analog point. The format of this object complies with the IEEE-754 standard for floating-point number representation. The value field holds the current floating point value of the analog input at the time of reporting or the last reported value from the originating device, and follows the format for a short real as specified by the IEEE-754 standard. This object is only reported when an event occurs such as a deadband excursion. This field is as described for the value field of Object 30 Variation 5. The flag field has the same meaning as the flag field of Object 30 Variation 5. Object Coding: Flag 7 0 Value S Exponent 0 7 0
*S = Sign

Type: Event

Mantissa 22 0

SQ2 { Flag Value }

= =

BS8 [0..7] R32 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..7] <0..255> Mantissa = UI23 [0..22] <0..223-1>}

April 22, 1998

8 of 199

9804-006.doc

LONG FLOATING POINT ANALOG CHANGE EVENT


Data Object 32 - Variation: 06 Description: The Long Floating Point Analog Change Event information object represents a changed hardware or software analog point. The format of this object complies with the IEEE-754 standard for floating-point number representation. The value field holds the current floating point value of the analog input at the time of reporting or the last reported value from the originating device, and follows the format for a long real as specified by the IEEE-754 standard. This object is only reported when an event occurs such as a deadband excursion. This field is as described for the value field of Object 30 Variation 6. The flag field has the same meaning as the flag field of Object 30 Variation 5. Object Coding: Flag 7 0 Value S Exponent 0 10 0
*S = Sign

Type: Event

Mantissa 51 0

SQ2 { Flag Value }

= =

BS8 [0..7] R64 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..10] <0..2047> Mantissa = UI23 [0..51] <0..252-1>}

April 22, 1998

9 of 199

9804-006.doc

SHORT FLOATING POINT ANALOG CHANGE EVENT WITH TIME


Data Object 32 - Variation: 07 Description: The Short Floating Point Analog Change Event information object represents a changed hardware or software analog point. The format of this object complies with the IEEE-754 standard for floating-point number representation. The value field holds the current floating point value of the analog input at the time of reporting or the last reported value from the originating device, and follows the format for a short real as specified by the IEEE-754 standard. This object is only reported when an event occurs such as a deadband excursion. This field is as described for the value field of Object 30 Variation 5. The time field shows the time at which the processing caused the event. The flag field has the same meaning as the flag field of Object 30 Variation 5. Object Coding: Flag 7 0 Value S Exponent 0 7 0 48
*S = Sign

Type: Event

Mantissa 22 Time 0 0

SQ3 { Flag Value Time }

= = =

BS8 [0..7] R32 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..7] <0..255> Mantissa = UI23 [0..22] <0..223-1>} UI48 [0.47] <0.. 248-1>

April 22, 1998

10 of 199

9804-006.doc

LONG FLOATING POINT ANALOG CHANGE EVENT WITH TIME


Data Object 32 - Variation: 08 Description: The Long Floating Point Analog Change Event information object represents a changed hardware or software analog point. The format of this object complies with the IEEE-754 standard for floating-point number representation. The value field holds the current floating point value of the analog input at the time of reporting or the last reported value from the originating device, and follows the format for a long real as specified by the IEEE-754 standard. This object is only reported when an event occurs such as a deadband excursion. This field is as described for the value field of Object 30 Variation 6. The time field shows the time at which the processing caused the event. The flag field has the same meaning as the flag field of Object 30 Variation 5. Object Coding: Flag 7 0 Value S Exponent 0 10 0 48
*S = Sign

Type: Event

Mantissa 51 Time 0 0

SQ3 { Flag Value Time }

= = =

BS8 [0..7] R64 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..10] <0..2047> Mantissa = UI23 [0..51] <0..252-1>} UI48 [0.47] <0.. 248-1>

April 22, 1998

11 of 199

9804-006.doc

SHORT FLOATING POINT FROZEN ANALOG EVENT


Data Object 33 - Variation: 05 Description: The Short Floating Point Frozen Analog Event information object represents a frozen hardware or software analog point that is reported as an event. The format of this object complies with the IEEE-754 standard for floating-point number representation. The frozen value field holds the floating point value of the analog input at the time of the last Freeze command was completed on this point, and follows the format for a short real as specified by the IEEE-754 standard. This field is as described for the value field of Object 30 Variation 5. The flag field has the same meaning as the flag field of Object 30 Variation 5. Object Coding: Flag 7 0 Frozen Value Mantissa 22 Type: Frozen Event

S Exponent 0 7 0
*S = Sign

SQ2 { Flag Value }

= =

BS8 [0..7] R32 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..7] <0..255> Mantissa = UI23 [0..22] <0..223-1>}

April 22, 1998

12 of 199

9804-006.doc

LONG FLOATING POINT FROZEN ANALOG EVENT


Data Object 33 - Variation: 06 Description: The Long Floating Point Frozen Analog Event information object represents a frozen hardware or software analog point that is reported as an event. The format of this object complies with the IEEE-754 standard for floating-point number representation. The frozen value field holds the floating point value of the analog input at the time of the last Freeze command was completed on this point, and follows the format for a long real as specified by the IEEE-754 standard. This field is as described for the value field of Object 30 Variation 6. The flag field has the same meaning as the flag field of Object 30 Variation 5. Object Coding: Flag 7 0 Frozen Value Mantissa 51 Type: Frozen Event

S Exponent 0 10 0
*S = Sign

SQ2 { Flag Value }

= =

BS8 [0..7] R64 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..10] <0..2047> Mantissa = UI23 [0..51] <0..252-1>}

April 22, 1998

13 of 199

9804-006.doc

SHORT FLOATING POINT FROZEN ANALOG EVENT WITH TIME


Data Object 33 - Variation: 07 Description: The Short Floating Point Frozen Analog Event information object represents a frozen hardware or software analog point that is reported as an event. The format of this object complies with the IEEE-754 standard for floating-point number representation. The frozen value field holds the floating point value of the analog input at the time of the last Freeze command was completed on this point, and follows the format for a short real as specified by the IEEE-754 standard. This field is as described for the value field of Object 30 Variation 5. The time field shows the time at which the processing caused the event. The flag field has the same meaning as the flag field of Object 30 Variation 5. Object Coding: Flag 7 0 Frozen Value Mantissa 22 Time Type: Frozen Event

S Exponent 0 7 0 48
*S = Sign

0 0

SQ3 { Flag Value Time }

= = =

BS8 [0..7] R32 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..7] <0..255> Mantissa = UI23 [0..22] <0..223-1>} UI48 [0.47] <0.. 248-1>

April 22, 1998

14 of 199

9804-006.doc

LONG FLOATING POINT FROZEN ANALOG EVENT WITH TIME


Data Object 33 - Variation: 08 Description: The Long Floating Point Frozen Analog Event information object represents a frozen hardware or software analog point that is reported as an event. The format of this object complies with the IEEE-754 standard for floating-point number representation. The frozen value field holds the floating point value of the analog input at the time of the last Freeze command was completed on this point, and follows the format for a long real as specified by the IEEE-754 standard. This field is as described for the value field of Object 30 Variation 6. The time field shows the time at which the processing caused the event. The flag field has the same meaning as the flag field of Object 30 Variation 5. Object Coding: Flag 7 0 Frozen Value Mantissa 51 Time Type: Frozen Event

S Exponent 0 10 0 48
*S = Sign

0 0

SQ3 { Flag Value Time }

= = =

BS8 [0..7] R64 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..10] <0..2047> Mantissa = UI23 [0..51] <0..252-1>} UI48 [0.47] <0.. 248-1>

April 22, 1998

15 of 199

9804-006.doc

SHORT FLOATING POINT ANALOG OUTPUT STATUS


Data Object 40 - Variation: 03 Description: The Short Floating Point Analog Output Status information object represents the actual value of an analog output or software point and associated status. The format of this object complies with the IEEE-754 standard for floating-point number representation. The value field holds the current floating point value of the analog output, and follows the format for a short real as specified by the IEEE-754 standard. This field is as described for the value field of Object 30 Variation 5. The flag field holds information about the point and has the same meaning as previous objects. Object Coding: Flag 7 0 Value S Exponent 0 7 0
*S = Sign

Type: Static

Mantissa 22 0

SQ2 { Flag Value } Narrative:

= =

BS8 [0..7] R32 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..7] <0..255> Mantissa = UI23 [0..22] <0..223-1>}

This object can be returned after an analog output block operation is performed to determine the success of the operation.

April 22, 1998

16 of 199

9804-006.doc

LONG FLOATING POINT ANALOG OUTPUT STATUS


Data Object 40 - Variation: 04 Description: The Long Floating Point Analog Output Status information object represents the actual value of a hardware or software analog output point. The format of this object complies with the IEEE-754 standard for floating-point number representation. The value field holds the current floating point value of the analog output, and follows the format for a long real as specified by the IEEE-754 standard. This field is as described for the value field of Object 30 Variation 6. The flag field holds information about the point and has the same meaning as previous objects. Object Coding: Flag 7 0 Value S Exponent 0 10 0
*S = Sign

Type: Static

Mantissa 51 0

SQ2 { Flag Value } Narrative:

= =

BS8 [0..7] R64 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..10] <0..2047> Mantissa = UI23 [0..51] <0..252-1>}

This object can be returned after an analog output block operation is performed to determine the success of the operation.

April 22, 1998

17 of 199

9804-006.doc

SHORT FLOATING POINT ANALOG OUTPUT BLOCK


Data Object 41 - Variation: 03 Description: The Short Floating Point Analog Output Block information object represents the desired value of a hardware or software analog output point. The format of this object complies with the IEEE-754 standard for floating-point number representation. The requested value field holds the desired floating point value of the analog output, and follows the format for a short real as specified by the IEEE-754 standard. The actual value is returned in the analog output status object. This field is as described for the value field of Object 30 Variation 5. The control status field indicates the status of the analog control operation in the same way as the control relay output block. The definition of this field is the same as the control relay output block. Object Coding: Requested Value S Exponent Mantissa 0 7 0 22 Control Status 7 0
*S = Sign

Type: Static

SQ2 { Value

Ctrl Stat = }

R32 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..7] <0..255> Mantissa = UI23 [0..22] <0..223-1>} BS8 [0..7]

April 22, 1998

18 of 199

9804-006.doc

LONG FLOATING POINT ANALOG OUTPUT BLOCK


Data Object 41 - Variation: 04 Description: The Long Floating Point Analog Output Block information object represents the desired value of a hardware or software analog output point. The format of this object complies with the IEEE-754 standard for floating-point number representation. The requested value field holds the desired floating point value of the analog output, and follows the format for a long real as specified by the IEEE-754 standard. The actual value is returned in the analog output status object. This field is as described for the value field of Object 30 Variation 6. The status field indicates the status of the analog control operation in the same way as the control relay output block. The definition of this field is the same as the control relay output block. Object Coding: Requested Value S Exponent Mantissa 0 10 0 51 Control Status 7 0
*S = Sign

Type: Static

SQ2 { Value

Ctrl Stat = }

R64 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..10] <0..2047> Mantissa = UI23 [0..51] <0..252-1>} BS8 [0..7]

April 22, 1998

19 of 199

9804-006.doc

DNP V3.00 Technical Bulletin 9804-007 Clarification of Collision Avoidance Procedures


Issue:
The DNP V3.00 Data Link Layer specification, Chapter 7: Physical Procedures, discusses many different issues and configurations of physical connections in a general manner. Unfortunately, it does not clearly describe how to avoid collisions between messages, especially unsolicited messages, sent by several devices sharing a half-duplex, multi-drop link. This bulletin is intended to provide that description.

Resolution:
The physical layer must provide an indication to the data link layer of when the link is in use, e.g. using the DCD (Data Carrier Detect) signal. If a device prepares to transmit and finds the link busy, it waits until it is no longer busy, then waits a backoff_time as follows: backoff_time = fixed_delay + random( max_random_delay ) After the backoff_time, the device tries again, either indefinitely, or up to a configurable maximum number of retries. If a maximum is used, the protocol behaves as if a link failure occurred, i.e. data is returned to buffers at the application layer and application layer retries take place if desired. The fixed_delay can be adjusted per device to provide priority of access. For instance, it could be zero (0) for masters and non-zero for all the slave devices. This provides a minimum "window" of access time for the master(s).

Affected Documentation:
DNP V3.00 Data Link Layer Chapter 7: Physical Procedures

April 22, 1998

1 of 1

9804-007.doc

DNP Technical Bulletin 9804-008 Unissued Object and Variation Numbers


Issue:
It has been noted that some vendors have assigned as-yet-unallocated DNP Object and Variation numbers to private objects. This allocation can lead to incompatible extensions to the protocol. Guidelines regarding this practice are required.

Resolution:
The DNP User Group advises that: DNP must not be used to transport objects other than those already published by the DNP User Group in the DNP Protocol Specification documents or in DNP Technical Bulletins. Proposals for extensions to the protocol can be presented for consideration by the User Groups Technical Committee, and will be included in the protocol if considered appropriate. The Technical Committee may alter any proposed object or variation numbering in accordance with established guidelines, and may also revise other details of the proposal to ensure compatibility with other aspects of the protocol. Proposals should be submitted to the Secretary of the DNP User Group, together with relevant supporting documentation describing the proposed new object or variation and its purpose. Note that it is extremely rare for the Technical Committee to introduce new features to the protocol that are not completely backward-compatible with the existing published protocol definition. From time to time the Technical Committee may issue advisory bulletins that clarify the protocol definition, or make recommendations on aspects of protocol implementation. Implementors should note that the Private Registration Object (Object 83) permits the definition of vendor-specific data objects. This object may be used for adding proprietary features to devices that communicate using DNP.

Affected Documentation:
Nil.

April 22, 1998

1 of 1

9804-008.doc

DNP Technical Bulletin 9809-001 Analog Input Reporting Deadband


Issue:
There is perceived to be a need for a mechanism to permit the master station to retrieve and set the reporting deadband parameter for analog inputs.

Explanatory Notes:
The analog input reporting deadband is normally used in one of two ways depending on the capabilities and configuration of the reporting equipment: Fixed Deadband. If the absolute value of the difference between the last-reported value of an analog input object and the current value of that object exceeds the deadband value, then an event is generated for that object with the current value sent as the value for the event. Integrating Deadband. While the value of an analog input object differs from the last-reported value for that object, the difference is integrated over time. When the integral of the difference exceeds the deadband, then an event is generated for that object with the current value sent as the value for the event.

It is assumed that only one of these two mechanisms is being used. This means that a single deadband value is assigned for each analog input point, not two separate values (a fixed deadband value and an integrating deadband value) assigned for each point.

Resolution:
The DNP Technical Committee has allocated Object 34 as the means of reporting or setting the reporting deadband value of an Analog Input. This object will support the Read and Write functions. It will not be reported in response to Read requests for Class 0 Data (that is: It will only be returned in response to a Read command that specifically requests Object 34). The master may alter the value of an analog inputs deadband by issuing a Write command containing the Analog Input Reporting Deadband Object. Object 34 has no flags. The indices assigned to Object 34 parallel those assigned to Object 30. This means that the reporting deadband for Object 30 Index n is Object 34 Index n, events on this point are reported as Object 32 index n. Three variations of Object 34 are defined: 16-bit and 32-bit integer formats and a floating-point format. Systems that only report analog events using integer formats (Object 32 Variations 14) should use the integer variations of Object 34 (Variations 1 and 2). Systems that can report analog events using floating-point formats (Object 32 Variation 58) may use either the floating-point variation of Object 34 (Variation 3) or the integer variations (Variations 1 and 2), and must perform conversion between integer and floating-point formats as required by DNP Technical Bulletin 9804-006. It is recommended that for each individual point, the same format (integer or floating-point as required) be used with Objects 30, 32 and 34. Object 34 may be used for setting or reporting either a Fixed Deadband value or an Integrating Deadband value. For a fixed deadband, the value set will be the absolute
September 10, 1998 1 of 6 9809-001.doc

difference value in Counts (Variations 1 and 2) or floating-point Engineering Units (Variation 3). For an Integrating Deadband, the value set will be the difference value in Count Seconds (Variations 1 and 2) or Engineering Unit Seconds (Variation 3) (i.e.: The integral over time of the difference between the last reported value and the current value). Object 34 Variation 1 uses a 16-bit unsigned integer data representation. Deadbands are positive values, the range of deadbands that can be represented is 065535 (0x0 0xFFFF). Object 34 Variation 2 uses a 32-bit unsigned integer data representation. Deadbands are positive values, the range of deadbands that can be represented is 04294967295 (0x0 0xFFFFFFFF). Object 34 Variation 3 uses the short real (32-bit) floating-point format specified in the IEEE 754 standard. While this format permits negative values, deadbands should only be set to positive values (0.0+INF).

Implementation notes:
A deadband of zero will permit any change to generate an event and a deadband of the full range of the variable will prevent events from ever being generated. Hence selecting a deadband of 4294967295 prevents event generation from any integer analog input, and selecting a value of +INF (positive infinity) prevents event generation from any floatingpoint analog input object. Any negative floating-point deadband value is equivalent to a zero deadband, as any change in the input will be larger than the deadband. A device receiving a negative floating-point deadband value should convert (or report) this to be a zero deadband value. In systems that use fixed deadbands, setting the deadband value to the maximum range of the analog input will inhibit event generation for that input. For example: An 8-bit analog input may have a range of -128127, setting the reporting deadband for this point to 255 (or more) will prevent all event reporting for that point. If a Read request for Object 34 Variation 1 is issued, any point deadband value greater than 65535 will be reported in the response as the value 65535 (the largest value that can be reported in a 16-bit unsigned integer). A Read request for Object 34 Variation 2 should be issued if integer deadband values greater than 65535 must be reported correctly. The response to a Read request for Object 34 Variation 0 may include any variation of Object 34, in accordance with the slave devices capabilities and configuration. Note that if the device is capable of reporting Object 34 Variation 3 (floating-point), then the device must be configurable to only report data using Variations 1 and 2, in accordance with the requirements stated in DNP Technical Bulletin 9804-006. A slave device that supports Object 34 is not required to maintain deadband values through reset (when it sets IIN Bit 7), and may revert to configured (or default) deadband values on reset. If the slave device preserves updated deadband values through reset, then this should be noted in the device profile. Any deadband values altered by the use of Object 34 prior to the slave reset may be lost. The DNP Master is responsible for re-sending any updated deadband values to the slave after a slave reset if this is deemed necessary.
September 10, 1998 2 of 6 9809-001.doc

Affected Documentation:
DNP V3.00 Object Library Chapter 6: Analog Input Object Definitions Updated Device Profile Document

Details: 16-Bit Analog Input Reporting Deadband Object


Data Object 34 Variation 1 Description: The Analog Deadband Object is an information object used to allow a DNP device to report the magnitude of the deadband of an Analog Input Object, or to permit the master station to alter the deadband of an Analog Input Object. This object may be specified with the Read command (master requests slave to return the deadband value), Write command (master alters the deadband value) or Response command (when the slave supplies the data in response to the masters Read command). The deadband value field contains the value of the deadband. This object is NOT returned in response to a Read request of Class 0 data. The index number identifying a deadband object is the index number of the corresponding Analog Input Object (Object 30). Object Coding: Deadband Value 15 SQ1 { Deadband Value } NOTES: This object is valid with the Application Layer function codes Read, Write and Response. The object will only be included in a Response message if specifically requested in a Read message. For analog inputs having fixed deadbands, the Deadband Value is the deadband count value. For analog inputs using integrating deadbands, the Deadband Value is the integrated deadband in count-seconds. The response to a Read request using Variation 1 will report the value 65535 for any deadband value that is greater than 65535.
3 of 6 9809-001.doc

Type: Static, Not in Class 0

0 = UI16 [0..15] <0..65535>

September 10, 1998

32-Bit Analog Input Reporting Deadband Object


Data Object 34 Variation 2 Description: The Analog Deadband Object is an information object used to allow a DNP device to report the magnitude of the deadband of an Analog Input Object, or to permit the master station to alter the deadband of an Analog Input Object. This object may be specified with the Read command (master requests slave to return the deadband value), Write command (master alters the deadband value) or Response command (when the slave supplies the data in response to the masters Read command). The deadband value field contains the value of the deadband. This object is NOT returned in response to a Read request of Class 0 data. The index number identifying a deadband object is the index number of the corresponding Analog Input Object (Object 30). Object Coding: Deadband Value 31 SQ1 { Deadband Value } NOTES: This object is valid with the Application Layer function codes Read, Write and Response. The object will only be included in a Response message if specifically requested in a Read message. For analog inputs having fixed deadbands, the Deadband Value is the deadband count value. For analog inputs using integrating deadbands, the Deadband Value is the integrated deadband in count-seconds. 0 = UI32 [0..31] <0..4294967295 > Type: Static, Not in Class 0

September 10, 1998

4 of 6

9809-001.doc

Floating Point Analog Input Reporting Deadband Object


Data Object 34 Variation 3 Description: The Analog Deadband Object is an information object used to allow a DNP device to report the magnitude of the deadband of an Analog Input Object, or to permit the master station to alter the deadband of an Analog Input Object. This object may be specified with the Read command (master requests slave to return the deadband value), Write command (master alters the deadband value) or Response command (when the slave supplies the data in response to the masters Read command). The deadband value field contains the value of the deadband in the 32-bit short real format specified in the IEEE 754 Standard. This is as described for the value field of Object 30 Variation 5 (Refer to DNP Technical Bulletin 9804-006). This object is NOT returned in response to a Read request of Class 0 data. The index number identifying a deadband object is the index number of the corresponding Analog Input Object (Object 30). Object Coding: Type: Static, Not in Class 0

Deadband Value S Exponent Mantissa 0 7 0 22


*S = Sign, should only be zero (positive value)

SQ1 { Value

R32 { Sign = BS1 [0] <0, positive; 1, negative> Exponent = UI8 [0..7] <0..255> Mantissa = UI23 [0..22] <0..223-1> }

}
NOTES: This object is valid with the Application Layer function codes Read, Write and Response. The object will only be included in a Response message if specifically requested in a Read message. For analog inputs having fixed deadbands, the Deadband Value is the deadband engineering unit value. For analog inputs using integrating deadbands, the Deadband Value is the integrated deadband in engineering unit-seconds. If a negative value is received (Sign bit set), this should be interpreted as a zero value.
5 of 6 9809-001.doc

September 10, 1998

The +INF (positive infinity) value is represented by a Sign bit of zero, an Exponent of 255 and a Mantissa of 0 (i.e.: the deadband value of 0x7F800000).

September 10, 1998

6 of 6

9809-001.doc

DNP Technical Bulletin 9701-001 Data Link Restart Recovery


Issue:
The data link had a problem when one station or the other is powered down and up without the other stations knowledge. The first poll to a remote device failed because the remote has not yet received a LINK RESET frame. Without application retries, communications may not be recovered for the polling interval, perhaps hours or days.

Resolution:
Following a restart or power-up, prior to receiving a Reset Link frame both Master and Slave devices must respond with a data link layer CONFIRM NACK having DFC=0 when they receive a frame having FCV=1 (SEND/CONFIRM), rather than just discarding the frame. A power up failure will now be detected quickly by not having to wait for retries to be completed. Upon receipt of the NACK , the Data Link layer will make the indication to the application layer to determine the course of action. It is further recommended that upon receiving an indication of a transaction failure due to a NACK:

A Master Device performs an immediate application layer retry, if appropriate. A Slave device always perform an immediate application layer retry.

This will prevent the first transaction after power up from failing.

Affected Documents:
DNP 3.0 Data Link Layer Protocol Description Chapter 3 DNP Data Link Description Data Link Function Codes Reset

January 15, 1996

1 of 1

9701-001.doc

DNP Technical Bulletin 9701-002 Control Relay Output Block Minimum Implementation
Issue:
The DNP Users Group required the Subset Definition be amended to include a list of minimum subset options in the Control Relay Output Block.

Resolution:
The following is a minimum implementation, given that appropriate hardware exists. If a particular function is not supported by the hardware, the Slave device must return value 4 (operation not supported) in the Status field. FIELD: Trip/Close Clear Queue Code Count On-Time Off-Time Status Function Desired
Latching Relay ON Latching Relay OFF Unpaired Momentary Relay (e.g Pushbutton, Alarm) Trip Breaker/Relay or Raise Transformer Tap Close Breaker/Relay or Lower Transformer Tap

MINIMUM IMPLEMENTATION: See following table. Invalid with Code values of Latch On or Latch Off. Set to 0. Only used for continuously repeating commands. Set to 0. Only used for continuously repeating commands. See following table. Must be Pulse On if Trip/Close is not NULL. Set to 1. Only used if the command is to be performed multiple times. Set to 0 unless Code value is Pulse On. See following table. Set to 0. Only used for Pulse Off values of Code or Count greater than 1. Set to 0 in the output request. Trip/Close
NULL (0) NULL (0) NULL (0) Trip (2) Close (1)

Code
Latch On (3) Latch Off (4) Pulse On (1) Pulse On (1) Pulse On (1)

On-Time
Zero (ignored) Zero (ignored) Non-zero Non-zero Non-zero

Addressing Issues There are two possible ways to provide access to Trip/Close or Raise/Lower relays: 2 Points Per Address - Both operations are performed specifying the same DNP point number. The value of the Trip/Close field selects the appropriate one of a pair of relays. 1 Point Per Address - The Trip or Raise operation is performed on a different DNP point number than the Close or Lower operation. The remote device may return a Status of 4 (operation not supported) if an inappropriate operation is performed. The 2 Points Per Address method is not recommended for new designs.

January 15, 1996

1 of 2

9701-002.doc

DNP Technical Bulletin 9701-002 Control Relay Output Block Minimum Implementation (Continued)
The next version of the DNP V3.00 Data Object Library shall be updated to redefine the Trip/Close field as: Paired Operation = BS2[ 6..7] <00, NULL; 01, Close|Lower; 10, Trip| Raise> On-Time It is recommended that if a devices hardware only supports one pulse width (specified by On-Time), it does not reject other values but simply ignores the specified width. This will help with interoperability. Documentation The addressing method for Trip/Close or Raise/Lower operations and any features supported in addition to the minimum specified above must be described in the Device Profile Document. In particular, the method used for variable Raise/Lower operations (variable On-Time, or variable Count, or neither) must be documented. Any features not supported because of lack of hardware must also be documented.

Affected Documentation:
DNP 3.0 Data Object Library Chapter 4 Binary Output Object Definitions DNP 3.0 Subset Definitions Chapter 4 Implementation Rules and Recommendations Operating Binary Outputs Updated Device Profile Document

January 15, 1996

2 of 2

9701-002.doc

DNP Technical Bulletin 9701-003 Cold/Warm Restart Sequence


Issue:
The DNP Users Group required a definition for a standard implementation for Cold/Warm Restart implementation sequence. It was previously unclear when a remote should actually perform a restart after receiving a restart request: immediately after transmitting the response after receiving a data link confirm to the response after receiving an application confirm

Resolution:
It is recommended that neither data link layer nor application layer confirmation be requested when sending a response to a Cold Restart or Warm Restart request. This implies that restart should begin immediately after sending the response. Devices that cannot be sure exactly when the response will be completely sent can wait a suitably large time and pad that time into the master wait time returned in the response.

Affected Documentation:
DNP V3.00 Application Layer Protocol Description Chapter 4 Detailed Function Code Descriptions Cold Restart (Function Code 13) Warm Restart (Function Code 14)

January 15, 1996

1 of 1

9701-003.doc

DNP Technical Bulletin 9701-004 Octet (Character) Strings Objects 110 and 111
Issue:
The DNP Users Group required a definition for a standard object for Octet (Character) strings. The need arose to transport ASCII or other data of varying lengths. Initial uses considered were for Passwords or other character strings, but other uses have arisen as well.

Resolution:
A new object, Object 110, is defined as an Octet String Object. The variation within the object represents the length for the Octet string. Devices are not required to support any particular length of string. The event object associated for the Octet String Object is Object 111. NOTE: Reading and Writing of 8 bit memory locations could be implemented using this object together with absolute addressing qualifiers. Please refer to the following Data Link Object Definitions for Details.

Affected Documentation:
DNP V3.00 Object Library Chapter to be determined

August 21, 1996

1 of 3

9701-004.doc

Octet String Object


Data Object 110 - Variation = Octet string length Description: The Octet String Object represents a value from 0 to 255. Each 8 bit data element may contain a variety of information from ASCII passwords to configuration details. This object is not included in Class 0 poll response. The variation within the object represents the length. For this object only read, write and response function codes are permitted. Object Coding: Current Value [0] 7 0 Type: Static

Current Value [N-1] 7 0

OSN = SQ1 { Current Value = UI [0..7] <0..255>} where N = variation which is the length of the octet string

August 21, 1996

2 of 3

9701-004.doc

Octet String Event Object


Data Object 111 - Variation = Octet string Length Description: The Octet String Event Object represents an event value from 0 to 255. Each 8 bit data element may contain a variety of information from ASCII passwords to configuration details. The variation within the object represents the length. For this object only read, response and unsolicited response function codes are permitted. Object Coding: Current Value [0] 7 0 Type: Event

Current Value [N-1] 7 0

OSN = SQ1 { Current Value = UI [0..7] <0..255>} where N = variation which is the length of the octet string

August 21, 1996

3 of 3

9701-004.doc

DNP 3.0 Technical Bulletin 9701-006 Extended Engineering Units for Floating Point Objects
Issue:
The DNP Users Group required new engineering unit definitions for Floating Point Objects.

Resolution:
The following Units codes have been added to all floating point objects defined within DNP: 20 quantity having no unit of measurement 21 m3 /s (volumetric flow in cubic meters per second) 22 kPa (pressure in kilopascals) 255 units unknown or undefined 23 to 254 remain available for future assignment

Affected Documentation:
DNP V3.00 Data Object Library Chapter 6 Analog Input Object Definitions Analog Input Data Object 30 Variations Frozen Analog Input Data Object 31 Variations Analog Change Event Data Object 32 Variations Frozen Analog Event Data Object 33 Variations Chapter 7 Analog Output Object Definitions Analog Output Status Data Object 40 Variations Analog Output Block Data Object 41 Variations Chapter 13 Alternate Numeric Object Definitions Floating Point Data Object 100 Variations (object 100 is no longer recommended)

5 to 7 7 to 9 5 to 7 5 to 7 3 to 5 3 to 5 1 to 3

August 21, 1996

1 of 1

9701-006.doc

DNP 3.0 Technical Bulletin 9704-007 Implementation Rules for Reset Link Frames
Issue:
The implementation of Reset Link Frames has recently caused some controversy with different vendors providing differing subsets. To avoid possible incompatibilities, the following resolutions were adopted.

Resolution: A device is not required to transmit a RESET LINK frame if that device transmits only SEND/NO REPLY EXPECTED frames. A device must not require the reception of a RESET LINK frame before accepting SEND/NO REPLY EXPECTED frames. Any device receiving a RESET LINK frame must respond with a CONFIRM ACK. Any other response or no response at all indicates that the receiver is unable to perform the link reset.

Affected Documentation:
DNP V3.00 Data Link Layer Chapter 3: DNP Data Link Description Data Link Function Codes

April 16, 1997

1 of 1

9704-007.doc

Distributed Network Protocol (DNP3-2001)

DNP3-2001 Intelligent Electronic Device (IED) Certification Procedure Subset Level 1

Version 2.1 5-July-01

Disclaimer Statement
DNP User Group documents and publications are not consensus documents. Information contained in this and other works has been obtained from sources believed to be reliable, and reviewed by credible members of the DNP User Group and/or the DNP User Group Technical Committee. Neither the DNP Users Group nor any authors/developers of DNP documentation guarantee, and each such person expressly disclaims responsibility for ensuring, the accuracy or completeness of any information published herein, and neither the DNP Users Group nor its authors/developers shall be responsible for any errors, omissions, or damages arising out of use of this document. Likewise, while the author/developer and publisher believe that the information and guidance given in this work serves as an enhancement to users, all parties must rely upon their own skill and judgment when making use of it. Neither the author nor the publisher assumes any liability to anyone for any loss or damage caused by any error or omission in the work, whether such error or omission is the result of negligence or any other cause. Any and all such liability is disclaimed. This statement was developed by the DNP User Group Technical Committee and represents the considered judgment of a group of software developers with expertise in the subject field. The DNP User Group is a global forum for users and implementers of the protocol and promotes implementers and developer information and interaction exchange. This work is published with the understanding that the DNP User Group and its authors/developers are supplying information through this publication, not attempting to render engineering or other professional services. If such services are required, the assistance of an appropriate professional should be sought. The DNP User Group is not responsible for any statements and/or opinions advanced in this publication.

NOTICE OF RIGHTS - DNP USERS GROUP


The contents of this manual are the property of the DNP Users Group. Revisions or additions to the definition and functionality of the DNP Protocol cannot be made without express written agreement from the DNP Users Group or its duly authorised party. In addition, no part of this document may be altered or revised or added to in any form or by any means, except as permitted by written agreement with the DNP Users Group or a Party duly authorised by the DNP Users Group. The DNP Users Group has made every reasonable attempt to ensure the completeness and accuracy of this document. However, the information contained in this manual is subject to change without notice, and does not represent a commitment on the part of the DNP Users Group. An update program for DNP documents is provided upon request by the DNP Users Group.

TRADEMARK NOTICES
DNP is a trademark of the DNP Users Group. Any brand and product names mentioned in this document are trademarks or registered trademarks of their respective companies.

Copyright 2001 DNP Users Group. All rights reserved.

Revision History
Date 18-Jan-99 15-Dec-99 Version 1.00 1.01 Sections affected ALL see errata sheet for 1.00 Reason for change Initial Release Fixes inconsistencies and errors Designates protocol as DNP3-1999 (formerly DNP V3.00 with extensions) Added required parameter - maximum number of unsolicited retries Added test procedure from TB9912-002 Added desired response to addresses 0xFFFE and 0xFFFD Added test procedure from TB9912-003 Added requirements for Control SBO retries Added test procedures from TB2000-002 Added requirements for Analog Output SBO retries Added test procedures from TB2000-002 Removed reference to function code 1 Removed function code 0xD1 from table Replace "end testing of Binary Output, SBO" with "skip this section" Replace "end testing of Analog Output, SBO" with "skip this section" Added step 2 - "Issue a link reset using link control block 0xC0" Added test procedure from TB2000-006 Added status code in error response as required in TB2001-01

10-July-00

2.00

5-July-01

2.1

8.11.1.1 8.11.2.5.9 8.6.5.1 8.6.5.4 8.2.1.1 8.2.1.2.11 - 15 8.4.1.1 8.4.1.2.8 - 12 6 6.6.2.5 8.2.1.2.10, step 1 8.4.1.2.7, step 1 8.6.5.4 8.2.5 8.2.1.1, 8.2.1.2.3, 8.2.2.1, 8.2.2.2.2, 8.4.1.1, 8.4.1.2.3, 8.4.2.1, 8.4.2.2.2 8.2.4.1 - 8.2.4.2, 8.4.4.1 - 8.4.4.2 Section 9, Appendices A and B

Added test procedures from TB2001-001 Removed; the information required for these sections is not available and may not be for some time.

DNP3-2001 IED Certification Procedure Subset Level 1

Page i Rev 2.1 5-July-01

Contents
1 2 3 Overview.............................................................................................................................................................................. 1 1.1 Protocol specification .................................................................................................................................................. 1 Notes.................................................................................................................................................................................... 1 Definitions ........................................................................................................................................................................... 3 3.1 General......................................................................................................................................................................... 3 3.2 Internal Indications ...................................................................................................................................................... 3 3.3 Error Responses ........................................................................................................................................................... 3 3.4 Changes or Events ....................................................................................................................................................... 4 3.4.1 Rules ................................................................................................................................................................. 4 Reference Documents .......................................................................................................................................................... 5 Pretest Review ..................................................................................................................................................................... 5 5.1 Device Profile Review ................................................................................................................................................. 5 5.2 Equipment Review....................................................................................................................................................... 5 Link Layer ........................................................................................................................................................................... 6 6.1 Reset Link and Passive Confirm support ..................................................................................................................... 6 6.1.1 Desired Behavior ................................................................................................................................................. 6 6.1.2 Test Procedure ..................................................................................................................................................... 6 6.2 Test Link...................................................................................................................................................................... 7 6.2.1 Desired Behavior ................................................................................................................................................. 7 6.2.2 Test Procedure ..................................................................................................................................................... 7 6.3 Request Link Status ..................................................................................................................................................... 7 6.3.1 Desired Behavior ................................................................................................................................................. 7 6.3.2 Test Procedure ..................................................................................................................................................... 7 6.4 Test Retries .................................................................................................................................................................. 8 6.4.1 Desired Behavior ................................................................................................................................................. 8 6.4.2 Test Procedure ..................................................................................................................................................... 8 6.5 DIR and FCV Bits..................................................................................................................................................... 8 6.5.1 Desired Behavior ................................................................................................................................................. 8 6.5.2 Test Procedure ..................................................................................................................................................... 8 6.6 Data Link Rejects Invalid Frames................................................................................................................................ 9 6.6.1 Desired Behavior ................................................................................................................................................. 9 6.6.2 Test Procedure Primary Frames ........................................................................................................................ 9 6.6.2.1 Invalid Start Octets ........................................................................................................................................ 10 6.6.2.2 Invalid Primary Function Code...................................................................................................................... 10 6.6.2.3 Invalid Destination Address........................................................................................................................... 10 6.6.2.4 Invalid CRC ................................................................................................................................................... 10 6.6.2.5 Invalid FCV ................................................................................................................................................ 11 6.6.3 Test Procedure Secondary Frames .................................................................................................................. 11 6.6.3.1 Invalid Start Octets ........................................................................................................................................ 11 6.6.3.2 Invalid Secondary Function Code.................................................................................................................. 12 6.6.3.3 Invalid Destination Address........................................................................................................................... 12 6.6.3.4 Invalid CRC ................................................................................................................................................... 12 Transport Layer ................................................................................................................................................................. 13 7.1 Desired Behavior ....................................................................................................................................................... 13 7.2 Test Procedure ........................................................................................................................................................... 13 Application Layer .............................................................................................................................................................. 14 8.1 Binary Output Status.................................................................................................................................................. 14 8.1.1 Desired Behavior ............................................................................................................................................... 14 8.1.2 Test Procedure ................................................................................................................................................... 14 8.2 Binary Outputs........................................................................................................................................................... 14 8.2.1 Select Before Operate ........................................................................................................................................ 15 8.2.1.1 Desired Behavior ........................................................................................................................................... 15 Page ii Rev 2.1 5-July-01

4 5

DNP3-2001 IED Certification Procedure Subset Level 1

8.2.1.2 Test Procedure ............................................................................................................................................... 16 8.2.1.2.1 Binary Output, SBO, 0x28.......................................................................................................................16 8.2.1.2.2 Binary Output, SBO, 0x17.......................................................................................................................16 8.2.1.2.3 Binary Output, SBO, To Uninstalled Point..............................................................................................16 8.2.1.2.4 Binary Output, SBO, Execute Issued After Timeout ...............................................................................16 8.2.1.2.5 Binary Output, SBO, Execute to Different Point Than Select .................................................................16 8.2.1.2.6 Binary Output, SBO, Execute On Time does not match Select On Time................................................16 8.2.1.2.7 Binary Output, SBO, Execute Off Time does not match Select Off Time...............................................17 8.2.1.2.8 Binary Output, SBO, Select using a supported Control Code, Execute using a different Control Code .17 8.2.1.2.9 Binary Output, SBO, Select 0x28, Execute 0x17 ....................................................................................17 8.2.1.2.10 Binary Output, SBO, Configurable Device............................................................................................17 8.2.1.2.11 Binary Output, SBO, Same Sequence Number Select Retries...............................................................17 8.2.1.2.12 Binary Output, SBO, Incrementing Sequence Number Select Retries ..................................................17 8.2.1.2.13 Binary Output, SBO, Same Sequence Number Operate Retries ............................................................18 8.2.1.2.14 Binary Output, SBO, Incrementing Sequence Number Operate Retries................................................18 8.2.1.2.15 Binary Output, SBO, Sequence number checking .................................................................................18 8.2.2 Direct Operate with Acknowledge..................................................................................................................... 18 8.2.2.1 Desired Behavior ........................................................................................................................................... 18 8.2.2.2 Test Procedure ............................................................................................................................................... 19 8.2.2.2.1 Binary Output, Direct Operate .................................................................................................................19 8.2.2.2.2 Binary Output, Direct Operate to Uninstalled Point ................................................................................19 8.2.2.2.3 Binary Output, Direct Operate, Configurable Device..............................................................................19 8.2.3 Direct Operate, No Acknowledge ...................................................................................................................... 19 8.2.3.1 Desired Behavior ........................................................................................................................................... 19 8.2.3.2 Test Procedure ............................................................................................................................................... 19 8.2.3.2.1 Binary Output, Direct Operate, No Acknowledge ...................................................................................19 8.2.3.2.2 Binary Output, Direct Operate, No Acknowledge, to an Uninstalled Point.............................................20 8.2.3.2.3 Binary Output, Direct Operate, No Acknowledge, Configurable Device ................................................20 8.2.4 Multiple Object Requests................................................................................................................................... 20 8.2.4.1 Desired Behavior ........................................................................................................................................... 20 8.2.4.2 Test Procedure ............................................................................................................................................... 20 8.2.5 Control Code Support ........................................................................................................................................ 21 8.2.5.1 Desired Behavior ........................................................................................................................................... 21 8.2.5.2 Test Procedure ............................................................................................................................................... 21 8.2.5.2.1 Binary Output, Complementary Function Support ..................................................................................21 8.2.5.2.2 Binary Output, Single Function Support..................................................................................................22 8.3 Analog Output Status................................................................................................................................................. 22 8.3.1 Desired Behavior ............................................................................................................................................... 23 8.3.2 Test Procedure ................................................................................................................................................... 23 8.4 Analog Outputs .......................................................................................................................................................... 23 8.4.1 Select Before Operate ........................................................................................................................................ 23 8.4.1.1 Desired Behavior ........................................................................................................................................... 24 8.4.1.2 Test Procedure ............................................................................................................................................... 24 8.4.1.2.1 Analog Output, SBO, 0x28 ......................................................................................................................24 8.4.1.2.2 Analog Output, SBO, 0x17 ......................................................................................................................25 8.4.1.2.3 Analog Output, SBO, to Uninstalled Point ..............................................................................................25 8.4.1.2.4 Analog Output, SBO, Execute Issued After Time-out.............................................................................25 8.4.1.2.5 Analog Output, SBO, Execute Value does not match Select Value ........................................................25 8.4.1.2.6 Analog Output, SBO, Select 0x28, Execute 0x17....................................................................................25 8.4.1.2.7 Analog Output, SBO, Configurable Device.............................................................................................25 8.4.1.2.8 Analog Output, SBO, Same Sequence Number Select Retries ................................................................26 8.4.1.2.9 Analog Output, SBO, Incrementing Sequence Number Select Retries....................................................26 8.4.1.2.10 Analog Output, SBO, Same Sequence Number Operate Retries ...........................................................26 8.4.1.2.11 Analog Output, SBO, Incrementing Sequence Number Operate Retries...............................................26 8.4.1.2.12 Analog Output, SBO, Sequence number checking ................................................................................26 DNP3-2001 IED Certification Procedure Subset Level 1 Page iii Rev 2.1 5-July-01

8.4.2 Direct Operate with Acknowledge..................................................................................................................... 27 8.4.2.1 Desired Behavior ........................................................................................................................................... 27 8.4.2.2 Test Procedure ............................................................................................................................................... 27 8.4.2.2.1 Analog Output, Direct Operate ................................................................................................................27 8.4.2.2.2 Analog Output, Direct Operate, to Uninstalled Point ..............................................................................27 8.4.2.2.3 Analog Output, Direct Operate, Configurable Device .............................................................................27 8.4.3 Direct Operate, No Acknowledge ...................................................................................................................... 28 8.4.3.1 Desired Behavior ........................................................................................................................................... 28 8.4.3.2 Test Procedure ............................................................................................................................................... 28 8.4.3.2.1 Analog Output, Direct Operate, No Acknowledge ..................................................................................28 8.4.3.2.2 Analog Output, Direct Operate, No Acknowledge, to an Uninstalled Point............................................28 8.4.3.2.3 Analog Output, Direct Operate, No Acknowledge, Configurable Device ...............................................28 8.4.4 Multiple Object Requests................................................................................................................................... 28 8.4.4.1 Desired Behavior ........................................................................................................................................... 28 8.4.4.2 Test Procedure ............................................................................................................................................... 28 8.5 Class Data .................................................................................................................................................................. 29 8.5.1 Class 0................................................................................................................................................................ 29 8.5.1.1 Desired Behavior ........................................................................................................................................... 30 8.5.1.2 Test Procedure ............................................................................................................................................... 30 8.5.2 Class 1................................................................................................................................................................ 30 8.5.2.1 Desired Behavior ........................................................................................................................................... 31 8.5.2.2 Test Procedure ............................................................................................................................................... 31 8.5.2.2.1 Class 1 Data, 0x06 ...................................................................................................................................31 8.5.2.2.2 Class 1 Data, 0x07 ...................................................................................................................................32 8.5.2.2.3 Class 1 Data, 0x08 ...................................................................................................................................32 8.5.2.2.4 Class 1 Data Without Confirm..............................................................................................................32 8.5.3 Class 2................................................................................................................................................................ 33 8.5.3.1 Desired Behavior ........................................................................................................................................... 33 8.5.3.2 Test Procedure ............................................................................................................................................... 33 8.5.3.2.1 Class 2 Data, 0x06 ...................................................................................................................................33 8.5.3.2.2 Class 2 Data, 0x07 ...................................................................................................................................34 8.5.3.2.3 Class 2 Data, 0x08 ...................................................................................................................................34 8.5.3.2.4 Class 2 Data Without Confirm..............................................................................................................34 8.5.4 Class 3................................................................................................................................................................ 35 8.5.4.1 Desired Behavior ........................................................................................................................................... 35 8.5.4.2 Test Procedure ............................................................................................................................................... 35 8.5.4.2.1 Class 3 Data, 0x06 ...................................................................................................................................35 8.5.4.2.2 Class 3 Data, 0x07 ...................................................................................................................................36 8.5.4.2.3 Class 3 Data, 0x08 ...................................................................................................................................36 8.5.4.2.4 Class 3 Data Without Confirm..............................................................................................................36 8.5.5 Multiple Object Request .................................................................................................................................... 37 8.5.5.1 Desired Behavior ........................................................................................................................................... 37 8.5.5.2 Test Procedure ............................................................................................................................................... 37 8.5.5.2.1 Multiple Object Request, Class 1, 2, and 3 ..............................................................................................37 8.5.5.2.2 Multiple Object Request, Class 1, 2, 3, and 0 ..........................................................................................37 8.5.6 Class Assignment Verification........................................................................................................................... 38 8.5.6.1 Desired Behavior ........................................................................................................................................... 38 8.5.6.2 Test Procedure ............................................................................................................................................... 38 8.6 Indications.................................................................................................................................................................. 38 8.6.1 Restart ................................................................................................................................................................ 38 8.6.1.1 Desired Behavior ........................................................................................................................................... 38 8.6.1.2 Test Procedure ............................................................................................................................................... 38 8.6.2 Bad Function...................................................................................................................................................... 39 8.6.2.1 Desired Behavior ........................................................................................................................................... 39 8.6.2.2 Test Procedure ............................................................................................................................................... 39 DNP3-2001 IED Certification Procedure Subset Level 1 Page iv Rev 2.1 5-July-01

8.6.3 Object Unknown ................................................................................................................................................ 39 8.6.3.1 Desired Behavior ........................................................................................................................................... 39 8.6.3.2 Test Procedure ............................................................................................................................................... 39 8.6.4 Local .................................................................................................................................................................. 39 8.6.4.1 Desired Behavior ........................................................................................................................................... 39 8.6.4.2 Test Procedure for Devices with Global Remote Supervisory Control.......................................................... 39 8.6.4.3 Test Procedure for Devices with Individual Remote Supervisory Control .................................................... 39 8.6.5 Broadcast Address and All Stations Indication.................................................................................................. 40 8.6.5.1 Desired Behavior ........................................................................................................................................... 40 8.6.5.2 Test Procedure ............................................................................................................................................ 40 8.6.5.3 Test Procedure ............................................................................................................................................... 40 8.6.5.4 Test Procedure, Confirmed Response Options ........................................................................................... 41 8.6.6 Buffer Overflow................................................................................................................................................. 41 8.6.6.1 Desired Behavior ........................................................................................................................................... 41 8.6.6.2 Test Procedure ............................................................................................................................................... 41 8.6.6.2.1 Buffer Overflow, Binary Input Change Event Buffers ............................................................................41 8.6.6.2.2 Buffer Overflow, Analog Input Change Event Buffers ...........................................................................41 8.6.6.2.3 Buffer Overflow, Binary Counter Change Event Buffers........................................................................42 8.7 Time........................................................................................................................................................................... 42 8.7.1 Delay Measurement ........................................................................................................................................... 42 8.7.1.1 Desired Behavior ........................................................................................................................................... 42 8.7.1.2 Test Procedure ............................................................................................................................................... 42 8.7.2 Synchronization ................................................................................................................................................. 43 8.7.2.1 Desired Behavior ........................................................................................................................................... 43 8.7.2.2 Test Procedure ............................................................................................................................................... 43 8.8 Cold Restart ............................................................................................................................................................... 43 8.8.1 Desired Behavior ............................................................................................................................................... 43 8.8.2 Test Procedure ................................................................................................................................................... 43 8.9 Application Layer Fragmentation .............................................................................................................................. 43 8.9.1 Use of FIR, FIN and SEQUENCE in Fragmentation......................................................................................... 43 8.9.1.1 Desired Behavior ........................................................................................................................................... 43 8.9.1.2 Test Procedure ............................................................................................................................................... 44 8.9.2 Use of Confirmation in Fragmentation ........................................................................................................... 44 8.9.2.1 Desired Behavior ........................................................................................................................................ 44 8.9.2.2 Test Procedure ............................................................................................................................................ 44 8.10 Multi-Drop Support ................................................................................................................................................... 45 8.10.1 Desired Behavior ............................................................................................................................................... 45 8.10.2 Test Procedure ................................................................................................................................................... 45 8.11 Unsolicited Responses ............................................................................................................................................... 45 8.11.1 Desired Behavior ............................................................................................................................................... 46 8.11.1.1 Configuration ................................................................................................................................................. 46 8.11.1.2 Sequence Numbers and Confirmation ........................................................................................................... 46 8.11.1.3 Restart Behavior............................................................................................................................................. 46 8.11.1.4 Runtime Behavior .......................................................................................................................................... 46 8.11.1.5 Unsolicited and Polled Responses ................................................................................................................. 47 8.11.2 Test Procedure ................................................................................................................................................... 47 8.11.2.1 Unsolicited Response Configuration/Startup ................................................................................................. 47 8.11.2.2 Unsolicited Response - Class 1 Data ............................................................................................................. 48 8.11.2.3 Unsolicited Response - Class 2 Data ............................................................................................................. 49 8.11.2.4 Unsolicited Response - Class 3 Data ............................................................................................................. 49 8.11.2.5 Unsolicited and Polled Responses ................................................................................................................. 50 8.11.2.5.1 Transmits data-filled unsolicited responses ...........................................................................................50 8.11.2.5.2 Clears transmitted data upon confirmation ............................................................................................50 8.11.2.5.3 Processes non-READ requests immediately ..........................................................................................50 8.11.2.5.4 Defers READ requests until after confirmation received ......................................................................50 DNP3-2001 IED Certification Procedure Subset Level 1 Page v Rev 2.1 5-July-01

8.11.2.5.5 Defers READ requests until after confirmation timeout........................................................................51 8.11.2.5.6 Abandons READ requests upon subsequent non-READ requests.........................................................51 8.11.2.5.7 Abandons READ requests upon subsequent READ requests ................................................................51 8.11.2.5.8 Inhibits Unsolicited responses until after polled confirmation...............................................................51 8.11.2.5.9 Retries unsolicited responses configurable number of times .................................................................52 8.11.2.6 Unsolicited Responses Off............................................................................................................................. 52 8.12 Collision Avoidance ............................................................................................................................................... 53 8.12.1 Desired Behavior ............................................................................................................................................... 54 8.12.2 Test Procedure ................................................................................................................................................... 54 9 Appendix A DNP3 Reference Sheet............................................................................................................................... 55

DNP3-2001 IED Certification Procedure Subset Level 1

Page vi Rev 2.1 5-July-01

1 Overview
It is the purpose of this document to describe a set of tests that will determine an Intelligent Electronic Devices (IED) compliance with the Distributed Network Protocol (formly known as DNP V3.00). This certification procedure is designed specifically to determine an IEDs compliance to level 1 of the Subset Definitions. A device must pass all of the tests to be considered compliant to this procedure.

1.1 Protocol specification


The protocol is defined by the Basic 4 Document set (Link Layer, Transport Layer, Application Layer, and Subset Definitions), Technical Notes published by the Technical Committee, and this Certification Procedure. The protocol defined by these documents shall be denoted DNP3-2001. Sections in this document marked with the symbol "" constitute new requirements or clarifications beyond the Basic 4 Document set. These sections may create interoperability problems with implementations done prior to the publication of this test procedure. However, the DNP Users' Group approved these changes at the annual 1999 meeting based on strong recommendation from the Technical Committee. These requirements and clarifications will greatly improve interoperability and extensive efforts have been made to minimize the impact on existing implementations.

2 Notes
1. This procedure is an attempt to produce interoperability between Master and IED devices, although such interoperability can NOT be guaranteed. However, it does gives reasonable assurance that Masters which can be configured to match items in the IED Device Profile Document will interoperate. Wherever the following procedures generate a specific number of events, it is acceptable to use an alternate number supported by the device provided that the intent of the test is still satisfied. This is not a factory acceptance test, but a protocol test. Therefore only selected outputs will be tested to verify protocol operation. Unless otherwise specified, all Application Layer retries are disabled. If not explicitly stated all tests imply verification that all points in a normal operating state are reported with all flag bits except the ONLINE bit clear and the ONLINE bit is set. Alternatively, verification that the object is reported with the without flags variation is also implied. Sections marked with three asterisks (***) extend the requirements of the device beyond DNP3-2000. Record the point numbers used in all tests in the log. All application layer tests use unconfirmed link services using a request link control block of 0xC4 unless specified otherwise. When time tagged events are reported the certification procedures do not measure the absolute accuracy of the reported times. They do however verify that the reported times are updated in a reasonable manner. The Device Profile Document specifies the accuracy with which the device measures the event. This accuracy is guaranteed by the vendor, not the certification procedures.

2.

3.

4. 5.

6. 7. 8.

9.

10. If not explicitly stated all tests imply verification that a response to a request has the same application sequence number as the request. If the request generates multiple application fragments also verify that the application sequence number of each subsequent fragment increments by 1 modulo 16. 11. These tests assume that the device will only generate events as controlled by the tester, as specified in the procedure.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 1 Rev 2.1 5-July-01

12. It is strongly recommended that the tester run the device for a least 24 hours at some point during the testing to insure that it does not exhibit any unusual or unexpected behavior. This is not a requirement for compliance to this procedure. 13. Responses to all properly formed requests, must result in either the specific action or behavior described in the protocol or in a correctly-formed, appropriate protocol error response. In addition, devices must continue to operate without interruption or anomalous behavior in response to properly or improperly formed requests.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 2 Rev 2.1 5-July-01

3 Definitions 3.1 General


Master Slave Device that sends DNP application function codes 0-23. Device that sends DNP application function code 0,128,129 (also known as IED).

Operate This is an action taken by the Slave in response to a Master DNP request. This action does not include transmission of a response. Examples of an operation are an audible relay click, change in an LED status, or change in the internal state of the Slave. Note that some operations are difficult to observe without intimate knowledge of the Slave device. The inability to observe an operation does not mean that an operation failed to take place. Request Any message from a Master to a Slave where a response from the Slave is expected.

Response Message from Slave caused by a Master Request. Responses are classified as follows: No response: No octets are sent by Slave Link only response: 10 octet message consisting of only a link layer message Null Response: Message containing a 17-octet link/transport/application response with no error IIN bits set and no application objects. Normal Response: Message containing an application response which has no error IIN bits set, and has no objects which indicate errors All responses must begin with the same application sequence number as the corresponding request. For Multi-fragment responses the first fragment must have the same sequence number as the request and each subsequent fragment must increment the sequence number by 1 modulo 16.

3.2 Internal Indications


IIN Octets 3 and 4 of the application response header. Bits are named IINx-y. x=1 for first transmitted octet and 2 for second transmitted octet. y=bit number where 0=least significant bit. Refer to the Basic Four Application Layer section 3.6 and the Subset Definitions section 4.1.1 for detailed explanations of the IIN bits. The following is a summary of the definitions. Class 1 event data available. Can be set at any time and does not indicate an error condition. Class 2 event data available. Can be set at any time and does not indicate an error condition. Class 3 event data available. Can be set at any time and does not indicate an error condition. Time synchronization required. Can be set at any time and does not indicate an error condition. Local mode. Set if some points are uncontrollable via DNP. Device restart. Set only under specific conditions. Does not indicate an error condition. Function Unknown. Generally means that the function code (octet 2 of the request header) cannot be processed. Object Unknown. Generally means that the function code could be processed but the object group / variation could not be processed. Parameter Error. Generally indicates that both the function code and object group / variation could be processed but that the qualifier / range field is in error.

IIN1-1 IIN1-2 IIN1-3 IIN1-4 IIN1-5 IIN1-7 IIN2-0 IIN2-1 IIN2-2

3.3 Error Responses


Error IIN bits IIN bits that indicate a request error (i.e., IIN2-0 or IIN2-1 or IIN2-2). Error Response A response that has any or all of the Error IIN bits set which may also contain data.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 3 Rev 2.1 5-July-01

Unexpected Error Response Slaves may generate responses with any or all of the following: unexpected bits in the IIN set unexpected bits in any returned flags set unexpected status code errors Any unexpected responses must be noted by the tester and explained in the test log.

3.4 Changes or Events


This section clarifies processing rules related to the following objects. Change Object Name Binary Input Change Counter Change Events Frozen Counter Change Events Analog Change Events Frozen Analog Change Events Object 2 22 23 32 33 Table 3-1 1. 2. 3. The term significant change refers to any of the synonymous terms: event or change event. Change Objects and Static Objects are related in that a significant change in a points static value results in the creation of a corresponding Change Object entry A significant change for a point is defined to occur: for a binary point, on any change in state, and for a numeric point, on any change in value greater than the points threshold Corresponding Static Object Name Binary Input Counter Frozen Counter Analog Input Frozen Analog Input Object 1 20 21 30 31

3.4.1 Rules
A device may claim that it supports a specific Change Object if and only if processing for that Change Object can be configured to adhere to the following rules. 1. 2. Change processing must be supported for all points in the corresponding Static Object. The determination that a point has undergone a significant change can be determined only by using information from that points current or past value. Decisions based on information about any other point, directly or indirectly, are explicitly forbidden. For numeric Change Objects, the Device Profile must clearly specify the algorithm used for each point or set of points that specifies how the deadband(s) for those points are determined. All changes must be returned to a host that issues a request for any specific Change Object, limited only by qualifier and range codes in the request.

3. 4.

Some devices may decide to limit the set of points included in Change Object processing (in violation of rule 1), or to invoke a more complicated algorithm for determining a significant change (in violation of rule 2). While these implementations may be useful in specific instances, such devices may not check compliance with the corresponding Change Object in their Device Profile Documentation unless the device is configurable to conform to the rules above.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 4 Rev 2.1 5-July-01

4 Reference Documents
DNP Version 3.00 Data Link Layer DNP Version 3.00 Transport Functions DNP Version 3.00 Application Layer DNP Version 3.00 Data Object Library Layer DNP Version 3.00 Subset Definitions Version 2.00 ( Version 3.00)

5 Pretest Review
Before testing proceeds it is necessary to review documentation and equipment supplied by the vendor for completeness and appropriateness to the application. In particular the vendor must have provided the test facility with the following items. Device Profile Document Device to be tested Wiring Diagrams for Power Communications (e.g. RS232, RS485, Bell 202, IEEE 802.3) Input connections

5.1 Device Profile Review


Before connecting any equipment the Device Profile should be carefully reviewed. This document describes the vendors specification of the behavior of the device. This behavior should be compared to Level 1 requirements and any discrepancies resolved before testing proceeds. Specifically the Device Profile should indicate that the device: Responds to all Level 1 requests that a slave device is required to parse. Responds to Level 1 requests only with Objects/Variations and Qualifiers that a Level 1 master is required to parse.

If a device generates any response requiring a higher level master to parse it, the following actions should be taken: Testing can continue. It must be noted in the test results that the device is Level 1 compliant for requests only. The required Master Level must be noted in the test results.

5.2 Equipment Review


Before testing proceeds, the device will be examined to insure the proper equipment is available for the following: Physical interfaces present and compatible. Wiring diagrams and equipment necessary for Input stimulation. Input power specifications. If it is not readily apparent whether an output point has operated, the vendor must supply to the tester a point number and method to determine whether or not a binary control and/or analog output has operated. A manufacturers representative should be available by phone to answer questions during the testing of the device.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 5 Rev 2.1 5-July-01

6 Link Layer
Any DNP device is required to passively implement all link layer services. Specifically, this means that a device need not request link layer service but must support any services requested by another device. For example: A device can choose not to request link layer confirms but MUST respond with a link layer confirm if requested to do so. A device can choose not to request link layer reset if it is using unconfirmed link services but MUST respond with a link layer confirm if a link layer reset is requested. A device must respond to all unconfirmed link requests (i.e. function codes 0, 4, 9) without a preceding link reset. The following tests are designed to verify this functionality.

6.1 Reset Link and Passive Confirm support


6.1.1 Desired Behavior
The Device under test (DUT) must respond to a link reset with a link confirm. DUT must respond to application layer data requests using unconfirmed link services without requiring a link reset. DUT must not respond to application layer data requests using confirmed link services without a preceding link reset. DUT must respond to application layer data requests using confirmed link services after a link reset has been issued. DUT must acknowledge but not otherwise respond to requests with the wrong FCB. DUT must issue a data link reset if transmitting requests that require a data link confirm.

6.1.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. Cycle power to the DUT. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify that the DUT responds with a valid message. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xF3. Verify that the DUT either sends a NACK with the DFC bit clear or does not respond. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xD3. Verify that the DUT either sends a NACK with the DFC bit clear or does not respond. Issue a link reset using link control block 0xC0. Verify that the DUT responds with a link layer confirm (link control block 0x00). Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xF3. Verify that the DUT responds with a link layer confirm and a valid application layer response. Perform repeated requests of Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and alternating link control blocks 0xD3 and 0xF3. Verify that the DUT responds with a link layer confirm and a valid application layer response for each request. Issue a link reset using link control block 0xC0. Verify that the DUT responds with a link layer confirm (link control block 0x00). Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xD3. Verify that the DUT responds with a link layer confirm (link control block 0x00) and no application response. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xF3. Verify that the DUT responds with a link layer confirm and a valid application layer response. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xF3. Verify that the DUT responds with a link layer confirm (link control block 0x00) and no application response. If the DUT cannot be configured to request data link confirms when transmitting, continue testing at section 6.2. Configure the DUT to request data link confirm when transmitting. Cycle power to the DUT. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify that the DUT responds by sending a data link reset (control block 0x40). Send a data link acknowledge (control block 0x80).

DNP3-2001 IED Certification Procedure Subset Level 1

Page 6 Rev 2.1 5-July-01

28. Verify that the DUT responds with a valid message having control block 0x73. This is the response to the Class 0 data request, including a request for data link confirm. 29. Issue a data link NACK with DFC clear (control block 0x81). 30. If the DUT then issues a data link reset (control block 0x40), respond by sending an acknowledge control block 0x80). If the DUT then repeats the Class 0 response message (control block 0x73), it has functioned correctly, and this test is complete, continue testing at section 6.2. 31. If the DUT did not issue a link reset at step 30, steps 25 through 28 should be repeated as shown above. DUT responses other than those of steps 26 and 28 indicate incorrect operation.

6.2 Test Link


6.2.1 Desired Behavior
The DUT must respond with a Link Confirm - ACK if the FCB bits are correct in the test request. Otherwise, the DUT must respond with the last secondary confirm frame. This behavior is not tested since it was deemed by the Technical Committee as too difficult to test in a reliable manner. If the DUT receives a test link frame without a previous link reset, the DUT must either not respond or respond with a NACK with DFC = 0.

6.2.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. Cycle power to the DUT. Request a Link Test Frame using link control block 0xF2. Verify that the DUT responds with a Confirm - NACK with DFC=0 (link control code 0x01) or does not respond. Issue a Link Reset using link control block 0xC0. Request a Link Test Frame using link control block 0xF2. Verify that the DUT responds with a Confirm - ACK (link control code 0x00). Request a Link Test Frame using link control block 0xD2. Verify that the DUT responds with a Confirm - ACK (link control code 0x00). Cycle power to the DUT. Request a Link Test Frame using link control block 0xD2. Verify that the DUT responds with a Confirm - NACK with DFC=0 (link control code 0x01) or does not respond. Issue a Link Reset using link control block 0xC0. Request a Link Test Frame using link control block 0xF2. Verify that the DUT responds with a Confirm - ACK (link control code 0x00). Request a Link Test Frame using link control block 0xD2. Verify that the DUT responds with a Confirm - ACK (link control code 0x00).

6.3 Request Link Status


6.3.1 Desired Behavior
When issued a Request Link Status message, the DUT must respond with a valid Status of Link message. The DUT must ignore FCB when FCV = 0.

6.3.2 Test Procedure


1. 2. 3. 4. 5. Cycle power to the DUT. Request a Link Status Frame using link control block 0xC9. Verify that the DUT responds with a valid link status message with link control block 0x0B or 0x1B. Request a Link Status Frame using link control block 0xE9. Verify that the DUT responds with a valid link status message with link control block 0x0B or 0x1B.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 7 Rev 2.1 5-July-01

6.4 Test Retries


6.4.1 Desired Behavior
DUTs are not required to support link layer retries. The rest of these behaviors apply only to DUTs that support link layer retries. The DUT must be able to disable retries through configuration. If the device requests a link layer confirm and does not receive it within a specified period of time (LINK TIMEOUT), it shall retransmit the link frame. It shall do this n times where n is a specified number of retries before aborting transmission (LINK RETRYCOUNT). If configured to enable link layer confirms on primary transmissions, the DUT must perform retries on all SEND/CONFIRM and REQUEST/RESPOND frames. Both LINK TIMEOUT and LINK RETRYCOUNT must be specified in the Device Profile Document or they can optionally be configurable parameters.

6.4.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. If the DUT does not support link layer confirms or link layer retries on primary transmissions, continue testing in the next section. Configure the device to enable link layer confirms on primary transmissions and if retries are configurable, set them to a reasonable value. Cycle power to the DUT. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify that the DUT sends a RESET LINK frame. Do not send a data link CONFIRM frame. Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Verify that it repeats this exactly LINK RETRYCOUNT times. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify that the DUT responds with a RESET LINK frame. Send a data link CONFIRM. Verify that the DUT sends a valid application layer response in a SEND/CONFIRM USER DATA frame. Do not send a data link CONFIRM frame. Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Verify that it repeats this exactly LINK RETRYCOUNT times. If it is possible to cause the DUT to send TEST LINK, RESET USER PROCESS, or REQUEST LINK STATUS, cause it to do so, but do not respond in each case. Repeat steps 11 and 12 for each of these frames that can be generated. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify that the DUT responds with a RESET LINK frame. Send a data link CONFIRM. Verify that the DUT sends a valid application layer response in a SEND/CONFIRM USER DATA frame. Do not send a data link CONFIRM frame. Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Send a data link CONFIRM. Verify that no further retries are sent. If it is possible to cause the DUT to send TEST LINK, RESET USER PROCESS, or REQUEST LINK STATUS, cause it to do so, but do not respond in each case. Repeat steps 18 and 19 for each of these frames that can be generated.

6.5 DIR and FCV Bits


6.5.1 Desired Behavior
The DUT must clear (set to zero) the DIR bit in each data link frame it transmits. The DUT must set the FCV bit to zero in all frames except SEND/CONFIRM User Data and SEND/CONFIRM Test Link. These frames are tested elsewhere.

6.5.2 Test Procedure


1. If the DUT is capable of requesting data link confirmations, configure it to NOT request data link confirmations. Page 8 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 1

2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13.

Cycle power to the DUT. Prepare and send a READ request for Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and a link control block 0xC4. Verify the response from the DUT uses data link control block 0x44 i.e. Unconfirmed User Data with the DIR bit not set and the FCV bit not set. If the DUT can generate RESET USER PROCESS or REQUEST LINK STATUS, cause it to do so and verify none of these frames have the DIR or FCV bit set. If the DUT can generate TEST LINK, cause it to do so and verify that these frames have the DIR bit clear and FCV bit set. If the DUT is not capable of requesting data link confirmations, no further testing is required in this section. If the DUT is capable of requesting data link confirmations, configure it to do so. Cycle power to the DUT. Prepare and send a READ request for Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and a link control block 0xC4. Verify the DUT first sends a frame with data link control block 0x40, i.e. RESET LINK with DIR=0 and FCV=0. Reply with a data link CONFIRM - ACK. Verify the DUT sends a frame with data link control block 0x73 i.e. SEND/CONFIRM USER DATA with FCV=1 and FCB = 1. Configure DUT to NOT request data link confirmations.

6.6 Data Link Rejects Invalid Frames


6.6.1 Desired Behavior
The DUT must detect errors due to transmission line errors or the incorrect functioning of other devices. It must therefore not respond, either at a data link layer or application layer, to frames that are otherwise valid but have one of the following errors: Incorrect start sequence Incorrect destination address Incorrect CRC Invalid function code Invalid FCV (Frame Count Valid) bit For an invalid function code or invalid FCV, the DUT may also respond with LINK SERVICE NOT IMPLEMENTED. NOTES: These procedures do not test whether the DUT rejects frames having the DIR bit set incorrectly. Implementers of Slave IEDs must, however, clear this bit (0) in all their transmissions to aid monitoring their devices output on protocol analyzers. This is tested in section DIR and FCV Bits. It is optional whether devices choose to filter frames based on source address, and is therefore not tested here. The Device Profile Document indicates whether or not filtering is performed based on the source address.

6.6.2 Test Procedure Primary Frames


Before performing the remainder of these tests: 1. Cycle power to the DUT. 2. Issue a link reset using link control block 0xC0. 3. Verify that the DUT responds with a link layer confirm (link control block 0x00). 4. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xF3. 5. Verify that the DUT responds with a link layer confirm (link control block 0x00). 6. Verify that the DUT responds with application layer data. To perform the remainder of this test, a general-purpose protocol analyzer capable of generating any sequence of data is necessary. If a DNP-specific protocol analyzer is being used for testing, it should be used to monitor the exchange between the general-purpose analyzer and the DUT.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 9 Rev 2.1 5-July-01

6.6.2.1 Invalid Start Octets


1. Prepare a READ request for Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and a link control block 0xD3. 2. Modify the frame so it begins with an invalid initial start octet (e.g. 0x09) instead of 0x05. 3. Modify the CRC of the data link layer header so the CRC is correct for the invalid start octet. 4. Send the request. 5. Wait several seconds. 6. Verify that the DUT does not send a link layer confirm or application layer response. 7. Modify the frame so it begins with 0x05, but the second start octet is invalid (e.g. 0xff). 8. Modify the CRC of the data link layer header so the CRC is correct for the invalid start octet. 9. Send the request. 10. Wait several seconds. 11. Verify that the DUT does not send a link layer confirm or application layer response. 12. Repeat this test once using different start octet values.

6.6.2.2 Invalid Primary Function Code


1. 2. Prepare a READ request for Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and a link control block of 0xD3. Modify the frame so the control field contains the correct settings of the DIR, PRM, FCB and FCV fields, but has an invalid function code, e.g. 0xD5. Alter the CRC of the data link layer header so the CRC is correct for the invalid control field. Send the request. Wait several seconds. Verify that the DUT either does not send a link layer confirm, or responds with a valid LINK SERVICE NOT IMPLEMENTED frame (control field 0x0F). Verify that the DUT does not send an application layer response. Repeat this test once with a different invalid function code.

3. 4. 5. 6. 7.

6.6.2.3 Invalid Destination Address


1. Send a READ request to different address. Note: For devices that can be configured to represent multiple logical devices (i.e. can respond to requests directed to more than one address), ensure that the selected address is not one of the other valid addresses configured for the device. Wait several seconds. Verify that the DUT does not send a link layer confirm or application layer response. Repeat this test once with a different destination address.

2. 3. 4.

6.6.2.4 Invalid CRC


1. Prepare a READ request for Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and a link control block 0xD3. 2. Modify the frame so the CRC of the data link layer header is incorrect. 3. Send the request. 4. Wait several seconds. 5. Verify that the DUT does not send a link layer confirm or application layer response. 6. Modify the frame so the CRC of the data link layer header is correct but the CRC of the application layer request is incorrect. 7. Send the request. 8. Wait several seconds. 9. Verify that the DUT does not send a link layer confirm or application layer response. 10. Repeat this test once with different incorrect CRC values.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 10 Rev 2.1 5-July-01

6.6.2.5 Invalid FCV


1. 2. 3. 4. 5. 6. 7. 8. 9. Prepare a READ request for Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and a link control block 0xC3, i.e. SEND/CONFIRM USER DATA, but with FCV=0 (incorrect). Send the request. Wait several seconds. Verify that the DUT does not send a link layer confirm or application layer response. The DUT may respond with a link layer frame with function code LINK SERVICE NOT IMPLEMENTED. Prepare a READ request for Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and a link control block 0xD4, i.e. SEND/NO CONFIRM USER DATA, but with FCV=1 (incorrect). Send the request. Wait several seconds. Verify that the DUT does not send a link layer confirm or application layer response. The DUT may respond with a link layer frame with function code LINK SERVICE NOT IMPLEMENTED. Repeat steps 5-8 using the control blocks in the following table:

Code C2 D0 D9

Description Test Link RESET LINK Link Status Request

Notes FCV = 0 incorrect FCV=1 incorrect, FCB = 0 ignored FCV=1 incorrect, FCB = 0 ignored

6.6.3 Test Procedure Secondary Frames


The tests in this section are optional, and must pass only if the DUT requests data link confirmations and performs retries. The retries are used to detect whether the device processed the data link layer confirmation. Before performing these tests: 1. Configure the device to enable link layer confirms on primary transmissions and if retries are configurable set them to a reasonable value. 2. Cycle power to the DUT. 3. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. 4. Verify that before responding with application layer data, the DUT sends a RESET LINK frame. Send a data link CONFIRM ACK frame in reply. 5. Verify the DUT responds with application layer data, requesting data link confirmation. 6. Send a valid CONFIRM ACK frame in reply. To perform the remainder of this test, a general-purpose protocol analyzer capable of generating any sequence of data is necessary. If a DNP-specific protocol analyzer is being used for testing, it should be used to monitor the exchange between the general-purpose analyzer and the DUT.

6.6.3.1 Invalid Start Octets


1. 2. 3. 4. 5. 6. 7. 8. 9. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify the DUT responds with application layer data, requesting data link confirmation. Send a CONFIRM ACK frame modified so its start octet is invalid (e.g. 0x09). Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify the DUT responds with application layer data, requesting data link confirmation. Send a CONFIRM ACK frame modified so the start octet is correct (0x05), but the second octet is incorrect (e.g. 0xff). Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Repeat this test once with different start octet values.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 11 Rev 2.1 5-July-01

6.6.3.2 Invalid Secondary Function Code


1. 2. 3. 4. 5. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify the DUT responds with application layer data, requesting data link confirmation. Send a CONFIRM ACK frame modified so the DIR, PRM and DFC bits of the control field are correct, but the function code is invalid (e.g. 0x03). Ensure that the CRC is correct for the invalid function code value. Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Repeat this test once with a different function code value.

6.6.3.3 Invalid Destination Address


1. 2. 3. 4. 5. 6. This test may be performed with a DNP-specific test set. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify the DUT responds with application layer data, requesting data link confirmation. Send a CONFIRM ACK frame to a destination address that is not that of the DUT. Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Repeat this test once with a different destination address.

6.6.3.4 Invalid CRC


1. 2. 3. 4. 5. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify the DUT responds with application layer data, requesting data link confirmation. Send a CONFIRM ACK frame modified such that the CRC is incorrect. Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Repeat this test once with a different CRC value.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 12 Rev 2.1 5-July-01

7 Transport Layer
Whenever FIR, FIN and sequence numbers are referenced in this section they refer to the definitions present in the transport header which is reproduced here for convenience. Transport Header bit 6 bits 5-0 FIR Sequence number Table 7-1

bit 7 FIN

7.1 Desired Behavior


If the DUT contains enough data to cause the reply to an application request to be larger than one Link Protocol Data Unit, it is required to, a) Set the proper FIR and FIN bits. b) Set the correct sequence information. c) Distribute the data correctly. d) Signify to the initiating station that the reply contains multiple LPDUs e) Provide the appropriate information for assembly at the receiving station. If the device does not contain enough data, then the FIR and FIN bits must signify that there is only one LPDU in the reply.

7.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. Cycle power to the DUT. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06. Verify that the DUT responds with a valid message. If the DUTs reply contains more than 249 octets then verify that the first response message sets the FIR bit to a one, the FIN bit is set to zero. Verify subsequent messages to assure that the FIR bit is zero, the FIN bit is zero, and the sequence number increments by one. Verify that the last message has the FIR bit is zero and the FIN bit is one, signifying the last data fragment, and the SEQ value increments by one. If the DUTs reply contains less than 250 octets in the Data Link Frame then the FIR bit is set to one and the FIN bit is also set to one.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 13 Rev 2.1 5-July-01

8 Application Layer 8.1 Binary Output Status


The binary output status object represents the current state and status of the associated binary output. The status is an 8-bit flag field (repeated here for your convenience): Flag Bit 0 1 2 3 4 5 6 7 Value ONLINE - 0=off-line, 1= on-line RESTART - 0=normal, 1= restart COMMUNICATION LOST - 0=normal, 1=lost REMOTE FORCED DATA - 0=normal, 1=forced LOCAL FORCED DATA - 0=normal, 1=forced 0 0 STATE - 0, 1 Table 8-1

8.1.1 Desired Behavior


If the device supports binary outputs the device must respond to a Binary Output read request with a binary output status object (object 10 Variation 2) using qualifiers 0x00 or 0x01. If the device does not support binary outputs the device must respond to a Binary Output read request with a Null Response. Optionally, the device can return an error response with IIN2-1.

8.1.2 Test Procedure


1. 2. 3. 4. 5. Issue a request for Object 10 Variation 0 using the all data qualifier 0x06. If the device supports Binary Outputs verify that the DUT responds with a Binary Output Status object (Object 10 Variation 2). Verify that the data is reported using either 8 bit start/stop indexing (qualifier 0x00) or 16 bit start/stop indexing (qualifier 0x01). If the device does not support Binary Outputs verify that the DUT responds with a Null Response. The device can optionally set IIN2-1. Verify that flag behavior complies with Section 2, Note #5.

8.2 Binary Outputs


If a device supports control outputs, it is required to be configurable to support all three modes of operation of control, namely Select Before Operate, Direct Operate, and Direct Operate No Acknowledgment. A device may be configurable to disable any subset of the modes. If a device has been configured to reject a particular mode, it must return a control status value of 4 (control operation not supported for this point). It is the hosts responsibility to determine the appropriate control mechanism. It is also the hosts responsibility to perform select before operate control when it is unacceptable to have the control point operated more than once. This is typically a configuration item in the host and is the responsibility of the end user to configure properly. It is the outstations responsibility to perform the control operation if a correct control dialog has been issued from the host. If the DUT is configurable in a manner such that points can be uninstalled or disabled, the device must be configured with at least one Binary Output point installed or enabled before proceeding with the test procedure.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 14 Rev 2.1 5-July-01

8.2.1 Select Before Operate


Select before operate control is used under circumstances when it is absolutely imperative that the control point operate only once. An example of this is a recloser. The host first initiates the select portion of the dialog. The outstation then echoes the exact control request byte for byte to the host. Note that the encapsulation information need not match, but that the object, variation, qualifier, and all object data must match exactly. The host then sends the execute portion of the dialog. The object, variation, qualifier, and all object data must match exactly byte for byte the data sent in the select message. If this message matches the select message byte for byte and it is received within the configured acceptable delay between select and execute the outstation must operate the control point.

8.2.1.1 Desired Behavior


The following assumes that the device does not support control operations: If the device does not support control outputs, it must respond to a select with an Error Response setting IIN2-1. An Error Response with IIN2-2 set is an invalid response. No further testing in this section is necessary. The following assumes that the device supports control operations: The maximum select to execute delay time must be specified in the Device Profile Document. The DUT responds to matching select and execute requests by echoing each request with the status field set to 0. The specified control operates. The DUT responds to selecting an uninstalled control point by returning an error response with IIN2-2 set and a status code of 4. The control point does not operate. The DUT responds to executing an installed control point after the configured acceptable select to execute delay by echoing the execute and setting the status field to 1 [Execute received after timeout]. The control point does not operate The DUT responds to a non-matching execute with a status field of 2 [No previous matching select] and does not operate the control under the following conditions: No prior select issued On time mismatch Off time mismatch Control code mismatch The DUT operates various selected control points. The DUT supports 8 and 16 bit point indexing. The following assumes that the device supports control operations and were added as a result of Technical Bulletin TB2000002 (Control Retries): The DUT must accept retries on the select portion of the control dialog that increment the application sequence number between retries. In this case the select-to-operate timer must be restarted after reception of each select. The DUT must accept retries on the select portion of the control dialog that do not increment the application sequence number between retries. In this case the select-to-operate timer must remain unaltered by the reception of each additional select. The DUT must reject any operate that does not: $ contain a application layer sequence number that is exactly one greater (modulo 16) than the previously accepted select. $ match the object portion of the select message byte for byte, excluding the application header. The DUT must accept retries on the operate portion of the control dialog that does not increment the application sequence number between retries. The DUT must echo the operate command but must not operate the control more than once. The following assumes that the device does support control operations, however there are no control points installed/enabled: If the device does not have any control outputs installed, it must respond to a select with an Error Response setting IIN2-1 or IIN2-2.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 15 Rev 2.1 5-July-01

8.2.1.2 Test Procedure


8.2.1.2.1 Binary Output, SBO, 0x28
1. 2. 3. 4. 5. 6. Issue a select using Object 12 Variation 1 to an installed point using 16 bit indexing (qualifier 0x28), a control code supported by the device and an appropriate on time/off time. If the device does not support control outputs, verify that the DUT responds with a Error Response with IIN2-1 set. End testing of Binary Output SBO. Verify that the DUT responds by echoing the select message exactly. Immediately issue a matching execute. Verify that the DUT echoes the execute. Verify that the selected control operates.

8.2.1.2.2 Binary Output, SBO, 0x17


1. 2. 3. 4. 5. Issue a select using Object 12 Variation 1 to a different installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. If the device does support control outputs, verify that the DUT responds by echoing the select message exactly. Immediately issue a matching execute. Verify that the DUT echoes the execute. Verify that the selected control operates.

8.2.1.2.3 Binary Output, SBO, To Uninstalled Point


1. 2. 3. Issue a select using Object 12 Variation 1 to an uninstalled point using 16 bit indexing (qualifier 0x28) using a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by returning an error response with IIN2-2 set and a status code of 4. Verify that no control point operates.

8.2.1.2.4 Binary Output, SBO, Execute Issued After Timeout


1. 2. 3. 4. 5. Issue a select using Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by echoing the select message exactly. Wait 1 second past the configured maximum select to execute delay time. Issue a matching execute and verify that the DUT echoes the execute with the control status field set to 1[Execute received after timeout]. Verify that no control point operates.

8.2.1.2.5 Binary Output, SBO, Execute to Different Point Than Select


1. 2. 3. 4. 5. Issue a select to Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by echoing the select message exactly. Immediately issue an execute to Object 12 Variation 1 to a different installed point using 8 bit indexing (qualifier 0x17), the same control code as the select, and the same on time/off time as the previous select. Verify that the DUT echoes the execute with the control status field set to 2 [No previous matching select]. Verify that no control point operates.

8.2.1.2.6 Binary Output, SBO, Execute On Time does not match Select On Time
1. 2. 3. 4. 5. Issue a select using Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by echoing the select message exactly. Immediately issue a execute to Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), the same control code as the select, the on time incremented by 1 and the same off time as the previous select. Verify that the DUT echoes the execute with the control status field set to 2 [No previous matching select]. Verify that no control point operates. Page 16 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 1

8.2.1.2.7 Binary Output, SBO, Execute Off Time does not match Select Off Time
1. 2. 3. 4. 5. Issue a select using Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by echoing the select message exactly. Immediately issue an execute to Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), the same control code as the select, same on time as the previous select and the off time incremented by 1. Verify that the DUT echoes the execute with the control status field set to 2 [No previous matching select]. Verify that no control point operates.

8.2.1.2.8 Binary Output, SBO, Select using a supported Control Code, Execute using a different Control Code
1. 2. 3. 4. 5. Issue a select using Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by echoing the select message exactly. Immediately issue an execute to Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code different from the previous select, and the same on time/off time as the previous select. Verify that the DUT echoes the execute with the control status field set to 2 [No previous matching select]. Verify that no control point operates.

8.2.1.2.9 Binary Output, SBO, Select 0x28, Execute 0x17


1. 2. 3. 4. 5. Issue a select using Object 12 Variation 1 to an installed point using 16 bit indexing (qualifier 0x28), a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by echoing the select message exactly. Immediately issue an execute to Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and the same on time/off time as the previous select. Verify that the DUT echoes the execute with the control status field set to 2 [No previous matching select]. Verify that no control point operates.

8.2.1.2.10 Binary Output, SBO, Configurable Device


1. 2. 3. 4. 5. If the device is not configurable in a manner such that control points can be uninstalled or disabled, skip this section. Configure the DUT such that all Binary Output points are uninstalled or disabled. Issue a select using Object 12 Variation 1 to point 0 using 16 bit indexing (qualifier 0x28), a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by returning an error response with IIN2-1 or IIN2-2 set. Verify that no control point operates.

8.2.1.2.11 Binary Output, SBO, Same Sequence Number Select Retries


1. 2. 3. 4. 5. 6. 7. 8. If the DUT does not have installed binary output points, skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue the select again using the same application layer sequence number. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the binary output.

8.2.1.2.12 Binary Output, SBO, Incrementing Sequence Number Select Retries


1. 2. 3. 4. 5. If the DUT does not have installed binary output points, skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue the select again incrementing the application layer sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the select byte for byte.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 17 Rev 2.1 5-July-01

6. 7. 8.

Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the binary output.

8.2.1.2.13 Binary Output, SBO, Same Sequence Number Operate Retries


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed binary output points, skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the binary output. Issue the operate again using the same application layer sequence number. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT does not operate the binary output.

8.2.1.2.14 Binary Output, SBO, Incrementing Sequence Number Operate Retries


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed binary output points, skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the binary output. Issue the operate again, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the binary output.

8.2.1.2.15 Binary Output, SBO, Sequence number checking


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed binary output points, skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by anything but 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the binary output. Issue a valid operate, incrementing the select sequence number by 1 modulo 16 to make sure the mismatched operate cleared the previous select. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the binary output.

8.2.2 Direct Operate with Acknowledge 8.2.2.1 Desired Behavior


The following behavior assumes that the device does not support control operation: If the device does not support control outputs, it must respond to a direct operate with an Error Response setting IIN2-1. An Error Response with IIN2-2 set is an invalid response. No further testing in this section is necessary. The following behavior assumes that the device supports control operations: The DUT responds to a direct operate to an uninstalled data point by returning an Error response with IIN2-2 set and a status code of 4. The control does not operate.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 18 Rev 2.1 5-July-01

The DUT responds to a direct operate to an installed data point by echoing the direct operate and setting the status field to 0. The specified control operates.

The following behavior assumes that the device does support control operations, however there are no control points installed/enabled: If the device does not have any control outputs installed, it must respond to a direct operate with an Error Response setting IIN2-1 or IIN2-2.

8.2.2.2 Test Procedure


8.2.2.2.1 Binary Output, Direct Operate
1. 2. 3. 4. Issue a direct operate using Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. If the device does not support control outputs verify that the DUT responds with an Error Response with IIN2-1 set and end testing of this section. If the device does support control outputs verify that the DUT responds by echoing the direct operate message exactly with status field of 0. Verify that the specified control operates.

8.2.2.2.2 Binary Output, Direct Operate to Uninstalled Point


1. 2. 3. Issue a direct operate using Object 12 Variation 1 to an uninstalled point using 16 bit indexing (qualifier 0x28) using a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by returning an Error response with IIN2-2 set and a status code of 4. Verify that no control operates.

8.2.2.2.3
1. 2. 3. 4. 5.

Binary Output, Direct Operate, Configurable Device

If the device is not configurable in a manner such that control points can be uninstalled or disabled, end testing of Binary Output, Direct Operate. Configure the DUT such that all Binary Output points are uninstalled or disabled. Issue a direct operate using Object 12 Variation 1 to point 0 using 16 bit indexing (qualifier 0x28) using a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by returning an error response with IIN2-1 or IIN2-2 set. Verify that no control operates.

8.2.3 Direct Operate, No Acknowledge 8.2.3.1 Desired Behavior


The DUT must not respond to in any way to the direct operate no acknowledge. If the device supports binary outputs and the operate message is correct then the binary output point must operate.

8.2.3.2 Test Procedure


8.2.3.2.1 Binary Output, Direct Operate, No Acknowledge
1. 2. 3. 4. Issue a Direct Operate, No Acknowledge using Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. Verify that the DUT does not respond. If the device does not support control outputs, end testing of this section. If the device does support control outputs, verify that the proper control point operates.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 19 Rev 2.1 5-July-01

8.2.3.2.2 Binary Output, Direct Operate, No Acknowledge, to an Uninstalled Point


1. 2. 3. Issue a Direct Operate, No Acknowledge using Object 12 Variation 1 to an uninstalled point using 16 bit indexing (qualifier 0x28) using a control code supported by the device and an appropriate on time/off time. Verify that the DUT does not respond. Verify that no control operates.

8.2.3.2.3
1. 2. 3. 4. 5.

Binary Output, Direct Operate, No Acknowledge, Configurable Device

If the device is not configurable in a manner such that control points can be uninstalled or disabled, end testing of Binary Output, Direct Operate, No Acknowledge. Configure the DUT such that all Binary Output points are uninstalled or disabled. Issue a Direct Operate, No Acknowledge using Object 12 Variation 1 to point 0 using 16 bit indexing (qualifier 0x28) using a control code supported by the device and an appropriate on time/off time. Verify that the DUT does not respond. Verify that no control operates.

8.2.4 Multiple Object Requests 8.2.4.1 Desired Behavior


The DUT must parse requests for all control operations within a single frame. Up to a full frame of request operations must be supported.

The following assumes that the device supports control operations and were added as a result of Technical Bulletin TB2001001 (Multiple Control Object and Status Codes): The DUT responds to requests having more points than are supported in a single message with a status code of 8 for at least the first point that is beyond the point count limit. The DUT responds to a select to an uninstalled control point by returning an error response with IIN2-2 set and a status code of 4.

8.2.4.2 Test Procedure


1. 2. Review the devices profile document to understand how many control points are supported in a single request. If this number is one, skip to step 7. Determine the number of installed points that can be successfully controlled in a single request. This number shall be the smaller of: The number of controls supported in a single request The number of installed control points Sixteen In a single request, issue a select to the above number of points using Object 12, Variation 1 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and an appropriate on time/off time. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set and that each object returns a status code of 0. Immediately issue a matching execute. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set and that each object returns a status code of 0. Verify that each of the selected controls operated. Note that controls may execute simultaneously or sequentially one after the other. If the number of control objects supported in a single request is greater than or equal to either The number of control objects that fit into a single frame or The number of installed control points, skip to step 13. In a single request, issue a select to at least one more point than is supported in a single request, each point having a different index but otherwise able to be controlled, using Object 12, Variation 1 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and an appropriate on time/off time. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set, that each object except the last returns a status code of 0, and the last object returns a status code of 8. Page 20 Rev 2.1 5-July-01

3. 4. 5. 6. 7.

8.

9.

DNP3-2001 IED Certification Procedure Subset Level 1

10. If the DUT does not support direct operate, skip to step 13. 11. In a single request, issue a direct operate command to at least one more point than is supported in a single request, each point having a different index but otherwise able to be controlled, using Object 12, Variation 1 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and an appropriate on time/off time. 12. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set, that each object except the last returns a status code of 0 and the last object returns a status code of 8. Verify that all except the last control point operated. 13. In a single request, issue a select to one installed control point and to one point that is not installed using Object 12, Variation 1 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and an appropriate on time/off time. The installed point should be the first object in the request. 14. Verify that the DUT response has IIN2-2 bit set, that the status code returned for the installed point is 0 and the status code returned for the non-installed point is 4.

8.2.5 Control Code Support 8.2.5.1 Desired Behavior


The following assumes that the device supports control operations and were added as a result of Technical Bulletin TB2000006 (CROB Control Codes): For complementary function indices, the Outstation must accept at least one of the following control code pairs: $ 0x03 (Latch On/NUL) and 0x04 (Latch Off/NUL) $ 0x41 (Pulse On/Close) and 0x81 (Pulse On/Trip) The outstation may optionally accept both forms of complementary control code pairs. If it does: $ control codes 0x03 (Latch On/NUL) and 0x41 (Pulse On/Close) must perform the same function $ control codes 0x04 (Latch Off/NUL) and 0x81 (Pulse On/Trip) must perform the same function For single function indices, the outstation must accept at least one of the following control codes: $ 0x01 (Pulse On/NUL) $ 0x03 (Latch On/NUL) $ 0x04 (Latch Off/NUL) $ 0x41 (Pulse On/Close) $ 0x81 (Pulse On/Trip) If the outstation accepts more than one control code for a single function index, it must perform the same function for each control code it accepts.

8.2.5.2 Test Procedure


8.2.5.2.1 Binary Output, Complementary Function Support
1. 2. 3. 4. If the DUT does not have installed binary output points skip this section. If the DUT does not have installed complementary function binary output points skip this section. If the DUT does not support the 0x03 (Latch On/NUL) and 0x04 (Latch Off/NUL) pair skip to step 8. Issue a valid control sequence to the first installed complementary function binary output point using control code 0x03 (Latch On/NUL). 5. Verify the control operation completes successfully. 6. Issue a valid control sequence to an installed complementary function binary output point using control code 0x04 (Latch Off/NUL). 7. Verify the complementary control operation completes successfully. 8. If the DUT does not support the 0x41(Pulse On/Close) and 0x81 (Pulse On/Trip) pair skip to step 13. 9. Issue a valid control sequence to an installed complementary function binary output point using control code 0x41(Pulse On/Close). 10. Verify the control operation completes successfully. DNP3-2001 IED Certification Procedure Subset Level 1 Page 21 Rev 2.1 5-July-01

11. Issue a valid control sequence to an installed complementary function binary output point using control code 0x81 (Pulse On/Trip). 12. Verify the complementary control operation completes successfully. 13. If the DUT does not support both the 0x03 (Latch On/NUL) and 0x04 (Latch Off/NUL) control code pair and the 0x41(Pulse On/Close) and 0x81 (Pulse On/Trip) control code pair skip to step the next section. 14. Issue a valid control sequence to an installed complementary function binary output point using control code 0x03 (Latch On/NUL). 15. Verify the control operation completes successfully. 16. Issue a valid control sequence to the same installed complementary function binary output point using control 0x81 (Pulse On/Trip). 17. Verify that the complementary control operation completes successfully. 18. Issue a valid control sequence to the same installed complementary function binary output point using control code 0x41(Pulse On/Close). 19. Verify the complementary control operation completes successfully. 20. Issue a valid control sequence to the same installed complementary function binary output point using control 0x04 (Latch Off/NUL). 21. Verify the complementary control operation completes successfully.

8.2.5.2.2 Binary Output, Single Function Support


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. If the DUT does not have installed binary output points skip this section. If the DUT does not have installed single function binary output points skip this section. For any point that is tested below, determine what action should happen when the control executes. If the DUT does not support the 0x01 (Pulse On/NUL) control code for single function binary output points at this index skip to step 7. Issue a valid control sequence to the first installed single function binary output point using control code 0x01 (Pulse On/NUL). Verify the control operation in step 3 completes successfully. If the DUT does not support the 0x03 (Latch On/NUL) control code for single function binary output points at this index skip to step 10. Issue a valid control sequence to the first installed single function binary output point using control code 0x03 (Latch On/NUL). Verify the control operation in step 3 completes successfully. If the DUT does not support the 0x04 (Latch Off/NUL) control code for single function binary output points at this index skip to step 13. Issue a valid control sequence to the first installed single function binary output point using control code 0x04 (Latch Off/NUL). Verify the control operation in step 3 completes successfully. If the DUT does not support the 0x41 (Pulse On/Close) control code for single function binary output points at this index skip to step 16. Issue a valid control sequence to the first installed single function binary output point using control code 0x41 (Pulse On/Close). Verify the control operation in step 3 completes successfully. If the DUT does not support the 0x81 (Pulse On/Trip) control code for single function binary output points at this index skip to the next section. Issue a valid control sequence to the first installed single function binary output point using control code 0x81 (Pulse On/Trip). Verify the control operation in step 3 completes successfully.

8.3 Analog Output Status


The Analog Output Status object represents the actual value of an analog output or software point and the associated status reported by an 8-bit flag field (repeated here for convenience):

DNP3-2001 IED Certification Procedure Subset Level 1

Page 22 Rev 2.1 5-July-01

Flag Bit 0 1 2 3 4 5 6 7

Value ONLINE - 0=off-line, 1= on-line RESTART - 0=normal, 1= restart COMMUNCATION LOST - 0=normal, 1=lost REMOTE FORCED DATA - 0=normal, 1=forced LOCAL FORCED DATA - 0=normal, 1=forced 0 0 0 Table 8-2

8.3.1 Desired Behavior


If the device supports analog outputs the device must respond to an analog output read request with an analog output object (object 40 variation 2) using qualifier 0x00 or 0x01. If the device does not support analog outputs the device must respond to an analog output read request with a Null Response or an Error Response with IIN2-1 or IIN2-2 set. The value returned in the Analog Output Status must reflect the value written to the corresponding Analog Output point within the tolerances specified by the manufacturer.

8.3.2 Test Procedure


1. 2. 3. 4. 5. 6. Issue a Direct Operate to Object 41 Variation 2 to an installed point using 16 bit indexing (qualifier 0x28) and an appropriate value. Issue a request for Object 40 Variation 0 using the all data qualifier 0x06. If the device supports Analog Outputs verify that the DUT responds with an Analog Output Status object (object 40 Variation 2). Verify that the data is reported using either 8 bit start/stop indexing (qualifier 0x00) or 16 bit start/stop indexing (qualifier 0x01). If the device does not support Analog Outputs verify that the DUT responds with a Null Response. The device can optionally return an Error Response with IIN2-1or IIN2-2 set. Verify that the value returned in the Analog Output Status object reflects the value sent in step 1 within the tolerances specified by the manufacturer.

8.4 Analog Outputs


If a device supports analog outputs, it is required to be configurable to support all three modes of operation, namely Select Before Operate, Direct Operate, and Direct Operate no Acknowledgment. A device may be configurable to disable any subset of the modes. If a device has been configured to reject a particular mode, it must return a control status value of 4 (control operation not supported for this point). It is the hosts responsibility to determine the appropriate analog output mechanism. It is also the hosts responsibility to perform select before operate control when it is unacceptable to have the analog output point operate more than once. This is typically a configuration item in the host and is the responsibility of the end user to configure properly. It is the outstations responsibility to perform the analog output operation if a correct control dialog has been issued from the host. If the DUT is configurable in a manner such that points can be uninstalled or disabled, the device must be configured with at least one Analog Output point installed or enabled before proceeding with the test procedure.

8.4.1 Select Before Operate


The host first initiates the select portion of the dialog. The outstation then echoes the exact analog output request byte for byte to the host. Note that the encapsulation information need not match, but that the object, variation, qualifier, and all object data must match exactly. The host then sends the execute portion of the dialog. The object, variation, qualifier, and all object DNP3-2001 IED Certification Procedure Subset Level 1 Page 23 Rev 2.1 5-July-01

data must match exactly byte for byte the data sent in the select message. If the execute message matches the select message byte for byte and it is received within the configured acceptable delay between select and execute, the outstation operates the analog output point.

8.4.1.1 Desired Behavior


The following behavior assumes that the device does not support analog output operations: If the device does not support analog outputs it must respond to a select with an Error Response setting IIN2-1. An Error Response with IIN2-2 set is an invalid response. No further testing in this section is necessary. The following behavior assumes that the device supports analog output operations: The maximum select to execute delay time must be specified in the Device Profile Document. The DUT responds to matching select and execute requests by echoing each request with the status field set to 0. The specified analog output operates. The DUT responds to selecting an uninstalled analog output point by returning an error response with IIN2-2 set and a status code of 4. The analog output point does not operate. The DUT responds to executing an installed analog output point after the configured acceptable select to execute delay by echoing the execute and setting the status field to 1[Execute received after timeout]. The analog output does not operate. The DUT responds to a non-matching execute with a status field of 2 [No previous matching select] and does not operate the analog output under the following conditions: No prior select issued. Value does not match. The DUT operates various selected analog output points. The DUT supports 8 and 16 bit point indexing. The following assumes that the device supports analog output operations and were added as a result of Technical Bulletin TB2000-002 (Control Retries): The DUT must accept retries on the select portion of the analog output dialog that increment the application sequence number between retries. In this case the select-to-operate timer must be restarted after reception of each select. The DUT must accept retries on the select portion of the analog output dialog that do not increment the application sequence number between retries. In this case the select-to-operate timer must remain unaltered by the reception of each additional select. The DUT must reject any operate that does not contain a application layer sequence number that is exactly one greater (modulo 16) than the previously accepted select. match the object portion of the select message byte for byte, excluding the application header. The DUT must accept retries on the operate portion of the analog output dialog that does not increment the application sequence number between retries. The DUT must echo the operate command but must not operate the analog output more than once. The following behavior assumes that the device does support analog output operations, however there are no analog output points installed/enabled: If the device does not have any analog outputs installed, it must respond to a select with an Error Response setting IIN21 or IIN2-2.

8.4.1.2 Test Procedure


8.4.1.2.1 Analog Output, SBO, 0x28
1. Issue a select using Object 41 Variation 2 to an installed point using 16 bit indexing (qualifier 0x28) and an appropriate value.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 24 Rev 2.1 5-July-01

2. 3. 4. 5. 6.

If the device does not support analog outputs verify that the DUT responds with an Error Response with IIN2-1 set. End testing of Analog Outputs. Verify that the DUT responds by echoing the select message exactly. Immediately issue a matching execute. Verify that the DUT echoes the execute. Verify that the selected analog output operates.

8.4.1.2.2 Analog Output, SBO, 0x17


1. 2. 3. 4. 5. Issue a select using Object 41 Variation 2 to a different point using 8 bit indexing (qualifier 0x17) and an appropriate value. If the device does support analog outputs, verify that the DUT responds by echoing the select message exactly. Immediately issue a matching execute. Verify that the DUT echoes the execute. Verify that the selected analog output operates.

8.4.1.2.3 Analog Output, SBO, to Uninstalled Point


1. 2. 3. Issue a select using Object 41 Variation 2 to an uninstalled point using 16 bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT responds by returning an error response with IIN2-2 set and a status code of 4. If an analog output is observed to operate, the test fails.

8.4.1.2.4 Analog Output, SBO, Execute Issued After Time-out


1. 2. 3. 4. 5. Issue a select using Object 41 Variation 2 to an installed point using 8 bit indexing (qualifier 0x17) and an appropriate value. Verify that the DUT responds by echoing the select message exactly. Wait 1 second past the configured maximum select to execute delay time. Issue a matching execute and verify that the DUT echoes the execute with the status field set to 1 [Execute received after timeout]. If an analog output is observed to operate, the test fails.

8.4.1.2.5 Analog Output, SBO, Execute Value does not match Select Value
1. 2. 3. 4. 5. Issue a select using Object 41 Variation 2 to an installed point using 8 bit indexing (qualifier 0x17) and an appropriate value. Verify that the DUT responds by echoing the select message exactly. Immediately issue an execute to Object 41 Variation 2 to an installed point using 8 bit indexing (qualifier 0x17) and the same value incremented by 1. Verify that the DUT echoes the execute with the status field set to 2 [No previous matching select]. If an analog output is observed to operate, the test fails.

8.4.1.2.6 Analog Output, SBO, Select 0x28, Execute 0x17


1. 2. 3. 4. 5. Issue a select using Object 41 Variation 2 to an installed point using 16 bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT responds by echoing the select message exactly. Immediately issue an execute to Object 41 Variation 2 to an installed point using 8 bit indexing (qualifier 0x17) and the same value as the previous select. Verify that the DUT echoes the execute with the control status field set to 2 [No previous matching select]. If an analog output is observed to operate, the test fails.

8.4.1.2.7 Analog Output, SBO, Configurable Device


1. 2. 3. If the device is not configurable in a manner such that analog output points can be uninstalled or disabled, skip this section. Configure the DUT such that all Analog Output points are uninstalled or disabled. Issue a select using Object 41 Variation 2 to point 0 using 16 bit indexing (qualifier 0x28) and an appropriate value. Page 25 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 1

4. 5.

Verify that the DUT responds by returning an error response with IIN2-1 or IIN2-2 set. If an analog output is observed to operate, the test fails.

8.4.1.2.8 Analog Output, SBO, Same Sequence Number Select Retries


1. 2. 3. 4. 5. 6. 7. 8. If the DUT does not have installed analog output points, skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue the select again using the same application layer sequence number. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the analog output.

8.4.1.2.9 Analog Output, SBO, Incrementing Sequence Number Select Retries


1. 2. 3. 4. 5. 6. 7. 8. If the DUT does not have installed analog output points, skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue the select again incrementing the application layer sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the analog output.

8.4.1.2.10 Analog Output, SBO, Same Sequence Number Operate Retries


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed analog output points, skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the analog output. Issue the operate again using the same application layer sequence number. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT does not operate the analog output.

8.4.1.2.11 Analog Output, SBO, Incrementing Sequence Number Operate Retries


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed analog output points, skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the analog output. Issue the operate again, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the analog output.

8.4.1.2.12 Analog Output, SBO, Sequence number checking


1. 2. 3. 4. 5. If the DUT does not have installed analog output points, skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by anything but 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Page 26 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 1

6. 7. 8. 9.

Verify that the DUT does not operate the analog output. Issue a valid operate, incrementing the select sequence number by 1 modulo 16 to make sure the mismatched operate cleared the previous select. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the analog output.

8.4.2 Direct Operate with Acknowledge 8.4.2.1 Desired Behavior


The following assumes that the device does not support analog output operations: If the device does not support analog outputs, it must respond to a direct operate with an Error Response setting IIN2-1. No further testing in this section is necessary. The following assumes that the device supports analog output operations: The DUT responds to a Direct Operate to an installed analog output point echoing the direct operate and setting the status field to 0. The specified analog output operates. The DUT responds to a Direct Operate to an uninstalled analog output point by returning an Error Response with IIN2-2 set and a status code of 4. No analog outputs shall be observed to operate. The DUT operates various analog output points. The following assumes that the device does support analog output operations, however there are no analog output points installed/enabled: If the device does not have any analog outputs installed, it must respond to a direct operate with an Error Response setting IIN2-1 or IIN2-2.

8.4.2.2 Test Procedure


8.4.2.2.1 Analog Output, Direct Operate
1. 2. 3. 4. Issue a Direct Operate to Object 41 Variation 2 to an installed point using 8 bit indexing (qualifier 0x17) and an appropriate value. If the device does not support analog output verify that the DUT responds with an Error Response with IIN2-1 set and end testing of this section. If the device does support analog outputs verify that the DUT responds by echoing the direct operate message exactly with status field of 0. Verify that the specified analog output operates.

8.4.2.2.2 Analog Output, Direct Operate, to Uninstalled Point


1. 2. 3. Issue a Direct Operate to Object 41 Variation 2 to an uninstalled point using 16 bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT responds by return an Error Response with IIN2-2 set and a status code of 4. If an analog output is observed to operate, the test fails.

8.4.2.2.3
1. 2. 3. 4. 5.

Analog Output, Direct Operate, Configurable Device

If the device is not configurable in a manner such that analog output points can be uninstalled or disabled, end testing of Analog Output, Direct Operate. Configure the DUT such that all Analog Output points are uninstalled or disabled. Issue a direct operate to Object 41 Variation 2 to point 0 using 16 bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT responds by returning an error response with IIN2-1 or IIN2-2 set. If an analog output is observed to operate, the test fails.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 27 Rev 2.1 5-July-01

8.4.3 Direct Operate, No Acknowledge 8.4.3.1 Desired Behavior


The DUT must not respond in any way to the direct operate no acknowledge. If the device supports analog outputs and the operate message is correct then the analog output point must operate.

8.4.3.2 Test Procedure


8.4.3.2.1 Analog Output, Direct Operate, No Acknowledge
1. 2. 3. 4. Issue a Direct Operate No Acknowledge using Object 41 Variation 2 to an installed point using 8 bit indexing (qualifier 0x17) and an appropriate value. Verify that the DUT does not respond. If the device does support analog outputs, end testing of this section. If the device does support analog outputs, verify that the proper analog output point operates.

8.4.3.2.2 Analog Output, Direct Operate, No Acknowledge, to an Uninstalled Point


1. 2. 3. Issue a Direct Operate No Acknowledge using Object 41 Variation 2 to an uninstalled point using 16 bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT does not respond. If an analog output is observed to operate, the test fails.

8.4.3.2.3
1. 2. 3. 4. 5.

Analog Output, Direct Operate, No Acknowledge, Configurable Device

If the device is not configurable in a manner such that control points can be uninstalled or disabled, end testing of Analog Output, Direct Operate, No Acknowledge. Configure the DUT such that all Analog Output points are uninstalled or disabled. Issue a Direct Operate No Acknowledge using Object 41 Variation 2 to point 0 using 16 bit indexing (qualifier 0x28) using a control code supported by the device and an appropriate on time/off time. Verify that the DUT does not respond. If an analog output is observed to operate, the test fails.

8.4.4 Multiple Object Requests 8.4.4.1 Desired Behavior


The DUT must parse requests for all writes within a single frame Up to a full frame of request operations must be supported

The following assumes that the device supports analog output operations and were added as a result of Technical Bulletin TB2001-001 (Multiple Control Object and Status Codes): The DUT responds to requests having more points than are supported in a single message with a status code of 8 for at least the first point that is beyond the point count limit. The DUT responds to a select to an uninstalled analog output point by returning an error response with IIN2-2 set and a status code of 4.

8.4.4.2 Test Procedure


1. 2. Review the devices profile document to understand how many analog output points are supported in a single request. If this number is one, skip to step 7. Determine the number of installed points that can be successfully controlled in a single request. This number shall be the smaller of: The number of controls supported in a single request The number of installed control points Page 28 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 1

3. 4. 5. 6. 7.

8.

9. 10. 11.

12.

13.

14.

Sixteen In a single request, issue a select to the above number of points using Object 41, Variation 2 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and a value supported by the device Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set and that each object returns a status code of 0. Immediately issue a matching execute. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set and that each object returns a status code of 0. Verify that each of the selected analog outputs occurred. . Note outputs may occur simultaneously or sequentially one after the other. If the number of control objects supported in a single request is greater than or equal to either: The number of control objects that fit into a single frame or The number of installed control points skip to step 13. In a single request, issue a select to at least one more point than is supported in a single request, each point having a different index but otherwise able to be outputted, using Object 41, Variation 2 and 16-bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set, that each object except the last returns a status code of 0, and the last object returns a status code of 8. If the DUT does not support direct operate, skip to step 13. In a single request, issue a direct operate command to at least one more point than is supported in a single request, each point having a different index but otherwise able to be outputted, using Object 41, Variation 2 and 16-bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set, that each object except the last returns a status code of 0 and the last object returns a status code of 8. Verify that all except the last analog output point outputted the new value(s). In a single request, issue a select to one installed analog output point and to one point that is not installed using Object 41, Variation 2 and 16-bit indexing (qualifier 0x28) and an appropriate value. The installed point should be the first object in the request. Verify that the DUT response has IIN2-2 bit set, that the status code returned for the installed point is 0 and the status code returned for the non-installed point is 4.

8.5 Class Data


8.5.1 Class 0
This request is used to read all static data from a device. The device must respond with the current state of its data when this object is requested. Any device that generates more than one link layer frame in response to a Class 0 Poll must support report-by-exception on all points. It is highly recommended that devices perform report by exception processing internally and respond to class polls with event data as defined in section 3.4. This allows efficient use of bandwidth. When no events are pending the device responds with the Null Response. Acceptable object variations and qualifier combinations included in a device response are specified in the following table. Numbers preceded by 0x are in hex.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 29 Rev 2.1 5-July-01

Single-Bit Binary Input Binary Input with Status Binary Output Status 32-Bit Binary Counter 16-Bit Binary Counter 32-Bit Delta Counter 16-Bit Delta Counter 32-Bit Binary Counter w/o Flag 16-Bit Binary Counter w/o Flag 32-Bit Delta Counter w/o Flag 16-Bit Delta Counter w/o Flag 32-Bit Analog Input 16-Bit Analog Input 32-Bit Analog Input w/o Flag 16-Bit Analog Input w/o Flag 16-Bit Analog Output Status Table 8-3

Object 1 1 10 20 20 20 20 20 20 20 20 30 30 30 30 40

Variation 1 2 2 1 2 3 4 5 6 7 8 1 2 3 4 2

Qualifier 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01

8.5.1.1 Desired Behavior


Device responds to a Class 0 poll with the current state of all data.

8.5.1.2 Test Procedure


1. 2. 3. Issue a request for Object 60 Variation 1 using the all data qualifier 0x06. Verify that the device responds with the current state of its inputs using only the object, variation and qualifier variations specified in table 8-3. Verify that flag behavior complies with Section 2, Note #5.

8.5.2 Class 1
This request is used to read change or event data from a device. The device must respond with events that have occurred since the last poll/confirm sequence. If the response is not null, verify that the device requests an application layer confirm. If the response is null, the request for the application layer confirm is optional and may be eliminated to reduce bandwidth. Points can be assigned to a class by configuration and through the protocol. Neither is required for compliance. The minimum level of compliance is for the device to respond with a Null Response. Any device that generates more than one link layer frame in response to a Class 0 Poll must support report-by-exception on all points. It is highly recommended that devices perform report by exception processing internally and respond to class polls with event data as defined in section 3.4. This allows efficient use of bandwidth. When no events are pending the device responds with the Null Response. If a device can be configured to generate Application Layer retries, this feature must be disabled for all tests in this section unless otherwise specified. Acceptable object variations and qualifier combinations included in a device response are specified in the following table. Numbers preceded by 0x are in hex.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 30 Rev 2.1 5-July-01

Binary Input Change w/o Time Binary Input Change with Time Binary Input Change with Relative Time 32-Bit Counter Change Event w/o Time 16-Bit Counter Change Event w/o Time 32-Bit Delta Counter Change Event w/o Time 16-Bit Delta Counter Change Event w/o Time 32-Bit Analog Change Event w/o Time 16-Bit Analog Change Event w/o Time Time and Date CTO* Unsynchronized Time and Date CTO* Table 8-4

Object 2 2 2 22 22 22 22 32 32 51 51

Variation 1 2 3 1 2 3 4 1 2 1 2

Qualifier 0x17,0x28 0x17,0x28 0x17,0x28 0x17,0x28 0x17,0x28 0x17,0x28 0x17,0x28 0x17,0x28 0x17,0x28 0x07 0x07

Note: Use of the Binary Change with Relative Time Object (Object 2, Variation3) requires that a Common Time of Occurrence Object (Object 51, Variation01 or 02) precede it in the same APDU. This behavior must be verified in any response that contains a Binary Change with Relative Time Object. Binary Input changes more than 0xFFFF milliseconds apart must have a second CTO Object. * Note: Common Time of Occurrence

8.5.2.1 Desired Behavior


The device must respond with all of its change events when polled with the all data qualifier (0x06). When polled with the limit data qualifiers (0x07 and 0x08), the device must respond with a quantity of its change events no greater than specified in the request. The device must request an application layer confirm for all responses that contain event data. Note: Application layer confirms are always sent by the Master upon request from the Slave unless otherwise noted in this section. The response point ordering shall be prioritized by time (oldest first).

Note: A device is not required to return event data in any particular class.

8.5.2.2 Test Procedure


8.5.2.2.1 Class 1 Data, 0x06
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that if the DUT responds to a class 0 poll with more than one link layer frame it also performs report-by exception processing. If the DUT does not support Class 1 events, verify that it responds with a Null Response. No further testing is required in this section. If the DUT does support Class 1 events, verify that the device responds with all the event data in its event buffers or responds with a Null Response. If requested, issue an application layer confirm to empty the device of pending events. Generate known Class 1 event data. Issue another request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the device responds with all the Class 1 event data generated in a single response. Verify that only objects in table 8-4 are returned and that the events are in time order (oldest first). Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 31 Rev 2.1 5-July-01

8.5.2.2.2 Class 1 Data, 0x07


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06 to empty the device of pending events. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate several Class 1 events. Issue a request for Object 60 Variation 2 using the limit data qualifier 0x07 requesting some changes. Verify that the device responds with the requested Class 1 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 2 using the limit data qualifier 0x07 requesting the remaining changes. Verify that device responds with the remaining Class 1 events. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

8.5.2.2.3 Class 1 Data, 0x08


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06 to empty the device of pending events. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate several Class 1 events. Issue a request for Object 60 Variation 2 using the limit data qualifier 0x08 requesting some changes. Verify that the device responds with the requested Class 1 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 2 using the limit data qualifier 0x08 requesting the remaining changes. Verify that device responds with the remaining Class 1 events. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

8.5.2.2.4 Class 1 Data Without Confirm


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate known Class 1 event data. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the device responds with all the Class 1 event data. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Do not issue an application layer confirm to the device. Wait for a period of time exceeding several of the Application Layer retry delays, if one exists. Verify that the device has not retransmitted the previous Application Layer fragment. Generate additional Class 1 event data. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the device responds with the same Class 1 event data and the additional data generated in step 14. Verify that the device requests an application layer confirm.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 32 Rev 2.1 5-July-01

18. Issue an application layer confirm to empty the device of pending events. 19. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. 20. Verify that the device responds with a Null Response.

8.5.3 Class 2
This request is used to read change or event data from a device. The device must respond with events that have occurred since the last poll/confirm sequence. If the response is not null, verify that the device requests an application layer confirm. If the response is null, the request for the application layer confirm is optional and may be eliminated to reduce bandwidth. Points can be assigned to a class by configuration and through the protocol. Neither is required for compliance. The minimum level of compliance is for the device to respond with a Null Response. If a device can be configured to generate Application Layer retries, this feature must be disabled for all tests in this section unless otherwise specified. Any device that generates more than one link layer frame in response to a Class 0 Poll must support report-by-exception on all points. It is highly recommended that devices perform report by exception processing internally and respond to class polls with event data as defined in section 3.4. This allows efficient use of bandwidth. When no events are pending the device responds with the Null Response.

8.5.3.1 Desired Behavior


The device must respond with all of its change events when polled with the all data qualifier (0x06). When polled with the limit data qualifiers (0x07 and 0x08), the device must respond with a quantity of its change events no greater than specified in the request. The device must request an application layer confirm for all responses that contain event data. Note: Application layer confirms are always sent by the Master upon request from the Slave unless otherwise noted in this section. The response point ordering shall be prioritized by time (oldest first).

Note: A device is not required to return event data in any particular class.

8.5.3.2 Test Procedure


8.5.3.2.1 Class 2 Data, 0x06
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that if the DUT responds to a class 0 poll with more than one link layer frame it also performs report-by exception processing. If the DUT does not support Class 2 events, verify that it responds with a Null Response. No further testing is required in this section. If the DUT does support Class 2 events, verify that the device responds with all the event data in its event buffers or responds with a Null Response. If requested, issue an application layer confirm to empty the device of pending events. Generate known Class 2 event data. Issue another request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that the device responds with all the Class 2 event data generated in a single response. Verify that only objects in table 8-4 are returned and that the events are in time order (oldest first). Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 33 Rev 2.1 5-July-01

8.5.3.2.2 Class 2 Data, 0x07


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06 to empty the device of pending events. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate several Class 2 events. Issue a request for Object 60 Variation 3 using the limit data qualifier 0x07 requesting some changes. Verify that the device responds with the requested Class 2 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 3 using the limit data qualifier 0x07 requesting the remaining changes. Verify that device responds with the remaining Class 2 events. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

8.5.3.2.3 Class 2 Data, 0x08


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06 to empty the device of pending events. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate several Class 2 events. Issue a request for Object 60 Variation 3 using the limit data qualifier 0x08 requesting some changes. Verify that the device responds with the requested Class 2 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 3 using the limit data qualifier 0x08 requesting the remaining changes. Verify that device responds with the remaining Class 2 events. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

8.5.3.2.4 Class 2 Data Without Confirm


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate known Class 2 event data. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that the device responds with all the Class 2 event data. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Do not issue an application layer confirm to the device. Wait for a period of time exceeding several of the Application Layer retry delays, if one exists. Verify that the device has not retransmitted the previous Application Layer fragment. Generate additional Class 2 event data. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that the device responds with the same Class 2 event data and the additional data generated in step 14. Verify that the device requests an application layer confirm.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 34 Rev 2.1 5-July-01

18. Issue an application layer confirm to empty the device of pending events. 19. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06. 20. Verify that the device responds with a Null Response.

8.5.4 Class 3
This request is used to read change or event data from a device. The device must respond with events that have occurred since the last poll/confirm sequence. If the response is not null, verify that the device requests an application layer confirm. If the response is null, the request for the application layer confirm is optional and may be eliminated to reduce bandwidth. Points can be assigned to a class by configuration and through the protocol. Neither is required for compliance. The minimum level of compliance is for the device to respond with a Null Response. If a device can be configured to generate Application Layer retries, this feature must be disabled for all tests in this section unless otherwise specified. Any device that generates more than one link layer frame in response to a Class 0 Poll must support report-by-exception on all points. It is highly recommended that devices perform report by exception processing internally and respond to class polls with event data as defined in section 3.4. This allows efficient use of bandwidth. When no events are pending the device responds with the Null Response.

8.5.4.1 Desired Behavior


The device must respond with all of its change events when polled with the all data qualifier (0x06). When polled with the limit data qualifiers (0x07 and 0x08), the device must respond with a quantity of its change events no greater than specified in the request. The device must request an application layer confirm for all responses that contain event data. Note: Application layer confirms are always sent by the Master upon request from the Slave unless otherwise noted in this section. The response point ordering shall be prioritized by time (oldest first).

Note: A device is not required to return event data in any particular class.

8.5.4.2 Test Procedure


8.5.4.2.1 Class 3 Data, 0x06
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. Issue a request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that if the DUT responds to a class 0 poll with more than one link layer frame it also performs report-by exception processing. If the DUT does not support Class 3 events, verify that it responds with a Null Response. No further testing is required in this section. If the DUT does support Class 3 events, verify that the device responds with all the event data in its event buffers or responds with a Null Response. If requested, issue an application layer confirm to empty the device of pending events. Generate known Class 3 event data. Issue another request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the device responds with all the Class 3 event data generated in a single response. Verify that only objects in table 8-4 are returned and that the events are in time order (oldest first). Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 35 Rev 2.1 5-July-01

8.5.4.2.2 Class 3 Data, 0x07


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Issue a request for Object 60 Variation 4 using the all data qualifier 0x06 to empty the device of pending events. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate several Class 3 events. Issue a request for Object 60 Variation 4 using the limit data qualifier 0x07 requesting some changes. Verify that the device responds with the requested Class 3 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 4 using the limit data qualifier 0x07 requesting the remaining changes. Verify that device responds with the remaining Class 3 events. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

8.5.4.2.3 Class 3 Data, 0x08


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Issue a request for Object 60 Variation 4 using the all data qualifier 0x06 to empty the device of pending events. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate several Class 3 events. Issue a request for Object 60 Variation 4 using the limit data qualifier 0x08 requesting some changes. Verify that the device responds with the requested Class 3 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 4 using the limit data qualifier 0x08 requesting the remaining changes. Verify that device responds with the remaining Class 3 events. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

8.5.4.2.4 Class 3 Data Without Confirm


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. Issue a request for Object 60 Variation 4 using the all data qualifier 0x06. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate known Class 3 event data. Issue a request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the device responds with all the Class 1 event data. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Do not issue an application layer confirm to the device. Wait for a period of time exceeding several of the Application Layer retry delays, if one exists. Verify that the device has not retransmitted the previous Application Layer fragment. Generate additional Class 3 event data. Issue a request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the device responds with the same Class 1 event data and the additional data generated in step 14. Verify that the device requests an application layer confirm.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 36 Rev 2.1 5-July-01

18. Issue an application layer confirm to empty the device of pending events. 19. Issue a request for Object 60 Variation 4 using the all data qualifier 0x06. 20. Verify that the device responds with a Null Response.

8.5.5 Multiple Object Request


This test verifies that the device can parse multiple object requests. Note: If Binary Inputs can be configured in more than one class, they must be configured for at least one of each class for these tests.

8.5.5.1 Desired Behavior


The device must respond to a multiple object request in a single response. For binary points, all events reported within a single application fragment will be sent in the chronological order of occurrence of those events (oldest first). When a device generates multiple analog or counter events for the same point, all events for the same point will be sent in the chronological order of occurrence of those events (oldest first).

8.5.5.2 Test Procedure


8.5.5.2.1 Multiple Object Request, Class 1, 2, and 3
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. Issue a request for Object 60 Variations 2,3, and 4 using the all data qualifier 0x06. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate known event data that includes events from all three classes. Issue a request for Object 60 Variations 2,3, and 4 using the all data qualifier 0x06. Verify that the device responds with all the event data as described in the Desired Behavior. Verify that only objects in table 8-4 are returned and that the events are in time order (oldest first). Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue an application layer confirm to empty the device of pending events.

8.5.5.2.2 Multiple Object Request, Class 1, 2, 3, and 0


1. 2. 3. 4. 5. 6. 7. 8. Issue a request for Object 60 Variations 2,3, and 4 using the all data qualifier 0x06. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate known event data that includes events from classes 1, 2, and 3. Issue a request for Object 60 Variations 2,3,4, and 1 using the all data qualifier 0x06. Verify that the device responds with all the event data as described in the Desired Behavior. Verify that all static data is returned after all event data in the same response. Verify that the response has the same application sequence number as the request. If the request generates multiple application fragments verify that the application sequence number of each subsequent fragment increments by 1 modulo 16. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28) for event data and 8 bit start/stop indexing (qualifier 0x00) or 16 bit start/stop indexing (qualifier 0x01) for static data. Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue an application layer confirm to empty the device of pending events.

9. 10. 11. 12. 13.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 37 Rev 2.1 5-July-01

8.5.6 Class Assignment Verification 8.5.6.1 Desired Behavior


The device must respond to a request for Class 1 events with only Class 1 events. The device must respond to a request for Class 2 events with only Class 2 events. The device must respond to a request for Class 3 events with only Class 3 events.

8.5.6.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. Issue a request for Object 60 Variations 2,3 and 4 using the all data qualifier 0x06 to empty the device of pending events. Verify that only objects in table 8-4 are returned. If the response is not Null, verify that the device requests an application layer confirm. Generate some Class 1 events. Generate some Class 2 events. Generate some Class 3 events. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the device responds with only Class 1 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the device responds with a Null Response. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that the device responds with only Class 2 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that the device responds with a Null Response. Issue a request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the device responds with only Class 3 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the device responds with a Null Response. Issue a request for Object 60 Variations 2,3 and 4 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.6 Indications
The Internal Indications is an information element used to convey internal states and diagnostic results of a device. If a specific indication is not supported it must be reported as de-asserted (0) in all cases.

8.6.1 Restart
The Restart Bit of the Internal Indications field is set to 1 when the user application at the device restarts, i.e. a device's input power is cycled. This bit is cleared when the master station writes a 0 into this location.

8.6.1.1 Desired Behavior


The DUT, after a power cycle, must set IIN1-7. The host can clear this bit by writing to the Internal Indications Object (Object 80, Variation 01).

8.6.1.2 Test Procedure


1. 2. 3. Cycle the power to the DUT. Issue a request for Object 60 Variation 2. Verify that the device responds with IIN1-7 set indicating that the device has been restarted. Page 38 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 1

4. 5.

Issue a Write to Object 80 Variation 1 using the qualifier 0x00. Use a start index of 7 and a stop index of 7, followed by the value 0. Verify that the device responds with a Null Response and that IIN1-7 is cleared.

8.6.2 Bad Function 8.6.2.1 Desired Behavior


If a device receives a message containing an unsupported function code it must return an Error Response with IIN2-0 set. After a device has issued a message containing a valid function code, the response shall have no Error IIN bits set.

8.6.2.2 Test Procedure


1. 2. 3. 4. Issue a request for Object 60 Variation 1, Qualifier 0x06, using a Function Code of 0x70. Verify that the device responds with an Error Response with IIN2-0 set indicating that the device has received a message containing a bad function code. Issue a request for Object 60 Variation 1, Qualifier 0x06, using a Function Code of 0x01. Verify that the device responds with none of the Error IIN bits set.

8.6.3 Object Unknown 8.6.3.1 Desired Behavior


If a device receives a message containing an unknown object, it must return an Error Response with IIN2-1 set. After a device has issued a message containing a valid function code, the response shall have no Error IIN bits set.

8.6.3.2 Test Procedure


1. 2. 3. 4. Issue a request for Object 0 Variation 0, Function Code 0x01. Verify that the device responds with an Error Response with IIN2-1 set indicating that the device has received a message containing an unknown Object code. Issue a request for Object 60 Variation 1. Verify that the device responds with none of the Error IIN bits set.

8.6.4 Local 8.6.4.1 Desired Behavior


If the device supports control outputs and supports placing them in a local or disabled stated then it must set IIN1-5 whenever some or all of the control outputs are in the Local or Disabled state.

8.6.4.2 Test Procedure for Devices with Global Remote Supervisory Control
1. 2. 3. 4. 5. 6. 7. If the DUT does not support placing its binary outputs in a local state no further testing is required in this section. If the DUT supports a global feature for enabling or disabling remote supervisory control, ensure that this is set to the Enabled or Remote mode. Issue a request for Object 10 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a valid message and that IIN1-5 is cleared. Change the DUTs global switch to the Disabled or Local mode. Issue a request for Object 10 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a valid message and that IIN1-5 is set.

8.6.4.3 Test Procedure for Devices with Individual Remote Supervisory Control
1. 2. If the DUT does not support placing its binary outputs in a local state, no further testing is required in this section. If the device allows for individual control point remote supervisory control, all points should be set to the Enabled or Remote mode. Page 39 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 1

3. 4. 5. 6. 7.

Issue a request for Object 10 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a valid message. No binary output status bits should be set. Change a single remote supervisory control switch to the Disabled or Local mode. Issue a request for Object 10 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a valid message and that the appropriate binary output status bit is set.

8.6.5 Broadcast Address and All Stations Indication 8.6.5.1 Desired Behavior
The DUT must execute any request sent to the broadcast address The DUT must not respond in any way to any request sent to the broadcast address The DUT must set the All Stations Internal Indication (IIN1-0) in the next response it transmits The DUT must clear the All Stations Internal Indication on the next response following the one in which it was set. Messages sent to address 0xFFFE require that the IIN1-0 bit must be returned with the application layer request for confirmation bit (Application Control, bit 5) set. IIN1-0 may not be cleared in the slave until the confirmation is received. Messages sent to address 0xFFFD request the IIN1-0 bit to be returned with the application layer request for confirmation bit (Application Control, bit 5) suppressed. IIN1-0 will be cleared in the slave upon transmitting the first response from the slave. Note: IIN1-0 may be reported in conjunction with responses to requests that otherwise require confirmation, or with an unsolicited event report, and since these requests/responses otherwise require confirmation, the confirmation will not be suppressed even though the message is sent with IIN1-0 set. Thus the use of the FFFD broadcast address implies that confirmation requests in responses sent with the IIN1-0 set should be suppressed, but that the confirmation may be requested if required by the details of the response being issued.

8.6.5.2 Test Procedure


1. 2. 3. 4. 5. Cycle the power to the DUT. Issue a link reset using link control block 0xC0. Issue a request for Object 60 Variation 2. Verify that the device responds with IIN1-7 set indicating the device has been restarted. Issue a Write to Object 80 Variation 1 using the qualifier 0x00. Use a start index of 7 and a stop index of 7, followed by the value 0 using the broadcast address (0xFFFF). Request a data link layer confirmation. 6. Wait a reasonable application layer timeout, for example, 2 seconds. 7. Verify that the device does not respond, with either a data link layer confirmation or a response to the Write operation. 8. Issue a request for Object 60 Variation 2. 9. Verify the DUT responds with a valid response with IIN1-7 (restart) cleared and IIN1-0 (all stations message received) set. 10. Send an application layer confirmation if requested. 11. Issue a request for Object 60 Variation 2. 12. Verify the DUT responds with a Null Response with both IIN1-7 and IIN1-0 cleared.

8.6.5.3 Test Procedure


1. Issue a Direct Operate No Acknowledgement using Object 12 Variation 1 to an installed point using 8-bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on/off-time using the broadcast address (0xFFFF). If the device does not support control outputs, perform this operation using Object 41 Variation 2. Verify the requested output operation was executed. Wait a reasonable application layer timeout, for example, 2 seconds. Verify that the device does not respond. Issue a request for Object 60 Variation 2. Verify the DUT responds with IIN1-0 (all stations message received) set. Send an application layer confirmation if requested. Issue a request for Object 60 Variation 2. Verify the DUT responds with a Null Response with IIN1-0 cleared.

2. 3. 4. 5. 6. 7. 8. 9.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 40 Rev 2.1 5-July-01

8.6.5.4 Test Procedure, Confirmed Response Options


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. Cycle the power to the DUT. Issue a link reset using link control block 0xC0. Issue a request for Object 60 Variation 2. Verify that the device responds with IIN1-7 set indicating the device has been restarted. Issue a Write to Object 80 Variation 1 using the qualifier 0x00. Use a start index of 7 and a stop index of 7, followed by the value 0. Specify broadcast address FFFE. Request a data link layer confirmation. Wait a reasonable application layer timeout, for example, 2 seconds. Verify that the device does not respond, with either a data link layer confirmation or a response to the Write operation. Issue a request for Object 60 Variation 2. Verify the DUT responds with a Null Response with IIN1-7 (restart) cleared and IIN1-0 (all stations message received) set, and an application layer confirmation requested. Before sending the requested confirmation, repeat the request for Object 60 Variation 2, and verify that IIN1-0 is still set in the response. Send the application layer confirmation. Issue a request for Object 60 Variation 2. Verify the DUT responds with a Null Response with both IIN1-7 and IIN1-1 cleared. Repeat steps 1-13 using address FFFD as the broadcast address. In step 9, verify that an application layer confirmation is NOT requested. In step 10, verify that IIN1-0 is not set in the response. Note: Step 11 will not be necessary.

8.6.6 Buffer Overflow


The Buffer Overflow Bit of the Internal Indications field is set to 1 when any event buffers overflow such that change event data is subsequently being lost. This bit is cleared when the master station confirms change event data from the DUT, hence making event buffer space available.

8.6.6.1 Desired Behavior


The DUT must set IIN2-3 after a given event buffer overflows such that change events are being lost. The DUT must clear IIN2-3 after a master confirms a change event(s) from the DUT such that event buffer space is made available.

8.6.6.2 Test Procedure


8.6.6.2.1 Buffer Overflow, Binary Input Change Event Buffers
1. If the device does not support Binary Input Change Events, end testing of Buffer Overflow, Binary Input Change Event Buffers. 2. Issue a request for Object 60 Variations 2,3 and 4 using the all data qualifier 0x06 to empty the device of pending events. 3. Obtain the maximum Binary Input Change Event buffer size from the device documentation and generate this number of corresponding events on the DUT. 4. Issue a request for Object 60 Variation x (appropriate Class) using the all data qualifier 0x06, but DO NOT issue an application confirm to the device. 5. Verify that IIN2-3 is NOT set. 6. Generate 1 additional change event of this type on the DUT. 7. Issue a request for Object 60 Variation x using the limit data qualifier 0x07 requesting a single change. 8. Verify that the device returns a single Binary Input Change Event and IIN2-3 is set. 9. Issue a request for Object 60 Variation x using the limit data qualifier 0x07 requesting a single change. 10. Verify that the device returns a single Binary Input Change Event and IIN2-3 is not set.

8.6.6.2.2 Buffer Overflow, Analog Input Change Event Buffers


1. 2. If the device does not support Analog Input Change Events, or does not queue multiple events for the same point, end testing of Buffer Overflow, Analog Input Change Event Buffers. Issue a request for Object 60 Variations 2,3 and 4 using the all data qualifier 0x06 to empty the device of pending events.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 41 Rev 2.1 5-July-01

3.

Obtain the maximum Analog Input Change Event buffer size from the device documentation and generate this number of corresponding events on the DUT. 4. Issue a request for Object 60 Variation x (appropriate Class) using the all data qualifier 0x06, but DO NOT issue an application confirm to the device. 5. Verify that IIN2-3 is NOT set. 6. Generate 1 additional change event of this type on the DUT. 7. Issue a request for Object 60 Variation x using the limit data qualifier 0x07 requesting a single change. 8. Verify that the device returns a single Analog Input Change Event and IIN2-3 is set. 9. Issue a request for Object 60 Variation x using the limit data qualifier 0x07 requesting a single change. 10. Verify that the device returns a single Analog Input Change Event and IIN2-3 is not set.

8.6.6.2.3 Buffer Overflow, Binary Counter Change Event Buffers


If the device does not support Binary Counter Change Events, or does not queue multiple events for the same point, end testing of Buffer Overflow, Binary Counter Change Event Buffers. 2. Issue a request for Object 60 Variations 2,3 and 4 using the all data qualifier 0x06 to empty the device of pending events. 3. Obtain the maximum Binary Counter Change Event buffer size from the device documentation and generate this number of corresponding events. 4. Issue a request for Object 60 Variation x (appropriate Class) using the all data qualifier 0x06, but DO NOT issue an application confirm to the device. 5. Verify that IIN2-3 is NOT set. 6. Generate 1 additional change event of this type. 7. Issue a request for Object 60 Variation x using the limit data qualifier 0x07 requesting a single change. 8. Verify that the device returns a single Binary Counter Change Event and has set IIN2-3. 9. Issue a request for Object 60 Variation x using the limit data qualifier 0x07 requesting a single change. 10. Verify that the device returns a single Binary Counter Change Event and IIN2-3 is no longer set. 1.

8.7 Time
If the device sets IIN1-4, the Device Profile must state the worst case values for the following parameters for the full operating temperature and support all of the tests in this section. Time base drift over a 10-minute interval. Maximum delay measurement error. Maximum internal time reference error when set from the protocol. Maximum response time. If a device does not set IIN1-4 it need not support any of the tests in this section.

8.7.1 Delay Measurement


This function is used to calculate the communication delay for a particular device. The device will respond to a Time Delay Measurement request with the number of milliseconds elapsed between the device receiving the first bit of the first byte of the request and the time of transmission of the first bit of the first byte of the response.

8.7.1.1 Desired Behavior


The device must respond to a Delay Measurement request with a Time Delay Fine response.

8.7.1.2 Test Procedure


1. 2. 3. 4. Issue a request for Delay Measurement using Function Code 23, to the DUT. Verify that the device replies with Object 52 Variation 2 Qualifier 0x07 Quantity 1 and a millisecond time stamp of the measured delay. Verify that the accuracy of the delay reported is within the maximum error specified in the Device Profile Document. Perform the test two more times to guarantee repeatability.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 42 Rev 2.1 5-July-01

8.7.2 Synchronization
The Time and Date Object (Object 50 Variation 01) is an information object that represents the absolute time of day and date, recorded as milliseconds since midnight, January 1, 1970, at zero minutes, zero seconds, and zero milliseconds. This object is usually used for time-synchronization. Note that the following procedures verify the mechanics of time synchronization, verify that the time format is correct, and that synchronization appears to have occurred. The actual accuracy of time synchronization is dependent on device accuracy and system configuration and should be tested separately (factory and/or site acceptance tests).

8.7.2.1 Desired Behavior


The device must respond to a Time and Date object by null response with IIN1-4 cleared. The Device Profile must specify the maximum time from startup to IIN1-4 assertion.

8.7.2.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. 9. Reset the DUT. Wait the specified maximum time from reset to IIN1-4 assertion. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the device responds with a valid message and that IIN1-4 is set indicating that the device is requesting time synchronization. Set the time and date using a WRITE request and Object 50 Variation 1 with Qualifier 0x07 taking into account the delay measured in the previous section. Verify that the device responds with a Null Response and that IIN1-4 is cleared indicating the device no longer needs time. Generate a supported time tagged event at a known time. Issue a request for Object 60 Variation 2, 3, or 4 as appropriate, using the all data qualifier 0x06. Verify that the device responds with a valid time tagged event and that the time reported is within the maximum error specified in the Device Profile Document.

8.8 Cold Restart


8.8.1 Desired Behavior
The device must respond to a Cold Restart request by sending a Time Delay response, restarting, and setting IIN1-7.

8.8.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. Issue a request for Cold Restart using Function Code 13, to the DUT. Verify the response is a Time Delay Fine or Coarse (Object 52 Variation 1 or Variation 2). If the DUT requests an Application Layer Confirm send it before starting the wait period. Wait for a period of time longer than the time returned in step 2. Issue a request for Object 60 Variation 1. Verify that the device responds with IIN1-7 set indicating that the device has been restarted. Issue a Write using Object 80 Variation 1 with the qualifier 0x00. Use a start index of 7 and a stop index of 7, followed by the value 0. Verify that the device responds with a Null Response and that IIN1-7 is cleared.

8.9 Application Layer Fragmentation


8.9.1 Use of FIR, FIN and SEQUENCE in Fragmentation 8.9.1.1 Desired Behavior
If the DUT can generate enough data to create multiple application layer fragments, it must meet the following criteria: DNP3-2001 IED Certification Procedure Subset Level 1 Page 43 Rev 2.1 5-July-01

The application layer FIR bit must be set in the first fragment (only). The application layer FIN bit must be set in the final fragment (only). The application layer sequence number of the first fragment must match that of the request. The application layer sequence number must increment between fragments. Transport layer segmentation must operate correctly within each fragment. The fragment size must be able to be configured to be no larger than 2048 octets. If the fragment size is configurable, it must behave accordingly. If the device cannot generate more than one fragment, the FIR and FIN bits in the application layer header must signify that there is only one APDU in the reply.

8.9.1.2 Test Procedure


1. 2. 3. If the DUT has a configurable fragment size, configure it to be no more than 2048 octets. Cycle power to the DUT. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06, if this will generate a multi-fragment response. Alternately, generate enough event data to fill more than one fragment and request the appropriate class of data with Qualifier Code 0x06. 4. Verify that the DUT responds with valid data. 5. Verify that the sequence number of the first fragment matches the request. 6. Verify that each fragment of the response contains no more than the configured fragment size. 7. If the DUTs reply contains only a single fragment then verify the FIR bit is set to one and the FIN bit is also set to one. If there is no way to cause the DUT to generate multiple fragments, i.e. its Class 0 response is less than a fragment and it does not support event data, no further testing is required in the Application Layer Fragmentation section. 8. If the DUTs reply contains more than one fragment then verify that the first response message sets the FIR bit to a one, the FIN bit is set to zero. 9. Verify subsequent fragments to assure that the FIR bit is zero, the FIN bit is zero, and the sequence number increments by one. 10. Verify that the last fragment has the FIR bit cleared and the FIN bit set, signifying the last data fragment. 11. Verify each fragment is properly segmented by the transport layer as described in that section of this document. 12. If the DUTs fragment size is configurable, repeat this test with a different fragment size and verify the data for each fragment does not exceed the configured size.

8.9.2 Use of Confirmation in Fragmentation 8.9.2.1 Desired Behavior


The DUT must request an application layer confirmation between fragments. The DUT must not send subsequent fragments until it receives confirmation of the previous fragment, with a correct sequence number. The DUT must not send subsequent fragments if it does not receive a valid confirmation within a timeout.

NOTE: The DUT is not required to request application layer confirmation on the last fragment of a response (unless required for other reasons tested elsewhere in this document).

8.9.2.2 Test Procedure


1. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06, if this will generate a multi-fragment response. Alternately, generate enough event data to fill more than one fragment and request the appropriate class of data with Qualifier Code 0x06. Verify that the DUT responds with valid data. Verify that the CON bit is set in the first fragment. Verify the sequence number matches the request. Wait the application confirmation timeout for the DUT. Do not send an application confirmation. Verify the DUT does not send the next fragment because it did not receive confirmation of the first fragment. Page 44 Rev 2.1 5-July-01

2. 3. 4. 5. 6.

DNP3-2001 IED Certification Procedure Subset Level 1

7. 8. 9.

10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20.

Send the valid application layer confirmation. Verify the DUT does not send the next fragment because it has timed out. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06, if this will generate a multi-fragment response. Alternately, generate enough event data to fill more than one fragment and request the appropriate class of data with Qualifier Code 0x06. Verify that the CON bit is set in the first fragment. Wait a time period less than the application confirmation timeout. Verify the DUT does not send the second fragment yet. Send the valid application layer confirmation before the application confirmation timeout. Verify that the DUT sends the second fragment (with FIR, FIN and sequence number set correctly). Verify that the CON bit is set in the second fragment. If a third fragment is expected, continue. If not, first send a valid application layer confirmation and then a request for multi-fragment data as in steps 1-3. Send an application layer confirmation with an incorrect sequence number. Wait the application layer confirmation timeout for the DUT. Do not send an application confirmation. Verify the DUT does not send the next fragment because the confirmation it received was invalid. Send the valid application layer confirmation. Verify the DUT does not send the next fragment because it has timed out.

8.10 Multi-Drop Support


8.10.1 Desired Behavior
The DUT must only respond to requests when the destination address field of the link layer portion of the request matches its assigned DNP address. The DUT must remain silent in all other cases. This includes not raising carrier (e.g. asserting RTS) during periods in which it is not responding.

8.10.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not support multi-drop physical layers, this must be noted on the Implementation Conformance Statement and in the Device Profile Document. No further testing is required in this section. Connect the DUT and at least two additional DNP devices to the same communications drop. Connect an oscilloscope and/or protocol analyzer to the DUT communications signals. Issue a request for Object 60 Variations 2,3, and 4 using the all data qualifier 0x06 to each of the other devices on the communications channel. Verify that the DUT does not respond in any way, including raising carrier or asserting RTS. Issue a request for Object 60 Variations 2,3, and 4 using the all data qualifier 0x06 to the broadcast address. Verify that the DUT does not respond in any way, including raising carrier or asserting RTS. Issue a request for Object 60 Variations 2,3, and 4 using the all data qualifier 0x06 to the DUT. Repeat as necessary to verify that the DUT responds in an appropriate manner for the physical layer which may include: a) Raising carrier (or asserting RTS) an appropriate period of time before transmitting the first bit of data. b) Dropping carrier (or de-asserting RTS) an appropriate period of time after transmitting the last bit of data. c) If the pre and post RTS to transmit delay parameters are configurable, repeat this test for the lower of the two following cases. i) the total number of selections or ii) the minimum, maximum, and two intermediate values

8.11 Unsolicited Responses


Support for unsolicited responses is optional. If a device does not support unsolicited responses, this section may be skipped in its entirety.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 45 Rev 2.1 5-July-01

Although unsolicited responses may be used with collision avoidance, the two features are independent. For instance, a device might not support collision avoidance, but support unsolicited responses in a dial-up environment. Therefore, all that is needed to test unsolicited responses is a full-duplex serial connection to the DUT.

8.11.1 Desired Behavior 8.11.1.1 Configuration

Devices that support unsolicited responses must support end-user configuration of the following parameters (e.g.: by front-panel user interface or off-line configuration): The destination address of the Master device to which the unsolicited responses are to be sent. The unsolicited response mode (either on or off). When the unsolicited response mode is configured off, the device is to behave exactly like an equivalent device that has no support for unsolicited responses. The unsolicited confirmation timeout. This is the amount of time between transmissions of unconfirmed unsolicited responses. The range of configurable values must include 1 second to 1 minute, but may be extended in either direction (slower or faster) to take advantage of, or to compensate for, faster or slower devices or communications media. This may be either the normal application confirmation timeout, or another parameter that performs the same purpose only for unsolicited responses. Maximum number of unsolicited retry attempts. One of the choices must provide for an indefinite (and potentially infinite) number of retries.

8.11.1.2

Sequence Numbers and Confirmation

At all times: Application layer sequence numbers (the value of bits 04 of the application layer control field) must be in the correct range for all messages sent: 015 for polled responses and 1631 for unsolicited responses. Ignore Master device application layer confirmations of unsolicited responses if their sequence numbers do not match those of the corresponding unsolicited responses. All unsolicited response messages must request application layer confirmation, regardless of whether they are null (no data) or contain data.

8.11.1.3

Restart Behavior

If the unsolicited response mode is configured on, then upon device restart: The device must transmit an initial unsolicited response message. The initial unsolicited response message must have the restart bit (IIN1-7) set if the Master has not already sent a command to clear it. The initial unsolicited response message must be null; i.e., it must not contain static or event data objects. The initial unsolicited response message must request an application layer confirmation, regardless of whether the message has the restart bit (IIN1-7) set. The device must continue to transmit initial null unsolicited responses at the rate set by the unsolicited confirmation timeout, until that initial unsolicited response message is confirmed. The device must respond to all function requests to which it would normally respond, including READ function requests, while waiting for the confirmation of the initial unsolicited response. The device must not send any more unsolicited responses after the initial null unsolicited response message has been confirmed, until a function code 0x14 (enable data-filled unsolicited messages) request has been received.

8.11.1.4

Runtime Behavior

Once an initial unsolicited response message has been confirmed, then the device must: Process function code 0x14 requests (to enable data-filled unsolicited messages). This enabled status must not be retained through a device restart; i.e. data-filled unsolicited messages are always disabled on restart. Process function code 0x15 requests (to disable data-filled unsolicited messages). This disabled status does not apply to initial null unsolicited responses; i.e., if function code 0x15 is requested, and if no off-line configuration is altered, then after restart, an initial unsolicited response message must again be transmitted. DNP3-2001 IED Certification Procedure Subset Level 1 Page 46 Rev 2.1 5-July-01

At a minimum, support the enabling and disabling of unsolicited responses for Class 1, 2, and 3 data. Even if the device does not have Class 1, Class 2, or Class 3 data, it must respond to function codes 0x14 and 0x15, object 60, and variations 2, 3 and 4 without error responses. Only send unsolicited responses for those classes of data that have been enabled. Unsolicited response messages must contain only the following kinds of data: ! event data, or ! static data for which no event object types exist: binary output status (Object 10 Variation 2) and analog output status (Object 40 Variation 2). Note, when static data is returned in unsolicited responses, the rules for event processing still apply as specified in section 3.4.

8.11.1.5

Unsolicited and Polled Responses

If an unsolicited response message containing event data is not confirmed, the device must timeout, retain the event data, and re-transmit the event data either in subsequent unsolicited response messages or in polled response messages. The event data does not have to be re-transmitted exactly (new change events may have occurred, or, for example, analog input change events may be updated to reflect new current values of analog inputs). Once an unsolicited response message containing event data is confirmed, the event data must be cleared from the device and no longer transmitted in subsequent unsolicited or polled responses. The device cannot generate unsolicited responses if it is waiting for an application confirmation to a previous polled or unsolicited response. If a non-READ function code request is received while waiting for a confirmation of an unsolicited response, the device must immediately process it. If a READ function code request is received while waiting for a confirmation of an unsolicited response, the device must defer responding to the READ request (the READ request is therefore pending) until after either the unsolicited confirmation timeout occurs, or the confirmation of the unsolicited response is received. The device cannot generate an additional unsolicited response until it has responded to a pending READ request. If a READ function code request is pending while waiting for a confirmation of an unsolicited response, and another (new) function code request is received, the original READ function code request must be abandoned (with no response transmitted), and the new function code should be processed according the desired behavior rules of this section.

8.11.2 Test Procedure


Unless explicitly specified by the tests in these sections, do not issue any requests to the DUT, including: requests to clear the restart bit (IIN1-7); READ requests for data; application layer confirmations and requests to enable or disable unsolicited responses. Similarly, do not allow the Master being used to test the device to issue any of these requests automatically.

8.11.2.1
1.

Unsolicited Response Configuration/Startup

Verify that the DUT has off-line capability to configure the unsolicited response mode (either on or off). Use this capability to configure the unsolicited response mode to on. 2. Verify the DUT has off-line capability to configure the unsolicited confirmation timeout. Verify that it can be set to at least as small as 1 second, and to at least as large as 1 minute. 3. For the remainder of Section 8.11.2.1, set this time to be 5 seconds. (The value of 5 seconds is arbitrary, and is used to simplify the description and execution of this test. As a further simplification for the purposes of this test, when the test steps below exercise and rely upon this value, measurement accuracy can be within 0.5 seconds. It is not the purpose of this test to verify the full range of this parameter, nor is it the purpose of this test to verify the accuracy of the time keeping capability of the DUT. It is the purpose of this test, however, to verify that the parameter has been implemented.) 4. Verify the DUT has off-line capability to configure the destination address of the Master device to which unsolicited responses are to be sent. Use this capability to configure a specific destination address. 5. Cycle power to the DUT. 6. Verify that the DUT transmits an initial unsolicited response to the configured Master destination address. 7. Use the off-line configuration capability to configure the destination address to a different destination address. 8. Cycle power to the DUT. 9. Verify that an initial unsolicited response is transmitted by the DUT. 10. Verify that the unsolicited response contains the restart bit (IIN1-7) set. Page 47 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 1

11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. 29. 30.

Verify that the unsolicited response is null (contains no data). Verify that the unsolicited response requests an application layer confirmation. Verify that the application sequence number is in the correct range. Verify that it has been transmitted to the configured Master destination address. Wait at least 10 seconds, and verify that two or more unsolicited responses are transmitted by the DUT. Verify that these new unsolicited responses are transmitted no more often, and no less often, than once every 5 seconds. Verify that the restart bit (IIN1-7) remains set in these unsolicited responses. Verify that the unsolicited responses are null (contains no data). Verify that the unsolicited responses request application layer confirmations. Issue a request to clear the restart bit (IIN1-7). Verify that the DUT responds with a null response that has the restart bit (IIN1-7) cleared. Wait at least 5 seconds, and verify that another unsolicited response is transmitted by the DUT. Verify that the restart bit (IIN1-7) is clear in the unsolicited responses. Issue a READ request (function code 0x01) for Object 60 Variation 1 (class 0) using the all data qualifier 0x06. Verify that the DUT responds to the READ request with class 0 data. Wait at least 5 seconds, and verify that another unsolicited response is transmitted by the DUT. Issue an application layer confirmation of the unsolicited response, but use an incorrect application-layer sequence number. Wait at least 5 seconds, and verify that another unsolicited response is transmitted by the DUT. Issue an application-layer confirmation of the unsolicited response, and use the correct application-layer sequence number. Generate known events. Verify that no further unsolicited responses are transmitted by waiting for such responses for at least 5 seconds.

8.11.2.2
1. 2. 3. 4. 5. 6. 7. 8.

Unsolicited Response - Class 1 Data

9. 10. 11. 12.

13. 14. 15. 16.

Issue a request to disable unsolicited responses for all classes of data by using function code 0x15 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with a null response indicating the request was processed without error. If the DUT has Class 1 data, generate such data. For example, if there is a binary input change event that is (or can be assigned to) Class 1, then ensure that it is assigned to Class 1, and generate one such event. Verify that no unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response. Issue a request to enable unsolicited responses for Class 1 data by using function code 0x14, object 60, Variation 2. Verify that the DUT responds with a null response indicating the request was processed without error. If it is not possible to generate Class 1 data that would generate unsolicited responses, steps 8 through 14 are not applicable. Verify that an unsolicited response is transmitted. This may involve waiting for an amount of time, dictated by the DUT and specified by the DUTs Device Profile Document, within which the DUT may wait for a minimum number of events to be collected before transmission of an unsolicited message. Verify that the unsolicited response requests an application layer confirmation. Verify that the application sequence number is in the correct range. Without issuing an application layer confirmation, wait for the unsolicited confirmation timeout to expire, and verify that another unsolicited response is transmitted by the DUT. Verify that at least the same event data is present in the unsolicited response. (It is not required that the unsolicited responses be identical. For data such as analog input change events, the data may be updated to reflect current values. It is also possible for new event data to have been generated.) Issue an application layer confirmation of the unsolicited response, but use an incorrect application-layer sequence number. Wait for the unsolicited confirmation timeout to expire, and verify that another unsolicited response is transmitted by the DUT, still containing the same event data. Issue an application-layer confirmation of the unsolicited response, and use the correct application-layer sequence number. If the DUT has Class 2 data, then generate such data. If the DUT has Class 3 data, then also generate Class 3 data.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 48 Rev 2.1 5-July-01

17. Verify that no further unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response.

8.11.2.3
1. 2. 3. 4. 5. 6. 7. 8.

Unsolicited Response - Class 2 Data

9. 10. 11. 12.

13. 14. 15. 16. 17.

Issue a request to disable unsolicited responses for all classes of data by using function code 0x15 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with a null response indicating the request was processed without error. If the DUT has Class 2 data, generate such data. For example, if there is a binary input change event that is (or can be assigned to) Class 2, then ensure that it is assigned to Class 2, and generate one such event. Verify that no unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response. Issue a request to enable unsolicited responses for Class 2 data by using function code 0x14, Object 60, Variation 3. Verify that the DUT responds with a null response indicating the request was processed without error. If it is not possible to generate Class 2 data that would generate unsolicited responses, steps 8 through 14 are not applicable. Verify that an unsolicited response is transmitted. This may involve waiting for an amount of time, dictated by the DUT and specified by the DUTs Device Profile Document, within which the DUT may wait for a minimum number of events to be collected before transmission of an unsolicited message. Verify that the unsolicited response requests an application layer confirmation. Verify that the application sequence number is in the correct range. Without issuing an application layer confirmation, wait for the unsolicited confirmation timeout to expire, and verify that another unsolicited response is transmitted by the DUT. Verify that at least the same event data is present in the unsolicited response. (It is not required that the unsolicited responses be identical. For data such as analog input change events, the data may be updated to reflect current values. It is also possible for new event data to have been generated.) Issue an application layer confirmation of the unsolicited response, but use an incorrect application-layer sequence number. Wait for the unsolicited confirmation timeout to expire, and verify that another unsolicited response is transmitted by the DUT, still containing the same event data. Issue an application-layer confirmation of the unsolicited response, and use the correct application-layer sequence number. If the DUT has Class 1 data, then generate such data. If the DUT has Class 3 data, then also generate Class 3 data. Verify that no further unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response.

8.11.2.4
1.

Unsolicited Response - Class 3 Data

Issue a request to disable unsolicited responses for all classes of data by using function code 0x15 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. 2. Verify that the DUT responds with a null response indicating the request was processed without error. 3. If the DUT has Class 3 data, generate such data. For example, if there is a binary input change event that is (or can be assigned to) Class 3, then ensure that it is assigned to Class 3, and generate one such event. 4. Verify that no unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response. 5. Issue a request to enable unsolicited responses for Class 3 data by using function code 0x14, Object 60, Variation 4. 6. Verify that the DUT responds with a null response indicating the request was processed without error. 7. If it is not possible to generate Class 2 data that would generate unsolicited responses, steps 8 through 14 are not applicable. 8. Verify that an unsolicited response is transmitted. This may involve waiting for an amount of time, dictated by the DUT and specified by the DUTs Device Profile Document, within which the DUT may wait for a minimum number of events to be collected before transmission of an unsolicited message. 9. Verify that the unsolicited response requests an application layer confirmation. 10. Verify that the application sequence number is in the correct range. 11. Without issuing an application layer confirmation, wait for the unsolicited confirmation timeout to expire, and verify that another unsolicited response is transmitted by the DUT. DNP3-2001 IED Certification Procedure Subset Level 1 Page 49 Rev 2.1 5-July-01

12. Verify that at least the same event data is present in the unsolicited response. (It is not required that the unsolicited responses be identical. For data such as analog input change events, the data may be updated to reflect current values. It is also possible for new event data to have been generated.) 13. Issue an application layer confirmation of the unsolicited response, but use an incorrect application-layer sequence number. 14. Wait for the unsolicited confirmation timeout to expire, and verify that another unsolicited response is transmitted by the DUT, still containing the same event data. 15. Issue an application-layer confirmation of the unsolicited response, and use the correct application-layer sequence number. 16. If the DUT has Class 1 data, then generate such data. If the DUT has Class 2 data, then also generate Class 2 data. 17. Verify that no further unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response.

8.11.2.5

Unsolicited and Polled Responses

This is a complicated test procedure. The test has been divided into sections for clarity.

8.11.2.5.1 Transmits data-filled unsolicited responses


1. 2. 3. 4. Issue a request to enable unsolicited responses for all classes of data by using function code 0x14 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with a null response indicating the request was processed without error. Generate class 1, 2, or 3 event data. Verify that an unsolicited response is transmitted. This may involve waiting for an amount of time, dictated by the DUT and specified by the DUTs Device Profile Document, within which the DUT may wait for a minimum number of events to be collected before transmission of an unsolicited message. Verify that the unsolicited response requests an application layer confirmation.

5.

8.11.2.5.2 Clears transmitted data upon confirmation


1. 2. 3. Issue an application-layer confirmation of the unsolicited or polled response. Issue a READ request (function code 0x01) for Object 60 Variations 2, 3, and 4 using the all data qualifier 0x06. Verify that none of the event data transmitted by the unsolicited response is contained in the polled response.

8.11.2.5.3 Processes non-READ requests immediately


1. 2. 3. 4. 5. Generate class 1, 2, or 3 event data to trigger the transmission of an unsolicited response. Wait for this unsolicited response to be sent. Without issuing an application layer confirmation, issue a function code request other than READ (for example, function code 0x02 WRITE to clear the restart flag IIN1-7). Verify that the DUT immediately responds without error. Wait for the unsolicited confirmation timeout to expire, and verify that another unsolicited response is transmitted by the DUT. Verify that the event data in this unsolicited response includes the events reported in the previous unsolicited response that was not confirmed. It is not required that the unsolicited responses be identical. For data such as analog input change events, the data may be updated to reflect current values. It is also possible for new event data to be generated.

8.11.2.5.4 Defers READ requests until after confirmation received


1. 2. 3. 4. 5. 6. Immediately after the unsolicited response, and without issuing an application layer confirmation, issue a READ request (function code 0x01) for Object 60 Variations 2, 3, and 4 using the all data qualifier 0x06. Wait for an amount of time less than the unsolicited confirmation timeout and verify that the DUT does not respond. Issue an application-layer confirmation of the unsolicited response before the unsolicited confirmation timeout occurs. Verify that the device immediately transmits a response to the READ request. Verify that none of the event data transmitted by the unsolicited response is contained in the polled response. If the polled response requested an application layer confirmation, then issue an application-layer confirmation of the polled response.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 50 Rev 2.1 5-July-01

8.11.2.5.5 Defers READ requests until after confirmation timeout


1. 2. 3. 4. 5. 6. 7. 8. Generate class 1, 2, or 3 event data to trigger the transmission of an unsolicited response. Wait for this unsolicited response to be sent. Immediately after the unsolicited response, and without issuing an application layer confirmation, issue a READ request (function code 0x01) for Object 60 Variations 2, 3, and 4 using the all data qualifier 0x06. Verify that the DUT does not respond within the unsolicited confirmation timeout. After the unsolicited confirmation timeout, verify that the device responds with a polled response to the READ request (and not an unsolicited response). Verify that the polled response contains at least the same event data that was in the unsolicited response that was not confirmed. Verify that the polled response requests an application layer confirmation. Issue an application-layer confirmation of the polled response to clear the device of event data. Verify that no further unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response.

8.11.2.5.6 Abandons READ requests upon subsequent non-READ requests


1. 2. 3. 4. 5. 6. Generate class 1, 2, or 3 event data to trigger the transmission of an unsolicited response. Wait for this unsolicited response to be sent. Immediately after the unsolicited response, and without issuing an application layer confirmation, issue a READ request (function code 0x01) for Object 60 Variations 2, 3, and 4 using the all data qualifier 0x06. Before the unsolicited confirmation timeout, issue a function code request other than READ (for example, function code 0x02 WRITE to clear the restart flag IIN1-7). Verify that the DUT immediately responds without error. Wait for the unsolicited confirmation timeout to expire, and then verify that another unsolicited response is transmitted by the DUT. Verify that the event data in this unsolicited response includes the events reported in the previous unsolicited response that was not confirmed.

8.11.2.5.7 Abandons READ requests upon subsequent READ requests


1. 2. 3. 4. 5. 6. 7. 8. 9. Immediately after the unsolicited response, and without issuing an application layer confirmation, issue a READ request (function code 0x01) for Object 60 Variation 1 using the all data qualifier 0x06. Before the unsolicited confirmation timeout, issue a READ request for Object 60, Variations 2, 3, and 4, using the all data qualifier 0x06. Verify that the DUT does not respond within the unsolicited confirmation timeout. After the unsolicited confirmation timeout, verify that the device responds with a polled response to the Object 60, Variation 2, 3, and 4 READ request (and not an unsolicited response). Verify that the polled response is a response to the request for Object 60, Variations 2, 3, and 4 not Variation 1; in other words, verify that it contains class 1, 2, or 3 data and not class 0 data. Verify that the polled response contains at least the same event data that was in the unsolicited response that was not confirmed. Verify that the polled response requests an application layer confirmation. Issue an application-layer confirmation of the polled response to clear the device of event data. Verify that no further unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response.

8.11.2.5.8 Inhibits Unsolicited responses until after polled confirmation


1. If the device has a minimum amount of event data that will cause the immediate transmission of an unsolicited response, then generate at least some, but less than this amount of class 1, 2, or 3 event data. Or, if there is a window of time between the generation of event data and the subsequent transmission of an unsolicited response, then generate event data and perform the next test procedure step before this time elapses. If neither of these procedures are possible, then the remaining steps in this procedure are not applicable. Before an unsolicited response is transmitted, issue a READ request (function code 0x01) for Object 60 Variations 2, 3, and 4 using the all data qualifier 0x06. Page 51 Rev 2.1 5-July-01

2.

DNP3-2001 IED Certification Procedure Subset Level 1

3. 4. 5. 6. 7.

Verify that events are reported in the response to the READ request Verify that the polled response requests an application layer confirmation. Do not send an application layer confirmation. If necessary, generate more event data that would otherwise cause the transmission of an unsolicited response. Verify that the DUT does not transmit an unsolicited response within the application confirmation timeout, nor before any application layer retries are attempted. 8. After the application confirmation timeout, and after any application layer retries, verify that the device responds with an unsolicited response. 9. Verify that the unsolicited response contains at least the same event data that was in the polled response that was not confirmed. 10. Verify that the unsolicited response requests an application layer confirmation. 11. Issue an application-layer confirmation of the unsolicited response to clear the device of event data.

8.11.2.5.9 Retries unsolicited responses configurable number of times


1. 2. 3. 4. 5. 6. 7. 8. Verify the DUT has off-line capability to configure the maximum number of unsolicited retries and that one of the choices causes the DUT to retry indefinitely. Use this capability to configure the maximum number of retries to 5. Cycle power to the DUT. Issue an application-layer confirmation of the initial unsolicited response. Issue a request to clear the restart bit (IIN1-7). Issue a request to enable unsolicited responses for all classes of data by using function code 0x14 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with a null response indicating the request was processed without error. Generate class 1, 2, or 3 event data. Verify that an unsolicited response is transmitted. This may involve waiting for an amount of time, dictated by the DUT and specified by the DUTs Device Profile Document, within which the DUT may wait for a minimum number of events to be collected before transmission of an unsolicited message. Do not issue an application layer confirm. Verify that DUT retries the response 5 times. Cycle power to the DUT. Issue an application-layer confirmation of the initial unsolicited response. Issue a request to clear the restart bit (IIN1-7). Issue a request to enable unsolicited responses for all classes of data by using function code 0x14 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with a null response indicating the request was processed without error. Generate class 1, 2, or 3 event data. Verify that an unsolicited response is transmitted. Issue an application layer confirm after at least one retry. Verify that retries are terminated when confirmation is received. Configure the maximum number of retries to indefinite. Cycle power to the DUT. Issue an application-layer confirmation of the initial unsolicited response. Issue a request to clear the restart bit (IIN1-7). Issue a request to enable unsolicited responses for all classes of data by using function code 0x14 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with a null response indicating the request was processed without error. Generate class 1, 2, or 3 event data. Verify that an unsolicited response is transmitted. Do not issue an application layer confirm. Verify that retries continue for an extended period of time.

9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28.

8.11.2.6
1. 2.

Unsolicited Responses Off

Configure the unsolicited response mode to off. Cycle power to the DUT.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 52 Rev 2.1 5-July-01

3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15.

Verify that no initial unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response. Issue a request to clear the restart bit (IIN1-7). Verify that the DUT responds with a null response that has the restart bit (IIN1-7) cleared. Verify that no initial unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response. Issue a request for Object 60 Variations 3, 2, 1, and 0 using the all data qualifier 0x06 to cause the DUT to report (and clear) all pending events. If requested, issue an application layer confirm. Generate several change events or other data, which would otherwise cause an unsolicited response. Verify that no unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response. Issue a request to enable unsolicited responses for all classes of data by using function code 0x14 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with an Error Response with IIN2-0 set indicating that the DUT has received a message containing a bad function code. Verify that no unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response. Issue a request to disable unsolicited responses for all classes of data by using function code 0x15 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with an Error Response with IIN2-0 set indicating that the DUT has received a message containing a bad function code.

8.12 Collision Avoidance


The functions tested in this section are optional. However, if a device claims in its Device Profile Document that it implements collision avoidance, it must pass the tests in this section to be compliant. A device may be certified as supporting collision avoidance in one of the following ways: Detecting out-of-band carrier (e.g. DCD) 1. with the aid of an external device 2. without the aid of an external device Detecting transmitted data (e.g. TX/RX line). For these tests, the supplier of the DUT must specify which method the DUT uses to detect other devices are transmitting. If necessary, the supplier must supply hardware (modems etc.) and test equipment suitable for testing this feature. The test equipment must be capable of measuring time between two characters transmitted on the link. Although unsolicited responses may be used with collision avoidance, the two features are independent. For instance, a device might not support collision avoidance, but support unsolicited responses in a dial-up environment. However, unsolicited responses in a multi-drop environment require collision avoidance. The operation of collision avoidance is as follows: The physical layer must provide an indication to the data link layer of when the link is in use, e.g. using the DCD (Data Carrier Detect) signal or simply monitoring all data on the link. If a device prepares to transmit and finds the link busy, it waits until it is no longer busy, then waits a backoff_time as follows: backoff_time = fixed_delay + random( max_random_delay ) After the backoff_time, the device tries again, either indefinitely, or up to a configurable maximum number of retries. If a maximum is used, the protocol behaves as if a link failure occurred, i.e. data is returned to buffers at the application layer and application layer retries take place if desired. DNP3-2001 IED Certification Procedure Subset Level 1 Page 53 Rev 2.1 5-July-01

The fixed_delay can be adjusted per device to provide priority of access. For instance, it could be zero (0) for masters and non-zero for all the slave devices. The fixed_delay for the slaves must be greater than the max_random_delay for the master. This provides a minimum "window" of access time for the master(s). To absolutely guarantee the masters priority, the master would not have a random delay.

8.12.1 Desired Behavior


When implementing collision avoidance, the DUT must meet the following requirements: The fixed_delay and the max_random_delay must be configurable. The DUT must transmit as quickly as possible if no other device is transmitting. The DUT must wait the backoff_time when it tries to transmit and another device is already transmitting. The backoff_time must start at the moment when the other device stops transmitting. The backoff_time must be greater than the fixed_delay. The backoff_time must not exceed the fixed_delay plus the max_random_delay. If another device is still transmitting when the backoff_delay expires, the DUT must wait until the line becomes free and then restart the backoff timer.

8.12.2 Test Procedure


1. 2. 3. Request Class 1 data (Object 60 Variation 2) using Qualifier Code 0x06 and link control block 0xF4. Verify the device responds with data. Measure the turnaround delay between receipt of the request and the response. Prepare a request for Class 1 data as above, followed immediately by noise data sufficient to exceed the measured turnaround delay and the fixed_delay but less than the turnaround delay plus the maximum backoff_delay. The noise data may consist of a poll to a nonexistent device. 4. Send the request. 5. Verify the DUT sends a response AFTER the noise data has finished transmitting. Verify the noise and the response do not overlap. 6. Verify the delay between the end of the noise data and the start of the response is less than the maximum back_off delay and more than the fixed_delay plus the max_random_delay. 7. Repeat steps 4 through 6 at least 10 times. Verify the measured backoff_delay is different in each case although it remains less than the maximum backoff_delay and the length of the noise data remains constant. 8. Add more noise data to the prepared request so that the noise data now exceeds several times the fixed_delay plus the max_random_delay, then a gap in the noise less than the fixed_delay, followed by noise several times longer than fixed_delay plus the max_random_delay. 9. Repeat steps 4 through 6 to verify the DUT will back off more than once. 10. Reconfigure the device with a different fixed_delay and maximum_random_delay. 11. Repeat steps 1 through 10.

DNP3-2001 IED Certification Procedure Subset Level 1

Page 54 Rev 2.1 5-July-01

9 Appendix A DNP3 Reference Sheets QUICK REFERENCE FOR DNP DATA LINK CONTROL FIELD
Definitions: MSB 1 DIR PRM 0 0 7 DIR PRM FCB FCV DFC Function Codes: Primary Frames (PRM=1) Fn Code 0 1 2 3 4 9 Function RESET link Reset User Process TEST link User Data User Data Request Link Status Frame Type SEND/CONFIRM SEND/CONFIRM SEND/CONFIRM SEND/CONFIRM SEND/NO REPLY REQUEST/RESPOND FCV 0 0 1 1 0 0 6 5 DFC 4 3 2 1 0 Secondary FCB FCV FUNCTION CODE LSB Primary

1 = Master, 0 = Remote 1 = Data Link Request, 0 = Data Link Response Frame Count Bit, alternates 1 and 0 Frame Count Valid; 1 = valid, 0 = invalid Data Flow Control; 1 = no buffers left

Secondary Frames (PRM = 0) Fn Code 0 1 11 Function ACK NACK Link Status Frame Type CONFIRM CONFIRM RESPOND

DNP3-2001 IED Certification Procedure Subset Level 1

Page 55 Rev 2.1 5-July-01

QUICK REFERENCE FOR DNP DATA LINK CONTROL FIELD


List of Valid Control Field values by hex value; most common in bold:

From Remote 00 01 0B 10 11 1B 40 41 44 49 52 53 60 61 64 69 72 73

From Master 80 81 8B 90 91 9B C0 C1 C4 C9 D2 D3 E0 E1 E4 E9 F2 F3

Function ACK NACK Link Status Reply ACK NACK Link Status Reply RESET LINK Reset User Process Unconfirmed User Data Link Status Request Test Link Confirmed User Data RESET LINK Reset User Process Unconfirmed User Data Link Status Request Test Link Confirmed User Data

Other

Failed transaction No flow Control Frame accepted, no more buffers left Frame not accepted, no buffers available No buffers available

FCB = 0 FCB = 0 FCB = 1 ignored FCB = 1 ignored FCB = 1 ignored FCB = 1 ignored FCB = 1 FCB = 1

Frame Header: Byte Name 1 05 2 64 3 LEN 4 CTRL 5 DEST 6 7 8 9 CRC 10 11 TH

SOURCE

Transport Header(TH): Bit 7 = FINAL, Bit 6 = FIRST

DNP3-2001 IED Certification Procedure Subset Level 1

Page 56 Rev 2.1 5-July-01

DNP APDU

APCI
Message Header

DUI
Object Header

IO
Data

DUI
Object Header

IO
Data

Request Header Appl. Ctrl Func Code

Response Header Appl. Ctrl Func Code Internal Indication Object Group Object Variation Qualifier Range

See Data Object Library 7 7 6 5 4 3 2 1 0 0x00 Confirm 0x00 Confirm 0x01 Read 0x81 Response 0x02 Write 0x82 Unsolicited Response 0x03 Select 0x04 Operate 0x05 Direct Operate 0x06 Direct Op, No Ack 0x07 Immediate Freeze 0x08 Immediate Freeze No Ack 0x09 Freeze and Clear 0x0A Freeze and Clear No Ack 0x0B Freeze with Time 0x0C Freeze with Time No Ack 0x0D Cold Restart 0x0E Warm Restart 0x0F Init Data to Defaults 0x10 Initialize Application 0x11 Start Application 0x12 Stop Application 0x13 Save Configuration 0x14 Enable Unsolicited Msgs 0x15 Disable Unsolicited Msgs 0x16 Assign Class 0x17 Delay Measurement 6 5 4 3 2 1 0

Depends on Qualifier Code

FIRST OCTET
7 6 5 4 3 2 1 0

CONFIRM

UNSOLICITED

FIRST

FINAL

SEQUENCE

DEV. TROUBLE

LOCAL

ALL STATIONS

NEED TIME

CLASS 3

CLASS 2

RESTART

CLASS 1

INDEX SIZE
0 No Index, Packed 1 1 Octet Index 2 2 Octet Index 3 4 Octet Index 4 1 Octet Object Size 5 2 Octet Object Size 6 4 Octet Object Size

QUALIFIER CODE 0 8-Bit Start and Stop Indices 1 16-Bit Start and Stop Indices 2 32-Bit Start and Stop Indices 3 8-Bit Absolute Address Identifers 4 16-Bit Absolute Address Identifiers 5 32-Bit Absolute Address Identifers 6 No Range Field (all) 7 8-Bit Quantity 8 16-Bit Quantity 9 32-Bit Quantity 11 (0xB) Variable Array

DNP

Distributed Network Protocol Application Protocol Data Unit Application Protocol Control Information Data Unit Identifier Information Object

APDU

SECOND OCTET
7 6 5 4 3 2 1 0

APCI

OUT OF RANGE

OBJECT UNKNOWN

BAD CONFIG

ALREADY EXEC

BUFFER OVERFLOW

BAD FUNCTION

RESERVED

RESERVED

INDEX SIZE (QUAL CODE = 11)


0 Dataless Object; No Further Indexing 1 1 Octet Index or Identifier Size 2 2 Octet Index or Identifier Size 3 4 Octet Index or Identifier Size

DUI

IO

DNP3-2001 IED Certification Procedure Subset Level 1

Page 57 Rev 2.1 5-July-01

Distributed Network Protocol (DNP3-2001)

DNP3-2001 Intelligent Electronic Device (IED) Certification Procedure Subset Level 2

Version 2.1 5-July-01

Disclaimer Statement
DNP User Group documents and publications are not consensus documents. Information contained in this and other works has been obtained from sources believed to be reliable, and reviewed by credible members of the DNP User Group and/or the DNP User Group Technical Committee. Neither the DNP Users Group nor any authors/developers of DNP documentation guarantee, and each such person expressly disclaims responsibility for ensuring, the accuracy or completeness of any information published herein, and neither the DNP Users Group nor its authors/developers shall be responsible for any errors, omissions, or damages arising out of use of this document. Likewise, while the author/developer and publisher believe that the information and guidance given in this work serves as an enhancement to users, all parties must rely upon their own skill and judgment when making use of it. Neither the author nor the publisher assumes any liability to anyone for any loss or damage caused by any error or omission in the work, whether such error or omission is the result of negligence or any other cause. Any and all such liability is disclaimed. This statement was developed by the DNP User Group Technical Committee and represents the considered judgment of a group of software developers with expertise in the subject field. The DNP User Group is a global forum for users and implementers of the protocol and promotes implementers and developer information and interaction exchange. This work is published with the understanding that the DNP User Group and its authors/developers are supplying information through this publication, not attempting to render engineering or other professional services. If such services are required, the assistance of an appropriate professional should be sought. The DNP User Group is not responsible for any statements and/or opinions advanced in this publication.

NOTICE OF RIGHTS - DNP USERS GROUP


The contents of this manual are the property of the DNP Users Group. Revisions or additions to the definition and functionality of the DNP Protocol cannot be made without express written agreement from the DNP Users Group or its duly authorised party. In addition, no part of this document may be altered or revised or added to in any form or by any means, except as permitted by written agreement with the DNP Users Group or a Party duly authorised by the DNP Users Group. The DNP Users Group has made every reasonable attempt to ensure the completeness and accuracy of this document. However, the information contained in this manual is subject to change without notice, and does not represent a commitment on the part of the DNP Users Group. An update program for DNP documents is provided upon request by the DNP Users Group.

TRADEMARK NOTICES
DNP is a trademark of the DNP Users Group. Any brand and product names mentioned in this document are trademarks or registered trademarks of their respective companies.

Copyright 2001 DNP Users Group. All rights reserved.

Page ii Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 2

Revision History
Date 18-Jan-99 15-Dec-99 Version 1.00 1.01 Sections affected ALL see errata sheet for 1.00 Reason for change Initial Release Fixes inconsistencies and errors Designates protocol as DNP3-1999 (formerly DNP V3.00 with extensions) Added required parameter - maximum number of unsolicited retries Added test procedure from TB9912-002 Added desired response to addresses 0xFFFE and 0xFFFD Added test procedure from TB9912-003 Added requirements for Control SBO retries Added test procedures from TB2000-002 Added requirements for Analog Output SBO retries Added test procedures from TB2000-002 Removed reference to function code 1 Removed function code 0xD1 from table Replace "end testing of Binary Output, SBO" with "skip this section" Replace "end testing of Analog Output, SBO" with "skip this section" Added step 2 - "Issue a link reset using link control block 0xC0" Added test procedure from TB2000-006 Added status code in error response as required in TB2001-01

10-July-00

2.00

5-July-01

2.1

8.11.1.1 8.11.2.5.9 8.6.5.1 8.6.5.4 8.2.1.1 8.2.1.2.11 - 15 8.4.1.1 8.4.1.2.8 - 12 6 6.6.2.5 8.2.1.2.10, step 1 8.4.1.2.7, step 1 8.6.5.4 8.2.5 8.2.1.1, 8.2.1.2.3, 8.2.2.1, 8.2.2.2.2, 8.4.1.1, 8.4.1.2.3, 8.4.2.1, 8.4.2.2.2 8.2.4.1 - 8.2.4.2, 8.4.4.1 - 8.4.4.2 Section 9, Appendices A and B

Added test procedures from TB2001-001 Removed; the information required for these sections is not available and may not be for some time.

DNP3-2001 IED Certification Procedure Subset Level 2

Page iii Rev 2.1 5-July-01

Contents
1 2 3 Overview 1.1 Protocol specification Notes Definitions 3.1 General 3.2 Internal Indications 3.3 Error Responses 3.4 Changes or Events 3.4.1 Rules Reference Documents Pretest Review 5.1 Device Profile Review 5.2 Equipment Review Link Layer 6.1 Reset Link and Passive Confirm support 6.1.1 Desired Behavior 6.1.2 Test Procedure 6.2 Test Link 6.2.1 Desired Behavior 6.2.2 Test Procedure 6.3 Request Link Status 6.3.1 Desired Behavior 6.3.2 Test Procedure 6.4 Test Retries 6.4.1 Desired Behavior 6.4.2 Test Procedure 6.5 DIR and FCV Bits 6.5.1 Desired Behavior 6.5.2 Test Procedure 6.6 Data Link Rejects Invalid Frames 6.6.1 Desired Behavior 6.6.2 Test Procedure Primary Frames 6.6.2.1 Invalid Start Octets 6.6.2.2 Invalid Primary Function Code 6.6.2.3 Invalid Destination Address 6.6.2.4 Invalid CRC 6.6.2.5 Invalid FCV 6.6.3 Test Procedure Secondary Frames 6.6.3.1 Invalid Start Octets 6.6.3.2 Invalid Secondary Function Code 6.6.3.3 Invalid Destination Address 6.6.3.4 Invalid CRC Transport Layer 7.1 Desired Behavior 7.2 Test Procedure Application Layer 8.1 Binary Output Status 8.1.1 Desired Behavior 8.1.2 Test Procedure 8.2 Binary Outputs 8.2.1 Select Before Operate 8.2.1.1 Desired Behavior 1 1 1 3 3 3 3 4 4 5 5 5 5 6 6 6 6 7 7 7 7 7 7 8 8 8 8 8 9 9 9 9 10 10 10 10 11 11 11 12 12 12 13 13 13 14 14 14 14 14 15 15 Page v Rev 2.1 5-July-01

4 5

DNP3-2001 IED Certification Procedure Subset Level 2

8.2.1.2 Test Procedure 8.2.1.2.1 Binary Output, SBO, 0x28 8.2.1.2.2 Binary Output, SBO, 0x17 8.2.1.2.3 Binary Output, SBO, To Uninstalled Point 8.2.1.2.4 Binary Output, SBO, Execute Issued After Timeout 8.2.1.2.5 Binary Output, SBO, Execute to Different Point Than Select 8.2.1.2.6 Binary Output, SBO, Execute On Time does not match Select On Time 8.2.1.2.7 Binary Output, SBO, Execute Off Time does not match Select Off Time 8.2.1.2.8 Binary Output, SBO, Select using a supported Control Code, Execute using a different Control Code 17 8.2.1.2.9 Binary Output, SBO, Select 0x28, Execute 0x17 8.2.1.2.10 Binary Output, SBO, Configurable Device 8.2.1.2.11 Binary Output, SBO, Same Sequence Number Select Retries 8.2.1.2.12 Binary Output, SBO, Incrementing Sequence Number Select Retries 8.2.1.2.13 Binary Output, SBO, Same Sequence Number Operate Retries 8.2.1.2.14 Binary Output, SBO, Incrementing Sequence Number Operate Retries 8.2.1.2.15 Binary Output, SBO, Sequence number checking 8.2.2 Direct Operate with Acknowledge 8.2.2.1 Desired Behavior 8.2.2.2 Test Procedure 8.2.2.2.1 Binary Output, Direct Operate 8.2.2.2.2 Binary Output, Direct Operate to Uninstalled Point 8.2.2.2.3 Binary Output, Direct Operate, Configurable Device 8.2.3 Direct Operate, No Acknowledge 8.2.3.1 Desired Behavior 8.2.3.2 Test Procedure 8.2.3.2.1 Binary Output, Direct Operate, No Acknowledge 8.2.3.2.2 Binary Output, Direct Operate, No Acknowledge, to an Uninstalled Point 8.2.3.2.3 Binary Output, Direct Operate, No Acknowledge, Configurable Device 8.2.4 Multiple Object Requests 8.2.4.1 Desired Behavior 8.2.4.2 Test Procedure 8.2.5 Control Code Support 8.2.5.1 Desired Behavior 8.2.5.2 Test Procedure 8.2.5.2.1 Binary Output, Complementary Function Support 8.2.5.2.2 Binary Output, Single Function Support 8.3 Analog Output Status 8.3.1 Desired Behavior 8.3.2 Test Procedure 8.4 Analog Outputs 8.4.1 Select Before Operate 8.4.1.1 Desired Behavior 8.4.1.2 Test Procedure 8.4.1.2.1 Analog Output, SBO, 0x28 8.4.1.2.2 Analog Output, SBO, 0x17 8.4.1.2.3 Analog Output, SBO, to Uninstalled Point 8.4.1.2.4 Analog Output, SBO, Execute Issued After Time-out 8.4.1.2.5 Analog Output, SBO, Execute Value does not match Select Value 8.4.1.2.6 Analog Output, SBO, Select 0x28, Execute 0x17 8.4.1.2.7 Analog Output, SBO, Configurable Device 8.4.1.2.8 Analog Output, SBO, Same Sequence Number Select Retries 8.4.1.2.9 Analog Output, SBO, Incrementing Sequence Number Select Retries 8.4.1.2.10 Analog Output, SBO, Same Sequence Number Operate Retries 8.4.1.2.11 Analog Output, SBO, Incrementing Sequence Number Operate Retries 8.4.1.2.12 Analog Output, SBO, Sequence number checking Page vi Rev 2.1 5-July-01

16 16 16 16 16 16 16 17

17 17 17 17 18 18 18 18 18 19 19 19 19 19 19 19 19 20 20 20 20 20 21 21 21 21 22 22 23 23 23 23 24 24 24 25 25 25 25 25 25 26 26 26 26 26

DNP3-2001 IED Cer

8.4.2 Direct Operate with Acknowledge 8.4.2.1 Desired Behavior 8.4.2.2 Test Procedure 8.4.2.2.1 Analog Output, Direct Operate 8.4.2.2.2 Analog Output, Direct Operate, to Uninstalled Point 8.4.2.2.3 Analog Output, Direct Operate, Configurable Device 8.4.3 Direct Operate, No Acknowledge 8.4.3.1 Desired Behavior 8.4.3.2 Test Procedure 8.4.3.2.1 Analog Output, Direct Operate, No Acknowledge 8.4.3.2.2 Analog Output, Direct Operate, No Acknowledge, to an Uninstalled Point 8.4.3.2.3 Analog Output, Direct Operate, No Acknowledge, Configurable Device 8.4.4 Multiple Object Requests 8.4.4.1 Desired Behavior 8.4.4.2 Test Procedure 8.5 Class Data 8.5.1 Class 0 8.5.1.1 Desired Behavior 8.5.1.2 Test Procedure 8.5.2 Class 1 8.5.2.1 Desired Behavior 8.5.2.2 Test Procedure 8.5.2.2.1 Class 1 Data, 0x06 8.5.2.2.2 Class 1 Data, 0x07 8.5.2.2.3 Class 1 Data, 0x08 8.5.2.2.4 Class 1 Data Without Confirm 8.5.3 Class 2 8.5.3.1 Desired Behavior 8.5.3.2 Test Procedure 8.5.3.2.1 Class 2 Data, 0x06 8.5.3.2.2 Class 2 Data, 0x07 8.5.3.2.3 Class 2 Data, 0x08 8.5.3.2.4 Class 2 Data Without Confirm 8.5.4 Class 3 8.5.4.1 Desired Behavior 8.5.4.2 Test Procedure 8.5.4.2.1 Class 3 Data, 0x06 8.5.4.2.2 Class 3 Data, 0x07 8.5.4.2.3 Class 3 Data, 0x08 8.5.4.2.4 Class 3 Data Without Confirm 8.5.5 Multiple Object Request 8.5.5.1 Desired Behavior 8.5.5.2 Test Procedure 8.5.5.2.1 Multiple Object Request, Class 1, 2, and 3 8.5.5.2.2 Multiple Object Request, Class 1, 2, 3, and 0 8.5.6 Class Assignment Verification 8.5.6.1 Desired Behavior 8.5.6.2 Test Procedure 8.6 Indications 8.6.1 Restart 8.6.1.1 Desired Behavior 8.6.1.2 Test Procedure 8.6.2 Bad Function 8.6.2.1 Desired Behavior 8.6.2.2 Test Procedure DNP3-2001 IED Certification Procedure Subset Level 2

27 27 27 27 27 27 28 28 28 28 28 28 28 28 28 29 29 30 30 30 31 31 31 32 32 32 33 33 33 33 34 34 34 35 35 35 35 35 36 36 36 37 37 37 37 37 37 38 38 38 38 38 39 39 39 Page vii Rev 2.1 5-July-01

8.6.3 Object Unknown 8.6.3.1 Desired Behavior 8.6.3.2 Test Procedure 8.6.4 Local 8.6.4.1 Desired Behavior 8.6.4.2 Test Procedure for Devices with Global Remote Supervisory Control 8.6.4.3 Test Procedure for Devices with Individual Remote Supervisory Control 8.6.5 Broadcast Address and All Stations Indication 8.6.5.1 Desired Behavior 8.6.5.2 Test Procedure 8.6.5.3 Test Procedure 8.6.5.4 Test Procedure, Confirmed Response Options 8.6.6 Buffer Overflow 8.6.6.1 Desired Behavior 8.6.6.2 Test Procedure 8.6.6.2.1 Buffer Overflow, Binary Input Change Event Buffers 8.6.6.2.2 Buffer Overflow, Analog Input Change Event Buffers 8.6.6.2.3 Buffer Overflow, Binary Counter Change Event Buffers 8.7 Time 8.7.1 Delay Measurement 8.7.1.1 Desired Behavior 8.7.1.2 Test Procedure 8.7.2 Synchronization 8.7.2.1 Desired Behavior 8.7.2.2 Test Procedure 8.8 Cold Restart 8.8.1 Desired Behavior 8.8.2 Test Procedure 8.9 Application Layer Fragmentation 8.9.1 Use of FIR, FIN and SEQUENCE in Fragmentation 8.9.1.1 Desired Behavior 8.9.1.2 Test Procedure 8.9.2 Use of Confirmation in Fragmentation 8.9.2.1 Desired Behavior 8.9.2.2 Test Procedure 8.10 Multi-Drop Support 8.10.1 Desired Behavior 8.10.2 Test Procedure 8.11 Unsolicited Responses 8.11.1 Desired Behavior 8.11.1.1 Configuration 8.11.1.2 Sequence Numbers and Confirmation 8.11.1.3 Restart Behavior 8.11.1.4 Runtime Behavior 8.11.1.5 Unsolicited and Polled Responses 8.11.2 Test Procedure 8.11.2.1 Unsolicited Response Configuration/Startup 8.11.2.2 Unsolicited Response - Class 1 Data 8.11.2.3 Unsolicited Response - Class 2 Data 8.11.2.4 Unsolicited Response - Class 3 Data 8.11.2.5 Unsolicited and Polled Responses 8.11.2.5.1 Transmits data-filled unsolicited responses 8.11.2.5.2 Clears transmitted data upon confirmation 8.11.2.5.3 Processes non-READ requests immediately 8.11.2.5.4 Defers READ requests until after confirmation received 8.11.2.5.5 Defers READ requests until after confirmation timeout Page viii Rev 2.1 5-July-01

39 39 39 39 39 39 39 40 40 40 40 40 41 41 41 41 41 42 42 42 42 42 43 43 43 43 43 43 43 43 43 44 44 44 44 45 45 45 45 46 46 46 46 46 47 47 47 48 49 49 50 50 50 50 50 51

DNP3-2001 IED Cer

8.11.2.5.6 Abandons READ requests upon subsequent non-READ requests 8.11.2.5.7 Abandons READ requests upon subsequent READ requests 8.11.2.5.8 Inhibits Unsolicited responses until after polled confirmation 8.11.2.5.9 Retries unsolicited responses configurable number of times 8.11.2.6 Unsolicited Responses Off 8.12 Collision Avoidance 8.12.1 Desired Behavior 8.12.2 Test Procedure 8.13 Binary Inputs 8.13.1 Desired Behavior 8.13.2 Test Procedure 8.13.2.1 Device does not have Binary Inputs 8.13.2.2 Device has Binary Inputs 8.13.2.3 Device supports Binary Inputs, Configurable Device 8.14 Binary Input Change 8.14.1 Desired Behavior 8.14.2 Test Procedure 8.14.2.1 Device does not support Binary Input Changes 8.14.2.2 Binary Input Change, 0x06 8.14.2.3 Binary Input Change, 0x07 8.14.2.4 Binary Input Change, 0x08 8.14.2.5 Binary Input Change Without Confirm 8.14.2.6 Binary Input Change Without Time, 0x06 8.14.2.7 Binary Input Change Without Time, 0x07 8.14.2.8 Binary Input Change Without Time, 0x08 8.14.2.9 Binary Input Change With Time, 0x06 8.14.2.10 Binary Input Change With Time, 0x07 8.14.2.11 Binary Input Change With Time, 0x08 8.14.2.12 Binary Input Change With Relative Time, 0x06 8.14.2.13 Binary Input Change With Relative Time, 0x07 8.14.2.14 Binary Input Change With Relative Time, 0x08 8.14.2.15 Binary Input Change with Relative Time, Long Interval 8.15 Common Time of Occurrence 8.15.1 Desired Behavior 8.15.2 Test Procedure 8.16 Binary Counters 8.16.1 Binary Counters, Running 8.16.1.1 Desired Behavior 8.16.1.2 Test Procedure 8.16.1.2.1 Device does not have Binary Counters 8.16.1.2.2 Device responds with Binary Counters 8.16.1.2.3 Device responds with Delta Counters 8.16.1.2.4 Device Responds with Delta Counters, No Confirm 8.16.1.2.5 Device supports Binary Counters, Configurable Device 8.16.2 Binary Counters, Frozen 8.16.2.1 Desired Behavior 8.16.2.2 Test Procedure 8.16.2.2.1 Device does not have Frozen Counters. 8.16.2.2.2 Binary Counter, Freeze 8.16.2.2.3 Binary Counter, Freeze And Clear 8.16.2.2.4 Binary Counter, Freeze, No Acknowledge 8.16.2.2.5 Binary Counter, Freeze And Clear, No Acknowledge 8.17 Binary Counters, Event 8.17.1 Desired Behavior 8.17.2 Test Procedure DNP3-2001 IED Certification Procedure Subset Level 2

51 51 51 52 53 53 54 54 54 54 55 55 55 55 55 55 56 56 56 56 56 57 57 57 58 58 59 59 59 60 60 61 61 61 62 63 63 63 63 63 64 64 64 65 65 65 65 65 65 66 66 66 67 67 67 Page ix Rev 2.1 5-July-01

8.17.2.1 Device does not support Binary Counter Events 8.17.2.2 Binary Counters, Event, 0x06 8.17.2.3 Binary Counters, Event, 0x07 8.17.2.4 Binary Counters, Event, 0x08 8.17.2.5 Binary Counters, Event Without Confirm 8.18 Analog Input 8.18.1 Desired Behavior 8.18.2 Test Procedure 8.18.2.1 Device does not have Analog Inputs 8.18.2.2 Device has Analog Inputs 8.19 Analog Change Event 8.19.1 Desired Behavior 8.19.2 Test Procedure 8.19.2.1 Analog Input Change 8.19.2.2 Analog Input Change, Without Confirm 8.20 Multiple Read Requests 8.20.1 Desired Behavior 8.20.2 Test Procedure 9 Appendix A DNP Reference Sheets

67 67 68 68 68 69 69 69 69 69 69 69 70 70 70 70 70 71 72

Page x Rev 2.1 5-July-01

DNP3-2001 IED Cer

1 Overview
It is the purpose of this document to describe a set of tests that will determine an Intelligent Electronic Devices (IED) compliance with the Distributed Network Protocol (formly known as DNP V3.00). This certification procedure is designed specifically to determine an IEDs compliance to Level 2 of the Subset Definitions.

1.1

Protocol specification

The protocol is defined by the Basic 4 Document set (Link Layer, Transport Layer, Application Layer, and Subset Definitions), Technical Notes published by the Technical Committee, and this Certification Procedure. The protocol defined by these documents shall be denoted DNP3-2001. Sections in this document marked with the symbol "" constitute new requirements or clarifications beyond the Basic 4 Document set. These sections may create interoperability problems with implementations done prior to the publication of this test procedure. However, the DNP Users' Group approved these changes at the annual 1999 meeting based on strong recommendation from the Technical Committee. These requirements and clarifications will greatly improve interoperability and extensive efforts have been made to minimize the impact on existing implementations.

2 Notes
1. This procedure is an attempt to produce interoperability between Master and IED devices, although such interoperability can NOT be guaranteed. However, it does gives reasonable assurance that Masters which can be configured to match items in the IED Device Profile Document will interoperate. Wherever the following procedures generate a specific number of events, it is acceptable to use an alternate number supported by the device provided that the intent of the test is still satisfied. This is not a factory acceptance test, but a protocol test. Therefore only selected outputs will be tested to verify protocol operation. Unless otherwise specified, all Application Layer retries are disabled. If not explicitly stated all tests imply verification that all points in a normal operating state are reported with all flag bits except the ONLINE bit clear and the ONLINE bit is set. Alternatively, verification that the object is reported with the without flags variation is also implied. Sections marked with three asterisks (***) extend the requirements of the device beyond DNP3-2000. Record the point numbers used in all tests in the log. All application layer tests use unconfirmed link services using a request link control block of 0xC4 unless specified otherwise. When time tagged events are reported the certification procedures do not measure the absolute accuracy of the reported times. They do however verify that the reported times are updated in a reasonable manner. The Device Profile Document specifies the accuracy with which the device measures the event. This accuracy is guaranteed by the vendor, not the certification procedures.

2.

3.

4. 5.

6. 7. 8.

9.

10. If not explicitly stated all tests imply verification that a response to a request has the same application sequence number as the request. If the request generates multiple application fragments also verify that the application sequence number of each subsequent fragment increments by 1 modulo 16. 11. These tests assume that the device will only generate events as controlled by the tester, as specified in the procedure.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 1 Rev 2.1 5-July-01

12. It is strongly recommended that the tester run the device for a least 24 hours at some point during the testing to insure that it does not exhibit any unusual or unexpected behavior. This is not a requirement for compliance to this procedure. 13. Responses to all properly formed requests, must result in either the specific action or behavior described in the protocol or in a correctly-formed, appropriate protocol error response. In addition, devices must continue to operate without interruption or anomalous behavior in response to properly or improperly formed requests.

Page 2 Rev 2.1 5-July-01

DNP3-2001 IED Cer

3 Definitions 3.1
Master Slave

General
Device that sends DNP application function codes 0-23. Device that sends DNP application function code 0,128,129 (also known as IED).

Operate This is an action taken by the Slave in response to a Master DNP request. This action does not include transmission of a response. Examples of an operation are an audible relay click, change in an LED status, or change in the internal state of the Slave. Note that some operations are difficult to observe without intimate knowledge of the Slave device. The inability to observe an operation does not mean that an operation failed to take place. Request Any message from a Master to a Slave where a response from the Slave is expected.

Response Message from Slave caused by a Master Request. Responses are classified as follows: No response: No octets are sent by Slave Link only response: 10 octet message consisting of only a link layer message Null Response: Message containing a 17-octet link/transport/application response with no error IIN bits set and no application objects. Normal Response: Message containing an application response which has no error IIN bits set, and has no objects which indicate errors All responses must begin with the same application sequence number as the corresponding request. For Multi-fragment responses the first fragment must have the same sequence number as the request and each subsequent fragment must increment the sequence number by 1 modulo 16.

3.2
IIN

Internal Indications
Octets 3 and 4 of the application response header. Bits are named IINx-y. x=1 for first transmitted octet and 2 for second transmitted octet. y=bit number where 0=least significant bit. Refer to the Basic Four Application Layer section 3.6 and the Subset Definitions section 4.1.1 for detailed explanations of the IIN bits. The following is a summary of the definitions. Class 1 event data available. Can be set at any time and does not indicate an error condition. Class 2 event data available. Can be set at any time and does not indicate an error condition. Class 3 event data available. Can be set at any time and does not indicate an error condition. Time synchronization required. Can be set at any time and does not indicate an error condition. Local mode. Set if some points are uncontrollable via DNP. Device restart. Set only under specific conditions. Does not indicate an error condition. Function Unknown. Generally means that the function code (octet 2 of the request header) cannot be processed. Object Unknown. Generally means that the function code could be processed but the object group / variation could not be processed. Parameter Error. Generally indicates that both the function code and object group / variation could be processed but that the qualifier / range field is in error.

IIN1-1 IIN1-2 IIN1-3 IIN1-4 IIN1-5 IIN1-7 IIN2-0 IIN2-1 IIN2-2

3.3

Error Responses

Error IIN bits IIN bits that indicate a request error (i.e., IIN2-0 or IIN2-1 or IIN2-2). Error Response A response that has any or all of the Error IIN bits set which may also contain data.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 3 Rev 2.1 5-July-01

Unexpected Error Response Slaves may generate responses with any or all of the following: unexpected bits in the IIN set unexpected bits in any returned flags set unexpected status code errors Any unexpected responses must be noted by the tester and explained in the test log.

3.4

Changes or Events
Change Object Name Binary Input Change Counter Change Events Frozen Counter Change Events Analog Change Events Frozen Analog Change Events Object 2 22 23 32 33 Table 3-1 Corresponding Static Object Name Binary Input Counter Frozen Counter Analog Input Frozen Analog Input Object 1 20 21 30 31

This section clarifies processing rules related to the following objects.

1. 2. 3.

The term significant change refers to any of the synonymous terms: event or change event. Change Objects and Static Objects are related in that a significant change in a points static value results in the creation of a corresponding Change Object entry A significant change for a point is defined to occur: for a binary point, on any change in state, and for a numeric point, on any change in value greater than the points threshold

3.4.1 Rules
A device may claim that it supports a specific Change Object if and only if processing for that Change Object can be configured to adhere to the following rules. 1. 2. Change processing must be supported for all points in the corresponding Static Object. The determination that a point has undergone a significant change can be determined only by using information from that points current or past value. Decisions based on information about any other point, directly or indirectly, are explicitly forbidden. For numeric Change Objects, the Device Profile must clearly specify the algorithm used for each point or set of points that specifies how the deadband(s) for those points are determined. All changes must be returned to a host that issues a request for any specific Change Object, limited only by qualifier and range codes in the request.

3. 4.

Some devices may decide to limit the set of points included in Change Object processing (in violation of rule 1), or to invoke a more complicated algorithm for determining a significant change (in violation of rule 2). While these implementations may be useful in specific instances, such devices may not check compliance with the corresponding Change Object in their Device Profile Documentation unless the device is configurable to conform to the rules above.

Page 4 Rev 2.1 5-July-01

DNP3-2001 IED Cer

4 Reference Documents
DNP Version 3.00 Data Link Layer DNP Version 3.00 Transport Functions DNP Version 3.00 Application Layer DNP Version 3.00 Data Object Library Layer DNP Version 3.00 Subset Definitions Version 2.00 ( Version 3.00)

5 Pretest Review
Before testing proceeds it is necessary to review documentation and equipment supplied by the vendor for completeness and appropriateness to the application. In particular the vendor must have provided the test facility with the following items. Device Profile Document Device to be tested Wiring Diagrams for Power Communications (e.g. RS232, RS485, Bell 202, IEEE 802.3) Input connections

5.1

Device Profile Review

Before connecting any equipment the Device Profile should be carefully reviewed. This document describes the vendors specification of the behavior of the device. This behavior should be compared to Level 2 requirements and any discrepancies resolved before testing proceeds. Specifically the Device Profile should indicate that the device: Responds to all Level 2 requests that a slave device is required to parse. Responds to Level 2 requests only with Objects/Variations and Qualifiers that a Level 2 master is required to parse.

If a device generates any response requiring a higher level master to parse it, the following actions should be taken: Testing can continue. It must be noted in the test results that the device is Level 2 compliant for requests only. The required Master Level must be noted in the test results.

5.2

Equipment Review

Before testing proceeds, the device will be examined to insure the proper equipment is available for the following: Physical interfaces present and compatible. Wiring diagrams and equipment necessary for Input stimulation. Input power specifications. If it is not readily apparent whether an output point has operated, the vendor must supply to the tester a point number and method to determine whether or not a binary control and/or analog output has operated. A manufacturers representative should be available by phone to answer questions during the testing of the device.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 5 Rev 2.1 5-July-01

6 Link Layer
Any DNP device is required to passively implement all link layer services. Specifically, this means that a device need not request link layer service but must support any services requested by another device. For example: A device can choose not to request link layer confirms but MUST respond with a link layer confirm if requested to do so. A device can choose not to request link layer reset if it is using unconfirmed link services but MUST respond with a link layer confirm if a link layer reset is requested. A device must respond to all unconfirmed link requests (i.e. function codes 0, 4, 9) without a preceding link reset. The following tests are designed to verify this functionality.

6.1

Reset Link and Passive Confirm support

6.1.1 Desired Behavior


The Device under test (DUT) must respond to a link reset with a link confirm. DUT must respond to application layer data requests using unconfirmed link services without requiring a link reset. DUT must not respond to application layer data requests using confirmed link services without a preceding link reset. DUT must respond to application layer data requests using confirmed link services after a link reset has been issued. DUT must acknowledge but not otherwise respond to requests with the wrong FCB. DUT must issue a data link reset if transmitting requests that require a data link confirm.

6.1.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. Cycle power to the DUT. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify that the DUT responds with a valid message. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xF3. Verify that the DUT either sends a NACK with the DFC bit clear or does not respond. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xD3. Verify that the DUT either sends a NACK with the DFC bit clear or does not respond. Issue a link reset using link control block 0xC0. Verify that the DUT responds with a link layer confirm (link control block 0x00). Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xF3. Verify that the DUT responds with a link layer confirm and a valid application layer response. Perform repeated requests of Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and alternating link control blocks 0xD3 and 0xF3. Verify that the DUT responds with a link layer confirm and a valid application layer response for each request. Issue a link reset using link control block 0xC0. Verify that the DUT responds with a link layer confirm (link control block 0x00). Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xD3. Verify that the DUT responds with a link layer confirm (link control block 0x00) and no application response. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xF3. Verify that the DUT responds with a link layer confirm and a valid application layer response. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xF3. Verify that the DUT responds with a link layer confirm (link control block 0x00) and no application response. If the DUT cannot be configured to request data link confirms when transmitting, continue testing at section 6.2. Configure the DUT to request data link confirm when transmitting. Cycle power to the DUT. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify that the DUT responds by sending a data link reset (control block 0x40). Send a data link acknowledge (control block 0x80).

Page 6 Rev 2.1 5-July-01

DNP3-2001 IED Cer

28. Verify that the DUT responds with a valid message having control block 0x73. This is the response to the Class 0 data request, including a request for data link confirm. 29. Issue a data link NACK with DFC clear (control block 0x81). 30. If the DUT then issues a data link reset (control block 0x40), respond by sending an acknowledge control block 0x80). If the DUT then repeats the Class 0 response message (control block 0x73), it has functioned correctly, and this test is complete, continue testing at section 6.2. 31. If the DUT did not issue a link reset at step 30, steps 25 through 28 should be repeated as shown above. DUT responses other than those of steps 26 and 28 indicate incorrect operation.

6.2

Test Link

6.2.1 Desired Behavior


The DUT must respond with a Link Confirm - ACK if the FCB bits are correct in the test request. Otherwise, the DUT must respond with the last secondary confirm frame. This behavior is not tested since it was deemed by the Technical Committee as too difficult to test in a reliable manner. If the DUT receives a test link frame without a previous link reset, the DUT must either not respond or respond with a NACK with DFC = 0.

6.2.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. Cycle power to the DUT. Request a Link Test Frame using link control block 0xF2. Verify that the DUT responds with a Confirm - NACK with DFC=0 (link control code 0x01) or does not respond. Issue a Link Reset using link control block 0xC0. Request a Link Test Frame using link control block 0xF2. Verify that the DUT responds with a Confirm - ACK (link control code 0x00). Request a Link Test Frame using link control block 0xD2. Verify that the DUT responds with a Confirm - ACK (link control code 0x00). Cycle power to the DUT. Request a Link Test Frame using link control block 0xD2. Verify that the DUT responds with a Confirm - NACK with DFC=0 (link control code 0x01) or does not respond. Issue a Link Reset using link control block 0xC0. Request a Link Test Frame using link control block 0xF2. Verify that the DUT responds with a Confirm - ACK (link control code 0x00). Request a Link Test Frame using link control block 0xD2. Verify that the DUT responds with a Confirm - ACK (link control code 0x00).

6.3

Request Link Status

6.3.1 Desired Behavior


When issued a Request Link Status message, the DUT must respond with a valid Status of Link message. The DUT must ignore FCB when FCV = 0.

6.3.2 Test Procedure


1. 2. 3. 4. 5. Cycle power to the DUT. Request a Link Status Frame using link control block 0xC9. Verify that the DUT responds with a valid link status message with link control block 0x0B or 0x1B. Request a Link Status Frame using link control block 0xE9. Verify that the DUT responds with a valid link status message with link control block 0x0B or 0x1B.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 7 Rev 2.1 5-July-01

6.4

Test Retries

6.4.1 Desired Behavior


DUTs are not required to support link layer retries. The rest of these behaviors apply only to DUTs that support link layer retries. The DUT must be able to disable retries through configuration. If the device requests a link layer confirm and does not receive it within a specified period of time (LINK TIMEOUT), it shall retransmit the link frame. It shall do this n times where n is a specified number of retries before aborting transmission (LINK RETRYCOUNT). If configured to enable link layer confirms on primary transmissions, the DUT must perform retries on all SEND/CONFIRM and REQUEST/RESPOND frames. Both LINK TIMEOUT and LINK RETRYCOUNT must be specified in the Device Profile Document or they can optionally be configurable parameters.

6.4.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. If the DUT does not support link layer confirms or link layer retries on primary transmissions, continue testing in the next section. Configure the device to enable link layer confirms on primary transmissions and if retries are configurable, set them to a reasonable value. Cycle power to the DUT. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify that the DUT sends a RESET LINK frame. Do not send a data link CONFIRM frame. Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Verify that it repeats this exactly LINK RETRYCOUNT times. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify that the DUT responds with a RESET LINK frame. Send a data link CONFIRM. Verify that the DUT sends a valid application layer response in a SEND/CONFIRM USER DATA frame. Do not send a data link CONFIRM frame. Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Verify that it repeats this exactly LINK RETRYCOUNT times. If it is possible to cause the DUT to send TEST LINK, RESET USER PROCESS, or REQUEST LINK STATUS, cause it to do so, but do not respond in each case. Repeat steps 11 and 12 for each of these frames that can be generated. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify that the DUT responds with a RESET LINK frame. Send a data link CONFIRM. Verify that the DUT sends a valid application layer response in a SEND/CONFIRM USER DATA frame. Do not send a data link CONFIRM frame. Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Send a data link CONFIRM. Verify that no further retries are sent. If it is possible to cause the DUT to send TEST LINK, RESET USER PROCESS, or REQUEST LINK STATUS, cause it to do so, but do not respond in each case. Repeat steps 18 and 19 for each of these frames that can be generated.

14. 15. 16. 17. 18. 19. 20.

6.5

DIR and FCV Bits

6.5.1 Desired Behavior


The DUT must clear (set to zero) the DIR bit in each data link frame it transmits. The DUT must set the FCV bit to zero in all frames except SEND/CONFIRM User Data and SEND/CONFIRM Test Link. These frames are tested elsewhere.

Page 8 Rev 2.1 5-July-01

DNP3-2001 IED Cer

6.5.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. If the DUT is capable of requesting data link confirmations, configure it to NOT request data link confirmations. Cycle power to the DUT. Prepare and send a READ request for Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and a link control block 0xC4. Verify the response from the DUT uses data link control block 0x44 i.e. Unconfirmed User Data with the DIR bit not set and the FCV bit not set. If the DUT can generate RESET USER PROCESS or REQUEST LINK STATUS, cause it to do so and verify none of these frames have the DIR or FCV bit set. If the DUT can generate TEST LINK, cause it to do so and verify that these frames have the DIR bit clear and FCV bit set. If the DUT is not capable of requesting data link confirmations, no further testing is required in this section. If the DUT is capable of requesting data link confirmations, configure it to do so. Cycle power to the DUT. Prepare and send a READ request for Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and a link control block 0xC4. Verify the DUT first sends a frame with data link control block 0x40, i.e. RESET LINK with DIR=0 and FCV=0. Reply with a data link CONFIRM - ACK. Verify the DUT sends a frame with data link control block 0x73 i.e. SEND/CONFIRM USER DATA with FCV=1 and FCB = 1. Configure DUT to NOT request data link confirmations.

6.6

Data Link Rejects Invalid Frames

6.6.1 Desired Behavior


The DUT must detect errors due to transmission line errors or the incorrect functioning of other devices. It must therefore not respond, either at a data link layer or application layer, to frames that are otherwise valid but have one of the following errors: Incorrect start sequence Incorrect destination address Incorrect CRC Invalid function code Invalid FCV (Frame Count Valid) bit For an invalid function code or invalid FCV, the DUT may also respond with LINK SERVICE NOT IMPLEMENTED. NOTES: These procedures do not test whether the DUT rejects frames having the DIR bit set incorrectly. Implementers of Slave IEDs must, however, clear this bit (0) in all their transmissions to aid monitoring their devices output on protocol analyzers. This is tested in section DIR and FCV Bits. It is optional whether devices choose to filter frames based on source address, and is therefore not tested here. The Device Profile Document indicates whether or not filtering is performed based on the source address.

6.6.2 Test Procedure Primary Frames


Before performing the remainder of these tests: 1. Cycle power to the DUT. 2. Issue a link reset using link control block 0xC0. 3. Verify that the DUT responds with a link layer confirm (link control block 0x00). 4. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xF3. 5. Verify that the DUT responds with a link layer confirm (link control block 0x00). 6. Verify that the DUT responds with application layer data.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 9 Rev 2.1 5-July-01

To perform the remainder of this test, a general-purpose protocol analyzer capable of generating any sequence of data is necessary. If a DNP-specific protocol analyzer is being used for testing, it should be used to monitor the exchange between the general-purpose analyzer and the DUT.

6.6.2.1 Invalid Start Octets


1. Prepare a READ request for Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and a link control block 0xD3. 2. Modify the frame so it begins with an invalid initial start octet (e.g. 0x09) instead of 0x05. 3. Modify the CRC of the data link layer header so the CRC is correct for the invalid start octet. 4. Send the request. 5. Wait several seconds. 6. Verify that the DUT does not send a link layer confirm or application layer response. 7. Modify the frame so it begins with 0x05, but the second start octet is invalid (e.g. 0xff). 8. Modify the CRC of the data link layer header so the CRC is correct for the invalid start octet. 9. Send the request. 10. Wait several seconds. 11. Verify that the DUT does not send a link layer confirm or application layer response. 12. Repeat this test once using different start octet values.

6.6.2.2 Invalid Primary Function Code


1. 2. Prepare a READ request for Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and a link control block of 0xD3. Modify the frame so the control field contains the correct settings of the DIR, PRM, FCB and FCV fields, but has an invalid function code, e.g. 0xD5. Alter the CRC of the data link layer header so the CRC is correct for the invalid control field. Send the request. Wait several seconds. Verify that the DUT either does not send a link layer confirm, or responds with a valid LINK SERVICE NOT IMPLEMENTED frame (control field 0x0F). Verify that the DUT does not send an application layer response. Repeat this test once with a different invalid function code.

3. 4. 5. 6. 7.

6.6.2.3 Invalid Destination Address


1. Send a READ request to different address. Note: For devices that can be configured to represent multiple logical devices (i.e. can respond to requests directed to more than one address), ensure that the selected address is not one of the other valid addresses configured for the device. Wait several seconds. Verify that the DUT does not send a link layer confirm or application layer response. Repeat this test once with a different destination address.

2. 3. 4.

6.6.2.4 Invalid CRC


1. Prepare a READ request for Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and a link control block 0xD3. 2. Modify the frame so the CRC of the data link layer header is incorrect. 3. Send the request. 4. Wait several seconds. 5. Verify that the DUT does not send a link layer confirm or application layer response. 6. Modify the frame so the CRC of the data link layer header is correct but the CRC of the application layer request is incorrect. 7. Send the request. 8. Wait several seconds. 9. Verify that the DUT does not send a link layer confirm or application layer response. 10. Repeat this test once with different incorrect CRC values.

Page 10 Rev 2.1 5-July-01

DNP3-2001 IED Cer

6.6.2.5 Invalid FCV


1. 2. 3. 4. 5. 6. 7. 8. 9. Prepare a READ request for Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and a link control block 0xC3, i.e. SEND/CONFIRM USER DATA, but with FCV=0 (incorrect). Send the request. Wait several seconds. Verify that the DUT does not send a link layer confirm or application layer response. The DUT may respond with a link layer frame with function code LINK SERVICE NOT IMPLEMENTED. Prepare a READ request for Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and a link control block 0xD4, i.e. SEND/NO CONFIRM USER DATA, but with FCV=1 (incorrect). Send the request. Wait several seconds. Verify that the DUT does not send a link layer confirm or application layer response. The DUT may respond with a link layer frame with function code LINK SERVICE NOT IMPLEMENTED. Repeat steps 5-8 using the control blocks in the following table:

Code C2 D0 D9

Description Test Link RESET LINK Link Status Request

Notes FCV = 0 incorrect FCV=1 incorrect, FCB = 0 ignored FCV=1 incorrect, FCB = 0 ignored

6.6.3 Test Procedure Secondary Frames


The tests in this section are optional, and must pass only if the DUT requests data link confirmations and performs retries. The retries are used to detect whether the device processed the data link layer confirmation. Before performing these tests: 1. Configure the device to enable link layer confirms on primary transmissions and if retries are configurable set them to a reasonable value. 2. Cycle power to the DUT. 3. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. 4. Verify that before responding with application layer data, the DUT sends a RESET LINK frame. Send a data link CONFIRM ACK frame in reply. 5. Verify the DUT responds with application layer data, requesting data link confirmation. 6. Send a valid CONFIRM ACK frame in reply. To perform the remainder of this test, a general-purpose protocol analyzer capable of generating any sequence of data is necessary. If a DNP-specific protocol analyzer is being used for testing, it should be used to monitor the exchange between the general-purpose analyzer and the DUT.

6.6.3.1 Invalid Start Octets


1. 2. 3. 4. 5. 6. 7. 8. 9. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify the DUT responds with application layer data, requesting data link confirmation. Send a CONFIRM ACK frame modified so its start octet is invalid (e.g. 0x09). Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify the DUT responds with application layer data, requesting data link confirmation. Send a CONFIRM ACK frame modified so the start octet is correct (0x05), but the second octet is incorrect (e.g. 0xff). Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Repeat this test once with different start octet values.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 11 Rev 2.1 5-July-01

6.6.3.2 Invalid Secondary Function Code


1. 2. 3. 4. 5. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify the DUT responds with application layer data, requesting data link confirmation. Send a CONFIRM ACK frame modified so the DIR, PRM and DFC bits of the control field are correct, but the function code is invalid (e.g. 0x03). Ensure that the CRC is correct for the invalid function code value. Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Repeat this test once with a different function code value.

6.6.3.3 Invalid Destination Address


1. 2. 3. 4. 5. 6. This test may be performed with a DNP-specific test set. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify the DUT responds with application layer data, requesting data link confirmation. Send a CONFIRM ACK frame to a destination address that is not that of the DUT. Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Repeat this test once with a different destination address.

6.6.3.4 Invalid CRC


1. 2. 3. 4. 5. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06 and link control block 0xC4. Verify the DUT responds with application layer data, requesting data link confirmation. Send a CONFIRM ACK frame modified such that the CRC is incorrect. Verify that the DUT waits LINK TIMEOUT and then retransmits the link frame. Repeat this test once with a different CRC value.

Page 12 Rev 2.1 5-July-01

DNP3-2001 IED Cer

7 Transport Layer
Whenever FIR, FIN and sequence numbers are referenced in this section they refer to the definitions present in the transport header which is reproduced here for convenience. Transport Header bit 6 bits 5-0 FIR Sequence number Table 7-1

bit 7 FIN

7.1

Desired Behavior

If the DUT contains enough data to cause the reply to an application request to be larger than one Link Protocol Data Unit, it is required to, a) Set the proper FIR and FIN bits. b) Set the correct sequence information. c) Distribute the data correctly. d) Signify to the initiating station that the reply contains multiple LPDUs e) Provide the appropriate information for assembly at the receiving station. If the device does not contain enough data, then the FIR and FIN bits must signify that there is only one LPDU in the reply.

7.2
1. 2. 3. 4. 5. 6. 7.

Test Procedure

Cycle power to the DUT. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06. Verify that the DUT responds with a valid message. If the DUTs reply contains more than 249 octets then verify that the first response message sets the FIR bit to a one, the FIN bit is set to zero. Verify subsequent messages to assure that the FIR bit is zero, the FIN bit is zero, and the sequence number increments by one. Verify that the last message has the FIR bit is zero and the FIN bit is one, signifying the last data fragment, and the SEQ value increments by one. If the DUTs reply contains less than 250 octets in the Data Link Frame then the FIR bit is set to one and the FIN bit is also set to one.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 13 Rev 2.1 5-July-01

8 Application Layer 8.1 Binary Output Status

The binary output status object represents the current state and status of the associated binary output. The status is an 8bit flag field (repeated here for your convenience): Flag Bit 0 1 2 3 4 5 6 7 Value ONLINE - 0=off-line, 1= on-line RESTART - 0=normal, 1= restart COMMUNICATION LOST - 0=normal, 1=lost REMOTE FORCED DATA - 0=normal, 1=forced LOCAL FORCED DATA - 0=normal, 1=forced 0 0 STATE - 0, 1 Table 8-1

8.1.1 Desired Behavior


If the device supports binary outputs the device must respond to a Binary Output read request with a binary output status object (object 10 Variation 2) using qualifiers 0x00 or 0x01. If the device does not support binary outputs the device must respond to a Binary Output read request with a Null Response. Optionally, the device can return an error response with IIN2-1.

8.1.2 Test Procedure


1. 2. 3. 4. 5. Issue a request for Object 10 Variation 0 using the all data qualifier 0x06. If the device supports Binary Outputs verify that the DUT responds with a Binary Output Status object (Object 10 Variation 2). Verify that the data is reported using either 8 bit start/stop indexing (qualifier 0x00) or 16 bit start/stop indexing (qualifier 0x01). If the device does not support Binary Outputs verify that the DUT responds with a Null Response. The device can optionally set IIN2-1. Verify that flag behavior complies with Section 2, Note #5.

8.2

Binary Outputs

If a device supports control outputs, it is required to be configurable to support all three modes of operation of control, namely Select Before Operate, Direct Operate, and Direct Operate No Acknowledgment. A device may be configurable to disable any subset of the modes. If a device has been configured to reject a particular mode, it must return a control status value of 4 (control operation not supported for this point). It is the hosts responsibility to determine the appropriate control mechanism. It is also the hosts responsibility to perform select before operate control when it is unacceptable to have the control point operated more than once. This is typically a configuration item in the host and is the responsibility of the end user to configure properly. It is the outstations responsibility to perform the control operation if a correct control dialog has been issued from the host. If the DUT is configurable in a manner such that points can be uninstalled or disabled, the device must be configured with at least one Binary Output point installed or enabled before proceeding with the test procedure.

Page 14 Rev 2.1 5-July-01

DNP3-2001 IED Cer

8.2.1 Select Before Operate


Select before operate control is used under circumstances when it is absolutely imperative that the control point operate only once. An example of this is a recloser. The host first initiates the select portion of the dialog. The outstation then echoes the exact control request byte for byte to the host. Note that the encapsulation information need not match, but that the object, variation, qualifier, and all object data must match exactly. The host then sends the execute portion of the dialog. The object, variation, qualifier, and all object data must match exactly byte for byte the data sent in the select message. If this message matches the select message byte for byte and it is received within the configured acceptable delay between select and execute the outstation must operate the control point.

8.2.1.1 Desired Behavior


The following assumes that the device does not support control operations: If the device does not support control outputs, it must respond to a select with an Error Response setting IIN2-1. An Error Response with IIN2-2 set is an invalid response. No further testing in this section is necessary. The following assumes that the device supports control operations: The maximum select to execute delay time must be specified in the Device Profile Document. The DUT responds to matching select and execute requests by echoing each request with the status field set to 0. The specified control operates. The DUT responds to selecting an uninstalled control point by returning an error response with IIN2-2 set and a status code of 4. The control point does not operate. The DUT responds to executing an installed control point after the configured acceptable select to execute delay by echoing the execute and setting the status field to 1 [Execute received after timeout]. The control point does not operate The DUT responds to a non-matching execute with a status field of 2 [No previous matching select] and does not operate the control under the following conditions: No prior select issued On time mismatch Off time mismatch Control code mismatch The DUT operates various selected control points. The DUT supports 8 and 16 bit point indexing. The following assumes that the device supports control operations and were added as a result of Technical Bulletin TB2000-002 (Control Retries): The DUT must accept retries on the select portion of the control dialog that increment the application sequence number between retries. In this case the select-to-operate timer must be restarted after reception of each select. The DUT must accept retries on the select portion of the control dialog that do not increment the application sequence number between retries. In this case the select-to-operate timer must remain unaltered by the reception of each additional select. The DUT must reject any operate that does not: $ contain a application layer sequence number that is exactly one greater (modulo 16) than the previously accepted select. $ match the object portion of the select message byte for byte, excluding the application header. The DUT must accept retries on the operate portion of the control dialog that does not increment the application sequence number between retries. The DUT must echo the operate command but must not operate the control more than once. The following assumes that the device does support control operations, however there are no control points installed/enabled: If the device does not have any control outputs installed, it must respond to a select with an Error Response setting IIN2-1 or IIN2-2.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 15 Rev 2.1 5-July-01

8.2.1.2 Test Procedure


8.2.1.2.1 Binary Output, SBO, 0x28
1. 2. 3. 4. 5. 6. Issue a select using Object 12 Variation 1 to an installed point using 16 bit indexing (qualifier 0x28), a control code supported by the device and an appropriate on time/off time. If the device does not support control outputs, verify that the DUT responds with a Error Response with IIN2-1 set. End testing of Binary Output SBO. Verify that the DUT responds by echoing the select message exactly. Immediately issue a matching execute. Verify that the DUT echoes the execute. Verify that the selected control operates.

8.2.1.2.2 Binary Output, SBO, 0x17


1. 2. 3. 4. 5. Issue a select using Object 12 Variation 1 to a different installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. If the device does support control outputs, verify that the DUT responds by echoing the select message exactly. Immediately issue a matching execute. Verify that the DUT echoes the execute. Verify that the selected control operates.

8.2.1.2.3 Binary Output, SBO, To Uninstalled Point


1. 2. 3. Issue a select using Object 12 Variation 1 to an uninstalled point using 16 bit indexing (qualifier 0x28) using a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by returning an error response with IIN2-2 set and a status code of 4. Verify that no control point operates.

8.2.1.2.4 Binary Output, SBO, Execute Issued After Timeout


1. 2. 3. 4. 5. Issue a select using Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by echoing the select message exactly. Wait 1 second past the configured maximum select to execute delay time. Issue a matching execute and verify that the DUT echoes the execute with the control status field set to 1[Execute received after timeout]. Verify that no control point operates.

8.2.1.2.5 Binary Output, SBO, Execute to Different Point Than Select


1. 2. 3. 4. 5. Issue a select to Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by echoing the select message exactly. Immediately issue an execute to Object 12 Variation 1 to a different installed point using 8 bit indexing (qualifier 0x17), the same control code as the select, and the same on time/off time as the previous select. Verify that the DUT echoes the execute with the control status field set to 2 [No previous matching select]. Verify that no control point operates.

8.2.1.2.6 Binary Output, SBO, Execute On Time does not match Select On Time
1. 2. 3. 4. 5. Issue a select using Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by echoing the select message exactly. Immediately issue a execute to Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), the same control code as the select, the on time incremented by 1 and the same off time as the previous select. Verify that the DUT echoes the execute with the control status field set to 2 [No previous matching select]. Verify that no control point operates.

Page 16 Rev 2.1 5-July-01

DNP3-2001 IED Cer

8.2.1.2.7 Binary Output, SBO, Execute Off Time does not match Select Off Time
1. 2. 3. 4. 5. Issue a select using Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by echoing the select message exactly. Immediately issue an execute to Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), the same control code as the select, same on time as the previous select and the off time incremented by 1. Verify that the DUT echoes the execute with the control status field set to 2 [No previous matching select]. Verify that no control point operates.

8.2.1.2.8 Binary Output, SBO, Select using a supported Control Code, Execute using a different Control Code
1. 2. 3. 4. 5. Issue a select using Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by echoing the select message exactly. Immediately issue an execute to Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code different from the previous select, and the same on time/off time as the previous select. Verify that the DUT echoes the execute with the control status field set to 2 [No previous matching select]. Verify that no control point operates.

8.2.1.2.9 Binary Output, SBO, Select 0x28, Execute 0x17


1. 2. 3. 4. 5. Issue a select using Object 12 Variation 1 to an installed point using 16 bit indexing (qualifier 0x28), a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by echoing the select message exactly. Immediately issue an execute to Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and the same on time/off time as the previous select. Verify that the DUT echoes the execute with the control status field set to 2 [No previous matching select]. Verify that no control point operates.

8.2.1.2.10 Binary Output, SBO, Configurable Device


1. 2. 3. 4. 5. If the device is not configurable in a manner such that control points can be uninstalled or disabled, skip this section. Configure the DUT such that all Binary Output points are uninstalled or disabled. Issue a select using Object 12 Variation 1 to point 0 using 16 bit indexing (qualifier 0x28), a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by returning an error response with IIN2-1 or IIN2-2 set. Verify that no control point operates.

8.2.1.2.11 Binary Output, SBO, Same Sequence Number Select Retries


1. 2. 3. 4. 5. 6. 7. 8. If the DUT does not have installed binary output points, skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue the select again using the same application layer sequence number. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the binary output.

8.2.1.2.12 Binary Output, SBO, Incrementing Sequence Number Select Retries


1. 2. 3. 4. 5. If the DUT does not have installed binary output points, skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue the select again incrementing the application layer sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the select byte for byte.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 17 Rev 2.1 5-July-01

6. 7. 8.

Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the binary output.

8.2.1.2.13 Binary Output, SBO, Same Sequence Number Operate Retries


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed binary output points, skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the binary output. Issue the operate again using the same application layer sequence number. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT does not operate the binary output.

8.2.1.2.14 Binary Output, SBO, Incrementing Sequence Number Operate Retries


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed binary output points, skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the binary output. Issue the operate again, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the binary output.

8.2.1.2.15 Binary Output, SBO, Sequence number checking


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed binary output points, skip this section. Issue a valid select to an installed binary output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by anything but 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the binary output. Issue a valid operate, incrementing the select sequence number by 1 modulo 16 to make sure the mismatched operate cleared the previous select. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the binary output.

8.2.2 Direct Operate with Acknowledge 8.2.2.1 Desired Behavior


The following behavior assumes that the device does not support control operation: If the device does not support control outputs, it must respond to a direct operate with an Error Response setting IIN2-1. An Error Response with IIN2-2 set is an invalid response. No further testing in this section is necessary. The following behavior assumes that the device supports control operations: The DUT responds to a direct operate to an uninstalled data point by returning an Error response with IIN2-2 set and a status code of 4. The control does not operate. Page 18 Rev 2.1 5-July-01

DNP3-2001 IED Cer

The DUT responds to a direct operate to an installed data point by echoing the direct operate and setting the status field to 0. The specified control operates.

The following behavior assumes that the device does support control operations, however there are no control points installed/enabled: If the device does not have any control outputs installed, it must respond to a direct operate with an Error Response setting IIN2-1 or IIN2-2.

8.2.2.2 Test Procedure


8.2.2.2.1 Binary Output, Direct Operate
1. 2. 3. 4. Issue a direct operate using Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. If the device does not support control outputs verify that the DUT responds with an Error Response with IIN2-1 set and end testing of this section. If the device does support control outputs verify that the DUT responds by echoing the direct operate message exactly with status field of 0. Verify that the specified control operates.

8.2.2.2.2 Binary Output, Direct Operate to Uninstalled Point


1. 2. 3. Issue a direct operate using Object 12 Variation 1 to an uninstalled point using 16 bit indexing (qualifier 0x28) using a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by returning an Error response with IIN2-2 set and a status code of 4. Verify that no control operates.

8.2.2.2.3
1. 2. 3. 4. 5.

Binary Output, Direct Operate, Configurable Device

If the device is not configurable in a manner such that control points can be uninstalled or disabled, end testing of Binary Output, Direct Operate. Configure the DUT such that all Binary Output points are uninstalled or disabled. Issue a direct operate using Object 12 Variation 1 to point 0 using 16 bit indexing (qualifier 0x28) using a control code supported by the device and an appropriate on time/off time. Verify that the DUT responds by returning an error response with IIN2-1 or IIN2-2 set. Verify that no control operates.

8.2.3 Direct Operate, No Acknowledge 8.2.3.1 Desired Behavior


The DUT must not respond to in any way to the direct operate no acknowledge. If the device supports binary outputs and the operate message is correct then the binary output point must operate.

8.2.3.2 Test Procedure


8.2.3.2.1 Binary Output, Direct Operate, No Acknowledge
1. 2. 3. 4. Issue a Direct Operate, No Acknowledge using Object 12 Variation 1 to an installed point using 8 bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on time/off time. Verify that the DUT does not respond. If the device does not support control outputs, end testing of this section. If the device does support control outputs, verify that the proper control point operates.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 19 Rev 2.1 5-July-01

8.2.3.2.2 Binary Output, Direct Operate, No Acknowledge, to an Uninstalled Point


1. 2. 3. Issue a Direct Operate, No Acknowledge using Object 12 Variation 1 to an uninstalled point using 16 bit indexing (qualifier 0x28) using a control code supported by the device and an appropriate on time/off time. Verify that the DUT does not respond. Verify that no control operates.

8.2.3.2.3
1. 2. 3. 4. 5.

Binary Output, Direct Operate, No Acknowledge, Configurable Device

If the device is not configurable in a manner such that control points can be uninstalled or disabled, end testing of Binary Output, Direct Operate, No Acknowledge. Configure the DUT such that all Binary Output points are uninstalled or disabled. Issue a Direct Operate, No Acknowledge using Object 12 Variation 1 to point 0 using 16 bit indexing (qualifier 0x28) using a control code supported by the device and an appropriate on time/off time. Verify that the DUT does not respond. Verify that no control operates.

8.2.4 Multiple Object Requests 8.2.4.1 Desired Behavior


The DUT must parse requests for all control operations within a single frame. Up to a full frame of request operations must be supported.

The following assumes that the device supports control operations and were added as a result of Technical Bulletin TB2001-001 (Multiple Control Object and Status Codes): The DUT responds to requests having more points than are supported in a single message with a status code of 8 for at least the first point that is beyond the point count limit. The DUT responds to a select to an uninstalled control point by returning an error response with IIN2-2 set and a status code of 4.

8.2.4.2 Test Procedure


1. 2. Review the devices profile document to understand how many control points are supported in a single request. If this number is one, skip to step 7. Determine the number of installed points that can be successfully controlled in a single request. This number shall be the smaller of: The number of controls supported in a single request The number of installed control points Sixteen In a single request, issue a select to the above number of points using Object 12, Variation 1 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and an appropriate on time/off time. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set and that each object returns a status code of 0. Immediately issue a matching execute. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set and that each object returns a status code of 0. Verify that each of the selected controls operated. Note that controls may execute simultaneously or sequentially one after the other. If the number of control objects supported in a single request is greater than or equal to either The number of control objects that fit into a single frame or The number of installed control points, skip to step 13. In a single request, issue a select to at least one more point than is supported in a single request, each point having a different index but otherwise able to be controlled, using Object 12, Variation 1 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and an appropriate on time/off time.

3. 4. 5. 6. 7.

8.

Page 20 Rev 2.1 5-July-01

DNP3-2001 IED Cer

9. 10. 11.

12. 13.

14.

Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set, that each object except the last returns a status code of 0, and the last object returns a status code of 8. If the DUT does not support direct operate, skip to step 13. In a single request, issue a direct operate command to at least one more point than is supported in a single request, each point having a different index but otherwise able to be controlled, using Object 12, Variation 1 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and an appropriate on time/off time. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set, that each object except the last returns a status code of 0 and the last object returns a status code of 8. Verify that all except the last control point operated. In a single request, issue a select to one installed control point and to one point that is not installed using Object 12, Variation 1 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and an appropriate on time/off time. The installed point should be the first object in the request. Verify that the DUT response has IIN2-2 bit set, that the status code returned for the installed point is 0 and the status code returned for the non-installed point is 4.

8.2.5 Control Code Support 8.2.5.1 Desired Behavior


The following assumes that the device supports control operations and were added as a result of Technical Bulletin TB2000-006 (CROB Control Codes): For complementary function indices, the Outstation must accept at least one of the following control code pairs: $ 0x03 (Latch On/NUL) and 0x04 (Latch Off/NUL) $ 0x41 (Pulse On/Close) and 0x81 (Pulse On/Trip) The outstation may optionally accept both forms of complementary control code pairs. If it does: $ control codes 0x03 (Latch On/NUL) and 0x41 (Pulse On/Close) must perform the same function $ control codes 0x04 (Latch Off/NUL) and 0x81 (Pulse On/Trip) must perform the same function For single function indices, the outstation must accept at least one of the following control codes: $ 0x01 (Pulse On/NUL) $ 0x03 (Latch On/NUL) $ 0x04 (Latch Off/NUL) $ 0x41 (Pulse On/Close) $ 0x81 (Pulse On/Trip) If the outstation accepts more than one control code for a single function index, it must perform the same function for each control code it accepts.

8.2.5.2 Test Procedure


8.2.5.2.1 Binary Output, Complementary Function Support
1. 2. 3. 4. 5. 6. 7. 8. If the DUT does not have installed binary output points skip this section. If the DUT does not have installed complementary function binary output points skip this section. If the DUT does not support the 0x03 (Latch On/NUL) and 0x04 (Latch Off/NUL) pair skip to step 8. Issue a valid control sequence to the first installed complementary function binary output point using control code 0x03 (Latch On/NUL). Verify the control operation completes successfully. Issue a valid control sequence to an installed complementary function binary output point using control code 0x04 (Latch Off/NUL). Verify the complementary control operation completes successfully. If the DUT does not support the 0x41(Pulse On/Close) and 0x81 (Pulse On/Trip) pair skip to step 13.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 21 Rev 2.1 5-July-01

9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21.

Issue a valid control sequence to an installed complementary function binary output point using control code 0x41(Pulse On/Close). Verify the control operation completes successfully. Issue a valid control sequence to an installed complementary function binary output point using control code 0x81 (Pulse On/Trip). Verify the complementary control operation completes successfully. If the DUT does not support both the 0x03 (Latch On/NUL) and 0x04 (Latch Off/NUL) control code pair and the 0x41(Pulse On/Close) and 0x81 (Pulse On/Trip) control code pair skip to step the next section. Issue a valid control sequence to an installed complementary function binary output point using control code 0x03 (Latch On/NUL). Verify the control operation completes successfully. Issue a valid control sequence to the same installed complementary function binary output point using control 0x81 (Pulse On/Trip). Verify that the complementary control operation completes successfully. Issue a valid control sequence to the same installed complementary function binary output point using control code 0x41(Pulse On/Close). Verify the complementary control operation completes successfully. Issue a valid control sequence to the same installed complementary function binary output point using control 0x04 (Latch Off/NUL). Verify the complementary control operation completes successfully.

8.2.5.2.2 Binary Output, Single Function Support


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. If the DUT does not have installed binary output points skip this section. If the DUT does not have installed single function binary output points skip this section. For any point that is tested below, determine what action should happen when the control executes. If the DUT does not support the 0x01 (Pulse On/NUL) control code for single function binary output points at this index skip to step 7. Issue a valid control sequence to the first installed single function binary output point using control code 0x01 (Pulse On/NUL). Verify the control operation in step 3 completes successfully. If the DUT does not support the 0x03 (Latch On/NUL) control code for single function binary output points at this index skip to step 10. Issue a valid control sequence to the first installed single function binary output point using control code 0x03 (Latch On/NUL). Verify the control operation in step 3 completes successfully. If the DUT does not support the 0x04 (Latch Off/NUL) control code for single function binary output points at this index skip to step 13. Issue a valid control sequence to the first installed single function binary output point using control code 0x04 (Latch Off/NUL). Verify the control operation in step 3 completes successfully. If the DUT does not support the 0x41 (Pulse On/Close) control code for single function binary output points at this index skip to step 16. Issue a valid control sequence to the first installed single function binary output point using control code 0x41 (Pulse On/Close). Verify the control operation in step 3 completes successfully. If the DUT does not support the 0x81 (Pulse On/Trip) control code for single function binary output points at this index skip to the next section. Issue a valid control sequence to the first installed single function binary output point using control code 0x81 (Pulse On/Trip). Verify the control operation in step 3 completes successfully.

8.3

Analog Output Status

The Analog Output Status object represents the actual value of an analog output or software point and the associated status reported by an 8-bit flag field (repeated here for convenience): Page 22 Rev 2.1 5-July-01

DNP3-2001 IED Cer

Flag Bit 0 1 2 3 4 5 6 7

Value ONLINE - 0=off-line, 1= on-line RESTART - 0=normal, 1= restart COMMUNCATION LOST - 0=normal, 1=lost REMOTE FORCED DATA - 0=normal, 1=forced LOCAL FORCED DATA - 0=normal, 1=forced 0 0 0 Table 8-2

8.3.1 Desired Behavior


If the device supports analog outputs the device must respond to an analog output read request with an analog output object (object 40 variation 2) using qualifier 0x00 or 0x01. If the device does not support analog outputs the device must respond to an analog output read request with a Null Response or an Error Response with IIN2-1 or IIN2-2 set. The value returned in the Analog Output Status must reflect the value written to the corresponding Analog Output point within the tolerances specified by the manufacturer.

8.3.2 Test Procedure


1. 2. 3. 4. 5. 6. Issue a Direct Operate to Object 41 Variation 2 to an installed point using 16 bit indexing (qualifier 0x28) and an appropriate value. Issue a request for Object 40 Variation 0 using the all data qualifier 0x06. If the device supports Analog Outputs verify that the DUT responds with an Analog Output Status object (object 40 Variation 2). Verify that the data is reported using either 8 bit start/stop indexing (qualifier 0x00) or 16 bit start/stop indexing (qualifier 0x01). If the device does not support Analog Outputs verify that the DUT responds with a Null Response. The device can optionally return an Error Response with IIN2-1or IIN2-2 set. Verify that the value returned in the Analog Output Status object reflects the value sent in step 1 within the tolerances specified by the manufacturer.

8.4

Analog Outputs

If a device supports analog outputs, it is required to be configurable to support all three modes of operation, namely Select Before Operate, Direct Operate, and Direct Operate no Acknowledgment. A device may be configurable to disable any subset of the modes. If a device has been configured to reject a particular mode, it must return a control status value of 4 (control operation not supported for this point). It is the hosts responsibility to determine the appropriate analog output mechanism. It is also the hosts responsibility to perform select before operate control when it is unacceptable to have the analog output point operate more than once. This is typically a configuration item in the host and is the responsibility of the end user to configure properly. It is the outstations responsibility to perform the analog output operation if a correct control dialog has been issued from the host. If the DUT is configurable in a manner such that points can be uninstalled or disabled, the device must be configured with at least one Analog Output point installed or enabled before proceeding with the test procedure.

8.4.1 Select Before Operate


The host first initiates the select portion of the dialog. The outstation then echoes the exact analog output request byte for byte to the host. Note that the encapsulation information need not match, but that the object, variation, qualifier, and all object data must match exactly. The host then sends the execute portion of the dialog. The object, variation, qualifier, DNP3-2001 IED Certification Procedure Subset Level 2 Page 23 Rev 2.1 5-July-01

and all object data must match exactly byte for byte the data sent in the select message. If the execute message matches the select message byte for byte and it is received within the configured acceptable delay between select and execute, the outstation operates the analog output point.

8.4.1.1 Desired Behavior


The following behavior assumes that the device does not support analog output operations: If the device does not support analog outputs it must respond to a select with an Error Response setting IIN2-1. An Error Response with IIN2-2 set is an invalid response. No further testing in this section is necessary. The following behavior assumes that the device supports analog output operations: The maximum select to execute delay time must be specified in the Device Profile Document. The DUT responds to matching select and execute requests by echoing each request with the status field set to 0. The specified analog output operates. The DUT responds to selecting an uninstalled analog output point by returning an error response with IIN2-2 set and a status code of 4. The analog output point does not operate. The DUT responds to executing an installed analog output point after the configured acceptable select to execute delay by echoing the execute and setting the status field to 1[Execute received after timeout]. The analog output does not operate. The DUT responds to a non-matching execute with a status field of 2 [No previous matching select] and does not operate the analog output under the following conditions: No prior select issued. Value does not match. The DUT operates various selected analog output points. The DUT supports 8 and 16 bit point indexing. The following assumes that the device supports analog output operations and were added as a result of Technical Bulletin TB2000-002 (Control Retries): The DUT must accept retries on the select portion of the analog output dialog that increment the application sequence number between retries. In this case the select-to-operate timer must be restarted after reception of each select. The DUT must accept retries on the select portion of the analog output dialog that do not increment the application sequence number between retries. In this case the select-to-operate timer must remain unaltered by the reception of each additional select. The DUT must reject any operate that does not contain a application layer sequence number that is exactly one greater (modulo 16) than the previously accepted select. match the object portion of the select message byte for byte, excluding the application header. The DUT must accept retries on the operate portion of the analog output dialog that does not increment the application sequence number between retries. The DUT must echo the operate command but must not operate the analog output more than once. The following behavior assumes that the device does support analog output operations, however there are no analog output points installed/enabled: If the device does not have any analog outputs installed, it must respond to a select with an Error Response setting IIN2-1 or IIN2-2.

8.4.1.2 Test Procedure


8.4.1.2.1 Analog Output, SBO, 0x28
1. Issue a select using Object 41 Variation 2 to an installed point using 16 bit indexing (qualifier 0x28) and an appropriate value.

Page 24 Rev 2.1 5-July-01

DNP3-2001 IED Cer

2. 3. 4. 5. 6.

If the device does not support analog outputs verify that the DUT responds with an Error Response with IIN2-1 set. End testing of Analog Outputs. Verify that the DUT responds by echoing the select message exactly. Immediately issue a matching execute. Verify that the DUT echoes the execute. Verify that the selected analog output operates.

8.4.1.2.2 Analog Output, SBO, 0x17


1. 2. 3. 4. 5. Issue a select using Object 41 Variation 2 to a different point using 8 bit indexing (qualifier 0x17) and an appropriate value. If the device does support analog outputs, verify that the DUT responds by echoing the select message exactly. Immediately issue a matching execute. Verify that the DUT echoes the execute. Verify that the selected analog output operates.

8.4.1.2.3 Analog Output, SBO, to Uninstalled Point


1. 2. 3. Issue a select using Object 41 Variation 2 to an uninstalled point using 16 bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT responds by returning an error response with IIN2-2 set and a status code of 4. If an analog output is observed to operate, the test fails.

8.4.1.2.4 Analog Output, SBO, Execute Issued After Time-out


1. 2. 3. 4. 5. Issue a select using Object 41 Variation 2 to an installed point using 8 bit indexing (qualifier 0x17) and an appropriate value. Verify that the DUT responds by echoing the select message exactly. Wait 1 second past the configured maximum select to execute delay time. Issue a matching execute and verify that the DUT echoes the execute with the status field set to 1 [Execute received after timeout]. If an analog output is observed to operate, the test fails.

8.4.1.2.5 Analog Output, SBO, Execute Value does not match Select Value
1. 2. 3. 4. 5. Issue a select using Object 41 Variation 2 to an installed point using 8 bit indexing (qualifier 0x17) and an appropriate value. Verify that the DUT responds by echoing the select message exactly. Immediately issue an execute to Object 41 Variation 2 to an installed point using 8 bit indexing (qualifier 0x17) and the same value incremented by 1. Verify that the DUT echoes the execute with the status field set to 2 [No previous matching select]. If an analog output is observed to operate, the test fails.

8.4.1.2.6 Analog Output, SBO, Select 0x28, Execute 0x17


1. 2. 3. 4. 5. Issue a select using Object 41 Variation 2 to an installed point using 16 bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT responds by echoing the select message exactly. Immediately issue an execute to Object 41 Variation 2 to an installed point using 8 bit indexing (qualifier 0x17) and the same value as the previous select. Verify that the DUT echoes the execute with the control status field set to 2 [No previous matching select]. If an analog output is observed to operate, the test fails.

8.4.1.2.7 Analog Output, SBO, Configurable Device


1. 2. 3. If the device is not configurable in a manner such that analog output points can be uninstalled or disabled, skip this section. Configure the DUT such that all Analog Output points are uninstalled or disabled. Issue a select using Object 41 Variation 2 to point 0 using 16 bit indexing (qualifier 0x28) and an appropriate value. Page 25 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 2

4. 5.

Verify that the DUT responds by returning an error response with IIN2-1 or IIN2-2 set. If an analog output is observed to operate, the test fails.

8.4.1.2.8 Analog Output, SBO, Same Sequence Number Select Retries


1. 2. 3. 4. 5. 6. 7. 8. If the DUT does not have installed analog output points, skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue the select again using the same application layer sequence number. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the analog output.

8.4.1.2.9 Analog Output, SBO, Incrementing Sequence Number Select Retries


1. 2. 3. 4. 5. 6. 7. 8. If the DUT does not have installed analog output points, skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue the select again incrementing the application layer sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the analog output.

8.4.1.2.10 Analog Output, SBO, Same Sequence Number Operate Retries


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed analog output points, skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the analog output. Issue the operate again using the same application layer sequence number. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT does not operate the analog output.

8.4.1.2.11 Analog Output, SBO, Incrementing Sequence Number Operate Retries


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not have installed analog output points, skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte. Verify that the DUT operates the analog output. Issue the operate again, incrementing the sequence number by 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the analog output.

8.4.1.2.12 Analog Output, SBO, Sequence number checking


1. 2. 3. 4. 5. 6. If the DUT does not have installed analog output points, skip this section. Issue a valid select to an installed analog output point. Verify that the DUT echoes the object portion of the select byte for byte. Issue a valid operate, incrementing the sequence number by anything but 1 modulo 16. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the analog output.

Page 26 Rev 2.1 5-July-01

DNP3-2001 IED Cer

7. 8. 9.

Issue a valid operate, incrementing the select sequence number by 1 modulo 16 to make sure the mismatched operate cleared the previous select. Verify that the DUT echoes the object portion of the operate byte for byte with a status code value of 2 (NO MATCHING SELECT). Verify that the DUT does not operate the analog output.

8.4.2 Direct Operate with Acknowledge 8.4.2.1 Desired Behavior


The following assumes that the device does not support analog output operations: If the device does not support analog outputs, it must respond to a direct operate with an Error Response setting IIN2-1. No further testing in this section is necessary. The following assumes that the device supports analog output operations: The DUT responds to a Direct Operate to an installed analog output point echoing the direct operate and setting the status field to 0. The specified analog output operates. The DUT responds to a Direct Operate to an uninstalled analog output point by returning an Error Response with IIN2-2 set and a status code of 4. No analog outputs shall be observed to operate. The DUT operates various analog output points. The following assumes that the device does support analog output operations, however there are no analog output points installed/enabled: If the device does not have any analog outputs installed, it must respond to a direct operate with an Error Response setting IIN2-1 or IIN2-2.

8.4.2.2 Test Procedure


8.4.2.2.1 Analog Output, Direct Operate
1. 2. 3. 4. Issue a Direct Operate to Object 41 Variation 2 to an installed point using 8 bit indexing (qualifier 0x17) and an appropriate value. If the device does not support analog output verify that the DUT responds with an Error Response with IIN2-1 set and end testing of this section. If the device does support analog outputs verify that the DUT responds by echoing the direct operate message exactly with status field of 0. Verify that the specified analog output operates.

8.4.2.2.2 Analog Output, Direct Operate, to Uninstalled Point


1. 2. 3. Issue a Direct Operate to Object 41 Variation 2 to an uninstalled point using 16 bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT responds by return an Error Response with IIN2-2 set and a status code of 4. If an analog output is observed to operate, the test fails.

8.4.2.2.3
1. 2. 3. 4. 5.

Analog Output, Direct Operate, Configurable Device

If the device is not configurable in a manner such that analog output points can be uninstalled or disabled, end testing of Analog Output, Direct Operate. Configure the DUT such that all Analog Output points are uninstalled or disabled. Issue a direct operate to Object 41 Variation 2 to point 0 using 16 bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT responds by returning an error response with IIN2-1 or IIN2-2 set. If an analog output is observed to operate, the test fails.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 27 Rev 2.1 5-July-01

8.4.3 Direct Operate, No Acknowledge 8.4.3.1 Desired Behavior


The DUT must not respond in any way to the direct operate no acknowledge. If the device supports analog outputs and the operate message is correct then the analog output point must operate.

8.4.3.2 Test Procedure


8.4.3.2.1 Analog Output, Direct Operate, No Acknowledge
1. 2. 3. 4. Issue a Direct Operate No Acknowledge using Object 41 Variation 2 to an installed point using 8 bit indexing (qualifier 0x17) and an appropriate value. Verify that the DUT does not respond. If the device does support analog outputs, end testing of this section. If the device does support analog outputs, verify that the proper analog output point operates.

8.4.3.2.2 Analog Output, Direct Operate, No Acknowledge, to an Uninstalled Point


1. 2. 3. Issue a Direct Operate No Acknowledge using Object 41 Variation 2 to an uninstalled point using 16 bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT does not respond. If an analog output is observed to operate, the test fails.

8.4.3.2.3
1. 2. 3. 4. 5.

Analog Output, Direct Operate, No Acknowledge, Configurable Device

If the device is not configurable in a manner such that control points can be uninstalled or disabled, end testing of Analog Output, Direct Operate, No Acknowledge. Configure the DUT such that all Analog Output points are uninstalled or disabled. Issue a Direct Operate No Acknowledge using Object 41 Variation 2 to point 0 using 16 bit indexing (qualifier 0x28) using a control code supported by the device and an appropriate on time/off time. Verify that the DUT does not respond. If an analog output is observed to operate, the test fails.

8.4.4 Multiple Object Requests 8.4.4.1 Desired Behavior


The DUT must parse requests for all writes within a single frame Up to a full frame of request operations must be supported

The following assumes that the device supports analog output operations and were added as a result of Technical Bulletin TB2001-001 (Multiple Control Object and Status Codes): The DUT responds to requests having more points than are supported in a single message with a status code of 8 for at least the first point that is beyond the point count limit. The DUT responds to a select to an uninstalled analog output point by returning an error response with IIN2-2 set and a status code of 4.

8.4.4.2 Test Procedure


1. 2. Review the devices profile document to understand how many analog output points are supported in a single request. If this number is one, skip to step 7. Determine the number of installed points that can be successfully controlled in a single request. This number shall be the smaller of: The number of controls supported in a single request The number of installed control points Sixteen

Page 28 Rev 2.1 5-July-01

DNP3-2001 IED Cer

3. 4. 5. 6. 7.

8.

9. 10. 11.

12.

13.

14.

In a single request, issue a select to the above number of points using Object 41, Variation 2 and 16-bit indexing (qualifier 0x28), a control code supported by the device, and a value supported by the device Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set and that each object returns a status code of 0. Immediately issue a matching execute. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set and that each object returns a status code of 0. Verify that each of the selected analog outputs occurred. . Note outputs may occur simultaneously or sequentially one after the other. If the number of control objects supported in a single request is greater than or equal to either: The number of control objects that fit into a single frame or The number of installed control points skip to step 13. In a single request, issue a select to at least one more point than is supported in a single request, each point having a different index but otherwise able to be outputted, using Object 41, Variation 2 and 16-bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set, that each object except the last returns a status code of 0, and the last object returns a status code of 8. If the DUT does not support direct operate, skip to step 13. In a single request, issue a direct operate command to at least one more point than is supported in a single request, each point having a different index but otherwise able to be outputted, using Object 41, Variation 2 and 16-bit indexing (qualifier 0x28) and an appropriate value. Verify that the DUT response has none of IIN2-0, IIN2-1, or IIN2-2 set, that each object except the last returns a status code of 0 and the last object returns a status code of 8. Verify that all except the last analog output point outputted the new value(s). In a single request, issue a select to one installed analog output point and to one point that is not installed using Object 41, Variation 2 and 16-bit indexing (qualifier 0x28) and an appropriate value. The installed point should be the first object in the request. Verify that the DUT response has IIN2-2 bit set, that the status code returned for the installed point is 0 and the status code returned for the non-installed point is 4.

8.5

Class Data

8.5.1 Class 0
This request is used to read all static data from a device. The device must respond with the current state of its data when this object is requested. Any device that generates more than one link layer frame in response to a Class 0 Poll must support report-byexception on all points. It is highly recommended that devices perform report by exception processing internally and respond to class polls with event data as defined in section 3.4. This allows efficient use of bandwidth. When no events are pending the device responds with the Null Response. Acceptable object variations and qualifier combinations included in a device response are specified in the following table. Numbers preceded by 0x are in hex.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 29 Rev 2.1 5-July-01

Single-Bit Binary Input Binary Input with Status Binary Output Status 32-Bit Binary Counter 16-Bit Binary Counter 32-Bit Delta Counter 16-Bit Delta Counter 32-Bit Binary Counter w/o Flag 16-Bit Binary Counter w/o Flag 32-Bit Delta Counter w/o Flag 16-Bit Delta Counter w/o Flag 32-Bit Analog Input 16-Bit Analog Input 32-Bit Analog Input w/o Flag 16-Bit Analog Input w/o Flag 16-Bit Analog Output Status Table 8-3

Object 1 1 10 20 20 20 20 20 20 20 20 30 30 30 30 40

Variation 1 2 2 1 2 3 4 5 6 7 8 1 2 3 4 2

Qualifier 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01

8.5.1.1 Desired Behavior


Device responds to a Class 0 poll with the current state of all data.

8.5.1.2 Test Procedure


1. 2. 3. Issue a request for Object 60 Variation 1 using the all data qualifier 0x06. Verify that the device responds with the current state of its inputs using only the object, variation and qualifier variations specified in table 8-3. Verify that flag behavior complies with Section 2, Note #5.

8.5.2 Class 1
This request is used to read change or event data from a device. The device must respond with events that have occurred since the last poll/confirm sequence. If the response is not null, verify that the device requests an application layer confirm. If the response is null, the request for the application layer confirm is optional and may be eliminated to reduce bandwidth. Points can be assigned to a class by configuration and through the protocol. Neither is required for compliance. The minimum level of compliance is for the device to respond with a Null Response. Any device that generates more than one link layer frame in response to a Class 0 Poll must support report-byexception on all points. It is highly recommended that devices perform report by exception processing internally and respond to class polls with event data as defined in section 3.4. This allows efficient use of bandwidth. When no events are pending the device responds with the Null Response. If a device can be configured to generate Application Layer retries, this feature must be disabled for all tests in this section unless otherwise specified. Acceptable object variations and qualifier combinations included in a device response are specified in the following table. Numbers preceded by 0x are in hex.

Page 30 Rev 2.1 5-July-01

DNP3-2001 IED Cer

Binary Input Change w/o Time Binary Input Change with Time Binary Input Change with Relative Time 32-Bit Counter Change Event w/o Time 16-Bit Counter Change Event w/o Time 32-Bit Delta Counter Change Event w/o Time 16-Bit Delta Counter Change Event w/o Time 32-Bit Analog Change Event w/o Time 16-Bit Analog Change Event w/o Time Time and Date CTO* Unsynchronized Time and Date CTO* Table 8-4

Object 2 2 2 22 22 22 22 32 32 51 51

Variation 1 2 3 1 2 3 ** 4 ** 1 2 1 2

Qualifier 0x17,0x28 0x17,0x28 0x17,0x28 0x17,0x28 0x17,0x28 0x17,0x28 0x17,0x28 0x17,0x28 0x17,0x28 0x07 0x07

Note: Use of the Binary Change with Relative Time Object (Object 2, Variation3) requires that a Common Time of Occurrence Object (Object 51, Variation01 or 02) precede it in the same APDU. This behavior must be verified in any response that contains a Binary Change with Relative Time Object. Binary Input changes more than 0xFFFF milliseconds apart must have a second CTO Object. * Note: Common Time of Occurrence ** Document error note: These objects are not listed in Table 2.3-1 (Level 2 Implementation) of the Subset Definitions Version 2.00 Document. However, these objects are included in Table 1.3-1 (Level 1 Implementation). The Subset document is in error these objects are also valid for Level 2 devices.

8.5.2.1 Desired Behavior


The device must respond with all of its change events when polled with the all data qualifier (0x06). When polled with the limit data qualifiers (0x07 and 0x08), the device must respond with a quantity of its change events no greater than specified in the request. The device must request an application layer confirm for all responses that contain event data. Note: Application layer confirms are always sent by the Master upon request from the Slave unless otherwise noted in this section. The response point ordering shall be prioritized by time (oldest first).

Note: A device is not required to return event data in any particular class.

8.5.2.2 Test Procedure


8.5.2.2.1
1. 2.

Class 1 Data, 0x06

Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that if the DUT responds to a class 0 poll with more than one link layer frame it also performs report-by exception processing. 3. If the DUT does not support Class 1 events, verify that it responds with a Null Response. No further testing is required in this section. 4. If the DUT does support Class 1 events, verify that the device responds with all the event data in its event buffers or responds with a Null Response. 5. If requested, issue an application layer confirm to empty the device of pending events. 6. Generate known Class 1 event data. 7. Issue another request for Object 60 Variation 2 using the all data qualifier 0x06. 8. Verify that the device responds with all the Class 1 event data generated in a single response. 9. Verify that only objects in table 8-4 are returned and that the events are in time order (oldest first). 10. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). 11. Verify that flag behavior complies with Section 2, Note #5.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 31 Rev 2.1 5-July-01

12. Verify that the device requests an application layer confirm. 13. Issue another request for Object 60 Variation 2 using the all data qualifier 0x06. 14. Verify that the DUT responds with a Null Response.

8.5.2.2.2
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15.

Class 1 Data, 0x07

Issue a request for Object 60 Variation 2 using the all data qualifier 0x06 to empty the device of pending events. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate several Class 1 events. Issue a request for Object 60 Variation 2 using the limit data qualifier 0x07 requesting some changes. Verify that the device responds with the requested Class 1 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 2 using the limit data qualifier 0x07 requesting the remaining changes. Verify that device responds with the remaining Class 1 events. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

8.5.2.2.3
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15.

Class 1 Data, 0x08

Issue a request for Object 60 Variation 2 using the all data qualifier 0x06 to empty the device of pending events. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate several Class 1 events. Issue a request for Object 60 Variation 2 using the limit data qualifier 0x08 requesting some changes. Verify that the device responds with the requested Class 1 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 2 using the limit data qualifier 0x08 requesting the remaining changes. Verify that device responds with the remaining Class 1 events. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

8.5.2.2.4

Class 1 Data Without Confirm

1. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. 2. If the response is not Null, verify that the device requests an application layer confirm. 3. If requested, issue an application layer confirm to empty the device of pending events. 4. Generate known Class 1 event data. 5. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. 6. Verify that the device responds with all the Class 1 event data. 7. Verify that only objects in table 8-4 are returned. 8. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). 9. Verify that flag behavior complies with Section 2, Note #5. 10. Verify that the device requests an application layer confirm. 11. Do not issue an application layer confirm to the device. 12. Wait for a period of time exceeding several of the Application Layer retry delays, if one exists. 13. Verify that the device has not retransmitted the previous Application Layer fragment. 14. Generate additional Class 1 event data. 15. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. 16. Verify that the device responds with the same Class 1 event data and the additional data generated in step 14. Page 32 Rev 2.1 5-July-01

DNP3-2001 IED Cer

17. 18. 19. 20.

Verify that the device requests an application layer confirm. Issue an application layer confirm to empty the device of pending events. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.5.3 Class 2
This request is used to read change or event data from a device. The device must respond with events that have occurred since the last poll/confirm sequence. If the response is not null, verify that the device requests an application layer confirm. If the response is null, the request for the application layer confirm is optional and may be eliminated to reduce bandwidth. Points can be assigned to a class by configuration and through the protocol. Neither is required for compliance. The minimum level of compliance is for the device to respond with a Null Response. If a device can be configured to generate Application Layer retries, this feature must be disabled for all tests in this section unless otherwise specified. Any device that generates more than one link layer frame in response to a Class 0 Poll must support report-byexception on all points. It is highly recommended that devices perform report by exception processing internally and respond to class polls with event data as defined in section 3.4. This allows efficient use of bandwidth. When no events are pending the device responds with the Null Response.

8.5.3.1 Desired Behavior


The device must respond with all of its change events when polled with the all data qualifier (0x06). When polled with the limit data qualifiers (0x07 and 0x08), the device must respond with a quantity of its change events no greater than specified in the request. The device must request an application layer confirm for all responses that contain event data. Note: Application layer confirms are always sent by the Master upon request from the Slave unless otherwise noted in this section. The response point ordering shall be prioritized by time (oldest first).

Note: A device is not required to return event data in any particular class.

8.5.3.2 Test Procedure


8.5.3.2.1
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14.

Class 2 Data, 0x06

Issue a request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that if the DUT responds to a class 0 poll with more than one link layer frame it also performs report-by exception processing. If the DUT does not support Class 2 events, verify that it responds with a Null Response. No further testing is required in this section. If the DUT does support Class 2 events, verify that the device responds with all the event data in its event buffers or responds with a Null Response. If requested, issue an application layer confirm to empty the device of pending events. Generate known Class 2 event data. Issue another request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that the device responds with all the Class 2 event data generated in a single response. Verify that only objects in table 8-4 are returned and that the events are in time order (oldest first). Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 33 Rev 2.1 5-July-01

8.5.3.2.2
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15.

Class 2 Data, 0x07

Issue a request for Object 60 Variation 3 using the all data qualifier 0x06 to empty the device of pending events. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate several Class 2 events. Issue a request for Object 60 Variation 3 using the limit data qualifier 0x07 requesting some changes. Verify that the device responds with the requested Class 2 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 3 using the limit data qualifier 0x07 requesting the remaining changes. Verify that device responds with the remaining Class 2 events. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

8.5.3.2.3
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15.

Class 2 Data, 0x08

Issue a request for Object 60 Variation 3 using the all data qualifier 0x06 to empty the device of pending events. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate several Class 2 events. Issue a request for Object 60 Variation 3 using the limit data qualifier 0x08 requesting some changes. Verify that the device responds with the requested Class 2 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 3 using the limit data qualifier 0x08 requesting the remaining changes. Verify that device responds with the remaining Class 2 events. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

8.5.3.2.4

Class 2 Data Without Confirm

1. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06. 2. If the response is not Null, verify that the device requests an application layer confirm. 3. If requested, issue an application layer confirm to empty the device of pending events. 4. Generate known Class 2 event data. 5. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06. 6. Verify that the device responds with all the Class 2 event data. 7. Verify that only objects in table 8-4 are returned. 8. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). 9. Verify that flag behavior complies with Section 2, Note #5. 10. Verify that the device requests an application layer confirm. 11. Do not issue an application layer confirm to the device. 12. Wait for a period of time exceeding several of the Application Layer retry delays, if one exists. 13. Verify that the device has not retransmitted the previous Application Layer fragment. 14. Generate additional Class 2 event data. 15. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06. 16. Verify that the device responds with the same Class 2 event data and the additional data generated in step 14. 17. Verify that the device requests an application layer confirm. 18. Issue an application layer confirm to empty the device of pending events. 19. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06. 20. Verify that the device responds with a Null Response. Page 34 Rev 2.1 5-July-01

DNP3-2001 IED Cer

8.5.4 Class 3
This request is used to read change or event data from a device. The device must respond with events that have occurred since the last poll/confirm sequence. If the response is not null, verify that the device requests an application layer confirm. If the response is null, the request for the application layer confirm is optional and may be eliminated to reduce bandwidth. Points can be assigned to a class by configuration and through the protocol. Neither is required for compliance. The minimum level of compliance is for the device to respond with a Null Response. If a device can be configured to generate Application Layer retries, this feature must be disabled for all tests in this section unless otherwise specified. Any device that generates more than one link layer frame in response to a Class 0 Poll must support report-byexception on all points. It is highly recommended that devices perform report by exception processing internally and respond to class polls with event data as defined in section 3.4. This allows efficient use of bandwidth. When no events are pending the device responds with the Null Response.

8.5.4.1 Desired Behavior


The device must respond with all of its change events when polled with the all data qualifier (0x06). When polled with the limit data qualifiers (0x07 and 0x08), the device must respond with a quantity of its change events no greater than specified in the request. The device must request an application layer confirm for all responses that contain event data. Note: Application layer confirms are always sent by the Master upon request from the Slave unless otherwise noted in this section. The response point ordering shall be prioritized by time (oldest first).

Note: A device is not required to return event data in any particular class.

8.5.4.2 Test Procedure


8.5.4.2.1
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14.

Class 3 Data, 0x06

Issue a request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that if the DUT responds to a class 0 poll with more than one link layer frame it also performs report-by exception processing. If the DUT does not support Class 3 events, verify that it responds with a Null Response. No further testing is required in this section. If the DUT does support Class 3 events, verify that the device responds with all the event data in its event buffers or responds with a Null Response. If requested, issue an application layer confirm to empty the device of pending events. Generate known Class 3 event data. Issue another request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the device responds with all the Class 3 event data generated in a single response. Verify that only objects in table 8-4 are returned and that the events are in time order (oldest first). Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

8.5.4.2.2
1. 2. 3.

Class 3 Data, 0x07

Issue a request for Object 60 Variation 4 using the all data qualifier 0x06 to empty the device of pending events. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Page 35 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 2

4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15.

Generate several Class 3 events. Issue a request for Object 60 Variation 4 using the limit data qualifier 0x07 requesting some changes. Verify that the device responds with the requested Class 3 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 4 using the limit data qualifier 0x07 requesting the remaining changes. Verify that device responds with the remaining Class 3 events. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

8.5.4.2.3
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15.

Class 3 Data, 0x08

Issue a request for Object 60 Variation 4 using the all data qualifier 0x06 to empty the device of pending events. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate several Class 3 events. Issue a request for Object 60 Variation 4 using the limit data qualifier 0x08 requesting some changes. Verify that the device responds with the requested Class 3 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 4 using the limit data qualifier 0x08 requesting the remaining changes. Verify that device responds with the remaining Class 3 events. Verify that the device requests an application layer confirm. Issue another request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response.

8.5.4.2.4
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20.

Class 3 Data Without Confirm

Issue a request for Object 60 Variation 4 using the all data qualifier 0x06. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate known Class 3 event data. Issue a request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the device responds with all the Class 1 event data. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Do not issue an application layer confirm to the device. Wait for a period of time exceeding several of the Application Layer retry delays, if one exists. Verify that the device has not retransmitted the previous Application Layer fragment. Generate additional Class 3 event data. Issue a request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the device responds with the same Class 1 event data and the additional data generated in step 14. Verify that the device requests an application layer confirm. Issue an application layer confirm to empty the device of pending events. Issue a request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.5.5 Multiple Object Request


This test verifies that the device can parse multiple object requests. Page 36 Rev 2.1 5-July-01

DNP3-2001 IED Cer

Note: If Binary Inputs can be configured in more than one class, they must be configured for at least one of each class for these tests.

8.5.5.1 Desired Behavior


The device must respond to a multiple object request in a single response. For binary points, all events reported within a single application fragment will be sent in the chronological order of occurrence of those events (oldest first). When a device generates multiple analog or counter events for the same point, all events for the same point will be sent in the chronological order of occurrence of those events (oldest first).

8.5.5.2 Test Procedure


8.5.5.2.1
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11.

Multiple Object Request, Class 1, 2, and 3

Issue a request for Object 60 Variations 2,3, and 4 using the all data qualifier 0x06. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate known event data that includes events from all three classes. Issue a request for Object 60 Variations 2,3, and 4 using the all data qualifier 0x06. Verify that the device responds with all the event data as described in the Desired Behavior. Verify that only objects in table 8-4 are returned and that the events are in time order (oldest first). Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue an application layer confirm to empty the device of pending events.

8.5.5.2.2
1. 2. 3. 4. 5. 6. 7. 8.

Multiple Object Request, Class 1, 2, 3, and 0

9. 10. 11. 12. 13.

Issue a request for Object 60 Variations 2,3, and 4 using the all data qualifier 0x06. If the response is not Null, verify that the device requests an application layer confirm. If requested, issue an application layer confirm to empty the device of pending events. Generate known event data that includes events from classes 1, 2, and 3. Issue a request for Object 60 Variations 2,3,4, and 1 using the all data qualifier 0x06. Verify that the device responds with all the event data as described in the Desired Behavior. Verify that all static data is returned after all event data in the same response. Verify that the response has the same application sequence number as the request. If the request generates multiple application fragments verify that the application sequence number of each subsequent fragment increments by 1 modulo 16. Verify that only objects in table 8-4 are returned. Verify that the data is reported using either 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28) for event data and 8 bit start/stop indexing (qualifier 0x00) or 16 bit start/stop indexing (qualifier 0x01) for static data. Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue an application layer confirm to empty the device of pending events.

8.5.6 Class Assignment Verification 8.5.6.1 Desired Behavior


The device must respond to a request for Class 1 events with only Class 1 events. The device must respond to a request for Class 2 events with only Class 2 events. The device must respond to a request for Class 3 events with only Class 3 events.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 37 Rev 2.1 5-July-01

8.5.6.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. Issue a request for Object 60 Variations 2,3 and 4 using the all data qualifier 0x06 to empty the device of pending events. Verify that only objects in table 8-4 are returned. If the response is not Null, verify that the device requests an application layer confirm. Generate some Class 1 events. Generate some Class 2 events. Generate some Class 3 events. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the device responds with only Class 1 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the device responds with a Null Response. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that the device responds with only Class 2 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 3 using the all data qualifier 0x06. Verify that the device responds with a Null Response. Issue a request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the device responds with only Class 3 events in a single response. Verify that only objects in table 8-4 are returned. Verify that the device requests an application layer confirm. Issue a request for Object 60 Variation 4 using the all data qualifier 0x06. Verify that the device responds with a Null Response. Issue a request for Object 60 Variations 2,3 and 4 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.6

Indications

The Internal Indications is an information element used to convey internal states and diagnostic results of a device. If a specific indication is not supported it must be reported as de-asserted (0) in all cases.

8.6.1 Restart
The Restart Bit of the Internal Indications field is set to 1 when the user application at the device restarts, i.e. a device's input power is cycled. This bit is cleared when the master station writes a 0 into this location.

8.6.1.1 Desired Behavior


The DUT, after a power cycle, must set IIN1-7. The host can clear this bit by writing to the Internal Indications Object (Object 80, Variation 01).

8.6.1.2 Test Procedure


1. 2. 3. 4. 5. Cycle the power to the DUT. Issue a request for Object 60 Variation 2. Verify that the device responds with IIN1-7 set indicating that the device has been restarted. Issue a Write to Object 80 Variation 1 using the qualifier 0x00. Use a start index of 7 and a stop index of 7, followed by the value 0. Verify that the device responds with a Null Response and that IIN1-7 is cleared.

Page 38 Rev 2.1 5-July-01

DNP3-2001 IED Cer

8.6.2 Bad Function 8.6.2.1 Desired Behavior


If a device receives a message containing an unsupported function code it must return an Error Response with IIN20 set. After a device has issued a message containing a valid function code, the response shall have no Error IIN bits set.

8.6.2.2 Test Procedure


1. 2. 3. 4. Issue a request for Object 60 Variation 1, Qualifier 0x06, using a Function Code of 0x70. Verify that the device responds with an Error Response with IIN2-0 set indicating that the device has received a message containing a bad function code. Issue a request for Object 60 Variation 1, Qualifier 0x06, using a Function Code of 0x01. Verify that the device responds with none of the Error IIN bits set.

8.6.3 Object Unknown 8.6.3.1 Desired Behavior


If a device receives a message containing an unknown object, it must return an Error Response with IIN2-1 set. After a device has issued a message containing a valid function code, the response shall have no Error IIN bits set.

8.6.3.2 Test Procedure


1. 2. 3. 4. Issue a request for Object 0 Variation 0, Function Code 0x01. Verify that the device responds with an Error Response with IIN2-1 set indicating that the device has received a message containing an unknown Object code. Issue a request for Object 60 Variation 1. Verify that the device responds with none of the Error IIN bits set.

8.6.4 Local 8.6.4.1 Desired Behavior


If the device supports control outputs and supports placing them in a local or disabled stated then it must set IIN1-5 whenever some or all of the control outputs are in the Local or Disabled state.

8.6.4.2 Test Procedure for Devices with Global Remote Supervisory Control
1. 2. 3. 4. 5. 6. 7. If the DUT does not support placing its binary outputs in a local state no further testing is required in this section. If the DUT supports a global feature for enabling or disabling remote supervisory control, ensure that this is set to the Enabled or Remote mode. Issue a request for Object 10 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a valid message and that IIN1-5 is cleared. Change the DUTs global switch to the Disabled or Local mode. Issue a request for Object 10 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a valid message and that IIN1-5 is set.

8.6.4.3 Test Procedure for Devices with Individual Remote Supervisory Control
1. 2. 3. 4. 5. If the DUT does not support placing its binary outputs in a local state, no further testing is required in this section. If the device allows for individual control point remote supervisory control, all points should be set to the Enabled or Remote mode. Issue a request for Object 10 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a valid message. No binary output status bits should be set. Change a single remote supervisory control switch to the Disabled or Local mode. Page 39 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 2

6. 7.

Issue a request for Object 10 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a valid message and that the appropriate binary output status bit is set.

8.6.5 Broadcast Address and All Stations Indication 8.6.5.1 Desired Behavior
The DUT must execute any request sent to the broadcast address The DUT must not respond in any way to any request sent to the broadcast address The DUT must set the All Stations Internal Indication (IIN1-0) in the next response it transmits The DUT must clear the All Stations Internal Indication on the next response following the one in which it was set. Messages sent to address 0xFFFE require that the IIN1-0 bit must be returned with the application layer request for confirmation bit (Application Control, bit 5) set. IIN1-0 may not be cleared in the slave until the confirmation is received. Messages sent to address 0xFFFD request the IIN1-0 bit to be returned with the application layer request for confirmation bit (Application Control, bit 5) suppressed. IIN1-0 will be cleared in the slave upon transmitting the first response from the slave. Note: IIN1-0 may be reported in conjunction with responses to requests that otherwise require confirmation, or with an unsolicited event report, and since these requests/responses otherwise require confirmation, the confirmation will not be suppressed even though the message is sent with IIN1-0 set. Thus the use of the FFFD broadcast address implies that confirmation requests in responses sent with the IIN1-0 set should be suppressed, but that the confirmation may be requested if required by the details of the response being issued.

8.6.5.2 Test Procedure


Cycle the power to the DUT. Issue a link reset using link control block 0xC0. Issue a request for Object 60 Variation 2. Verify that the device responds with IIN1-7 set indicating the device has been restarted. Issue a Write to Object 80 Variation 1 using the qualifier 0x00. Use a start index of 7 and a stop index of 7, followed by the value 0 using the broadcast address (0xFFFF). Request a data link layer confirmation. 6. Wait a reasonable application layer timeout, for example, 2 seconds. 7. Verify that the device does not respond, with either a data link layer confirmation or a response to the Write operation. 8. Issue a request for Object 60 Variation 2. 9. Verify the DUT responds with a valid response with IIN1-7 (restart) cleared and IIN1-0 (all stations message received) set. 10. Send an application layer confirmation if requested. 11. Issue a request for Object 60 Variation 2. 12. Verify the DUT responds with a Null Response with both IIN1-7 and IIN1-0 cleared. 1. 2. 3. 4. 5.

8.6.5.3 Test Procedure


1. Issue a Direct Operate No Acknowledgement using Object 12 Variation 1 to an installed point using 8-bit indexing (qualifier 0x17), a control code supported by the device and an appropriate on/off-time using the broadcast address (0xFFFF). If the device does not support control outputs, perform this operation using Object 41 Variation 2. Verify the requested output operation was executed. Wait a reasonable application layer timeout, for example, 2 seconds. Verify that the device does not respond. Issue a request for Object 60 Variation 2. Verify the DUT responds with IIN1-0 (all stations message received) set. Send an application layer confirmation if requested. Issue a request for Object 60 Variation 2. Verify the DUT responds with a Null Response with IIN1-0 cleared.

2. 3. 4. 5. 6. 7. 8. 9.

8.6.5.4 Test Procedure, Confirmed Response Options


1. Cycle the power to the DUT. Page 40 Rev 2.1 5-July-01

DNP3-2001 IED Cer

2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14.

Issue a link reset using link control block 0xC0. Issue a request for Object 60 Variation 2. Verify that the device responds with IIN1-7 set indicating the device has been restarted. Issue a Write to Object 80 Variation 1 using the qualifier 0x00. Use a start index of 7 and a stop index of 7, followed by the value 0. Specify broadcast address FFFE. Request a data link layer confirmation. Wait a reasonable application layer timeout, for example, 2 seconds. Verify that the device does not respond, with either a data link layer confirmation or a response to the Write operation. Issue a request for Object 60 Variation 2. Verify the DUT responds with a Null Response with IIN1-7 (restart) cleared and IIN1-0 (all stations message received) set, and an application layer confirmation requested. Before sending the requested confirmation, repeat the request for Object 60 Variation 2, and verify that IIN1-0 is still set in the response. Send the application layer confirmation. Issue a request for Object 60 Variation 2. Verify the DUT responds with a Null Response with both IIN1-7 and IIN1-1 cleared. Repeat steps 1-13 using address FFFD as the broadcast address. In step 9, verify that an application layer confirmation is NOT requested. In step 10, verify that IIN1-0 is not set in the response. Note: Step 11 will not be necessary.

8.6.6 Buffer Overflow


The Buffer Overflow Bit of the Internal Indications field is set to 1 when any event buffers overflow such that change event data is subsequently being lost. This bit is cleared when the master station confirms change event data from the DUT, hence making event buffer space available.

8.6.6.1 Desired Behavior


The DUT must set IIN2-3 after a given event buffer overflows such that change events are being lost. The DUT must clear IIN2-3 after a master confirms a change event(s) from the DUT such that event buffer space is made available.

8.6.6.2 Test Procedure


8.6.6.2.1
1.

Buffer Overflow, Binary Input Change Event Buffers

If the device does not support Binary Input Change Events, end testing of Buffer Overflow, Binary Input Change Event Buffers. 2. Issue a request for Object 60 Variations 2,3 and 4 using the all data qualifier 0x06 to empty the device of pending events. 3. Obtain the maximum Binary Input Change Event buffer size from the device documentation and generate this number of corresponding events on the DUT. 4. Issue a request for Object 60 Variation x (appropriate Class) using the all data qualifier 0x06, but DO NOT issue an application confirm to the device. 5. Verify that IIN2-3 is NOT set. 6. Generate 1 additional change event of this type on the DUT. 7. Issue a request for Object 60 Variation x using the limit data qualifier 0x07 requesting a single change. 8. Verify that the device returns a single Binary Input Change Event and IIN2-3 is set. 9. Issue a request for Object 60 Variation x using the limit data qualifier 0x07 requesting a single change. 10. Verify that the device returns a single Binary Input Change Event and IIN2-3 is not set.

8.6.6.2.2
1. 2.

Buffer Overflow, Analog Input Change Event Buffers

If the device does not support Analog Input Change Events, or does not queue multiple events for the same point, end testing of Buffer Overflow, Analog Input Change Event Buffers. Issue a request for Object 60 Variations 2,3 and 4 using the all data qualifier 0x06 to empty the device of pending events. Page 41 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 2

3.

Obtain the maximum Analog Input Change Event buffer size from the device documentation and generate this number of corresponding events on the DUT. 4. Issue a request for Object 60 Variation x (appropriate Class) using the all data qualifier 0x06, but DO NOT issue an application confirm to the device. 5. Verify that IIN2-3 is NOT set. 6. Generate 1 additional change event of this type on the DUT. 7. Issue a request for Object 60 Variation x using the limit data qualifier 0x07 requesting a single change. 8. Verify that the device returns a single Analog Input Change Event and IIN2-3 is set. 9. Issue a request for Object 60 Variation x using the limit data qualifier 0x07 requesting a single change. 10. Verify that the device returns a single Analog Input Change Event and IIN2-3 is not set.

8.6.6.2.3
1.

Buffer Overflow, Binary Counter Change Event Buffers

If the device does not support Binary Counter Change Events, or does not queue multiple events for the same point, end testing of Buffer Overflow, Binary Counter Change Event Buffers. 2. Issue a request for Object 60 Variations 2,3 and 4 using the all data qualifier 0x06 to empty the device of pending events. 3. Obtain the maximum Binary Counter Change Event buffer size from the device documentation and generate this number of corresponding events. 4. Issue a request for Object 60 Variation x (appropriate Class) using the all data qualifier 0x06, but DO NOT issue an application confirm to the device. 5. Verify that IIN2-3 is NOT set. 6. Generate 1 additional change event of this type. 7. Issue a request for Object 60 Variation x using the limit data qualifier 0x07 requesting a single change. 8. Verify that the device returns a single Binary Counter Change Event and has set IIN2-3. 9. Issue a request for Object 60 Variation x using the limit data qualifier 0x07 requesting a single change. 10. Verify that the device returns a single Binary Counter Change Event and IIN2-3 is no longer set.

8.7

Time

If the device sets IIN1-4, the Device Profile must state the worst case values for the following parameters for the full operating temperature and support all of the tests in this section. Time base drift over a 10-minute interval. Maximum delay measurement error. Maximum internal time reference error when set from the protocol. Maximum response time. If a device does not set IIN1-4 it need not support any of the tests in this section.

8.7.1 Delay Measurement


This function is used to calculate the communication delay for a particular device. The device will respond to a Time Delay Measurement request with the number of milliseconds elapsed between the device receiving the first bit of the first byte of the request and the time of transmission of the first bit of the first byte of the response.

8.7.1.1 Desired Behavior


The device must respond to a Delay Measurement request with a Time Delay Fine response.

8.7.1.2 Test Procedure


1. 2. 3. 4. Issue a request for Delay Measurement using Function Code 23, to the DUT. Verify that the device replies with Object 52 Variation 2 Qualifier 0x07 Quantity 1 and a millisecond time stamp of the measured delay. Verify that the accuracy of the delay reported is within the maximum error specified in the Device Profile Document. Perform the test two more times to guarantee repeatability.

Page 42 Rev 2.1 5-July-01

DNP3-2001 IED Cer

8.7.2 Synchronization
The Time and Date Object (Object 50 Variation 01) is an information object that represents the absolute time of day and date, recorded as milliseconds since midnight, January 1, 1970, at zero minutes, zero seconds, and zero milliseconds. This object is usually used for time-synchronization. Note that the following procedures verify the mechanics of time synchronization, verify that the time format is correct, and that synchronization appears to have occurred. The actual accuracy of time synchronization is dependent on device accuracy and system configuration and should be tested separately (factory and/or site acceptance tests).

8.7.2.1 Desired Behavior


The device must respond to a Time and Date object by null response with IIN1-4 cleared. The Device Profile must specify the maximum time from startup to IIN1-4 assertion.

8.7.2.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. 9. Reset the DUT. Wait the specified maximum time from reset to IIN1-4 assertion. Issue a request for Object 60 Variation 2 using the all data qualifier 0x06. Verify that the device responds with a valid message and that IIN1-4 is set indicating that the device is requesting time synchronization. Set the time and date using a WRITE request and Object 50 Variation 1 with Qualifier 0x07 taking into account the delay measured in the previous section. Verify that the device responds with a Null Response and that IIN1-4 is cleared indicating the device no longer needs time. Generate a supported time tagged event at a known time. Issue a request for Object 60 Variation 2, 3, or 4 as appropriate, using the all data qualifier 0x06. Verify that the device responds with a valid time tagged event and that the time reported is within the maximum error specified in the Device Profile Document.

8.8

Cold Restart

8.8.1 Desired Behavior


The device must respond to a Cold Restart request by sending a Time Delay response, restarting, and setting IIN1-7.

8.8.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. Issue a request for Cold Restart using Function Code 13, to the DUT. Verify the response is a Time Delay Fine or Coarse (Object 52 Variation 1 or Variation 2). If the DUT requests an Application Layer Confirm send it before starting the wait period. Wait for a period of time longer than the time returned in step 2. Issue a request for Object 60 Variation 1. Verify that the device responds with IIN1-7 set indicating that the device has been restarted. Issue a Write using Object 80 Variation 1 with the qualifier 0x00. Use a start index of 7 and a stop index of 7, followed by the value 0. Verify that the device responds with a Null Response and that IIN1-7 is cleared.

8.9

Application Layer Fragmentation

8.9.1 Use of FIR, FIN and SEQUENCE in Fragmentation 8.9.1.1 Desired Behavior
If the DUT can generate enough data to create multiple application layer fragments, it must meet the following criteria: DNP3-2001 IED Certification Procedure Subset Level 2 Page 43 Rev 2.1 5-July-01

The application layer FIR bit must be set in the first fragment (only). The application layer FIN bit must be set in the final fragment (only). The application layer sequence number of the first fragment must match that of the request. The application layer sequence number must increment between fragments. Transport layer segmentation must operate correctly within each fragment. The fragment size must be able to be configured to be no larger than 2048 octets. If the fragment size is configurable, it must behave accordingly. If the device cannot generate more than one fragment, the FIR and FIN bits in the application layer header must signify that there is only one APDU in the reply.

8.9.1.2 Test Procedure


1. 2. 3. If the DUT has a configurable fragment size, configure it to be no more than 2048 octets. Cycle power to the DUT. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06, if this will generate a multi-fragment response. Alternately, generate enough event data to fill more than one fragment and request the appropriate class of data with Qualifier Code 0x06. 4. Verify that the DUT responds with valid data. 5. Verify that the sequence number of the first fragment matches the request. 6. Verify that each fragment of the response contains no more than the configured fragment size. 7. If the DUTs reply contains only a single fragment then verify the FIR bit is set to one and the FIN bit is also set to one. If there is no way to cause the DUT to generate multiple fragments, i.e. its Class 0 response is less than a fragment and it does not support event data, no further testing is required in the Application Layer Fragmentation section. 8. If the DUTs reply contains more than one fragment then verify that the first response message sets the FIR bit to a one, the FIN bit is set to zero. 9. Verify subsequent fragments to assure that the FIR bit is zero, the FIN bit is zero, and the sequence number increments by one. 10. Verify that the last fragment has the FIR bit cleared and the FIN bit set, signifying the last data fragment. 11. Verify each fragment is properly segmented by the transport layer as described in that section of this document. 12. If the DUTs fragment size is configurable, repeat this test with a different fragment size and verify the data for each fragment does not exceed the configured size.

8.9.2 Use of Confirmation in Fragmentation 8.9.2.1 Desired Behavior


The DUT must request an application layer confirmation between fragments. The DUT must not send subsequent fragments until it receives confirmation of the previous fragment, with a correct sequence number. The DUT must not send subsequent fragments if it does not receive a valid confirmation within a timeout.

NOTE: The DUT is not required to request application layer confirmation on the last fragment of a response (unless required for other reasons tested elsewhere in this document).

8.9.2.2 Test Procedure


1. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06, if this will generate a multi-fragment response. Alternately, generate enough event data to fill more than one fragment and request the appropriate class of data with Qualifier Code 0x06. Verify that the DUT responds with valid data. Verify that the CON bit is set in the first fragment. Verify the sequence number matches the request. Wait the application confirmation timeout for the DUT. Do not send an application confirmation. Verify the DUT does not send the next fragment because it did not receive confirmation of the first fragment.

2. 3. 4. 5. 6.

Page 44 Rev 2.1 5-July-01

DNP3-2001 IED Cer

7. 8. 9.

10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20.

Send the valid application layer confirmation. Verify the DUT does not send the next fragment because it has timed out. Request Class 0 data (Object 60 Variation 1) using Qualifier Code 0x06, if this will generate a multi-fragment response. Alternately, generate enough event data to fill more than one fragment and request the appropriate class of data with Qualifier Code 0x06. Verify that the CON bit is set in the first fragment. Wait a time period less than the application confirmation timeout. Verify the DUT does not send the second fragment yet. Send the valid application layer confirmation before the application confirmation timeout. Verify that the DUT sends the second fragment (with FIR, FIN and sequence number set correctly). Verify that the CON bit is set in the second fragment. If a third fragment is expected, continue. If not, first send a valid application layer confirmation and then a request for multi-fragment data as in steps 1-3. Send an application layer confirmation with an incorrect sequence number. Wait the application layer confirmation timeout for the DUT. Do not send an application confirmation. Verify the DUT does not send the next fragment because the confirmation it received was invalid. Send the valid application layer confirmation. Verify the DUT does not send the next fragment because it has timed out.

8.10 Multi-Drop Support


8.10.1 Desired Behavior
The DUT must only respond to requests when the destination address field of the link layer portion of the request matches its assigned DNP address. The DUT must remain silent in all other cases. This includes not raising carrier (e.g. asserting RTS) during periods in which it is not responding.

8.10.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. 9. If the DUT does not support multi-drop physical layers, this must be noted on the Implementation Conformance Statement and in the Device Profile Document. No further testing is required in this section. Connect the DUT and at least two additional DNP devices to the same communications drop. Connect an oscilloscope and/or protocol analyzer to the DUT communications signals. Issue a request for Object 60 Variations 2,3, and 4 using the all data qualifier 0x06 to each of the other devices on the communications channel. Verify that the DUT does not respond in any way, including raising carrier or asserting RTS. Issue a request for Object 60 Variations 2,3, and 4 using the all data qualifier 0x06 to the broadcast address. Verify that the DUT does not respond in any way, including raising carrier or asserting RTS. Issue a request for Object 60 Variations 2,3, and 4 using the all data qualifier 0x06 to the DUT. Repeat as necessary to verify that the DUT responds in an appropriate manner for the physical layer which may include: a) Raising carrier (or asserting RTS) an appropriate period of time before transmitting the first bit of data. b) Dropping carrier (or de-asserting RTS) an appropriate period of time after transmitting the last bit of data. c) If the pre and post RTS to transmit delay parameters are configurable, repeat this test for the lower of the two following cases. i) the total number of selections or ii) the minimum, maximum, and two intermediate values

8.11 Unsolicited Responses


Support for unsolicited responses is optional. If a device does not support unsolicited responses, this section may be skipped in its entirety.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 45 Rev 2.1 5-July-01

Although unsolicited responses may be used with collision avoidance, the two features are independent. For instance, a device might not support collision avoidance, but support unsolicited responses in a dial-up environment. Therefore, all that is needed to test unsolicited responses is a full-duplex serial connection to the DUT.

8.11.1 Desired Behavior 8.11.1.1 Configuration

Devices that support unsolicited responses must support end-user configuration of the following parameters (e.g.: by front-panel user interface or off-line configuration): The destination address of the Master device to which the unsolicited responses are to be sent. The unsolicited response mode (either on or off). When the unsolicited response mode is configured off, the device is to behave exactly like an equivalent device that has no support for unsolicited responses. The unsolicited confirmation timeout. This is the amount of time between transmissions of unconfirmed unsolicited responses. The range of configurable values must include 1 second to 1 minute, but may be extended in either direction (slower or faster) to take advantage of, or to compensate for, faster or slower devices or communications media. This may be either the normal application confirmation timeout, or another parameter that performs the same purpose only for unsolicited responses. Maximum number of unsolicited retry attempts. One of the choices must provide for an indefinite (and potentially infinite) number of retries.

8.11.1.2

Sequence Numbers and Confirmation

At all times: Application layer sequence numbers (the value of bits 04 of the application layer control field) must be in the correct range for all messages sent: 015 for polled responses and 1631 for unsolicited responses. Ignore Master device application layer confirmations of unsolicited responses if their sequence numbers do not match those of the corresponding unsolicited responses. All unsolicited response messages must request application layer confirmation, regardless of whether they are null (no data) or contain data.

8.11.1.3

Restart Behavior

If the unsolicited response mode is configured on, then upon device restart: The device must transmit an initial unsolicited response message. The initial unsolicited response message must have the restart bit (IIN1-7) set if the Master has not already sent a command to clear it. The initial unsolicited response message must be null; i.e., it must not contain static or event data objects. The initial unsolicited response message must request an application layer confirmation, regardless of whether the message has the restart bit (IIN1-7) set. The device must continue to transmit initial null unsolicited responses forever at the rate set by the unsolicited confirmation timeout, until that initial unsolicited response message is confirmed. The device must respond to all function requests to which it would normally respond, including READ function requests, while waiting for the confirmation of the initial unsolicited response. The device must not send any more unsolicited responses after the initial null unsolicited response message has been confirmed, until a function code 0x14 (enable data-filled unsolicited messages) request has been received. Note: Enabling and disabling exception reporting does not enable/disable the storage of the reports, just the reporting.

8.11.1.4

Runtime Behavior

Once an initial unsolicited response message has been confirmed, then the device must: Process function code 0x14 requests (to enable data-filled unsolicited messages). This enabled status must not be retained through a device restart; i.e. data-filled unsolicited messages are always disabled on restart.

Page 46 Rev 2.1 5-July-01

DNP3-2001 IED Cer

Process function code 0x15 requests (to disable data-filled unsolicited messages). This disabled status does not apply to initial null unsolicited responses; i.e., if function code 0x15 is requested, and if no off-line configuration is altered, then after restart, an initial unsolicited response message must again be transmitted. At a minimum, support the enabling and disabling of unsolicited responses for Class 1, 2, and 3 data. Even if the device does not have Class 1, Class 2, or Class 3 data, it must respond to function codes 0x14 and 0x15, object 60, and variations 2, 3 and 4 without error responses. Only send unsolicited responses for those classes of data that have been enabled. Unsolicited response messages must contain only the following kinds of data: ! event data, or ! static data for which no event object types exist: binary output status (Object 10 Variation 2) and analog output status (Object 40 Variation 2). Note, when static data is returned in unsolicited responses, the rules for event processing still apply as specified in section 3.4.

8.11.1.5

Unsolicited and Polled Responses

If an unsolicited response message containing event data is not confirmed, the device must timeout, retain the event data, and re-transmit the event data either in subsequent unsolicited response messages or in polled response messages. The event data does not have to be re-transmitted exactly (new change events may have occurred, or, for example, analog input change events may be updated to reflect new current values of analog inputs). Once an unsolicited response message containing event data is confirmed, the event data must be cleared from the device and no longer transmitted in subsequent unsolicited or polled responses. The device cannot generate unsolicited responses if it is waiting for an application confirmation to a previous polled or unsolicited response. If a non-READ function code request is received while waiting for a confirmation of an unsolicited response, the device must immediately process it. If a READ function code request is received while waiting for a confirmation of an unsolicited response, the device must defer responding to the READ request (the READ request is therefore pending) until after either the unsolicited confirmation timeout occurs, or the confirmation of the unsolicited response is received. The device cannot generate an additional unsolicited response until it has responded to a pending READ request. If a READ function code request is pending while waiting for a confirmation of an unsolicited response, and another (new) function code request is received, the original READ function code request must be abandoned (with no response transmitted), and the new function code should be processed according the desired behavior rules of this section.

8.11.2 Test Procedure


Unless explicitly specified by the tests in these sections, do not issue any requests to the DUT, including: requests to clear the restart bit (IIN1-7); READ requests for data; application layer confirmations and requests to enable or disable unsolicited responses. Similarly, do not allow the Master being used to test the device to issue any of these requests automatically.

8.11.2.1
1. 2. 3.

Unsolicited Response Configuration/Startup

4. 5.

Verify that the DUT has off-line capability to configure the unsolicited response mode (either on or off). Use this capability to configure the unsolicited response mode to on. Verify the DUT has off-line capability to configure the unsolicited confirmation timeout. Verify that it can be set to at least as small as 1 second, and to at least as large as 1 minute. For the remainder of Section 8.11.2.1, set this time to be 5 seconds. (The value of 5 seconds is arbitrary, and is used to simplify the description and execution of this test. As a further simplification for the purposes of this test, when the test steps below exercise and rely upon this value, measurement accuracy can be within 0.5 seconds. It is not the purpose of this test to verify the full range of this parameter, nor is it the purpose of this test to verify the accuracy of the time keeping capability of the DUT. It is the purpose of this test, however, to verify that the parameter has been implemented.) Verify the DUT has off-line capability to configure the destination address of the Master device to which unsolicited responses are to be sent. Use this capability to configure a specific destination address. Cycle power to the DUT. Page 47 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 2

6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. 29. 30.

Verify that the DUT transmits an initial unsolicited response to the configured Master destination address. Use the off-line configuration capability to configure the destination address to a different destination address. Cycle power to the DUT. Verify that an initial unsolicited response is transmitted by the DUT. Verify that the unsolicited response contains the restart bit (IIN1-7) set. Verify that the unsolicited response is null (contains no data). Verify that the unsolicited response requests an application layer confirmation. Verify that the application sequence number is in the correct range. Verify that it has been transmitted to the configured Master destination address. Wait at least 10 seconds, and verify that two or more unsolicited responses are transmitted by the DUT. Verify that these new unsolicited responses are transmitted no more often, and no less often, than once every 5 seconds. Verify that the restart bit (IIN1-7) remains set in these unsolicited responses. Verify that the unsolicited responses are null (contains no data). Verify that the unsolicited responses request application layer confirmations. Issue a request to clear the restart bit (IIN1-7). Verify that the DUT responds with a null response that has the restart bit (IIN1-7) cleared. Wait at least 5 seconds, and verify that another unsolicited response is transmitted by the DUT. Verify that the restart bit (IIN1-7) is clear in the unsolicited responses. Issue a READ request (function code 0x01) for Object 60 Variation 1 (class 0) using the all data qualifier 0x06. Verify that the DUT responds to the READ request with class 0 data. Wait at least 5 seconds, and verify that another unsolicited response is transmitted by the DUT. Issue an application layer confirmation of the unsolicited response, but use an incorrect application-layer sequence number. Wait at least 5 seconds, and verify that another unsolicited response is transmitted by the DUT. Issue an application-layer confirmation of the unsolicited response, and use the correct application-layer sequence number. Generate known events. Verify that no further unsolicited responses are transmitted by waiting for such responses for at least 5 seconds.

8.11.2.2
1. 2. 3. 4. 5. 6. 7. 8.

Unsolicited Response - Class 1 Data

9. 10. 11. 12.

13. 14.

Issue a request to disable unsolicited responses for all classes of data by using function code 0x15 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with a null response indicating the request was processed without error. If the DUT has Class 1 data, generate such data. For example, if there is a binary input change event that is (or can be assigned to) Class 1, then ensure that it is assigned to Class 1, and generate one such event. Verify that no unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response. Issue a request to enable unsolicited responses for Class 1 data by using function code 0x14, object 60, Variation 2. Verify that the DUT responds with a null response indicating the request was processed without error. If it is not possible to generate Class 1 data that would generate unsolicited responses, steps 8 through 14 are not applicable. Verify that an unsolicited response is transmitted. This may involve waiting for an amount of time, dictated by the DUT and specified by the DUTs Device Profile Document, within which the DUT may wait for a minimum number of events to be collected before transmission of an unsolicited message. Verify that the unsolicited response requests an application layer confirmation. Verify that the application sequence number is in the correct range. Without issuing an application layer confirmation, wait for the unsolicited confirmation timeout to expire, and verify that another unsolicited response is transmitted by the DUT. Verify that at least the same event data is present in the unsolicited response. (It is not required that the unsolicited responses be identical. For data such as analog input change events, the data may be updated to reflect current values. It is also possible for new event data to have been generated.) Issue an application layer confirmation of the unsolicited response, but use an incorrect application-layer sequence number. Wait for the unsolicited confirmation timeout to expire, and verify that another unsolicited response is transmitted by the DUT, still containing the same event data.

Page 48 Rev 2.1 5-July-01

DNP3-2001 IED Cer

15. Issue an application-layer confirmation of the unsolicited response, and use the correct application-layer sequence number. 16. If the DUT has Class 2 data, then generate such data. If the DUT has Class 3 data, then also generate Class 3 data. 17. Verify that no further unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response.

8.11.2.3
1. 2. 3. 4. 5. 6. 7. 8.

Unsolicited Response - Class 2 Data

9. 10. 11. 12.

13. 14. 15. 16. 17.

Issue a request to disable unsolicited responses for all classes of data by using function code 0x15 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with a null response indicating the request was processed without error. If the DUT has Class 2 data, generate such data. For example, if there is a binary input change event that is (or can be assigned to) Class 2, then ensure that it is assigned to Class 2, and generate one such event. Verify that no unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response. Issue a request to enable unsolicited responses for Class 2 data by using function code 0x14, Object 60, Variation 3. Verify that the DUT responds with a null response indicating the request was processed without error. If it is not possible to generate Class 2 data that would generate unsolicited responses, steps 8 through 14 are not applicable. Verify that an unsolicited response is transmitted. This may involve waiting for an amount of time, dictated by the DUT and specified by the DUTs Device Profile Document, within which the DUT may wait for a minimum number of events to be collected before transmission of an unsolicited message. Verify that the unsolicited response requests an application layer confirmation. Verify that the application sequence number is in the correct range. Without issuing an application layer confirmation, wait for the unsolicited confirmation timeout to expire, and verify that another unsolicited response is transmitted by the DUT. Verify that at least the same event data is present in the unsolicited response. (It is not required that the unsolicited responses be identical. For data such as analog input change events, the data may be updated to reflect current values. It is also possible for new event data to have been generated.) Issue an application layer confirmation of the unsolicited response, but use an incorrect application-layer sequence number. Wait for the unsolicited confirmation timeout to expire, and verify that another unsolicited response is transmitted by the DUT, still containing the same event data. Issue an application-layer confirmation of the unsolicited response, and use the correct application-layer sequence number. If the DUT has Class 1 data, then generate such data. If the DUT has Class 3 data, then also generate Class 3 data. Verify that no further unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response.

8.11.2.4
1. 2. 3. 4. 5. 6. 7. 8.

Unsolicited Response - Class 3 Data

9.

Issue a request to disable unsolicited responses for all classes of data by using function code 0x15 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with a null response indicating the request was processed without error. If the DUT has Class 3 data, generate such data. For example, if there is a binary input change event that is (or can be assigned to) Class 3, then ensure that it is assigned to Class 3, and generate one such event. Verify that no unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response. Issue a request to enable unsolicited responses for Class 3 data by using function code 0x14, Object 60, Variation 4. Verify that the DUT responds with a null response indicating the request was processed without error. If it is not possible to generate Class 2 data that would generate unsolicited responses, steps 8 through 14 are not applicable. Verify that an unsolicited response is transmitted. This may involve waiting for an amount of time, dictated by the DUT and specified by the DUTs Device Profile Document, within which the DUT may wait for a minimum number of events to be collected before transmission of an unsolicited message. Verify that the unsolicited response requests an application layer confirmation. Page 49 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 2

10. Verify that the application sequence number is in the correct range. 11. Without issuing an application layer confirmation, wait for the unsolicited confirmation timeout to expire, and verify that another unsolicited response is transmitted by the DUT. 12. Verify that at least the same event data is present in the unsolicited response. (It is not required that the unsolicited responses be identical. For data such as analog input change events, the data may be updated to reflect current values. It is also possible for new event data to have been generated.) 13. Issue an application layer confirmation of the unsolicited response, but use an incorrect application-layer sequence number. 14. Wait for the unsolicited confirmation timeout to expire, and verify that another unsolicited response is transmitted by the DUT, still containing the same event data. 15. Issue an application-layer confirmation of the unsolicited response, and use the correct application-layer sequence number. 16. If the DUT has Class 1 data, then generate such data. If the DUT has Class 2 data, then also generate Class 2 data. 17. Verify that no further unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response.

8.11.2.5

Unsolicited and Polled Responses

This is a complicated test procedure. The test has been divided into sections for clarity.

8.11.2.5.1 Transmits data-filled unsolicited responses


1. 2. 3. 4. Issue a request to enable unsolicited responses for all classes of data by using function code 0x14 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with a null response indicating the request was processed without error. Generate class 1, 2, or 3 event data. Verify that an unsolicited response is transmitted. This may involve waiting for an amount of time, dictated by the DUT and specified by the DUTs Device Profile Document, within which the DUT may wait for a minimum number of events to be collected before transmission of an unsolicited message. Verify that the unsolicited response requests an application layer confirmation.

5.

8.11.2.5.2 Clears transmitted data upon confirmation


1. 2. 3. Issue an application-layer confirmation of the unsolicited or polled response. Issue a READ request (function code 0x01) for Object 60 Variations 2, 3, and 4 using the all data qualifier 0x06. Verify that none of the event data transmitted by the unsolicited response is contained in the polled response.

8.11.2.5.3 Processes non-READ requests immediately


1. 2. 3. 4. 5. Generate class 1, 2, or 3 event data to trigger the transmission of an unsolicited response. Wait for this unsolicited response to be sent. Without issuing an application layer confirmation, issue a function code request other than READ (for example, function code 0x02 WRITE to clear the restart flag IIN1-7). Verify that the DUT immediately responds without error. Wait for the unsolicited confirmation timeout to expire, and verify that another unsolicited response is transmitted by the DUT. Verify that the event data in this unsolicited response includes the events reported in the previous unsolicited response that was not confirmed. It is not required that the unsolicited responses be identical. For data such as analog input change events, the data may be updated to reflect current values. It is also possible for new event data to be generated.

8.11.2.5.4 Defers READ requests until after confirmation received


1. 2. 3. 4. Immediately after the unsolicited response, and without issuing an application layer confirmation, issue a READ request (function code 0x01) for Object 60 Variations 2, 3, and 4 using the all data qualifier 0x06. Wait for an amount of time less than the unsolicited confirmation timeout and verify that the DUT does not respond. Issue an application-layer confirmation of the unsolicited response before the unsolicited confirmation timeout occurs. Verify that the device immediately transmits a response to the READ request.

Page 50 Rev 2.1 5-July-01

DNP3-2001 IED Cer

5. 6.

Verify that none of the event data transmitted by the unsolicited response is contained in the polled response. If the polled response requested an application layer confirmation, then issue an application-layer confirmation of the polled response.

8.11.2.5.5 Defers READ requests until after confirmation timeout


1. 2. 3. 4. 5. 6. 7. 8. Generate class 1, 2, or 3 event data to trigger the transmission of an unsolicited response. Wait for this unsolicited response to be sent. Immediately after the unsolicited response, and without issuing an application layer confirmation, issue a READ request (function code 0x01) for Object 60 Variations 2, 3, and 4 using the all data qualifier 0x06. Verify that the DUT does not respond within the unsolicited confirmation timeout. After the unsolicited confirmation timeout, verify that the device responds with a polled response to the READ request (and not an unsolicited response). Verify that the polled response contains at least the same event data that was in the unsolicited response that was not confirmed. Verify that the polled response requests an application layer confirmation. Issue an application-layer confirmation of the polled response to clear the device of event data. Verify that no further unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response.

8.11.2.5.6 Abandons READ requests upon subsequent non-READ requests


1. 2. 3. 4. 5. 6. Generate class 1, 2, or 3 event data to trigger the transmission of an unsolicited response. Wait for this unsolicited response to be sent. Immediately after the unsolicited response, and without issuing an application layer confirmation, issue a READ request (function code 0x01) for Object 60 Variations 2, 3, and 4 using the all data qualifier 0x06. Before the unsolicited confirmation timeout, issue a function code request other than READ (for example, function code 0x02 WRITE to clear the restart flag IIN1-7). Verify that the DUT immediately responds without error. Wait for the unsolicited confirmation timeout to expire, and then verify that another unsolicited response is transmitted by the DUT. Verify that the event data in this unsolicited response includes the events reported in the previous unsolicited response that was not confirmed.

8.11.2.5.7 Abandons READ requests upon subsequent READ requests


1. 2. 3. 4. 5. 6. 7. 8. 9. Immediately after the unsolicited response, and without issuing an application layer confirmation, issue a READ request (function code 0x01) for Object 60 Variation 1 using the all data qualifier 0x06. Before the unsolicited confirmation timeout, issue a READ request for Object 60, Variations 2, 3, and 4, using the all data qualifier 0x06. Verify that the DUT does not respond within the unsolicited confirmation timeout. After the unsolicited confirmation timeout, verify that the device responds with a polled response to the Object 60, Variation 2, 3, and 4 READ request (and not an unsolicited response). Verify that the polled response is a response to the request for Object 60, Variations 2, 3, and 4 not Variation 1; in other words, verify that it contains class 1, 2, or 3 data and not class 0 data. Verify that the polled response contains at least the same event data that was in the unsolicited response that was not confirmed. Verify that the polled response requests an application layer confirmation. Issue an application-layer confirmation of the polled response to clear the device of event data. Verify that no further unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response.

8.11.2.5.8 Inhibits Unsolicited responses until after polled confirmation


1. If the device has a minimum amount of event data that will cause the immediate transmission of an unsolicited response, then generate at least some, but less than this amount of class 1, 2, or 3 event data. Or, if there is a window of time between the generation of event data and the subsequent transmission of an unsolicited response, then Page 51 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 2

generate event data and perform the next test procedure step before this time elapses. If neither of these procedures are possible, then the remaining steps in this procedure are not applicable. 2. Before an unsolicited response is transmitted, issue a READ request (function code 0x01) for Object 60 Variations 2, 3, and 4 using the all data qualifier 0x06. 3. Verify that events are reported in the response to the READ request 4. Verify that the polled response requests an application layer confirmation. 5. Do not send an application layer confirmation. 6. If necessary, generate more event data that would otherwise cause the transmission of an unsolicited response. 7. Verify that the DUT does not transmit an unsolicited response within the application confirmation timeout, nor before any application layer retries are attempted. 8. After the application confirmation timeout, and after any application layer retries, verify that the device responds with an unsolicited response. 9. Verify that the unsolicited response contains at least the same event data that was in the polled response that was not confirmed. 10. Verify that the unsolicited response requests an application layer confirmation. 11. Issue an application-layer confirmation of the unsolicited response to clear the device of event data.

8.11.2.5.9 Retries unsolicited responses configurable number of times


1. 2. 3. 4. 5. 6. 7. 8. Verify the DUT has off-line capability to configure the maximum number of unsolicited retries and that one of the choices causes the DUT to retry indefinitely. Use this capability to configure the maximum number of retries to 5. Cycle power to the DUT. Issue an application-layer confirmation of the initial unsolicited response. Issue a request to clear the restart bit (IIN1-7). Issue a request to enable unsolicited responses for all classes of data by using function code 0x14 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with a null response indicating the request was processed without error. Generate class 1, 2, or 3 event data. Verify that an unsolicited response is transmitted. This may involve waiting for an amount of time, dictated by the DUT and specified by the DUTs Device Profile Document, within which the DUT may wait for a minimum number of events to be collected before transmission of an unsolicited message. Do not issue an application layer confirm. Verify that DUT retries the response 5 times. Cycle power to the DUT. Issue an application-layer confirmation of the initial unsolicited response. Issue a request to clear the restart bit (IIN1-7). Issue a request to enable unsolicited responses for all classes of data by using function code 0x14 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with a null response indicating the request was processed without error. Generate class 1, 2, or 3 event data. Verify that an unsolicited response is transmitted. Issue an application layer confirm after at least one retry. Verify that retries are terminated when confirmation is received. Configure the maximum number of retries to indefinite. Cycle power to the DUT. Issue an application-layer confirmation of the initial unsolicited response. Issue a request to clear the restart bit (IIN1-7). Issue a request to enable unsolicited responses for all classes of data by using function code 0x14 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with a null response indicating the request was processed without error. Generate class 1, 2, or 3 event data. Verify that an unsolicited response is transmitted. Do not issue an application layer confirm. Verify that retries continue for an extended period of time.

9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28.

Page 52 Rev 2.1 5-July-01

DNP3-2001 IED Cer

8.11.2.6
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15.

Unsolicited Responses Off

Configure the unsolicited response mode to off. Cycle power to the DUT. Verify that no initial unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response. Issue a request to clear the restart bit (IIN1-7). Verify that the DUT responds with a null response that has the restart bit (IIN1-7) cleared. Verify that no initial unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response. Issue a request for Object 60 Variations 3, 2, 1, and 0 using the all data qualifier 0x06 to cause the DUT to report (and clear) all pending events. If requested, issue an application layer confirm. Generate several change events or other data, which would otherwise cause an unsolicited response. Verify that no unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response. Issue a request to enable unsolicited responses for all classes of data by using function code 0x14 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with an Error Response with IIN2-0 set indicating that the DUT has received a message containing a bad function code. Verify that no unsolicited responses are transmitted by waiting for such responses for a length of time at least as great as what would be necessary for the DUT to otherwise generate an unsolicited response. Issue a request to disable unsolicited responses for all classes of data by using function code 0x15 with three object data headers: Object 60, Variation 2; Object 60, Variation 3; and Object 60, Variation 4. Verify that the DUT responds with an Error Response with IIN2-0 set indicating that the DUT has received a message containing a bad function code.

8.12 Collision Avoidance


The functions tested in this section are optional. However, if a device claims in its Device Profile Document that it implements collision avoidance, it must pass the tests in this section to be compliant. A device may be certified as supporting collision avoidance in one of the following ways: Detecting out-of-band carrier (e.g. DCD) 1. with the aid of an external device 2. without the aid of an external device Detecting transmitted data (e.g. TX/RX line). For these tests, the supplier of the DUT must specify which method the DUT uses to detect other devices are transmitting. If necessary, the supplier must supply hardware (modems etc.) and test equipment suitable for testing this feature. The test equipment must be capable of measuring time between two characters transmitted on the link. Although unsolicited responses may be used with collision avoidance, the two features are independent. For instance, a device might not support collision avoidance, but support unsolicited responses in a dial-up environment. However, unsolicited responses in a multi-drop environment require collision avoidance. The operation of collision avoidance is as follows: The physical layer must provide an indication to the data link layer of when the link is in use, e.g. using the DCD (Data Carrier Detect) signal or simply monitoring all data on the link. If a device prepares to transmit and finds the link busy, it waits until it is no longer busy, then waits a backoff_time as follows: backoff_time = fixed_delay + random( max_random_delay ) DNP3-2001 IED Certification Procedure Subset Level 2 Page 53 Rev 2.1 5-July-01

After the backoff_time, the device tries again, either indefinitely, or up to a configurable maximum number of retries. If a maximum is used, the protocol behaves as if a link failure occurred, i.e. data is returned to buffers at the application layer and application layer retries take place if desired. The fixed_delay can be adjusted per device to provide priority of access. For instance, it could be zero (0) for masters and non-zero for all the slave devices. The fixed_delay for the slaves must be greater than the max_random_delay for the master. This provides a minimum "window" of access time for the master(s). To absolutely guarantee the masters priority, the master would not have a random delay.

8.12.1 Desired Behavior


When implementing collision avoidance, the DUT must meet the following requirements: The fixed_delay and the max_random_delay must be configurable. The DUT must transmit as quickly as possible if no other device is transmitting. The DUT must wait the backoff_time when it tries to transmit and another device is already transmitting. The backoff_time must start at the moment when the other device stops transmitting. The backoff_time must be greater than the fixed_delay. The backoff_time must not exceed the fixed_delay plus the max_random_delay. If another device is still transmitting when the backoff_delay expires, the DUT must wait until the line becomes free and then restart the backoff timer.

8.12.2 Test Procedure


1. 2. 3. Request Class 1 data (Object 60 Variation 2) using Qualifier Code 0x06 and link control block 0xF4. Verify the device responds with data. Measure the turnaround delay between receipt of the request and the response. Prepare a request for Class 1 data as above, followed immediately by noise data sufficient to exceed the measured turnaround delay and the fixed_delay but less than the turnaround delay plus the maximum backoff_delay. The noise data may consist of a poll to a nonexistent device. 4. Send the request. 5. Verify the DUT sends a response AFTER the noise data has finished transmitting. Verify the noise and the response do not overlap. 6. Verify the delay between the end of the noise data and the start of the response is less than the maximum back_off delay and more than the fixed_delay plus the max_random_delay. 7. Repeat steps 4 through 6 at least 10 times. Verify the measured backoff_delay is different in each case although it remains less than the maximum backoff_delay and the length of the noise data remains constant. 8. Add more noise data to the prepared request so that the noise data now exceeds several times the fixed_delay plus the max_random_delay, then a gap in the noise less than the fixed_delay, followed by noise several times longer than fixed_delay plus the max_random_delay. 9. Repeat steps 4 through 6 to verify the DUT will back off more than once. 10. Reconfigure the device with a different fixed_delay and maximum_random_delay. 11. Repeat steps 1 through 10.

8.13 Binary Inputs


If the DUT is configurable in a manner such that points can be uninstalled or disabled, the device must be configured with at least one Binary Input point installed or enabled before proceeding with the test procedure.

8.13.1 Desired Behavior


The following behavior assumes that the device does not support binary inputs: If the device does not support Binary Inputs, it must respond to a request with a null response and no further testing in this section is necessary. Optionally, the device can return an Error Response with IIN2-1 set. The following behavior assumes that the device supports binary inputs: Page 54 Rev 2.1 5-July-01

DNP3-2001 IED Cer

If the device supports Binary Inputs the device must respond to an Any Variation Binary Input read request (Object 1, Variation 0) with either Object 1 Variation 1 or Object 1 Variation 2.

The following behavior assumes that the device does support binary inputs, however there are no binary input points installed: If the device supports Binary Inputs, it must respond to a request with a Null Response or an Error Response setting IIN2-1.

8.13.2 Test Procedure 8.13.2.1


1. 2.

Device does not have Binary Inputs

Issue a request for Object 1 Variation 0 using the all data qualifier of 0x06. Verify that the DUT responds with a Null Response. The device can optionally set IIN2-1. No further testing in this section is necessary.

8.13.2.2
1. 2. 3. 4. 5. 6. 7. 8. 9.

Device has Binary Inputs

Generate a known binary input pattern. Issue a request for Object 1 Variation 0 using the all data qualifier of 0x06. Verify that the DUT responds with Object 1 Variation 1 or 2 using either 8 bit start/stop indexing (qualifier 0x00) or 16 bit start/stop indexing (qualifier 0x01). If the response contains Object 1 Variation 1 verify that the response contains the proper indication of binary inputs from step 1. If the response contains Object 1 Variation 2 verify that the response contains the proper indication of binary inputs from step 1 with an 8-bit flag field. Generate binary data to various installed points. Issue a request for Object 1 Variation 0 and the all data qualifier 0x06. Verify that the device responds with Object 1 Variation 1 or 2 and the proper binary data is returned. Verify that flag behavior complies with Section 2, Note #5.

8.13.2.3
1. 2. 3. 4.

Device supports Binary Inputs, Configurable Device

If the device is not configurable in a manner such that Binary Input points can be uninstalled or disabled, no further testing in this section is necessary. Configure the DUT such that all Binary Input points are uninstalled or disabled. Issue a request for Object 1 Variation 0 using the all data qualifier of 0x06. Verify that the DUT responds with a Null Response. The device can optionally set IIN2-1.

8.14 Binary Input Change


This request is used to read binary change or event data from a device. The device must respond with events that have occurred and have not yet been read from the device with a poll/confirm sequence. If the device does not support Binary Input Change Events, it must return a null response. Points can be assigned to a class by configuration and through the protocol. Neither is required for level 2 compliance. Any device that generates more than one link layer frame in response to a Class 0 Poll must support report-byexception on all points. It is highly recommended that devices perform report by exception processing internally and respond to class polls with event data as defined in section 3.4. This allows efficient use of bandwidth. When no events are pending the device responds with the Null Response.

8.14.1 Desired Behavior


If a device does not support report by exception on binary inputs it must respond with a Null Response. The device must respond with all of its binary change events when polled with the all data qualifier (0x06).

DNP3-2001 IED Certification Procedure Subset Level 2

Page 55 Rev 2.1 5-July-01

When polled with the limit data qualifier (0x07), the device must respond with a quantity of its binary change events no greater than specified in the request. When polled with the limit data qualifier (0x08), the device must respond with a quantity of its binary change events no greater than specified in the request. The DUT uses only qualifier codes 0x17 or 0x28 when building its response. The device must request an application layer confirm for all responses that contain event data. Note: Application layer confirms are always sent upon request unless stated otherwise in this section. The device must clear all of the binary change events reported in the last response upon receipt of an application layer confirm with a matching sequence number.

8.14.2 Test Procedure 8.14.2.1


1. 2. 3.

Device does not support Binary Input Changes

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. If the DUT has binary inputs and it responds to a Class 0 poll with more than one link layer frame, verify that it also performs report-by exception processing. If the DUT does not support report by exception processing, verify that it responds with a Null Response. No further testing is required in this section.

8.14.2.2
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13.

Binary Input Change, 0x06

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Issue an application layer confirm if requested to empty the device of pending events. Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a Null Response. Generate several Binary Input Change Events. Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. Verify that the device responds with all generated events in a single response. Verify that the device requests an application layer confirm. Verify that the response contains only Object 2, Variation 1, 2, and/or 3. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.14.2.3
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13.

Binary Input Change, 0x07

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Generate several Binary Input Change Events. Issue a request for Object 2 Variation 0 using the limit data qualifier 0x07 requesting some of the changes. Verify that the device responds with the correct number of generated events in a single response. Verify that the device requests an application layer confirm. Verify that only Object 2, Variation 1, 2, and/or 3 are returned. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Issue a request for Object 2 Variation 0 using the limit data qualifier 0x07 requesting the remaining changes. Verify that the device responds with the remaining Binary Input Change Events. Verify that the device requests an application layer confirm.

8.14.2.4
1. 2. 3.

Binary Input Change, 0x08

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events.

Page 56 Rev 2.1 5-July-01

DNP3-2001 IED Cer

4. 5. 6. 7. 8. 9. 10. 11. 12. 13.

Generate several Binary Input Change Events. Issue a request for Object 2 Variation 0 using the limit data qualifier 0x08 some of the changes. Verify that the device responds with the correct number of Binary Input Change Events in a single response. Verify that the device requests an application layer confirm. Verify that only Object 2, Variation 1, 2, and/or 3 are returned. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Issue a request for Object 2 Variation 0 using the limit data qualifier 0x08 requesting the remaining changes. Verify that the device responds with the remaining events. Verify that the device requests an application layer confirm.

8.14.2.5
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21.

Binary Input Change Without Confirm

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Generate Binary Input Change Events. Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. Verify that the device responds with all the event data generated in a single response. Verify that the device requests an application layer confirm. Verify only Object 2, Variation 1, 2, and/or 3 are returned. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device responds with the remaining events. Do not issue an application layer confirm to the device. Wait for a period of time exceeding several of the Application Layer retry delays, if one exists. Verify that the device has not retransmitted the previous Application Layer fragment. Generate additional Binary Input Change Events. Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. Verify that the device responds with the same event data generated in step 4 and that the additional data generated in step 15 is in time order (oldest first) in a single response. Verify that the device requests an application layer confirm. Issue an application layer confirm to empty the device of pending events. Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.14.2.6
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11.

Binary Input Change Without Time, 0x06

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Generate several Binary Input Change Events. Issue a request for Object 2 Variation 1 using the all data qualifier 0x06. Verify that the device responds with all of the events in a single response. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that the device requests an application layer confirm. Issue an application layer confirm to empty the device of pending events. Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.14.2.7
1. 2. 3. 4.

Binary Input Change Without Time, 0x07

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Generate several Binary Input Change Events. Page 57 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 2

5. 6. 7. 8. 9. 10. 11. 12. 13. 12. 13. 14.

Issue a request for Object 2 Variation 1 using the limit data qualifier 0x07 requesting some of the changes. Verify that the device responds with the requested events in a single response. Verify that the device requests an application layer confirm. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that only Object 2, Variation 1 is returned. Issue a request for Object 2 Variation 1 using the limit data qualifier 0x07 requesting the remaining changes. Verify that the device responds with the remaining events. Verify that the device requests an application layer confirm. Issue an application layer confirm to empty the device of pending events. Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.14.2.8
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 15. 16. 17.

Binary Input Change Without Time, 0x08

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Generate several Binary Input Change Events. Issue a request for Object 2 Variation 1 using the limit data qualifier 0x08 requesting some of the changes. Verify that the device responds with the requested events in a single response. Verify that the device requests an application layer confirm. Verify that the device responds with data using either qualifier 0x17 or 0x28. Verify that flag behavior complies with Section 2, Note #5. Verify that only Object 2, Variation 1 is returned. Issue a request for Object 2 Variation 1 using the limit data qualifier 0x08 requesting the remaining changes. Verify that the device responds with the remaining events. Verify that the device requests an application layer confirm. Issue an application layer confirm to empty the device of pending events. Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.14.2.9
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14.

Binary Input Change With Time, 0x06

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Generate several Binary Input Change with Time Events. Issue a request for Object 2 Variation 2 (binary change with time) using the all data qualifier 0x06. If the device does not support Binary Input Change with Time Events, verify that the device replies with a null response and skip all binary input change with time tests. If the device does support Binary Input Change with Time Events, verify that the device responds with all the event data generated in a single response. Verify that the device requests an application layer confirm. Verify that only Object 2, Variation 2 is returned. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the timestamps returned are reasonable (i.e. that they are incrementing by approximately the intervals in which the events were generated within the resolution specified in the Device Profile). Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

Page 58 Rev 2.1 5-July-01

DNP3-2001 IED Cer

8.14.2.10
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 15. 16.

Binary Input Change With Time, 0x07

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Generate several Binary Input Change Events. Issue a request for Object 2 Variation 2 using the limit data qualifier 0x07 requesting some changes. Verify that the device responds with the requested number of events in a single response. Verify that the device requests an application layer confirm. Verify that only Object 2, Variation 2 is returned. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the timestamps returned are reasonable (i.e. that they are incrementing by approximately the intervals in which the events were generated within the resolution specified in the Device Profile). Issue a request for Object 2 Variation 2 using the limit data qualifier 0x07 requesting the remaining changes. Verify that the device responds with the remaining events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.14.2.11
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 17. 18.

Binary Input Change With Time, 0x08

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Generate several Binary Input Change Events. Issue a request for Object 2 Variation 2 using the limit data qualifier 0x08 requesting some changes. Verify that the device responds with the requested number of events in a single response. Verify that the device requests an application layer confirm. Verify that only Object 2, Variation 2 is returned. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the timestamps returned are reasonable (i.e. that they are incrementing by approximately the intervals in which the events were generated within the resolution specified in the Device Profile). Issue a request for Object 2 Variation 2 using the limit data qualifier 0x08 requesting the remaining changes. Verify that the device responds with the remaining events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.14.2.12
1. 2. 3. 4. 5. 6. 7.

Binary Input Change With Relative Time, 0x06

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Generate several Binary Input Change with Relative Time events. Issue a request for Object 2 Variation 3 (binary change with relative time) using the all data qualifier 0x06. If the device does not support Binary Input Change with Relative Time events verify that the device replies with a null response and skip all Binary Input Change with Relative Time tests. If the device does support Binary Input Changes with Relative Time, verify that the device responds with all the event data generated in a single response preceded by the Common Time of Occurrence Object (Object 51, Variation 1 or 2) in the same APDU.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 59 Rev 2.1 5-July-01

8. 9. 10. 11. 12. 13. 14.

Note: If any subsequent event occurs more than 0xffff milliseconds after the first change a new Common Time of Occurrence Object (CTO Object 51, Variation 1 or 2) must be inserted into the response before the data for that event. This CTO can then be used for all additional changes that occur within 0xffff milliseconds. Verify that the device requests an application layer confirm. Verify that the timestamps returned are reasonable (i.e. that they are incrementing by approximately the intervals in which the events were generated within the resolution specified in the Device Profile). Verify that only the Common Time of Occurrence Object (Object 51, Variation 1 or 2) and Object 2, Variation 3 are returned. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.14.2.13
1. 2. 3. 4. 5. 6.

Binary Input Change With Relative Time, 0x07

7. 8. 9. 10. 11. 12. 13. 14. 15. 16.

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Generate several Binary Input Change Events. Issue a request for Object 2 Variation 3 using the limit data qualifier 0x07 requesting some changes. Verify that the device responds with requested events in a single response preceded by the Common Time of Occurrence Object (Object 51, Variation 1 or 2) in the same APDU. Note: If any subsequent event occurs more than 0xffff milliseconds after the first change a new Common Time of Occurrence Object (CTO Object 51, Variation 1 or 2) must be inserted into the response before the data for that event. This CTO can then be used for all additional changes that occur within 0xffff milliseconds. Verify that the device requests an application layer confirm. Verify that only the Common Time of Occurrence Object (Object 51, Variation 1 or 2) and Object 2, Variation 3 are returned. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the timestamps returned are reasonable (i.e. that they are incrementing by approximately the intervals in which the events were generated within the resolution specified in the Device Profile). Issue a request for Object 2 Variation 3 using the limit data qualifier 0x07 requesting the remaining changes. Verify that the device responds with the remaining events preceded by the Common Time of Occurrence Object (Object 51, Variation 1 or 2) in the same APDU. Verify that the device requests an application layer confirm. Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.14.2.14
1. 2. 3. 4. 5. 6.

Binary Input Change With Relative Time, 0x08

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Generate several Binary Input Change Events. Issue a request for Object 2 Variation 3 using the limit data qualifier 0x08 requesting some changes. Verify that the device responds with requested events in a single response preceded by the Common Time of Occurrence Object (Object 51, Variation 1 or 2) in the same APDU. Note: If any subsequent event occurs more than 0xffff milliseconds after the first change a new Common Time of Occurrence Object (CTO Object 51, Variation 1 or 2) must be inserted into the response before the data for that event. This CTO can then be used for all additional changes that occur within 0xffff milliseconds. 7. Verify that the device requests an application layer confirm. 8. Verify that only the Common Time of Occurrence Object (Object 51, Variation 1 or 2) and Object 2, Variation 3 are returned. 9. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). 10. Verify that flag behavior complies with Section 2, Note #5. Page 60 Rev 2.1 5-July-01

DNP3-2001 IED Cer

11. Verify that the timestamps returned are reasonable (i.e. that they are incrementing by approximately the intervals in which the events were generated within the resolution specified in the Device Profile). 12. Issue a request for Object 2 Variation 3 using the limit data qualifier 0x08 requesting the remaining changes. 13. Verify that the device responds with the remaining events preceded by the Common Time of Occurrence Object (Object 51, Variation 1 or 2) in the same APDU. 14. Verify that the device requests an application layer confirm. 15. Issue a request for Object 2 Variation 0 using the all data qualifier 0x06. 16. Verify that the device responds with a Null Response.

8.14.2.15
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16.

Binary Input Change with Relative Time, Long Interval

Issue a request for Object 2 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Generate several Binary Input Change Events. Wait longer than 0xffff milliseconds. Generate several Binary Input Change Events. Issue a request for Object 2 Variation 3 using the limit data qualifier 0x06 requesting all changes. Verify that the device responds with the requested events in a single response. Verify that the device requests an application layer confirm. Verify that each group of events that occurred more than 0xffff milliseconds apart are preceded by a new Common Time of Occurrence Object (Object 51, Variation 1 or 2) in the same APDU. Verify that only the Common Time of Occurrence Objects (Object 51, Variation 1 or 2) and Binary Input Change with Relative Time Objects (Object 2, Variation 3) are returned. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the timestamps returned are reasonable (i.e. that they are incrementing by approximately the intervals in which the events were generated within the resolution specified in the Device Profile Document). Issue a request for Object 2 Variation 3 using the limit data qualifier 0x06 requesting all changes. Verify that the device responds with a Null Response.

8.15 Common Time of Occurrence


8.15.1 Desired Behavior
If the DUT does not support Binary Input Change with Relative Time Events testing in this section is not required. When responding to a request for binary input events BEFORE the time and date are set for the first time after the DUT restarts: The DUT must send an Unsynchronized Common Time of Occurrence Object in each application fragment prior to any Binary Input Change with Relative Time Objects contained in that fragment. When responding to a request for binary input events AFTER the time and date are set for the first time after the DUT restarts: The DUT must send a Synchronized Common Time of Occurrence Object in each application fragment prior to any Binary Input Change with Relative Time Objects contained in that fragment.

NOTE: When the following procedures require the test to Verify that the objects returned are formatted correctly interpret that to specifically mean the following: 1. 2. 3. The Synchronized/Unsynchronized Common Time of Occurrence Object precedes the Binary Input Change with Relative Time Objects in each fragment of the response. If the response consists of multiple fragments each fragment must have a Synchronized/ Unsynchronized Common Time of Occurrence Object preceding any Binary Input Change with Relative Time Objects. If any subsequent event occurs more than 0xffff milliseconds after the first change, a new Synchronized/Unsynchronized Common Time of Occurrence Object must be inserted into the response before

DNP3-2001 IED Certification Procedure Subset Level 2

Page 61 Rev 2.1 5-July-01

4. 5. 6.

the data for that event. This CTO can then be used for all additional changes that occur within 0xffff milliseconds. The data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Flag behavior complies with Section 2, Note #5. The timestamps returned are reasonable (i.e. that they are incrementing by approximately the intervals in which the events were generated within the resolution specified in the Device Profile Document).

8.15.2 Test Procedure


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. 29. 30. 31. 32. 33. 34. 35. 36. 37. If the DUT does not support Binary Input Change with Relative Time events no further testing is required in this section. Cause the DUT to restart. Clear the Restart IIN. Generate several Binary Input Change with Relative Time events. Issue a request for Object 2 Variation 3 using the all data qualifier 0x06. Verify that only the Unsynchronized Common Time of Occurrence Object (Object 51, Variation 2) and Binary Input Change with Relative Time Objects (Object 2, Variation 3) are returned. Verify that the objects returned are formatted correctly. Verify that the device requests an application layer confirm. Issue an application layer confirm to empty the device of pending events. Wait the specified maximum time from reset to IIN1-4 assertion. Perform a time delay measurement. Verify that the device responds with a valid message and that IIN1-4 is set indicating that the device is requesting time synchronization. Set the time and date using Object 50 Variation 1 with Qualifier 0x07. Verify that the device responds with a Null Response and that IIN1-4 is cleared indicating the device no longer needs time. Generate several Binary Input Change with Relative Time events. Issue a request for Object 2 Variation 3 using the all data qualifier 0x06. Verify that only the Synchronized Common Time of Occurrence Object (Object 51, Variation 1) and Binary Input Change with Relative Time Objects (Object 2, Variation 3) are returned. Verify that the objects returned are formatted correctly. Verify that the device requests an application layer confirm. Issue an application layer confirm, to empty the device of pending events. Generate several Binary Input Change with Relative Time events. Wait the specified maximum time between time synchronization requests. Perform a time delay measurement. Verify that the device responds with a valid message and that IIN1-4 is set indicating that the device is requesting time synchronization. Issue a request for Object 2 Variation 3 using the all data qualifier 0x06. Verify that only the Synchronized Common Time of Occurrence Object (Object 51, Variation 1) and Binary Input Change with Relative Time Objects (Object 2, Variation 3) are returned. Verify that the objects returned are formatted correctly. Verify that the device requests an application layer confirm. Do Not issue the application layer confirm. Set the time and date using Object 50 Variation 1 with Qualifier 0x07. Verify that the device responds with a Null Response and that IIN1-4 is cleared indicating the device no longer needs time. Issue a request for Object 2 Variation 3 using the all data qualifier 0x06. Verify that the objects returned are formatted correctly. Verify that the device requests an application layer confirm. Issue an application layer confirm, to empty the device of pending events. Issue a request for Object 2 Variation 3 using the limit data qualifier 0x06 requesting all changes. Verify that the device responds with a Null Response.

Page 62 Rev 2.1 5-July-01

DNP3-2001 IED Cer

8.16 Binary Counters


A binary counter represents an accumulated value. This can be accumulated pulses or transitions from a hardware or software point. There are two primary types of binary counters, running counters and frozen counters. Running binary counters report the current value of the counter at the time of reporting or the last reported value from the device. These values increment indefinitely until a counter clear operation is received, or the counter rolls over, then the values are cleared to 0. Frozen binary counters report values that were previously frozen by a command from the originating station. If the DUT is configurable in a manner such that points can be uninstalled or disabled, the device must be configured with at least one Binary Counter point installed or enabled before proceeding with the test procedure.

8.16.1 Binary Counters, Running


Acceptable object variations and qualifier combinations included in a device response are specified in the following table. Object 20 20 20 20 20 20 20 20 Variation 1 2 3 4 5 6 7 8 Qualifier Description 0x00,0x01 32-Bit Binary Counter 0x00,0x01 16-Bit Binary Counter 0x00,0x01 32-Bit Delta Counter 0x00,0x01 16-Bit Delta Counter 0x00,0x01 32-Bit Binary Counter Without Flag 0x00,0x01 16-Bit Binary Counter Without Flag 0x00,0x01 32-Bit Delta Counter Without Flag 0x00,0x01 16-Bit Delta Counter Without Flag Table 8-5

8.16.1.1

Desired Behavior

The following behavior assumes that the device does not support binary counters: If the device does not support binary counters the device must respond to a binary counter read request with a null response and no further testing in this section is necessary. Optionally, the device can return an Error Response with IIN2-1 set. The following behavior assumes that the device supports binary counters: If the device supports running binary counters the device must respond to a binary counter read request with a binary counter read object (object 20 variation 1-8) using qualifiers 0x00 or 0x01. Frozen binary counters will be tested in the next section. The following behavior assumes that the device does support binary counters, however there are no binary counter points installed: If the device supports binary counters, the device must respond to a binary counter read request with a null response and no further testing in this section is necessary. Optionally, the device can return an Error Response with IIN2-1.

8.16.1.2

Test Procedure

8.16.1.2.1 Device does not have Binary Counters


1. 2. Issue a request for Object 20 Variation 0 using the all data qualifier 0x06. Verify that the DUT responds with a null response. The device can optionally return an Error Response with IIN2-1 set. No further testing in this section is necessary.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 63 Rev 2.1 5-July-01

8.16.1.2.2 Device responds with Binary Counters


1. 2. 3. 4. 5. 6. 7. 8. Issue a request for Object 20 Variation 0 using the all data qualifier 0x06. Verify that the DUT responds with binary counter objects (object 20 Variation 1-8). Record the values for future reference. Generate binary counter input data. Issue a request for Object 20 Variation 0 using the all data qualifier 0x06. Verify that the reported values match the values recorded previously plus the counts generated in step 4. Verify any points reported with Object 20, Variations 1, 2, 5, or 6 are reported with qualifiers 0x00 or 0x01. Verify that flag behavior complies with Section 2, Note #5.

8.16.1.2.3 Device responds with Delta Counters


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. Issue a request for Object 20 Variation 0 using the all data qualifier 0x06. Issue an application layer confirm if requested. If the device does not respond with Object 20 Variations 3, 4, 7, or 8, no further testing is necessary in this section. Issue a request for Object 20 Variation 0 using the all data qualifier 0x06. Verify the DUT requests an application layer confirm. Issue the application layer confirm. Verify the DUT reports all delta counter objects with a value of zero. Generate new counts on some of the points reporting delta counters. Issue a request for Object 20 Variation 0 using the all data qualifier 0x06. Verify the DUT requests an application layer confirm. Issue the application layer confirm. Verify any points reported with Object 20, Variations 3, 4, 7, or 8 are reported with qualifiers 0x00 or 0x01. Verify that flag behavior complies with Section 2, Note #5. Verify the delta counter points that had no data generated are reported as zero. Verify the delta counter points that had data generated have the exact same number of counts generated in step 8. Generate new counts on some of the points reporting delta counters. Include some of the points incremented in step 8, and some different points. Issue a request for Object 20 Variation 0 using the all data qualifier 0x06. Verify the DUT requests an application layer confirm. Issue the application layer confirm. Verify any points reported with Object 20, Variations 3, 4, 7, or 8 are reported with qualifiers 0x00 or 0x01. Verify the delta counter points that had no data generated are reported as zero. Verify the delta counter points that had data generated have the exact same number of counts generated in step 16.

8.16.1.2.4 Device Responds with Delta Counters, No Confirm


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. Issue a request for Object 20 Variation 0 using the all data qualifier 0x06. Issue an application layer confirm if requested. If the device does not respond with Object 20 Variations 3, 4, 7, or 8, no further testing is necessary in this section. Generate new counts on some of the points reporting delta counters. Issue a request for Object 20 Variation 0 using the all data qualifier 0x06. Verify the DUT requests an application layer confirm. DO NOT Issue the application layer confirm. Wait several multiples of the application layer confirmation timeout for the DUT. Verify the device does not perform an application layer retry. Generate new counts on some of the points reporting delta counters. Include some of the points incremented in step 8, and some different points. Issue a request for Object 20 Variation 0 using the all data qualifier 0x06. Verify the DUT requests an application layer confirm. Issue the application layer confirm. Verify the delta counter points that had no data generated are reported as zero. Verify the delta counter points that had data generated report the sum of the counts generated in steps 4 and 10.

Page 64 Rev 2.1 5-July-01

DNP3-2001 IED Cer

8.16.1.2.5 Device supports Binary Counters, Configurable Device


1. 2. 3. 4. If the device is not configurable in a manner such that Binary Counter points can be uninstalled or disabled, no further testing in this section is necessary. Configure the DUT such that all Binary Counter points are uninstalled or disabled. Issue a request for Object 20 Variation 0 using the all data qualifier 0x06. Verify that the DUT responds with a null response. The device can optionally return an Error Response with IIN2-1 set.

8.16.2 Binary Counters, Frozen


Acceptable object variations and qualifier combinations included in a device response are specified in the following table. Object 21 21 21 21 Variation 1 2 9 10 Qualifier 0x00,0x01 0x00,0x01 0x00,0x01 0x00,0x01 Description 32-Bit Frozen Counter 16-Bit Frozen Counter 32-Bit Frozen Counter Without Flag 16-Bit Frozen Counter Without Flag Table 8-6

8.16.2.1

Desired Behavior

The following behavior assumes that the device does not support frozen binary counters: If the device does not support frozen binary counters the device must respond to a frozen binary counter read request with a null response and no further testing in this section is necessary. Optionally, the device can return an Error Response with IIN2-1 set. The following behavior assumes that the device supports frozen binary counters: If the device supports frozen binary counters the device must respond to a frozen binary counter read request with a frozen binary counter object (object 21 variation 1-8) using qualifiers 0x00 or 0x01. Frozen binary counter data must only be updated after a freeze request is issued to object 20 Variation 0 (function codes 0x07, 0x08, 0x09, or 0x0A). The following behavior assumes that the device does support frozen binary counters, however there are no frozen binary counter points installed: If the device supports frozen binary counters the device must respond to a frozen binary counter read request with a null response and no further testing in this section is necessary. Optionally, the device can return an Error Response with IIN2-1 set.

8.16.2.2

Test Procedure

8.16.2.2.1 Device does not have Frozen Counters.


1. 2. Issue a read request for Object 21, variation 0, using the all data qualifier 0x06. Verify that the DUT responds with a null response. The device can optionally return an Error Response with IIN2-1 set. No further testing in this section is necessary.

8.16.2.2.2 Binary Counter, Freeze


1. 2. 3. 4. 5. 6. Issue a freeze to Object 20 Variation 0 using function code 0x07 and the all data qualifier 0x06. Verify that the DUT responds with a Null Response. Issue a read request for Object 21, variation 0, using the all data qualifier 0x06. Verify that the DUT responds with a Frozen Binary Counter Object 21 Variation 1, 2, 9, or 10. Record the values for future reference. Generate counter data. Page 65 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 2

7. 8. 9. 10. 11. 12. 13. 14. 15. 16.

Issue a read request for Object 21 Variation 0, using the all data qualifier 0x06. Verify that the DUT responds with a Frozen Binary Counter Object 21 Variation 1, 2, 9, or 10. Verify that the data is reported using 8 bit start/stop indexing (qualifier 0x00) or 16 bit start/stop indexing (qualifier 0x01) Verify that flag behavior complies with Section 2, Note #5. Verify that the reported values match the values recorded previously. Issue a freeze counter command to Object 20 Variation 0 using function code 0x07 and the all data qualifier 0x06. Verify that the DUT responds with a Null Response. Issue a read request for object 21 Variation 0, using the all data qualifier 0x06. Verify that the DUT responds with a Frozen Binary Counter Object 21 Variation 1, 2, 9, or 10. Verify that the reported values match the values recorded previously plus the counts generated in step 6.

8.16.2.2.3 Binary Counter, Freeze And Clear


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. Generate counter data. Issue a freeze and clear to Object 20 Variation 0 using function code 0x09 and the all data qualifier 0x06. Verify that the DUT responds with a Null Response. Issue a read request for Object 21, variation 0, using the all data qualifier 0x06. Verify that the DUT responds with a Frozen Binary Counter Object 21 Variation 1, 2, 9, or 10. Verify that the values returned are non zero. Verify that the data is reported using 8 bit start/stop indexing (qualifier 0x00) or 16 bit start/stop indexing (qualifier 0x01) Verify that flag behavior complies with Section 2, Note #5. Issue a freeze and clear counter command to Object 20 Variation 0 using function code 0x09 using the all data qualifier 0x06. Verify that the DUT responds with a Null Response. Issue a read request for object 21 Variation 0, using the all data qualifier 0x06. Verify that the DUT responds with a Frozen Binary Counter Object 21 Variation 1, 2, 9, or 10. Verify that the reported values are all zero.

8.16.2.2.4 Binary Counter, Freeze, No Acknowledge


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. Issue a freeze to Object 20 Variation 0 using function code 0x08 and the all data qualifier 0x06. Verify that the DUT does not respond. Issue a read request for Object 21, variation 0, using the all data qualifier 0x06. Verify that the DUT responds with a Frozen Binary Counter Object 21 Variation 1, 2, 9, or 10. Record the values for future reference. Generate counter data. Issue a read request for Object 21 Variation 0, using the all data qualifier 0x06. Verify that the DUT responds with a Frozen Binary Counter Object 21 Variation 1, 2, 9, or 10. Verify that the reported values match the values recorded previously. Verify that the data is reported using 8 bit start/stop indexing (qualifier 0x00) or 16 bit start/stop indexing (qualifier 0x01) Verify that flag behavior complies with Section 2, Note #5. Issue a freeze counter command to Object 20 Variation 0 using function code 0x08 using the all data qualifier 0x06. Verify that the DUT does not respond. Issue a read request for object 21 Variation 0, using the all data qualifier 0x06. Verify that the DUT responds with a Frozen Binary Counter Object 21 Variation 1, 2, 9, or 10. Verify that the reported values match the values recorded previously plus the counts generated in step 6.

8.16.2.2.5 Binary Counter, Freeze And Clear, No Acknowledge


1. 2. 3. 4. 5. Generate counter data. Issue a freeze and clear to Object 20 Variation 0 using function code 0x0A and the all data qualifier 0x06. Verify that the DUT does not respond. Issue a read request for Object 21, variation 0, using the all data qualifier 0x06. Verify that the DUT responds with a Frozen Binary Counter Object 21 Variation 1, 2, 9, or 10.

Page 66 Rev 2.1 5-July-01

DNP3-2001 IED Cer

6. 7. 8. 9. 10. 11. 12. 13.

Verify that the data is reported using 8 bit start/stop indexing (qualifier 0x00) or 16 bit start/stop indexing (qualifier 0x01) Verify that flag behavior complies with Section 2, Note #5. Verify that the values returned are non zero. Issue a freeze counter command to Object 20 Variation 0 using function code 0x08 and the all data qualifier 0x06. Verify that the DUT does not respond. Issue a read request for object 21 Variation 0, using the all data qualifier 0x06. Verify that the DUT responds with a Frozen Binary Counter Object 21 Variation 1, 2, 9, or 10. Verify that the reported values are all zero.

8.17 Binary Counters, Event


Binary Counter Change Event represents a counter value that has changed since it was last reported. This value can be accumulated transitions from a hardware or software point. Any device that generates more than one link layer frame in response to a Class 0 Poll must support report-byexception on all points. It is highly recommended that devices perform report by exception processing internally and respond to class polls with event data as defined in section 3.4. This allows efficient use of bandwidth. When no events are pending the device responds with the Null Response.

8.17.1 Desired Behavior


The device must respond with all of its Binary Counter Change Events when polled with the all data qualifier 0x06. If the device does not support Binary Counter Events it must respond to a request with a null response and no further testing in this section is necessary. When polled with the limit data qualifier 0x07 or 0x08, the device must respond with a quantity of its binary counter change events no greater than specified in the request. The device must clear all of its Binary Counter Change Events only when an application confirm is received from the master. All event requests in this section are to be followed by a confirm message to the device unless otherwise indicated.

8.17.2 Test Procedure 8.17.2.1


1. 2. 3.

Device does not support Binary Counter Events

Issue a request for Object 22 Variation 0 using the all data qualifier 0x06. Verify that if the DUT does have binary counter inputs and it responds to a Class 0 poll with more than one link layer frame it also performs report-by exception processing. If the DUT does not support Binary Counter Events, verify that it responds with a Null Response. No further testing is required in this section.

8.17.2.2
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13.

Binary Counters, Event, 0x06

Issue a request for Object 22 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm. Issue an application layer confirm if requested to empty the device of pending events. Issue a request for Object 22 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a Null Response. Generate some Counter Change Events. Issue a request for Object 22 Variation 0 using the all data qualifier 0x06. Verify that the device responds with all of the events in a single response. Verify that the device requests an application layer confirm. Verify that only Object 22, Variations 1 and/or 2 are returned. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28) Verify that flag behavior complies with Section 2, Note #5. Record the values for future reference. Page 67 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 2

14. Generate additional Counter Change Events. 15. Issue a request for Object 22 Variation 0 using the all data qualifier 0x06. 16. Verify that the reported values match the values recorded previously plus the counts generated in step 14.

8.17.2.3
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15.

Binary Counters, Event, 0x07

Issue a request for Object 22 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm Issue an application layer confirm if requested to empty the device of pending events. Generate several Binary Counter Change Events. Issue a request for Object 22 Variation 0 using the limit data qualifier 0x07 requesting some changes. Verify that the device responds with the requested Binary Counter Change Events in a single response. Verify that the device requests an application layer confirm. Verify that only Object 22, Variations 1 and/or 2 are returned. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Issue a request for Object 22 Variation 0 using the limit data qualifier 0x07 requesting the remaining changes. Verify that the device responds with the remaining Binary Counter Change Events. Verify that the device requests an application layer confirm. Issue a request for Object 22 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.17.2.4
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15.

Binary Counters, Event, 0x08

Issue a request for Object 22 Variation 0 using the all data qualifier 0x06 to empty the device of pending events. Verify that the device requests an application layer confirm Issue an application layer confirm if requested to empty the device of pending events. Generate several Binary Counter Change Events. Issue a request for Object 22 Variation 0 using the limit data qualifier 0x08 requesting some changes. Verify that the device responds with the requested Binary Counter Change Events in a single response. Verify that the device requests an application layer confirm. Verify that only Object 22, Variations 1 and/or 2 are returned. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Issue a request for Object 22 Variation 0 using the limit data qualifier 0x08 requesting the remaining changes. Verify that the device responds with the remaining Binary Counter Change Events. Verify that the device requests an application layer confirm. Issue a request for Object 22 Variation 0 using the all data qualifier 0x06. Verify that the device responds with a Null Response.

8.17.2.5
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13.

Binary Counters, Event Without Confirm

Issue a request for Object 22 Variation 0 using the all data qualifier 0x06. Verify that the device requests an application layer confirm. Issue an application layer confirm to empty the device of pending events. Generate Binary Counter Change Events. Issue a request for Object 22 Variation 0 using the all data qualifier 0x06. Verify that the device responds with all the event data generated in a single response. Verify that the device requests an application layer confirm. Do not issue an application layer confirm to the device. Wait for a period of time exceeding several of the Application Layer retry delays, if one exists. Verify that the device has not retransmitted the previous Application Layer fragment. Generate additional Binary Counter Change Events including some on points not previously stimulated if possible. Issue a request for Object 22 Variation 0 using the all data qualifier 0x06. Verify that the device responds with Object 22 Variation 1 or 2, with a value representing the current state of the input(s) applied in step 11.

Page 68 Rev 2.1 5-July-01

DNP3-2001 IED Cer

14. Optionally, the device can report the previous state of the input applied in step 4 followed by a value representing the current state of the input applied in step 11. 15. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). 16. Verify that flag behavior complies with Section 2, Note #5. 17. Verify that the device requests an application layer confirm. 18. Issue an application layer confirm to empty the device of pending events. 19. Issue a request for Object 22 Variation 0 using the all data qualifier 0x06. 20. Verify that the device responds with a Null Response.

8.18 Analog Input


This is an object used to represent a hardware or software analog input. It can be a 16-bit or 32-bit value. The response could contain Object 30 Variations 1, 2, 3 or 4.

8.18.1 Desired Behavior


The device must respond with all of its analog input data when polled with Object 30 Variation 0 and the all data qualifier 0x06. If the device does not support analog inputs it must respond with a null response and no further testing in this section is necessary. Optionally, the device can respond with an Error Response with IIN2-1 set.

8.18.2 Test Procedure 8.18.2.1


1. 2. 3.

Device does not have Analog Inputs

Issue a request for Object 30 Variation 0 using the all data qualifier 0x06. Verify that it responds with a null response. Optionally, the device can set IIN2-1. No further testing is required in this section.

8.18.2.2
1. 2. 3. 4.

Device has Analog Inputs

Input analog data. Issue a request for Object 30 Variation 0 using the all data qualifier 0x06. Verify that the device responds with Object 30 Variation 1-4, Qualifier 0x00, or 0x01 along with a value representing the analog input applied in step 1. Verify that the device correctly reports that value for various analog inputs.

8.19 Analog Change Event


The analog input change object is used to represent a hardware or software analog point. It will only be reported if the current value and the last reported value differ by a deadband value, which is usually configurable. For all the tests in this section the analog deadband shall be set to a reasonable value. Any device that generates more than one link layer frame in response to a Class 0 Poll must support report-byexception on all points. It is highly recommended that devices perform report by exception processing internally and respond to class polls with event data as defined in section 3.4. This allows efficient use of bandwidth. When no events are pending the device responds with the Null Response.

8.19.1 Desired Behavior


The device must respond with all of its Analog Input Change Events when polled with the all data qualifier 0x06. If the device does not support Analog Input Change Events it must respond to a request with a null response. The device must respond with Object 32 Variation 1 or 2 only if an event has occurred. If the current and previous reported values do not differ within the defined deadband, the device must respond with a null response. The device must clear all of its analog change events only when an application confirm is received from the master. Page 69 Rev 2.1 5-July-01

DNP3-2001 IED Certification Procedure Subset Level 2

All event requests in this section are to be followed by a confirm message to the device unless otherwise indicated.

8.19.2 Test Procedure 8.19.2.1


1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14.

Analog Input Change

Issue a request for Object 32 Variation 0, using the all data qualifier 0x06. Verify that if the DUT does have analog inputs and it responds to a Class 0 poll with more than one link layer frame it also performs report-by exception processing. If the device does not support analog inputs verify that the device responds with a null response. No further testing is required in this section. Generate a stable analog input to the device. Issue a request for Object 32 Variation 0, using the all data qualifier 0x06. Verify that the device responds with Object 32 Variation 1 or 2, with the value representing the input applied in step 4. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Issue a request for Object 32 Variation 0, using the all data qualifier 0x06. Verify that the device responds with a null response. Increase or decrease the analog input applied in step 3 greater than the configured deadband. Issue a request for Object 32 Variation 0, using the all data qualifier 0x06. Verify that the device responds with Object 32 Variation 1 or 2, with the value representing the new input from step 11.

8.19.2.2
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16.

Analog Input Change, Without Confirm

Generate a stable analog input to the device that exceeds the current input value by the configured deadband value (e.g. cause an event to be generated). Issue a request for Object 32 Variation 0, using the all data qualifier. Verify that the device responds with Object 32 Variation 1 or 2, with the value representing the input applied in step 1. Verify that the data is reported using 8 bit indexing (qualifier 0x17) or 16 bit indexing (qualifier 0x28). Verify that flag behavior complies with Section 2, Note #5. Verify that the device requests an application layer confirm. Wait for a period of time exceeding several of the Application Layer retry delays, if one exists. Verify that the device has not retransmitted the previous Application Layer fragment. Increase or decrease the analog input applied in step 1. Issue a request for Object 32 Variation 0, using the all data qualifier 0x06. Verify that the device responds with Object 32 Variation 1 or 2, with a value representing the current state of the input applied in step 9. Optionally, the device can report the previous state of the input applied in step 1 followed by a value representing the current state of the input applied in step 9. Verify that the device requests an application layer confirm. Issue an application layer confirm. Issue a request for Object 32 Variation 0, using the all data qualifier 0x06. Verify that the device responds with a null response.

8.20 Multiple Read Requests


8.20.1 Desired Behavior
The DUT must respond to read requests for multiple object types

Page 70 Rev 2.1 5-July-01

DNP3-2001 IED Cer

8.20.2 Test Procedure


1. 2. 3. 4. Issue a request containing one of each supported object type listed in the implementation table within a single frame. Issue the event requests before the requests for static objects. Verify that the DUT response has none of IIN2-x set. Verify the validity of the returned object type data. Note that the DUT may not return event objects if they are not present. Verify data objects are returned in the order requested.

DNP3-2001 IED Certification Procedure Subset Level 2

Page 71 Rev 2.1 5-July-01

9 Appendix A DNP Reference Sheets QUICK REFERENCE FOR DNP DATA LINK CONTROL FIELD
Definitions: MSB 1 DIR PRM 0 0 7 DIR PRM FCB FCV DFC Function Codes: Primary Frames (PRM=1) Fn Code 0 1 2 3 4 9 Function RESET link Reset User Process TEST link User Data User Data Request Link Status Frame Type SEND/CONFIRM SEND/CONFIRM SEND/CONFIRM SEND/CONFIRM SEND/NO REPLY REQUEST/RESPOND FCV 0 0 1 1 0 0 6 5 DFC 4 3 2 1 0 Secondary FCB FCV FUNCTION CODE LSB Primary

1 = Master, 0 = Remote 1 = Data Link Request, 0 = Data Link Response Frame Count Bit, alternates 1 and 0 Frame Count Valid; 1 = valid, 0 = invalid Data Flow Control; 1 = no buffers left

Secondary Frames (PRM = 0) Fn Code 0 1 11 Function ACK NACK Link Status Frame Type CONFIRM CONFIRM RESPOND

Page 72 Rev 2.1 5-July-01

DNP3-2001 IED Cer

QUICK REFERENCE FOR DNP DATA LINK CONTROL FIELD


List of Valid Control Field values by hex value; most common in bold:

From Remote 00 01 0B 10 11 1B 40 41 44 49 52 53 60 61 64 69 72 73

From Master 80 81 8B 90 91 9B C0 C1 C4 C9 D2 D3 E0 E1 E4 E9 F2 F3

Function ACK NACK Link Status Reply ACK NACK Link Status Reply RESET LINK Reset User Process Unconfirmed User Data Link Status Request Test Link Confirmed User Data RESET LINK Reset User Process Unconfirmed User Data Link Status Request Test Link Confirmed User Data

Other

Failed transaction No flow Control Frame accepted, no more buffers left Frame not accepted, no buffers available No buffers available

FCB = 0 FCB = 0 FCB = 1 ignored FCB = 1 ignored FCB = 1 ignored FCB = 1 ignored FCB = 1 FCB = 1

Frame Header: Byte Name 1 05 2 64 3 LEN 4 CTRL 5 DEST 6 7 8 9 CRC 10 11 TH

SOURCE

Transport Header(TH): Bit 7 = FINAL, Bit 6 = FIRST

DNP3-2001 IED Certification Procedure Subset Level 2

Page 73 Rev 2.1 5-July-01

DNP APDU

APCI
Message Header

DUI
Object Header

IO
Data

DUI
Object Header

IO
Data

Request Header Appl. Ctrl Func Code

Response Header Appl. Ctrl Func Code Internal Indication Object Group Object Variation Qualifier Range

See Data Object Library 7 7 6 5 4 3 2 1 0 0x00 Confirm 0x00 0x01 Read 0x81 0x02 Write 0x82 0x03 Select 0x04 Operate 0x05 Direct Operate 0x06 Direct Op, No Ack 0x07 Immediate Freeze 0x08 Immediate Freeze No Ack 0x09 Freeze and Clear 0x0A Freeze and Clear No Ack 0x0B Freeze with Time 0x0C Freeze with Time No Ack 0x0D Cold Restart 0x0E Warm Restart 0x0F Init Data to Defaults 0x10 Initialize Application 0x11 Start Application 0x12 Stop Application 0x13 Save Configuration 0x14 Enable Unsolicited Msgs 0x15 Disable Unsolicited Msgs 0x16 Assign Class 0x17 Delay Measurement Confirm Response Unsolicited Response 6 5 4 3 2 1 0

Depends on Qualifier Code

FIRST OCTET
7 6 5 4 3 2 1 0

CONFIRM

UNSOLICITED

FIRST

FINAL

SEQUENCE

DEV. TROUBLE

LOCAL

ALL STATIONS

NEED TIME

CLASS 3

CLASS 2

RESTART

CLASS 1

INDEX SIZE
0 No Index, Packed 1 1 Octet Index 2 2 Octet Index 3 4 Octet Index 4 1 Octet Object Size 5 2 Octet Object Size 6 4 Octet Object Size

QUALIFIER CODE 0 8-Bit Start and Stop Indices 1 16-Bit Start and Stop Indices 2 32-Bit Start and Stop Indices 3 8-Bit Absolute Address Identifers 4 16-Bit Absolute Address Identifiers 5 32-Bit Absolute Address Identifers 6 No Range Field (all) 7 8-Bit Quantity 8 16-Bit Quantity 9 32-Bit Quantity 11 (0xB) Variable Array

DNP

Distributed Network Protocol Application Protocol Data Unit Application Protocol Control Information Data Unit Identifier Information Object

APDU

SECOND OCTET
7 6 5 4 3 2 1 0

APCI

OUT OF RANGE

OBJECT UNKNOWN

BAD CONFIG

ALREADY EXEC

BUFFER OVERFLOW

BAD FUNCTION

RESERVED

RESERVED

INDEX SIZE (QUAL CODE = 11)


0 Dataless Object; No Further Indexing 1 1 Octet Index or Identifier Size 2 2 Octet Index or Identifier Size 3 4 Octet Index or Identifier Size

DUI

IO

Page 74 Rev 2.1 5-July-01
