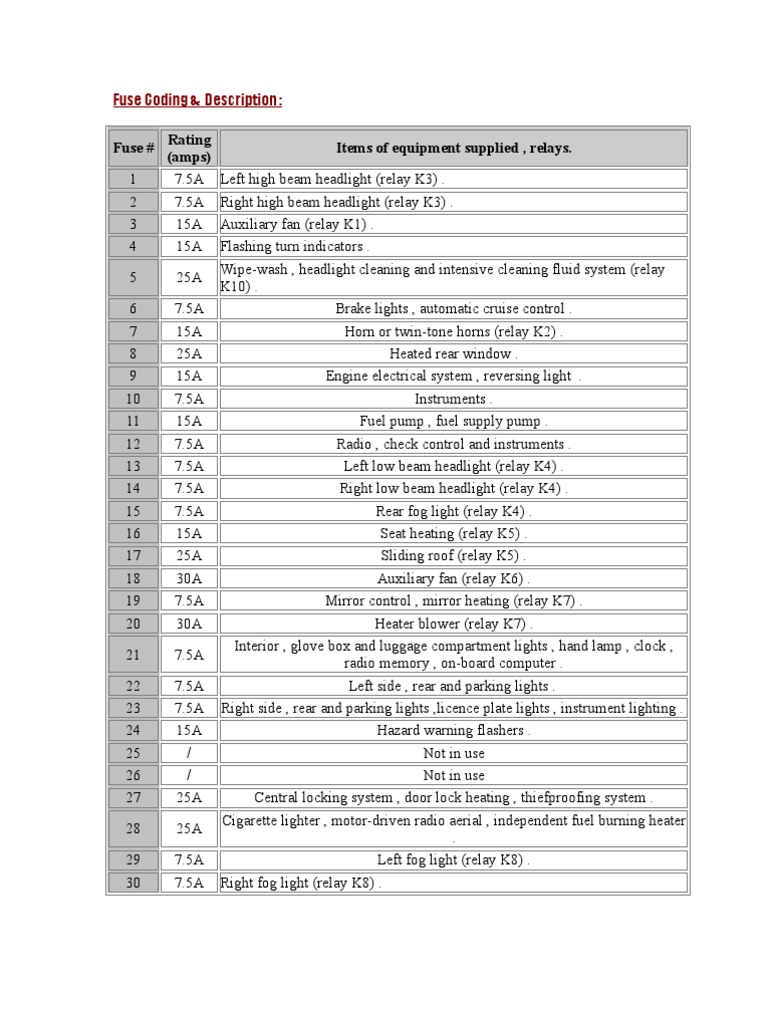

Fuse Coding & Description :

Rating
Fuse # Items of equipment supplied , relays.
(amps)
1 7.5A Left high beam headlight (relay K3) .
2 7.5A Right high beam headlight (relay K3) .
3 15A Auxiliary fan (relay K1) .
4 15A Flashing turn indicators .
Wipe-wash , headlight cleaning and intensive cleaning fluid system (relay
5 25A
K10) .
6 7.5A Brake lights , automatic cruise control .
7 15A Horn or twin-tone horns (relay K2) .
8 25A Heated rear window .
9 15A Engine electrical system , reversing light .
10 7.5A Instruments .
11 15A Fuel pump , fuel supply pump .
12 7.5A Radio , check control and instruments .
13 7.5A Left low beam headlight (relay K4) .
14 7.5A Right low beam headlight (relay K4) .
15 7.5A Rear fog light (relay K4) .
16 15A Seat heating (relay K5) .
17 25A Sliding roof (relay K5) .
18 30A Auxiliary fan (relay K6) .
19 7.5A Mirror control , mirror heating (relay K7) .
20 30A Heater blower (relay K7) .
Interior , glove box and luggage compartment lights , hand lamp , clock ,
21 7.5A
radio memory , on-board computer .
22 7.5A Left side , rear and parking lights .
23 7.5A Right side , rear and parking lights ,licence plate lights , instrument lighting .
24 15A Hazard warning flashers .
25 / Not in use
26 / Not in use
27 25A Central locking system , door lock heating , thiefproofing system .
Cigarette lighter , motor-driven radio aerial , independent fuel burning heater
28 25A
.
29 7.5A Left fog light (relay K8) .
30 7.5A Right fog light (relay K8) .
