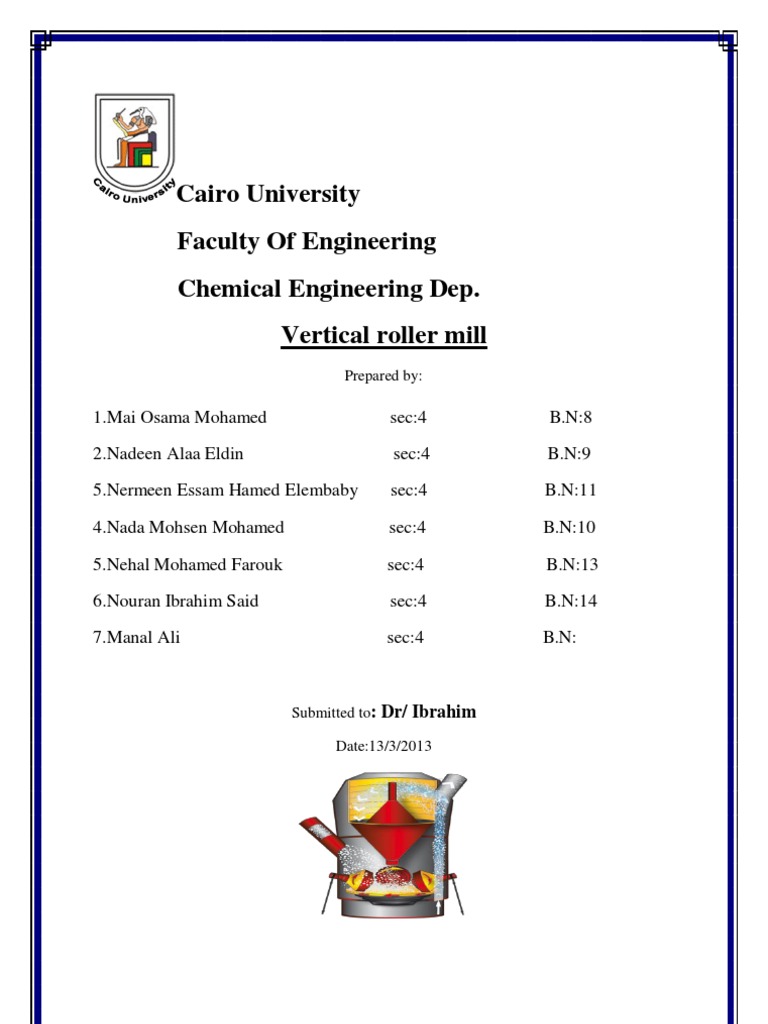

Cairo University Faculty Of Engineering Chemical Engineering Dep.

Vertical roller mill

Prepared by:

1.Mai Osama Mohamed 2.Nadeen Alaa Eldin 5.Nermeen Essam Hamed Elembaby 4.Nada Mohsen Mohamed 5.Nehal Mohamed Farouk 6.Nouran Ibrahim Said 7.Manal Ali

sec:4 sec:4 sec:4 sec:4 sec:4 sec:4 sec:4

B.N:8 B.N:9 B.N:11 B.N:10 B.N:13 B.N:14 B.N:

Submitted to: Dr/ Ibrahim Date:13/3/2013

Table of contents:
Abstract Introduction Basic principles and theory of operation of the equipment. Detailed description of the equipment. Equations governing the variables of interest. Famous manufacturers of the equipment. Approximate cost of equipment (the cost of equipment is a function of capacity, size, material of construction and other things). A statement of summary. References

Abstract
Vertical roller mill (grinding mill) is a kind of crushing equipment featuring high-efficient and energy-saving. And Vertical roller mill(grinding mill) have integrated the crushing and grading into a single whole , which have satisfied the various requirements of the customers and materials. And at the same time, which have been categorized as the new & high energysaving products in the eight fifth period by the national cement development center.

Introduction:
Vertical mill is one advanced mill, adopting top technology domestic and abroad, and based on many years mill experiences. It can crush, dry, grind, and classify the materials. Vertical milling machine can be widely used in such industries as cement, power, metallurgy, chemical industry, non-metallic mineral. It is used to grind granular and powdered materials into powder with required fineness.

Working Principle of vertical roller mill

During the operation, the motor will drive the plate to rotate by the reducer and then the materials will fall down on the central place of the plate from the inlet by the air-locking feeder .While at the same time ,the hot air will enter the grinder from the air inlet. With the rotation of the plate, the materials will move to the edge of the plate by the centrifugal force and the materials will received the pressure from the roller and be crushed when it passes the circle ring sink on the plate. The crushed materials will be brought away by the high speed air and the big size will fall down on the plate and be reground. And the coarse powder will fall down from the cone hopper and then repeat this kind of process when a material in the air stream passes the upper separator by the effect of the rotors. And during the process ,the fine powder will flow out with the air stream .By the dust catcher ,the final products will be collected .The materials with moisture will be dry when it contact with the hot air stream. By adjusting the temperature of the hot air, we can satisfy materials with various moisture degrees, thus achieving the required products moisture. By the separator, we can also achieve the required coarse and fine degree of the products. In the inner face of the vertical roller mill, the high-pressure spring with more than 1000-1500 kilograms pressure have been fastened on the roller hangers. And during the operation, the grinding roller will rotate with the main axis and rotate next to the grinding ring under the high-pressure spring and eccentric force. And the pressure is higher 1.2 times over than the Raymond mill under the same dynamic conditions so that the production have been greatly improved .And when the grinding materials enter the cavity, the shovel will transmit them in to the space between the roller and rings to receive the grinding .And after the grinding ,the powder will be brought to the analyzer along with the circular airway of the air blower .And the standard fine powder will enter the cyclone classifier with the airstream to become the final products .While the large particle size materials will fall down to receive the regrinding .And then the circular wind will return to the blower to repeat the above process and then the after wind will enter the bag dust-catcher to receive the purifying .And when the roller and the ring have received certain grinding degree ,we can adjust the length of the high-pressure spring to maintain the stable grinding pressure between the roller and ring ,which can ensure the stable production.

Vertical Roller Mill (theory)

LM series vertical roller mill is an ideal equipment which have integrated the crushing, dry, powder grinding, and graded deliver into a single whole .And it can be used to crush the lump, particle and powder raw materials to the required powder materials .And now LM series vertical roller mill has found its extensive application in the field of Cement, electric power, metallurgy, chemical industry, non-metallic mineral, etc. Based on the world pre-crushing technology , this kind of LM series vertical roller mill with

high-efficiency is developed by the advantages of the combination of grinding roller ,vertical roller mill, impact and cone crusher .And this kind of mill have push forward our human to a new era ! The vertical roller mill are mainly applied to crush the barite, limestone, ceramic, slag with the Mohs hardness of less than 9.3 degree and the super thin powder process of over 280 materials in the non-flame and explosive field of mining, and metallurgy with the moisture of lower than 6%.

Detailed description of the equipment:

The motor dives the grinding table to turn through the speed reducer. At the same time, hot air comes into the roller mill from the air inlet. The materials fall down the center of grinding table from the feeder. Because of the centrifugal force, the materials move to the edge of grinding table from the center. The materials are crushed by the grinding roller when they passes the groove on the grinding table. The crusher materials continue to move to the edge of the grinding table until they are taken away by the airstream. Then the bigger materials fall down the grinding table and the process of crushing continues. When the materials in the airstream pass the separator on the top of the mill, the materials fall down the grinding table from the taper filler under the force of guide leaf blade. The fine powder comes out with the airstream, and is gathered by the dust catcher of the system. The powder gathered is the final product of roller mill. In the process of the contact of airstream, the materials are dried to meet the clients need at th e proper moisture. Through the adjustment of the angle between the separator and the leaf of winds direction (not suitable to the small type of vertical mill), and also the speed of the separator rotor, it can reach the proper fineness of the materials.

The Equations

F AMOUS MANUFACTURERS VERTICAL OF ROLLED MILL Factory no.1:

SWECO SWECO has 13 manufacturing facilities and over 100 service offices surrounding the globe. Also maintains manufacturing facilities in Macon, GA, Tulsa, OK, Belgium, Scotland, Italy, Poland, Spain, India, China and Singapore, a joint-venture in Mexico, and a licensee in Australia. With this type of global commitment, you can be assured that SWECO will provide you with the best service in the industry . . . no matter where you are located

Factory no.2:
CNBM INTERNATIONAL ENGINEERING C O., L TD . Vertical Roller Mill, the hi-tech equipment developed by CNBM on basis of combining foreign advanced technology with its own research and design experience in past 20 years, is a grinding machine with drying capability featured by high efficiency and energy-saving. Its main technical and economic indexes have reached the advanced international level. In building material Industry in 1996 and was named as Top Brand Product of China Building Material Machinery Industry in 2006. Since 1990, it has been applied to grinding materials as limestone, raw coal. Slag, gypsum, pyrauxite, calcite and quartz, etc., in various industries such as cement, iron and steel, power, chemical and non-ferrous. And it has been sold to countries as Pakistan, India. Vietnam. Indonesia Egypt, Algeria, Turkey etc.

Factory no.3:

Our company is professional manufacturer of vertical roller mill and other crushing powder making equipments. It is a major production and export base of sand-stone and powder making machinery in China.

COSTS OF EQUIPMENT AND CIVIL WORKS

The total specific costs associated with a new mill system can be broken into the following sections: 1. Equipment 2. Civil works 3. Erection

It should be noted that grinding media make up around 40% of the weight of equipment procured and erected for the ball mill system, which explains why the unit cost for equipment and erection is significantly higher for the vertical roller mill system than for the ball mill system. Specific price for civil works:

Since erection prices and price for civil work show large regional variations it is not possible to make a globally applicable comparison of total prices. However, to give an example of the relative total prices below has been prepared on a basis of European prices for equipment, erection as well as civil works.

The summary
1)

Theory & description of operation of the equipment

**Ideal equipment which have integrated the crushing dry powder, grinding, and graded deliver into a single whole **Extensive application in the field of Cement, electric power, metallurgy, chemical industry, non-metallic mineral, etc. **The motor will drive the plate to rotate, then the materials will fall down on the central place of the plate. The materials will move to the edge of the plate by the centrifugal force and the materials will received the pressure from the roller and be crushed when it passes the circle ring sink on the plate. The crushed materials will be brought away by the high speed air and the big size will fall down on the plate and be reground.

2)

Description of the equipment

Rotary table Grinding rollers Silt grooves Annular crushing portion

3)

F AMOUS MANUFACTURERS VERTICAL OF ROLLED MILL

SWECO CNBM INTERNATIONAL ENGINEERING CO, LTD SBM mining and construction machinery

4)

COSTS OF EQUIPMENT AND CIVIL WORKS

Compression between VRM &BM

References
http://www.verticalrollermill3.com/working-principle.html http://www.verticalrollermill3.com/index.html http://www.chinagrindingmill.com/pdf/vertical-roller-mill-pdf.pdf http://www.scribd.com/doc/99018302/Optimization-of-Vertical-Raw-Mill-Operation https://docs.google.com/viewer?a=v&q=cache:q0xu6Oo6oSIJ:www.rucem.ru/yabbfiles/Attachment s/Cementgrinding.pdf+the+cost+of+Vertical+roller+mill&hl=en&gl=eg&pid=bl&srcid=ADGEESgMD1t YON_npQ2sHHL7H9XuvO5l0SuKksgH92MM3-unVb3qmT8Sro9-mhNlfEa60T9HlydyFYFVSqbzA8IFoKW1dyGjYxHtUSX70bJFV6stfUAv1A_sXZbjg9aiUYA1yuZj5l&sig=AHIEtbSKtzoHEBKCiDECmADtyqeqdgw5vA
