Quotation

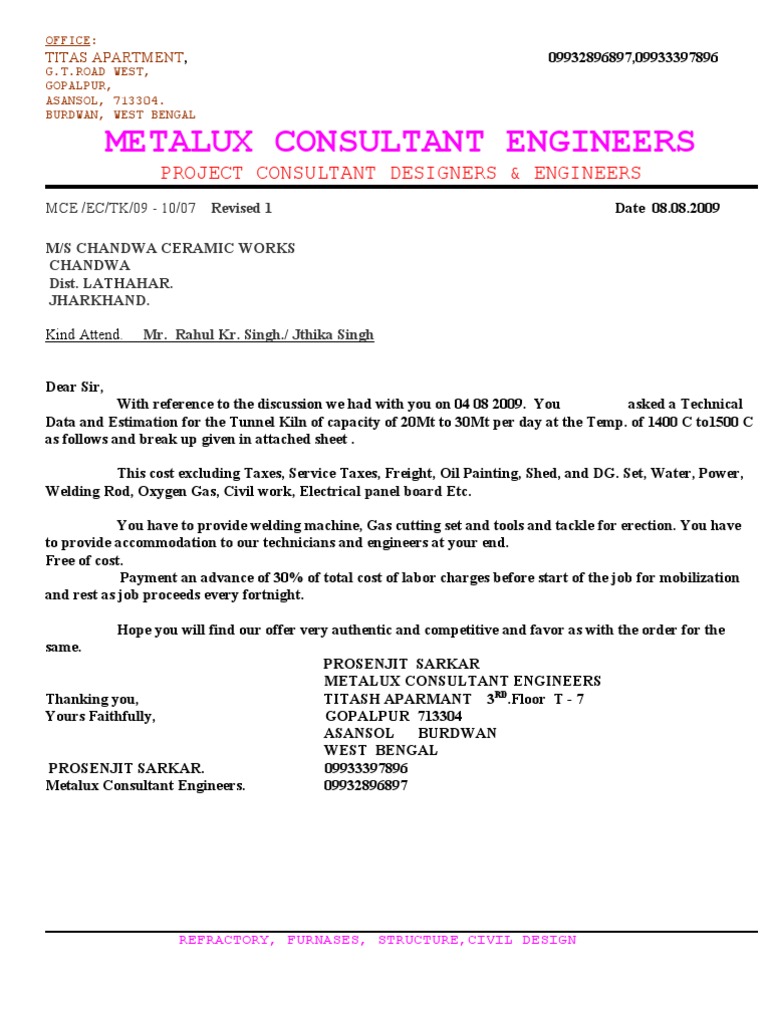

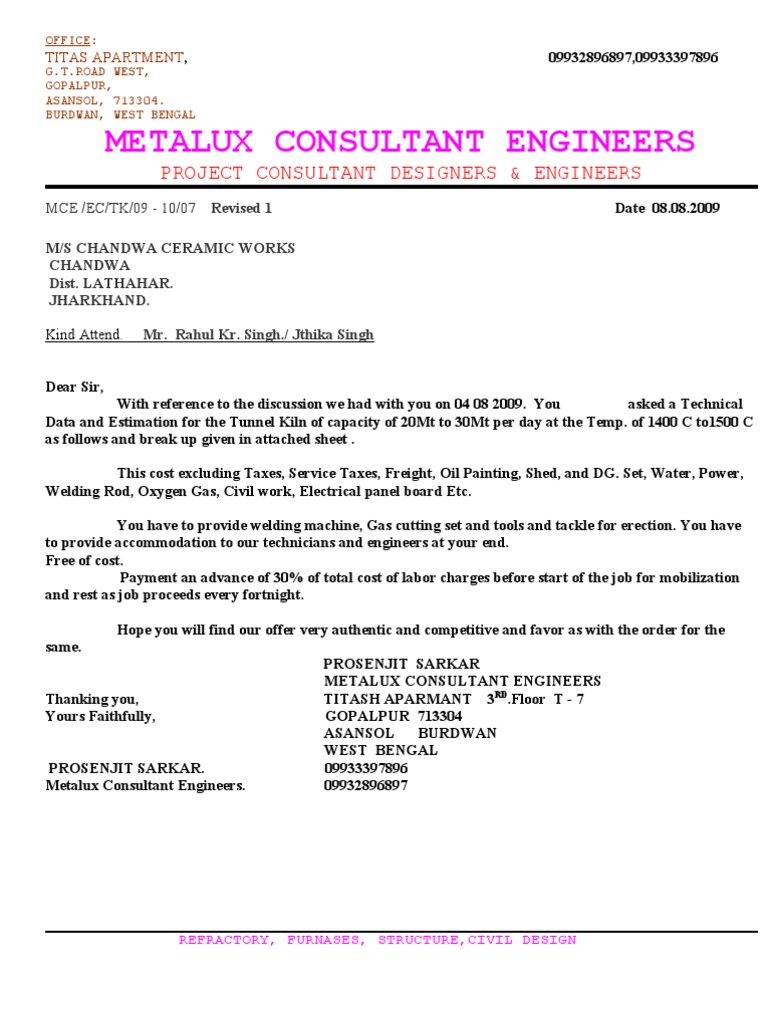

OFFICE:
TITAS APARTMENT, 09932896897,09933397896

G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.
BURDWAN, WEST BENGAL
METALUX CONSULTANT ENGINEERS

PROJECT CONSULTANT DESIGNERS & ENGINEERS
MCE /EC/TK/09 - 10/07 Revised 1 Date 08.08.2009
M/S CHANDWA CERAMIC WORKS

CHANDWA
Dist. LATHAHAR.
JHARKHAND.
Kind Attend. Mr. Rahul Kr. Singh./ Jthika Singh
Dear Sir,
With reference to the discussion we had with you on 04 08 2009. You asked a Technical
Data and Estimation for the Tunnel Kiln of capacity of 20Mt to 30Mt per day at the Temp. of 1400 C to1500 C
as follows and break up given in attached sheet .
This cost excluding Taxes, Service Taxes, Freight, Oil Painting, Shed, and DG. Set, Water, Power,
Welding Rod, Oxygen Gas, Civil work, Electrical panel board Etc.
You have to provide welding machine, Gas cutting set and tools and tackle for erection. You have
to provide accommodation to our technicians and engineers at your end.
Free of cost.
Payment an advance of 30% of total cost of labor charges before start of the job for mobilization
and rest as job proceeds every fortnight.
Hope you will find our offer very authentic and competitive and favor as with the order for the
same.
PROSENJIT SARKAR
Thanking you, TITASH APARMANT 3RD.Floor T - 7
Yours Faithfully, GOPALPUR 713304
ASANSOL BURDWAN
WEST BENGAL
PROSENJIT SARKAR. 09933397896
Metalux Consultant Engineers. 09932896897
REFRACTORY, FURNASES, STRUCTURE,CIVIL DESIGN

OFFICE:
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

TECHNICAL SPECIFICATION
TUNNEL KILN
CAPACITY 20 to 30 MT. PER DAY
Length of the kiln :- 51.000mtr. 30 kiln car
Pre Heating Zone :- 22.100mtr. 13 kiln car
Cooling Zone :- 18.700mtr. 11 kiln car
Firing Zone :- 10.200mtr. 06 kiln car
Dryer length :- 18.000mtr. 10 kiln car
Total Kiln Car required :- 75Nos.
Area required :- 60mtr. length x 20mtr. width x 7mtr. height.
Burner required :- 08 burners. 04 burners each side. F. Oil

08 burners 04 burners each side. Gas burner
Temperature :- 1450°C
The constructional aspects of a high temperature Tunnel Kiln suitable

for producing pilot scale for firing all sort of Refractory, High Alumina ceramics.
The kiln is an open flame gas fired kiln. Side fired into gaps to fire high grade
refractory around 1450°C / 1500°C.
The kiln has a length of approximately 51.000mtr. with an out put 20mt.
to 30mt. Per day.

OFFICE:
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

1. Definition periodic pushing type continuous Tunnel

Kiln with out under ground Tunnel.
2. Working Temp Continuous Operative Temp. 1450 Deg. C

Maximum achievable Temp. 1500 Deg. C
3. Capacity 20MT to 30MT per day (600 to 900 MT

per month )
4. Kiln Dimension (a) Length = 51.000mtr.

(inside) (b) Width = 1.2mtr.
(c) Height = 2.25mtr. from floor
1.11mrt. firing zone
5. Kill Dimension (a) Length = 51.000mtr.

(Outside) (b) Width = PHZ & CZ = 2.831mtr.
FZ = 3.290mtr.
(c) Height = 2.900mtr.
6. Car Dimension (a) Chassis = 1700 x 1120mtr.

(b) Refractory = 1680 x 1160mrt.

OFFICE:
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

7. Loading Density Solid Bricks of 2.3 to 2.4 BD

2.2 to 2.5mt depending on shapes
I Insulation Bricks can also be fired.
8. Pushing (a) Periodic pushing

(b) Mechanical pusher
(c) Variable rate of pushing 10 car to 16 cars / day.
9. No. of Burners 08 on each side Furnace Burners and gas

16 burners in total.
10. Type of Burner Low pressure air atomization burner1500°C

capacity 12lt.
11. Approx F Oil Consumption 2.6 ltrs. at 1500° temp.

2.1 ltrs. at 1450°C
1.8 ltrs. at 1400°C
1.4 ltrs. at 1350°C
12. Approx coal consumption 4mt. to 6mt. per day depending upon coal .
13. Temperature Control with a set of 6 Thermo Couples R type

3 in firing zone, K type 2 in Preheating zone
1 in Cooling zone.

OFFICE:
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

14. Drier. Length 18mtr. Width inside 1.260, outside 2.mtr.

with 10 cars. At 120°C to 150°C
15. Space Required 60mtr. Long 20mtr. Width 7 to 8mtr Height.
16. Civil Foundation Floor area Brick soling and 3” PCC.
17. Electrical Main panel board with bass bar and control board.
18. Kiln Data. 30 effected cars in kiln, 10 car in drier
19. Firing schedule Firing cycle 70 hours.

Car 01 car at every 70mit. / 90mit.
20. Atmosphere Oxidation
21. Power load. 70 HP

OFFICE:
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

22. Combustion air Primary fan 1500cfm x 32”Swg at ambient temp.
23. Secondary air 900cfm x 14”Swg at ambient temp.
24. Exhaust Blower 6000cfm x 12”Swg at 250C temp in let.
25. Wire cooling 3200cfm x 10”Swg at 3250C temp in let.
26. Exit and Entrance 1500cfm x 6”Swg at ambient temp.
27. Track cooling 1500cfm x 6”Swg at ambient temp.

through Rat hole built under walls
at foundation level from front of
main zone to start of cooling zone
to allow passage of shop air.
If required
28. Exhaust Gas The kiln flue gas is re cycled in

drier for pre maturity of bricks
and the rest waste gas having
temp. of 60°C will go out of
the chimney.

TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

EQUIPMENT FOR TUNNEL KILN AND DRIER OF 20MT TO 30MT PER DAY
APPROX ESTIMATION OF THE PROJECT EXCEPT SHED.
1. ANNEXURE – I Iron steel for kiln structural 6,69,676 = 00
2. ANNEXURE – II Iron for pipe line 4,26,867= 00
3. ANNEXURE – III Iron for kiln car 75nos. 3,97,776= 00
4. ANNEXURE – IV Iron for transfer trolley 21,350= 00
5 ANNEXURE – V Iron for re cooperator 79,460 = 00
6 ANNEXURE – VI Bolts and Nuts 40,320 = 00
7 ANNEXURE – VII Pusher machine 1,86,645 = 00
8 ANNEXURE – VIII Winch machine 1,31,250 = 00
9 ANNEXURE – IX Items of out sourced 11,11,250 = 00
10 ANNEXURE – X Blower Equipments 4,00,000 = 00
11 ANNEXURE – XI Refractory Bricks 37,00,000 = 00
12. ANNEXURE – XII Resorver and Day tank 68,775= 00
13. ANNEXURE – XIII Burner Equipment 5,00,000 = 00
Technical Supervision, Fabrication

Refractory Laying and all other works . Except Electrical and
Civil Foundation. 14,00,000 = 00
______________
TOTAL RS. 91,33,369 = 00
All the rates may be differ as per present market price.

TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

ANNUXURE -I
IRON STEEL REQUIRED FOR KILL STRUCTURE
Sly. Description. Specific. No of piece. Weight kg.
1. ISMB 125 2.7mtr. x for buck stay 64 2246
2. ISMC 100 50mtr. x for rail sleeper 01 470
3. ISMC 150 100mtr. x for skewback 01 1500
4. MS Round 25mm 3.6mtr. x for tie rod 32 426
5. MS Pipe 38mm 10mtr. x for tie rod 01 50
6. MS Rail 30 Lbs 500mtr. x for kiln track 01 8500
7. ISA 65 x 65 x 6 50mtr. x for burner support 01 290
8. Flat 40 x 16 20mtr. x for fish plate 01 100
9. HR Sheet (1250 x 2500 x 3mm the.) for firing zone 16 1236

_____
TOTAL 14818
Iron Steel Required 6.318 MT @ 32/- Rs. 2,02,176/-

MS Rail 30 lbs 8.500 MT @ 55/- Rs. 4,67,500/-
Total Rs. 6,69,676/-

TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

ANNUXURE - II
REQUIRMENT OF MS PIPE FOR DUCKTING
Sly. Description Specific No of Piece Weight
1. MS Pipe NB 16” Diaz. 48mtr.for exhaust 01 3617
2. MS Pipe NB 12” Diaz 42mtr. for combustion 01 2061
3. MS Pipe NB 10” Diaz 48mtr. for hot air 01 1808
4. MS Pipe NB 6” Diaz 64mtr. for rapid cooling 01 1500
5. MS Pipe NB 4” Diaz 06mtr. for burner 01 90
6. MS Plat 1000 x 1000 x 16mm the for base plate 01 250
7. MS Plat 1250 x 2500 x 10mm the. For flange 02 490
8. MS Plat 1250 x 2500 x 08mm the .for flange 02 390
9. MS Plat 1250 x 2500 x 05mm the for Sq to round 04 294

________
TOTAL 10400
Pipe required 8.976 Mt.@ 42/- Rs. 3,76,992/-

MS plate 1.425 Mt @ 35/- Rs. . 49,875/-
Total Rs. 4,26,867/-

TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

ANNUXURE - III
IRON STEEL REQUIRED FOR 75 Nos. OF KILN CAR
Sly. Description Specific Nos. of Piece Weight
01. ISMC 125 1.7 150 2448
02. ISA 65 x 65 x 6 1.7 150 1479
03. ISA 65 x 65 x 6 1.2 150 1050
04. ISA 50 x 50 x 6 1.2 150 870
05. Tee 40 x 40 x 40x 6 1.2 270 450
06. Deck Plat 1.2 x 1.7 x 3mm the. 75 3603
07. Skirt Plate 1.7 x 0.15 x 5mm the 150 1501
08. Flat 65 x 12 mm the 90mtr. 01 551
______
TOTAL 11952
Iron Steel Required 6.848 tm @ 32/- Rs. 2,19,136/-

MS plate Required 5.104 tm @ 35/- Rs. 1,78,640/-
Total Rs. 3,97,776/-

OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

ANNUXURE - III
IRON STEEL REQUIRED FOR 75 Nos. OF KILN CAR
Sly. Description Specific Nos. of Piece Weight
01. ISMC 125 1.7 150 2448
02. ISA 65 x 65 x 6 1.7 150 1479
03. ISA 65 x 65 x 6 1.2 150 1050
04. ISA 50 x 50 x 6 1.2 150 870
05. Tee 40 x 40 x 40x 6 1.2 270 450
06. Deck Plat 1.2 x 1.7 x 3mm the. 75 3603
07. Skirt Plate 1.7 x 0.15 x 5mm the 150 1501
08. Flat 65 x 12 mm the 90mtr. 01 551
______
TOTAL 11952
Iron Steel Required 6.848 tm @ 32/- Rs. 2,19,136/-

MS plate Required 5.104 tm @ 35/- Rs. 1,78,640/-
Total Rs. 3,97,776/-

OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

ANNUXURE -V
STANLESS STEEL FOR RECUPERATOR
Sly. Description Specific No of Piece Weight
01. SS-304 Plate 800 x 1000 x 8mm thk. 04 204
02. MS Plate 1250 x 2500 x 5mm the 03 580
03. SS & MS combined welding rod 03 Packet
MS plate 580kg @ 40/- Rs. 20,300/-

SS plate 204kg @ 290/- Rs. 59,160/-
TOTAL Rs. 79,460/-

OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

ANNUXURE - VI
NUTS AND BOLTS AND WASHERS
Sly. Size. Qty.
01. Bolt 5/16” x 1” long full thread 35 kg
02. Bolt ½” x 1” long full thread 30kg
03. Bolt ½” x 2.1/2” long full thread 37kg
04. Bolt ½” x 6” long full thread 27kg
05. Bolt 5/8” x 2.1/2” long full thread 312kg
06. Nut 5/16” 1.5kg
07. Nut ½” 38kg
08. Nut 5/8” 110kg
09 Nut 1” 20kg
10. Washer ½” 20kg
11. Washer 5/8” 125kg
12. Washer 1” 65kg
13. Asbestos rope 5/8” 20kg

840kgs.
Nuts & bolts 840kgs @ 48/- Rs. 40,320/-
OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

ANNUXURE -VII
PUSHER MECHANICAL TYPE
Sly. Description No.
01. Cast Steel block as per drug no. mice 01 06
02. Cast Steel block as per drug no. mice 02 04
03. EN-8 Shirt as per drug no. mice 03 (at site) 05
04. Spur Gear 38T and Spur Pinion 10T drug 04 01 Set
08. Rack pinion 12T as per drug 05 08
09. Ball bearing 6006 6pcs, 6305 2pcs, and 6307 2pcs 10
10. Base frame ISMC 75 x 40 x 10mtr
11. Base support ISMB 250 x 125 x 10mtr
12. Gear Box 1:40 radicand U 500 01
13 Motor 1HP 1440 RPM 01
14. Tier coupling 8” 01
Amount Approx Rs. 1,86,645/-
OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

ANNUXURE _VIII
WINCH MOTORISED
Sly. Description nos.
01. C.I V-Pulley big as drug mice 11 01
02. C.I. V-Pulley small as drug mice 11 01
03. Spur Gear 60T and spur pinion 20t drug 9 02 set
04. Bearing Block SN 512 08
05. Bearing 22212 K 08
06. V – Belt 02
07. MS Feb Drum 01
08. Spur Gear 78T and spur pinion 16T drug 9 02set
09. Motor 1HP 960 RPM 01
10. Wire Rope 5/8” with clamp 45mtr
OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

ANNUXURE – IX
ITEM TO BE OUT SOURCED
Sly. Description nos. RS.
FOR CAR AND TRANSFER TROLLEY WHEEL
01. C.I. Wheel 316 2,84,400
02. C.I. Bearing cover with hole and with out hole 632 56,700
03. Rail clamp 200 4,400
04. Cir-clip for 6307 bearing A35 350 3,000
05. Bearing 6307 re- conditioned 650 45,000
06. Ceramics Blanket 1260 C .96den 25mmthk 15 rolls 18,750
07. Civil foundation, Equipment foundation etc. 1,50,000
08. EN-8 Shaft for kiln car as per drg. 156 1,94,000
ELECTRICAL
1. Electrical spare parts, switch, indicator etc.

2. Panel board, desk control
3. Electrical cables and earthling, lightning 3,25,000
01. Thermocouple R-type, K-type 4 Sets. 80,000

02. Welding rods, Gases 1,00,000
OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

ANNUXURE X
BLOWER EQUIPMENTS
Kolkata local company make
1 Flat line Blower TPQZV-020 RVU 01 +01 (stand by)

D DRV with Motor
2. Blower XVWL-020 V-DRV 01+01(stand by)

RVU +LVU SS Impeller with Motor
3. Blower VWJ-002 D DRV 02

RVU with Motor

RVU with Motor
5. Blower XVWJ-010 V DRV 01

RVU SS-304 Impeller with Motor

RVU with Motor
Add: Packing 4%
Add: CED 16%
Add: cuss 2%
Approx Amount It May Change as per present price Rest. 4,00,000 = 00
OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

ANNUXURE – XI
LIST OF REFRACTORIES FOR TUNNEL KILN
Sly. Description Qty.
01. IS 6 230 x 114 x 65 5500

for bottom breathing (rejection)
02. IS-6 230 x 114 x 75 47800

for sand sealing to car deck (rejection)
03. IS-8 230 x 114 x 75 18100

for car deck to skew back PHz & CSV.
04. IS-62D 230 x 114 x 75 7072

for car deck to skew back Fez.
05. IS-62D 230 x 114 x 75/38 E.A. 1300

for Oil and Gas Burner.
06. IS-62D Skew back bricks type-A 360

for Oil and Gas Burner.
OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

Sl. Description Qty.

]
07. IS-62D 230 x 114 x 75/68 EA. 1900

For main Arch Firing Zone
08. IS-62D Skew back bricks type –B 200

for firing zone.
09. IS-40 D Skew back bricks type-BD 650

for PHZ and CZ.
10. IS- 40 D 230 x 114 x 75/68 EA. 6000

for Main Arch PHZ and CZ.
11. 72% Kainite or Culminate 460 x 230 x 75 64

for burner base.
12. Insulating HFI 230 x 115 x 75 21100

for back up PHZ, CZ, and FZ.
13. Insulating vhilwara or rejection 6000

for top of Arch filling.
OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

14. HFI 230 x 115 x 75 24000

for 3 layer of each car x 75 cars.
15. IS-8 Dense 230 x 114 x 20 500

for car’s 3rd layer turn grove.
16. IS-8 Dense Tiles 230 x 420 x100 1500

for 4th layer
17. Red Bricks for dryer and side filling above arch 25000
18. Motor Air Setting IS – 8 qlty. 40MT
19. Motor 72 % Air Setting 25MT
20. Asbestos Sheet 2000 x 1000 for dryer roof 40Pcs.
21. 90% Castable for burner block fixing 08 bags.
22. Sand Seal Bricks as per drg. 480 no.
Amount Approx Rs. 37,00,000/- it may change as present price
OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.

ANNUXURE – XII
IRON STEEL REQUIRED FOR SERVICE & RESORVER TANK
SL. Description Specific Nos of Pcs Weight
01. Ms. Plate 1250 x 2500 x 3mmthk 14 1030
02. Ms. Channel 100 20mtr. Long 01 200
03. Ms. Plate 1250 x 2500 x 5mm thk. 06 735 02

sets.
Amount Approx 1.965 Mt. @ 55/- Rs. 68,775 = 00
OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.
CREDENTIAL DATA
01. Maithan Ceramic Chirkunda 44.200 long Oil fire 1 Year 2001
04. Manishree Ceramic Cuttack 34.000 long Oil fire Year 2004
05. Raj Ceramic Ranchi 45.900 long Oil Cum Coal Produced Gas fire Year 2005
06. Singhum Refractory Jamshedpur 44.2 long Oil Cum Petroleum Coke fire Year 2006
07. Champion Ceramic Champa 34.000 long Petroleum Coke fire Year 2006
08. Associate Ceramic Chirkunda 51.0 long Oil Cum Coal Produced Gas fire Year 2007
09. Pamposh Ceramic Maithon 45.900 long Oil Cum Coal Produced Gas fire Year 2007
10. New Bengal Ceramic Jamgram 52.7 long Oil Cum Coal Produced Gas fire Year 2008
11. Industrial Associate Ranigunge 52.7 long Oil Cum Coal Produced Gas fire Year 2008
12. Vics Industries Pvt. Ltd. Andra Pradesh 51.0long Oil Cum Producer Gas fire Year 2009
OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.
BLOWERS REQUIRED FOR TUNNEL KILN & GAS PRODUCER

WESMAN MAKE
1. Combustion blower for oil 1500cfm x 42”Swg at ambient temp.

Direct drive 20 HP, 2880 Rpm motor.
2. Atomizing blower for oil 900cfm x 14”Swg at ambient temp.

3. Exhaust blower for T K. 6000cfm x 12”Swg at 250°C temp in let.

V-Belt drive 20 HP, 1440 Rpm motor.
4. Hot air blower for T K. 3200cfm x 10”Swg at 300°C temp in let.

5. Exit curtain blower for T K 1500cfm x 6”Swg at ambient temp.

6. Entrance curtain blower for T K 1500cfm x 6”Swg at ambient temp.

Direct drive 2 Hp, 2880 Rpm motor.
7. Rapid cooling blower for T K 1500cfm x 6”Swg at ambient temp.

8. Track cooling blower for T K 1500cfm x 6”Swg at ambient temp.

9. Exhaust gas blower for dryer 3500cfm x 12”Swg at 80°C temp. in let.
Approx amount 9,00,000 = 00
OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.
ANNUXURE – XIII
WESMAN MAKE
OIL BURNER EQUIPMENTS, HEATING PUMPING UNIT
01. NA 6526-54-3 Dual Fuel 08

Burner with std CI mounting
02. NA 1813-02A(3/8”) sensitrol 08

Oil Valve
03. 1-1/2” Screwed Butterfly Valve 08

with MS Flapper and shaft
04. ¾” Screwed Butterfly Valve 08

05. MS Flex Oil Pipe length = 1000mm 08

½” BSP with connector
06. Reducing Nipple 3/8” x ½” 08
07. Reducing Nipple ¾” x ½” 08
OFFICE:
TITAS APARTMENT,
TITAS APARTMENT,
G.T.ROAD WEST,
GOPALPUR,
ASANSOL, 713304.
08. Wesman DPDH-0709 Duplex Oil 01

Pumping / Heating unit ¾”
09. 3KW Non-Flameproof outflow 01
10. 12”Water Butterfly Valve STD Port 02

with MS Flapper and Shaft
11. Contactor Box 22 Amps For Pre heater 02
12. 6” Wafer Butterfly Valve STD Port 02

13. MS Air Flex Pipe 1-1/2” x 500mtr. 08

with Connector
14 MS Air Flex Pipe ¾” x 500mtr. 08

with Connector
15 Burner block refractory for burner 08

Approx Amount Rs.
5,00,000 = 00 for oil burner

Quotation

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Quotation

Uploaded by

Copyright:

Available Formats

OFFICE:

TITAS APARTMENT, 09932896897,09933397896

METALUX CONSULTANT ENGINEERS

M/S CHANDWA CERAMIC WORKS

Kind Attend. Mr. Rahul Kr. Singh./ Jthika Singh

REFRACTORY, FURNASES, STRUCTURE,CIVIL DESIGN

METALUX CONSULTANT ENGINEERS

CAPACITY 20 to 30 MT. PER DAY

Length of the kiln :- 51.000mtr. 30 kiln car

Pre Heating Zone :- 22.100mtr. 13 kiln car

Cooling Zone :- 18.700mtr. 11 kiln car

Firing Zone :- 10.200mtr. 06 kiln car

Dryer length :- 18.000mtr. 10 kiln car

Total Kiln Car required :- 75Nos.

Area required :- 60mtr. length x 20mtr. width x 7mtr. height.

Burner required :- 08 burners. 04 burners each side. F. Oil

The constructional aspects of a high temperature Tunnel Kiln suitable

REFRACTORY, FURNASES, STRUCTURE,CIVIL DESIGN

METALUX CONSULTANT ENGINEERS

1. Definition periodic pushing type continuous Tunnel

2. Working Temp Continuous Operative Temp. 1450 Deg. C

3. Capacity 20MT to 30MT per day (600 to 900 MT

4. Kiln Dimension (a) Length = 51.000mtr.

5. Kill Dimension (a) Length = 51.000mtr.

6. Car Dimension (a) Chassis = 1700 x 1120mtr.

REFRACTORY, FURNASES, STRUCTURE,CIVIL DESIGN

METALUX CONSULTANT ENGINEERS

7. Loading Density Solid Bricks of 2.3 to 2.4 BD

8. Pushing (a) Periodic pushing

9. No. of Burners 08 on each side Furnace Burners and gas

10. Type of Burner Low pressure air atomization burner1500°C

11. Approx F Oil Consumption 2.6 ltrs. at 1500° temp.

13. Temperature Control with a set of 6 Thermo Couples R type

REFRACTORY, FURNASES, STRUCTURE,CIVIL DESIGN

METALUX CONSULTANT ENGINEERS

14. Drier. Length 18mtr. Width inside 1.260, outside 2.mtr.

15. Space Required 60mtr. Long 20mtr. Width 7 to 8mtr Height.

16. Civil Foundation Floor area Brick soling and 3” PCC.

18. Kiln Data. 30 effected cars in kiln, 10 car in drier

19. Firing schedule Firing cycle 70 hours.

20. Atmosphere Oxidation

21. Power load. 70 HP

REFRACTORY, FURNASES, STRUCTURE,CIVIL DESIGN

METALUX CONSULTANT ENGINEERS

22. Combustion air Primary fan 1500cfm x 32”Swg at ambient temp.

23. Secondary air 900cfm x 14”Swg at ambient temp.

24. Exhaust Blower 6000cfm x 12”Swg at 250C temp in let.

25. Wire cooling 3200cfm x 10”Swg at 3250C temp in let.

26. Exit and Entrance 1500cfm x 6”Swg at ambient temp.

27. Track cooling 1500cfm x 6”Swg at ambient temp.

28. Exhaust Gas The kiln flue gas is re cycled in

REFRACTORY, FURNASES, STRUCTURE,CIVIL DESIGN

METALUX CONSULTANT ENGINEERS

1. ANNEXURE – I Iron steel for kiln structural 6,69,676 = 00

2. ANNEXURE – II Iron for pipe line 4,26,867= 00

3. ANNEXURE – III Iron for kiln car 75nos. 3,97,776= 00

4. ANNEXURE – IV Iron for transfer trolley 21,350= 00

5 ANNEXURE – V Iron for re cooperator 79,460 = 00

6 ANNEXURE – VI Bolts and Nuts 40,320 = 00

7 ANNEXURE – VII Pusher machine 1,86,645 = 00

8 ANNEXURE – VIII Winch machine 1,31,250 = 00

9 ANNEXURE – IX Items of out sourced 11,11,250 = 00

10 ANNEXURE – X Blower Equipments 4,00,000 = 00
