Seminar Report

Micro Electronic Capsule

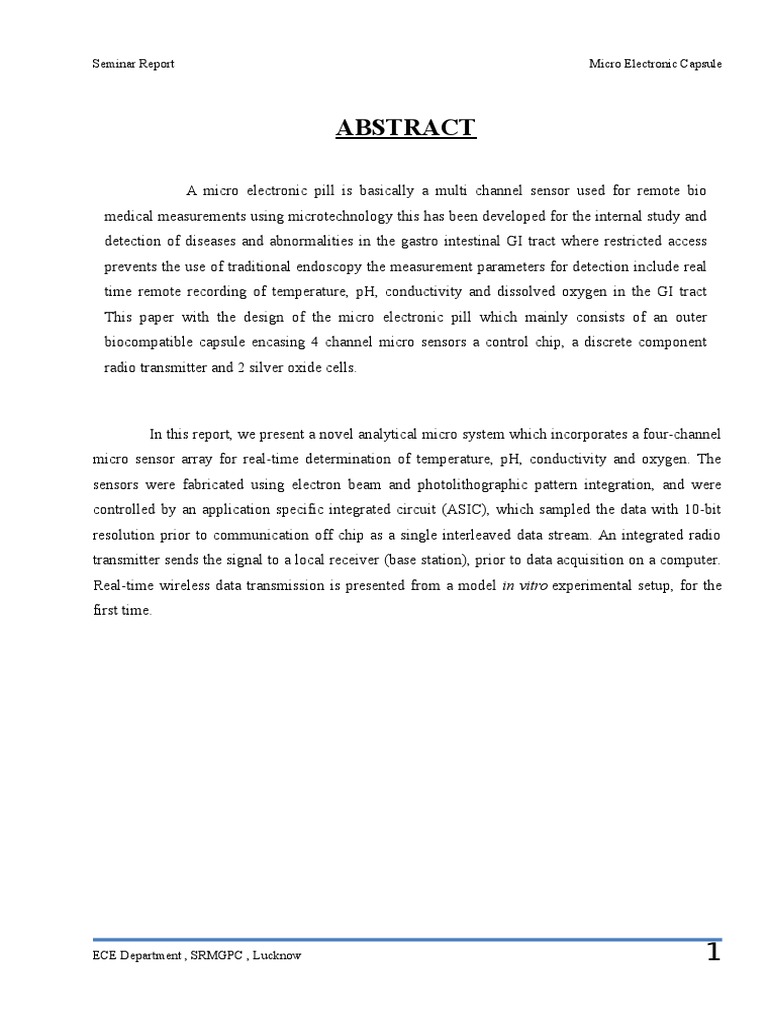

ABSTRACT
A micro electronic pill is basically a multi channel sensor used for remote bio
medical measurements using microtechnology this has been developed for the internal study and
detection of diseases and abnormalities in the gastro intestinal GI tract where restricted access
prevents the use of traditional endoscopy the measurement parameters for detection include real
time remote recording of temperature, pH, conductivity and dissolved oxygen in the GI tract
This paper with the design of the micro electronic pill which mainly consists of an outer
biocompatible capsule encasing 4 channel micro sensors a control chip, a discrete component
radio transmitter and 2 silver oxide cells.

In this report, we present a novel analytical micro system which incorporates a four-channel
micro sensor array for real-time determination of temperature, pH, conductivity and oxygen. The
sensors were fabricated using electron beam and photolithographic pattern integration, and were
controlled by an application specific integrated circuit (ASIC), which sampled the data with 10-bit
resolution prior to communication off chip as a single interleaved data stream. An integrated radio
transmitter sends the signal to a local receiver (base station), prior to data acquisition on a computer.
Real-time wireless data transmission is presented from a model in vitro experimental setup, for the
first time.

ECE Department , SRMGPC , Lucknow

Seminar Report

Micro Electronic Capsule

CONTENTS

i.

INTRODUCTION

ii.

BLOCK DIAGRAM

iii.

BASIC COMPONENTS

iv.

PERFORMANCE

v.

ADVANTAGES/DISADAVNATGES

vi.

OTHER APPLICATIONS

vii.

FUTURE DEVELOPMENTS

viii.

FUTURE CHALLENGES

ix.

CONCLUSION

x.

REFERENCES

ECE Department , SRMGPC , Lucknow

Seminar Report

Micro Electronic Capsule

INTRODUCTION

The invention of transistor enabled the first use of radiometry capsules, which used
simple circuits for the internal study of the gastro-intestinal (GI) [1] tract. They couldnt be used
as they could transmit only from a single channel and also due to the size of the components.
They also suffered from poor reliability, low sensitivity and short lifetimes of the devices. This
led to the application of single-channel telemetry capsules for the detection of disease and
abnormalities in the GI tract where restricted area prevented the use of traditional endoscopy.
They were later modified as they had the disadvantage of using laboratory type
sensors such as the glass pH electrodes, resistance thermometers, etc. They were also of very
large size. The later modification is similar to the above instrument but is smaller in size due to
the application of existing semiconductor fabrication technologies. These technologies led to the
formation of MICROELECTRONIC CAPSULE.
Microelectronic pill is basically a multichannel sensor used for remote biomedical
measurements using micro technology. This is used for the real-time measurement parameters
such as temperature, pH, conductivity and dissolved oxygen. The sensors are fabricated using
electron beam and photolithographic pattern integration and were controlled by an application
specific integrated circuit (ASIC).

ECE Department , SRMGPC , Lucknow

Seminar Report

Micro Electronic Capsule

BLOCK DIAGRAM

Fig 1.
Microelectronic pill consists of 4 sensors (2) which are mounted on two silicon chips (Chip 1
& 2), a control chip (5), a radio transmitter (STD- type 1-7, type2-crystal type-10) & silver
oxide batteries (8).
1-access channel, 3-capsule, 4- rubber ring, 6-PCB chip carrier

ECE Department , SRMGPC , Lucknow

Seminar Report

Micro Electronic Capsule

BASIC COMPONENTS
A. SENSORS

Fig 2.
There are basically 4 sensors mounted on two chips- Chip 1 & chip 2. On chip 1(shown in fig 2
a), c), e)), temperature sensor silicon diode (4), pH ISFET sensor (1) and dual electrode
conductivity sensor (3) are fabricated. Chip 2 comprises of three electrode electrochemical cell
oxygen sensor (2) and optional NiCr resistance thermometer.

ECE Department , SRMGPC , Lucknow

Seminar Report

1)

Micro Electronic Capsule

Sensor chip 1:
An array consisting of both temperature sensor & pH sensor platforms were cut

from the wafer & attached onto 100-m- thick glass cover slip cured on a hot plate. The plate acts
as a temporary carrier to assist handling of the device during level 1 of lithography when the
electric connections tracks, electrodes bonding pads are defined. Bonding pads provide electrical
contact to the external electronic circuit.
Lithography [2] was the first fundamentally new printing technology since the
invention of relief printing in the fifteenth century. It is a mechanical Plano graphic process in
which the printing and non-printing areas of the plate are all at the same level, as opposed to
intaglio and relief processes in which the design is cut into the printing block. Lithography is
based on the chemical repellence of oil and water. Designs are drawn or painted with greasy ink
or crayons on specially prepared limestone. The stone is moistened with water, which the stone
accepts in areas not covered by the crayon. Oily ink, applied with a roller, adheres only to the
drawing and is repelled by the wet parts of the stone. Pressing paper against the inked drawing
then makes the print.
Lithography was invented by Alois Senefelder in Germany in 1798 and, within
twenty years, appeared in England and the United States. Almost immediately, attempts were
made to print pictures in color. Multiple stones were used; one for each color, and the print went
through the press as many times as there were stones. The problem for the printers was keeping
the image in register, making sure that the print would be lined up exactly each time it went

ECE Department , SRMGPC , Lucknow

Seminar Report

Micro Electronic Capsule

through the press so that each color would be in the correct position and the overlaying colors
would merge correctly.
Early colored lithographs used one or two colors to tint the entire plate and create a
watercolor-like tone to the image. This atmospheric effect was primarily used for landscape or
topographical illustrations. For more detailed coloration, artists continued to rely on hand
coloring over the lithograph. Once tinted lithographs were well established, it was only a small
step to extend the range of color by the use of multiple tint blocks printed in succession.
Generally, these early chromolithographs were simple prints with flat areas of color, printed sideby-side.
Increasingly ornate designs and dozens of bright, often gaudy, colors characterized
chromolithography in the second half of the nineteenth century. Overprinting and the use of
silver and gold inks widened the range of color and design. Still a relatively expensive process,
chromolithography was used for large-scale folio works and illuminated gift books that often
attempted to reproduce the handwork of manuscripts of the Middle Ages. The steam-driven
printing press and the wider availability of inexpensive paper stock lowered production costs and
made chromolithography more affordable. By the 1880s, the process was widely used for
magazines and advertising. At the same time, however, photographic processes were being
developed that would replace lithography by the beginning of the twentieth century.
Chip 1 is divided into two- LHS unit having the diode while RHS unit comprises the
ISFET.

Fig. 3.

DT-470-SD Features
ECE Department , SRMGPC , Lucknow

Seminar Report

Micro Electronic Capsule

Monotonic temperature response from 1.4 K to 500 K*

Conformance to standard Curve 10 temperature response curve

Useful above 60 K in magnetic fields up to 5 T

The rugged, reliable Lake Shore SD package designed to withstand repeated thermal cycling
and minimize sensor self-heating Variety of packaging options

ISFET: [4]
Ion Selective Field Effect Transistor; this type of electrode contains a transistor
coated with a chemically sensitive material to measure pH in solution and moist surfaces. As the
potential at the chemically active surface changes with the pH, the current induced through the
transistor varies. A temperature diode simultaneously monitors the temperature at the sensing
surface. The pH meter to a temperature compensated pH reading correlates the change in current
and temperature.
This device [5] has an affinity for hydrogen ions, which is the basis for the
determination of the pH. The surface of the sensitive area of the sensor contains hydroxyl groups
that are bound to an oxide layer. At low pH values hydrogen ions in the sample will bind to these
hydroxyl groups resulting in a positively charged surface. In alkaline environments hydrogen
ions are abstracted from the hydroxyl groups, leading to a negatively charged surface.
Thus, each pH change has a certain influence on the surface charge. On its turn, this
attracts or repulses the electrons flowing between two electrodes in the semiconductor device.
The electronics compensates the voltage in order to keep the current between the two electrodes
at its set point. In this way this potential change is related to the pH.
Attachment of a polymer membrane on the ISFET introduces the possibility to go
beyond the measurement of pH toward other ions. In this plastic layer certain chemicals
(ionophores), which can recognize and bind the desired ion, are put in. Now, complex formations
of the ionophore and the ion introduce a charge. The potential change is a measure for the ion
concentration. Typically, these sensors can be used in a concentration range between app. 10-5
up to 1 mol/l.

2.) Sensor chip2:

ECE Department , SRMGPC , Lucknow

Seminar Report

Micro Electronic Capsule

Level 1 pattern was defined in 0.9 m UV3 resist by electron beam lithography. It
contains three-electrode electrochemical oxygen sensor & NiCr resistance thermometer.
Oxygen sensor detection principle: [6]
Most portable or survey instruments used for workplace evaluation of oxygen
concentrations make use of "fuel cell" type oxygen sensors. "Fuel cell" oxygen sensors consist of
a diffusion barrier, a sensing electrode (cathode) made of a noble metal such as gold or platinum,
and a working electrode made of a base metal such as lead or zinc immersed in a basic
electrolyte (such as a solution of potassium hydroxide).
Oxygen diffusing into the sensor is reduced to hydroxyl ions at the cathode:
O2 + 2H2O + 4e-

OH

Hydroxyl ions in turn oxidize the lead (or zinc) anode:

2Pb + 4OH

2PbO + 2H2O + 4e

This yields an overall cell reaction of:

2Pb + O2

2PbO

Fuel cell oxygen sensors are current generators. The amount of current generated is
proportional to the amount of oxygen consumed (Faraday's Law). Oxygen reading instruments
simply monitor the current output of the sensor.
An important consideration is that fuel cell oxygen sensors are used up over time.
In the cell reaction above, when all available surface area of the lead (Pb) anode has been
converted to lead oxide (PbO), electrochemical activity ceases, current output falls to zero, and the
sensor must be rebuilt or replaced. Fuel cell sensors are designed to last no more than one to two
years. Even when installed in an instrument which is never turned on, oxygen sensors which are
exposed to atmosphere which contains oxygen are generating current, and being used up.

Oxygen sensors are also influenced by the temperature of the atmosphere

they are being used to measure. The warmer the atmosphere the faster the electrochemical
ECE Department , SRMGPC , Lucknow

Seminar Report

Micro Electronic Capsule

reaction. For this reason oxygen sensors usually include a temperature compensating load resistor
to hold current output steady in the face of fluctuating temperature. (Microprocessor based
instrument designs usually provide additional signal correction in software to further improve
accuracy.) Another limiting factor is cold. The freezing temperature of electrolyte mixtures
commonly used in oxygen sensors tends to be about 5 o F (- 20 o C). Once the electrolyte has frozen
solid, electrical output falls to zero, and readings may no longer be obtained. There are two basic
variations on the fuel cell oxygen sensor design. These variations have to do with the mechanism
by which oxygen is allowed to diffuse into the sensor. Dalton's Law states that the total pressure
exerted by a mixture of gases is equal to the sum of the partial pressures of the various gases. The
partial pressure for oxygen is that fraction of the total pressure due to oxygen. Partial atmospheric
pressure oxygen sensors rely on the partial pressure (or pO 2) of oxygen to drive molecules through
the diffusion barrier into the sensor. As long as the pO 2 remains constant, current output may be
used to indicate oxygen concentration. On the other hand, shifts in barometric pressure, altitude, or
other conditions which have an effect on atmospheric pressure will have a strong effect on pO

sensor readings. To illustrate the effects of pressure on pO 2 sensors, consider a sensor located at
sea level where atmospheric pressure equals 14.7 PSI (pounds per square inch). Now consider that
same sensor at an elevation of 10,000 feet. Although at both elevations the air contains 20.9
percent oxygen, at 10,000 feet the atmospheric pressure is only 10.2 PSI! Since there is less force
driving oxygen molecules through the diffusion barrier into the sensor, the current output is
significantly lower.
"Capillary pore" oxygen sensor designs include a narrow diameter tube through
which oxygen diffuses into the sensor. Oxygen is drawn into the sensor by capillary action in much
the same way that water or fluid is drawn up into the fibers of a paper towel. While capillary pore
sensors are not influenced by changes in pressure, care must be taken that the sensor design
includes a moisture barrier in order to prevent the pore from being plugged with water or other
fluids.

ECE Department , SRMGPC , Lucknow

10

Seminar Report

Micro Electronic Capsule

Figure 4: Capillary pore type oxygen sensor

1.1. Effects of contaminants on oxygen sensors
Oxygen sensors may be affected by prolonged exposure to "acid" gases such as
carbon dioxide. Most oxygen sensors are not recommended for continuous use in atmospheres
which contain more than 25% CO 2.
1.2. Substance-specific electrochemical sensors
One of the most useful detection techniques for toxic contaminants is the use of
substance-specific electrochemical sensors installed in compact, field portable survey
instruments. Substance-specific electrochemical sensors consist of a diffusion barrier which is
porous to gas but nonporous to liquid, reservoir of acid electrolyte (usually sulfuric or
phosphoric acid), sensing electrode, counter electrode, and (in three electrode designs) a third
reference electrode. Gas diffusing into the sensor reacts at the surface of the sensing electrode.
The sensing electrode is made to catalyze a specific reaction. Dependent on the sensor and the
gas being measured, gas diffusing into the sensor is either oxidized or reduced at the surface of
the sensing electrode. This reaction causes the potential of the sensing electrode to rise or fall
with respect to the counter electrode. The current generated is proportional to the amount of
reactant gas present.
This two electrode detection principle presupposes that the potential of the counter
electrode remains constant. In reality, the surface reactions at each electrode causes them to
polarize, and significantly limits the concentrations of reactant gas they can be used to measure.
In three electrode designs it is the difference between the sensing and reference electrode which
ECE Department , SRMGPC , Lucknow

11

Seminar Report

Micro Electronic Capsule

is what is actually measured. Since the reference electrode is shielded from any reaction, it
maintains a constant potential which provides a true point of comparison. With this arrangement
the change in potential of the sensing electrode is due solely to the concentration of the reactant
gas.

Figure 5: Three electrode electrochemical sensor

The oxidation of carbon monoxide in an electrochemical sensor provides a good
example of the detection mechanism:
Carbon monoxide is oxidized at the sensing electrode:
CO + H2O

CO2 + 2H+ + 2e -

The counter electrode acts to balance out the reaction at the sensing electrode by reducing
oxygen present in the air to water:
1/2 O2 + 2H+ + 2e-

H 2O

Similar reactions allow for the electrochemical detection of a variety of reactant

gases including hydrogen sulfide, sulfur dioxide, chlorine, hydrogen cyanide, nitrogen dioxide,
hydrogen, ethylene oxide, phosphine and ozone. A bias voltage is sometimes applied to the
counter electrode to help drive the detection reaction for a specific contaminant. Biased sensor
ECE Department , SRMGPC , Lucknow

12

Seminar Report

Micro Electronic Capsule

designs allow for the detection of a number of less electrochemically active gases such as
hydrogen chloride and nitric oxide. Several other contaminants (such as ammonia) are detectable
by means of other less straight forward detection reactions.
Electrochemical sensors are stable, long lasting, require very little power and are
capable of resolution (depending on the sensor and contaminant being measured) in many cases
to 0.1 ppm. The chief limitation of electrochemical sensors is the effects of interfering
contaminants on toxic gas readings. Most substance-specific electrochemical sensors have been
carefully designed to minimize the effects of common interfering gases. Substance-specific
sensors are designed to respond only to the gases they are supposed to measure. The higher the
specificity of the sensor the less likely the sensor will be affected by exposure to other gases
which may be incidentally present. For instance, a substance-specific carbon monoxide sensor is
deliberately designed not to respond to other gases which may be present at the same time, such
as hydrogen sulfide or methane.
Even though care has been taken to reduce cross-sensitivity, some interfering gases
may still have an effect on toxic sensor readings. In some cases the interfering effect may be
"positive" and result in readings which are higher than actual. In some cases the interference may
be negative and produce readings which are lower than actual. Electrochemical sensor designs
may include a selective external filter designed to remove interfering gases which would
otherwise have an effect on the sensing electrode. The size and composition of the filter are
determined by the type and expected concentration of the interfering contaminants being
removed.

ECE Department , SRMGPC , Lucknow

13

Seminar Report

Micro Electronic Capsule

B. CONTROL CHIP:

Fig 6. Interfacing of ASIC with external components of the system

ASIC is the control chip that connects together the external components of the
micro system.
Application-Specific Integrated Circuit [7]
(ASIC) An integrated circuit designed to perform a particular function by defining
the interconnection of a set of basic circuit building blocks drawn from a library provided by the
circuit manufacturer.
ASIC is a novel mixed signal design that contains an analog signal conditioning
module operating the sensors, 10-bit ADC & DAC converters & a digital data processing
module. An RC relaxation oscillator (OSC) provides the clock signal.
ECE Department , SRMGPC , Lucknow

14

Seminar Report

Micro Electronic Capsule

The analog module is based on the AMS OP05B opamp, which offer a lot of power
saving scheme (sleep mode) & a compact IC design. The temperature circuitry biased the diode
at constant current, so that a change in temperature would result in corresponding change in
diode voltage. The pH ISFET sensor was biased as a simple source & drain follower at constant
current with D-S voltage changing with threshold voltage & pH. Conductivity circuit operated at
direct current measuring the resistance across the electrode pair as an inverse function of
solution conductivity. An incorporated potentiostat operated the amperometric oxygen sensor
with a 10-bit DAC controlling the working electrode potential w.r.t. reference. The analog
signals were sequenced through a MUX prior to being digitized by the ADC. The BW for each
channel was limited by the sampling interval of 0.2 ms.
The digital data processing module conditioned the digitized signals through the
use of a serial bit stream data compression algorithm, which decided when transmission was
required by comparing the most recent sample with the previous one. This minimizes the
transmission length & particularly effective when the measuring environment is at quiescent, a
condition encountered in many applications. The entire design is based on low power
consumption & immunity from noise interference. The digital module is clocked at 32 kHz &
employed in sleep mode to conserve power from analog module.

ECE Department , SRMGPC , Lucknow

15

Seminar Report

Micro Electronic Capsule

C. RADIO TRANSMITTER
Its assembled prior to integration in the capsule using discrete surface mount
components on a single-sided PCB. Its designed to operate at a transmission freq. of 40.01 MHz
at 20C generating a signal of 10 kHz. BW. A second crystal stabilized transmitter was also used.
This unit is similar to the free running STD transmitter, having a transmission freq. limited to
20.08 MHz at 20C, due to crystal used. Pills incorporating the STD transmitter are Type 1, where
as the pills having crystal stabilized unit is Type 2. The transmission range was measured as being
1 m & the modulation scheme FSK, with a data rate of 1 kb/s.

Fig 7.

Capsule
The microelectronic pill consists of a machined biocompatible (non-cytotoxic),
chemically resistant polyether-terketone (PEEK) capsule and a PCB chip carrier acting as a
common platform for attachment of sensors, ASIC, transmitter & batteries (fig 1.). The fabricated
sensors were each attached by wire bonding to a custom made chip carrier made from a 10-pin,
0.5-pitch polymide ribbon connector. The connector in turn was connected to an industrial STD.
flat cable plug (FCP) socket attached to the PCB carrier chip of the microelectronic pill, to
facilitate the rapid replacement off the sensors when required. The PCB chip carrier was made
from 2 STD. 1.6 mm-thick fiber glass boards attached back to back epoxy resin which maximized
the distance between the 2 sensor chips. The sensor chips are connected to both sides of the PCB
by separate FCP sockets, with sensor chip 1 facing the top face, with the sensor chip 2 facing
down. Thus, the oxygen sensor on chip 2 had to be connected to the top face by 3 200 nm copper
ECE Department , SRMGPC , Lucknow

16

Seminar Report

Micro Electronic Capsule

leads soldered onto the board. The transmitter was integrated in the PCB which also incorporated
the power supply rails, the connection points to the sensors, as well as the transmitter & the ASIC
& the supporting slots for the capsule in which the carrier is located.
The ASIC was attached with double-sided Cu conducting tape prior to wire bonding
to the power supply rails, the sensor inputs & the transmitter (a process which entailed the
connection of 64 bonding pads). The unit was powered by 2 STD. 1.55V SR44 Silver oxide
(Ag2O) cells with a capacity of 175mAh. The batteries were connected & attached to a custom
made 3-pin, 1.27 mm pitch plug by electrical epoxy. The connection on the matching socket on the
PCB carrier provided a three point power supply to the circuit comprising a negative supply rail
(1.55V).

Fig 8.
The capsule was machined as two separate screw-fitting compartments. The PCB
chip carrier was attached to the front section of the capsule (fig 1.). The sensor chips were exposed
to the ambient environment through access ports & were sealed by 2 stainless steel clamps
incorporating a 0.8 m thick sheet of Viton fluoroelastometer seal. A 3 mm dia access channel in
center of each of the steel clamps (incl. the seal), exposed in sensing regions of the chips. The rear
section of the capsule is attached to the front section by a 13 mm screw connection incorporating a
Viton rubber O-ring. The seals rendered the capsule water proof, as well as making it easy to
maintain (e.g. during sensor & battery replacement).The complete prototype was 16*55 mm &
weighs 13.5 g including the batteries.

ECE Department , SRMGPC , Lucknow

17

Seminar Report

Micro Electronic Capsule

D. AG2O Batteries

Fig 9.
The unit was powered by two standard 1.55-V SR44 silver oxide (Ag 2O) cells with a capacity of
175 mAh. The batteries were serial connected and attached to a custom made 3-pin, 1.27-mm pitch
plug by electrical conducting epoxy. The connection to the matching socket on the PCB carrier
pro-vided a three point power supply to the circuit comprising a negative supply rail (-1.55 V),
virtual ground (0 V), and a positive supply rail (1.55 V). The battery pack was easily replaced
during the experimental procedures.

1.
2.
3.
4.
5.

2 SR44 Ag2O batteries are used.

Operating Time > 40 hours.
Power Consumption = 12.1 Mw
Corresponding current consumption = 3.9mA
Supply Voltage = 3.1 V

PERFORMANCE
ECE Department , SRMGPC , Lucknow

18

Seminar Report

Micro Electronic Capsule

Fig 10. a) Temperature Channel Performance, b) pH channel performance

A. Temperature Channel Performance:

The linear sensitivity was measured over a temp. range from 0C to 70C & found
to be 15.4 mV/C. This amplified signal response was from the analog circuit, which was later
implemented in the ASIC. The sensor (Fig 10a) a)), once integrated in the pill, gave a linear
regression of 11.9 bits/C , with a resolution limited by the noise band of 0.4 C (Fig 10 a) b)). The
diode was forward biased with a constant current (15 A) with the n-channel clamped to the
ground, while p-channel was floating. Since the bias current supply circuit was clamped to the
negative V rail, any change in the supply voltage potential would cause the temp. channel to drift.
Thus, it was seen that o/p signal changed by 1.45 mV/mV change in supply expressed in mV,
corresponding to a drift of 41.7 mV/h in the pill from a supply voltage change of 14.5 mV/h.

ECE Department , SRMGPC , Lucknow

19

Seminar Report

Micro Electronic Capsule

B. pH Channel Performance:
The linear performance from pH 1 to 13 corresponded to sensitivity of 41.7mV/pH
unit at 23C. The pH ISFET sensor operated in a constant current mode (15 A), with drain
voltage clamped to positive supply rail & the source voltage floating with the gate potential. The
Ag/AgCl reference electrode, representing the potential in which the floating gate was referred to,
was connected to ground. The sensor performance, once integrated in the pill (Fig 10 b)a)),
corresponded to 14.85 bits/pH which give a resolution of 0.07 pH/ data point. The sensor exhibits
a larger responsivity in alkaline solutions.
The sensor life time of 20h was limited by Ag\Agcl reference electrode made from electroplated
silver. The ph sensor exhibited a signal drift of 6 mV /h (0.14ph), o f which 2.5mV/h was
estimated to be due to the dissolution of Agcl from the reference electrode. The temperature
sensitivity of the ph sensor was measured as 16.8mV/c. The changing of the ph of the solution at
40c from ph 6.8 to 2.3 and 11.6 demonstrated that the two channels were completely independent
of each other and there was no signal interference from the temperature channel (Fig 10. b (b))

C. Conductivity sensor performance

The prototype circuit exhibited a logarithmic performance from 0.05 to 10 ms cm -1 which
conformed to a first-order regression analysis expressed in millivolts. The sensor saturated at
conductivities above 10 ms cm-1 due to the capacitive effect of the electric double layer, a
phenomena commonly observed in conductimetric sensor systems.

D. Oxygen Sensor performance

The electrodes were first characterized using the model redox compound FMCA, showing that the
oxygen sensor behaved with classic microelectrode characteristics. The reduction potential of water
ECE Department , SRMGPC , Lucknow

20

Seminar Report

Micro Electronic Capsule

was subsequently measured at -800 mV (versus the integrated Ag|AgCl) by recording the steadystate current in oxygen-depleted PBS, t hereby excluding any interfering species.
In order to calibrate the sensor, a three point calibration was performed (at saturated oxygen,
and with oxygen removed by the injection of Na 2SO3 to a final concentration of 1 M). the steady
state signal from the oxygen saturated solution was recorded at a constant working electrode
potential of -700 mV(versus Ag|AgCl).which was below the reduction potential for water. This
generated a full-scale signal of 65 nA corresponding 8.2 mg O 2L-1. The injection of Na2S03 into the
PBS after 90 s provided the zero point calibration. This fall in the reduction current provided
corroborative evidence that dissolve oxygen was being recorded, by returning the signal back to the
base line level once all available oxygen was consumed. A third, intermediate point was generated
through the addition of 0.01 M Na 2SO3. The resulting calibration graph form a linear regression
expressed in nanoamperes. The sensitivity of the sensor was 7.9 nA mg -1 O2,with the resolution of
0.4mg L-1 limited by noise or background drift. The lifetime of the integrated Ag|AgCl reference
electrode, made from thermal evaporated silver, was found to be to 45 h, with an average voltage
drift of -1.3 mVh-1 due to he dissolution of the AgCl during operation. Both measurements of FMCA
and oxygen redox behavior indicated a stable Ag|AgCl reference.

Fig. 11. Recording of pH and temperature in vitro using the electronic pill

E. Control Chip
The background noise from the ASIC corresponded to a constant level of 3-Mv peak-to-peak, which
is equivalent to one least significant bit (LSB) of the ADC. Since the second LSB were required to
ECE Department , SRMGPC , Lucknow

21

Seminar Report

Micro Electronic Capsule

provide an adequate noise margin, the 10-bit ADC was anticipated to have an effective resolution of
8 bits.

F. Dual Channel Wireless Signal Transmission

Dual channel wireless signal transmission was recorded from both the pH and temperature
channels at 230c, with the pill immersed in a PBS solution of changing pH. The calibration graphs for
the temperature and pH channel were used to convert the digital units from the MATLAB calculated
routine to the corresponding temperature and pH values.
The signal from the pH channel exhibited an initial offset of 0.2 pH above the real value at pH
7.3. In practice, the pH sensor was found to exhibit a positive pH offset as the solution became more
acidic, and a negative pH offset as the solution became more alkaline. The temperature channel was
unaffected by the pH change, confirming the absence of crosstalk between the two channels.

Fig. 12 .Long term in vitro pH measurements in response to a changing pH from the initial pH
4 to pH 7 (2 h) and pH 10.5 (4 h) at 36.50C

RANGE AND ACCURACY

ECE Department , SRMGPC , Lucknow

22

Seminar Report

Micro Electronic Capsule

Range
1. Temperature from 0 to 70 C
2. pH from 1 to 13
3. Dissolved Oxygen up to 8.2 mg per liter
4. Conductivity above 0.05 mScm-1
5. Full scale dynamic Range analogue signal = 2.8 V

Accuracy

1. pH channel is around 0.2 unit above the real value

2. Oxygen Sensor is 0.4 mgL.
3. Temperature & Conductivity is within 1%.

ADVANTAGES AND DISADVANTAGES

Advantages
ECE Department , SRMGPC , Lucknow

23

Seminar Report

Micro Electronic Capsule

1. It is being beneficially used for disease detection & abnormalities in human body. Therefore
it is also called as MAGIC PILL FOR HEALTH CARE.
2. Adaptable for use in corrosive & quiescent environment.
3. It can be used in industries in evaluation of water quality, Pollution Detection, fermentation
process control & inspection of pipelines.
4. Micro Electronic Pill utilizes a PROGRAMMABLE STANDBY MODE, So Power
consumption is very less.
5. It has very small size, hence it is very easy for practical usage
6. High sensitivity, Good reliability & Life times.
7. Very long life of the cells(40 hours), Less Power, Current & Voltage requirement (12.1 mW,
3.9 mA, 3.1 V)
8. Less transmission length & hence has zero noise interference

Disadvantages

1. It cannot perform ultrasound & impedance tomography. Tomography is imaging by sections

2.
3.
4.
5.

or sectioning, through the use of any kind of penetrating wave.

Cannot detect radiation abnormalities.
Cannot perform radiation treatment associated with cancer & chronic inflammation.
Micro Electronic Pills are expensive & are not available in many countries.
Still its size is not digestible to small babies.

OTHER APPLICATIONS

Apart from the detection of real time remote recording of temperature, pH, conductivity and
dissolved oxygen in the GI tract the Micro electronic Capsule can also be used for many other uses
in the real world.
The generic nature of microelectronic pill makes it adaptable for use in corrosive
environments related to environmental & industrial applications, such as
ECE Department , SRMGPC , Lucknow

24

Seminar Report

Micro Electronic Capsule

A. Evaluation of Water Quality Just like the pill is used for detection of amount of
dissolved oxygen in the stomach or GI tract similarly it can be used to detect if the water
is suitable for drinking and suitable for survival of the plants and animals.
B. Pollution Detection
C. Fermentation Process Control
D. Inspection of the pipelines.
E. The Integration of Radiation Sensors
F. The application of indirect imaging technologies such as ultrasound & impedance
tomography will improve the detection of tissue abnormalities & radiation treatment
associated with cancer & chronic inflammation.

ECE Department , SRMGPC , Lucknow

25

Seminar Report

Micro Electronic Capsule

FUTURE DEVELOPMENTS
Further developments focus on the photo pattern able gel electrolyte and oxygen
and cat ion selective membranes. Also in the future, these measurements will be used to perform
physiological analysis of the GI tract. For e.g., Temperature sensors can be used to measure the
body core temperature, also locate any changes corresponding to ulcers or tissue inflammation; pH
sensors may be used for determination of presence of pathological conditions associated with
abnormal ph levels etc.

In the future, one objective will be to produce a device, analogous to a micro total analysis
system (TAS) or lab on a chip sensor which is not only capable of collecting and processing data, but
which can transmit it from a remote location. The overall concept will be to produce an array of
sensor devices distributed throughout the body or the environment, capable of transmitting highquality information in real-time.
In future another objective will be to develop a micro electronic pill with a camera to study
the internal structure of GI tract visually , with the imaging technology added it will help the doctors
to view the internal abnormalities or tumors without any operation so it will benefit both the patients
and as well as the doctors.
After recent significant technology improvements, design of small size camera and battery
could have been possible. Thus in the last ten years some research projects looking at developing
electronic pills have concentrated mostly on the visual sensor system. Thus a high frequency link is
required for better resolution and a miniaturized system.
Another category of electronic pill technology is to use fluorescence spectroscopy and
imaging, similar to those that are commercially available. Kfouri, et al., studied a Fluorescence based
electronic pill system that uses UV light with illumination LEDs to obtain clearer images . This is
like flash based digital camera widely used by people.

ECE Department , SRMGPC , Lucknow

26

Seminar Report

Micro Electronic Capsule

FUTURE CHALLENGES

In the future, one objective would be to produce a device, analogous to a

micro total analysis system (TAS) or lab on a chip sensor which is not only capable of
collecting & processing data, but which can transmit it from a remote location. The overall
concept would be to produce an array of sensor devices distributed throughout the body or
environment, capable of transmitting high-quality information in real time.
Some other challenges will be to make the capsule even more small in size
so that they can be digested easily by small children . Moreover in present time the capsules are
really expensive thus cannot be used readily so the future challenge include the reducing the
pricing of the pill so it can be also used in rural areas and hospitals/doctors can afford it for use.
Also the capsule is not available in many counties so in future arrangements has to be made so
that it can be available in more and more places around the world.
Micro electronic pill also cannot detect radiation abnormalities as it has no
sensor to predict or know about the abnormalities due to radiation , with the nuclear age on the
rise many people often suffer from radiation diseases which cannot be detected easily so the
micro electronic pill has to be made such that it also has sensor to know something about the
radiation abnormalities caused in a persons body.
With the start of use of camera in the capsule ,thus in the last ten years some
research projects looking at developing electronic pills have concentrated mostly on the visual sensor
system. Thus a high frequency link is required for better resolution and a miniaturized system. So the
challenge is to Improve the methodology used to transmit the images with high precision and
accuracy.

ECE Department , SRMGPC , Lucknow

27

Seminar Report

Micro Electronic Capsule

CONCLUSION

We have therefore described about the multichannel sensor, which has been
implemented in remote biomedical using micro technology, the micro electronic pills, which is
designed to perform real time measurements in the GI tract providing the best in vitro wireless
transmitter, multi channel recordings of analytical parameters.

We have developed an integrated sensor array system which has been incorporated in
a mobile remote analytical microelectronic pill, designed to perform real-time in situ measurements
of the GI tract, providing the first in vitro wireless transmitted multichannel recordings of analytical
parameters. Further work will focus on developing photopatternable gel electrolytes and oxygen and
cation selective membranes. The microelectronic pill will be miniaturized for medical and veterinary
applications by incorporating the transmitter on silicon and reducing power consumption by
improving the data compression algorithm and utilizing a programmable standby power mode.

The generic nature of the microelectronic pill makes it adaptable for use in corrosive
environments related to environ-mental and industrial applications, such as the evaluation of water
quality, pollution detection, fermentation process control and the inspection of pipelines. The
integration of radiation sensors and the application of indirect imaging technologies such as
ultrasound and impedance tomography, will improve the detection of tissue abnormalities and
radiation treatment associated with cancer and chronic inflammation.

ECE Department , SRMGPC , Lucknow

28

Seminar Report

Micro Electronic Capsule

REFERENCES

[1] IEEE Transactions On Biomedical Engineering, 2004, MARCH, VOL. 51, No.3.
[2] S. Mackay and B. Jacobson, "Endoradiosonde," Nature, vol. 179, pp. 1239-1240, 1957.
[3] H. S. Wolff, "The radio pill," New Scientist, vol 12, pp. 419-421, 1961.

[4] S. Mackay, "Radio telemetering from within the body," Science, vol. 134, pp. 1196-1202, 1961
[5] G. X. Zhou, "Swallowable or implantable body temperature telemeter - Body temperature
radio pill," in Proc. IEEE Fifteenth Ann. Northeast Bioeng. Conference , Boston, MA, 1989,
pp. 165-166.
[6] G. Iddan, G. Meron, A. Glukhovsky and P. Swain, "Wireless capsule endoscopy," Nature,
vol. 405, no. 6785, pp. 417, May 2000.
[7] D. F. Evans, G. Pye, R. Bramley, A. G. Clark, T. J. Dyson and J. D. Hardcastle,
"Measurement of gastrointestinal pH profiles in normal ambulant human subjects," Gut, vol.
29, no. 8, pp. 1035-1041, Aug. 1988.
[8] R. H. Colson, B. W. Watson, P. D. Fairlclough, J. A. Walker-Smith, C. A. Campell, D.
Bellamy and S. M. Hinsull, "An accurate, long-term, pH sensitive radio pill for ingestion and
implantation," Biotelem. Pat. Mon., vol. 8, no. 4, pp. 213-227, 1981.

ECE Department , SRMGPC , Lucknow

29
