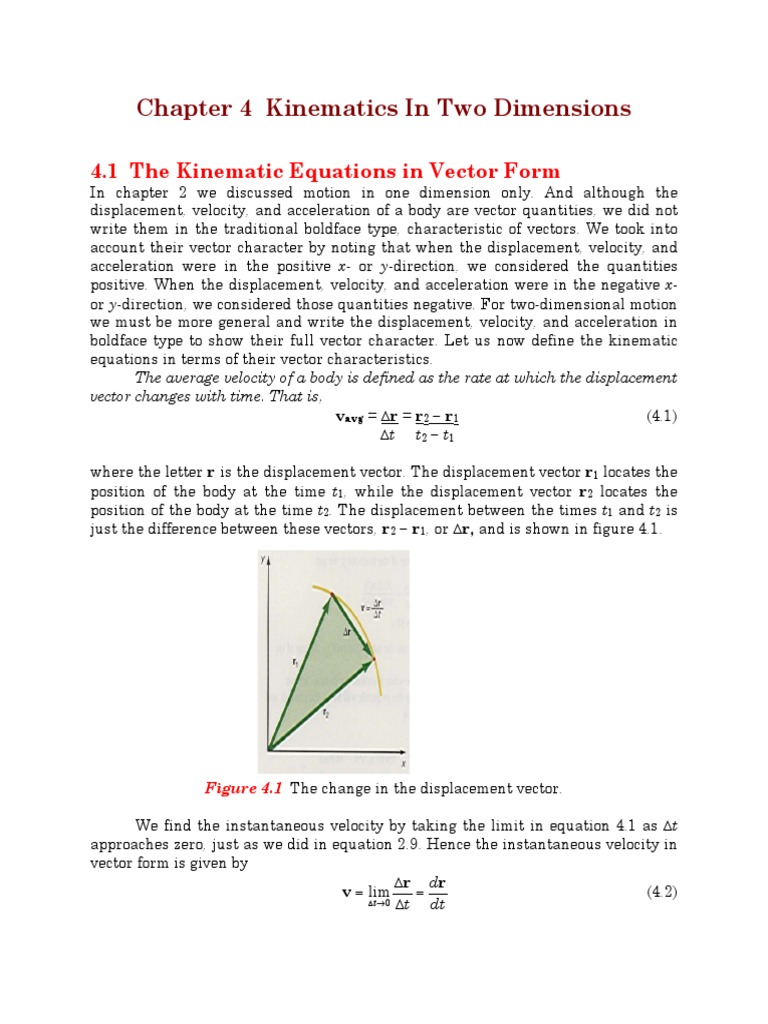

Chapter 4 Kinematics In Two Dimensions
4.1 The Kinematic Equations in Vector Form

In chapter 2 we discussed motion in one dimension only. And although the
displacement, velocity, and acceleration of a body are vector quantities, we did not
write them in the traditional boldface type, characteristic of vectors. We took into
account their vector character by noting that when the displacement, velocity, and
acceleration were in the positive x- or y-direction, we considered the quantities
positive. When the displacement, velocity, and acceleration were in the negative x-
or y-direction, we considered those quantities negative. For two-dimensional motion
we must be more general and write the displacement, velocity, and acceleration in
boldface type to show their full vector character. Let us now define the kinematic
equations in terms of their vector characteristics.
The average velocity of a body is defined as the rate at which the displacement
vector changes with time. That is,
vavg = r = r2 r1 (4.1)
t t2 t1
where the letter r is the displacement vector. The displacement vector r1 locates the
position of the body at the time t1, while the displacement vector r2 locates the
position of the body at the time t2. The displacement between the times t1 and t2 is
just the difference between these vectors, r2 r1, or r, and is shown in figure 4.1.
Figure 4.1 The change in the displacement vector.
We find the instantaneous velocity by taking the limit in equation 4.1 as t

approaches zero, just as we did in equation 2.9. Hence the instantaneous velocity in
vector form is given by
r dr
= v lim
= (4.2)
t 0 t dt
The magnitude of the instantaneous velocity vector is the instantaneous

speed of the body, while the direction of the velocity vector is the direction that the
body is moving, which is tangent to the trajectory at that point.
The average acceleration vector is defined as the rate at which the velocity
vector changes with time:
a = v = v v0 (4.3)
t t
For motion at constant acceleration the average acceleration is the same as the
instantaneous acceleration and we will not use the subscript avg on a. However, the
general definition of the instantaneous acceleration in vector notation is given as an
extension of equation 4.3 as
v dv
= a lim
= (4.4)
t 0 t dt
We find the kinematic equation for the displacement and velocity of the body
at any instant of time as in section 2.6, only we write every term except t as a
vector:
r = v0t + 1 at2 (4.5)
2
and
v = v0 + at (4.6)
Equation 4.5 represents the vector displacement of the moving body at any time t,
while equation 4.6 represents the velocity of the moving body at any time. These
vector equations are used to describe the motion of a moving body in two or three
directions.
4.2 Projectile Motion in Two Dimensions

In the study of kinematics we found that the displacement and velocity of a moving
body can be determined if the original velocity v0 of the body and the acceleration a
acting on it are known. The displacement of the body was given by
r = v0t + 1 at2 (4.5)

2
while its velocity was given by
v = v0 + at (4.6)
These two equations completely describe the resulting motion of the body.
As an example of two-dimensional kinematics let us study the motion of a
projectile in two dimensions. A projectile is thrown from the point 0 in figure 4.2
with an initial velocity v0. The trajectory of the projectile is shown in the figure.
4-2
(a) Two dimensional projectile motion.
(b) Stroboscopic photograph of a projectile in two dimensions.

Figure 4.2 The trajectory of a projectile in two dimensions.
Figure 4.3 A punted football is an example of a projectile in two dimensions.
The location of the projectile at any instant of time is given by equation 4.5
and is shown as the displacement vector r in figure 4.2. We resolve the
displacement vector r into two components: the distance the projectile has moved in
the x-direction, we designate as x; the distance (or height) the projectile has moved
4-3
in the y-direction we designate as y. The displacement vector r for two-dimensional

motion can then be written in terms of the unit vectors as
r = ix + jy (4.7)
The initial velocity v0 also has two components: v0x, the x-component of the initial
velocity, and v0y, the y-component. Figure 4.2 shows that v0x is the x-component of
the original velocity, given by v0x = v0 cos , while v0y is the y-component of the
original velocity, v0y = v0 sin . The initial velocity v0 is written in terms of the unit
vectors as
v0 = iv0x + jv0y (4.8)
The acceleration vector a in equation 4.5 could also have two components: ax, the x-
component of the acceleration, and ay, the y-component. Hence the acceleration
vector a can also be written in terms of the unit vectors as
a = iax + jay (4.9)

Equation 4.5 can now be written as
r = v0t + 1 at2
2
ix + jy = (iv0x + jv0y)t + 1 (iax + jay)t2 (4.10)
2
If we take the dot product of the unit vector i with equation 4.10 we get
i(ix + jy) = i(iv0x + jv0y)t + 1 i(iax + jay)t2

2
Since all ii = 1 and all ij = 0, only the x-components will be nonzero and we get
the equation for the x-component of the displacement to be
x = v0x t + 1 axt2 (4.11)

2
Similarly, if we take the dot product of the unit vector j with equation 4.10 we get
j(ix + jy) = j(iv0x + jv0y)t + 1 j(iax + jay)t2

2
In this case all jj = 1 and all ji = 0. Hence only the y-components will now be
nonzero and we get the equation for the y-component of the displacement to be
y = v0yt + 1 ayt2 (4.12)

2
4-4
In chapter 5 on Newtons laws of motion, we will see that whenever an

unbalanced force F acts on a body of mass m, it gives that mass an acceleration a.
Because there is no force acting on the projectile in the horizontal x-direction, the
acceleration in the x-direction must be zero, that is,
ax = 0
There is, however, a force acting on the projectile in the y-direction, the force
of gravity that the earth exerts on any object, directed toward the center of the
earth. We define the direction of this gravitational force to be in the negative y-
direction. This gravitational force produces a constant acceleration called the
acceleration due to gravity g. Hence, the y-component of the acceleration of the
projectile is given by g, that is,
ay = g
Therefore, the x-component of the displacement r of the projectile, equation

4.11, takes the simple form
x = v0xt (4.13)
and the y-component of the displacement of the projectile, equation 4.12, becomes
y = v0yt 1 gt2 (4.14)

2
Noting that the velocity vector v can be written as
v = ivx + jvy (4.15)
we apply the same arguments to equation 4.6, as above, namely
v = v0 + at
i v = i v0 + i at
i (ivx + jvy) = i (iv0x + jv0y) + i (iax + jay)t
Since all ii = 1 and all ij = 0, only the x-components will be nonzero and we get
the equation for the x-component of the velocity to be
vx = v0x + axt (4.16)

Similarly, for the y-component we get
j v = j v0 + j at
j (ivx + jvy) = j (iv0x + jv0y) + j (iax + jay)t
4-5
In this case all jj = 1 and all ji = 0, only the y-components will now be nonzero
and we get the equation for the y-component of the velocity to be
vy = v0y + ayt (4.17)
However since ax = 0, and ay = g, equations 4.16 and 4.17 become
vx = v0x (4.18)
vy = v0y gt (4.19)
Equation 4.18 gives the x-component of the velocity vx. Note that it does not contain
the time t, and therefore is independent of time and is a constant. Equation 4.19
gives the y-component of the velocity vy, at any time t. These two equations show
that the projectile motion consists of two motions: accelerated motion in the y-
direction and motion at constant velocity in the x-direction.
We can completely describe the motion of the projectile using the four
equations, namely,
x = v0xt (4.13)
y = v0yt 1 gt2 (4.14)
2
vx = v0x (4.18)
vy = v0y gt (4.19)
Now let us apply these equations to the projectile motion shown in figure 4.2.
We essentially look for the same information that we found for projectile motion in
one dimension. Because two-dimensional motion is a superposition of accelerated
motion in the y-direction coupled to motion in the x-direction at constant velocity,
we can use many of the techniques and much of the information we found in the
one-dimensional case.
Let us find (1) the time for the projectile to rise to its maximum height,
(2) the total time that the projectile is in the air, (3) the range (or maximum
distance in the x-direction) of the projectile, (4) the maximum height of the
projectile, (5) the velocity of the projectile as it strikes the ground, and (6) the
location and velocity of the projectile at any time t.
To determine this information we use the kinematic equations 4.13 through
4.19.
The Time for the Projectile to Rise to Its Maximum Height

To determine the maximum height of the projectile we use the same reasoning used
for the one-dimensional case. As the projectile is moving upward it has some
positive vertical velocity vy. When it is coming down it has some negative vertical
velocity vy. At the very top of the trajectory, vy = 0.
Therefore, at the top of the trajectory, equation 4.19 becomes
4-6
0 = v0y gtr (4.20)
Note that this is very similar to the equation for the one-dimensional case, except
for the subscript y on v0. This is an important distinction between the two motions,
because the initial velocity upward v0y is now less than the initial velocity upward
v0 in the one-dimensional case. Solving equation 4.20 for the time to rise to the top
of the trajectory tr, we get
tr = v0y (4.21)
g
Since we know v0 and hence v0y, and because g is a constant, we can immediately
compute tr.
The Total Time the Projectile Is in the Air

To find the total time that the projectile is in the air, we use equation 4.14. When t
is the total time tt, the projectile is back on the ground and the height of the
projectile is zero, y = 0. Therefore,
0 = v0ytt 1 gtt2
2
Solving for the total time that the projectile is in the air, we get
tt = 2v0y (4.22)
g
But using equation 4.21 for the time to rise, tr = v0y/g, the total time that the
projectile is in the air is exactly double this value,
tt = 2v0y = 2tr (4.23)

g
which is the same as the one-dimensional case, as expected.
The Range of the Projectile

The range of a projectile is defined as the horizontal distance from the point
where the projectile is launched to the point where it returns to its launch height.
In this case, the range is the maximum distance that the projectile moves in the x-
direction before it hits the ground. Because the maximum horizontal distance is the
product of the horizontal velocity, which is a constant, and the total time of flight,
the range, becomes
range = R = xmax = v0xtt (4.24)
4-7
Sometimes it is convenient to express the range in another way. Since v0x = v0 cos ,
and the total time in the air is
tt = 2v0y = 2v0 sin
g g
we substitute these values into equation 4.24 to obtain
R = (v0 cos )(2v0 sin ) = v02 2 sin cos

g g
However, using the well-known trigonometric identity,
2 sin cos = sin 2
the range of the projectile becomes

R = v02 sin 2 (4.25)
g
We derived equation 4.25 based on the assumption that the initial and final
elevations are the same, and we can use it only in problems where this assumption
holds. This formulation of the range is particularly useful when we want to know at
what angle a projectile should be fired in order to get the maximum possible range.
From equation 4.25 we can see that for a given initial velocity v0, the maximum
range depends on the sine function. Because the sine function varies between 1
and +1, the maximum value occurs when sin 2 = 1. But this happens when 2 =
900, hence the maximum range occurs when = 450. We obtain the maximum range
of a projectile by firing it at an angle of 450.
The Maximum Height of the Projectile

We can find the maximum height of the projectile by substituting the time tr into
equation 4.14 and solving for the maximum height. However, since it is useful to
have an equation for vertical velocity as a function of the height, we will use an
alternate solution. Equation 4.14 represents the y-component of the displacement of
the projectile at any instant of time and equation 4.19 is the y-component of the
velocity at any instant of time. If the time is eliminated between these two
equations (exactly as it was in section 2.6, for equation 2.16), we obtain the
kinematic equation
vy2 = v0y2 2gy (4.26)
which gives the y-component of the velocity of the moving body at any height y.
When the projectile has reached its maximum height, vy = 0. Therefore,
equation 4.26 becomes
0 = v0y2 2gymax
Solving for ymax we obtain
4-8
ymax = v0y2 (4.27)

2g
the maximum height of the projectile.
The Velocity of the Projectile as It Strikes the Ground

The velocity of the projectile as it hits the ground vg can be described in terms of its
components, as shown in figure 4.4. The x-component of the velocity at the ground,
Figure 4.4 The velocity of the projectile at the ground.
found from equation 4.18, is

vxg = vx = v0x (4.28)
The y-component of the velocity at the ground, found from equation 4.28 with t = tt
is
vyg = v0y gtt (4.29)
= v0y g(2v0y)
g
vyg = v0y (4.30)
The y-component of the velocity of the projectile at the ground is equal to the
negative of the y-component of the original velocity. The minus sign just indicates
that the projectile is coming down. But this is exactly what we expected from the
study of one-dimensional motion. The magnitude of the actual velocity at the
ground, found from its two components, is
v g = (v xg ) 2 + (v yg ) 2 (4.31)
and using equations 4.28 and 4.30, becomes
v g = (v 0x ) 2 + (v 0y ) 2 = v 0 (4.32)
The speed of the projectile as it strikes the ground is equal to the original speed of
the projectile. The direction that the velocity vector makes with the ground is
4-9
= tan1 vyg = tan1 v0y =

vxg v0x
The angle that the velocity vector makes as it hits the ground is the negative of the
original angle. That is, if the projectile was fired at an original angle of 300 above
the positive x-axis, it will make an angle of 300 below the positive x-axis when it hits
the ground.
The Location and Velocity of the Projectile at Any Time t

We find the position and velocity of the projectile at any time t by substituting that
value of t into equations 4.13, 4.14, 4.18, and 4.19. Let us look at some examples of
projectile motion.
Example 4.1
Projectile motion in two dimensions. A ball is thrown with an initial velocity of 30.0
m/s at an angle of 60.00 above the horizontal, as shown in figure 4.5. Find (a) the
maximum height of the ball, (b) the time to rise to the top of the trajectory, (c) the
total time the ball is in the air, (d) the range of the ball, (e) the velocity of the ball as
it strikes the ground, and (f) the position and velocity of the ball at t = 4 s.
Figure 4.5 Trajectory of a thrown ball.

Solution
The x-component of the initial velocity is
v0x = v0 cos = (30.0 m/s) cos 600 = 15.0 m/s
The y-component of the initial velocity is
v0y = v0 sin = (30.0 m/s) sin 60.00 = 26.0 m/s
a. The maximum height of the ball, found from equation 4.27, is
4-10
ymax = v0y2 = (26.0 m/s)2 = 34.5 m

2g 2(9.80 m/s2)
b. To find the time to rise to the top of the trajectory, we use equation 4.21,
tr = v0y = 26.0 m/s = 2.65 s

g 9.80 m/s2
c. To find the total time that the ball is in the air, we use equation 4.23,
tt = 2tr = 2(2.65 s) = 5.30 s
d. The range of the ball, found from equation 4.25, is
R = v02 sin 2 = (30.0 m/s)2 sin 1200 = 79.5 m

g 9.80 m/s2
As a check, we can use equation 4.24 to get
R = xmax = v0xtt = (15.0 m/s)(5.30 s) = 79.5 m
e. To find the magnitude of the velocity of the ball at the ground, we use equation
4.31,
v g = (v xg ) 2 + (v yg ) 2
where
vxg = v0x = 15.0 m/s
and
vyg = v0y gtt = 26.0 m/s (9.80 m/s2)(5.30 s)
= 26.0 m/s 51.9 m/s = 25.9 m/s
Hence,
v g = (15.0 m/s) 2 + (25.9 m/s) 2
= 29.9 m/s 30.0 m/s because of round off errors
The direction that the velocity vector makes with the ground is
= tan1vyg = tan1 25.9 m/s = 59.90 60.00

vxg 15.0 m/s
f. To find the position and velocity of the ball at t = 4 s we use the kinematic
equations 4.13 through 4.19.
1. x = v0xt = (15.0 m/s)(4 s) = 60.0 m
4-11
2. y = v0yt 1 gt2
2
= (26.0 m/s)(4 s) 1 (9.80 m/s2)(4 s)2
2
= 25.6 m
The ball is 60.0 m down range and is 25.6 m high.

The components of the velocity at 4 s are
3. vx = v0x = 15.0 m/s
4. vy = v0y gt
= 26.0 m/s (9.80 m/s2)(4 s)
= 13.2 m/s
At the end of 4 s the x-component of the velocity is 15.0 m/s and the y-component is
13.2 m/s. To determine the magnitude of the velocity vector at 4 s we have
v = (v x ) 2 + (v y ) 2
v = (15.0 m/s) 2 + (13.2 m/s) 2
= 20.0 m/s
The direction of the velocity vector at 4 s is
= tan1vyg = tan1 13.2 m/s = 41.30

vxg 15.0 m/s
The velocity vector makes an angle of 41.30 below the horizontal at 4 s.
To go to this Interactive Example click on this sentence.
Example 4.2
A projectile is fired horizontally from the roof of a building. A projectile is fired

horizontally from the roof of a building 30.0 m high at an initial velocity of 20.0 m/s,
as shown in figure 4.6. Find (a) the total time the projectile is in the air, (b) where
the projectile will hit the ground, and (c) the velocity of the projectile as it hits the
ground.
Solution
4-12
Figure 4.6 Trajectory of projectile thrown horizontally.
The x- and y-components of the velocity are
v0x = v0 = 20.0 m/s

v0y = 0
a. To find the total time that the projectile is in the air, we use equation 4.14,
y = v0yt 1 gt2
2
However, the initial conditions are that v0y = 0. Therefore,
y = 1 gt2
2
Solving for t,
2y
t= g
However, when t = tt, y = 30.0 m. Hence,
2y 2(30.0 m )
tt = g = 9.80 m/s 2
= 2.47 s
b. To find where the projectile hits the ground, we use equation 4.13,
x = v0xt
Now the projectile hits the ground when t = tt, therefore,
x = v0xtt = (20.0 m/s)(2.47 s) = 49.4 m
4-13
The projectile hits the ground at the location y = 30.0 m and x = 49.4 m.
c. To find the velocity of the projectile at the ground we use equations 4.28, 4.29,
and 4.31:
vxg = v0x = v0 = 20.0 m/s
vyg = v0y gtt = 0 (9.80 m/s2)(2.47 s) = 24.2 m/s
v g = (v xg ) 2 + (v yg ) 2
v = (20.0 m/s) 2 + (24.2 m/s) 2
= 31.4 m/s
The direction that the velocity vector makes with the ground is
= tan1vyg = tan1 24.2 m/s = 50.40

vxg 20.0 m/s
The velocity vector makes an angle of 50.40 below the horizontal when the projectile
hits the ground.
Example 4.3
A projectile is fired at an angle from the roof of a building. A projectile is fired at an

initial velocity of 35.0 m/s at an angle of 30.00 above the horizontal from the roof of a
building 30.0 m high, as shown in figure 4.7. Find (a) the maximum height of the
Figure 4.7 Trajectory of a projectile fired from the roof of a building.
4-14
projectile, (b) the time to rise to the top of the trajectory, (c) the total time that the
projectile is in the air, (d) the velocity of the projectile at the ground, and (e) the
range of the projectile.
Solution
The x- and y-components of the original velocity are
v0x = v0 cos = (35.0 m/s) cos 300 = 30.3 m/s

v0y = v0 sin = (35.0 m/s) sin 300 = 17.5 m/s
a. To find the maximum height we use equation 4.27:
ymax = v0y2 = (17.5 m/s)2 = 15.6 m

2g 2(9.80 m/s2)
above the building. Since the building is 30 m high, the maximum height with
respect to the ground is 45.6 m.
b. To find the time to rise to the top of the trajectory we use equation 4.21:
tr = v0y = 17.5 m/s = 1.79 s

g 9.80 m/s2
c. To find the total time the projectile is in the air we use equation 4.23:
y = v0yt 1 gt2
2
When t = tt, y = 30.0 m. Therefore,
30.0 m = (17.5 m/s)tt 1 (9.80 m/s2)tt2

2
Rearranging the equation, we get
4.90 tt2 17.5 tt 30.0 = 0
The units have been temporarily left out of the equation to simplify the following
calculations. This is a quadratic equation of the form
ax2 + bx + c = 0 (4.33)
with the solution
b b2 4ac
x= (4.34)
2a
4-15
In this problem, x = tt, a = 4.90, b = 17.5, and c = 30.0. Therefore,
2
+17.5 (17.5 ) 4 ( 4.90 )( 30.0 )
tt =
2(4.90)
= +17.5 29.9
9.80
= 4.84 s
The total time that the projectile is in the air is 4.84 s. If we had solved the equation
for the negative root, we would have found a time of 1.27 s. This corresponds to a
time when the height is 30.0 meters but it is a time before the projectile was
thrown. If the projectile had been thrown from the ground it would have taken 1.27
seconds to reach the roof.
d. To find the velocity of the projectile at the ground we use equations 4.28, 4.29,
and 4.31:
vxg = v0x = 30.3 m/s
vyg = v0y gtt = 17.5 m/s (9.80 m/s2)(4.84 s)
= 29.9 m/s
(v ) + (v )
2 2
=vg xg yg
2 2
=vg (30.3 m/s ) + ( 29.9 m/s )
= 42.6 m/s
The speed of the projectile as it strikes the ground is 42.6 m/s. The angle that the
velocity vector makes with the ground, found from figure 4.8, is
Figure 4.8 Angle of velocity vector as it strikes the ground.
tan = vyg
vxg
4-16
v 29.9
= tan
= 1 yg
tan 1
vxg 30.3
= 44.60
The velocity vector makes an angle of 44.60 below the horizontal when the projectile
hits the ground.
e. To find the range of the projectile we use equation 4.24:
xmax = v0xtt = (30.3 m/s)(4.84 s)

= 147 m
Example 4.4
The time for the projectile to be at a certain position. A projectile is fired at an initial
velocity of 30.0 m/s at an angle of 65.00 above the horizontal from the roof of a
building 40.0 m high, as shown in figure 4.7. Find (a) the time when the projectile is
at a height of 15.0 m above the top of the building, (b) the value of the x-coordinate
at this time, (c) the x-component of the velocity of the projectile at this time, and
(d) the y-component of the velocity of the projectile at this time.
Solution
The x- and y-components of the original velocity are
v0x = v0 cos = (30.0 m/s) cos 650 = 12.7 m/s

v0y = v0 sin = (30.0 m/s) sin 650 = 27.2 m/s
a. The height of the projectile at any instant of time is given by equation 4.14:
y = v0yt 1 gt2
2
Rearranging the equation, we get
1 gt2 v0yt + y = 0
2
which is of the form of the quadratic equation
ax2 + bx + c = 0
with the solution
4-17
b b2 4ac
x=
2a
In this problem, x = t, a = g/2, b = voy, and c = y. Therefore,
( v )
2
+ voy oy 4 ( g / 2) y
tt =
2( g / 2)
or
+ voy voy 2 2 gy
tt = (4.35)
g
gives the time t that the projectile is at the height y.
tt =
+27.2 ( 27.2 m/s )
2
( )
2 9.80 m/s2 (15.0 m )
9.80 m/s2
t = +27.2 21.1
9.80
Because this is a quadratic equation, there are two roots or solutions to the
equation. The first solution occurs for the negative root and gives
t = 0.622 s
That is, it will take 0.622 s for the projectile to rise to a height of 15.0 m. The second
solution occurs for the positive root and gives
t+ = 4.93 s
This is the time it takes for the projectile to rise to its maximum height and then
descend until it is 15.0 m above the top of the building on its way down. Thus, the
negative root gives the time it takes for the projectile to rise to the given height and
the positive root gives the time it takes for the projectile to be at that same height but
now it is on its way down.
b. Because of the two roots of the quadratic equation, there will be two values of x
associated with the times. The first value of x corresponds to the negative root t
when the projectile is on its way up. That is
x = v0x t = (12.7 m/s)(0.622 s) = 7.90 m
4-18
The second value of x corresponds to the time t+ when the projectile is on its way
down, i.e.,
x = v0x t+ = (12.7 m/s)(4.93 s) = 62.6 m
c. The value of the x-component of the velocity is a constant and is given by
vx = v0x = 12.7 m/s

for all values of time.
d. The value of the y-component of the velocity is given by the kinematic equation
vy = v0y - gt
The first value of vy corresponds to the negative root t when the projectile is on its
way up and is found as
vy = v0y gt = 27.2 m/s (9.80 m/s2)(0.622 s) = 21.1 m/s
The second value of vy corresponds to the time t+ when the projectile is on its way
down, i.e.,
vy = v0y gt+ = 27.2 m/s (9.80 m/s2)(4.93 s) = 21.1 m/s
4.3 The Calculus and Kinematics in Two Dimensions

The use of the calculus in kinematics in two-dimensional motion is essentially the
same as for one-dimensional motion except that the displacement, velocity, and
acceleration are now represented in bold face vector notation. We start with the
definition of the acceleration of the moving body
a = dv
dt (4.36)
and rewrite it in the following form

dv = adt (4.37)
Let us now integrate equation 4.37
(4.38)
v t
v0
dv = adt
0
At the beginning of the motion the time is t = 0 and this becomes the lower limit in
the second integral. At this same time the velocity of the moving body is v0, which
4-19
becomes the lower limit in the first integral. At the later time t, the upper limit in
the second integral, the velocity of the moving body is v, which becomes the upper
limit in the first integral. Evaluating the integral on the left we obtain
(4.39)
v
v0
dv= v v0
and equation 4.38 becomes
t
adt
v v0 = (4.40)
0
In general the acceleration term a in equation 4.40 could vary with time. If it does
we would have to know that functional relation before we can solve equation 4.40.
On the other hand, if the acceleration of the moving body is a constant, then it can
be taken out from under the integral sign to obtain
t t
v v0= 0
adt= a dt= at
0
v v 0 = at
or
v = v 0 + at (4.41)
Equation 4.41 gives the velocity of the moving body at any instant of time, when the
acceleration of the body is a constant. Notice that this is the same equation we
obtained in equation 4.6.
The velocity at any time was given by equation 4.2 as
v = dr
dt
Setting equation 4.2 equal to equation 4.41 gives
v = dr = v 0 + at
dt
which becomes
dr = (v 0 + at)dt
Upon integrating
dr ( v + at ) dt
r t
=
r0 0 0
At the time t = 0, the lower limit in the second integral, the displacement of the
moving body is r0, which becomes the lower limit in the first integral. At the time t
= t, the upper limit in the second integral, the displacement of the moving body is r,
which becomes the upper limit in the first integral. Separating the two terms on the
right into two separate integrals we get
4-20
r t t
dr
=
r0
0
v 0 dt + atdt
0
Since v0 and a are constant they come out of the integral sign to yield
(4.42)
t t
r r0 = v 0 dt + a tdt = v 0t + 12 at 2
0 0
or
r = r 0 + v 0 t + 12 at 2 (4.43)
Equation 4.43 gives the displacement r of the moving body at any instant of time for
a body that is undergoing constant acceleration. Equation 4.43 looks like equation
4.5 except for the term r0, which represents the position of the moving body at the
time t = 0. In our derivation of equation 4.5, we assumed that the body was at the
origin of our reference system and hence r0 = 0 in that equation. Equation 4.43 is
more general in that it allows for the moving body to be at some place other than
the origin at t = 0.
In summary equation 4.41 gives the velocity of the moving body at any time t
while equation 4.43 gives the displacement of the moving body at any time t.
v = v 0 + at (4.41)
r = r 0 + v 0 t + 12 at 2 (4.43)
Both equations are vector equations and the x- and y-component equations can be
obtained by dot multiplying each equation by i and j respectively, as we did in
equations 4.10 through 4.17, to yield
x = x0 + v0xt + 1 axt2 (4.44)

2
y = y0 + v0yt + 1 ayt2 (4.45)
2
vx = v0x + axt (4.46)
vy = v0y + ayt (4.47)
The terms x0 and y0 represent the initial coordinates of the body at the time t = 0. In
most of the analysis we did so far we assumed that the moving body was at the
origin of the coordinate system at the time t = 0 and therefore we set x0 = 0 and y0 =
0 and they were not in our kinematic equations. For the case of projectile motion we
can let ax = 0 and ay = g and we then obtain the equations for projectile motion
4.13, 4.14, 4.18, and 4.19.
It should now be obvious that the kinematic equations, 4.44 through 4.47,
hold only for motion at constant acceleration. Fortunately, most of the physical
problems that we will encounter in this course will be for motion at constant
acceleration and the standard form of the kinematic equations can be used. For
4-21
those cases where the acceleration is variable, the procedure above must be
followed. Hence using the calculus will allow us to solve more general and
sometimes more difficult problems.
4.4 Uniform Circular Motion

Uniform circular motion is defined as motion in a circle at constant speed.
Motion in a circle with changing speeds will be discussed later in this chapter. A car
moving in a circle at the constant speed of 20 km/hr is an example of a body in
uniform circular motion. At every point on that circle the car would be moving at 20
km/hr. This type of motion is shown in figure 4.9. At the time t0, the car is located
at the point A and is moving with the velocity v0, which is tangent to the circle at
that point. At a later time t, the car will have moved through the angle , and will
be located at the point B. At the point B the car has a velocity v, which is tangent to
the circle at B. (The velocity is always tangent to the circle, because at any instant
the tangent specifies the direction of motion.) The lengths of the two vectors, v and
v0, are the same because the magnitude of any vector is represented as the length of
that vector. The magnitude of the velocity is the speed, which is a constant for
uniform circular motion.
(a) (b)
Figure 4.9 Uniform circular motion.
The first thing we observe in figure 4.9 is that the direction of the velocity
vector has changed in going from the point A to the point B. Recall from equation
4.36, that the acceleration is defined as the change in velocity with time, that is,
a = dv (4.36)
dt
4-22
Even though the speed is a constant in uniform circular motion, the direction is
always changing with time. Hence, the velocity is changing with time, and there
must be an acceleration. Thus, motion in a circle at constant speed is accelerated
motion. We must now determine the direction of this acceleration and its
magnitude.
4.5 Centripetal Acceleration and its Direction

To determine the direction of the centripetal acceleration, let us start by moving the
vector v, located at the point B in figure 4.9, parallel to itself to the point A, as
shown in figure 4.10. The difference between the two velocity vectors is v v0 and
points approximately toward the center of the circle in the direction shown. But this
difference between the velocity vectors is the change in the velocity vector v, that
Figure 4.10 The direction of the centripetal acceleration.
is,
v = v v0
But from equation 4.3
v = at
This is a vector equation, and whatever direction the left-hand side of the equation
has, the right-hand side must have the same direction. Therefore, the vector v
points in the same direction as the acceleration vector a. Observe from figure 4.10
that v points approximately toward the center of the circle. In the limit, if the
angle , between the points A and B, were made very small, approaching zero, then
v would become dv and would point exactly at the center of the circle. Then
dv = adt
4-23
Thus, since dv points toward the center, the acceleration vector a must also point
toward the center of the circle. This is the characteristic of uniform circular motion.
Even though the body is moving at constant speed, there is an acceleration and the
acceleration vector points toward the center of the circle. This acceleration is called
the centripetal acceleration.
The word centripetal means center seeking or seeking the center. If this
circular motion were shown at intervals of 450, we would obtain the picture shown
in figure 4.11. Observe in figure 4.11 that no matter where the body is on the circle,
the centripetal acceleration always points toward the center of the circle.
What is the magnitude of this acceleration? The problem of calculating
accelerations of objects moving in circles at constant speed was first solved by
Christian Huygens (1629-1695) in 1673, and his solution is effectively the same one
that we use today. The argument is basically a geometric one. However, before the
magnitude of the centripetal acceleration can be determined, we need first to
determine how an angle is defined in terms of radian measure.
Figure 4.11 The centripetal acceleration always points toward the center of the circle.
4.6 Angles Measured in Radians

In addition to the usual unit of degrees used to measure an angle, an angle can also
be measured in another unit called a radian. As the body moves along the arc s of
the circle from point A to point B in figure 4.12, it sweeps out an angle in the time
t. This angle , measured in radians (abbreviated rad), is defined as the ratio of the
arc length s traversed to the radius of the circle r. That is,
4-24
Figure 4.12 Definition of an angle expressed in radians.
= s = arc length (4.48)

r radius
Thus an angle of 1 radian is an angle swept out such that the distance s, traversed
along the arc, is equal to the radius of the circle:
= s = r = 1 rad
r r
Notice that a radian is a dimensionless quantity. If s is measured in meters and r is

measured in meters, then the ratio yields units of meters over meters and the units
will thus cancel.
For an entire rotation around the circle, that is, for one revolution, the arc
subtended is the circumference of the circle, 2r. Therefore, an angle of one
revolution, measured in radians, becomes
= s = 2r = 2 rad
r r
That is, one revolution is equal to 2 rad. The relationship between an angle
measured in degrees, and one measured in radians can be found from the fact that
one revolution is also equal to 360 degrees. Thus,
1 rev = 2 rad = 3600

and solving for a radian, we get
1 rad = 3600 = 57.2960
2
Similarly,
1 degree = 0.01745 rad
4-25
In almost all problems in circular motion the angles will be measured in radians.
The relationship between the arc length s and the angle , measured in
radians, for circular motion, found from equation 4.48, is
s = r (4.49)
4.7 The Magnitude of the Centripetal Acceleration

Having determined the relation between the arc length s and the angle swept out,
we can now determine the magnitude of the centripetal acceleration. In moving at
the constant speed v, along the arc of the circle from A to B in figure 4.10, the body
has traveled the distance
s = vt (4.50)
But in this same time t, the angle has been swept out in moving the distance s
along the arc. If the distance s moved along the arc from equations 4.49 and 4.50
are equated, we have
r = vt
Solving for , we obtain
= vt (4.51)
r
This is the angle swept out in the uniform circular motion, in terms of the speed v,
time t, and the radius r of the circle. We will return to equation 4.51 in a moment,
but first let us look at the way that these velocity vectors are changing with time.
As we see in figure 4.11, the velocity vector v points in a different direction at
every instant of time. Let us slide each velocity vector in figure 4.11 parallel to itself
to a common point. If we draw a curve connecting the tips of each velocity vector,
we obtain the circle shown in figure 4.13. That is, since the magnitude of the
velocity vector is a constant, a circle of radius v is generated. As the object moves
from A to B and sweeps out the angle in figure 4.10, the velocity vector also moves
through the same angle , figure 4.13. To prove this, notice that the velocity vectors
v0 at A and v at B are each tangent to the circle there, figure 4.14. In moving
through the angle in going from A to B, the velocity vector turns through this
same angle . This is easily seen in figure 4.14. The angle is
= (4.52)
2
while the angle is
= (4.53)
2
4-26
Figure 4.13 The velocity circle.
Figure 4.14 The angle between the velocity vectors v and v0 is the same as the angle swept
out in moving from point A to point B.
Substituting equation 4.52 into equation 4.53 gives
=
2 2
Hence, , the angle between v and v0 in figure 4.14, is
Thus, the angle between the velocity vectors v and v0 is the same as the angle
swept out in moving from point A to point B.
4-27
Therefore, in moving along the velocity circle in figure 4.13, an amount of arc
s is swept out with the angle . This velocity circle has a radius of v, the constant
speed in the circle. Using equation 4.48, as it applies to the velocity circle, we have
= arc length = s (4.54)

radius v
If the angle is relatively small, then the arc of the circle s is approximately equal
to the chord of the circle |v v0| in figure 4.13. 1 That is,
arc chord
s |v v0|= |a|t
In the limit 0 the arc will become equal to the chord, that is
lim s ' =v v0 =at

0
hence,
s = at
Substituting this result into equation 4.54 gives
= at (4.55)
v
Thus we have obtained a second relation for the angle swept out, expressed now
in terms of acceleration, speed, and time. Return to equation 4.51, which gave us
the angle swept out as the moving body went from point A to point B along the
circular path, and compare it to equation 4.55, which gives the angle swept out in
the velocity circle. Because both angles are equal, equation 4.55 can now be
equated to equation 4.51, giving
=
at = vt
v r
Solving for the acceleration we obtain
a = v2
r
Placing a subscript c on the acceleration to remind us that this is the centripetal

acceleration, we then have
Note that |v v0| is the magnitude of the difference in the velocity vectors and is the straight line
1
between the tip of the velocity vector v0 and the tip of the velocity vector v, and as such, is equal to
the chord of the circle in figure 4.13.
4-28
ac = v2 (4.56)
r
Therefore, for the uniform circular motion of an object moving at constant

speed v in a circle of radius r, the object undergoes an acceleration ac, pointed
toward the center of the circle, and having the magnitude given by equation 4.56.
Example 4.5
Find the centripetal acceleration. An object moves in a circle of 10.0-m radius, at a

constant speed of 5.00 m/s. What is its centripetal acceleration?
Solution
The centripetal acceleration, found from equation 4.56, is
ac = v2 (4.56)
r
= (5.00 m/s)2
10.0 m
= 2.50 m/s2
Example 4.6
The special case of the centripetal acceleration equal to the gravitational

acceleration. At what uniform speed should a body move in a circular path of 8.50 m
radius such that the acceleration experienced will be the same as the acceleration
due to gravity?
Solution
We find the velocity of the moving body in terms of the centripetal acceleration by
solving equation 4.56 for v:
v = ra c
To have the body experience the same acceleration as the acceleration due to
gravity, we set ac = g and get
v = ra c = rg
= (8.50 m)(9.80 m/s 2 )
= 9.13 m/s
4-29
4.8 Nonuniform Circular Motion

If the body that is moving in a circle is not moving at constant speed, then there is
an additional term that must be considered because the speed is changing with
time. If the speed is changing with time this means that there is a tangential
acceleration aT given by
aT = dv (4.57)
dt
This means that the body is speeding up or slowing down as it moves in the circle.
This acceleration is a vector that is tangential to the circle whereas the centripetal
acceleration ac is a vector that points toward the center of the circle and is
perpendicular to the tangent. For this nonuniform circular motion, the resultant
acceleration of the moving body becomes the vector sum of the tangential
acceleration and the centripetal acceleration, as seen in figure 4.14. That is,
a = ac + aT (4.58)
with the magnitude
a = a 2c + a 2T (4.59)
Figure 4.15 The total acceleration of a body in nonuniform circular motion point is
equal to the vector sum of the tangential acceleration and the centripetal
acceleration.
The angle that the acceleration vector a makes with the acceleration vector ac is
found as
tan = aT (4.60)
ac
and
4-30
= tan1 aT (4.61)
ac
Example 4.7
A body moving in nonuniform circular motion. At the instant that a car is traveling
at 3.50 m/s in a circle of radius 8.50 m, it undergoes a tangential acceleration of
2.50 m/s2. Find (a) the centripetal acceleration of the car, and (b) the magnitude of
the resultant acceleration of the car, and (c) the angle that the acceleration vector
makes with the radius of the circle.
Solution
a. The centripetal acceleration, found from equation 4.56, is
ac = v2/r
= (3.50 m/s)2/(8.50 m)
= 1.44 m/s2
b. The resultant acceleration is found from equation 4.59 as
2 2
a = (a c ) + (a T )
= (1.44 m/s 2 ) 2 + (2.50 m/s 2 ) 2
= 2.89 m/s2
c. The angle that the acceleration vector a makes with the acceleration vector ac
is found as
= tan1 aT (4.61)
ac
= tan 2.50 m/s2
1
1.44 m/s2
= 60.00
The Language of Physics

Average velocity
The average rate at which the displacement vector changes with time. Since a
displacement is a vector, the velocity is also a vector (p. ).
4-31
Instantaneous velocity
The velocity at a particular instant of time. It is defined as the limit of the ratio of
the change in the displacement of the body to the change in time, as the time
interval approaches zero. The magnitude of the instantaneous velocity is the
instantaneous speed of the moving body (p. ).
Acceleration
The rate at which the velocity of a moving body changes with time (p. ).
Kinematic equations of linear motion

A set of equations that gives the displacement and velocity of the moving body at
any instant of time, and the velocity of the moving body at any displacement, if the
acceleration of the body is a constant (p. ).
Projectile motion
The motion of a body thrown or fired with an initial velocity v0 in a gravitational
field (p. ).
Trajectory
The path through space followed by a projectile (p. ).
Range of a projectile
The horizontal distance from the point where the projectile is launched to the point
where it returns to its launch height (p. ).
Uniform circular motion

Motion in a circle at constant speed. Because the velocity vector changes in
direction with time, this type of motion is accelerated motion (p. ).
Centripetal acceleration
When a body moves in uniform circular motion, the acceleration is called
centripetal acceleration. The direction of the centripetal acceleration is toward the
center of the circle (p. ).
Radian
A unit that is used to measure an angle. It is defined as the ratio of the arc length
subtended to the radius of the circle, where 2 radians equals 3600 (p. ).
Nonuniform circular motion

Motion in a circle with changing speed. In this type of accelerated motion, the
velocity vector changes in both magnitude and direction with time (p. ).
4-32
Summary of Important Equations

Average velocity vavg = r = r2 r1 (4.1)
t t2 t1
Acceleration a = v = v v0 (4.3)
t t
a = dv (4.4)
dt
r dr
Instantaneous velocity =v lim
= (4.2)
t 0 t dt
Velocity at any time for constant acceleration v = v0 + at (4.6)
Displacement at any time for constant acceleration r = v0t + 1 at2 (4.5)

2
For Projectile Motion x-displacement x = v0xt (4.13)
y-displacement y = v0yt 1 gt2 (4.14)

2
x-component of velocity vx = v0x (4.18)
y-component of velocity vy = v0y gt (4.19)
y-component of velocity at any height y vy2 = v0y2 2gy (4.26)
Range R = v02 sin 2 (4.25)

g
t
Velocity of a moving body adt
v v0 = (4.40)
0
Displacement of a moving body (4.42)

t t
r =
r0 0
v 0 dt + atdt
0
Definition of angle in radians = s (4.48)

r
Arc length s=r (4.49)
Centripetal acceleration ac = v2 (4.56)

r
Nonuniform circular motion a = ac + aT (4.58)
4-33
with the magnitude a = a 2c + a 2T (4.59)
Questions for Chapter 4

1. Discuss the difference between distance and displacement.
2. Discuss the difference between speed and velocity.
3. What is the acceleration of a projectile when its instantaneous vertical
velocity is zero at the top of its trajectory?
4. Can the velocity of an object be in a different direction than the
acceleration? Give some examples.
5. A person on a moving train throws a ball straight upward. Describe the
motion as seen by a person on the train and by a person on the station platform.
6. If a car is moving in uniform circular motion at a speed of 5.00 m/s and has
a centripetal acceleration of 2.50 m/s2, will the speed of the car increase at 2.50 m/s
every second?
7. Does it make any sense to say that a car in uniform circular motion is
moving with a velocity that is tangent to a circle and yet the acceleration is
perpendicular to the tangent? Should not the acceleration be tangential because
that is the direction that the car is moving?
8. If a car is moving in uniform circular motion, and the acceleration is
toward the center of that circle, why does the car not move into the center of the
circle?
9. Answer the students question, If an object moving in uniform circular
motion is accelerated motion, why doesnt the speed change with time?
Problems for Chapter 4

4.2 Projectile Motion in Two Dimensions
1. A projectile is thrown from the top of a building with a horizontal velocity
of 15.0 m/s. The projectile lands on the street 85.0 m from the base of the building.
How high is the building?
2. To find the velocity of water issuing from the nozzle of a garden hose, the
nozzle is held horizontally and the stream is directed against a vertical wall. If the
wall is 7.00 m from the nozzle and the water strikes the wall 0.650 m below the
horizontal, what is the velocity of the water?
4-34
Diagram for problem 2.
3. A bomb is dropped from an airplane in level flight at a velocity of 970

km/hr. The altitude of the aircraft is 2000 m. At what horizontal distance from the
initial position of the aircraft will the bomb land?
4. A cannon is placed on a hill 20.0 m above level ground. A shell is fired
horizontally at a muzzle velocity of 300 m/s. At what horizontal distance from the
cannon will the shell land? How long will this take? What will be the shells velocity
as it strikes its target?
5. A shell is fired from a cannon at a velocity of 300 m/s to hit a target 3000 m
away. At what angle above the horizontal should the cannon be aimed?
6. In order to hit a target, a marksman finds he must aim 1.00 m above the
target, which is 300 m away. What is the initial speed of the bullet?
7. A golf ball is hit with an initial velocity of 50.0 m/s at an angle of 55.00
above the horizontal. (a) How high will the ball go? (b) What is the total time the
ball is in the air? (c) How far will the ball travel horizontally before it hits the
ground?
8. A projectile is thrown from the ground with an initial velocity of 20.0 m/s
at an angle of 40.00 above the horizontal. Find (a) the projectiles maximum height,
(b) the time required to reach its maximum height, (c) its velocity at the top of the
trajectory, (d) the range of the projectile, and (e) the total time of flight.
4.3 The Calculus and Kinematics

9. A body moves with an acceleration given by
a = Ati + Bt3j
Find the equations for the velocity v and displacement r of the moving body at any
time t.
10. The displacement of a certain moving body is given by
r = v0xti + 3At2j + 4Bt3k
where A and B are constants. Find the equation for the velocity and acceleration of
the moving body at any time t.
4-35
4.6 Angles Measured in Radians

11. Express the following angles in radians: (a) 3600, (b) 2700, (c) 1800, (d) 900,
(e) 600, (f) 300, and (g) 1 rev.
12. Express the following angles in degrees: (a) 2 rad, (b) rad, (c) 1 rad,
and (d) 0.500 rad.
13. A record player turns at 33-1/3 rpm. What distance along the arc has a
point on the edge moved in 1.00 min if the record has a diameter of 10.0 in.?
4.7 The Centripetal Acceleration

14. A 4.00-kg stone is whirled at the end of a 2.00-m rope in a horizontal
circle at a speed of 15.0 m/s. Ignoring the gravitational effects calculate the
centripetal acceleration.
15. An automatic washing machine, in the spin cycle, is spinning wet clothes
at the outer edge at 8.00 m/s. The diameter of the drum is 0.450 m. Find the
acceleration of a piece of clothing in this spin cycle.
16. A 1500-kg car moving at 86.0 km/hr goes around a curve of 325-m radius.
What is the centripetal acceleration of the car?
Additional Problems
17. Two students are having a race on a circular track. Student 1 is on the
inside track, which has a radius of curvature r1 = 250 m, and is moving at the speed
v1 = 4.50 m/s. With what speed must student 2 run to keep up with student 1 if
student 2 is on the outside track of radius of curvature r2 = 255 m?
18. Show that the range of a projectile is the same for either a projection
angle of 45.00 + or an angle of 45.00 .
19. A projectile hits a target 1.50 km away 10.5 s after it was fired. Find
(a) the elevation angle of the gun and (b) the initial velocity of the projectile.
20. A football is kicked with an initial velocity of 20.0 m/s at an angle of 65.00
above the horizontal. Find (a) how long the ball is in the air, (b) how far down field
the ball lands, (c) how high the ball rises, and (d) the velocity of the ball when it
strikes the ground.
21. A baseball is hit at an initial velocity of 35.0 m/s at an angle of 45.00
above the horizontal. Will the ball clear a 3.00 m fence 92.0 m from home plate for a
home run? If so, by how much will it clear the fence?
22. A ball is thrown from a bridge 100 m high at an initial velocity of 30.0 m/s
at an angle of 50.00 above the horizontal. Find (a) how high the ball goes, (b) the
total time the ball is in the air, (c) the maximum horizontal distance that the ball
travels, and (d) the velocity of the ball as it strikes the ground.
23. A ball is thrown at an angle of 35.50 below the horizontal at a speed of
22.5 m/s from a building 20.0 m high. (a) How long will it take for the ball to hit the
ground below? (b) How far from the building will the ball land?
24. Using the kinematic equations for the x- and y-components of the
displacement, find the equation of the trajectory for two-dimensional projectile
motion. Compare this equation with the equation for a parabola expressed in its
standard form.
4-36
25. Using the kinematic equations, prove that if two balls are released
simultaneously from a table, one with zero velocity and the other with a horizontal
velocity v0x, they will both reach the ground at the same time.
Interactive Tutorials
26. A golf ball is hit with an initial velocity v0 = 53.0 m/s at an angle = 50.00
above the horizontal. (a) How high will the ball go? (b) What is the total time the
ball is in the air? (c) How far will the ball travel horizontally before it hits the
ground?
27. Generalized two-dimensional projectile motion. A projectile is fired from a
height y0 above the horizontal with an initial velocity v0 at an angle . Find (a) the
time tr for the projectile to rise to its maximum height; (b) the total time tt the ball
is in the air; (c) the maximum distance the ball travels in the x-direction, xmax
before it hits the ground; (d) the maximum height ymax of the projectile; (e) the
velocity vg of the projectile as it strikes the ground; and (f) the location and velocity
of the projectile at any time t. (g) Plot a picture of the trajectory.
To go to these Interactive Tutorials click on this sentence.
To go to another chapter, return to the table of contents by

clicking on this sentence.
4-37

Chapter 4 Kinematics in Two Dimensions: 4.1 The Kinematic Equations in Vector Form

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Chapter 4 Kinematics in Two Dimensions: 4.1 The Kinematic Equations in Vector Form

Uploaded by

Copyright:

Available Formats

Chapter 4 Kinematics In Two Dimensions

4.1 The Kinematic Equations in Vector Form

Figure 4.1 The change in the displacement vector.

We find the instantaneous velocity by taking the limit in equation 4.1 as t

The magnitude of the instantaneous velocity vector is the instantaneous

4.2 Projectile Motion in Two Dimensions

r = v0t + 1 at2 (4.5)

(a) Two dimensional projectile motion.

(b) Stroboscopic photograph of a projectile in two dimensions.

Figure 4.3 A punted football is an example of a projectile in two dimensions.

in the y-direction we designate as y. The displacement vector r for two-dimensional

a = iax + jay (4.9)

i(ix + jy) = i(iv0x + jv0y)t + 1 i(iax + jay)t2

x = v0x t + 1 axt2 (4.11)

j(ix + jy) = j(iv0x + jv0y)t + 1 j(iax + jay)t2

y = v0yt + 1 ayt2 (4.12)

In chapter 5 on Newtons laws of motion, we will see that whenever an

Therefore, the x-component of the displacement r of the projectile, equation

y = v0yt 1 gt2 (4.14)

Noting that the velocity vector v can be written as

v = ivx + jvy (4.15)

we apply the same arguments to equation 4.6, as above, namely

vx = v0x + axt (4.16)

vy = v0y + ayt (4.17)

However since ax = 0, and ay = g, equations 4.16 and 4.17 become

The Time for the Projectile to Rise to Its Maximum Height

0 = v0y gtr (4.20)

The Total Time the Projectile Is in the Air

tt = 2v0y = 2tr (4.23)

which is the same as the one-dimensional case, as expected.

The Range of the Projectile

we substitute these values into equation 4.24 to obtain

R = (v0 cos )(2v0 sin ) = v02 2 sin cos

However, using the well-known trigonometric identity,

2 sin cos = sin 2

the range of the projectile becomes

The Maximum Height of the Projectile

ymax = v0y2 (4.27)

The Velocity of the Projectile as It Strikes the Ground

Figure 4.4 The velocity of the projectile at the ground.

found from equation 4.18, is

and using equations 4.28 and 4.30, becomes

= tan1 vyg = tan1 v0y =

The Location and Velocity of the Projectile at Any Time t

Figure 4.5 Trajectory of a thrown ball.

The x-component of the initial velocity is

v0x = v0 cos = (30.0 m/s) cos 600 = 15.0 m/s

The y-component of the initial velocity is

v0y = v0 sin = (30.0 m/s) sin 60.00 = 26.0 m/s

a. The maximum height of the ball, found from equation 4.27, is

ymax = v0y2 = (26.0 m/s)2 = 34.5 m

tr = v0y = 26.0 m/s = 2.65 s

tt = 2tr = 2(2.65 s) = 5.30 s

d. The range of the ball, found from equation 4.25, is

R = v02 sin 2 = (30.0 m/s)2 sin 1200 = 79.5 m

As a check, we can use equation 4.24 to get

R = xmax = v0xtt = (15.0 m/s)(5.30 s) = 79.5 m

= tan1vyg = tan1 25.9 m/s = 59.90 60.00

1. x = v0xt = (15.0 m/s)(4 s) = 60.0 m

The ball is 60.0 m down range and is 25.6 m high.

3. vx = v0x = 15.0 m/s

The direction of the velocity vector at 4 s is

= tan1vyg = tan1 13.2 m/s = 41.30
