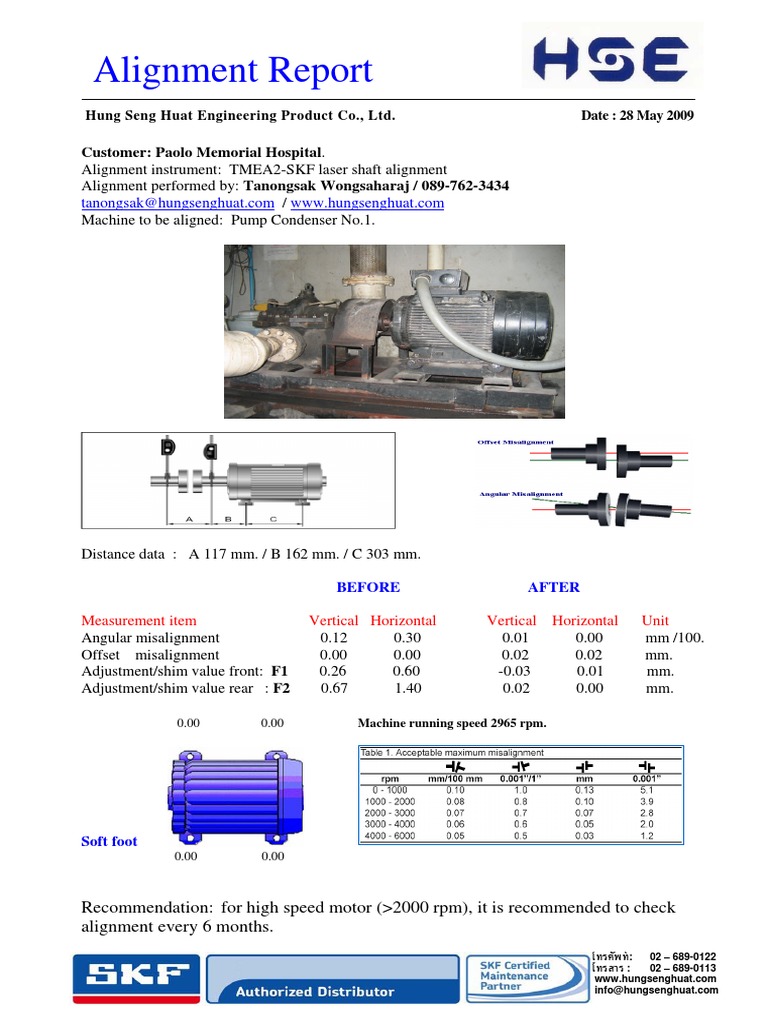

    Alignment Report

    Hung Seng Huat Engineering Product Co., Ltd. Date : 28 May 2009

    Customer: Paolo Memorial Hospital.


    Alignment instrument: TMEA2-SKF laser shaft alignment
    Alignment performed by: Tanongsak Wongsaharaj / 089-762-3434
    tanongsak@hungsenghuat.com / www.hungsenghuat.com
    Machine to be aligned: Pump Condenser No.1.

    Distance data : A 117 mm. / B 162 mm. / C 303 mm.

    BEFORE AFTER

    Measurement item Vertical Horizontal Vertical Horizontal Unit


    Angular misalignment 0.12 0.30 0.01 0.00 mm /100.
    Offset misalignment 0.00 0.00 0.02 0.02 mm.
    Adjustment/shim value front: F1 0.26 0.60 -0.03 0.01 mm.
    Adjustment/shim value rear : F2 0.67 1.40 0.02 0.00 mm.

    0.00 0.00 Machine running speed 2965 rpm.

    Soft foot
    0.00 0.00

    Recommendation: for high speed motor (>2000 rpm), it is recommended to check


    alignment every 6 months.
    : 02 689-0122
    : 02 689-0113
    Hung Seng Huat Engineering www.hungsenghuat.com
    info@hungsenghuat.com
    Alignment Report
    Hung Seng Huat Engineering Product Co., Ltd. Date : 28 May 2009

    Machine to be aligned: Pump Condenser No.2.

    Distance data : A 127 mm. / B 165 mm. / C 305 mm.

    BEFORE AFTER

    Measurement item Vertical Horizontal Vertical Horizontal Unit


    Angular misalignment 0.12 0.38 0.01 0.00 mm /100.
    Offset misalignment 0.54 0.95 0.00 0.02 mm.
    Adjustment/shim value front : F1 0.86 0.98 0.00 0.02 mm.
    Adjustment/shim value rear : F2 1.26 1.65 -0.02 0.02 mm.

    0.00 0.00 Machine running speed 2965 rpm.

    Soft foot
    0.00 0.00

    Recommendation: for high speed motor (>2000 rpm), it is recommended to check


    alignment every 6 months.

    : 02 689-0122
    : 02 689-0113
    Hung Seng Huat Engineering www.hungsenghuat.com
    info@hungsenghuat.com
    Alignment Report
    Hung Seng Huat Engineering Product Co., Ltd. Date : 28 May 2009

    Machine to be aligned: CWP-B2-01.

    Distance data: A 134 mm. / B 152 mm. / C 308 mm.

    BEFORE AFTER

    Measurement item Vertical Horizontal Vertical Horizontal Unit


    Angular misalignment 0.04 0.02 0.00 0.00 mm /100.
    Offset misalignment 0.14 0.12 0.04 0.02 mm.
    Adjustment/shim value front : F1 0.04 0.17 0.00 0.01 mm.
    Adjustment/shim value rear : F2 -0.08 0.25 -0.02 0.00 mm.

    0.00 0.00 Machine running speed 2965 rpm.

    Soft foot
    0.00 0.00

    Recommendation: for high speed motor (>2000 rpm), it is recommended to check


    alignment every 6 months.

    : 02 689-0122
    : 02 689-0113
    Hung Seng Huat Engineering www.hungsenghuat.com
    info@hungsenghuat.com
    Alignment Report
    Hung Seng Huat Engineering Product Co., Ltd. Date : 28 May 2009

    Machine to be aligned: No.CWP-B2-02.

    Distance data : A 140 mm. / B 165 mm. / C 308 mm.

    BEFORE AFTER

    Measurement item Vertical Horizontal Vertical Horizontal Unit


    Angular misalignment 0.28 0.40 0.04 0.02 mm /100.
    Offset misalignment 0.32 0.18 0.03 0.03 mm.
    Adjustment/shim value front : F1 1.02 1.16 0.09 0.02 mm.
    Adjustment/shim value rear : F2 1.90 2.41 0.10 0.01 mm.

    0.00 0.00 Machine running speed 2965 rpm.

    Soft foot
    0.0 0.00

    Recommendation: for high speed motor (>2000 rpm), it is recommended to check


    alignment every 6 months period.

    : 02 689-0122
    : 02 689-0113
    Hung Seng Huat Engineering www.hungsenghuat.com
    info@hungsenghuat.com
    Alignment Report
    Hung Seng Huat Engineering Product Co., Ltd. Date : 28 May 2009

    Machine to be aligned: Pump Chiller CHP-01.

    Distance data : A 137 mm. / B 158 mm. / C 305 mm.

    BEFORE AFTER

    Measurement item Vertical Horizontal Vertical Horizontal Unit


    Angular misalignment 0.06 0.08 0.00 0.00 mm /100.
    Offset misalignment 0.02 0.00 0.02 0.00 mm.
    Adjustment/shim value front : F1 0.20 -0.18 0.04 0.00 mm.
    Adjustment/shim value rear : F2 0.43 -0.43 0.06 0.00 mm.

    0.00 0.00 Machine running speed 2965 rpm.

    Soft foot
    0.00 0.00

    Recommendation: for high speed motor (>2000 rpm), it is recommended to check


    alignment every 6 months period.

    : 02 689-0122
    : 02 689-0113
    Hung Seng Huat Engineering www.hungsenghuat.com
    info@hungsenghuat.com
    Alignment Report
    Hung Seng Huat Engineering Product Co., Ltd. Date : 28 May 2009

    Machine to be aligned: Pump Condenser 1- CDP-01.

    Distance data : A 148 mm. / B 172 mm. / C 307 mm.

    BEFORE AFTER

    Measurement item Vertical Horizontal Vertical Horizontal Unit


    Angular misalignment 0.14 0.10 0.03 0.00 mm /100.
    Offset misalignment 0.26 0.04 0.02 0.04 mm.
    Adjustment/shim value front : F1 0.12 0.32 0.08 0.02 mm.
    Adjustment/shim value rear : F2 0.58 0.67 0.06 0.01 mm.

    0.00 0.00 Machine running speed 1765 rpm.

    Soft foot
    0.00 0.00

    Recommendation: for typical speed motor (<2000 rpm), it is recommended to check


    alignment every 12 months.

    : 02 689-0122
    : 02 689-0113
    Hung Seng Huat Engineering www.hungsenghuat.com
    info@hungsenghuat.com
    Alignment Report
    Hung Seng Huat Engineering Product Co., Ltd. Date : 28 May 2009

    Machine to be aligned: Pump Condenser 1- CDP-02.

    Distance data : A 72 mm. / B 195 mm. / C 307 mm.

    BEFORE AFTER

    Measurement item Vertical Horizontal Vertical Horizontal Unit


    Angular misalignment 0.18 0.54 0.04 0.04 mm /100.
    Offset misalignment 0.00 0.02 0.00 0.02 mm.
    Adjustment/shim value front : F1 -0.44 1.26 0.08 0.12 mm.
    Adjustment/shim value rear : F2 -1.07 2.96 0.16 0.18 mm.

    0.00 0.00 Machine running speed 1765 rpm.

    Soft foot
    0.00 0.00

    Recommendation: for typical speed motor (<2000 rpm), it is recommended to check


    alignment every 12 months.

    : 02 689-0122
    : 02 689-0113
    Hung Seng Huat Engineering www.hungsenghuat.com
    info@hungsenghuat.com
    Alignment Report
    Hung Seng Huat Engineering Product Co., Ltd. Date : 28 May 2009

    Machine to be aligned: Pump Chiller 1- CHP-01.

    Distance data : A 146 mm. / B 174 mm. / C 305 mm.

    BEFORE AFTER

    Measurement item Vertical Horizontal Vertical Horizontal Unit


    Angular misalignment 0.12 0.20 0.03 0.00 mm /100.
    Offset misalignment 0.06 0.00 0.00 0.04 mm.
    Adjustment/shim value front : F1 -0.42 -0.54 -0.01 -0.04 mm.
    Adjustment/shim value rear : F2 -0.83 -1.22 -0.03 -0.06 mm.

    0.00 0.00 Machine running speed 1765 rpm.

    Soft foot
    0.00 0.00

    Recommendation: for typical speed motor (<2000 rpm), it is recommended to check


    alignment every 12 months.

    : 02 689-0122
    : 02 689-0113
    Hung Seng Huat Engineering www.hungsenghuat.com
    info@hungsenghuat.com
    Alignment Report
    Hung Seng Huat Engineering Product Co., Ltd. Date : 28 May 2009

    Machine to be aligned: Pump Chiller 1- CHP-02.

    Distance data : A 147 mm. / B 174 mm. / C 305 mm.

    BEFORE AFTER

    Measurement item Vertical Horizontal Vertical Horizontal Unit


    Angular misalignment 0.08 0.10 0.02 0.00 mm /100.
    Offset misalignment 0.18 0.26 0.04 0.02 mm.
    Adjustment/shim value front : F1 -0.38 -0.52 0.06 0.00 mm.
    Adjustment/shim value rear : F2 -0.63 -0.84 0.10 0.01 mm.

    0.00 0.00 Machine running speed 1765 rpm.

    Soft foot
    0.00 0.00

    Recommendation: for typical speed motor (<2000 rpm), it is recommended to check


    alignment every 12 months.

    : 02 689-0122
    : 02 689-0113
    Hung Seng Huat Engineering www.hungsenghuat.com
    info@hungsenghuat.com
    Alignment Report
    Hung Seng Huat Engineering Product Co., Ltd. Date : 28 May 2009

    Pre-inspection pictures

    : 02 689-0122
    : 02 689-0113
    Hung Seng Huat Engineering www.hungsenghuat.com
    info@hungsenghuat.com
    Alignment Report
    Hung Seng Huat Engineering Product Co., Ltd. Date : 28 May 2009

    Post-inspection pictures

    : 02 689-0122
    : 02 689-0113
    Hung Seng Huat Engineering www.hungsenghuat.com
    info@hungsenghuat.com
