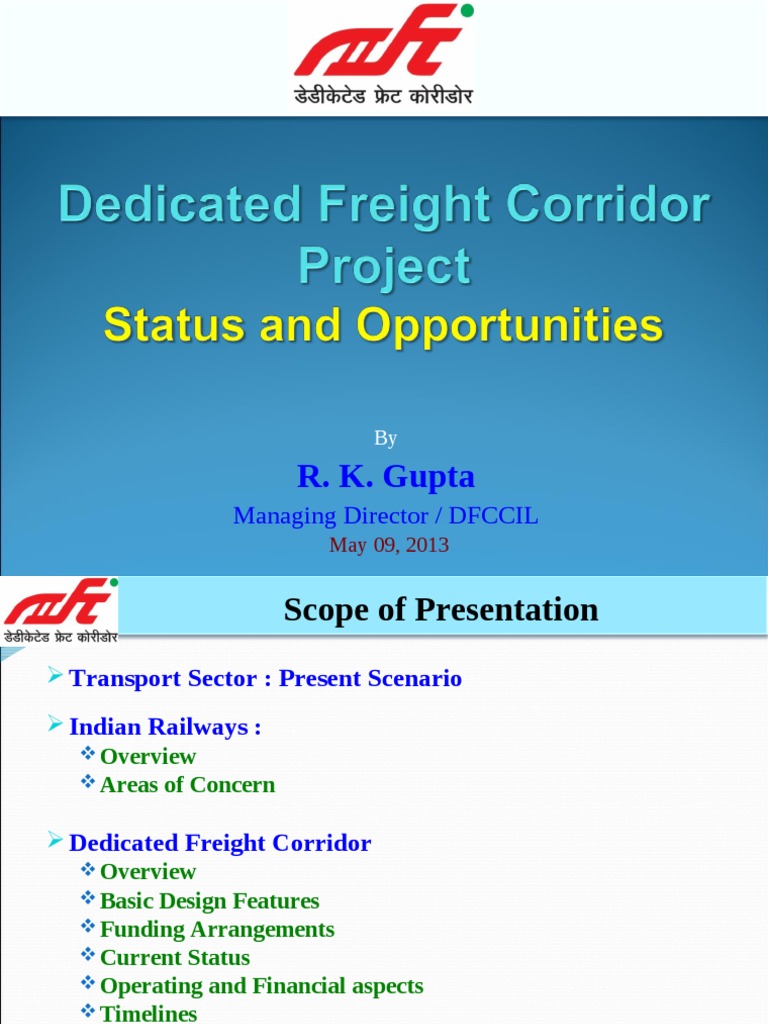

By

R. K. Gupta
Managing Director / DFCCIL
May 09, 2013
 Scope of Presentation
Transport Sector : Present Scenario

Indian Railways :
Overview
Areas of Concern

Dedicated Freight Corridor

Overview
Basic Design Features
Funding Arrangements
Current Status
Operating and Financial aspects
Timelines
Future Corridors
Opportunities
Construction machinery Civil & Electrification works
DMIC An Added Feature
 What DFC could mean for CEMs ?

350million m3 of Earthwork / Subgrade

20 million m3 of Stone Ballast
Hundreds of thousand m3 of RCC / PSC
11 million Ties / Sleepers
Close to a million Ton of Structural steel
A million Tonne of Rail procurement /laying
7,000 small/big bridges
More than 50 Rail to Rail Flyovers
500 ROBs/RUBs
( All quantities are approximate )
 Transport Sector Present Scenario

One of the largest in the world

Serves a land mass of 3.3 million km2 and population
of over one billion
Enormous growth of transport sector in the last 50
years
Volume of railway freight increased five folds and
passenger kms seven folds
Length of surfaced roads increased nine folds
Tonnage handled by India's major/minor ports increased
sixteen folds
Air freight tonnage increased 30 folds
Source:- India Vision 2020
 IR Present Scenario

Clogged Rail Lines Slow Indias Development

New York Times
June 15, 2010

Travel Time
Distance
(Freight)

Singapore Mumbai Port 2400 Nautical Miles 4 5 days

More than 2
Mumbai Port - Delhi 870 Miles
Weeks
 Golden Quadrilateral & Its Diagonals

DELHI

KOLKATTA

High Density
Corridor (Golden
MUMBAI Quadrilateral +
Diagonals) 16% of
route Km carries 52%
CHENNAI
of passenger & 58 %
of freight
Indian Railways An Overview
 Indian Railways An Overview
MANIFOLD GROWTH OF FREIGHT TRAFFIC BUTTER & BREAD OF IR

AN INCREASE OF 400.3 MT
OVER 50 YEARS
 Areas Of Concern

Falling market share (90% to 30%)

Capacity constraints on high density network.
Differential speeds of trains .
Inadequate Ports / Mines connectivity .
Inability to carry longer/heavier trains .
Lower throughput / longer turn-around
 Scope For Improvement

Only following possibilities :--

Upgrading the existing network

Creation of a new passenger corridor
Creation of a new dedicated freight
corridor
 Objectives Of The Project

Increase rail share Create additional rail

in freight market infrastructure to cater to
high levels of transport
demand
IT packaging of
Freight Services Reduce unit cost
of transportation
OBJECTIVES resulting in market
Create rail competitive rail
connectivity to bulk tariff for customer
customers not using
rail network through
PPP model
Provide seamless
Segregate freight infrastructure
end to end solution to
for focused approach on both
the customers
passenger and freight business of
Railways
 Dedicated Freight Corridors
WESTERN CORRIDOR: JNPT - DADRI
ROUTE KM-1499KM
FEEDER ROUTES-2082 KM
 Dedicated Freight Corridors
EASTERN CORRIDOR: DANKUNI - LUDHIANA
ROUTE KM-1839 KM
FEEDER ROUTES-2072 KM
 State-wise Kms. (approx.)
State Kms.
West-Bengal 203
Jharkhand 196
Bihar 231
Gujarat 552
Haryana 263
Maharashtra 183
Punjab 88
Rajasthan 559
U.P. 1063
Total 3338
 Basic Design Features
Indian Railway DFC Routes

Moving Dimensions
7.1 m 5.1m
4.265 m
Height
Western Corridor Eastern Corridor

Width
3200 mm 3660 mm
Container Stack
OBJECTIVES OF THE PROJECT

Train Length Western Corridor Eastern Corridor

700 m 700/ 1500 m

Train Load

4,000 Ton 15,000 Ton

 Basic Design Features (Contd.)

Indian Railway DFC Routes

Heavier Axle Loads
Axle Load 22.9 t / 25 t 32.5t/25 t

Track Loading
density
8.67 t/m 12 t/m

Maximum
Speed
75 Kmph 100 Kmph

Grade Upto 1 in 100 1 in 200

 DFC Corridors and Funding
Funding Arrangement
Arrangement

Eastern Corridor :
Mughalsarai Khurja-Ludhiana 1145 Kms World Bank
Sonnagar-Mughalsarai 122 Kms GOI
Sonnagar-Dankuni 534 Kms On PPP Mode

World Bank Funding : US$ 2.7 Billion

Western Corridor :
Rewari Vadodara 920 Kms JICA (Ph.I)
Dadri-Rewari & 605 Kms JICA (Ph.II)
Vadodara JNPT

JICA Funding : 679 Billion

 Operating Aspects of DFCC

DFCC to manage train operation on DFC.

DFCC to have own stations and control centers.

Rolling stock ownership & its maintenance by IR.

Feeder Routes /Sidings to be upgraded by IR .

All LCs to be replaced by ROBs / RUBs.

 Executional Challenges

Land acquisition and R&R

Environmental and Forest clearances

Construction of DFC in close proximity to IR

Shifting of utilities owned by Public & Pvt bodies

New Contracting Policy and Implications .

 Progress on Land Acquisition

Land Acquisition is being done as per Railway Amendment

Act, 2008. Compensation is guided by the Principles
enshrined in National Rehabilitation and Re-settlement
Policy (NRRP), 2007
Land Acquisition is required for 10667 hectares.
More than 90% of land acquisition completed
( Except Sonnagar-Dankuni)
Entire DFC land acquisition is likely to be completed by
2013.
 Major Breakthrough in Statutory
Clearances

Wild Life clearances obtained under NWPA 1972 for

Sanjay Gandhi National Park
Balaji Ambaji Wild Life Sanctuary
Thol Bird Sanctuary

Diversion of forest lands in many states incl.

Maharashtra obtained under FCA 1980 .

Permission of Empowered Committee obtained for

cutting trees in Taj Trapezium Zone (TTZ) .

Permission of ASI obtained for negotiating many

heritage structures .
 Future Corridors

Future Corridors:-

East West Corridor (KolkataMumbai) 2000 Kms.

North-South Corridor (Delhi-Chennai) 2173 Kms.
East Coast Corridor (Kharagpur-Vijayawada) 1100 Kms.
Southern Corridor (Chennai-Goa) 890 Kms.

DFCCIL has assigned this study to RITES to be completed by Dec

2014.
 OPPORTUNITIES
Great opportunity for construction (equipment &
machinery) and manufacturing industry.
Opportunities in public private partnership (PPP) in
construction.
Developing more economic zones on the pattern of
DMICDC.
High capacity Rolling stock for DFC.
Setting up of logistic parks.
Freight Business.

24
 OPPORTUNITIES Construction Machiner

Mechanized Construction for faster progress and quality

construction
Automated Mechanised & Concreting Machinery
Major Bridge construction
o Machinery for Deep Friction Piles and End Bearing Piles
o Under-water Piling Self Propelled Gantries

Mechanised Track Laying

Cable / OHE laying .

Mechanized Maintenance of Assets

25
 NRS Launching System

SALIENT FEATURES OF LAUNCHER

This is mechanised girder launching system.

It has total four supports.
First & fourth are auxiliary supports. These are required during
self launching.
Second & third are front & rear supports. These are required
during launching of box girder.
First operation involves self launching of NRS Launching beam.
Second operation involves launching of box girder.
After self launching, front & rear supports are tightened with a
force of 10 t using Macalloy bars on the abutment & pier to
remove slackness.
 NRS Launching System

SALIENT FEATURES OF LAUNCHER

Launch girder up to 22 m span.
Can launch girders weighing up to 230 t.
Capable of launching the girder longitudinally and
then moving it transversely.
Self weight 200 t.
 Construction Machinery Electrification Work

Mechanical Digging of Foundation by Auguring

Mast Erection Machine
Cantilever Fixing
Mechanised Concrete Mixures
Wiring Train
Clipping, Stagger Adjustments
Mechanised Cleaning of Insulators
Rail Cum Road Vehicles, Tower Wagons
Thermal Imagining

29
 Construction Machinery Electrification Work

Automated Concreting Train for foundation and mast errection

works.

30
 Construction Machinery Electrification Work

Mechanised unwinding and anchoring of catenary and contact

wires.

31
 Unique features of ongoing works at DFCCIL
Bridges design with 32.5 tonnes axle load for the first time on
Indian Railways.
Automated and mechanized concreting and other construction
operations.
Single pour concrete upto 450 cum.
Upto 45 m deep friction piles & upto 15 m deep end bearing piles.
Use of prestressed U-girder to ensure low formation level due to
proximity of existing railway line with high HFL.
Pre-casting and launching of PSC Box girders Use of NRS
launchers
Self propelled piling gantry for under water piling.
Rigid Quality Control system
Special care of safety, health & environment.
 Delhi Mumbai Industrial Corridor
(DMIC) An Added Feature
Haryana Dadri
Haryana Focus is on ensuring high impact
developments within 150km distance
Uttar
Rajasthan Pradesh on either side of alignment of DFC
Area under Project Influence is 14%
and population is 17% of the Country
Gujarat
Madhya Total Population in the Project
Pradesh Influence Area : 178Mn
Total Workers in the Project Influence
Maharashtra
Area: 70.56Mn
J.N.Port
As per Census-2001

DFC Alignment
End Terminal
