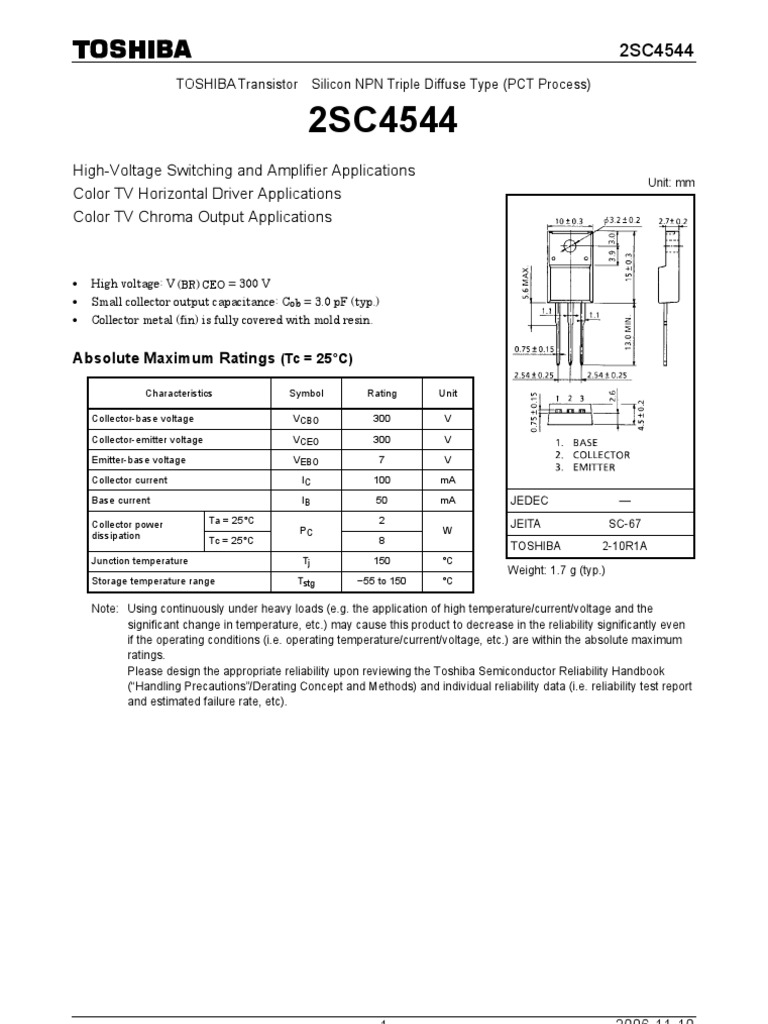

2SC4544

TOSHIBA Transistor Silicon NPN Triple Diffuse Type (PCT Process)

2SC4544
High-Voltage Switching and Amplifier Applications
Unit: mm
Color TV Horizontal Driver Applications
Color TV Chroma Output Applications

• High voltage: V (BR) CEO = 300 V

• Small collector output capacitance: Cob = 3.0 pF (typ.)
• Collector metal (fin) is fully covered with mold resin.

Absolute Maximum Ratings (Tc = 25°C)

Characteristics Symbol Rating Unit

Collector-base voltage VCBO 300 V

Collector-emitter voltage VCEO 300 V
Emitter-base voltage VEBO 7 V
Collector current IC 100 mA
Base current IB 50 mA JEDEC ―
Collector power Ta = 25°C 2 JEITA SC-67
PC W
dissipation Tc = 25°C 8
TOSHIBA 2-10R1A
Junction temperature Tj 150 °C
Weight: 1.7 g (typ.)
Storage temperature range Tstg −55 to 150 °C

Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).

1 2006-11-10
 2SC4544
Electrical Characteristics (Tc = 25°C)

Characteristics Symbol Test Condition Min Typ. Max Unit

Collector cut-off current ICBO VCB = 240 V, IE = 0 ― ― 1.0 μA

Emitter cut-off current IEBO VEB = 7 V, IC = 0 ― ― 1.0 μA
hFE (1) VCE = 10 V, IC = 4 mA 20 ― ―
DC current gain
hFE (2) VCE = 10 V, IC = 20 mA 30 ― 200
Collector-emitter saturation voltage VCE (sat) IC = 10 mA, IB = 1 mA ― ― 1.0 V
Base-emitter saturation voltage VBE (sat) IC = 10 mA, IB = 1 mA ― ― 1.0 V
Transition frequency fT VCE = 10 V, IC = 20 mA 50 70 ― MHz
Collector output capacitance Cob VCB = 20 V, IE = 0, f = 1 MHz ― 3.0 ― pF

Marking

C4544 Part No. (or abbreviation code)

Lot No.

A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.

2 2006-11-10
 2SC4544

IC – VCE hFE – IC
120 500
Common emitter Common emitter
Tc = 25°C 300 Tc = 25°C
6

DC current gain hFE

100
4 3 2
(mA)

100 VCE = 20 V
80
Collector current IC

1
50 5 10
60 0.6
30

40 0.4
10
IB = 0.2 mA 0.3 1 3 10 30 100
20
Collector current IC (mA)

0
0 4 8 12 16 20 24

Collector-emitter voltage VCE (V)

hFE – IC VCE (sat) – IC

500 5
Common emitter Common emitter
Collector-emitter saturation voltage

300 VCE = 10 V 3 Tc = 25°C

DC current gain hFE

Tc = 100°C
100 1
VCE (sat) (V)

50 −25 25 0.5

30 0.3

IC/IB = 10

5
10 0.1
0.3 1 3 10 30 100 2

Collector current IC (mA) 0.05

0.3 1 3 10 30 100

Collector current IC (mA)

VCE (sat) – IC
5
Common emitter VBE (sat) – IC
Collector-emitter saturation voltage

3 IC/IB = 5
5
Base-emitter saturation voltage

3 Common emitter
1 IC/IB = 5
VCE (sat) (V)

Tc = 25°C
VBE (sat) (V)

0.5 1

0.3
0.5
Tc = 100°C
0.3
0.1
−25
25
0.05 0.1
0.3 1 3 10 30 100 0.3 1 3 10 30 100

Collector current IC (mA) Collector current IC (mA)

3 2006-11-10
 2SC4544

IC – VBE fT – IC
100 500

Transition frequency fT (MHz)

Common emitter Common emitter
300 Tc = 25°C
VCE = 10 V
80
(mA)

100 VCE = 20 V
Collector current IC

60
50
Tc = 100°C 25 −25 5 10
30
40

10
20 0.3 1 3 10 30 100

Collector current IC (mA)

0
0.2 0.4 0.6 0.8 1.0 1.2

Base-emitter voltage VBE (V)

Cob – VCB Safe Operating Area

50 300
IC max (pulsed)*
30 IE = 0
Collector output capacitance

f = 1 MHz
Tc = 25°C IC max (continuous)
100
(mA)
Cob (pF)

10
300 μs*
50 1 ms*
Collector current IC

5 10 ms* 500 ms*

30 100 ms*
3
DC operation
Tc = 25°C

1 10
1 3 10 30 100 300
*: Single nonrepetitive pulse
5 Tc = 25°C
Collector-base voltage VCB (V)
Curves must be derated linearly
with increase in temperature. VCEO max

2
3 10 30 100 300

Collector-emitter voltage VCE (V)

PC – Ta

(1) Tc = Ta
(W)

10 Infinite heat sink

(2) No heat sink
PC

(1)
Collector power dissipation

(2)

0
0 50 100 150

Ambient temperature Ta (°C)

4 2006-11-10
