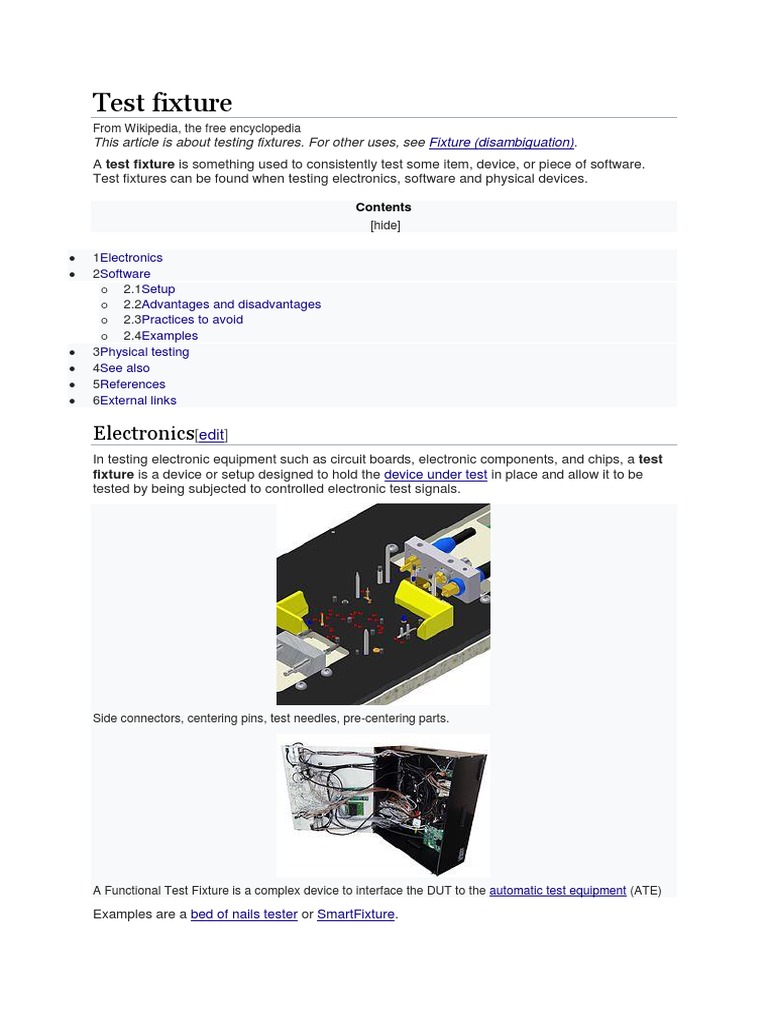

Test fixture

From Wikipedia, the free encyclopedia

This article is about testing fixtures. For other uses, see Fixture (disambiguation).
A test fixture is something used to consistently test some item, device, or piece of software.
Test fixtures can be found when testing electronics, software and physical devices.

Contents
[hide]

 1Electronics
 2Software
o 2.1Setup
o 2.2Advantages and disadvantages
o 2.3Practices to avoid
o 2.4Examples
 3Physical testing
 4See also
 5References
 6External links

Electronics[edit]
In testing electronic equipment such as circuit boards, electronic components, and chips, a test
fixture is a device or setup designed to hold the device under test in place and allow it to be
tested by being subjected to controlled electronic test signals.

Side connectors, centering pins, test needles, pre-centering parts.

A Functional Test Fixture is a complex device to interface the DUT to the automatic test equipment (ATE)

Examples are a bed of nails tester or SmartFixture.

Software[edit]
A software test fixture sets up the system for the testing process by providing it with all the
necessary code to initialize it, thereby satisfying whatever preconditions there may be.[1] An
example could be loading up a database with known parameters from a customer site before
running your test. The Ruby on Rails web framework uses YAML to initialize a database before
running a test.[2] This allows for tests to be repeatable, which is one of the key features of an
effective test framework.[1]
Setup[edit]
Test fixtures can be set up three different ways: in-line, delegate, and implicit.

1. In-line setup creates the test fixture in the same method as the rest of the test. While in-
line setup is the simplest test fixture to create, it leads to duplication when multiple tests
require the same initial data.
2. Delegate setup places the test fixture in a separate standalone helper method that is
accessed by multiple test methods.
3. Implicit setup places the test fixture in a setup method which is used to set up multiple
test methods. This differs from delegate setup in that the overall setup of multiple tests is
in a single setup method where the test fixture gets created rather than each test method
having its own setup procedures and linking to an external test fixture.[3]
Advantages and disadvantages[edit]
The advantage of a test fixture is that it allows for tests to be repeatable since one is always
starting with the same setup every time. Test fixtures also ease test code design by allowing the
developer to separate methods into different functions and reuse each function for other tests. It
also preconfigures tests into a known state at start instead of working with whatever was left from
a previous test run. A disadvantage is that it could lead to duplication of test fixtures if using in-
line setup.[1][3]
Practices to avoid[edit]
It is considered bad practice when test fixtures are too general in implicit setup, or when the test
method sets up a test fixture and does not use it during the test. A more subtle issue is if the test
methods ignore certain fields within the test fixture. Another bad practice would be a test setup
that contains more steps than are needed for the test; this is a problem seen in in-line setup.[3]
A test case is considered unsafe when it modifies the fixtures during the setup phase. This is
more pronounced in the fixture setups other than the in-line setup. An unsafe test case is a
serious problem which could render subsequent tests useless by leaving the fixture in an
unexpected state. It also causes the order of tests to be important, so that you know whether a
fixture setup needs to be rerun or not. If a safe test is run after an unsafe test then the fixture
setup is rerun if the fixture is common for both but the same is not true for vice versa.[1]
Examples[edit]
Examples of fixtures include loading a database with a specific known set of data, erasing a hard
disk and installing a known clean operating system installation, copying a specific known set of
files or the preparation of input data and set-up/creation of mock objects.
Software which is used to run reproducible tests systematically on a piece of software under test
is known as a test harness; part of its job is to set up suitable test fixtures.
In generic xUnit, a test fixture is all the things that must be in place in order to run a test and
expect a particular outcome.[4]
Frequently fixtures are created by handling setUp() and tearDown() events of the unit testing
framework. In setUp() one would create the expected state for the test and in tearDown()it would
clean up what had been set up.
Four phases of a test:
 1. Set-up
2. Exercise, interacting with the system under test
3. Verify, determining whether the expected outcome has been obtained
4. Tear down, to return to the original state

Physical testing[edit]
In physical testing, a fixture is a device or apparatus to hold or support the test specimen during
the test. The influence of test fixtures on test results is important and is an ongoing subject of
research.[5]
Many test methods detail the requirements of test fixtures in the text of the document.[6][7]

Test fixture on universal testing machine for three-point flex test

 Hydraulic system testing on fixture

 jet engine fixtures for operational testing

Some fixtures employ clamps, wedge grips and pincer grips.

pincer clamps max. 50 kN spring-biased

offset compensated wedge grip max.50 kN

different vice and screw grips of a German manufacturer

Further types of construction include eccentric roller fixtures, thread grips and button head grips
and rope grips.

symmetric roller grip, self-closing and self-adjusting

multiple button head grip for speedy tests on series

small rope grip 200N to test fine wires

very compact wedge grip for temperature chambers providing extreme temperatures
Mechanical holding apparatuses provide the clamping force via arms, wedges or eccentric wheel
to the jaws. Additionally there are pneumatic and hydraulic fixtures for tensile testing that allow
very fast clamping procedures and very high clamping forces.

pneumatic grip, symmetrical, clamping force 2.4 kN

 

heavy duty hydraulic clamps, clamping force 700 kN

Bending device for tensile testing machines

Equipment to test peeling forces up to 10 kN
