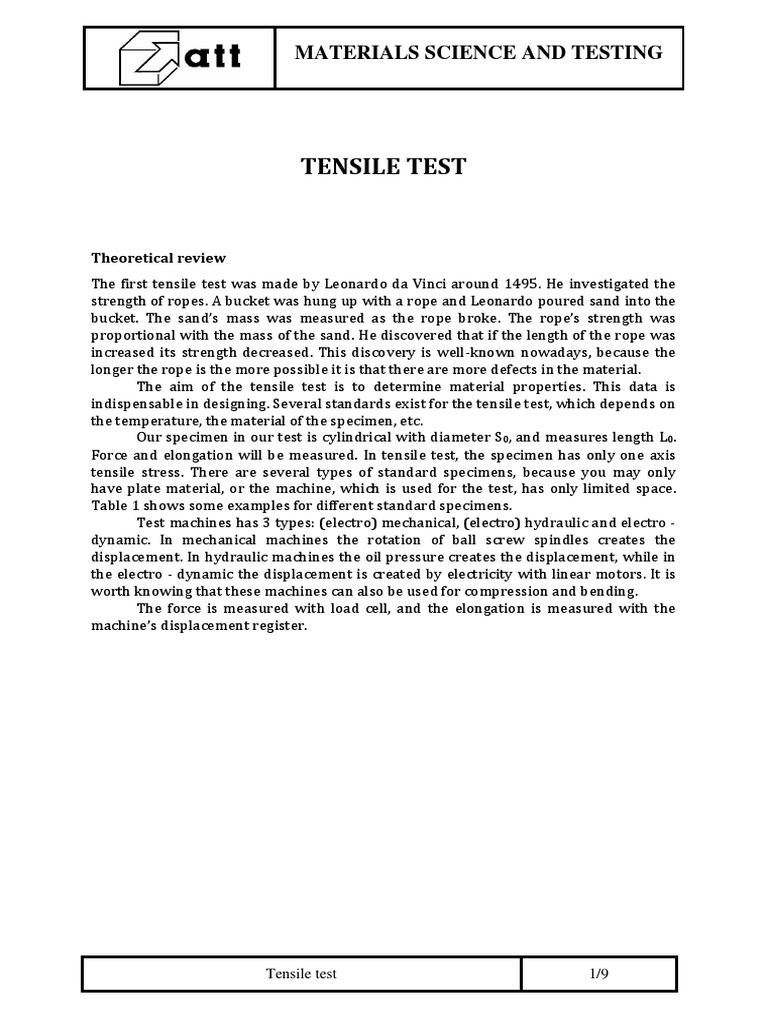

MATERIALS SCIENCE AND TESTING

TENSILE TEST

Theoretical review
The first tensile test was made by Leonardo da Vinci around 1495. He investigated the
strength of ropes. A bucket was hung up with a rope and Leonardo poured sand into the
bucket. The sand’s mass was measured as the rope broke. The rope’s strength was
proportional with the mass of the sand. He discovered that if the length of the rope was
increased its strength decreased. This discovery is well-known nowadays, because the
longer the rope is the more possible it is that there are more defects in the material.
The aim of the tensile test is to determine material properties. This data is
indispensable in designing. Several standards exist for the tensile test, which depends on
the temperature, the material of the specimen, etc.
Our specimen in our test is cylindrical with diameter S0, and measures length L0.
Force and elongation will be measured. In tensile test, the specimen has only one axis
tensile stress. There are several types of standard specimens, because you may only
have plate material, or the machine, which is used for the test, has only limited space.
Table 1 shows some examples for different standard specimens.
Test machines has 3 types: (electro) mechanical, (electro) hydraulic and electro -
dynamic. In mechanical machines the rotation of ball screw spindles creates the
displacement. In hydraulic machines the oil pressure creates the displacement, while in
the electro - dynamic the displacement is created by electricity with linear motors. It is
worth knowing that these machines can also be used for compression and bending.
The force is measured with load cell, and the elongation is measured with the
machine’s displacement register.

Tensile test 1/9

Table 1. Standard cylindrical and plate specimens
Type Shape Capture

Cylindrical specimen with

mechanical capture

Cylindrical specimen with

threaded capture

Cylindrical specimen with

“hook” capture

Plate specimen with

mechanical capture

Plate specimen with

rivet capture

Tensile test 2/9

 Figure 1 shows a cylindrical specimen. There is a specific relationship between
diameter and the measuring length in the case of a standardized specimen: L0=5d0
(L0=5,65√𝑆0 ) for short and, L0=10d0 (L0=11,3√𝑆0 ) for long specimen.

Figure 1 Cylindrical specimen with initial diameter (d 0), and measuring length (L0)

During the tensile test (constant speed) the force is measured as a function of the
elongation. Figure 2 shows a typical mild steel’s tensile diagram, while Figure 3 depicts a
typical tensile diagram of aluminum. Figure 4-6 show the specimen schematic shape for
the specific phases (I.-III.), while Figure 7 depicts a real aluminum sample tensile test.

Fracture

Figure 2 Mild steel tensile diagram

Fracture

Figure 3 Aluminum tensile diagram

Tensile test 3/9

Tensile test diagram has 3 phases in the case of mild steel:

I. Elastic deformation (line 0-e)

The deformation is fully elastic; it means the specimen’s shape returns to its
initial form after unloading (Fig. 4).

Figure 4 Deformed shape of the specimen in the phase of elastic deformation

II. Constant plastic deformation phase (line e-m)

The specimen has equally distributed plastic deformation along its length (Fig. 5).

Figure 5 Deformed shape of the specimen in the phase of constant plastic deformation

III. Necking phase (line m-u)

The plastic deformation is concentrated in a small area, while the rest of the
specimen remains the same. Specimen fractures in the neck (Fig. 6).

Figure 6 Deformed shape of the specimen in the phase of necking

Tensile test 4/9

Figure 7 Aluminum specimen tensile test: point e (a), point m (b), after point m, where the necking
is observable (c), before point u (d), point u, after the fracture (e).

Standardized and non-standardized measuring numbers can be defined (Fig. 8).

Figure 8 Standardized and non-standardized measuring numbers

Standardized measuring numbers

One of the most important numbers is the yield stress. It indicates the stress which is
needed to create plastic deformation. There are different types of yield stresses, but the
most widely spread is practically the conventional yield stress. This is the engineering
stress which can be measured at 0,2% of the plastic deformation (Fig. 9).

Conventional yield stress:

Fp 0.2 N
R p 0.2  (MPa) (Fig. 9)
S0 mm2

Tensile test 5/9

Nominal yield stress:
Ft 0.5 N
Rt 0.5  (MPa) (Fig. 10)
S 0 mm2

Conventional yield stress after unloading:

Fr 0.2 N
Rr 0.2  (MPa) (Fig. 11)
S 0 mm 2

Upper yield stress (cannot be defined in certain cases):

FeH N
ReH  (MPa) (Fig. 12)
S 0 mm2

Lower yield stress (cannot be defined in certain cases):

FeL N
ReL  (MPa) (Fig. 12)
S 0 mm 2

F F F

Fp0.2 Fr0.2
Ft0.5

l 1  l2  l3
  0.2 %   0.5 %   0 .2 %
l0 l0 l0

 l1  l2  l3
l l l
Figure 9 The definition of Fp0.2 Figure 10 The definition of Ft0.5 Figure 11 The definition of Fr0.2

Tensile strength:
Fm N
Rm  (MPa) (Fig. 12)
S 0 mm 2

Tensile test 6/9

 Figure 12 The definition of FeH and FeL

Relative contraction:

S0  S u
Z 100 (%)
%
S0

where S0 is the initial cross section of the specimen, while Su is the smallest cross section
after fracture.

Relative fracture length:

Lu  L0
A 100 (%)
% if L0 = 5  d 0 (𝐿0 = 5,65√𝑆0 )
L0

Lu  L0
A 11.3   100 %
(%) if L0 = 10  d 0 (𝐿0 = 11,3√𝑆0)
L0

Lu  L0
A 80   100 (%) if L0 = 80 mm
L0

where L0 the initial measuring length of the specimen, and Lu is the measuring length
after fracture.

Tensile test 7/9

Non-standardized numbers

These numbers can also be defined in the engineering system and the real system. In the
engineering system the stresses are calculated with the initial cross section while in the
real system with the current cross section.

System Engineering Real

F F
Stress m  (MPa)  vagy  v  (MPa)
S0 S
l  l0 S 0 l S
Deformation1,2,3   1   ln  ln 0
l0 S l0 S
1 Deformation calculated from the length change can only be used until necking!
2 Integrationof dε=dL/L0 and dφ=dL/L
3 SI dimension of deformation: 1

In the equations l is the current length of the measuring length while l0 is the
initial length. S is the current cross section, and S0 is the initial cross section. The
engineering and the real stress – strain diagram can be calculated from the tensile
diagram (Fig. 13).

Figure 13 Stress – strain diagram in real system (σ-φ) and in engineering system (σm- ε) of an
aluminum specimen

In the real system the stress always increases until the fracture.

Measuring numbers which can be calculated from tensile test

The fracture energy can be calculated from the stress–strain diagram. The specific
fracture energy (Wc) is the area under the stress–strain diagram (Fig. 14). It is important
that the strain must be calculated from the cross section change after point m.
u u
Wc    ( )d    ( ) d
m
(J/cm3)
0 0

Tensile test 8/9

 Figure 14 The definition of specific fracture energy in real and engineering system

Specific fracture energy can be estimated without integration (Fig. 15):

Rm   uv
Wc    u (J/cm3)
2

Figure 15 Estimation of specific fracture energy

References

 W.D Calister: Materials Science and Engineering – An Introduction. 7th edition

John Wiley & Sons, 2006, 2007
 Tisza Miklós: Anyagvizsgálat. Miskolci Egyetemi Kiadó, 2001
 Prohászka János: Bevezetés az anyagtudományba. Nemzeti Tankönyvkiadó,
Budapest, 1997
 Dr. Gillemot László: Anyagszerkezettan és anyagvizsgálat. Tankönyvkiadó, 1972

Tensile test 9/9
