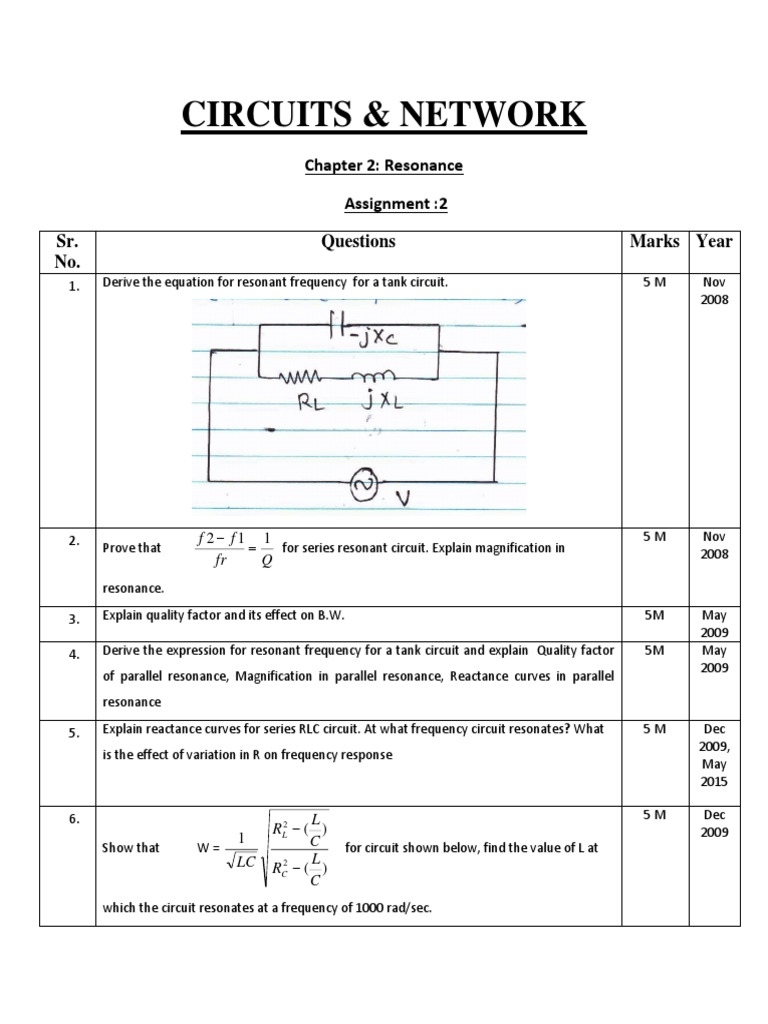

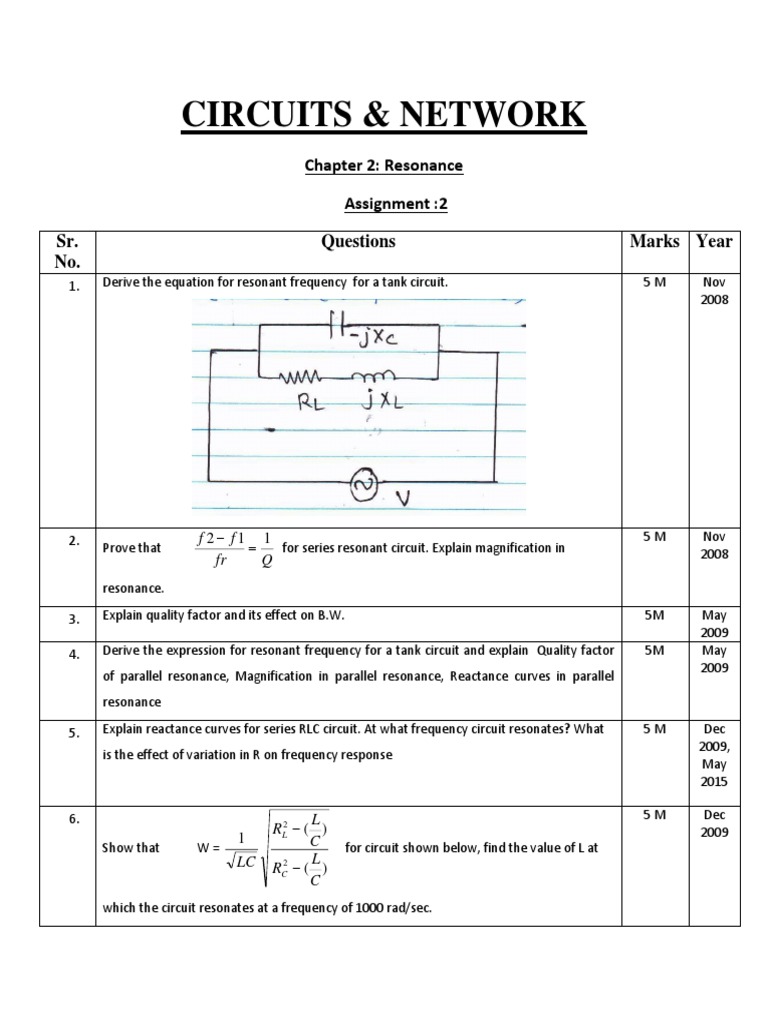

CIRCUITS & NETWORK

Chapter 2: Resonance

Assignment :2

Sr. Questions Marks Year

No.
1. Derive the equation for resonant frequency for a tank circuit. 5M Nov
2008

2. f 2 f1 1 5M Nov
Prove that  for series resonant circuit. Explain magnification in 2008
fr Q
resonance.

3. Explain quality factor and its effect on B.W. 5M May

2009
4. Derive the expression for resonant frequency for a tank circuit and explain Quality factor 5M May
2009
of parallel resonance, Magnification in parallel resonance, Reactance curves in parallel
resonance

5. Explain reactance curves for series RLC circuit. At what frequency circuit resonates? What 5M Dec
2009,
is the effect of variation in R on frequency response
May
2015

6. L 5M Dec
RL2  ( ) 2009
1 C
Show that W= for circuit shown below, find the value of L at
LC L
RC2  ( )
C
which the circuit resonates at a frequency of 1000 rad/sec.
7. fr 10 M May
For series RLC resonance circuit show that. Qo  2010
f 2 f1

8. Define ‘Q’ in terms of energy basis & show that ‘Q’ at resonance for parallel circuit is 10 M May
2010
given by Q=WCR. For given circuit find value of ‘Q’ at resonance & bandwidth of circuit.

9. For the circuit shown below , find resonant frequency. Calculate quality factor and 5M Dec
2010
bandwidth.
10. A current source is applied to parallel RLC. R= 12 Ω, L=2H & C=3µ. Compute resonant 10 M Dec
2010
frequency in rad/ sec. Find quality factor, Calculating B.W. compute voltage appearing
across the parallel elements when input is i(t)= 10 sin 1800t.

11. V(t) = 50 sinwt is applied to a series RLC circuit. At resonant frequency maximum voltage 10 M May
2011
across capacitor is 400V. The bandwidth is 500 rad/sec & impedance at resonance is 100 Ω.
Find resonant frequency & compute upper & lower B.W. Determine L & C.

12. Derive the expression for resonant frequency of series RLC and explain magnification in 5M Dec
2012
series resonance

13. Derive the expression for frequency at which Vc& VL becomes maximum for series RLC 10 M Dec
2012
resonance circuit

14. Find R,L,C in series RLC circuit that resonates at 1.5kHzand consumes 50W from a 50V AC 5M May
2013
source operating at f2. B.W=0.75kHz

15. Derive the expression for resonant frequency for circuit shown below. If R1= 4 Ω, Xc =5 5M May
2013
Ω, XL=10 Ω. Show that, no value of R2 in the circuit shown will make it resonant

16. Compare series and parallel resonance why is a series resonant circuit called an acceptor 5M May
2013
circuit and parallel resonant circuit called rejector circuit.

17. Derive the expression for resonant frequency of a tank circuit. 5M Dec
2013
18. Define resonant frequency, bandwidth, quality factor and derive the relationship between 10 M Dec
2013
them for series RLC resonant circuit.

19. Explain magnification in series and parallel esonance 5M May

2014
20. Derive expression for resonant frequency in series RLC circuit. How the value of R will 5M May
2014
affect on bandwidth and sensitivity .
21. What is parallel resonance? Derive the expression for fr of tank circuit. Find f2 for given 5M May
2014
circuit.

22. For a series resonant circuit, R=5 Ω, L= 1H, C=0.25 microF. Find the resonance frequency 5M Dec
2014
and bandwidth.

23. A 100 mH inductor with 500 Ω self-resistance in parallel with a 5nF capacitor. Find the 10 M Dec
2014
resonant frequency of the combination. Find the impedance at resonance , quality factor
of the circuit and the half power bandwidth.

24. Derive the expression for resonant frequency for RLC series circuit and find the indicated 10 M May
2015
quantities.

a) Resonant frequency expressed as ω (rad/sec) and f(Hz).

b) B)Total impedance at resonance
c) Current resonance
d) VL & VC
25. Calculate the value of L at which circuit consisting of parallel connection of two 5M May
2015
impedances 5+jXLΩ and 10- j12 Ωwill resonate at frequency of 1000rad/ sec.
