STP Design details KHB, 9th BLOCK

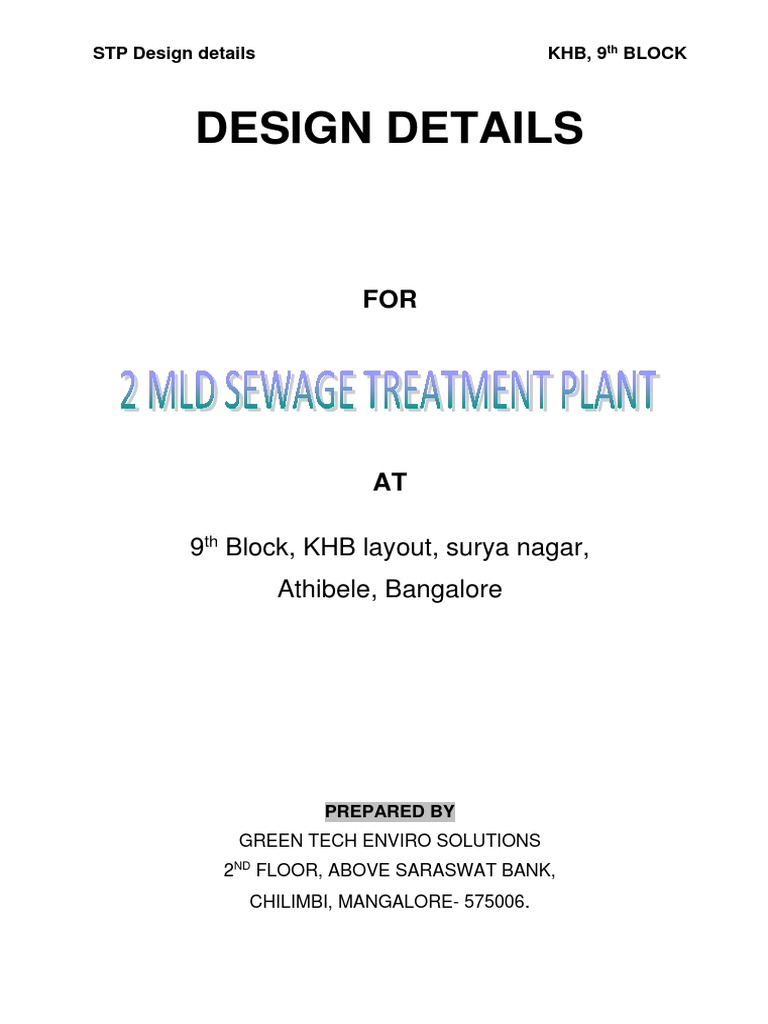

DESIGN DETAILS

FOR

AT

9th Block, KHB layout, surya nagar,

Athibele, Bangalore

PREPARED BY
GREEN TECH ENVIRO SOLUTIONS
2ND FLOOR, ABOVE SARASWAT BANK,
CHILIMBI, MANGALORE- 575006.
STP Design details KHB, 9th BLOCK

METHODOLOGY

The objective of Sewage treatment plant proposal is to treat sewage and reuse the treated
water for Non-critical purposes, thereby minimizing the ground water pollution.

The system is designed based on SEQUENCING BATCH REACTOR, (SBR) technology. An

SBR operates in a true batch mode with aeration and sludge settlement both occurring in the
same tank. The major differences between SBR and conventional continuous-flow activated
sludge system, is that the SBR tank carries out the functions of equalization, aeration and
sedimentation in a time sequence rather than in the conventional space sequence of
continuous-flow systems. Thus, there is a degree of flexibility associated with working in a time
rather than in a space sequence. Also the SBR system gives satisfactory result even at inflow
quantity fluctuation. Hence SBR system is proposed for the above project.

TECHNICAL DETAILS OF SEWAGE TREATMENT PLANT

Considered inflow Rate of sewage as 2000 m3/day (Provided by client)

Parameter Influent Treated water

Expected average BOD 250 to 300 mg/l <10 mg/l

Expected average COD 400-650 mg/l <250 mg/l

Total suspended solids 250 to 300 mg/l <20 mg/l

TREATMENT PROCESS.
1. Bar Screen:
The sewage is screened before treatment using mild steel grate bars. Any solid particles thus
screened off will be manually removed periodically and disposed. This process helps to avoid
clogging of pumps in further treatment.

2. Collection cum equalization:

The wastewater from Bathing, kitchen & toilets of houses shall be collected in this collection
sump for equalization. The equalized wastewater is passed into an aeration tank. Further, to
keep the wastewater in this tank fresh and to get uniformity, the contents in this sump are
aerated by means of coarse membrane diffuser, which is fed by a common blower.
STP Design details KHB, 9th BLOCK

3. Sequencing Batch Reactor Process

The operating principles of a batch activated sludge process, or SBR, are characterized in six
discrete periods:
1. Anoxic fill
2. Aerated Fill
3. React
4. Settle
5. Decant
6. Idle

Anoxic Fill
The influent wastewater is distributed throughout the settled to provide good contact between
the microorganisms and the substrate. Most of this period occurs without aeration to create an
environment that favors the procreation of microorganisms with good settling characteristics.
Aeration begins at the beginning of this period.

Settle Aerated Fill

Mixed liquor is mixed with the influent flow in the motive liquid pump, and discharged, as
motive liquid. This initiates the feast period. Feast is when the microorganisms have been in
contact with the substrate and a large amount of oxygen is provided to facilitate the substrate
consumption. Nitrification and denitrification occurs at the beginning of this stage.

React
During this period aeration continues until complete biodegradation of BOD is achieved. After
the substrate is consumed famine stage starts. During this stage some microorganisms will die
because of the lack of food and will help reduce the volume of the settling sludge. The length
of the aeration period determines the degree of BOD consumption.
Aeration is discontinued at this stage and solids separation takes place leaving clear, treated
water above the sludge blanket. During this clarifying period no liquids should enter or leave
the tank to avoid turbulence in the supernatant.

Decant
This period is characterized by the withdrawal of treated water from approximately two feet
below the surface of the mixed liquor by the floating solids excluding decanter. This removal
must be done without disturbing the settled sludge.
STP Design details KHB, 9th BLOCK
Idle
The time in this stage can be used to waste sludge. The wasted sludge is pumped to Sludge
holding tank to reduce the volume of the sludge to be discarded. The frequency of sludge
wasting ranges between once each cycle to once every two to three months depending upon
sludge volume index.

4. Decant Tank
The clear water from aeration tank after well aeration and settling is decanted to Decant tank
which will be pumped through Pressure Sand Filter and Activated Carbon Filter where the
turbidity and residual BOD present will be completely minimized.
5. Tertiary Treatment:
The treated water is then collected in the final collection tank. Before reaching this tank,
chlorine solution is dosed in to this water stream, with the help of a Dosing pump, to disinfect
as well as to digest any residual organic matters. The treated water so collected shall be
pumped and used for gardening and irrigation. Also, the same water shall be used for back
washing of filters. The back wash drain, filter rinse drain and the decanted water shall be
pumped/drained back to the equalization tank.

5. Sludge Drying Beds

The excess sludge from SBR tank will be pumped to Sludge drying beds, where it is
subsequently dewatered by gravity. This dewatered sludge can be used as solid manure for
agriculture and gardening.

DESIGN DETAILS OF STP

1. BAR SCREEN:
Design flow rate = 2000 m3/day = 83.33 m3/hr
Peaking factor considered = 3
Flow (Max) = 83.33 x 3 = 250 m3/hr
Desired Velocity through screen (v) = 0.6 m/ sec (for gravity flow)
= 250 m3/hr = 0.07 m3/sec
3,600 x 0.6 m/sec
Net Area of screen = 0.07/0.6 = 0.116 m2
Provide bar screen of 10 mm width at 20 mm distance
Overall area of Screen 0.17 m2
Keep the depth of Screen as 0.5 m
Width of the screen = 0.17/0.5 = 0.35 m
For practical reasons, provide Bar screen of 0.75 m width x 0.5 m depth
STP Design details KHB, 9th BLOCK

2. EQUALISATION TANK
OBJECTIVE: To equalize the flow and pollutant concentration. Generally, 6- 8 hrs
Hydraulic retention time is given for equalization tank.
Provide one no. Equalization tank of 6 hrs hydraulic retention
 Q max = 2000 m3/day
 Average flow rate = 83.33 m3/hr
 Tank volume required = 83.33 x 6 = 500 m3
 Provide effective depth of 2.5 m
 Size of the unit = 20.0 m x 10.0 m x2.5 m SWD +1.5 m FB

 Average BOD of sewage at the inlet of the Pre-aeration tank. : 300 mg/lit.
 Total organic load with 20 % BOD reduction considered. : 60 mg/lit.
 Quantity of BOD to be removed =( 60x2000)/1000 = 120.0 kg/day
 Total oxygen required assuming 120.0 Kgs of O2/kg of BOD Removed
: 120 x 2 = 240 Kgs/day.
 Air required for pre aeration : 472 m3/hr.
 Raw sewage pumps
 Considering 4 batches treatment per day with 2 streams,
 Design flow rate required to be pumped per batch = 2000 / (4*2) = 250 m3/hr
 Considering 2 hrs of pumping per batch,
 Capacity of the sewage pump = 125 m3/hr at 10 m head

3. SBR TANK
 Flow (design) = 2000 m3/day
 BOD = 240 mg/l
 SBR tank volume = Q x BOD
F/M x MLSS
= 2000 x 240
0.12 x 4000
 SBR tank volume = 1000 m3
 Provide 30% for sludge accumulation
 Total SBR tank volume provided = 1300.0 m3
 Assume SWD to be 3.7 m
 Therefore plan area required = 1300/3.7 = 351.4 m2
 Size of SBR Tank Required: 18 m x 20 m x 3.7 m SWD + 0.3 m FB
(above tank will be provided with partition)
STP Design details KHB, 9th BLOCK

4. DIFFUSED AERATION SYSTEM

 Flow =2000 cum/day
 Inlet BOD = 240 mg/l
 Organic load = BOD X Flow rate
1000
 Total organic load in the system: (240 X 2000)/ 1000 = 480 Kgs/day
 Total oxygen required assuming that 2 Kgs of O2/kg of BOD Removed
= 2 X 480 = 960 Kgs/day
 Assume alpha =0.6 and β= 0.7
 Consider oxygen transfer at 0.32 m depth = 20%
 Density of Air = 1.2 Kg/m3
 Percentage of Oxygen in Atmospheric air = 23%

Air required = 24
1.2 x 0.23 x 0.6 x 0.7 x 0.2
= 41408 m3/day
= 1725 m3/hr

6. Sludge drying beds:

Consider excess sludge generation as 0.25 kg/kg of BOD

Quantity of excess sludge generation = 600 x 0.25 = 150 kg/day

Assume 1.5% solids concentration and Sp. gravity as 1.015

Volume of sludge = 150 = 9.9 m3/day

1.5% x 1.015 x 1000
Drying period is 8 days
Total quantity of sludge to be dried = 8 x 9.9 = 78.8 m3
Depth of sludge to be applied = 0.3 m

Total area required = 78.8/0.3 = 262.7 m2

Provide 6 nos of beds, Area of each bed = 262.7/6 =43.8 m2

Provide SDB of 6.0 x 7.0 x 1.2 m – 6 nos

7. DECANT TANK
 Average flow = 83.33 m3/hr
 Provide 4 hr holding capacity
 Volume of the tank required= 333.3 m3
 Providing SWD 2.5 m
 Final collection tank size is 20.0 m X 6.7 m X 2.5 m SWD+1.5 m FB
STP Design details KHB, 9th BLOCK

8. FILTER FEED PUMP – 3 Nos. (2 W + 1 SB)

 Pumping Rate : 50 m3/Hr
 Type of pump : Horizontal centrifugal with CI open impeller self priming
type coupled to motor of required speed with B Class
insulation and IP 55 protection hood.
 Function : To pump the clarified water through Pressure Sand and
Carbon Filters.

9. DUAL MEDIA FILTER

OBJECTIVE: To filter the residual, BOD, suspended solids from the clarified water.
Consider one DMF for each stream with the filtration period of 20 hrs / day
Flow rate = 1000/20 = 50 m3/hr
Type of filter = Dual grade sand filter (vertical type)
Filtrations rate = 10 m3/m2/ hr.

Area of cross section of the Filter = 50/10 = 5.0 m2

Diameter of the Dual media filter = 2.5 m
Provide Size of Filter= 2.5 m x 2.5 m ht – 2 nos

10. FINAL COLLECTION TANK

 Average flow = 83.33 m3/hr
 Provide 6 hr holding capacity
 Volume of the tank required= 500 m3
 Providing SWD 3.7 m
 Final collection tank size is 20.0 m X 6.8 m X 3.0 m SWD+0.3 m FB

11. BLOWER CAPACITY

Blower capacity: Air for pre-aeration + SBR Tank
= 472+1725
= 2197 m3/hr
Note: The capacity of Common Twin Lobe Roots Air blower suitable to discharge about 1100
m3/hr @ 0.4 kg/cm2 – 3 No.s (2 W + 1 SB). The common blower shall supply the air required
for the SBR Tank & equalization tank.

Calculation of diffuser required:

Considering 8.5 m3/hour diffusion of air through the diffuser /m length
Number of diffusers required = 1725/8.5
= 200 diffusers.
STP Design details KHB, 9th BLOCK
Number of diffusers provided = 200 No’s
* Type of aeration : Membrane Fine pore diffused aeration System

UNIT DETAILS FOR 50 KLD STP

Civil works
Description Size
Bar Screen Chamber 0.75 x 2.5 x 1.5 m TD
Equalization Tank 20.0 x 10.0 x 2.5 m SWD + 1.5 m FB
SBR Tank 20.0 x 18 x 3.7 m SWD + 0.3 m FB
Decant Tank 20.0 x 6.7 x 2.5 m SWD + 0.3 m FB
Final Collection Tank 20.0 x 6.8 x 3.7 m SWD + 0.3 m FB
Sludge drying beds 7 x 6 x 1.2 m - 6 nos

Electro Mechanical Equipments

Description Size Quantity
Bar Screen 0.75 m x 0.5 m 1 no.
Raw Sewage pumps Sewage pumps coupled 1W+1S
Capacity : 12.5 hp
Make: Kirloskar
Air Blower with motor Type :Twine lobe 2W+1S
Air vac DGR 221 @1440RPM
Air Volume:1100 m3/hr @0.4 kg/cm2
Motor Capacity: 30 HP
Motor Make: ABB
Membrane diffusers Make :Proflex, 200 nos
MOC : EPDM
Dimension: 90mm dia x 1000mm ht
Sludge transfer pumps Sewage pumps coupled 1W+1S
Capacity :5 hp
Make: Kirloskar
Filter Feed pumps Centrifugal coupled pumps 2 W+1S
Capacity : 7.5 hp
Make: Kirloskar
Dual Media Filter 2.5 m dia x 2.5 HOS 2 no.
STP Design details KHB, 9th BLOCK

Flow diagram of Sequential Batch Reactor process
