Owner: Jerald H.

Quiniquito
Project Title: As – Built One Storey Residential Building
Location: Cansig – id, Banga, Bayawan City, Negros Oriental

Electrical Load Analysis

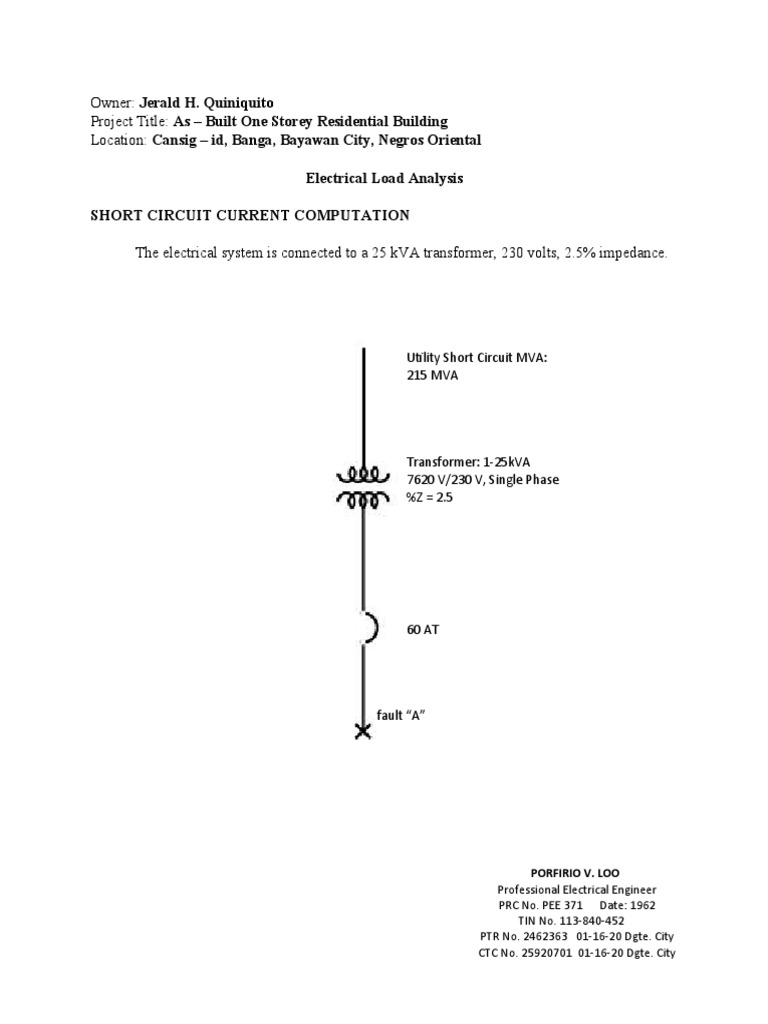

SHORT CIRCUIT CURRENT COMPUTATION

The electrical system is connected to a 25 kVA transformer, 230 volts, 2.5% impedance.

Utility Short Circuit MVA:

215 MVA

Transformer: 1-25kVA
7620 V/230 V, Single Phase
%Z = 2.5

60 AT

fault “A”

PORFIRIO V. LOO
Professional Electrical Engineer
PRC No. PEE 371 Date: 1962
TIN No. 113-840-452
PTR No. 2462363 01-16-20 Dgte. City
CTC No. 25920701 01-16-20 Dgte. City
Main Conductor Impedance Calculation
Formula:

Z = ¿ (L/305)
Where
R – Resistance
X – Reactance
L – Length of Conductor

Service Drop Conductor: # 6 Twisted Aluminum Wire Free Air (80 A, @ 30°C Ambient
Air Temperature)
R = 0.81 ohms
X = 0.051 ohms
L = 50 m
ZSD = Service Drop Impedance

ZSD = ¿ (50/305)
= 0.01330498 ohms
Main Entrance Conductor: 2 - # 6 THHN Copper Wire in 1-1/4” Ø RSC Pipe

R = 0.49 ohms
X = 0.051 ohms
L=5m
ZF = Main Feeder Impedance

ZF = ¿ (5/305)
= 0.0080762 ohms
Total Main Feeder Impedance:
ZTF = 0.01330498+ 0.0080762 = 0.14112603 ohms

Per Unit Calculations (pu)

ZT = 2.5
kVA base = 25
MVA SOURCE = 215
pu Voltage = 1.0

Source Impedance

PORFIRIO V. LOO
Professional Electrical Engineer
PRC No. PEE 371 Date: 1962
TIN No. 113-840-452
PTR No. 2462363 01-16-20 Dgte. City
CTC No. 25920701 01-16-20 Dgte. City
ZS = kVA base = 25
SC Kva (Utility) 215000
= 1.1628 x 10-4 pu

Transformer Impedance
ZTR = Transformer Impedance = 2.5
100 100
= 0.025 pu

Main Feeder Impedance

ZF = Actual Imp. x kVAbase
kVbase2 1000
= 0.14112603 x 25
0.2302 1000
= 0.0666947 pu

Impedance Diagram

ZS = 0.00011628 pu

ZTF = 0.025 pu

ZF = 0.0666947 pu

Fault “A”

At Fault “A”

PORFIRIO V. LOO
Professional Electrical Engineer
PRC No. PEE 371 Date: 1962
TIN No. 113-840-452
PTR No. 2462363 01-16-20 Dgte. City
CTC No. 25920701 01-16-20 Dgte. City
 pu Voltage base kVA x 1000 1 25(1000)
Isc(sym) = x = x
Zs+ Ztr+ Zf base Voltage 0.09181100 23 0
= 1,183.907 A

Isc(asym) = 1,183.907 x 1.25

= 1,479.883 A Minimum of 5 kAIC Circuit Breaker Rating shall be used for Main
Disconnect

Load & Voltage Drop Computation

Transformer to Service Entrance

Service Drop Conductor : 14 mm2 Twisted Aluminum Wire Free Air
Length from Source : 50 m
Impedance : 0.01330498 ohms

Main Entrance Conductor : 14 mm2 THHN Copper Wire in 1-1/4” Ø RSC Pipe
Length : 5m
Impedance : 0.0080762 ohms

Total Impedance : 0.01330498+ 0.0080762 = 0.14112603 ohms

Total Demand Current : 12.98 A
Protection : 5KAIC or greater, 2PST, 250 volts, and 60 AT, MCCB
Voltage at Service
Entrance Gutter : 230 – (2)(12.98)( 0.14112603) = 226.342 V
% Voltage Drop from Source : 1.59 %

Load Schedule

C1 Connected Load : Lighting Outlet

Total Load VA
Current, I (VA/230)
Wire Size & Type
Conduit Size & Type
Circuit Breaker
: 108 VA
: 0.46 Amps
: 2-3.5 mm2 THHN Wire
: 1/2" dia. PVC Pipe
: 15 AT, 2P

PORFIRIO V. LOO
Professional Electrical Engineer
PRC No. PEE 371 Date: 1962
TIN No. 113-840-452
PTR No. 2462363 01-16-20 Dgte. City
CTC No. 25920701 01-16-20 Dgte. City
C2 Connected Load : Convenience Outlet
Total Load VA : 2880 VA
Current, I (VA/220) : 1.82 Amps
Wire Size & Type : 2-5.5 mm2 THHN Wire
Conduit Size & Type : 3/4" dia. PVC Pipe
Circuit Breaker : 30 AT, 2P
C3 Connected Load : SPARE

C4 Connected Load : SPARE
