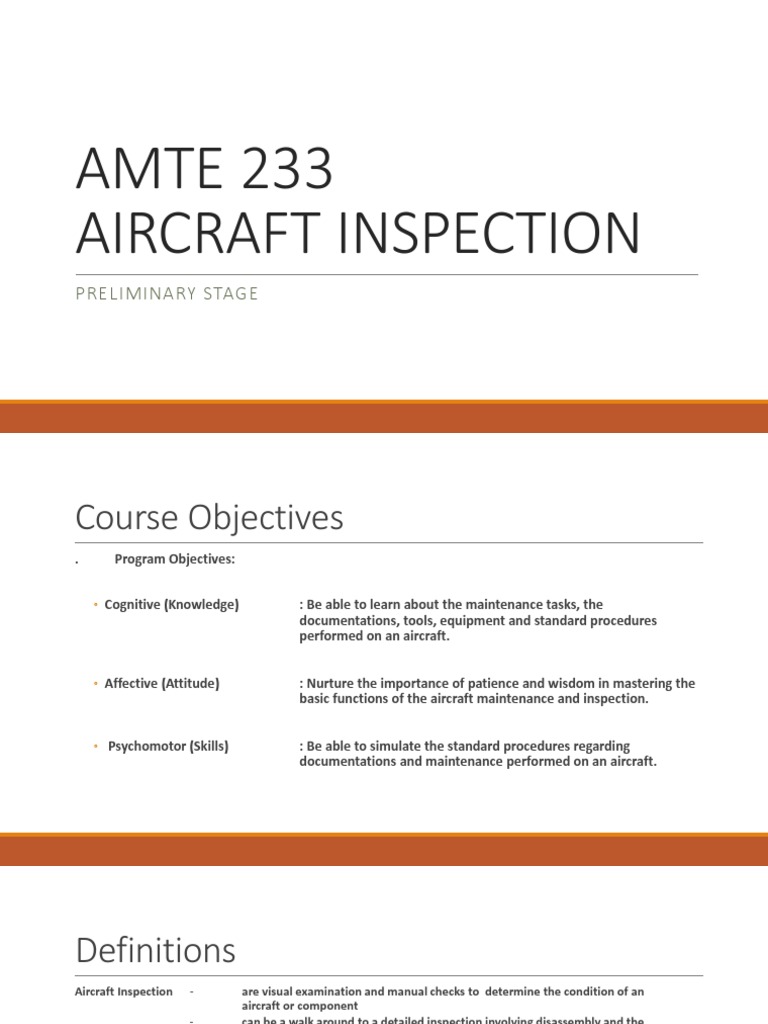

AMTE 233
AIRCRAFT INSPECTION
PRELIMINARY STAGE
Course Objectives
. Program Objectives:
◦ Cognitive (Knowledge) : Be able to learn about the maintenance tasks, the

documentations, tools, equipment and standard procedures
performed on an aircraft.
◦ Affective (Attitude) : Nurture the importance of patience and wisdom in mastering the
basic functions of the aircraft maintenance and inspection.
◦ Psychomotor (Skills) : Be able to simulate the standard procedures regarding

documentations and maintenance performed on an aircraft.
Definitions
Aircraft Inspection - are visual examination and manual checks to determine the condition of an
aircraft or component
- can be a walk around to a detailed inspection involving disassembly and the
use of complex inspection aids.
- Report can be made by the pilot or mechanic or crew flying an aircraft.
Aircraft logs - is an inclusive term which applies to the aircraft logbook and all supplemental
records concerned with the aircraft.
Aircraft logbook - is the record in which all data concerning the aircraft is recorded. Information
gathered in this log is used to determine the aircraft condition, date of
inspections, time on airframe, engines and propellers.
Aeronautical publications are the sources of information for guiding aviation mechanics in the operation and
maintenance of aircraft and related equipment.
Service Bulletin - Publications issued by airframe, engine and component manufacturers.
Maintenance Manual Contains complete instruction for maintenance of all systems and components
installed in the aircraft.
Definitions
Overhaul Manual - contains brief descriptive information and detailed step by step instruction covering
the work normally performed on a unit that has been removed from the aircraft.
Structural Repair Manual Manufacturers information and specific instruction for repairing primary and
secondary structures.
Airworthiness Directives Publication issued by authorities to notify the aircraft owners and other interested
persons of unsafe condition and to prescribed the conditions under which product
may continue to operated.
Type Certificate Data Sheets Describe the type design and sets forth the limitations prescribed by the applicable
CFR part. It includes any other limitations and information found necessary for type
certification of a particular model aircraft.
Illustrated Parts Catalog Presents component breakdown of structure and equipment in disassembly sequence.
Also included are exploded views or cut away illustrations for all parts and equipment.
Minimum Equipment List A reference document includes that if inoperative may either ground the aircraft or
allow it to be flown with the flight restrictions deferring maintenance for specific
period of time.
Definitions
Required Inspections - Approved inspection program for aircraft operation like 100 hours inspection for small
aircraft performed for every one hundred hours inspection.
Annual Inspection - Most type of inspection required for small general aviation aircraft, performed every
12 calendar months must complete and performed and determine if the aircraft meets
all the requirements for its certification.
Progressive Inspection - Progressive inspection allows the work to be divided into smaller portions and
performed in a shorter period of time.
Continuous Airworthiness - Designed for commercial operators of large aircraft operating under part regulations.
Inspection Program Currently utilized by an air carrier that is operating that particular make and model
aircraft
Conformity Inspection - is an element of all aircraft inspection programs and performed to determine whether
the aircraft conforms to or matches its approved specifications.
Basis for Inspection Scheduling
1. Flight Hours - the flight hour system are inspected when a specified number of flight
hours are accumulated.
2. Calendar Inspection - performed on the expiration of a specified number of calendar week
Scheduled replacement of components with stated hourly operating limitations is normally

accomplished during the calendar inspection falling nearest the hourly limitation.
Work Cards - act as control documents in the continuous inspection process.
Job cards are issued for all aspects of CAMP inspections and
are used to organize inspection instructions and account for
the specific steps involved.
provides an outline of a specific area of the aircraft inspection.
Recurring airworthiness directives and manufacturer's service
bulletins are usually incorporated on work cards.
provides accountability columns where the inspector or
maintenance technician signs off each step as it is inspected
or serviced.
A320 WALK AROUND INSPECTION
Stations
1. LH FWD Fuselage
2. Nose Section
3. Nose Landing Gear
4. RH Center Fuselage
5. Lower center wing
6. RH Center Fuselage
7. Eng. 2 LH side
8. Eng. 2 RH side
9. RH wing leading edge
Stations
10. RH wing trailing edge
11. RH Landing Gear and Fuselage
12. RH aft and fuselage
13. Tail
14. APU
15. LH aft fuselage
16. LH landing gear
17. LH wing trailing edge
18. LH wing trailing edge
18. LH wing leading edge
19. ENG 1 LH side
20. ENG 1 RH side
21. LH Center Wing
1. LH FWD Fuselage
Items
◦ A. AOA Probes
◦ B. F/O and Capt. Static Ports
◦ C. Avionics Equipment vent air valve
◦ D. Oxygen Bay
◦ E. Oxygen overboard discharge indicator E A
D B
C
2. Nose Section
Items
◦ A. Pitot Probes
◦ B. STBY Static port E
◦ C. TAT probes
◦ D. Radome and latches
A
◦ E. Forward avionics compartment door
◦ F. Ground Electric power Door C
F
D
3. Nose Landing Gear
Items
F
◦ A. Nose Wheel Chocks
G
◦ B. Wheel and Tires
◦ C. Nose Gear structure E
◦ D, Taxi, TO, Turn-off lights
◦ E. Hydraulic lines and Electric wires
◦ F. Wheel well C
◦ G. Safety Pin B
TO light
Taxi light
A
Turn off
light
4. RH FWD Fuselage
Items
◦ A. RH + Aft avionics compartment door
◦ B. Avionics equipment vent air outlet
◦ C. F/O Capt. Static port
◦ D. AOA Probe D
◦ E. Forward cargo door and selector panel
C
A
E
B A
Selector Panel
5. Lower Center Fuselage
Items
◦ A. Potable Water drain panel
◦ B. Antennas C
◦ C. Drain Mast
◦ D. Ram Air Inlet Flap D
◦ E. LP and HP ground connection Doors
◦ F. Anti-Collision light
◦ G. CTR Tank Magnetic fuel Level
◦ H. Pack Air intake and outlets E
E
H
A B F
G
6. RH center Wing
Items
◦ A. Yellow Hydraulic bay door D B
◦ B. Fuel Panel
◦ C. Inner tank Magnetic fuel Level indicator C
E
◦ D. Fuel Water Drain valve
◦ E. landing Light
◦ F. Slat 1
A
F
7. ENG 2 LH Side
Items
◦ A. Oil Fill Access Door
◦ B. Fan Cowl doors
◦ C. Drain Mast
◦ D. Engine inlet and Fan Blades
B C
8. ENG 2 RH Side
Items
◦ A. Vent Inlet
◦ B. Pressure-relief/Start Valve handle access D
◦ door
◦ C. Turbine Exhaust
◦ D. Pylon / Access Panel C
A
B
9. RH Wing Leading Edge F C
Items
◦ A. Slats 2,3,4,5
B
◦ B. Inner and Outlet cells magnetic fuel
◦ C. Fuel Water Drains
◦ D. Refuel Coupling
◦ E. Surge Tank Air Inlet
◦ F. Fuel Ventilation overpressure disc
D
◦ G. Navigation Light
◦ H. Wing tip G
A E
10. RH Wing Trailing Edge
Items
◦ A. Static Dischargers
◦ B. Control Surfaces
◦ C. Flaps and Fairings
A
B
11. RH L/G and Fuselage
Items
◦ A. Chocks
◦ B. Wheels and Tires
◦ C. Brakes and Brake wear indicator H
◦ D. Torque Link damper
◦ E. Hydraulic Lines
◦ F. Landing Gear Structure E
◦ G. Downlock Spring B
◦ H. Safety Pin
◦ I. Ground Hydraulic connection yellow C
◦ J. Shroud Fuel Drain
A
11. RH L/G and Fuselage
Items I
◦ A. Chocks G
◦ C. Brakes and Brake wear indicator
◦ D. Torque Link damper H
J
◦ E. Hydraulic Lines
◦ F. Landing Gear Structure
◦ G. Downlock Spring
◦ H. Safety Pin
◦ I. Ground Hydraulic connection yellow
◦ J. Shroud Fuel Drain C
12. RH aft Fuselage
Items
◦ A. Cargo door and selector panel
◦ B. Bulk Cargo Door
◦ C. Toilet service access door
◦ D. Outflow Valve
◦ E. Drain Mast D A
◦ F. Flight Recorder access Door
E B
C
F
13. Tail
Items
◦ A. Stabilizer, Elevator, Fin and Rudder
◦ B. Static Dischargers
B
◦ C. Lower Fuselage Structure (tail impact)
C
14. APU
Items E
◦ A. Access Door F
◦ B. Air Intake
◦ C. Drain
◦ D. Oil Cooler air Outlet
◦ E. Exhaust
◦ F. Navigation Light
◦ G. Fire Extinguisher Overpressure Indicator A
D
G B
15. LH Aft Fuselage
Items
◦ A. Stabilizer, Elevator, Fin and Rudder
◦ B. Potable Water service Door
◦ C. Ground Hydraulic connection Blue and Green Door
◦ D. Hydraulic Reservoir Filing Door
C B
C
D
16. LH Landing Gear
Items
◦ A. Chocks
◦ C. Brakes and Brake Wear Indicator
◦ D. Torque link Damper
◦ E. Hydraulic Gear Structure
B
◦ F. Down lock Spring
◦ G. Safety Pin B
D F
G A
C
17. LH Wing trailing Edge
Items
◦ A. Flaps and Fairings
◦ B. Control Surfaces
◦ C. Static Dischargers
C
A
18. LH wing leading edge
Items
◦ A. Wing Tip
◦ B. Navigation Light D E
◦ C. Surge Tank air Inlet
F
◦ D. Fuel Ventilation overpressure disc
◦ E. Fuel Water Drain Valve
◦ F. Inner and Outer cell magnetic fuel level indicator
◦ G. Slats 2,3,4,5
B
G
A
C
19. ENG 1 LH Side
Items
◦ A. Oil fill Access Door
◦ B. Fan Cowl Door
◦ C. Drain Mast
◦ D. Engine Inlet and Fan Blades
C
20. ENG 1 RH Side
Items
◦ A. Vent Inlet
◦ B. Pressure Relief / Start Valve handle
◦ C. Turbine Exhaust D
◦ D. Pylon / Access Panel
C B
21. LH Center Wing
Items
◦ A. Slat 1
C
◦ B. Fuel Water Drain Valves
◦ C. Inner Tank magnetic Fuel
◦ D. Landing Light F
◦ E. Hydraulic Reservoir Pressurization Door B
◦ F. RAT Doors E
D A
End of Preliminary Period
AMTE 233
AIRCRAFT INSPECTION
MIDTERM STAGE
FITS AND CLERANCES
FITS AND CLERANCES
FITS AND CLERANCES
FITS AND CLERANCES
FITS AND CLERANCES
FITS AND CLERANCES
VERNIER CALIPER READING
A linear measuring instrument

consisting of a scaled rule with a
projecting arm at one end, to
which is attached a sliding vernier
with a projecting arm that forms a
jaw with the other projecting arm.
MICROMETER
A gauge that measures small distances or

thicknesses between its two faces, one of which can
be moved away from or toward the other by turning a
screw with a fine thread.
FITS AND CLERANCES
IDENTIFICATION OF FLUID LINES
Large aircraft contain plumbing systems for many different types of fluids. Because of
this, it is important that each line be clearly identified. This is generally accomplished by
marking tubing with color bands, symbols, or writing. The symbols are generally printed
on one-inch wide tape or decals and secured at regular intervals along a line. On lines
four inches or larger in diameter, or those subject to extreme temperatures, steel tags
are used instead of marking tape. In areas where there is the possibility that tape,
decals, or tags may be drawn into the induction system, paint is used.
In addition to color bands, some lines carrying fuel are marked with the word "FLAM."
This identifies the lines as carrying a flammable fluid. Lines carrying fluids that are
physically dangerous such as oxygen, nitrogen, or Freon are marked "PHDAN.“
Additional markings are sometimes provided to identify a line's function. These include
PRESSURE, RETURN, DRAIN, and VENT.
HYDRAULIC SYSTEM INSPECTION
FLUID SAMPLING
FLUID SAMPLING
FLUID SAMPLING
FLUID SAMPLING
AMTE 233
AIRCRAFT INSPECTION
FINAL STAGE
Zonal Inspection
Airplane Zoning
The Model 172 is divided into numbered zones to provide a method for locating
components and/or placards throughout the airplane. The zones are identified by a
three-digit number as shown in the example below. The first digit in the sequence
denotes the major zone (300 series for aft of cabin, 500 series for left wing, etc.). The
second digit in the sequence further divides the zone into submajor zone (Zone 510
for inboard portion of the left wing and Zone 520 for outboard portion of the left
wing, etc..). The third digit further divides the submajor zones into subdivisions (if no
subdivision is needed, this digit is typically assigned as 0 (zero).
Zonal Inspection
Zonal Inspection
Zonal Inspection
Zonal Inspection
Zonal Inspection
CABIN FLOORBOARD PANELS
230AT – Brake Line

230BT – Fuel Pump and Reservoir
230CT – Fuel Pump and Reservoir
230DT – Fuel Lines, Wire Bundle
230ET – Elevator Bellcrank, Fuel Lines
230FT – Fuel Selector, Elevator Bellcrank
230GT – Fuel Line
230HT – Fuel Line
230JT – Fuel Lines, Wire Bundles
230KT – Elevator Trim Tab Pulley,
ADF Antenna
230LT – Fuel Lines
230MT – Fuel Lines
230NT – Fuel Lines
230PT – Wire Bundle, Brake Line
230QT – Rudder Cables, Elevator Cables,
Elevator Trim Cables
Zonal Inspection
Zonal Inspection
Zonal Inspection
Zonal Inspection
Zonal Inspection
Zonal Inspection
Zonal Inspection
Zonal Inspection
Zonal Inspection
Zonal Inspection
Zonal Inspection

Amte 233

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Amte 233

Uploaded by

Copyright:

Available Formats

AMTE 233

◦ Cognitive (Knowledge) : Be able to learn about the maintenance tasks, the

◦ Psychomotor (Skills) : Be able to simulate the standard procedures regarding

2. Calendar Inspection - performed on the expiration of a specified number of calendar week

Scheduled replacement of components with stated hourly operating limitations is normally

A linear measuring instrument

A gauge that measures small distances or

CABIN FLOORBOARD PANELS

230AT – Brake Line

You might also like
