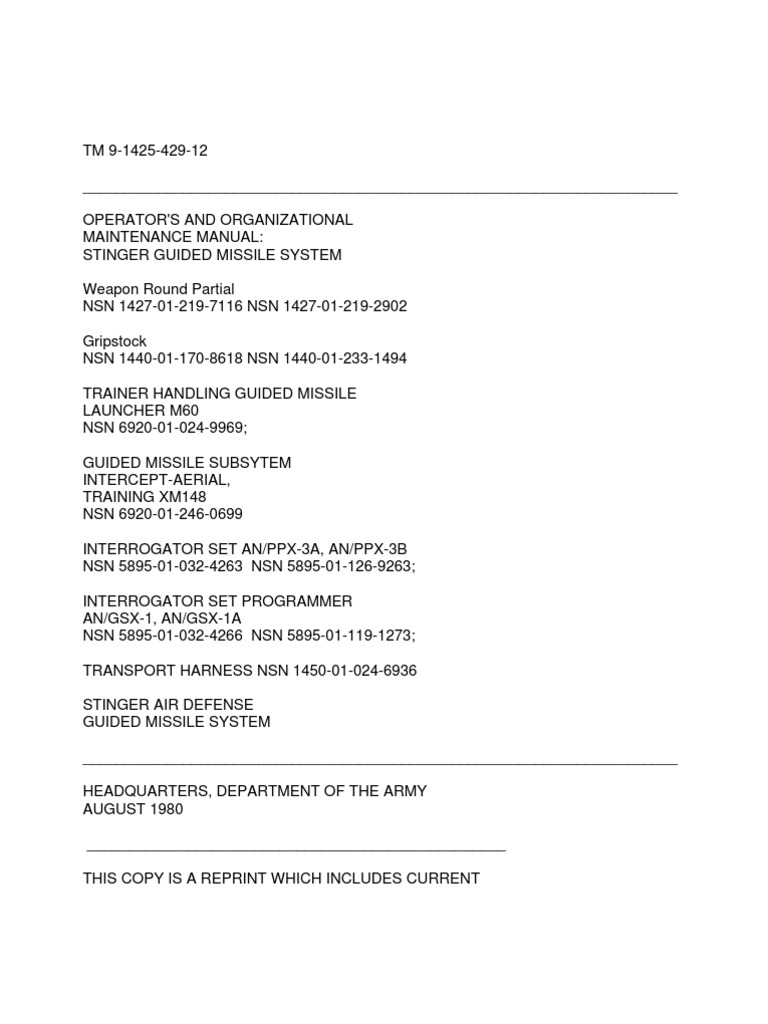

TM 9-1425-429-12 _______________________________________________________________________ OPERATOR'S AND ORGANIZATIONAL MAINTENANCE MANUAL: STINGER GUIDED MISSILE SYSTEM Weapon Round Partial NSN

1427-01-219-7116 NSN 1427-01-219-2902 Gripstock NSN 1440-01-170-8618 NSN 1440-01-233-1494 TRAINER HANDLING GUIDED MISSILE LAUNCHER M60 NSN 6920-01-024-9969; GUIDED MISSILE SUBSYTEM INTERCEPT-AERIAL, TRAINING XM148 NSN 6920-01-246-0699 INTERROGATOR SET AN/PPX-3A, AN/PPX-3B NSN 5895-01-032-4263 NSN 5895-01-126-9263; INTERROGATOR SET PROGRAMMER AN/GSX-1, AN/GSX-1A NSN 5895-01-032-4266 NSN 5895-01-119-1273; TRANSPORT HARNESS NSN 1450-01-024-6936 STINGER AIR DEFENSE GUIDED MISSILE SYSTEM _______________________________________________________________________ HEADQUARTERS, DEPARTMENT OF THE ARMY AUGUST 1980 __________________________________________________ THIS COPY IS A REPRINT WHICH INCLUDES CURRENT

PAGES FROM CHANGES 1 THROUGH 7 __________________________________________________ TM 9-1425-429-12 WARNING

---------------WARNING ---------------HIGH VOLTAGE is used in the operation of this equipment. DEATH ON CONTACT may result if personnel fail to observe safety precautions

Never work on electronic equipment unless there is another person nearby who is familiar with the operation and hazards of the equipment and who is competent in administering first aid. When the technician is aided by operators, he must warn them about dangerous areas. Be careful not to contact high-voltage connections of 115 volt ac input connections when installing or operating this equipment. Whenever the nature of the operation permits, keep one hand away from the equipment to reduce the hazard of current flowing through vital organs of the body. Warning: Do not be misled by the term `low voltage." Potentials as low as 50 volts may cause death under adverse conditions. For Artificial Respiration, refer to FM 21-11. ---------------WARNING ---------------EXPLOSIVES The STINGER Air Defense Guided Missile System contains explosives. All applicable safety regulations will be strictly enforced. Explosive components containing electrical wiring must be protected at all times from stray voltages or induced electrical currents.

Handling operations should not be performed during electrical storms. Explosives are contained in the weapon-round, missile-round, and battery coolant unit. TOXIC MATERIALS BASIC STINGER ONLY Do not touch the vicinity of the missile seekerhead dome if it shatters, as mercury thallium liquid may be released. This material is toxic to unprotected skin. Avoid all contact with the released material unless protective equipment is being worn such as a respirator, impervious protective gloves, and chemical goggles. If the skin or eyes are exposed to the spilled material, immediately flush with copious quantities of water. Any person exposed to the released material should be promptly referred to a physician. BASIC STINGER, POST AND RMP The missile exhaust contains amounts of HC1 gas which may cause eye and/or throat irritation when personnel are exposed. To prevent any irritation or exposure to potentially harrnful concentrations of HC1 in the exhaust plume, the gunner and assistant must hold their breaths until the trigger is released and move away from the exhaust plume, if necessary, before breathing again.

TM 9-1425-429-12 Technical Manual) No. 9-1425-429-12) HEADQUARTERS DEPARTMENT OF THE ARMY Washington, D.C., 1 August 1980 Operator's and Organizational Maintenance Manual: STINGER GUIDED MISSILE SYSTEM Consisting of: Weapon Round Partial NSN 1427-01-219-7116 NSN 1427-01-219-2902 NSN 1427-01-230-8784 Gripstock NSN 1440-01-170-8618 NSN 1440-01-233-1494 TRAINER HANDLING GUIDED MISSILE

LAUNCHER M60 NSN 6920-01-024-9969; GUIDED MISSILE SUBSYSTEM INTERCEPT-AERIAL, TRAINING XM148 NSN6920-01-246-0699; INTERROGATOR SET AN/PPX-3A, AN/PPX-3B NSN 5895-01-032-4263 NSN 5895-01-126-9263; INTERROGATOR SET PROGRAMMER AN/GSX-1, AN/GSX-1A NSN 5895-01-032-4266 NSN 5895-01-119-1273; TRANSPORT HARNESS NSN 1450-01-024-6936

--------------------------------------------------------------REPORTING ERRORS AND RECOMMENDING IMPROVEMENTS You can help improve this manual. If you find any mistakes or if you know of a way to improve the procedures, please let us know. Mail your letter or DA Form 2028 (Recommended Changes to Equipmens Puhlicaiions and Blank Forms) direct to: Commander, U.S. Army Missile Command. ATTN: AMSMI-LC-MEPM. Redstone Arsenal, Alabama, 35898-5238. A reply will be furnished to you. --------------------------------------------------------------Technical Manual 9-1425-429-12 Table of Contents PART ONE TEAM PROCEDURES CHAPTER 1. INTRODUCTION Section I. General Information Section II. Description CHAPTER 2. OPERATING INSTRUCTIONS FOR WEAPON-ROUND AND IFF INTERROGATOR Section I. Weapon-Round Controls and Indicators Section II. Operating Procedures Section III. Preparation for Movement CHAPTER 3. OPERATOR ORGANIZATIONAL MAINTENANCE INSTRUCTIONS Section I. General Maintenance Instructions Section II Preventive Maintenance Checks and Services Section III. Operator/Organizational Corrective Maintenance Procedures PART TWO OPERATING INSTRUCTIONS FOR IFF PROGRAMMER/ BATTERY CHARGER Section I. General Section II. Programmer/Battery Charger Controls and Indicators Section IlI. Operating Instructions CHAPTER 5. PROGRAMMER/BATTERY CHARGER MAINTENANCE INSTRUCTIONS Section I. General Maintenance Instructions

Section II. Preventive Maintenance Checks and Services Section IlI. Maintenance Procedures CHAPTER 6. SHIPMENT, STORAGE AND DEMOLITION TO PREVENT ENEMY USE APPENDIX A. REFERENCES APPENDIX B. MAINTENANCE ALLOCATION CHART APPENDIX C. COMPONENTS OF END ITEM AND BASIC ISSUE ITEMS LISTS APPENDIX D. ADDITIONAL AUTHORIZATION APPENDIX E. EXPENDABLE SUPPLIES AND MATERIALS LIST TM 9-1425-429-12 HOW TO USE THIS MANUAL The manual is divided into two parts. Part one provides you, the gunner, with operating instruction improvements resulting from the addition of UV detection and the reprogrammable module, normal maintenance requirements for the weapon round, field handling trainer, and IPF interrogator. Part two provides instructions for operating and servicing the IFF programmer/battery charger. Portions of this manual which apply only to the Stinger-POST will be preceded by (POST), portions which apply only to the Stinger with the reprogrammable microprocessor will be preceded by (RMP). PART ONE TEAM PROCEDURES CHAPTER 1 INTRODUCTION Section I. GENERAL 1-1. Purpose and Scope Part one of this manual is for your use in operating and maintaining the STINGER Intercept-Aerial Guided Missile System (weapon-round partial plus grip stock, hereafter weapon-round), Trainer, Handling, Guided Missile Launcher: M60 (field handling trainer), and Interrogator Set AN/PPX-3A and AN/PPX-3B (IFF interrogator). 1-1.1 Differences Between Models Differences between models are contained in the following paragraphs: a. Missile Rounds (1) The Stinger-POST (Passive Optical Seeker Technique) has a different front window than the basic Stinger. The front window is

transparent, which permits IR and UV detections. In addition, the Guidance Assembly has been improved to allow the gunner to track positive contrast IR and/or negative contrast Uv radiation, to provide greater background discrimination than the basic Stinger. (2) The Stinger RMP (Reprogrammable Microprocessor) retains all the Stinger-POST improvements and also has additional improvements to the guidance system. These improvements enable the weapon to reject more complex IRCM and provide greater black discrimination than the basic Stinger or Stinger POST. b. Weapon Rounds In addition to the improvements to the missile round, an electronic housing has been added to the separable gripstock, to accommodate installation of an RMP module. The RMP module allows reprogramming of missile software programs for enhancing performance in different threat environments. c. Gripstocks Gripstocks without the RMP module may be used with the basic and POST missiles. RMP missiles without the RMP module will default and function as if they were POST missiles. Gripstocks with the RMP module may be used with all STINGER missiles. d. Interrogators The basic difference between the AN/PPX-3A and the AN/PPX-3B is the addition of an electronic day indicator activating switch and needed circuits on the AN/PPX-3B. For detailed information, refer to TM 11-5895-1194-24. e. Training Set, Guided Missile System M134, M158, M160 For information on the training sets and the caotuve flight trainer refer to TM 9-6920-429-12 f. Field Handling Trainers M6O, XM148 The XM 148 trainer uses the same dummy launch tube as the M60, without the gripstock and IFF interrogator. The M60 trainer must have the gas insert assembly removed prior to use with SVML. Refer to para. 2-10 for instructions for removal of the gas insert assembly. TM 9-1425-429-12 1-2. Security Requirements a. The weapon round, missile round, gripstock with the RMP

module installed, and IFF interrogator are classified CONFIDENTIAL for storage, handling, and shipping. During shipment,the weapon round is split into two components,the weapon round partial and the gripstock. After arrival at an ammunition supply point (ASP) or military unit,the gripstock may be placed in the weaponround partial container. If the gripstock is placed in the weapon round partial container, write the NSN number of the gripstock above the existing NSN on the container, using china marker (Item 19, App. E).Be security unconscious when any of these items become your responsibility. Be sure that they never leave your sight. When you are not using the weapon or interrogator, be sure they are protected against unauthorized access, theft and sabotage. b. In the event ofloss or theft of a weapon round, weapon-round partial, missile round, gripstock with RMP installed or IFF interrogator, notify your local commander immediately. The commander must take action as prescribed in AR 210-10, AR 310-84, and AR 380-5 and must insure that the appropriate military and civilian law enforcement agencies are notified promptly. c. When the weapon is fired, and the missile launch and flight motors function normally, classified components should be destroyed by warhead detonation or ground impact. Whenever a missile malfunctions, or if there is reason to believe that classified components may not be destroyed, attempt to locate and destroy it as prescribed in para.6-2 of this manual 1-3. Maintenance Forms and Records Department of the Army forms and procedures used for equipment maintenance will be those prescribed by DA PAM 738-750. The Army Maintenance System (TAMMS).The D A PAM is published in the Maintenance Management UPDATE. Units may subscribe to Maintenance Management UPDATE by submitting a completed DA Form 12-13. 1-3.1. Reporting Equipment Improvement Recommendations (EIRs) If your equipment needs improvement,let us know. Send us an EIR. You, the user, are the only one who can tell us what you don't like about your equipment. Let us know why you don't like the design. Tell us why a procedure is hard to perform. Put it on an SF 368 (Quality Deficiency Report). Mail it to the address stated in DA PAM 738-750. We'll send you a reply. 1-3.2. Destruction of Army Material to Prevent Enemy Use Refer to Chapter 6 for demolition instructions for the STINGER weapon system.

1-3.3. Administrative Storage Refer to TM 740-90-1, Administrative Storage, for general storage requirements. CLICK THE "NEXT-->" BUTTON ON THE TOOLBELT TO GO TO THE NEXT PAGE Table 1-1. TAMMS Forms Equipment Inspection andEquipment MaintenanceMaintenance Control Exchange Tag Worksheet Request RecordAmmunition (DA Form (DA Form (DA Form(DA FormCondition Equipment 2402) 2404) 2407) 2408-9)Report Weapon Round Weapon Round Partial Missile Round IFF X X Interrogator X X X X X

Programmer X Battery Charger Field Handling Trainer M60 Guided Missile Subsystem Intercept-Aerial, Training XM148 X

CLICK THE "NEXT-->" BUTTON ON THE TOOLBELT TO GO TO THE NEXT PAGE Abbreviations/Acronyms Below are listed the abbreviations and acronyms that are used in this document. ABBREVIATIONS AND ACRONYMS

AAmpere ACAltertsating Current ASPAmmunition Supply Point IATASAir-toAir STINGER BCCBattery Carrying Case BCUBattery Coolant Unit CFTCaptive Flight Trainer CHGCharge CTACommon Table of Allowances DCDirect Current EODExplosive Ordnance Disposal FFahrenheit FHTField Handling Trainer GGravitational Force HzHertz IFFIdentification Friend or Foe IRInfrared Radiation JTAJoint Tables of Allowance MTOEModified Table of Organization & Equipment PHPhase(Position of Point on Waveform) POSTPassive Optical Seeker Technique RMPReprogrammable Microprocessor SVMLStandard Vehicle Mounted Launcher TAMMSThe Army Maintenance Management System TDATables of Distribution and Allowances TMDETest, Measurement, and Diagnostic Equipment UVUltraviolet VVolts ZULUGreenwich Mean Time CLICK THE "NEXT-->" BUTTON ON THE TOOLBELT TO GO TO THE NEXT PAGE Section II. DESCRIPTION 1-5. General The following Common Nomenclature/Official Nomenclature list describes equipment common names used in this manua1.

Common NomenclatureOfficial Nomenclature Weapon Round STINGER Intercept-Aerial Guided Missile FIM-92 Composed of Missile Round and Gripstock

Field Handling Trainer Trainer, Handling, Guided Missile Launcher M60 Aerial Field Handling Guided Missile Subsystem Trainer Intercept-Aerial, Training XM148 IFF Interrogator Interrogator Set AN/PPX-3A or Interrogator Set AN/PPX-3B IFF Programmer/Battery Interrogator Set Programmer Charger AN/GSX-1 or AN/GSX-1A

You must have the weapon round and BCU to have an operational weapon. To have IFF capability, you must connect the IFF interrogator set to the weapon round using the interconnecting cable. Descriptions for the above items as we11 as descriptions for the shipping and storage container, transport harness, and field handling trainers are provided in paras. 1-6 through 1-7.

Figure 1-1. Stinger weapon-round and IFF interrogator 1-6. Weapon-Round Description a. Missile-Round (Figure 1-2). The missile-round consists of two major parts: the missile and launch tube assembly. (1) The missile is housed in the launch tube. The major components that make up the missile are shown in Figure 1-2. The missile uses infrared (heat-sensitive) homing. It is ejected from the launch tube by the launch motor and propelled in flight by the ffight motor. The launch motor is expended and separated from the flight motor before the missile is out of the launch tube. The expended launch motor drops from the missile outside the launch tube at a safe distance from you. Also, at separation, a lanyard attached to the launch motor pulls the shorting plug from the flight motor ignition circuit. After the missile coasts a safe distance from you, the flight motor fires. The missile will selfdestruct after a total of 17 seconds of in-flight time shorting plug from the flight motor ignition circuit. After the missile coasts a safe distance from you, the flight motor fires. The missile will self lestruct after a total of 17 seconds of in-flight time.

Figure 1-2. Missile-round (2) The launch tube is made of molded fiberglass with an lR window in one end and a blowout disc in the other to seal the missile in the tube from moisture and foreign matter. A desiccant cartridge/humidity indicator unit on the launch tube indicates whether moisture has entered the tube. (3) The sight assembly is attached to the launch tube. You use this to aim the weapon, to estimate the target range, to superelevate to the proper angle, and to correctly lead your target. Two acquisition indicators mounted on the sight assembly tell you IFF status and whether the missile is "locked on" the target. One of these indicators is a tiny speaker that produces various tones. The other indicator vibrates against your cheekbone, transmitting sound vibrations through the bones to the ear. Also attached to the sight assembly is a clear plastic eyeshield to protect your left eye when the weapon-round is fired. b. Separable Gripstock (Fig. 1-3). The separable gripstock attaches to the underside of the missile-round with a latch mechanism. After firing a missile, the separable gripstock will be removed from the launch tube assembly for re-use. The separable gripstock consists of the gripstock assembly and the IFF antenna assembly. The gripstock assembly contains the safety and actuator device, uncaging switch, firing trigger, IFF interrogator switch and IFF interrogator connector, and BCU receptacle. The IFF antenna assembly folds on the side of the gripstock assembly when not in use. When it is unfolded and the interrogator is connected to the weapon-round, aircraft can be interrogated. c. Battery Coolant Unit (BCU). The BCU screws into the battery receptacle on the underside of the separable gripstock. lt contains a thermal battety and pressurized argon gas coolant. When you operate the safety and actuator device, the BCU then must be removed within 3 minutes to prevent damage to the gripstock.

Figure 1-3 Separable gripstock ---------------WARNING ---------------After it is activated, the BCU becomes very hot. Handle only by the insulated cap when removing. After removal high pressure argon gas may still be flowing from the needle. Keep needle at least 1 inch away from skin.

CAUTION ---------------The BCU should not be placed in the separable gripstock prior to mating with the missile round. To prevent coolant system contamination, the BCU must be discarded following removal from the gripstock assembly; this is necessary even if the BCU was never activated while installed in the gripstock. 1-6.1. M60 Field Handling Trainer (FHT) Description The FHT (figure 1-3.1) is a dummy round which simulates the operation of a weapon round. It has no actual electronics but has all the external features of the tactical launch tube, gripstock, and sight assembly. It provides the gunner with realistic training, while allowing him to make errors without damage to more sensitive equipment. The FHT consists of a ballasted launch tube assembly, dummy separable gripstock, dummy BCU, and dummy IFF interrogator. The trainer provides practice in the basic skills of weapon handling to include transportation, procedures, reaction times, sighting, and ranging. 1-6.2. Field Handling Trainer XM148 Description The XM 148 FHT (figure 1-3. 1) is also a dummy round, but has no gripstock, IFF interrogator, or BCUs.It is used to train crews in the handling of STINGER weapon rounds as part of the ATAS launch system. 1-7. IFF Interrogator Description a. General. The IFF interrogator (figure 1-4), when connected to the weapon round,helps you determine whether the sighted aircraft is friendly or unknown. The interrogator is a battery-powered unit that attaches to your web belt, using the clip on the side of the case. The interrogator connects to the weapon round using the interrogator cable assembly. The cable assembly connector end has a clamping device attached to the connector cap by a lanyard cable. The clamp holds the interconnecting cable connector on the operator's flak jacket allowing him to quickly remove it from the protective cap and connect it to the gripstock assembly. b. Functional Diagram (1) The IFF interrogator operates in one of three programs; mode 3 (M3) only or mode 4 (M4) only, or M4/M3 automatic.

Figure 1-3.1. Field handling Trainers

Figure 1-4. Clamp assembly and interrogator assembly. (2) When the tactical situations require the use of either M4 or automatic M4/M3 coding, you must return the IFF interrogator to section headquarters for reprogramming at 1east every four days. When reprogrammed at headquarters the reprogramming date is recorded on the top of the IFF Interrogator. In addition to the written date of programming, the AN/PPX-3B wi11 read out the mode 4 day of code when the READ switch is pressed. The M4 and M4/M3 programs selected for the IFF interrogator operate for 4 days. After 4 days the IFF interrogator automatically switches to the M3 only mode and remains in that mode until it is reprogrammed. (3) Let's assume that the M4/M3 program has been entered into your IFF interrogator and you want to challenge an aircraft. The operation starts when you press the IFF interrogate switch on the gripstock and lasts about 2 seconds. During this period, numerous interrogations are transmitted by the antenna. If the correct replies for mode 4 are received, you get a half second "beep" then a half second later you get another "beep". This mode 4 tone positively identifies a friendly aircraft. If correct mode 4 replies are not received, the interrogator automatically switches to mode 3 and interrogates again. If the correct replies are received you will get a single one and a half second "beeeeeeep". If you don't get a reply you will hear a string of short "beeps" telling you that the target identity is unknown. Of course, if your interrogator had the M4 only program inserted, you would either get the mode 4 friendly tone - two "beeps" or the unknown tone - a string of "beeps". If no tone is heard when you press the IFF interrogate switch, your IFF system is defective. 1-8. Weapon-Round Principles of Operation. Figure 1-5 is a sequential illustration describing the operation of the weapon-round using the IFF interrogator. Some of the steps in this series can be performed at the same time. Also, the exact sequence of some steps may vary depending on different tactical situations.

Figure 1-5. Weapon round principles of operation (sheet 1 of 6).

Figure 1-5. Weapon round principles of operation (sheet 2 of 6).

Figure 1-5. Weapon round principles of operation (sheet 3 of 6).

Figure 1-5. Weapon round principles of operation (sheet 4 of 6).

Figure 1-5. Weapon round principles of operation (sheet 5 of 6).

Figure 1-5. Weapon round principles of operation (sheet 6 of 6). 1-9. Shipping and Storge Containers (Figure 1-6) a. Weapon-Round Containers.During shipment the weapon round is shipped in two containers, the weapon-round partial container and the Irripstock container. Following arrival at an ammunition supply point or military unit the gripstock may be placed in the weaponround partial container. Write the NSN of the gripstock above the existing NSN on the container, using chinamarker (Item 19, App. E). (1) Weapon-Round Partial Container/Ready Rack. This container provides protection for one weapon round and up to five BCUs during shipping and storage. The container has handles for two-man carry, four lid latches, a humidity indicator, and a pressure relief valve. The top corners of the container are marked with 2V-inch yellow squares. (2) Gripstock Container. Gripstocks are packed in Class A containers in accordance with the packaging data sheet. b. Missile-Round Container. This container provides protection for one missile round and up to three BCUs during shipping and storage. c. IFF Interrogator Container. This shipping and storage container provides protection for one IFF interrogator, interrogator battery, and interconnecting cable. d. FHT Shipping Container. The shipping containers for the FHT M6O and XM 148 are similar in appearance to the weapon.round container. The top corners are marked with 2 1/2-inch bronze-colored squares and the word dummy is marked in two places. It provides protection for one field handling trainer during shipping and storage. 1-10. Weapon-Round Container/Ready Rack and Transport Harness Description The transport harness secures the containers to the M4 16 trailer in a manner that permits fast access to the weapon-rounds. Figure 1-7 shows how the M416 trailer is used to transport four weapon rounds and two missile rounds. The four weapon-round containers are located along the sides of the trailer

(two stacked on each side)with latches facing outward. The two missile-round containers are located in the center. The top two weapon-round containers are converted to ready racks by releasing the latches to make the two weapon rounds available.

Figure 1-6. Shipping and storage container.

Figure 1-7. Containers in M416 trailer. TM 9-1425-429-12 Section I. WEAPON-ROUND CONTROLS AND INDICATORS 2-1. Location and Function Before attempting to operate the equipment you must familiarize yourself with the location and operation of the controls and indicators, figure 2-1. The function of each control or indicator is listed in Table 2-1.

Figure 2-1 Weapon-round controls and indicators. CLICK THE "NEXT-->" BUTTON ON THE TOOLBELT TO GO TO THE NEXT PAGE Table 2-1. Weapon-Round Controls and Indicators

Figure 2-1Controls KeyIndicatorFunction 1Gyro UncagingUncages the gyro allowingSwitchseeker to track target. 2Firing TriggerActivates missile battery and ignites launch motor. 3Safety andApplies BCU battery Actuator Devicepower to weapon and releases argon coolant to seeker head. 4IFF InterrogateActivates IFF system, Switchinterrogate/respond cycle begins when switch is depressed. 5Bone VibratorTransmits sound to the operator through the cheekbones. 6LoudspeakerEmits audible tones dur ing interrogation and after target acquisition.

7IFF ConnectorConnects the IFF inter rogator to the weaponround. 8READ SwitchEnergizes IFF Code Day Indicator. 9IFF Code DayDisplays Mode 4 Day of IndicatorCode. Section II. OPERATING PROCEDURES 2-2. Safety and Handling Precautions ---------------WARNINGS ---------------Before inserting the BCU, carefully inspect the entire weapon-round. To ensure that the seeker head can properly see the target, the blowout disc can shatter evenly, and over-pressures within the 1aunch tube are prevented, remove any caked dirt, mud, or ice from the IR window and the rear end of the launch tube. In addition, check that the desiccant cartridge/humidity indicator is securely installed. Prior to insertion of the BCU into the gripstock and as a safeguard against inadvertent missile firing or unintentiona1 battery discharge occurring when inserting the BCU into the gripstock, be sure that the firing trigger, uncaging switch, and the safety and actuator device operate freely and are in the unpressed position. ---------------WARNING ---------------Weapons in containers that fall more than 84 inches are considered unsafe and should only be handled by qualified personnel. NOTE Weapons in containers that fall 3 feet or less and weapons not in containers that fall 2 feet or less are considered functionally operable. Weapons that fa11 from a distance in excess of 3 feet (2 feet if not in a container) but less the 7 feet must be turned in to the depot for test and evaluation. FIRING CLEARANCE REQUIREMENTS For you to be free to fire safely in any direction, the area around must be clear of any obstructions or personnel for a distance of 45 meters (150 feet).

All personnel within 125 meters (400 feet) must wear hearing protection devices. To minimize the possibility of injury from flying debris do not fire with the launcher elevated more than 65 degrees or 1ess than 10 degrees or with the aft end of the launch tube closer than 30 inches to the ground. HIGH PRESSURE/HIGH TEMPERATURE Following activation, surface temperature of the BCU can rise to 400 degrees Fahrenheit within ten minutes. The heat so generated can both burn bare hands and cause permanent deformation of the gripstock BCU receptacle. To prevent such casualties, remove the BCU from the gripstock within three minutes following activation and discard.(In a training environment allow a 30-minute cool-down period before handling the discarded BCU.) Heat-caused casualties, however,are not the only consideration for concern when removing the BCU. If the BCU is still discharging high pressure gas when it is removed from the gripstock, do not allow the top to come close to, or to point at, your body. The possibility of the high-pressure gas discharge puncturing your skin is a major safety consideration. In addition, the gas discharge can cause burns to your body even if not close enough to puncture the skin. TOXIC MATERIALS BASIC STINGER ONLY Do not touch the vicinity of the missile seekerhead dome if it shatters, as mercury thallium liquid may be released. This material is toxic to unprotected skin. Avoid all contact with the released material unless protective equipment is being worn such as a respirator, impervious protective gloves, and chemical goggles. If the skin or eyes are exposed to the spilled material, immediately flush with copious quantities of water. Any person.exposed to the released material should be promptly referred to a physician. BASIC STINGER, POST AND RMP The missile exhaust contains amounts of HCI gas which may cause eye and/or throat irritation when personnel are exposed. To prevent any irritation or exposure to potentially harmful concentrations of HCI in the exhaust plume, the gunner and assistant must hold their breaths until the trigger is released and move away from the exhaust plume, if necessary, before breathing again. SAFETY EQUIPMENT In addition to your helmet,you must use the plastic eyeshield installed on the weapon-round sight, and earplugs. The earplugs are in each weapon and missile-round shipping and storage container.

For target acquisition you must have the target centered in the sight range ring. There are four major factors that limit range: target speed, IR/UV signal strength, the time it takes the missile to reach flight speed, and the time required for a target intercept. The sight range is used as an aid to determine when a target can be engaged. Proccdures for using the range ring are found in (SNF) FM 44-1A. If the target is too close for the missile to be launched effectively, you should keep tracking the target until it passes beyond minimum range before firing. In order to assure proper gyro performance and seeker head cooling before the missile is fired, the weapon-round must be activated at least 3 to 5 seconds before squeezing the firing trigger. 2-4. Weapon-Round Operating Instructions The following illustration sequence demonstrates the procedure used to prepare, aim and fire the weapon round. CAUTION When handling the weapon-round, be careful not to damage the launch motor igniter leads running lengthwise on the outside of the launch tube. Keep the front cover in place until you make the weaponround ready for use. Always place the weapon-round on its side if you lay it down, never stand it on its end. NOTE Remove the styrofoam cube behind the retaining clip of the bone vibrator prior to shouldering the weapon. Replace if weapon is not fired.

Figure 2-2 Weapon operating instructions (sheet 1 of 9)

Figure 2-2 Weapon operating instructions (sheet 2 of 9)

Figure 2-2 Weapon operating instructions (sheet 3 of 9)

Figure 2-2 Weapon operating instructions (sheet 4 of 9)

Figure 2-2 Weapon operating instructions (sheet 5 of 9)

Figure 2-2 Weapon operating instructions (sheet 6 of 9)

Figure 2-2 Weapon operating instructions (sheet 7 of 9)

Figure 2-2 Weapon operating instructions (sheet 8 of 9)

Figure 2-2 Weapon operating instructions (sheet 9 of 9)

2-5. Hangfires, Misfires and Duds ---------------WARNING ---------------For a hangfire, misfire, or dud missile, personnel should evacuate the area around the missile for a distance of 1200 feet. The missile must not be approached for 3 hours. Death or injury may result. a. Hangfires and Misfires. A hangfire is a delay in functioning of the explosive components caused by electronic malfunction, loose electrical connections, faulty explosive devices, etc. The delay may be from a split second to several minutes. A misfire is a complete failure to fire, but if the missile fails to fire, always assume it is a hangfire and perform the following steps: (1) Continue to track the target for 3 more seconds, keeping both the firing trigger and uncaging switch pressed. ---------------WARNING ---------------BCU gets extremely hot when activated. Grasp it only by heat-insulated cap when removing it. Do not point top of BCU toward skin because high pressure gas may still be escaping. Do not handle BCU for 30 minutes after removal. (2) If the missile has not ejected after 5 seconds. release the firing trigger and gyro uncaging switch; then immediately remove IFF cable and BCU. Carefully place the weapen-round on a stand or on the ground, keeping both ends of the launcher pointed away from personnel with the forward end slightly elevated (approximately 20 degrees). Leave the area immediately, do not cross in front of or behind the weapon. Hazardous conditon exists for 3

hours after trigger pull. (3) Mark the location of the defective weapon-round. All personnel seek shelter and immediately notify the supporting Explosive Ordnance Disposal (EOD) unit. Weapon should not be approached for at least 3 hours. Move to a safe position and keep the weapon round under surveillance. Since the weapon-round is classified, it must not be left unattended. b. Duds. A dud missile situation occurs when the flight motor does not fire after the missile has ejected from the launch tube. Mark the location of the dud and immediately notify the supporting Explosive Ordnance Disposal (EOD) unit. Move to a safe position and keep the dud under surveillance. Since the missile is classified, it must not be left unattended. c. The above dud procedure, and any exception to the hangfire/ misfire procedures, require personnel with specialized training and equipment to handle those rounds.lf tactical situations do not allow the 3-hour waiting period or specially trained personnel are not available, the round should be destroyed in accordance with the procedures in Chapter 6. TM 9-1425-429-12 Section III. PREPARATION FOR MOVEMENT 2-6. Transport Harness Preparation NOTE Two people are required to carry out the following procedure. Army trailer M416 normally carries six shipping and storage containers stacked two high; four metal containers along the sides, and two wooden containers in the center, figure 2-3. Prior to transport, tie down the six shipping and storage containers to the trailer as follows:

Figure 2-3 M416 Trailer loaded and secured with transport harness

NOTE In the steps below, spray buckles with dry lubricant if they are hard to operate. a. After loading the six closed containers on the trailer, spread harness assembly as shown in figure 24, with center buckle (1) (green buckle)

directly in front of you. b. Place harness on trailer with center buckle at rearcenter as shown in figure 2-3. Make sure straps are not twisted. c. Loosen center strap at buckle so that the two strap fasteners (4) can be hooked to the brackets (Figure 2-3) at the front and rear of trailer. Then tighten strap by pulling strap ends tight at buckle.

Figure 2-4 Transport harness d. Lengthen the wraparound strap at its adjusting fastener (2) and place the strap midway around the side of container as shown in figure 2-3. e. Loosen the four crossing straps at the four buckles (3). f. Hook the crossing straps to the brackets (4) on each side of the trailer. g. Tighten the wraparound strap at the adjusting buckle (2). h. Retighten the center strap by pulling on the crossing strap ends simultaneously. i. Tighten the crossing straps by pulling on the four strap-ends at the same time. 2-7. Weapon Round Ready Rack Preparation The top two weapon-round containers stacked in Army trailer M416 are converted to ready racks by referring to figure 2-3 and by following this procedure: a. Release the four crossing straps at the buckles (3). b. Press the pressure relief valve to relieve any pressure in each of the top two metal shipping and storage containers. c. Perform the inspection procedure described in the Preventive Maintenance Checks and Services (PMCS) described in Chapter 3 (Table 3-2). d. After completing the PMCS, remove one BCU from each container. e. Remove BCU receptace cap and insert a BCU into each weapon-round. Return the weapon-rounds (with BCU installed) to the containers. Place BCU receptacle cap in the shipping containers. f. Close the covers on the metal containers, but do not latch the covers. Insure that latches lie flat. g. Secure the containers in the closed position using the transport harness. Be sure that the straps are not twisted and that they lie flat on top of the containers before rebuckling and tightening the cross over straps. 2-8 Conversion of Missile-Round to Weapon-Round. a. Unpacking Missile-Round (refer to Fig. 2-5.) (1) Check humidity indicator. If the 50 percent indicator on the missile-round container is not blue, return the container and missile-round to the ASP.

(2) Using the screwdriver blade of the T1-29 knife, lift the wire wraps to open the cover on the wooden container. (3) Raise cover on the wooden container. (4) Remove the barrier bag, containing the round from the fiberboard liner in the wooden container. (5) Cut the barrier bag at a corner using the TL-29 knife. (6) Open the barrier bag by tearing from the cut corner down one long side and across both ends. (7) Open the cardboard box and remove upper dunnage. (8) Using both hands, remove the missile-round from the cardboard box. (9) Remove the three BCU's and earplugs. (10) Return the dunnage into the cardboard box. Close the box. (11) Place the cardboard box, with dunnage,in the wooden container. Be sure that the fiberboard 1iner and two end bumpers are in place. (12) Lay the barrier bag on top of the cardboard box. (13) Close the cover of the wooden container and secure with at least three wire tabs. (14) Return missile round container to M416

Figure 2-5 Unpacking missile round b. Attaching Gripstock to Missile Round (1) Remove the gripstock connector protective cover from the weapon round partial and retain with metal weapon round container. Tilt the gripstock and engage its pin with the missile round hinge as shown in figure 2-6. (2) Lower the gripstock assembly toward the missile round. Be sure the gas port aligns with the hole in the BCU receptacle. Slip the missile round hinge onto the forward missile round pin. CAUTION Failure to maintain downward pressure may cause damage to connector pins. (3)Carefully push down on the gripstock assembly. While maintaining pressure on the forward portion of the gripstock, secure and lock the gripstock to the missile round. (4)Install BCU or protective dust cover. c.Installing a Battery Coolant Unit (BCU) in the Gripstock. NOTE If BCU is installed, reverse installation procedures to remove BCU. (1) Hold the gripstock as shown in figure 2-7.

(2) Insert the BCU into the gripstock battery well and turn to secure the BCU in place.

Figure 2-6 Ataching gripstock to missile round

Figure 2-7 Installing BCU into gripstock 2-9. Conversion of M60 Field Handling Trainer for Use with SVML a. Unpacking Instructions FHT M6O (1) Open the shipping and storage container. (2) Remove the FHT. (3) Save dunnage in the shipping and storage container. (4) Remove the gripstock from the FHT and store in the shipping container. b. Conversion Instructions CAUTION ---------------* Removal of the gas insert assembly from a tactical round will cause equipment failure. The gas insert assembly on tactical rounds is painted with zinc chromate (yellowish color) primer. The gas insert assembly may only be removed from the FHT. * The gas insert assembly must be removed from the FHT launch tube. Failure to remove this assembly will result in damage to the ATAS or SVML. * Do not remove the gas insert assembly from the expended launch tube version which has been converted to an XM 148. The gas insert assembly prevents dust or contaminants from entering the gas needle. (1) Verify paint and marking color per table 3-1 before removing the gas insert assembly. (2) Remove the four crosstip screws holding the gas insert assembly to the launch tube. (3) Remove the insert assembly (see figure 2-8). (4) When training has been completed, reassemble the FHT and return it to the shipping and storage container.

Figure 2-8 Location of the Gas Inert Assembly TM 9-1425-429-12 Section I. General Maintenance Instructions

3-1. Repair Parts, Special Tools, TMDE, and Support Equipment Repair parts and special tools are listed in TM 91425A29- 24P. There is no TMDE or support equipment required for the Stinger Systems. 3-2.Service Upon Receipt Upon receipt, inspect the weapon-round, IFF interrogator, field handling trainer shipping and storage containers. On the weapon-round and missile-round shipping and storage containers, check the humidity indicator and external condition of the containers. If the 50 percent indicator on the weapon-round container is not blue. inspect the items in the container U following appropriate instructions contained in the Preventive Maintenance Checks and Service Tables. Upon completion of the checks and services, replace the desiccant in the container and close the container. If the 50 percent indicator is not blue on the missile-round container, return the container and the missile- round to the ASP. TM 9-1425-429-12 Section. II. PREVENTIVE MAINTENANCE CHECKS AND SERVICES 3-3 Specific Preventative Maintenance Checks and Services (PMCS) a. At the speceified intervals the applicable PMCS listed in Tables 3-2 through 3-5 will he performed. The specifled checks represent the minimum numher of essential checks. Before you hegin the PMCS, keep in mind the following general information whicn is as important as the specific checks. (1) Before you operate, always keep in mind the CAUTIONS AND WARNINGS. Perform your before (B) operation PMCS. (2) After you operate, be sure to perform your after (A) PMCS. (3) Other services and checks that must he provided during power on are listed in operational procedures as required. (4) If any Item of equipment is defective due to non-conformance with PMCS criteria or is inoperable for any reason, it should he returned through normal supply channels b. Inspection Is necessary to see if items are in good condition, correctly assembled or stored, secured, not excessively worn or corroded.

Any or all of these checks that are pertinent to any item (including supporting, attaching, or connecting members) will be performed automatically as a general procedure in addition to any specific procedure given. (1) Inspection for good conditions Visual Inspection for damage heyond safe or serviceable limits. Includes check of flexible materials for hardness, cracks, or breaks. (2) Inspection for correct assembly and storage. Visual Inspection for Improperly assembled or stowed Items. (3) Inspection for security Visual inspection or check by hand, for looseness. (4) Inspection for wear or corrosion. * Visual inspection or check by hand for item worn or corroded beyond serviceable limits. Also applicable to markings,data,caution plates and printed matter that is legible. c. Column Entries Used in PMCS. (1) Column 1, Item No. Column 1 numbers the checks and services to be performed in chronological order. This column will also be used as a source of item numbers for the "TM Number" column on DA Form 2404. Equipment Inspection and Maintenance worksheet, in recording results of PMCS. (2) Column 2, Interval. Column 2 specifies the intervals at which the PMCS will be performed. The "B" interval requires the checks to be performed Before Operation". The "D" interval requires the check to be performed during power on preventive maintenance checks and services. The "A interval requires the check to be performed "After Operation. (3) Column 3, Item to be Inspected. Column 3 provides the procedures for performing the check. (4) Column 4, Equipment is not ready/available if Column 4 describes the conditions that determine the not ready/available status 3-4. General Cleaning Instructions Clean the exterior of the weapon round, IFF interrogator with interconnecting cable, and trainer as necessary. If you cannot remove the dirt with a dry, clean cloth (Item No. 3, App. E) or brush (Item No. 2, App. E), wipe with a cloth moistened with a little soapy water using general detergent (Item No. 6, App. E), 1 packet per 3 ga11ons of water. Remember to wipe the

cleaned area thoroughly dry. Do not use soapy water to clean connectors; use a dry brush (Item No. 2, App. E). Do not use soapy water on the IR window surface. 3-5. Special Cleaning of IR or IR/UV Window (Front Window) Use lens cleaning tissue (Item No. 7, App. E) to clean the optical surface of the front window. To remove oil or grease, apply the optical cleaning compound (Item No. 17, App. E) sparingly with lens cleaning tissue (Item No. 7, App. E). Wipe the cleaned area thoroughly dry. 3-6.General Painting Instructions a. Equipment paint and markings will be touched up if damaged. The paint colors and markings shall be in accordance with table 3-1. CAUTION ---------------Enamel paint and wash primer (Item No. 10, App. E) will damage plastic material such as the sight and gripstock, and therefore should not come in contact with them. Touch up only metal surfaces and the fiberglass launch tube. b. DO NOT paint the front window of the launch tube, front cover, safety and actuator device, BCU receptacle, IFF interrogator connector, identification plates, IFF antenna or any of the rubber boots.

Table 3-1. Painting and Marking Color Indentification Identification Table 3-1. Painting and Marking Color Indentification Identification Continued

Table 3-2. Preventive Maintenance Checks and Service Weapon Items Table 3-2. Preventive Maintenance Checks and Service Weapon Items- Continued Table 3-2. Preventive Maintenance Checks and Service Weapon Items- Continued Table 3-2. Preventive Maintenance Checks and Service Weapon Items- Continued

Table 3-2. Preventive Maintenance Checks and Service Weapon Items- Continued Table 3-2. Preventive Maintenance Checks and Service Weapon Items- Continued Table 3-2. Preventive Maintenance Checks and Service Weapon Items- Continued Table 3-2. Preventive Maintenance Checks and Service Weapon Items- Continued Table 3-2. Preventive Maintenance Checks and Service Weapon Items- Continued Table 3-2. Preventive Maintenance Checks and Service Weapon Items- Continued Table 3-2. Preventive Maintenance Checks and Service Weapon Items- Continued Table 3-3. Preventive Maintenance Checks and Services Battery Coolant Unit Table 3-3. Preventive Maintenance Checks and Services Battery Coolant Unit (Continued) Table 3-4. Preventive Maintenance Checks and Services IFF - Interrogator Table 3-4. Preventive Maintenance Checks and Services IFF Interrogator Table 3-5. Preventive Maintenance Checks and Service Field Handling Trainer M60 Table 3-5. Preventive Maintenance Checks and Service Field Handling Trainer M60 Continued Table 3-5. Preventive Maintenance Checks and Service Field Handling Trainer Continued Table 3-5. Preventive Maintenance Checks and Service Field Handling Trainer Continued Table 3-5. Preventive Maintenance Checks and Service Field Handling Trainer Continued CLICK THE "NEXT-->" BUTTON ON THE TOOLBELT TO GO TO THE NEXT PAGE

Table 3-5. Preventive Maintenance Checks and Services--Field Handling Trainer (Continued)

Item Interval Item to be Inspected Equipment is no B D A ProcedureNot Ready/Avl if 7Gripstock Detach gripstock (8) from dummy round (9) by raising locking lever and releasing safety latch

on latch mechanism (10) Perform the following procedure: a. Check latch mechanism (10) for springiness ofLatch mechanism inoperative locking lever and safety latch. Requisition new dummy grip stock. b. Insure that gripstock pin (11) is securelyPin missing mounted. Requisition new dummy gripstock c. Check electrical connector (12) for foreign matter and clean contacts. Clean (para 3-3) d. Attach gripstock(8) and dummy round(9) to return to trainer configuration e. Inspect Missile round launch tube(9.1) forLaunch tube cracked or dented dents or cracks

Table 3-5. Preventive Maintenance Checks and Service Field Handling Trainer Continued

Table 3-6. Preventive Maintenance Checks and Service Field Handling Trainer XM 148

Table 3-6. Preventive Maintenance Checks and Service Field Handling Trainer XM 148 (Continued) Section III. OPERATOR/ORGANIZATIONAL CORRECTIVE MAINTENANCE PROCEDURES 3-8. General The parts that you can replace on the weapon round and field handling trainers are shown in figures 3-1 and 3-2, and identified in the fo11owing paragraphs. 3-9. Sling Replacement Using TL-29 knife, remove sling pin clip and withdraw pin. Remove other pin by repeating procedure. Install replacement. 3-10. Eyeshield Replacement Remove defective eyeshield by gently peeling the rubber mounting piece off of eyeshield buttons. Install replacement by pressing eyeshield buttons into rubber mounting. 3-11. Desiccant Cartridge/Humidity Indicator Replacement (Weapon Round Only)

Using TL-29 knife, spread apart cartridge clip and remove. Withdraw desiccant cartridge/humidity indicator unit. Install replacement and clip. 3-12. Boot Replacement Using the screwdriver provided with the replacement boots, remove and replace defective boots. Tighten screws.

Figure 3-1 Weapon round and FHT M60 replacement parts.

Figure 3-2 Field Handling Trainer XM148 replacement parts PART TWO SECTION HEADQUARTERS PROCEDURES CHAPTER 4 OPERATING INSTRUCTIONS FOR IFF PROGRAMMER/BATTERY CHARGER Section I. GENERAL 4-1. Purpose and Scope This section contains operating and maintenance instructions for the Programmer, Interrogator Set AN/USX1 and AN/GS (IFF programmer/battery charger) and Computer KIR-IA/TSEC (power supply mode1 ZAC A/1) with Code Key KIK- 18/TSEC 4-2.Equipment Description. a. In this chapter the programmer/battery charger will be identified as either the programmer or battery charger- depending upon which function is being described. The programmer is used to program the IFF interrogator and the battery charger is used to charge up to six IFF interrogator batteries. After a charged battery is installed, the IFF interrogator can be programmed for 4 days of operation in either mode 4 only or mode 4 and mode 3 (automatic). b. With the exception of the interrogator cable assembly, all cables required for interconnection are stored in the upper compartment of the programmer/battery charger.

c. The computer supplies only mode 4 data, selected by the code key through the programmer to the interrogator. Mode 3 is built into the interrogator, but it can also be programselected by the function switch on the programmer. This switch selects the programming operation (M4 or M4/M3) made available to the interrogator. In the M4 position, the interrogator is programmed to operate in mode 4 only. In the M4/M3 position, the interrogator is programmed to operate in mode 4 and then switch automatically to mode 3 if there is no mode 4 reply or if mode reply is improper. For either program, a 4-day countdown period is started in the interrogator by the programmer. d. Another function of the programmer is to self-check the interrogator. This check makes sure that the interrogator is operational. e. The battery charger can charge up to six batteries at one time. During the charging operation, each battery being charged can be checked to be sure that the batteries are accepting the charge. It takes a minimum of 4 hours to fully charge the batteries. Additional charge time on the charger will not damage the batteries. Section II. PROGRAMMER/BATTERY CHARGER CONTROLS AND INDICATORS4-3. Functions The controls, indicators, and connectors for the programmer/battery charger are illustrated in figure 4-1. Their functions are listed in table 4-1.

Figure 4-1 IFF Programmer/battery charger controls and indicators (Sheet 1 of 3)

Table 4-1. IFF Programmer Battery Charger Controls and Indicators Figure 4-1Control/ KeyIndicatorFunction 1POWER DCLights when 115 volts ac is indicator(white) applied td programmer/ battery charger and dc power is functioning properly. 2POWER ON/OFFControls application of circuit breaker115 volts source power to programmer/battery charger and provides overload protection 3 J1 POWER 115VConnects programmer/ 1 PH 50-400battery charger to connector115 volts source power.

4KIR-1A/TSECConnects computer to J2 connector programmer. 5 INTERROGATORStarts IFF interrogator TEST switchself-test cycle. 6INTERROGATORConnects lFF interrogator PROGRAM J3J2 to programmer. connector 7INTERROGATORConnects IFF interrogator TEST J4 connector(JI) to programmer. 8 LoudspeakerProvides audio output of test signal when INTERROGATOR TEST switch is pressed.

Figure 4-1 IFF Programmer / battery charger controls and indicators (Sheet 2 of 3)

Table 4-1. IFF Programmer/Battery Charger Controls and Indicators (Continued)

Figure 4-1Control/ KeyIndicatorFunction 9BATTERYControls application of HEATHERpower to battery compart POWER circuit ment heater. Provides breakerheater overload protection. 10BATTERY TESTIndicates battery voltage indicator (green) is above a test level and battery is capable of being charged. NOTE The battery will not charge if the white charge indicator bulb is burned out.

11BATTERY 1-6Indicates associated charge indicatorsbattery being charged. (white)

12BATTERY TEST/Selects TEST/OFF/ OFF/CHARGECHARGE function. switches(6)

13TIME ENTRYSets ininute of tIsne to MINUTESwhich clock in IFF switches (2)interrogator is updated.

Figure 4-1 IFF Programmer/battery charger controls and indicators (Sheet 3 of 3)

Table 4-1. IFF Programmer/Battery Charger Control and Indicators (Continued)

Figure 4-1Control/ KeyIndicatorFunction 14TIME ENTRYSets hour of time to which HOURSclock in IFF interrogator is switches (2)updated. 15CODE/TIMELights after time codes have ACCEPTEDbeen accepted by the IFF indicator (green)interrogator. 16CODE ENTRYSelects modes of operation SELECT switchas follows: TIME M4/M3 Updates clock in IFF inter rogator. Also sets IFF interrogator to interrogate mode 4 then mode 3 if there is no reply, or if mode 4 reply is improper. TIME M4 Updates clock in IFF interrogator. Also sets IFF interrogator to interrogate in mode 4 only. DAY 1, 2, 3, or 4 Selects day for mode 4 code

to be inserted into IFF interrogator. 17ENTER CODE/Initiates program selected TIME switchby CODE ENTRY SELECT switch. 18MODE 4 ALARMIndicates fault or failure in indicator (red)coding of interrogator.

TM 9-1425-429-12 Section III. OPERATING 4-4. Programming IFF Interrogator NOTE The battery attached to the side of the IFF interrogator must be replaced with a charged battery prior to programming. If battery is removed during or after programming, the interrogator will lose the code and must be reprogrammed after a fully charged battery is installed. a. Preparation

Figure MI416937A

(1) Loosen the two captive screws (1) to the side of the IFF interrogator (3) and remove interrogator battery (2). (2) Install charged battery by tightening the captive screws. NOTE Before starting programming procedure. insure that KIR-1A/TSEC computer power supply model Z AC A/1 (4) as shown on rear identification plate (5) is being used. Model Z AC B/1 will not work. (3) Press the pressure equalizer valve in programmer cover and remove the cover. Be sure that the POWER switch (6) is set to OFF.

Figure M1163826B (4) Connect power cable W2 to the 115V, IPH. 50-400 Hz POWER connector J1 (7) on the programmer. Connect the cable to the power source. (5) Connect computer cable W3 to the KIR-1A/TSEC connector J2 (8) on the programmer. lf dust cover is installed on computer connector. remove it by loosening the two screws. Attach other end of cable W3 to rear of computer. NOTE To prevent improper programming and testing of interrogator, be sure that no kinks are present in any interconnecting cable (6) Connect program cable WI between connector J3 19) on programmer and connector J2 (10) on lFF interrogator. (7) Connect IFF interrogator cable to programmer connector J4. INTERROGATOR TEST (8) Set POWER switch (6)10 ON. (9) Press to test each lamp on programmer to check that lamps light. If any lamp does not light. refer to paragraph 5-5. b. Programming Procedure. (1) Set POWER switch (6) to ON. Observe the POWER DC lamp (13) and MODE 4 ALARM lamp (14) light. NOTE The brightness of each indicator lamp on the programmer may be adjusted by turning the lens assembly. MODE 4 ALARM lamp remains on until code is entered into computer and door is shut. Set each pin in the code changer key in accordance with code book. Insure that locking mechanism functions after resetting each pin.

For further information on setting and locking the code changer key and loading the computer (steps (2) and (3) below). refer to Limited Maintenance Manual KIR-lA/ TSEC and K11-1A/TSEC: KAM 225C/TSEC. (2) Push forward and hold INTERROGATOR TEST switch (20) until a test tone is heard from the speaker (21). The tone indicates that the IFF interrogator is operational. If tone is not heard replace battery and/or interrogator until tone is heard. NOTE Identify the proper code book tables for the day of encoding. This table will be Sheet 1. The codes for days 1 and 2 are on this sheet and shall be used in the first code changer key. The codes for days 3 and 4 are on the third sheet and shall be used in the second code for days 2 and 3 and must not be used to set the second code changer key. Identify code changer key for days 1 and 2 with masking tape, and also identify code changer key for days 3 and 4 in the same manner to avoid confusing them.

Figure M1163823A (3) Refer to the current code sheet and set one code changer key with the code for days 1 and 2. Set the second code changer key with the codes for the days 3 and 4. Refer to paragraph 4-4.1a (4) Insert code changer key for days 1 and 2 into computer. Refer to paragraph 4-41b. (5) Set the CODE ENTRY SELECT switch (15) to the desired M4/M3 or M4 position. NOTE Use most accurate available time standard to set programmer to ZULU time. (6) set the TIME ENTRY HOURS (16) and MINUTES (17) pushbutton switches to the upcoming minute of ZULU time. (7) At ZULU time set into TIME ENTRY switches, push forward and hold the ENTER CODE TIME swttch (18) until the CODE/TIME

ACCEPTED lamp (19) lights. This updates the automatic 4-day clock in the IFF interrogator. (8) Set the CODE ENTRY SELECT switch (15) to DAY 1.

Figure M1163824A (9) Push forward arid hold the ENTER CODE/TIME switch (18) the CODETIME ACCEPTED lamp lights. (10) Set the CODE ENTRY SELECT switch (15) to DAY 2. (11)Push forward and hold the ENTER CODE/TIME switch (18) until CODE/TIME ACCEPTED lamp lights. (12) If additional IFF programmers are to be programmed for days 1 and 2, perform steps 4-4b. (12) (a) through (f) below; otherwise, proceed to step 4-4b. (13). (a) Disconnect previously programmed IFF interrogator by disconnecting program cable W1 from J2 connector on the interrogator Disconnect the cable at the INTERROGATOR TEST connector J4 (11) on the programmer. (b) Connect the program cable W 1 to the J2 connector on the next IFF interrogator to be programmed. (c) Connect the IFF interrogator interconnecting cable to the J4 connector on the programmer (d)Perform interrogator self-test, paragraph 4-4b. (2). (e)Insert codes for days l and2byperformingsteps4Ab. (5) through (12) above. (f)Repeat steps 4-4b. (12) (a) through (f) above for each additional IFF interrogator; then, proceed to step 4-4b. (13). (13) Insert the code changer key set for days 3 and 4 and load computer. MODE 4 ALARM lamp (14) will go out, indicating that computer is keyed. (14) Set CODE ENTRY SELECT switch (15) to DAY 3.

(15) Push forward and hold ENTER TIME/CODE switch (18) until CODE/TIME ACCEPTED lamp (19) lights. (16) Set the CODE ENTRY SELECT switch (15) to DAY 4. (17) Push forward and hold the ENTER TIME/CODE switch (18) until the CODE/TIME ACCEPTED lamp (I9) lights. (18) Push forward and hold lNTERROGATOR TEST switch (20) until a test tone is heard from the speaker (21). This tone indicates that the IFF interrogator is operational. If tone is not heard. replace battery and/or interrogator until tone is heard and repeat prograrnming procedure in paragraph 4-4b. (1) through (18) above. (19) If additional IFF interrogators are to be programmed for days 3 and 4. perform steps 4-4b. (19) (a) through (e) below: otherwise, proceed to step 4-4b. (20). (a) Disconnect the previous IFF interrogator by disconnecting program cable WI from the J2 connector (10) on the interrogator. Disconnect the cable at the INTERROGATOR TEST connector J4 (11) on the programmer. (b) Connect the program cable WI to the J2 connector on the next IFF interrogator to be programmed.

Figure M1419039A (c) Connect the IFF interrogator interconnecting cable to INTERROGATOR TEST connector i4 on the programmer. (d) Insert codes for days 3 and 4 by performing steps 4-4b. (14) through (19) above. (e) Repeat the above steps 4-4b. (19) (a) through tel for each additional IFF interrogator; then, continue with step 4-4b. (20). NOTE POWER switch must remain ON while program cable is disconnected. (20) Disconnect program cable WI from the J2 connector (10) on the IFF interrogator. Disconnect the cable at the

INTERROGATOR TEST connector J4 (11) on the programmer. (21) Set the POWER switch (6) to OFF. (22) Disconnect power cable W2 from power source. and disconnect cables W1 and W3 from programmer. (23) Install all dust caps on cables. Return cables to compartment in prngrammer lid and secure lid. d.IFF Interrogator Date Coding Requirement. On all interrogators, use a china-marking pencil to write the time expiration date (hours, day, month) in the area (23) shown. Place a strip of transparent tape over the expiration date. For interrogators with CODE DAY EXPIRES indicator, (22) press READ switch (24) and verify that indicator (22) shows correct day of code.

Figure M1421682

Figure 4-2 Code Changer Key *4-4.1 Programming IFF Interrogator - Continued a. Setting Code Changer. key ( Figure 4-2) (1) Press latch (9) and open code changer kev (key gun) (2) Set down kev gun with the fingers (2) pointed away from you. NOTE Verify that finger setting pins (1) numbered 1 through 64 are present. CAUTION Use plastic tool NSN5120-00-293-2081 or equilavent to position finger setting pins. Do not use a pencil. (3) Unlock the fingers by placing both cam levers (3) in the forward position. Set the selected finger setting pin (1) to the position indicated on the code sheet. CAUTION

DO NOT FORCE THE CAM LEVERS The cam levers will not lock if any finger setting pin is placed between two positions. (4) Lock the fingers to verify each row of pins by placing cam levers in the rear position. When all fingers have been set, proceed to step (6) below. (5) Repeat steps (3) and (4) above until all fingers are set (6) Have a second person verify the settings against the code sheet. If any are in error, reset by steps (3) and (4) (7) After all pins have been verified, lock both cam levers by placing them in rear position. If lever won't lock, check the pin settings. NOTE Close the key gun after setting the code to prevent unauthorized viewing. CAUTION Do not slam the key gun closed. The latch may be damaged. (8) Close and latch the key gun. b. Loading Code into Computer NOTE (1) Press button (6) to unlatch computer access door. CAUTION Be sure to align key gun guide pins (7) with holes in key receptacle (5). (2) Holding key gun as shown (figure 4-3), align guide pins (7) and insert key gun fully into key receptacle (5) NOTE If key does not remain inserted when released, code is not properly loaded. Paragraph 4-4.1.b.(2) must be repeated until code is properly loaded.

(3) Remove key gun and close computer door with one firm, smooth motion or the computer may not retain the code. Door must be closed wIthin 30 seconds. NOTE MODE 4 ALARM lamp wIll be on for two to three seconds. If lamp does not go out, verily the settings on the code changer key against the code sheet. Correct any errors by performing paragraphs 4-4.1a. (3) and (4) and repeat paragraphs 4-4.1b. (1) through (4). If lamp remains on, trade out KIK, KIR, GSX, and cables to isolate faulty item(s).

Figure 4-3 Loading Code into Computer (4) Be sure that the MODE 4 ALARM lamp on the programmer goes out, indicating that the computer is keyed (5) If there are no other keying requirements, zeroize . the key gun by paragraph 4-4.1c NOTE TB 380-41 states that the KIK-18A or 18/TSEC is classified CONFIDENTIAL only when keyed. When unkeyed or zeroized,it should be protected as a COMSEC item of equipment. It must be handled as a conidential item only when keyed c. Zeroizing the Key Case (1)Press latch and open key gun. (2) Unlock the fingers by placing the cam levers in the foreward position (3) Press and hold shutter pushbuttons (4) (4) Move covers (8) to rear. Key gun is zeroized when all sixty four fingers indicate the U position (5) Lock the fingers by placing the cam levers in the rear position CAUTION

Do not slam the key gun closed. The latch may be damaged. (6) Close and latch the key gun. 4-5. Charging IFF Interrogator Batteries a. Preparation. NOTE Up to six batteries can be charged at the same time. Figure M1419040A (1) Open the battery compartment lid and insert the batteries to be charged into the battery receptacles (1). NOTE Six cable connectors (2) are routed through the inside center bracket of the battery compartment. Each cable connector has an identification number which corresponds to the number alongside each of the six TEST/OFF/CHARGE switches (3) as shown. (2) Insert cable connectorin battery charging receptacle as shown Figure MS430482A 891 (3) Be sure that the POWER ON/OFF switch (4) is set to OFF; connect power cable (W2) to the 115V 1 PH 50-400 Hz POWER CONNECTOR J1 (5). Connect power cable to the power source. Figure MS430483A (4) Be sure that the six TEST/OFF/CHARGE switches (3) are in the OFF (center) position. (5) Set the POWER switch (4) to ON. The POWER DC lamp (6) illuminates. (6) If POWER DC lamp does not illuminate, press and hold lens assembly to check if indicator is operating. NOTE

The brightness of each indicator lamp on the programmer may be adjusted by turning the lens assembly. b. Battery Charging Procedure CAUTION Figure M1419043B If ambient temperature of any battery being charged is below freezing, close battery compartment cover and switch BATTERY HEATER POWER ON / OFF switch (8) to ON. Heat batteries for 45 minutes, open battery compartment cover, and continue with the next step. Do not push more than one TEST/OFF/CHARGE switch (3) to TEST position at one time. (1) Set the appropriate TEST/OFF/CHARGE switches correspending to the batteries to CHARGE. Observe that the appropriate lamp (7) lights. If a lamp does not light be sure that the associated battery is properly connected. (2) Allow the batteries to charge for approximately ten minutes. Then one at a time. hold appropriate TEST/OFF/CHARGE switches) to TEST. For each switch TEST position, the BATTERY TEST lamp (9) will light. (3) If the BATTERY TEST lamp (9) does not light when the switch is set to TEST position. the associated battery is defective. Remove battery and turn in through normal supply channel. (4) Reset the appropriate TEST/OFF/CHARGE switches to CHARGE. Allow a minimum of 4 hours for the batteries to charge. NOTE Be sure to leave the battery compartment door open during the entire charging period unless ambient temperature or battery temperature is below freezing (32 F). If all BATTERY charging indicators go out at the same time, the battery compartment maximum temperature has been exceeded and compartment will have to cool before charging will resume.</subpara2. (5) At the end of 4 hours, set the appropriate

TEST/OFF/ CHARGE switches to OFF. Disconnect the charging cable from the battery. Remove the charged batteries from their receptacles. NOTE No damage to the battery or charger circuit will occur if the charging time exceeds 4 hours. (6)Set the POWER ON/OFF switch to OFF. Disconnect the power cable from the power source. Remove the power cable and return it to the lid and replace dust cover. Secure lid to programmer. 4-6. Operation Under Unusual Conditions The test function is designed for one battery at a time. Testing or cold weather conditioning more than one battery at a time can damage the test-discharge load resistor. Battery cold weather conditioning is required when the IFF Interrogator is used in temperatures below 0 degrees Fahrenheit (-25 degrees Celsius). To condition each battery for temperatures below minus 25 degrees and above minus 40 degrees, it must be discharged approximately 10 percent after being fully charged in accordance with section 4-5. The discharge is accomplished by holding the battery test switch in the "test" position for approximately 60 seconds. If the operating temperature is expected to be below -40 degrees F (-40 degreees C) the discharge time should be doubled to approximately 2 minutes. Dual control and indicator circuitry permit charging of the IFF batteries while programming the lFF interrogator. TM 9-1425-429-12 CHAPTER 5 PROGRAMMER/BATTERY CHARGER MAINTENANCE INSTRUCTIONS Section I. GENERAL MAINTENANCE INSTRUCTIONS 5-1. General Cleaning Instructions ----------------

WARNING ---------------Ensure ac power is removed from the programmer / battery charger to prevent shock. Clean the exterior of the programmer/battery charger as necessary. Check all cables and connectors for dirt or foreign matter. If you cannot remove the dirt with a dry, clean cloth, (Item No.3, App.E), or brush, (Item No.2, App. E), wipe with a cloth moistened with a little soapy water using a general detergent (Item No.6,App.E),l packet per 3 gallons of water. Remember to wipe the cleaned area thoroughly dry. Do not use soapy water to clean connectors; use a dry brush (Item No.2,App.E) 5-2. General Painting Instructions Touch up the Programmer/Battery Charger per the painting instructions contained in paragraph 3-6. The paint colors shall be in accordance with Table 3-1. 5-3. Service Upon Receipt Service upon receipt consists of performing the before (B) PMCS as specified in Table 5-1. 5.3.1 Transportation CAUTION Do not transport programmer with batteries installed. All latches must be latched before transporting. Be sure batteries are not in the programmer. Transporting the programmer with batteries installed may result in the lower battery screw becoming lodged in the charging well. Section II. PREVENTIVE MAINTENANCE CHECKS AND SERVICES 5-4. Specific Preventive Maintenance Checks and Services a. At the specified intervals the applicable PMCS listed in Table 5-1 will be performed. The specified checks represent the minimum number of essential checks. Before you begin the PMCS, keep in mind the following general information which is as important as the specific checks.

(1) Before you operate, always keep in mind the CAUTIONS and WARNINGS. Perform your before (B) operation PMCS. (2) After you operate, be sure to perform your after (A) PMCS. (3) Other services and checks that must be provided during power on are listed in operational procedures as required. b.Inspection is necessary to see if items are in good condition, correctly assembled or stored, secured, not excessively worn or corroded. Any or all of these checks that are pertinent to any item (including supporting, attaching, or connecting members) will be performed automatically as a general procedure in addition to any specific procedure given. (1) Inspection for good conditions Visual inspection for damage beyond safe or serviceable limits. Includes check of flexible materials for hardness. cracks. or breaks. (2) Inspection for correct assembly and storage. Visual inspection for improperly assembled or stowed items. (3) Inspection for security Visual inspection or check by hand for looseness. (4) Inspection for wear or corrosion Visual inspection or check by hand for item worn or corroded beyond serviceable limits. Also applicable to markings, data, caution plates and printed matter that is legible. c. Column Entries Used in PMCS (1) Column 1, Item No. Column 1 numbers the checks and services to be performed in chronological order. This column will also be used as a source of item numbers for the "TM Number" column on DA Form 2404, Equipment Inspection and Maintenance worksheet, in recording results of PMCS. (2) Column 2, interval. Column 2 specifies the intervals at which the PMCS will be performed. The "B" interval requires the check to be performed "Before Operation". The "D" interval requires the check to be

performed during power on preventive maintenance checks and services. The "A" interval requires the check to be performed "After Operation." (3) Column 3, Item to be Inspected. Column 3 provides the procedures for performing the check. (4) Column 4, Equipment is not ready/available if. Column 4 describes the conditions that determine the not ready/available status. Table 5-1. Preventive Maintenance Checks and Services--Programmer/Battery Charger Figure MI310870

Figure MI310871B TM 9-1425-429-12 Section III. MAINTENANCE PROCEDURES 5-5. IFF Programmer/Battery Charger Parts Replacement Figure MI421683 The parts that you can replace on the programmer/battery charger are the indicator lamp and lens assemblies (6). To replace lamp unscrew lens assembly and remove and replace defective lamp. When replacing the lens assembly make sure to replace with same color lens. TM 9-1425-429-12 6-1. Shipment and Storage a. General. Use the appropriate shipping and storage container for extended storage or shipping of the weapon-round, field handling trainer, missile-round,or IFF interrogator. The IFF programmer/battery charger is housed in its own shipping and storage container. For the weapon-round and trainer, make sure the sight is lowered and the antenna is folded. For the weaponround, make sure that the BCU receptacle cap and the lFF connector cap are properly installed and that the Iaunch tube cover is in place. The interconnecting cable must be disconnected and the battery must be

removed from the interrogator and rotated 180 for storage. For the IFF programmer/battery charger make sure that the power cable W-2, programmer cable W-1. and computer cable W-3 with the dust cover in place are located in its cover compartment. All these items must be secured in place so that no damage will occur in transit. b. Shipping Name and Classification. The DOT shipping name for the weapon-round and missile-round is "Rocket Ammunition with Explosive Projectile". Shipping hazard classification (DOT) is Class A. Motor vehicles transporting weapons over public highways must have "EXPLOSIVE A" placards with letters at least 8 inches high, one each on the front, rear and sides. c. Quantity-Distance and Limited Storage. (1) See TM 9-1300-206 for quantity-distance regulations. Storage of weapon rounds/missile rounds by the using organization is normally limited to the basic Ioad issued to the unit. Storage separation distances are the same whether the weapon rounds/missile-rounds are in unbarricaded areas or being stored on vehicles. The quantity listance class for the tactical weapon is class 1.1, based upon the 0.87 total weight of high explosives in the warhead. The storage compatibility group is E. In no case will the separation distances be less than that required by TM 9-1300-206 for Class 1.1 ammunition. (2) Stored weapon-rounds/missile rounds whether on vehicles (except the 1/4 ton trailer), in magazines, or in open storage, should be positioned with the nose ends of the missiles all facing in the same direction and in a direction that would cause the least damage in case of accidental ignition. Since the weapon-round, missile-round, and IFF interrogator are classified CONFIDENTlAL, they must be located in an area that can be protected at all times. (3) When stored in the open, place the shipping and storage containers on heavy dunnage and protect them with a canvas cover. The cover should not rest on the containers, but must be raised enough to allow at least 12 inches of air space around the stacks. Protect them from the weather as much as possible. Refer to TM 9-1300-206.

d. Storage Temperature Limit. The storage temperature limit for each end item as marked on its shipping and storage containers is 50 degrees F to + 160 degrees F. Weapon-rounds and missile-rounds exposed to temperatures outside this range must not be fired. Use DAForm 2415, as required by DA PAM 738-750, to report weapon - round and missile-round to the ASP for disposition, and provide full details for the reason for turn-in. 6-2. Demolition to Prevent Enemy Use a. General. (1) Destruction of the STINGER items, when subject to capture or abandonment in the combat zone, will be undertaken by the user when in the judgement of the unit commander, such action is necessary in accordance with orders of, or policy established by, the Army commander. (2) The guided missile can best be destroyed by firing the weapon-round. When the weapon-round cannot be fired, destruction by other means is required. The information that follows is for guidance only. Certain procedures outlined require the use of explosives and incendiary grenades which may not be qauthorized items for the STINGER system. The issue of these and related materials, and the conditions under which destruction will be effected, are command decisions in each case. The final decision is based on the tactical situation. The most applicable means of destruction are: (a) Burning. Destruction by burning requires gasoline, oil, incendiary grenades, or other flammables. (b) Demolition.Destruction by demolition requires suitable explosives or ammunition. Under some circumstances hand grenades may be used. (c) Gunfire. Destruction by gunfire includes artillery, rifles using grenades, or launchers using antitank rockets. (3) In general,destruction of essential parts, followed by burning, will usually be sufficient to render the item useless. However, selection of the particular method of destruction requires imagination and resourcefulness in the use of facilities at hand under the existing conditions. Time is usually critical.

(4) Adequate destruction requires that all parts essential to the weapon-round operation be destroyed or damaged beyond repair. However, when lack of time and personnel prevents destuction of all essential parts, priority is given to those parts most difficult to replace. The guided missile IFF interrogator and grindstock with RMP module installed must receive top priority in destruction. Equally important, the same parts must be destroyed on all Iike materiel so that the enemy cannot construct one complete unit from several damaged ones. (5) If destruction is directed, due consideration should be given to: (a) Selecting a point of destruction that will cause the greatest obstruction to enemy movement and not create a hazard to friendly troops. (b) Observing appropriate safety precautions. (6) The trainer may also be destroyed by mechanical means, such as an ax, pick, mallet, sledge, crowbar, or similar implement. b. Destruction by Burning. ---------------WARNING ---------------The weapon-round or missile-round contains two rocket motors and a high explosive (HE) warhead. This creates an extreme hazard to personnel when a weapon is destroyed by burning. (1) Heap all material to be burned if time or conditions permit. (2) If available, place a sufficient nuniber of incendiary grenades about the items. ---------------WARNING ---------------To prevent serious injury or burns to personnel, care must

be taken in the handling of highly volatile liquids. (3) Douse the items with gasoline, oil, or other flammable liquids. (4) Using incendiary grenades fired from a safe distance,bursts from a flame thrower, combustible train, or other appropriate means, ignite the equipment and immediately take cover. Elapsed time: about 7 minutes. c. Destruction by Demolition. NOTE For successful destruction of the items by explosives, all concerned personnel will be thoroughly familiar with the pertinent provisions of FM 5-25. Training and careful planning are essential. (1) If sufficient time permits, all guided missiles should be destroyed first by firing them in a manner that will cause the greatest obstruction to enemy movement, but will not inflict damage upon friendly troops. Otherwise, the guided missiles may be destroyed by explosives. (2) Using sufficient amount of TNT or equivalent, prepare and strategically place charges of explosives about the items. (3) Determine whether electrical blasting cap and wire, or nonelectric blasting caps and safety fuzes will be used for priming and detonating the explosive charges. If nonelectric caps are used,they must be crimped to at least 5 feet of safety fuze. ---------------WARNING ---------------Safety fuze burns at the rate of 1 foot in 30 to 40 seconds; cut off and test a portion of the fuze before using. NOTE Safety fuze, which contains black powder, and blasting caps must be protected from moisture at all times. (4) Connect the charges with detonating cord as required to

effect their simultaneous detonation. Dual-prime the charges to minimize the possibility of misfire. ---------------WARNING ---------------To prevent accidental detonation, the blasting caps, detonating cord, and safety fuzes must be kept separate from the charges until actually required for use. (5) If the charges are primed with nonelectric blasting caps, ignite the safety fuzes and take cover without delay. If the charges are primed with electric blasting caps, take cover before firing. Elapsed time: about 15 minutes. d. Destructibn by Gunfire. This method can not be relied upon to destroy the same parts on like equipment nor to produce the same degree of destruction. If conditions disallow destruction by burning and/or demolition, destroy the items by gunfire in acoordance with the following: ---------------WARNING ---------------The presence of live rocket motors and HE warheads presents an extreme hazard to personnel firing at the weapon-round and missile-round from a distance of less than 500 yards. If possible, the guided missile should be destroyed in acoordance with c (1) above. (1) If possible, stack or pile the items and related equipment. (2) Fire on the equipment from a safe distance with rifles using rifle grenades, with launchers using antitank rockets, or with artillery. Although one well-placed hit may render the equipment temporarily useless, several hits are usually required for its complete destruction unless an intense fire is started in which case the material may be considered destroyed. Elapsed time: about 5 minutes. TM 9-1425-429-12 APPENDIX A REFERENCES

1. Applicable Publications For a list of applicable publications for the STINGER system refer to TM9-1425429-L (LOAP). TM 9-1425-429-12 APPENDlX B MAINTENANCE ALLOCATION CHART Section I. INTRODUCTION B-1. General a. This section provides a general explanation of all maintenance and repair functions authorized at various maintenance categories. b. The Maintenance Allocation Chart(MAC) in section II designates overall responsibility for the performance of maintenance functions on the identified end item or component. The implementation of the maintenance functions upon the end item or component will be consistent with the assigned maintenance functions. c. Section III lists the special tools and test equipment required for each maintenance function as referenced from Section II. d. Section IV contains supplemental instructions and explanatory notes for a particular maintenance function. B-2. Maintenance Functions Maintenance functions will be limited to and defined as follows: a. Inspect. To determine the serviceability of an item by comparing its physical, mcehanical, and/or electrical characteristics with established standards through examination b. Test. To verify serviceability by measuring the mechanical or electrical characteristics of an item and comparing those characteristics with prescribed standards. c. Service. Operations required periodically to keep an

item in proper operating condition, i.e., to clean (includes deconlaminate, when required), to preserve, to drain, to paint, or to replenish fuel,lubricants, chemical fluids, or gases. d. Adjust. To maintain, within prescribed limits, by bringing into proper or exact position, Or by setting the operating characteristics to specified parameters. e.A line. To adjust specified variable elements of an item to bring about optimum or desired performance. f. Calibrate. To determine and cause corrections to be made or to be adjusted on instruments or test, measuring, and diagnostic equipments used in precision measutement. Consists of comparisons of two instruments, one of which is a certified standard of known accuracy, to detect and adjust any discrepancy in the accuracy of the instrument being compared. g. Install. The act of emplacing, seating, or fixing into position an item, part, or module (component or assembly) in a manner to allow the proper functioning of an equipment or system. h. Replace. The act of substituting a serviceable like type part, subassembly, or module (component or assembly) for an unserviceable counterpart. i. Repair. The application of maintenance services or other maintenance actions to restore serviceability to an item by correcting specific damage, fault, malfunction, or failure in a part, subassembly, module (component or assembly), end item, or system. j. Overhaul. That maintenance effort (service/action) necessary to restore an item to a completely serviceable/ operational condition as prescribed by maintenance standards in appropriate technical publications (i.e., DMWR). Overhaul is normally the highest degree of maintenance performed by the Army. Overhaul does not normally return an item to like new condition. k. Rebuild. Consists of those services/actions necessary for the restoration of unserviceable equipment to a like new condition in accordance with

original manufacturing standards. Rebuild is the highest degree of materiel maintenance applied to Army equipment. The rebuild operation includes the act of returning to zero those age measurements (hours/miles, etc.)considered in classifying Army equipments/components. B-3. Explanation of Columns in the MAC, Section II a. Column 1, Group Number. Column 1 lists functional group codes numbers,the purpose of which is to identify components, assemblies, subassemblies, and modules with the next higher assembly. b. Column 2, Component/Assembly. Column 2 contains the names of components, assemblies, subassemblies, and modules for which maintenance is authorized. c. Column 3, Maintenance Function. Column 3 lists the functions to be performed on the item listed in Column 2.(For detailed explanation of these functions, see paragraph B-2.) d. Column 4, Maintenance Category. Column 4 specifies, by the listing of a work time figure in the appropriate subcolumn(s), the category of maintenance authorized to perform the function listed in Column 3. This figure represents the active time required to perform that maintenance function at the indicated category of maintenance. If the number or complexity of the tasks within the listed maintenance function vary at different maintenance categories, appropriate work time figures will be shown for each category. The work time figure represents the average time required to restore an item (assembly,subassembly, component, module, end item, or system) to a serviceable condition under typical field operating conditions. This time includes preparation time, troubleshooting time, and quality assurance, quality control time in addition to the time required to perform the specific tasks identified for the maintenance Iunctions authorized in the maintenance allocation chart. The symbol designations for the various maintenance categories are as follows: C.........................Operator or crew. O.........................Organizational maintenance. F.........................Direct support maintenance.

H.........................General support maintenance. D.........................Depot maintenance. e. Column S, Tools and Equipment. Column 5 specifies, by code, those common tool sets (not individual tools) and special tools, TMDE, and support equipment required to perform the designated function. f. Column 6, Remarks. This column shall, when applicable, contain a letter code, in alphabetic order, which shall be keyed to the remarks contained in Section IV. B-4. Explanation of Columns in Tool and Test Equipment Requirements, Section III. a. Column 1, Reference Code. The tool and test equipment reference code correlates with a code used in the MAC, Section 11, Column 5. b. Column 2, Maintenance Category. The lowest category of maintenance authorized to use the tool or test equipment. c. Column 3, Nomenclature. Name or identification of the tool or test equipment. d. Column 4, National Stock Number. The National stock number of the tool or test equipment. e. Column 5, Tool Number. The manufacturer's part number. B-5. Explanation of Columns In Remarks, Section IV a. Column 1, Reference Code. The code recorded in column 5, Section II. b. Column 2, Remarks. This column lists information pertinent to the maintenance function being Performed as indicated in the MAC, Section II. Section II. MAINTENANCE ALLOCATION CHART FOR GUIDED MISSILE SYSTEM, INTERCEPT AERIAL STINGER

(1)(2)(3)(4)(5) GroupComponent/MaintenanceMaintenanceTools NumberAssemblyFunctionCategoryand

C O F H DEqpt. 0200Missile RoundInspect0.2 A Service0.7 1 Repair0.2

0400SeparableInspect0.1A GripstockService0.5 Replace0.1 Repair0.21 IFF IntenrogatorInspect0.2A Service0.31B IFF InterrogatorInspect0.2 A Programmer/Service0.5 Battery ChargerRepair0.2 0600 Field HandlingInspect0.2A Trainer M60Service0.5 Repair0.21 0650Field HandlingInspect0.2A Trainer XMI48Service0.3 Repair0.21

Section III. TOOLS AND TEST EQUIPMENT REQUIREMENTS FOR GUIDED MISSILE SYSTEM, INTERCEPT-AERIAL SYSTEM

Tool or MaintenanceNomenclatureNational StockTool Test EqpCategoryNumberNumber Ref Code 10Tool Kit5180-00Signal TE33408-1859

CLICK THE "NEXT-->" BUTTON ON THE TOOLBELT TO GO TO THE NEXT PAGE

Section IV. REMARKS

Reference CodeRemark AInspection consists of visual inspection only BService of IFF Interrogator includes replacement of battery with a fully charged battery. TM 9-1425-429-12 APPENDIX C COMPONENTS OF END ITEM AND BASIC ISSUE ITEMS LISTS Section I. INTRODUCTION C-1. Scope This appendix lists components of end item and basic issue items for the STINGER Air Defense Guided Missile System to help you inventory items required for safe and efficient operation. C-2. General The Components of End Item and Basic Issue Items Lists are ided into the following sections: a. Section II. Coinponents of End Item. This listing is for informational purposes only, and is not authority to requisition replacements. These items are part of the end item, but are removed and separately packaged for transportation or shipment. As part of the end item, these items must be with the end item whenever it is issued or transferred between property accounts. Illustrations are furnished to assist you in identifying the items. b. Section III. Basic Issue Items. These are the minimum essential items required to place the IFF Programmer/Battery Charger in operation, to operate it, and to perform emergency repairs. Although shipped separately packed they must accompany the IFF Programmer/Battery Charger during operation and whenever it is transferred between accountable officers. The illustration is furnished to assist you

in identifying the items. C-3. Explanation of Columns The following provides an explanation of columns found in the tabular listings: a. Column (1) - Illustration Number. This column indicates the number of the illustration in which the item is shown. b. Column (2) - National Stock Number. Indicates the National stock number assigned to the item and will be used for requisitioning purposes. c. Column (3), Description. Indicates the National item name and, if required, a minimum description to identify and located the item. The last line for each item indicates the FSCM (in parentheses) followed by the part number. (Enter portions of next two sentences, only if applicable.) If item needed differs for different models of this equipment, the model is shown under the "Usable On" heading in this column. These codes are identified as:

CodeUsed On PAAModel XXX PABMode1 XXXX PACModel XXXX

d. Column (4) - Unit of Measure (U/M). Indicates the measure used in performing the actual operational/maintenance function. This measure is expressed by a two-character alpha-betical abbreviation (e.g., ea, in., pr). e. Column (5) - Quantity required (Qts rqt).Indicates the quantity of the item authorized to be used with/on the equipment. Section II. COMPONENTS OF END ITEM

Components of End Item CLICK THE "NEXT-->" BUTTON ON THE TOOLBELT TO GO TO THE NEXT PAGE

Table C-1. Components of End Item (1)(2)(3)(4)(5) IllusNational StockDescriptionQty NumberNumberFSCM and Part NumberU/MReq 11440-01-170-8618 orGripstock 13056705EA1 1440-01-024-6931Gripstock 11486959 1.11440-01-233-1494 Gripstock (RMP): 13251828 Missile Rounds 21427-01-024-9967Basic 11508762EA1 1427-01-212-4998 POST: 13223713 1427-01-230-8783 RMP: 13252011 36920-01-024-9969 Trainer. Handling Guided MissileEA1 Launcher M60:11486982 3.1 6920-01-246-0699 Trainer,Handling. Aenal. Guided MissileEA1 Launcher XM148 Interrogator. Kit 45895-01-126-9263 orAN/PPX-3A:11567513 EA1 5895-01-032-4263ANIPPX-3B:13142020 Programmer. Interrogator Set 55895-01-032-4266 or AN/GSX-1:11 509855EA1 5895-01-119-1273 ANIGSX-1A: 13149900 6145001-024-6936Harness. Guided Missile EquipmentEA1 Transport M4: 11486956

Section III. BASIC ISSUE ITEMS

Figure MS430484D CLICK THE "NEXT-->" BUTTON ON THE TOOLBELT TO GO TO THE NEXT PAGE (1)(2)(3)(4)(5) IllusNationalQTY NumberStockDescription FSCMW UsableU/MRqr Numberand Part Number On Code 15895-01-Interrogator BatteriesEA6 071-144318876-FSCM 11487770-P/N TM 9-1425-429-12:EA1 Operator's and Organizational Maintenance Manual: Stinger Guided Missile Syste Consisting of: Weapon Round Partial NSN 1427-01-219-7116, NSN 1427-01-219-2902, NSN 1427-01-230-8784; Gripstock NSN 1440-01-170-8618, NSN 1440-01-233-1494; Trainer Handling Guided Missile Launcher M60 NSN 6920-01-024-9969; Guided Missile Subsystem Intercept-Aerial, Training XM148 NSN 6920-01-246-0699; Interrogator Set AN/PPX-3A, AN/PPX-3B NSN 5895-01-032-4263, NSN 5895-01-126-9263; Interrogator Set Programmer AN/GSX-1, AN/GSX-1A NSN 5895-01-032-4266, NSN 5895-01-119-1273; Transport Harness NSN 1450-01-024-6936 TRAINER HANDLING GUIDED MISSILE LAUNCHER M60 NSN 6920-01-024-9969; INTERROGATOR SET AN/PPX-3A, AN/PPX-3B NSN 5895-01-032-4263 NSN 5895-01-126-9263 INTERROGATOR SET

PROGRAMMER AN/GSX-1, AN/GSX-1A NSN 5895-01-032-4266, NSN 5895-01-119-1273; TRANSPORT HARNESS NSN 1450-01-024-6936 (STINGER Air Defense Guided Missile System)

TM-9-1425-429-12 APPENDIX D ADDITIONAL AUTHORIZATION LlST Section I. INTRODUCTION 1. Scope This appendix lists additional items you are authorized for the support of the STINGER Air Defense Guided Missile System. 2. General This list identifies items that do not have to accompany the STINGER Weapon System and that do not have to be turned in with it. These items are all authorized to you by CTA, MTOE, TDA, or JTA. 3. Explanation of Listing National stock numbers, descriptions, and quantities are provided to help you identify and request the additional items you require to support this equipment. The items are listed in alphabetical sequence by item name under the type document (i.e., CTA, MTOE, TDA, or JTA) which authorizes the item(s) to you. Section II. ADDITIONAL AUTHORIZATION LIST MTOE Authorized Items

NSNDescriptionU/MQty Auth

1240-40-930-3833Binocular, Modulel 1/Team 5810-00-061-3389Code Changer Keyl 2/Sect KIK-18/TSEC 2/Sect 14304-00-179-5321Display Set, Target1 1/Sect Alert Data (FAAR) l/Team 61154-00-889-1446Generator Set, Gasl 1/Sect Engine, 1.5 kW, 60 Hz, 120V 58204-00-479-3034Installation Kit,1 1/Sect VRCA8 in M151 58204-00-450-6804Installation Kit,1 1/Team GRC-160 in M151 58104-00-461-3388Interrogator Computer1 1/Sect KIR-1A/TSEC w/Z-ACA/1 Power Supply 58204-00-223-7473Radio Set,11/Team AN/GRC.160 58204-00-949-9909Radio Set Control11/Sect Group AN/GRA-398 23304-00-706-5495 TTrailer Cargo M41611/Sect 1/Team 23204-00-177-9258Truck Utility MI51A211/Sect CTA Authorized Items 6605-00-846-7618Compass, Magnetic11/Team TM-9-1425-429-12 APPENDIX E EXPENDABLE SUPPLIES AND MATERIALS LIST Section I. INTRODUCTION

E-1. Scope This appendix lists expendable supplies and materials you will need to operate and maintain the STINGER Missile System. These items are authorized to you by CTA 50-970, Expendable Items (Except Medical, Class V, Repair Parts, and Heraldic Items). E-2. Explanation of Columns a. Column 1 - Item Number. This number is assigned to the entry in the listing and is referenced to the narrative instructions to identify the material (e.g., Use cleaning compound, item 5, appx D). b. Column 2 - Level. This column identifies the lowest level of maintenance that requires the listed item. C - Operator Crew O - Organizational Maintenance F - Direct Support Maintenance H - General Support Maintenance c. Column 3 - National Stock Number. This is the National Stock Number (NSN) assigned to the item; use it to request or requisition the item. d. Column 4 - Description. Indicates the Federal name and, if required, a description to identify the item. The last line for each item indicates the part number followed by the Federal Supply Code for Manufacturer (FSCM) in parentheses if applicable. e. Column 5 - Unit Of Issue. Indicates the measure delineated by the NSN. This measure is expressed by a two character alphabetical abbreviation (e.g., EA IN. PR). Non definitive units of issue are followed by quantities in parentheses (e.g., TU (4 OZ)). Section II. EXPENDABLE SUPPLIES AND MATERIALS (1)(2)(3)(4)(5) ItemNationalDescriptionU/I NumberLevel Stock Number 1C8020-00-224-8024Artist BrushEA

2C7920-00-514-2417Brush, AcidGR Swabbing 3C83050-0-205-3496Wiping RagsPG 4O5350-00-174-1000Sandpaper,BD 220 Grit 5O5350-00-l74-0998Sandpaper, 280 GritBD 6C7930-00-093-4909DetergentBX 7C6640-00-559-1384LensTissuePG 8O8010-00-221-6455Paint,KT No. 34087 Green (Olive Drab 9O80l0-00-181-8079ThinnerCN Solvent 10O8030-00-535-9780Wash PrimerKT 11O8010-00-2974)570Paint,YellowGL 12O7510-00-290-2023Masking TapeRO 13O8010-00-111-7937Paint ForestGL Green Enamel 14O8010-00-297-0567Paint,WhiteQT 15O8030-00-213-0919Paint,OliveKT Drab,Polyurethane 16O8010-00-938-7724Paint,BronzeGL 17O6850-00-392-9751Optical CleaningBT Compound 18C5180-00-408-1859Tool Kit GeneralEA Purpose 19C7510-00-264-4612Yellow China MarkerEA

By Order of the Secretary of the Army CARL E. VUONO General, United States Army Chief of Staff Official: WILLIAM J. MEEHAN II Brigadier General, United States Army The Adjutant General DISTRIBUTION:

To be distributed in accordance with DA Form 12-32, Rlocks 438, 887, Operator and Unit Maintenance requirements for the STINGER Air Defense Guided Missile System.
