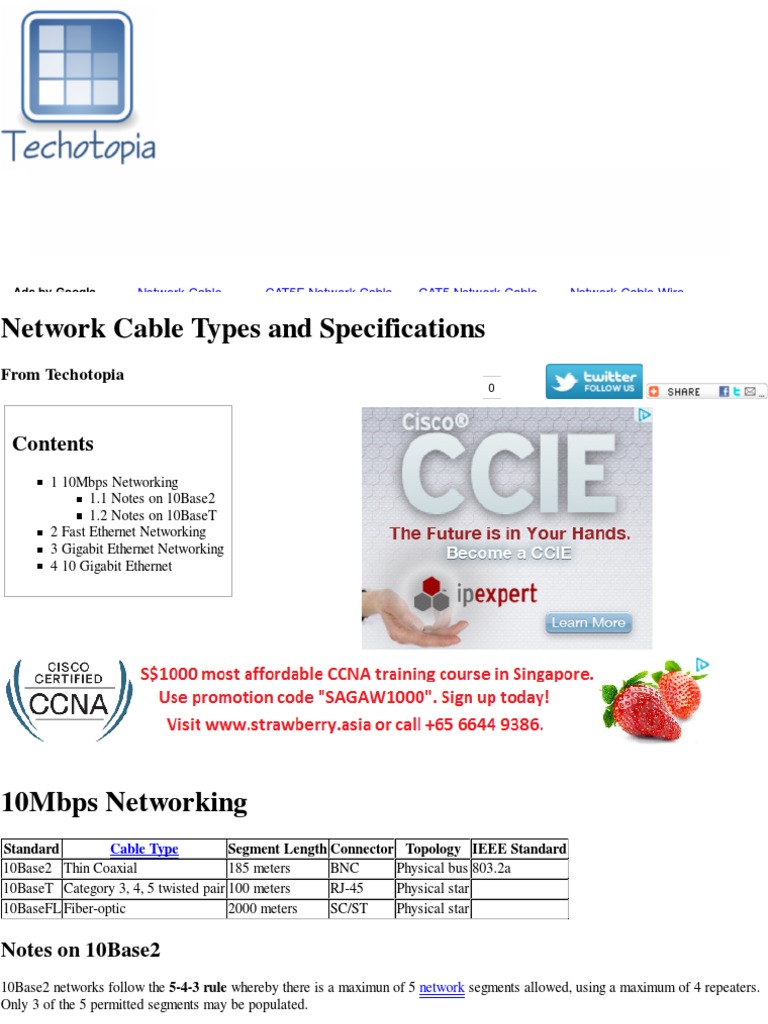

Network Cable Types and Specifications

From Techotopia
0

Contents
1 10Mbps Networking 1.1 Notes on 10Base2 1.2 Notes on 10BaseT 2 Fast Ethernet Networking 3 Gigabit Ethernet Networking 4 10 Gigabit Ethernet

10Mbps Networking
Standard Cable Type Segment Length Connector Topology IEEE Standard 10Base2 Thin Coaxial 185 meters BNC Physical bus 803.2a 10BaseT Category 3, 4, 5 twisted pair 100 meters RJ-45 Physical star 10BaseFL Fiber-optic 2000 meters SC/ST Physical star

Notes on 10Base2
10Base2 networks follow the 5-4-3 rule whereby there is a maximun of 5 network segments allowed, using a maximum of 4 repeaters. Only 3 of the 5 permitted segments may be populated. Each populated 10Base2 segment is limited to a maximum of 30 attached nodes.

Notes on 10BaseT
10BaseT networks follow the 5-4-5 rule whereby there is a maximum of 5 network segments allowed, using a maximum of 4 repeaters. All 5 segments may be populated with nodes.

Fast Ethernet Networking

Fast Ethernet defines a group of stnadards for networking speed of 100 Mbps Standard Cable Type Segment Length Connector Topology IEEE Standard 100BaseTX Category 5 UTP 100 meters RJ-45 Physical Star 802.3u 100BaseT4 Category 3, 4, 5 UTP 100 meters RJ-45 Physical Star 802.3u Multimode 412 meters / Multimode fiber 100BaseFX SC, ST Physical Star 802.3u Single-mode fiber-optic 10000 meters / Single-mode fiber Fiber Optic / FDDI 2000 meters SC, ST Dual Ring ANSI FDDI Twisted Pair (CDDI)

Gigabit Ethernet Networking

Standard 1000BaseLX Cable Type Multimode/Single-mode fiber Segment Length 550/multimode 5000/Single-mode 550 meters with 50 micron multimode fiber 25 meters 75 meters Connector Fiber connectors Fiber connectors 9-pin shielded connector 8-pin fiber channel type 2 connector 75 meters IEEE Standard 802.3z 802.3z 802.3z 802.3ab

1000BaseSX Multimode fiber 1000BaseCX Sheilded Twisted Pair 1000BaseT UTP Category 5

10 Gigabit Ethernet
Standard Transmission Type Distance Cable type Connector IEEE Standard 10GBBaseSR Baseband 33m / 300m 50 micron / 62.5 micron multimode Fiber connectors 802.3ae 10GBBaseLR Baseband 10000 meters Single-mode fiber Fiber connectors 802.3ae 10GBBaseER Baseband 40000 meters Single-mode fiber Fiber connectors 802.3ae Retrieved from "http://www.techotopia.com/index.php/Network_Cable_Types_and_Specifications" Category: Networking
