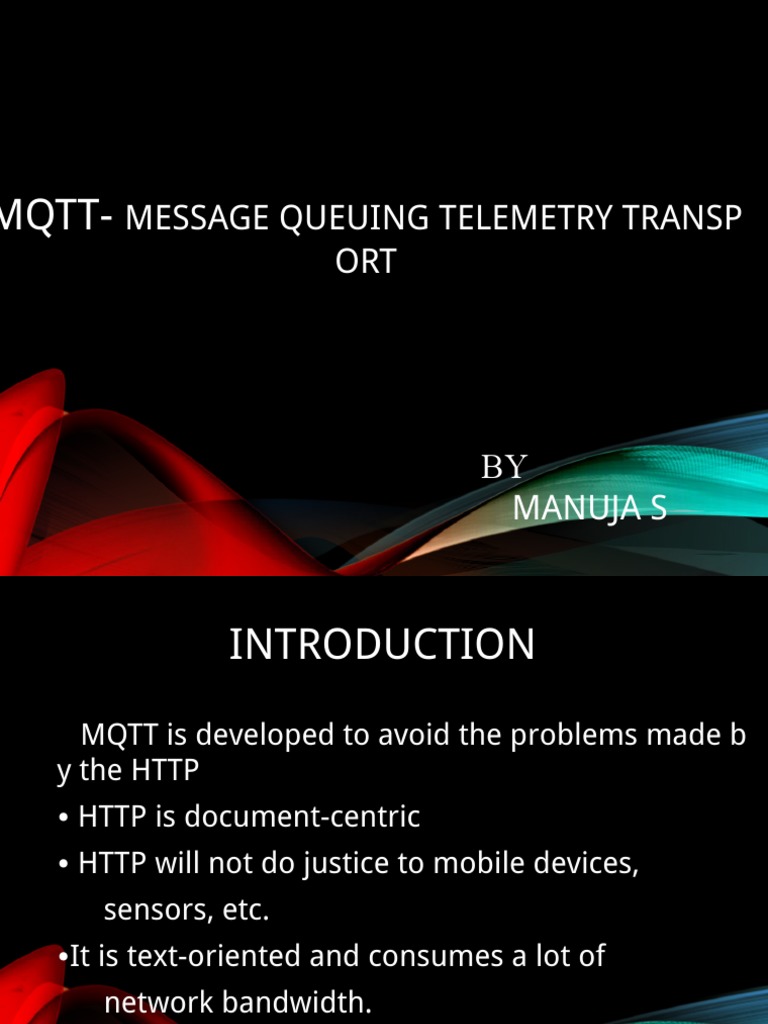

MQTT- MESSAGE QUEUING TELEMETRY TRANSP

ORT

BY
MANUJA S

INTRODUCTION
MQTT is developed to avoid the problems made b
y the HTTP
HTTP is document-centric
HTTP will not do justice to mobile devices,
sensors, etc.
It is text-oriented and consumes a lot of
network bandwidth.

MQTT
Its is data-centric
Lightweight
Consume low bandwidth
MQTT is more developer orientated
protocol with less specification

DEFINITION OF MQTT

a Client Server publish/subscribe messaging transp

ort protocol.
It is light weight, open, simple, and designed.
easy to implement.

constrained environments such as for communicat

on in Machine to Machine (M2M) and Internet of T
ings (IoT)

 contexts where a small code footprint is requir

ed and/or network bandwidth is at a premium.

FEATURES
Ordered, lossless, bi-directional connections.
Use of the publish/subscribe message
pattern provides one-to-many message
distribution and decoupling of applications.
A messaging transport that is agnostic to the
content of the payload.
Three qualities of service for message delivery :
at most once, at least once and exactly once.

 A small transport overhead and protocol

exchanges minimized to reduce network traffic.
A mechanism to notify interested parties when
an abnormal disconnection occurs.

PUBLISH SUBSCRIBE MESSAGING ONE TO MAN

Y
A Publish Subscribe messaging protocol allowing a mes
sage to be published once and multiple consumers (app
lications / devices) to receive the message providing dec
oupling between the producer and consumer(s)

A producer sends (publishes) a message (publication)

on a topic (subject)
A consumer subscribes (makes a subscription) for me
ssages on a topic (subject)
A message server / broker matches publications to su
bscriptions
If no matches the message is discarded
If one or more matches the message is delivered to e
ach matching subscriber/consumer

A subscription can be durable or non durable

Durable
Once a subscription is in place , a broker will
forward matching messages to the subscriber:
1. Immediately if the subscriber is connected.
2. If the subscriber is not connected messages
are stored on the server/broker until the next
time the subscriber connects.

Non-durable
The subscription lifetime is the same as the time the
subscriber is connected to the server / broker.

A publication may be retained

A publisher can mark a publication as retained
The broker / server remembers the last known
good message of a retained topic
The broker / server gives the last known good
message to new subscribers
i.e. the new subscriber does not have to wait
for a publisher to publish a message in order
to receive its first message

USE ON CONSTRAINED NETWORK

Designed for constrained networks:
Protocol compressed into bit-wise headers
and variable length fields.
Smallest possible packet size is 2 bytes.
Asynchronous bidirectional push delivery of
messages to applications (no polling)
Client to server and server to client

 Supports always-connected and sometimesconnected models

Provides Session awareness
Configurable keep alive providing granular
session awareness
Last will and testament enable applications
to know when client goes offline abnormally
Typically Utilizes TCP based networks e.g.
Web scokets
Tested on many networks vsat, gprs, 2G.

CONSTRAINED DEVICES
Designed for constrained devices:
Suited to applications / devices that may have
limited resources available
8 Bit controllers upwards
Battery
Multiple MQTT client implementations available
in many form factors / languages
Tiny footprint MQTT client (and server)
libraries e.g. a c client lib in 30Kb and a Java

Quality of services(QoS)
MQTT is based on TCP/ IP which guarantees
data delivery
Message can be lost if a TCP connection
breaks down
Every communication protocol must ensure a
Quality of Service

Quality of Service levels are the following:

QoS Level 0 (At most once):
In this case MQTT doesnt add any feature
on TCP
This level is equal to TCP best-effort.
A message can arrive to destination or not

QoS Level 1 (At least once):

This level guarantees that the message arrives to
subscribers
There may be duplicates (a client can receive
the same message one or more times)

QoS Level 2 (Exactly once):

In this case a message arrives exactly once
to the subscribers.
In this case there is the maximum overhead
and the broker need to store messages
locally

QOS DEFINITIONS

OPEN AND EASY TO USE

The MQTT specification is open and royalty free for ea
se of adoption
Is industry agnostic Move a payload / data /
event for any form of data
Many implementations from enterprise scale
fully supported through open source and
hobbyist
API is simple to use via small set of well defined
verbs_x0000_

 Open royalty free specification

Open Source
Eclipse.org Paho project
IBM Contributed MQTT clients
MQTT Implementations
Hobbyist to Enterprise
Open Source to Commercial
16+ MQTT severs
40+ MQTT clients
Standard
MQTT is being standardized at OASIS_x0000_

MQTT TECHNOLOGY
In Paho
Java, JavaScript C and Lua client libraries
Utilities
Others client libraries outside Eclipse
Python, Perl, Ruby...
Server implementations

SOME AREAS WHERE MQTT HAS BEEN USED

Slot Machines
POS
Automotive/ Telematics
Slot Machines
Railway
Fire & Gas Testing
Chemical Detection
Asset tracking / management
Medical

 Field Force Automation

Home Automation
SCADA
Environment & Traffic Monitoring

THANK YOU
