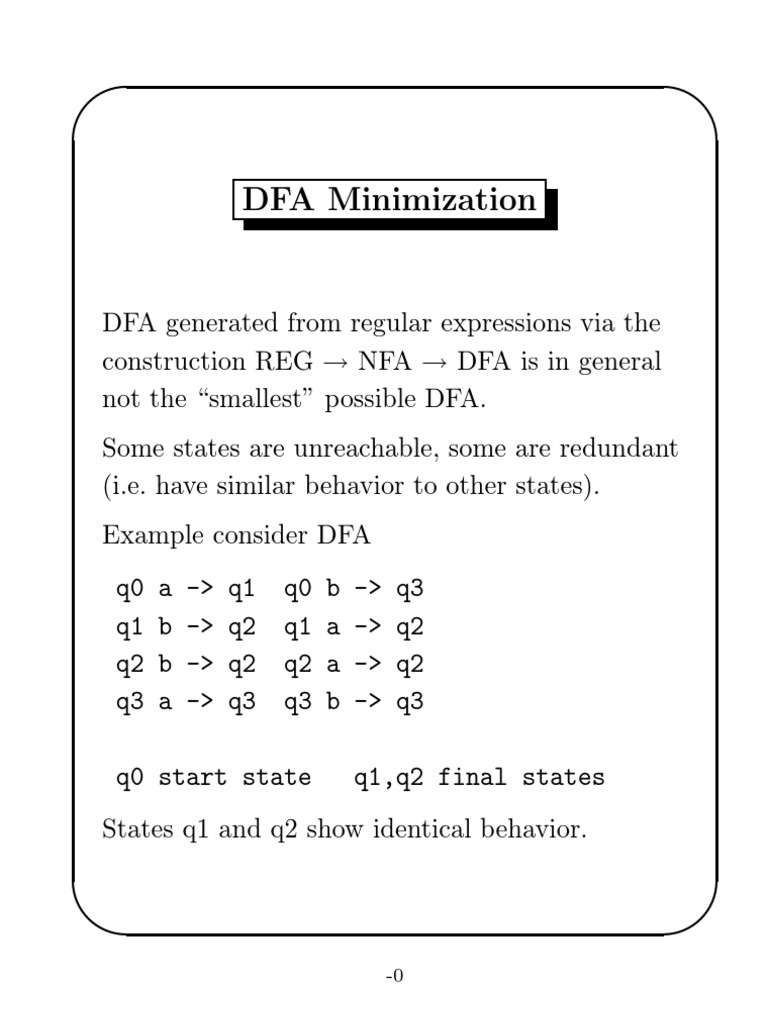

DFA Minimization

DFA generated from regular expressions via the


construction REG → NFA → DFA is in general
not the “smallest” possible DFA.
Some states are unreachable, some are redundant
(i.e. have similar behavior to other states).
Example consider DFA
q0 a -> q1 q0 b -> q3
q1 b -> q2 q1 a -> q2
q2 b -> q2 q2 a -> q2
q3 a -> q3 q3 b -> q3

q0 start state q1,q2 final states


States q1 and q2 show identical behavior.

& %
-0
' $

DFA Minimization Idea

• Remove unreachable states, i.e. states which


cannot be reached from the start state.
• Build equivalence classes among states via a
fixpoint construction.
• Two states (q,q’) cannot be equivalent if one
is a final state and the other is not.
• If from (q1,q1’) we can reach (q2,q2’) via
q1 a → q2 and q1’ a → q2’ and we know that
(q2,q2’) cannot be equivalent, then (q1,q1’)
cannot be equivalent either.

& %
-1
' $

DFA Minimization Algorithm

Given DFA M = (Σ, Q, δ, q0 , F ).


1. Remove unreachable states.
2. Setup marking tables of pairs (q, q 0 ) where
q 6= q 0 .
(a) Mark all pairs (q, q 0 ) where q ∈ F and
q 0 6∈ F (and vice versa). (These are the
states which cannot be equivalent)
(b) For each unmarked pair (q, q 0 ) and a ∈ Σ
if (δ(q, a), δ(q 0, a)) is marked, then mark
(q, q 0 ).
(c) Repeat until there are no more changes.

& %
-2
' $

3. Combine states.
For each unmarked (q, q 0 )
(a) If p a → q 0 then add p a → q.
(b) If q 0 a → p then add q a → p.
(c) Remove q’.
(d) Remove p a → q 0 , q 0 a → p for all p ∈ Q and
a ∈ Σ (i.e. remove q 0 and all transitions
leading to and from q 0 ).
4. Resulting DFA is minimal.

& %
-3
' $

Example

q0 start, q1, q2 final states


q0 a -> q1 q0 b -> q3
q1 b -> q2 q1 a -> q2
q2 b -> q2 q2 a -> q2
q3 a -> q3 q3 b -> q3

Marking table (step 2.):


(q0,q1) marked (q1,q0) marked
(q0,q2) marked (q2,q0) marked
(q0,q3) (q3,q0)
(q1,q2) (q2,q1)
(q1,q3) marked (q3,q1) marked
(q2,q3) marked (q3,q2) marked

& %
-4
' $

Combine states (step 3.):

Consider unmarked (q1,q2) we have that


Step 3a.)
q2 a -> q2 q1 a -> q2
q2 b -> q2 q1 b -> q2
therefore add
q2 a -> q1 q1 a -> q1
q2 b -> q1 q1 b -> q1
Step 3b.)
q2 a -> q2 q2 b -> q2
therefore add
q1 a -> q2 q1 b -> q2
Step 3c,d.) remove q2 and its transitions
....
Resulting DFA:
q0 a -> q1 q0 b -> q3
q1 b -> q1 q1 a -> q1
q3 a -> q3 q3 b -> q3

& %
-5
