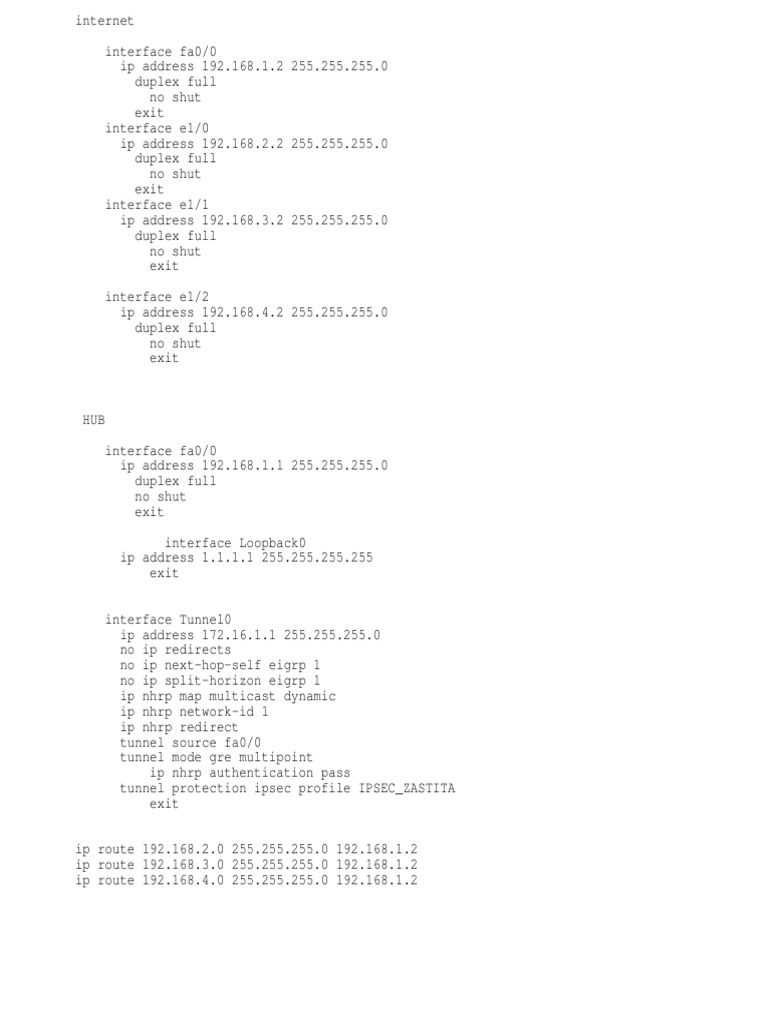

internet

interface fa0/0
ip address 192.168.1.2 255.255.255.0
duplex full
no shut
exit
interface e1/0
ip address 192.168.2.2 255.255.255.0
duplex full
no shut
exit
interface e1/1
ip address 192.168.3.2 255.255.255.0
duplex full
no shut
exit
interface e1/2
ip address 192.168.4.2 255.255.255.0
duplex full
no shut
exit

HUB
interface fa0/0
ip address 192.168.1.1 255.255.255.0
duplex full
no shut
exit
interface Loopback0
ip address 1.1.1.1 255.255.255.255
exit
interface Tunnel0
ip address 172.16.1.1 255.255.255.0
no ip redirects
no ip next-hop-self eigrp 1
no ip split-horizon eigrp 1
ip nhrp map multicast dynamic
ip nhrp network-id 1
ip nhrp redirect
tunnel source fa0/0
tunnel mode gre multipoint
ip nhrp authentication pass
tunnel protection ipsec profile IPSEC_ZASTITA
exit
ip route 192.168.2.0 255.255.255.0 192.168.1.2
ip route 192.168.3.0 255.255.255.0 192.168.1.2
ip route 192.168.4.0 255.255.255.0 192.168.1.2

router eigrp 1
network 1.1.1.1 0.0.0.0
network 192.168.0.0
network 172.16.0.0
no auto-summary
exit
crypto isakmp policy 1
encr aes
authentication pre-share
group 14
crypto isakmp key Lozinka123 address 0.0.0.0
crypto ipsec transform-set AES-SHA esp-aes esp-sha-hmac
mode tunnel
crypto ipsec profile IPSEC_ZASTITA
set transform-set AES-SHA
exit

Spoke1
interface Loopback0
ip address 2.2.2.2 255.255.255.255
exit
interface fa0/0
ip address 192.168.2.1 255.255.255.0
duplex full
no shut
exit
interface Tunnel0
ip address 172.16.1.2 255.255.255.0
no ip redirects
no ip next-hop-self eigrp 1
no ip split-horizon eigrp 1
ip nhrp map 172.16.1.1 192.168.1.1
ip nhrp map multicast 192.168.1.1
ip nhrp network-id 1
ip nhrp nhs 172.16.1.1
ip nhrp shortcut
tunnel source fa0/0
tunnel mode gre multipoint
ip nhrp authentication pass
tunnel protection ipsec profile IPSEC_ZASTITA
exit
ip route 192.168.1.0 255.255.255.0 192.168.2.2
ip route 192.168.3.0 255.255.255.0 192.168.2.2
ip route 192.168.4.0 255.255.255.0 192.168.2.2

router eigrp 1

network 2.2.2.2 0.0.0.0


network 192.168.0.0
network 172.16.0.0
no auto-summary

crypto isakmp policy 1


encr aes
authentication pre-share
group 14
crypto isakmp key Lozinka123 address 0.0.0.0
crypto ipsec transform-set AES-SHA esp-aes esp-sha-hmac
mode tunnel
crypto ipsec profile IPSEC_ZASTITA
set transform-set AES-SHA
exit

spoke 2
interface Loopback0
ip address 3.3.3.3 255.255.255.255
no shut
exit
interface fa0/0
ip address 192.168.3.1 255.255.255.0
duplex full
no shut
exit
interface Tunnel0
ip address 172.16.1.3 255.255.255.0
no ip redirects
no ip next-hop-self eigrp 1
no ip split-horizon eigrp 1
ip nhrp map 172.16.1.1 192.168.1.1
ip nhrp map multicast 192.168.1.1
ip nhrp network-id 1
ip nhrp nhs 172.16.1.1
ip nhrp shortcut
tunnel source fa0/0
tunnel mode gre multipoint
ip nhrp authentication pass
tunnel protection ipsec profile IPSEC_ZASTITA
exit

ip route 192.168.1.0 255.255.255.0 192.168.3.2


ip route 192.168.2.0 255.255.255.0 192.168.3.2
ip route 192.168.4.0 255.255.255.0 192.168.3.2

router eigrp 1
network 3.3.3.3 0.0.0.0
network 192.168.0.0
network 172.16.0.0
no auto-summary
exit
crypto isakmp policy 1
encr aes
authentication pre-share
group 14
crypto isakmp key Lozinka123 address 0.0.0.0
crypto ipsec transform-set AES-SHA esp-aes esp-sha-hmac
mode tunnel
crypto ipsec profile IPSEC_ZASTITA
set transform-set AES-SHA
exit

spoke 3
interface Loopback0
ip address 4.4.4.4 255.255.255.255
no shut
exit
interface fa0/0
ip address 192.168.4.1 255.255.255.0
duplex full
no shut
exit
interface Tunnel0
ip address 172.16.1.4 255.255.255.0
no ip redirects
no ip next-hop-self eigrp 1
no ip split-horizon eigrp 1
ip nhrp map 172.16.1.1 192.168.1.1
ip nhrp map multicast 192.168.1.1
ip nhrp network-id 1
ip nhrp nhs 172.16.1.1
ip nhrp shortcut
tunnel source fa0/0
tunnel mode gre multipoint
ip nhrp authentication pass
tunnel protection ipsec profile IPSEC_ZASTITA
exit

ip route 192.168.1.0 255.255.255.0 192.168.4.2


ip route 192.168.2.0 255.255.255.0 192.168.4.2
ip route 192.168.3.0 255.255.255.0 192.168.4.2

router eigrp 1
network 4.4.4.4 0.0.0.0
network 192.168.0.0
network 172.16.0.0
no auto-summary
exit
crypto isakmp policy 1
encr aes
authentication pre-share
group 14
crypto isakmp key Lozinka123 address 0.0.0.0
crypto ipsec transform-set AES-SHA esp-aes esp-sha-hmac
mode tunnel
crypto ipsec profile IPSEC_ZASTITA
set transform-set AES-SHA
exit
