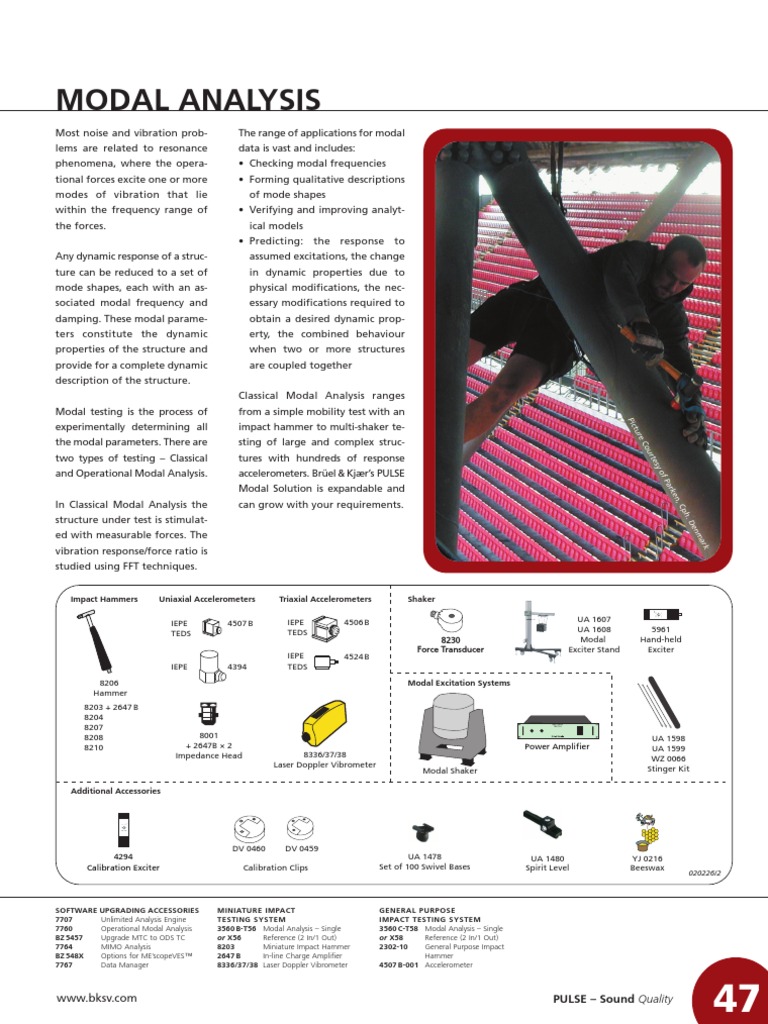

MODAL ANALYSIS
Most noise and vibration problems are related to resonance
phenomena, where the operational forces excite one or more
modes of vibration that lie
within the frequency range of
the forces.
Any dynamic response of a structure can be reduced to a set of
mode shapes, each with an associated modal frequency and
damping. These modal parameters constitute the dynamic
properties of the structure and
provide for a complete dynamic
description of the structure.
Modal testing is the process of
experimentally determining all
the modal parameters. There are
two types of testing Classical
and Operational Modal Analysis.
In Classical Modal Analysis the
structure under test is stimulated with measurable forces. The
vibration response/force ratio is
studied using FFT techniques.
Impact Hammers
The range of applications for modal
data is vast and includes:
Checking modal frequencies
Forming qualitative descriptions
of mode shapes
Verifying and improving analytical models
Predicting: the response to
assumed excitations, the change
in dynamic properties due to
physical modifications, the necessary modifications required to
obtain a desired dynamic property, the combined behaviour
when two or more structures
are coupled together
Classical Modal Analysis ranges
from a simple mobility test with an
impact hammer to multi-shaker testing of large and complex structures with hundreds of response
accelerometers. Brel & Kjrs PULSE
Modal Solution is expandable and
can grow with your requirements.
Uniaxial Accelerometers
IEPE
TEDS
4507 B
IEPE
4394
Triaxial Accelerometers
IEPE
TEDS
4506 B
IEPE
TEDS
4524 B
8206
Hammer
8203 + 2647 B
8204
8207
8208
8210
Shaker
UA 1607
UA 1608
Modal
Exciter Stand
8230
Force Transducer
5961
Hand-held
Exciter
Modal Excitation Systems
Power Amplifier
Type 2716 C
8001
+ 2647B 2
Impedance Head
8336/37/38
Laser Doppler Vibrometer
Power Amplifier
Modal Shaker
UA 1598
UA 1599
WZ 0066
Stinger Kit
Additional Accessories
DV 0460
4294
Calibration Exciter
SOFTWARE UPGRADING ACCESSORIES
7707
Unlimited Analysis Engine
7760
Operational Modal Analysis
BZ 5457
Upgrade MTC to ODS TC
7764
MIMO Analysis
BZ 548X
Options for MEscopeVES
7767
Data Manager
[Link]
DV 0459
Calibration Clips
MINIATURE IMPACT
TESTING SYSTEM
3560 B-T56 Modal Analysis Single
or X56
Reference (2 In/1 Out)
8203
Miniature Impact Hammer
2647 B
In-line Charge Amplifier
8336/37/38 Laser Doppler Vibrometer
UA 1478
Set of 100 Swivel Bases
UA 1480
Spirit Level
YJ 0216
Beeswax
020226/2
GENERAL PURPOSE
IMPACT TESTING SYSTEM
3560 C-T58 Modal Analysis Single
or X58
Reference (2 In/1 Out)
2302-10
General Purpose Impact
Hammer
4507 B-001 Accelerometer
PULSE Sound Quality
47
BF0209-15_41-[Link]
15-03-2005
14:17
Page 48
3560 B-T56/X56
3560 C-T58/X58
Modal Analysis Single Reference (2 In)
Modal Analysis Multiple Reference (4 In)
HAMMER GUIDE
Modal Analysis Single Reference (2 In)
3560 C-T51
MODAL ANALYSIS
7770-N2
7753
7754 I
3560 B-040
or
3560 B-140
7770-N2
7753
7754 I
Entry-level system suitable for both
impact and single shaker testing
based on the compact and robust
3560-B front-end. Swift workflow
via Modal Test Consultant guiding
you step-by-step through the procedure for gathering and checking
FRF data sets. Seamless integration
with MEscopeVES for easy modal
parameter extraction.
Follow Ext. Power
Off
On / Off
On
AUX
Power
Battery status
Output
Tacho
Multi Frame Control
No
Yes
First or Last Frame
4
Aux. I/O
Tx LAN
All Sockets
Cable Lock
Rx
RS-232
Ext Power
Input
Battery status
10 to 32v
Brel & Kjr
First year SW maintenance included
As 3560 B-T56 but based on the
portable 3560 C front-end for enhanced expandability. More channels can easily be measured using
multiple data sets with roving transducers. All software needed to rapidly gather and analyse modal data
using the popular single reference
technique.
3560 C
7539 A
or
7540 A
First year SW maintenance included
7770-N4
7753
7764
7754 J
For testing dynamically complicated structures, for example, those
with closely spaced modes, repeated roots or poorly excited modes.
Includes advanced modal analysis
software for polyreference (MIMO
or MRIT) curve fitting ideal for
testing of large, complex and bisymmetrical structures. Multiple systems
can be easily stacked to create
larger channel count system.
3560 C
7536
3109
First year SW maintenance included
Modal Test Consultant is graphically driven, linking the measurement directly to
the on-screen test
object geometry.
The user is safely
guided through
the specific tasks
required for the
test
Points, lines,
surfaces or basic
shapes can be edited and combined
to rapidly build up
the test object
geometry.
Complex geometry
objects can be
imported from
CAD software in
UFF or DXF format
Modal Test
Consultant incorporates timesaving tools for
maximum data
reliability and
shorter test time.
One example is
the automatic
double-hit detection and rejection
tool
TYPE
DESCRIPTION
APPLICATION
2301 or 8203
Mini Hammers
Hard-drives, electric circuit boards, turbine blades
2302-10
General Purpose, 0.3 lb.
Small to medium sized objects
5961
Hand-held Exciter
Small to medium sized objects
2303
1 lb. Hammer
Car frames and machine tools
2304
3 lb. Hand Sledge
Large machine foundations, large gear boxes
and larger machine tools
2305
12 lb. Sledge
Small buildings and small bridges
(7760)
Operational Modal Analysis
Modal Analysis from measured responses only
MULTIPLE REFERENCE IMPACT
TESTING (MRIT) SYSTEM
3560 C-T51 Modal Analysis Multiple
Reference (4 In/2 Out)
2302-10
General Purpose Impact
Hammer
3 4507 B-001Accelerometer
48
PULSE Analyzers & Solutions
Brel & Kjr
3560 D-T51
3560 D-T50
BF0209-15_41-[Link]
15-03-2005
14:17
Page 49
Modal Analysis Single Reference (16 In)
7770-N16
7753
7754 I
3560 D
7536
3038
3109
Faster testing of structurally simple
medium to large structures, providing modal data results from one or
just a few roving accelerometer
data sets. Automatic bookkeeping
of DOFs ideal for 16 and larger
channel counts. Graphical and
intuitive setup of different excitation signals. Pre-test tools for guidance in optimisation of best test
configuration.
PULSE seamlessly
handles multiple
exciter testing providing accurate,
precise and reliable
FRF data sets for
maximum modal
parameter extraction efficiency.
First year SW maintenance included
Modal Analysis Multiple Reference (16 In)
7770-N16
7753
7764
7754 J
3560 D
7536
3038
3109
Enhanced accuracy, precision and
reliability when testing complex
structures due to multiple exciters,
high fidelity MIMO capability and
efficient polyreference curve fitting.
Unique, real-time, all-at-a-glance
graphical overview of status of all
channels overload, underload and
headroom.
MEscopeVES
can animate in
Quad view, showing 3 2D views
and a user-defined
3D view at once.
Auto interpolation
means that unmeasured points
will animate
realistically
3560 E-T50
First year SW maintenance included
Modal Analysis Multiple Reference (33 In)
7770-N16
7753
7764
7754 J
3560 E
7537 A
2 3038 B
3109
Designed for demanding modal test
applications, for example, structures
with high modal density, repeated
roots, local modes and in the shortest test time. CAD models may be
imported and decimated to suit test
DOF definition. State-of-the-art excitation signals like Burst Random,
Pseudo-random and Periodic Random are available.
MEscopeVES
exhibits several
tools for improved
confidence in the
modal parameter
extraction process
including Mode
Indicator Functions,
MAC, COMAC and
Stabilisation
Diagram
First year SW maintenance included
16-CHANNEL SHAKER SYSTEM
3560 D-T51 Modal Analysis Multiple
Reference (16 In/2 Out)
2311-100
ISOTRON Force Sensor
3624
Modal Excitation System
5 4506 B-0021 V/g Triaxial Accelerometer
5 AO 0534 5 m Triaxial Cable
[Link]
ADVANCED SHAKER SYSTEM
3560 E-T50 Modal Analysis Multiple
Reference (33 In/2 Out)
3 2311-100 ISOTRON Force Sensor
3 3624
Modal Excitation System
UA 1607
Lateral Modal Exciter Stand
29 4506 B-002
1 V/g Triaxial Accelerometer
14 AO 0537 10 m Triaxial Cable
MODAL EXCITER SYSTEMS
4810 + 2718 10 N Miniature Shaker
3624
100 N System
3625
200 N System
3626
400 N System
3627
650 N System
3628
1000 N System
PULSE Classical Modal Analysis
