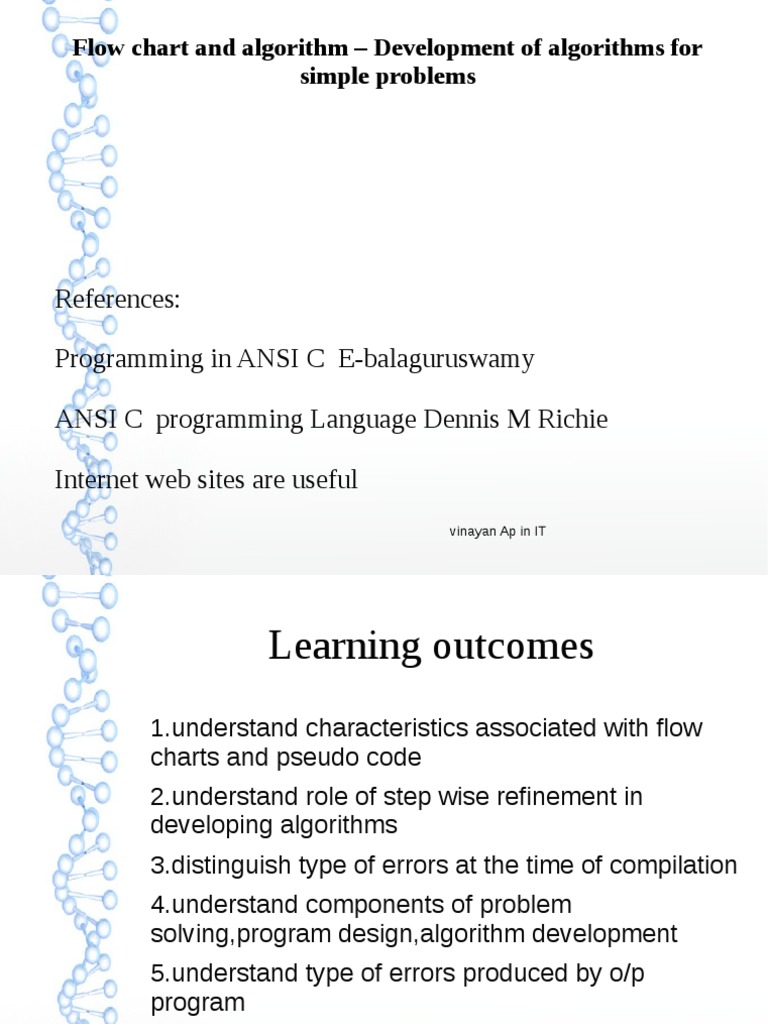

Flow chart and algorithm Development of algorithms for
simple problems
References:
Programming in ANSI C E-balaguruswamy
ANSI C programming Language Dennis M Richie
Internet web sites are useful
vinayan Ap in IT
Learning outcomes
1.understand characteristics associated with flow
charts and pseudo code
2.understand role of step wise refinement in
developing algorithms
3.distinguish type of errors at the time of compilation
4.understand components of problem
solving,program design,algorithm development
5.understand type of errors produced by o/p
program
vinayan Ap in IT
Assesment plan
1.quiz
2.assignments(individual/group)
3.home works
4.match table
5.verify solution
vinayan Ap in IT
Introduction
-) program is specific set of structured operation to be performed by a
computer
procedural programming
-)perform ,present steps needed to solve a problem in sequential & logical
manner
Eg. to bake a cake [steps needed to be followed in the order]
-)easy way to point out potential problem areas
-)it is having nice aspect about problem solving,program design and algorithm
development
vinayan Ap in IT
Problem solving
-> need a strategy for solving a problem
video of planning
step1:define the problem
->error here is costly to both time & money
->determine what we are trying to accomplish
Eg.friend asked to plan a simple party for her birthday
[plan friends birthday party]
step2:requirement specification
->remove all ambiguities in problem definition
->determine output or result required
->determine what input needed & sources of input(key board/file)
input(I) ->process(P)->Output(O)
->refiniting & identifying requirements for the party
Eg:21st birth day,female friend,small group of attendees,food & beverages will be provided
->finalizing date & time of event ,clear goal & anticipated timeline& no of attendies& food
Eg:21st birthday,female friend,14 attendees,black forest cake,Lime juice,party will be friday at
7.pm,location my house
->ambiguities are removed from problem statement
vinayan Ap in IT
Step3: design
->develop algorithm for small piece of your problem(pseudo code to
represent algorithm)
->pseudocode is written list of steps need to solve problem
->once algorithm is completed use some sample data to validate
result manually
->1.accounted all required inputs
2.completed all processing steps
3.addressed all issues to generate output identified in requirement
specification
Eg:1)calculate ingredients,2)go to store,3)purchase,4)come
home,5)measure & arrange all ingredients
->suddenly you got issue and want to go to delhi,will not be a
problem .you can ask a friend to continue the algorithms , he need
not to be worried about amount of ingredient
that
vinayan
Ap inis
IT done in
requrement specification part
Step 4:implementation
->write source code based on algorithm developed in
site
-> integrate newly generated code into existing code
Eg1. Ur friend follows steps and bake the cake as
directed.
Accumulation of different components help to make
dessert
Step-5 testing and verification
->make shure program works & produce correct
output(any hacking)
->if error goes to step 3
vinayan Ap it
in ITfrom oven
->Eg.once the cake is done ,remove
,sampling the crumbs inside the pan
Step6:Repeat step3-5
once ur code tested sufficently determine next piece
of solution implemented & repeat step3-5
Eg1. For the next item in our menu now repeat
previous steps .focussing ur energies to make punch
step7:Maintenance
->program need to be revised & enhanced over time
->keeping design document providing readable
source code makes productive less time consuming
Eg1.altering or experimenting some of the ingrediants
used in desert
vinayan Ap in IT
Activity 1 (Quiz )relate table ?
Step1:Define the problem
Step2:Requirement specification
Step3:Design
Step4:Implementation
Step5:Testing & verification
Step6:Repeat step3-5
Step7:Maintenance
1.writing pseudo code
2.clarifying problem statement with your client
3.Writing C++ code
4.determining what information is neede from the user
5.determining what problem needed to be solved
6.identifying what outputs are generated by the program
7.Running program & determing works correctly
8.
vinayan Ap in IT
Flow chart
->problem: if test taker had a score above 90 excellent job if test taker
scores below 90 try little harder
->Termination -marks start & end of flow chart
->Process:activity associated with mapping of data
->Decision-illustriates flow solution based on true or a false condition
->input/output:show reading data or display result
Input/output
process
Decision
vinayan Ap in Termination
IT
Start
Display
enter score
Read
score
Display
excellent job
If score>90
Display
try little harder
vinayan Ap in IT
Exit
Pseudo code
->english representation of algorithm
Display prompt Enter score
Read from keyboard
if score >90
display excellent job
else
display try little harder
vinayan Ap in IT
Activity 2:(match left & right)
Form of algorithm in english
Decision symbol
Writing source code
Design phase
Revised over time
termination
Trial & error (hacking)
Requirement specification
Verifying logic of your solution
Flow chart
Symbol used in beginning
sequential
Mapping of data
Desk checking
Procedural programming
implementation
Determine output
testing
True/false
process
Form of algorithm uses symbols
Pseudo code
Develop algorithm
maintenance
vinayan Ap in IT
Problem solving applied
Problem statement:
your friend operates a business she asked you to create an algorithm
outline steps needed to calculate total kilometer expenses for her tax
return.this year IRS allows .585 rs for a kilometer for business related
travel.this will change every year,your solution should simply ask her for
that information .she would like to be able to enter amount of kilometers
she traveld for business & calculate total mileage expenses.
Develop pseudo solution?
Input type
data
source
Decimal
Km traveled
keyboard
Decimal
Km rate
keyboard
Requirement specification
Inputs
output
Output type
data
destination
Decimal
Km traveled
screen
Decimal
Km rate
screen
Decimal
Km expense vinayan
screen
Ap in IT
allowense
Design
Required formulas:
kmExpenseAllowance=km
traveled *km rate
Pseudocode:
--output phase-Display km traveled
Display km traveled
Display km rate
Display km rate
Display total IRS km allowance
Display total IRS km allowance
--input phase---
Testing verification
Display prompt enter km traveled
for business
Desk checking:
read km traveled
Are all inputs accounted for ?Yes
Are prompts self describing
has all required processing been computed?yes
Display prompt enter in the IRS
km rate
is all of the processing correct?use 496 kms @ .
585 rs a km
read km traveled
Kmexpenseallowance=496 * .585 =290.16
--process phase--
---Validation correct---
kmexpenseallowance=kmtraveled
*kmrate
---Validation--
is all output from output phase self describing ?yes
---Pseudocode correction--None needed
vinayan Ap in IT
Activity 3: verify solution
1.verify solution is correct.if it is not correct rewrite pseudo code
problem:read test score & determine what grade of a student?
90+ ->A 80+->B 70+ ->C 60 +->D
score less than 60 ->F
solution:
input:decimal no for test score
output:a letter of grade
pseudo code:
print prompt enter score
read score
if score >90
print A
if score >80 and score <90
print B
if score >70 and score <80
print C
if score >60 and score <70
print D
if score <60
Print F
vinayan Ap in IT
Assignment 1(individual)
1.Write pseudo code for adding 2 numbers?
2.Write pseudo code for find average of 3
numbers(10,100,1000)and print results
3.assume you take 3 exams ,write pseudo
code solution to calculate sum and average of
your exam scores
vinayan Ap in IT
Assignment 2(Group)
1.Your friend trying to write pseudocode solution to find sum of first 5
natural no's
a)is solution logically correct?if not ,what is wrong & how you correct it
b)how u able to prove her solution works?
c)suggestions to improve overall readabilty of pseudo code?
Problem:print out sum of first 5 +ve non-zero integers
SET x to 0
SET n to 0
WHILE n<5
ADD n to x
Print out x
write response to question a,b,c?
vinayan Ap in IT
Assignment 3(individual):
Write down probem statement,requirement specification & flow chart for
following problems
1. write down factorial of a no?
2. write down whether given no is odd/even
3. write down whether given no is prime or not
4. given radius of circle write a program to display area
5. write a program to pattern of asteriks as shown below? No of asteriks in
bottom is given
*
**
***
****
*****
******
vinayan Ap in IT
Running the program
Syntax error
->found during compilation process
->if severity is less compiler give warning
->caused by incorrect in mecanics of statements
Linker error
->encountered during build process
->linkers job to build executable from object code
->no tools allow you to jump to the line that caused error
->Link error must be corrected before execution of program
Run-Time-Error
->if a program terminates/crashes during execution then you have run time error
->error may be dividing zero/accessing outside memory
->debugger is set of tools help programmer to locate bugs
Logic error
->most difficult error
->stepwise refinement helps by confining logic error to localized area
->debugger is crucial tool helping locate logic error
vinayan Ap in IT
Assignment 4 (answer following)
1.What type of error can be resolved before executable can be created
2.what type of error debugger help find?
3.why is it important that first syntax error corrected and then program
recompiled?
4.what type of error would you get if you forget to include required
semicolon at the end of statement?
5.what you mean by desk checking
vinayan Ap in IT
Assignment 5(Group)
1.What are common programming errors?Explain each?
a)missing semicolon
b)missing braces
c)missing quotes
d)misusing quotes
e)improper comment characters
f)undeclared variables
g)forgetting precedence operators
h)ignoring order of evaluation of increment/decrement operators
i)forgetting to declare function parameters
j)mismatching function arguments
.................
etc
Ap in IT
Ref:page(441-448)programming in ANSI C Evinayan
Balaguruswamy
vinayan Ap in IT
