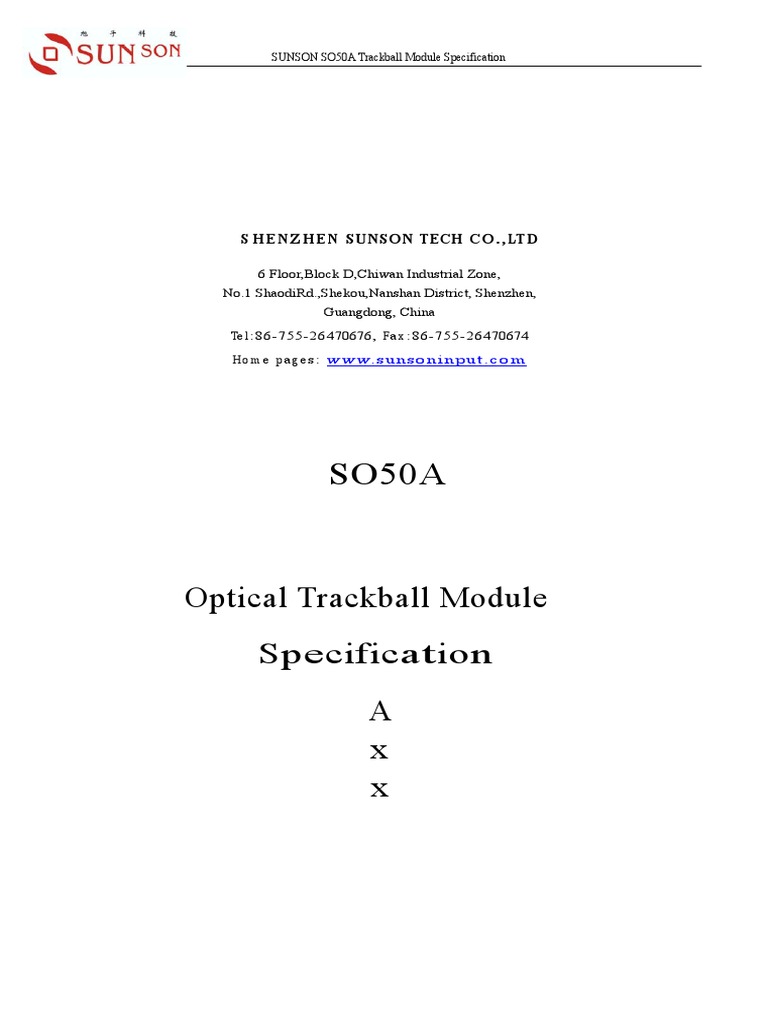

SUNSON SO50A Trackball Module Specification

S H EN Z H EN SUNSON TECH CO., LT D


6 Floor,Block D,Chiwan Industrial Zone,
No.1 ShaodiRd.,Shekou,Nanshan District, Shenzhen,
Guangdong, China
Te l : 8 6 - 7 5 5 - 2 6 4 70676 , Fa x : 8 6 - 7 5 5 - 2 6 4 70674
H o m e p a g e s : w w w. s u n s o n i n p u t . c o m

SO50A

Optical Trackball Module


Specification
A
x
x

SUNSON SO50A Trackball Module Specification

SO50A image for true product

Dimensions:

SUNSON SO50A Trackball Module Specification

Main Features
Ball dia 50.8mm
Dimensions: 70*70mm
Interface: USB,PS2 Option
With unique Optical transmission and low noisy design, adopts high resolution encoder, uses AVAGO
optical transducer which is based on LaserStream technology, it measures changes in position by
optically acquiring sequential surface images (frames) and mathematically determining the directions and
magnitude of movement. It allows the ball moves free and smooth, has good tactile feeling. Optimal
circuits design makes it low power consumption and stable performance. ESD protection design,
water-proof, dust-proof design, ball is designed easy to disassemble for daily cleaning.
High-quality density Phynolic Resin Ball
IP 65 protect grade(static)
19mm, 36mm, 38mm, 25mm trackballs in O.D are available, Mechanical and backlight trackball are
available.

Application Field
Self-service terminals in bank,
Ultrasound diagnosis equipments in hospitcal,
Internet kiosk, industrial console,
Game machine, etc

Mechanical Features

Ball MaterialHigh-quality density Phenolic Resin Ball

Ball Diameter50.8mm (tolerance : -0.1mm0mm)

Ball Color Transparent(Other colors can be customized)

Mount style: rack mount

Vertical Compressive Strength300N (30kg)

House MaterialFire prevention ABS material

Panel Size70*70mm

Weight210g10g

Electrical Features

Communication interfaceUSB or PS2

Voltage3.3~5V 10%

Power1.0W(dynamic)0.2W(static)

EMC standardEN55022(B)

Resolution100-1000 Dpi (Default is 400Dpi)

Working Environment:

SUNSON SO50A Trackball Module Specification

Operating Temperature-10+40

Storage Temperature-20+50

Relative Humidity3090%

Atmosphere Pressure60106Kpa

Life Span>6 million cycles

Packing
One box content: 1 trackball module + PS2/USB connector cable,
Bubble wrap + Standard white box/Set,
G.W:450g
