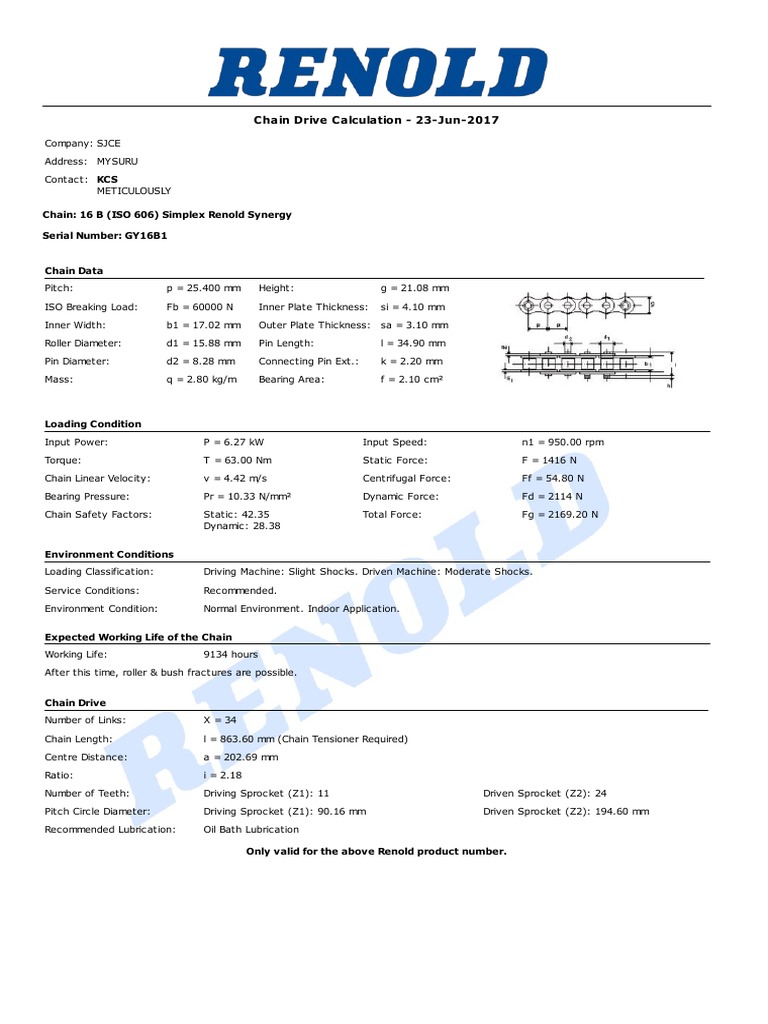

Chain Drive Calculation - 23-Jun-2017

Company: SJCE
Address: MYSURU
Contact: KCS
METICULOUSLY

Chain: 16 B (ISO 606) Simplex Renold Synergy


Serial Number: GY16B1

Chain Data
Pitch: p = 25.400 mm Height: g = 21.08 mm
ISO Breaking Load: Fb = 60000 N Inner Plate Thickness: si = 4.10 mm
Inner Width: b1 = 17.02 mm Outer Plate Thickness: sa = 3.10 mm
Roller Diameter: d1 = 15.88 mm Pin Length: l = 34.90 mm
Pin Diameter: d2 = 8.28 mm Connecting Pin Ext.: k = 2.20 mm
Mass: q = 2.80 kg/m Bearing Area: f = 2.10 cm

Loading Condition
Input Power: P = 6.27 kW Input Speed: n1 = 950.00 rpm
Torque: T = 63.00 Nm Static Force: F = 1416 N
Chain Linear Velocity: v = 4.42 m/s Centrifugal Force: Ff = 54.80 N
Bearing Pressure: Pr = 10.33 N/mm Dynamic Force: Fd = 2114 N
Chain Safety Factors: Static: 42.35 Total Force: Fg = 2169.20 N
Dynamic: 28.38

Environment Conditions
Loading Classification: Driving Machine: Slight Shocks. Driven Machine: Moderate Shocks.
Service Conditions: Recommended.
Environment Condition: Normal Environment. Indoor Application.

Expected Working Life of the Chain


Working Life: 9134 hours
After this time, roller & bush fractures are possible.

Chain Drive
Number of Links: X = 34
Chain Length: l = 863.60 mm (Chain Tensioner Required)
Centre Distance: a = 202.69 mm
Ratio: i = 2.18
Number of Teeth: Driving Sprocket (Z1): 11 Driven Sprocket (Z2): 24
Pitch Circle Diameter: Driving Sprocket (Z1): 90.16 mm Driven Sprocket (Z2): 194.60 mm
Recommended Lubrication: Oil Bath Lubrication
Only valid for the above Renold product number.
