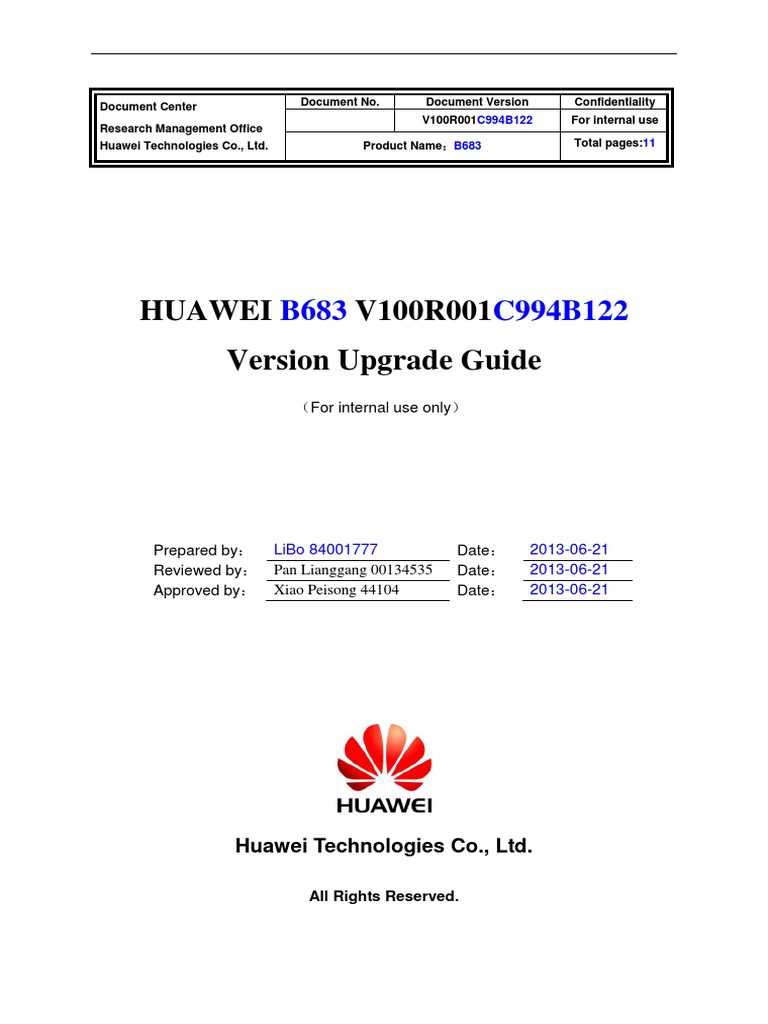

Document Center Document No.

Document Version Confidentiality

V100R001C994B122 For internal use
Research Management Office
Huawei Technologies Co., Ltd. Product Name：B683 Total pages:11

HUAWEI B683 V100R001C994B122

Version Upgrade Guide
（For internal use only）

Prepared by： LiBo 84001777 Date： 2013-06-21

Reviewed by： Pan Lianggang 00134535 Date： 2013-06-21
Approved by： Xiao Peisong 44104 Date： 2013-06-21

Huawei Technologies Co., Ltd.

All Rights Reserved.

 Table of Contents

1 General Description ............................................................................................................................... 3

1.1 Upgrade Description .............................................................................................................. 3
1.2 Term Description ................................................................................................................... 3
2 List of Upgrading Files .......................................................................................................................... 3
2.1 BCM Application ................................................................................................................... 3
2.2 MSM Application .................................................................................................................. 3
2.3 Database Table ....................................................................................................................... 3
2.4 Configuration File .................................................................................................................. 3
3 B683 Software Upgrading Process ........................................................................................................ 3
3.1 Preparation before Upgrading ................................................................................................ 3
3.1.1 Check of Operating System,database and configuration file,kernal parameter and
system operation status .................................................................................................................. 4
3.1.2 Backup of Operating System,database and relevant files .............................................. 4
3.2 Urgency Upgrade Mode ......................................................................................................... 4
3.3 Multi-file update .................................................................................................................... 6
3.4 Examine after Upgrade ........................................................................................................ 10
3.5 Abnormality Handling Process During Upgrading .............................................................. 10
3.5.1 Abnormality Handling Process During Upgrade ......................................................... 10
3.5.2 Others ........................................................................................................................... 11
3.6 Older Version Restoration after Upgrade Failure ................................................................ 11
3.7 On-site Cleaning after Upgrade Success .............................................................................. 11
None. .................................................................................................................................................... 11
4 Dial testing scheme after Upgrade ....................................................................................................... 11
5 Installation ........................................................................................................................................... 11
5.1 Preparations before Installation ........................................................................................... 11
5.2 Installation Procedure .......................................................................................................... 11
5.3 Installation Check ................................................................................................................ 11
 HUAWEI B683 V100R001C994B122 Version Usage Guide For internal use

1 General Description

1.1Upgrade Description
This document describes Upgrade Guide of HUAWEI B683. The whole software upgrading includes
BCM software and MSM software upgrading. The upgrading method of BCM will be described in section
3, and the upgrading method of MSM will be described in section 4. Please refer to the corresponding
section corresponds to your need.

1.2Term Description
None

2 List of Upgrading Files

2.1BCM Application
file description
WLB683I002023_APP.BIN APP internet applications upgrade image
WLB683I002023_HTMLCODE.BIN Static resource upgrade file

WLB683I002023_HTMLRES.BIN Dynamic resource upgrade file

WLB683I002023_DEFAULTCFG.BIN Operator configuration file

2.2MSM Application
file description

2.3Database Table
None

2.4Configuration File
None

3 B683 Software Upgrading Process

The method is supported to upgrade B683 software image: Multi-file update.

You can upgrade APP and RES by Multi-file update.
If the user use B683 for first time, we suggest you to use Multi-file update, because the APP file and RES
file must work together, if you upgrade APP file but have not upgrade RES file, the WEB page may have
some errors.

3.1Preparation before Upgrading

版权所有，侵权必究 第3页，共11页
 HUAWEI B683 V100R001C994B122 Version Usage Guide For internal use

3.1.1Check of Operating System,database and configuration file,kernal parameter

and system operation status
windows 98、2000、windows xp、vista
IE 6.0 and prior versions.

3.1.2Backup of Operating System,database and relevant files

None
Obtain and Check of FMC upgrade tool

3.2 Urgency Upgrade Mode

When failed to upgrade the APP file ,the APP may have already been destroyed, B683 will enter
BOOT environment automatically, an other method can be used to upgrade APP.
1、Check the network connection of maintenance PC,and configure an IP address for the PC
manually,the range of the IP address is from 192.168.1.100 to 192.168.1.200,set subnet mask to
255.255.255.0,default gateway is NULL

Figure 1 configure IP address manually

2、Open IE explorer，input the B683’s IP address 192.168.1.6，then enter the upgrading page under
the BOOT environment:

版权所有，侵权必究 第4页，共11页
 HUAWEI B683 V100R001C994B122 Version Usage Guide For internal use

Figure 2 WEB upgrading page under BOOT environment

3、Click the “browse” button on this page and select the right image file(APP file),then click the
“Upgrade Software” button to upgrade the APP software.Please wait for about 2 minutes until you
see the page below,that means, the upgrade process has finished successfully.

版权所有，侵权必究 第5页，共11页
 HUAWEI B683 V100R001C994B122 Version Usage Guide For internal use

Figure 3 Upgrading Process under BOOT environment

When upgrade successs,it will jump to 192.168.1.1 page automatic.

3.3 Multi-file update

Take B683 for example.
Connect PC and FMC through network cable and download the document FMC Upgrade
Gen.EXE. Then you can see an icon like this:

Figure 4 Multi-file update tool

This is a tool which can generate the upgrade tool we need. Double click this icon, you
can access an interface like the picture below.

Figure 5 Multi-file update tool

You are not attention to Product and Version,please chose Realtek in Type,like Figure 6.

版权所有，侵权必究 第6页，共11页
 HUAWEI B683 V100R001C994B122 Version Usage Guide For internal use

Figure 6 Multi-file update tool

You shold take all .BIN files in Folder.The relation of options and BIN file is show in
follow talbe.
Router Module’s Common Html Resource xxxx_HTMLRES.BIN
Router Module’s Special Html Code xxxx_HTMLCODE.BIN
Router Module’s APP xxxx_APP.BIN
Router Module’s Default Config xxxx_DEFAULTCFG.BIN
Wireless Module’s Firemware Wireless Module firmware
Wireless Module’s Dashboard Dashboard
Select the Router Module’s Common Html Resource, and choose the xxxx_HTMLRES.BIN
file of the router module from your computer.
Select the Router Module’s Special Html Code, and choose the xxxx_HTMLCODE.BIN file of
the router module from your computer.

Select the Router Module’s APP, and choose the xxxx_APP.BIN file of the router module

版权所有，侵权必究 第7页，共11页
 HUAWEI B683 V100R001C994B122 Version Usage Guide For internal use

from your computer.

Select the Router Module’s Default Config, and choose the xxxx_DEFAULTCFG.BIN file of
the wireless module from your computer.
Select the Wireless Module’s Firemware, and choose the Wireless Module firmware file of the
client software from your computer.
Select the Wireless Module’s Dashboard, and choose the Dashboard file of the client
software from your computer.

Figure 7 Multi-file update tool

Click the Generate button, and you can see that an exe file has been created by
FMCUpgradeGen. The icon is

Figure 8 Multi-file update tool

Double click this icon, then you can access an interface like this:

版权所有，侵权必究 第8页，共11页
 HUAWEI B683 V100R001C994B122 Version Usage Guide For internal use

Figure 9 Multi-file update tool

Click Check button

Figure 10 Multi-file update tool

The software can find the corresponding upgrade version by the path we set in
FMCUpgradeGen. Click Upgrade to start the upgrade process.

Figure 11 Multi-file update tool

Wait for about 8mins until the whole upgrade process finishes, make sure the device is
not powered off. You can close the interface and your device will restart automatically.

版权所有，侵权必究 第9页，共11页
 HUAWEI B683 V100R001C994B122 Version Usage Guide For internal use

Figure 12 Multi-file update tool

3.4 Examine after Upgrade

After upgrade, we can load in web server of B683 and verify the current version
according the following step: select System->Device Information, check the current version and
release data.

Figure 13 Version info inquire

Router Software Version : B683 APP Software Version

Router Hardware Version : B683 Hardware Version

3.5 Abnormality Handling Process During Upgrading

3.5.1Abnormality Handling Process During Upgrade

1、 If network disconnect or power shut down when uploading APP iamge according to
the method introduced in section 3.2, it can not destroy board software and we can upgrade
again using the methods of 3.2 .

版权所有，侵权必究 第10页，共11页
 HUAWEI B683 V100R001C994B122 Version Usage Guide For internal use

2、 If upgrade BOOT image using the method described in section 3.2.2, then shutting
off power and disconnecting network in upgrading is prohibited, because of the upgrade
failure will become beyond retrieve.

3.5.2 Others
None

3.6 Older Version Restoration after Upgrade Failure

None

3.7 On-site Cleaning after Upgrade Success

None.

4 Dial testing scheme after Upgrade

After verify version, try to dial and connect internet.

1. Log on Web page of B683, check whether display correct language.

5 Installation

5.1 Preparations before Installation

None.

5.2 Installation Procedure

None.

5.3 Installation Check

None.

版权所有，侵权必究 第11页，共11页
