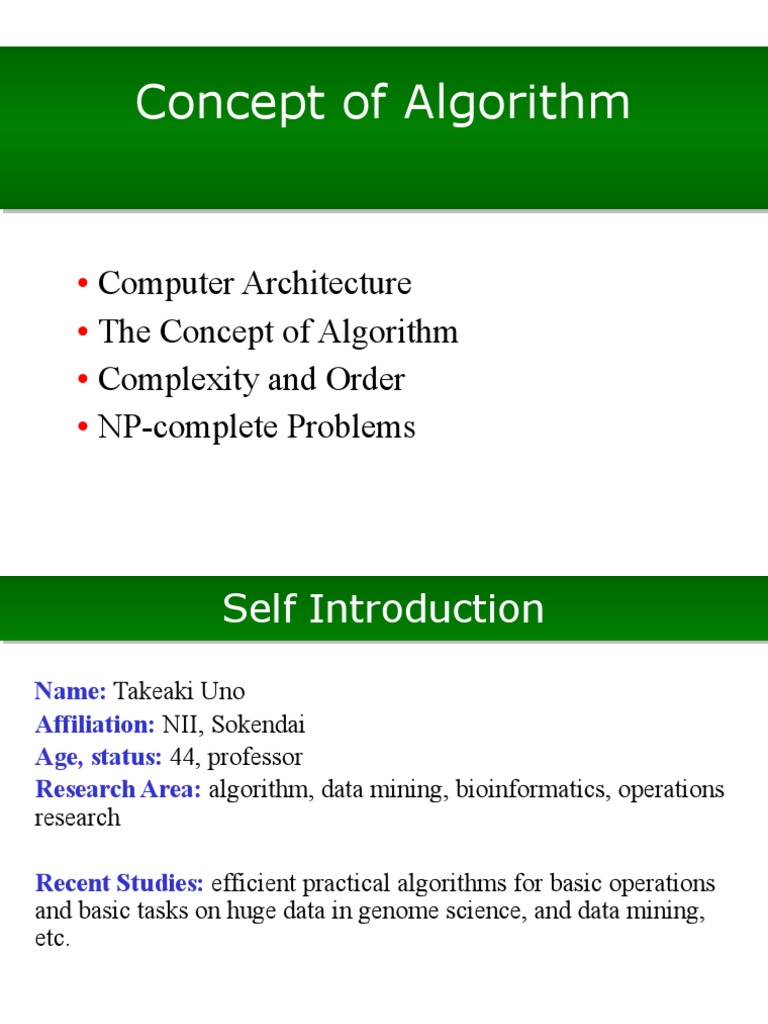

Concept of Algorithm

• Computer Architecture
• The Concept of Algorithm
• Complexity and Order
• NP-complete Problems
Self Introduction
Name: Takeaki Uno
Affiliation: NII, Sokendai
Age, status: 44, professor
Research Area: algorithm, data mining, bioinformatics, operations
research

Recent Studies: efficient practical algorithms for basic operations


and basic tasks on huge data in genome science, and data mining,
etc.
Goal / Evaluation / Reference
• Algorithms are efficient especially for processing big data

• The goal is to learn the skill and sense of developing algorithms, or


viewing the problems and issues from algorithmic view points

Evaluation: a report, on the end of the semester

Reference: any textbook of title “Algorithm” and/or “Data


structure”, that you feel interesting/understandable

• e-mail: uno@nii.ac.jp
Homepage : http://research.nii.ac.jp/~uno/index-j.html
(the slides are uploaded)
Contents of the Lecture
Architecture of computer, and the program
  CPU, memory, OS, memory management, instruction, register

Data structure (efficient ways of recording/using the data)
stack, queue, heap, binary tree, hash

Basic Design of Algorithms


recursion, divide-and-conquer, enumeration, dynamic
programming, sorting, string matching

Graph Algorithms
matching, shortest paths,…
Connection to Latest Researches
• Algorithms are connected to the many latest researches
  (algorithms are studied in the areas, in which algorithm are
related)
• Especially, having simple mathematical models and criteria, with
huge data or complicated data

+ Bioinformatics
Human genome is of 3 billion letters. They have only 4 kinds of
letters ATGC, thus computers have advantages. Genes and variations
often have some implicit rules

+ Chemoinformatics
Chemical compounds are networks of atoms, so tractable for
computers. However, the stereographical structures are difficult
Connection to Latest Researches
+ Astronomy
Computer systems of observatories generates huge amount of data,
and those data is accumulated to integrated databases

+ Physics (quantum mechanics)


data from particle accelerators are incredibly huge. Now, we can
only filter and store the data, only

+ Social science
recently, there have been progresses on understanding systems of
societies by simulations with including micro activities
Connection to Latest Researches
+ architecture
other than structural calculations to evaluate the strength of the
buildings, material optimizations and structure optimizations reduce
the costs

+ literature
large amount of literatures allows as to find interesting knowledge
by computer operations

+ other
development of simulation science, that is to understand the real
world phenomenon and mechanisms by simulations
Latest Researches in Japan
• Japanese algorithmic researches are of high levels in the world
+ interior point methods for optimization problems
+ discrete mathematics and combinatorial optimizations
+ compression and succinct indexes
+ database search and database construction
+ data mining
+ computational geometry

• Studies on algorithms are currently on theory, mainly


Engineering theorems would be derived in future
Architecture of Computer
Basic Architecture
• The center of computer is “CPU (central processing unit) that
basically does basic arithmetic operations

• CPU is like an engine of a car


Having CPU would be a definition of computer

• Other than CPU, a computer has memory that records several


(many) values (mostly 0 or 1)

CPU memory
Interfaces
• Monitor, keyboard, mouse etc. are connected to CPU, and
controlled/managed by signals given by CPU

• From CPU, these signal receive/generation seems like memory;


writing some values to a specified memory, signal will be sent

• So, everything is operated by signals, especially 0/1


Program
• CPU can do
  + read value of memory, write to memory
  + arithmetic operations such as addition and division
  + compare the values, and branch the operation

• These are called instructions (values are called operands)


• The order of instructions are written in a part of memory
This is called program

• Execution is to operate instructions according to the program

CPU memory
Execution of Program
• CPU executes instructions written in the program, sequentially

• Instructions are written in numbers, and each function is


assigned to a number

• During the execution, the program can change the memory


place to read the program (jump)
• Branching is done by this; jump or not according to the
comparison (conditional jump)

CPU memory
プログラミング言語
• CPU の命令は数値。しかも、1つ1つの処理は非常に単純(これ
をマシン語、あるいは機械語という)
• これを組合せてプログラムを作るのは、かなり大変

• そこで、通常はもう少し抽象化して、人間に見やすくした「高級
言語」とよばれるものを使う
( C , JAVA , Perl, Basic, シェルスクリプトなど)

• 高級言語で書かれたプログラムを、 CPU に実行させるには、プ


ログラムをいったんマシン語に翻訳する(この作業をコンパイ
ルという)か、プログラムどおりの処理をするプログラム(イン
タープリタという)を使う
概念的な例
1: 場所 15 に 0 を書き込む
2: 場所 16 に 2 を書き込む
3: 場所 15 と 16 の値を足し、それを場所 15 に書き込む
4: 場所 17 の値が 10 以上ならば、8へいく
5: 3へ行く

8: ...

• 2-4のように局所的に繰り返して実行される部分をループ
という

CPU メモリ
メモリのアクセス
• メモリは 1 バイトずつ数値が記憶されている
• メモリには、記憶場所に 0 から始まる番号がついていて、好き
な場所のデータに一手でアクセス(書き込み/読み出し)でき

• このように、好きな場所に一手でアクセスできるメモリをランダ
ムアクセスメモリという

• ランダムアクセスでない記憶装置は、例えば CD とかハード
ディスクとか、テープ

1 0 1 1 0 1 0 1
数値の表現(バイト)
• メモリは数値を覚えられるが、実は 0 と 1 しか覚えられな
い (ビットという)
• しかし、大量に 01 の数値を記憶できる

• 実際は、 01 しか記憶できないのでは用をなさないので、 01
の数値を 8 個セットにして、それを 2 進数とみなす。( 0-
255 が表現できる)
 - これを 1バイトという

• 足す引くかけるの算術演算の結果、 2 進数 9 桁目に繰り
上がったとき、あるいはマイナスになったときは、その部分
は無視して計算する

1 0 1 1 0 1 0 1 128+32+16+4+1 = 181
16 進数
• コンピュータに記憶された数を扱うときは、当然、2進数で話
をしたほうがわかりやすい
(例えば、 1 バイトに入る数の最大は 11111111 とか。直感的
になる)

• 01 だけで表記すると場所をとる、桁が大きくなる

• そこで、 4 桁ずつひとまとめにして、 24 = 16 進数で表記


することが多い

• 10-15 は、 abcdef で表記する。例えば、 14=d 、 255=ff


データの記憶
• メモリには、記録されている数値が整数か、文字か、といった、
データの種類を覚えておく機能はないので(数値として付加的
に記録することはできるが)、自分(プログラム)が何を書いた
か管理する

• つまり、「何のデータはどこに書いた」ということを決めておく。プ
ログラムでは、データの計算をする際には、場所を決めて書く

• 常に 0 か 1 の値が書いてあるので、「書き込まれていない」とい
うことも検出できない

点数
点数
20点数
20 1 0 1 1 0 1 0 1
20
整数小数文字
- 整数: 01 の数値をいくつかセットにして、それを 2 進数とみな
す。通常、 32 ビット = 4 バイト。 (0-40 億くらい )

- 実数: 整数と小数点の位置をセットで記憶。小数点は 2 進数の


位置で記憶。通常、整数が 56 ビット、小数点が 8 ビット( 256 桁
分)

- 文字: 文字と整数値を対応させたコード表があり、それを使っ
て整数値として記憶する

1 0 1 1 0 1 0 1 128+32+16+4+1 = 181

+ 0 1 0 1 4+1 + (16+4+1)/32 = 5.65625


負の数の表現(バイト)
- 負の数: 最上位のビットが 1 になった数は、 256 を引い
て、負の数とみなす。通常の数と思って計算したときと、負
の数と思って計算したときの結果が同じなので、結果を変
換する必要がない

例:  255 は -1 になる。 1 を足すと、


1111111 + 1 = 100000000 。 9 桁目は無視するので、 0
これは、実際の -1 +1 の答えと一致する

例:  -2 は 254 、 -5 は 251 。両者を足すと、 505 。 256 の


剰余を求めると 249 。これは -7 に対応。両者を掛けると
63754 。剰余を求めると 10 。
文字コード表 (ASCII)
- 0-255 の整数と文字の 1 対 1 対応を表したコードを ASCII
コード、そのコードに基づいて書かれた文字を ASCII 文字とい
う (だいたい世界標準)
- コンピュータに文字が記憶されるときは、このテーブルにした
がって数値に変換され、 1 文字 1 バイトで記録される(大小の
比較ができる)

| 20 sp | 21 ! | 22 " | 23 # | 24 $ | 25 % | 26 & | 27 ' |


| 28 ( | 29 ) | 2a * | 2b + | 2c , | 2d - | 2e . | 2f / |
| 30 0 | 31 1 | 32 2 | 33 3 | 34 4 | 35 5 | 36 6 | 37 7 |
| 38 8 | 39 9 | 3a : | 3b ; | 3c < | 3d = | 3e > | 3f ? |
| 40 @ | 41 A | 42 B | 43 C | 44 D | 45 E | 46 F | 47 G |
| 48 H | 49 I | 4a J | 4b K | 4c L | 4d M | 4e N | 4f O |
| 50 P | 51 Q | 52 R | 53 S | 54 T | 55 U | 56 V | 57 W |
| 58 X | 59 Y | 5a Z | 5b [ | 5c \ | 5d ] | 5e ^ | 5f _ |
| 60 ` | 61 a | 62 b | 63 c | 64 d | 65 e | 66 f | 67 g |
日本語の文字コード
• 日本語については、日本語独自のコード表がある(世界規格と
して使われているので、外国でも日本語の文章が読める)

• 歴史的な事情で、いくつかのコードがある

 - JIS コード
 - shift JIS コード
 - EUC コード
 - unicode
JIS コード
• 英語は 0-127 しか定められていないので、 128-255 の部分にか
なと記号が入っている
JIS 漢字コード
• 漢字については、制御コードという、特別の文字 2 つが入った
ら、日本語のモードになる。漢字は、 2 バイト 1 文字。もう一度
制御コードが来たら、以後は英数字に戻る

16 区( S-JIS 第一バイト= 0x88 )

  0 1 2 3 4 5 6 7 8 9 A B C D E F

9                               亜
A 唖 娃 阿 哀 愛 挨 姶 逢 葵 茜 穐 悪 握 渥 旭 葦
B 芦 鯵 梓 圧 斡 扱 宛 姐 虻 飴 絢 綾 鮎 或 粟 袷
C 安 庵 按 暗 案 闇 鞍 杏 以 伊 位 依 偉 囲 夷 委
D 威 尉 惟 意 慰 易 椅 為 畏 異 移 維 緯 胃 萎 衣
E 謂 違 遺 医 井 亥 域 育 郁 磯 一 壱 溢 逸 稲 茨
Shift-JIS コード
• Windows で使われているコード
• 制御文字を使わず、 2 バイトの文字をあらわしている

• 1 文字目が記号だと、次の
1 バイトとあわせて記号だと
みなすので、記号が使えな
くなる

• 2 バイト目は、改行コード
など、通常の文字になること
もあるので、日本語対応して
いないソフトで見ると、
ぐちゃぐちゃになる
EUC コード
• 主に UNIX で使われているコード
• 制御文字を使わず、 2 バイトの文字をあらわしている

• 1 文字目が記号、かななら、
2 文字目とあわせて、
漢字コードとみなす

• 2 文字目も、かな記号なの
で、漢字の一部ならかな記号、
と判断できる

• 記号、かなが出せない
UNICODE

• 世界の全ての言語の文字を1つのコードで表す、というもの
• 2 バイト 1 文字を使わず、 2 バイトの文字をあらわしている

• 漢字など、地域で字体が
違うものも1つとして扱うため
事実上はその国固有の
フォントが必要

• 最近は 4 バイトで表すようだ
キャッシュメモリ
• コンピュータのメモリのアクセス速度は、演算速度よりかなり遅
い( 10 倍以上)

• そのため、メモリを読み出すときは、しばらく演算をとめて待つこ
とになる。次の命令を読むときもそう。

• そこで、メモリを読むときはまとめてたくさん読む
• 読んだメモリは、 CPU に直結した速いメモリにしばらく取っておく
(この操作をキャッシュ、キャッシュに使うメモリをキャッシュメ
モリという)

キャッシュ
CPU メモリ ディスク
メモリ
キャッシュによる高速化
• メモリアクセスが、キャッシュに入っている場所ばかりだと計算は
大幅に速くなる
  キャッシュの効率を高めるような保存法が重要
  引き続いて、キャッシュの中を見ることが多い計算をさせる
と、高速化できる

• ディスクのアクセスにも、同じようにキャッシュを使う
  CPU 直結メモリの代わりに、通常のメモリを使う。メモリのほうが
ディスクよりアクセス速度が速いので、高速化できる

CPU メモリ HDD


変数

• 高級言語では、数値を記憶する際に変数というものを使う
• 変数には、何か値が1つ入る

• コンパイルして実行するときに、各変数にメモリの場所が割当て
られる。以後、変数をアクセスするときには、その場所にアクセ
スするようになる
配列

• 大量のデータを扱う場合、全てのデータに直接変数を割当てる
のは、大変。プログラムを書くのも大変

• そこで、配列を使う

• 配列を使うと、変数+添え字、という形でデータにアクセスでき
る。添え字のところは変数を入れられるので、例えば、 100 個
の変数を 0 にする、といった作業も、ループを使って楽にできる

1 0 1 1 0 1 0 1
OS
• コンピュータは、機種によって、入出力の方法が違う
• ディスプレイに文字を書くためには、文字の形になるよう、デー
タを書き込まなければいけない

• こういった、ハードウェアによる違いを吸収する、低レベルの処
理を行う、実行するプログラムの管理、などをするプログラムが
ある

• これを OS という ( Windows 、 UNIX など)


• 固有の接続機器を、標準的な入出力方法を用いて扱うプログラ
ムをデバイスドライバという

• メモリの管理も OS が行う
メモリの確保
• 普通、コンピュータでは、複数のプログラムが同時に実行されて
いる(含むデバイスドライバ)

• そのため、メモリの適当な場所に適当に数値を書き込むと、他
のプログラムの実行を阻害する(下手をすると動きが止まる)

• そのため、メモリを使いたいときには、 OS にお願いして、必要な
分だけ使える場所をあてがってもらう(これをメモリを確保する
という)
Complexity and Order
Ways to Solve

• ”How to solve” and “The solution” are different


  + Stew and the way to cook stew
  + The way to solve a puzzle ring
  + The way to stack the tower of Hanoi
  + The solution to a quadratic equation
    x2 - 2x + 1 = 0

• ”Ways to solve” is more abstract than solution;


solution is a solution to just an instance

• Consider ways to solution


Computer Algorithm

Algorithm:
  set (order) of instructions to do a specified task
  Usually, algorithm is that for computers
  Algorithm can be considered as a theory of designing the way of
computing, or theory of efficient programs

Summation from 1 to 100:


 • 1+2+,...,+100 ‥‥ 99 additions
 • (1+100) * (100/2) ‥ 3 operations
Cut a carrot into slices of star shapes
 • make slices, then cut the edges of each slice
 • make a star shaped stick, then slice it
Algorithms in Your Life
• how to cook
• calculation with figures written down on paper
• car driving skill
• employment interviews in companies

(all are not complete …)


Evaluation Criteria
• How do we evaluate algorithms?

• How simple
   simplicity of programs
• Efficiency (speed, place, cost,…)
   speed and memory usage (electric power consumption)

• Simplicity is difficult to evaluate, but speed and memory


usage can be measured by values
Evaluation of Time
• It is easy to evaluate the speed of a program; just get the
duration of execution
• Of course, the quality of the writing of the program affects this

• But, this is the evaluation of “programmer”


not that of “algorithm”
  Even though the algorithms are the same, the skill of
programmers makes the difference

• We want to have a good model of measuring the efficiency of


algorithms
Turing Machine
• Making model of algorithms means making model of computers
• We need to have quite basic one

• The base of computer is CPU and memory


The Turing machine is such a model

• A Turing machine is composed of a “tape” that records sequence


of 01 data, and a “head” that reads/writes 01 data, and an
execution unit managing the movement of tape

• A Turing machine can read/write data, move the tape, and change
the internal state of the execution unit
A Model for Computation Time

• The time of Turing machine is evaluated by the number of


read/write operations

• Basically, any operation of a computer can be simulated with


several operations of Turing machine
the number of operations is independent from the time/size of each
operation

• So, both can be evaluated by the same model


 the number of operations executed by an algorithm will be a
good measure
Abstracted Evaluation

• The idea of “the number of basic operations” is good. It is much


abstracted. However, still the skill of programmer affects

• We want to have more abstracted one that is independent from that

• Anyway, what kind of issues do we want to evaluate?

• For example, measure the efficiency on the execution of a specified


task? for a benchmark problem?
  then, basically the skill of programming still affects
Evaluation for Input Size

• Computation needs some inputs


The size of input increases, then computation time will be long

• Observe the increase of time against the increase of size


 we will get a function representing this relation

• For the input size n (#bits, in exact), we represent the number of


the necessary operations such as 10n2+5n+2

• This varies among several inputs, use average?


  to assure the time, we use the maximum
Ignoring the Coefficients

• We want to know the increase of operations


  it depends on the largest degree, mainly; 10n2+5n+2
  we focus on 10n2 , and ignore other coefficents

• Programming skills makes simple operations more simpler


  affects to coefficients such as 10n2+5n+2
  we focus only on n2, and ignore all constant factors

• This way of evaluating the cost of computation is called


“evaluation by order”
数学的な定義

• ”A function f(n) is O(g(n))” is defined by

lim f(n) < +∞


n +∞ g(n)

• We say that the order of an algorithm is O(g(n)) if the function


bounding the maximum number of basic operations for any input
of size n is of O(g(n))

• The order of computation time is called time complexity, or


simply complexity
Summary of Order

Order of computation time: O(f(n))


a (polynomial/exponential) function representing an upper bound
of the computation time in the term of input sizes
+ coeeficients are ignored since it represents the programming
skill
+ we focus only on the maximum magunitude
    (depends only on the maximum degree for larger inputs)
Find a word in a dictionary of n items
 • linear search O(n) Small order algorithms
 • binary search O(log n) are so efficient even
though the computer
Sorting n numbers
and/or programmer is
 • insertion, quick sort O(n2)
not good
 • merge sort, heap sort O(n log n)
Advantage / Disadvantage
• When the problem is big, acceleration by algorithmic theory is
drastic
• When the problem is small, practical performance is bad due to
sophisticated construction of operations
• Can not represent the average and practical performance

size of million
size of 100
2-3 times
10,000
times
Evaluation of Memory Usage

• The efficiency of memory usage can also be evaluated by the order


and complexity
+ the order represents the worst usage of memory amount for the
input size
+ the complexity is called “space complexity”

• We can also ignore the skill of programming

• For the memory usage, evaluation of the worst case is more


acceptable since the algorithm stops if the memory is short
Fundamentals of
Complexity Theory
Good Design

• When we can decrease the order of an algorithm, we could


“improve” the design of the algorithm

• …, then, some question arise; which algorithm is good/bad?


Where is the boundary

• An idea is to compare the most naïve algorithm

• So, observe the most naïve algorithm


Naïve Algorithm

• We here say non-well designed algorithm  naïve algorithm


• Suppose that here naïve means that to explorer all the possibilities

+ find all numbers from a1,…,an that are less than b


   examine all subsets of a1,…,an, and output the one that
partitions the set in the way of the statement

+ sorting
   examine all possible orders, and output the one which is
increasing order

+ find the longest decreasing subsequence of a1,…,an


   examine all combinations of a1,…,an, and output the longest
among all decreasing sequences
Time of Naïve Algorithms
+ find all numbers from a1,…,an that are less than b
+ find the longest decreasing subsequence of a1,…,an
   computation time is O(n2n)

+ sorting
   computation time is O(n n!) ≒ O(n2n logn)

• The time spent by these algorithms, that spends time exponential in


the input sizes, is called exponential time, and these algorithms
are called exponential time algorithms
In “Good” Ways
+ find all numbers from a1,…,an that are less than b
  scan the numbers, and output those less than b
  computation time is O(n)

+ find the longest decreasing subsequence of a1,…,an


  for each ai, find the longest decreasing subsequence ending at
ai 。 Find the longest among those of all ai’s
  computation time is O(n2)

+ sorting
  scan the sequence and swap the pairs of neighboring numbers
with the reverse ordering; repeat this n times
  computation time is O(n2)
“Good” Algorithms

 computation time is O(n)


 computation time is O(n2)
 computation time is O(n2)

• They are not exponential


• These times that are polynomial in the input sizes are called
polynomial time, and the algorithms are called polynomial time
algorithms

• Any polynomial, even with large degrees, is always smaller than


exponential, for sufficiently large n, thus essentially different
  hence, polynomial is good, in some sense
Difficulty of Problems
• Good algorithms solve problems in short time

• So, the existence of good algorithm means that the problem is


easy to solve (no need of testing all possibilities)
   the difficulty indicates the cost of developing algorithms

  polynomial time means that the problem would be easy


  no polynomial time is found means that the problem would
be difficult

• … then, we can compare the difficulties of two problems


Exact Comparison
• We can compare the difficulties of the problems, by comparing
the orders of the algorithms for the problems

• However, in exact, it is not sufficient


  faster algorithms would exist

• So, consider special cases in which we can surely compare,


although it is perfectly general
Problem Reduction
• Suppose that there are two types of problems A and B, and any
instance of B can be transformed to that of A, or any instance of B
can be solved by solving an instance of A plus α

+ find the kth largest value from n numbers


  after sorting the numbers, we can find it in O(n) time
  this problem can be solved by sorting

• Transforming an instance of B to that of A, or solving an instance


of B by solving that of A is said to “reduce problem B to A”

• In this case, A is more difficult, if time is no less than +α


• Input/output always needs O(n) time, thus finding kth largest value
is no harder than sorting
Difficult Problems

• Easy problems are stated by showing fast algorithms


• How to show the difficulty?

• Hard to state that “any algorithm needs exponential time”

• So, find most difficult problems among the problems having


polynomial/exponential time algorithms

  use the way to compare the difficulties; state that any


problems can be reduced to this problem in polynomial time
(hardest in polynomial time/exponential time problems

• Are there any such “useful problems”?


Satisfiability Problem
• There is a such “useful” problem, called satisfiability problem (SAT)

• SAT is to check whether there is an assignment to Boolean variables x1,


…,xn s.t. they satisfy the given formula
 we can assume that the formula is a CNF

• The trick is, any computer circuit is represented by a formula


• A computer circuit (of an exponential size) can simulate a non-
deterministic Turing machine that can examine exponentially many
possibilities at once in parallel
• Difficult combinatorial problems can be solved in polynomial time
• SAT is most difficult among them (problem seem to need exponential
time), since all the others can be reduced to SAT
Certification of Difficulty

• SAT is a kind of a landmark of difficult problems


 a problem is “difficult” if it is no easy than SAT

• Such a problem is called NP-hard (SAT is NP-hard)

• Problems that can be solved in polynomial time by non-


deterministic Turing machine are called NP problems (SAT is NP)
 the certification of “yes” answer is of polynomial size

• An NP problem that is NP-hard is called NP-complete


• The problem class of NP-complete problems is the one of
composed of problems of most difficult among all NP problems
SAT  3SAT

• SAT is NP-complete even if any clause has exactly three literals


 SAT is reducible to this 3SAT problem

Reduction: for each clause of a SAT instance,


+ if size < 3, generate 2 or 4 clauses by appending slack literals
(x)  (x∨y∨z) ∧ (x∨y∨ ¬ z) ∧ (x∨ ¬ y∨z) ∧ (x∨ ¬ y∨ ¬ z)

+ if size > 3, prepare a slack for each literal, and joint them by using
slack literals
(a∨b∨c∨d∨e∨f)  (a∨b∨x)∧ ( ¬ x∨c∨y)∧ ( ¬ y∨d∨z)∧ ( ¬ z∨e∨f)
SAT  k-Clique

• A clique is a subgraph of a graph in which any pair of vertices are


connected by an edge
 SAT is reducible to determine whether a graph includes a clique
of k vertices

• Prepare a vertex for each literal of each clause


• Draw edges between all pairs of the literals, but not if one is the
negation of the other

• There exists clique of size (#clauses)


 we can choose literals of each clauses with no conflict
(satisfiable!)
Independent Set Problem

Independent set: vertex subset of a graph G s.t. no two its


vertices are connected by an edge

• k-independent set problem is to determine whether the given


graph has an independent set of size k

• The problem is an essence of exclusion constraints


(composed only of exclusion)

• How do we prove NP-completeness?


• Reduce SAT
Simulate Selection by Exclusion

• We can simply simulate the constraint in SAT that is “we can


choose exactly one of xi or ¬ xi, for each i
 prepare vertices of xi and ¬ xi, and make edge between them
 an n independent set from these pairs is an assignment

• Next issue is satisfiability for clauses


xi ¬ xi
• We want to simulate, like,
“we can choose a vertex corresponding to a clause, if one of the
literal is in the assignment”
how do we do this by making graph?
Representing Clauses

• We first, simply, connect a clause Ci and its literals


x4
• If there is a literal in the assignment,
we can not choose the clause Ci Ci x1
¬ x3
• If Ci is not satisfied, we can choose Ci,
( not have to choose)

• … This is the opposite of what we want to do


 if everything is reversed, just give size constraint, and done
Reversing the Selection
• Let’s consider the reverse
 we consider the complement of the assignment, so we choose
the negation of the assignment

x4
• When a literal of clause Ci is chosen
 Ci is disabled Ci x1
¬ x3
• When no literal of Ci is chosen
 Ci is disabled

• Now, we can not choose Ci in both cases (failed!!!)


• One more idea is needed
Transforming Clauses
• Since we want choose a clause if one of its literals is chosen,
we prepare vertices for each literal

• We choose one of these vertices, thus we make them a clique

• … then, we can choose one of Ci x4


clause vertices when one of its literals
is chosen Ci x1
Ci ¬ x3
Summary of Reduction
• Reduce an instance of SAT
Input: variable x1,…,xn, clauses C1,…,Cm composed of xi, ¬ xi’s

• Construct the following graph


vertex set: literals xi, ¬ xi, pairs (Ci, xj) of clause Ci and its literal
xj
edge set : {xi, ¬ xi} for any i, {(Ck, xi), xi} for any Ck and xi

• The graph has an independent set of size n+m


 the SAT instance has true assignment Ci x4

Ci x1
Ci ¬ x3
How Much Can We Do Better?
• Exponential time can be reduced to polynomial time, by deriving
good algorithm
 low degree polynomials are better

• We of course try to derive algorithms with small degrees, but


where is the limit?
 there should be some explicit limits (called lower bound)

• For example, O(n) time for inputting the problem is a trivial


lower bound
Choose a Model
• For establish lower bounds we need model of computation

• For example, consider the problem of finding the maximum


among n numbers

• In usual, we need n time to input, thus it would be a lower bound,


but it is not true for parallel computation

• Extremely, humans can double their number in constant time,


thus after increasing to n humans in O(log n) time, then we can
choose the maximum in O(log n) time
Unit of Operation
• Memory read/write and conditional jump are basic operation of
computer, thus they should be units of operations

• Under this, let’s think about a lower bound of minimum number


of operations that are clearly needed to solve the problem

Search: find the one from n numbers that is maximum, minimum


or nearest to the given k

Sort: re-order the sequence of n numbers in increasing order


The Worst Case
• There would be an observation:
“conditional jump branch the execution to two, thus if a problem has
N kinds of possible solutions, it has at least N branches in the
computation tree”
• Even if we balance the computation tree, the worst case has to pass
through at least log2 N conditional jumps

Search: find the one from n numbers that is maximum…


 n possible solutions, thus we need log2 n time

Sort: re-order the sequence of n numbers in increasing order


 n! possible solutions, thus we need log2 n! = nlog n time
Summary
• Fundamentals of compute architecture
CPU, memory, + I/O. Hierarchy of storage

• Fundamentals of algorithm
a sequence of operations with conditional branches

• Definition of order
ignoring constant factors and small degrees, to capture the global
increase by the problem sizes

• Fundamentals of complexity:
polynomiality, NP-complete, lower bounds

You might also like
