Technological University of the Philippines
Ayala Blvd., Ermita, Manila
Name of Project: 4-STOREY COMMERCIAL BUILDING
College of Engineering
Owner: GAIL MAYSOUNABE Civil Engineering Department
Location: ANABU B-A IMUS CITY CAVITE

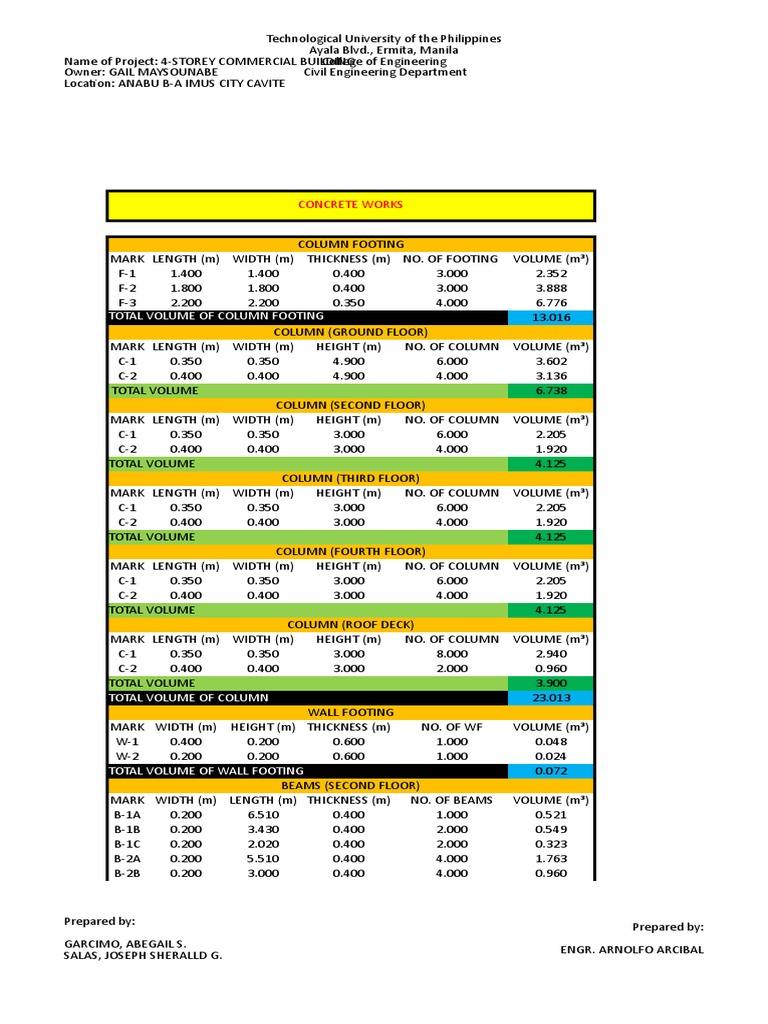

CONCRETE WORKS
COLUMN FOOTING
MARK LENGTH (m) WIDTH (m) THICKNESS (m) NO. OF FOOTING VOLUME (m³)
F-1 1.400 1.400 0.400 3.000 2.352
F-2 1.800 1.800 0.400 3.000 3.888
F-3 2.200 2.200 0.350 4.000 6.776
TOTAL VOLUME OF COLUMN FOOTING 13.016
COLUMN (GROUND FLOOR)
MARK LENGTH (m) WIDTH (m) HEIGHT (m) NO. OF COLUMN VOLUME (m³)
C-1 0.350 0.350 4.900 6.000 3.602
C-2 0.400 0.400 4.900 4.000 3.136
TOTAL VOLUME 6.738
COLUMN (SECOND FLOOR)
MARK LENGTH (m) WIDTH (m) HEIGHT (m) NO. OF COLUMN VOLUME (m³)
C-1 0.350 0.350 3.000 6.000 2.205
C-2 0.400 0.400 3.000 4.000 1.920
TOTAL VOLUME 4.125
COLUMN (THIRD FLOOR)
MARK LENGTH (m) WIDTH (m) HEIGHT (m) NO. OF COLUMN VOLUME (m³)
C-1 0.350 0.350 3.000 6.000 2.205
C-2 0.400 0.400 3.000 4.000 1.920
TOTAL VOLUME 4.125
COLUMN (FOURTH FLOOR)
MARK LENGTH (m) WIDTH (m) HEIGHT (m) NO. OF COLUMN VOLUME (m³)
C-1 0.350 0.350 3.000 6.000 2.205
C-2 0.400 0.400 3.000 4.000 1.920
TOTAL VOLUME 4.125
COLUMN (ROOF DECK)
MARK LENGTH (m) WIDTH (m) HEIGHT (m) NO. OF COLUMN VOLUME (m³)
C-1 0.350 0.350 3.000 8.000 2.940
C-2 0.400 0.400 3.000 2.000 0.960
TOTAL VOLUME 3.900
TOTAL VOLUME OF COLUMN 23.013
WALL FOOTING
MARK WIDTH (m) HEIGHT (m) THICKNESS (m) NO. OF WF VOLUME (m³)
W-1 0.400 0.200 0.600 1.000 0.048
W-2 0.200 0.200 0.600 1.000 0.024
TOTAL VOLUME OF WALL FOOTING 0.072
BEAMS (SECOND FLOOR)
MARK WIDTH (m) LENGTH (m) THICKNESS (m) NO. OF BEAMS VOLUME (m³)
B-1A 0.200 6.510 0.400 1.000 0.521
B-1B 0.200 3.430 0.400 2.000 0.549
B-1C 0.200 2.020 0.400 2.000 0.323
B-2A 0.200 5.510 0.400 4.000 1.763
B-2B 0.200 3.000 0.400 4.000 0.960
Prepared by: Prepared by:
GARCIMO, ABEGAIL S. ENGR. ARNOLFO ARCIBAL
SALAS, JOSEPH SHERALLD G.
Technological University of the Philippines
Ayala Blvd., Ermita, Manila
Name of Project: 4-STOREY COMMERCIAL BUILDING
College of Engineering
Owner: GAIL MAYSOUNABE Civil Engineering Department
Location: ANABU B-A IMUS CITY CAVITE
B-2C 0.200 1.000 0.400 8.000 0.640
B-3A 0.200 3.790 0.300 1.000 0.227
B-3B 0.200 3.430 0.300 1.000 0.206
B-3C 0.200 3.000 0.300 1.000 0.180
B-3D 0.200 2.020 0.300 2.000 0.242
B-3E 0.200 1.000 0.300 1.000 0.060
B-4 0.200 3.790 0.300 1.000 0.227
B-5A 0.200 5.510 0.300 1.000 0.331
B-5B 0.200 2.000 0.300 1.000 0.120
TOTAL VOLUME 6.350
BEAMS (THIRD FLOOR)
MARK WIDTH (m) LENGTH (m) THICKNESS (m) NO. OF BEAMS VOLUME (m³)
B-1A 0.200 6.510 0.400 1.000 0.521
B-1B 0.200 3.430 0.400 2.000 0.549
B-1C 0.200 2.020 0.400 2.000 0.323
B-2A 0.200 5.510 0.400 4.000 1.763
B-2B 0.200 3.000 0.400 4.000 0.960
B-2C 0.200 1.000 0.400 8.000 0.640
B-3A 0.200 3.790 0.300 1.000 0.227
B-3B 0.200 3.430 0.300 1.000 0.206
B-3C 0.200 3.000 0.300 1.000 0.180
B-3D 0.200 2.020 0.300 2.000 0.242
B-3E 0.200 1.000 0.300 1.000 0.060
B-4 0.200 3.790 0.300 1.000 0.227
B-5A 0.200 5.510 0.300 1.000 0.331
B-5B 0.200 2.000 0.300 1.000 0.120
TOTAL VOLUME 6.350
BEAMS (FOURTH FLOOR)
MARK WIDTH (m) LENGTH (m) THICKNESS (m) NO. OF BEAMS VOLUME (m³)
B-1A 0.200 6.510 0.400 1.000 0.521
B-1B 0.200 5.510 0.400 4.000 1.763
B-1C 0.200 1.000 0.400 6.000 0.480
B-2C 0.200 1.000 0.400 1.000 0.080
B-3A 0.200 3.790 0.300 1.000 0.227
B-3B 0.200 3.430 0.300 1.000 0.206
B-3C 0.200 3.000 0.300 2.000 0.360
B-3D 0.200 2.020 0.300 2.000 0.242
B-3E 0.200 1.000 0.300 1.000 0.060
B-4 0.200 3.790 0.300 1.000 0.227
B-5A 0.200 5.510 0.300 1.000 0.331
B-5B 0.200 2.000 0.300 1.000 0.120
B-6A 0.200 3.430 0.300 2.000 0.412
B-6B 0.200 3.000 0.300 2.000 0.360
B-6C 0.200 2.020 0.300 2.000 0.242
B-7A 0.200 3.790 0.300 2.000 0.455
B-7B 0.200 1.000 0.300 1.000 0.060
TOTAL VOLUME 6.146
STAIR BEAM (SECOND FLOOR)
MARK WIDTH (m) LENGTH (m) THICKNESS (m) NO. OF BEAMS VOLUME (m³)
Prepared by: Prepared by:
GARCIMO, ABEGAIL S. ENGR. ARNOLFO ARCIBAL
SALAS, JOSEPH SHERALLD G.
Technological University of the Philippines
Ayala Blvd., Ermita, Manila
Name of Project: 4-STOREY COMMERCIAL BUILDING
College of Engineering
Owner: GAIL MAYSOUNABE Civil Engineering Department
Location: ANABU B-A IMUS CITY CAVITE
STB-1 0.200 2.020 0.300 2.000 0.242
STB-2 0.200 1.000 0.300 2.000 0.120
TOTAL VOLUME 0.362
STAIR BEAM (THIRD FLOOR)
MARK WIDTH (m) LENGTH (m) THICKNESS (m) NO. OF BEAMS VOLUME (m³)
STB-1 0.200 2.020 0.300 2.000 0.242
STB-2 0.200 1.000 0.300 2.000 0.120
TOTAL VOLUME 0.362
STAIR BEAM (FOURTH FLOOR)
MARK WIDTH (m) LENGTH (m) THICKNESS (m) NO. OF BEAMS VOLUME (m³)
STB-1 0.200 2.020 0.300 2.000 0.242
STB-2 0.200 1.000 0.300 2.000 0.120
TOTAL VOLUME 0.362
STAIR BEAM (ROOF DECK)
MARK WIDTH (m) LENGTH (m) THICKNESS (m) NO. OF BEAMS VOLUME (m³)
B-3A 0.200 3.790 0.300 2.000 0.455
B-3D 0.200 2.020 0.300 2.000 0.242
B-3E 0.200 1.000 0.300 4.000 0.240
B-3F 0.200 2.510 0.300 2.000 0.301
TOTAL VOLUME 1.238
FOOTING TIE BEAM
MARK WIDTH (m) LENGTH (m) THICKNESS (m) NO. OF FTB VOLUME (m³)
FTB-A 0.200 6.510 0.300 5.000 1.953
FTB-B 0.200 3.790 0.300 2.000 0.455
FTB-C 0.200 3.430 0.300 2.000 0.412
FTB-D 0.200 3.000 0.300 2.000 0.360
FTB-E 0.200 2.020 0.300 3.000 0.364
TOTAL VOLUME 3.543
TOTAL VOLUME OF BEAMS 24.714
SLAB ON FILL
MARK AREA (m²) THICKNESS (m) NO. OF SLAB VOLUME (m³)
S-1 67.332 0.125 1.000 8.417
TOTAL VOLUME 8.417
SLAB (SECOND FLOOR)
MARK AREA (m²) THICKNESS (m) NO. OF SLAB VOLUME (m³)
S-1A 3.750 0.125 1.000 0.469
S-1B 3.430 0.125 1.000 0.429
S-1C 3.000 0.125 1.000 0.375
S-1D 2.020 0.125 1.000 0.253
S-1E 2.000 0.125 1.000 0.250
S-2A 20.883 0.125 1.000 2.610
S-2B 18.899 0.125 1.000 2.362
S-2C 16.530 0.125 1.000 2.066
S-2D 11.130 0.125 1.000 1.391
S-2E 5.510 0.125 1.000 0.689
TOTAL VOLUME 10.894
SLAB (THIRD FLOOR)
MARK AREA (m²) THICKNESS (m) NO. OF SLAB VOLUME (m³)
S-1A 3.750 0.125 1.000 0.469
Prepared by: Prepared by:
GARCIMO, ABEGAIL S. ENGR. ARNOLFO ARCIBAL
SALAS, JOSEPH SHERALLD G.
Technological University of the Philippines
Ayala Blvd., Ermita, Manila
Name of Project: 4-STOREY COMMERCIAL BUILDING
College of Engineering
Owner: GAIL MAYSOUNABE Civil Engineering Department
Location: ANABU B-A IMUS CITY CAVITE
S-1B 3.430 0.125 1.000 0.429
S-1C 3.000 0.125 1.000 0.375
S-1D 2.020 0.125 1.000 0.253
S-1E 2.000 0.125 1.000 0.250
S-2A 20.883 0.125 1.000 2.610
S-2B 18.899 0.125 1.000 2.362
S-2C 16.530 0.125 1.000 2.066
S-2D 11.130 0.125 1.000 1.391
S-2E 5.510 0.125 1.000 0.689
TOTAL VOLUME 10.894
SLAB (FOURTH FLOOR)
MARK AREA (m²) THICKNESS (m) NO. OF SLAB VOLUME (m³)
S-1A 3.750 0.125 1.000 0.469
S-1B 3.430 0.125 1.000 0.429
S-1C 3.000 0.125 1.000 0.375
S-1D 2.020 0.125 1.000 0.253
S-1E 2.000 0.125 1.000 0.250
S-2A 20.883 0.125 1.000 2.610
S-2B 18.899 0.125 1.000 2.362
S-2C 16.530 0.125 1.000 2.066
S-2D 11.130 0.125 1.000 1.391
S-2E 5.510 0.125 1.000 0.689
TOTAL VOLUME 10.894
SLAB (ROOF DECK)
MARK AREA (m²) THICKNESS (m) NO. OF SLAB VOLUME (m³)
S-2F 7.580 0.125 1.000 8.705
S-2G 5.070 0.125 1.000 6.195
TOTAL VOLUME 14.900
TOTAL VOLUME OF SLAB 55.999
STAIRS (1-4)
DESIGNATION LENGTH (m) WIDTH (m) THICKNESS (m) NO. OF STEPS VOLUME (m³)
RISE AND RUN (A) 0.230 1.000 0.190 60.000 2.622
RISE AND RUN (B) 0.230 1.010 0.190 48.000 2.119
LANDING A 0.500 1.000 0.190 4.000 0.380
LANDING B 0.800 1.010 0.190 8.000 1.228
TOTAL VOLUME OF STAIRS 6.349
Prepared by: Prepared by:
GARCIMO, ABEGAIL S. ENGR. ARNOLFO ARCIBAL
SALAS, JOSEPH SHERALLD G.
