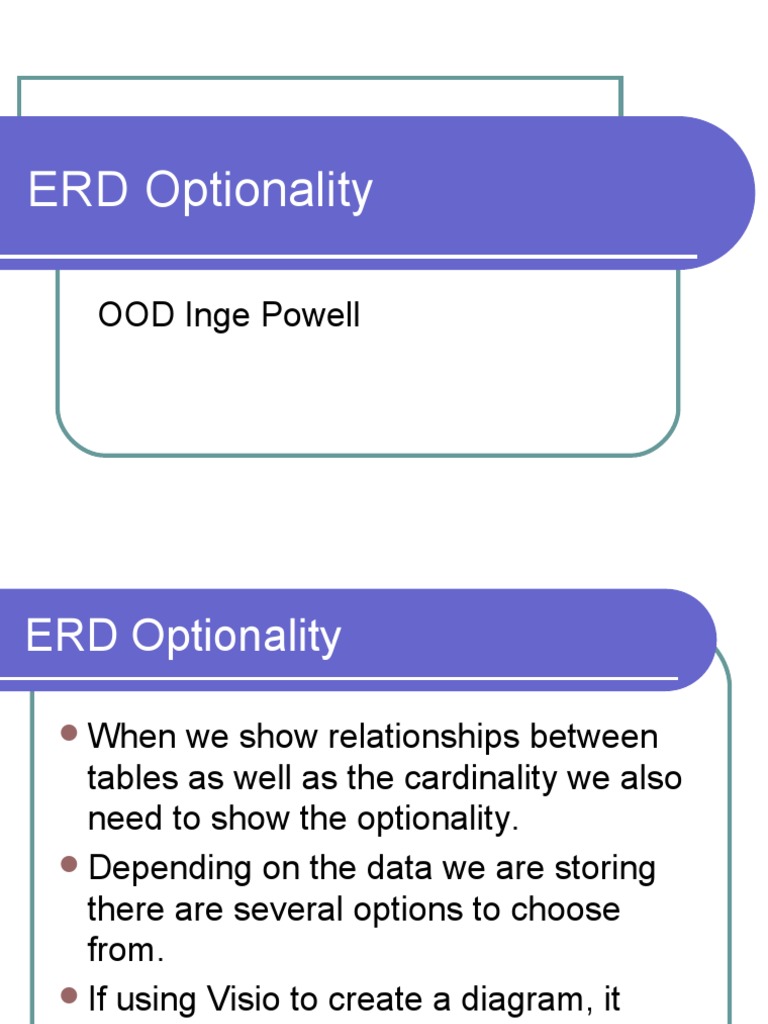

ERD Optionality
OOD Inge Powell
ERD Optionality
When we show relationships between
tables as well as the cardinality we also
need to show the optionality.
Depending on the data we are storing
there are several options to choose
from.
If using Visio to create a diagram, it
takes its initial value from the database
store.
ERD Optionality
The cardinality shows what type of relation
ship, (One to One or One to Many etc)
But is does not state whether this is a
mandatory or optional relationship.
A Mandatory relationship is where there must
be at least one matching record in each entity.
An Optional relationship is where there may
or may not be a matching record in each
entity.
ERD Optionality
The relationship is shown with a
connecting line between the entities.
Entity A Entity B
The cardinality is shown by the use of
crows feet or lines.
Entity A Entity B
Butis does not state whether this is a
mandatory or optional relationship?
ERD Optionality
The optionality is shown inside the
cardinality.
Cardinality
Entity A Entity B
Optionality
ERD Optionality
A Mandatory relationship is shown with a
vertical line next to the cardinality. (Must
be at least one Entity A)
Entity A
An Optional relationship is shown with a
hollow circle next to the cardinality
(There maybe 0 to many of Entity B
Entity B
ERD Optionality
There are several types. Consider the optionality of
the next few examples when combined with
cardinality.
Entity Entity
At least one entity. One and only one entity.
Entity Entity
None or one entity. May be none or one or
more than one entity.
ERD Optionality
Here are some Mandatory examples..
Customer Order
One Customer has made at least one order.
Customer Order
One Order is for Only One Customer
ERD Optionality
Here are some Optional examples..
Protected
Reptile
Species
One Protected Species record may be for
none, one or many kept reptiles.
Protected
Reptile
Species
One Reptile may or may not have a protected
species record.
ERD Optionality
Here are some Mixed examples.
Category Product
One Category may have none, one or many
Products.
Category Product
One Product will have one and only one
Category.
ERD Optionality
Very rarely there is a optional mandatory relationship.
This is usually where there are several tables
concerned. This is a mutually exclusive relationship.
Bus
MOT
Minibus
A Bus will have one or more MOT records.
A Minibus will have one or more MOT records.
An MOT record MUST be for either a bus or a
minibus. It must be for at least One of the entities.
ERD Optionality
Scenario:
A small hire car firm has several cars.
The company ensures that the cars they
buy have an initial service.
Each car is serviced regularly.
Records are kept of each car and each
service.
Car Service
ERD Optionality
In the scenario, there will always be at
least one service record for a car.
If a service has been recorded then it
must have a matching car record.
This is a Mandatory relationship.
Will have at least one
Car Service
Will have a matching car
Erd Optionality
We add in the optionality.
Car Service
One Car has one or more Service records.
One Service record is for only one Car record.
The records might be held like this:
Car
Car Service
Service
PK
PKCarID
CarID PK
PKServiceID
ServiceID
Make
Make Date
Date
Model
Model Garage
Garage
EngineCC
EngineCC FK CarID
FK CarID
ERD Optionality
Look at all of your relationships in turn.
Entity A Entity B
This is a ‘One to Many’ relationship.
Ask yourself, Does Entity A, HAVE to have an
Entity B?
If it does, then place a single vertical line next
to the crows feet of Entity B.
If it does not, then place a circle by the crows
feet of Entity B.
ERD Optionality
Entity A DOES have to have at least 1 Entity B
Entity A Entity B
Entity A does NOT have to have an Entity B.
Entity A Entity B
ERD Optionality
Letssay you decided that it could be optional.
Now look at the reverse relationship.
Entity A Entity B
Ask yourself, Does Entity B, HAVE to have an
Entity A?
If it does, then place another vertical line next
to the cardinality of Entity A.
If it does not, then place a circle by Entity A.
ERD Optionality
Entity B DOES have to have an Entity A
Entity A Entity B
Entity B does NOT have to have an Entity A.
Entity A Entity B
Erd Optionality
Visiowill pick up the relationship types from
the database structure.
???
?
Customer Order
If it is not showing the optionality correctly, then
the issue is in the database relationships.
A One To Many relationship will give an optional
link as default.
You must set Referential Integrity to true and
correctly set the Join type.
