Material Submittal

MATERIAL SUBMITTAL FOR
BMS CONTROLS
PROJECT
BMS RECTIFICATION OF PROJECTS

SNAGS/CORRECTIVE MAINTENANCE
WORKS AT ASPETAR NORTH AND WEST
EXPANSION AREAS
CLIENT
ASPIRE LOGISTICS
REV-0-14/09/17
BMS SPECIALIST & SUPPLIER

AN ISO 9001 : 2001 CERTIFIED COMPANY
ADDRESS : P. O. Box 8689 , Doha – QATAR

TEL : +974 44310652 FAX : +974 44373664
E-Mail : shahjan@qatar.net.qa
www.shahjan.com
P R O J E C T N A ME : B M S R e c ti f i c a ti o n o f P r o j e c ts
S n a g s/ C o r r e c ti ve Ma i n te n a n c e W o r k s a t A sp e ta r
N o rth a n d W e st E x p a n si o n A re a s
Page 1 of 1

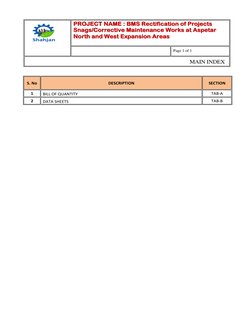

MAIN INDEX
S. No DESCRIPTION SECTION
1 BILL OF QUANTITY TAB-A

2 DATA SHEETS TAB-B
SECTION - A
BILL OF QUANTITY


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com

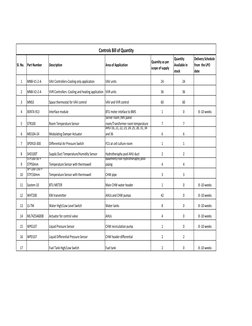

Controls Bill of Quantity
Quantity Delivery Schedule
Quantity as per
Sl. No. Part Number Description Area of Application Available in from the LPO
scope of supply
stock date
1 MNB-V1-2-A VAV Controllers-Cooling only application VAV units 24 24
2 MNB-V2-2-A VVR Controllers -Cooling and heating application VVR units 36 36
3 MNS3 Space thermostat for VAV control VAV and VVR control 60 60
4 XENTA 913 Interface module BTU meter inteface to BMS 1 0 8 -10 weeks
Server room /MV panel
5 STR100 Room Temperature Sensor room/Transformer room temperature 7 7
AHU-16, 21, 22, 23, 24, 25, 26, 31, 34
6 MD10A-24 Modulating Damper Actuator and 36 6 6
7 SPD910-300 Differential Air Pressure Switch FCU at cell culture room 1 1
8 SHD100T Supply Duct Temperature/Humidity Sensor Hydrotheraphy pool AHU duct 2 2

STP100-50 + Basement/roof hydrotheraphy pool
9 STP50mm Temperature Sensor with thermowell piping 4 4
SPT100-150 +
10 STP150mm Temperature Sensor with thermowell CHW pipe 3 3
11 System-10 BTU METER Main CHW water header 1 0 8 -10 weeks
12 WHT200 KW transmitter AHUs and CHW pumps 42 0 8 -10 weeks
13 LS-TM Water High/Low Level Switch Water tanks 8 0 8 -10 weeks
14 ML7425A6008 Actuator for control valve AHUs 4 0 8 -10 weeks
15 WPG107 Liquid Pressure Sensor CHW recirculation pump 1 0 8 -10 weeks
16 WPD107 Liquid Differential Pressure Sensor CHW header differential 2 2
17 Fuel Tank High/Low Switch Fuel tank 2 0 8 -10 weeks

SECTION - B
DATA SHEETS


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com

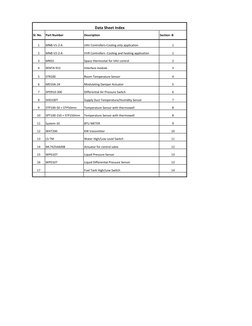

Data Sheet Index
Sl. No. Part Number Description Section -B
1 MNB-V1-2-A VAV Controllers-Cooling only application 1
2 MNB-V2-2-A VVR Controllers -Cooling and heating application 1
3 MNS3 Space thermostat for VAV control 2
4 XENTA 913 Interface module 3
5 STR100 Room Temperature Sensor 4
6 MD10A-24 Modulating Damper Actuator 5
7 SPD910-300 Differential Air Pressure Switch 6
8 SHD100T Supply Duct Temperature/Humidity Sensor 7
9 STP100-50 + STP50mm Temperature Sensor with thermowell 8
10 SPT100-150 + STP150mm Temperature Sensor with thermowell 8
11 System-10 BTU METER 9
12 WHT200 KW transmitter 10
13 LS-TM Water High/Low Level Switch 11
14 ML7425A6008 Actuator for control valve 12
15 WPG107 Liquid Pressure Sensor 13
16 WPD107 Liquid Differential Pressure Sensor 13
17 Fuel Tank High/Low Switch 14

Section-1


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com

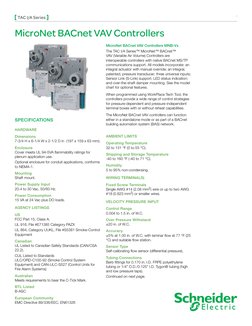

TAC I/A Series 1
MicroNet BACnet VAV Controllers

MicroNet BACnet VAV Controllers MNB-Vx
The TAC I/A Series™ MicroNet™ BACnet™
VAV (Variable Air Volume) Controllers are
interoperable controllers with native BACnet MS/TP
communications support. All models incorporate: an
integral actuator with manual override; an integral,
patented, pressure transducer; three universal inputs;
Sensor Link (S-Link) support; LED status indication;
and over-the-shaft damper mounting. See the model
chart for optional features.
When programmed using WorkPlace Tech Tool, the
controllers provide a wide range of control strategies
for pressure-dependent and pressure-independent
terminal boxes with or without reheat capabilities.
The MicroNet BACnet VAV controllers can function
SPECIFICATIONS either in a standalone mode or as part of a BACnet
building automation system (BAS) network.
Hardware
Dimensions Ambient Limits
7-3/4 H x 6-1/4 W x 2-1/2 D in (197 x 159 x 63 mm).
Operating Temperature
Enclosure 32 to 131 °F (0 to 55 °C).
Cover meets UL 94-5VA flammability ratings for
Shipping and Storage Temperature
plenum application use.
-40 to 160 °F (-40 to 71 °C).
Optional enclosure for conduit applications, conforms
to NEMA‑1. Humidity
5 to 95% non-condensing.
Mounting
Shaft mount. Wiring Terminals)
Power Supply Input Fixed Screw Terminals
20.4 to 30 Vac, 50/60 Hz. Single AWG #14 (2.08 mm2) wire or up to two AWG
Power Consumption #18 (0.823 mm2) or smaller wires.
15 VA at 24 Vac plus DO loads. Velocity Pressure Input
Agency Listings Control Range
US 0.004 to 1.5 in. of W.C.
FCC Part 15, Class A. Over Pressure Withstand
UL 916, File #E71385 Category PAZX ±20 in. of W.C.
UL 864, Category UUKL, File #S5381 Smoke-Control Accuracy
Equipment ±5% at 1.00 in. of W.C. with laminar flow at 77 °F (25
Canadian °C) and suitable flow station.
UL Listed to Canadian Safety Standards (CAN/CSA Sensor Type
22.2). Self-calibrating flow sensor (differential pressure).
CUL Listed to Standards
Tubing Connections
ULC/ORD‑C100‑92 (Smoke Control System
Barb fittings for 0.170 in. I.D. FRPE polyethylene
Equipment) and CAN‑ULC‑S527 (Control Units for
tubing or 1/4” O.D./0.125” I.D. Tygon® tubing (high
Fire Alarm Systems)
and low pressure taps).
Australian Continued on next page.
Meets requirements to bear the C-Tick Mark.
BTL Listed
B-ASC
European Community
EMC Directive 89/336/EEC, EN61326
TAC I/A Series MNB-Vx Controllers 2
Continued from first page. Digital

Dry switched contact; detection of closed switch
Tubing Length
requires less than 300 ohms resistance; detection of
5 ft. (1.52 m) maximum, each tube.
open switch requires more than 2.5 k ohms.
Inputs from MN-Sx MicroNet Sensor Standard Pulse Input
Space Temperature Minimum Rate
32 to 122 °F (0 to 50 °C). 1 pulse per 4 minutes.
Space Humidity Maximum Rate
5 to 95% RH, non-condensing. 1 pulse per second.
Local Setpoint Actuator Outputs
Adjustable within limits set by application
programming tool. Torque Rating
53 lb-in. (6 N-m).
Override Pushbutton
For standalone occupancy control or occupancy Stroke
override. Fully adjustable from 0° to 90°.
Fan Operation and Speed Mode Timing

On/off, speed (low/medium/high), or auto. Approximately 3 minutes at 60 Hz (3.6 minutes at
50 Hz) for 90° rotation at 24 Vac.
System Mode
Heat, cool, off, or auto. Position Indication
Provides a visual indication of position.
Emergency Heat
Enable or disable. Manual Override
Pushbutton to allow manual positioning of the
Universal Inputs (3) damper.
Universal Input characteristics are software- Damper Linkage
configured to respond to one of the following input 1/2 in. (12.75 mm) or 3/8 in. (9.5 mm) diameter round
types: shaft extending 7/8 in. (22.23 mm) minimum from
10 k ohm Thermistor with 11 k ohm Shunt terminal box. 3/8 in. (9.5 mm) diameter shaft requires
Resistor AM-135 adapter kit.
Sensor operating range -40 to 250 °F (-40 to
Digital Outputs – Triac
121 °C), model TSMN-57011-850, TS-5700-850
series, or equivalent. DO1 plus DO2 Rating
1 k ohm Balco 24 VA total at 24 Vac, 50/60 Hz, high side switching.
-40 to 250 °F (-40 to 121 °C), model TSMN-81011, DO3 Rating
TS-8000 series, or equivalent. 12 VA at 24 Vac, 50/60 Hz, high side switching.
1 k ohm Platinum Universal Output
-40 to 240 °F (-40 to 116 °C), model TSMN‑58011,
TS-5800 series, or equivalent. 0 to 20 mA
1 k ohm Resistive Output load from 80 to 550 ohms.
0 to 1500 ohms. 0 to 10 V
10 k ohm Resistive With external 500 ohms, 1/2 W, 1% resistor.
0 to 10.5 k ohms. Capable of Driving Functional Devices RIBUI1C
Analog Voltage Relay
Range 0 to 5 Vdc. UO configured for 0 to 20 mAdc, no external resistor.
© 2009 Schneider Electric. All rights reserved.
Analog Current
Range 0 to 20 mA, requires external 250 ohm shunt
resistor (AD-8969-202).
MODELS
Inputs and Outputs
Part Number Description
UI UO DO (Triac)
MNB-V1 Cooling only 3 — —
MNB-V2 Deluxe 3 1 3
Schneider Electric 1354 Clifford Avenue, P.O. Box 2940, Loves Park, IL 61132-2940, USA 1-888-444-1311 www.schneider-electric.com/buildings
F-27340-4 September 2009 tl

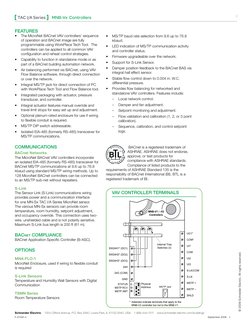

FEATURES
• The MicroNet BACnet VAV controllers’ sequence • MS/TP baud rate selection from 9.6 up to 76.8
of operation and BACnet image are fully kbaud.
programmable using WorkPlace Tech Tool. The • LED indication of MS/TP communication activity
controllers can be applied to all common VAV and controller status.
configuration and reheat control strategies.
• Firmware upgradeable over the network.
• Capability to function in standalone mode or as
part of a BACnet building automation network. • Support for S-Link Sensor.
• Air balancing performed via BACnet, using VAV • Damper position feedback to the BACnet BAS via
Flow Balance software, through direct connection integral hall effect sensor.
or over the network. • Stable flow control down to 0.004 in. W.C.
• Integral MS/TP jack for direct connection of PC differential pressure.
with WorkPlace Tech Tool and Flow Balance tool. • Provides flow balancing for networked and
• Integrated packaging with actuator, pressure standalone VAV controllers. Features include:
transducer, and controller. –– Local network control.
• Integral actuator features manual override and –– Damper and fan adjustment.
travel limit stops for easy set up and adjustment. –– Setpoint monitoring and adjustment.
• Optional plenum-rated enclosure for use if wiring –– Flow validation and calibration (1, 2, or 3 point
to flexible conduit is required. calibration).
• MS/TP DIP switch addressable. –– Sequence, calibration, and control setpoint
• Isolated EIA‑485 (formerly RS-485) transceiver for logs.
MS/TP communications.
Communications BACnet is a registered trademark of

BACnet Networks ASHRAE. ASHRAE does not endorse,
The MicroNet BACnet VAV controllers incorporate approve, or test products for
an isolated EIA‑485 (formerly RS-485) transceiver for compliance with ASHRAE standards.
BACnet MS/TP communications at 9.6 up to 76.8 Compliance of listed products to the
kbaud using standard MS/TP wiring methods. Up to requirements of ASHRAE Standard 135 is the
128 MicroNet BACnet controllers can be connected responsibility of BACnet International (BI). BTL is a
to an MS/TP sub-net without repeaters. registered trademark of BI.
S-Link
The Sensor Link (S-Link) communications wiring VAV Controller Terminals
provides power and a communication interface
for one MN-Sx TAC I/A Series MicroNet sensor.
The various MN-Sx sensors can provide room
temperature, room humidity, setpoint adjustment, MNB-V1 / -V2
and occupancy override. This connection uses two- Controllers
wire, unshielded cable and is not polarity sensitive.
Maximum S-Link bus length is 200 ft (61 m).
UO1*
BACnet Compliance
BACnet Application Specific Controller (B-ASC). COM*
Internal Triac UI1
SW24H1* (DO1) Switches (3)
Options COM
SW24H2* (DO2)
MNA-FLO-1 SW24H3* (DO3)
UI2
MicroNet Enclosure, used if wiring to flexible conduit UI3
is required 24H
S-LK/COM
24G (COM)
S-Link Sensors S-LK
GND
Temperature and Humidity Wall Sensors with Digital
STATUS Physical MSTP +
Communication Address MS/TP Jack
MSTP RCV MSTP –
MSTP XMT
TSMN Series SHLD
Room Temperature Sensors
* Asterisks indicate terminals that apply to the
MNB-V2 controller but not to the MNB-V1.
TAC I/A Series BACnet Topology
PC Workstation
with WorkPlace
Tech Tool
Software Suite
Ethernet TCP/IP and BACnet/IP
MicroNet BACnet
Network MNB-1000
Controller Plant Controller MicroNet BACnet
S-Link MNB-1000
Sensor Plant Controller
Remote I/O Trunk
MicroNet BACnet MicroNet BACnet

MNB-V1 or V2 MNB-300
VAV Controller Remote I/O Unitary Controller
Module
S-Link S-Link
Sensor One to Eight Sensor
TMicroNet BACnet
MNB-1000-15
MicroNet BACnet Remote I/O Modules MicroNet BACnet
BACnet MS/TP Communications Bus

MNB-300 MNB-70
Unitary Controller Zone Controller
S-Link Remote I/O S-Link

Sensor Module Sensor
MicroNet BACnet MicroNet BACnet

MNB-V1 or V2 MNB-V1
Remote I/O
VAV Controller Cooling Controller
Module
S-Link
S-Link
Sensor
Sensor
MicroNet BACnet
MNB-70 MicroNet BACnet
Zone Controller MNB-V2
Deluxe Controller
S-Link
Sensor S-Link
Sensor
MicroNet BACnet
MNB-300
PC Workstation
Unitary Controller
with WorkPlace
Tech Tool
S-Link Software Suite
Sensor
On October 1st, 2009, TAC became the Buildings Business of its parent company Schneider Electric. This document reflects the visual identity of Schneider Electric, however there
remains references to TAC as a corporate brand in the body copy. As each document is updated, the body copy will be changed to reflect appropriate corporate brand changes.
All brand names, trademarks and registered trademarks are the property of their respective owners. Information contained within this document is subject to change without notice.
All rights reserved.
Section-2


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com
TAC I/A Series 1
MicroNet Sensors
MCS-4000
The TAC I/A Series MicroNet™ Sensors (MN‑Sxxx
series) are a family of digital wall temperature
and humidity sensors for use with TAC I/A Series
MicroNet controllers. These sensors feature a Sensor
Link (S-Link) communication protocol which provides
a simple two-wire interface for power and exchange
of sensor and subbase information. Subbase
information includes selecting occupancy override,
fan speed, operating mode, or emergency heat.
Continued on next page.
European Community – EMC Directive 89/336/

EEC
SPECIFICATIONS Emissions and Immunity EN61326
Temperature Sensor Ambient Limits
Type Operating Temperature

Precision thermistor. 32 to 122 °F (0 to 50 °C).
Range Shipping and Storage Temperature
32 to 122 °F (0 to 50 °C). -40 to 160 °F
Humidity Sensor Humidity

5 to 95% RH, non-condensing.
Element
Type: . . . . . . . Thermoset polymer capacitive sensor. Hardware
Accuracy:. . . . . . . . . . . . . . ±2% RH at 77 °F (25 °C). Wiring Terminals
Range Four (4) screw terminals. AWG #18 to #24
5 to 95%, non-condensing. (0.823 mm2 maximum) wire.
Hysteresis Display
±1.2% RH maximum. Setpoints, input spans, and units vary with the
controller application.
Immersion
Extended exposure to equal to or greater than Range
90% RH causes a reversible 3% shift. Sensor will -99 to 999 or -9.9 to 99.9.
recover from short term exposure to liquid water or Units
condensation. Repeated exposure will degrade the °F, °C, or %.
performance of the sensor. Command Options (S4xx and S5xx Models)
Dimensions Varies with the controller application.
4-21/32 H x 3 W x 1 D in (118.5 x 76.2 x 24 mm).
System Mode
Enclosure Heat/Cool/Off/Auto (except MN-S4xx-FCS).
Conforms to NEMA-1 requirements.
Fan Mode
Surge Immunity Compliance Off/On/Speed (Low, Medium, High)/Auto.
IEEE C62.41 (IEEE-587, Category A & B).
Override
Agency Listings Occupied/Unoccupied (except MN-S4xx-FCS).
FCC Emergency Heat

Class B. Enable/Disable (MN-S5xx models only).
UL Listed
UL-916 (File # E71385 Category PAZX).
UL Listed to Canadian Safety Standards (CAN/CSA
C22.2).
TAC I/A Series MicroNet Sensors 2
Continued from first page. FEATURES

• Contemporary, low-profile packaging.
Available in twelve models, MN-Sxxx series sensors
provide an integral analog-to-digital conversion for • Digital zone temperature indication (selectable for
elimination of sensor-to-controller noise effects and 0.1 or 1 degree display resolution of °F or °C).
wire resistance offset. • Self-compensating temperature conversions
remove the need to calibrate over time.
Using the digital wall sensor, the operator can monitor
performance and edit operational settings. MN-Sxxx • Digital zone humidity indication (selectable for 0.1
series sensors are suitable for direct-wall, 2 x 4 or 1% RH display resolution).
electrical box, 1/4 DIN electrical box, or surface box • Long-life humidity sensing element with excellent
mounting. resistance to contamination and condensation.
The MN-Sxxx series sensor measures room • Pushbutton override capabilities allow occupants
conditions and transmits the information to the to switch to timed occupied mode for after hours
controller via the S-Link. A single sensor is connected operation.
directly to an application specific TAC I/A Series • Displays selected system values such as
MicroNet controller via low-cost, unshielded, twisted- setpoints, outdoor air temperature, and operating
pair cable. The connection between the sensor and mode.
controller is not polarity-sensitive. • Provides the ability to change operating modes.
A convenient connection to either a MicroNet • Directly connects to selected TAC I/A Series
LonWorks® or MicroNet BACnet network is provided MicroNet controllers via low-cost, unshielded,
as an option with each sensor in the series. If the twisted-pair cable, which provides both power
LonWorks network wiring is connected to the sensor, and communication.
a PC running WorkPlace Tech Tool or a third party • Separate wiring subbase and electronics.
Network Management Tool can be connected to the
network at the sensor. This feature allows convenient • LonWorks network jack for convenient network
access to the MicroNet LonWorks network. access.
• S-Link jack for Pocket I/A access to the
connected controller.
SOFTWARE SPECIFICATIONS
Digital Display (MN-S3xx, MN-S4xx and

MN-S5xx Models only)
Custom field-configurable sensor displays.
Auto-ranging of displayed values.
Occupant command capabilities.
Adjustable minimum/maximum limit setpoint values.
Controller driven, automatically configured,
customized display/command values.
Typical MN-S3xx, -S4xx, or -S5xx Display/Change Values.

Model Family Value Display Change
S3xx, S4xx, S5xx Zone Temperature Yes No
S4xx, S5xx Outdoor Air Temperature Yes No
S4xx, S5xx Percent Humidity Yes No
S3xxa, S4xxa, S5xx Heating Setpoint, Cooling Setpoint, Yes Yes
Unoccupied Heat, Unoccupied Cool

S4xx, S5xx Mode Heating/Cooling/Auto/Off Yes Yesb
S4xx, S5xx Fan (On/Speed (Low/Medium/High), Auto Yes Yes
a S3xx and S4xx-FCS models have a single setpoint.
b S4xx-FCS models do not allow mode changes.
F-26290-10 November 2009 tl
Communications
S-Link
Sensor Link (S-Link) communications wiring provides
power and communication interface to the
TAC I/A Series MicroNet sensor (MN-Sxxx series). It
uses two-wire, unshielded cable and is not polarity
sensitive. From some sensor models, the user can
view and adjust application parameters. Maximum
wire length allowed between a controller and the
TAC I/A Series MicroNet sensor is 200 ft. (61 m).
BACnet or LonWorks Network

The BACnet or LonWorks network wiring can
be connected to the second set of terminals in
the sensor base. This optional connection allows
convenient access to the LonWorks network at the
sensor.
MODELS
Model Description Keypad Display
Temperature Temperature
Sensor and Humidity
Sensor
MN-S1 MN-S1HT Sensor only None None
MN-S2 MN-S2HT Sensor with override One button LED Override Status Indication
MN-S3b MN-S3HTb Sensor with setpoint adjustment and override Three button Digital LCDa and LED Override
Status Indication
MN-S4b MN-S4HTb Sensor with setpoint, override, and controller Six-button Digital LCDc and LED Override
mode functions Status Indication
MN-S4-FCSb MN-S4HT- Sensor with setpoint, On/Off and Fan speed Six button Digital LCDc and LED Fan Status
FCSb functions Indication
MN-S5b MN-S5HTb Sensor with setpoint, override, controller Seven button Digital LCDc and LED Override and
mode functions, and emergency heat Emergency Heat Indication
key/indication
a LCD displays value and setpoint.
b Allows viewing of alarms and diagnostics.
c LCD displays values, setpoints, and controller mode functions.
Architecture
PDA
MicroNet Sensor
(MN-S5 Shown) 5
Desktop PC or Notebook PC
4 MNL-V3RVx UNC Controller
with WorkPlace Tech Tool Software MN 110 or MN 130
Controller or MN 50
1 2 Controller
3
appareil numerique de la classe B respecte toutes les exigences du Reglement sur le material brouilleur du Canada
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet
may cause undesired operation.
may not cause harmful interference, and (2) This device must accept any interference received, including interference that
This device conforms with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
D E C O N N E C T E R AVA N T E N T R E T E N .
DISCONNECT POWER BEFORE SERVICING.
I N T E R C O N N E C T S E PA R AT E C L A S S 2 C I R C U I T S .
RISK OF ELECTRICAL SHOCK OR FIRE. DO NOT
C5
DO5
DO5: 250VAC, 3A Max, COS f = 0.4.

DO1-DO4: 24VAC, 0.4A Max Total Load.
S-LK: 16VDC Max, Class 2.
CAUTION
UI: 5VDC Max, Class 2.

Ambient Temp: -40°C to +60°C
Power: 24VAC, 50/60Hz, Class 2,

Regulating Equipment
N2223
Temperature indicating and
DO4
8.5VA + DO1-DO4 loads.
24VAC
DO3
DO2
24VAC
DO1
SW
24H
E9429
934G
SW 3
MNL-CIM
24H
SW 2
24H
T
I
M
24H 1
X
V
C
E
R
C
V
24G
SRVC
R
S
LON
GN
J1
AO
LON
D
S-LK
S-LK
COM 0V
UI
COM 0V
UI1
MNL-11RF2
S-L
I/A Series
K/C DI
UI2
24VAC
OM
UI3
MicroNet Controller
S-L
K
GND
0V
LON
LON
Interface Module
LONWORKS Router 6
Network (if required) I/A
MN
Se
rie
80 s®
0
MN 100, MN 150, or MNL-V1RVx 4

MN 200 Controller or MNL-V2RVx MN 800 MicroNet Sensor
Controller Controller (MN-S3 Shown)
1 A PC can be connected to the LONWORKS TP/FT-10 Network, either directly or through the LONWORKS® network jack of a LONWORKS
controller or MN-Sxxx Wall Sensor. The PC must have an Echelon® LONTALK® adapter card.
2 Programming any of the TAC I/A Series controllers, or the TAC I/A Series MN 800 controller, requires WorkPlace Tech Tool.
3 This controller is not suitable for exposed mounting on a wall or panel, or in any other easily accessible place due to the possibility of
personal contact with the high-voltage terminals. It must be mounted inside a suitable grounded metal enclosure.
4 MicroNet Sensors can be connected to any MN controller.
5 A PDA running the Pocket I/A interface software may be used to communicate with TAC MicroNet I/A Series controllers.
6 When routers are used, WorkPlace Tech is able to communicate through them to any of the TAC I/A Series devices on the network.
PC Workstation with WorkPlace

Tech Tool Suite and:
Ethernet TCP/IP and BACnet/IP • Enterprise Server (used with UNC)
or
• Enterprise Network Server (used with ENC)
UNC Universal
Network Controller
or
ENC Enterprise S-Link S-Link S-Link S-Link S-Link
Network Controller Sensor Sensor Sensor Sensor Sensor

MicroNet BACnet MicroNet BACnet MicroNet BACnet MicroNet BACnet MicroNet BACnet
MNB-1000 MNB-300 MNB-70 MNB-V1 MNB-V2
Plant Controller Unitary Controller Zone Controller Cooling Controller Deluxe Controller
On October 1st, 2009, TAC became the Buildings Business of its parent company Schneider Electric. This document reflects the visual identity of Schneider Electric, however there
remains references to TAC as a corporate brand in the body copy. As each document is updated, the body copy will be changed to reflect appropriate corporate brand changes.
All brand names, trademarks and registered trademarks are the property of their respective owners. Information contained within this document is subject to change without notice.
All rights reserved.
Section-3


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com
TAC Vista
TAC Xenta 913

LonWorks Gateway
The TAC Xenta 913 is a cost-effective way to integrate a large variety of products into a TAC network. The TAC Xenta 913 sup-
ports the most commonly-used open protocols, like Modbus, BACnet and LonWorks. It also supports some manufacturer-specific
protocols, like I/NET and Clipsal C-bus.
The TAC Xenta 913 acts as a gateway and transfers data point values from one network to another. Configuration is carried out
using the TAC XBuilder programming tool.
Technical Data Immunity:

Supply voltage . . . . . 24 V AC ±20%, 50/60 Hz or 19–40 V DC CE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 61000-6-2
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . max. 5 W Safety:
Transformer sizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 VA CE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 61010-1
Ambient Temperature UL 916 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-UL US Listed
Storage . . . . . . . . . . . . . . . . –20 °C to +50 °C (–4 °F to +122 °F) RoHS directive . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2002/95/EG
Operation . . . . . . . . . . . . . ±0 °C to +50 °C (+32 °F to +122 °F) Part Numbers
Humidity . . . . . . . . . . . . . . . . . . max. 90% RH non-condensing TAC Xenta 913 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 007308351
Mechanical Terminal part TAC Xenta 400 . . . . . . . . . . . . . . . . . . 007309020
Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ABS/PC TAC Xenta: Programming Serial Kit . . . . . . . . . . . . . . 007309200
Enclosure rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP 20
Flammability class, materials . . . . . . . . . . . . . . . . . . . . UL 94 V-0
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see Fig. 1
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2 kg (0.44 lb.)
Real Time Clock
90 (3.54)
Accuracy at +25 °C . . . . . . . . . . . . . . . . . . ±12 minutes per year
Power failure protection . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 h 2 3 4 5 6 7 8 10
Communication
4 (0.16)
A: RS232 . . . . . . . . . . . . . . . . . . . 2400 – 57600 bps, RJ45, 8-p

(1.89 ± 0.02)
110 (4.33)
48 ± 0.5
A: RS485 . . . . . . . . . . 2400 – 57600 bps, async. terminal block
(1.77)
45
B: RS232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RJ10, 4-p
C: RS485 . . . . . . . . . . . . . . . . . . . . sync. (SDLC) terminal block
LonWorks . . . . . . . . . . . . . . . . . . . . . . TP/FT-10, terminal block
Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . TCP/IP, 10Base-T, RJ45 12 13 14 15 16 17 18 20
Agency Compliances 70 ± 2.0 77.4

Emission: 10.1 (2.76 ± 0.08) (3.05)
(0.40)
CE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 61000-6-3
C-tick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-Tick N1831 Figure 1
FCC . . . . . . . . . . . . . . . . . . . . FCC Part 15, Subpart B, Class B
03-00049-02-en
Modbus Master The Xenta 913 can be configured to act as the sole master on
a Modbus and/or J-Bus serial network to allow monitoring
LON or I/NET Control System and control of one or more slave devices via an I/NET or LON
control system. Both the RTU and ASCII protocol formats are
Xenta 913 supported.
Value exchange
A number of Modbus registers can be connected to a corre-

sponding set of LON network variables or I/NET points to al-
low one or more slave devices to be monitored and controlled.
RS-485 A The Xenta 913 can act as the sole network master, exchanging
the required register values with the targeted slave devices.
Modbus Network
RTU or ASCII
Slave Slave Slave
Modbus Slave The Xenta 913 can be configured to act as a slave on a Mod-
bus and/or J-Bus serial network to allow an external master to
LON or I/NET Control System read and write values from an I/NET or LON control system.
Both the RTU and ASCII protocol formats are supported.
Xenta 913
A number of Modbus registers can be connected to a cor-
Value exchange
responding set of LON network variables or I/NET points to

allow the master device to exchange values with the BMS via
the Xenta 913, which acts as one or more slaves to reflect BMS
RS-485 A values as Modbus registers.
Modbus Network
RTU or ASCII
Master Slave Slave
Modbus TCP The Xenta 913 can be configured to act as a client to a Mod-
bus TCP server to allow monitoring and control of one or more
LON or I/NET Control System slave devices via an I/NET or LON control system. Both the
RTU and ASCII protocol formats are supported.
Xenta 913
A number of Modbus registers can be connected to a cor-
Value exchange
10Base-T Ethernet responding set of LON network variables or I/NET points to

LAN allow one or more slave devices to be monitored and con-
10Base-T Ethernet
trolled. The Xenta 913 acts as a network client, exchanging
the required register values with the slaves via a Modbus TCP
server.
Modbus Network
RTU or ASCII
Slave Slave Slave
BACnet IP The Xenta 913 can be configured to connect to one or more

target BACnet IP devices to allow values within them to be
LON or I/NET Control System monitored and controlled via an I/NET or LON control system.
A number of BACnet objects can be connected to a cor-
Xenta 913
Value exchange
10Base-T Ethernet allow one or more target devices to be monitored and con-
LAN trolled. The Xenta 913 acts as a network client, exchanging
the required I/O values with the target devices via a TCP/IP
network. Each target device acts as a server to one or more
10Base-T Ethernet BACnet IP clients, including the Xenta 913.
BACnet IP Device Network
Device Device Device
2 03-00049-02-en
BACnet MS/TP The Xenta 913 can be configured to connect to a BACnet
MS/TP serial network to allow monitoring and control of one
LON or I/NET Control System or more devices via an I/NET or LON control system.
A number of BACnet objects can be connected to a cor-
Xenta 913
Value exchange
allow one or more master or slave devices to be monitored

and controlled. The Xenta 913 acts a master, but is designed to
coexist with other masters on the MS/TP network if present.
RS-485 A
Master
BACnet MS/TP Network
Slave Slave Slave
BACnet PTP The Xenta 913 can be configured to connect to a target

network through a BACnet PTP half router to allow monitor-
LON or I/NET Control System ing and control of one or more devices via an I/NET or LON
control system.
Xenta 913
A number of BACnet objects can be connected to a corre-
Value exchange
sponding set of LON network variables or I/NET points to al-

RS-232 A low one or more target devices to be monitored and controlled.
The target devices can be connected to the router via another
type of BACnet protocol such as MS/TP or IP, or via any other
type of network supported by the router and target devices.
BACnet or other Network
Device Device Device
M-Bus The Xenta 913 can be configured to communicate with an

M-Bus serial adaptor to allow meter monitoring via an I/NET or
LON or I/NET Control System LON control system.
A number of M-Bus metered values can be connected to a
Xenta 913
corresponding set of LON network variables or I/NET points to
Value exchange
allow one or more M-Bus meters to be monitored.

RS-232 A The Xenta 913 is able to cooperate with either a temporary or
permanent M-Bus application master.
M-Bus Serial
Interface
M-Bus Network
RTU or ASCII
Meter Meter Meter
Clipsal C-Bus The Xenta 913 can be configured to connect to a Clipsal C-Bus
serial adaptor to allow monitoring and control of a lighting
LON or I/NET Control System system via an I/NET or LON control system.
A number of C-Bus group variables can be connected to a
Xenta 913
corresponding set of LON network variables or I/NET points to
Value exchange
allow C-Bus lighting groups to be monitored and/or controlled.

RS-232 A These group variables may be distributed amongst one or more
C-Bus applications as applicable.
Clipsal C-Bus
PC Interface
C-Bus Network
RTU or ASCII
03-00049-02-en 3
Protocol Driver List
Protocol Description/Model Driver Description
BACnet BACnet IP / MS-TP / PTP BACnet is a standard protocol for building automation developed by ASHRAE.
Supports BACnet ReadProperty and WriteProperty Messages.
Max. no. of devices: IP: 10, MS-TP: 30, PTP: 10.
Modbus/J-Bus Modbus Master / Slave / TCP Commonly-used protocol supported by many PLCs and other equipment manufactur-
ers.
• Uses Poll-on-demand to extract data.
• RTU or ASCII Formats.
• Supports 01, 02, 03, 04, 05, 06 and 10 Modbus functions.
Max. no. of devices: As Master: 31 Slaves, as Slave: 1 Master, TCP: 100.
M-Bus Metering bus M-Bus is a standard protocol for meters.
Requires a hardware converter between RS-232 and M-Bus like Level-Converter PW
20 from Relay GmbH.
Max. no. of devices: 200.
C-Bus Clipsal bus C-Bus is a proprietary communication protocol for Clipsal lighting control systems.
Max. no. of devices: 50.
LonWorks FT-10 LonWorks is a standard protocol for building automation developed by Echelon SNVT
(up to 400 SNVTs). Public variables in TAC Xenta 280/300/400.
I/NET Host LAN/Controller LAN I/NET is a proprietary protocol for I/NET systems from TAC.
SNMP Installation/Connection Terminal Connections

TAC Xenta 913 can communicate using Modular Jacks There is a label on the front of the mod-
Simple Network Management Proto- • RS232 A: Modem connection. ule showing both the numbers and the
col (SNMP) which allows the exchange Connection using hardware signals for names of the terminals (1 G, 2 G0 and so
of management information between modem communication. on). The numbers are also shown in the
network devices. It is part of the TCP/IP • RS232 B: PC (“Console”) connection. plastic of the terminal part.
protocol suite. Connection using basic signals, primar- Term. Term. Description
ily intended for a PC during configura- No. Name
Configuring tion. 1 G 24 V AC (or DC+)
The TAC Xenta 913 is configured using • 10Base-T: Connection for a LAN (Eth- 2 G0 Ground
the TAC XBuilder software. ernet) cable and commissioning.
3 C1 LonWorks TP/FT-10
MMC
sECURITY 4 C2 LonWorks TP/FT-10
Connection for a MultiMedia Card (extra
The TAC Xenta 913 uses a secure inter- memory card). MMC is not available for 5 RX/TX+ RS485 A
face for configuration with username and TAC Xenta 913. 6 RX/TX- RS485 A
password logon.
LEDs 7 RX+ RS485 A
A number of light-emitting diodes in the 8 RX- RS485 A
Web Interface electronics part of the TAC Xenta 913
TAC Xenta 913 uses a web interface to indicate that the application program is 9 G0
configure the network, time, servers and running and when communication is in 10 Fail-safe
ports, for instance. progress. –
“Reset Button” –
Shorting terminals 9 and 10 (”Fail-safe”)
19 RX/TX+ RS485 C (SDLC)
at restart will inhibit programs from hang-
ing and put the internal program in a 20 RX/TX- RS485 C (SDLC)
fail-safe state.
Copyright © 2008-2010, Schneider Electric

All brand names, trademarks and registered trademarks are
the property of their respective owners. Information contained
within this document is subject to change
without notice. All rights reserved.
03-00049-02-en Mar 2010
For more information visit
www.schneider-electric.com/buildings
Section-4


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com
01
Sensors & Input Devices
STR100 - STR107
Wall Modules
The STR is a series of wall modules optimized for
public facilities such as office buildings, hotels,
hospitals, schools and shopping malls. Their
pleasant appearance and well-designed interface
make them suitable for any contemporary
building. They are easy to operate and install.
The STR101 through STR107 are equipped

with a modular jack (RJ-10) that allows the wall
module to be connected to the portable TAC
Xenta OP (Operator Panel). The STR101 through
STR107 can be used together with the TAC Xenta
100, 200, 300 and 400 series of c ontrollers.
The wall modules are equipped differently; the

STR100 is the basic model, while the STR106
and STR107 are fully equipped. The STR wall
modules replace the ZS 100 series and the EGRL
room sensor.
SPECIFICATIONS
Part Numbers. . . . . . . . . . . . . . See table on page 2 DIMENSIONS mm (in)
Ambient Conditions
84 (3.3)
Storage temperature. . . . . . . . . . . –20 °C to +70 °C 82 (3.2)
(–4 °F to +158 °F)
Operation temperature. . . . . . . . . . ±0 °C to +50 °C
24 (0.9)
(+32 °F to +122 °F)

Humidity. . . . . . . . . . . . . . . . . . . . . . . . . . max. 90%
non-condensing relative humidity
Mechanical
Enclosure material . . . . . . . . . . . . . . . . . . . ABS/PC
Enclosure rating . . . . . . . . . . . . . . . . IP 20/NEMA 1
Dimensions. . . . . . . . . . . . . . . . . . . . . . . see Fig. 1
Weight. . . . . . . . . . . . . . . . . . . . . . . . 85 g (0.19 lb.)
Agency Compliances
58 (2.28)
Emission
116 (4.6)
CE. . . . . . . . . . . . . . . . . . . . . . . . . . EN 61000-6-3
Immunity
CE. . . . . . . . . . . . . . . . . . . . . . . . . . EN 61000-6-1
Safety
CE. . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 61010-1
UL . . . . . . . . . . . . . . . . . . . . . C-UL, UL 916 Listed
Flammability
UL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UL 94 V-0
Energy (STR106-3 only)
Fig 1
eu.bac, certificate no. 020711 . . . . . . . . . EN 15500
Sensor Data
Type. . . . . . . . . . . . . . . . . . . . . . . 1.8 kΩ thermistor
Accuracy . . . . . . . . . . . . . . at 15–30 °C (59–86 °F),
±0.35 °C (0.63 °F)
02
03
Sensors & Input Devices STR100 - STR107
PART NUMBER
Part Model Temp. Mode Setpoint Bypass Fan Speed
Number Number Sensor Indicator Offset Button Control1
Wheel
004600100 STR100 X – – – –
004600110 STR100-W X – – – –
004600200 STR101 X X – – –
004600300 STR102 X X X – –
004600700 STR103 X X – X –
004600400 STR104 X X X X –
004600500 STR106 X X X2 X3 X4
004600800 STR106-B X X X2 X3 X4
004600900 STR106-3 X X X2 X3 X4
004600600 STR107 X X X X X5
FUNCTIONS 1. In the Xenta 100 series, this is only applicable

for the TAC Xenta 101-VF and TAC Xenta 121-FC.
Fig.2 shows an STR106.
2. STR106-3 with a fixed range: +±-3 ˚C
Mode Indicator (centigrades only).
3. STR106-B has no icon on the Bypass button.
A green LED is used on the STR101–STR107 4. All three models use a 5-positions control
to indicate the mode in accordance with the wheel: A-0-I-II-III.
following: 5. STR107 uses a 3-positions control wheel:
• Comfort mode (On) is indicated by a steady Auto-Off-On.
green light.
• Economy mode (Standby) is indicated by a Wiring
flashing green light. The STR100–STR107 uses 2–10 wires for
• Unoccupied mode is indicated by the LED installation. The wiring is easily accessible thanks
being off. to the plug-in concept.
Bypass Button Cables
A bypass button is provided on models STR103– Twisted pair, unshielded. Min. cross-sectional
STR107 to change from standby (economy) area: 0.7 mm² (AWG-19). Max. distance: 30 m
or unoccupied mode to comfort mode. When (100 ft).
entering comfort mode, the symbol on the
display shows a steady light. When the bypass Mounting
time expires, the symbol returns to its previous
The units can be mounted directly onto the wall
status again, provided that the feedback mode
or fitted onto a wide variety of back-boxes. The
is connected. Otherwise the symbol returns to
plug-in concept makes wiring quick and easy.
the Off status after two hours.
Maintenance
Setpoint Offset Wheel
No maintenance is required for the wall module.
A setpoint offset wheel is provided on models
If necessary, the wall module may be cleaned
STR103, STR104, STR106 and STR107 for
with a soft cloth.
adjusting the temperature setpoint offset.
The adjustment range may be set to the STR106-3

following limits (not applicable to STR106-3):
STR106-3, connected to the controller

• ±1 ºC (±1.8 ºF) TAC Xenta 121-FC/230, forms a system which
• ±2 ºC (±3.6 ºF) is certified according to the eu.bac regulation
• ±3 ºC (±5.4 ºF) EN 15500.
• ±4 ºC (±7.2 ºF) For more information, see www.eubaccert.eu
• ±5 ºC (±9.0 ºF)
The adjustment is done manually using the

plastic keys on the back of the core-panel.
Increase/decrease limits are separately
adjustable.
Schneider Electric Telephone Europe: Malmö, Sweden +46 40 38 68 50 Telephone Asia Pacific: Singapore +65 6776 3166 www.schneider-electric.com/buildings
03-00101-05-en October 2011
03
STR106
1. Mode indicator, On/Off.

2. Bypass button.
3. Setpoint offset wheel.
4. Fan speed control wheel.
Fig 2
03-00101-05-en October 2011
03
03-00101-05-en October 2011
Section-5


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com
01
Field Devices Europe
MD10A-24
Modulating Damper Actuator Damper
Actuator 10 Nm (90 in-lb)
MD10A-24 damper actuators for operating air
control dampers in ventilation and air-conditioning
systems for building services installations
• For air control dampers up to approx. 2 m2
(2.4 yard2)
• Torque 10 Nm (90 in-lb)
• Nominal voltage AC/DC 24 V
• Control: Modulating 0 – 10 V
SPECIFICATIONS Ambient humidity. . . . . . . . . . 95% r.H (EN 60730-1)

Part number. . . . . . . . . . . . . . . . . . . 875-1019-000 Ambient temperature
Power supply. . . . . . . . . 24 V AC ±20%, 50–60 Hz, Operation. . . . . . . . . –30 to +50 °C (–22 to +122 °F)
24 V DC ±20% Storage . . . . . . . . . . –40 to +80 °C (–40 to +176 °F)
Power consumption Sound power level. . . . . . . . . . . . . . max. 35 dB (A)
In operation . . . . . . . . . . . . . . 2 W @ nominal torque Maintenance. . . . . . . . . . . . . . . . . Maintenance-free
At rest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 W
For wire sizing. . . . . . . . . . . . . . . . . . . . . . . . . . 4 VA
Connection cable. . . . . . . . 1 m (3.3 ft), 4×0.75 mm2 DIMENSIONS mm (in)
(AWG 18)
Control signal X . . . . . . . . . . . . . . . . . . . 0–10 V DC
Input resistance . . . . . . . . . . . . . . . . . . . 100 k Ohm
Operating range. . . . . . . . . . . . . . . . . . . 2–10 V DC
(2.05)
(2.4)
62
52
(for set angle of rotation)

Synchronisation tolerance. . . . . . . . . . . . . . . . . ±5%
Position feedback Y. . . . . . 2–10 V DC (max. 1 mA) 124
Direction of rotation . . . . Reversible with switch 0 / 1 (4.9)
at switch position 0 resp. 1

Angle of rotation. . . . . . . . . . . . . . . . . . . . . max. 95°
(adjustable by mechanical stops)
Torque . . . . min. 10 Nm (90 in-lb) @ nominal voltage
(3.1)
80
Running time . . . . . . . . . . . . . . . . . . . . . . . . . 150 s

Position indication . . . . . . . . . . . . . . . . . mechanical
Manual override. . . . . . . . Gearing latch disengaged
. with pushbutton, self-resetting, manual locking 25 99 41
(1.0) (3.9) (1.6)
Standards conformity
EMC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2004/108/EC
LVD . . . . . . . . . . . . . . . . . . 2006/95/EC (230 V only)
Protection class. . . . . . . III Safety extra-low voltage Damper spindle (in.) Length mm (in.) mm
Enclosure rating. . . . . . . . . . . . . . . . . . . . . . . . IP 54 Clamp on top min. 40 (1.57) 8 ... 26.7 (0.31 ... 1.04
Clamp on bottom* min. 20 (0.78) 8 ... 20 (0.31 ... 0.78)
*Option (Accessory K-MD10)
02
Field Devices Europe MD10A-24
FUNCTION SAFETY NOTES

Mode of operation he damper actuator is not allowed to
T
The actuator is controlled by means of a standard ! be used outside the specified field of
control signal DC 2-10 V. It opens to the position application, especially in aircraft.
dictated by this signal. The measuring voltage
Y allows the damper position (0 ... 100%) to be The device may only be opened at
electrically indicated and serves as a follow-up the manufacturer’s site. It does not
control signal for other actuators. contain any parts that can be replaced
or repaired by the user.
Simple direct mounting
Simple direct mounting on the damper spindle with The cable must not be removed from
a universal spindle clamp, supplied with an anti- the device.
rotation strap to prevent the actuator from rotating.
When calculating the required torque,
Manual override the specifications supplied by the
Manual operation is possible with the self-resetting damper manufacturers (cross section,
pushbutton (the gearing latch remains disengaged design, installation site), and the air
as long as the pushbutton is pressed or detented). flow conditions must be observed.
Adjustable angle of rotation The device contains electrical and

Adjustable angle of rotation with mechanical end electronic components and is not al-
stops. lowed to be disposed of as household
refuse. All locally valid regulations and
High functional reliability requirements must be observed.
The actuator is overload-proof, requires no limit
switches and automatically stops when the end
stop is reached.
WIRING
WIRING
Connection via safety isolating
! transformer.
Measuring voltage Y for position indication or as

master-slave signal.
Parallel connection of several actuators is

possible. Power consumption must be observed.
ACCESSORIES
Please refer to data sheet G-30-90
“Accessories Damper Actuators”

(part. no. 0-003-2251).
On October 1st, 2009, TAC became the Buildings Business of its parent company Schneider Electric. This document reflects the visual identity of Schneider Electric,
however there remains references to TAC as a corporate brand in the body copy. As each document is updated, the body copy will be changed to reflect appropriate
corporate brand changes.
003-2232-5 April 2010 ao
Section-6


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com
1
Field Devices Europe
SPD910
Differential Air Pressure Switch
This range of four SPD910 differential air flow

switches are intended for use in air handling systems
for the monitoring of air ducts, filters and fans.
The enclosure is plastic with a rating of IP54. A set-

point adjustment is provided under the clip-on clear
plastic cover.
The mounting bracket and tubing is supplied.
Technical Data
Medium Air and neutral gases
Pressure Range 0.2 … 50 mbar
Tolerable overload on one side 75 mbar at –30 … 75 °C
50 mbar at –30 … 85 °C
Repeatability 0.2 … 3 mbar ±0.025 mbar
0.5 … 5 mbar ±0.05 mbar
1 … 10 mbar ±0.05 mbar
5 … 20 mbar ±0.05 mbar
10 … 50 mbar ±0.15 mbar
Switching Load Resistive Load 5 A at 250 Vac
4 A at 30 Vdc
Inductive 0.8 A at 250 Vac
0.7 A at 30 Vdc
Materials in contact with the medium Case: PC 10% GF
Cover: PC
Diaphragm: Silicone LSR
tempered 200 °C, free of gas emissions
Temperature Medium and ambiance –30 … +85 °C
Storage –40 … +85 °C
Service life Mechanical > 106 switching cycles
Electrical connection Screw terminals or AMP connectors 6.3 mm or 4.8 mm accord-
ing to DIN 46244
Cable gland PG11 with cable strain relief
Protection standard Without Cover IP 00
With Cover IP 54
Pressure connections Pipe ø 6.2 mm
Adapter inside thread G1/8
2
Field Devices Europe SPD910
Ordering Information
TAC Item Number Item Reference Description Replaces
004701090 SPD910-2000Pa Switch Pres Air SPD910-2000Pa –
004701080 SPD910-1000Pa Switch Pres Air SPD910-1000Pa –
004701070 SPD910-500Pa Switch Pres Air SPD910-500Pa SPD900-600Pa
004701060 SPD910-300Pa Switch Pres Air SPD910-300Pa SPD900-200Pa
Dimensions
Fig. 1
Flow area
1)
Fig. 2
Flow area
Function
The pressure switch has two separate pressure
chambers, each with its own connection. The switch
operates when the setpoint is either exceeded or not
reached.
Vacuum Monitoring
Connect the pressure switch via P2. Do not connect
P1. Leave P1 open. Pake sure that dirt can not get
into P1.
High Pressure Monitoring

Connect the pressure switch via Pa. Do not Connect
P2. Leave P2 open. Make sure that dirt can not get
into P2.
Filter Monitoring
Connect P1 before the filter and P2 after it.
Fan Monitoring
Connect P1 after the fan (in blowing direction) and
P2 before the fan.
Schneider Electric Telephone Europe: Malmö, Sweden +46 40 38 68 50 Telephone Asia Pacific: Singapore +65 6776 3166 www.schneider-electric.com
F-27641-2 January 2010 ao
Section-7


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com
01
Sensors & Input Devices
SHD100/SHD101
SPECIFICATIONS PART NUMBERS

Humidity sensor. . . . . . . capacitive polymer sensor
Part Model Range Temp. Sensor
Output. . . 0 to 10 VDC/4-20 mA (jumper selectable)
Number Number (% RH) (@ 25 °C (77 °F) System
Accuracy (at 20 °C) . . . . . . . . . . . . . . . . . ± 2% RH
006902321 SHD100 None General
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . duct
006902331 SHD100-T NTC 10 kΩ/1.8 kΩ I/Net/Vista
Enclosure rating. . . . . . . . . . . . . . . . . . . . . . . IP 65 0 - 95
Weight. . . . . . . . . . . . . . . . . . . . . . 165 g (0.364 lb) 006902381 SHD101-T5 NTC 10 kΩ/1.8 kΩ Continuum/Vista
Material (housing). . . . . . . . . . . . . Polyamide plastic 006902411 SHD101-T6 ‘T’ Type 5.02 kΩ Satchwell
Material (sensor protective filter). . . . . . . . . . Bronze
Dimensions. . . . . . . . . . . . . . . . . . . . . . see diagram Duct Humidity Sensor with Temperature
Temperature dependency. . . . . . . . . . . see diagram This range of duct humidity/temperature sensors is designed to provide
Stability. . . . . . . . . . . . ± 1% RH @ 50 % RH in 5 yrs relative humidity measurement and temperature control in ventilation
EMC. . . . . . . . . . . . . . . . EN 50081-1, EN 50082-1 systems.
Temperature thermistor
Each of these devices is an active sensor, which measures the relative
Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . see table humidity (%RH) and converts the measurement into an electric current
Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . see table (4–20 mA) or a voltage level (0–10 V).
0 to 10 VDC mode
Output signal . . . . . . . . . . . . . . . . . . . . 0 to 10 VDC Models are available with humidity sensing only or humidity sensing
Power input . . . . . . . . 24 VAC±10 %, 16 to 32 VDC combined with temperature sensing using a ‘T’ Type thermistor or NTC
Current consumption at 24 VAC. . . . . . . . . . 11 mA thermistors.
Load resistance . . . . . . . . . . . . . . . . . . see diagram The sensor comprises a sensing element fitted at the end of a probe, and
4 to 20mA mode an amplifier mounted in the main housing. A plastic bracket is supplied for
Output signal . . . . . . . . . . . . . . . . . . . . . 4 to 20 mA mounting the unit onto a duct.
Power input . . . . . . . . . . . . . . . . . . . . 16 to 32 VDC
The SHD100-T has two different, user-selectable passive NTC temperature
Max. load resistance. . . . . . . . . . . . . . see diagram
elements: NTC 1.8 kΩ (Vista), and NTC 10 kΩ (I/NET).
Ranges
Humidity (operating). . 0-95 % RH, non-condensing The SHD101-T5 has two different, user-selectable passive NTC
Humidity (storage). . . . 0-90 % RH, non-condensing temperature elements: NTC 1.8 kΩ (Vista), and NTC 10 kΩ (Continuum).
Temperature (operating). . . . . . . . . . -10 ºC to 60 ºC
The SHD101-T6 incorporates the 5.02 kΩ NTC thermistor for use in
(14 ºF to 140 ºF)
Satchwell BMS systems.
Temperature (storage). . . . . . . . . . . . -40 ºC to 60 ºC
(-40 ºF to 140 ºF) All SHD100 products are intended for immersion installation and can be
Time constant. . 15 s in slowly moving air at 25 °C used for relative humidity measurement in air ducts.
(77 ºF)
02
Sensors & Input Devices SHD100/SHD101
DIMENSIONS mm (in) THERMISTOR ACCURACY

NTC 1.8 kW for Vista Products
–25 °C (–13 °F) . . . . . . . . . . . . . ±0.7 °C (±1.3 °F)
64x84
(2.52x3.31) 0 °C (32 °F) . . . . . . . . . . . . . . . . . ±0.5 °C (±0.9 °F)
25 °C (77 °F) . . . . . . . . . . . . . . . . ±0.3 °C (±0.5 °F)
M20x1.5 50 °C (122 °F) . . . . . . . . . . . . . . ±0.6 °C (±1.1 °F)
75 °C (167 °F) . . . . . . . . . . . . . . . ±0.9 °C (±1.6 °F)
(1.77)
45
100 °C (212 °F) . . . . . . . . . . . . . . ±1.3 °C (±2.3 °F)
NTC 10 kW for I/NET® Products
–25 °C (–13 °F) . . . . . . . . . . . . . ±0.5 °C (±0.9 °F)
0 °C (32 °F) . . . . . . . . . . . . . . . . . ±0.2 °C (±0.4 °F)
25 °C (77 °F) . . . . . . . . . . . . . . . ±0.2 °C (±0.4 °F)
50 °C (122 °F) . . . . . . . . . . . . . . ±0.2 °C (±0.4 °F)
70 °C (158 °F) . . . . . . . . . . . . . . . ±0.2 °C (±0.4 °F)
100 °C (212 °F) . . . . . . . . . . . . . . ±0.5 °C (±0.9 °F)
NTC 10 kW for Continuum® Products
(3.43)
(2.36)
87
60
–25 °C (–13 °F) . . . . . . . . . . . . . ±0.5 °C (±0.9 °F)

0 °C (32 °F) . . . . . . . . . . . . . . . . . ±0.2 °C (±0.4 °F)
(9.06)
25 °C (77 °F) . . . . . . . . . . . . . . . ±0.2 °C (±0.4 °F)

230
50 °C (122 °F) . . . . . . . . . . . . . . ±0.2 °C (±0.4 °F)

70 °C (158 °F) . . . . . . . . . . . . . . . ±0.2 °C (±0.4 °F)
100 °C (212 °F) . . . . . . . . . . . . . . ±0.5 °C (±0.9 °F)
59 NTC 5.02 kW for Satchwell™ Products
(2.32) –25 °C (–13 °F) . . . . . . . . . . . . . ±0.6 °C (±1.0 °F)
0 °C (32 °F) . . . . . . . . . . . . . . . . . ±0.3 °C (±0.5 °F)
25 °C (77 °F) . . . . . . . . . . . . . . . ±0.2 °C (±0.4 °F)
50 °C (122 °F) . . . . . . . . . . . . . . ±0.2 °C (±0.4 °F)
75 °C (167 °F) . . . . . . . . . . . . . . . ±0.3 °C (±0.5 °F)
100 °C (212 °F) . . . . . . . . . . . . . . ±0.3 °C (±0.5 °F)
12
(0.47)
TEMPERATURE DEPENDENCE
0.3
0.2
0.1
Error / %
-10 (14) 0 (32) 10 (50) 20 (68) 30 (86) 40 (104) 50 (122) 60 (140)

0
-0.1
-0.2
-0.3
T/°C (°F)
003-00109-03-en January 2012 vp
03
Sensors & Input Devices SHD100/SHD101
WIRING
Notes: Do not touch the sensor tip. Ensure correct wiring.
4-20 mA
1 + RI
Sensing +U M
element
Amplifier UG Signal
RI RL
0V
Power supply Set jumper to 2 −
16 - 32 VDC 4 - 20 mA
mode R = 2 RI + RL
Note: Maximum R = (UM -16V)/0.02A
Current is proportional to the measured humidity and is measured over an external load
resistance RL. The supply voltage UM is a function of the voltage across the sensor UG and the
voltage drop across the load resistor and the wire resistances RI.
UG Max. = 32 VDC, UG Min = 16 VDC. At 36 VDC accuracy drops by approximately 1 % RH.
0 –10 V
1
Sensing +U S
element
2
Amplifier 3
V Signal
RL
4
0V
Power supply
16 - 32 VDC Set jumper to
0 - 10 V mode RL = > 20 kΩ
24 VAC ±10 %
If another load is to be connected close to the s ensor, this should be made with a separate G0,
so that the measuring signal will not be affected.
Temperature thermistor
5 6 7
10 kΩ (Not SHD101-T6)
1.8 kΩ/5.02 kΩ
(SHD100-T/101-T6)
Schneider Electric Telephone Europe: Malmö, Sweden +46 40 38 68 50 Telephone Asia Pacific: Singapore +65 6776 3166 www.schneider-electric.com
003-00109-03-en January 2012 vp
Section-8


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com
Temperature
Sensors STP100, 200, 500
Immersion Temperature
Sensors for Pockets
STP100, 200, 500
These sensors are designed for immersion mounting in pipe systems with a separate
pocket (well). The pocket is sealed, making it easy to replace the sensor if necessary.
The STP housing is equipped with a 20mm cable fitting. A 20mm cable gland is
supplied. The pocket must be ordered separately.
Accuracy See Appendix A: Table A, B, C
Probe
Part Model
Description length System
number number
(mm)
5123102010 STP100-50 Pipe Temperature Sensor STP100-50 50 TAC Vista, TAC Xenta
5123130010 STP200-50 Pipe Temperature Sensor STP200-50 50 TAC I/NET
5123170010 STP500-50 Pipe Temperature Sensor STP500-50 50 Andover Continuum
5126010000 STP600D Pipe Temperature Sensor STP600D 112 Drayton
CAT-SENSORS-EU.BU.N.EN.2.2012.0.01.CC 17
Temperature
Sensors STP660, 120, 620
Temperature Sensors
STP660
The STP660 temperature sensor is intended for immersion mounting in pipe
systems with a separate pocket (well), and has a telescopic probe extendable from
100mm to 300mm. This technology makes the product ideal for the HVAC service
industry as the probe is adjustable for any size pocket. The tip is primed with heat
conductive paste, ensuring that the time constant is optimised. The pocket is
sealed, making it easy to replace the sensor if necessary.
The STP housing is equipped with a 20mm cable fitting. A 20mm cable gland is
supplied. As there is a choice of both pocket material (brass or stainless steel) and
size (120mm or 200mm) for this sensor, the pocket must be ordered separately.
See the DWA range in the pocket / wells section of this catalogue.
Accuracy See Appendix A: Table F
Probe
Part Model
number Number
(mm)
Pipe Temperature Sensor
5126080000 STP660 100 to 300 Satchwell
STP660
STP120, 220, 620

The STP120, 220, 620 temperature sensors are intended for immersion mounting
in pipe systems without requiring a pocket (well). This product is for use in fast
time constant systems such as district heating applications. The STP housing is
equipped with a 20mm cable fitting. A 20mm cable gland is supplied.
Accuracy See Appendix A: Tables A, F
Probe
Part Model
number Number
(mm)
Pipe Temperature Sensor TAC Vista
5123158010 STP120 –70 70
STP120-70 TAC Xenta
5123160010 STP120 –120 120
STP120-120 TAC Xenta
5123162010 STP120 –220 220
STP120-220 TAC Xenta
5123230000 STP220-70 70 TAC I/NET
STP220-70
5123232000 STP220-120 120 TAC I/NET
STP220-120
5123234000 STP220-220 220 TAC I/NET
STP220-220
5126090000 STP620 100 Satchwell
STP620
18 CAT-SENSORS-EU.BU.N.EN.2.2012.0.01.CC
Temperature
Sensors STP300
Immersion Temperature
Transmitters for Pockets
STP300
The STP300 is an electronic immersion temperature transmitter that converts a
measured temperature into an electronic current signal 4-20 mA. The STP300 is
designed for immersion mounting in pipe systems with a separate pocket (well).
The pocket is sealed, making it easy to replace the transmitter if necessary.
For a new installation the pocket must be ordered separately. The transmitter
is intended for measurement of high and low temperatures. The transmitter
is connected with a 2-wire cable, which serves both as power supply and
for signal transmission. The reading of the measured signal is done over an
external load resistance.
Specifications
Output 2-Wire, 4-20 mA
Range 0/100, 0/160, -50/+50 °C
Accuracy ±0.4 % of range
Supply Min. 15Vdc, Max. 36Vdc
Probe
Part Model
Description length
number number
(mm)
006920241 STP300-100 0/100 Pipe Temperature Sensor STP300-100 0/100 100
006920221 STP300-100 -50/50 Pipe Temperature Sensor STP300-100 -50/50 100
CAT-SENSORS-EU.BU.N.EN.2.2012.0.01.CC 19
Temperature
Sensors Pockets/Wells
Pockets/Wells
The table below provides a list of pockets/wells suitable for use with most
pipe sensors and transmitters. For Satchwell pipe sensors use DWA pockets.
Note: pockets/wells must be ordered separately.
Part Probe length

Description
number (mm)
9121040000 Pocket STP 50mm Brass 50
9121050000 Pocket STP 50mm Stainless steel 50

9121058000 Satchwell Pocket DWA0001 N/A
9121060000 Satchwell Pocket DWA0002 120
20 CAT-SENSORS-EU.BU.N.EN.2.2012.0.01.CC
Section-9


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com
• SYSTEM-10 BTU METER •
FLOW AND ENERGY MEASUREMENT
DESCRIPTION
The System-10 BTU Meter provides highly accurate
thermal energy measurement in chilled water, hot water
and condenser water systems based on signal inputs
from two matched temperature sensors (included) and
any of ONICON’s insertion or inline flow meters (ordered
separately). The basic model provides a local indication
of energy, flow and temperature data through an
alphanumeric display. An isolated solid state dry contact
is provided for energy total. Optional analog outputs and
network communications are also available.

APPLICATIONS
Chilled water, hot water and condenser water systems for:
PROCESS CONTROL EQUIPMENT
3GF5
• Commercial office tenant billing
• Central plant monitoring
FEATURES • University campus monitoring
• Institutional energy cost allocation
Simple Installation and Commissioning - Factory • Performance/efficiency evaluations
programmed and ready for use upon delivery. • Performance contracting energy monitoring
All process data and programming functions are
accessible via front panel display and keypad. ORDERING INFORMATION
Single Source Responsibility - One manufacturer is
The System-10 BTU Meter is sold complete with
responsible for every aspect of the energy
measurement process ensuring component temperature sensors. Thermowell installation kits and
compatibility and overall system accuracy. flow meters are purchased separately.
N.I.S.T. Traceable Calibration with Certification - Each ITEM # DESCRIPTION

Btu measurement system is individually c alibrated
SYSTEM-10 System-10 BTU Meter
using application specific flow and temperature data
and is provided with calibration certificates. SYSTEM-10-OPT8 High temperature sensors (over 200° F)
SYSTEM-10-OPT9 Add one analog output
Precision Solid State Temperature Sensors - Custom SYSTEM-10-OPT10 Add four analog outputs
calibrated and matched to an accuracy better than
±0.15° F over calibrated range. Choose from the following commonly used
thermowell installation kits:
Highly Accurate Flow Meters - ONICON offers a wide SYSTEM-10-OPT4 Upgrade to outdoor thermowells (pair)
variety of insertion and inline type flow m
easurement BTU-ST-INSTL32 Brass kit for welded steel pipe (¾" - 5")
technologies including turbine, electromagnetic and
vortex sensing. Each type offers unique advantages BTU-ST-INSTL52 Brass kit for threaded steel pipe (¾" - 2½")
depending on the application. All ONICON flow BTU-ST-INSTL34 SS kit for welded steel pipe (¾" and up)
meters are individually wet calibrated and designed BTU-ST-INSTL36 Brass kit for copper tube (¾" - 2")
to operate over a wide flow velocity range with BTU-ST-INSTL37 Brass kit for copper tube (2½" - 3")
accuracies ranging from ±0.2% to ±2.0% of rate
depending on the model. Choose from the following flow meters:
F-1100 / F-1200 Insertion Turbine Flow Meter (1¼” - 72”)
Complete Installation Package - All mechanical F-1300 Inline Turbine Flow Meter (¾” - 1”)
installation hardware, color coded interconnecting
F-3100 / F-3200 Inline Electromagnetic Flow Meter (¼” - 48”)
cabling and installation instructions are provided
to ensure error-free installation and accurate system F-3500 Insertion Electromagnetic Flow Meter (3”- 72”)
performance. F-4200 Clamp-on Ultrasonic Flow Meter (½” - 48”)
F-2000 Series Inline Vortex Flow Meter (½” - 12”)
Serial Communications - Optional communications
card provides complete energy, flow and temperature Refer to catalog for flow meter installation kits.
data to the control system through a single n
etwork Consult with ONICON for additional thermowell
connection, reducing installation costs. installation kit and flow meter options.
11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699
0298-8 / 14194 www.onicon.com • sales@onicon.com 10-16
SYSTEM-10 BTU METER SPECIFICATIONS
CALIBRATION MECHANICAL
Flow meters and temperature sensors are individually calibrated Electronics Enclosure:
followed by a complete system calibration. Standard: Steel NEMA 13, wall mount, 8”x 10”x 4”
Field commissioning is also available. Optional: NEMA 4 (Not UL listed)
ACCURACY Approximate weight: 12 lbs
Temperature Sensor Thermowell Kits:
TEMPERATURE
Thermowells and other kit components vary by fluid type,
Overall differential temperature measurement uncertainty of
fluid temperature, pipe material and pipe size. Commonly
≤ ± 0.15° F over the stated range
used kits are listed on the previous page. Contact ONICON
(Includes uncertainty associated with the sensors, transmitters,
for additional thermowell kit options, including hot tap
cabling and calculator input circuitry)
installation kits for retrofit installations.
Temperature sensors meet EN1434 / CSA C900.1 accuracy
requirements for 1K sensors for cooling applications, 32° F - 77° F ELECTRICAL
Temperature sensors meet EN1434 / CSA C900.1 accuracy Input Power: Based on Btu meters configured for network
requirements for 2K sensors for heating applications, 140° F - 212° F connection without the optional analog outputs
CALCULATOR Standard: 24 VAC, 50/60 Hz, 500 mA
Computing nonlinearity within ±0.05% Optional: 120 VAC, 50/60 Hz, 200 mA
230 VAC, 50 Hz, 150 mA
Calculator meets EN1434 / CSA C900.1 class 1 accuracy Internal Supply:
requirements for 2K sensors for all applications Provides 24 VDC at 200 mA to electronics and flow meter
PROGRAMMING Wiring:
Factory programmed for specific application Temperature signals: Use 18-22 ga twisted shielded pair
Field programmable via front panel interface Flow signals: Use 18-22 ga - see flow m eter specification
MEMORY sheet for number of conductors.
Non-volatile EEPROM memory retains all program p arameters
and totalized values in the event of power loss. Note: Specifications are subject to change without notice.
DISPLAY
Alphanumeric LCD displays total energy, total flow, energy
rate, flow rate, supply temperature, return temperature, serial
number and alarm status
Alpha: 16 character, 0.2” high
Numeric: 8 digit, 0.4” high
Rate Display Range: 0 - 9,999,999
Total Display Range: 0 - 9,999,999 TYPICAL SYSTEM-10 INSTALLATION
The totals will roll over to zero when the maximum count is
exceeded.
ONICON Insertion
OUTPUT SIGNALS Flow Meter
Standard:
Isolated solid state dry contact for energy total: BTU X 10,000
Contact rating: 100 mA, 50 V 24 VAC Input

Contact duration: 0.5, 1, 2, or 6 sec SCROLL RESET PROGRAM
Signal Connections to
Optional:
Control System
Analog Output(s) (4-20 mA, 0-10 V or 0-5 V): SYSTEM-10
BTU METER
One or four analog output(s) available for flow rate,

Supply Temp
energy rate, supply/return temps, or delta-T. Sensor

Serial Communications:
BACnet IP or MS/TP LONWORKS - TP/FT-10F
Siemens Apogee - P1 Johnson Controls Metasys - N2 Heat Exchanger
MODBUS RTU RS485 or TCP/IP

Supply
Return Temp
TEMPERATURE SENSORS Sensor
Solid state sensors are custom calibrated using N.I.S.T.
traceable temperature standards.
Current based signal (mA) is unaffected by wire length. Return
TEMPERATURE RANGE
Standard liquid temperature range: 32° F to 200° F Insertion turbine flow meter shown.
Optional extended temperature ranges available Any ONICON flow meter may be
Ambient temperature range: -20° F to 140° F used with the System-10 BTU Meter.
LIQUID FLOW SIGNAL INPUT Consult with ONICON for additional
0-15 V pulse output from any ONICON flow meter flow meter types.
0298-8 / 14194 www.onicon.com • sales@onicon.com 10-16
• F-1111 SINGLE TURBINE •
INSERTION FLOW METER
ISOLATED ANALOG OUTPUT
Made in the USA
DESCRIPTION CALIBRATION
ONICON insertion turbine flow meters are Every ONICON flow meter is wet calibrated in
suitable for measuring electrically conductive our flow laboratory against primary volumetric
water-based liquids. The F-1111 model provides standards that are directly traceable to N.I.S.T. A
isolated 4-20 mA and 0-10 V analog output signals certificate of calibration accompanies every meter.
that are linear with the flow rate.
FEATURES
APPLICATIONS
Unmatched Price vs. Performance - Custom
• Closed loop chilled water, hot water, condenser calibrated, highly accurate instrumentation
water & water/glycol/brine solutions for HVAC at very competitive prices.
• Process water & water mixtures
• Domestic water (NSF/ANSI 61/372 version*) Excellent Long-term Reliability - Patented
electronic sensing is resistant to scale and
GENERAL SPECIFICATIONS particulate matter. Low mass turbines with
engineered jewel bearing systems provide a
ACCURACY mechanical system that virtually does not wear.
± 0.5% of reading at calibrated velocity
± 1% of reading from 3 to 30 ft/s (10:1 range) Industry Leading Two-year “No-fault” Warranty -
± 2% of reading from 0.4 to 20 ft/s (50:1 range) Reduces start-up costs with extended coverage
SENSING METHOD to include accidental installation damage
Electronic impedance sensing (miswiring, etc.) Certain exclusions apply. See
(non-magnetic and non-photoelectric) our complete warranty statement for details.
PIPE SIZE RANGE Simplified Hot Tap Insertion Design -
1¼” through 72” nominal diameter Standard on every insertion flow meter.
SUPPLY VOLTAGE Allows for insertion and removal by hand
24 ± 4 V AC/DC at 80 mA without system shutdown.
LIQUID TEMPERATURE RANGE
Standard: 180° F continuous, 200° F peak
High Temp: 280° F continuous, 300° F peak OPERATING RANGE FOR
Meters operating above 250° F require 316 SS COMMON PIPE SIZES
construction option 0.17 TO 20 ft/s
AMBIENT TEMPERATURE RANGE ±2% accuracy begins at 0.4 ft/s
-5° to 160° F (-20° to 70° C) Pipe Size (Inches) Flow Rate (GPM)
OPERATING PRESSURE 1¼ 0.8 - 95
400 PSI maximum 1½ 1 - 130
PRESSURE DROP 2 2 - 210
Less than 1 PSI at 20 ft/s in 1½” pipe, 2½ 2.5 - 230
decreasing in larger pipes and lower velocities 3 4 - 460
OUTPUT SIGNALS PROVIDED 4 8 - 800
6 15 - 1,800
Analog Outputs (Isolated)
8 26 - 3,100
Jumper selectable: 4-20 mA / 0-10V / 0-5V
10 42 - 4,900
Frequency Output 12 60 - 7,050
0 – 15 V peak pulse 14 72 - 8,600
16 98 - 11,400
(continued on back) 18 120 - 14,600
20 150 - 18,100
24 230 - 26,500
30 360 - 41,900
36 510 - 60,900
0214-3 www.onicon.com • sales@onicon.com 04-16
F-1111 SPECIFICATIONS (cont.) F-1111 WIRING INFORMATION
MATERIAL WIRE COLOR DESCRIPTION NOTES
Wetted metal components:
(+) 24 V AC/DC
Standard: Electroless nickel plated brass RED
supply voltage, 100 mA
Connect to power supply positive
Optional: 316 stainless steel
(-) Common ground
Optional: NSF/ANSI 61/372 version* BLACK
(Common with pipe ground)
Connect to power supply negative
ELECTRONICS ENCLOSURE
(+) Frequency output signal: Required when meter is connected
Standard: Weathertight aluminum enclosure GREEN
0-15 V peak pulse to local display or Btu meter
Optional: Submersible enclosure
ELECTRICAL CONNECTIONS BLUE (+) Analog signal
Jumper selectable:
4-wire minimum for 4-20 mA, 0-10 V, or 0-5V output 4-20 mA / 0-10V / 0-5V
Standard: 10’ of cable with ½” NPT BROWN (-) Analog signal
conduit connection
Optional: Indoor DIN connector with 10’
of plenum rated cable F-1111 WIRING DIAGRAM
Flow meter into control system (no display or Btu meter)
Power
ALSO AVAILABLE Source
RED
• • + 24 V
BLACK
• • COM
Control System
BLUE • • (+) ANALOG
10 3/4” BROWN • • (-) ANALOG
SCROLL RESET PROGRAM
NOTE:
1. Black wire is common with the pipe ground (typically earth ground).
2. Frequency output required for ONICON display module or Btu meter,
refer to wiring diagram for peripheral device.
*
6”
Display Modules Btu Measurement TURBINE INSERTION FLOW METER
Systems NSF/ANSI 61 <MH60590>
ALSO CLASSIFIED
IN ACCORDANCE WITH
NSF/ANSI 372
TYPICAL METER INSTALLATION THIS AREA ACCEPTABLE
• Acceptable to install in vertical pipe

Typical
(New construction Meter Installation
or scheduled shutdown)
(New construction or scheduled shutdown)
• Position meter anywhere in upper 240°
for horizontal pipe
Horizontal Run Pipe
To control
Optional output
ONICON
systemto
signal(s)
display or
control system BTU meter
(Optional)
CLEARANCE
REQUIRED
FOR INSTALLATION
Connect factory wires
to field wires in appropriate Detail of hot tap adapter Typically
junction box. with turbine assembly 30” - 36”
½” FNPT depending on pipe
conduit connection withdrawn
size and height of
valve assembly.
Insertion depth
gage provided Standard installation
NOTE: with each meter kit for steel pipe
Installation kits vary based on
1” full port ball valve
pipe material and application. 1¼” for
1” close nipple
For installations in pressurized hot tap
1” branch outlet
(live) systems, use “hot tap” 1¼”
installation kit and drill hole using
a 1” wet tap drill. Minimum hole size = 1”
Must be centered FLOW
0214-3 www.onicon.com • sales@onicon.com 04-16
Section-10


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com
ÿÿÿ
!ÿ"#$%#&
]$#^%&%_`ÿa_b#$ÿ
c_`%d_$%̀eÿ
'()*+
,ÿ./0123/1ÿ456708/1ÿ29ÿ75ÿ:;;ÿ<0=ÿ>?3/=76@ÿ
ÿ AB9ÿ75ÿCD;;;ÿ<0=ÿE?7Fÿ7F/ÿ21/ÿ5GÿHIJ1K
,ÿ.5>/61ÿG53ÿ1299537ÿ5Gÿ;LCCCÿ<0=ÿ10G/ÿMIJ1ÿ53ÿNÿOP9ÿMIJ1
,ÿQ70R>03>ÿ0R0658ÿSTD;ÿPOÿ0R>ÿ9261/>ÿ5279271
,ÿU97?5R06ÿVOMR/7Wÿ53ÿ.5>X21ÿ527927
,ÿU97?5R06ÿ5RTX503>ÿ>070ÿ6588?R8
,ÿYH:NZ[\.OÿSÿ/R=65123/
01231ÿ56ÿ789
ÿ
5ÿ 1821ÿ
51 ÿ75985 89
fg\hQIU[\ÿiOQÿO[ÿ*ÿjkklÿg\fYQI\g\mÿnBOoYIhÿQhQI\.
Section-11


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com
Section-12


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com
ML7420A/ML7425A,B
Electric Linear Valve Actuator
SPECIFICATION DATA
FEATURES
▪ Easy and quick installation
▪ No separate linkage required
▪ No adjustments required
▪ Low power consumption
▪ Force-limiting end stops
▪ Spring-return models (ML7425A,B)
▪ Manual operation knob
▪ Position feedback signal
▪ 0...10 Vdc or 2...10 Vdc signal input selectable
▪ Direct / reverse action selectable
▪ Stroke position on signal failure selectable
▪ Corrosion-resistant design
▪ Maintenance-free
▪ Actuator-valve combinations approved according to
DIN 14597 available
SPECIFICATIONS
Temperature Limits
ML7420 ML7425 Ambient operating limits -10...+50 °C at 5...95% RH
Ambient storage limits -40...+70 °C at 5...95% RH
Medium valve temperature see section "Models" on pg. 2;
GENERAL 220 °C with High-Temp. Kit (see
The ML7420A / ML7425A,B actuators are designed for section "Accessories" on pg. 3)
modulating control with controllers providing an analog output
of 0...10 Vdc or 2...10 Vdc. They operate Honeywell’s Signals
standard valves in heating, district heating, ventilation, and air Signal input voltage y = 0...10 Vdc or 2...10 Vdc
conditioning (HVAC) applications. Spring-return models
Ri = 100k
provide a safety position at power failure.
Signal source 1 k max.
Position feedback signal x = 2...10 Vdc
Load 1 mA max.
Safety
Protection class II as per EN60730-1
Protection standard IP54 as per EN60529
Flame retardant housing V0 as per UL94 (with metal cable
gland – not supplied)
Wiring
Wiring terminals 1.5 mm2
Cable entry M20x1.5 and two additional
knock-outs M16x1.5 and
M20x1.5
Weight
non-spring return type 1.3 kg
spring return type 2.4 kg
Material
Cover ABS-FR
Base glass fiber reinforced plastic
Yoke aluminum diecast
® U.S. Registered Trademark EN0B-0261GE51 R1114

Copyright © 2014 Honeywell Inc. • All rights reserved
ML7420A/ML7425A,B – SPECIFICATION DATA
MODELS
model ML7420A6009 ML7420A6017 ML7425A6008 ML7425B6007
supply voltage 24 Vac 15%; 50/60 Hz
medium valve tem-
perature* 150 °C 130 / 150 °C** 150 °C
power consumption 5 VA 7 VA 12 VA
signal input 0(2) Vdc Actuator stem retracted. Two-way valve:”open”, three-way valve port A-AB:”closed” ***
signal input 10 Vdc Actuator stem extended. Two-way valve:”closed”, three-way valve port A-AB:”open” ***
stroke 20 mm
run time at 50 Hz 1 min 0.5 min 1.8 min
close-off force  600 N
spring return time  12 s
actuator stem extends actuator stem retracts
spring return direction  at power failure at power failure
* When equipped with the High-Temp. Kit (see section "Accessories" on pg. 3), all actuators are suitable for medium valve
temperatures of up to 220 °C.
**Depending upon the given combination of valves and actuators, see tables below.
*** Factory setting; can be reversed by pressing the pushbutton (W3) located on the PCB (see Fig. 1).
Medium temp. < 130 °C (DIN Certificate 1F139/13) Medium temp. < 150 °C (not DIN-certified)
valve dimensions with actuator valve dimensions with actuator
V5016A (PN16) V5016A (PN16)
15-80 mm
V5025A (PN25) V5025A (PN25) 15-80 mm
ML7425A6008 ML7425A6008
V5328A (PN16) V5328A (PN16)
15-50 mm
V5049A (PN25/40) V5049A (PN25/40) 15-65 mm
OPERATION
General Spring Return
The drive of a synchronous motor is converted into linear The ML7425A,B spring return actuators provide a defined
motion of the actuator stem via a spur gear transmission. The safety position of the valve in case of power failure.
actuator stem is connected with the valve stem by a button- The spring return actuators are shipped from the factory with
keyed retainer connection. a shipment stop (to lock the manual operation knob) in order
An integrated spring package limits the stem force to a to allow connection of the stem button retainer to the valve
factory-set value in either direction. stem without power supply.
The actuator switches off precisely when the specified stem
force is reached.
Electrical Installation
The actuators are delivered with a pre-installed cable gland
Manual Operation M20x1.5 and two additional knock-outs for M16x1.5 and
Actuators without spring return are equipped with a manual M20x1.5. Max. cable length/diameter for field mounting:
2
operation knob used in case of power failure. Manual 200 m / 1.5 mm (ML7420A6009) or
operation is permitted only after the power supply is switched 2
100 m / 1.5 mm (ML7420A6017) or
off or disconnected. 2
50 m / 1.5 mm (ML7425xxxxx).
To operate, push the manual operation knob down and turn
clockwise to move the stem downward and counterclockwise
to move the stem upward. If the actuator returns to automatic NOTE: To avoid malfunction, it is necessary to connect
control, the manual operation knob unlocks automatically. 24 Vac power and ground (see Fig. 3 on page 4).
In the case of actuators with spring return, the manual
operation knob is located under the cover. Action
The direction of action can be reversed by pressing the left-
Override Option hand pushbutton (W3) located on the printed circuit board
(see Fig. 1), If the corresponding LED is lit, this indicates that
All actuators have an integrated override function (see also the actuator stem will retract at a control signal of 0(2) Vdc
Fig. 3). When the override signal is applied, the actuator (factory setting); if it is dark, the actuator stem will extend at a
drives to the fully-open or fully-closed position, regardless of control signal of 0(2) Vdc.
the controller signal.
EN0B-0261GE51 R1114 2
ML7420A/ML7425A, B – SPECIFICATION DATA
Input Signal Range Output Signal "POSITION"

The range of the analog input signal Y can be changed by An analog output signal 2...10 Vdc ”POSITION” is available
pressing the right-hand pushbutton (W2) located on the which represents the actual actuator position. It can be used
printed circuit board (see Fig. 1). If the corresponding LED is for remote indication.
lit, this indicates that the actuator is set for 0...10 V operation When the actuator stem is extended, the output signal is
(factory setting); if it is dark, the actuator is set for 2...10 V 10 Vdc.
operation.
Accessories
Input Signal Failure Auxiliary Switches
Using the potentiometer (W1) located on the printed circuit The actuators can be equipped on-site with an auxiliary switch
board (see Fig. 1), the actuator can be adjusted such that in unit consisting of two switches. Their switching points are
case the signal input fails (due, e.g., to a broken wire) or adjustable over the full length of the actuator stroke. The
exceeds 12.5 V, the actuator will run to any pre-configured switches can be used to switch pumps or provide remote
position between 0% and 100%. The factory setting is with indication of any stroke position. A cable gland M20x1.5 is
the actuator stem in the central position (50%). delivered with the unit.
NOTE: The two pushbuttons (W3 and W2) and the Part number: 43191680-205
potentiometer (W1) are accessible after the cover
has been removed and are located at the rear side
of the protection sheet of the printed circuit board. High-Temperature Kit
(for applications >150 C and < 220 °C medium temperature)
input signal
failure order number
valve DN
direction input signal High-Temp. Kit
of action range
V5011R/V5011S 15 – 50
43196000-001 V5013R/V5013E 15 – 50
W3 W2 V5328A/V5329A 15 – 32
V5328A/V5329A 40 – 80
43196000-002 V5049A 15 – 65
V5016/V5025/V5050A 15 – 80
W1
LED
Fig. 1. Pushbuttons and potentiometer (default positions)
CLOSE-OFF PRESSURE RATINGS

stem force 600 N
stroke 20 mm
valve mm 15 20 25 32 40 50 65 80
size inch ½ ¾ 1 1¼ 1½ 2 2½ 3
valves close-off pressure ratings (in kPa)
V5011R/S 1600 1600 1000 700 460 260
V5328A 1600/1000 1000 1000 600 350 200 120 50
V5016A 1600 1600 1600 1600 1600 1600 1600 1600
V5025A 2500 2500 2500 2500 2500 2500 2500 2500
V5049A 1600/1000 1000 1000 600 350 200 120
V5013R/E 1600 1600 1000 700 460 260
V5329C 600 600 600 600 480 260 160 100
V5329A 1000 1000 1000 790 480 260 160 100
V5050A 1000 1000 1000 600 350 200 120 50
For details on the valves, see following Specification Data No.:

V5011R EN0B-0064GE51 V5328A EN0B-0291GE51 V5095A EN0B-0412GE51
V5011S EN0B-0085GE51 V5329A/5050A EN0B-0310GE51 V5013R EN0B-0065GE51
V5016A EN0B-0440GE51 V5025A EN0B-0442GE51 V5013E EN0B-0446GE51
V5049A EN0B-0238GE51
3 EN0B-0261GE51 R1114
ML7420A/ML7425A, B – SPECIFICATION DATA
DIMENSIONS
135x(161)
67.4
135x(161)
67.4
364 (with High-Temperature Kit: 444 mm)

322 (with High-Temperature Kit: 402 mm)
284
242
233
100 0 100 0
192
0 100 0 100
141
Fig. 2. ML7420A (left) and ML7425A,B (right), dimensions (in mm)
WIRING
ML7420A (0/2...10 V) ML7425A,B (0/2...10 V) Accessory
AUXILIARY
position position
SWITCHES
Y 0(2)...10 V 2...10 V Y 0(2)...10 V 2...10 V 250 Vac / max. 5(3) A
1 2 3 4 5 6
24 V 24 V 24 V 24 V
S1 S2
M 24 V~ 24 V~
M 24 V~ 24 V~
230V 230V
24V 24V
override
override
1 ! 1 ! 230V
24V SELV
24V SELV
230V
2 2
B
safety
temperature limiter
Fig. 3. Wiring
Manufactured for and on behalf of the Environmental and Combustion Controls Division of Honeywell Technologies Sàrl, Rolle, Z.A. La Pièce 16, Switzerland by its Authorized Representative:
Automation and Control Solutions

Honeywell GmbH
Böblinger Strasse 17
71101 Schönaich, Germany
Phone +49 (0) 7031 637 01
Fax +49 (0) 7031 637 740
http://ecc.emea.honeywell.com
EN0B-0261GE51 R1114 Subject to change without notice

Section-13


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com
LIQUID PRESSURE
ACCURACY BY DESIGN
TRANSDUCERS
WP Series
Shown with 3 Way Valve Option

Not available in the USA
Precision pressure
control/sensing
FEATURES:
• Diﬀerential and gauge pressure models
• Four , switch selectable, ranges per model
• Jumper selectable outputs: 4-20mA, 0-5 Vdc or 0-10 Vdc
• Optional backlit (jumper-selectable) LCD
• All stainless steel sensor construction
• Port swap switch to correct incorrect plumbing
• Switch selectable uni or bi-directional
• Nema 4X (IP65) hinged enclosure
Peace of mind
through reliable
pressure monitoring
GREYSTONE HAS AN ISO 9001 REGISTERED QUALITY SYSTEM
APPLICATIONS:
• Pump Monitoring • Chiller Monitoring
• Filter Monitoring • HVAC Systems
SPECIFICATIONS:
Media compatibility 17-4 PH stainless steel
Input power 18 to 28 Vac/Vdc (non-isolated half-wave rectified)
Supply Current @ 24 Vdc 100 mA max @ 24 Vdc with LCD backlight, 35 mA with backlight disabled
Output 3-wire transmitter; user selectable 4-20mA active(sourcing), 0-5V and 0-10V
Pressure Ranges: 0-5/10/25/50 psig/d 0-.5/1/2.5/5 Bar 0-50/100/250/500 kPa
0-10/20/50/100 psig/d 0-.75/1.5/3.75/7.5 Bar 0-75/150/375/750 kPa
0-20/40/100/200 psig/d 0-1/2/5/10 Bar 0-100/200/500/1000 kPa
0-50/100/250/500 psig/d 0-3/6/15/30 Bar 0-300/600/1500/3000 kPa
Line Pressure Max. Line Pressure is the highest of the selectable ranges on each models.
i.e.: WP-D-101 has a maximum line pressure of 50 psi
Proof Pressure Max. 2X highest range per model
Burst Pressure Max. 5X highest range per model
Accuracy ± 1% F.S. of range selected with combined linearity, hysteresis, and repeatability.
Lowest range on each model has accuracy of ± 2% F.S.
Pressure cycles > 100 million
Surge Damping Normal 4-second averaging
Slow 8-second averaging, switch selectable
Temperature compensated range 0˚ to 55°C (32 to 130°F)
Sensor operating range -40˚ to 85°C (-40 to 185°F)
Long term stability ± 0.25% typical (1 year)
Zero adjust Push-button auto-zero and digital input
Operating environment 0˚ to 50°C 10-90% RH condensing
Fittings 1/8” NPT female
Enclosure ABS with hinged lid and gasket, 145 x 100 x 64mm (5.7”w x 3.95”h x 2.5”d)
Shock 100G, 11 mSec, 1/2 sine
Vibration 10G peak 20 to 2000 Hz
Rating IP65 (NEMA 4X)
DESCRIPTION:
The Wet-Wet pressure transmitter is designed with dual sensors that enable it to accept high differential pressure ranges. The
gauge pressure transmitter is designed with a single sensor that enables it to accept high pressures ranges.
Both transmitters can accept ranges from 5 PSI to 500 PSI. All models can handle overload pressure 2X the maximum full scale
range and burst pressure is 5X the maximum full scale range. Features include field selectable pressure ranges and output
signal types for the most flexible applications. Typical HVAC applications include monitoring of liquid differential and gauge
pressure. The output signal is factory calibrated and temperature compensated for the highest start-up accuracy.
NOTE: When choosing pressure range ensure that the maximum individual port pressure does not exceed the maximum
pressure range of the unit. For example, the maximum individual port pressure of the WP-D-102 is 100 PSI. Exceeding this
may cause damage to the sensors and will give erroneus readings.
PRODUCT ORDERING INFORMATION:

MODEL Description
WP-D Wet/Wet differential pressure transmitter, jumper selectable outputs
WP-G Gauge pressure transmitter, jumper selectable outputs
CODE Pressure ranges

101 5, 10, 25 and 50 PSI ranges
102 10, 20, 50 and 100 PSI ranges
103 20, 40, 100 and 200 PSI ranges
104 50, 100, 250 and 500 PSI ranges
105 0.5, 1.0, 2.5 and 5.0 Bar
106 0.75, 1.50, 3.75 and 7.50 Bar
107 1, 2, 5 and 10 Bar
108 3, 6, 15 and 30 Bar
109 50, 100, 250 and 500 kPa
110 75, 150, 375 and 750 kPa
111 100, 200, 500 and 1000 kPa
112 300, 600, 1500 and 3000 kPa
CODE Option
LCD Backlit LCD option
VB Valve and bracket Assembly (Not available in the USA)
WP-D 101 LCD Typical Model Number
Example: Wet to Wet differential, 5 thru 50 PSI ranges c/w LCD (WP-D-101-LCD)
ENCLOSURE DIMENSIONS:
WP-D-XXX-LCD
100 mm
(3.95”)
64 mm
(2.5”)
WP-G-XXX-LCD
145 mm
(5.7”)
-VB Option
3 Way Valve for WP-D
Not Available in the USA
V.02/09
Copyright © Greystone Energy Systems Inc. All Rights Reserved
222.25 mm
(8.75”)
98.43 mm
(3.875”)
ACCURACY BY DESIGN Greystone Energy Systems Inc. is one of North America’s

largest ISO registered manufacturers of HVAC sensors and
Greystone Energy Systems, Inc. transducers for Building Automation Management Systems.
150 English Drive, Moncton, NB We have conscientiously established a worldwide
Canada E1E 4G7 reputation as an industry leader by maintaining leading-
(506) 853-3057 Fax: (506) 853-6014 edge design technology, prompt technical support, and a
North America: 1-800-561-5611 commitment to on-time deliveries. We take pride in our
Quality Management System which is ISO 9001 certified,
PRINTED IN CANADA
e-mail: mail@greystoneenergy.com
www.greystoneenergy.com assuring our customers of consistent product reliability.
GREYSTONE HAS AN ISO 9001 REGISTERED QUALITY SYSTEM

Section-14


TEL : +974 44310652 FAX : +974 44373664
www.shahjan.com

Material Submittal

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Material Submittal

Uploaded by

Copyright:

Available Formats

MATERIAL SUBMITTAL FOR

BMS RECTIFICATION OF PROJECTS

BMS SPECIALIST & SUPPLIER

ADDRESS : P. O. Box 8689 , Doha – QATAR

1 BILL OF QUANTITY TAB-A

BMS SPECIALIST & SUPPLIER

ADDRESS : P. O. Box 8689 , Doha – QATAR

1 MNB-V1-2-A VAV Controllers-Cooling only application VAV units 24 24

2 MNB-V2-2-A VVR Controllers -Cooling and heating application VVR units 36 36

7 SPD910-300 Differential Air Pressure Switch FCU at cell culture room 1 1

8 SHD100T Supply Duct Temperature/Humidity Sensor Hydrotheraphy pool AHU duct 2 2

11 System-10 BTU METER Main CHW water header 1 0 8 -10 weeks

12 WHT200 KW transmitter AHUs and CHW pumps 42 0 8 -10 weeks

13 LS-TM Water High/Low Level Switch Water tanks 8 0 8 -10 weeks

14 ML7425A6008 Actuator for control valve AHUs 4 0 8 -10 weeks

15 WPG107 Liquid Pressure Sensor CHW recirculation pump 1 0 8 -10 weeks

16 WPD107 Liquid Differential Pressure Sensor CHW header differential 2 2

17 Fuel Tank High/Low Switch Fuel tank 2 0 8 -10 weeks

BMS SPECIALIST & SUPPLIER

ADDRESS : P. O. Box 8689 , Doha – QATAR

1 MNB-V1-2-A VAV Controllers-Cooling only application 1

2 MNB-V2-2-A VVR Controllers -Cooling and heating application 1

3 MNS3 Space thermostat for VAV control 2

4 XENTA 913 Interface module 3

5 STR100 Room Temperature Sensor 4

6 MD10A-24 Modulating Damper Actuator 5

7 SPD910-300 Differential Air Pressure Switch 6

8 SHD100T Supply Duct Temperature/Humidity Sensor 7

9 STP100-50 + STP50mm Temperature Sensor with thermowell 8

10 SPT100-150 + STP150mm Temperature Sensor with thermowell 8

11 System-10 BTU METER 9

13 LS-TM Water High/Low Level Switch 11

14 ML7425A6008 Actuator for control valve 12

15 WPG107 Liquid Pressure Sensor 13

16 WPD107 Liquid Differential Pressure Sensor 13

17 Fuel Tank High/Low Switch 14

BMS SPECIALIST & SUPPLIER

ADDRESS : P. O. Box 8689 , Doha – QATAR

MicroNet BACnet VAV Controllers

Continued from first page. Digital

Fan Operation and Speed Mode Timing

Communications BACnet is a registered trademark of

TAC I/A Series BACnet Topology

Ethernet TCP/IP and BACnet/IP

MicroNet BACnet MicroNet BACnet

BACnet MS/TP Communications Bus

S-Link Remote I/O S-Link

MicroNet BACnet MicroNet BACnet

BMS SPECIALIST & SUPPLIER

ADDRESS : P. O. Box 8689 , Doha – QATAR

European Community – EMC Directive 89/336/

Temperature Sensor Ambient Limits

Type Operating Temperature

Humidity Sensor Humidity

FCC Emergency Heat

Continued from first page. FEATURES

Digital Display (MN-S3xx, MN-S4xx and

Typical MN-S3xx, -S4xx, or -S5xx Display/Change Values.

Unoccupied Heat, Unoccupied Cool

BACnet or LonWorks Network

© 2009 Schneider Electric. All rights reserved.

DO5: 250VAC, 3A Max, COS f = 0.4.

UI: 5VDC Max, Class 2.

Power: 24VAC, 50/60Hz, Class 2,

FUNCTIONS 1. In the Xenta 100 series, this is only applicable
