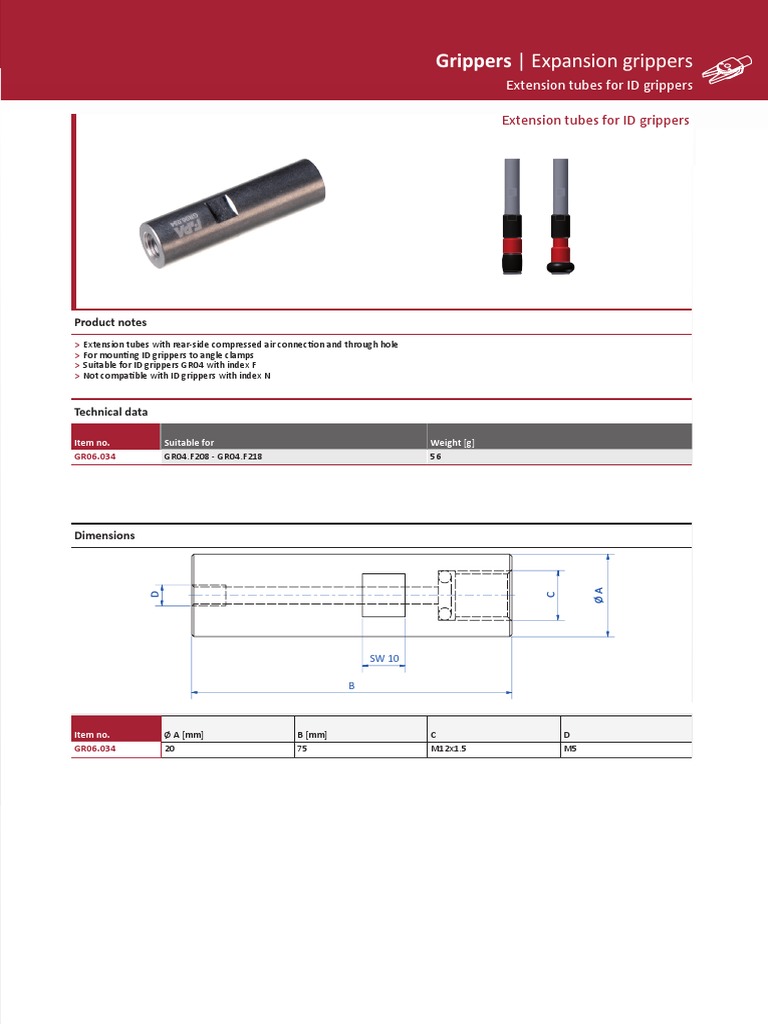

Grippers | Expansion grippers

Extension tubes for ID grippers

Extension tubes for ID grippers

Product notes
> Extension tubes with rear-side compressed air connection and through hole
> For mounting ID grippers to angle clamps
> Suitable for ID grippers GR04 with index F
> Not compatible with ID grippers with index N

Technical data

Item no. Suitable for Weight [g]


GR06.034 GR04.F208 - GR04.F218 56

Dimensions

ØA
D

SW 10

Item no. Ø A [mm] B [mm] C D


GR06.034 20 75 M12x1.5 M5
