SYSTEM CI INTERCONNECTING CONNECTORS

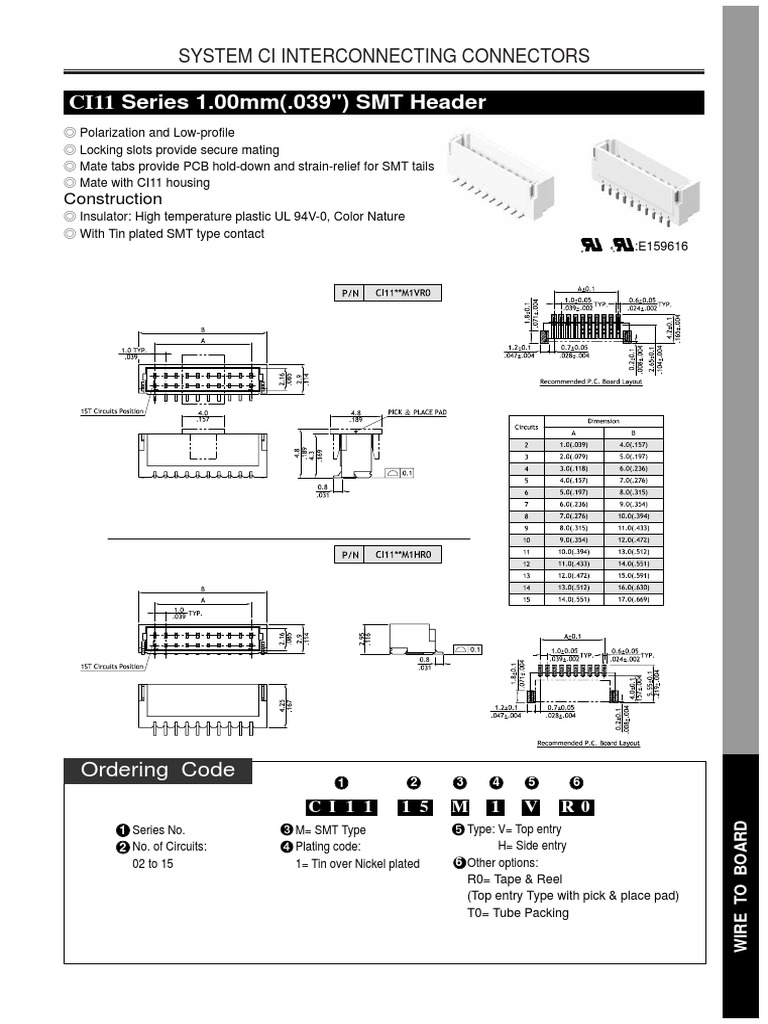

CI11 Series 1.00mm(.039") SMT Header


´ Polarization and Low-profile
´ Locking slots provide secure mating
´ Mate tabs provide PCB hold-down and strain-relief for SMT tails
´ Mate with CI11 housing
Construction
´ Insulator: High temperature plastic UL 94V-0, Color Nature
´ With Tin plated SMT type contact
:E159616

Ordering Code 6
1 2 3 4 5

C I 1 1 1 5 M 1 V R 0
WIRE TO BOARD

1 Series No. C M= SMT Type E Type: V= Top entry


2 No. of Circuits: D Plating code: H= Side entry
02 to 15 1= Tin over Nickel plated 6 Other options:
R0= Tape & Reel
(Top entry Type with pick & place pad)
T0= Tube Packing
SYSTEM CI INTERCONNECTING CONNECTORS

CI11 Series 1.00mm(.039") Wire to Board Connector


´ Latch housing secure terminal in housing
and provides extra terminal retention
´ Terminal accommodated AWG #28 ~ #32
Construction
´ Insulator: Glass filled Polyester UL 94V-0,
Color Nature
´ Terminal: Tin plated Phosphor Bronze
:E159616

Ordering Code
1 2 3 4 5 6
1 2 3 4
C I 1 1 T 0 1 1 P P 0
C I 1 1 1 5 S 0 0 0 0
A Series No.
WIRE TO BOARD

A Series No. D Material:


B No.of Circuits :
B Type: T01=AWG#28~#32 P= Phosphor Bronze
C 02 to 15 C Plating code: E Plating method:
D S = Connector housing 1= Tin over Nickel plated P=Post plating
E Other options: F Option: 0=Standard
0000= Standard
