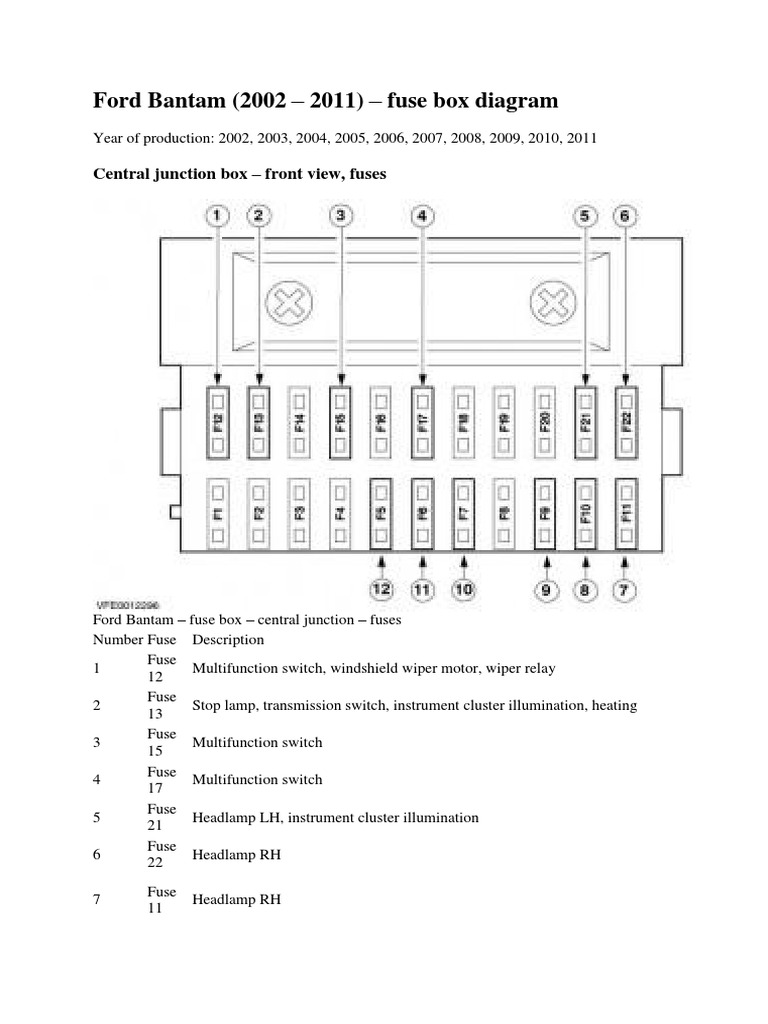

Ford Bantam (2002 – 2011) – fuse box diagram

Year of production: 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011

Central junction box – front view, fuses

Ford Bantam – fuse box – central junction – fuses


Number Fuse Description
Fuse
1 Multifunction switch, windshield wiper motor, wiper relay
12
Fuse
2 Stop lamp, transmission switch, instrument cluster illumination, heating
13
Fuse
3 Multifunction switch
15
Fuse
4 Multifunction switch
17
Fuse
5 Headlamp LH, instrument cluster illumination
21
Fuse
6 Headlamp RH
22
Fuse
7 Headlamp RH
11
Fuse
8 Headlamp LH
10
9 Fuse 9 Multifunction switch
10 Fuse 7 Front parking lamp RH, license plate lamp, rear lamp assembly RH
Front parking lamp LH, rear lamp assembly LH, front parking lamp LH,
11 Fuse 6
instrument cluster illumination, radio, heating
12 Fuse 5 Multifunction switch

Central junction box – top view – relay

Ford Bantam – fuse box – central junction –


top view – relays
Number Description
1 Ignition relay
2 Windshield wiper relay
3 Horn relay
4 A/C switch relay
5 Not used
6 WOT relay (petrol)
7 Power hold relay
8 Fuel pump relay (petrol)
9 Low beam relay
10 High beam relay

WARNING: Terminal and harness assignments for individual connectors will vary
depending on vehicle equipment level, model, and market
