  • Thermoplastic Fixture (TF) Wires

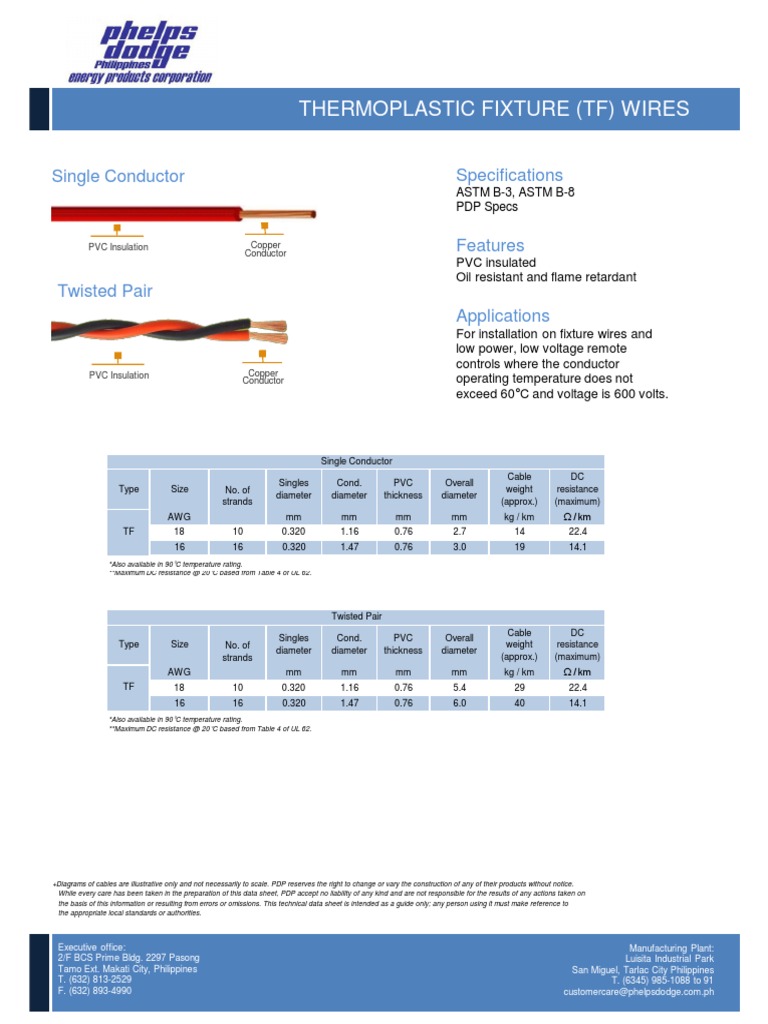

THERMOPLASTIC FIXTURE (TF) WIRES

Single Conductor Specifications


ASTM B-3, ASTM B-8
PDP Specs

PVC Insulation Copper


Conductor
Features
PVC insulated
Oil resistant and flame retardant
Twisted Pair
Applications
For installation on fixture wires and
low power, low voltage remote
controls where the conductor
PVC Insulation Copper
Conductor operating temperature does not
exceed 60°C and voltage is 600 volts.

Single Conductor
Cable DC
Singles Cond. PVC Overall
Type Size No. of weight resistance
diameter diameter thickness diameter
strands (approx.) (maximum)
AWG mm mm mm mm kg / km Ω / km
TF 18 10 0.320 1.16 0.76 2.7 14 22.4
16 16 0.320 1.47 0.76 3.0 19 14.1
*Also available in 90°C temperature rating.
**Maximum DC resistance @ 20°C based from Table 4 of UL 62.

Twisted Pair
Cable DC
Singles Cond. PVC Overall
Type Size No. of weight resistance
diameter diameter thickness diameter
strands (approx.) (maximum)
AWG mm mm mm mm kg / km Ω / km
TF 18 10 0.320 1.16 0.76 5.4 29 22.4
16 16 0.320 1.47 0.76 6.0 40 14.1
*Also available in 90°C temperature rating.
**Maximum DC resistance @ 20°C based from Table 4 of UL 62.

+Diagrams of cables are illustrative only and not necessarily to scale. PDP reserves the right to change or vary the construction of any of their products without notice.
While every care has been taken in the preparation of this data sheet, PDP accept no liability of any kind and are not responsible for the results of any actions taken on
the basis of this information or resulting from errors or omissions. This technical data sheet is intended as a guide only; any person using it must make reference to
the appropriate local standards or authorities.

Executive office: Manufacturing Plant:


2/F BCS Prime Bldg. 2297 Pasong Luisita Industrial Park
Tamo Ext. Makati City, Philippines San Miguel, Tarlac City Philippines
T. (632) 813-2529 T. (6345) 985-1088 to 91
F. (632) 893-4990 customercare@[Link]

Type Size Singles diameter Cond. diameter PVC thickness Overall diameter Cable weight (approx.) DC resistance (maximum) AWG m
