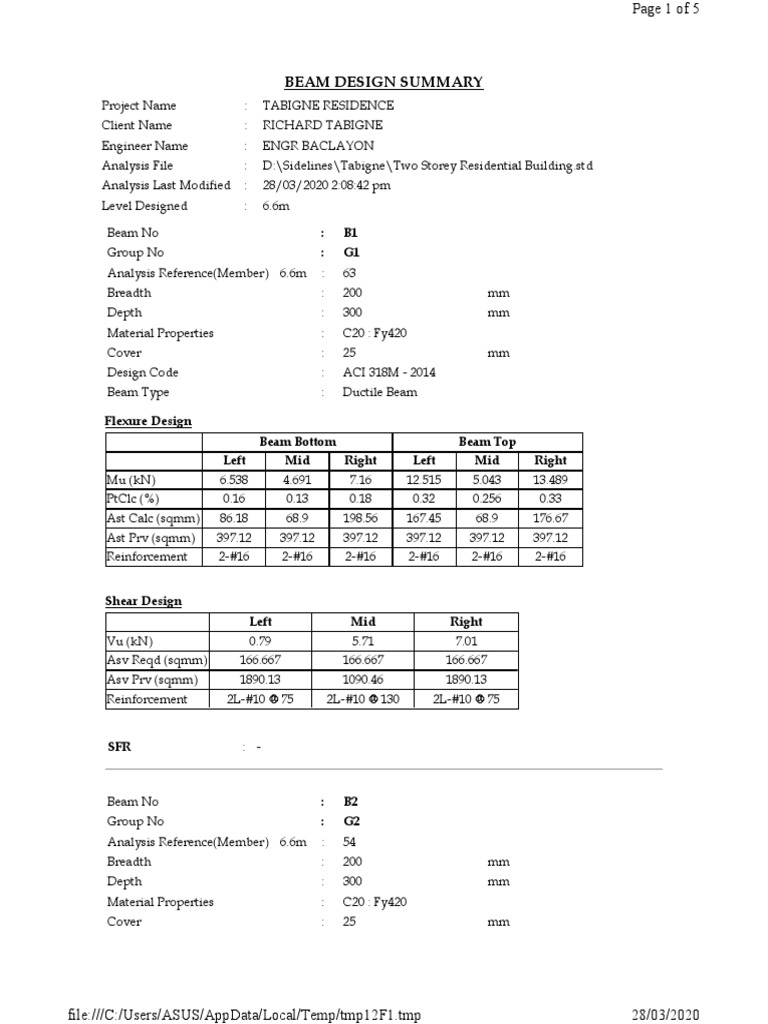

BEAM DESIGN SUMMARY


Project Name : TABIGNE RESIDENCE
Client Name : RICHARD TABIGNE
Engineer Name : ENGR BACLAYON
Analysis File : D:\Sidelines\Tabigne\Two Storey Residential Building.std
Analysis Last Modified : 28/03/2020 2:08:42 pm
Level Designed : 6.6m

Beam No : B1
Group No : G1
Analysis Reference(Member) 6.6m : 63
Breadth : 200 mm
Depth : 300 mm
Material Properties : C20 : Fy420
Cover : 25 mm
Design Code : ACI 318M - 2014
Beam Type : Ductile Beam

Flexure Design
Beam Bottom Beam Top
Left Mid Right Left Mid Right
Mu (kN) 6.538 4.691 7.16 12.515 5.043 13.489
PtClc (%) 0.16 0.13 0.18 0.32 0.256 0.33
Ast Calc (sqmm) 86.18 68.9 198.56 167.45 68.9 176.67
Ast Prv (sqmm) 397.12 397.12 397.12 397.12 397.12 397.12
Reinforcement 2-#16 2-#16 2-#16 2-#16 2-#16 2-#16

Shear Design
Left Mid Right
Vu (kN) 0.79 5.71 7.01
Asv Reqd (sqmm) 166.667 166.667 166.667
Asv Prv (sqmm) 1890.13 1090.46 1890.13
Reinforcement 2L-#10 @ 75 2L-#10 @ 130 2L-#10 @ 75

SFR : -

Beam No : B2
Group No : G2
Analysis Reference(Member) 6.6m : 54
Breadth : 200 mm
Depth : 300 mm
Material Properties : C20 : Fy420
Cover : 25 mm

file:///C:/Users/ASUS/AppData/Local/Temp/tmp12F1.tmp 28/03/2020
Page 2 of 5

Design Code : ACI 318M - 2014


Beam Type : Ductile Beam

Flexure Design
Beam Bottom Beam Top
Left Mid Right Left Mid Right
Mu (kN) 6.369 4.139 6.38 12.504 4.753 13.012
PtClc (%) 0.16 0.13 0.16 0.32 0.256 0.33
Ast Calc (sqmm) 83.92 68.9 198.56 167.3 68.9 174.32
Ast Prv (sqmm) 397.12 397.12 397.12 397.12 397.12 397.12
Reinforcement 2-#16 2-#16 2-#16 2-#16 2-#16 2-#16

Shear Design
Left Mid Right
Vu (kN) 0.92 5.58 6.88
Asv Reqd (sqmm) 166.667 166.667 166.667
Asv Prv (sqmm) 1890.13 1090.46 1890.13
Reinforcement 2L-#10 @ 75 2L-#10 @ 130 2L-#10 @ 75

SFR : -

Beam No : B3
Group No : G3
Analysis Reference(Member) 6.6m : 55
Breadth : 200 mm
Depth : 300 mm
Material Properties : C20 : Fy420
Cover : 25 mm
Design Code : ACI 318M - 2014
Beam Type : Ductile Beam

Flexure Design
Beam Bottom Beam Top
Left Mid Right Left Mid Right
Mu (kN) 5.748 4.357 6.5 11.956 4.799 12.87
PtClc (%) 0.14 0.13 0.16 0.3 0.256 0.33
Ast Calc (sqmm) 75.62 68.9 198.56 159.74 68.9 172.35
Ast Prv (sqmm) 397.12 397.12 397.12 397.12 397.12 397.12
Reinforcement 2-#16 2-#16 2-#16 2-#16 2-#16 2-#16

Shear Design
Left Mid Right
Vu (kN) 1.06 5.45 6.75

file:///C:/Users/ASUS/AppData/Local/Temp/tmp12F1.tmp 28/03/2020
Page 3 of 5

Asv Reqd (sqmm) 166.667 166.667 166.667


Asv Prv (sqmm) 1890.13 1090.46 1890.13
Reinforcement 2L-#10 @ 75 2L-#10 @ 130 2L-#10 @ 75

SFR : -

Beam No : B4
Group No : G4
Analysis Reference(Member) 6.6m : 52
Breadth : 200 mm
Depth : 300 mm
Material Properties : C20 : Fy420
Cover : 25 mm
Design Code : ACI 318M - 2014
Beam Type : Ductile Beam

Flexure Design
Beam Bottom Beam Top
Left Mid Right Left Mid Right
Mu (kN) 0 8.561 0 17.723 0 16.521
PtClc (%) 0.13 0.21 0.13 0.35 0.256 0.33
Ast Calc (sqmm) 198.56 113.41 198.56 184.9 68.9 176.67
Ast Prv (sqmm) 397.12 397.12 397.12 397.12 397.12 397.12
Reinforcement 2-#16 2-#16 2-#16 2-#16 2-#16 2-#16

Shear Design
Left Mid Right
Vu (kN) 14.15 9.5 13.78
Asv Torsion (sqmm) 0 0 0
Asv Reqd (sqmm) 166.667 166.667 166.667
Asv Prv (sqmm) 1890.13 1350.1 1890.13
Reinforcement 2L-#10 @ 75 2L-#10 @ 105 2L-#10 @ 75

SFR : -

Beam No : B5
Group No : G4
Analysis Reference(Member) 6.6m : 51
Breadth : 200 mm
Depth : 300 mm
Material Properties : C20 : Fy420
Cover : 25 mm

file:///C:/Users/ASUS/AppData/Local/Temp/tmp12F1.tmp 28/03/2020
Page 4 of 5

Design Code : ACI 318M - 2014


Beam Type : Ductile Beam

Flexure Design
Beam Bottom Beam Top
Left Mid Right Left Mid Right
Mu (kN) 0 8.561 0 16.702 0 17.543
PtClc (%) 0.13 0.21 0.13 0.33 0.256 0.35
Ast Calc (sqmm) 68.9 113.41 198.56 176.67 68.9 182.93
Ast Prv (sqmm) 397.12 397.12 397.12 397.12 397.12 397.12
Reinforcement 2-#16 2-#16 2-#16 2-#16 2-#16 2-#16

Shear Design
Left Mid Right
Vu (kN) 13.84 9.44 14.09
Asv Torsion (sqmm) 0 0 0
Asv Reqd (sqmm) 166.667 166.667 166.667
Asv Prv (sqmm) 1890.13 1350.1 1890.13
Reinforcement 2L-#10 @ 75 2L-#10 @ 105 2L-#10 @ 75

SFR : -

Beam No : B6
Group No : G5
Analysis Reference(Member) 6.6m : 50
Breadth : 200 mm
Depth : 300 mm
Material Properties : C20 : Fy420
Cover : 25 mm
Design Code : ACI 318M - 2014
Beam Type : Ductile Beam

Flexure Design
Beam Bottom Beam Top
Left Mid Right Left Mid Right
Mu (kN) 0 8.561 0 17.793 0 16.452
PtClc (%) 0.13 0.21 0.13 0.35 0.256 0.33
Ast Calc (sqmm) 198.56 113.41 198.56 185.66 68.9 176.67
Ast Prv (sqmm) 397.12 397.12 397.12 397.12 397.12 397.12
Reinforcement 2-#16 2-#16 2-#16 2-#16 2-#16 2-#16

Shear Design
Left Mid Right

file:///C:/Users/ASUS/AppData/Local/Temp/tmp12F1.tmp 28/03/2020
Page 5 of 5

Vu (kN) 14.17 9.52 13.76


Asv Torsion (sqmm) 0 0 0
Asv Reqd (sqmm) 166.667 166.667 166.667
Asv Prv (sqmm) 1890.13 1350.1 1890.13
Reinforcement 2L-#10 @ 75 2L-#10 @ 105 2L-#10 @ 75

SFR : -

Beam No : B7
Group No : G5
Analysis Reference(Member) 6.6m : 49
Breadth : 200 mm
Depth : 300 mm
Material Properties : C20 : Fy420
Cover : 25 mm
Design Code : ACI 318M - 2014
Beam Type : Ductile Beam

Flexure Design
Beam Bottom Beam Top
Left Mid Right Left Mid Right
Mu (kN) 0 8.561 0 16.766 0 17.479
PtClc (%) 0.13 0.21 0.13 0.33 0.256 0.34
Ast Calc (sqmm) 68.9 113.41 198.56 176.67 68.9 182.23
Ast Prv (sqmm) 397.12 397.12 397.12 397.12 397.12 397.12
Reinforcement 2-#16 2-#16 2-#16 2-#16 2-#16 2-#16

Shear Design
Left Mid Right
Vu (kN) 13.83 9.45 14.1
Asv Torsion (sqmm) 0 0 0
Asv Reqd (sqmm) 166.667 166.667 166.667
Asv Prv (sqmm) 1890.13 1350.1 1890.13
Reinforcement 2L-#10 @ 75 2L-#10 @ 105 2L-#10 @ 75

SFR : -
