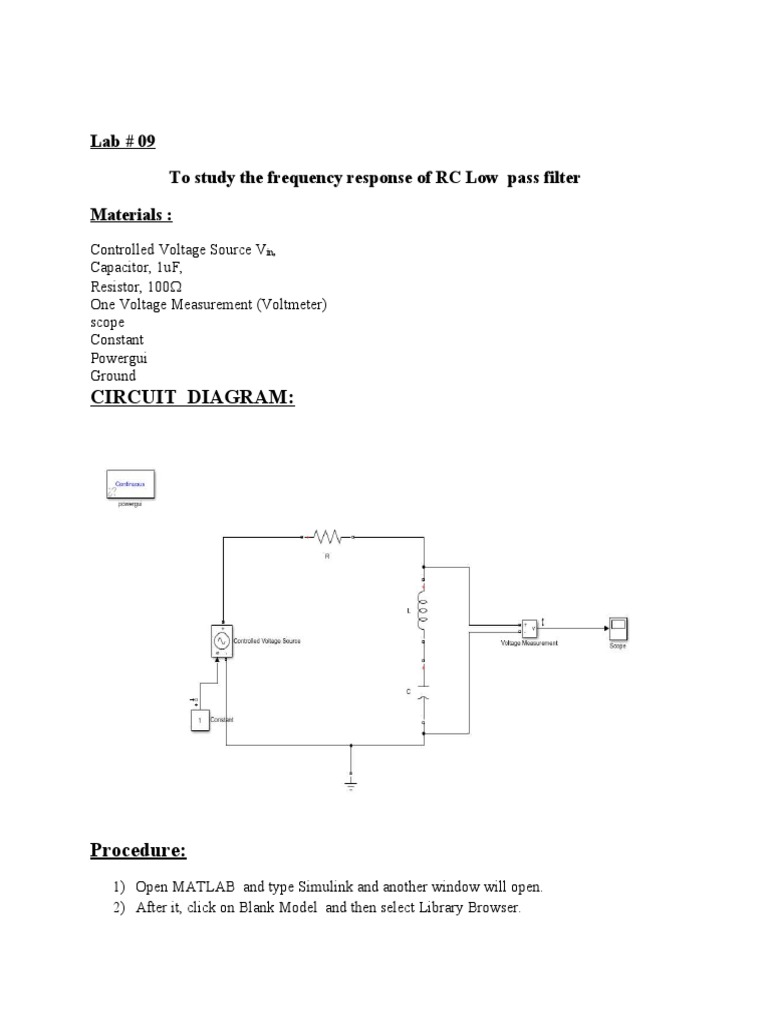

Lab # 09

To study the frequency response of RC Low pass filter

Materials :
Controlled Voltage Source Vin,
Capacitor, 1uF,
Resistor, 100
One Voltage Measurement (Voltmeter)
scope
Constant
Powergui
Ground
CIRCUIT DIAGRAM:

Procedure:
1) Open MATLAB and type Simulink and another window will open.
2) After it, click on Blank Model and then select Library Browser.
3) In Library Browser ,click on Simscape
4) In simscape ,click on power system and then Specialized technology .And then select
Fundamental Blocks .
5) From Fundamental Blocks we select Electrical sources controlled voltage source and for
elements like resistance ,inductor and capacitor we select Element Block.
6) Then go to analysis click on control design and select on frequency response estimation .
7) Then another window willopen ,select input signal (sinestream having multiple
frequency ). Set frequency range from 0.1Hz to 100000Hz and space frequency of 50 Hz.
8) Click and drag the frequency to modify parameters values.
Set the amplitude 1, Number of period 16
Setting period 4 Ramp period 0.
And then click on estimate and then select on Biode graph. Right click on graph and
from properties select scale in db.
Graph:
