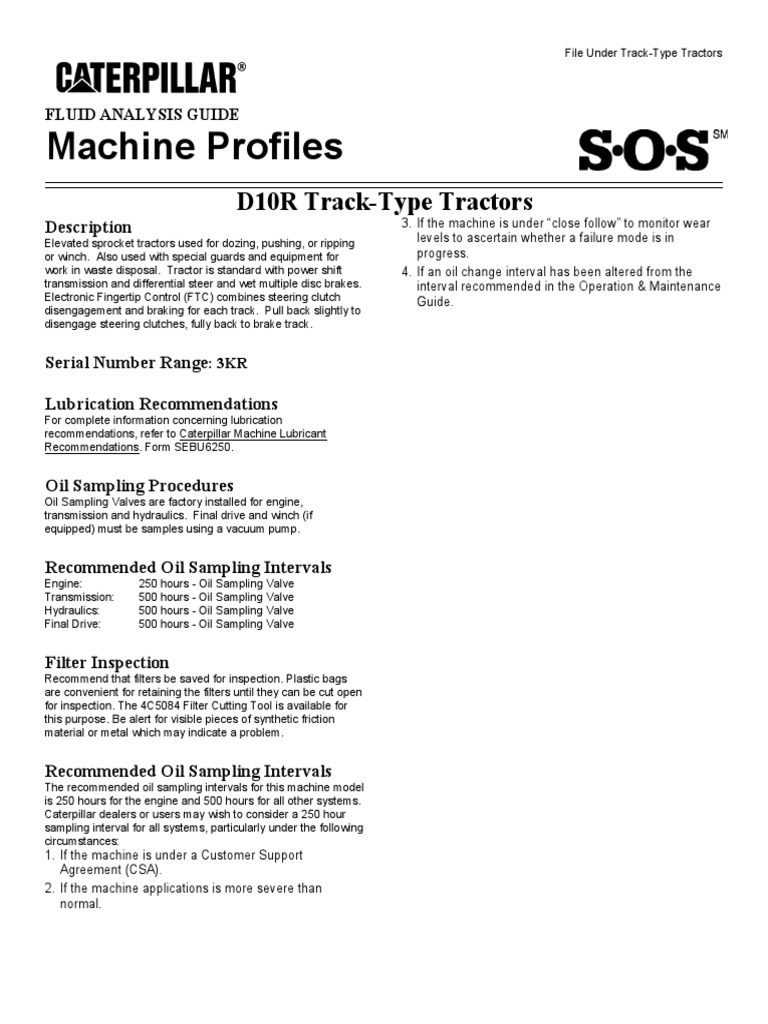

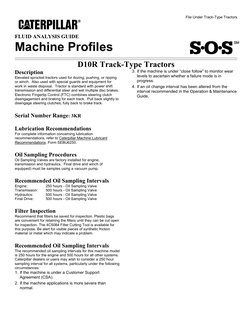

File Under Track-Type Tractors

FLUID ANALYSIS GUIDE

Machine Profiles
D10R Track-Type Tractors
Description
Elevated sprocket tractors used for dozing, pushing, or ripping
or winch. Also used with special guards and equipment for
work in waste disposal. Tractor is standard with power shift
transmission and differential steer and wet multiple disc brakes.
Electronic Fingertip Control (FTC) combines steering clutch
disengagement and braking for each track. Pull back slightly to
disengage steering clutches, fully back to brake track.
3. If the machine is under “close follow” to monitor wear
levels to ascertain whether a failure mode is in
progress.
4. If an oil change interval has been altered from the
interval recommended in the Operation & Maintenance
Guide.

Serial Number Range: 3KR

Lubrication Recommendations
For complete information concerning lubrication
recommendations, refer to Caterpillar Machine Lubricant
Recommendations. Form SEBU6250.

Oil Sampling Procedures

Oil Sampling Valves are factory installed for engine,
transmission and hydraulics. Final drive and winch (if
equipped) must be samples using a vacuum pump.

Recommended Oil Sampling Intervals

Engine: 250 hours - Oil Sampling Valve
Transmission: 500 hours - Oil Sampling Valve
Hydraulics: 500 hours - Oil Sampling Valve
Final Drive: 500 hours - Oil Sampling Valve

Filter Inspection
Recommend that filters be saved for inspection. Plastic bags
are convenient for retaining the filters until they can be cut open
for inspection. The 4C5084 Filter Cutting Tool is available for
this purpose. Be alert for visible pieces of synthetic friction
material or metal which may indicate a problem.

Recommended Oil Sampling Intervals

The recommended oil sampling intervals for this machine model
is 250 hours for the engine and 500 hours for all other systems.
Caterpillar dealers or users may wish to consider a 250 hour
sampling interval for all systems, particularly under the following
circumstances:
1. If the machine is under a Customer Support
Agreement (CSA).
2. If the machine applications is more severe than
normal.

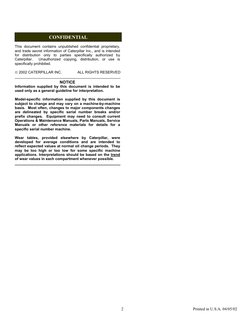

 CONFIDENTIAL
This document contains unpublished confidential proprietary,
and trade secret information of Caterpillar Inc., and is intended
for distribution only to parties specifically authorized by
Caterpillar. Unauthorized copying, distribution, or use is
specifically prohibited.

 2002 CATERPILLAR INC. ALL RIGHTS RESERVED

NOTICE
Information supplied by this document is intended to be
used only as a general guideline for interpretation.

Model-specific information supplied by this document is

subject to change and may vary on a machine-by-machine
basis. Most often, changes to major components changes
are delineated by specific serial number breaks and/or
prefix changes. Equipment may need to consult current
Operations & Maintenance Manuals, Parts Manuals, Service
Manuals or other reference materials for details for a
specific serial number machine.

Wear tables, provided elsewhere by Caterpillar, were

developed for average conditions and are intended to
reflect expected values at normal oil change periods. They
may be too high or too low for some specific machine
applications. Interpretations should be based on the trend
of wear values in each compartment whenever possible.

2 Printed in U.S.A. 04/05/02

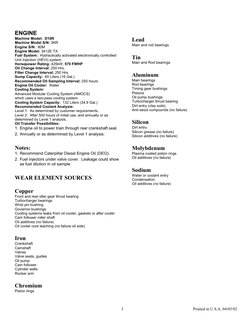

ENGINE
Machine Model: D10R
Machine Model S/N: 3KR
Lead
Main and rod bearings
Engine S/N: 80M
Engine Model: 3412E TA
Fuel System: Hydraulically activated electronically controlled
Unit Injection (HEVI) system.
Tin
Horsepower Rating: 425kW, 570 FWHP Main and Rod bearings
Oil Change Interval: 250 Hrs.
Filter Change Interval: 250 Hrs.
Sump Capacity: 60 Liters (16 Gal.) Aluminum
Recommended Oil Sampling Interval: 250 hours Main bearings
Engine Oil Cooler: Water Rod bearings
Cooling System: Timing gear bushings
Advanced Modular Cooling System (AMOCS) Pistons
which uses a two-pass cooling system. Oil pump bushings
Cooling System Capacity: 132 Liters (34.9 Gal.) Turbocharger thrust bearing
Recommended Coolant Analysis: Dirt entry (clay soils)
Level 1: As determined by customer requirements. Anti-seize compounds (no failure)
Level 2: After 500 hours of initial use, and annually or as
determined by Level 1 analysis.
Oil Transfer Possibilities: Silicon
1. Engine oil to power train through rear crankshaft seal. Dirt entry
Silicon grease (no failure)
2. Annually or as determined by Level 1 analysis. Silicon additives (no failure)

Notes: Molybdenum
1. Recommend Caterpillar Diesel Engine Oil (DEO). Plasma coated piston rings
2. Fuel injectors under valve cover. Leakage could show Oil additives (no failure)
as fuel dilution in oil sample.
Sodium
Water or coolant entry
WEAR ELEMENT SOURCES Condensation
Oil additives (no failure)

Copper
Front and rear idler gear thrust bearing
Turbocharger bearings
Wrist pin bushing
Governor bushings
Cooling systems leaks from oil cooler, gaskets or after cooler
Cam follower roller shaft
Oil additives (no failure)
Oil cooler core leaching (no failure oil side)

Iron
Crankshaft
Camshaft
Valves
Valve seats, guides
Oil pump
Cam follower
Cylinder walls
Rocker arm

Chromium
Piston rings

3 Printed in U.S.A. 04/05/02

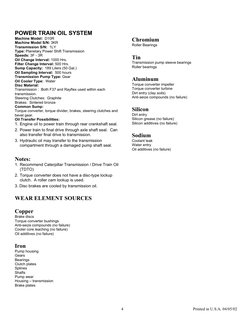

POWER TRAIN OIL SYSTEM
Machine Model: D10R
Machine Model S/N: 3KR
Chromium
Roller Bearings
Transmission S/N: 1LY
Type: Planetary Power Shift Transmission
Speeds: 3F - 3R
Oil Change Interval: 1000 Hrs. Tin
Filter Change Interval: 500 Hrs. Transmission pump sleeve bearings
Sump Capacity: 189 Liters (50 Gal.) Roller bearings
Oil Sampling Interval: 500 hours
Transmission Pump Type: Gear
Oil Cooler Type: Water Aluminum
Disc Material: Torque converter impeller
Transmission : Both F37 and Rayflex used within each Torque converter turbine
transmission. Dirt entry (clay soils)
Steering Clutches: Graphite Anti-seize compounds (no failure)
Brakes: Sintered bronze
Common Sump:
Torque converter, torque divider, brakes, steering clutches and Silicon
bevel gear. Dirt entry
Oil Transfer Possibilities: Silicon grease (no failure)
1. Engine oil to power train through rear crankshaft seal. Silicon additives (no failure)
2. Power train to final drive through axle shaft seal. Can
also transfer final drive to transmission. Sodium
3. Hydraulic oil may transfer to the transmission Coolant leak
compartment through a damaged pump shaft seal. Water entry
Oil additives (no failure)

Notes:
1. Recommend Caterpillar Transmission / Drive Train Oil
(TDTO)
2. Torque converter does not have a disc-type lockup
clutch. A roller cam lockup is used.
3. Disc brakes are cooled by transmission oil.

WEAR ELEMENT SOURCES

Copper
Brake discs
Torque converter bushings
Anti-seize compounds (no failure)
Cooler core leaching (no failure)
Oil additives (no failure)

Iron
Pump housing
Gears
Bearings
Clutch plates
Splines
Shafts
Pump wear
Housing – transmission
Brake plates

4 Printed in U.S.A. 04/05/02

HYDRAULICS
Machine Model: D10R
Machine Model S/N: 3KR
Sodium
Coolant leak
Oil Change Interval: 2000 Hrs.
Condensation
Filter Change Interval: 500 Hrs.
Water entry
Sump Capacity: 108 Liters (28.5 Gal.)
Oil additives (no failure)
Oil Sampling Interval: 500 hours
Oil Cooler Type: Water
Pump Type(s):
Vane pump geared from flywheel controls flow to dozer and
ripper. Gear pump control flow to Heat Exchanger
Common Sump: Separate
Oil Transfer Possibilities:
1. Hydraulic oil to engine oil through pump shaft seal.

Notes:
1. Recommend Caterpillar Hydraulic Oil (HYDO).
2. Disc brakes are cooled by transmission oil, not
hydraulic oil.

WEAR ELEMENT SOURCES

Copper
Bronze pump components
Oil additives (no failure)
Anti-seize compounds (no failure)
Cooler core leaching (no failure)

Iron
Pump housing
Gears
Bearings
Cylinder wear
Pump wear
Brake discs

Chromium
Bearings
Cylinder rods

Tin
Roller bearings

Aluminum
Dirt entry (clay soils)
Pump body wear (gear pump)
Anti-seize compounds (no failure)

Silicon
Dirt entry
Silicon grease (no failure)
Silicon additives (no failure)

5 Printed in U.S.A. 04/05/02
