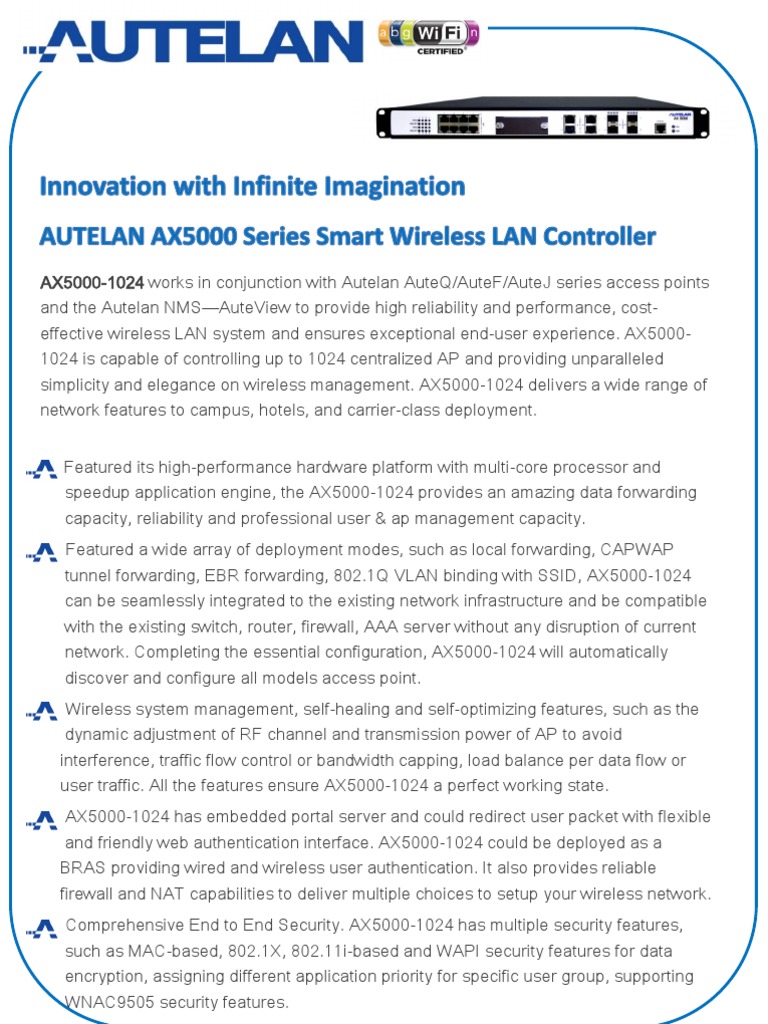

AX5000-1024 works in conjunction with Autelan AuteQ/AuteF/AuteJ series access points

and the Autelan NMS—AuteView to provide high reliability and performance, cost-
effective wireless LAN system and ensures exceptional end-user experience. AX5000-
1024 is capable of controlling up to 1024 centralized AP and providing unparalleled
simplicity and elegance on wireless management. AX5000-1024 delivers a wide range of
network features to campus, hotels, and carrier-class deployment.

• Featured its high-performance hardware platform with multi-core processor and

speedup application engine, the AX5000-1024 provides an amazing data forwarding
capacity, reliability and professional user & ap management capacity.
• Featured a wide array of deployment modes, such as local forwarding, CAPWAP
tunnel forwarding, EBR forwarding, 802.1Q VLAN binding with SSID, AX5000-1024
can be seamlessly integrated to the existing network infrastructure and be compatible
with the existing switch, router, firewall, AAA server without any disruption of current
network. Completing the essential configuration, AX5000-1024 will automatically
discover and configure all models access point.
• Wireless system management, self-healing and self-optimizing features, such as the
dynamic adjustment of RF channel and transmission power of AP to avoid
interference, traffic flow control or bandwidth capping, load balance per data flow or
user traffic. All the features ensure AX5000-1024 a perfect working state.
• AX5000-1024 has embedded portal server and could redirect user packet with flexible
and friendly web authentication interface. AX5000-1024 could be deployed as a
BRAS providing wired and wireless user authentication. It also provides reliable
firewall and NAT capabilities to deliver multiple choices to setup your wireless network.
• Comprehensive End to End Security. AX5000-1024 has multiple security features,
such as MAC-based, 802.1X, 802.11i-based and WAPI security features for data
encryption, assigning different application priority for specific user group, supporting
WNAC9505 security features.
• Carrier-class reliability. AX5000-512 supports N +1 redundancy and backup basing on
VRRP which delivers high security, availability, and reliability required by large scale
deployment and mission-critical business applications. All the managed Aps will
switch to the standby controller automatically without user access disruption or
disconnection if the master controller fails to action.

All these features decide AX5000-1024 support wireless functions in organizations of all
size from branch offices to small enterprise and large campus environment. It’s really
ideal for satisfying complicated wireless requirement but simple configuration need

Module Type ： AX51-1GTX

Description ： 1 10G SFP port extended module for AX5000-1024

 Item Sub-item description
Dimensions(mm) 440×360×44.5
Weight 8 Kg
Physical spec
Humidity 10-90% condensation
Operating Temperature 0 - 40°C
Slot number 1

10GBase-SR ports 1 (at Max)

Interface spec 10/100/1000
12 (at Max)
Base-T Ethernet ports
1000Base-X SFP ports 4 (at Max)
1 +1 power redundancy 1+1
Operating Voltage 100-240V AC - 48V DC
Electrical spec
Operating Current 50Hz/60Hz (±3Hz)
Power consumption
85W
(full configuration)
Number managed AP in
1024
centralized mode
Remote AP number 4096

Hardware related Wireless users 16384

Throughput 44Gbps
3DES encryption
5Gbps
performance
Capacity spec AES-CCM encryption
5Gbps
performance
L2/L3 roaming
< 50ms
switch time
802.11 data processing
5Gbps
performance
Host IP table 16K
Port based vlan 4094

EN55022 Class A、ETSI EN 300 386、CISPR 22

EMI ClassA、GB9254 ClassA、IEC61000-3-2、IEC
61000-3-3 FCC ClassA、VCCI ClassA
Electromagnetic
compatibility and EN55024 、ETSI EN 300 386、CISPR 24、GB/T
EMS
safety 17626、GB/T 17618、IEC 61000-4

EN 60950、UL 60950、CAN/CSA-C22.2 NO. 60950

Safety 、GB 4943、IEC 60950、AS/NZS 60950
 Item Sub-item description
802.11e-QoS
WMM power save mode
L2/L3 quick roaming switching
User behavior control Bandwidth capping per ssid
Bandwidth capping per user
Black/White list
User isolation per ssid
Centralized management based on CAP/WAP
SSID-based intelligent forwarding mode selection
AP centralized Local forwarding mode
management CAPWAP tunnel forwarding mode
EBR tunnel forwarding mode
SSID and VLAN binding
802.11i（WPA、WPA2）
EAP-PEAP、EAP-TLS、EAP-TTLS
Internal & External portal server
Security
Embedded radius server
Radius server backup and switch over
PPPoE server
ARP attack and ARP deception protection
Flow-based load balance
RF User-based load balance
management Automatic Channel Selection
Detection and adjustment of channel conflict
Software feature
Rogue AP detection and interference suppression
Trunk
802.1d/802.1w/802.1s
IGMP Snooping
VRRP based redundancy and backup
DHCP server
DHCP Relay
DHCP option 43, 52, 60 82, 138, 189
Extended Network
RIP
Features
OSPF
Policy route
QinQ
L3~L4 IP based ACL
802.1d spanning tree protocol
Source and destination network address translation
FTP/TFTP server
Web management through HTTP/HTTPS
CLI management through SSH/Telnet/Console
Role based access control
Management and SNMP V1/V2/V3
Maintenance Private and public MIBS
Detailed SYSLOGS with system event notification
Configuration file download and upload
AP/AC firmware upgrade
